Trevor Philips 3D Printing Figurine | Static

(5)
cm: 16 w x 11.7 d x 13.68 h
in: 6.299 w x 4.606 d x 5.386 h

Source Files

|

Description

|

Printing Details

This 3d model consists of a file in StereoLithography (.STL) format that has been optimized for 3d printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

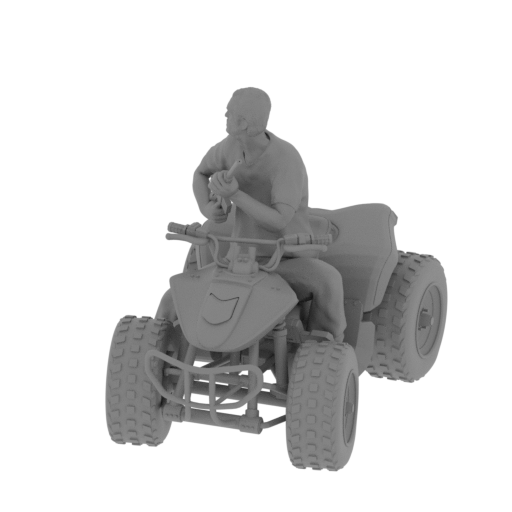

gta5 (repaired) (repaired ).stl
66.92 MiB 71 h 57 min 45 m 117 x 160 x 137 Download

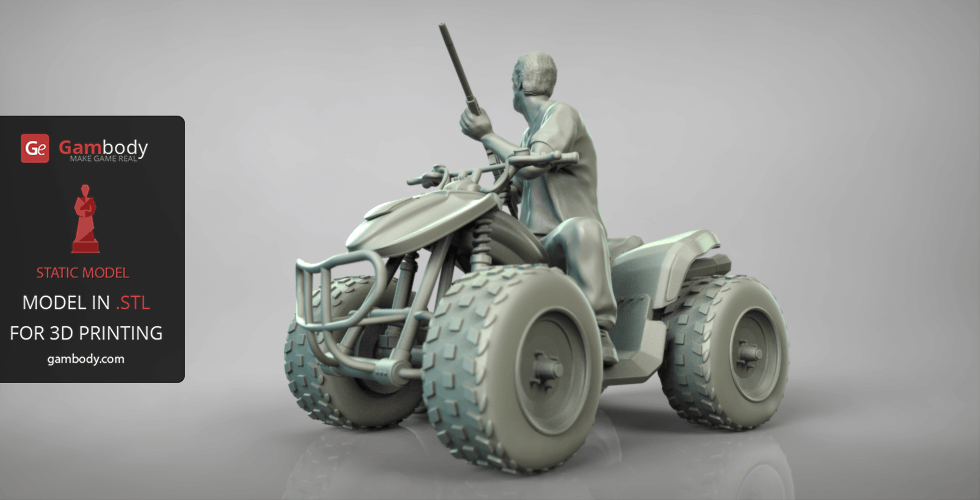

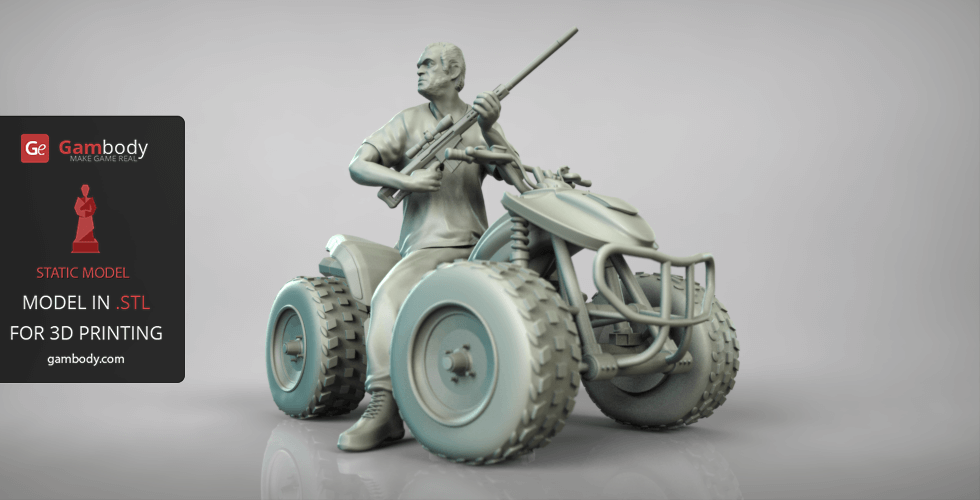

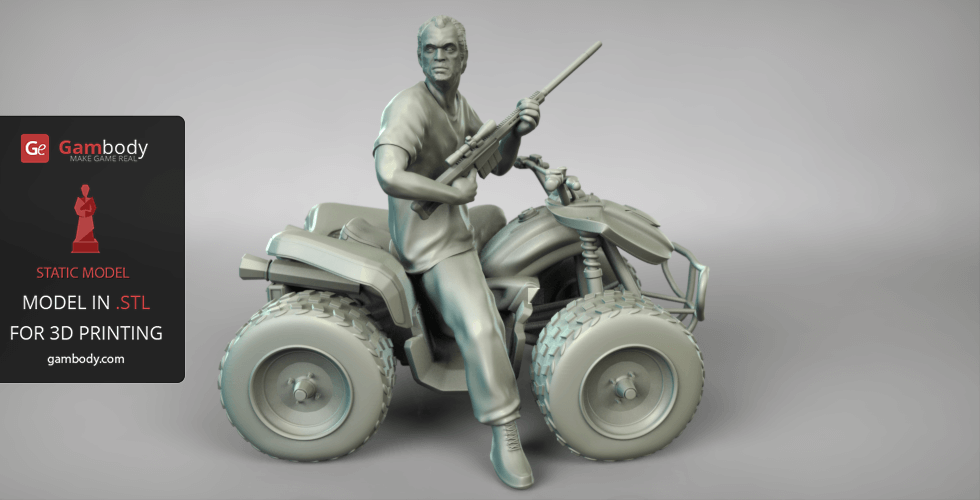

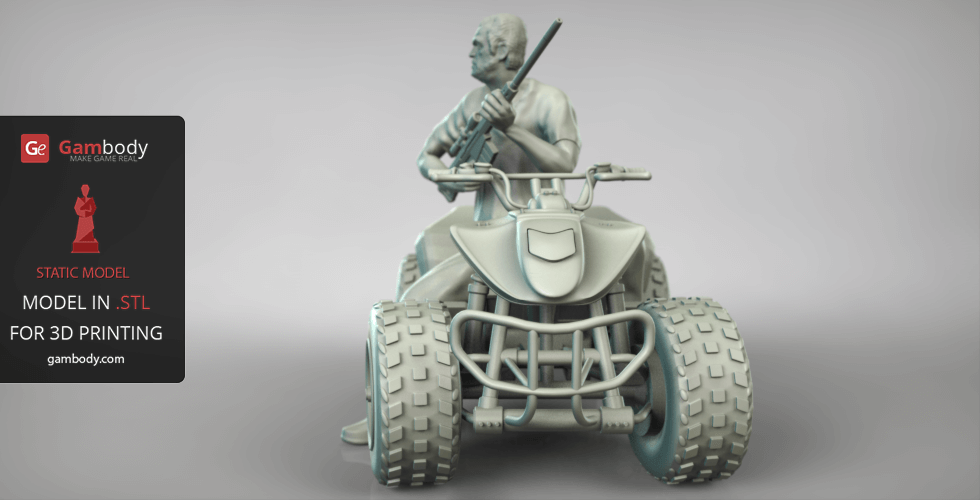

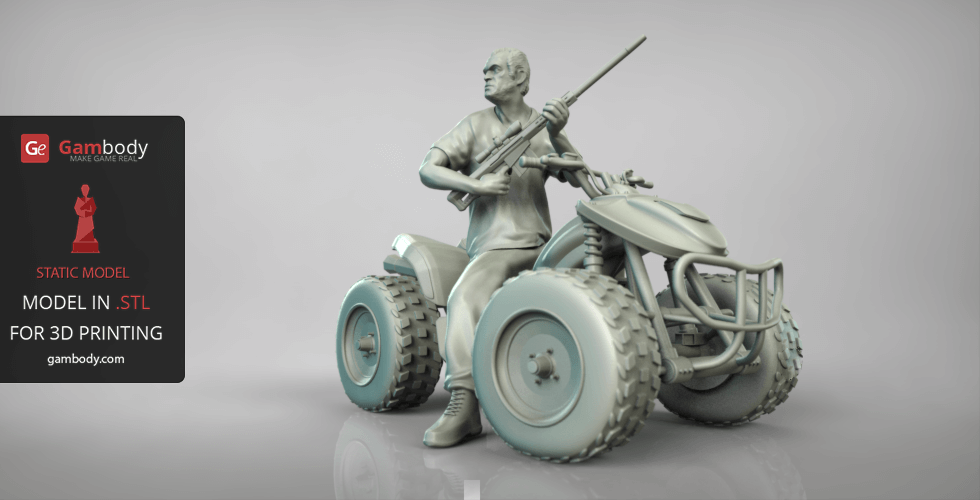

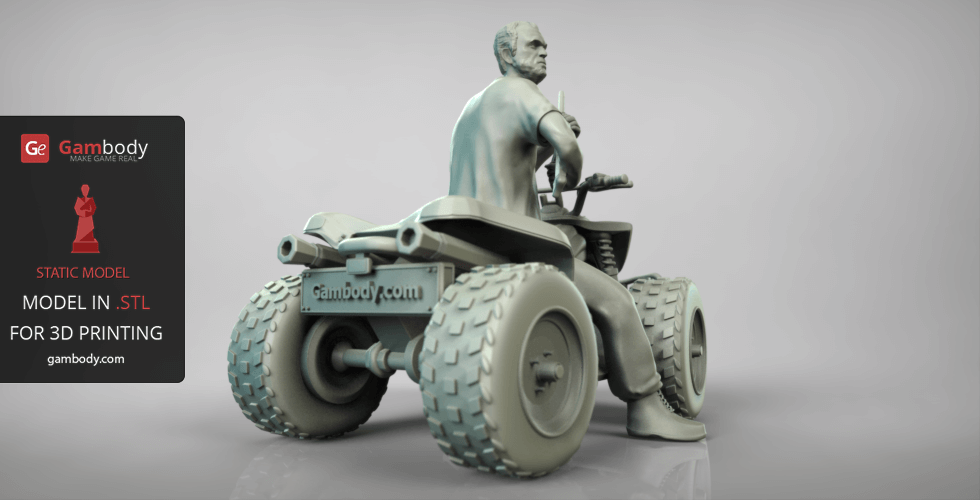

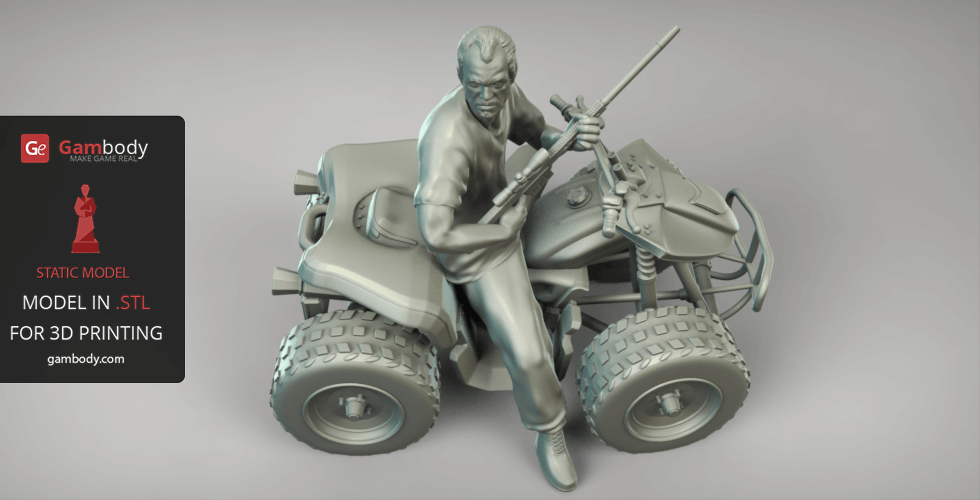

Trevor 3D printable model is inspired from the well-known character from the open world, action-adventure video game. The protagonist is renowned for his robbery skills and for setting up dangerous heist missions. Together with his partners in crime, they fight their way through the police, escaping potential imprisonment. Taking up high-risk jobs and living on the edge, the character rides speedy cars and makes use of fire weapons to elope.

Trevor Philips 3D model is 116.97mm deep, 160mm wide, and 136.77mm tall. You will spend almost 59 hours and 35m or 277g of filament to 3D print it.

Trevor Philips model comes in static form and is provided with a support base and is available for download in STL file format. The file was checked and repaired for errors on Netfabb and created in CURA 15.06 and Repetier Host.

Download Grand Theft Auto Trevor 3D model by clicking on the “Buy” button in the top-right corner of the page. Proceed to checkout, provide your PayPal account or credit card information and get the STL file.

We got many other game heroes featured on our 3D marketplace, check the most popular of them Witcher 3D model, Kratos model, Lara Croft or Vault Perks 3D models.

Generic

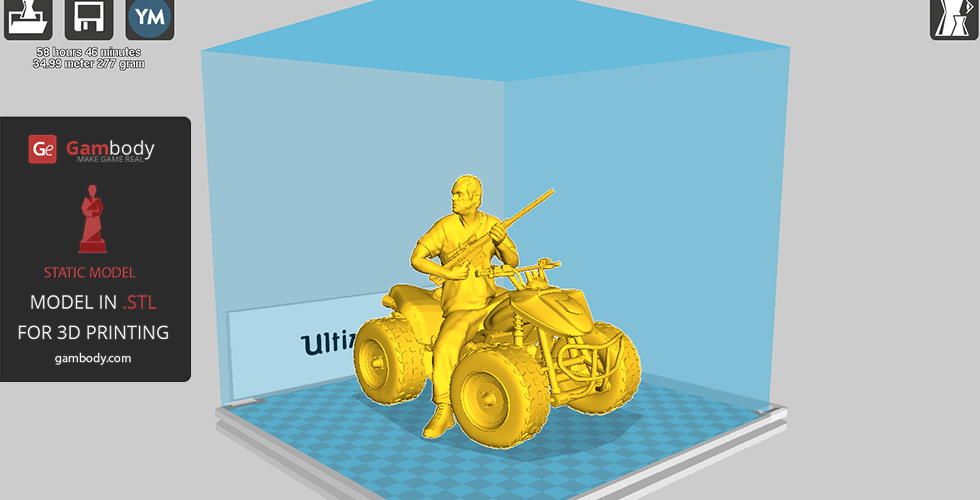

This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality

  • Layer height: 0.1mm*
  • Initial layer thickness: 0.3mm
  • Bottom/top pattern: lines
  • Skin perimeter line count: 0
  • Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

Check this Simplify3D User Guidelines to avoid any 3D printing problems with this software.

As a STL file provider, our goal is to ensure that the files are error-free and printable in the most accurate way. This is why, we only test print the most difficult segments of the model’s parts.

The model’s parts have been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups for figure:

  • Infill speed: 50mm/s
  • Outer shell speed : 30mm/s
  • Inner shell speed: 20mm/s
  • Top/bottom speed: 20mm/s
  • Support speed: 50mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 30mm/s
  • Amount of slower layers: 4

Speed setups for axes: It is recommended to print the axes at 0.1mm layer height.

  • Infill speed: 50mm/s
  • Outer shell speed: 20mm/s
  • Inner shell speed: 20mm/s
  • Top/Bottom speed: 20mm/s
  • Support speed: 30mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 20mm/s
  • Amount of slower layers: 4

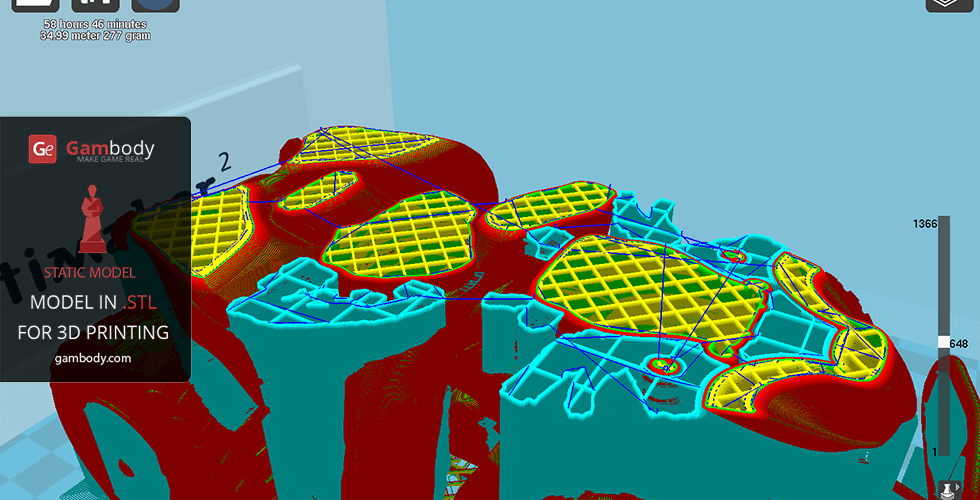

Infill:

  • Infill pattern: Grid
  • Line distance: 3mm
  • Infill overlap: 20%
  • Infill layers: 0

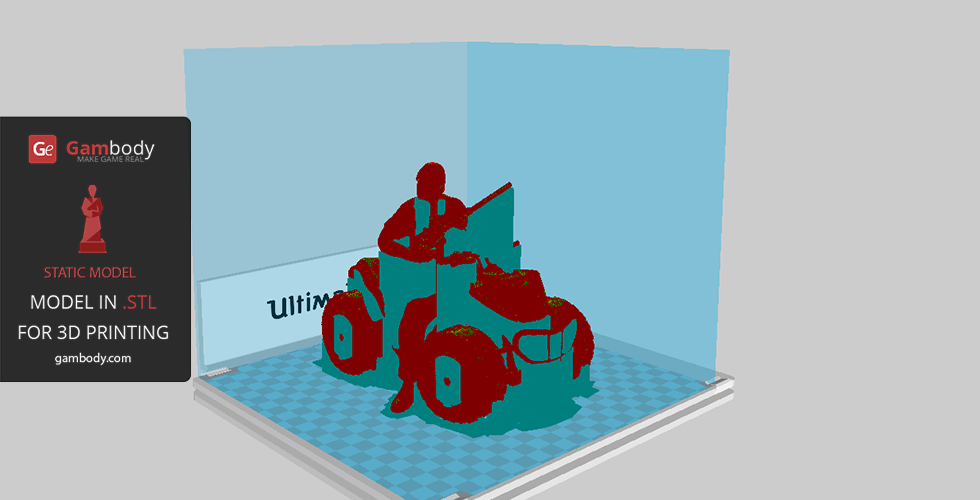

Support:

  • Enable support: Check
  • Placement: Everywhere
  • Overhang angle: 30°
  • X/Y distance: 0.7mm
  • Top distance: 0.2mm
  • Bottom distance: 0.2mm
  • Stair step height: 0.5mm
  • Join distance: 0.7mm
  • Area smoothing: 0.6mm
  • Use towers: check
  • Pattern: Lines
  • Line distance: 1.5mm

Platform adhesion:

  • Type: Brim
  • Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations:

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation.  Apply other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
