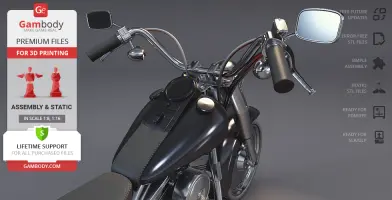

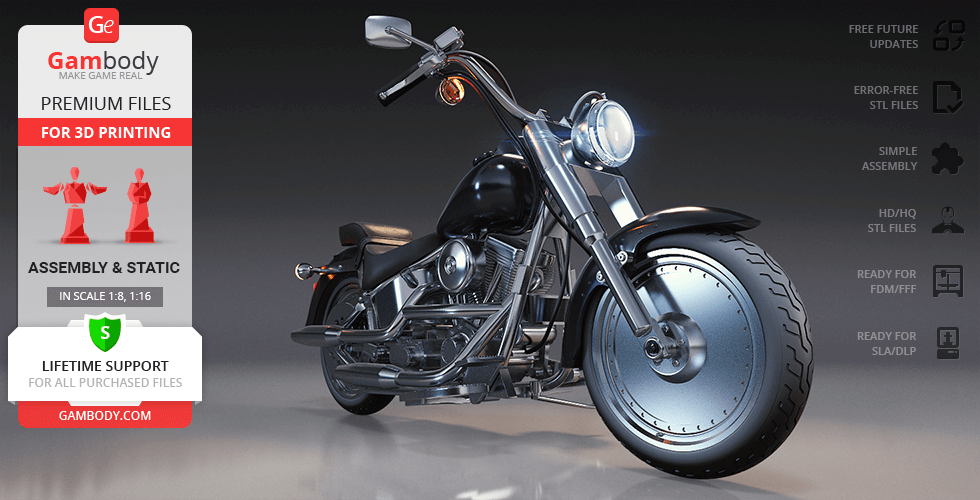

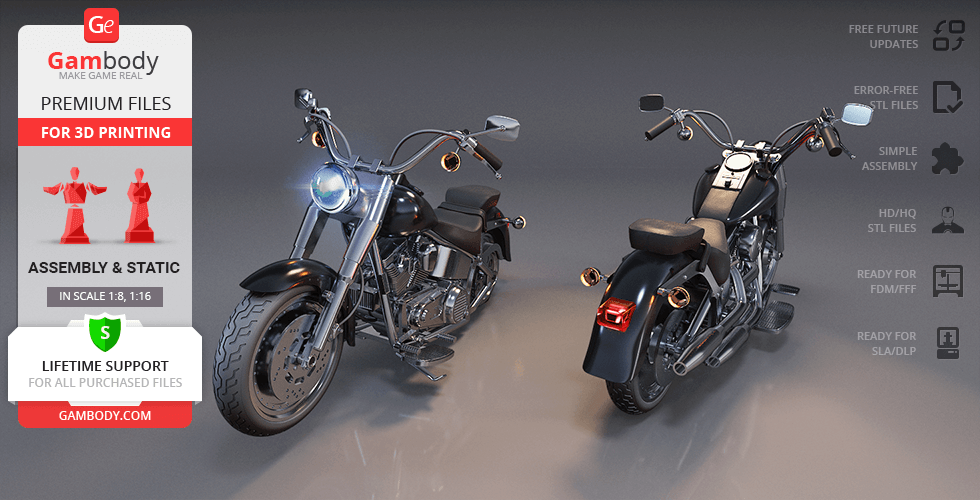

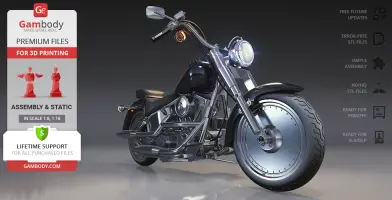

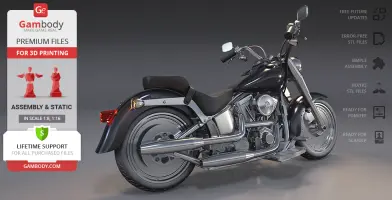

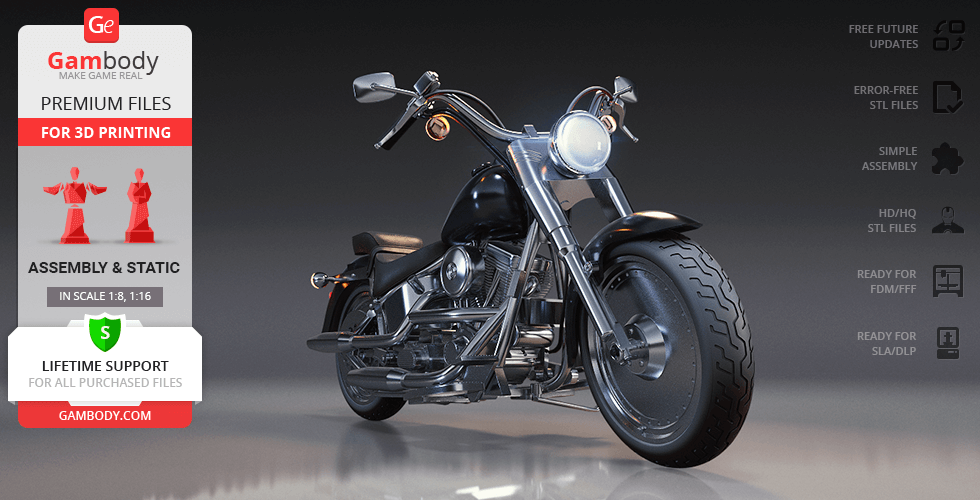

Harley-Davidson Fat Boy 1991 3D Printing Model | Assembly

(9)
cm: 14.4 w x 30 d x 16.2 h
in: 5.669 w x 11.811 d x 6.378 h

Source Files

|

Description

|

Printing Details

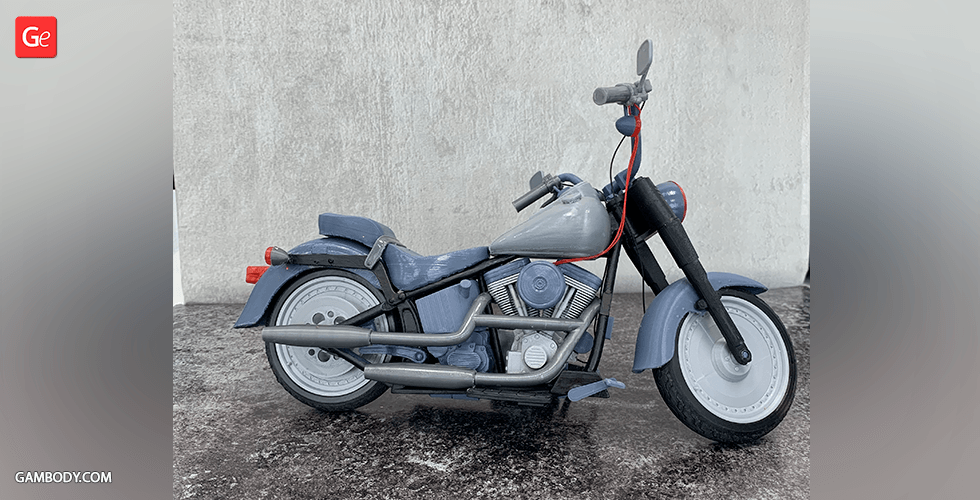

This 3D Model of Harley-Davidson Fat Boy from Terminator 2 consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 3 versions of Harley-Davidson Fat Boy 1991 STL files for FFF/FDM and DLP/SLA/SLS - files for all versions are available for download after the purchase

- STL files of high-poly Harley-Davidson Fat Boy 1991 3D Model for 3D printing consist of 164 parts

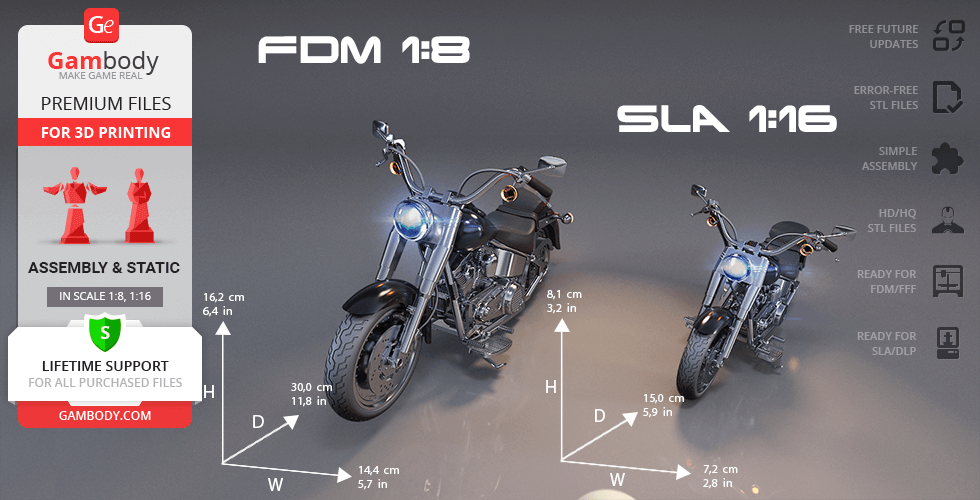

- Sizes:
FFF/FDM: 162 mm tall, 144 mm wide, 300 mm deep
DLP/SLA/SLS: 81 mm tall, 72 mm wide, 150 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

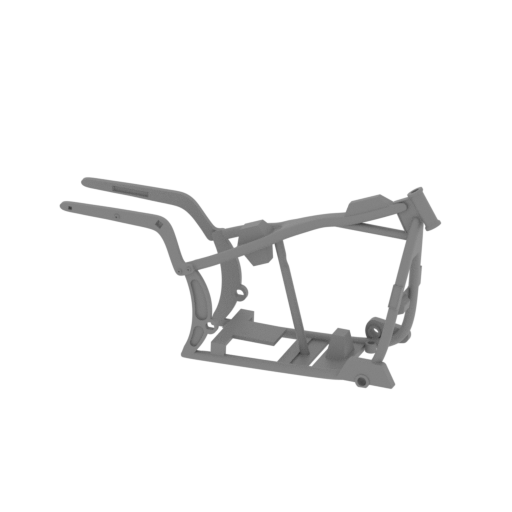

1_frame_FDM(repaired).stl
20.21 MiB 16 h 28 min 10 m 189 x 49 x 98 Download

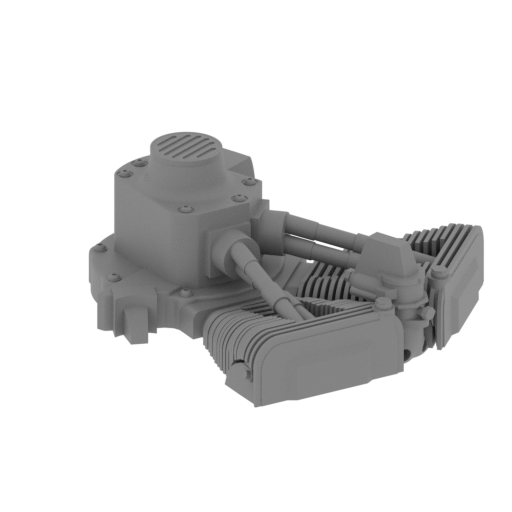

2_engine_1_FDM(repaired). stl
19.29 MiB 3 h 27 min 2 m 59 x 55 x 23 Download

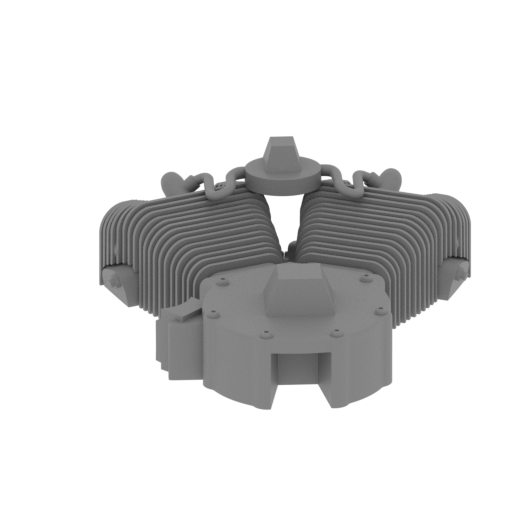

3_engine_2_FDM(repaired). stl
20.06 MiB 3 h 51 min 2 m 55 x 60 x 22 Download

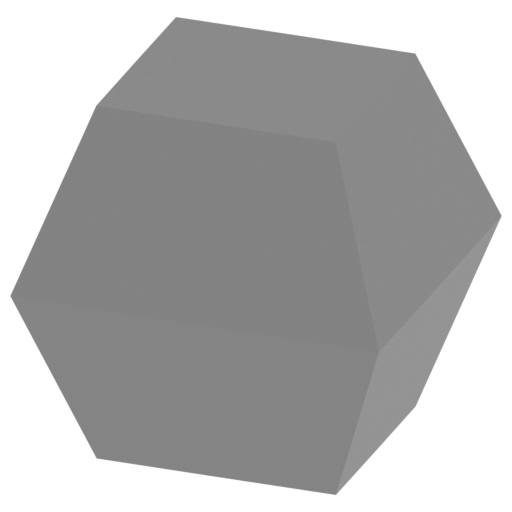

4_engine_connector_FDM(re paired).stl
0.00 MiB 14 min <1 m 13 x 12 x 13 Download

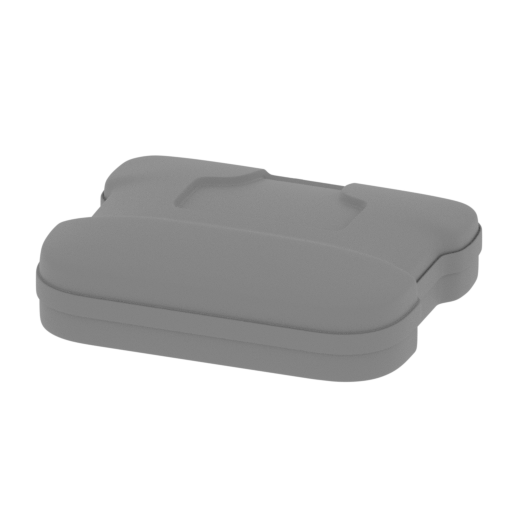

5_rocker_over_1_FDM(repai red).stl
11.63 MiB 28 min <1 m 27 x 22 x 7 Download

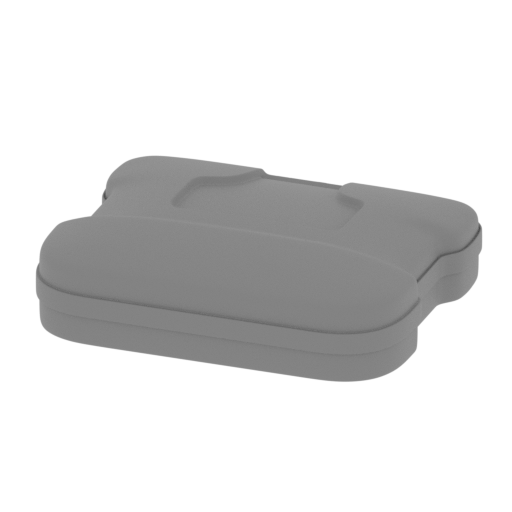

6_rocker_over_2_FDM(repai red).stl
11.35 MiB 28 min <1 m 27 x 22 x 7 Download

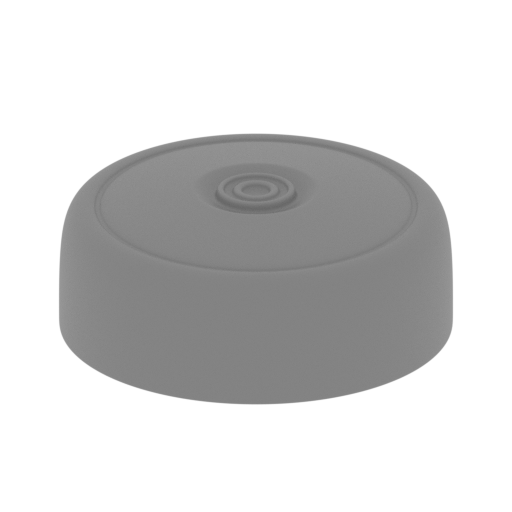

7_air_filter_FDM(repaired ).stl
8.75 MiB 28 min <1 m 24 x 24 x 9 Download

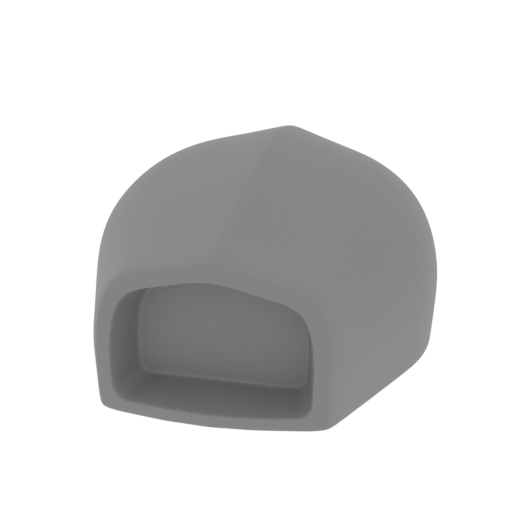

8_horn_FDM(repaired).stl
4.57 MiB 14 min <1 m 14 x 17 x 9 Download

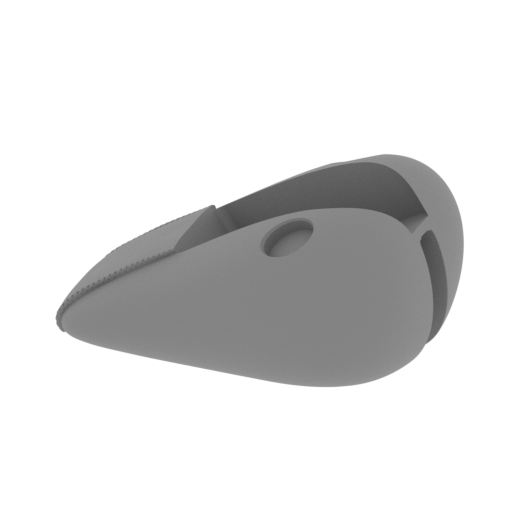

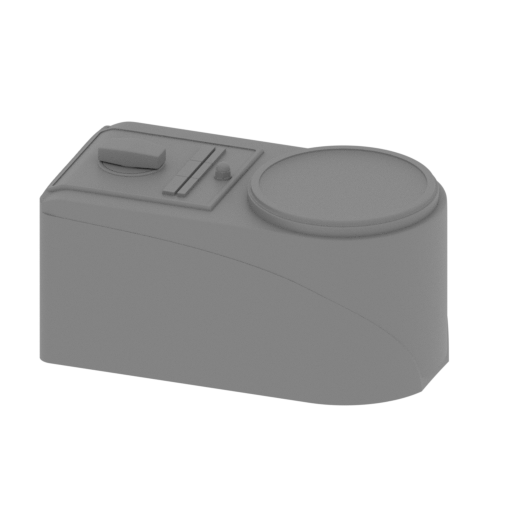

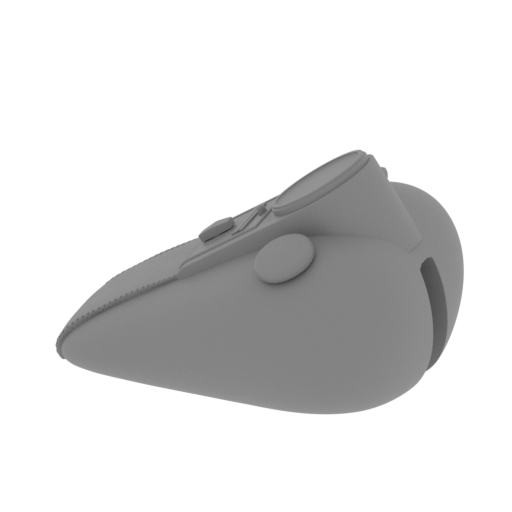

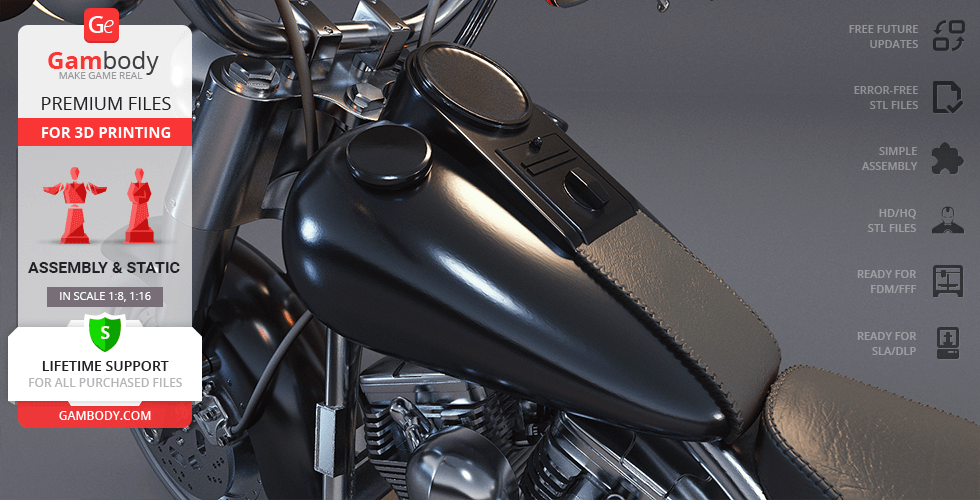

9_fuel_tank_FDM(repaired) .stl
22.60 MiB 4 h 50 min 3 m 63 x 52 x 40 Download

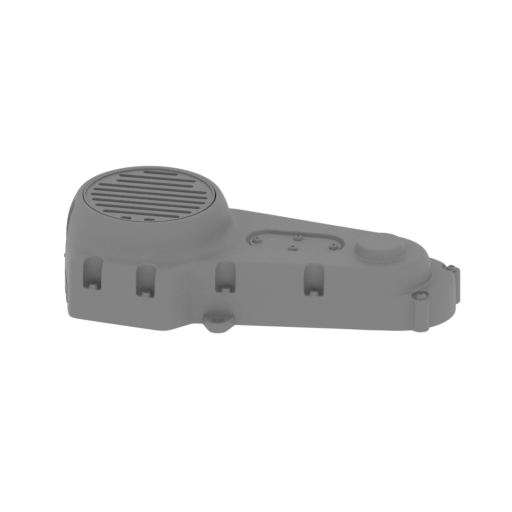

10_chain_case_FDM(repaire d).stl
13.61 MiB 1 h 57 min 1 m 62 x 32 x 16 Download

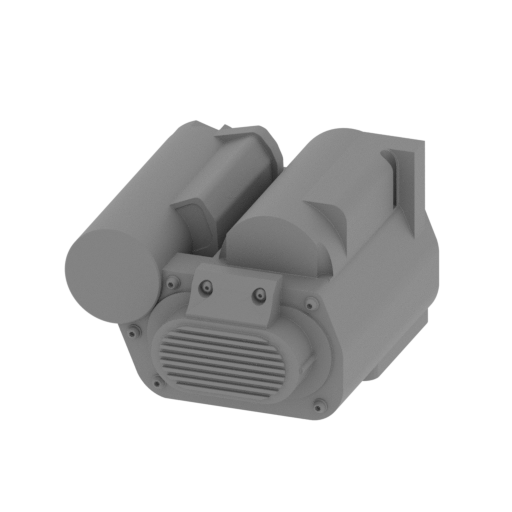

11_transmission_FDM(repai red).stl
2.26 MiB 2 h 12 min 1 m 32 x 43 x 22 Download

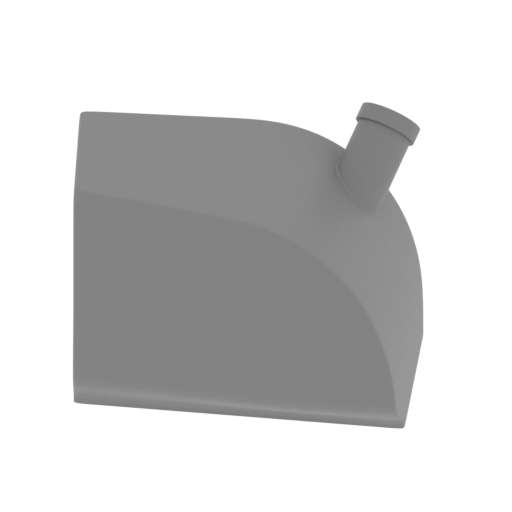

12_oil_tank_1_FDM(repaire d).stl
5.56 MiB 1 h 20 min 1 m 35 x 29 x 24 Download

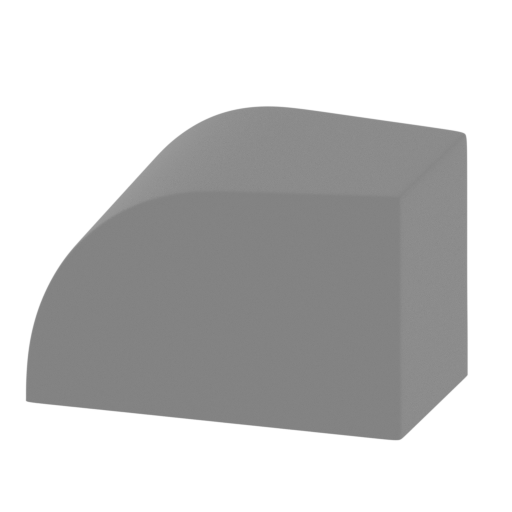

13_oil_tank_2_FDM(repaire d).stl
5.69 MiB 52 min 1 m 30 x 21 x 20 Download

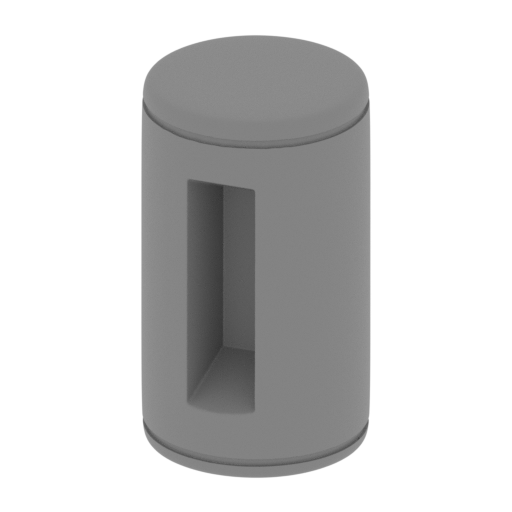

14_oil_filter_FDM(repaire d).stl
7.55 MiB 22 min <1 m 12 x 12 x 20 Download

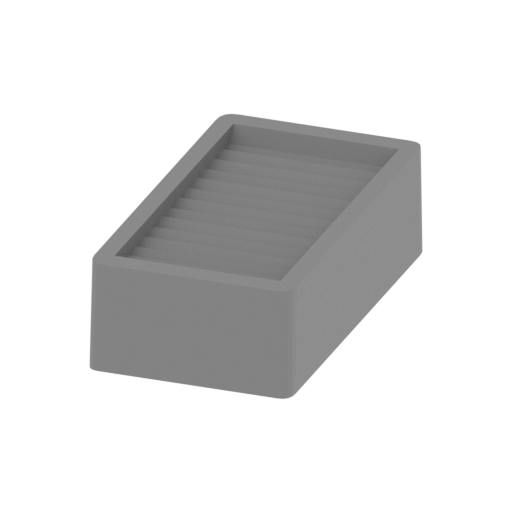

15_regulator_voltage_FDM( repaired).stl
2.31 MiB 15 min <1 m 11 x 21 x 6 Download

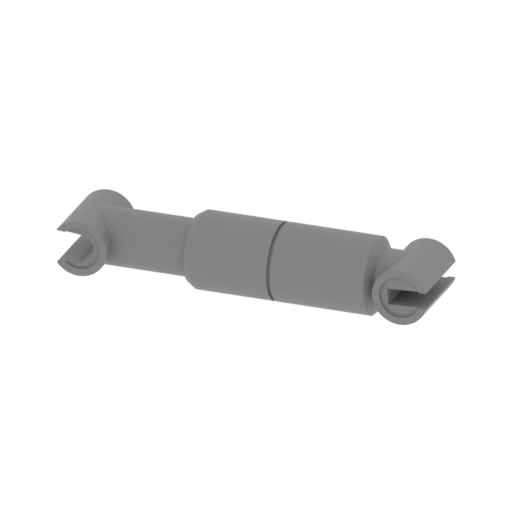

16_shock_absorber_1_FDM(r epaired).stl
8.16 MiB 42 min <1 m 52 x 11 x 10 Download

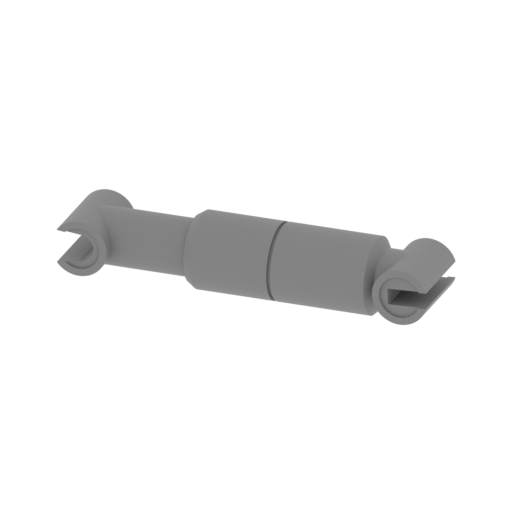

17_shock_absorber_2_FDM(r epaired).stl
8.16 MiB 42 min <1 m 52 x 11 x 10 Download

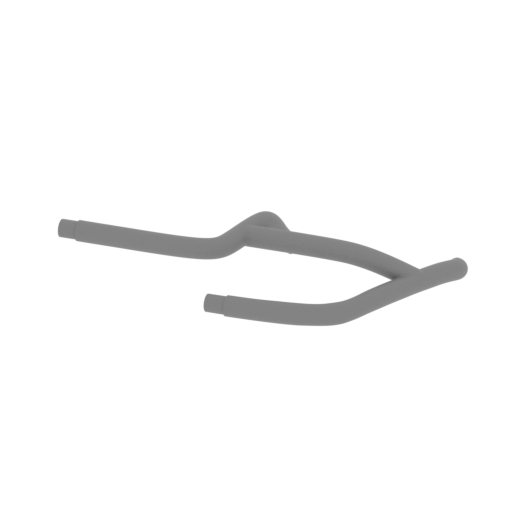

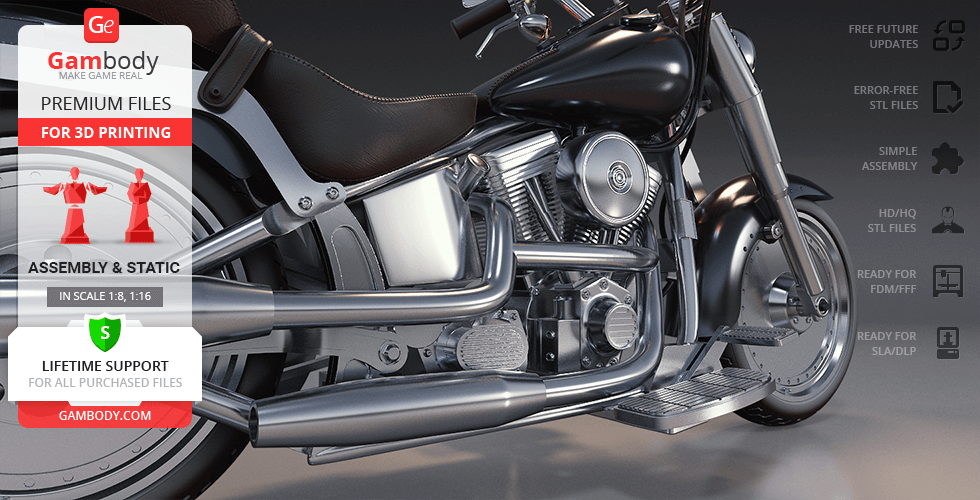

18_exhaust_system_FDM(rep aired).stl
17.16 MiB 1 h 60 min 1 m 118 x 55 x 18 Download

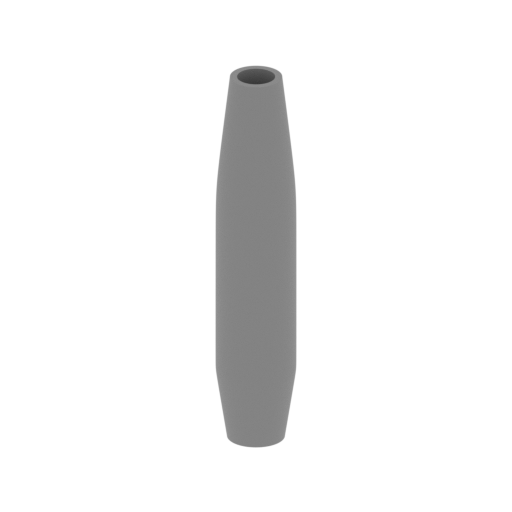

19_muffler_1_FDM(repaired ).stl
7.77 MiB 51 min <1 m 11 x 11 x 55 Download

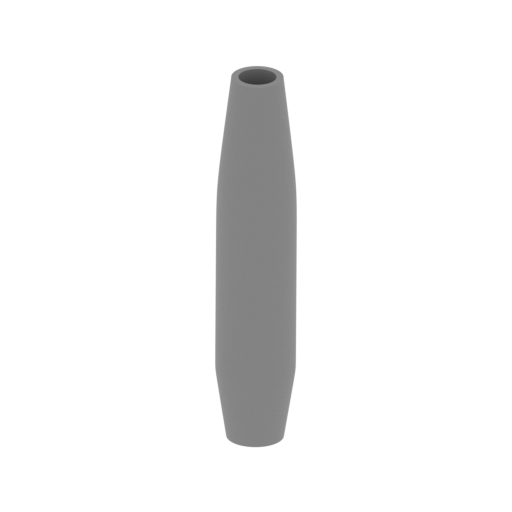

20_muffler_2_FDM(repaired ).stl
7.70 MiB 51 min <1 m 11 x 11 x 55 Download

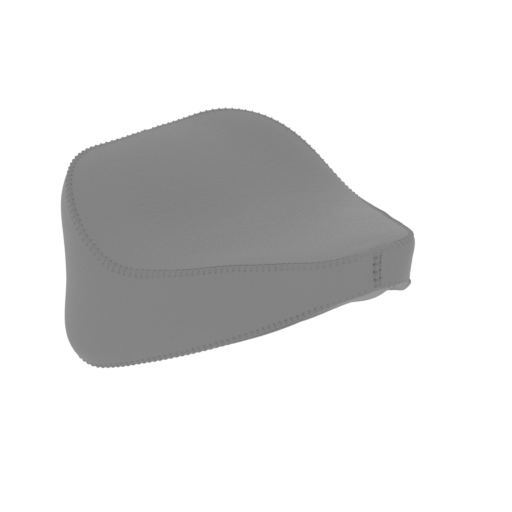

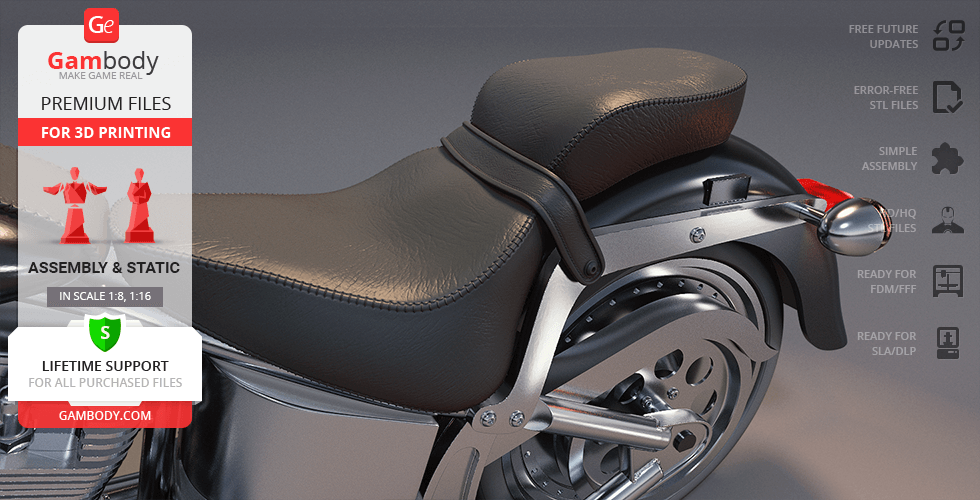

21_seat_FDM(repaired).stl
15.44 MiB 4 h 2 m 57 x 48 x 25 Download

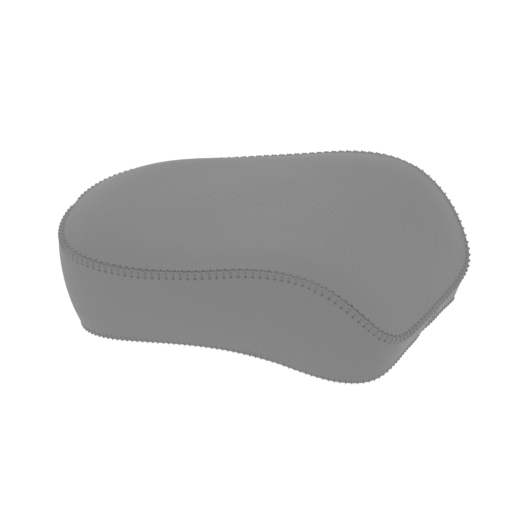

22_passenger_seat_FDM(rep aired).stl
19.41 MiB 1 h 32 min 1 m 42 x 34 x 14 Download

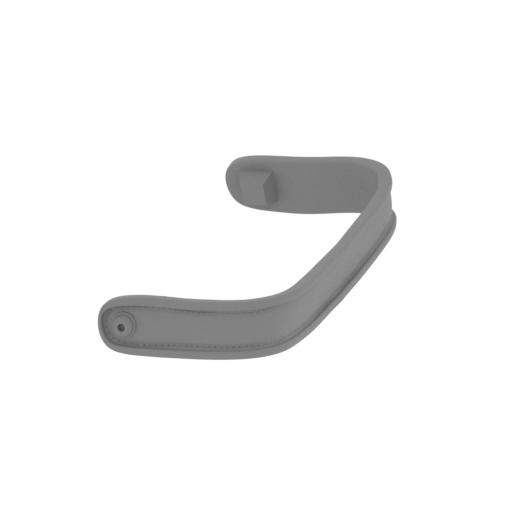

23_seat_belt_FDM(repaired ).stl
6.08 MiB 13 min <1 m 19 x 37 x 7 Download

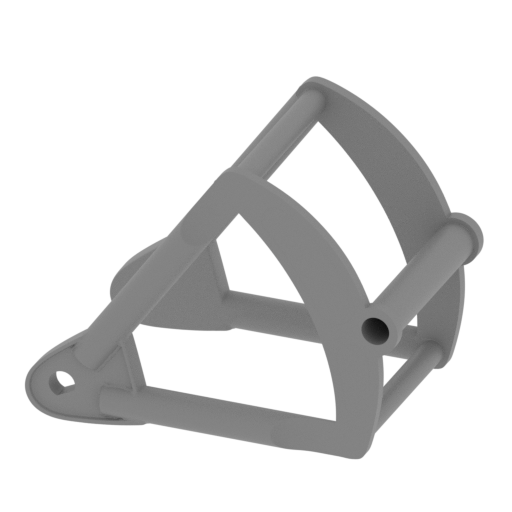

24_rear_fork_FDM(repaired ).stl
13.61 MiB 2 h 48 min 1 m 60 x 43 x 45 Download

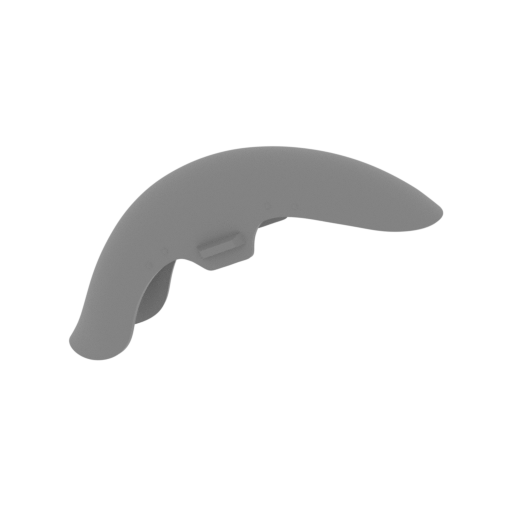

25_front_fender_FDM(repai red).stl
20.10 MiB 4 h 59 min 4 m 82 x 28 x 50 Download

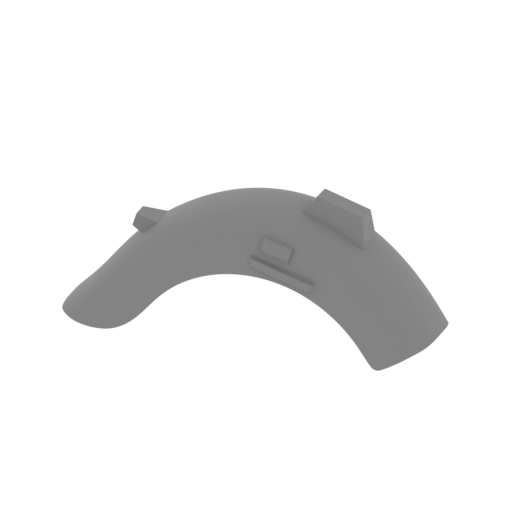

26_reart_fender_FDM(repai red).stl
21.41 MiB 5 h 47 min 4 m 100 x 29 x 41 Download

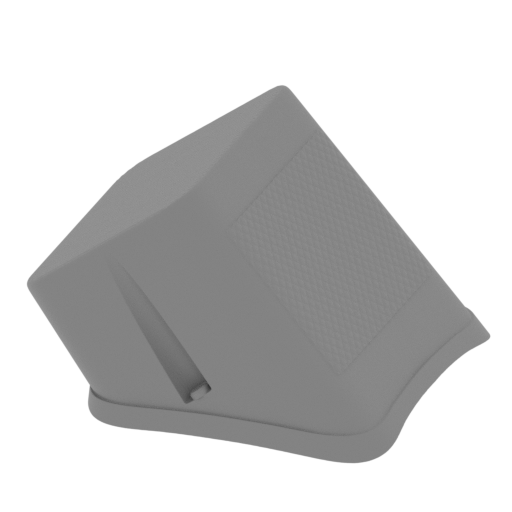

27_tail_lamp_FDM(repaired ).stl
10.50 MiB 15 min <1 m 16 x 15 x 10 Download

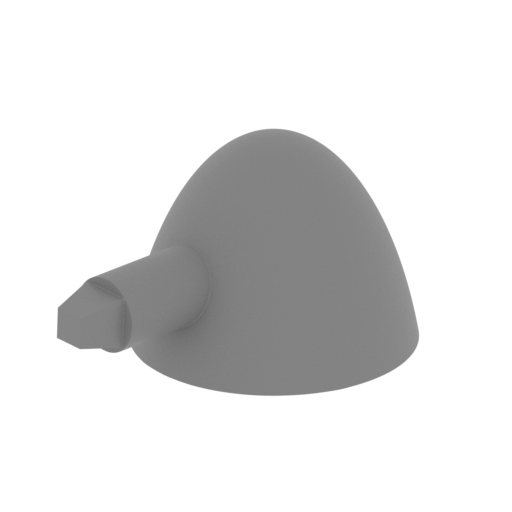

28_rear_turn_signal_L_FDM (repaired).stl
2.47 MiB 7 min <1 m 10 x 13 x 7 Download

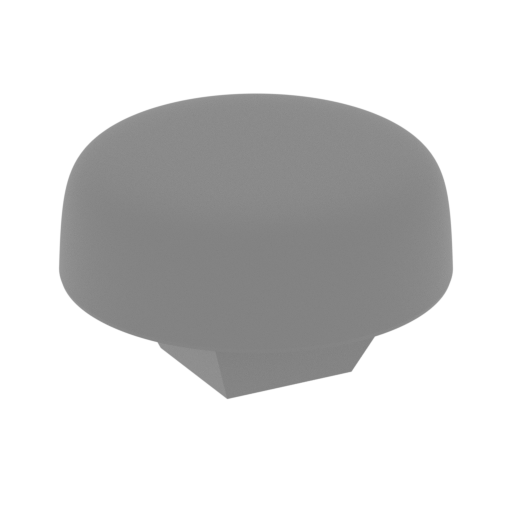

29_lens_rear_turn_signal_ L_FDM(repaired).stl
2.68 MiB 6 min <1 m 10 x 10 x 6 Download

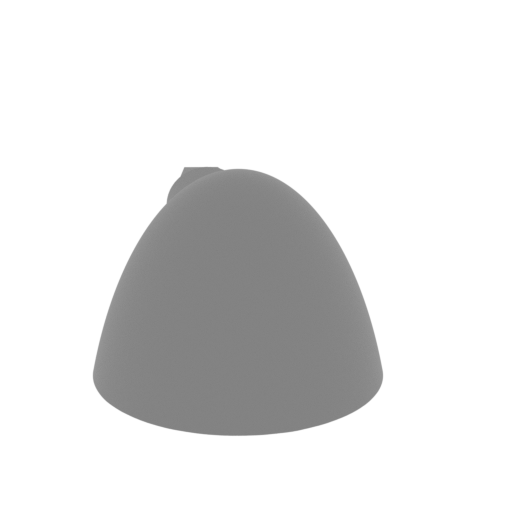

30_rear_turn_signal_R_FDM (repaired).stl
2.47 MiB 7 min <1 m 10 x 13 x 7 Download

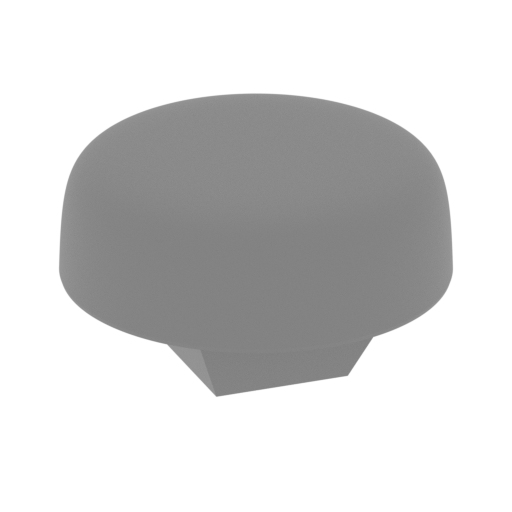

31_lens_rear_turn_signal_ R_FDM(repaired).stl
2.68 MiB 6 min <1 m 10 x 10 x 6 Download

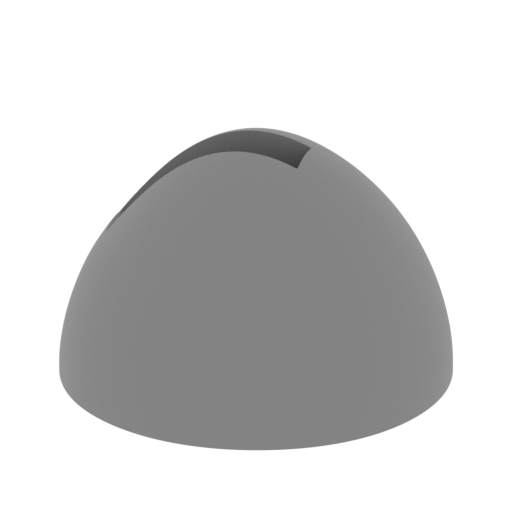

32_headlight_1_FDM(repair ed).stl
5.41 MiB 35 min <1 m 25 x 25 x 16 Download

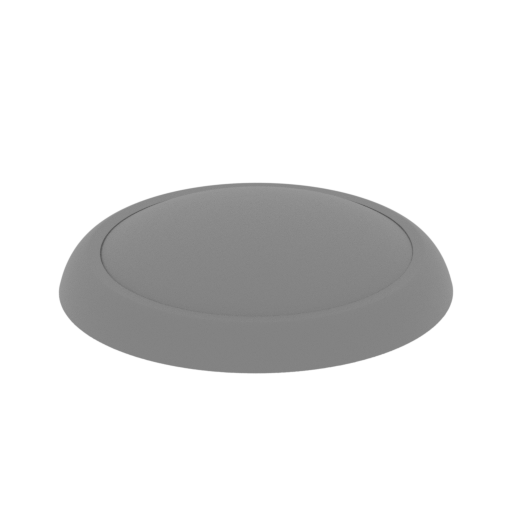

33_headlight_2_FDM(repair ed).stl
5.80 MiB 17 min <1 m 25 x 25 x 5 Download

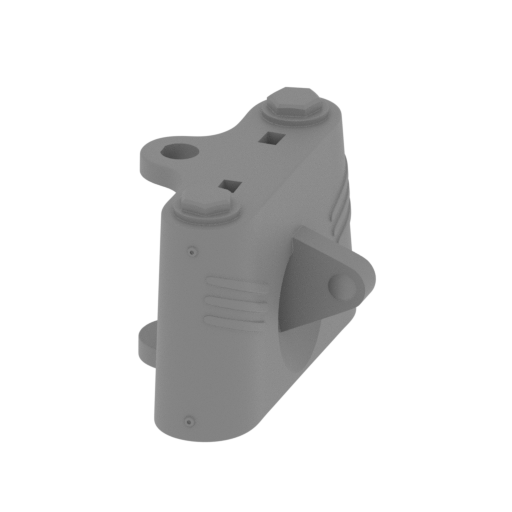

34_bracket_FDM(repaired). stl
21.29 MiB 1 h 34 min 1 m 27 x 44 x 27 Download

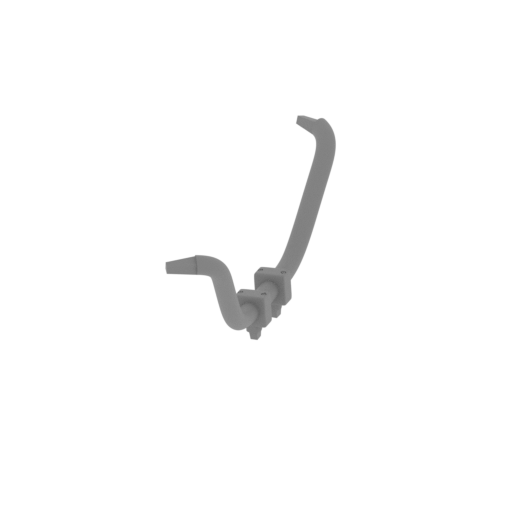

35_handlebar_FDM(repaired ).stl
9.46 MiB 1 h 15 min 1 m 13 x 96 x 37 Download

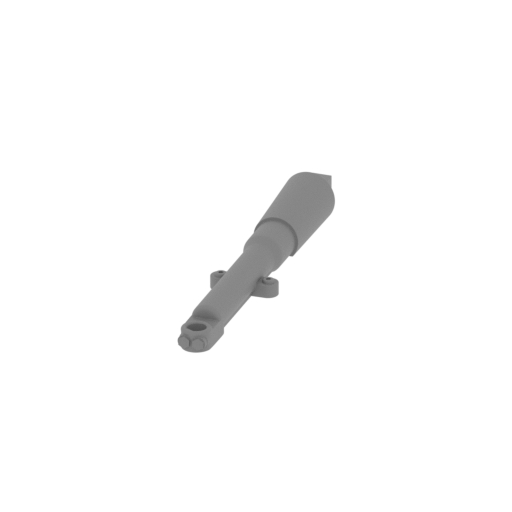

36_front_fork_R_FDM(repai red).stl
26.80 MiB 43 min <1 m 15 x 85 x 10 Download

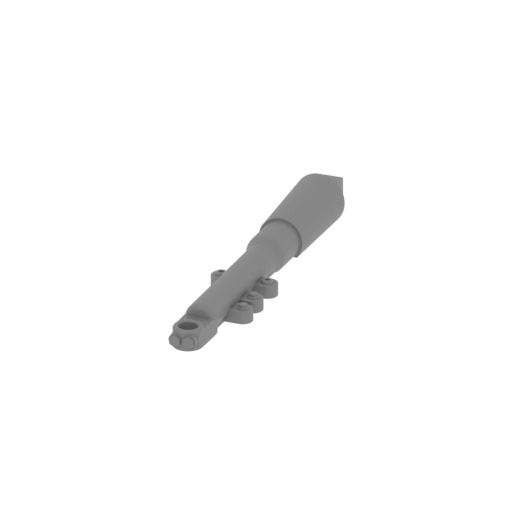

37_front_fork_L_FDM(repai red).stl
28.49 MiB 45 min <1 m 15 x 85 x 10 Download
38_bracket_shaft_FDM(repa ired).stl
4.02 MiB 6 min <1 m 27 x 6 x 5 Download

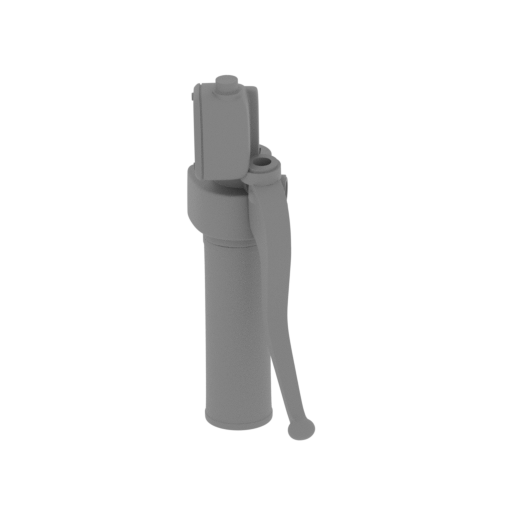

39_grip_R_FDM(repaired).s tl
8.40 MiB 47 min <1 m 18 x 17 x 41 Download

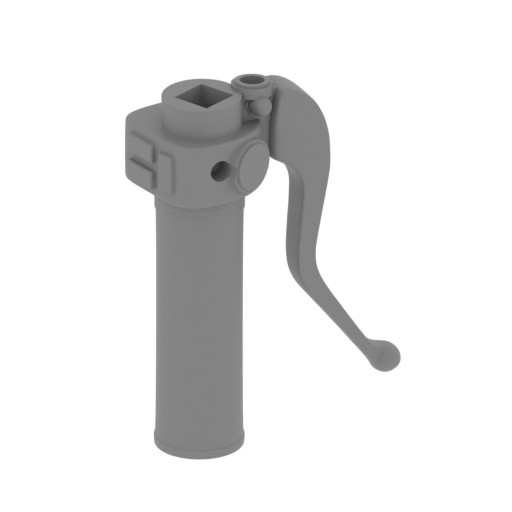

40_grip_L_FDM(repaired).s tl
7.28 MiB 37 min <1 m 19 x 17 x 31 Download

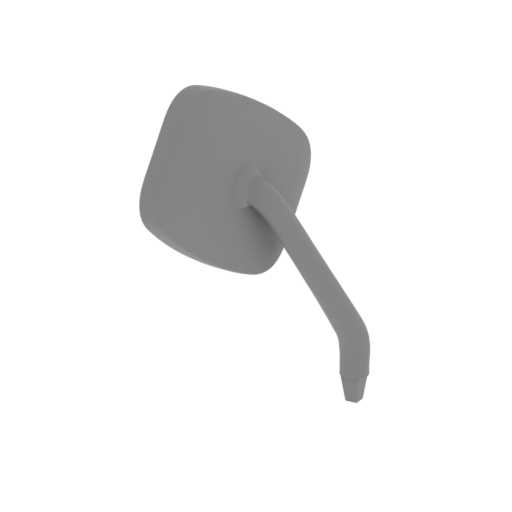

41_mirror_R_FDM(repaired) .stl
10.21 MiB 20 min <1 m 11 x 18 x 28 Download

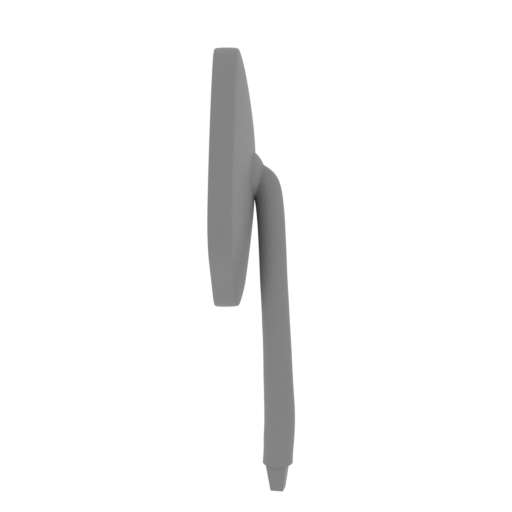

42_mirror_L_FDM(repaired) .stl
10.23 MiB 20 min <1 m 11 x 18 x 28 Download

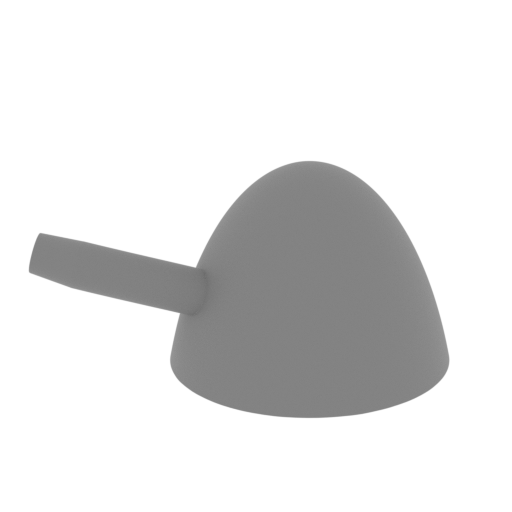

43_front_turn_signal_R_FD M(repaired).stl
4.04 MiB 8 min <1 m 14 x 10 x 7 Download

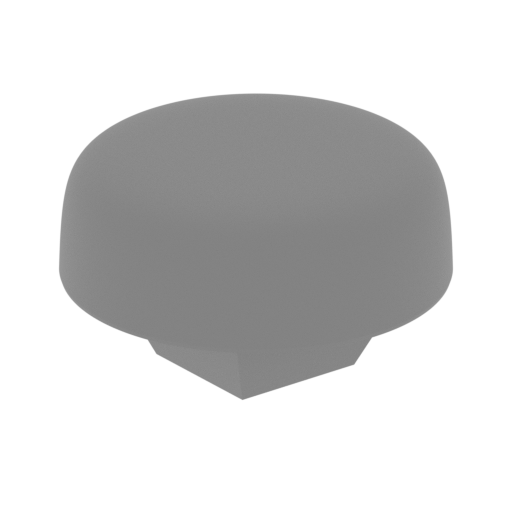

44_lens_front_turn_signal _R_FDM(repaired).stl
2.68 MiB 6 min <1 m 10 x 10 x 6 Download

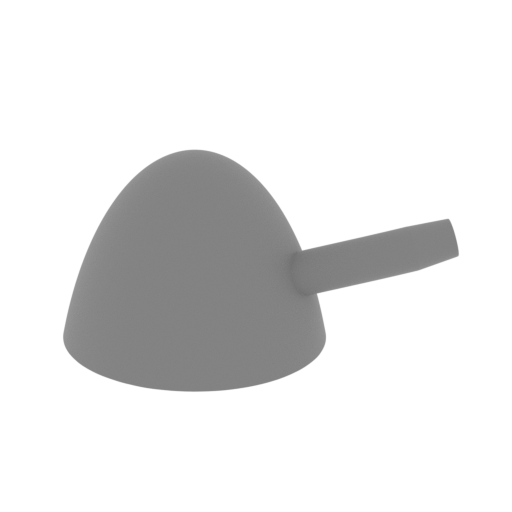

45_front_turn_signal_L_FD M(repaired).stl
4.01 MiB 8 min <1 m 15 x 10 x 7 Download

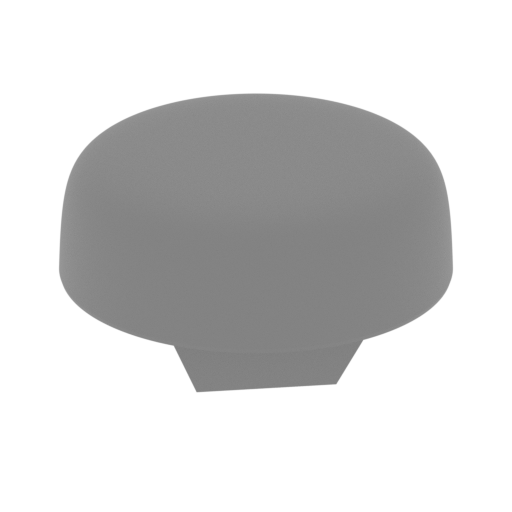

46_lens_front_turn_signal _L_FDM(repaired).stl
2.68 MiB 6 min <1 m 10 x 10 x 6 Download

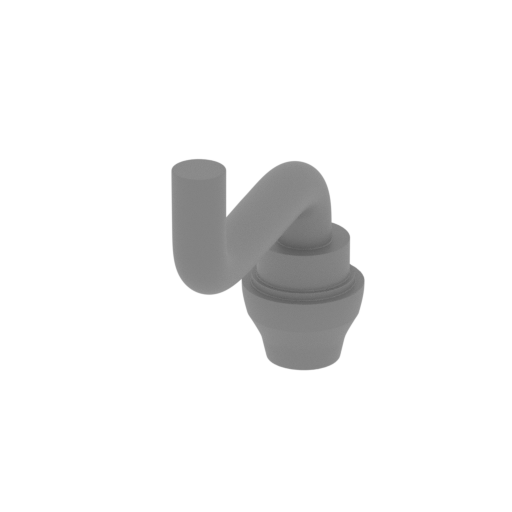

47_fuel_tank_tap_FDM(repa ired).stl
2.00 MiB 7 min <1 m 5 x 15 x 13 Download

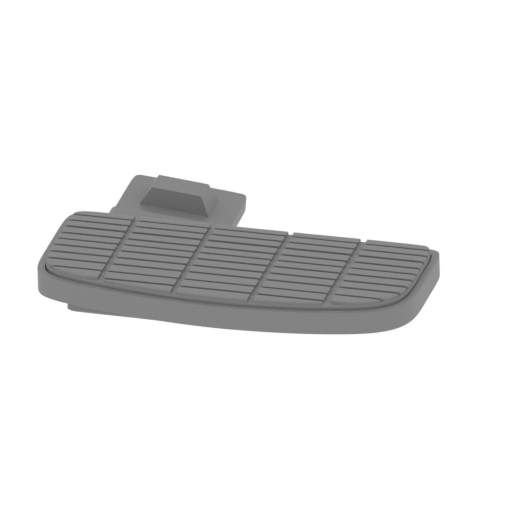

48_footboard_R_FDM(repair ed).stl
25.59 MiB 46 min <1 m 41 x 33 x 6 Download

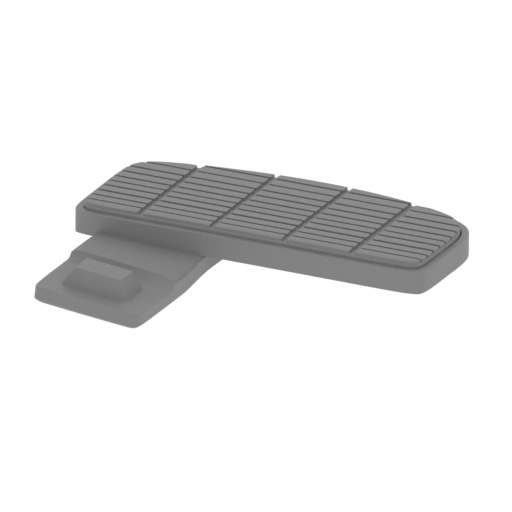

49_footboard_L_FDM(repair ed).stl
25.82 MiB 46 min <1 m 41 x 33 x 6 Download

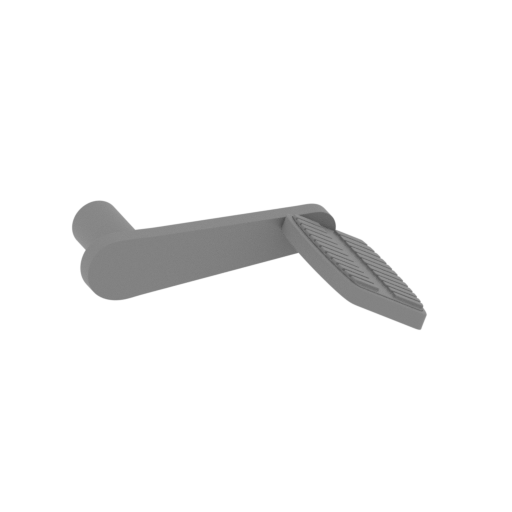

50_brake_pedal_FDM(repair ed).stl
5.24 MiB 16 min <1 m 35 x 17 x 6 Download

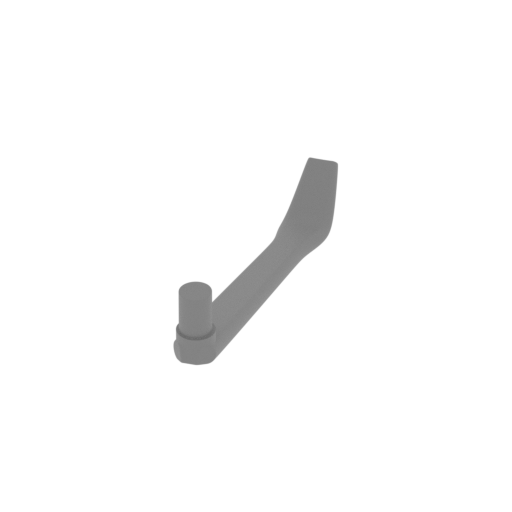

51_leg_jiffy_stand_FDM(re paired).stl
2.14 MiB 8 min <1 m 5 x 38 x 8 Download

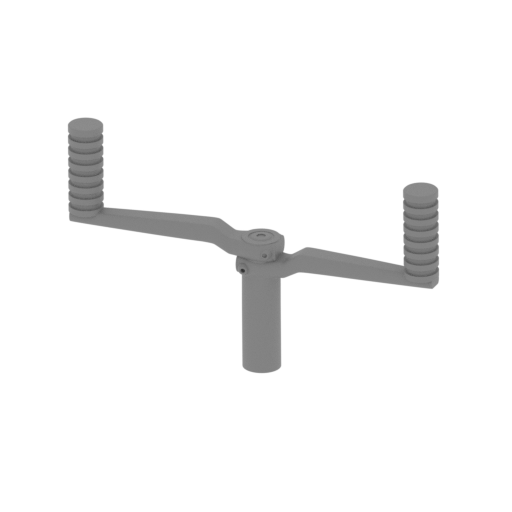

52_shift_lever_FDM(repair ed).stl
5.57 MiB 33 min <1 m 45 x 6 x 27 Download

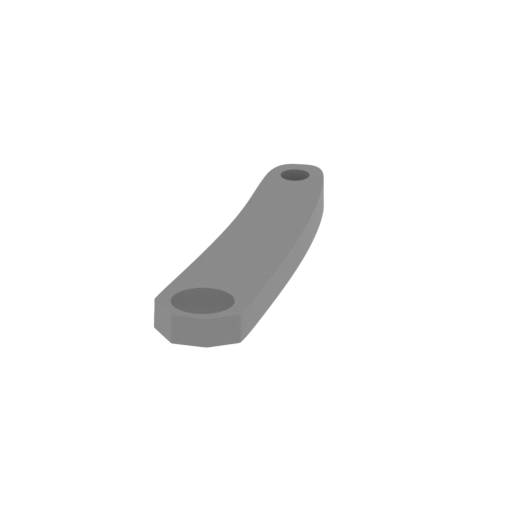

53_lever_gear_shifter_FDM (repaired).stl
0.46 MiB 5 min <1 m 7 x 27 x 2 Download

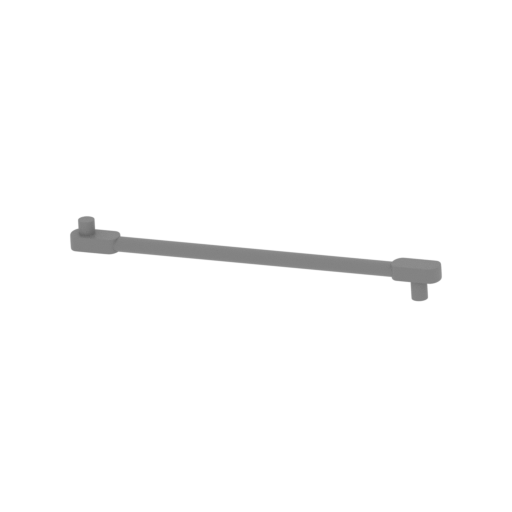

54_shifter_rod_FDM(repair ed).stl
0.46 MiB 7 min <1 m 47 x 3 x 5 Download

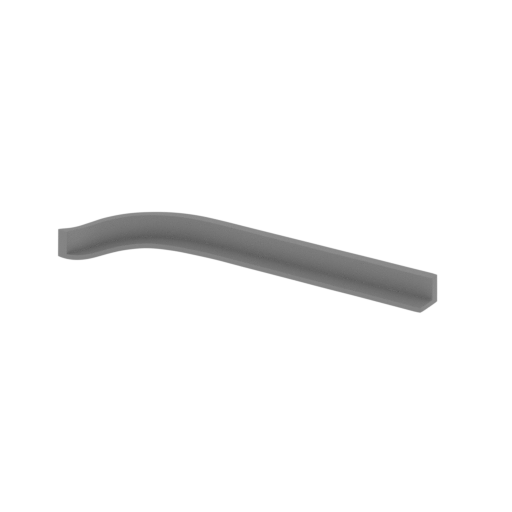

55_belt_guard_FDM(repaire d).stl
2.89 MiB 24 min <1 m 86 x 19 x 6 Download
56_belt_FDM(repaired).stl
5.15 MiB 24 min <1 m 82 x 45 x 4 Download

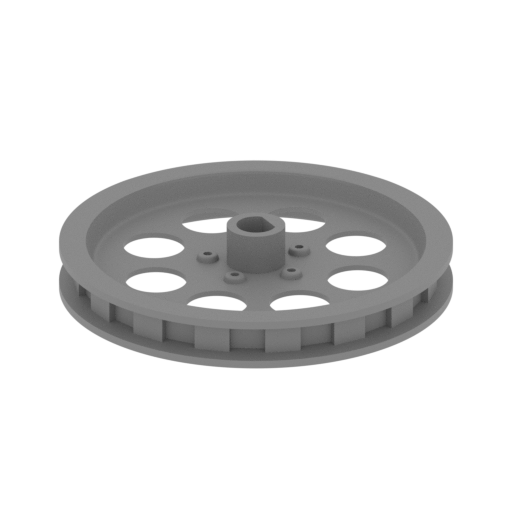

57_sprocket_FDM(repaired) .stl
6.10 MiB 1 h 1 min 1 m 42 x 42 x 7 Download

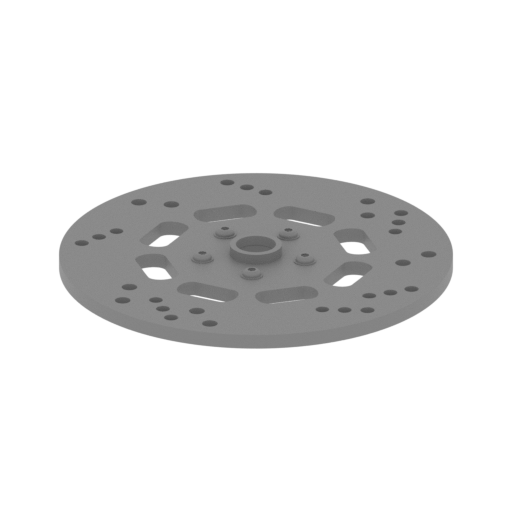

58_brake_disc_front_FDM(r epaired).stl
10.24 MiB 32 min <1 m 42 x 42 x 3 Download

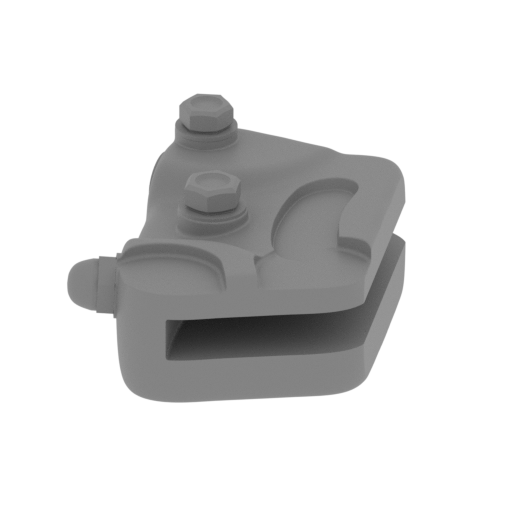

59_caliper_front_FDM(repa ired).stl
14.53 MiB 11 min <1 m 12 x 15 x 7 Download

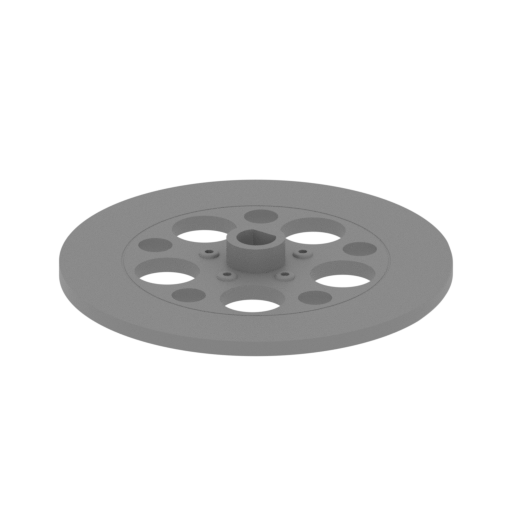

60_brake_disc_rear_FDM(re paired).stl
6.38 MiB 32 min <1 m 42 x 42 x 5 Download

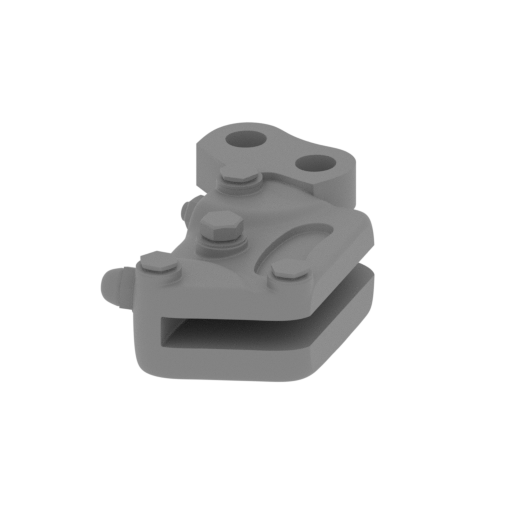

61_caliper_rear_FDM(repai red).stl
4.58 MiB 13 min <1 m 12 x 21 x 6 Download

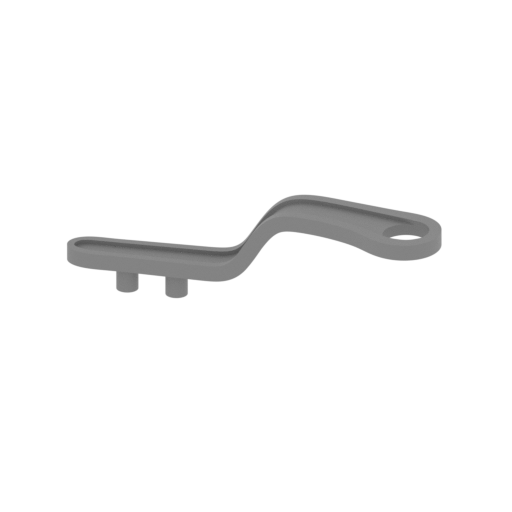

62_support_caliper_rear_F DM(repaired).stl
3.52 MiB 15 min <1 m 37 x 8 x 11 Download

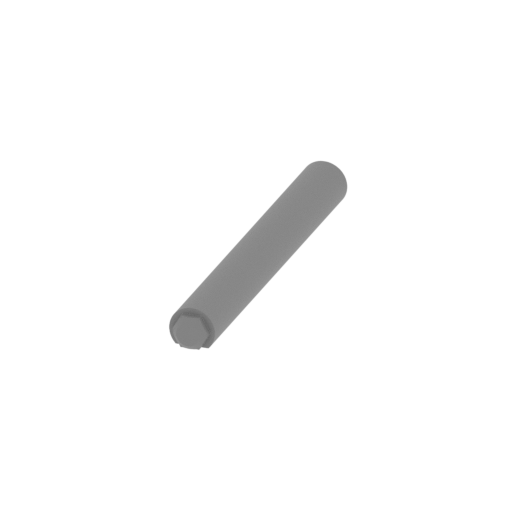

63_shaft_front_wheel_FDM( repaired).stl
2.23 MiB 6 min <1 m 4 x 34 x 4 Download

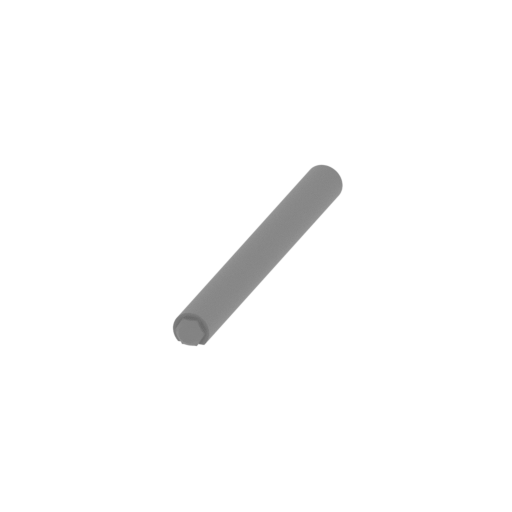

64_shaft_rear_wheel_FDM(r epaired).stl
0.89 MiB 7 min <1 m 4 x 42 x 4 Download

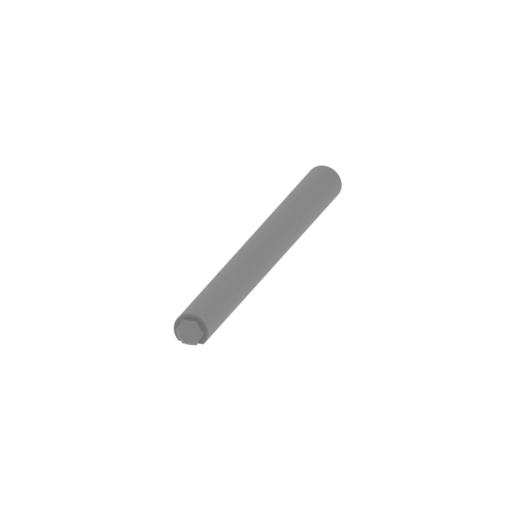

65_shaft_rear_fork_FDM(re paired).stl
0.89 MiB 9 min <1 m 4 x 47 x 4 Download

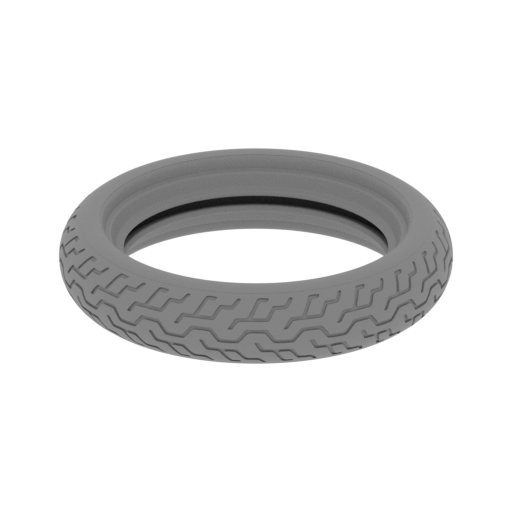

66_front_tire_FDM(repaire d).stl
44.03 MiB 6 h 32 min 3 m 81 x 81 x 17 Download

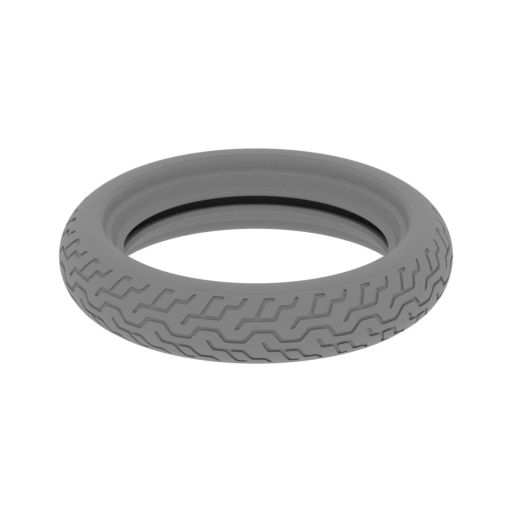

67_rear_tire_FDM(repaired ).stl
44.03 MiB 6 h 43 min 3 m 81 x 81 x 17 Download

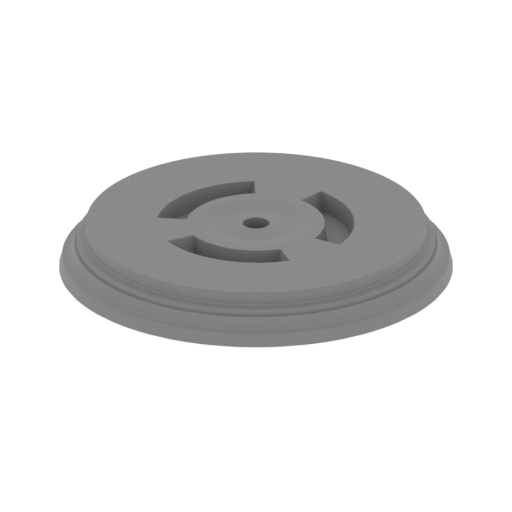

68_front_wheel_R_FDM(repa ired).stl
23.07 MiB 3 h 18 min 2 m 62 x 63 x 12 Download

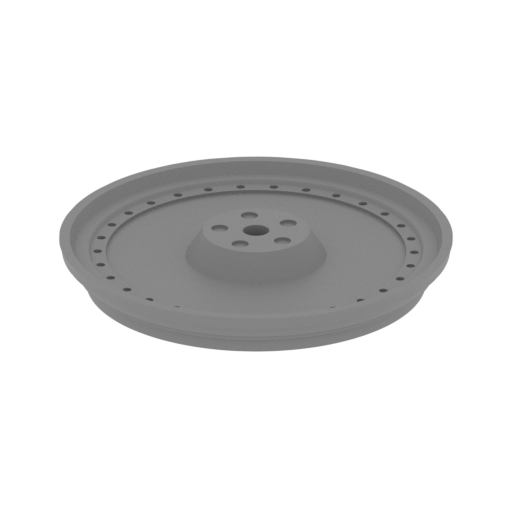

69_front_wheel_L_FDM(repa ired).stl
19.01 MiB 2 h 33 min 1 m 62 x 63 x 9 Download

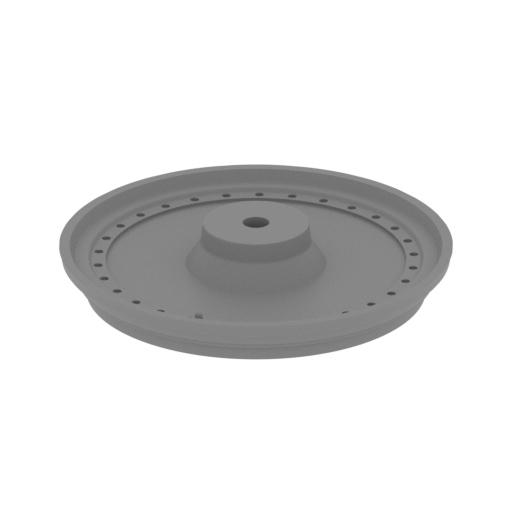

70_rear_wheel_R_FDM(repai red).stl
20.81 MiB 2 h 36 min 1 m 62 x 63 x 12 Download

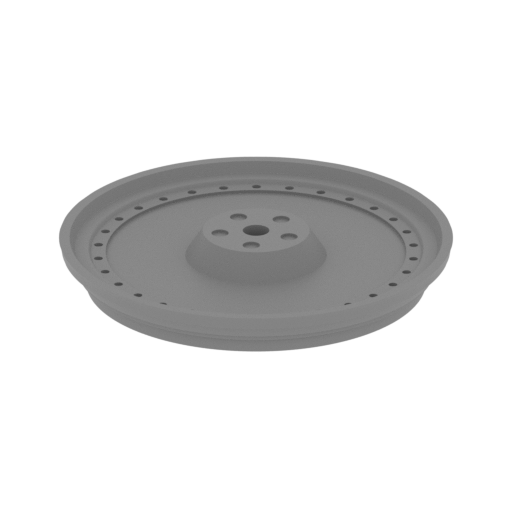

71_rear_wheel_L_FDM(repai red).stl
21.46 MiB 2 h 33 min 1 m 63 x 62 x 9 Download

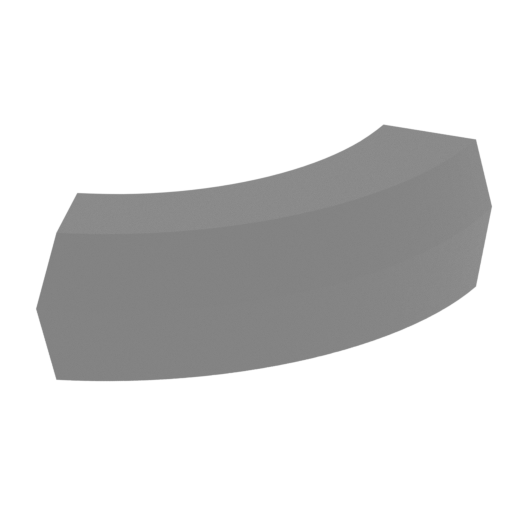

72_connector_for_wheels_( x6)_FDM(repaired).stl
1.02 MiB 7 min <1 m 14 x 16 x 6 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

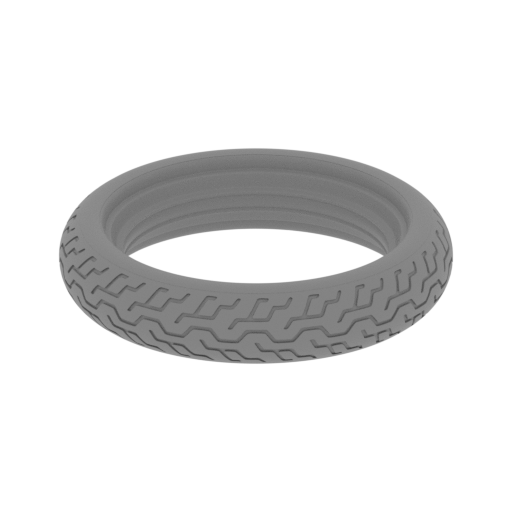

tire_solid_FDM(repaired). stl
27.04 MiB 4 h 44 min 2 m 81 x 81 x 17 Download
...

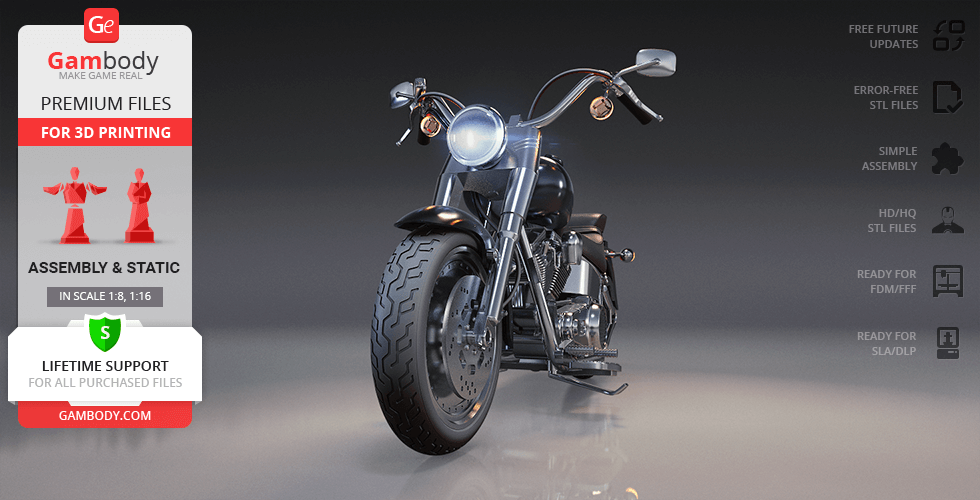

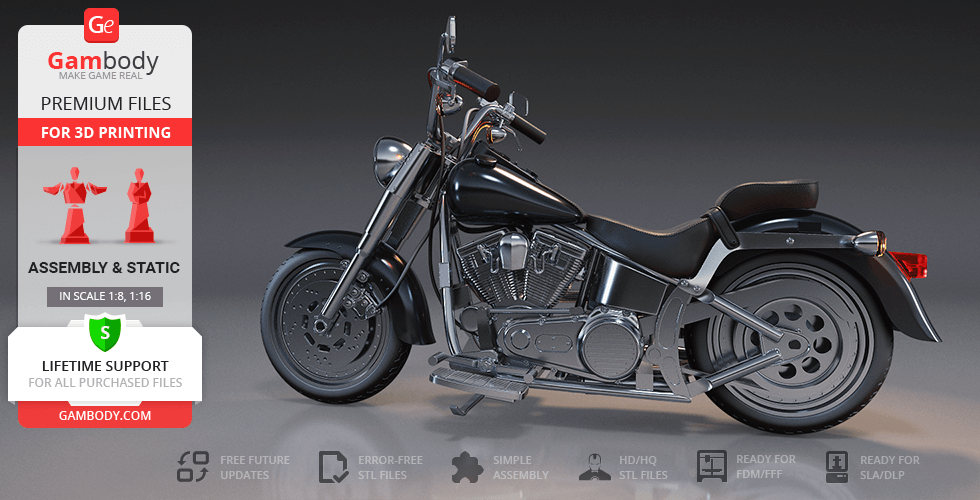

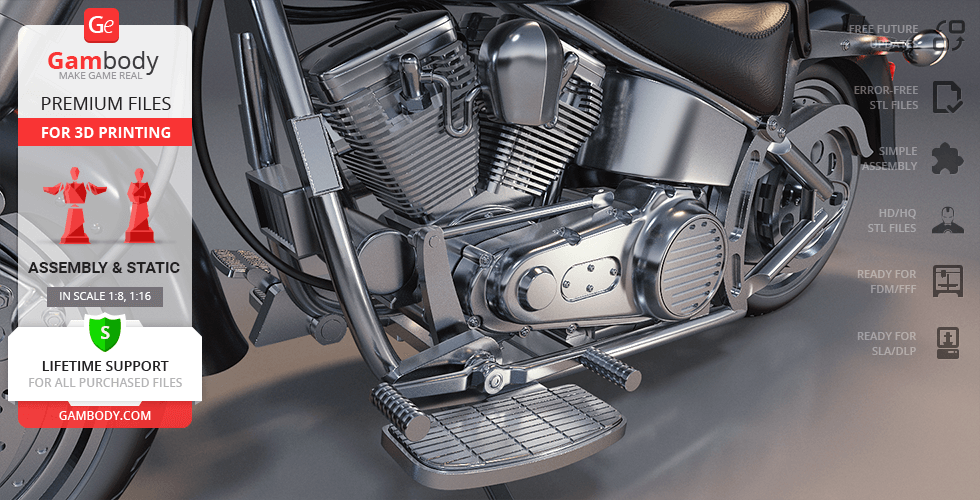

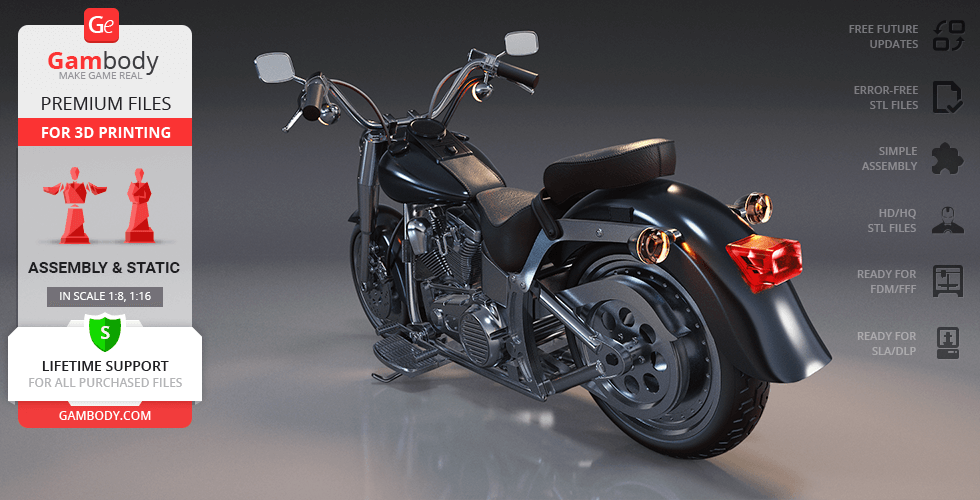

ABOUT THIS 3D MODEL

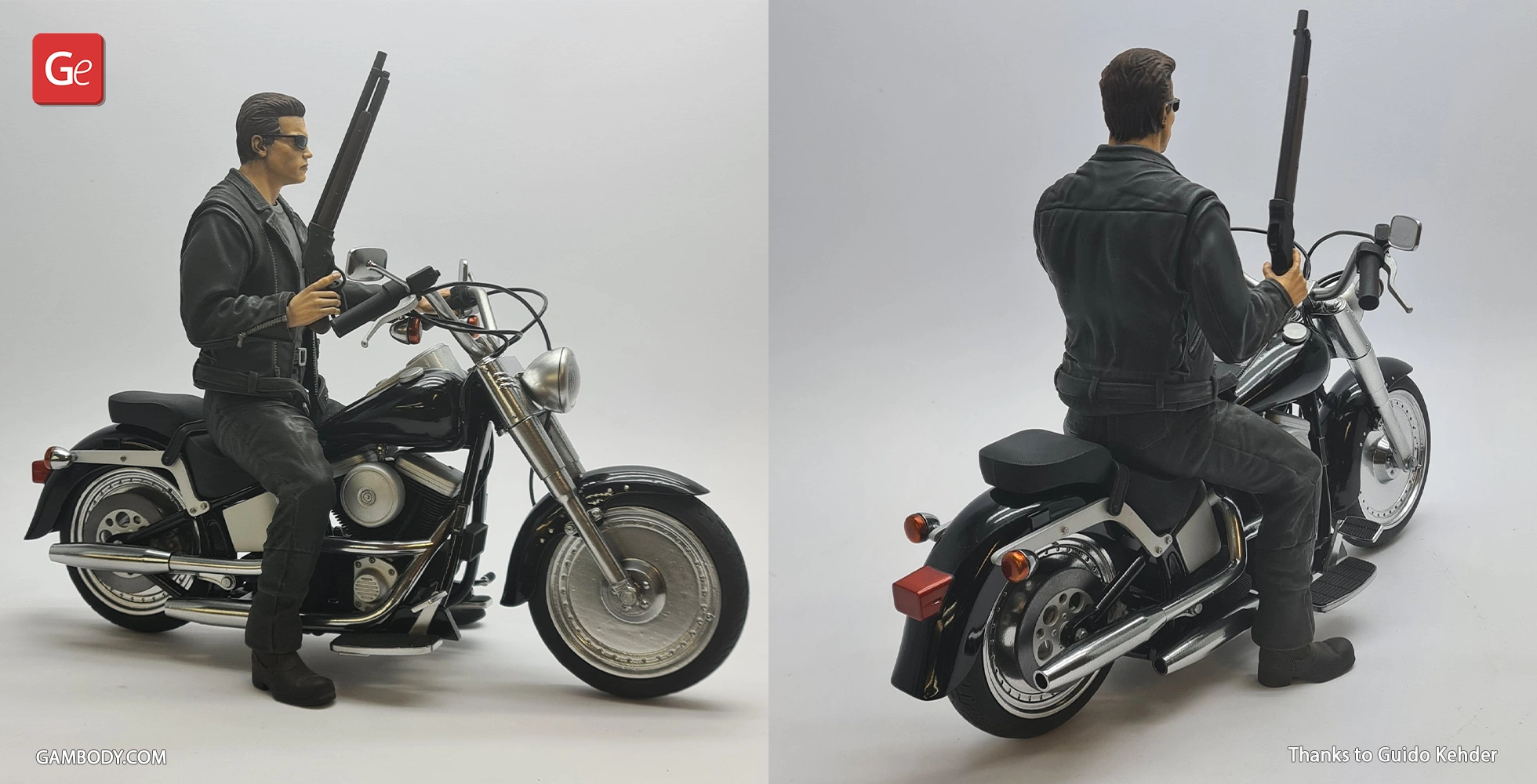

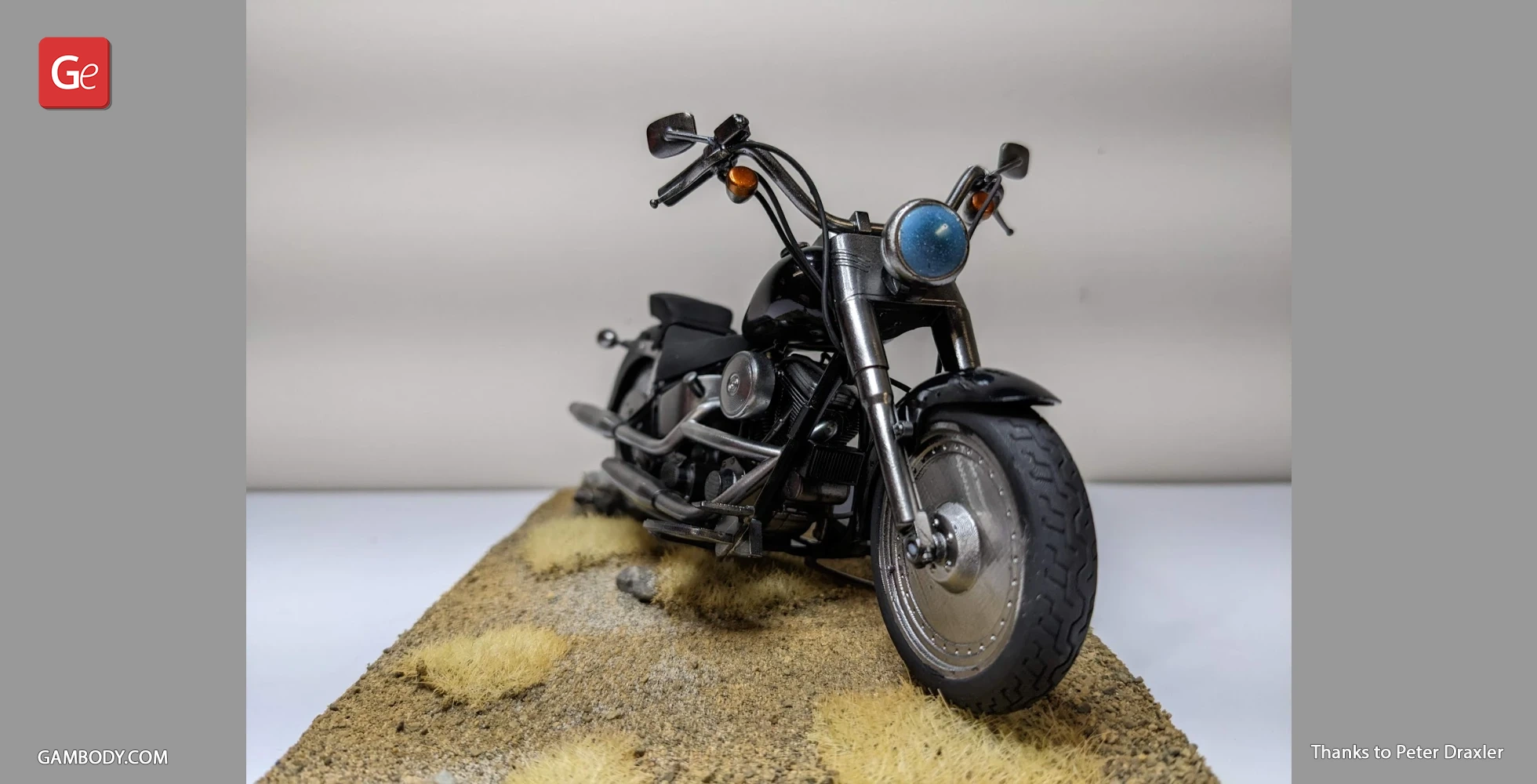

“Judgement Day”, the 1991 sequel to The Terminator by James Cameron is a story of a robot-driven apocalypse that stars the beloved T-800 Arnold Schwarzenegger. In the beginning of the action-packed sci-fi adventure, the titular hero steals a pair of sunglasses and a 1991 Harley-Davidson Fat Boy near a bar. This motorcycle would later become one of the highlight vehicles of the film and one of Harley-Davidson's best-selling models!

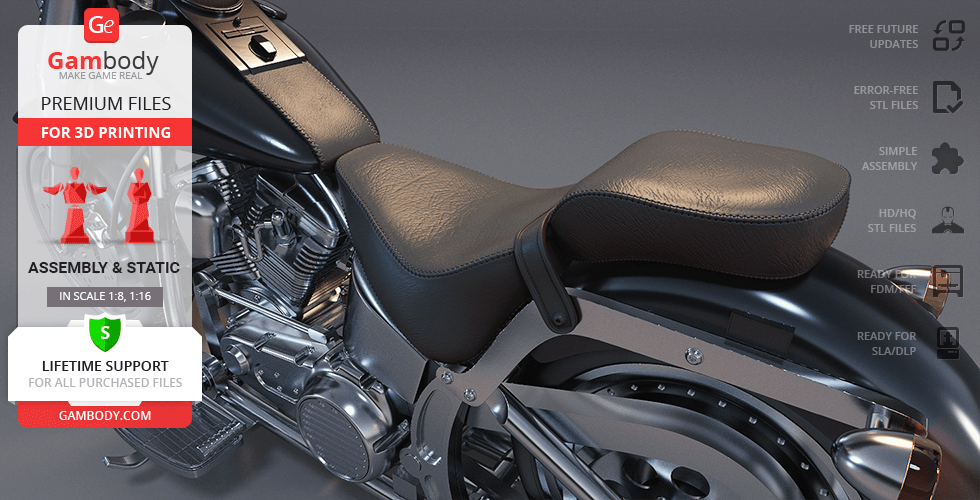

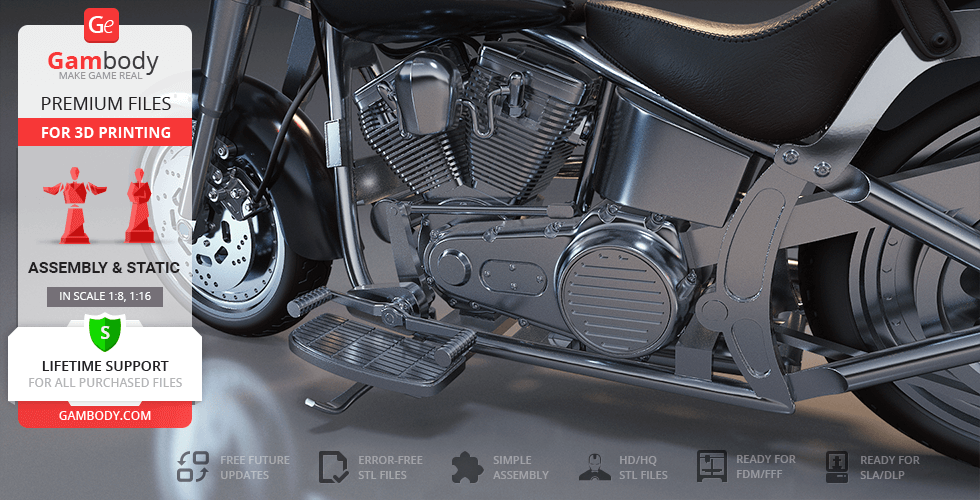

Our skilled contributing 3D artist got an idea of recreating a vehicle behind the most famous jump in cinema history. Thus, the brilliant Harley-Davidson Fat Boy 1991 from the second instalment of the Terminator franchise was brought to life in its 3D printing form! The author of the iconic 3D printing motorbike model studied all possible references and dedicated a lot of attention to the small details of the Fat Boy for your 3D printed Harley-Davidson to be envied even by the omnipresent Skynet.

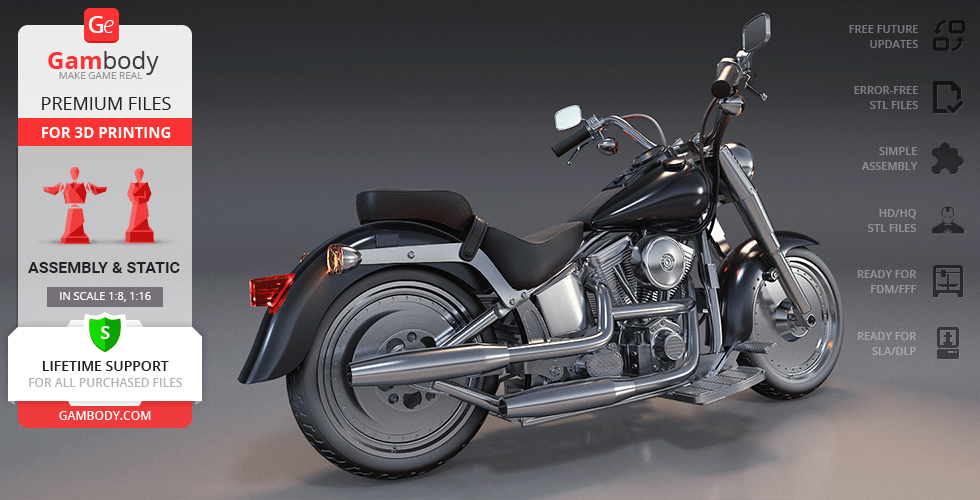

ADAPTATION FOR 3D PRINTING

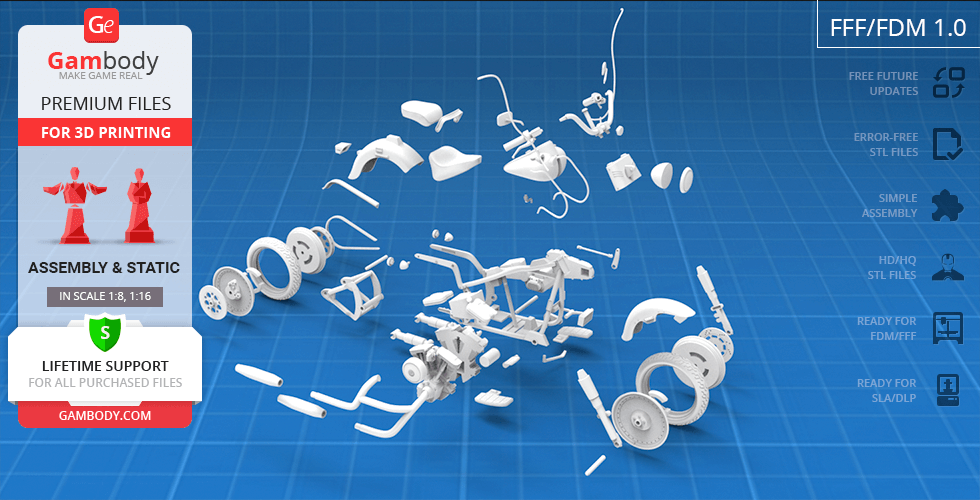

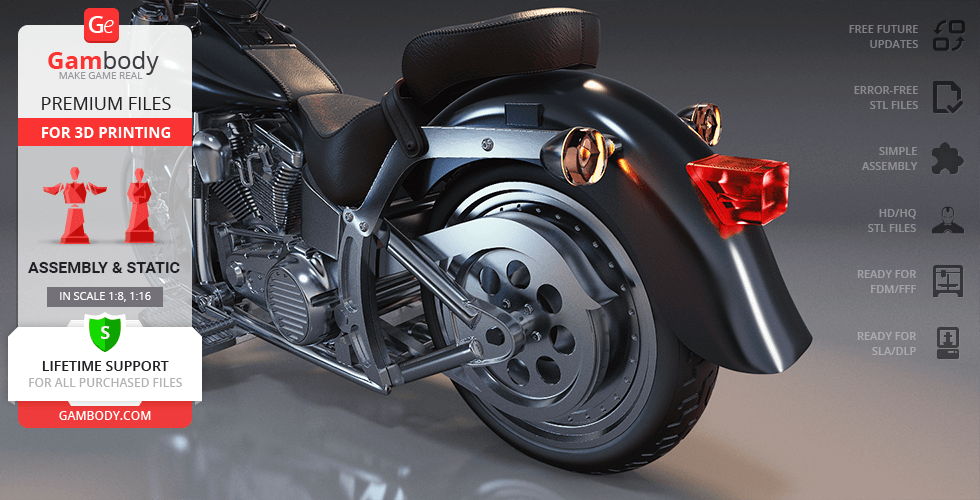

Harley-Davidson Fat Boy 1991 for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 42 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the highly-detailed motorcycle model was divided into many assembly parts.

All assembly parts are provided in STL files of the FFF/FDM version in recommended positions that were worked out to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Harley-Davidson Fat Boy model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual length of the Harley-Davidson Fat Boy 1991 which is 2395 mm. The 3D printing model's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA versions.

VERSIONS' SPECIFICATIONS

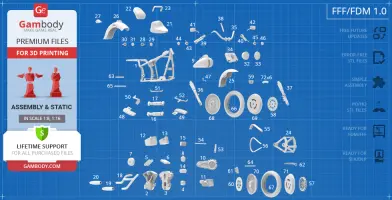

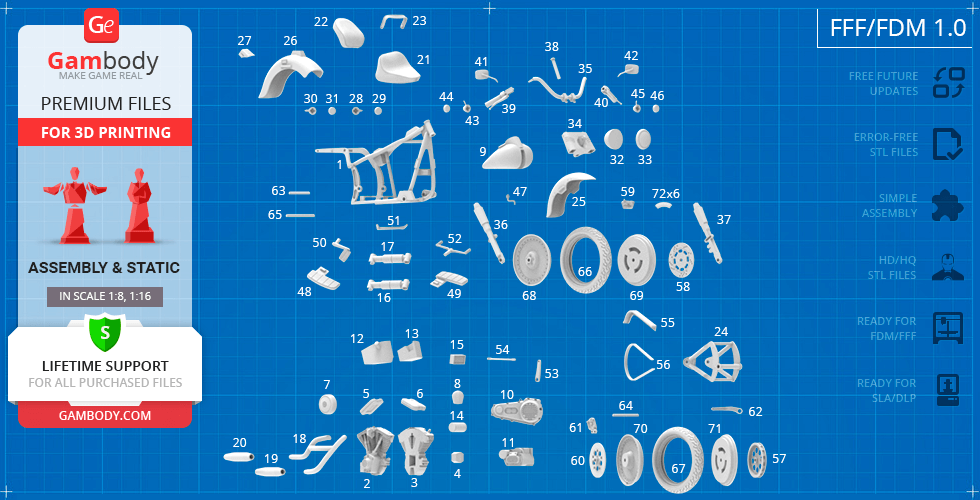

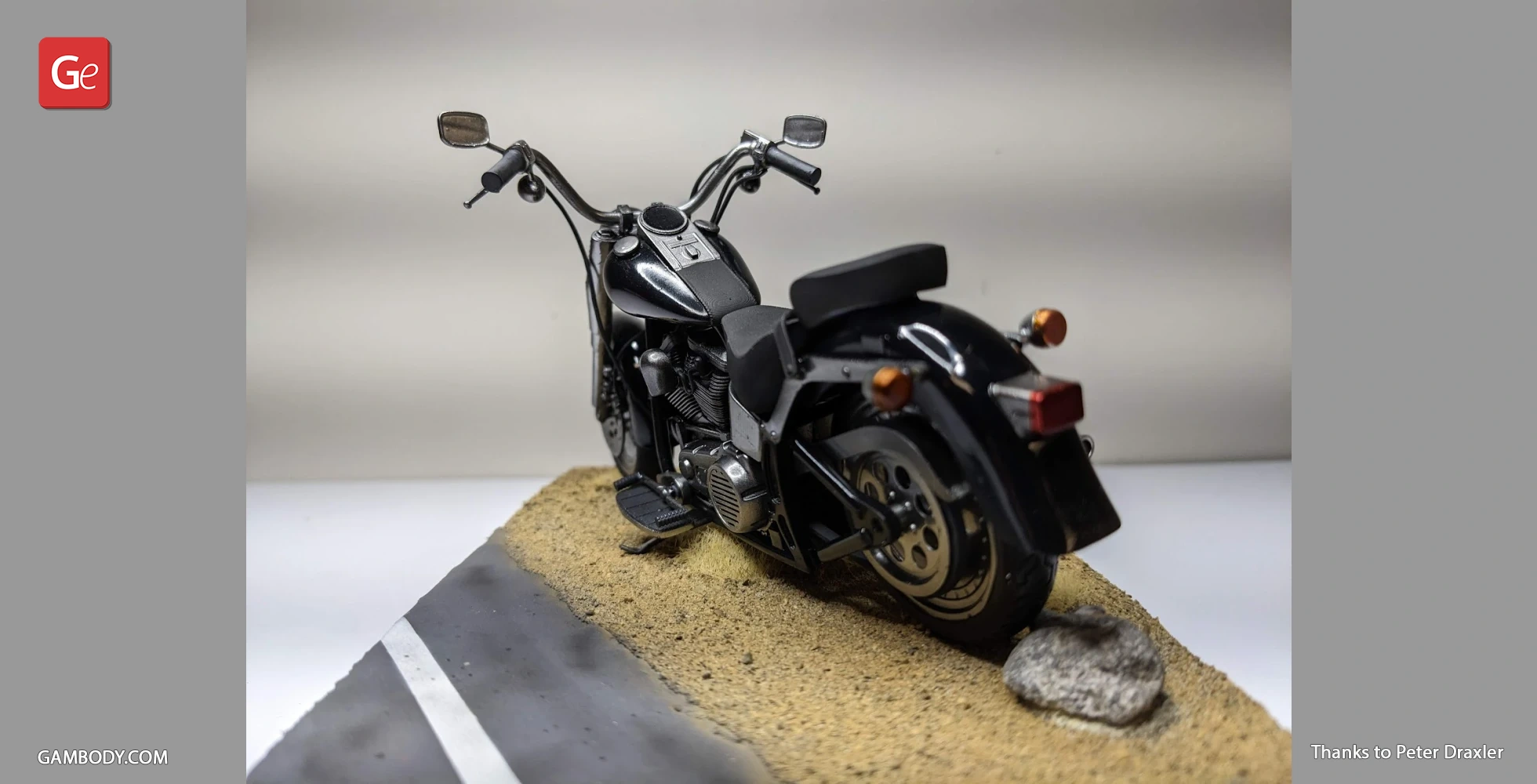

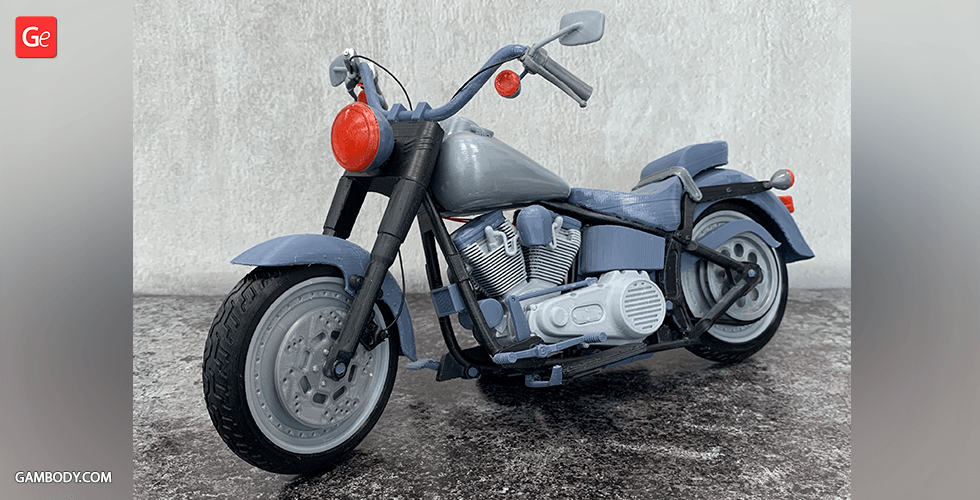

FFF/FDM 1.0 version features:
- The version contains 72 parts;
- A printed motorcycle stands 162 mm tall, 144 mm wide, 300 mm deep;

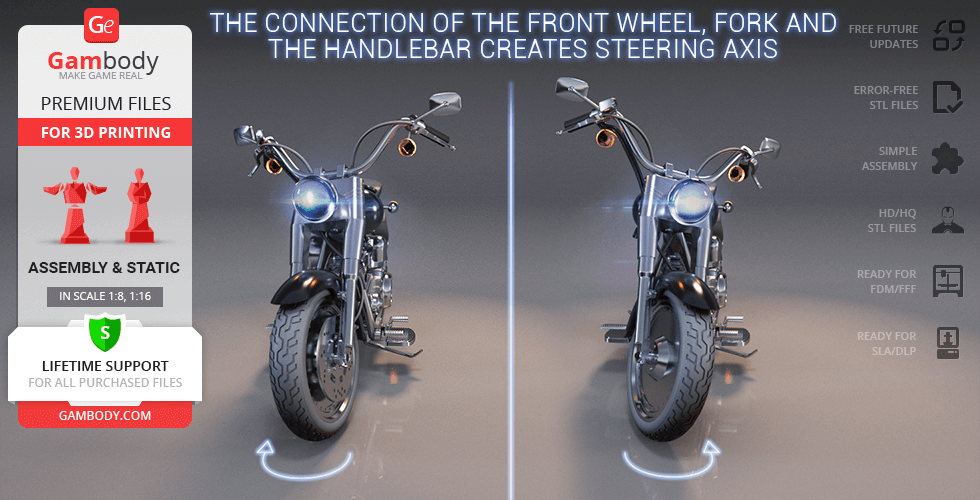

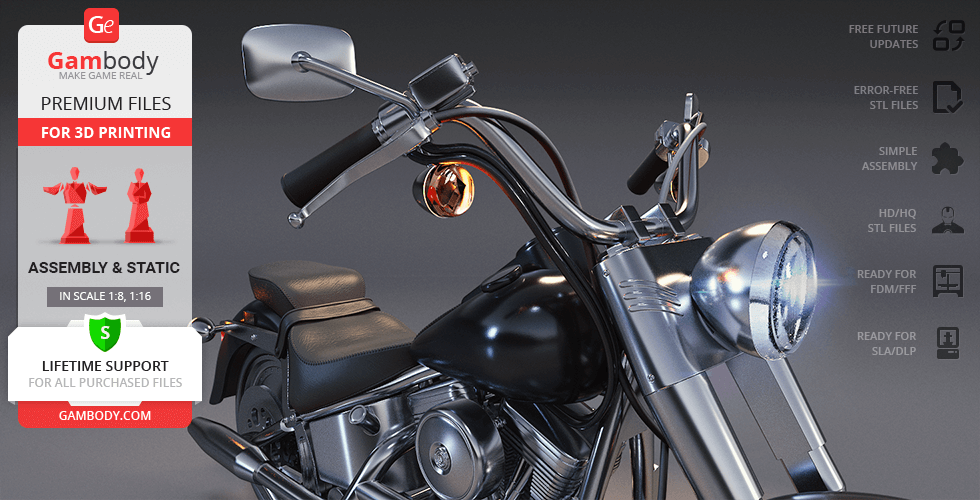

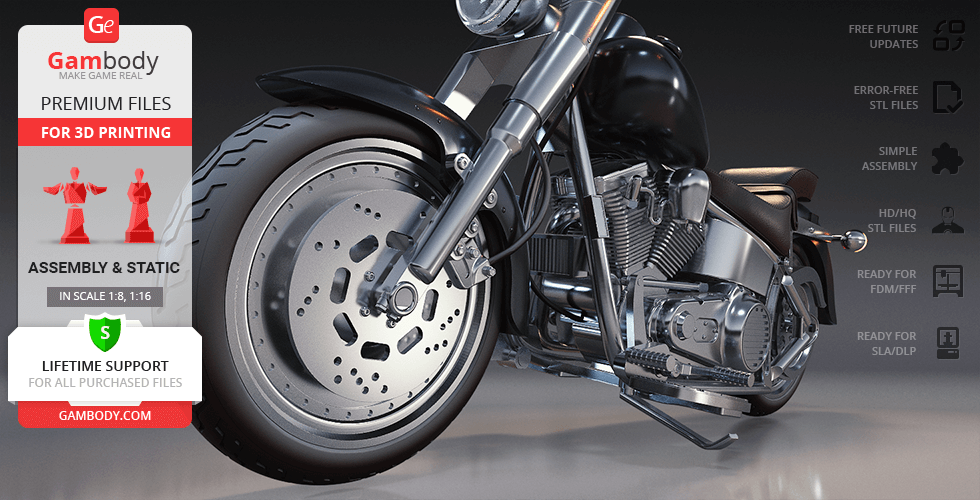

- The connection of the front wheel, fork and the handlebar creates steering axis;

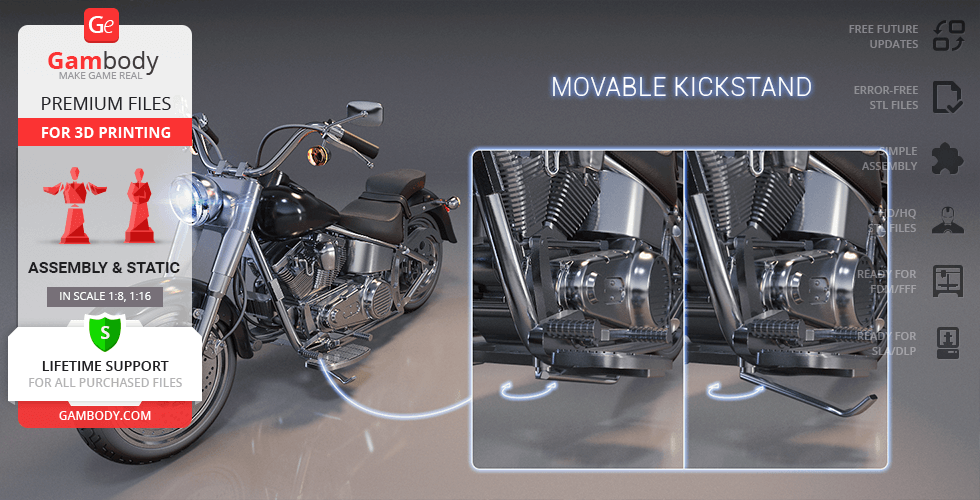

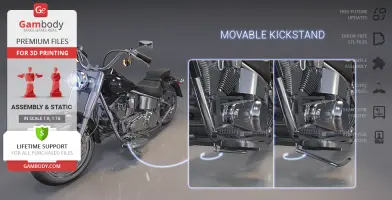

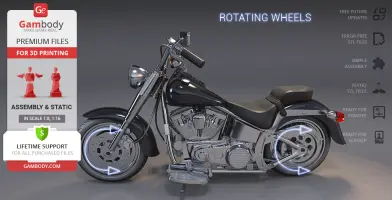

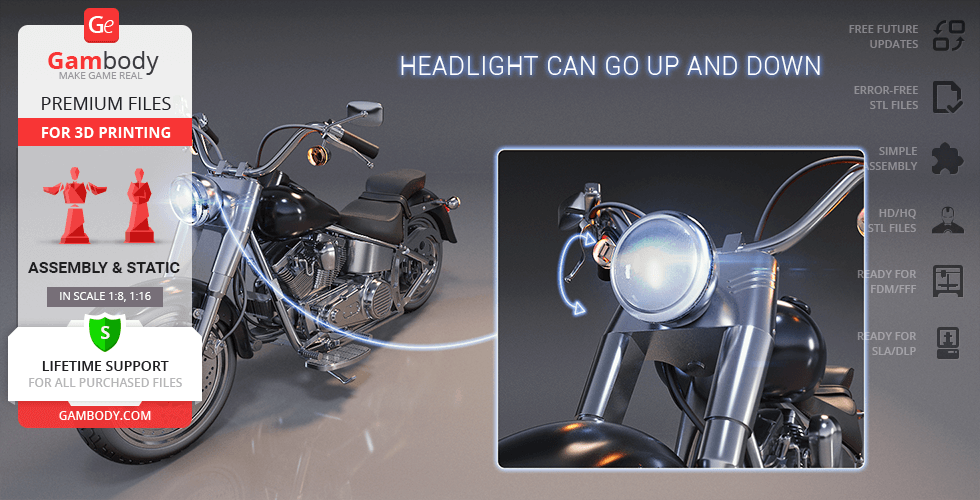

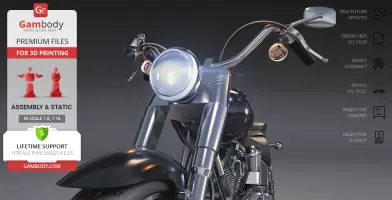

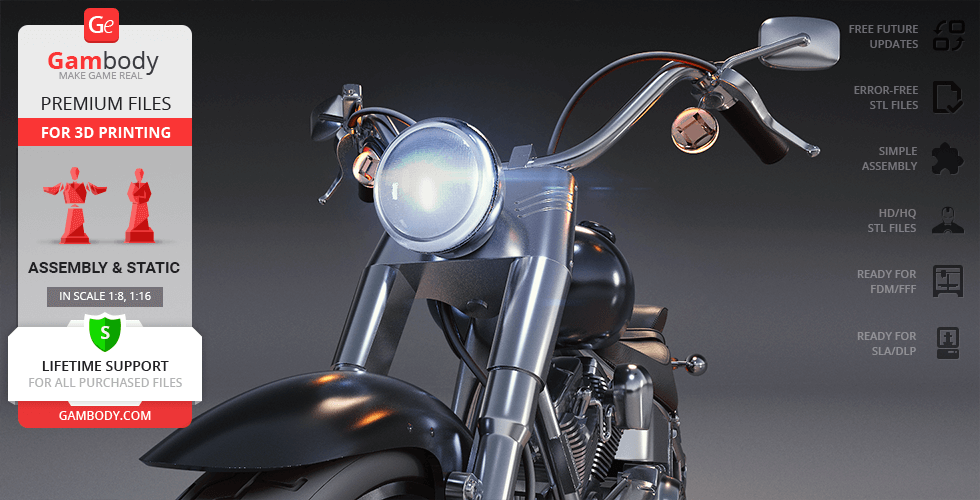

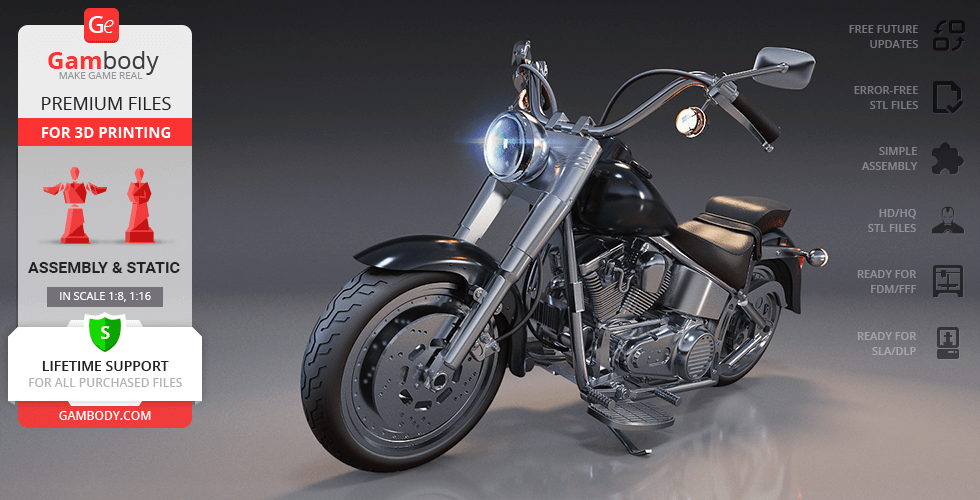

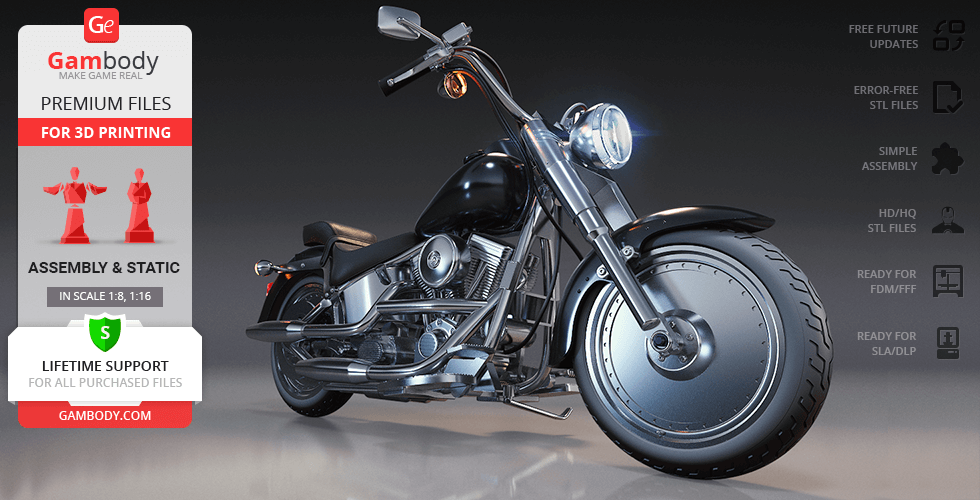

- The kickstand and headlight can go up and down, while the wheels rotate;

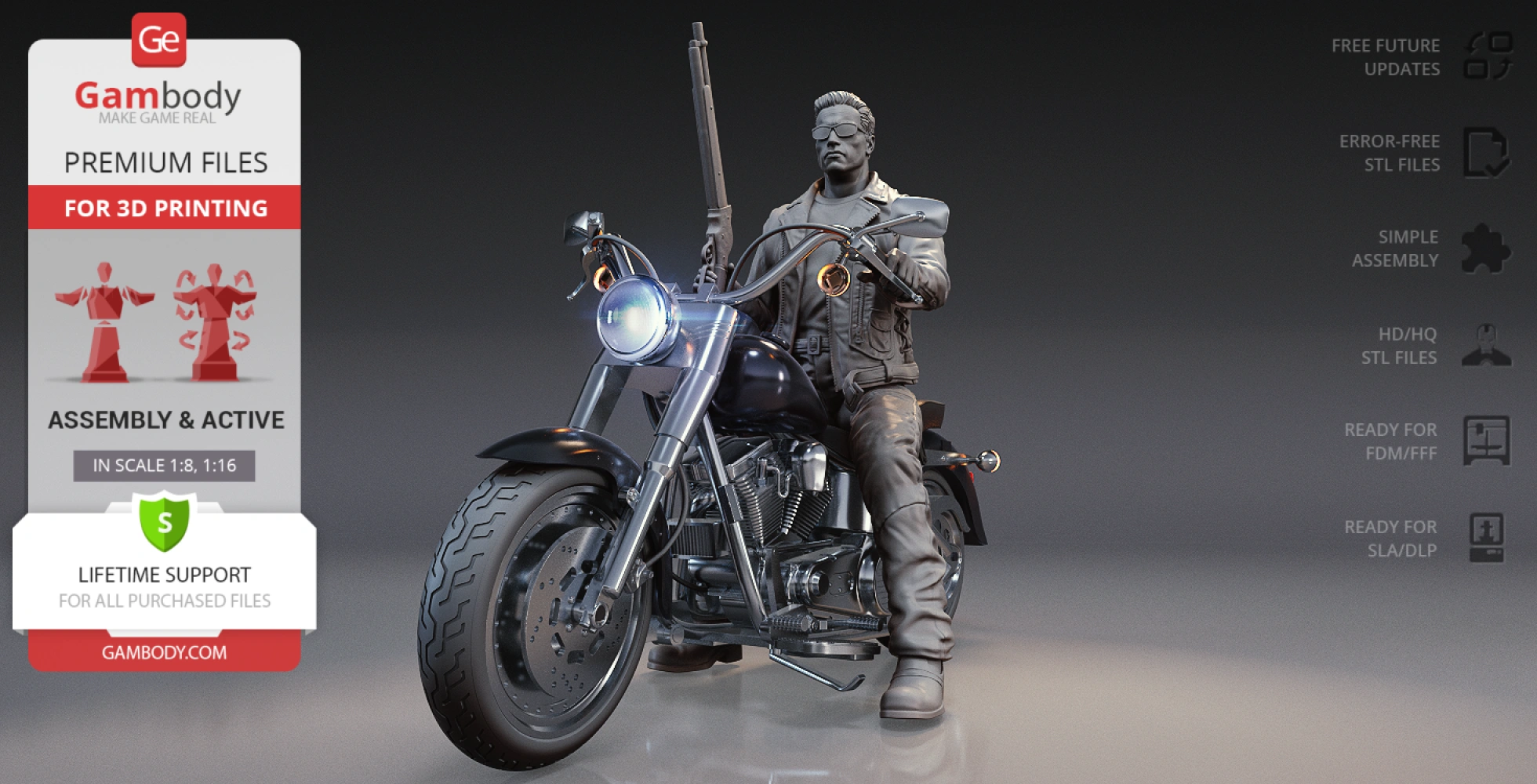

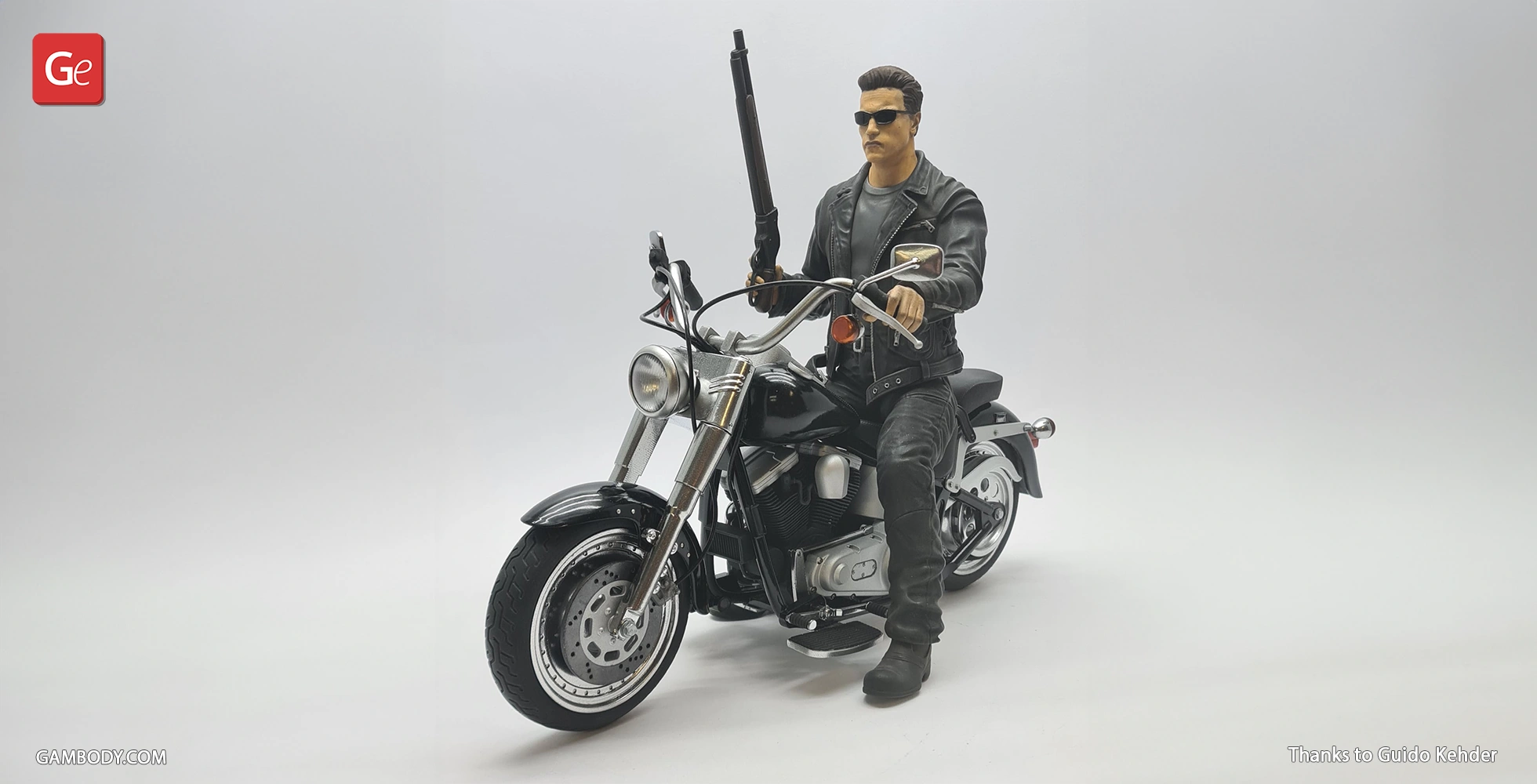

- A sitting T-800 3D printing figurine to display with the Fat Boy is sold separately;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

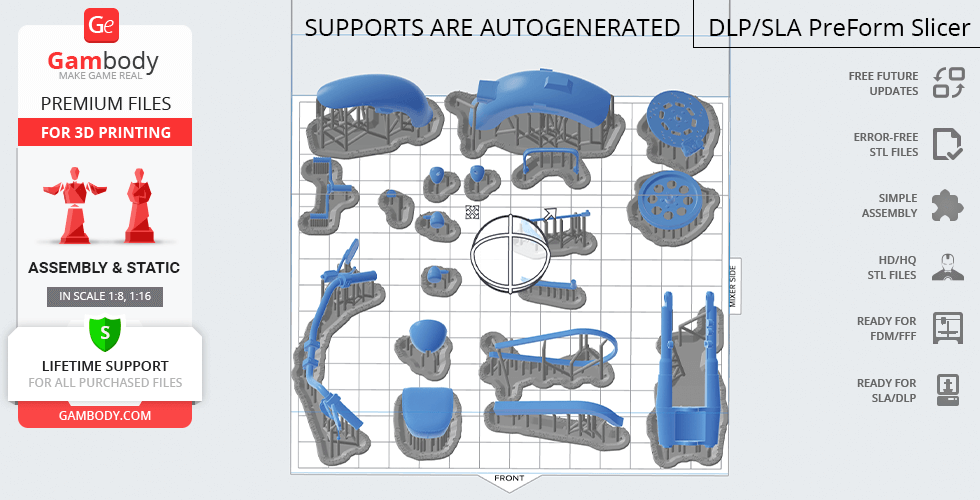

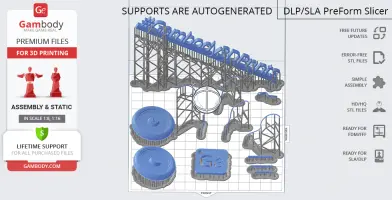

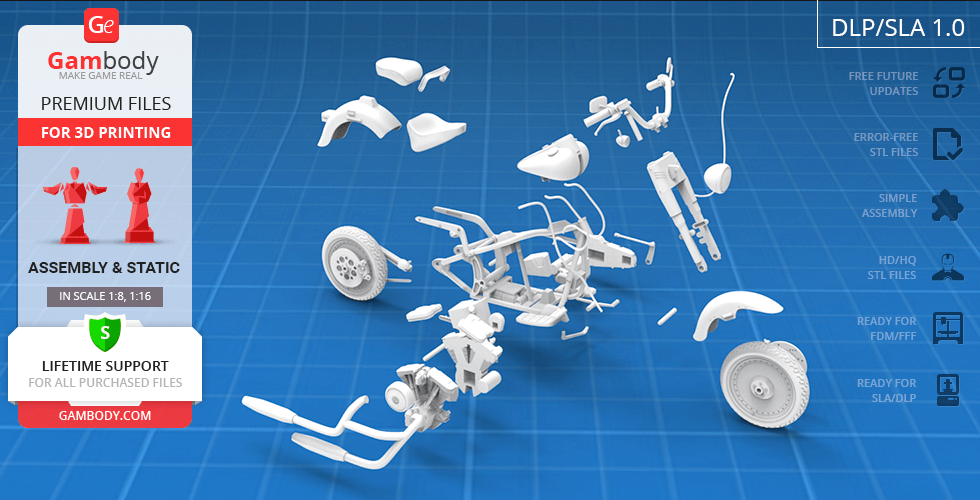

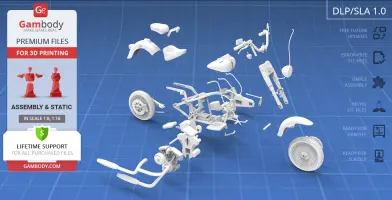

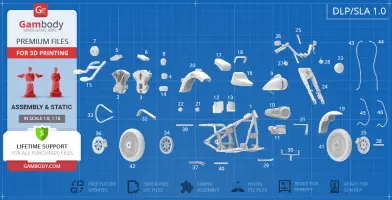

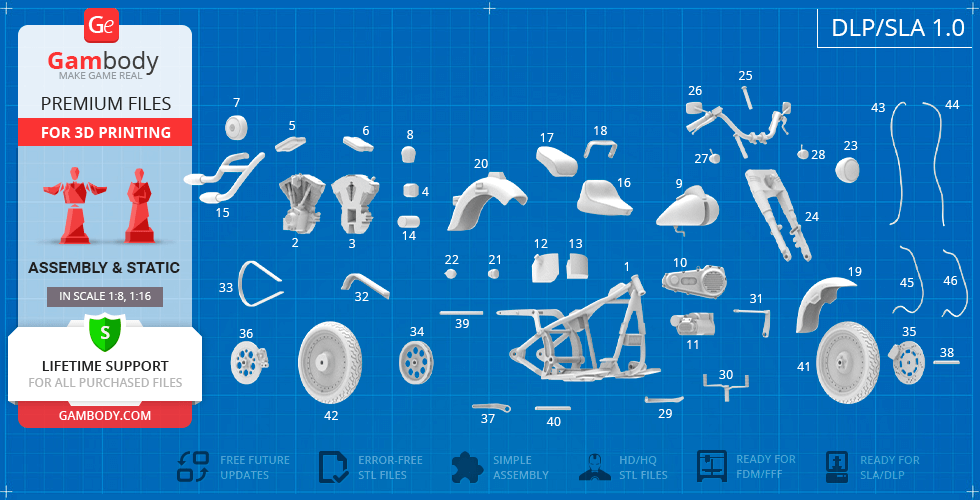

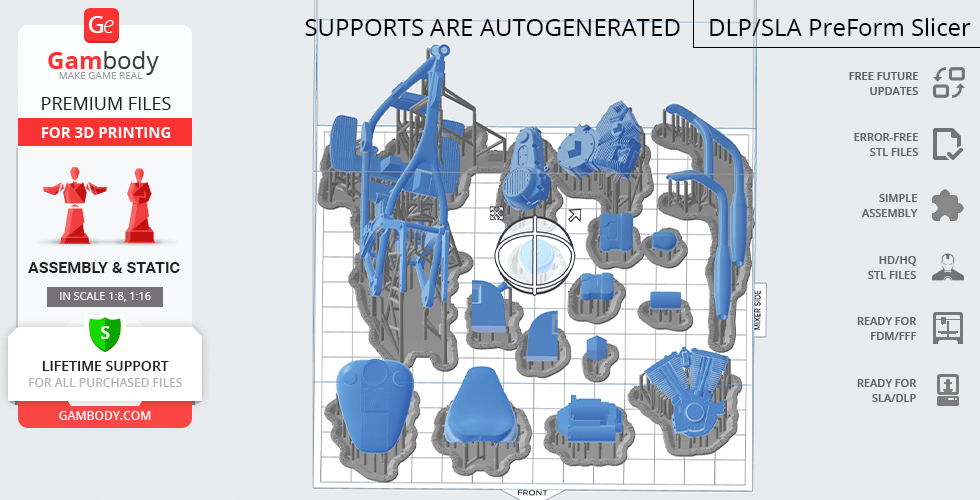

DLP/SLA 1.0 version features:
- The version contains 46 parts;
- A printed motorcycle stands 81 mm tall, 72 mm wide, 150 mm deep;
- The connection of the front wheel, fork and the handlebar creates steering axis;
- The kickstand and headlight can go up and down, while the wheels rotate;
- A sitting T-800 3D printing figurine to display with the Fat Boy is sold separately;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

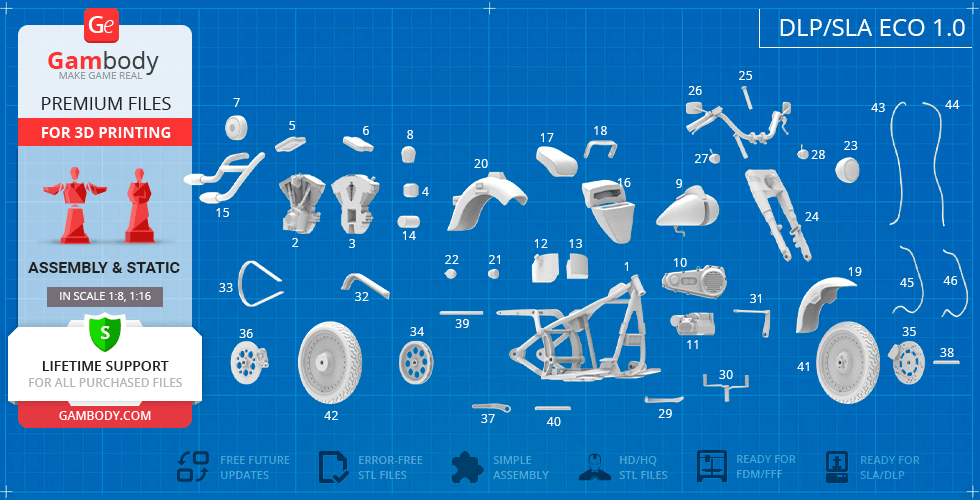

DLP/SLA Eco 1.0 version features:
- The version contains 46 parts;
- A printed motorcycle stands 81 mm tall, 72 mm wide, 150 mm deep;
- The connection of the front wheel, fork and the handlebar creates steering axis;
- The kickstand and headlight can go up and down, while the wheels rotate;
- A sitting T-800 3D printing figurine to display with the Fat Boy is sold separately;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed;
- Contains some hollowed-out parts to save resin.

You can get the model of Harley-Davidson Fat Boy 1991 for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Harley-Davidson Fat Boy 1991 3D Printing Model at Gambody YouTube channel.

Also, you may like Terminator 3D Printing Figurines, as well as more Motorcycle 3D Printing Models.

Generic

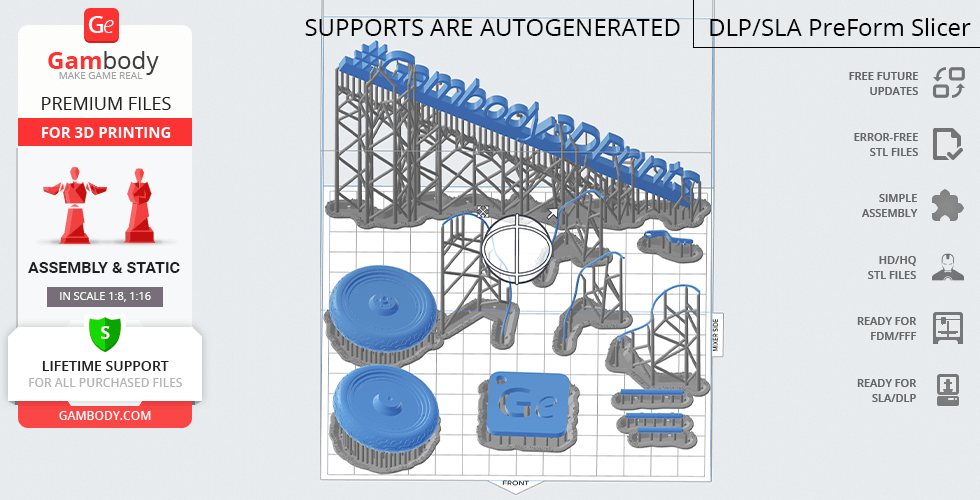

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

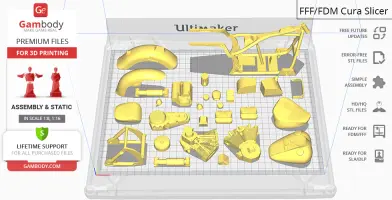

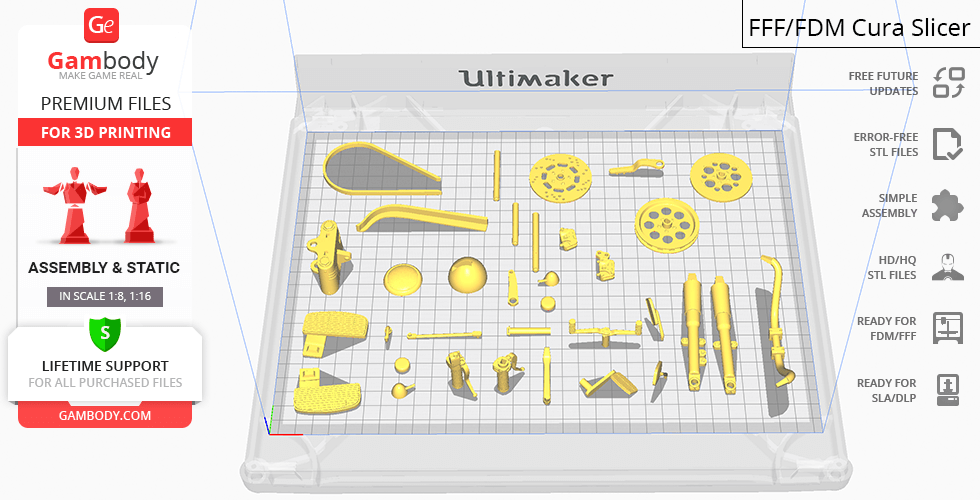

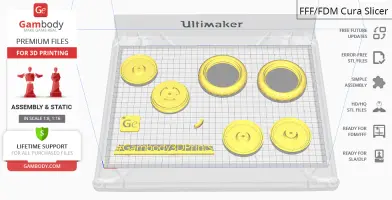

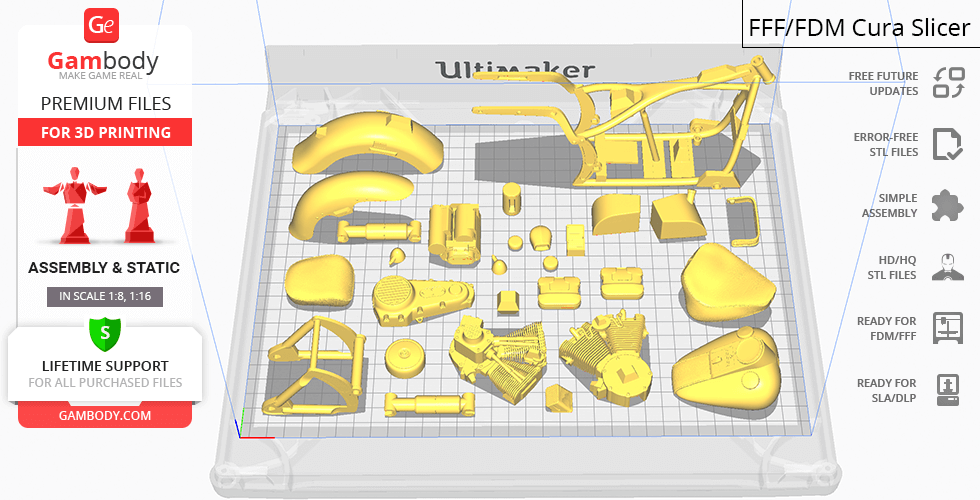

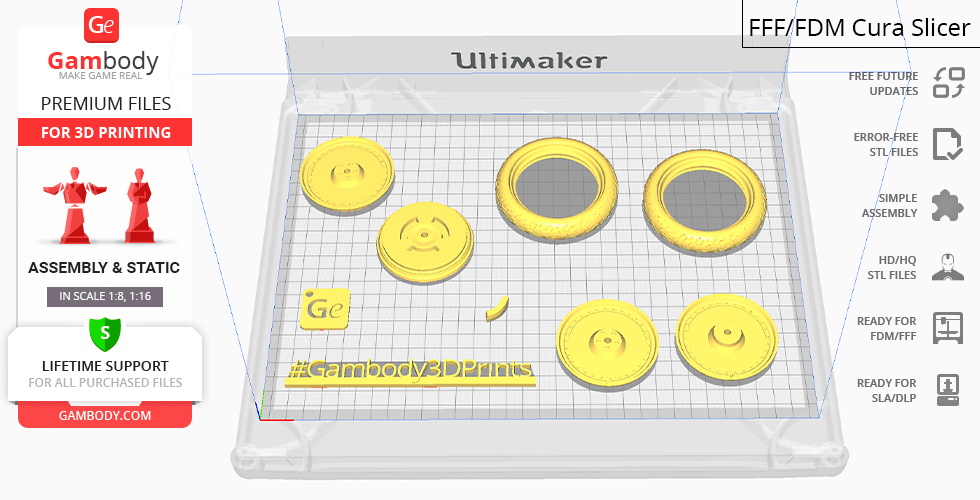

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
