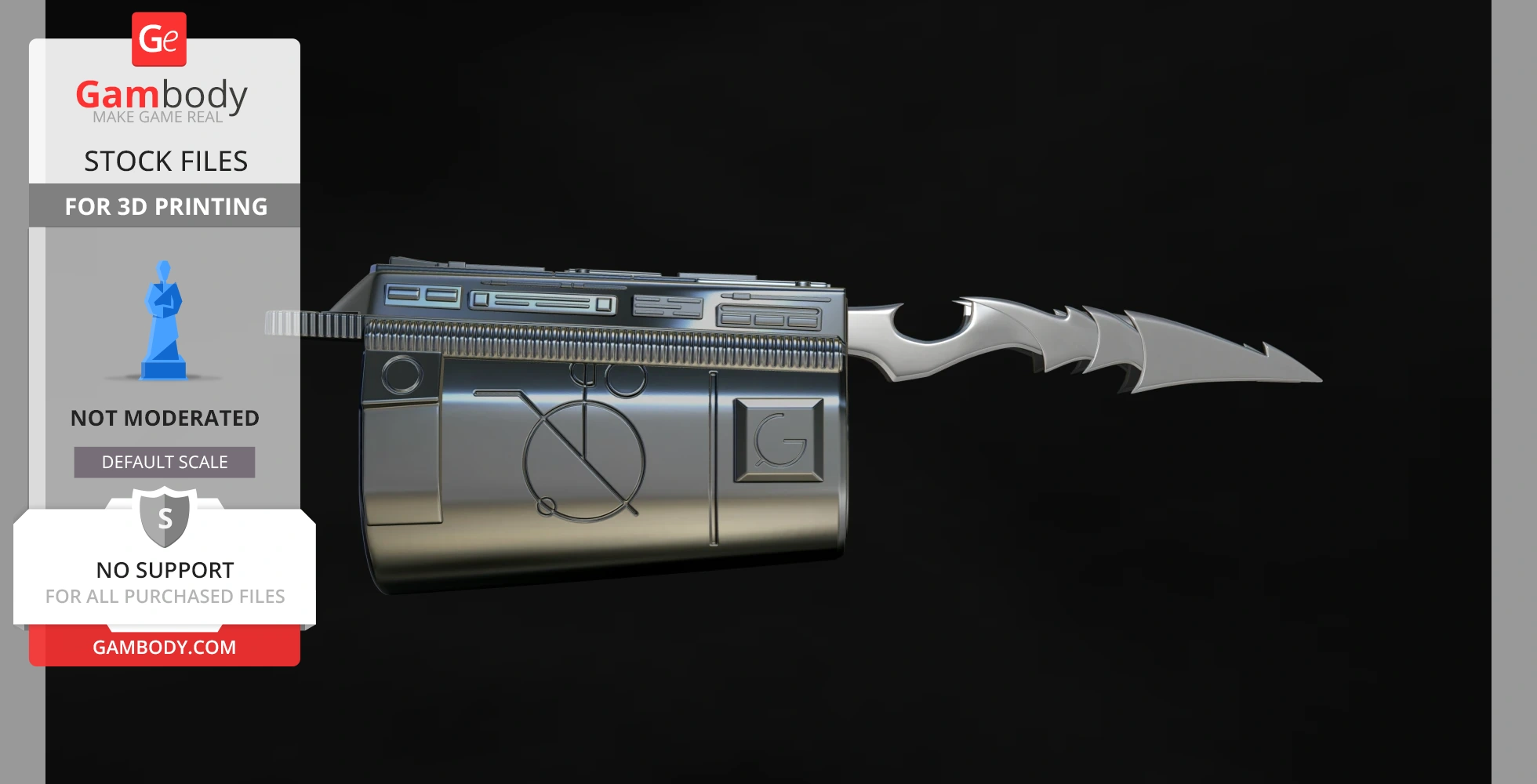

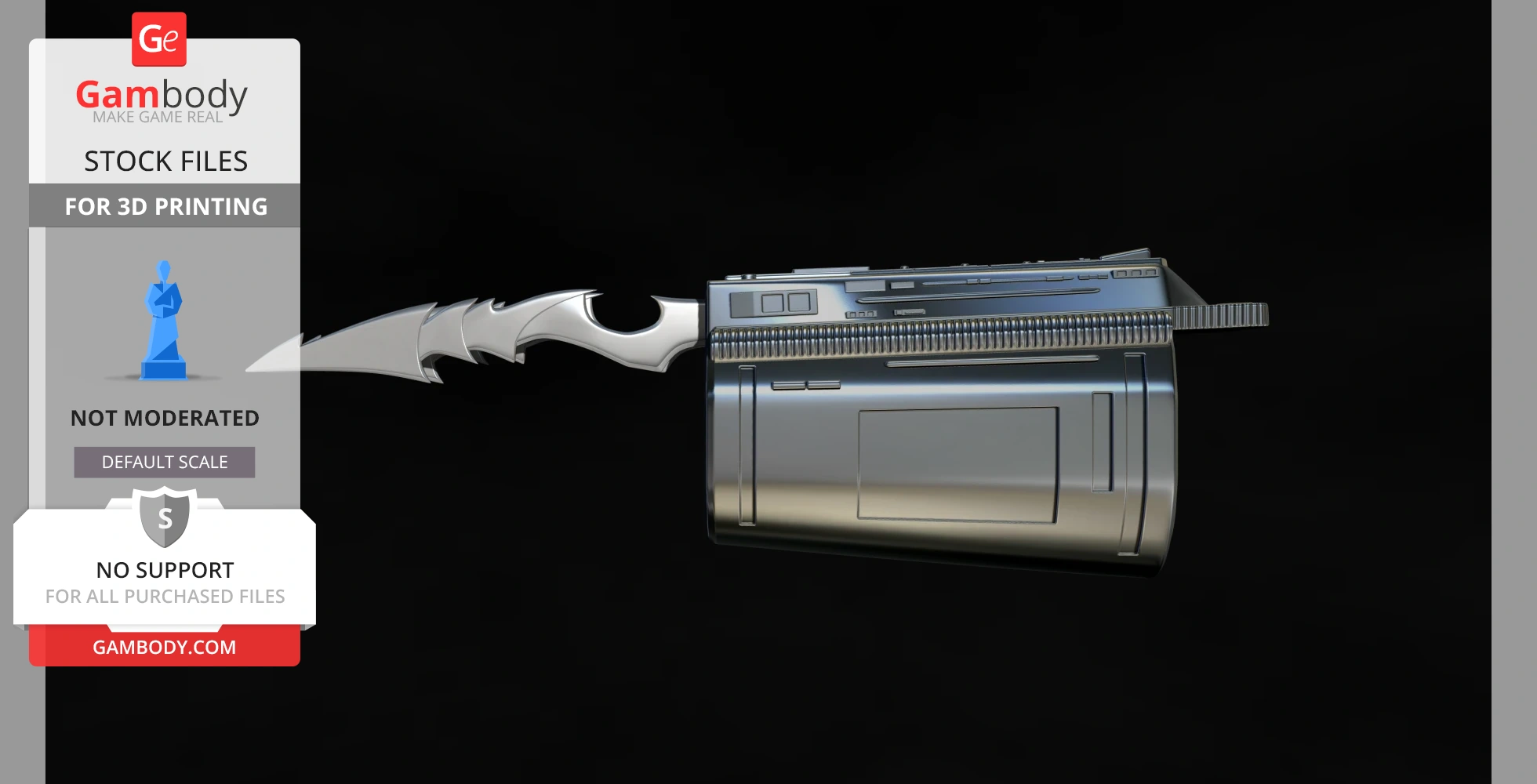

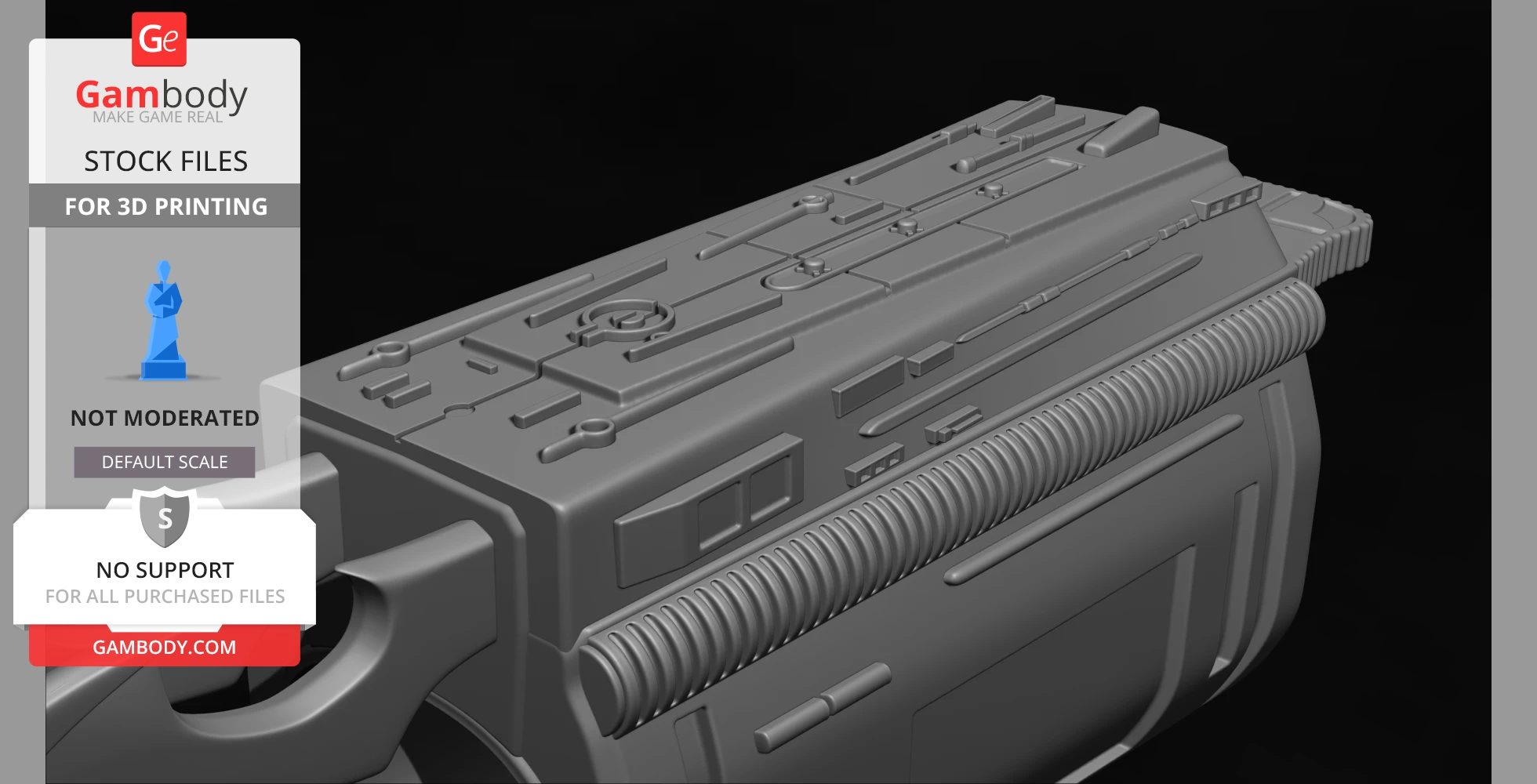

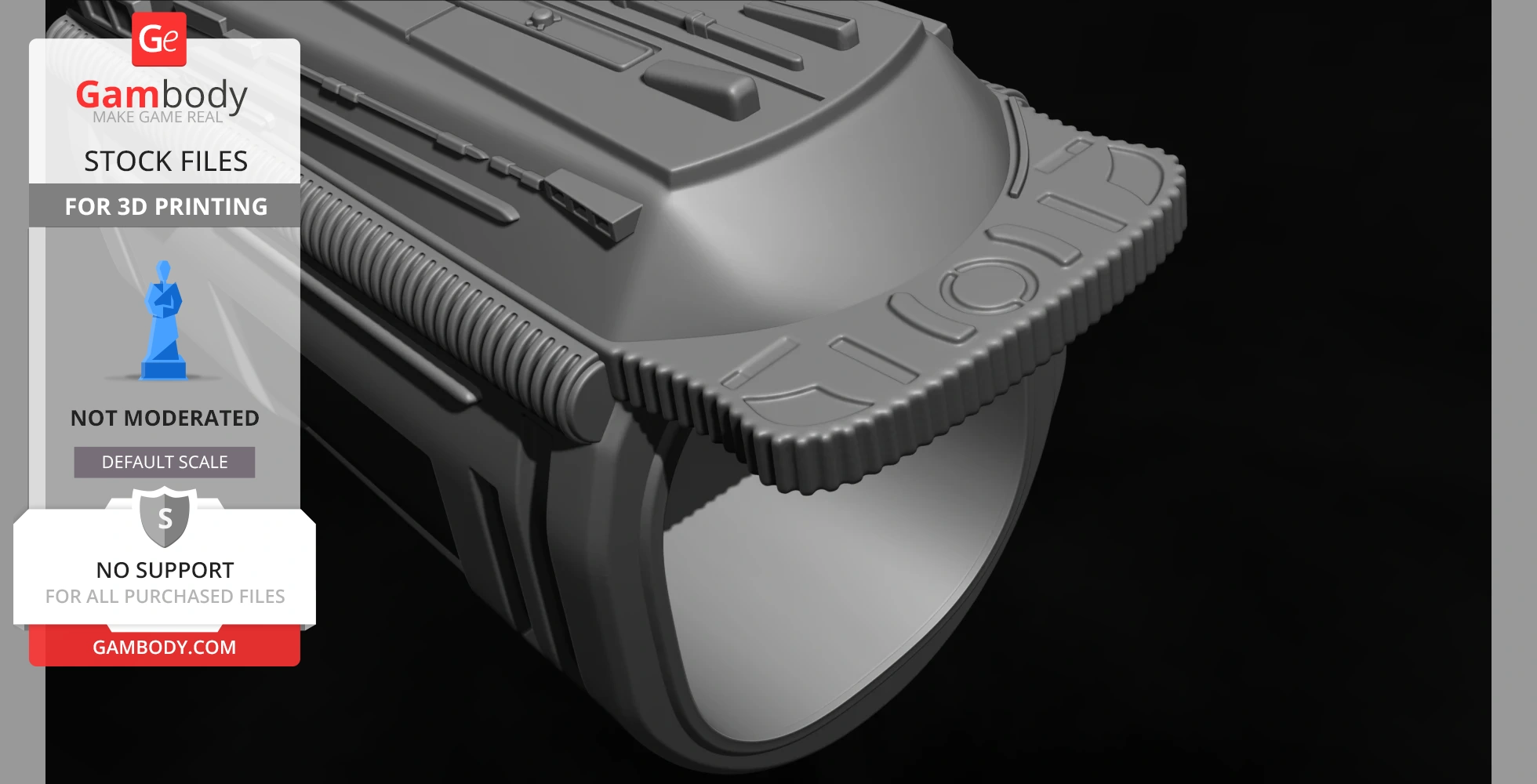

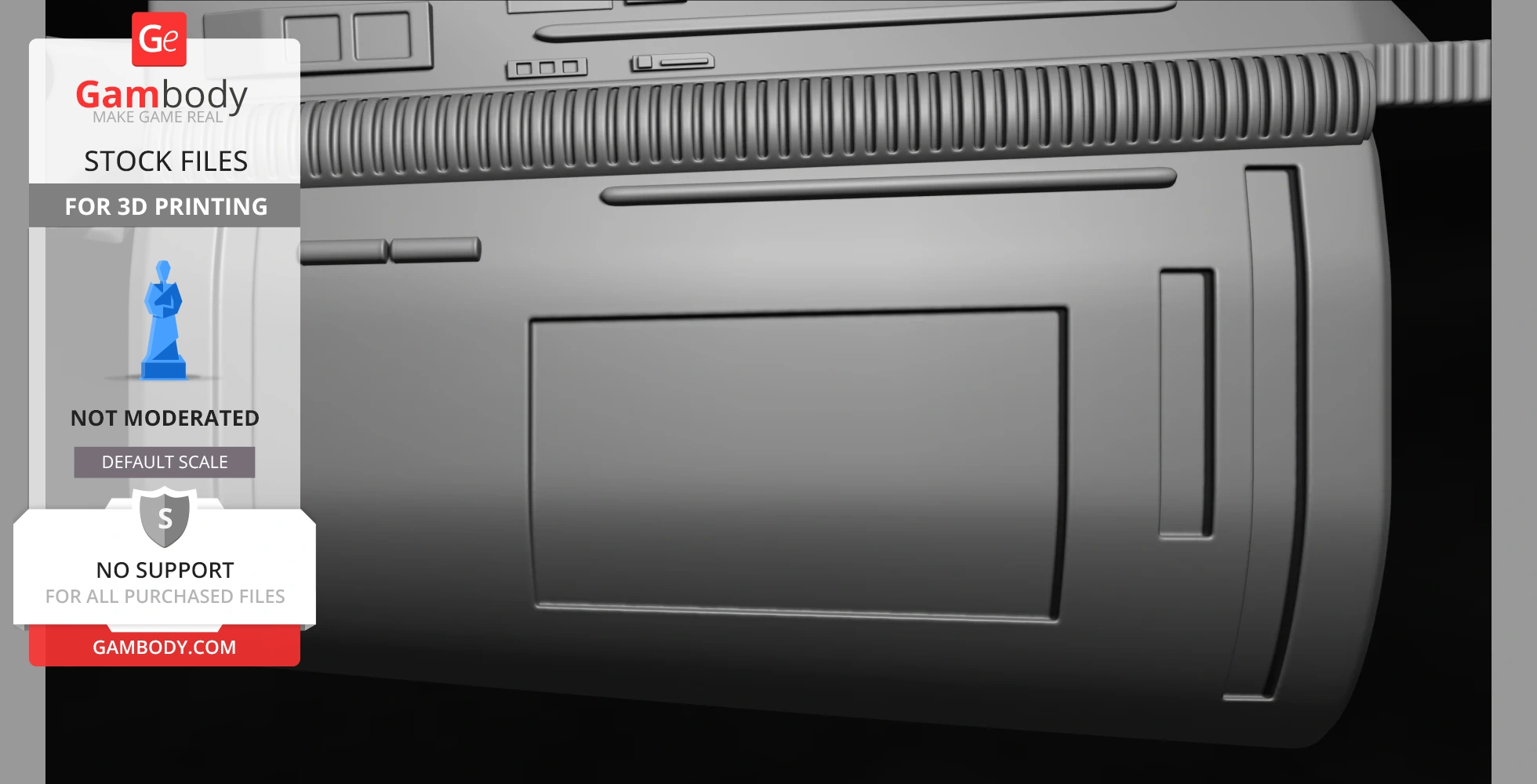

Predator Gauntlet Forearm Right STL Files for 3D Printing | Assembly Model

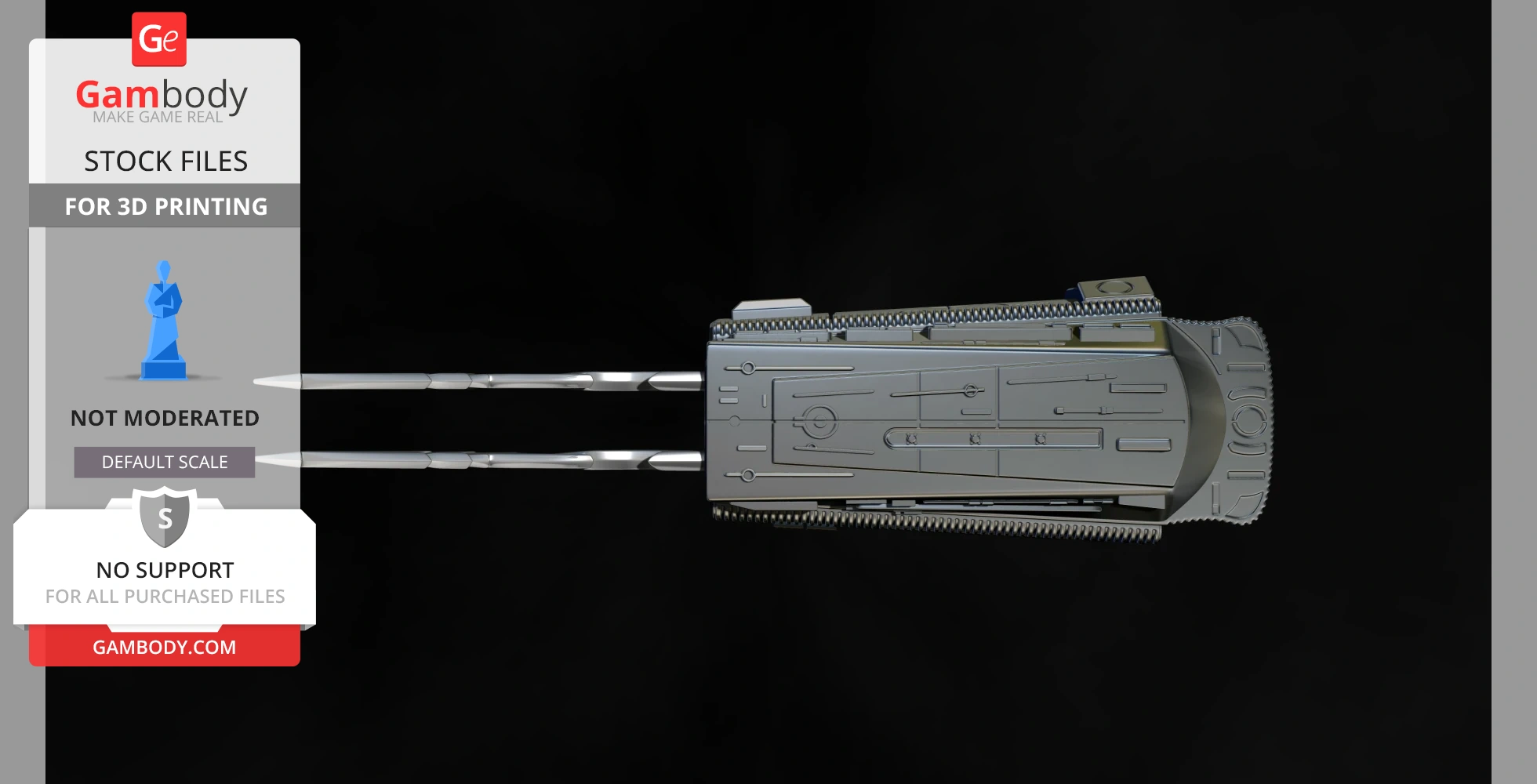

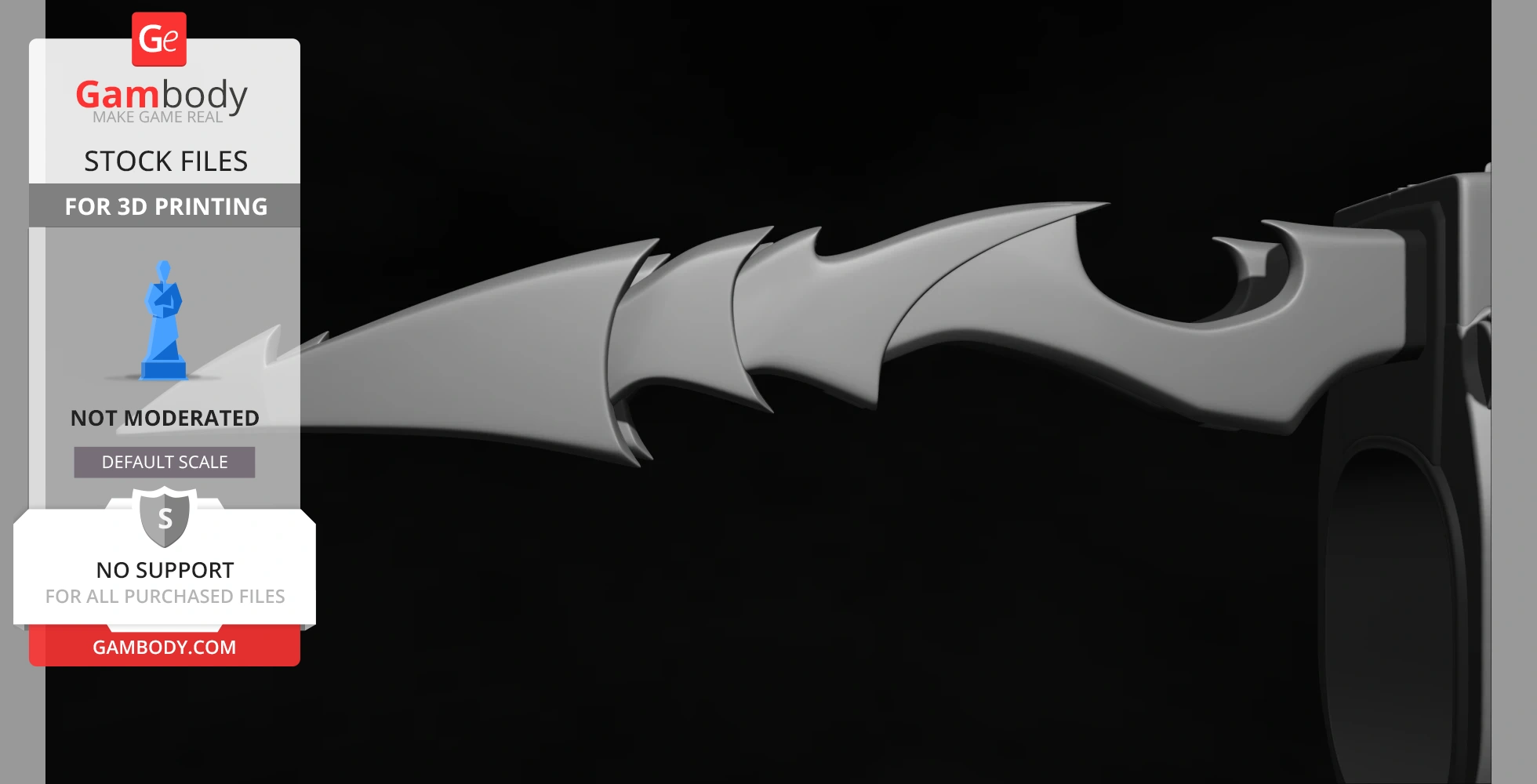

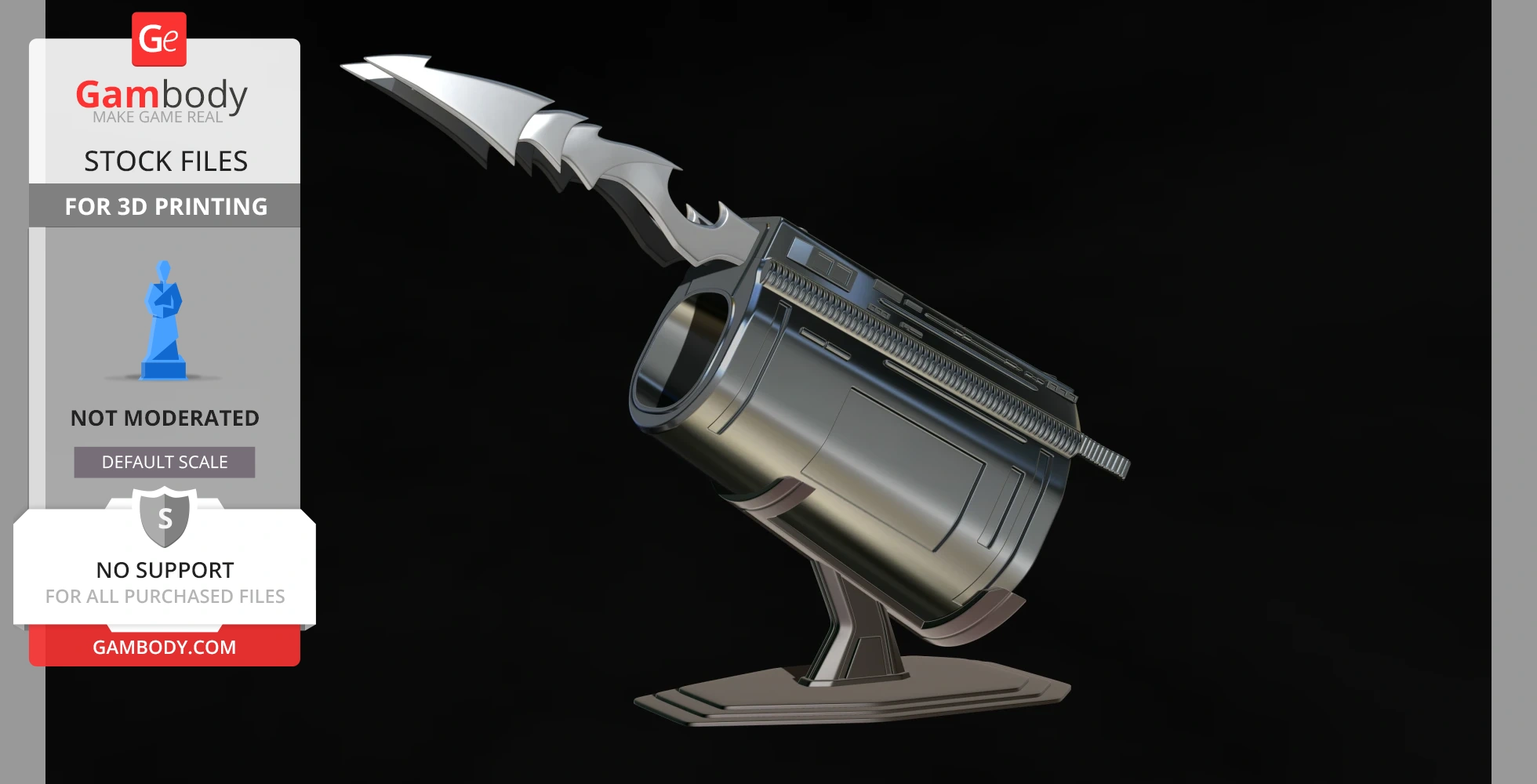

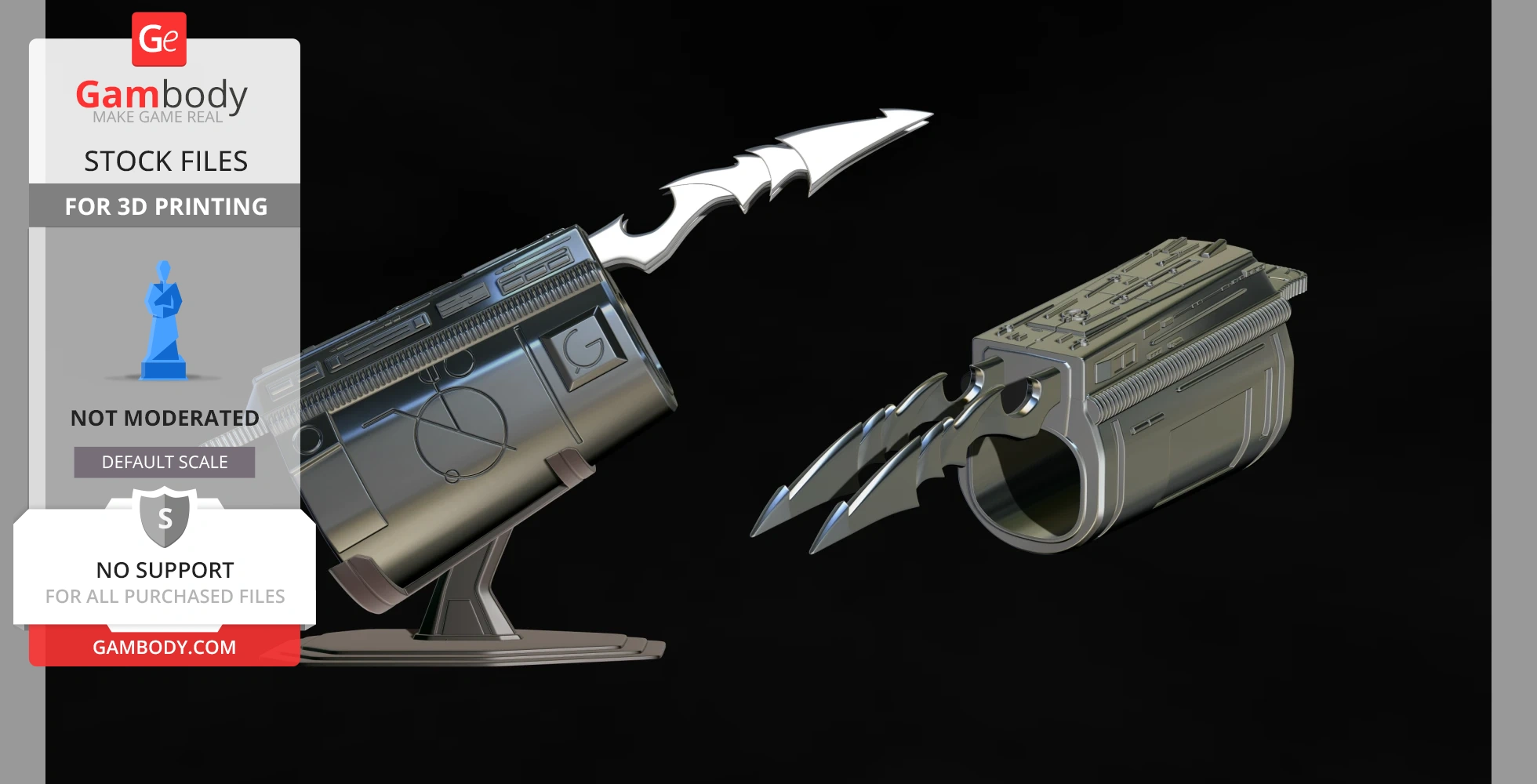

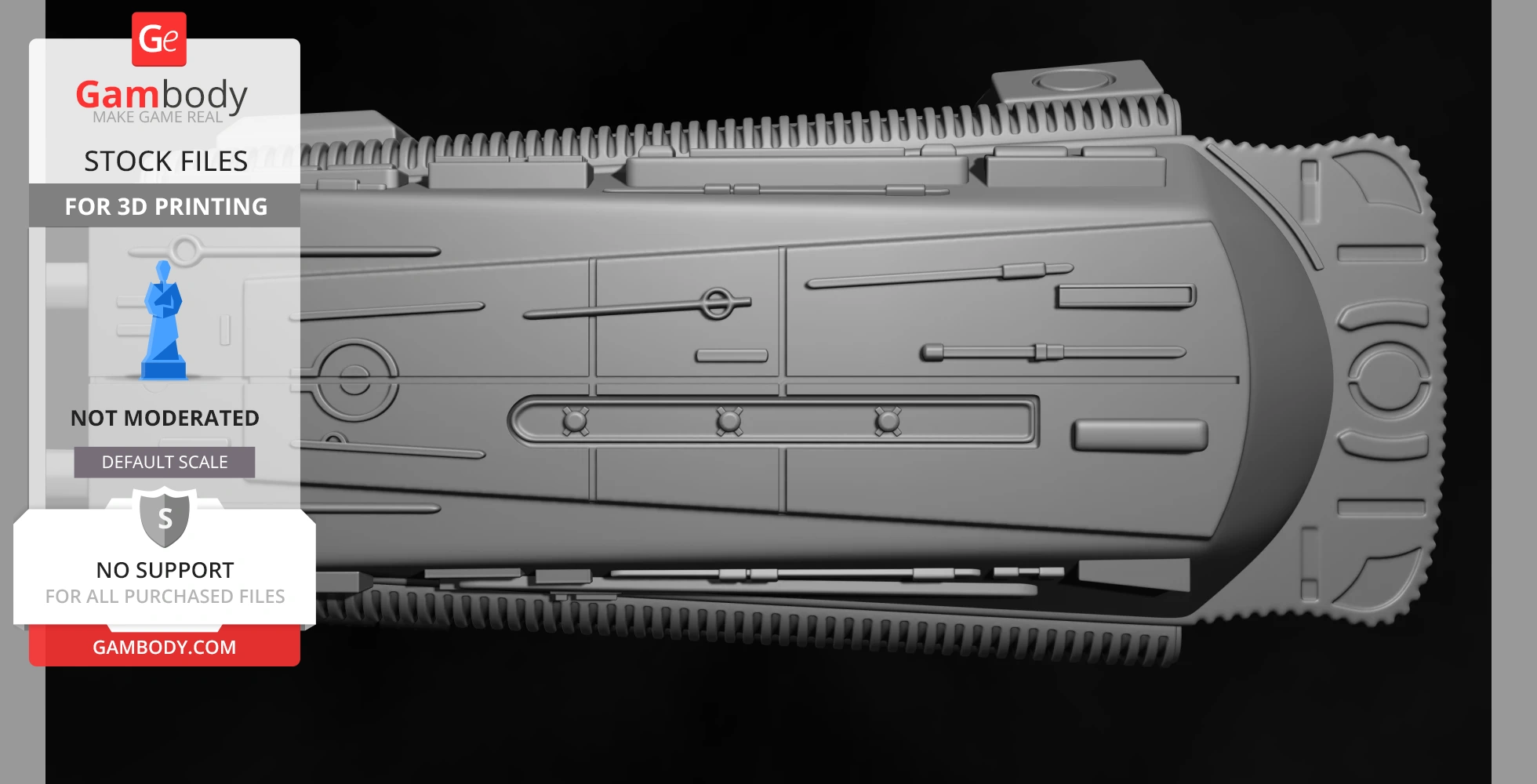

Predator Gauntlet Forearm Right, two versions File STL-OBJ for 3D printer

Two size 1: 1 for FDM-FFF, 1: 2 for DLP-SLA-SLS,

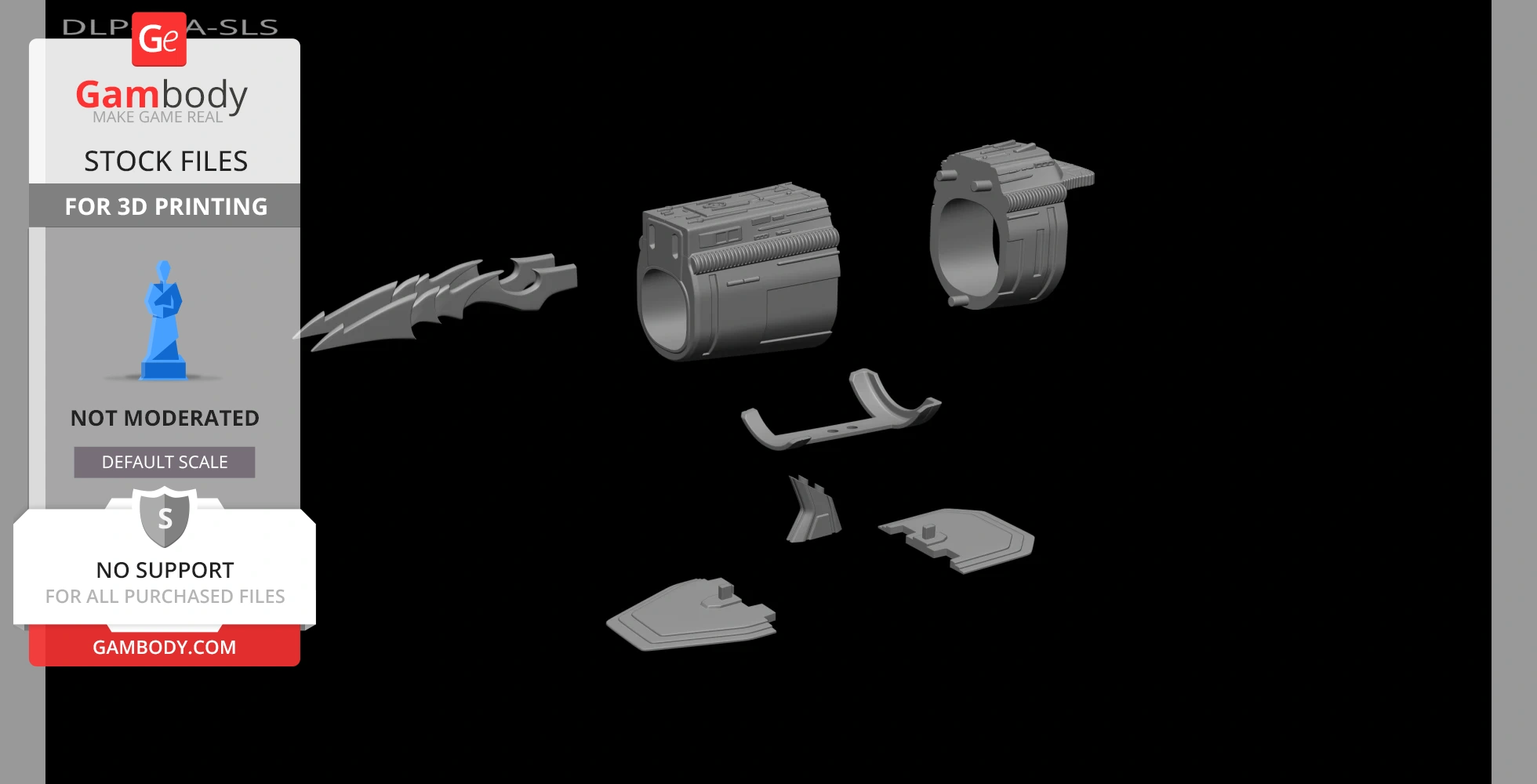

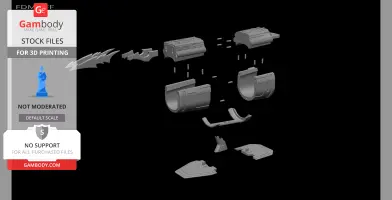

Assembly Figure

more than 200 hours of modeling

two versions

however, the dimensions can be changed with each slicer

in total is composed of 5 mil points

all the files have been decimated by the polygons, but without losing the details, this makes the light files suitable for each computer

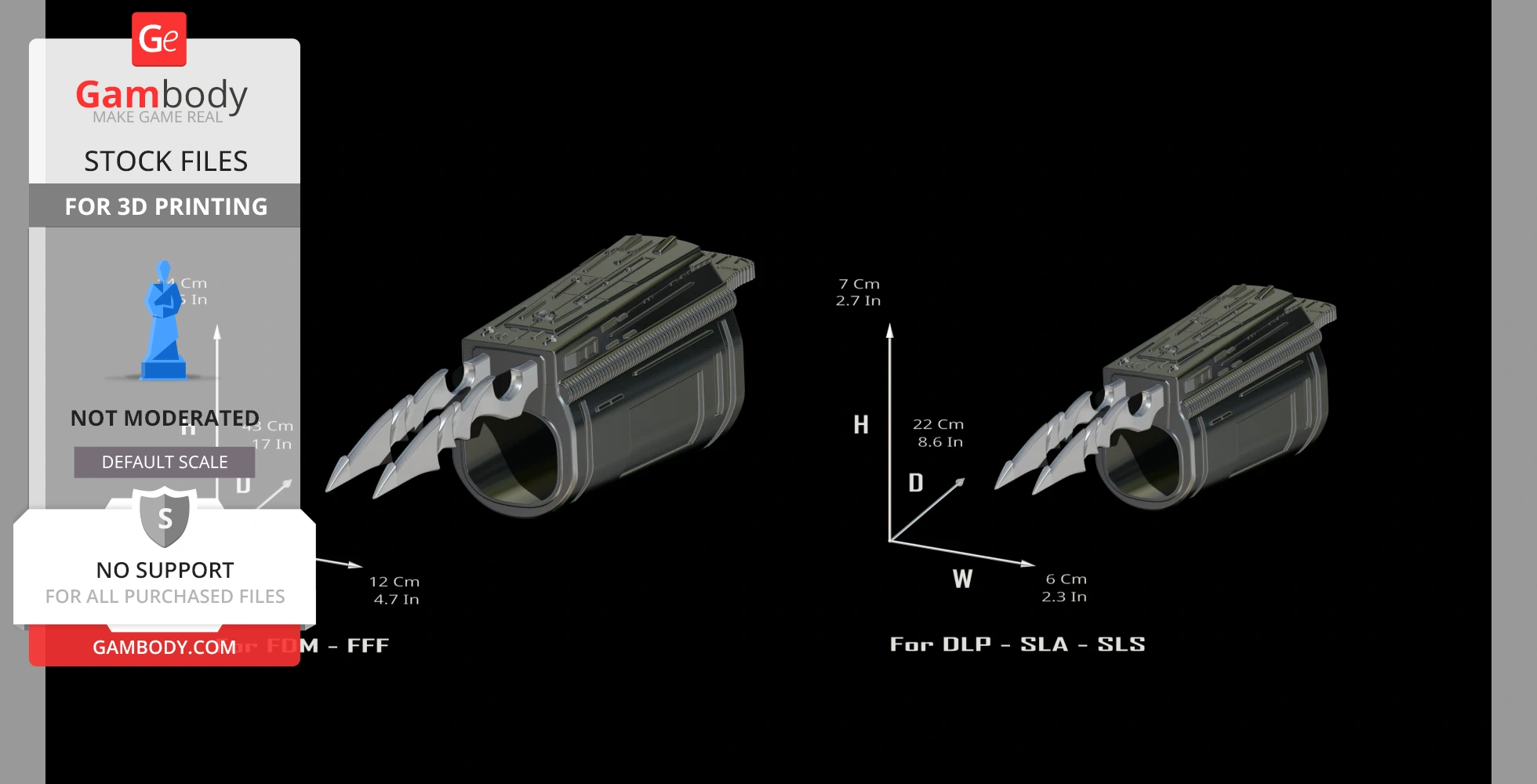

dimensions approximately FDM-FFF W 12 Cm D 43 Cm H 14 Cm

W 4,7 inch D 17 inch H 5,5 inch

dimensions approximately DLP-SLA-SLS W 6 Cm D 22 Cm H 7 Cm

W 2,3 inch D 8,6 inch H 2,7 inch

all files are already in place for optimal printing

Predator Gauntlet 3D model was designed to get a clean print result, without considering printing material consumption, However, you are free to rotate, or scale,

every part of the model in the most convenient way for you.

Each file has been checked and repaired with Netfabb

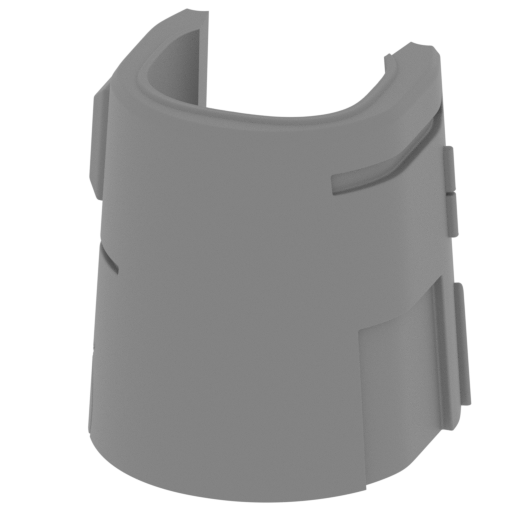

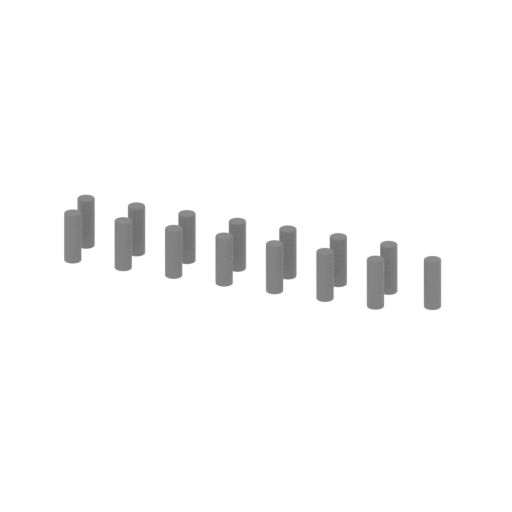

The parts of the model are already positioned for 3D printing

Compatible with every Slicer- Simplify3D, Care, Slic3r, etc ...

All the parts of the model have been cut so as to be printed vertically, for a higher quality of printing

Recommended settings for printing

each part was cut to be printed vertically, to have a better quality print, so for the upper parts,

it is recommended to print with a 4-5 skirt

Quality

Layer height: 0.1mm*

Initial layer thickness: 0.3mm

Bottom/top pattern: lines

Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

As a STL file provider, our goal is to ensure that the files are error-free and printable in the most accurate way. This is why we only test print the most difficult segments of

the model’s parts.

The model's parts have been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups:

Infill speed: 30mm/s

Outer shell speed : 30mm/s

Inner shell speed: 20mm/s

Top/bottom speed: 20mm/s

Support speed: 50mm/s

Travel speed: 150mm/s

Skirt speed: 30mm/s

Amount of slower layers: 4

Infill:

Infill pattern: Grid

Line distance: 1.5mm

Infill overlap: 20%

Infill layers: 0

Support:

Enable support: Check

Placement: Everywhere

Overhang angle: 30°

X/Y distance: 0.7mm

Top distance: 0.2mm

Bottom distance: 0.2mm

Stair step height: 0.5mm

Join distance: 0.7mm

Area smoothing: 0.6mm

Use towers: check

Pattern: Grid

Line distance: 1.5mm
