Anycubic Photon Mono 2 3D Printer + Grinch + Gizmo + Grogu + Kevin

(3)
cm: 0.1 w x 0.1 d x 0.1 h
in: 0.039 w x 0.039 d x 0.039 h

Source Files

|

Description

|

Printing Details

This bundle consists of Anycubic Photon Mono 2 Resin 3D Printer, Gizmo 3D Printing Figurine, Kevin 3D Printing Figurine, Grinch 3D Printing Figurine, and Grogu 3D Printing Figurine. The 3D printing models come in the form of digital files in StereoLithography (.STL) format that is optimized for DLP/SLA 3D printing.

WHAT WILL YOU GET AFTER PURCHASE?

- High-resolution Photon Mono 2 Resin 3D Printer by Anycubic

- 1 versions of Gizmo STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- 1 versions of Grinch STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- 1 versions of Kevin STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- 1 versions of Grogu STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- Printing settings that we provide as a recommendation for Anycubic Photon Mono 2 Resin 3D Printer

- Full technical support from the Gambody Support Team

Detailed information about this bundle is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_Grinch_head_SLA(repaire d).stl
45.89 MiB 2 h 36 min 1 m 33 x 45 x 44 Download
2_Grinch_head_for_cap_SLA (repaired).stl
55.58 MiB 2 h 18 min 1 m 33 x 37 x 34 Download
3_cap_SLA(repaired).stl
19.08 MiB 2 h 41 min 2 m 36 x 41 x 41 Download
4_Grinch_body_SLA(repaire d).stl
48.03 MiB 10 h 8 min 6 m 60 x 63 x 63 Download
5_Grinch_hand_R_SLA(repai red).stl
41.19 MiB 59 min 1 m 20 x 46 x 23 Download
6_Grinch_hand_L_SLA(repai red).stl
45.69 MiB 1 h 38 min 1 m 39 x 30 x 44 Download
7_Grinch_legs_SLA(repaire d).stl
40.98 MiB 9 h 26 min 7 m 51 x 74 x 74 Download
8_christmas_ball_SLA(repa ired).stl
10.06 MiB 13 min <1 m 13 x 13 x 30 Download
9_dog_Max_head_SLA (repai red).stl
36.59 MiB 1 h 12 min 1 m 28 x 30 x 26 Download
10_dog_Max_body_SLA(repai red).stl
40.58 MiB 1 h 39 min 1 m 32 x 32 x 32 Download
11_dog_Max_tail_SLA(repai red).stl
13.59 MiB 10 min <1 m 9 x 18 x 18 Download
12_dog_Max_horns_SLA(repa ired).stl
13.07 MiB 36 min <1 m 25 x 29 x 34 Download
13_gift_bag_SLA(repaired) .stl
43.43 MiB 6 h 30 min 3 m 44 x 44 x 72 Download
14_common_platform_SLA(re paired).stl
30.65 MiB 7 h 12 min 4 m 62 x 109 x 60 Download
15_platform_for_Grinch_SL A(repaired).stl
12.35 MiB 2 h 42 min 2 m 38 x 59 x 22 Download
16_platform_for_dog Max_S LA(repaired).stl
13.82 MiB 2 h 2 min 1 m 41 x 46 x 21 Download
17_platform_for_gift_bag_ SLA(repaired).stl
17.63 MiB 1 h 32 min 1 m 30 x 38 x 25 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS BUNDLE

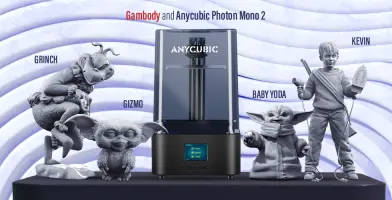

Provided by the terms of Gambody & Anycubic Collaboration, this bundle offer allows you to purchase a high-resolution Photon Mono 2 Resin 3D Printer by Anycubic together with several high-quality, highly detailed 3D printing models by Gambody contributing 3D artists.

IMPORTANT: After the purchase, your shipping information will be delivered to Anycubic 3D printer manufacturer, who will take care of the Photon Mono 2 printer’s shipping and provide the tracking number. All updates will be provided by Gambody Team from support@gambody.com. The delivery of the Photon Mono 2 3D printer is expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

The Anycubic Photon Mono 2 is the ideal option for beginners venturing into resin 3D printing. Geared towards enhancing the user experience and increasing printing success rates, this printer features a 6.6-inch monochrome LCD screen boasting a resolution of 4096x2560. This high resolution facilitates the display of intricate details in 3D models.

To ensure the durability of the device, the Photon Mono 2 incorporates an ultra-large scratch-resistant screen protector. This protector not only prevents screen scratches but also acts as a barrier against resin penetration, contributing to the long-term reliability of the printer.

A detailed description of the 3D printer and main specs are provided on Anycubic's Official Website

ABOUT 3D PRINTING MODELS

Gizmo, Kevin, Grinch and Grogu models for 3D Printing were carefully designed by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the DLP/SLA version that are specifically adapted to be printed on resin 3D printers such as the Anycubic Photon Mono 2. The process of adaptation presupposes that practical aspects of printing the model using the DLP/SLA/LCD technology are taken into account, and the model's scale and cutting are chosen to ensure an optimum result of printing.

3D PRINTING MODELS' SPECIFICATIONS

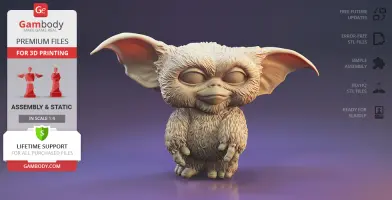

Gizmo 3D Printing Figurine:

DLP/SLA version features:

  • Contains 8 parts;

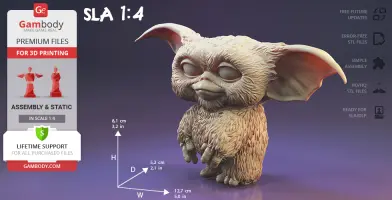

  • A printed Gizmo stands 81 mm tall, 127 mm wide, 52 mm deep;

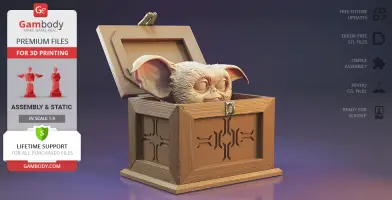

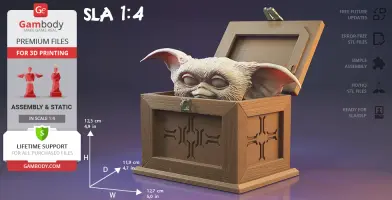

  • Gizmo in Oriental Box stands: 118 mm tall, 87 mm wide, 72 mm deep;

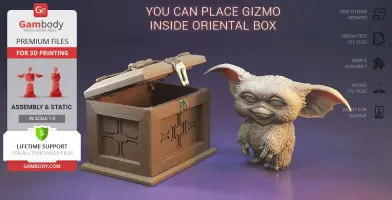

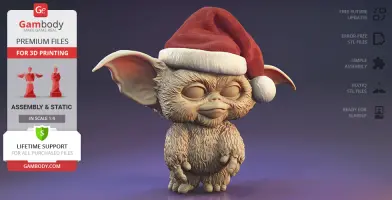

  • Gizmo figurine can wear a Christmas hat + you can place Gizmo inside Oriental Box that has an articulated lid;

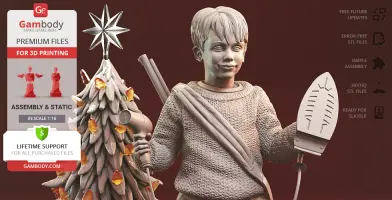

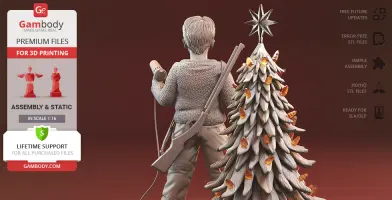

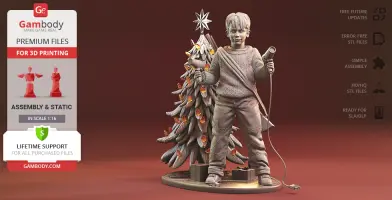

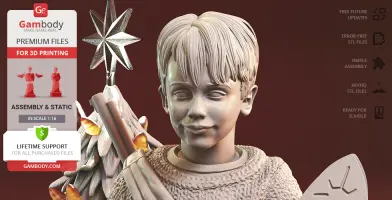

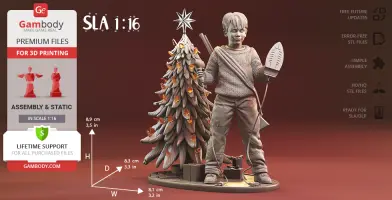

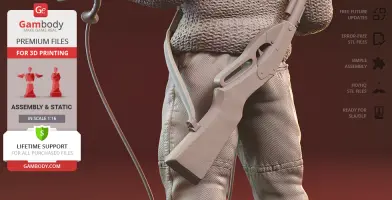

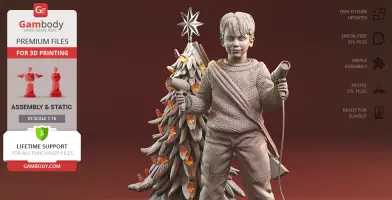

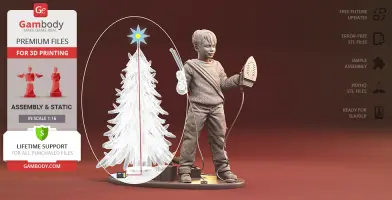

Kevin 3D Printing Figurine::

DLP/SLA version features:

  • Contains 16 parts;
  • A printed model is 89 mm tall, 81 mm wide, 83 mm deep;

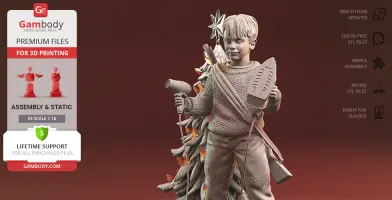

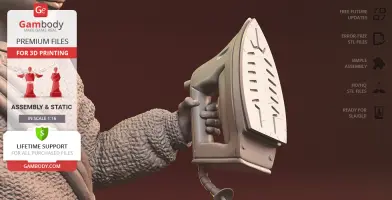

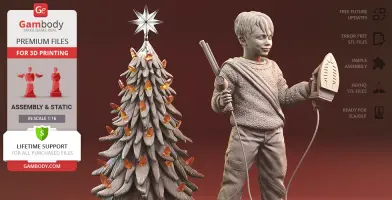

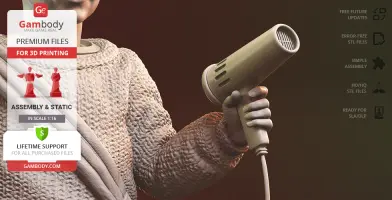

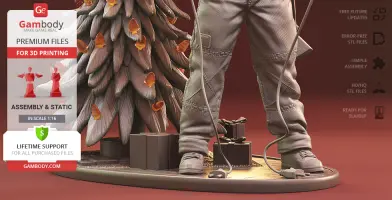

  • Kevin can be displayed holding a blow dryer or an iron in his left hand;
  • You can use a wire, a thin cable, a thick string, etc. to create the cords for the blow dryers or the iron;

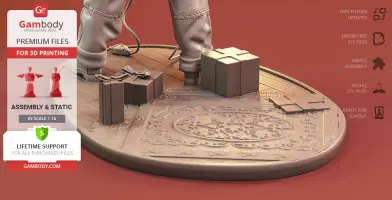

  • Comes with two platform variants - a solid one and a version with the gift boxes separated;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

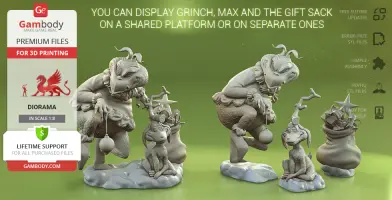

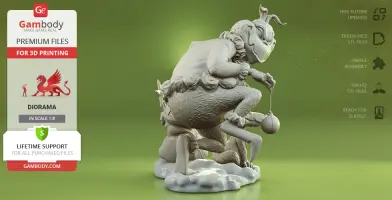

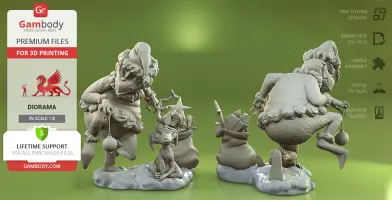

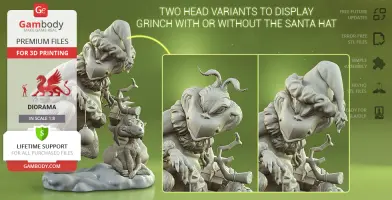

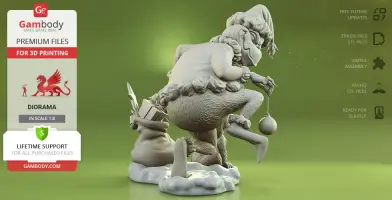

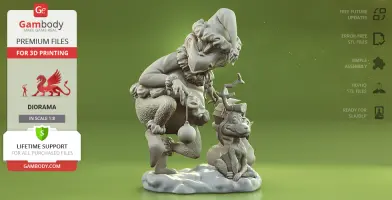

Grinch 3D Printing Figurine:

DLP/SLA version features:

  • Contains 17 parts;
  • A printed model is 135 mm tall, 134 mm wide, 101 mm deep;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

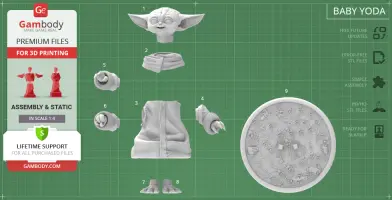

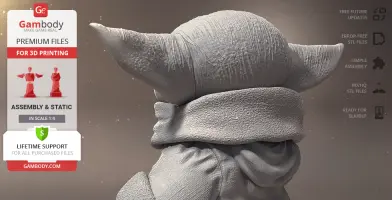

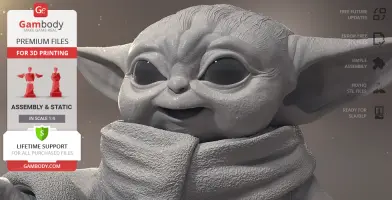

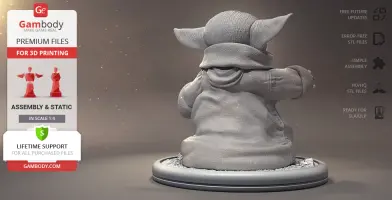

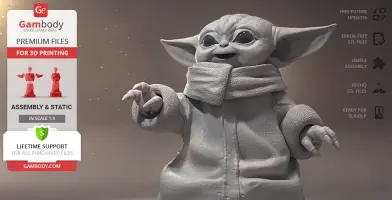

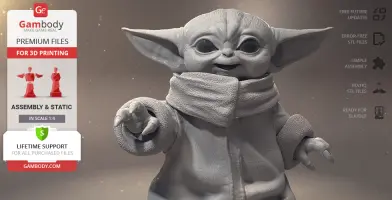

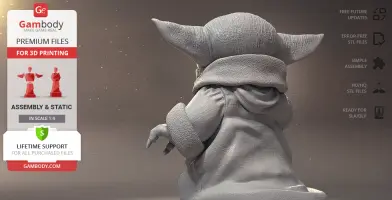

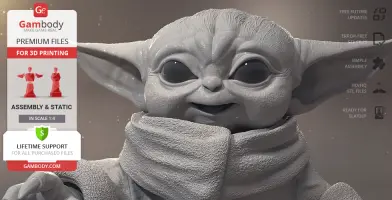

Grogu 3D Printing Figurine:

DLP/SLA version features:

  • Contains 9 parts;
  • A printed model is 109 mm tall, 113 mm wide, 112 mm deep;

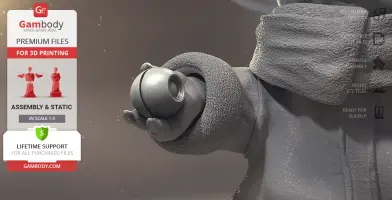

  • Made with two versions of the right hand (one variant is holding a joystick knob);
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

To purchase the bundle comprising Anycubic Photon Mono 2 Resin 3D Printer, Gizmo 3D Printing Figurine, Grogu 3D Printing Figurine, Grinch 3D Printing Figurine, Kevin 3D Printing Figurine click the green Buy button in the top-right corner of the model’s page.

Go to the pages of Gizmo 3D Printing Figurine, Grogu 3D Printing Figurine, Kevin 3D Printing Figurine, and Grinch 3D Printing Figurine to find more details and additional illustrative material!

Generic

Disclaimer: Printing settings for the Anycubic Photon Mono 2 3D printer should be compiled individually depending on the colour, type and brand of resin you are using.

Before getting down to the 3D printing of the intended project, make sure that your machine is set up in accordance with the manufacturer's instructions and properly levelled. Use test models to configure the perfect parameters for your 3D printer and resin.

When adjusting the printing settings for particular resin, pay close attention to the UV wavelength required for its curing. The higher the required wavelength is - the higher your printing parameters should be.

If you are using the official Photon Workshop slicer, we recommend starting off with the default recommended settings for the Anycubic Photon Mono 2 3D printer. For that, open the Photon Workshop application > click on the "Settings" button > choose Photon Mono 2 in the list of 3D printers. Try tweaking the printing parameters to improve your 3D printing results - lower and increase the settings by 20% and compare the test prints. Choose the best configuration and proceed to the 3D printing of your chosen model!

If you are using a different slicer, you may use the following list of custom parameters from the Photon Workshop slicer prepared by Gambody engineers as a guide for your printing settings:

Layer Thickness: 0.030 mmNormal Exposure Time: 1.600 sOff Time: 1.000 sBottom Exposure Time: 20.000 sBottom Layers: 3Anti-alias: 2Gray Level: 0Image Blur: 2

Advanced settingsBottom Layers Control Steps:Z Lift Height [0]: 0.50 mmZ Lift Step [0] Speed: 0.50 mm/sZ Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mmZ Lift Step [1] Speed: 0.50 mm/sZ Retract Step [1] Speed: 0.50 mm/s

Transition Layer Count: 0

Normal Layer Control Steps:Z Lift Height [0]: 0.50 mmZ Lift Step [0] Speed: 0.50 mm/sZ Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mmZ Lift Step [1] Speed: 0.50 mm/sZ Retract Step [1] Speed: 0.50 mm/s

Note: If you would like to speed up the 3D printing process without losing the printing quality, you can increase the Layer Thickness to 0.05 mm. In that event, the Exposure Time for all layers should be increased accordingly.
