Vault Boy: Big Guns and Chemist 3D Print Files | Static Figures

(10)
cm: 5.085 w x 6.203 d x 9.5 h
in: 2.002 w x 2.442 d x 3.74 h

Source Files

|

Description

|

Printing Details

This 3d model consists of files in StereoLithography (.Stl) format that have been optimized for 3d printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

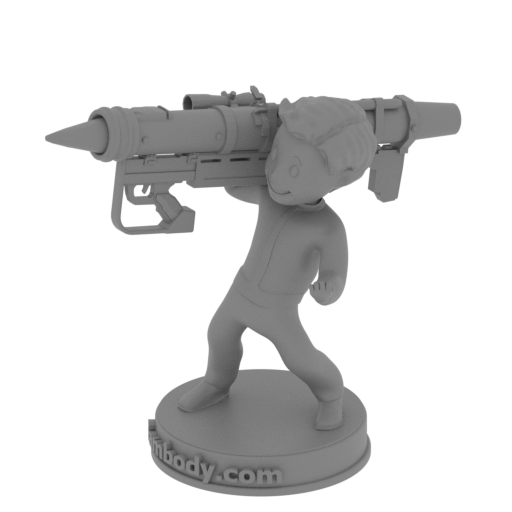

vault boy_vault bazuka (r epaired) (repaired).stl
9.24 MiB 17 h 8 min 12 m 84 x 95 x 104 Download

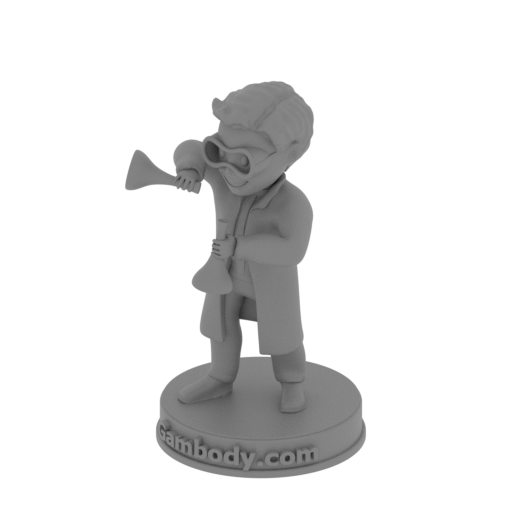

vault boy_vault lab (repa ired) 2 (repaired).stl
9.98 MiB 7 h 15 min 5 m 53 x 52 x 95 Download

Vault Boy has been for many a centerpiece of their childhood and adolescence. Descending from the immensely popular post-apocalyptic action role-playing game, this character has entertained many generations of video game addicts.

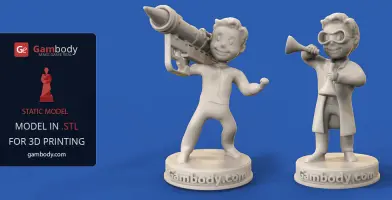

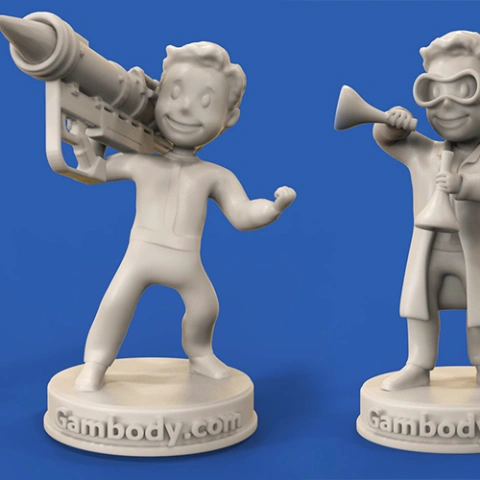

This set of Vault Boy Bobblehead 3D print models – Big Guns and Chemist – will be the ideal gift for you or your friends.

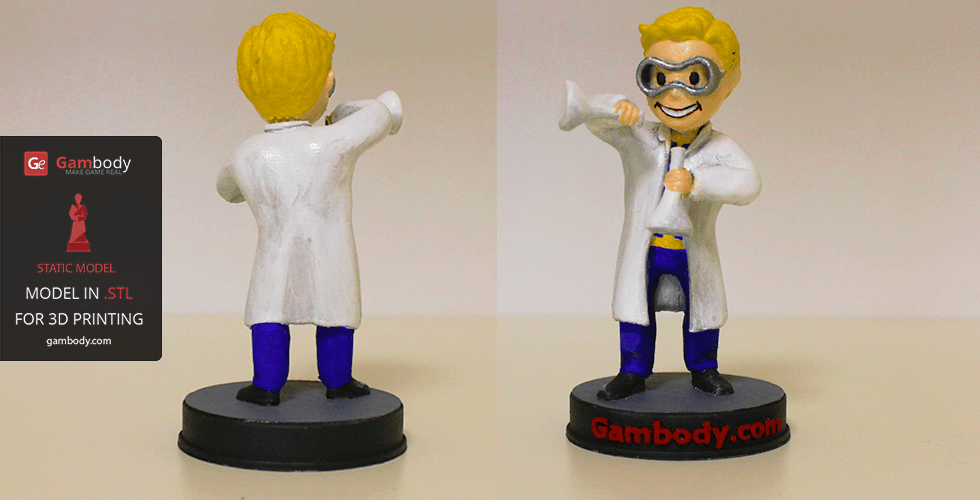

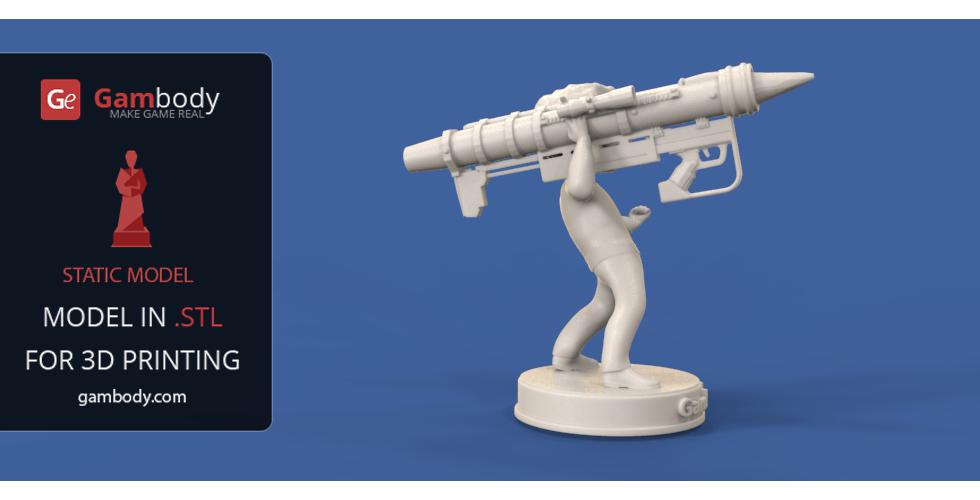

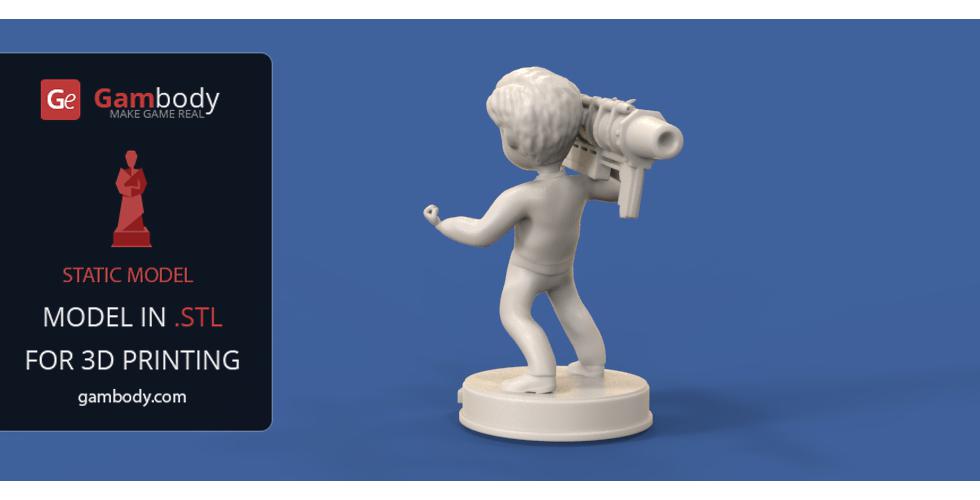

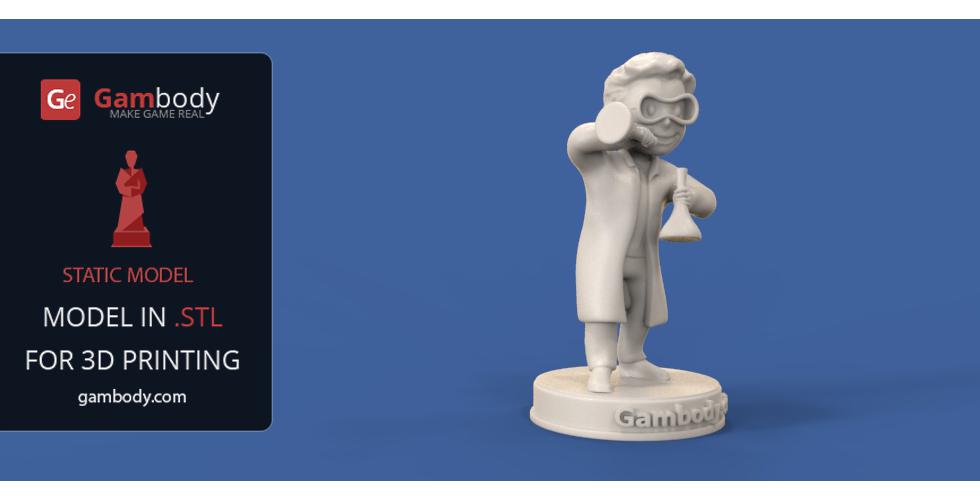

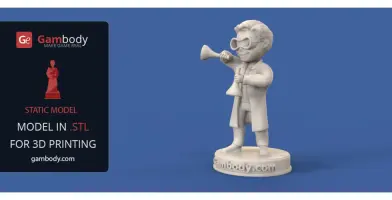

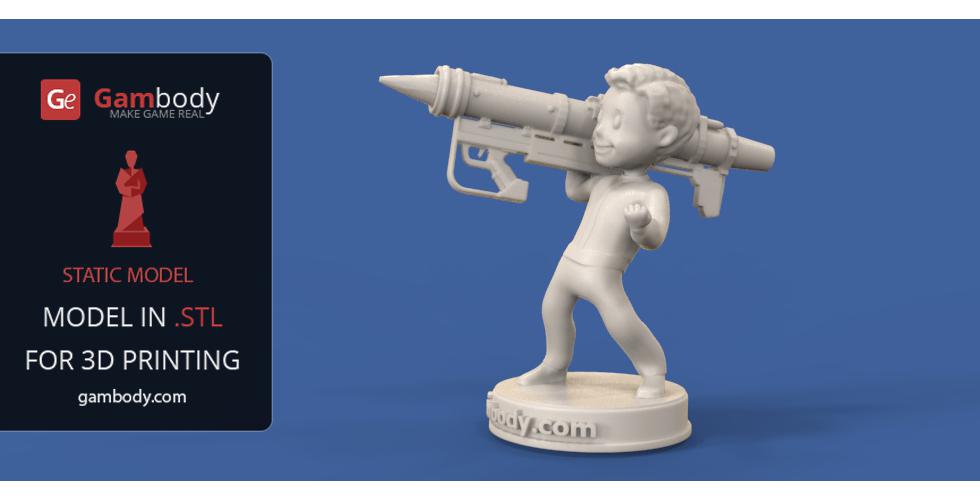

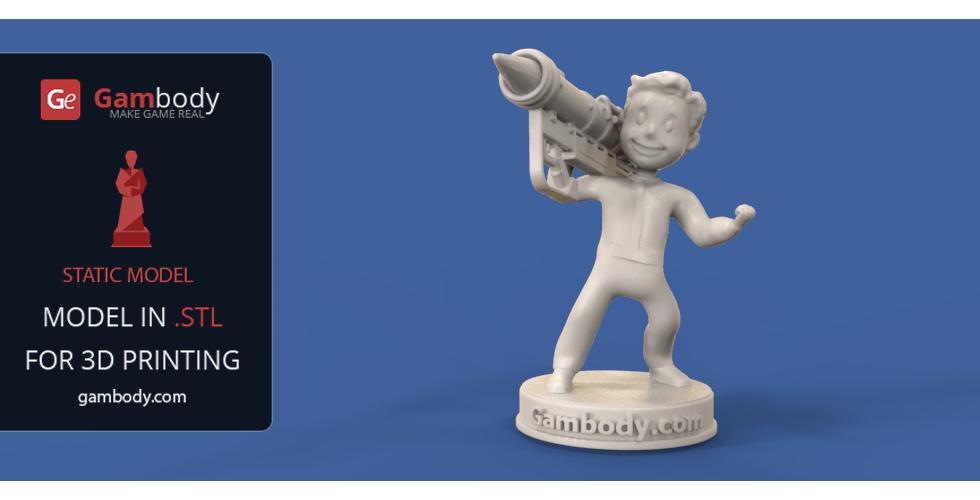

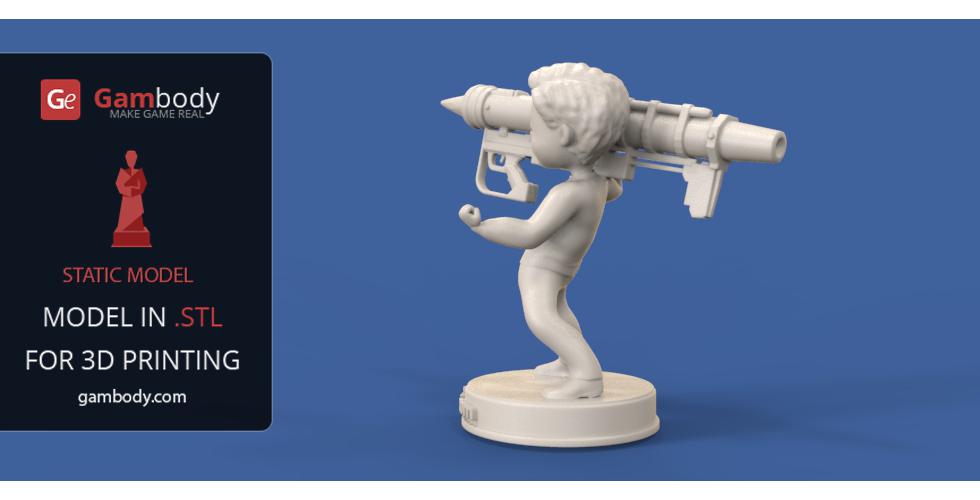

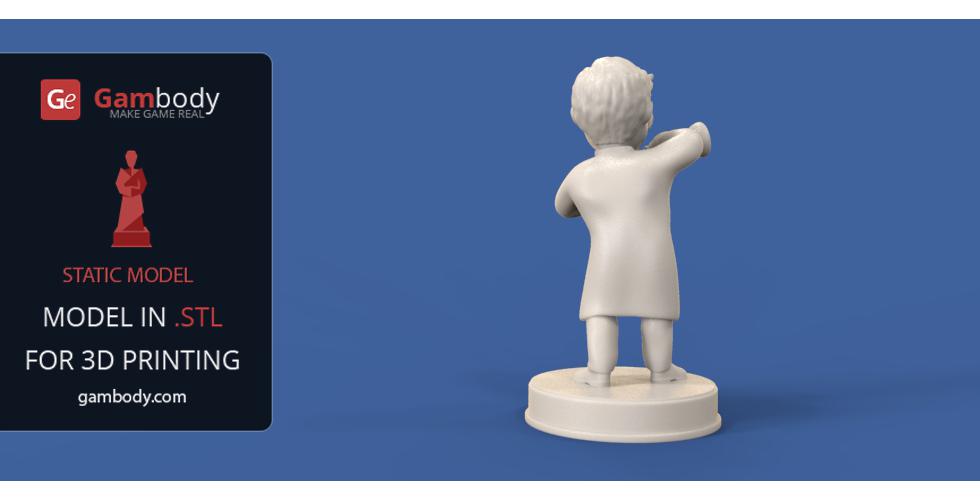

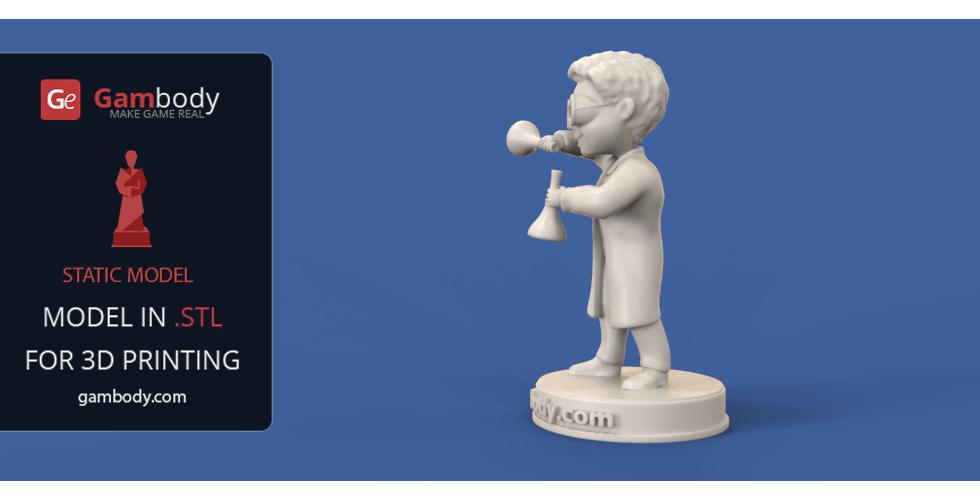

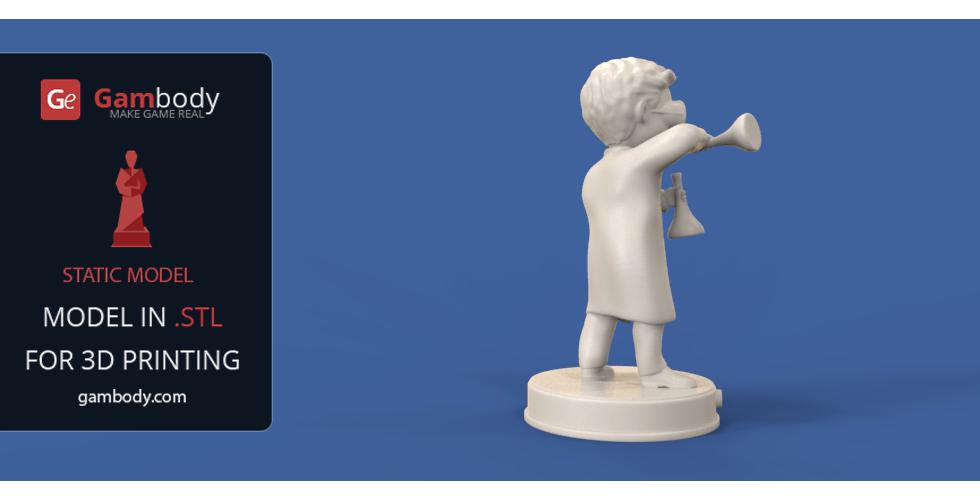

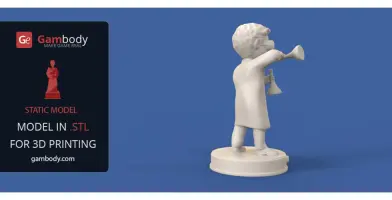

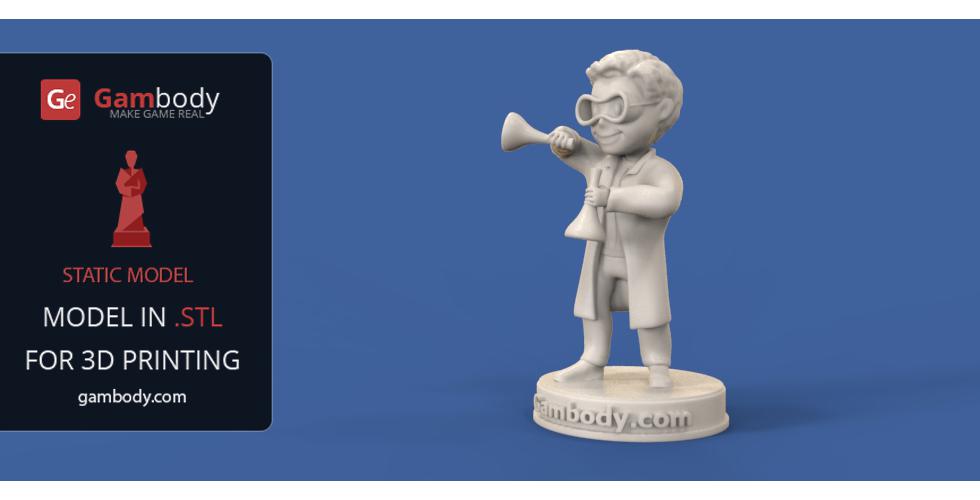

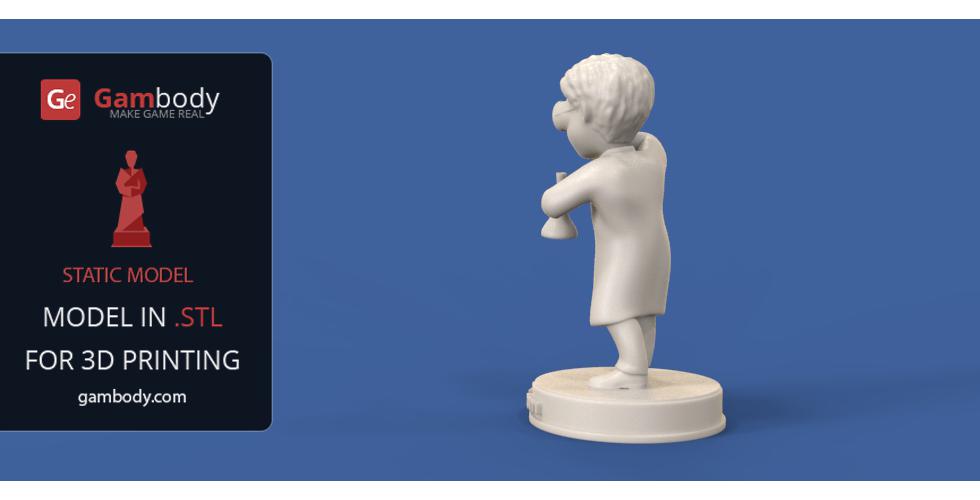

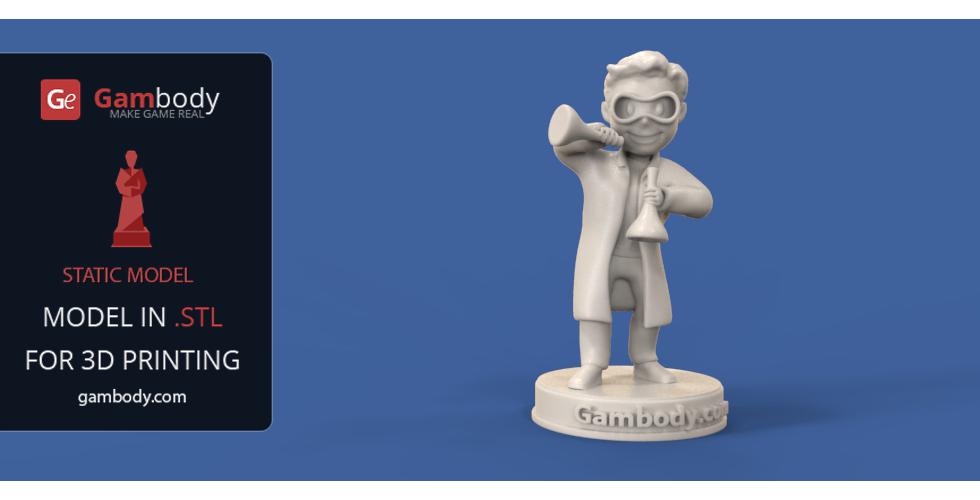

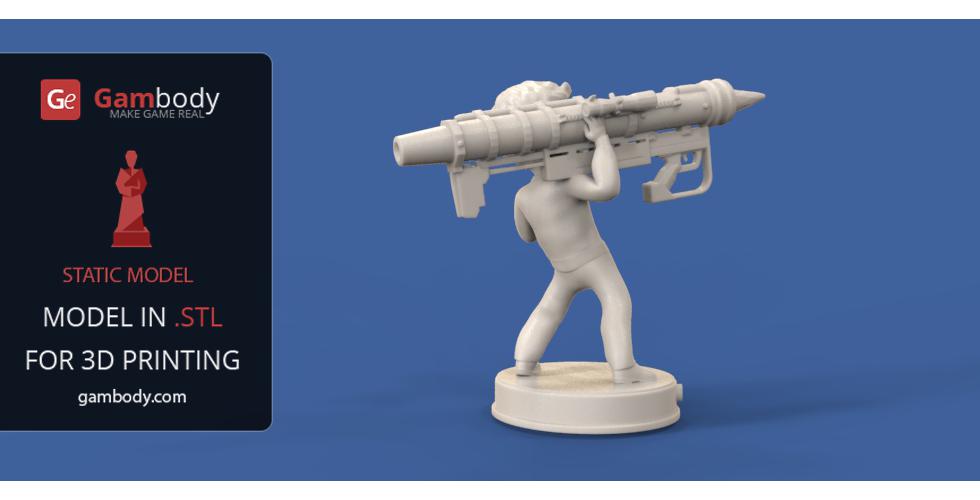

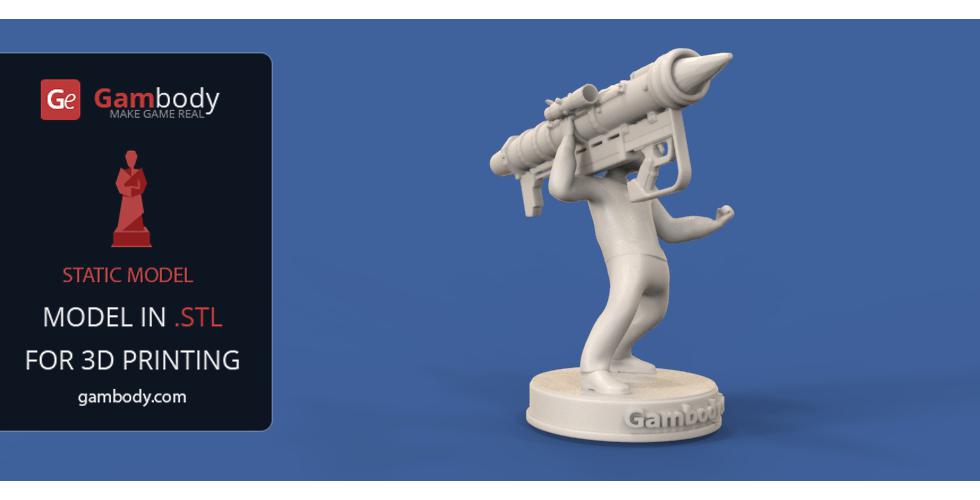

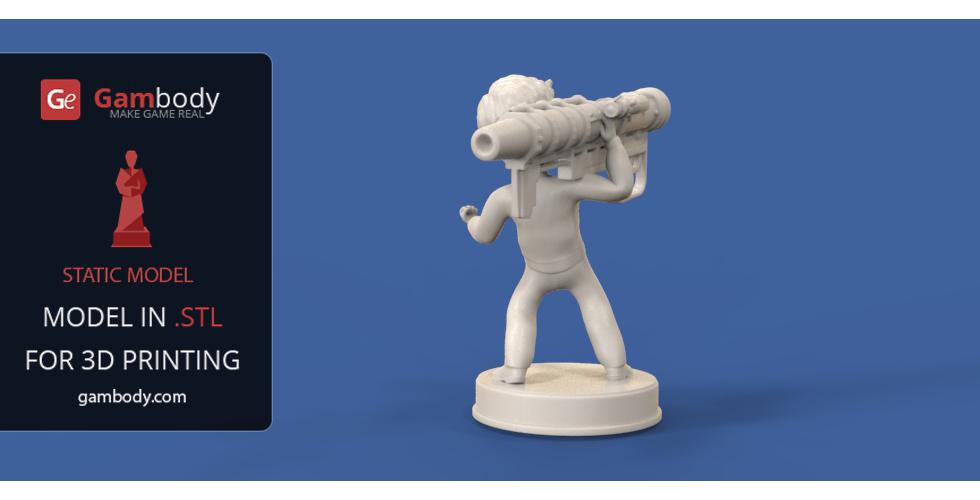

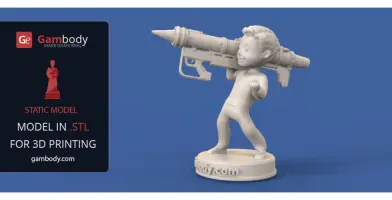

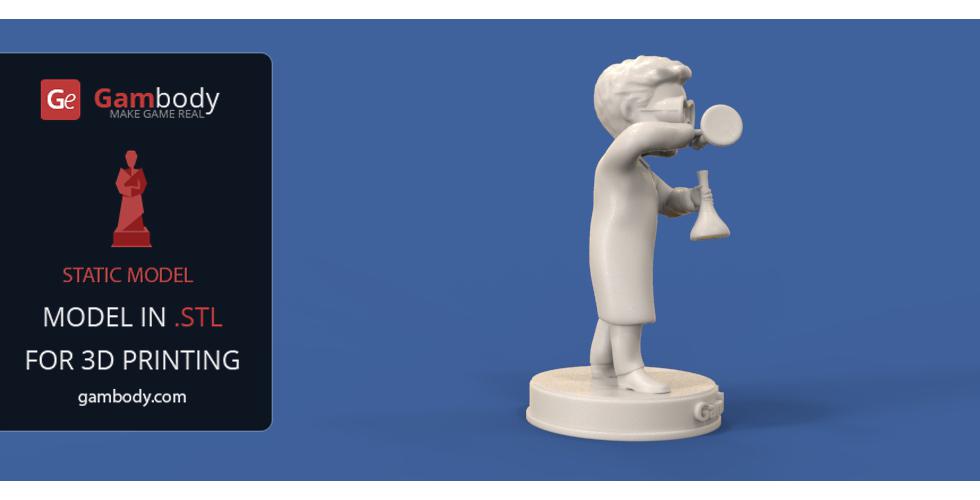

Displaying a huge gun or chemistry triangle bottles, dressed in his usual superhero-like jumpsuit or lab coat and wearing a nice pair of goggles, the figures are crafted with accurate details and definition, sticking to the game’s traditional graphics approach.

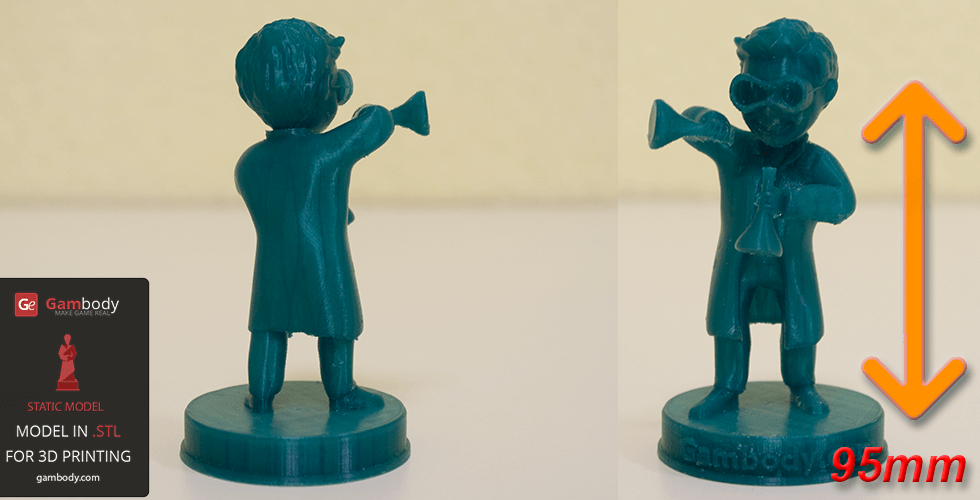

The static figures are 5.085cm wide, 6.203cm deep and 9.5cm tall each. They come on a watermarked support and can be easily displayed on your desktop or shelf.

Files are zipped in .STL format, adapted for SLA/SLS and FFF printers, to ensure that all fans have the possibility to possess this nice set of models.

Order Vault Boy 3D print files online and be sure that printed result will exceed your expectations!

Generic

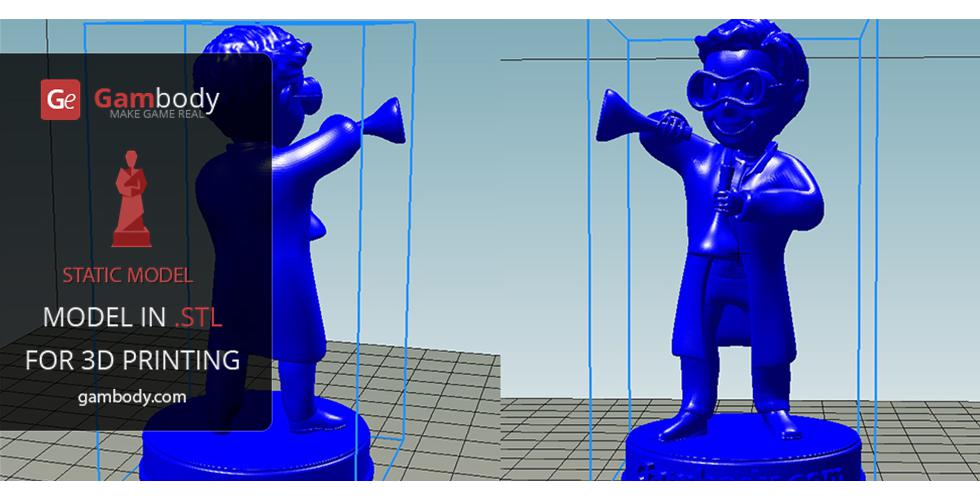

These models were tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality:

  • Layer height: 0.1mm*
  • Initial layer thickness: 0.3mm
  • Bottom/top pattern: lines
  • Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer
  • *Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

Check this Simplify3D User Guidelines to avoid any 3D printing problems with this software.

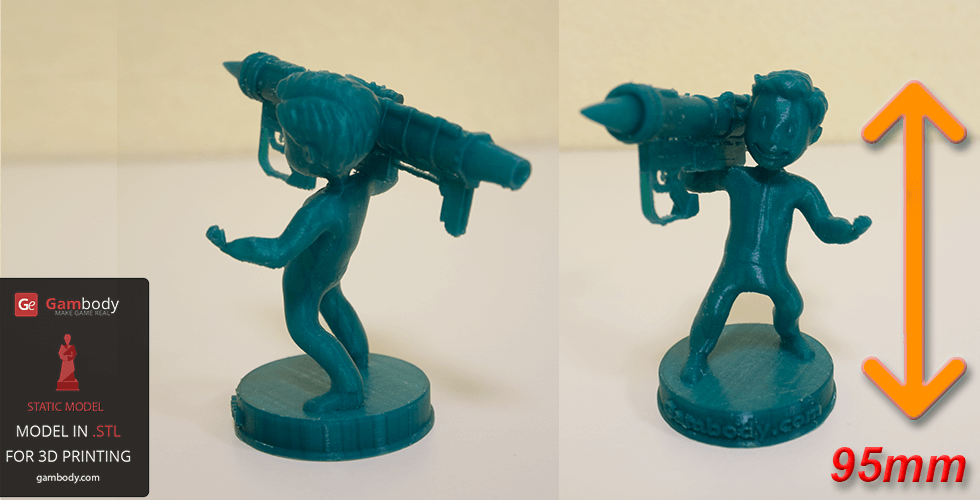

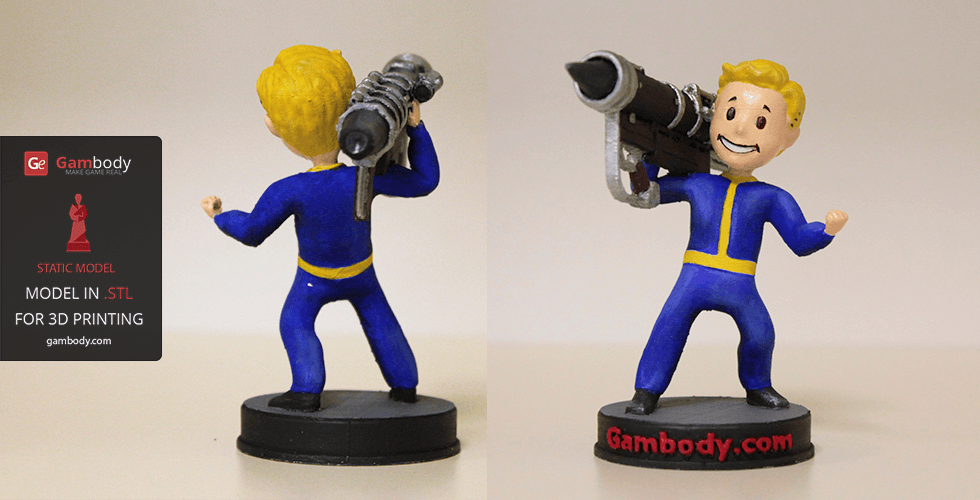

The models have been tested and printed out in PLA.

Speed setups:

  • Infill speed: 50mm/s
  • Outer shell speed: 30mm/s
  • Inner shell speed: 20mm/s
  • Top/Bottom Speed: 20mm/s
  • Support speed: 50mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 30mm/s
  • Amount of slower layers: 4

Infill:

  • Infill pattern: Grid
  • Line distance: 3mm
  • Infill overlap: 20%
  • Infill layers: 0

Support:

  • Enable support: check
  • Placement: Everywhere
  • Overhang angle: 30°
  • X/Y distance: 0.7mm
  • Top distance: 0.2mm
  • Bottom distance: 0.2mm
  • Stair step height: 0.5mm
  • Join distance: 0.7mm
  • Area smoothing: 0.6mm
  • Use towers: check
  • Pattern: Grid
  • Line distance: 1.5mm

Platform Adhesion:

  • Type: Brim
  • Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation. Use other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
