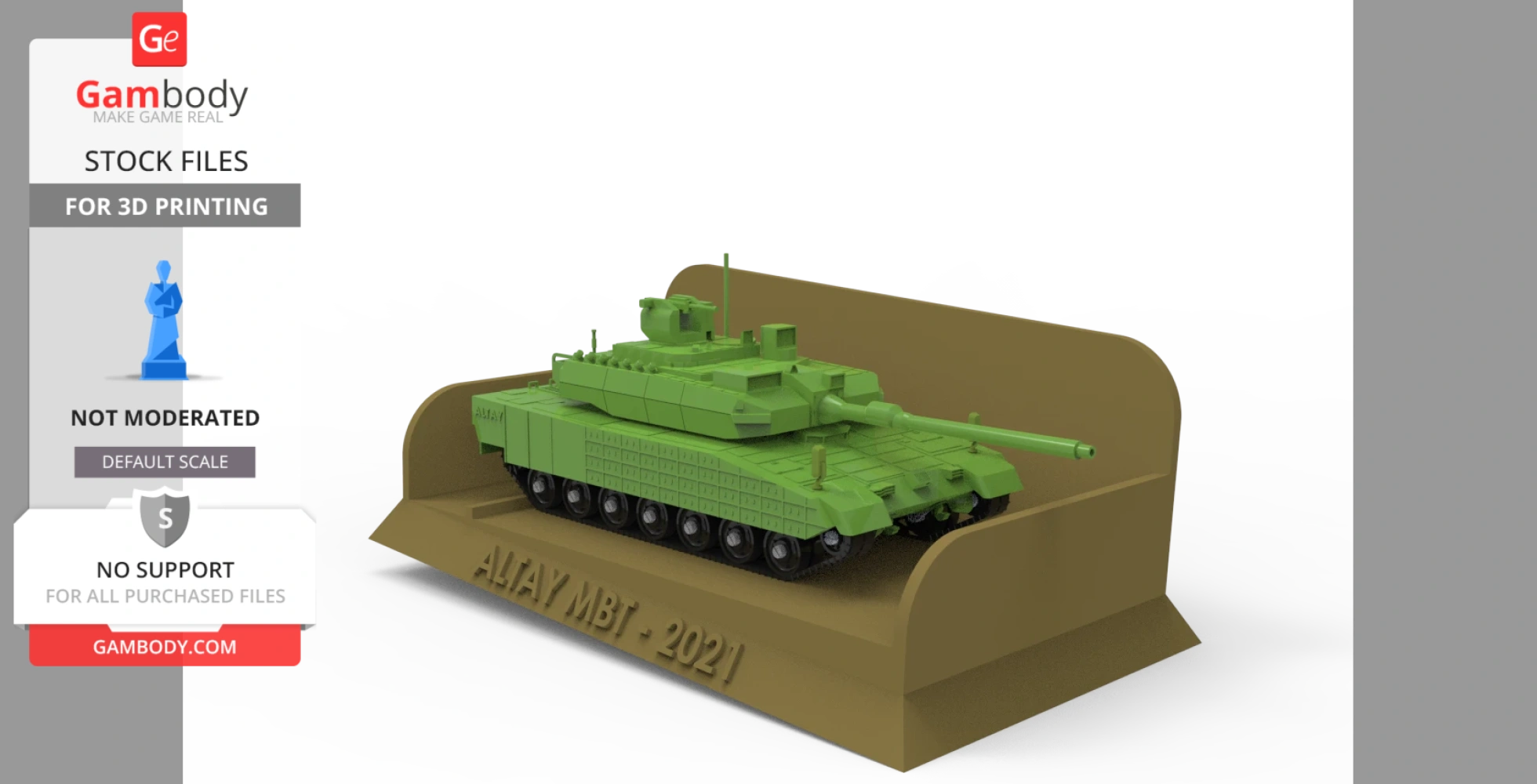

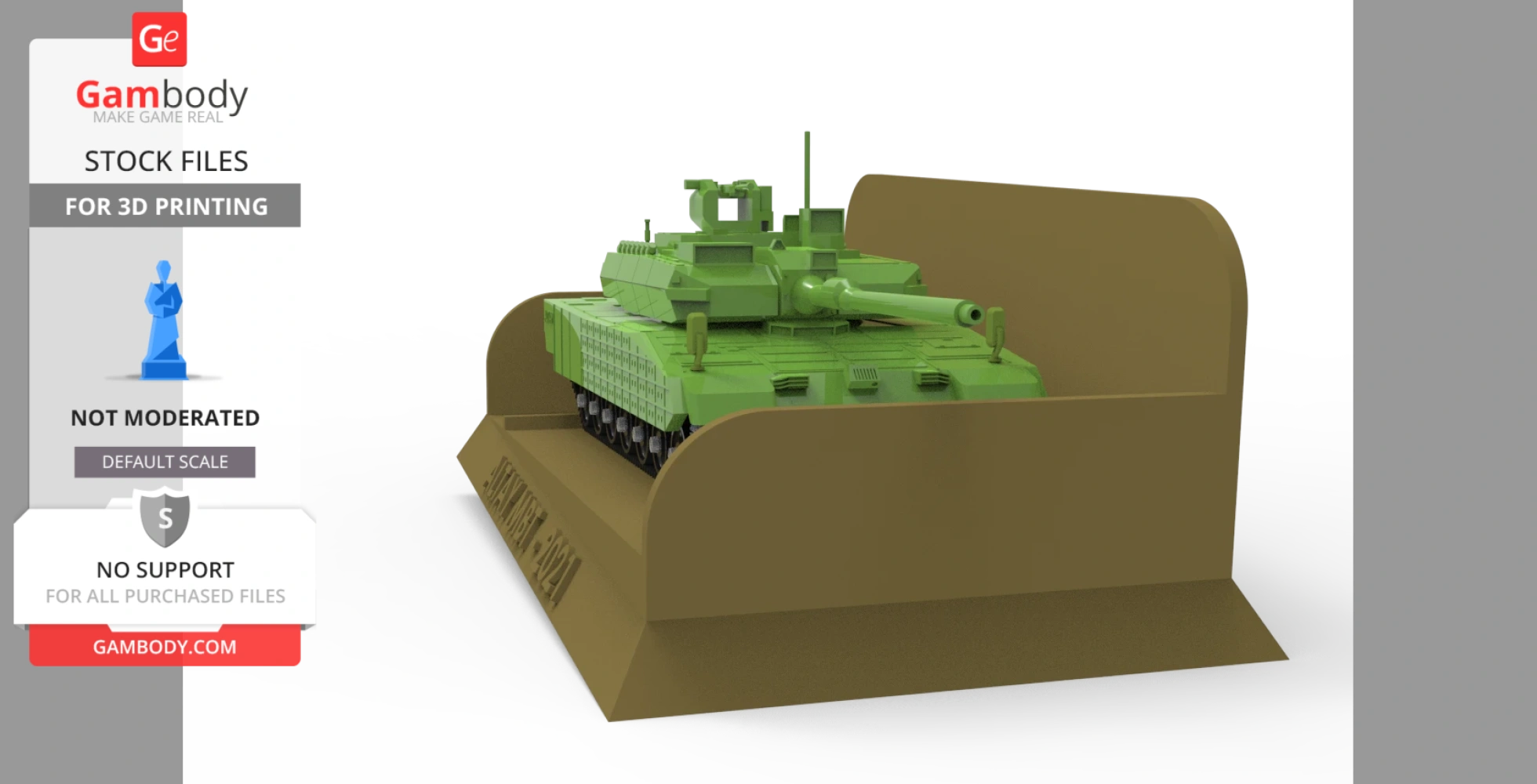

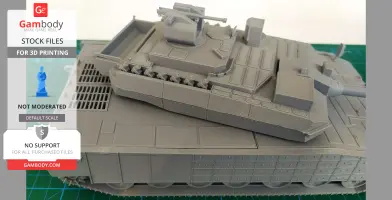

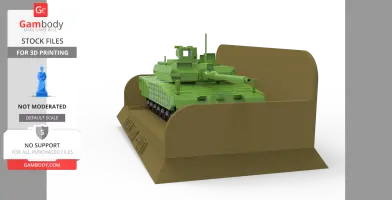

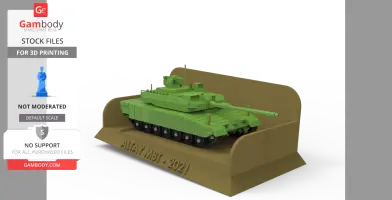

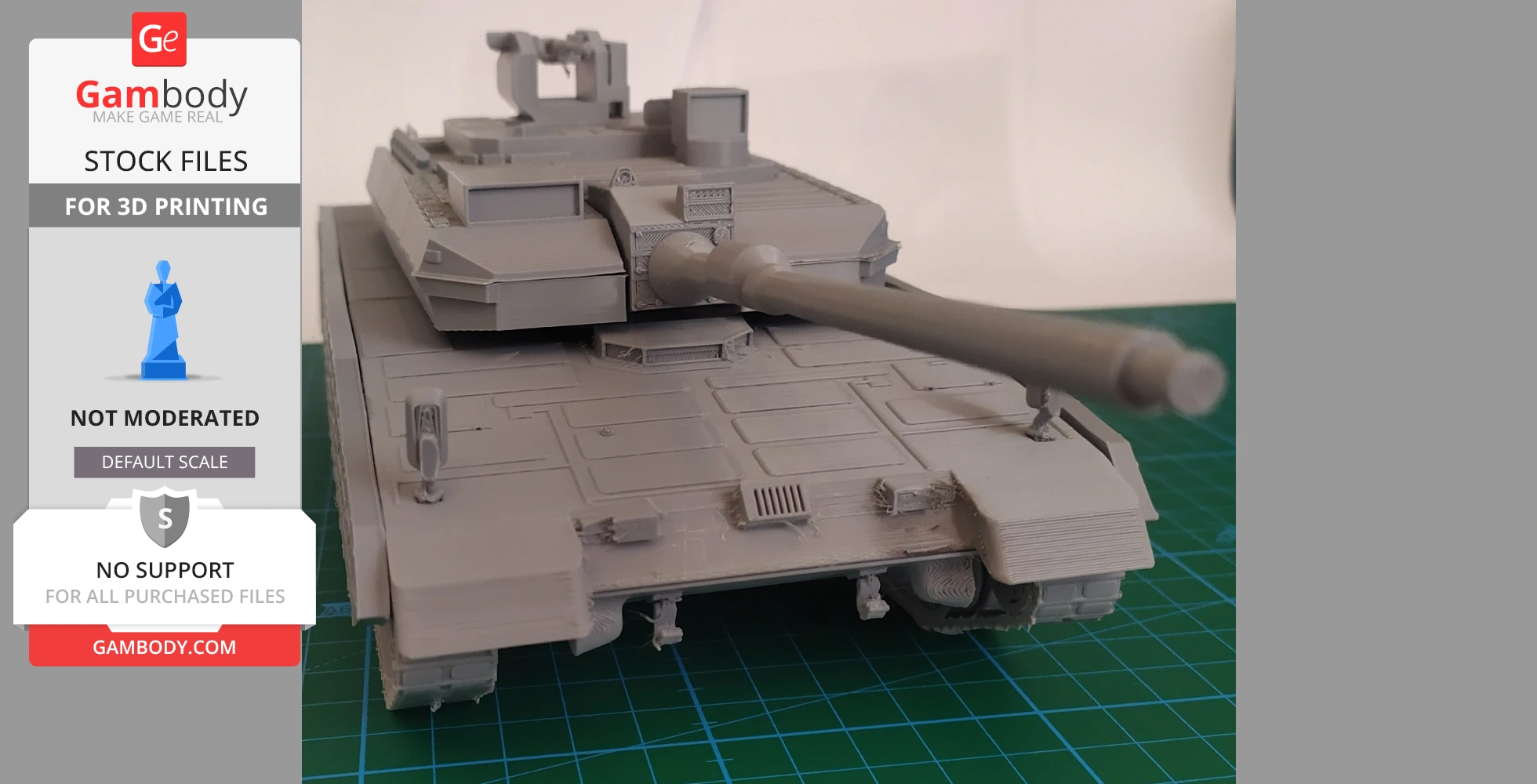

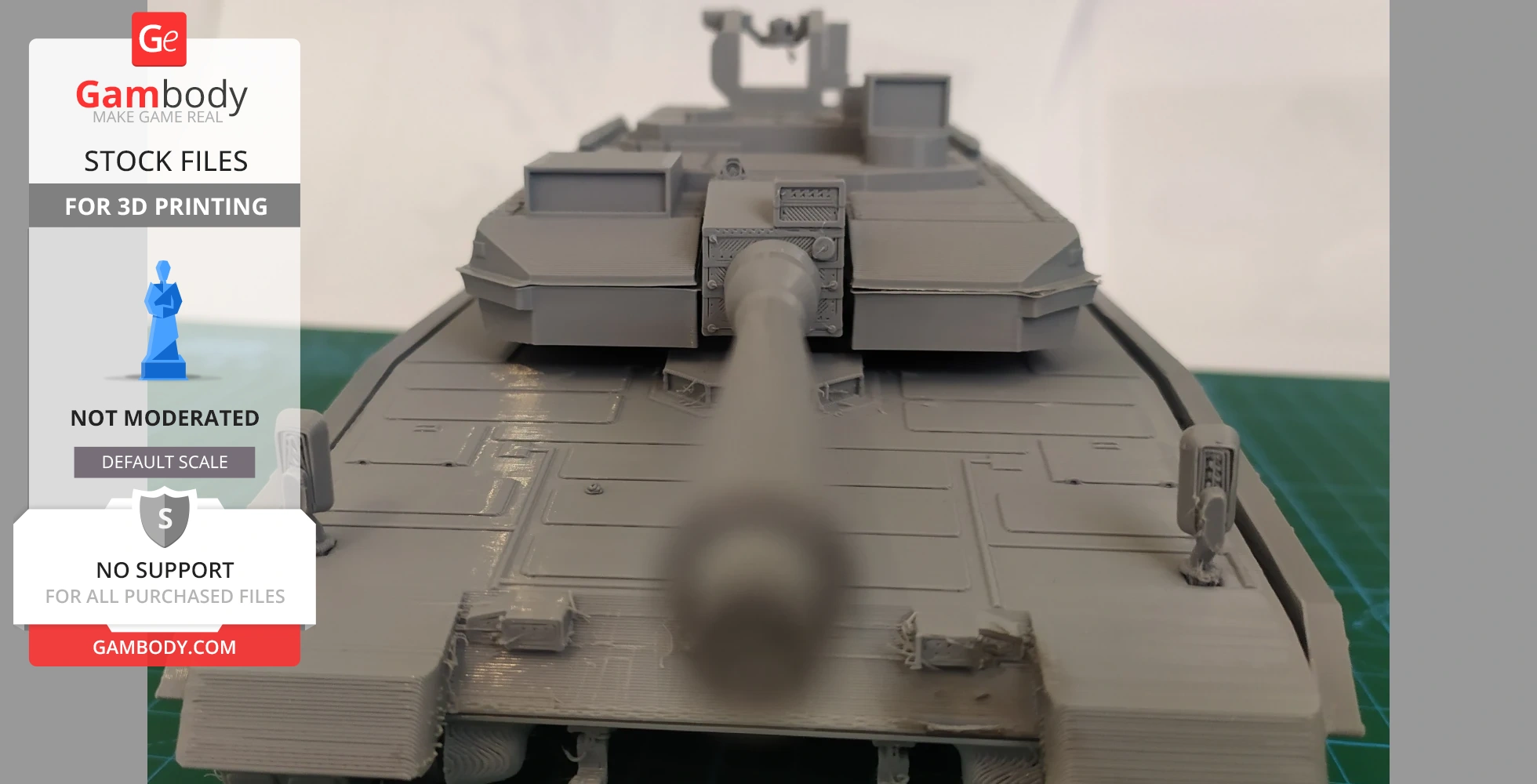

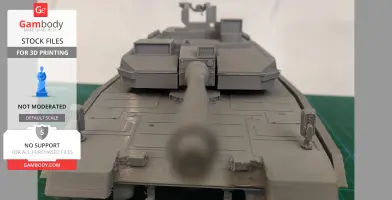

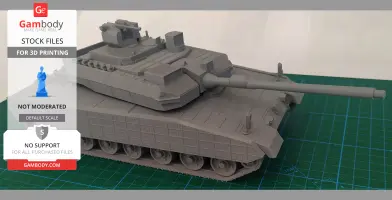

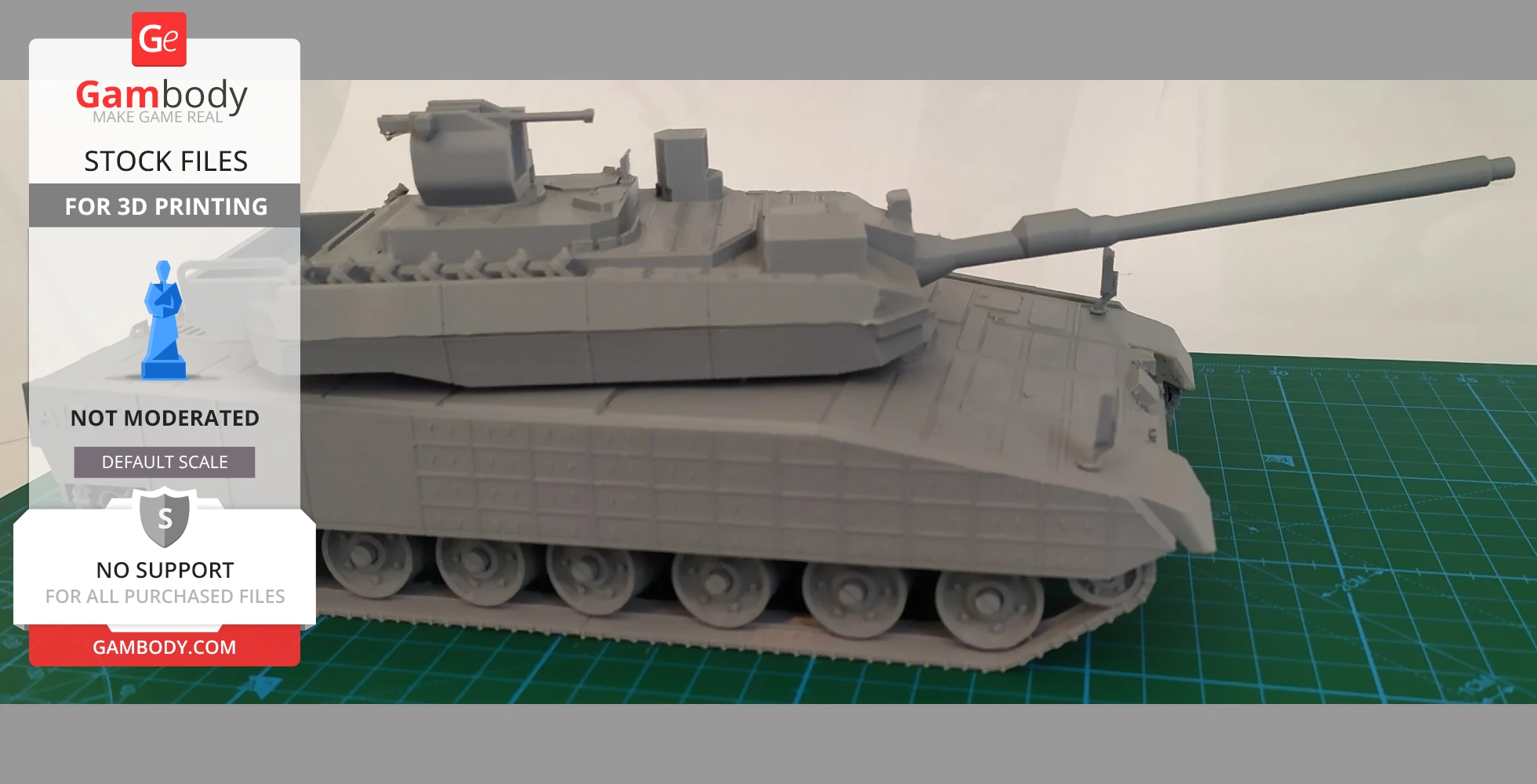

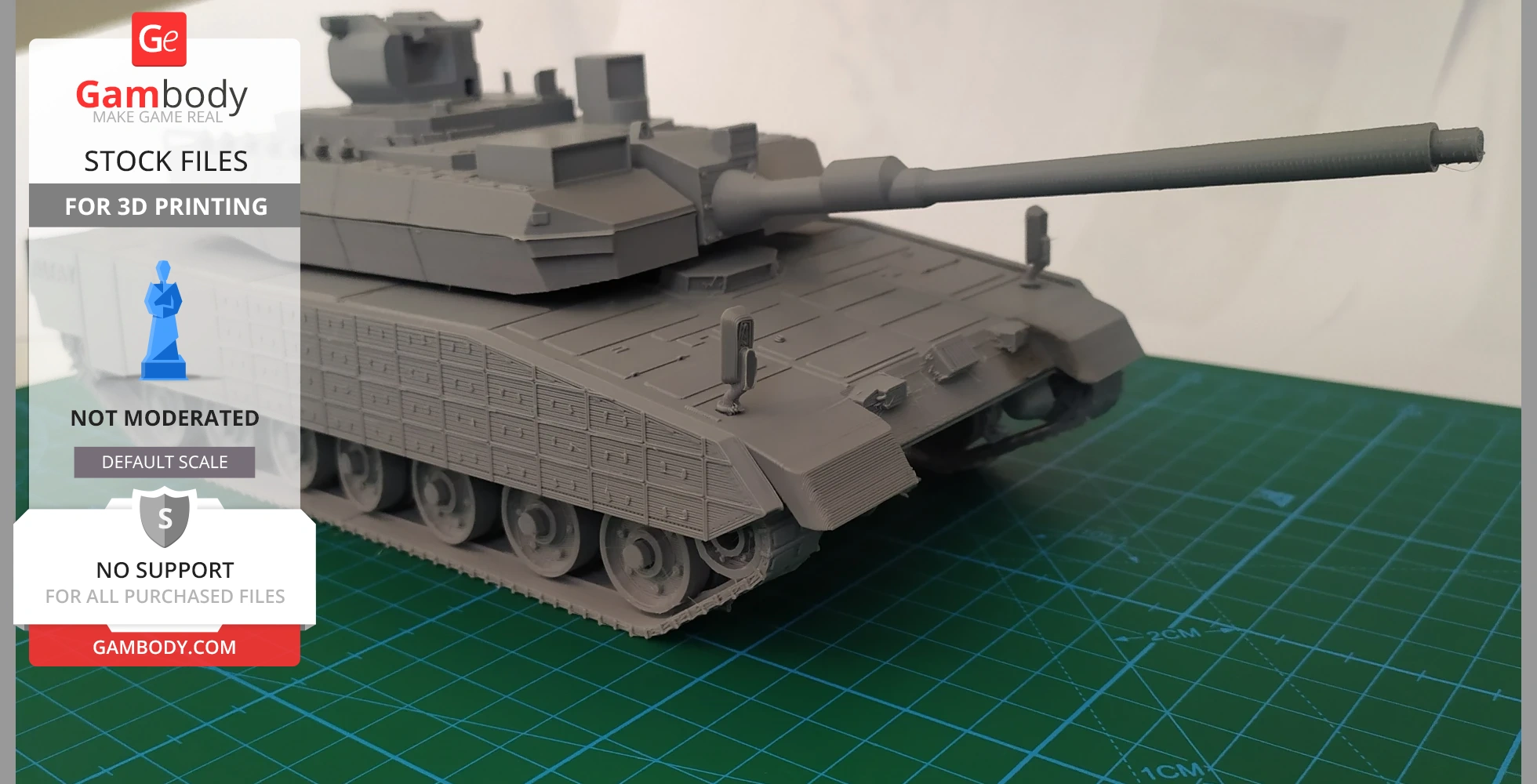

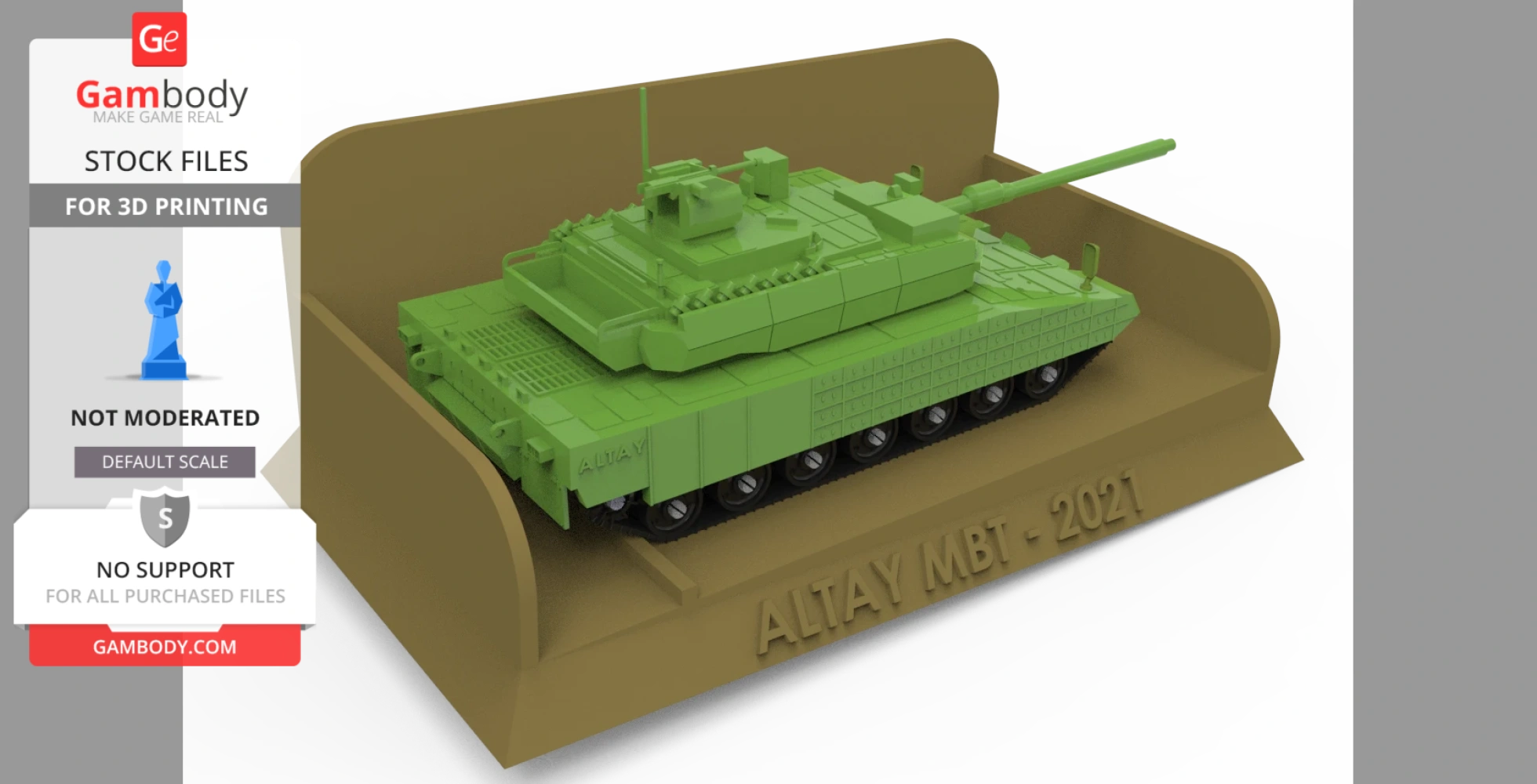

Altay Main Battle Tank

cm: 23 w x 12 d x 8 h
in: 9.055 w x 4.724 d x 3.15 h
Help us decide: Would you like to see this model in the Premium section?
What does this mean?
info
Voting explanation
This voting section lets you decide if this model should join our Premium section, known for its high-quality, exclusive models. Models garnering sufficient votes will receive Gambody’s expert moderation, including Ge-smart cutting and live-time support. Successful models will be placed in the Premium section and then promoted, while the original STLs will stay in the Stock section. Your vote directly influences the model's status, based on community preferences.
0.0%
Voted 0 of 100

Source Files

|

Description

|

Printing Details

STL files and the cutting of this model are preserved as created by the Author. This model was not moderated by Gambody, it is not subject to technical support by Gambody, and we do not offer any guarantees on the 3D printing results.

Stock models can only be purchased in an order separate from the Premium STL files by Gambody. If a Premium model is added to the Cart, the Stock models are deleted automatically, and vice versa.

You can read more about Stock models on Gambody's Blog.

The Author of the Stock model can provide technical support if they wish. All your questions, requests, wishes and remarks can be left in the comment section below.

Gambody Team can consider providing a Premium version of the model if highly requested.

File Name File Size Time / Filament Object Size
(x/y/z mm)

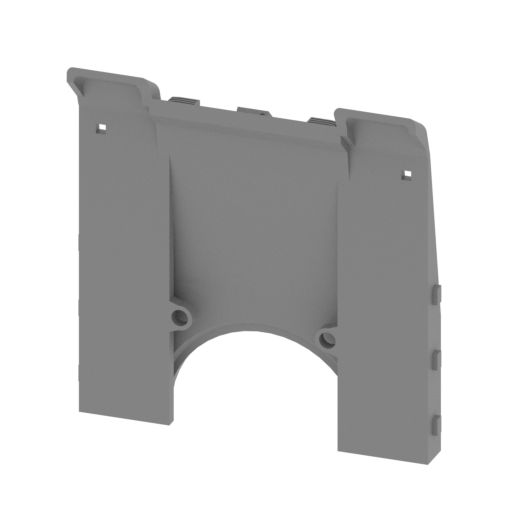

A1_Hull_Front_Top.STL
0.29 MiB 11 h 34 min 7 m 107 x 24 x 110 Download

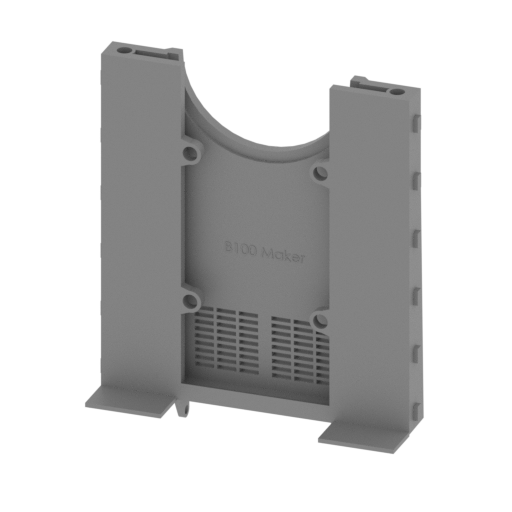

A2_Hull_Back_Top_.STL
0.53 MiB 14 h 59 min 8 m 107 x 30 x 125 Download

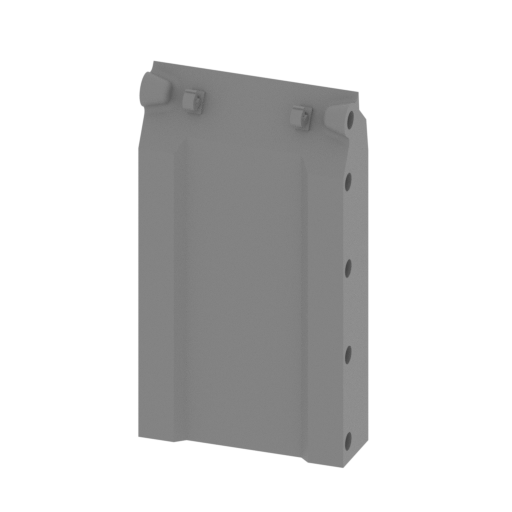

A3_Hull_Front_Down.STL
0.35 MiB 7 h 45 min 4 m 57 x 23 x 103 Download

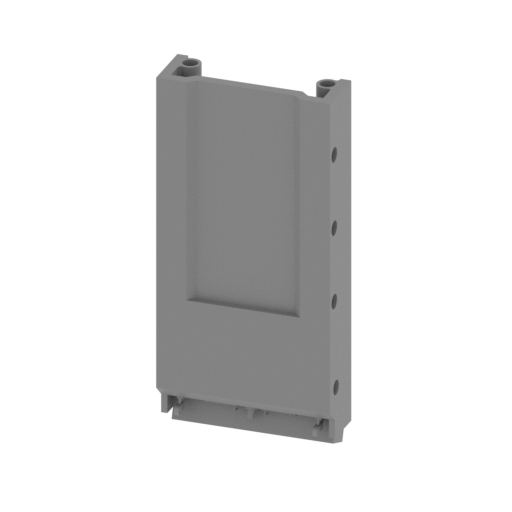

A4_Hull_Back_Down.STL
0.32 MiB 8 h 49 min 5 m 57 x 23 x 121 Download

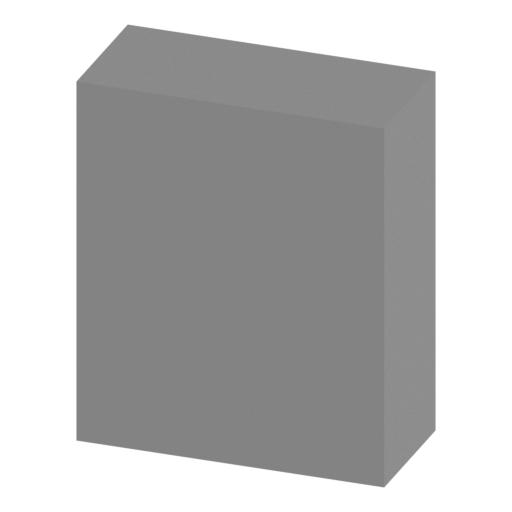

A5_ConnectorA.STL
0.00 MiB 1 min <1 m 4 x 2 x 5 Download

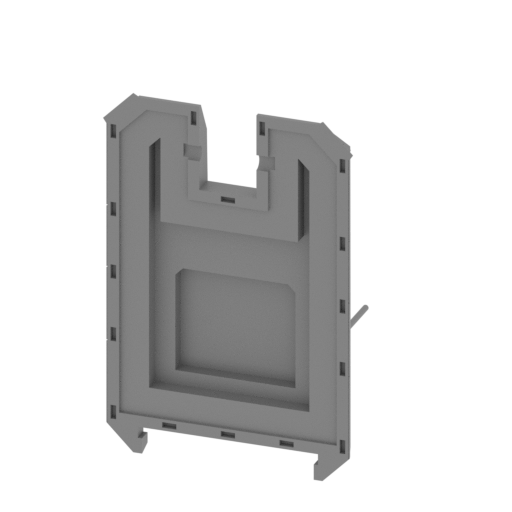

B1_Turret_Top.STL
1.66 MiB 18 h 44 min 11 m 87 x 53 x 129 Download

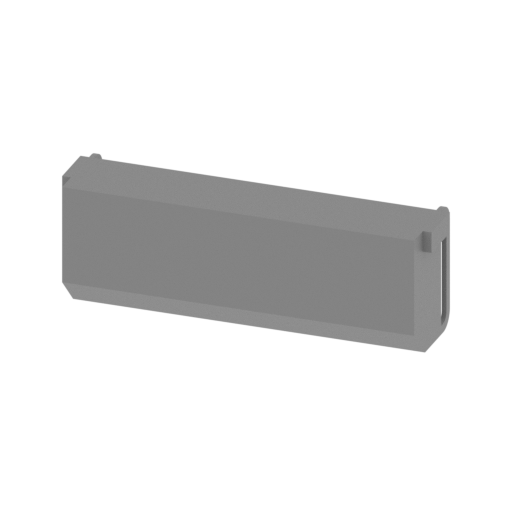

B2_Turret_Back.STL
0.02 MiB 2 h 18 min 1 m 63 x 16 x 22 Download
B3_Turret_Down_rev3.STL
1.76 MiB 18 h 44 min 11 m 87 x 53 x 129 Download

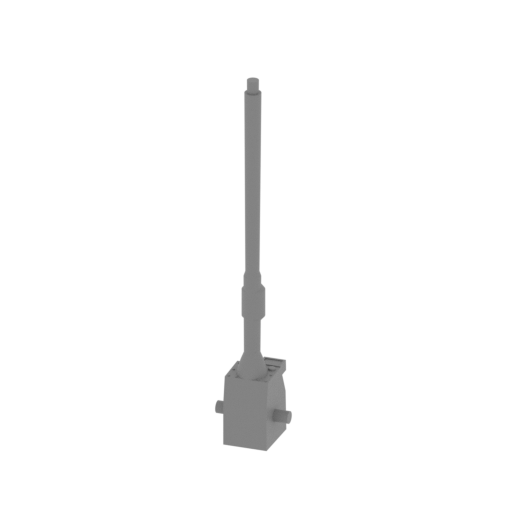

B4_Turret_Mortar_rev1.STL
0.14 MiB 2 h 33 min 1 m 30 x 25 x 154 Download

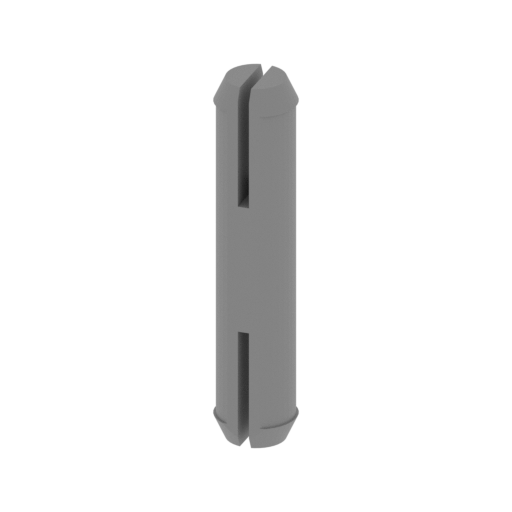

B5_ConnectorB.STL
0.02 MiB 12 min <1 m 5 x 4 x 23 Download

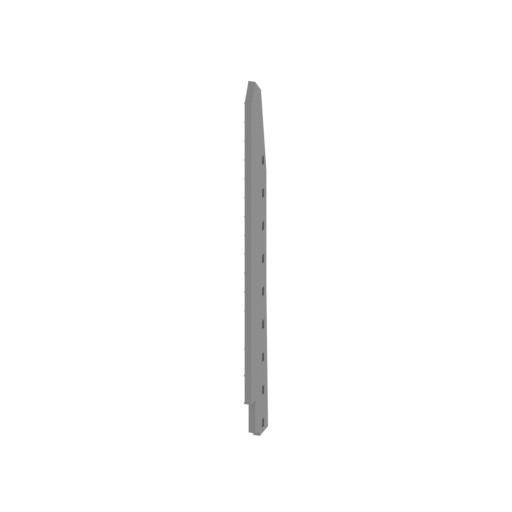

C1_Armor_R.STL
0.12 MiB 3 h 47 min 2 m 4 x 27 x 219 Download
C2_Armor_L.STL
0.12 MiB 3 h 50 min 2 m 4 x 27 x 219 Download

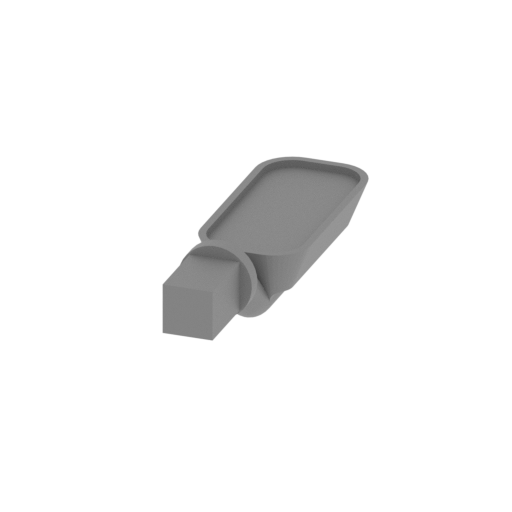

C3_Mirror.STL
0.15 MiB 6 min <1 m 6 x 20 x 6 Download

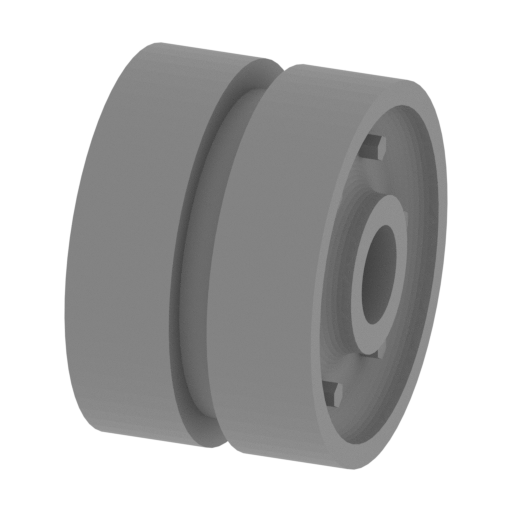

D1_Wheel1.STL
0.37 MiB 48 min <1 m 13 x 19 x 20 Download

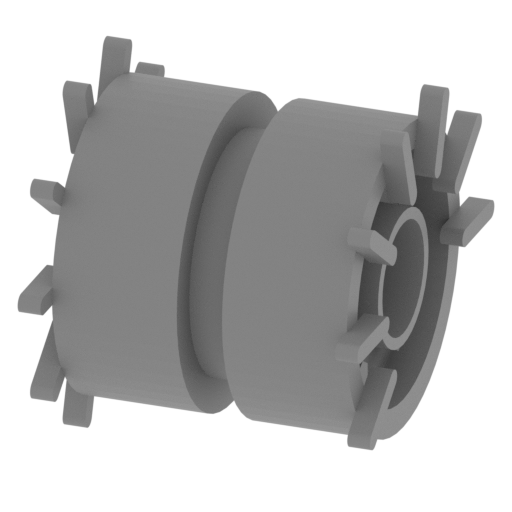

D2_Wheel2.STL
0.45 MiB 38 min <1 m 15 x 16 x 16 Download

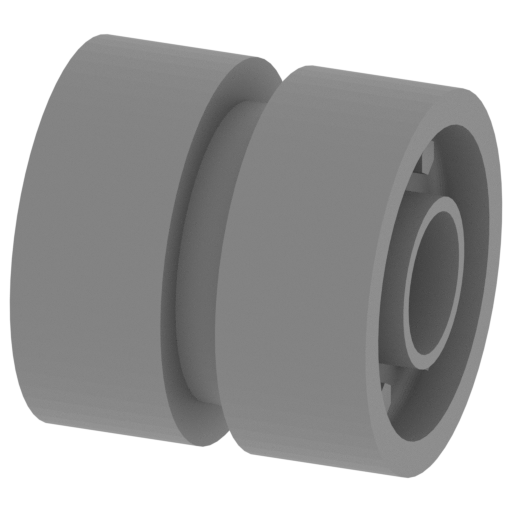

D3_Wheel3.STL
0.34 MiB 27 min <1 m 13 x 13 x 14 Download

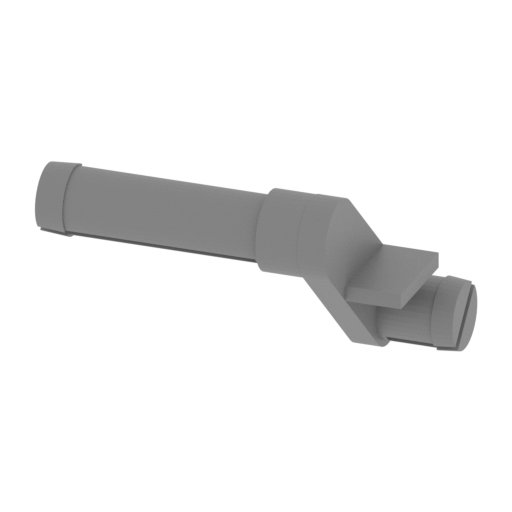

D4_SuspR.STL
0.04 MiB 19 min <1 m 27 x 15 x 14 Download

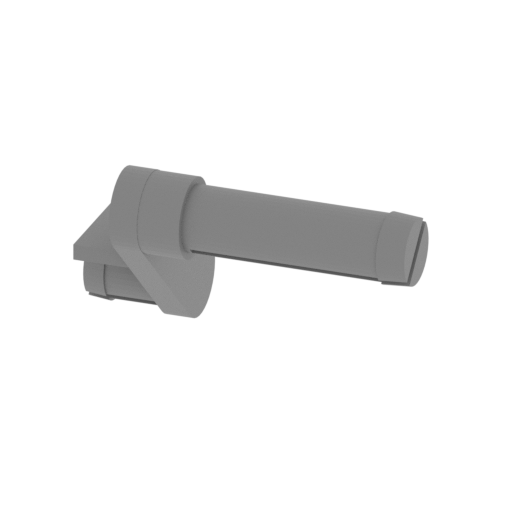

D5_SuspL.STL
0.04 MiB 19 min <1 m 27 x 15 x 14 Download
D6_Susp3.STL
0.04 MiB 9 min <1 m 27 x 6 x 6 Download

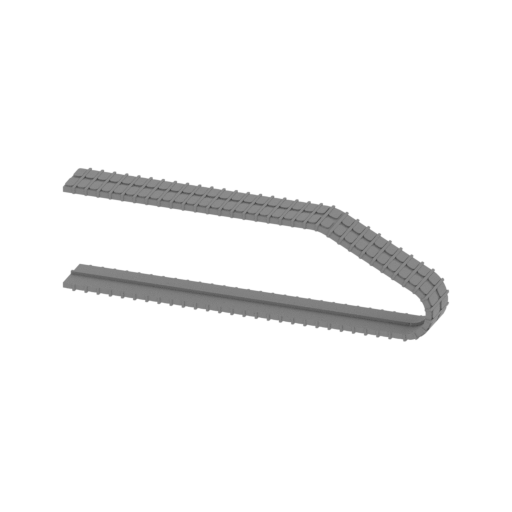

E1_Pallet_Front.STL
1.76 MiB 3 h 54 min 3 m 106 x 14 x 31 Download

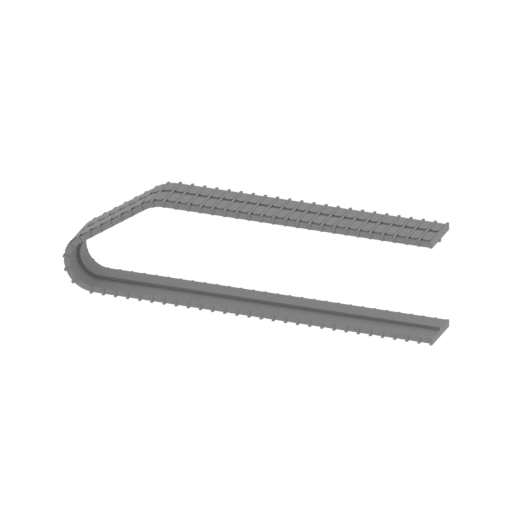

E2_Pallet_Back.STL
1.73 MiB 3 h 55 min 3 m 106 x 14 x 31 Download

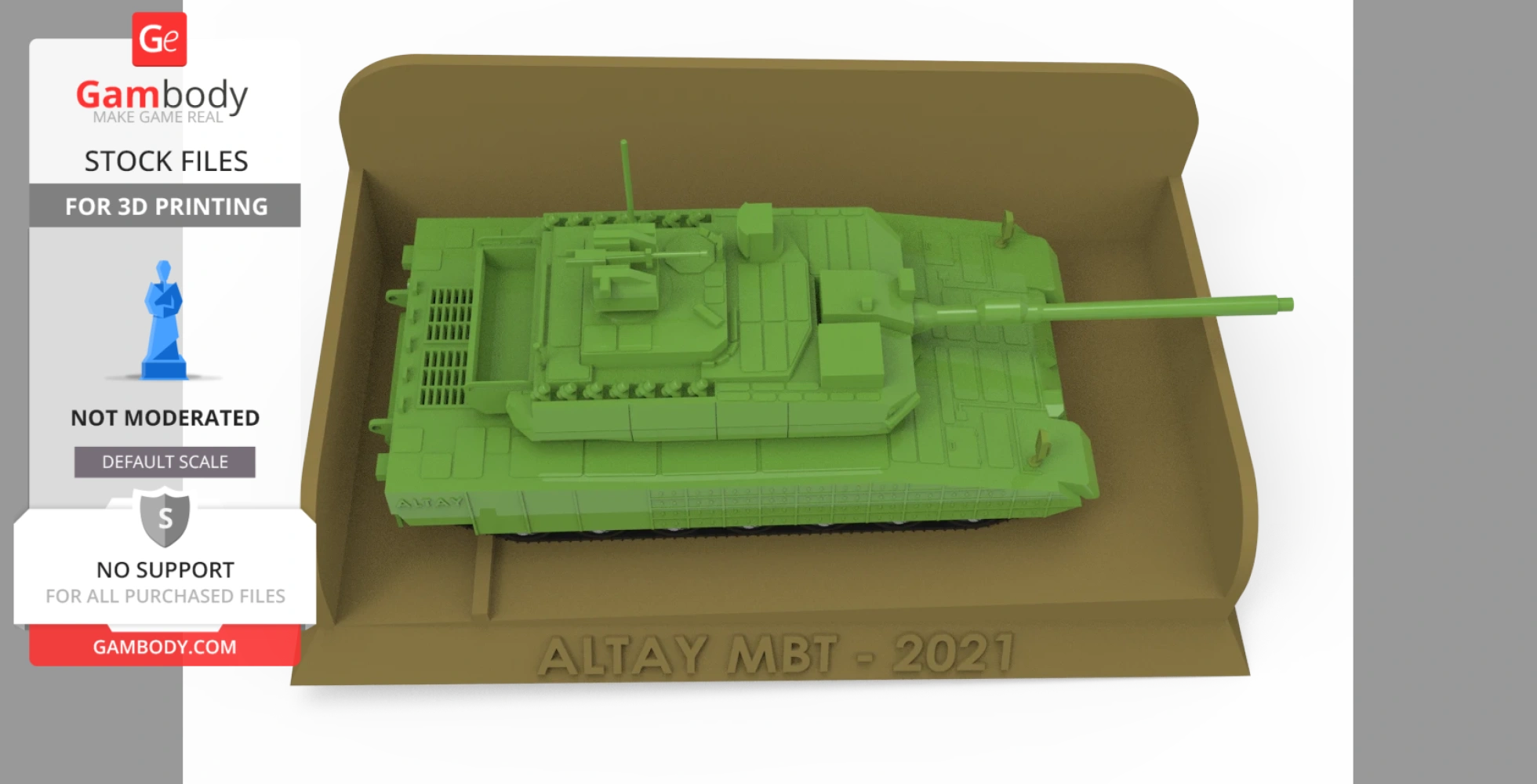

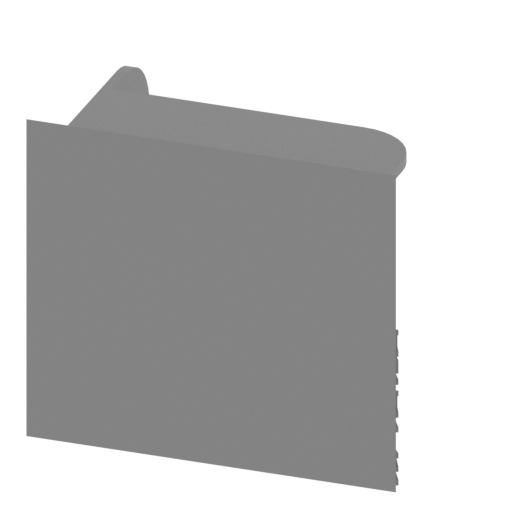

F_Stand2_1.STL
0.02 MiB 103 h 47 min 91 m 183 x 120 x 162 Download

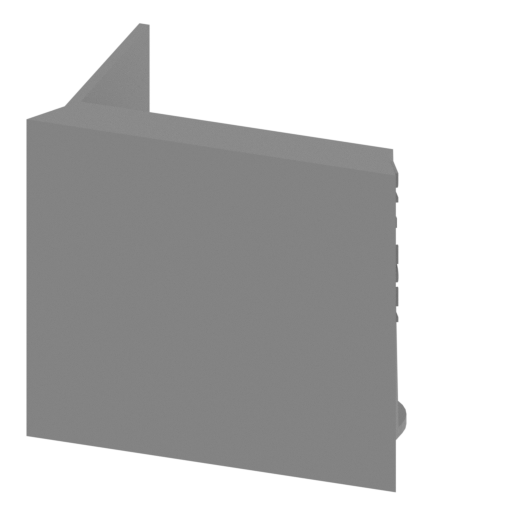

F_Stand2_2.STL
0.07 MiB 66 h 8 min 43 m 183 x 120 x 162 Download
...

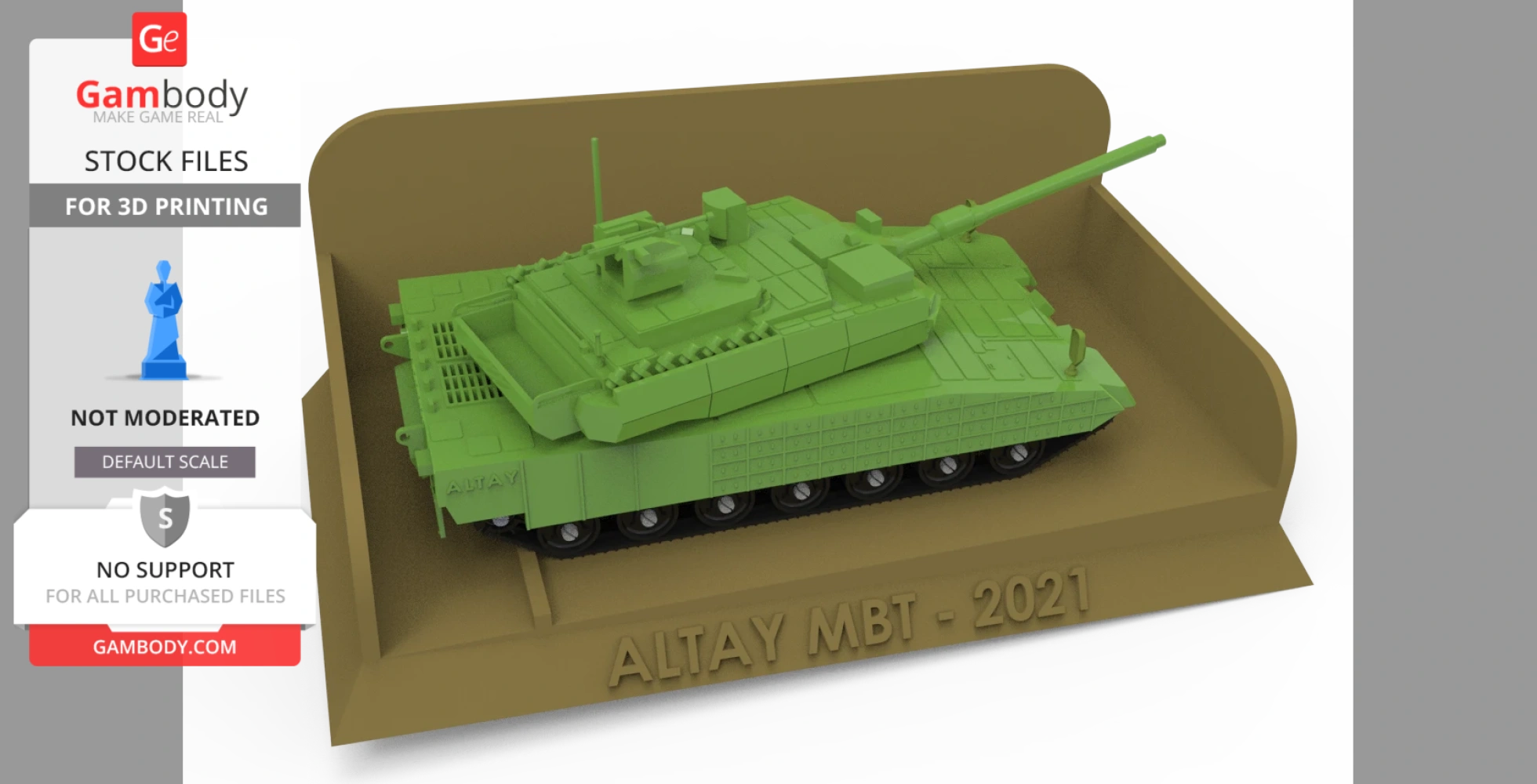

Altay Main Battle Tank;

The tank is projected to have a 120 millimetres (4.7 in) smoothbore gun and will include CBRN defense elements, to protect it from chemical, biological, radiological and nuclear weapons. The planned maximum speed is set at 70 kilometres per hour (43 mph), provided by an 1,800 hp (1,300 kW) engine (the first two batches will have 1,500 hp (1,100 kW) engines), and the MBTs will be able to function under 4.1 metres (13 ft) of water.

The tank will benefit both from indigenously developed systems and from the cannon technology of the South Korean K2 Black Panther, accorded by an agreement signed with South Korea. The first two batches will be powered by the 1,500 hp (1,100 kW) MTU engines whereas the last two batches will be powered by an indigenous 1,800 hp engine.[29] On 16 June 2008, SSM and industry members discussed a possible participation for the development of 1,800 hp (1,300 kW) indigenous power pack for use in the armoured personnel carriers and main battle tanks produced in Turkey.

Altay appears to share strong chassis characteristics with its technological base, the South Korean K2 Black Panther, with a re-designed Turkish turret and Aselsan's Volkan-III modular fire control system. The tank will be fielded with a STANAG 4579 compatible battlefield target identification system that ensures interoperability among small tank units. There are seven wheels, which translates to a longer hull, heavier armor and increased survivability. This is somewhat offset by offering a larger target size.

Download Altay Main Battle Tank STL files. Hit the green “Buy” button at the top of the page. the files in ZIP folder.

Generic

Quality:
Layer height - 0.2mm
Initial layer thickness - 0.2mm
Bottom/top pattern - lines
Horizontal expansion - 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).
Check this **Simplify3D User Guidelines to avoid any 3D printing problems with this software.

Speed setups:
Infill speed - 50mm/s
Outer shell speed - 30mm/s
Inner shell speed - 20mm/s
Top/Bottom speed - 20mm/s
Support speed - 50mm/s
Travel speed - 150mm/s
Skirt speed - 30mm/s
Amount of slower layers - 4
Infill:
Infill Pattern - Grid
Line distance - 1.5mm
Infill Overlap - 30%
Infill Layers - 0
Support
Enable Support - check
Placement - Everywhere
Overhang angle - 30°
X/Y Distance - 0.7mm
Top Distance - 0.2mm
Bottom Distance - 0.2mm
Stair Step Height - 0.5mm
Join Distance - 0.7mm
Area Smoothing - 0.6mm
Use towers - check
Pattern - Lines
Line distance - 1.5mm
Platform Adhesion
Type - Brim
Brim Line Count -12 (up to 20, depending on the model’s height)

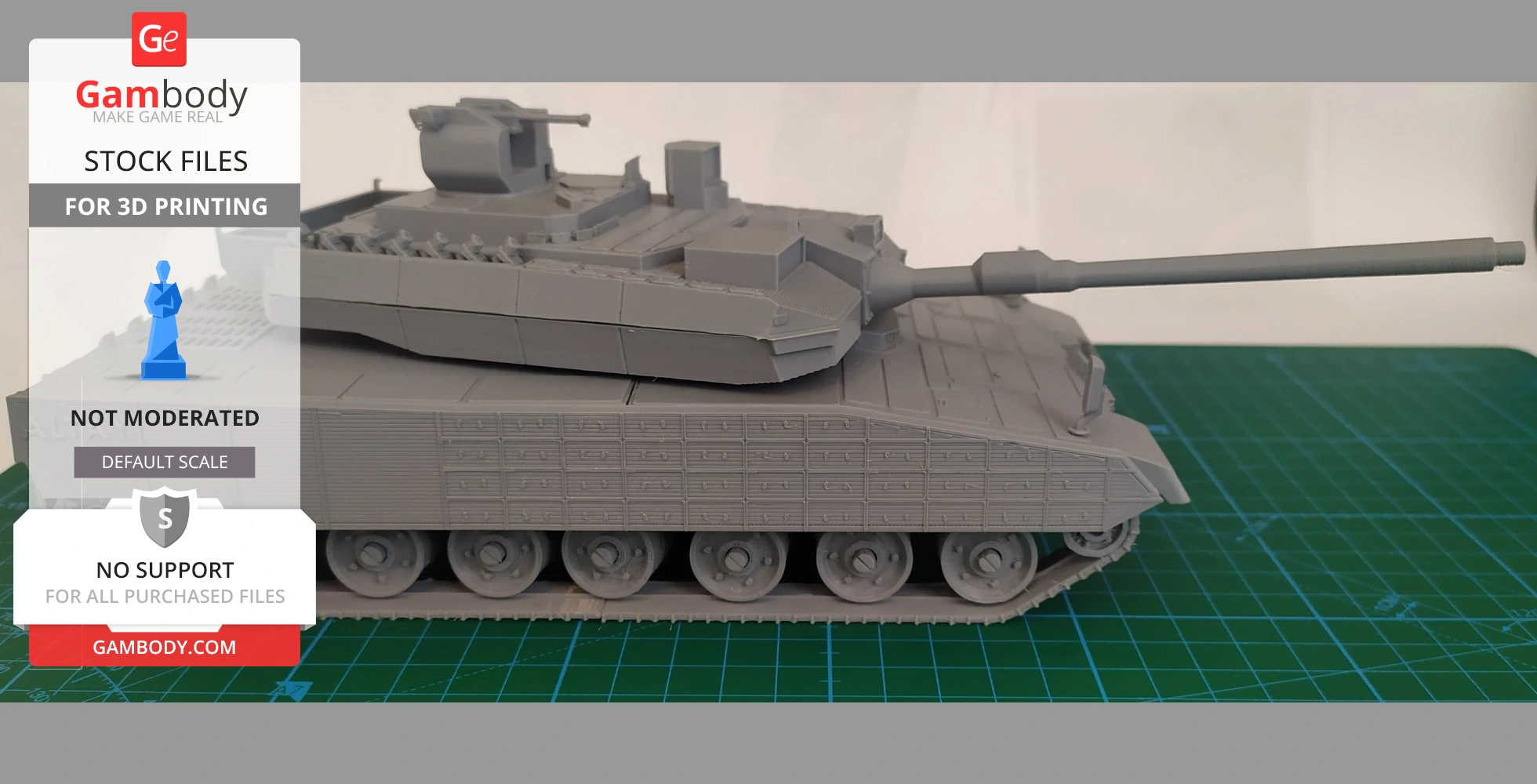

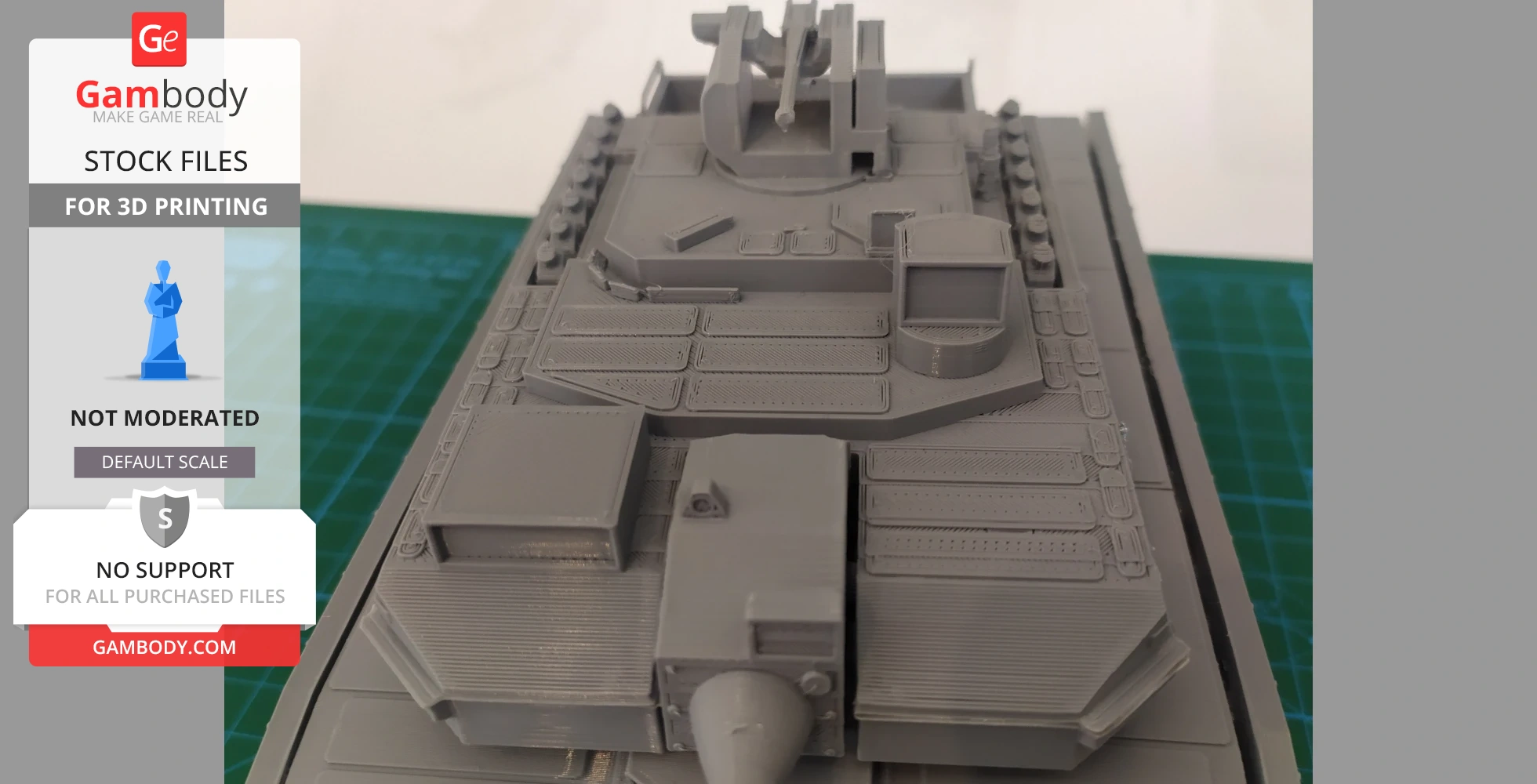

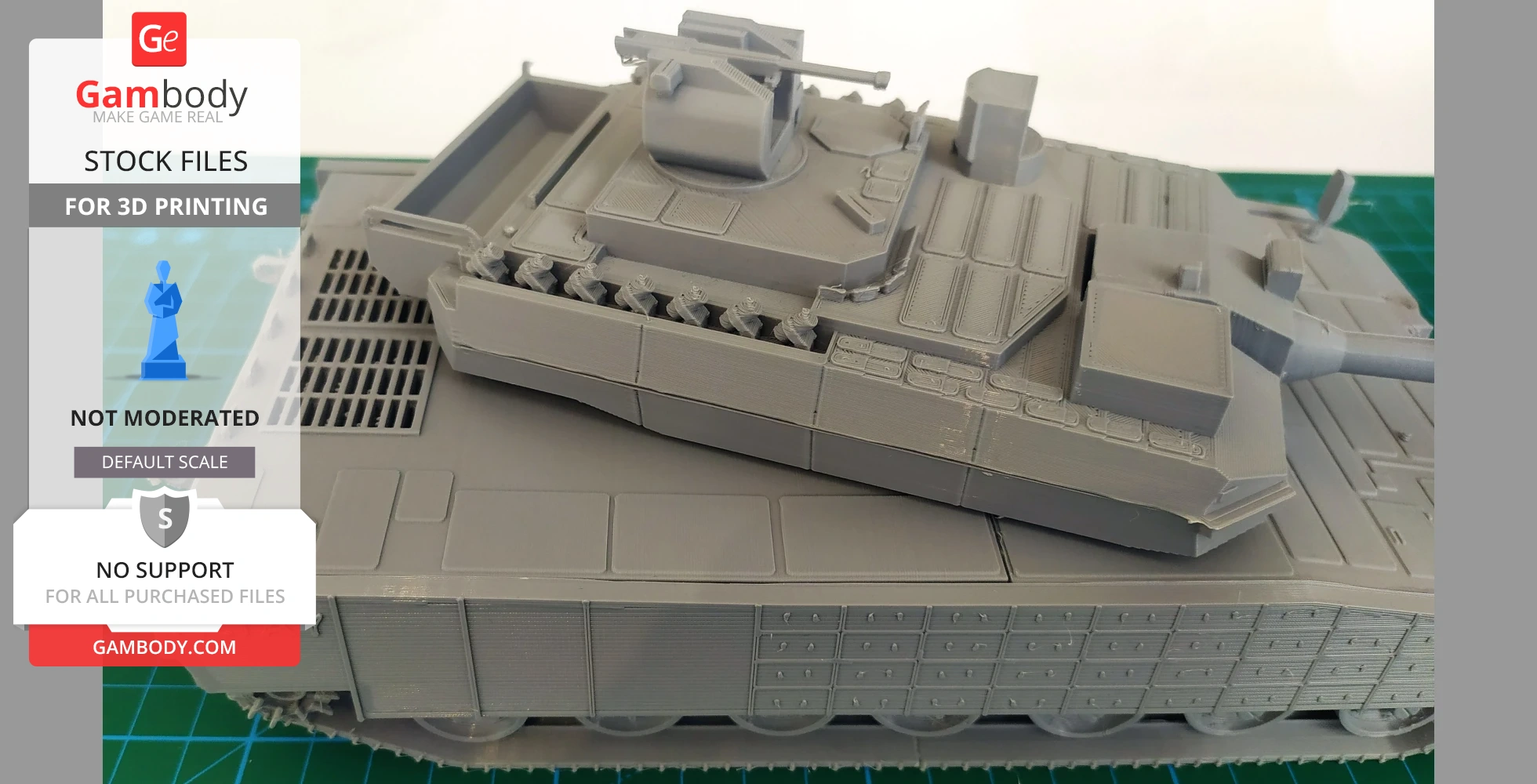

The model’s parts have been test printed in PLA

Recommendations
All parts will arrange on the print bed in such a way as to get a clean printing, the upper parts not needing support.

All basic settings by default
