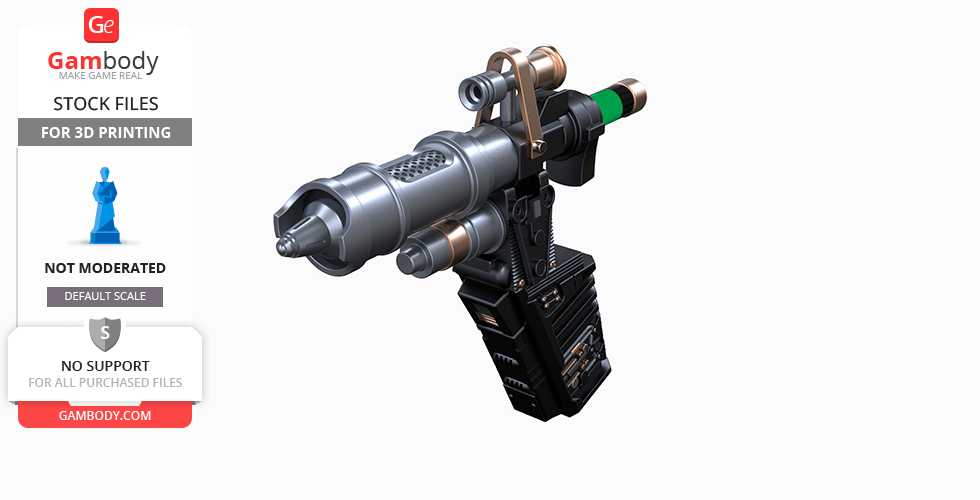

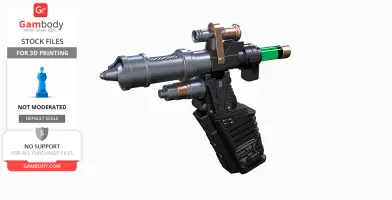

Hirogen Hypospray from Star Trek Voyager

cm: 17.65 w x 2.8 d x 14.07 h
in: 6.949 w x 1.102 d x 5.539 h
Help us decide: Would you like to see this model in the Premium section?
What does this mean?
info
Voting explanation
This voting section lets you decide if this model should join our Premium section, known for its high-quality, exclusive models. Models garnering sufficient votes will receive Gambody’s expert moderation, including Ge-smart cutting and live-time support. Successful models will be placed in the Premium section and then promoted, while the original STLs will stay in the Stock section. Your vote directly influences the model's status, based on community preferences.
0.0%
Voted 0 of 100

Source Files

|

Description

|

Printing Details

STL files and the cutting of this model are preserved as created by the Author. This model was not moderated by Gambody, it is not subject to technical support by Gambody, and we do not offer any guarantees on the 3D printing results.

Stock models can only be purchased in an order separate from the Premium STL files by Gambody. If a Premium model is added to the Cart, the Stock models are deleted automatically, and vice versa.

You can read more about Stock models on Gambody's Blog.

The Author of the Stock model can provide technical support if they wish. All your questions, requests, wishes and remarks can be left in the comment section below.

Gambody Team can consider providing a Premium version of the model if highly requested.

File Name File Size Time / Filament Object Size
(x/y/z mm)

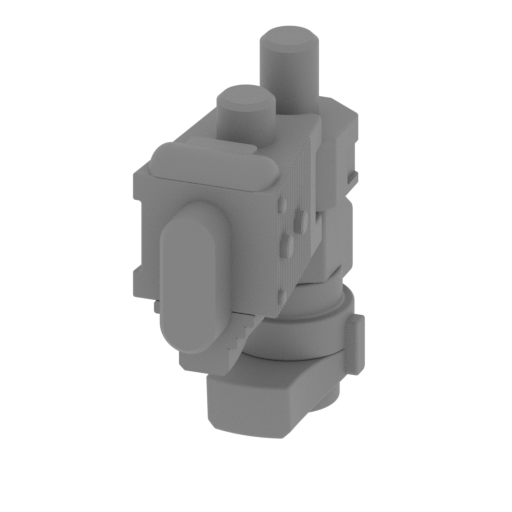

Body.STL
4.66 MiB 6 h 33 min 4 m 27 x 66 x 67 Download

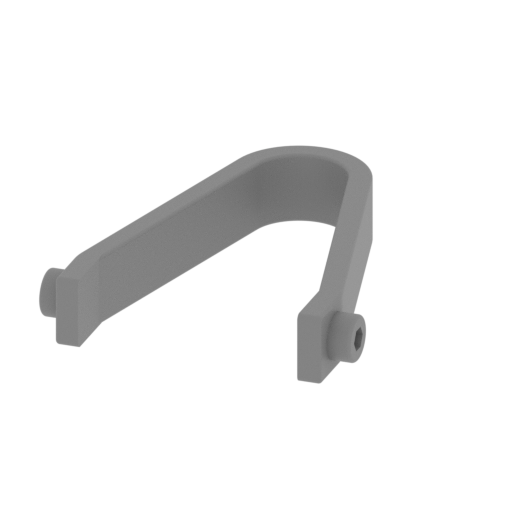

Brace.STL
0.71 MiB 16 min <1 m 27 x 32 x 6 Download

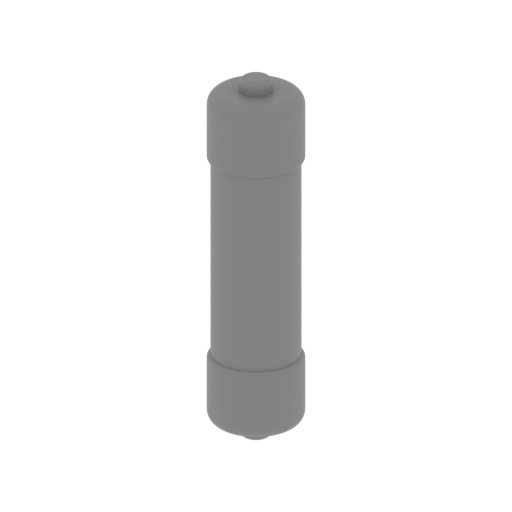

Bulb.STL
0.78 MiB 47 min <1 m 13 x 13 x 52 Download

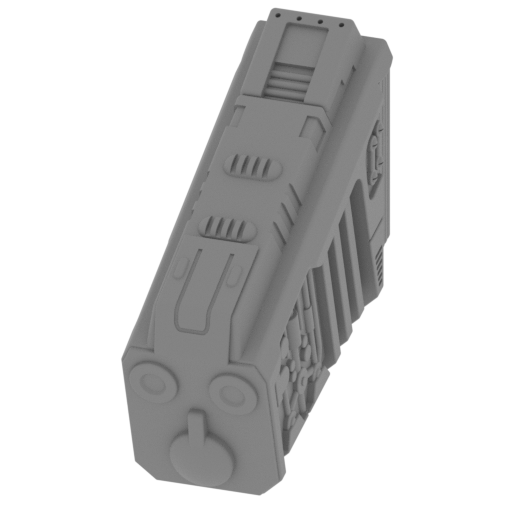

Handle.STL
13.68 MiB 9 h 5 min 5 m 29 x 67 x 70 Download

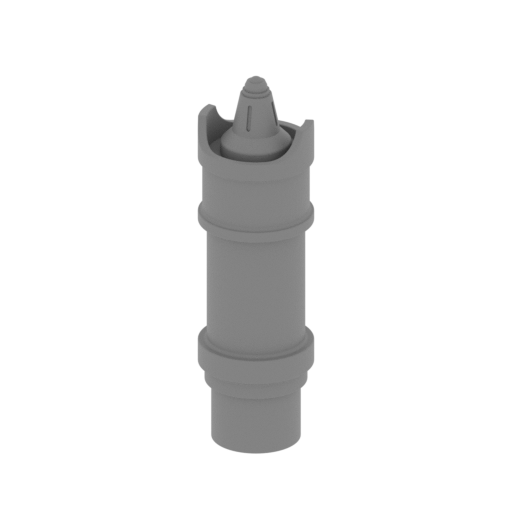

Main barrel.STL
4.78 MiB 3 h 59 min 2 m 26 x 26 x 88 Download

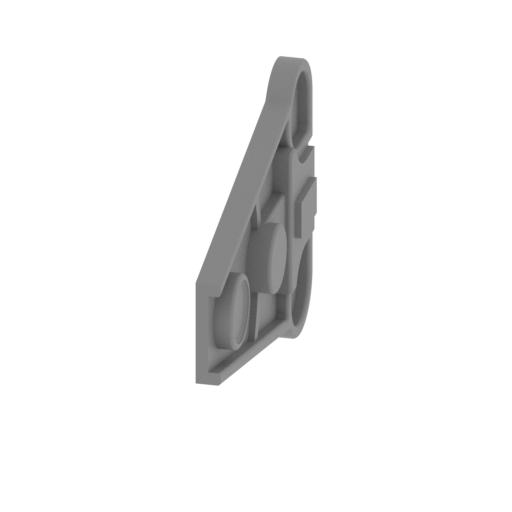

Plate 1.STL
1.52 MiB 37 min <1 m 6 x 30 x 23 Download

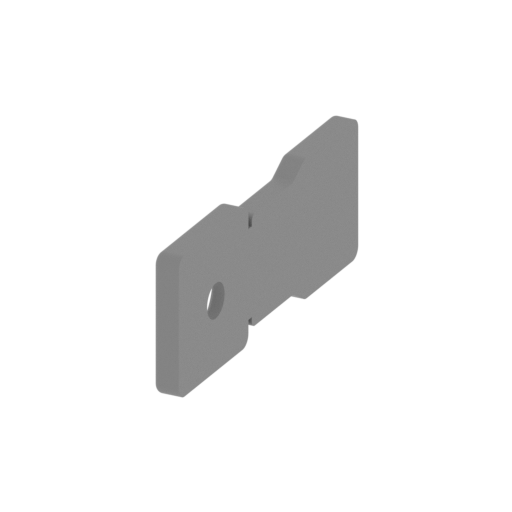

Plate 2.STL
0.72 MiB 16 min <1 m 6 x 31 x 12 Download

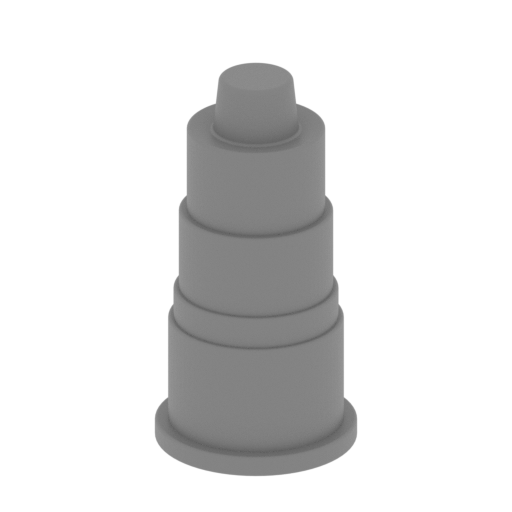

Second barrel.STL
1.11 MiB 45 min <1 m 19 x 19 x 37 Download

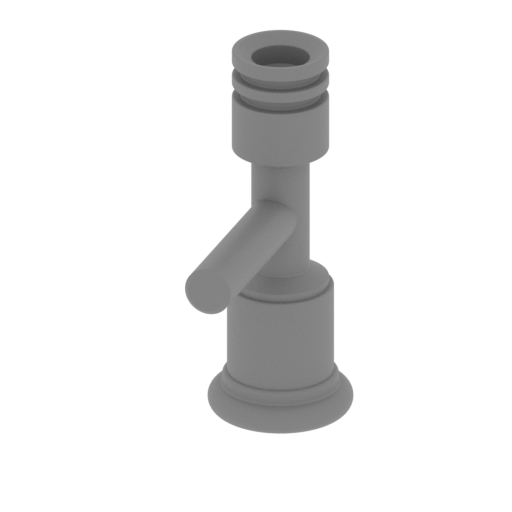

Top barrel.STL
2.82 MiB 50 min <1 m 15 x 29 x 41 Download

A hypospray was a medical device used to inject liquids into the body. The system used a noninvasive transport mechanism of compressed air to transfer the injectant from the device into the subdermal layer below the skin of the body, or artery.

Designed in Solid Works 2012, rendered in Keyshot 5.0.99.

Generic

Model dimensions:

  • length – 176.5 mm
  • width – 28 mm
  • height – 140.7 mm

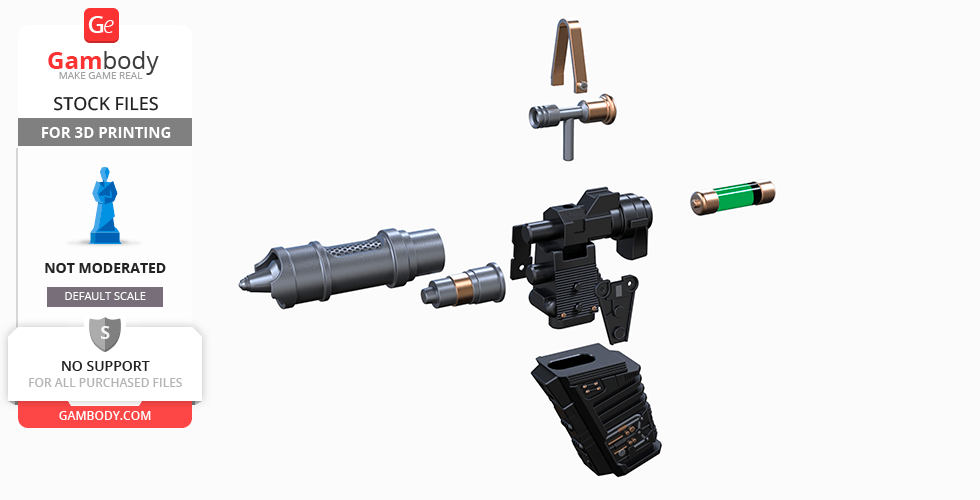

Model consists of parts: body, brace, bulb, handle, main barrel, plate 1, plate 2, second barrel, top barrel.
