K-2SO 3D Printing Model | Assembly + Static

(8)

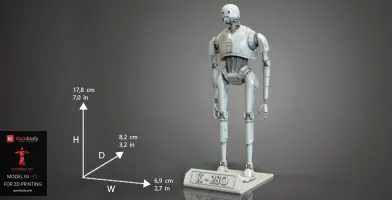

cm: 8.23 w x 6.89 d x 17.83 h
in: 3.24 w x 2.713 d x 7.02 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Download parts K - 2SO_2 and K - 2SO_3 for free to check the printability and test the quality before buying all STL files of the 3D model.

Download Free Samples

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
k-2so static (repaired).s tl
51.67 MiB 24 h 22 min 17 m 69 x 82 x 178 Download
K - 2SO_1 (repaired).stl
1.33 MiB 1 h 7 min 1 m 19 x 24 x 33 Download
K - 2SO_2 (repaired).stl
12.94 MiB 3 h 35 min 2 m 43 x 40 x 46 Download
K - 2SO_3 (repaired).stl
8.12 MiB 1 h 48 min 1 m 30 x 22 x 33 Download
K - 2SO_4 (repaired).stl
1.35 MiB 40 min <1 m 28 x 17 x 17 Download
K - 2SO_5 (repaired).stl
0.81 MiB 44 min <1 m 8 x 10 x 47 Download
K - 2SO_6 (repaired).stl
2.30 MiB 19 min <1 m 8 x 11 x 23 Download
K - 2SO_7 (repaired).stl
1.35 MiB 39 min <1 m 28 x 17 x 17 Download
K - 2SO_8 (repaired).stl
0.81 MiB 44 min <1 m 8 x 10 x 47 Download
K - 2SO_9 (repaired).stl
2.30 MiB 19 min <1 m 8 x 11 x 23 Download
K - 2SO_10 (repaired).stl
8.66 MiB 1 h 1 m 17 x 16 x 45 Download
K - 2SO_11 (repaired).stl
0.87 MiB 46 min <1 m 9 x 11 x 56 Download
K - 2SO_12 (repaired).stl
1.05 MiB 21 min <1 m 11 x 23 x 19 Download
K - 2SO_13 (repaired).stl
8.66 MiB 1 h 1 m 17 x 16 x 45 Download
K - 2SO_14 (repaired).stl
0.87 MiB 46 min <1 m 9 x 11 x 56 Download
K - 2SO_15 (repaired).stl
1.05 MiB 20 min <1 m 11 x 23 x 19 Download
K - 2SO_16 (repaired).stl
0.98 MiB 2 h 47 min 2 m 61 x 82 x 18 Download
...

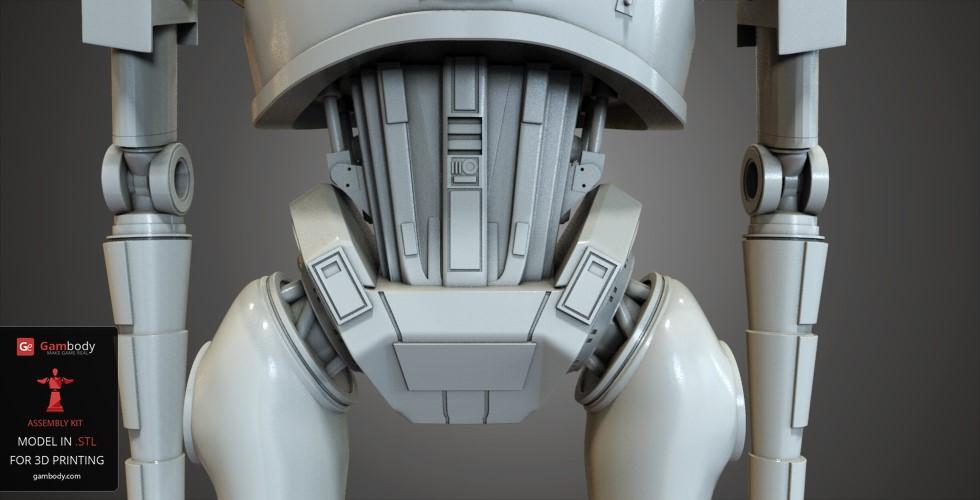

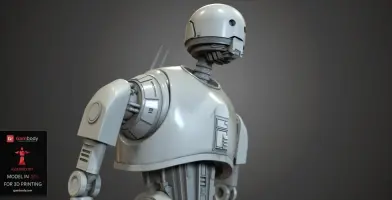

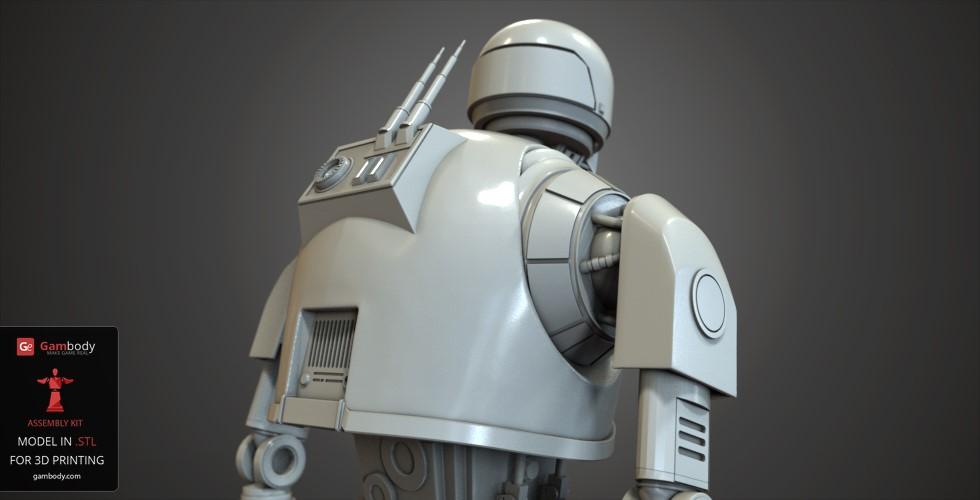

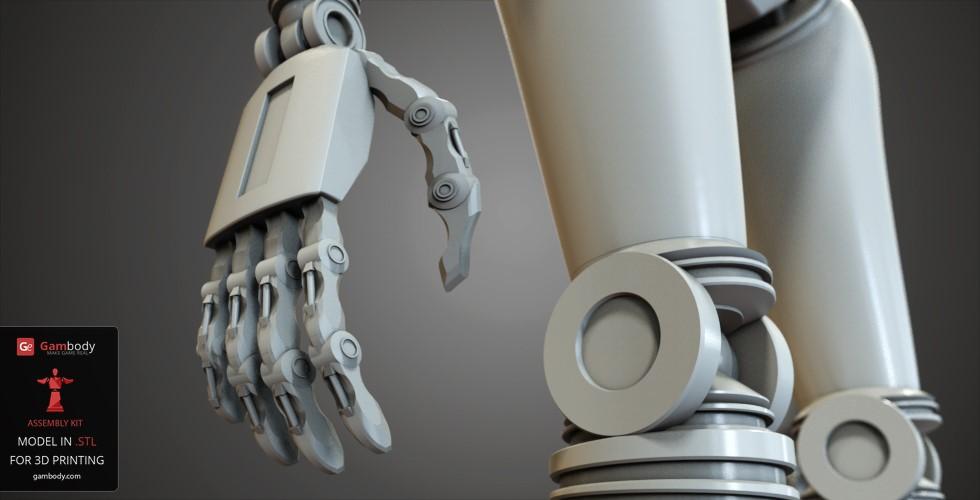

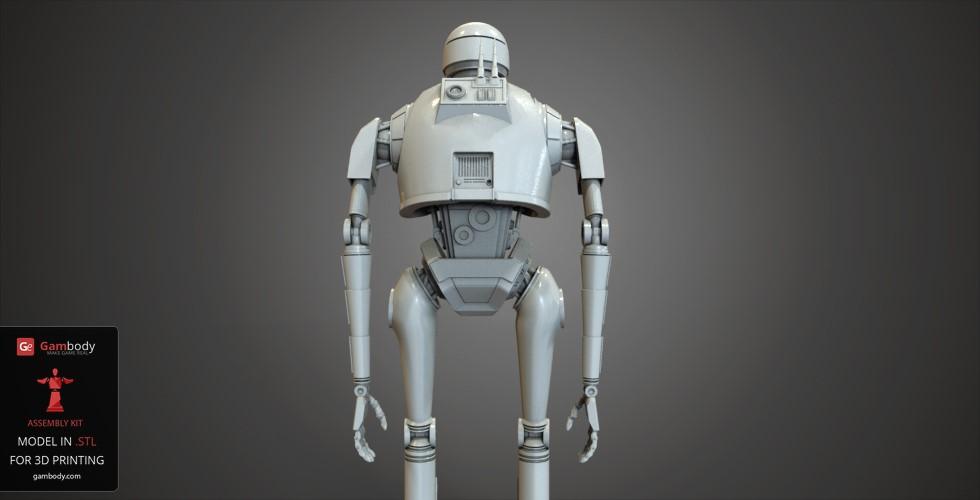

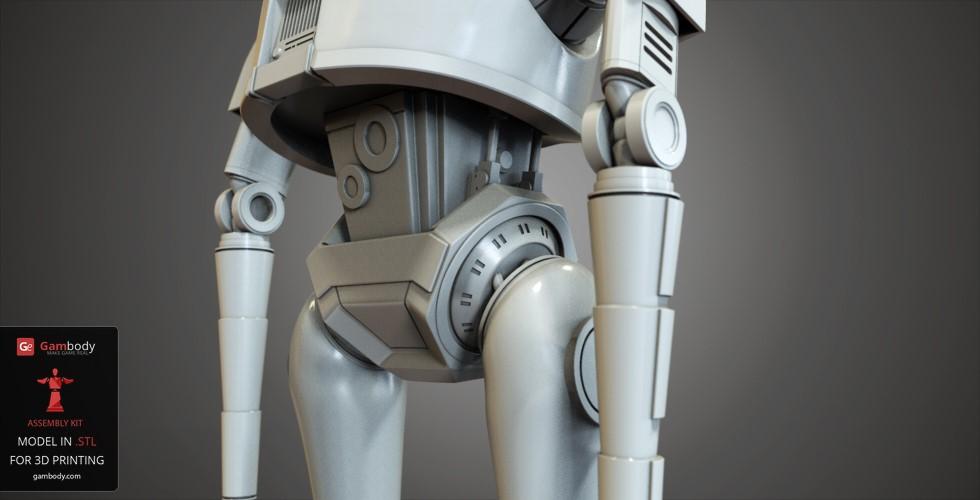

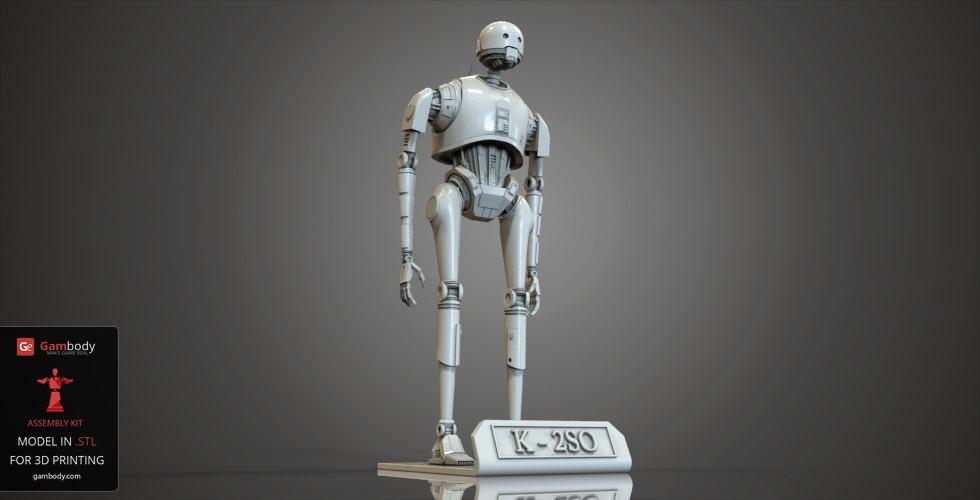

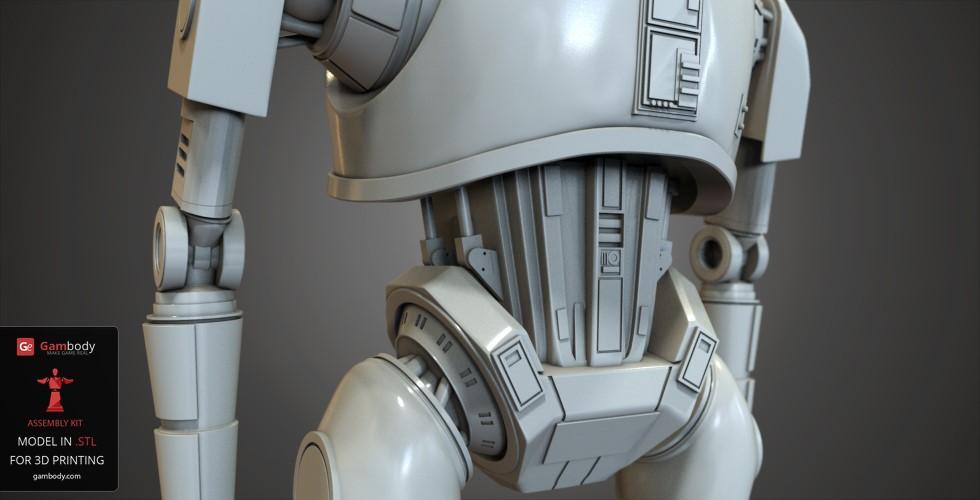

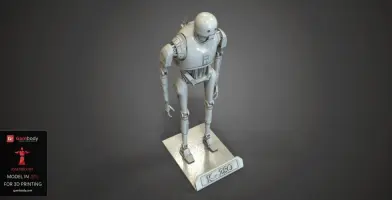

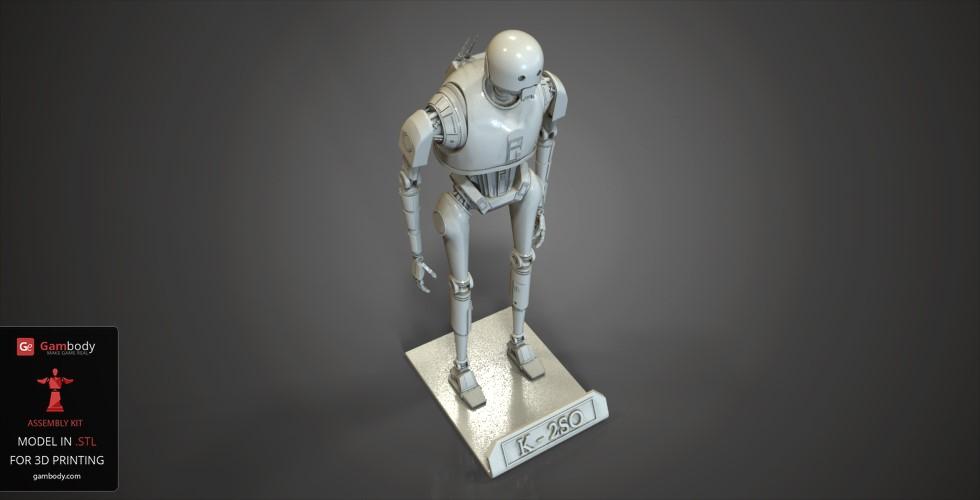

K-2SO 3D model for 3D printing is inspired by the security droid design. His role is that of a member of the armed forces of the Galactic Empire. The 3D model can easily become a piece in your 3D printing collection or a tabletop game item.

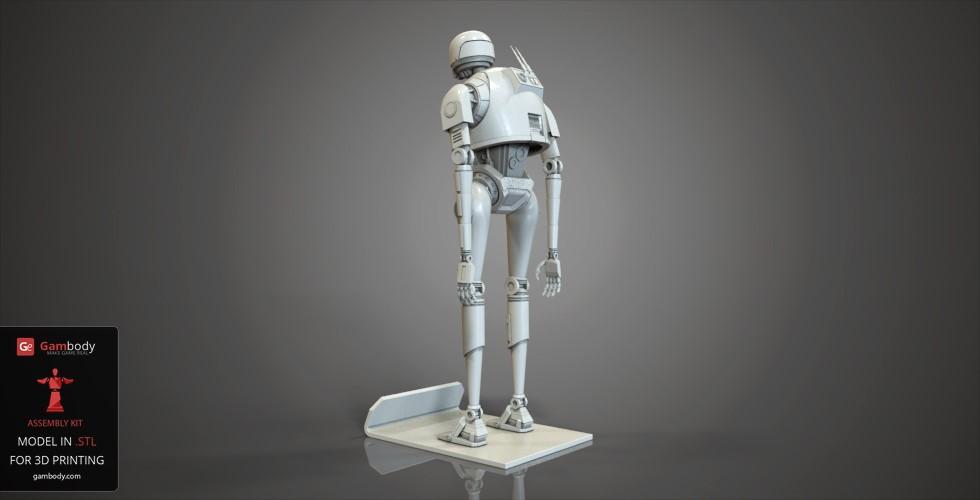

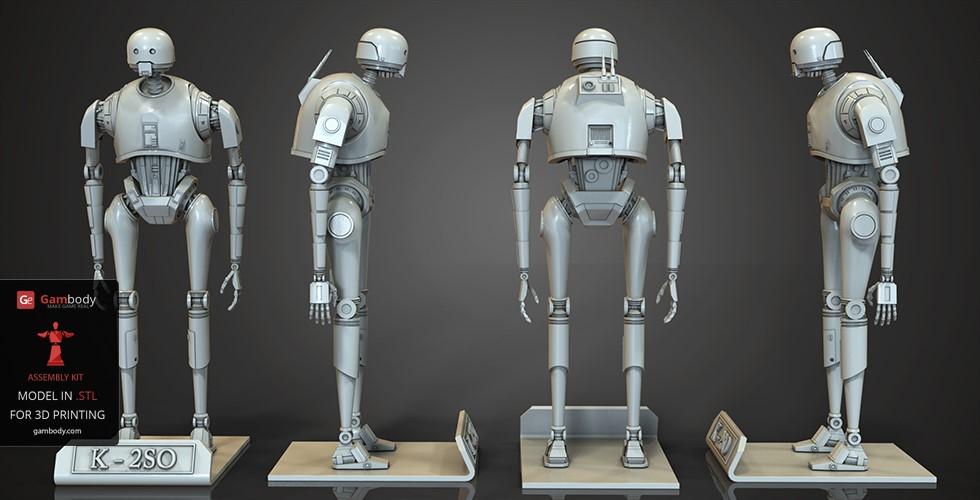

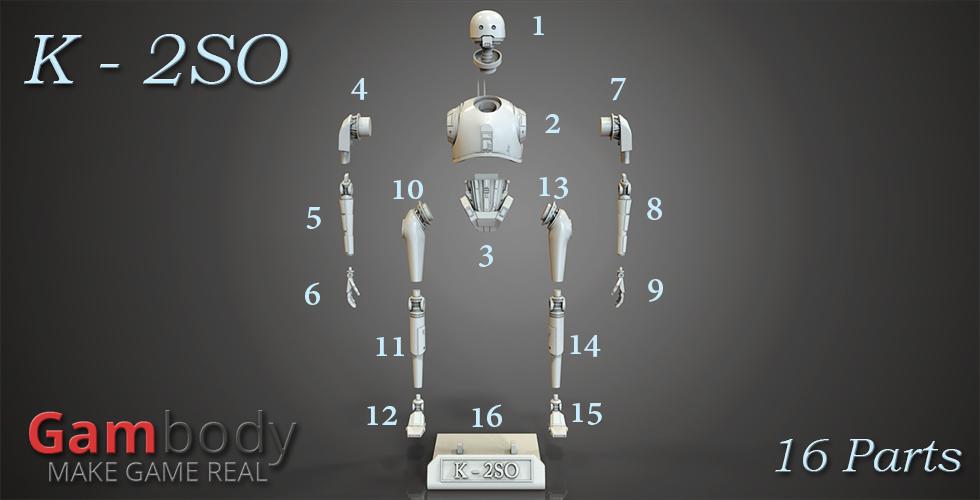

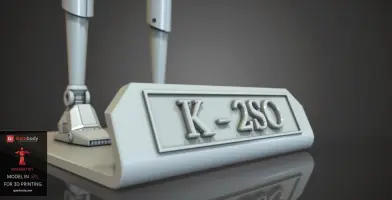

Kay 3D model is available in two versions: assembly and static. The static version consists of a single STL file that is 3D printed using support for overhangs. The assembly version is split into 16 separate pieces for an easier 3D printing process and less support use during its 3D printing. The parts are numbered to facilitate the 3D model’s assembly. Watch the video by clicking the video icon at the far right of the model’s picture slider. K-2SO comes on a support base.

The 3D model is created in Autodesk Maya modeling program. The STL files are checked and corrected in Netfabb. The 3D model is high-poly and made solid. You can easily handle it in any slicing program. Follow the printing guidelines provided on the 3D model’s page for accurate results.

Kay 3D model is tested in CURA 2.3.1 slicing program.

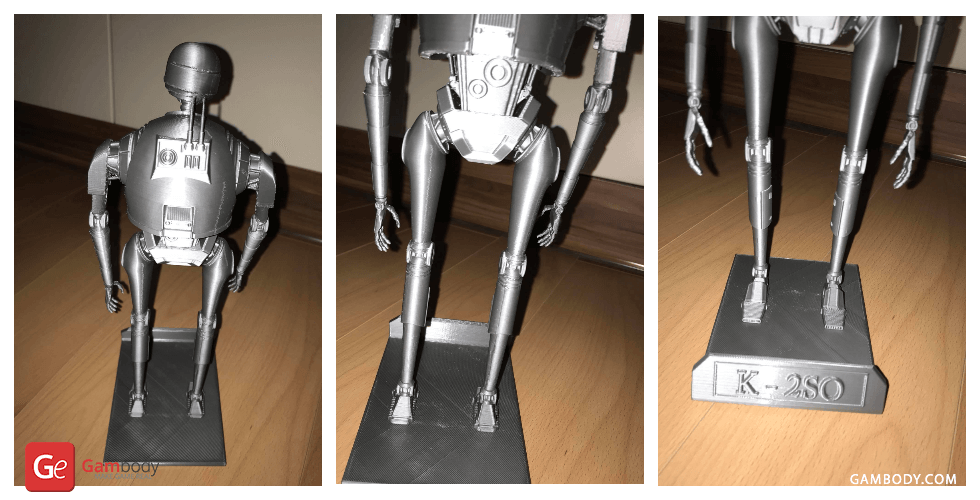

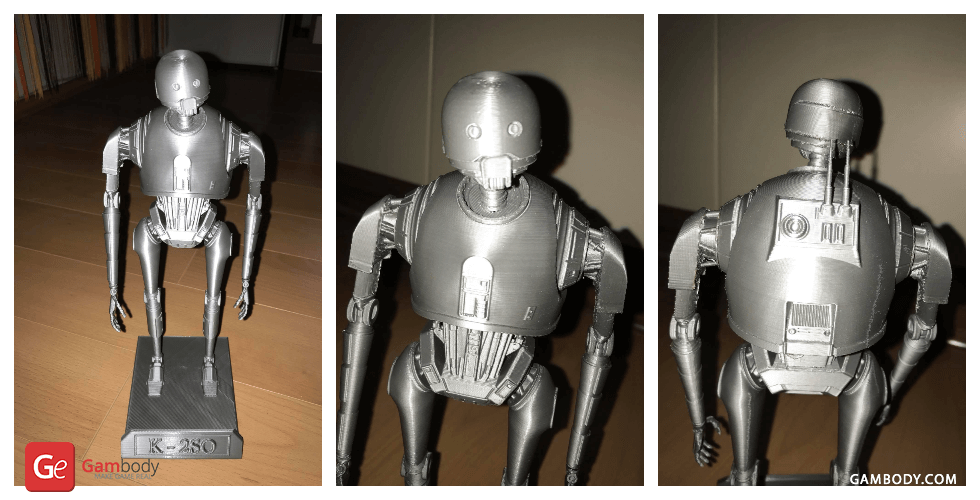

After being 3D printed, the 3D printing figurine will stand 82 mm wide, 178 mm tall and 69 mm deep.

Buy K-2SO 3D model STL files by clicking the Buy button. Continue to checkout. Provide your PayPal or credit card details. The files will download in a .zip folder. You will find a PDF for the printing details in the folder as well.

Don’t own a 3D printer? Use 3DHubs of Treatstock 3D printing services to 3D print the model. Select the files you want to print and click the Print with 3DHubs or Print with Treatstock buttons on the model’s page.


Generic

This model was tested in Cura 2.3.1. To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest

Infill

Infill Density: 25%
Infill Line Distance: 3.2 mm
Infill Pattern: Grid
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Standby Temperature: 175°C
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 60 mm/s
Infill Speed: 80 mm/s
Wall Speed: 30 mm/s
Outer Wall Speed: 30 mm/s
Inner Wall Speed: 60 mm/s
Top/Bottom Speed 15 mm/s
Support Speed: 60 mm/s
Support Infill Speed: 60 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 15 mm/s
Initial Layer Print Speed: 15 mm/s
Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed 15 mm/s
Maximum Z Speed: 0 mm/s

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm

Cooling

Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 30 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.1 mm
Support Top Distance: 0.1 mm
Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 20
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Experimental

Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
