Kid Goku on Flying Nimbus 3D Printer Files | Assembly
Specifications

Files

3D model format

Stereolithography (.stl)

Total files

57
Information
The total number of 3D model files available across all versions and updates of this model, including variants optimized for different types of 3D printers.

License

Personal use

Slicer settings

Mesh error check

Netfabb

Support

Lifetime support from Gambody team

Update requests

Available to verified buyers

Model complexity

Standard
Information

Standard: balanced printing difficulty and moderate part count with assembly steps.

Assembly guide

PDF manual, Video

Model versions

1.0 Initial

FFF/FDM

Files

20

Parts

18

Scale

1:8

Printed model size

Height: 6.3” (160 mm) • Width: 4.57” (116 mm) • Depth: 4.09” (104 mm)

Printed base size

Height: 5.51” (140 mm) • Width: 5.47” (139 mm) • Depth: 6.93” (176 mm)

Assembly method

Connectors, Glue

Features

The assembly parts are connected using specially designed integrated connectors that fit securely into the corresponding slots. Optionally, for added strength and rigidity, the static connections can be glued together.

DLP/SLA

Files

16

Parts

14

Eco parts

0
Information
Number of hollow parts to reduce resin usage when printing on DLP/SLA printers.

Scale

1:16

Printed model size

Height: 3.15” (80 mm) • Width: 2.28” (58 mm) • Depth: 2.05” (52 mm)

Printed base size

Height: 2.76” (70 mm) • Width: 2.76” (70 mm) • Depth: 3.46” (88 mm)

Assembly method

Connectors, Glue

Features

The assembly parts are connected using specially designed integrated connectors that fit securely into the corresponding slots. Optionally, for added strength and rigidity, the static connections can be glued together.

SLS

Files

5

Parts

3

Scale

1:16

Printed model size

Height: 3.15” (80 mm) • Width: 2.28” (58 mm) • Depth: 2.05” (52 mm)

Printed base size

Height: 2.76” (70 mm) • Width: 2.76” (70 mm) • Depth: 3.46” (88 mm)

Assembly method

Connectors, Glue, Solid

Features

Contains 3 parts: a solid-piece version of Kid Goku merged with the platform, and a separate version for display flexibility; The assembly parts are connected using specially designed integrated connectors that fit securely into the corresponding slots. Optionally, for added strength and rigidity, the static connections can be glued together.

1.0 Eco

DLP/SLA

Files

16

Parts

14

Eco parts

9
Information
Number of hollow parts to reduce resin usage when printing on DLP/SLA printers.

Scale

1:16

Printed model size

Height: 3.15” (80 mm) • Width: 2.28” (58 mm) • Depth: 2.05” (52 mm)

Printed base size

Height: 2.76” (70 mm) • Width: 2.76” (70 mm) • Depth: 3.46” (88 mm)

Assembly method

Connectors, Glue

Features

Contains some hollowed out parts to save resin; The assembly parts are connected using specially designed integrated connectors that fit securely into the corresponding slots. Optionally, for added strength and rigidity, the static connections can be glued together.

Additional details

Part of diorama

No

Special pack included

No

You will get instant access to the STL files of Kid Goku on Flying Nimbus 3D Printer Files | Assembly after completing your purchase. Simply add the model to your cart and check out using PayPal, credit or debit card, Apple Pay, Google Pay, Alipay, or other available payment methods.

Watch the assembly video for Kid Goku on Flying Nimbus 3D Printer Files | Assembly, and explore more tutorials, behind-the-scenes content, 3D printing timelapses, and painting guides on the official Gambody YouTube channel.

Source Files

This 3D model comes with StereoLithography (.STL) files optimized for 3D printing. You'll get digital files, not a physical product

Important

Before printing, take a look at Printing Details for recommended settings and tips to achieve better results.

Kid Goku on Flying Nimbus 3D Printer Files | Assembly includes 3 version(s) for the supported 3D printer type(s): FFF/FDM, DLP/SLA, SLS. Files are available for download after purchase.
See the Description and Specifications sections for more details about this model.

--Select printer type--
View update history
--Select model version--

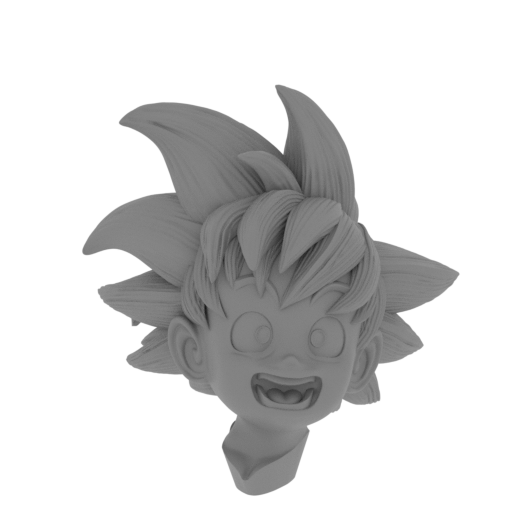

1_head_FDM(repaired).stl
1_head_FDM(repaired).stl
Size: 76.09 x 72.1 x 88.66 mm | 3 x 2.84 x 3.49 in File size: 19.02 mb Printing Time / Filament: 16 h 33 min / 10 m
2_body_FDM(repaired).stl
2_body_FDM(repaired).stl
Size: 37.5 x 34.18 x 27.26 mm | 1.48 x 1.35 x 1.07 in File size: 23.60 mb Printing Time / Filament: 2 h 4 min / 1 m

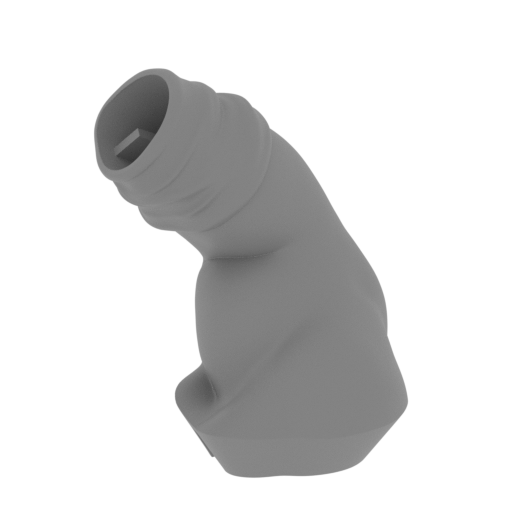

3_arm_R_FDM(repaired).stl
3_arm_R_FDM(repaired).stl
Size: 25.32 x 21.2 x 30.98 mm | 1 x 0.83 x 1.22 in File size: 17.34 mb Printing Time / Filament: 46 min / <1 m

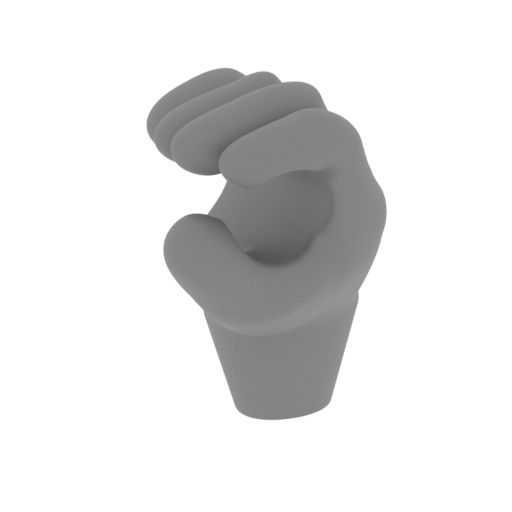

4_hand_R_FDM(repaired).stl
4_hand_R_FDM(repaired).stl
Size: 13.17 x 16.37 x 19.35 mm | 0.52 x 0.64 x 0.76 in File size: 8.03 mb Printing Time / Filament: 23 min / <1 m

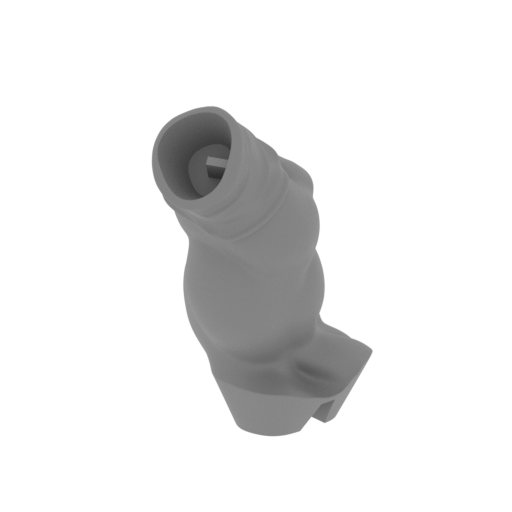

5_arm_L_FDM(repaired).stl
5_arm_L_FDM(repaired).stl
Size: 17.52 x 28.87 x 37.5 mm | 0.69 x 1.14 x 1.48 in File size: 12.40 mb Printing Time / Filament: 50 min / <1 m

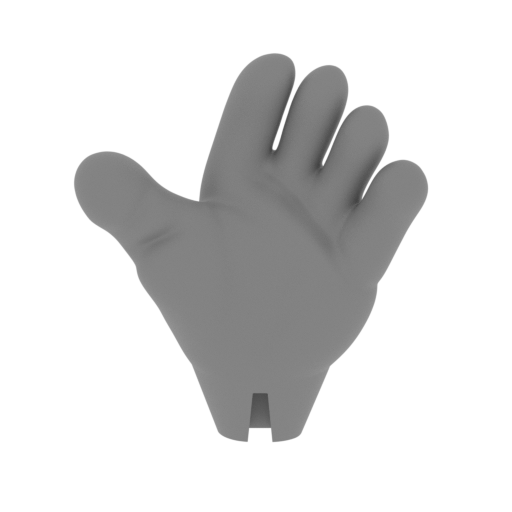

6_hand_L_FDM(repaired).stl
6_hand_L_FDM(repaired).stl
Size: 21.36 x 10.46 x 24.38 mm | 0.84 x 0.41 x 0.96 in File size: 8.31 mb Printing Time / Filament: 23 min / <1 m

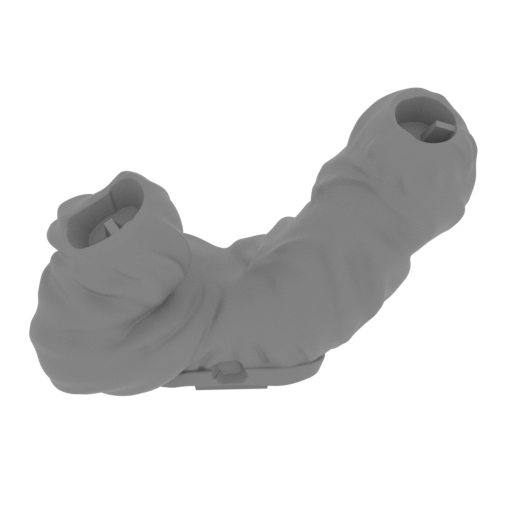

7_legs_FDM(repaired).stl
7_legs_FDM(repaired).stl
Size: 67.82 x 54.54 x 51.08 mm | 2.67 x 2.15 x 2.01 in File size: 18.28 mb Printing Time / Filament: 4 h 51 min / 3 m

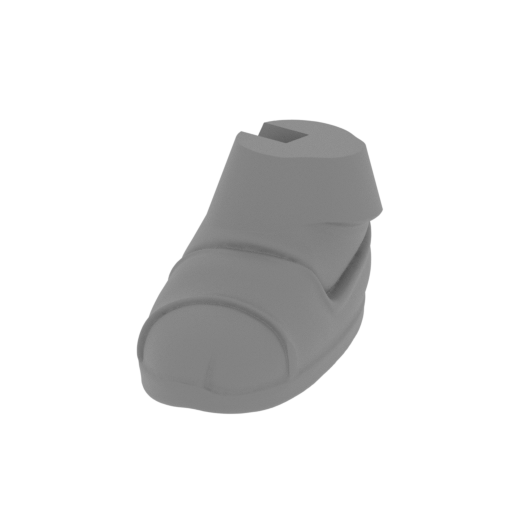

8_foot_R_FDM(repaired).stl
8_foot_R_FDM(repaired).stl
Size: 12.84 x 25.95 x 13.29 mm | 0.51 x 1.02 x 0.52 in File size: 9.36 mb Printing Time / Filament: 23 min / <1 m
9_foot_L_FDM(repaired).stl
9_foot_L_FDM(repaired).stl
Size: 12.37 x 25.75 x 11.77 mm | 0.49 x 1.01 x 0.46 in File size: 8.61 mb Printing Time / Filament: 20 min / <1 m

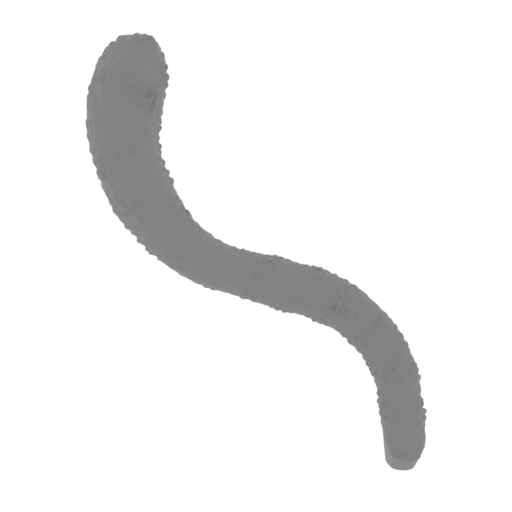

10_tail_FDM(repaired).stl
10_tail_FDM(repaired).stl
Size: 48.63 x 22.29 x 50.98 mm | 1.91 x 0.88 x 2.01 in File size: 13.57 mb Printing Time / Filament: 1 h 19 min / 1 m

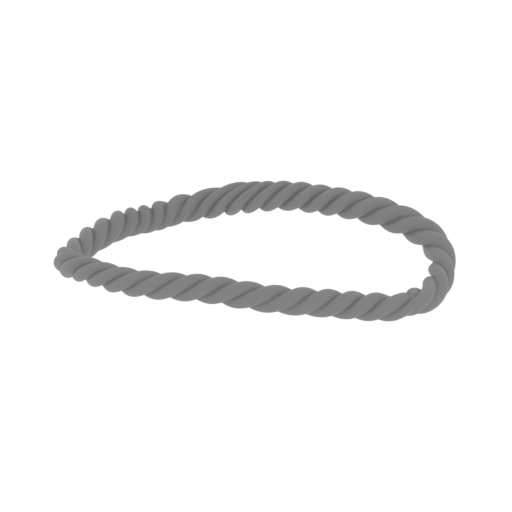

11_rope_FDM(repaired).stl
11_rope_FDM(repaired).stl
Size: 45.03 x 32.22 x 6.63 mm | 1.77 x 1.27 x 0.26 in File size: 9.00 mb Printing Time / Filament: 29 min / <1 m

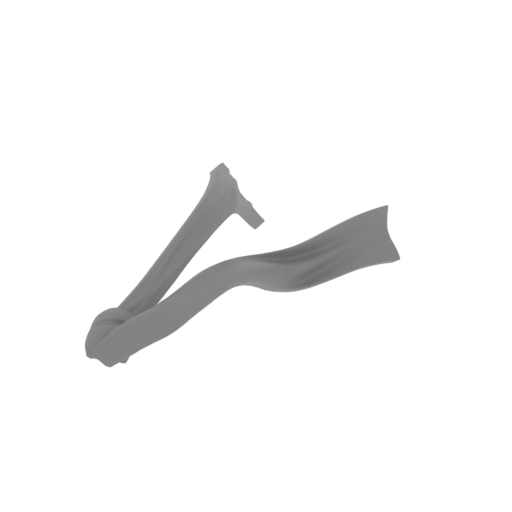

12_belt_FDM(repaired).stl
12_belt_FDM(repaired).stl
Size: 20.78 x 34.87 x 9.89 mm | 0.82 x 1.37 x 0.39 in File size: 8.32 mb Printing Time / Filament: 19 min / <1 m

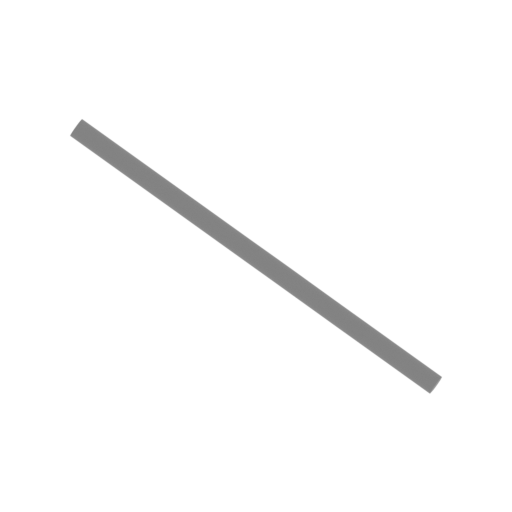

13_stick_FDM(repaired).stl
13_stick_FDM(repaired).stl
Size: 94.98 x 5.06 x 57.76 mm | 3.74 x 0.2 x 2.27 in File size: 2.69 mb Printing Time / Filament: 1 h 32 min / 1 m

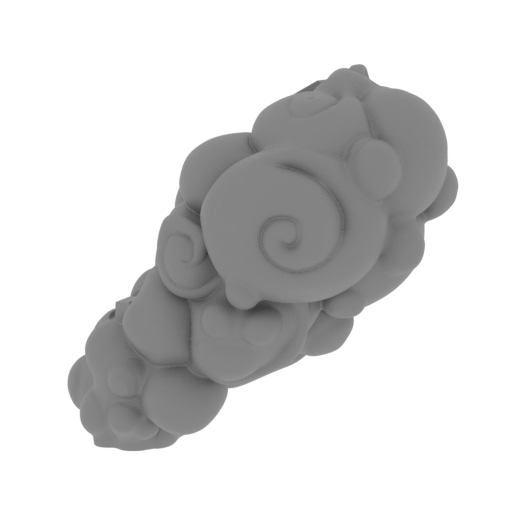

14_platform_1_FDM(repaired).stl
14_platform_1_FDM(repaired).stl
Size: 92.18 x 79.47 x 93.61 mm | 3.63 x 3.13 x 3.69 in File size: 19.67 mb Printing Time / Filament: 21 h 42 min / 14 m

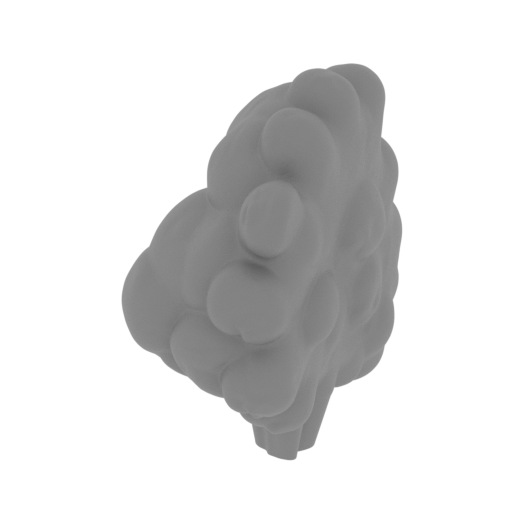

15_platform_2_FDM(repaired).stl
15_platform_2_FDM(repaired).stl
Size: 34.87 x 54.44 x 56.38 mm | 1.37 x 2.14 x 2.22 in File size: 12.32 mb Printing Time / Filament: 3 h 53 min / 2 m

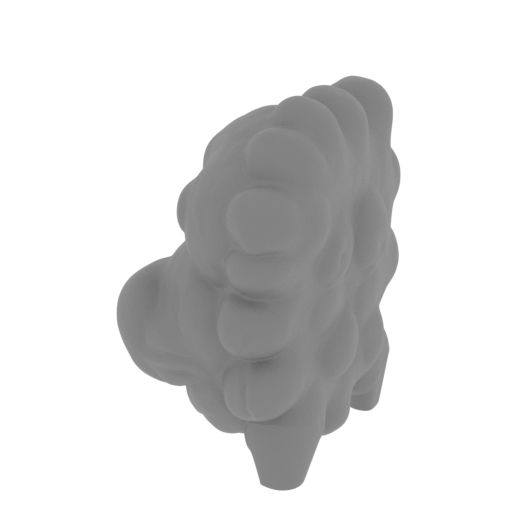

16_platform_3_FDM(repaired).stl
16_platform_3_FDM(repaired).stl
Size: 22.93 x 35.44 x 36.15 mm | 0.9 x 1.4 x 1.42 in File size: 10.77 mb Printing Time / Filament: 1 h 25 min / 1 m

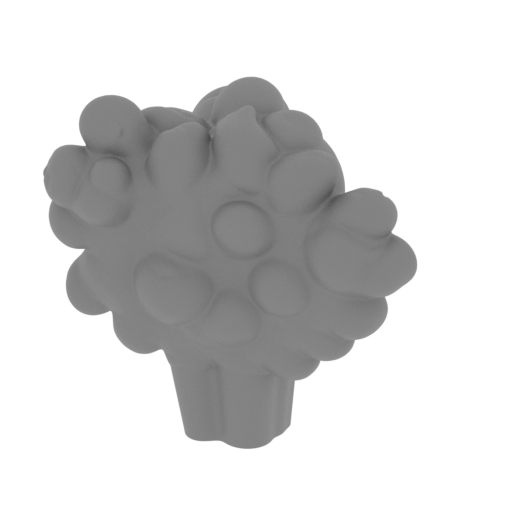

17_platform_4_FDM(repaired).stl
17_platform_4_FDM(repaired).stl
Size: 37.11 x 23.23 x 35.06 mm | 1.46 x 0.91 x 1.38 in File size: 12.61 mb Printing Time / Filament: 1 h 27 min / 1 m

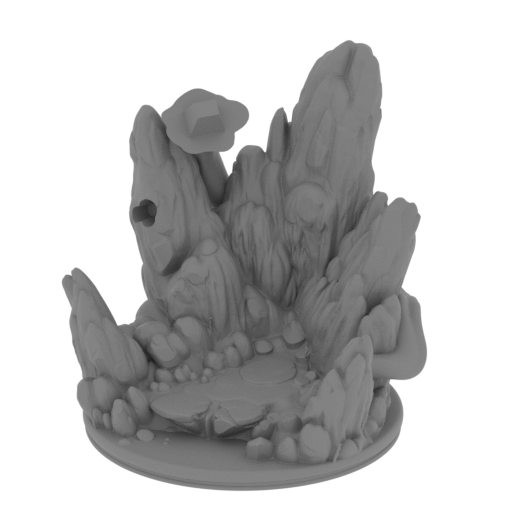

18_platform_5_FDM(repaired).stl
18_platform_5_FDM(repaired).stl
Size: 119.85 x 133.11 x 116.04 mm | 4.72 x 5.24 x 4.57 in File size: 33.45 mb Printing Time / Filament: 34 h 27 min / 20 m
Keychain (repaired).stl
Keychain (repaired).stl
Size: 29.68 x 29.69 x 2.42 mm | 1.17 x 1.17 x 0.1 in File size: 0.37 mb Printing Time / Filament: 23 min / <1 m
Tag (repaired).stl
Tag (repaired).stl
Size: 150.15 x 18.16 x 4.59 mm | 5.91 x 0.71 x 0.18 in File size: 1.78 mb Printing Time / Filament: 1 h 18 min / 1 m
Models are regularly enhanced with updates and adjustments based on customer feedback. View update history
Description

3D model history

Long before gods, planets, and universe-shaking battles, there was a small boy riding a golden cloud simply because his heart allowed it. Kid Goku's earliest journey in the Dragon Ball manga wasn't about saving worlds—it was about curiosity, motion, and the thrill of becoming stronger one step at a time. With a staff in hand, a monkey tail swaying behind him, and an appetite as endless as his optimism, this version of the character represents the purest form of a hero: instinctive, honest, and joyfully untamed. Rooted in myth and classic fantasy storytelling, Kid Goku remains the soul of early anime, where wonder came before power levels, and adventure shaped the legend.

This Kid Goku on Flying Nimbus 3D model brings that spirit into a vivid, collectible form. Designed as a high-detail Goku 3D print model, it captures a moment of mid-flight freedom, with Goku balanced atop Kinto-un, one hand gripping the Nyoibo while the other reaches forward in motion. The sculpt highlights his traditional sleeveless gi with rope-textured details, expressive posture, and flowing tail, all supported by a stylized mountain-and-cloud base that adds depth and atmosphere. Whether you're expanding a collection of Dragon Ball 3D models, looking for a standout Kid Goku 3D print, or adding a timeless cartoon character to your shelf, this Goku STL model blends anime heritage, fantasy energy, and heroic charm into a truly iconic 3D model anime character and 3D model hero.

3D printing model features

Model-specific features:

  • This high-detail Kid Goku 3D print model captures the legendary manga hero in a spirited mid-flight pose, featuring a meticulously sculpted Flying Nimbus cloud, a traditional sleeveless gi with realistic fabric textures, and a stylized mountain-range base that brings the iconic fantasy adventure to life.

Printing & assembly details:

  • Provided as error-free STL files compatible with most 3D printers;
  • Optimized part division minimizes support material and ensures smooth and precise surface detailing;
  • The assembly parts in the FFF/FDM version come in the recommended print orientations for easy bed placement;
  • Assembly manual in PDF and video formats is included for the FFF/FDM and DLP/SLA versions;
  • The model is available in recommended scales — 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

What will you get after purchase?

  • 4 versions of Kid Goku on Flying Nimbus STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, and SLS — files for all versions are available for download after the purchase;
  • STL files of high-poly Kid Goku on Flying Nimbus model for 3D printing consist of 49 files;
  • Sizes for:
  • FFF/FDM Model Size: 116 mm wide, 160 mm high, 104 mm deep;
  • FFF/FDM Platform Size: 139 mm wide, 140 mm high, 176 mm deep;
  • DLP/SLA/SLS Model Size: 58 mm wide, 80 mm high, 52 mm deep;
  • DLP/SLA/SLS Platform Size: 70 mm wide, 70 mm high, 88 mm deep;
  • Assembly Manual for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Bambu Studio, Cura, Orca Slicer, PrusaSlicer, Simplify3D, and Slic3r for the best print;
  • Full technical support from the Gambody Support Team.
