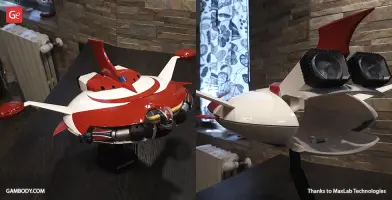

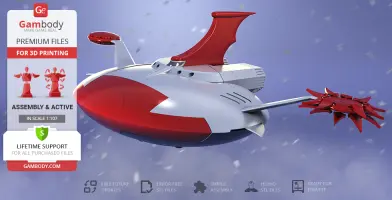

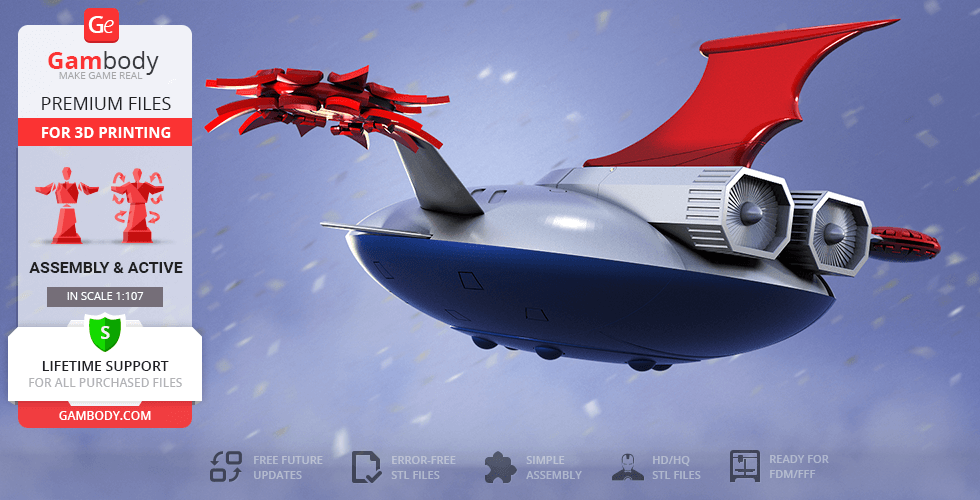

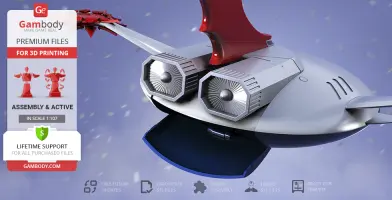

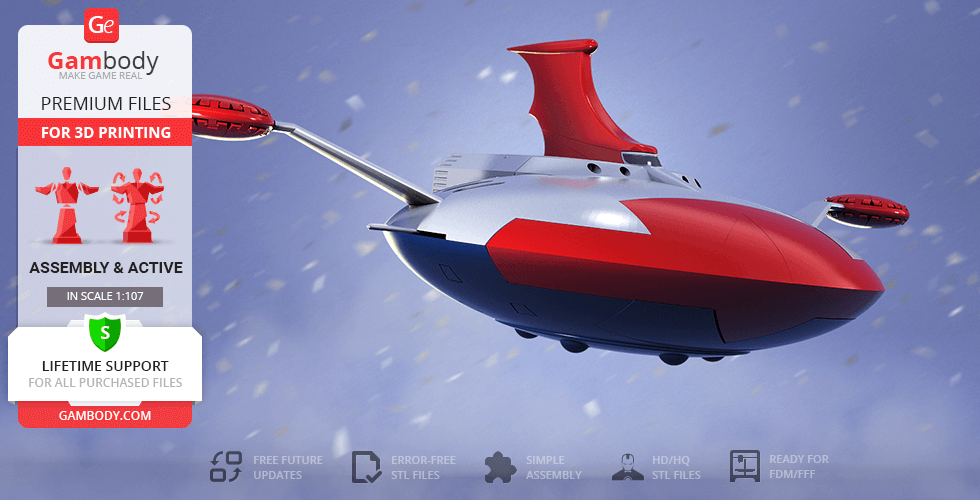

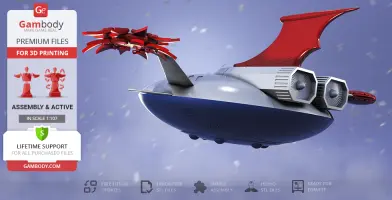

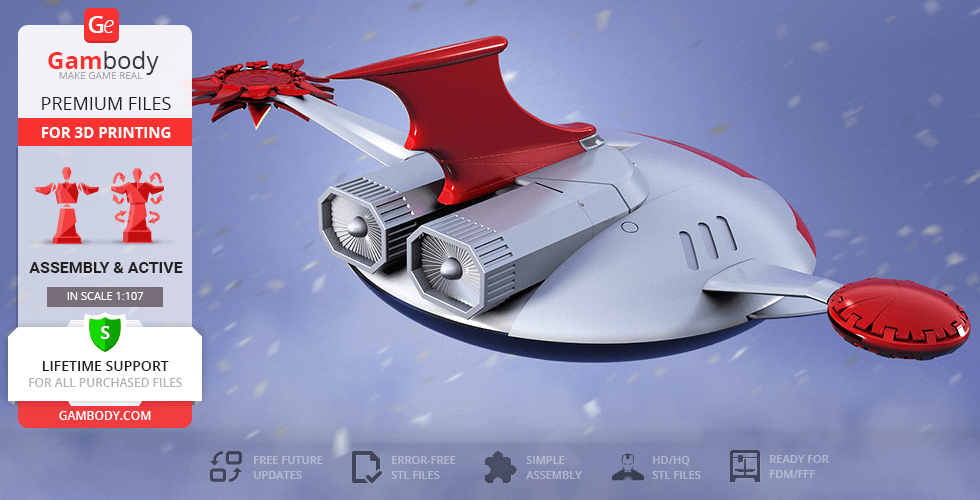

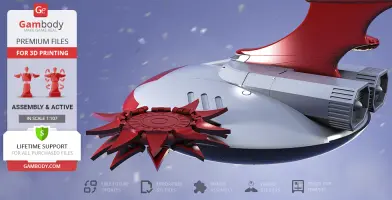

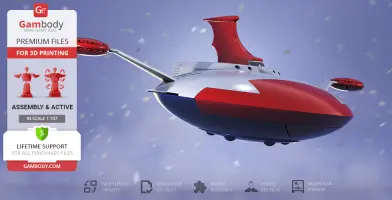

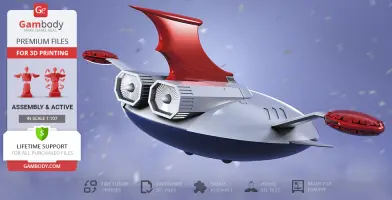

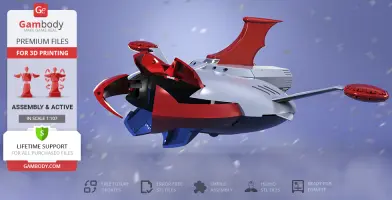

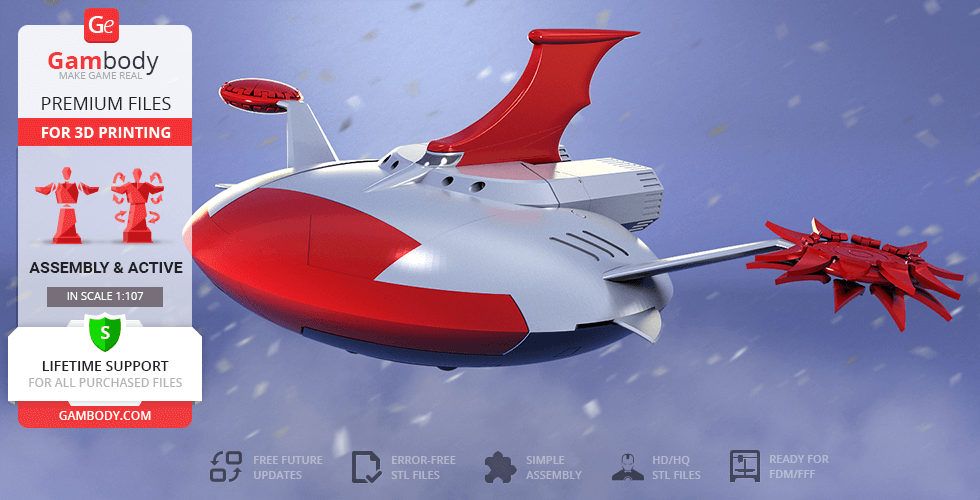

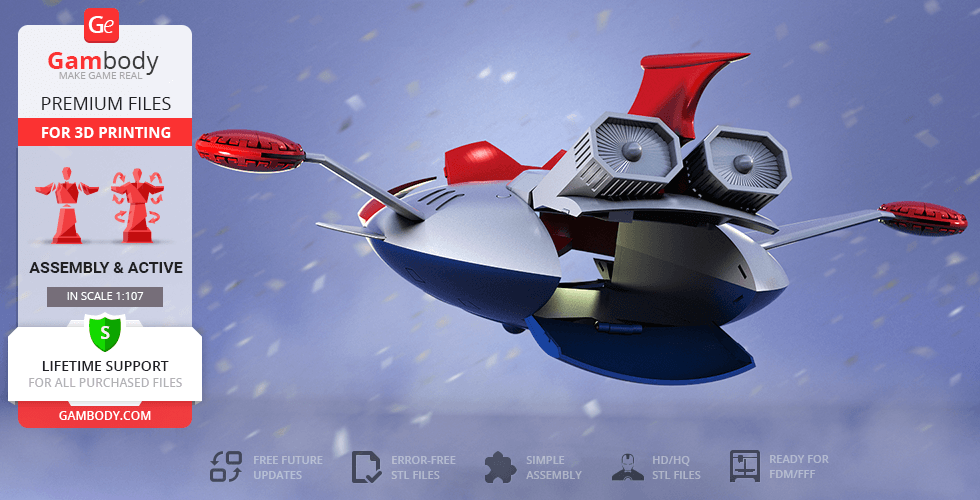

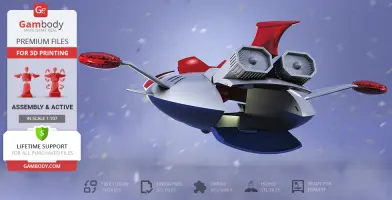

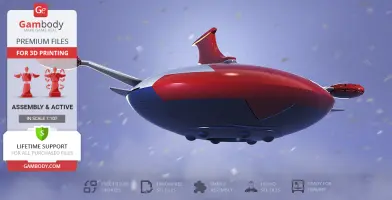

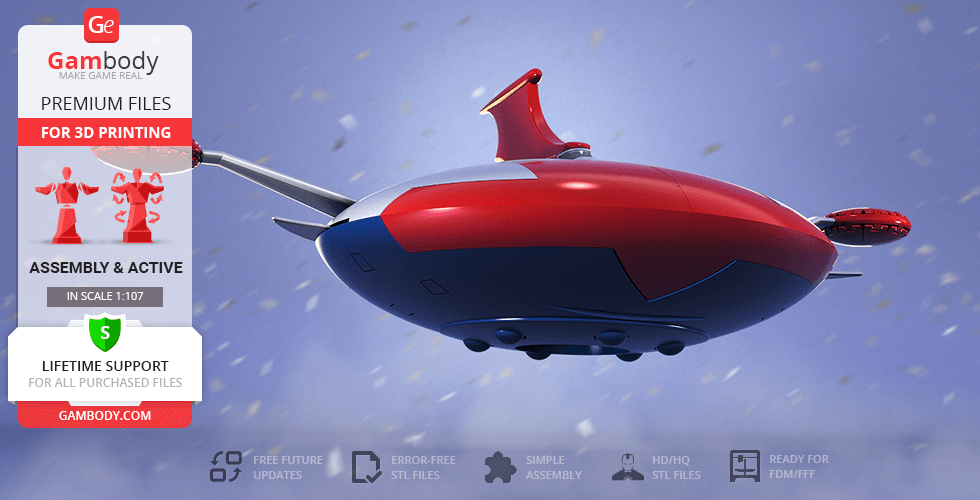

Spazer 3D Printing Model | Assembly + Action

(5)

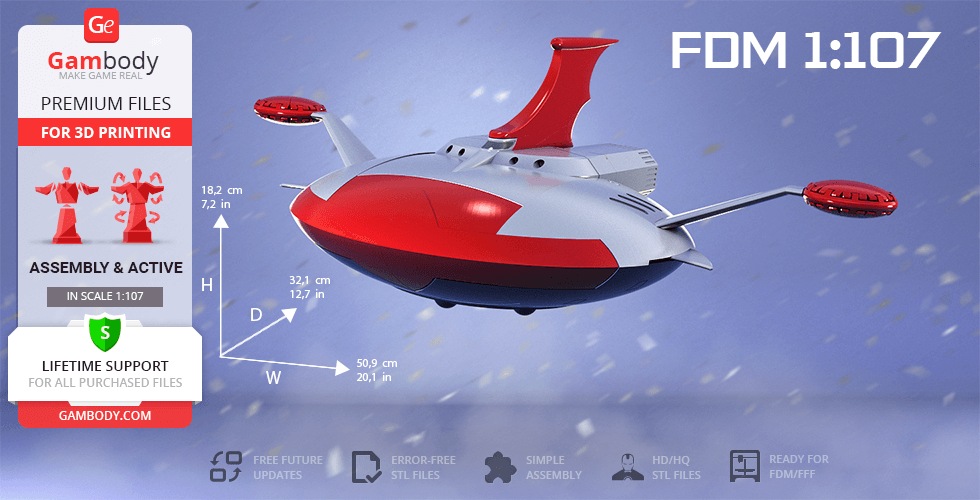

cm: 50.9 w x 32.1 d x 18.2 h
in: 20.039 w x 12.638 d x 7.165 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

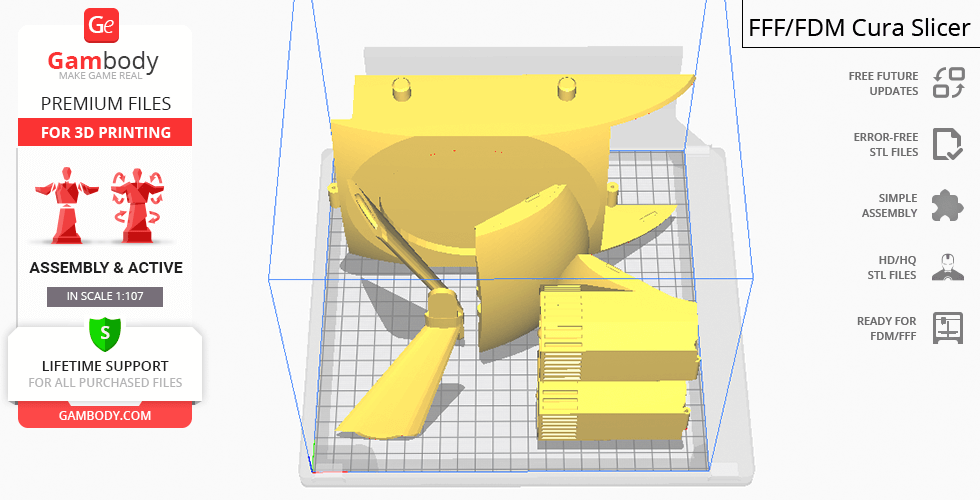

Spazer 3D Printing Model comes in 1 version for FFF/FDM 3D printers. STL files of the version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

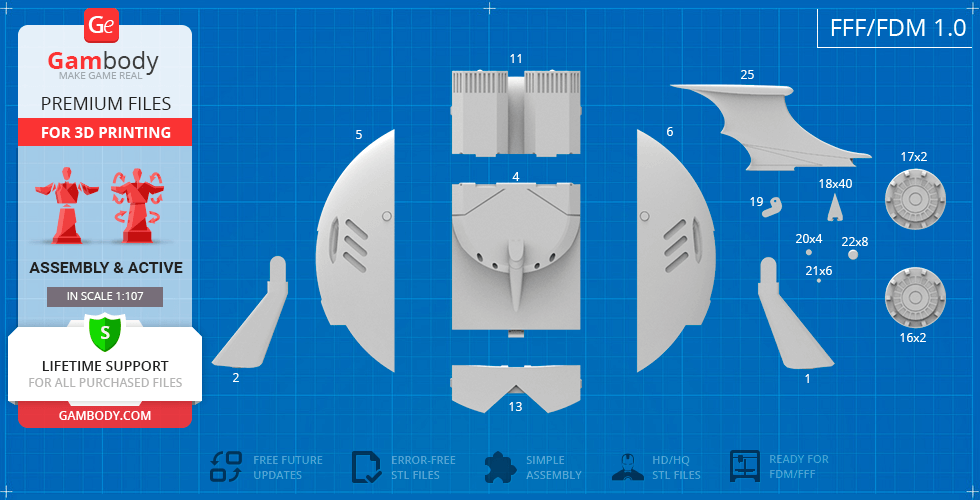

File Name File Size Time / Filament Object Size
(x/y/z mm)

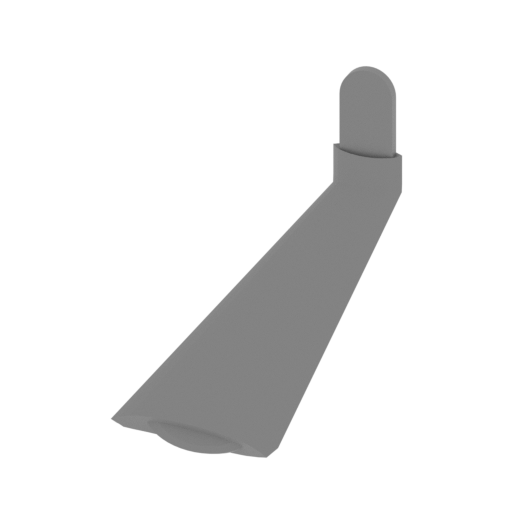

1_wing_L (repaired).stl
0.13 MiB 2 h 18 min 1 m 74 x 37 x 108 Download

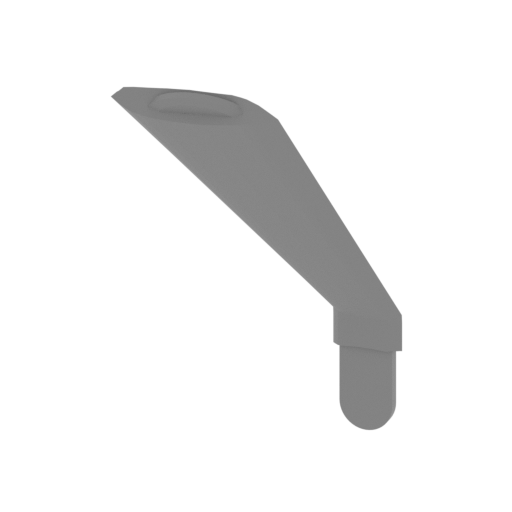

2_wing_R (repaired).stl
0.13 MiB 2 h 31 min 1 m 74 x 37 x 108 Download

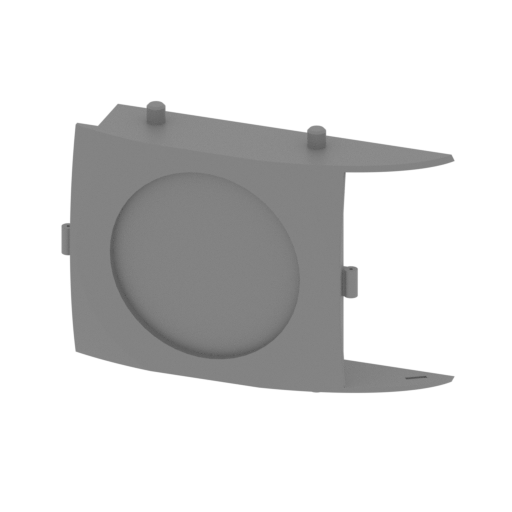

3_base (repaired).stl
0.52 MiB 62 h 16 min 59 m 206 x 42 x 150 Download

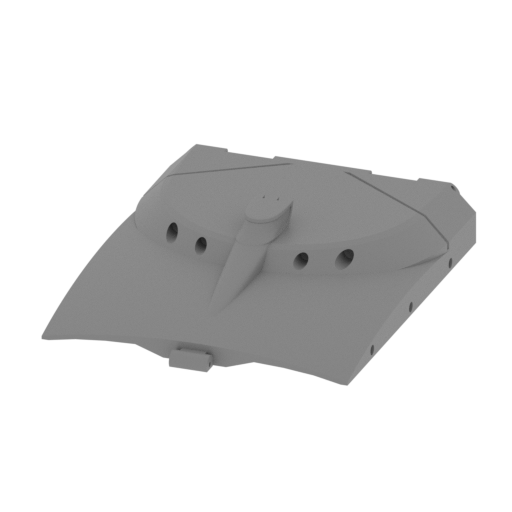

4_hull_1 (repaired).stl
4.01 MiB 22 h 39 min 13 m 123 x 149 x 31 Download

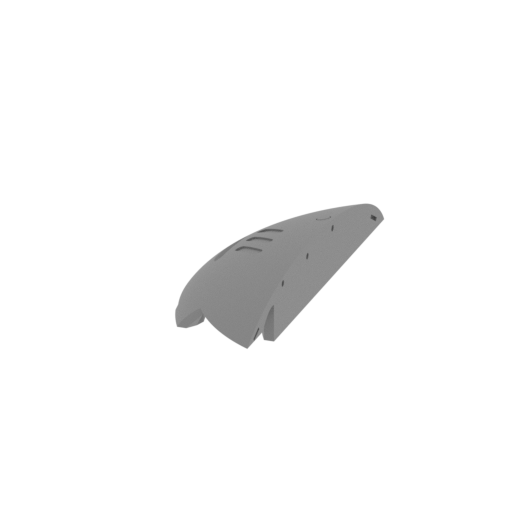

5_hull_2 (repaired).stl
0.66 MiB 21 h 48 min 14 m 76 x 234 x 39 Download

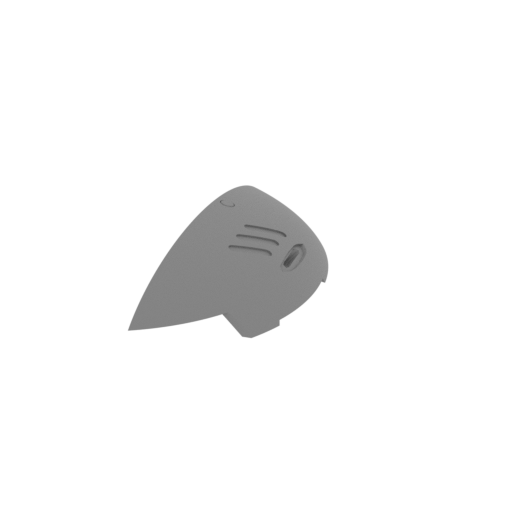

6_hull_3 (repaired).stl
0.65 MiB 21 h 47 min 14 m 76 x 234 x 39 Download
7_hull_4 (repaired).stl
0.54 MiB 22 h 10 min 15 m 230 x 42 x 73 Download
8_hull_5 (repaired).stl
0.54 MiB 22 h 6 min 15 m 230 x 42 x 73 Download

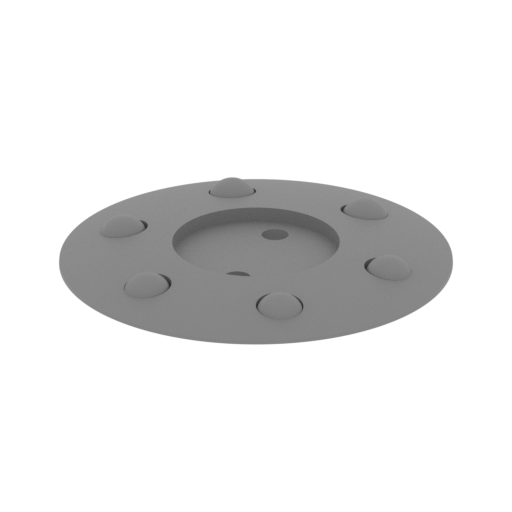

9_hull_6 (repaired).stl
1.64 MiB 14 h 17 min 9 m 144 x 144 x 15 Download

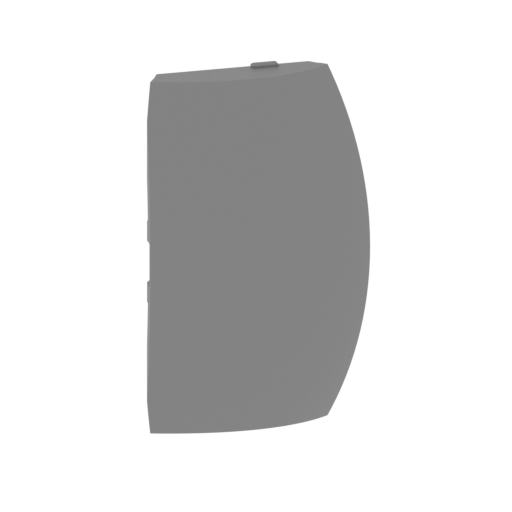

10_door back down (repair ed).stl
0.48 MiB 7 h 27 min 5 m 63 x 40 x 127 Download

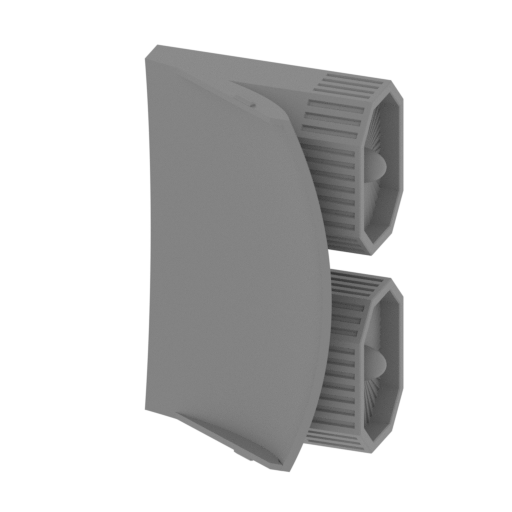

11_door back up (repaired ).stl
4.03 MiB 24 h 29 min 15 m 84 x 52 x 126 Download

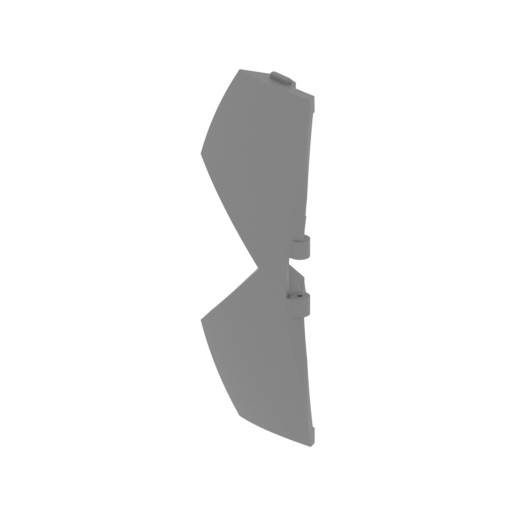

12_door front down (repai red).stl
0.72 MiB 6 h 14 min 4 m 47 x 28 x 135 Download

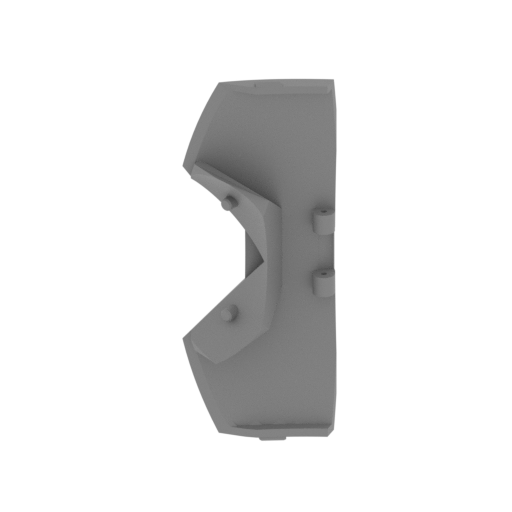

13_door front up (repaire d).stl
0.92 MiB 5 h 37 min 4 m 46 x 31 x 126 Download

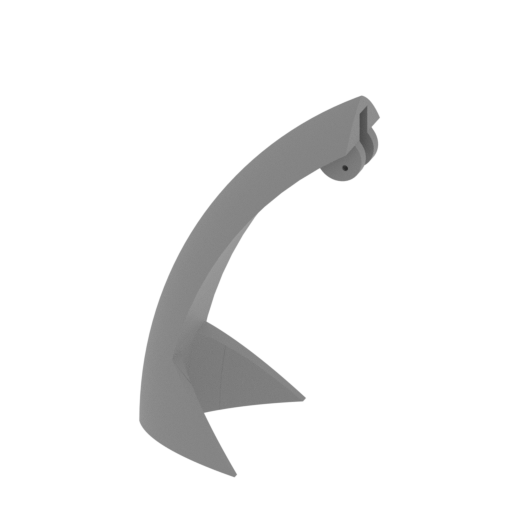

14_front1 (repaired).stl
0.26 MiB 7 h 42 min 5 m 76 x 64 x 122 Download

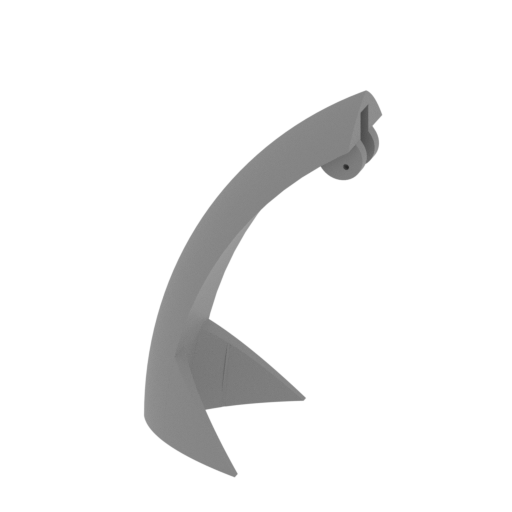

15_front2 (repaired).stl
0.26 MiB 7 h 42 min 5 m 76 x 64 x 122 Download

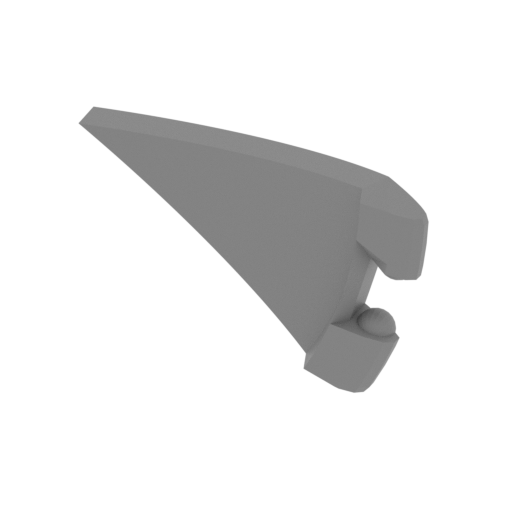

18_flap_x40 (repaired).st l
0.16 MiB 17 min <1 m 27 x 9 x 15 Download

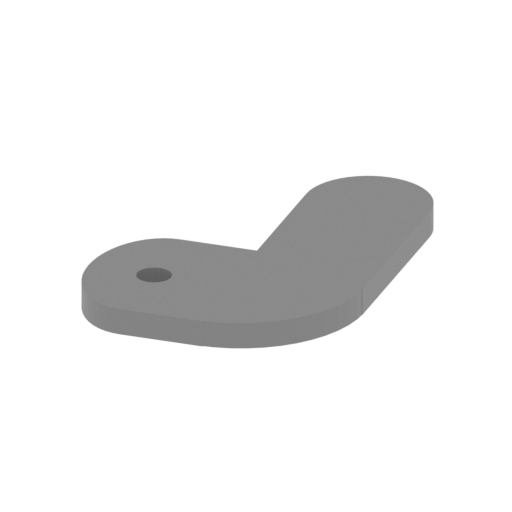

19_lever (repaired).stl
0.06 MiB 6 min <1 m 15 x 22 x 2 Download

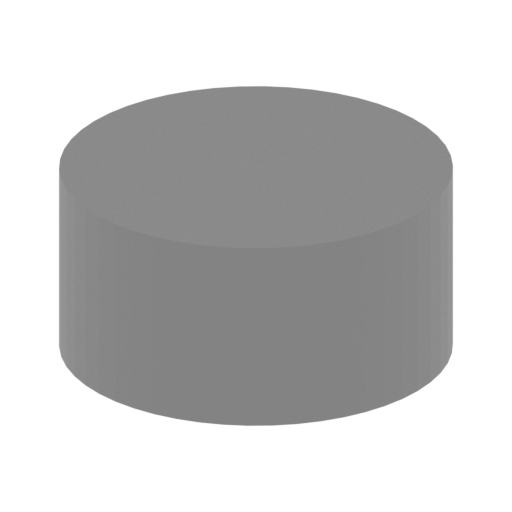

20_pin_disk_x4 (repaired) .stl
0.03 MiB 2 min <1 m 6 x 6 x 3 Download

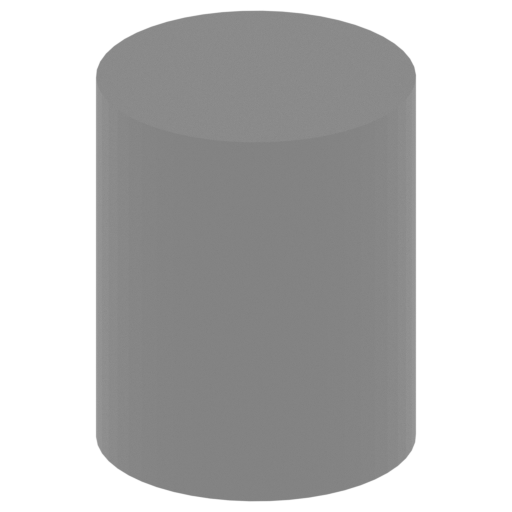

21_pin_center_x6 (repaire d).stl
0.05 MiB 2 min <1 m 4 x 4 x 5 Download

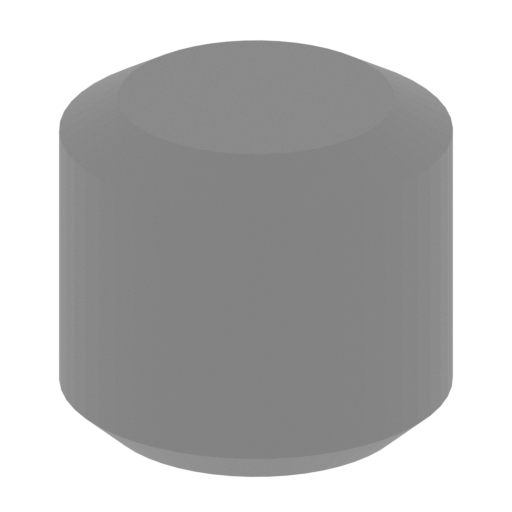

22_pin_x8 (repaired).stl
0.03 MiB 8 min <1 m 10 x 10 x 9 Download

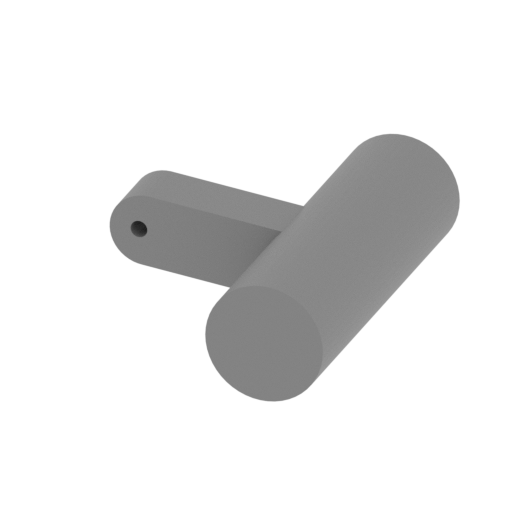

23_connector_L (repaired) .stl
0.07 MiB 59 min 1 m 32 x 44 x 14 Download

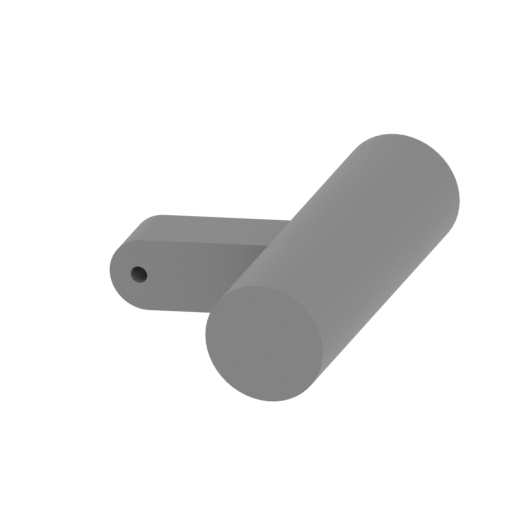

24_connector_R (repaired) .stl
0.07 MiB 56 min 1 m 32 x 44 x 14 Download

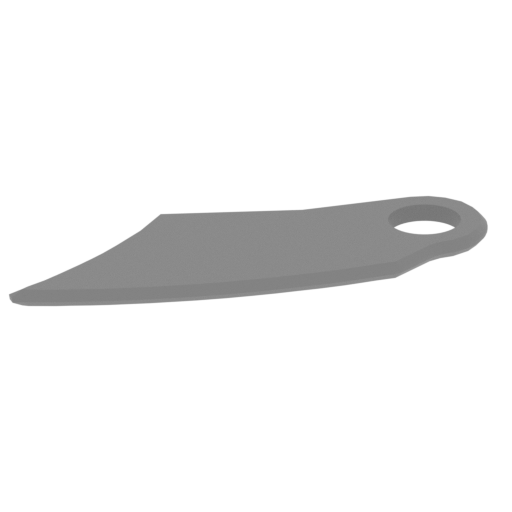

26_hook_L (repaired).stl
0.03 MiB 33 min <1 m 55 x 52 x 2 Download

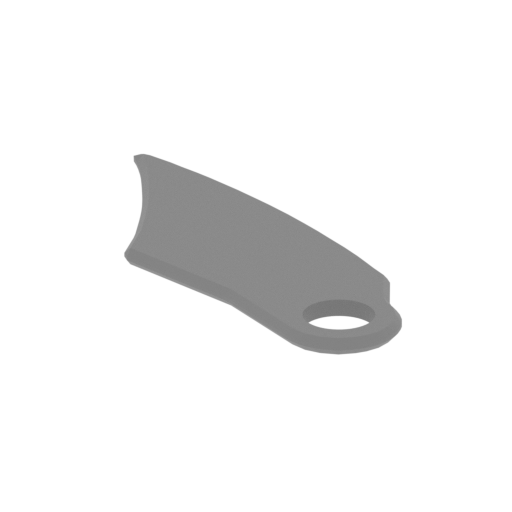

27_hook_R (repaired).stl
0.03 MiB 33 min <1 m 55 x 52 x 2 Download

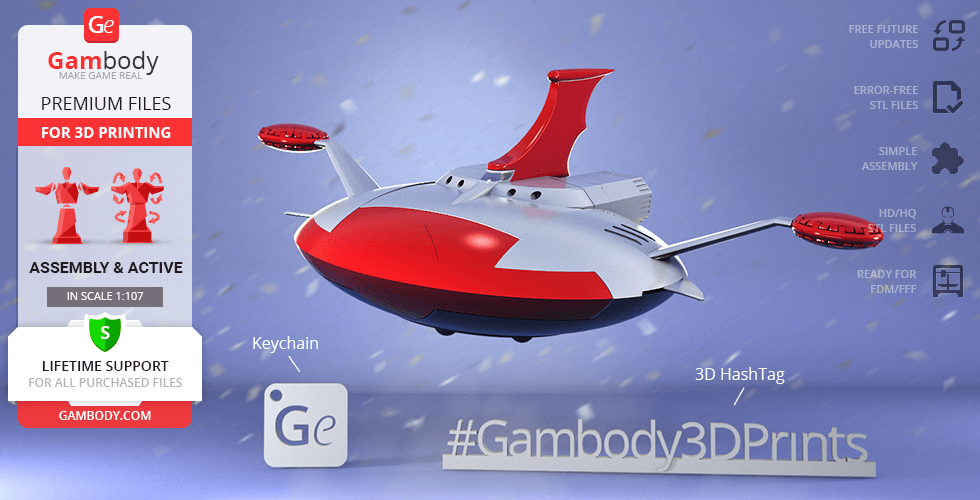

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

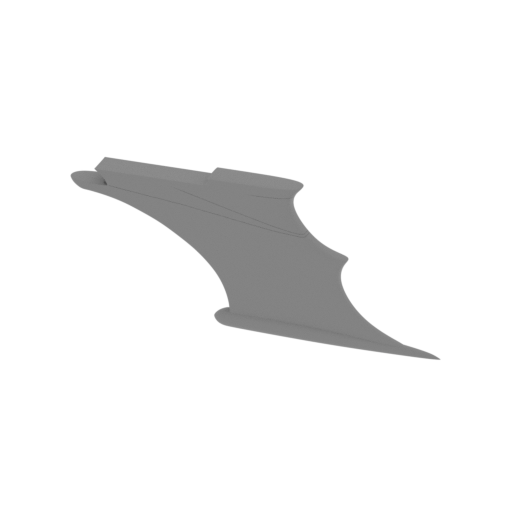

25_tail (repaired).stl
8.73 MiB 9 h 60 min 7 m 195 x 15 x 83 Download

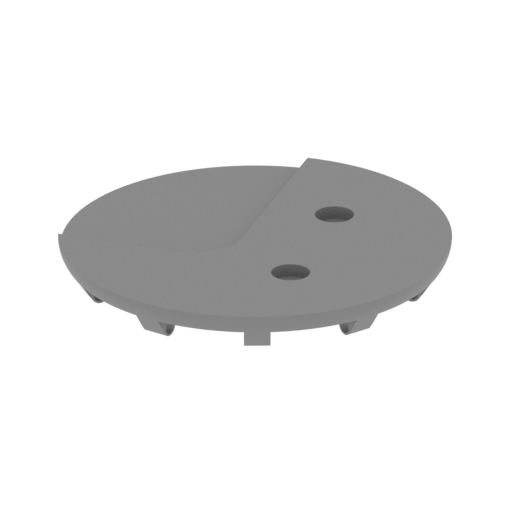

16_disk_down_x2 (repaired ).stl
1.77 MiB 2 h 10 min 1 m 59 x 59 x 7 Download

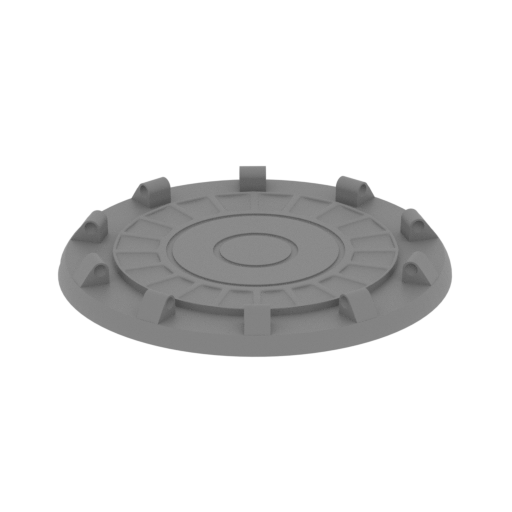

17_disk_up x2 (repaired). stl
1.77 MiB 1 h 48 min 1 m 59 x 59 x 7 Download
...

ABOUT THIS 3D MODEL

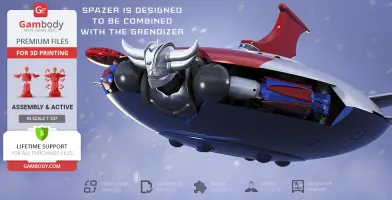

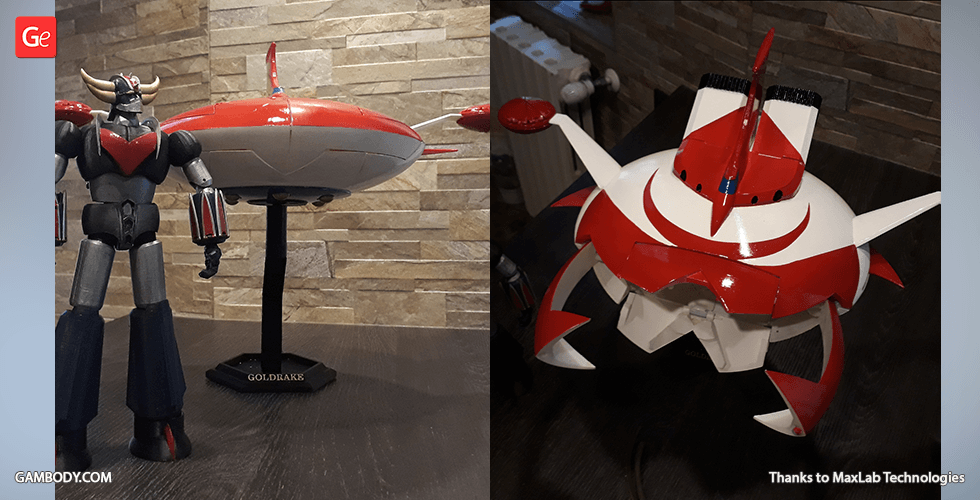

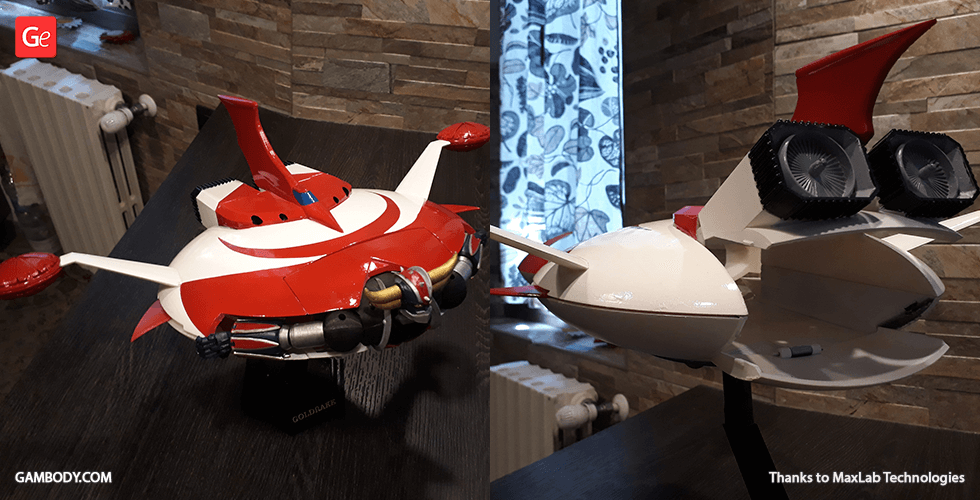

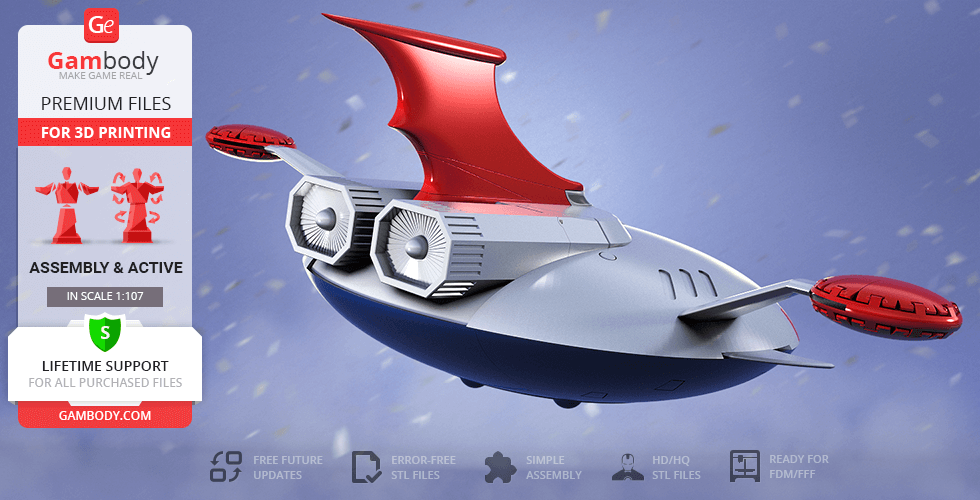

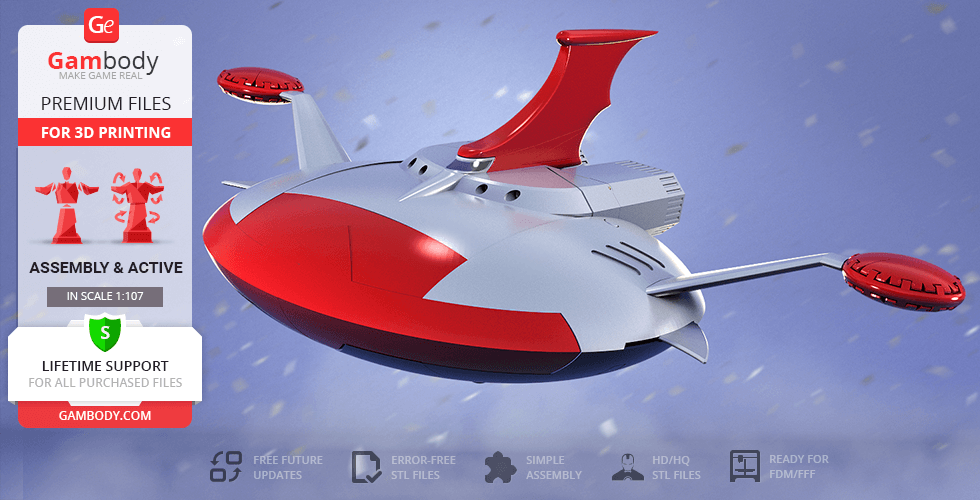

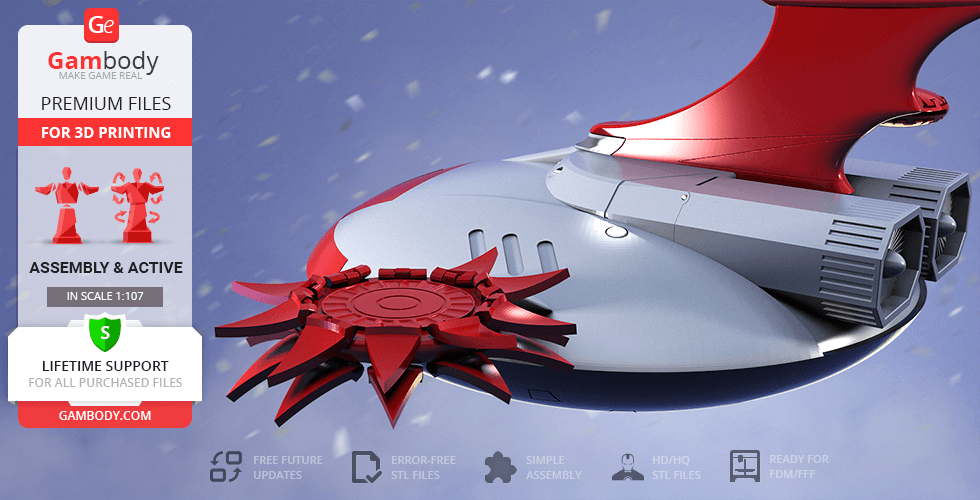

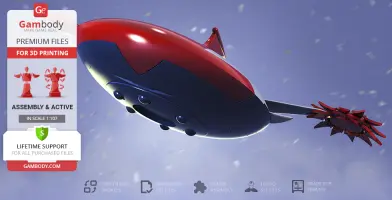

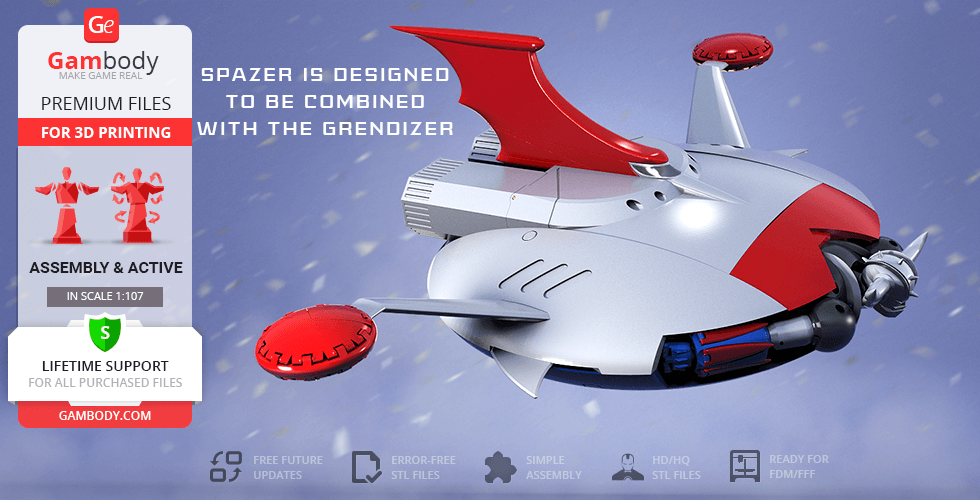

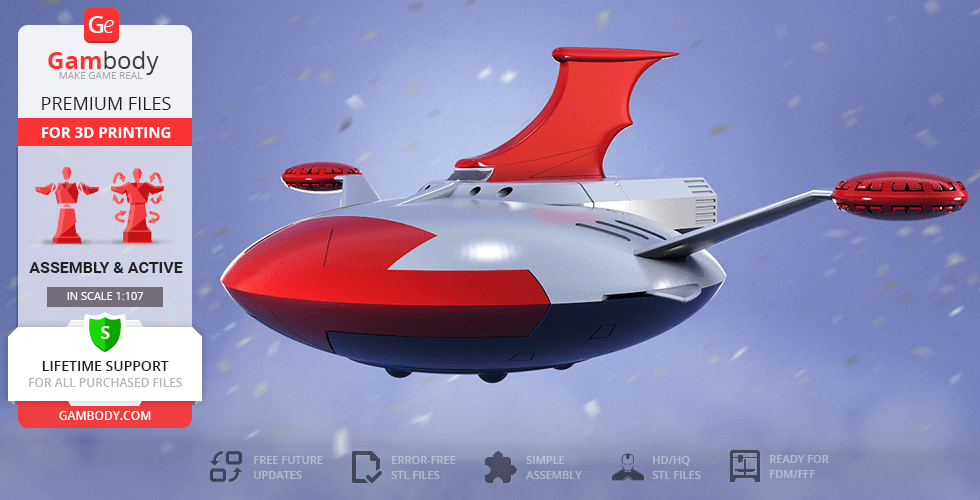

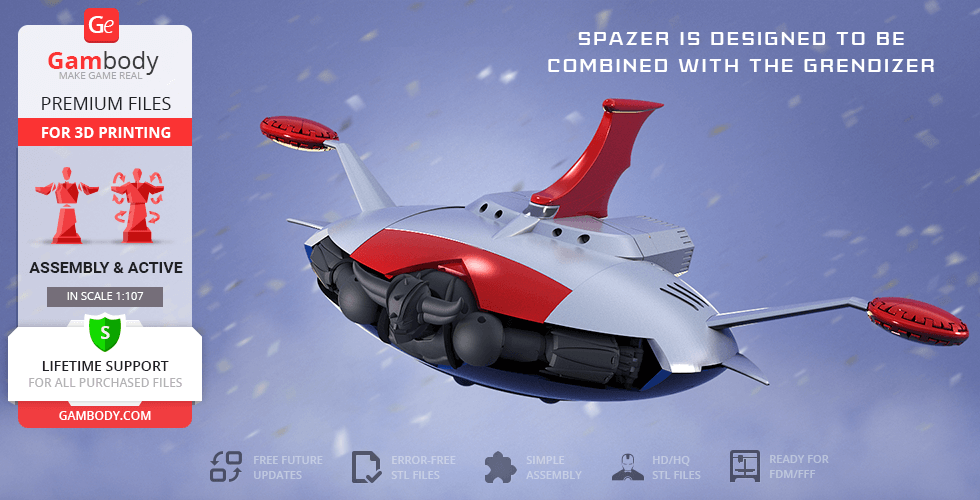

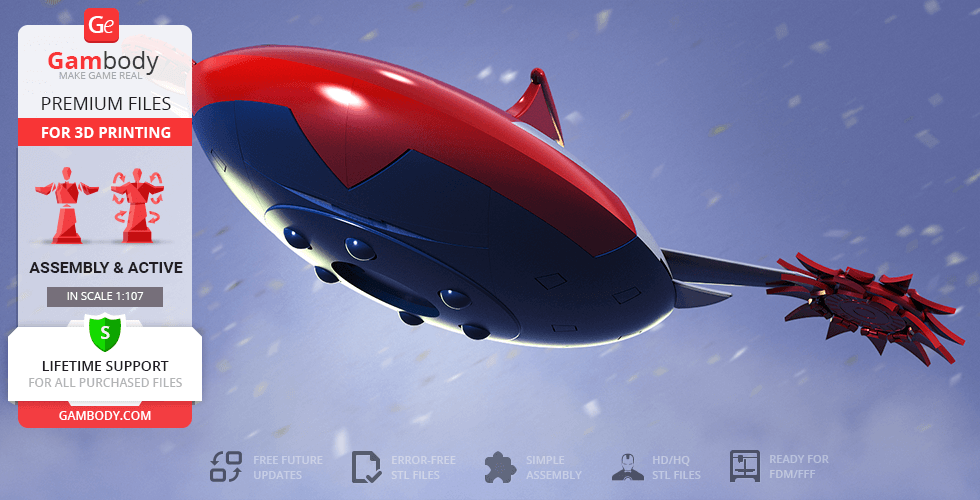

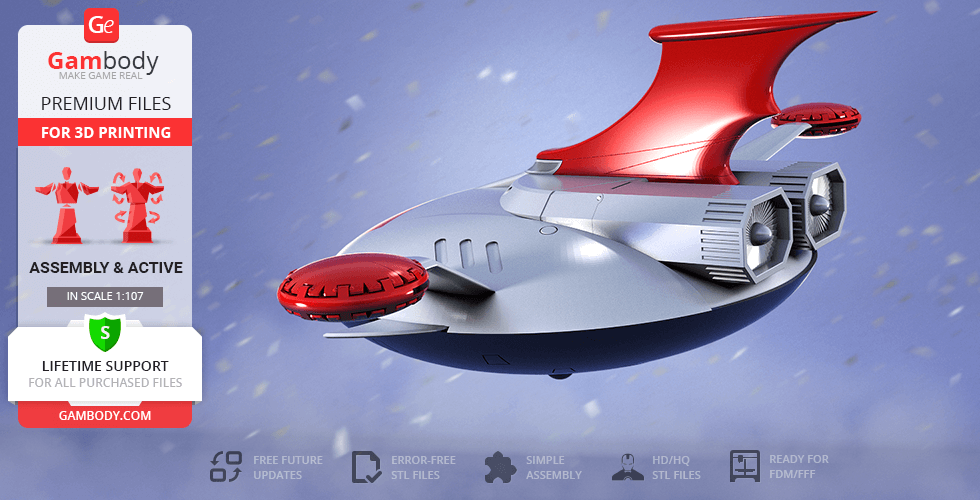

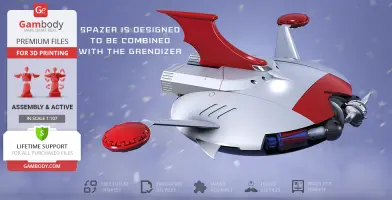

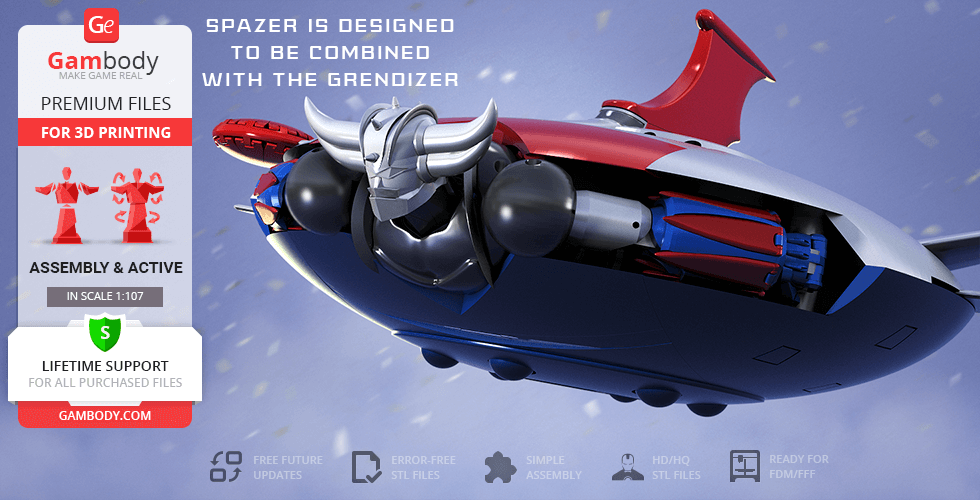

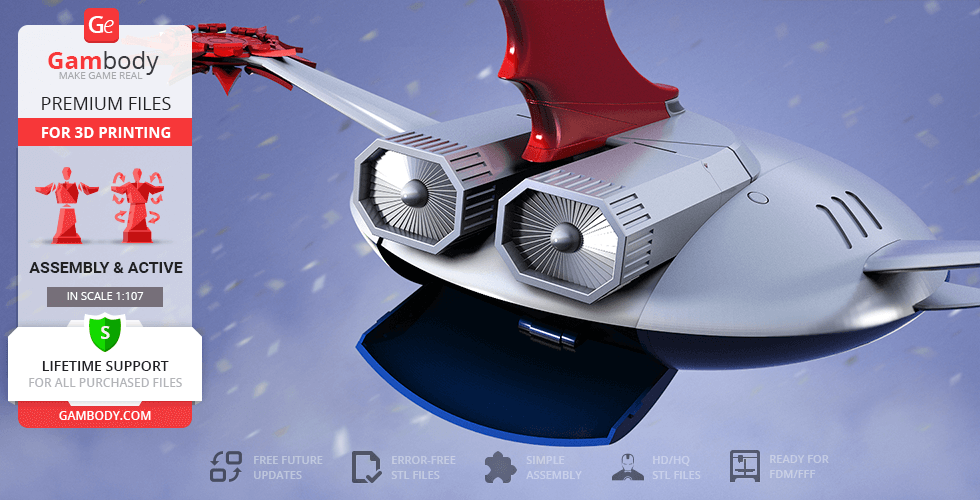

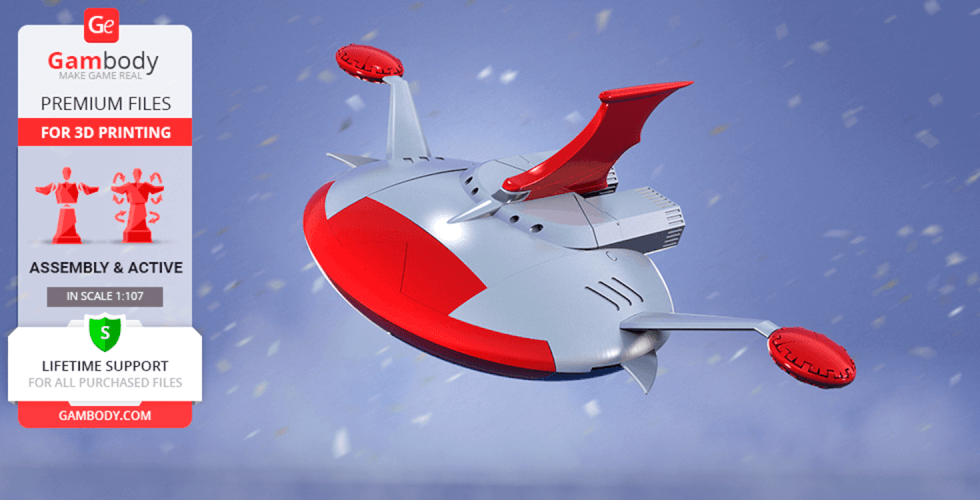

Spazer is a support vehicle used to link up to Grendizer robot and give it more mobility, speed and other advantages depending on the environment. The original flying saucer-like Spazer vehicle that appears in the classic 1975 series UFO Robot Grendizer allowed the robot it housed to fly and travel through space. The author of Spazer for 3D printing mentioned that having completed the Grendizer 3D printing project he could not overlook the famous vehicle and spent 89 hours to create a model to join the robot. Therefore, all anime series fans now have a unique opportunity to obtain the flying vehicle that once printed will easily accommodate the Grendizer model. Just like with all the other 3D printing projects created by the author, the 3D artist paid meticulous attention to the small details of the spaceship. Spazer is depicted with its distinctive Spin Saucers, large fin and only one element seems to be missing - Grendizer robot docked inside! So don’t hesitate - order the files and expand your collection of 3D printed vintage anime characters with Gambody.

ADAPTATION FOR 3D PRINTING

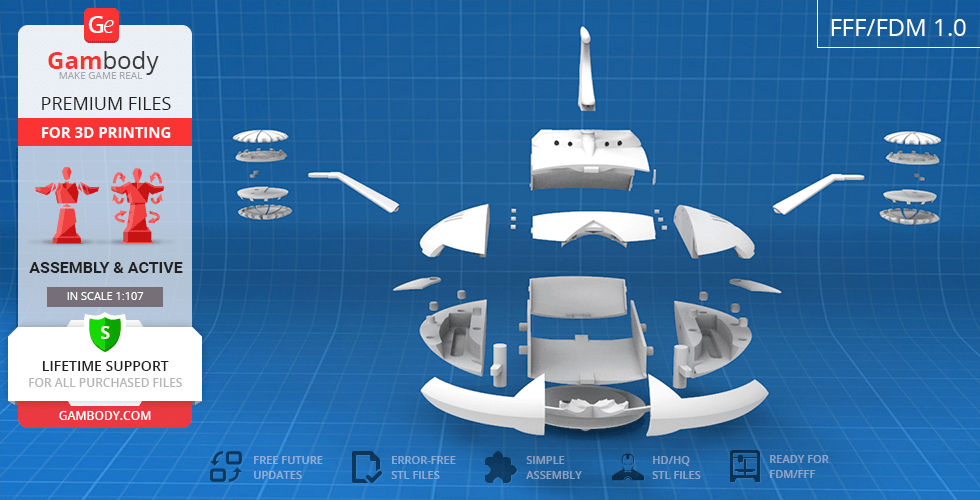

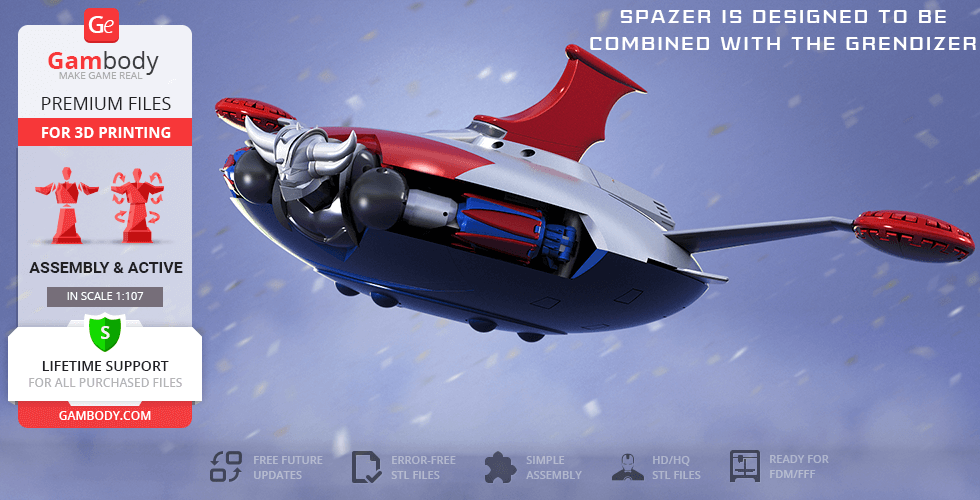

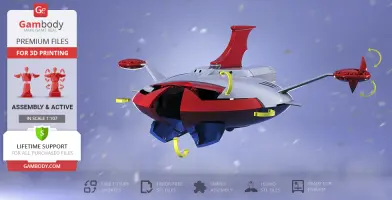

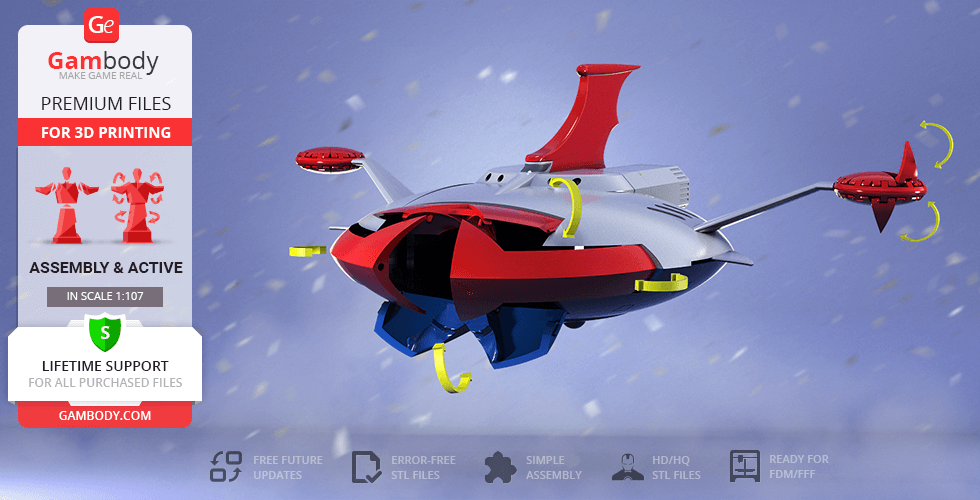

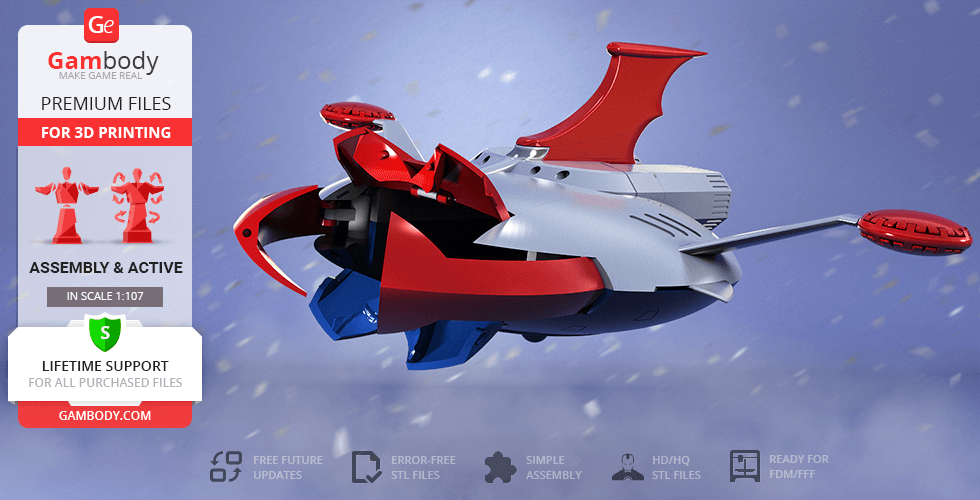

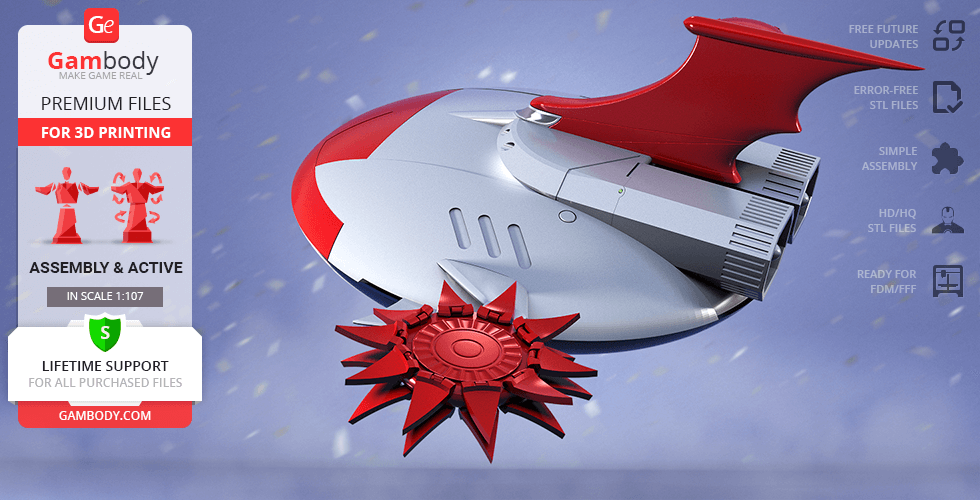

Spazer model for 3D printing is an articulated assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 35 hours in total. For you to receive the cleanest printing result possible, to minimise the amount of filament needed for generated support and to ensure the articulation of the model’s movable parts, Spazer model was divided into many assembly parts. Therefore, the front and back doors of the model can be opened to accommodate the Grendizer and the blades on the Spin Saucers are movable to display the Spazer in the middle of the battle scene. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. In order to assemble the model, you will need short pieces of 1.75 PLA to make pins. Apply the glue where you feel appropriate. Make sure to watch "Assembly video" in the photo preview section before assembling the Spazer.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Spazer's actual height that is 44000 mm. The 3D printing model's chosen scale is 1/107 for the FFF/FDM version.

VERSION SPECIFICATIONS

FFF/FDM 1.0 version features:

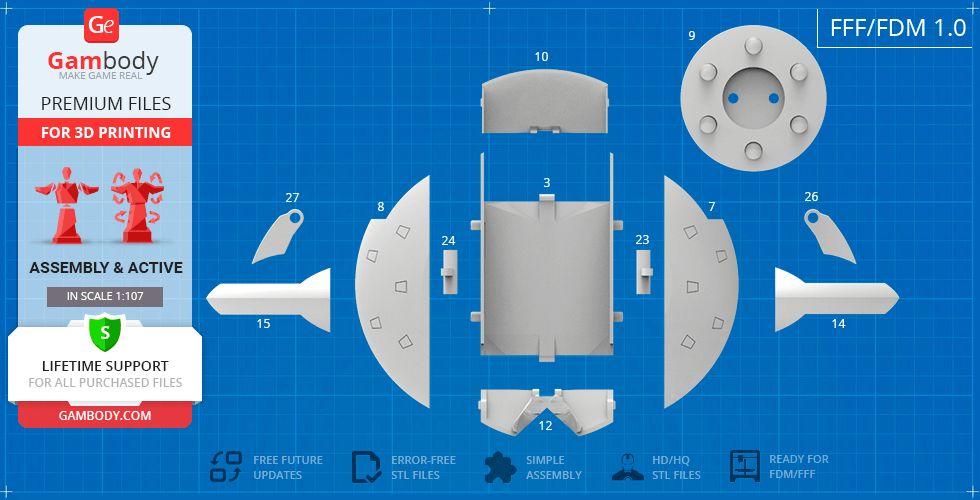

- Contains 27 parts;
- A printed model is 182 mm tall, 509 mm wide, 321 mm deep;

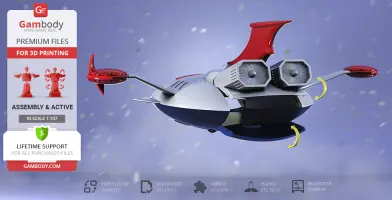

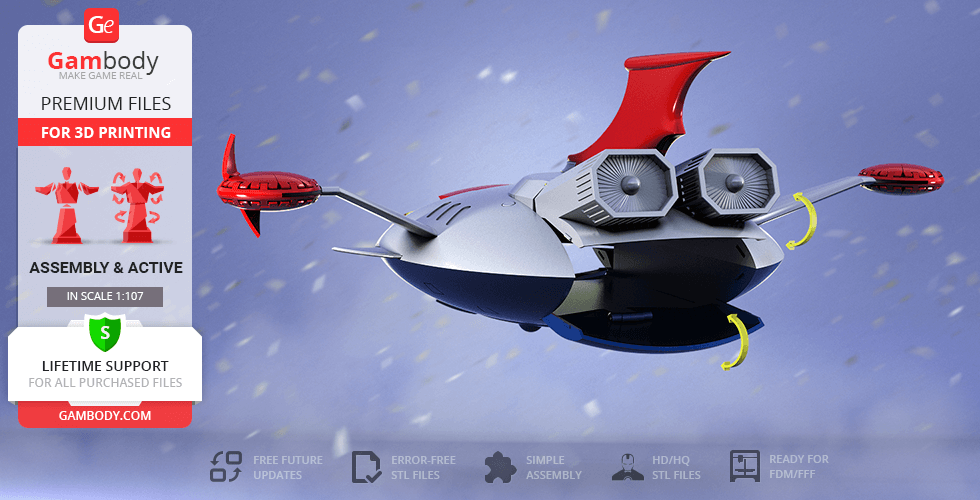

- Front and back "doors" of the vehicle are supplied with a special opening mechanism to insert there the Grendizer model;
- The model can be assembled with 1.75 PLA pins;
- Watch "Assembly video" to see the pins coloured yellow;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Spazer​​ Model for 3D printing which consist of 27 parts;
- High-poly detailed model of Spazer​;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of Spazer for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Spazer Z​ 3D Printing Model at Gambody YouTube channel.

Also, you may like Grendizer 3D Printing Model to complete the UFO Robot Grendizer diorama as well as other Robot 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

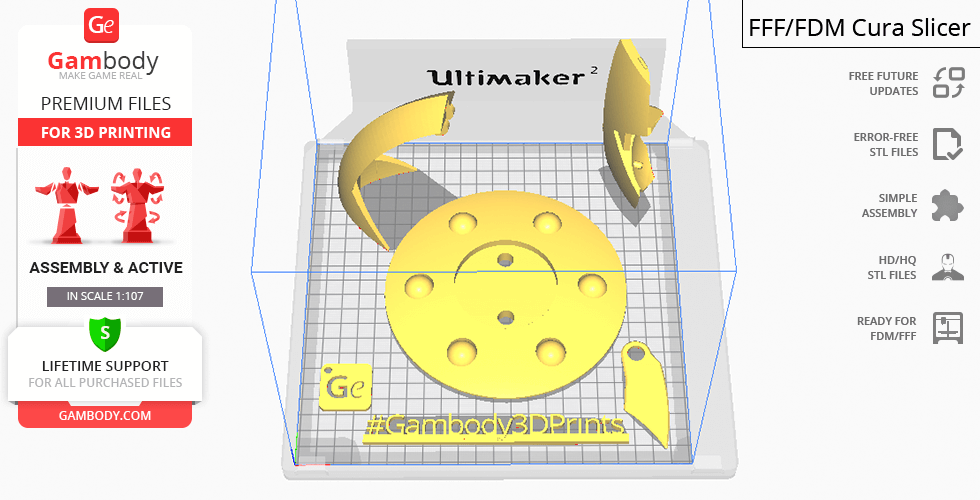

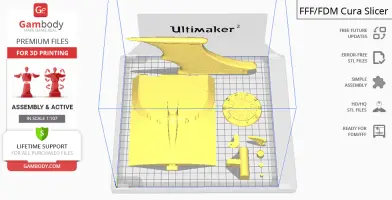

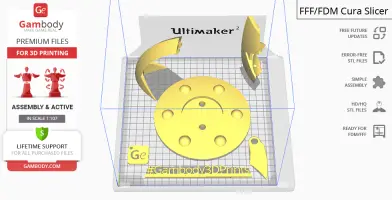

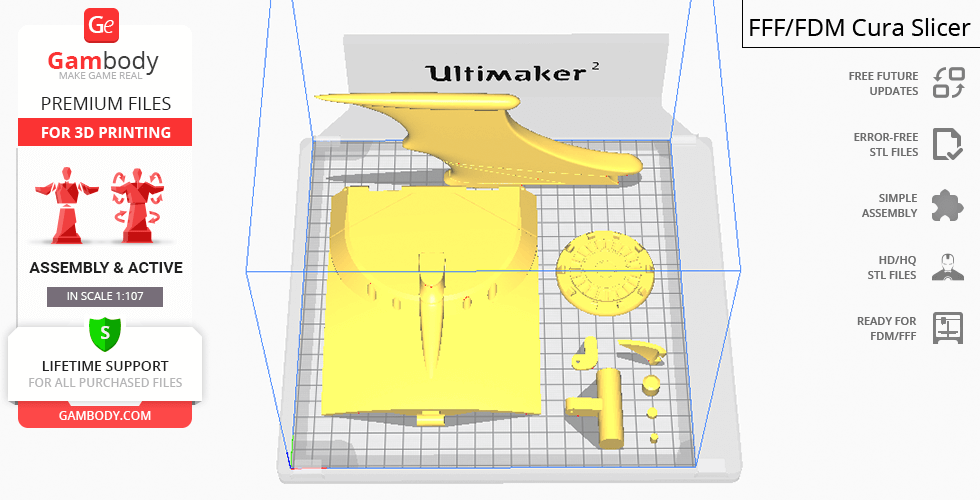

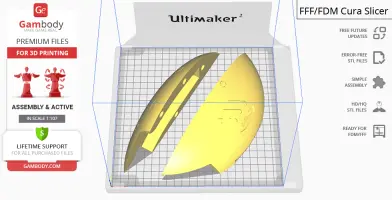

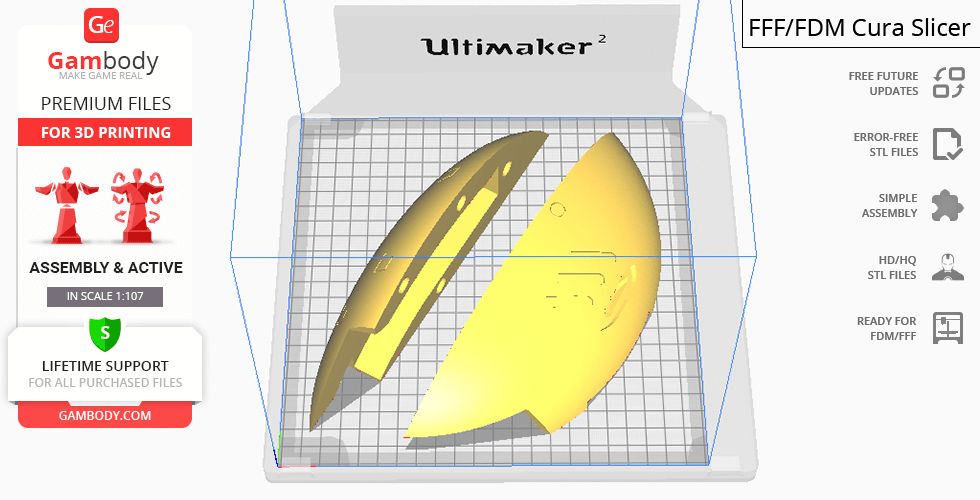

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: Use ABS or PLA Plus filament to print more durable and friction resistant details.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 80%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90Ëš
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 3 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 80%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill density: 80%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm
