Grendizer 3D Printing Model | Assembly + Action

(8)
cm: 11.7 w x 5.9 d x 28 h
in: 4.606 w x 2.323 d x 11.024 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Grendizer 3D Printing Model comes in 1 version for FFF/FDM 3D printers. STL files of the version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_Ball_joint_R (repaired) .stl
0.68 MiB 17 min <1 m 12 x 12 x 18 Download

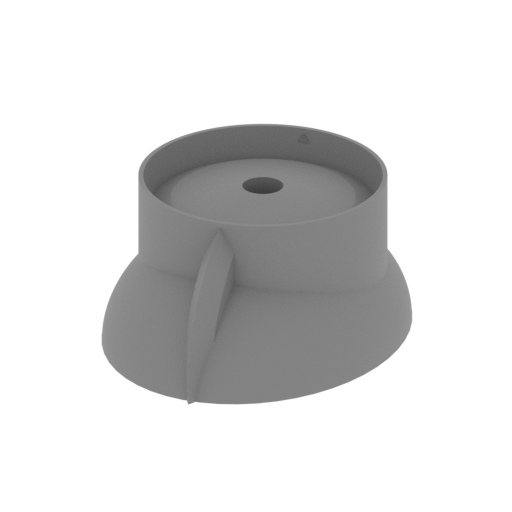

2_Foot_R (repaired).stl
1.52 MiB 2 h 52 min 2 m 45 x 59 x 24 Download

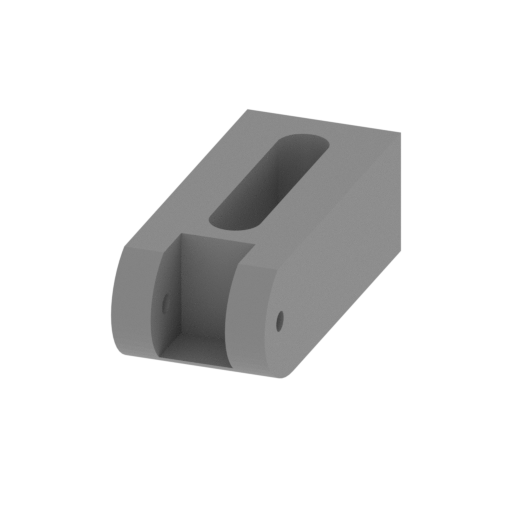

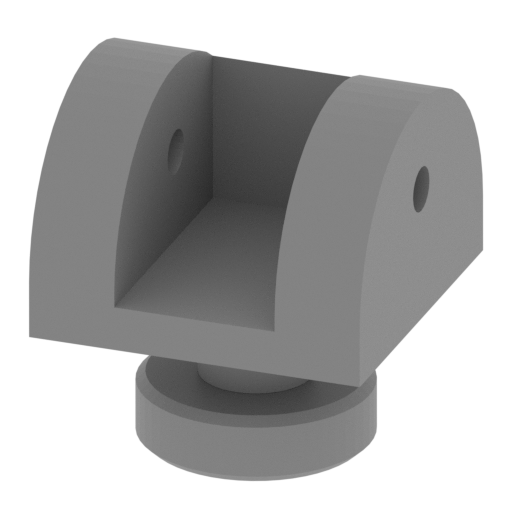

3_Knee1_R (repaired).stl
0.04 MiB 38 min <1 m 15 x 36 x 12 Download
4_Knee2_R (repaired).stl
0.04 MiB 10 min <1 m 8 x 20 x 7 Download
5_Knee3_R (repaired).stl
0.09 MiB 26 min <1 m 15 x 15 x 17 Download
6_Leg1_R (repaired).stl
0.94 MiB 4 h 28 min 2 m 49 x 25 x 85 Download

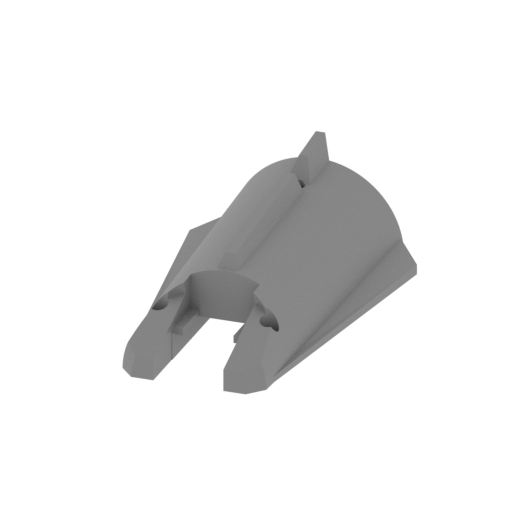

7_Leg2_R (repaired).stl
1.08 MiB 3 h 29 min 2 m 49 x 80 x 24 Download
8_Leg3_R (repaired).stl
1.16 MiB 1 h 27 min 1 m 25 x 13 x 60 Download

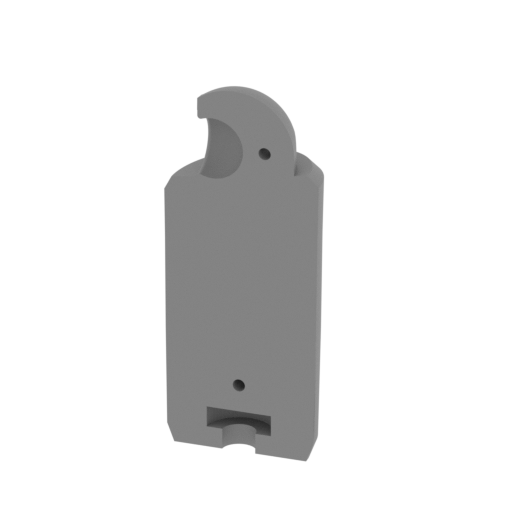

9_Leg4_R (repaired).stl
1.32 MiB 1 h 26 min 1 m 25 x 13 x 60 Download

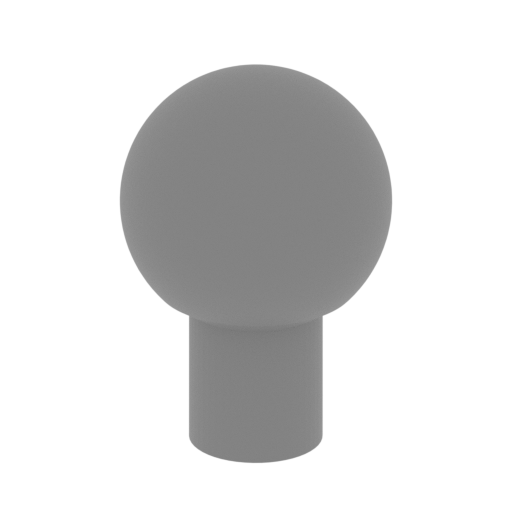

10_Ball_joint_L (repaired ).stl
0.68 MiB 17 min <1 m 12 x 12 x 18 Download
11_Foot_L (repaired).stl
1.52 MiB 2 h 52 min 2 m 45 x 59 x 24 Download

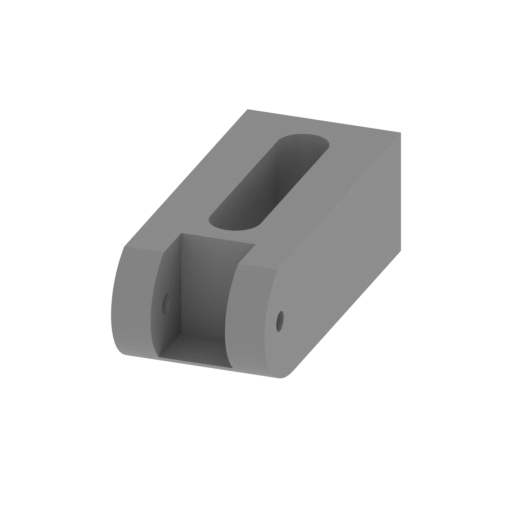

12_Knee1_L (repaired).stl
0.04 MiB 38 min <1 m 15 x 36 x 12 Download

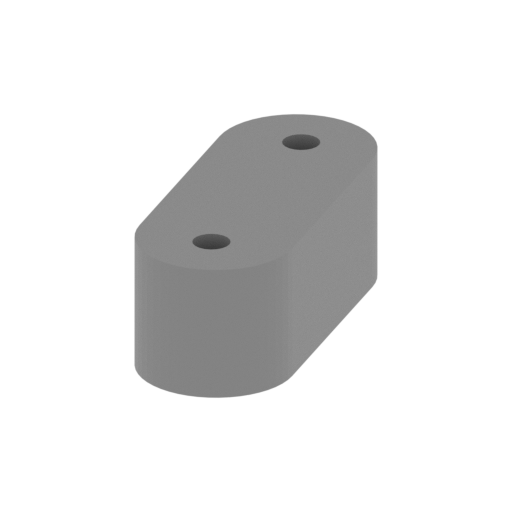

13_Knee2_L (repaired).stl
0.04 MiB 10 min <1 m 8 x 20 x 7 Download
14_Knee3_L (repaired).stl
0.09 MiB 26 min <1 m 15 x 15 x 17 Download

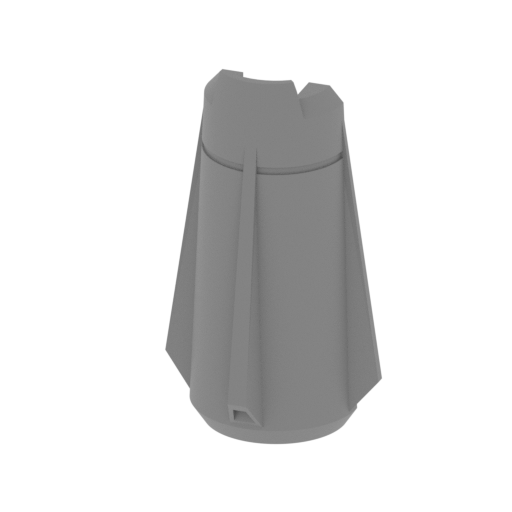

15_Leg1_L (repaired).stl
0.88 MiB 4 h 12 min 2 m 49 x 25 x 85 Download

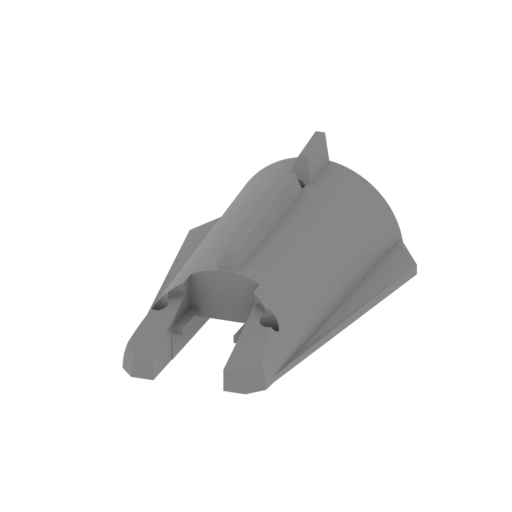

16_Leg2_L (repaired).stl
1.08 MiB 3 h 29 min 2 m 49 x 80 x 24 Download

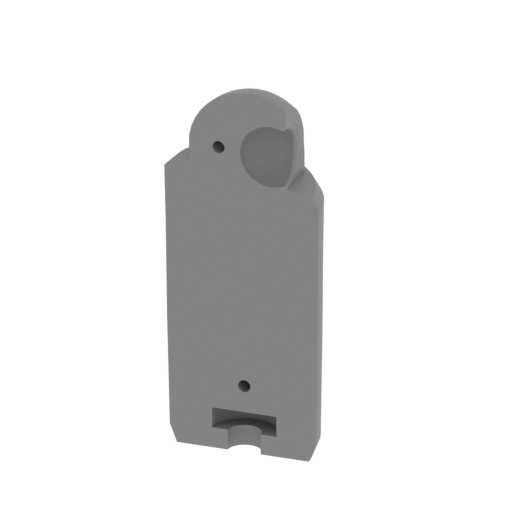

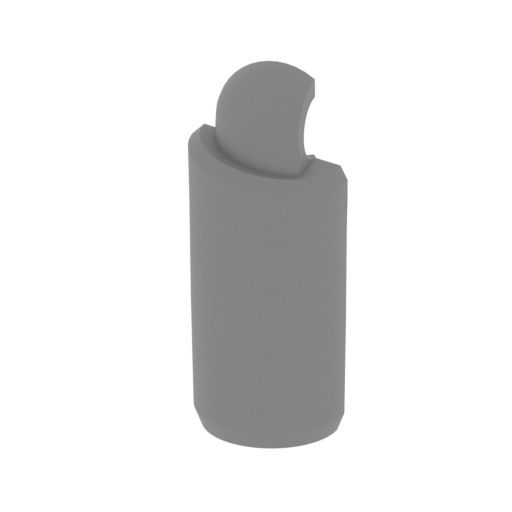

17_Leg3_L (repaired).stl
1.15 MiB 1 h 28 min 1 m 25 x 13 x 60 Download
18_Leg4_L (repaired).stl
1.32 MiB 1 h 26 min 1 m 25 x 13 x 60 Download

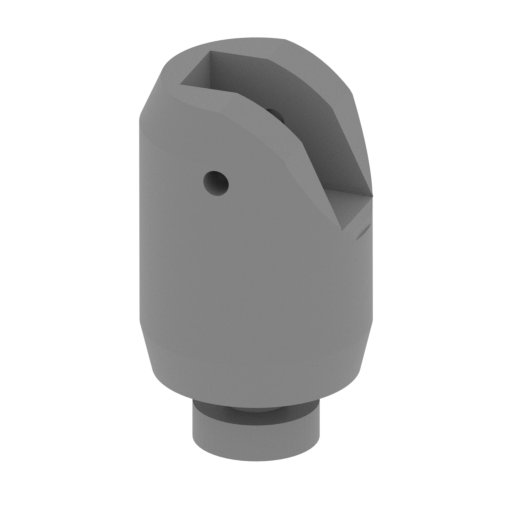

19_Arm1_R (repaired).stl
0.20 MiB 44 min <1 m 17 x 17 x 29 Download
20_Arm2_R (repaired).stl
0.02 MiB 9 min <1 m 9 x 19 x 6 Download

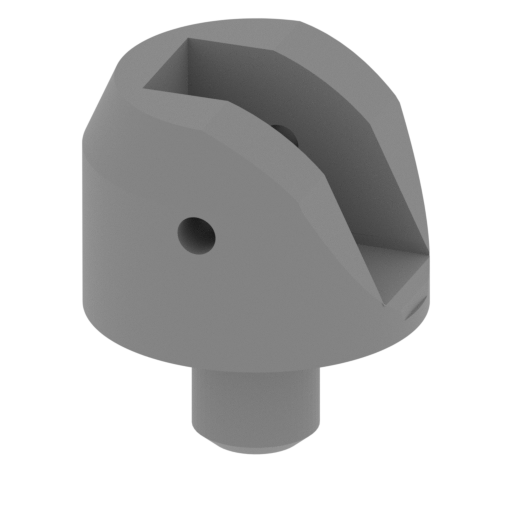

21_Arm3_R (repaired).stl
0.14 MiB 29 min <1 m 17 x 17 x 19 Download
22_Arm4_R (repaired).stl
4.31 MiB 1 h 40 min 1 m 27 x 27 x 37 Download

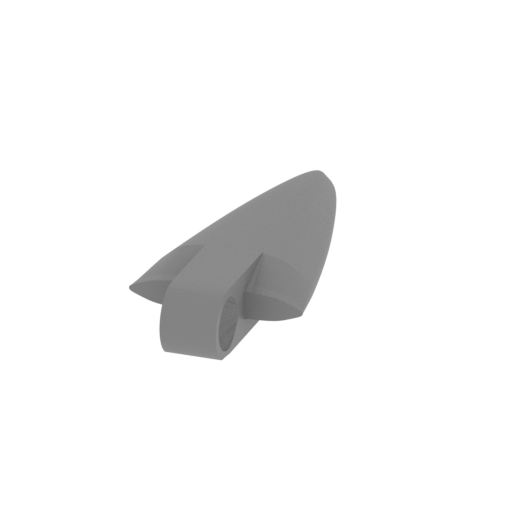

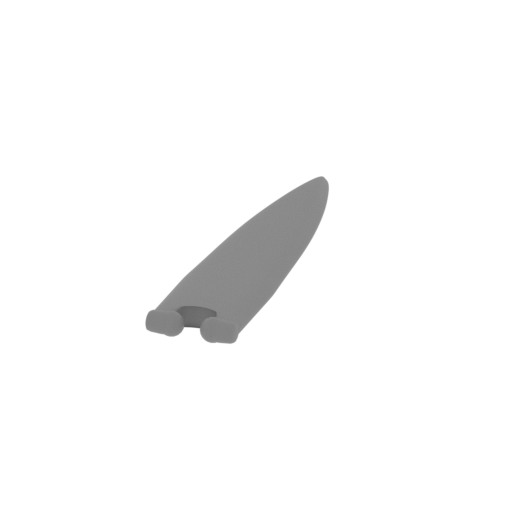

23_Blade_x6_R (repaired). stl
1.36 MiB 8 min <1 m 9 x 37 x 2 Download
24_Blade1_R (repaired).st l
0.36 MiB 3 min <1 m 6 x 14 x 3 Download
25_Blade2_R (repaired).st l
1.19 MiB 7 min <1 m 9 x 26 x 3 Download

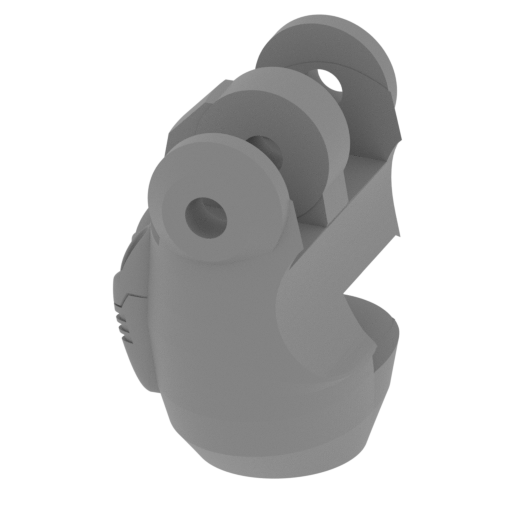

26_Hand1_R (repaired).stl
1.93 MiB 25 min <1 m 12 x 17 x 17 Download

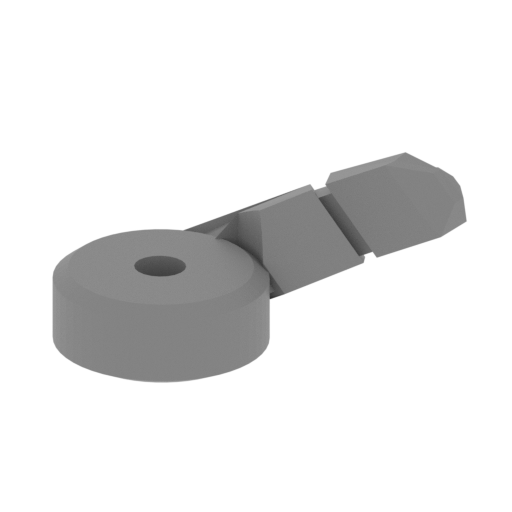

27_Hand2_R (repaired).stl
0.06 MiB 8 min <1 m 16 x 12 x 8 Download

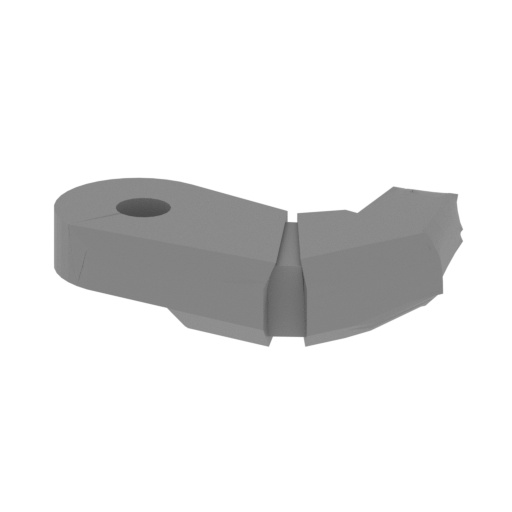

28_Hand3_R (repaired).stl
0.40 MiB 4 min <1 m 15 x 10 x 4 Download

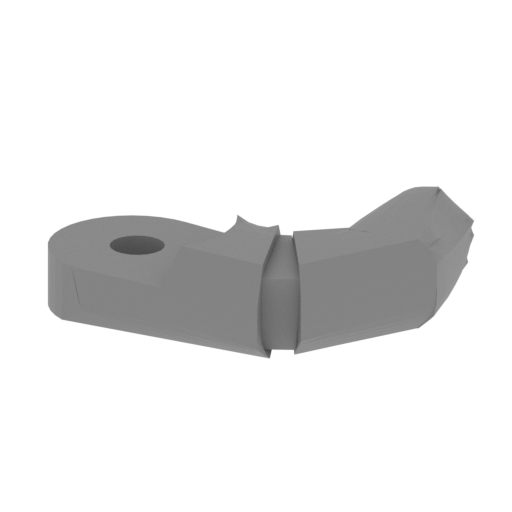

29_Hand4_R (repaired).stl
0.39 MiB 4 min <1 m 15 x 12 x 4 Download

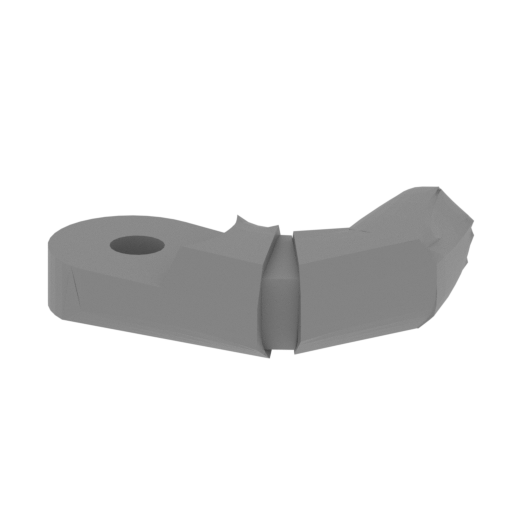

30_Hand5_R (repaired).stl
0.39 MiB 4 min <1 m 15 x 12 x 4 Download

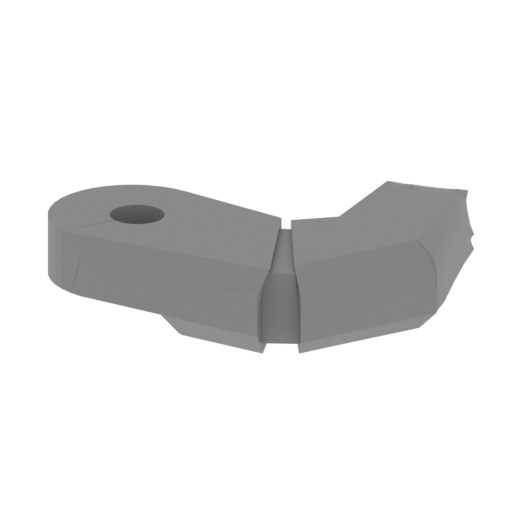

31_Hand6_R (repaired).st l
0.39 MiB 5 min <1 m 15 x 12 x 4 Download

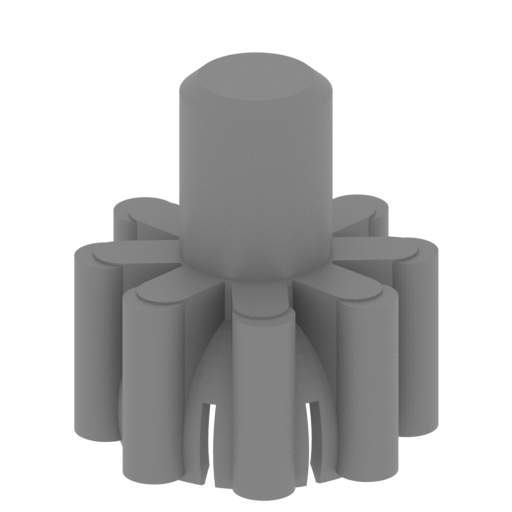

32_joint1_R (repaired).st l
0.52 MiB 13 min <1 m 11 x 11 x 12 Download

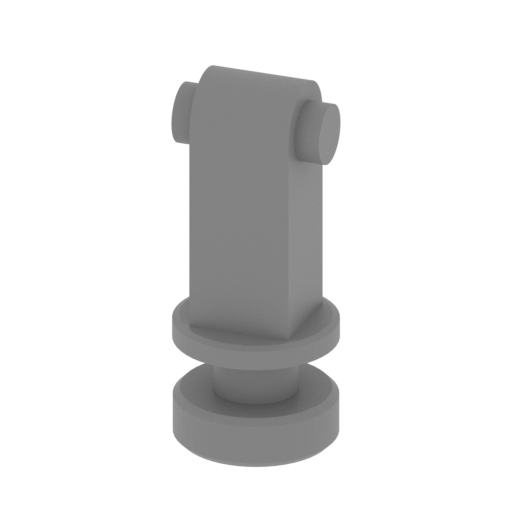

33_Shoulder joint_R (repa ired).stl
0.16 MiB 30 min <1 m 12 x 12 x 27 Download

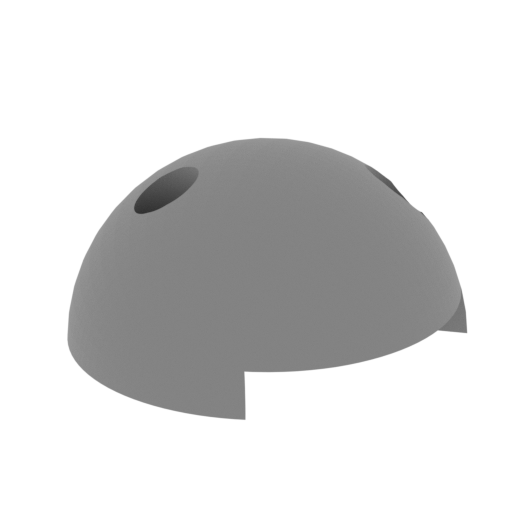

34_Shoulder1_R (repaired) .stl
0.17 MiB 44 min <1 m 28 x 25 x 14 Download

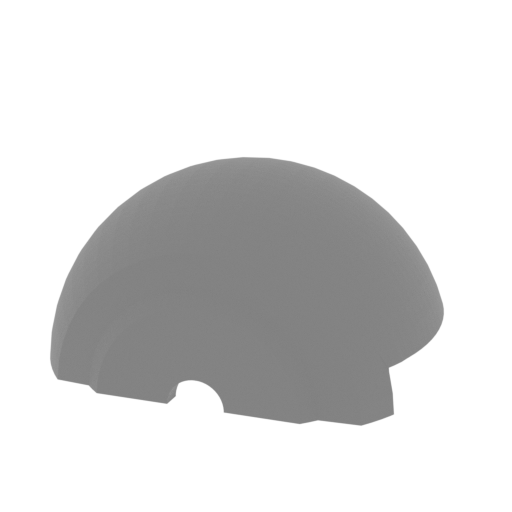

35_Shoulder2_R (repaired) .stl
0.14 MiB 45 min <1 m 28 x 25 x 14 Download
36_Arm1_L (repaired).stl
0.20 MiB 44 min <1 m 17 x 17 x 29 Download
37_Arm2_L (repaired).stl
0.02 MiB 9 min <1 m 9 x 19 x 6 Download

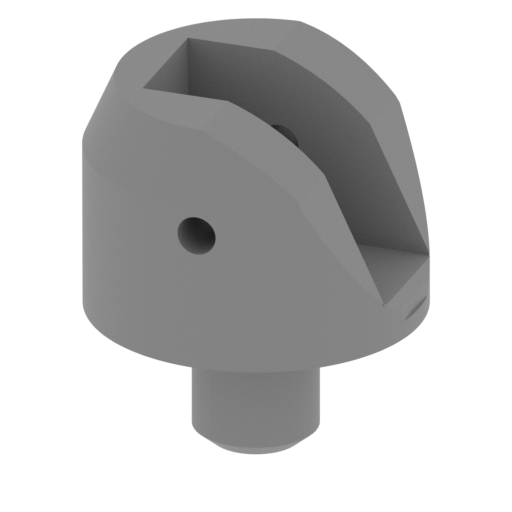

38_Arm3_L (repaired).stl
0.14 MiB 29 min <1 m 17 x 17 x 19 Download

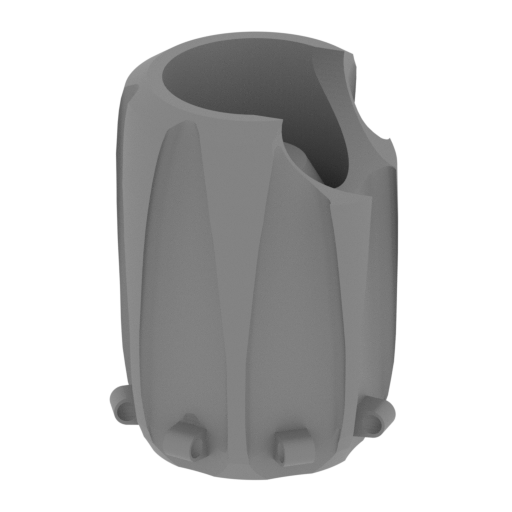

39_Arm4_L (repaired).stl
4.31 MiB 1 h 40 min 1 m 27 x 27 x 37 Download

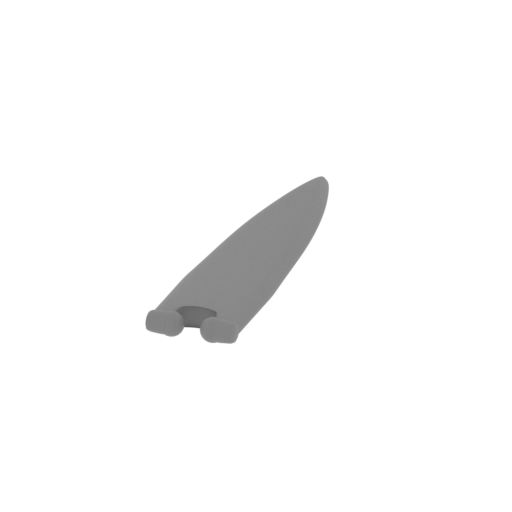

40_Blade_x6_L (repaired). stl
1.36 MiB 8 min <1 m 9 x 37 x 2 Download

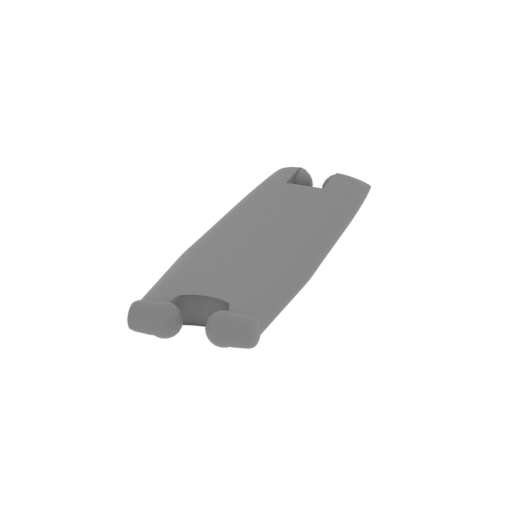

41_Blade1_L (repaired).st l
1.19 MiB 7 min <1 m 9 x 26 x 3 Download
42_Blade2_L (repaired).st l
0.36 MiB 3 min <1 m 6 x 14 x 3 Download

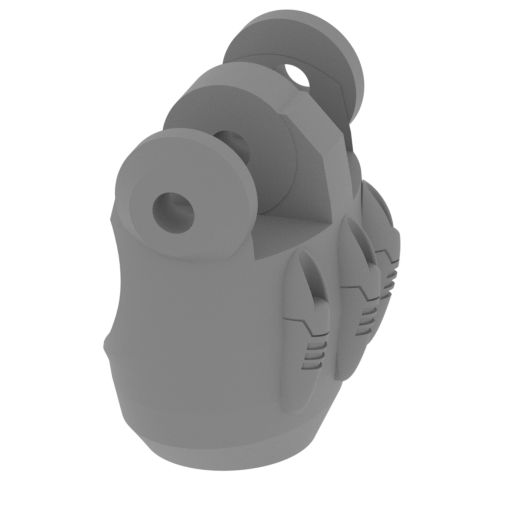

43_Hand1_L (repaired).stl
1.93 MiB 25 min <1 m 12 x 17 x 17 Download

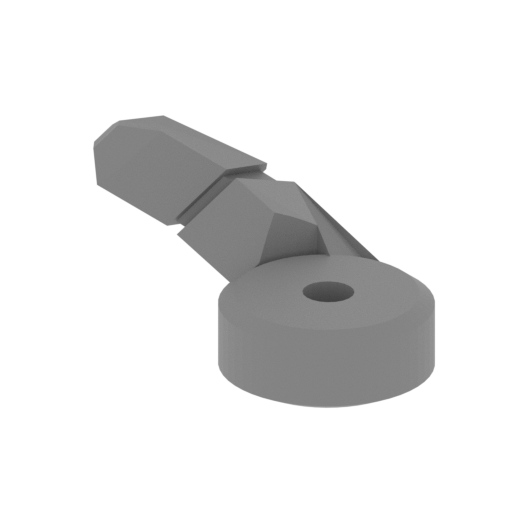

44_Hand2_L (repaired).stl
0.06 MiB 7 min <1 m 16 x 12 x 8 Download

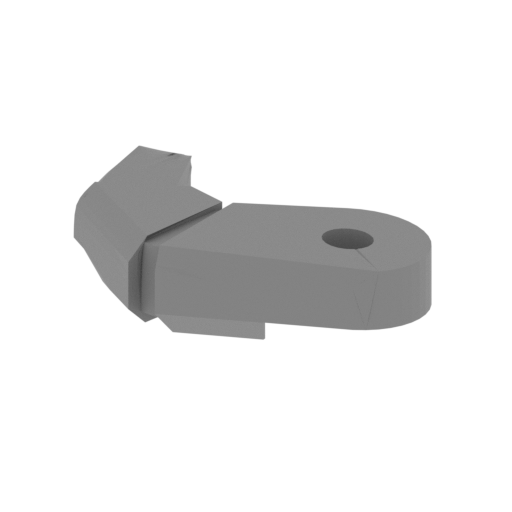

45_Hand3_L (repaired).stl
0.40 MiB 4 min <1 m 15 x 10 x 4 Download
46_Hand4_L (repaired).stl
0.39 MiB 4 min <1 m 15 x 12 x 4 Download

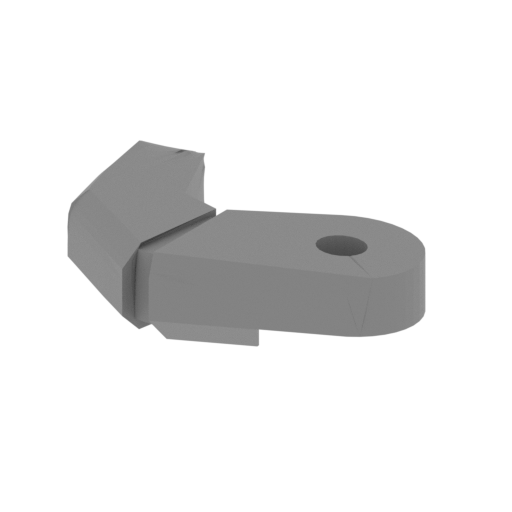

47_Hand5_L (repaired).stl
0.39 MiB 5 min <1 m 15 x 12 x 4 Download
48_Hand6_L (repaired).stl
0.39 MiB 4 min <1 m 15 x 12 x 4 Download
49_joint1_L (repaired).st l
0.52 MiB 13 min <1 m 11 x 11 x 12 Download
50_Shoulder joint_L (repa ired).stl
0.16 MiB 30 min <1 m 12 x 12 x 27 Download

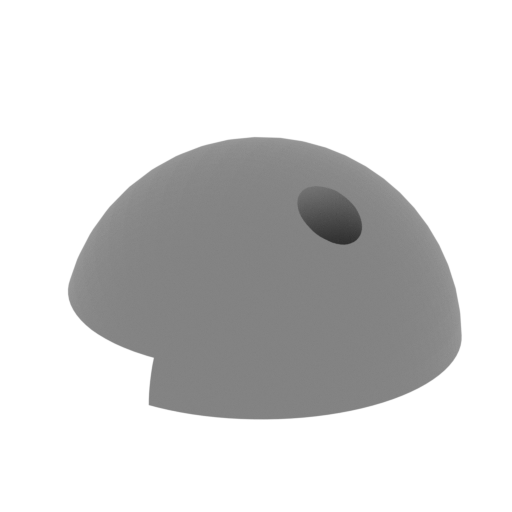

51_Shoulder1_L (repaired) .stl
0.17 MiB 44 min <1 m 28 x 25 x 14 Download

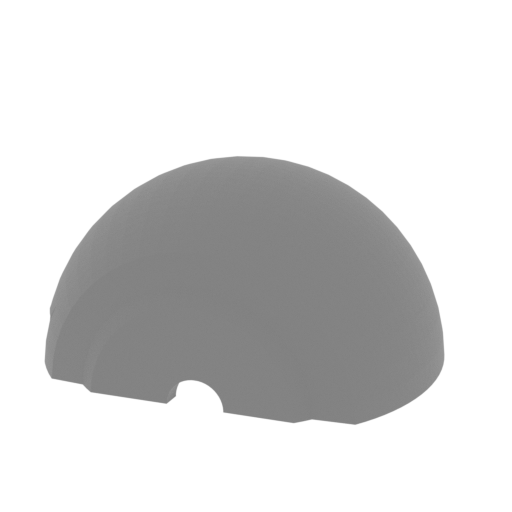

52_Shoulder2_L (repaired) .stl
0.14 MiB 45 min <1 m 28 x 25 x 14 Download

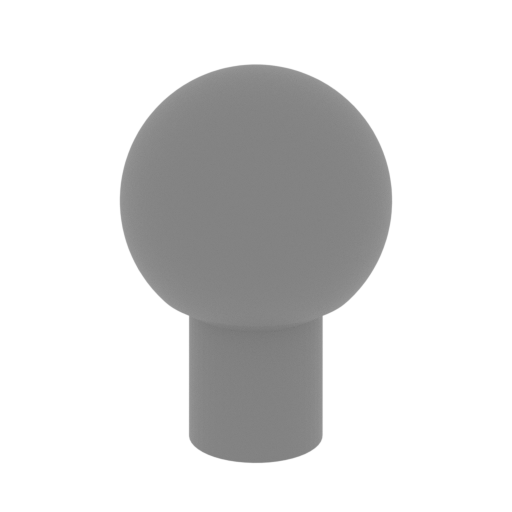

53_Ball joint_x3 (repaire d).stl
0.68 MiB 17 min <1 m 12 x 12 x 18 Download

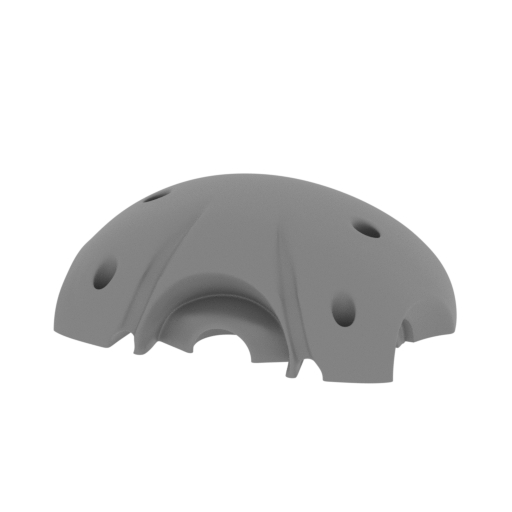

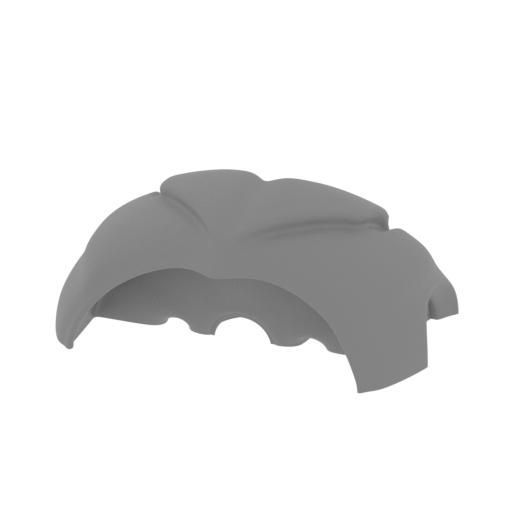

54_Bust1 (repaired).stl
9.64 MiB 4 h 4 min 2 m 68 x 43 x 26 Download
55_Bust2 (repaired).stl
9.64 MiB 3 h 59 min 2 m 68 x 42 x 24 Download

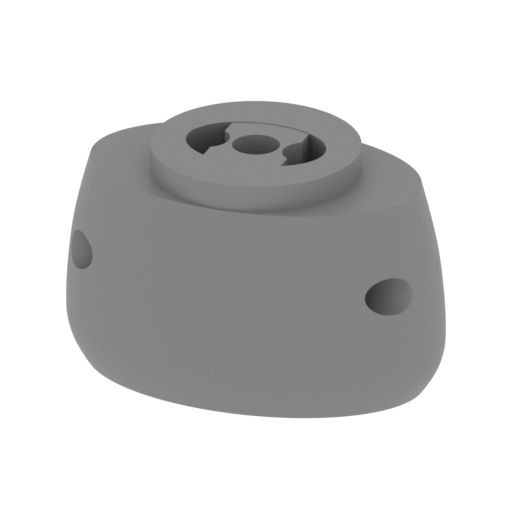

56_Bust3 (repaired).stl
4.77 MiB 2 h 55 min 2 m 50 x 32 x 31 Download
57_Harkens1_x2 (repaired) .stl
0.11 MiB 19 min <1 m 51 x 33 x 4 Download

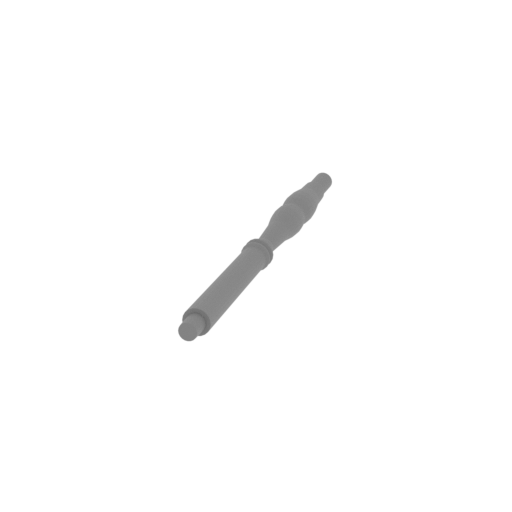

58_Harkens2_x2 (repaired) .stl
0.08 MiB 13 min <1 m 5 x 62 x 5 Download
59_Harkens3 (repaired).st l
0.53 MiB 13 min <1 m 46 x 5 x 5 Download

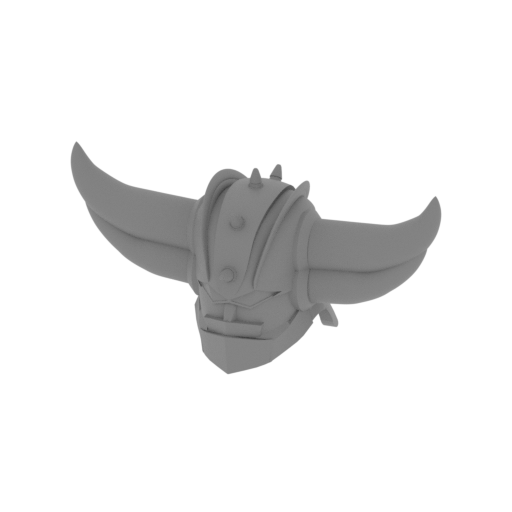

60_Head (repaired).stl
23.26 MiB 2 h 25 min 1 m 69 x 35 x 34 Download

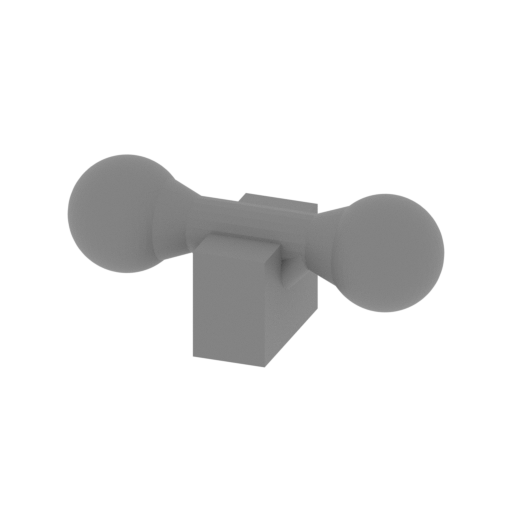

61_Hip joint (repaired).s tl
0.65 MiB 26 min <1 m 34 x 13 x 15 Download

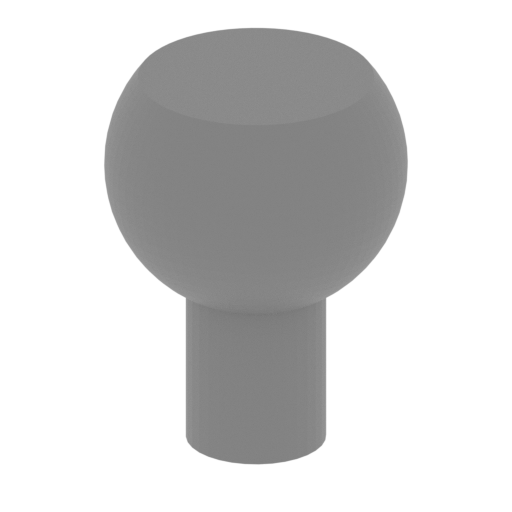

62_joint2 (repaired).stl
0.13 MiB 6 min <1 m 7 x 7 x 10 Download

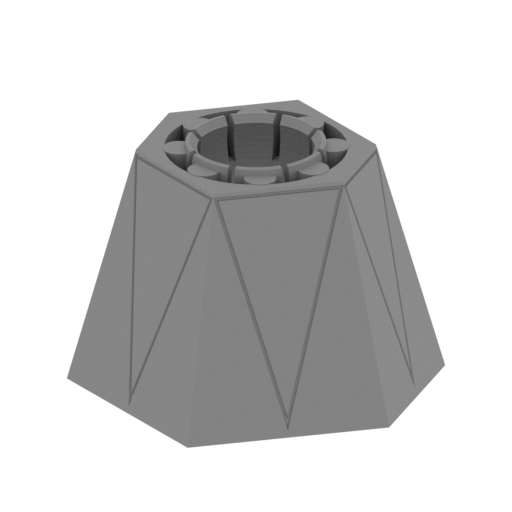

63_Neck (repaired).stl
0.62 MiB 40 min <1 m 21 x 24 x 16 Download

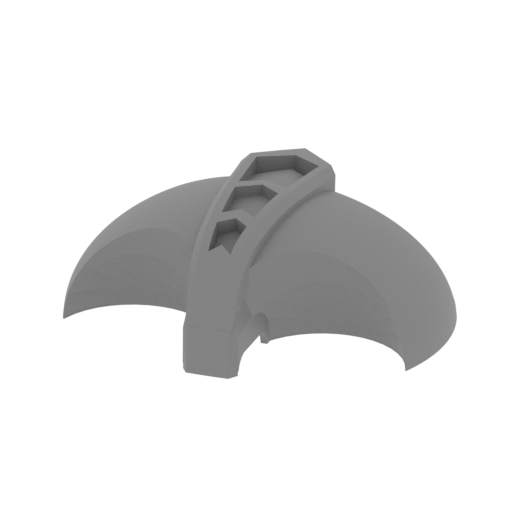

64_Pelvis1 (repaired).stl
1.64 MiB 2 h 19 min 1 m 58 x 41 x 21 Download

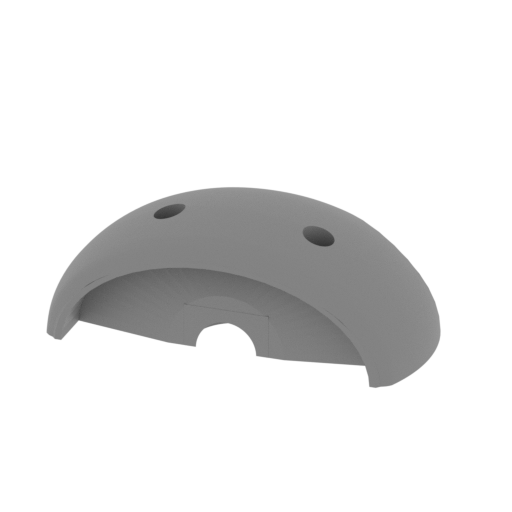

65_Pelvis2 (repaired).stl
1.34 MiB 2 h 24 min 1 m 58 x 34 x 20 Download
66_wrist_joint_R (repaire d).stl
0.13 MiB 6 min <1 m 7 x 7 x 10 Download

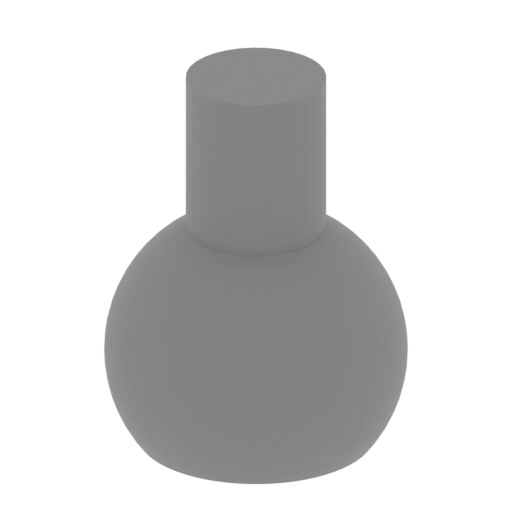

67_wrist_joint_L (repaire d).stl
0.13 MiB 6 min <1 m 7 x 7 x 10 Download

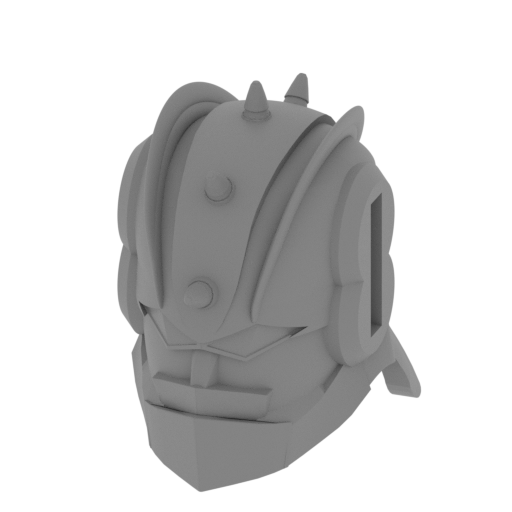

60_v2_Head (repaired).stl
19.17 MiB 1 h 53 min 1 m 25 x 35 x 34 Download

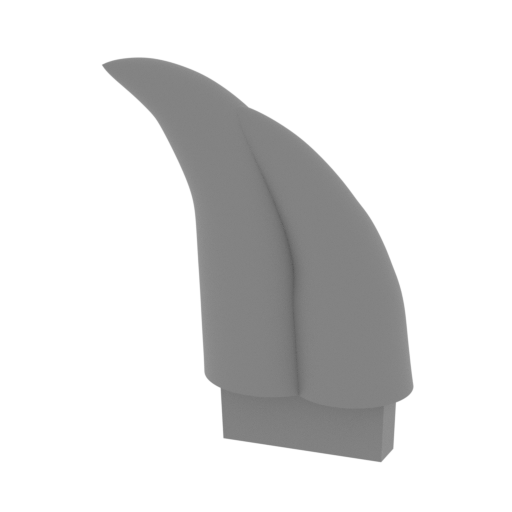

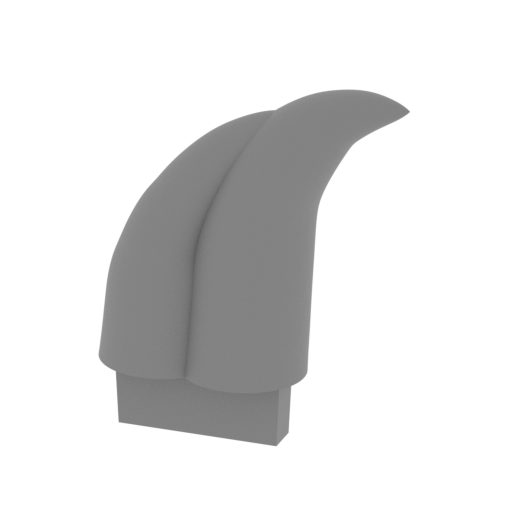

60_v2_horns_L (repaired). stl
2.14 MiB 30 min <1 m 24 x 9 x 29 Download
60_v2_horns_R (repaired). stl
2.14 MiB 30 min <1 m 24 x 9 x 29 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

Grendizer is the secret weapon of Planet Fleed piloted by Duke Fleed that was sent to protect the Earth in the course of UFO Robot Grendizer anime and manga series. Created by manga artist Go Nagai, the show actually was the third entry in the original Mazinger series. The author of the Grendizer model for 3D printing being a huge fan of the 1975 Japanese Super Robot anime television series spent 160 hours to create a one-of-a-kind mecha for any fan’s unique collection. Titular robot of the show for 3D printing was prepared with special attention to every fine detail making sure that you’ll receive an exceptionally functional prototype. Having introduced unique articulation gimmicks, the 3D artist made sure you’ll have no trouble recreating any action scene you prefer. What is more, not only does the robot change its positions, the Double Harken mounted into Grendizer can be extracted and assembled and the Screw Crusher Punch’s blades can also be unfolded! Finally, the last but no less awesome feature - Grendizer 3D printing model actually has its own support vehicle Spazer that is available on our marketplace separately. That’s what we call the anime fan’s dream come true!

ADAPTATION FOR 3D PRINTING

Grendizer model for 3D printing is a highly articulated assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 38 hours in total. In order to ensure the robot’s multidirectional movement, it was divided into many assembly parts and all model’s joints were designed to presuppose the introduction of certain mechanisms to give you an opportunity to display Grendizer in a variety of positions, i.e. robot’s head, shoulders, arms, elbows, hands, knees, feet, fingers and even Screw Crusher Punch’s blades are movable. The Double Harken that robot can be displayed holding is also provided as several separate files for you to receive the cleanest printed result and is actually housed in the model. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. In order to assemble the model, you will need 2x14 mm self-tapping screws and short pieces of 1.75 PLA to make pins. Apply the glue where you feel appropriate. Make sure to watch "Assembly video" in the photo preview section and read the author's "Assembly Manual" that comes with STL files.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Grendizer's actual height that is 30000 mm. The 3D printing model's chosen scale is 1/107 for the FFF/FDM version.

VERSION SPECIFICATIONS

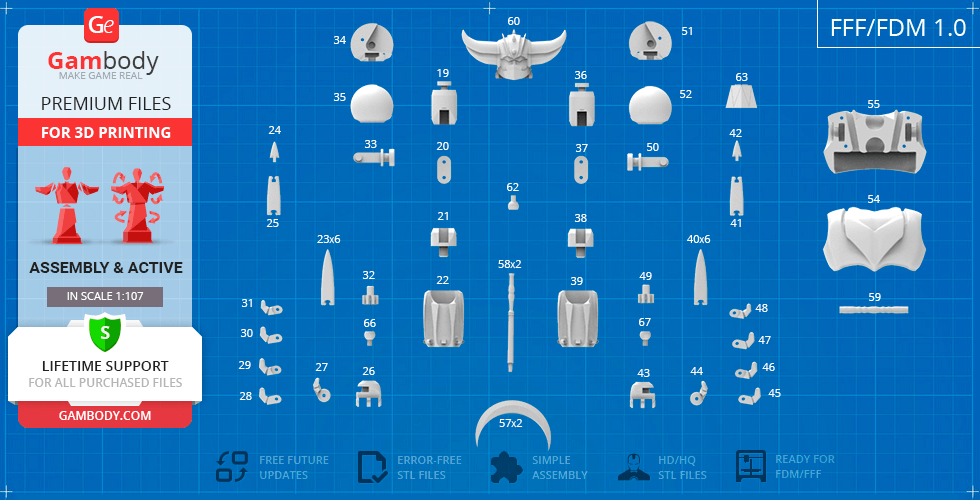

FFF/FDM 1.0 version features:
- Contains 67 parts;
- A printed model is 280 mm tall, 117 mm wide, 59 mm deep;
- Each robot’s joint is articulated which allows the model's movability;
- The model can be assembled with 1.75 PLA pins and 2x12 mm screws;
- Watch "Assembly video" to see the pins coloured yellow;
- With any file of the model, you will also receive author’s instructions on the assembly peculiarities in a PDF file "Assembly Manual";
- All parts are divided in such a way that you will print them with the smallest number of support structures.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Grendizer​​ Model for 3D printing which consist of 67 parts;
- High-poly detailed model of Grendizer​;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of Grendizer for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Grendizer Z​ 3D Printing Model at Gambody YouTube channel.

Also, you may like Spazer 3D Printing Model to complete the UFO Robot Grendizer diorama as well as other Robot 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

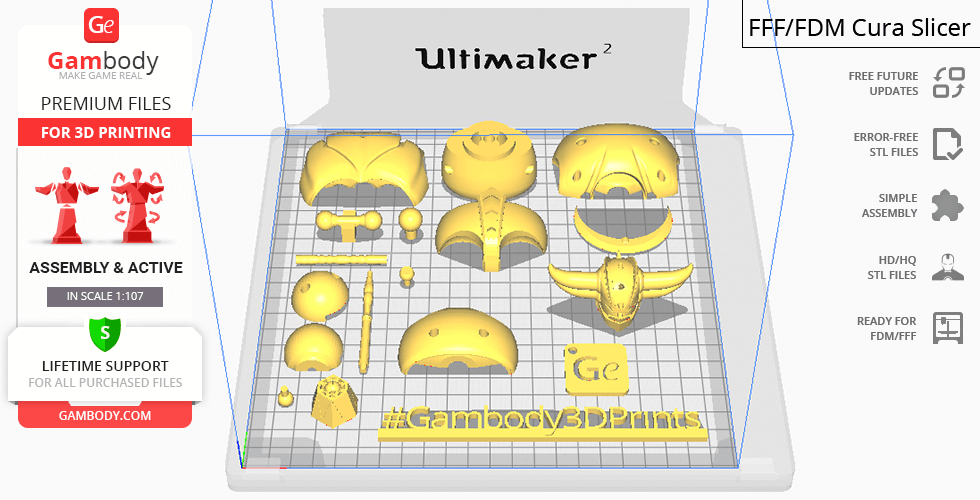

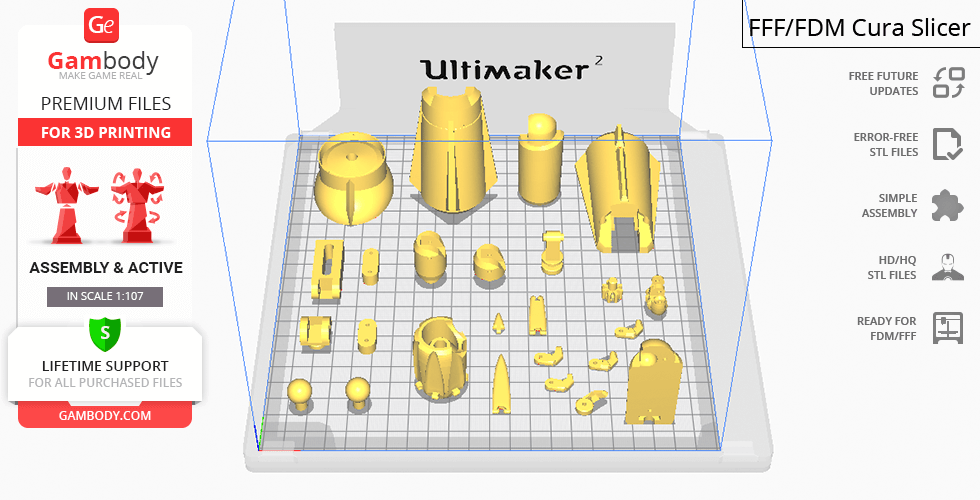

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: Use ABS or PLA Plus filament to print more durable and friction resistant details.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 80%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90Ëš
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 3 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 80%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill density: 80%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
