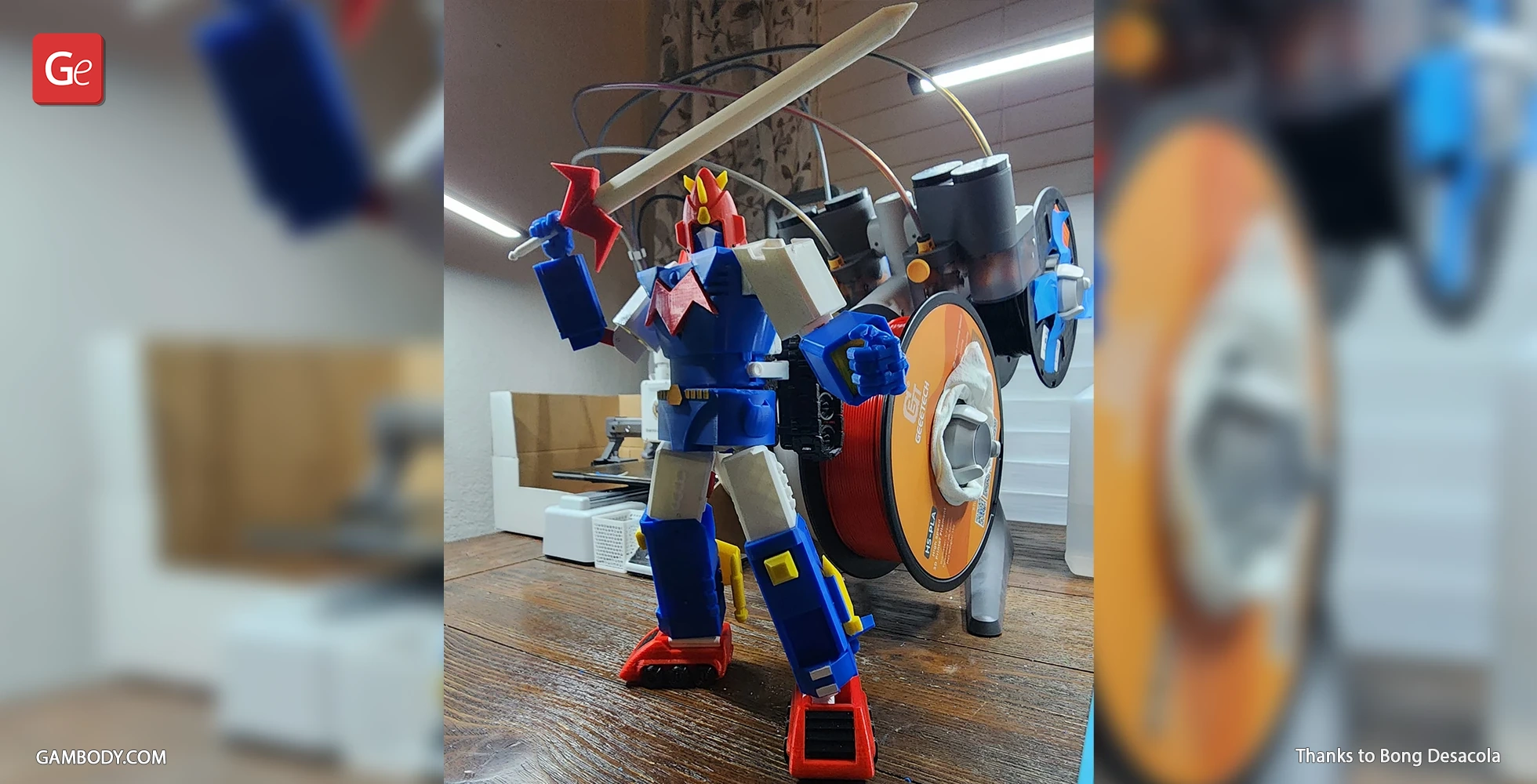

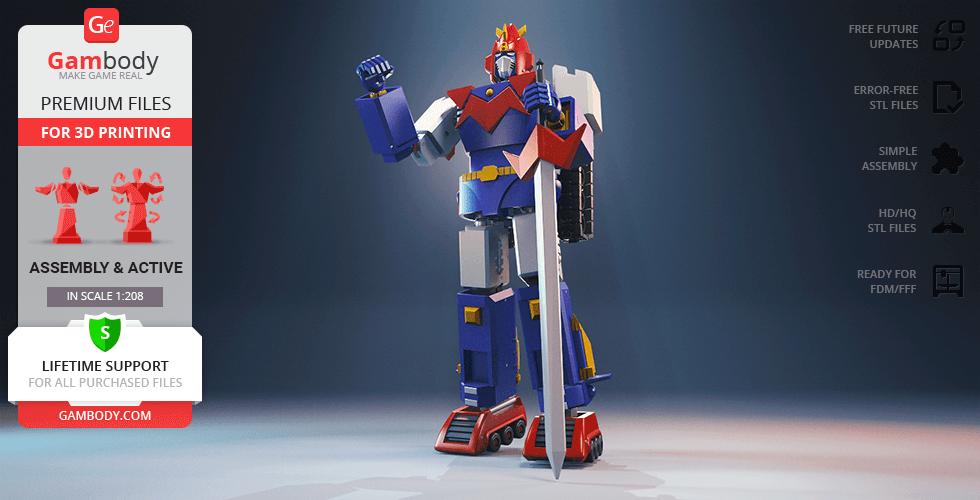

Voltes V 3D Printing Model | Assembly + Action

(5)
cm: 12.2 w x 9.2 d x 27.8 h
in: 4.803 w x 3.622 d x 10.945 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 1 version of Voltes V STL files for FFF/FDM - files are available for download after the purchase

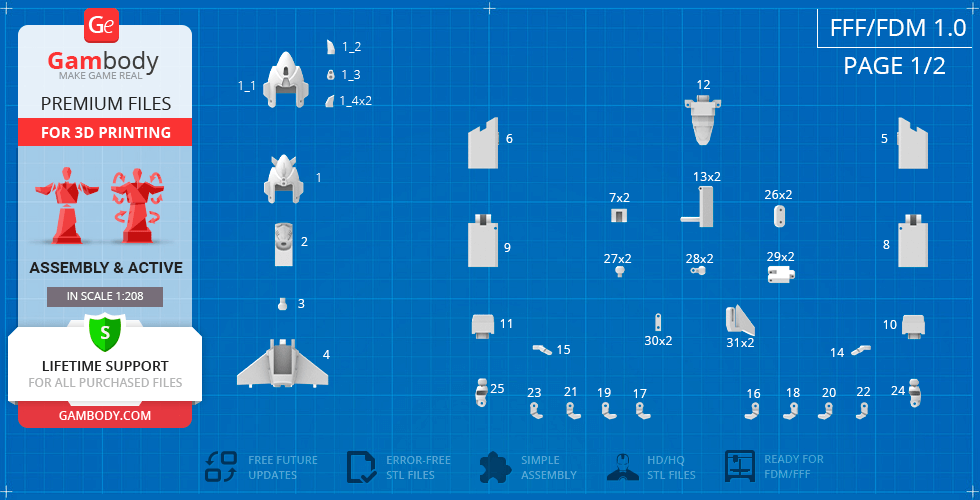

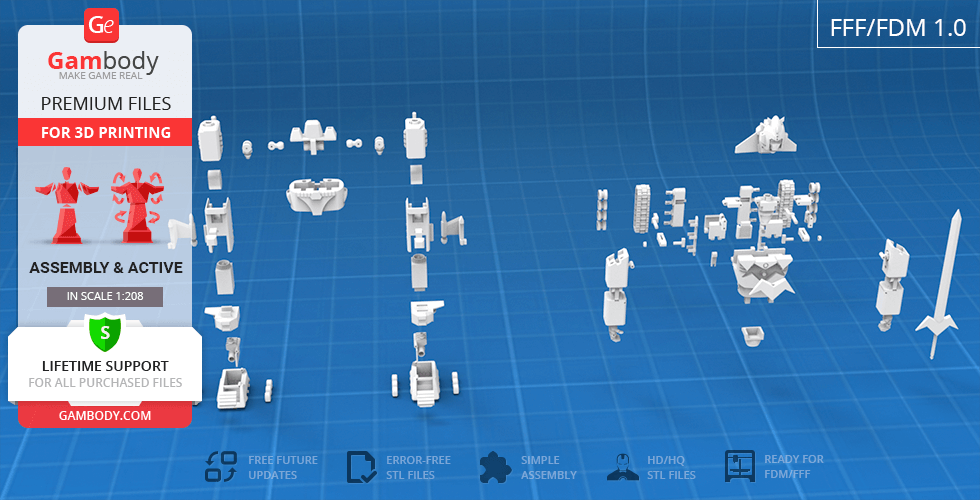

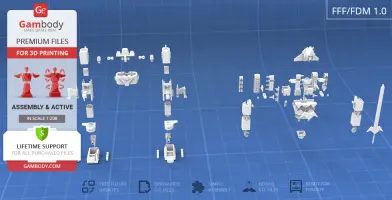

- STL files of high-poly Voltes V 3D Model for 3D printing consist of 74 parts

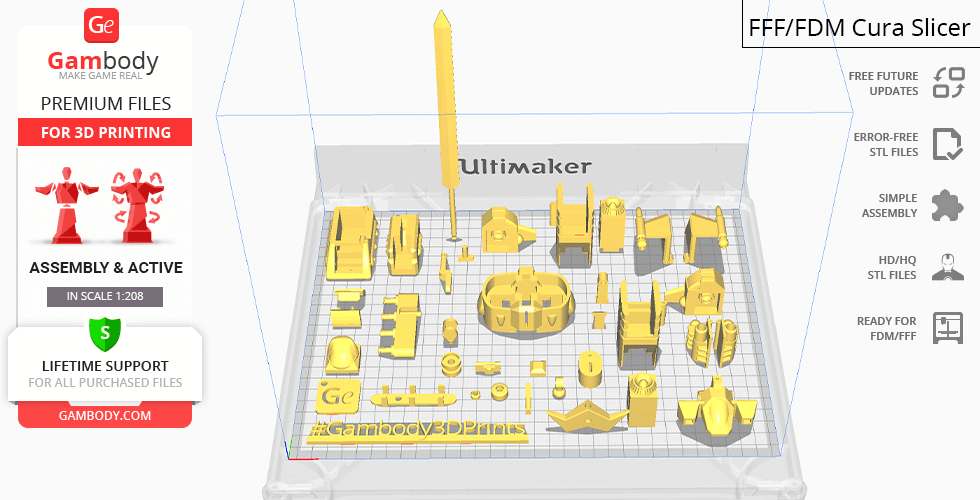

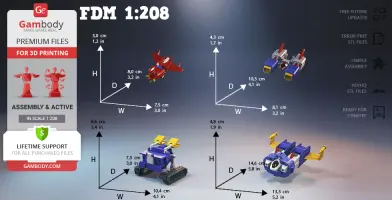

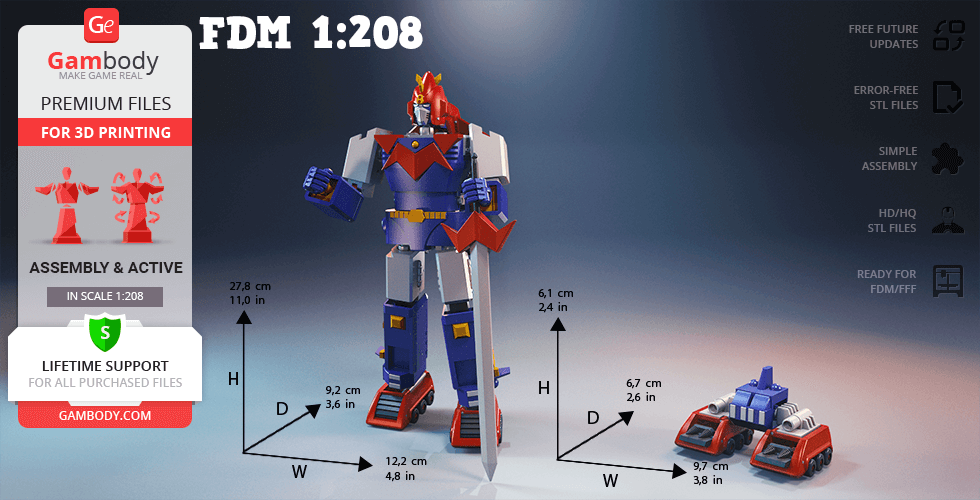

- Sizes:
FFF/FDM:

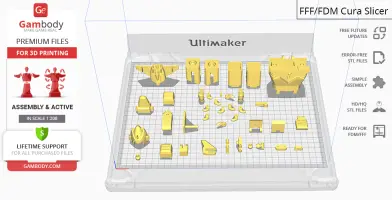

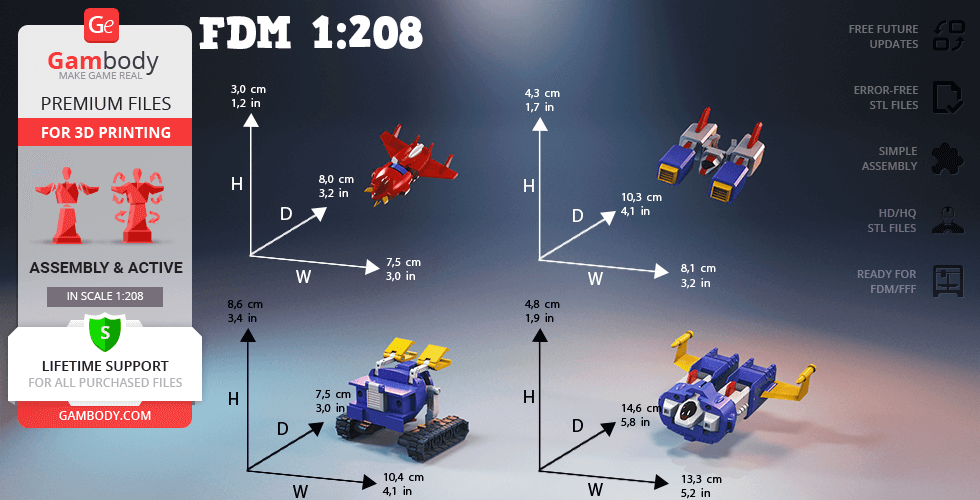

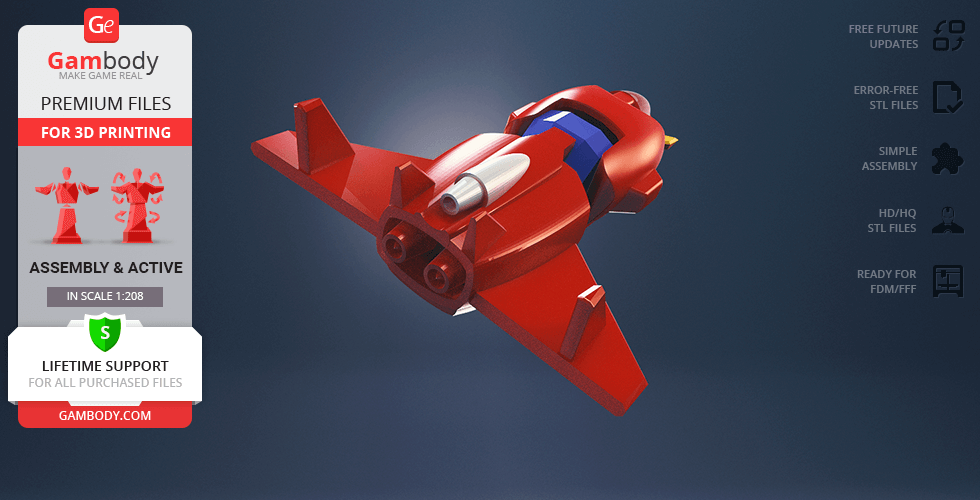

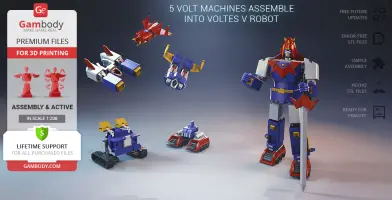

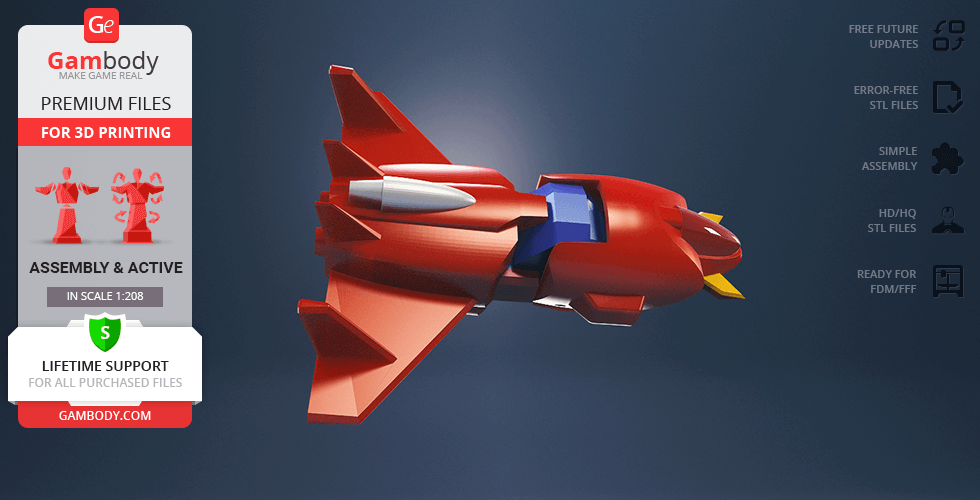

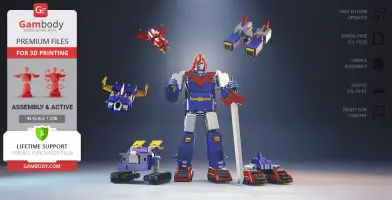

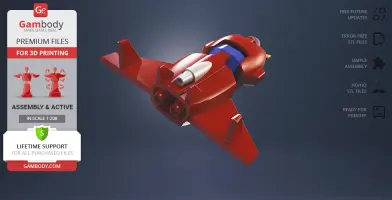

- Volt Crewzer stands 30 mm tall, 75 mm wide, 80 mm deep

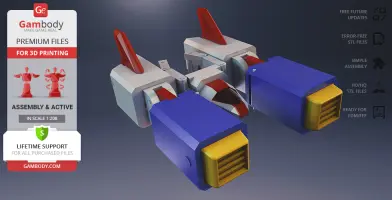

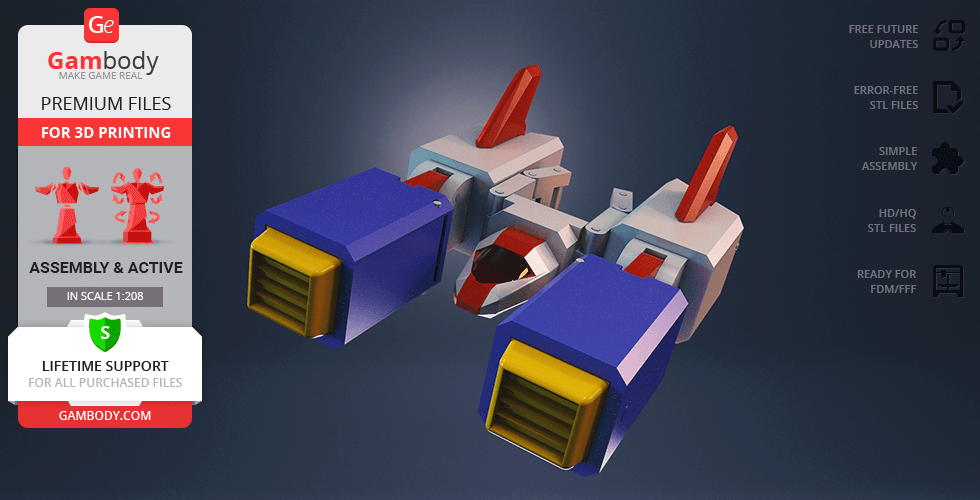

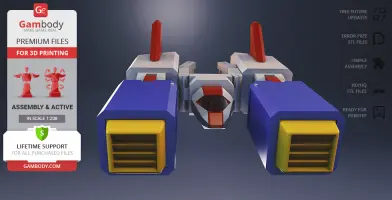

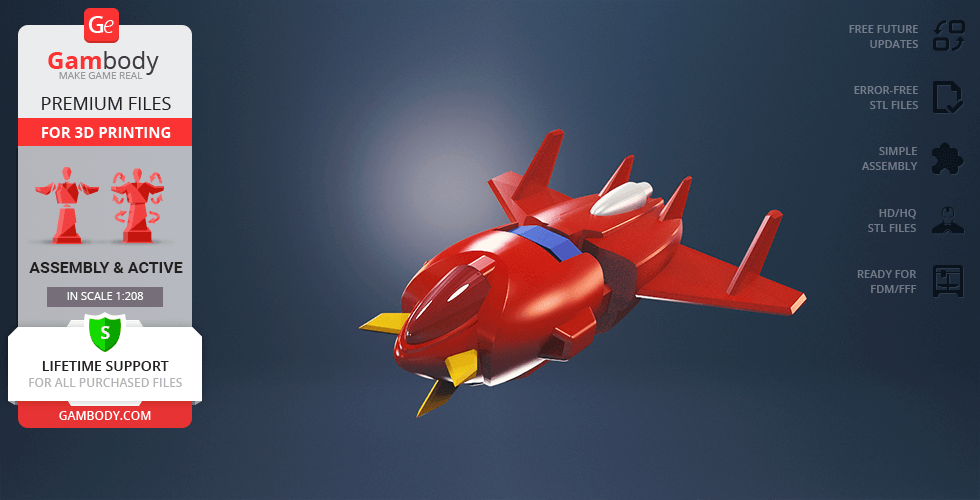

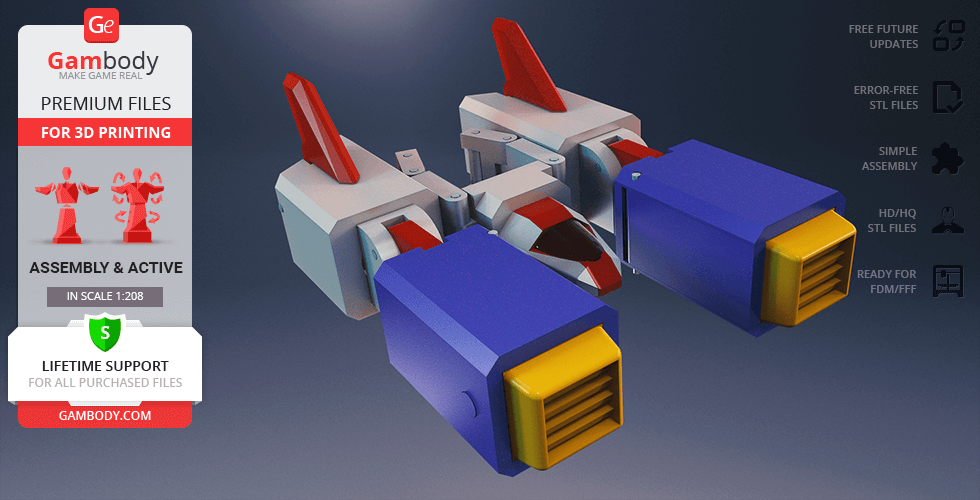

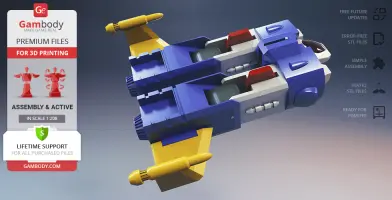

- Volt Bomber - 43 mm tall, 81 mm wide, 103 mm deep

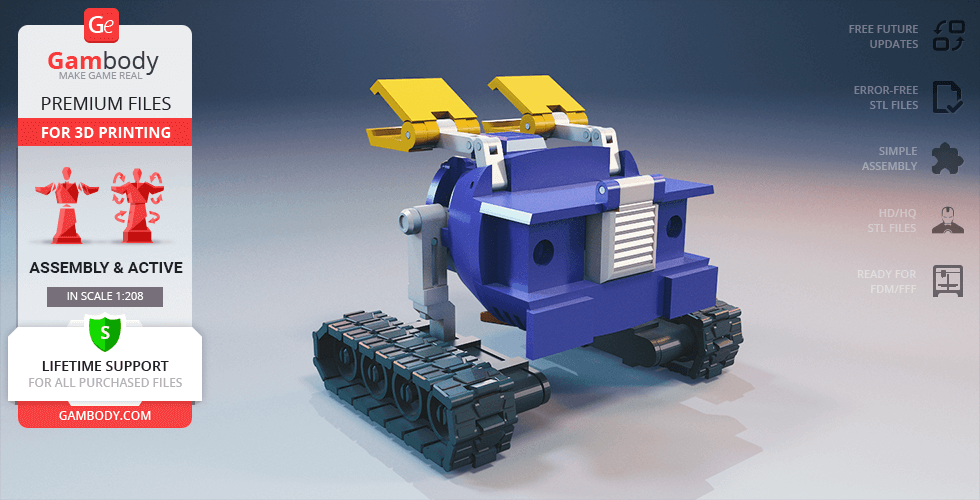

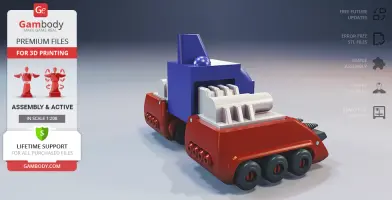

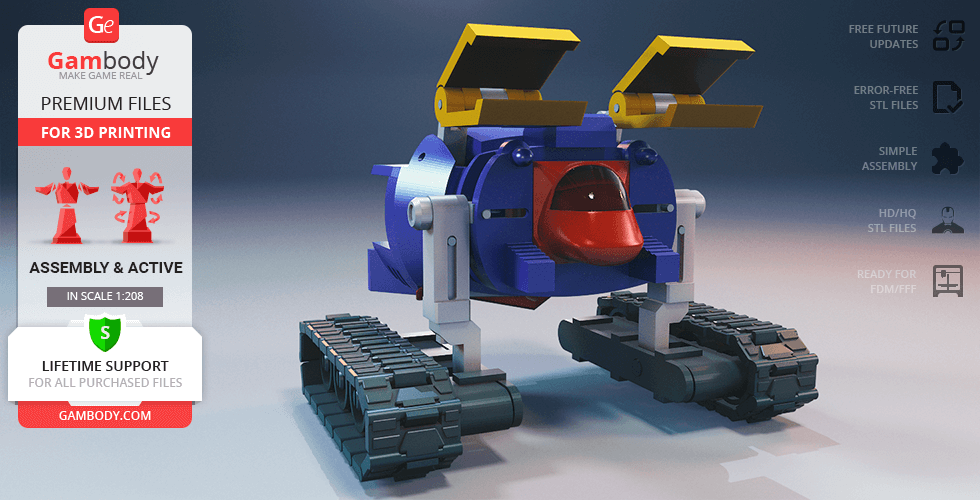

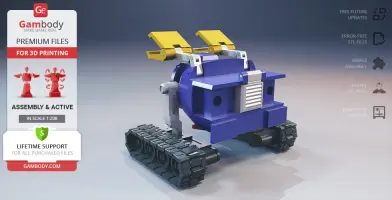

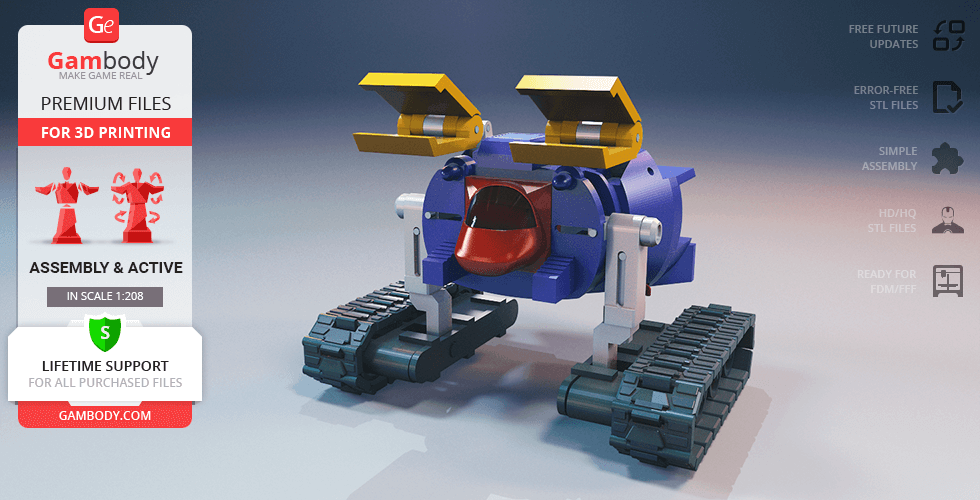

- Volt Panzer - 86 mm tall, 104 mm wide, 75 mm deep

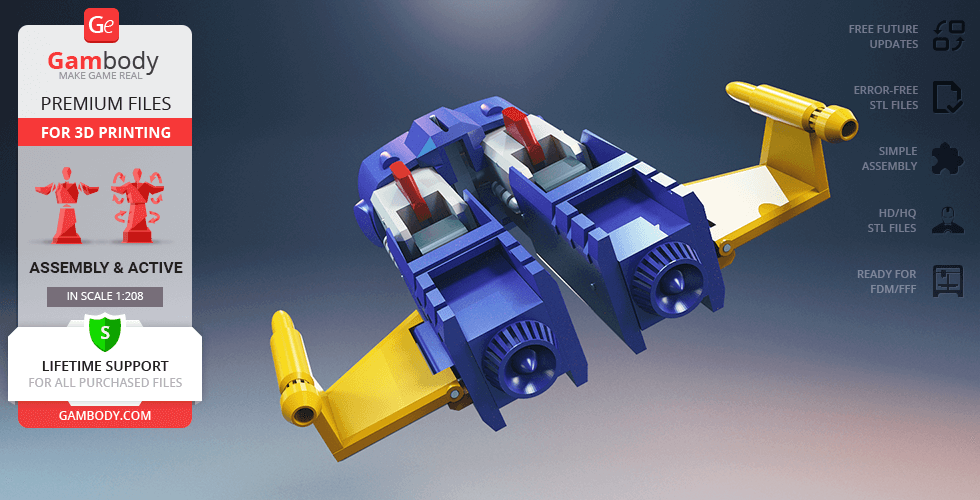

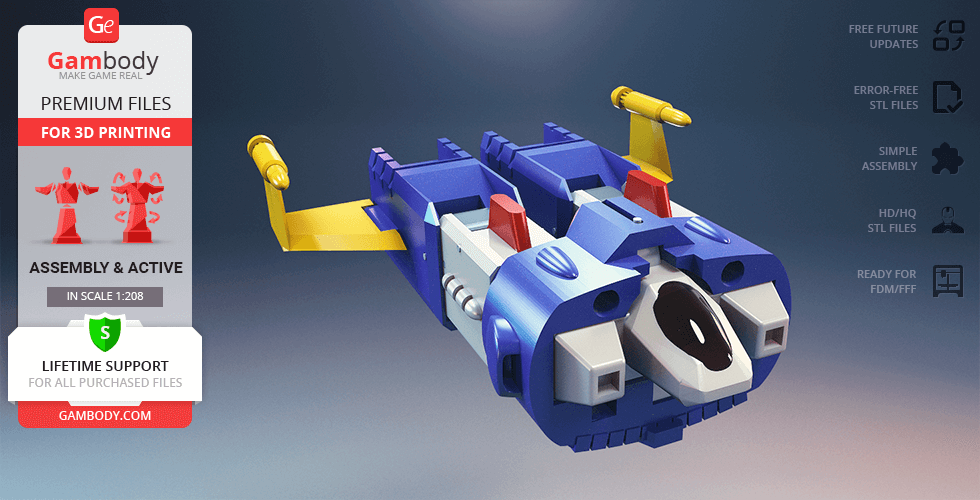

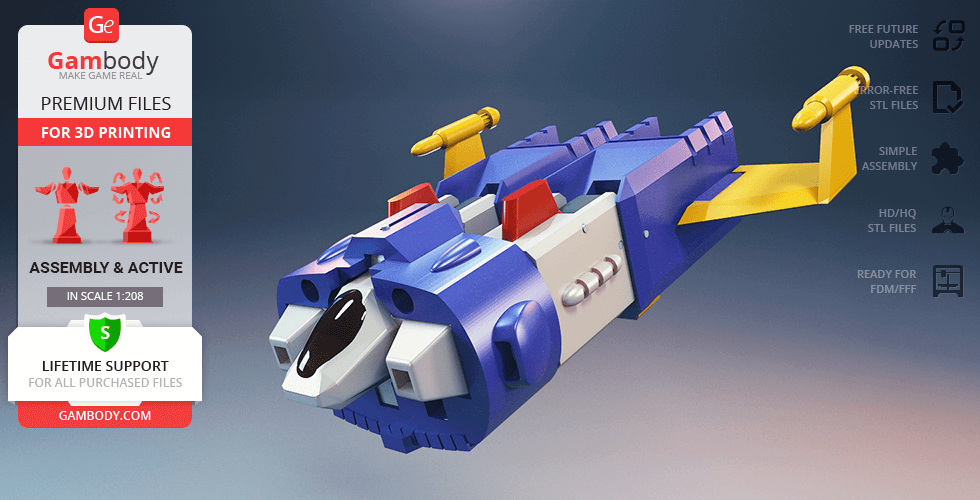

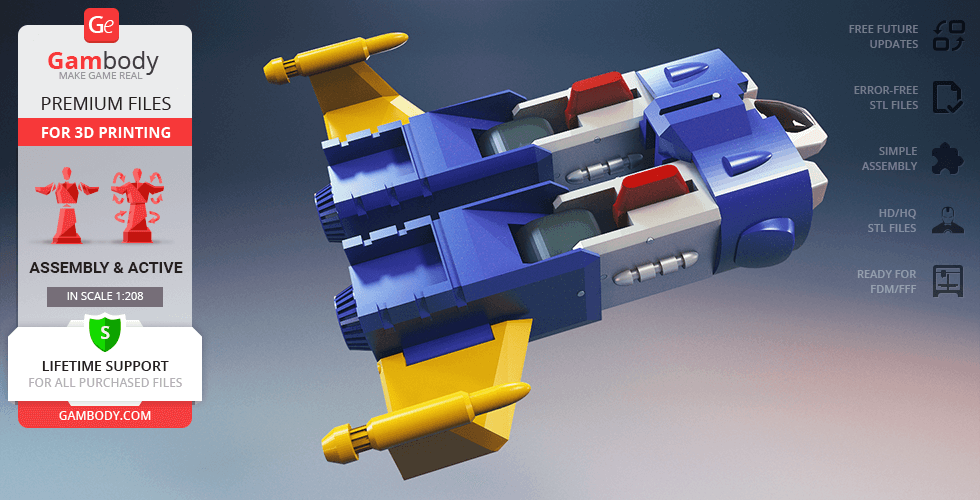

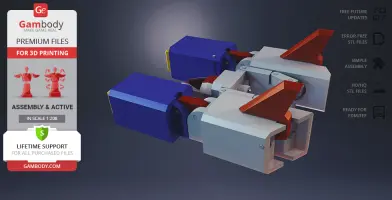

- Volt Frigate - 48 mm tall, 133 mm wide, 146 mm deep

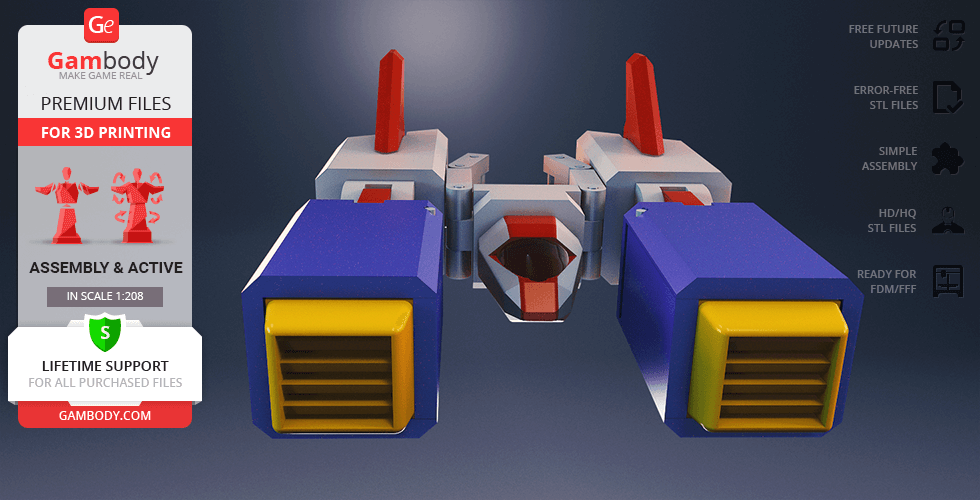

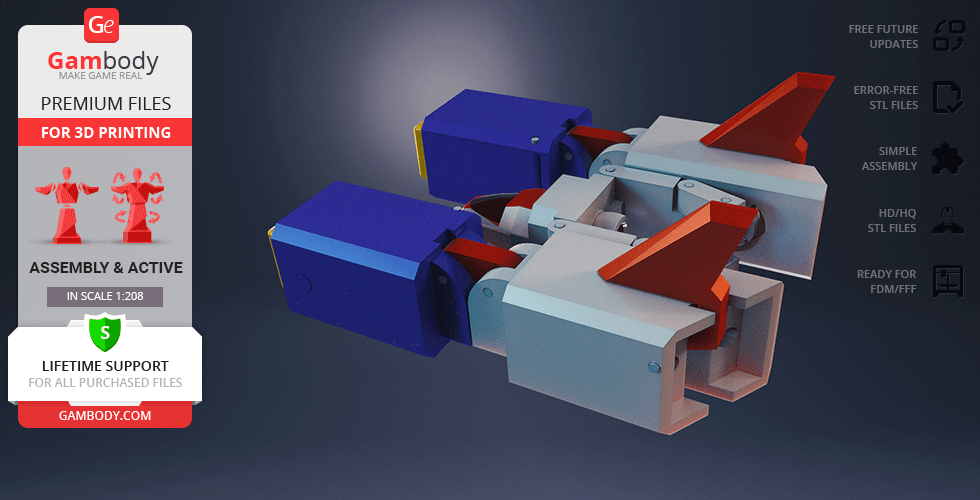

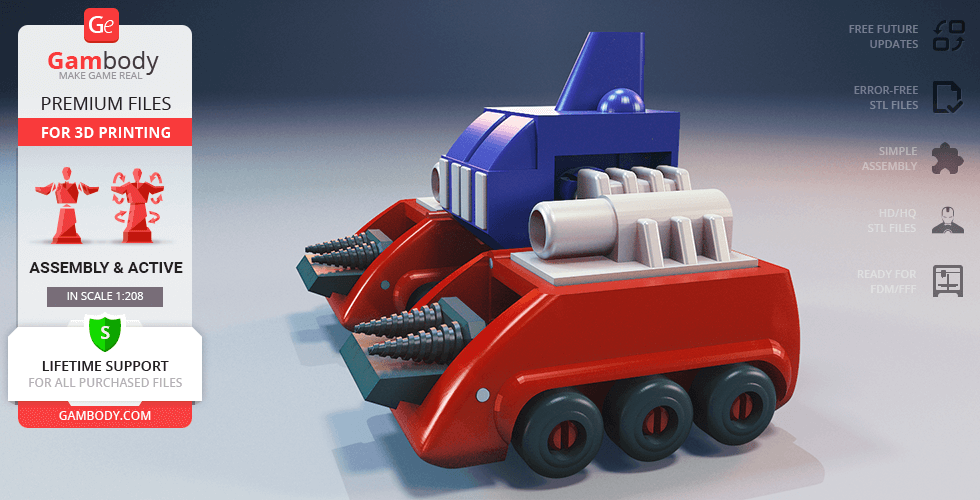

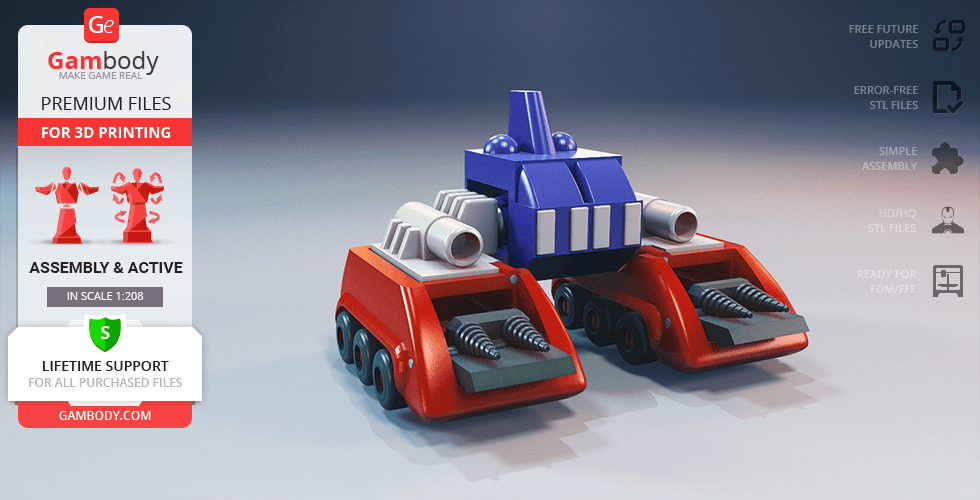

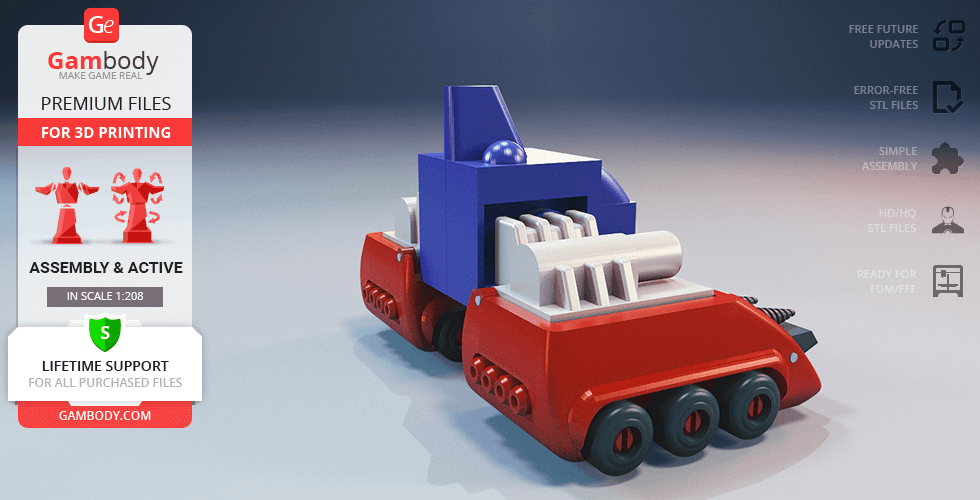

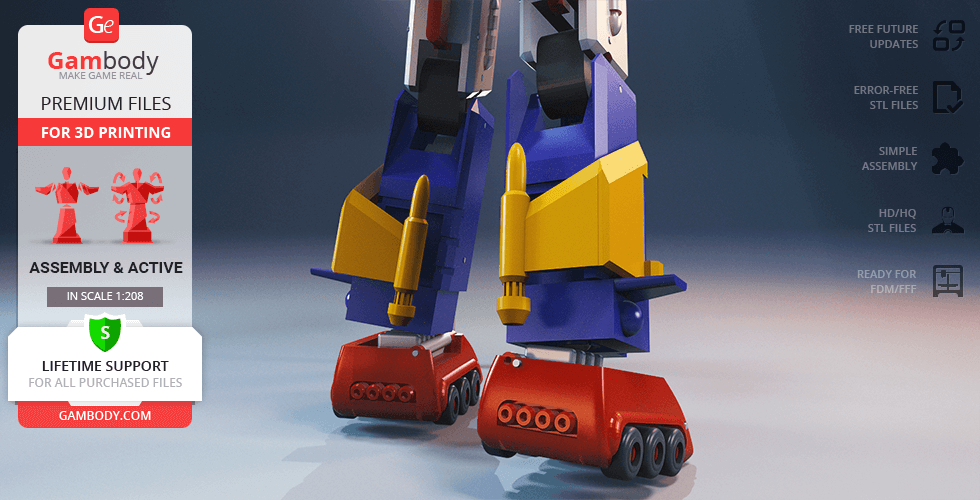

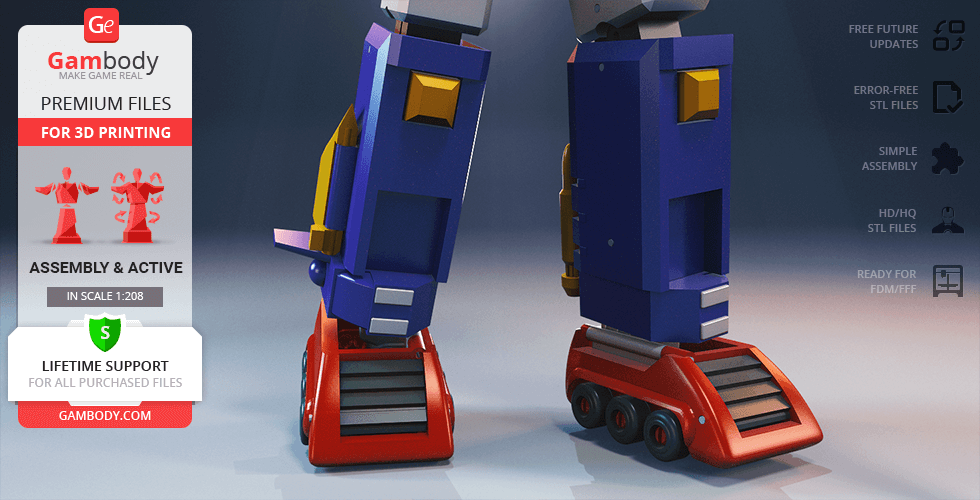

- Volt Lander - 61 mm tall, 97 mm wide, 67 mm deep

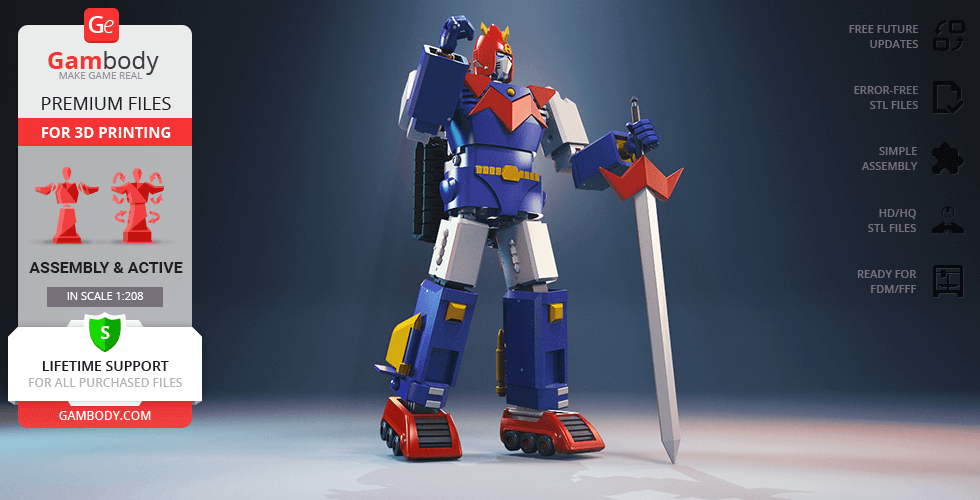

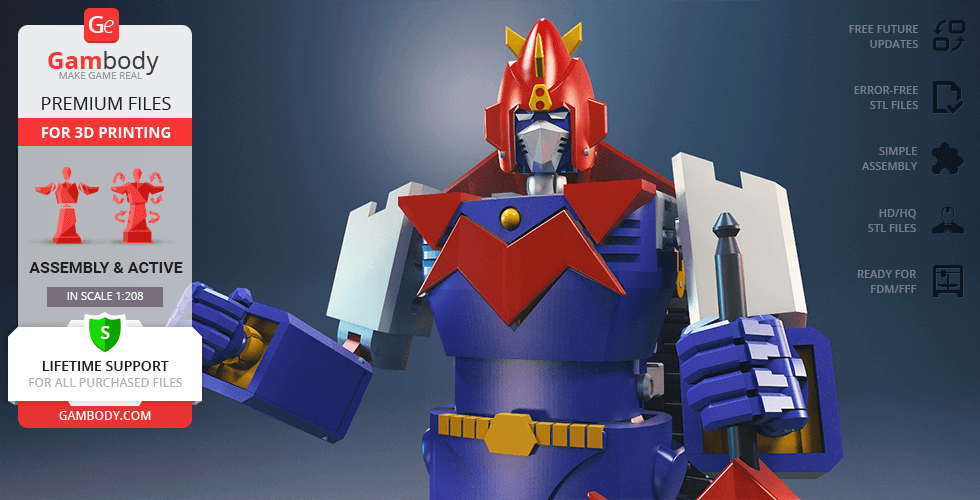

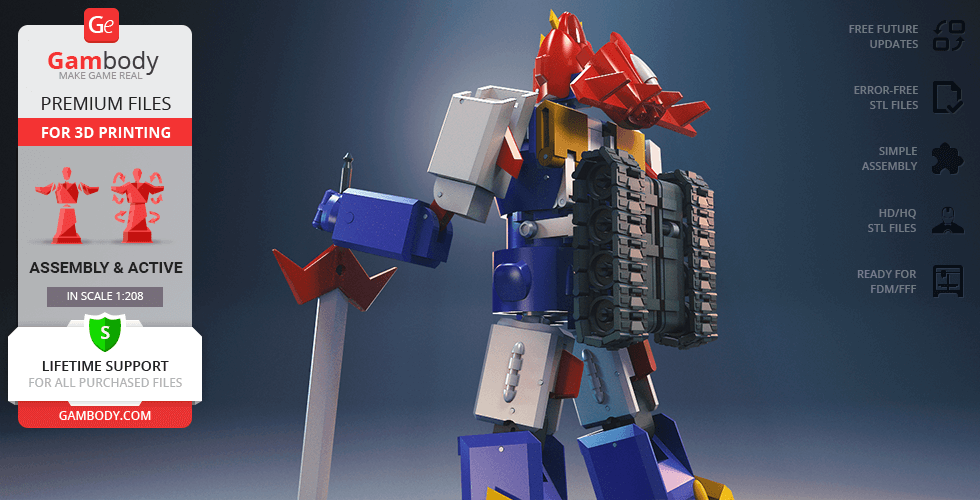

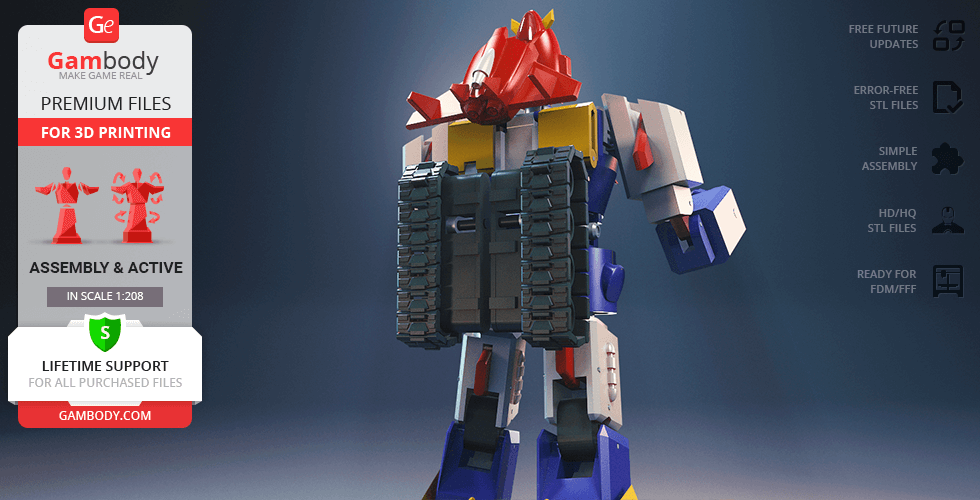

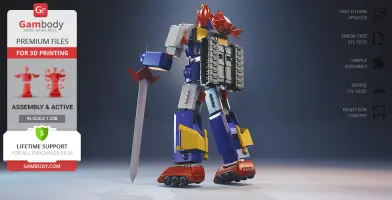

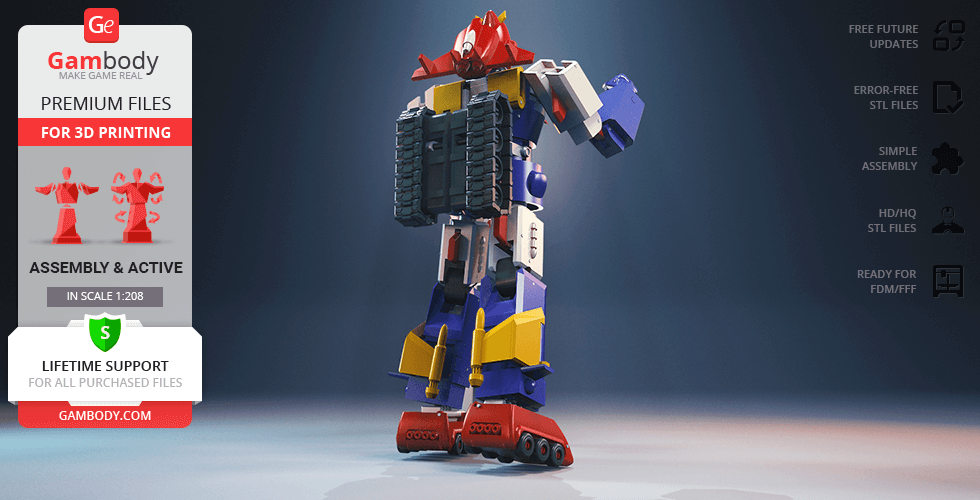

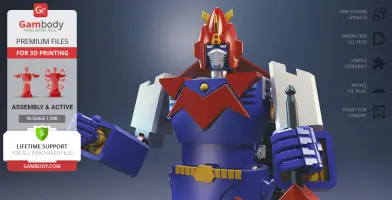

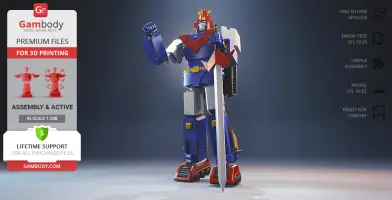

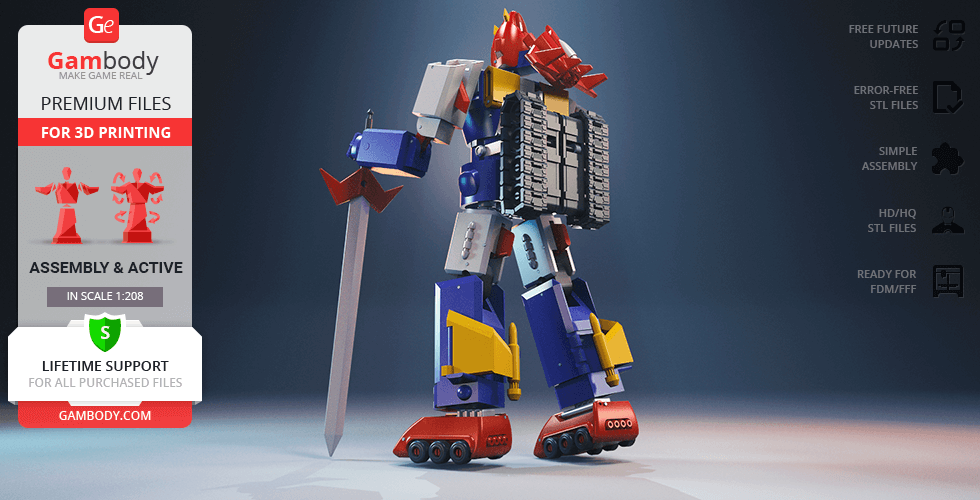

- Voltes V (all parts combined) - 278 mm tall, 122 mm wide, 92 mm deep

Assembly Manual for FFF/FDM 1.0 version in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

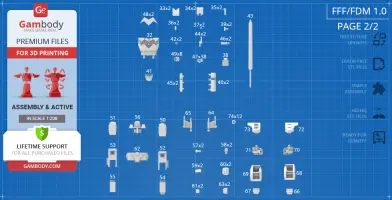

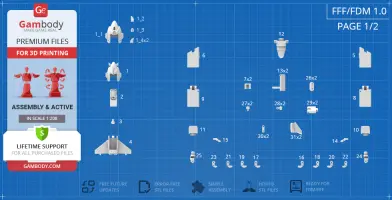

File Name File Size Time / Filament Object Size
(x/y/z mm)

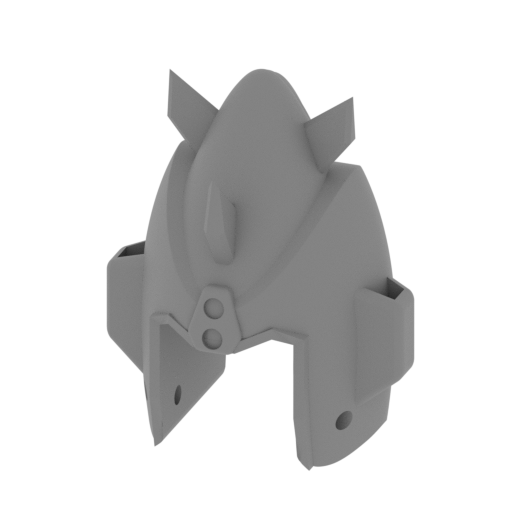

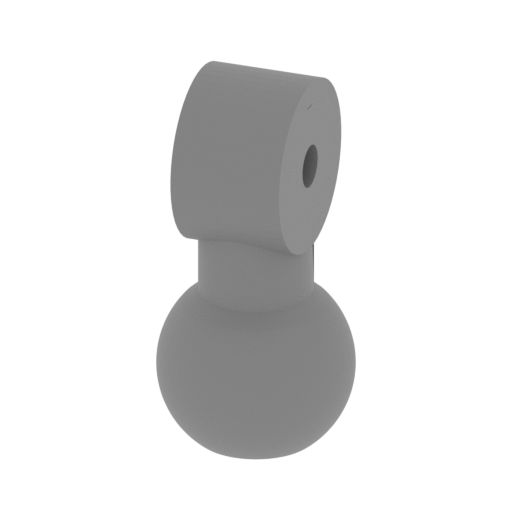

_1_head (repaired).stl
11.65 MiB 1 h 54 min 1 m 32 x 26 x 40 Download

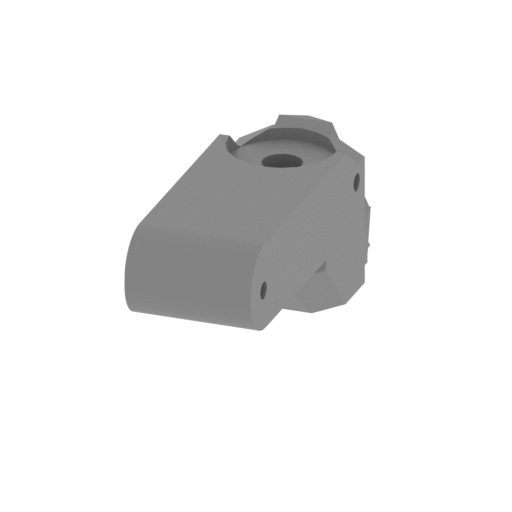

_2_head_face (repaired).s tl
0.11 MiB 1 h 20 min 1 m 15 x 43 x 20 Download

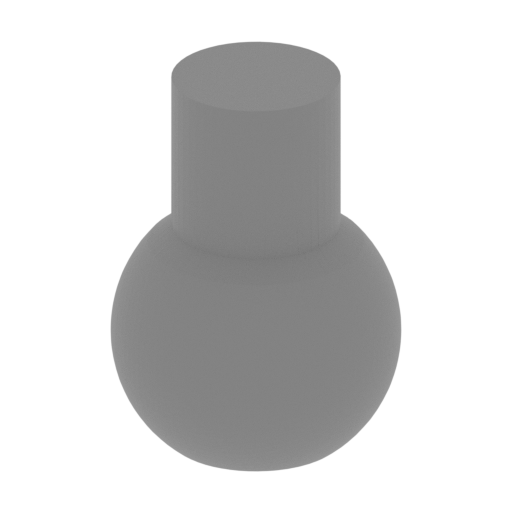

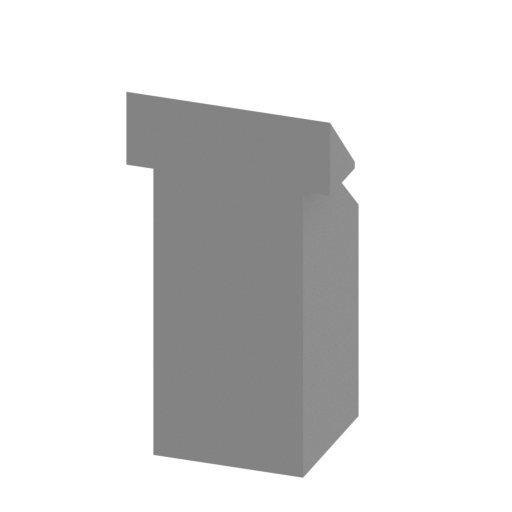

_3_head_joint (repaired). stl
0.54 MiB 7 min <1 m 8 x 8 x 10 Download

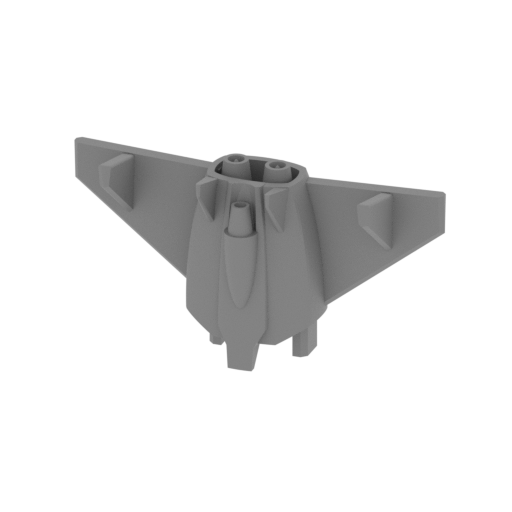

_4_head_tail (repaired).s tl
1.60 MiB 3 h 6 min 2 m 75 x 26 x 40 Download

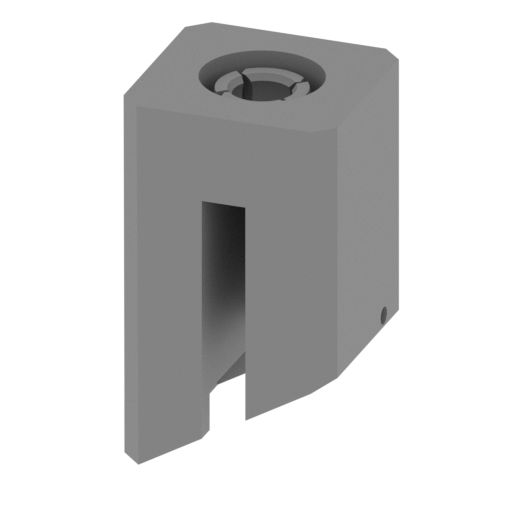

_5_shoulder_arm_1_L (repa ired).stl
2.00 MiB 2 h 51 min 2 m 26 x 23 x 42 Download

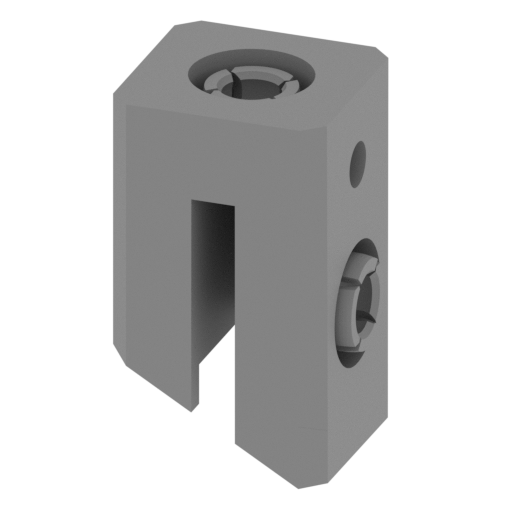

_6_shoulder_arm_1_R (repa ired).stl
2.02 MiB 2 h 53 min 2 m 26 x 23 x 42 Download

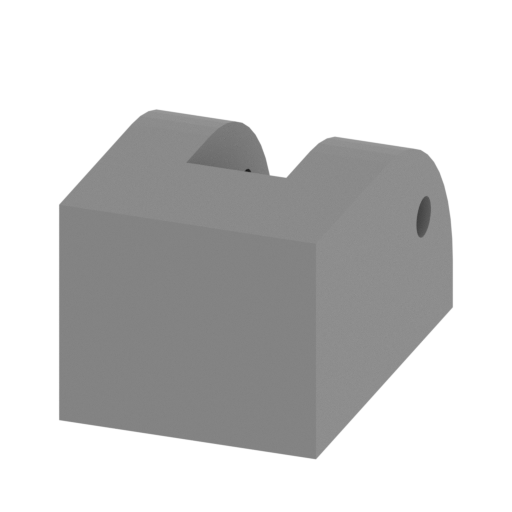

_7_shoulder_arm_2_x2 (rep aired).stl
0.06 MiB 21 min <1 m 13 x 19 x 11 Download

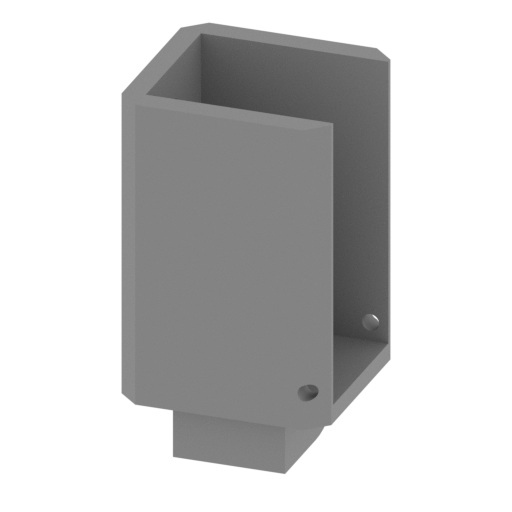

_8_shoulder_arm_3 L (repa ired).stl
0.11 MiB 1 h 57 min 1 m 25 x 23 x 43 Download

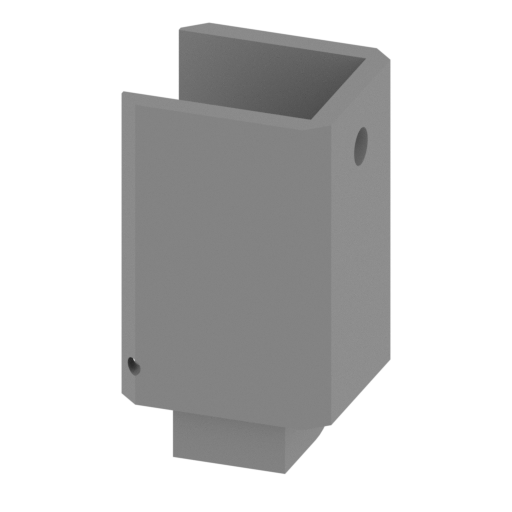

_9_shoulder_arm_3 R repai red).stl
0.11 MiB 1 h 57 min 1 m 25 x 23 x 43 Download

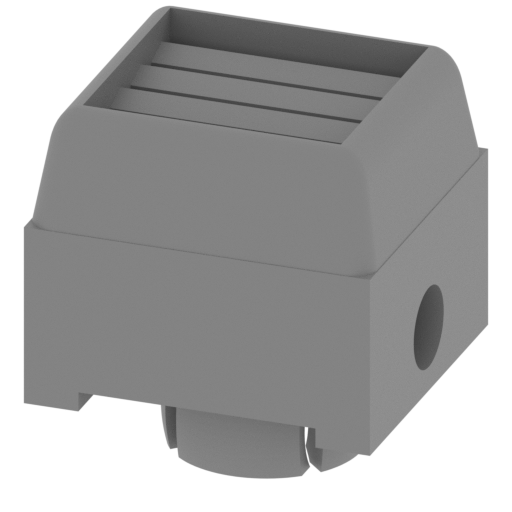

_10_shoulder_block_hand L (repaired).stl
1.09 MiB 48 min <1 m 19 x 17 x 20 Download

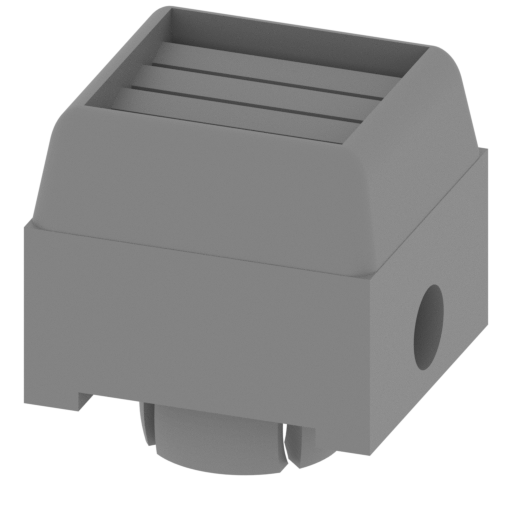

_11_shoulder_block _hand R (repaired).stl
1.09 MiB 47 min <1 m 19 x 17 x 20 Download

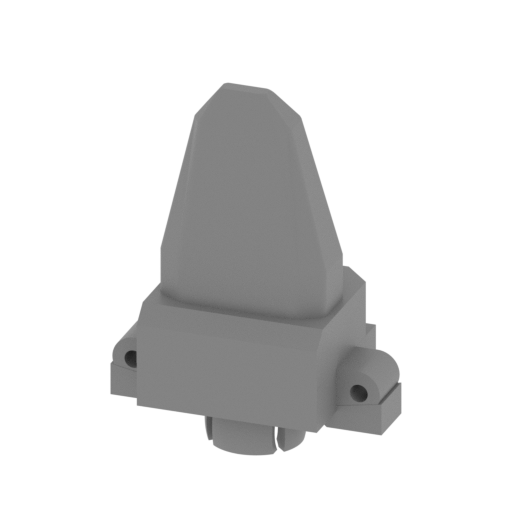

_12_shoulder_cab (repaire d).stl
2.09 MiB 1 h 10 min 1 m 30 x 18 x 41 Download

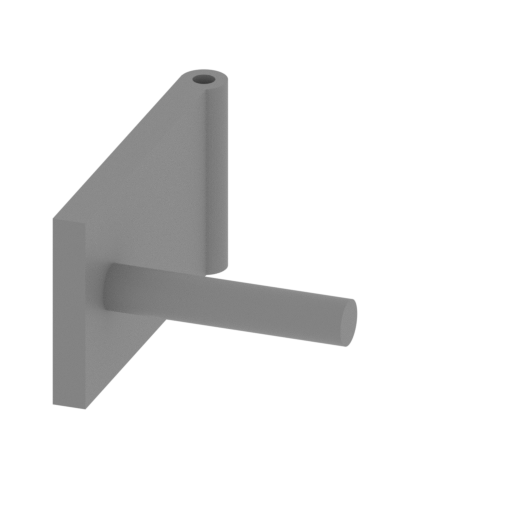

_13_shoulder_door_arm_x2 (repaired).stl
0.23 MiB 30 min <1 m 25 x 34 x 18 Download

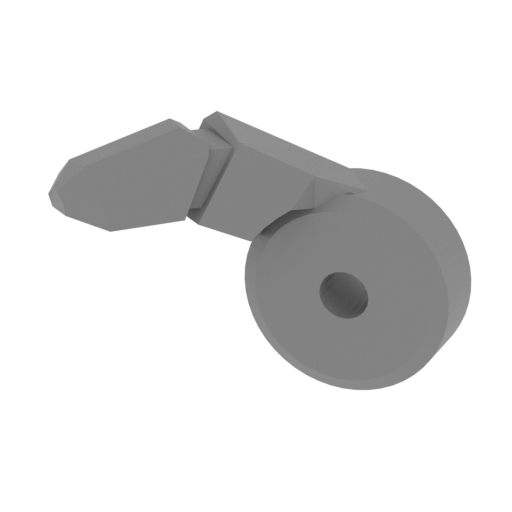

_14_shoulder_hand_1_L (re paired).stl
0.06 MiB 12 min <1 m 16 x 8 x 12 Download

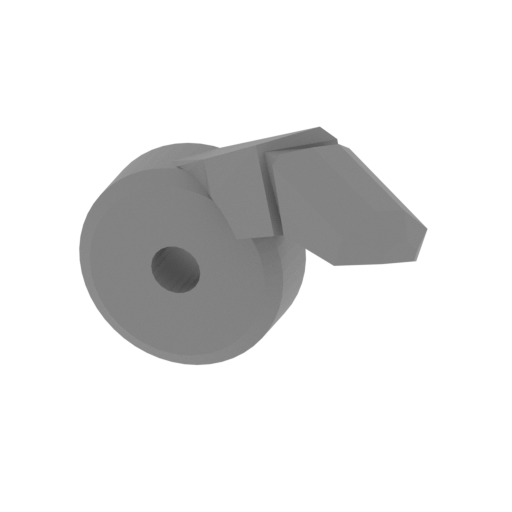

_15_shoulder_hand_1_R (re paired).stl
0.06 MiB 12 min <1 m 16 x 8 x 12 Download

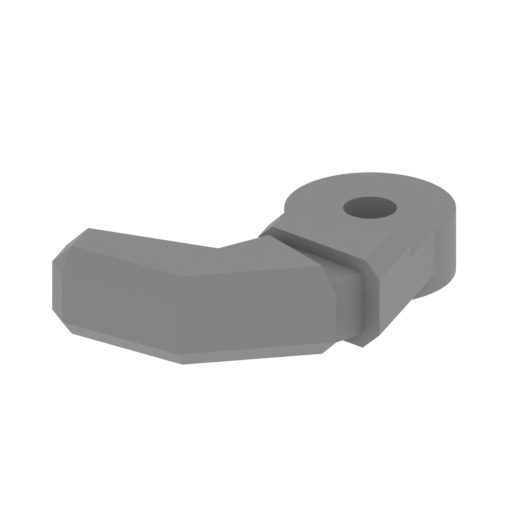

_16_shoulder_hand_2_L (re paired).stl
0.04 MiB 5 min <1 m 12 x 14 x 4 Download
_17_shoulder_hand_2_R (re paired).stl
0.05 MiB 5 min <1 m 12 x 14 x 4 Download

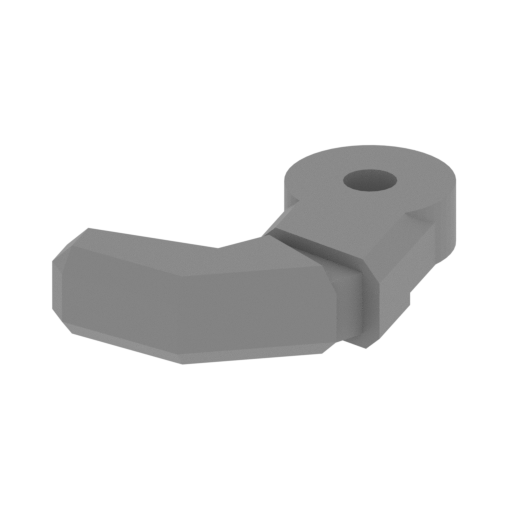

_18_shoulder_hand_3_L (re paired).stl
0.04 MiB 5 min <1 m 12 x 14 x 4 Download

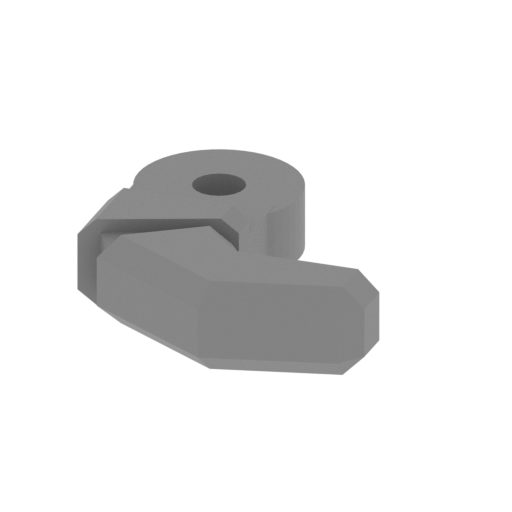

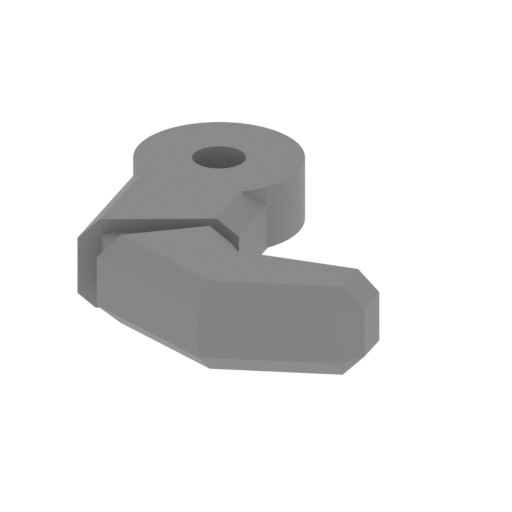

_19_shoulder_hand_3_R (re paired).stl
0.04 MiB 5 min <1 m 12 x 14 x 4 Download
_20_shoulder_hand_4_L (re paired).stl
0.04 MiB 5 min <1 m 12 x 14 x 4 Download
_21_shoulder_hand_4_R (re paired).stl
0.05 MiB 5 min <1 m 12 x 14 x 4 Download

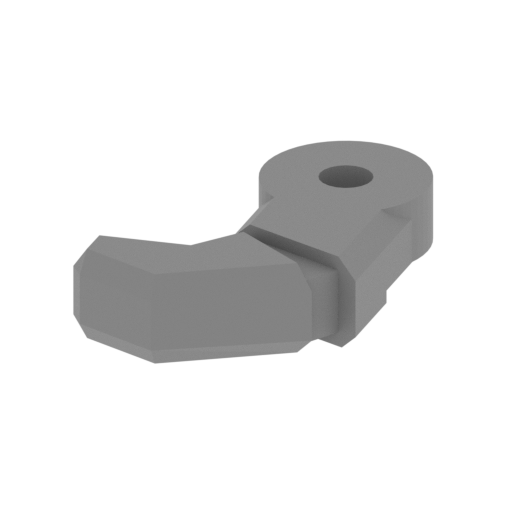

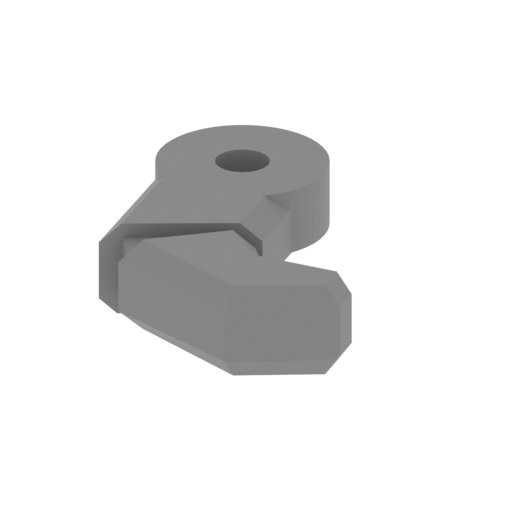

_22_shoulder_hand_5_L (re paired).stl
0.05 MiB 5 min <1 m 10 x 14 x 4 Download
_23_shoulder_hand_5_R (re paired).stl
0.05 MiB 4 min <1 m 10 x 14 x 4 Download

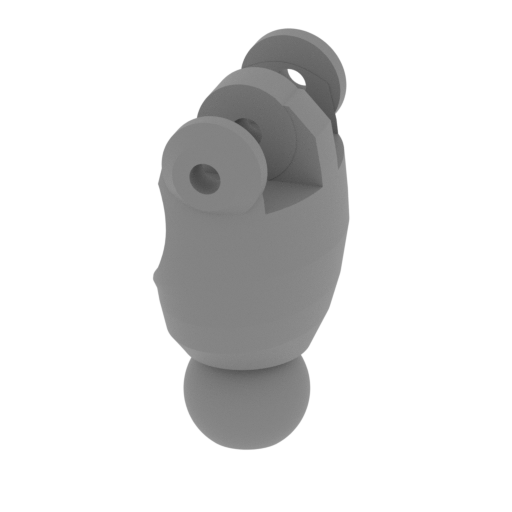

_24_shoulder_hand_base_L (repaired).stl
1.12 MiB 32 min <1 m 10 x 17 x 24 Download

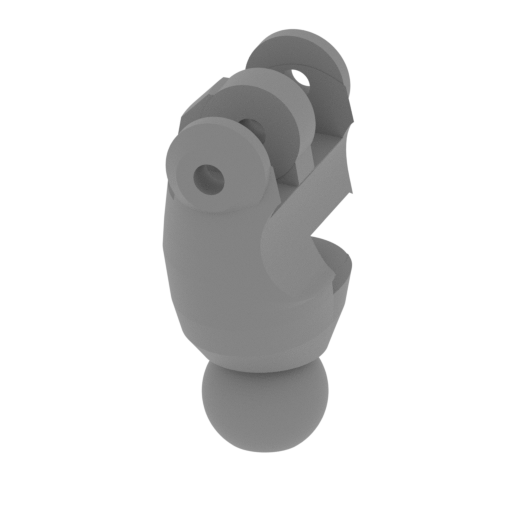

_25_shoulder_hand_base_R (repaired).stl
1.11 MiB 32 min <1 m 10 x 17 x 24 Download

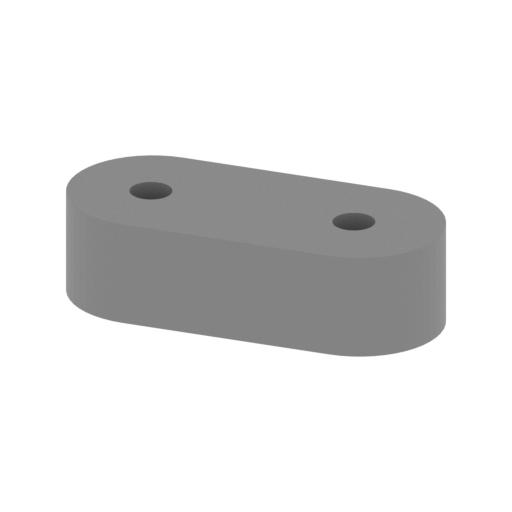

_26_shoulder_joint_arm_1_ x2 (repaired).stl
0.04 MiB 7 min <1 m 18 x 8 x 5 Download

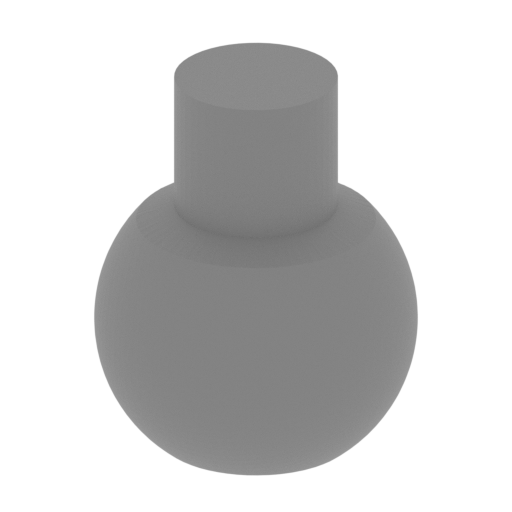

_27_shoulder_joint_arm_2_ x2 (repaired).stl
0.53 MiB 6 min <1 m 8 x 8 x 9 Download

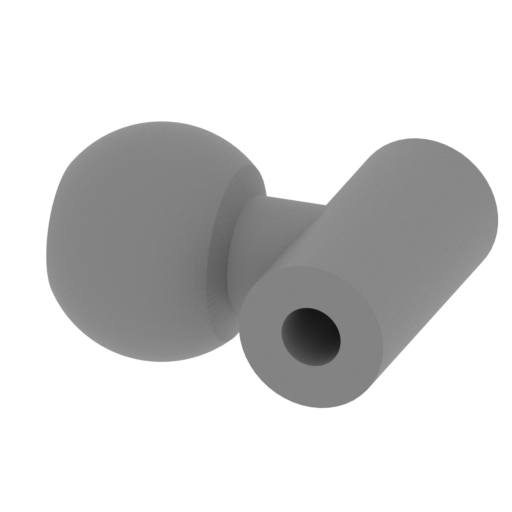

_28_shoulder_joint_should er_x2 (repaired).stl
0.58 MiB 8 min <1 m 12 x 10 x 8 Download

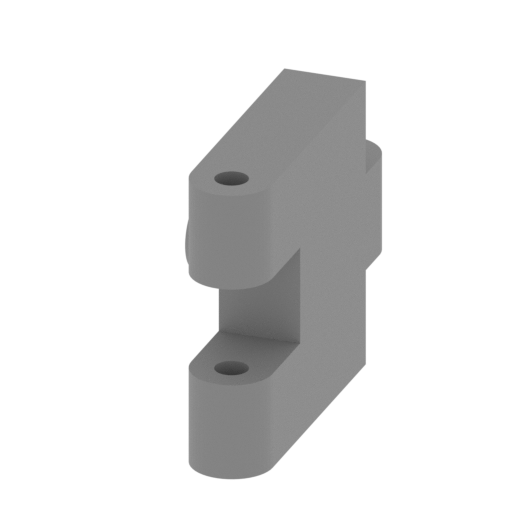

_29_shoulder_lever_1_x2 ( repaired).stl
0.09 MiB 21 min <1 m 9 x 22 x 18 Download

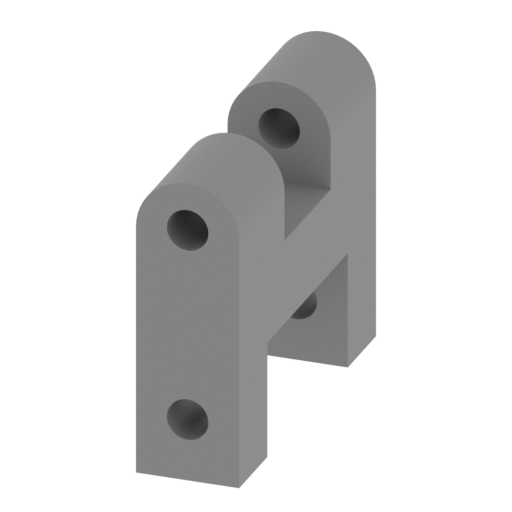

_30_shoulder_lever_2_x2 ( repaired).stl
0.06 MiB 19 min <1 m 5 x 18 x 15 Download

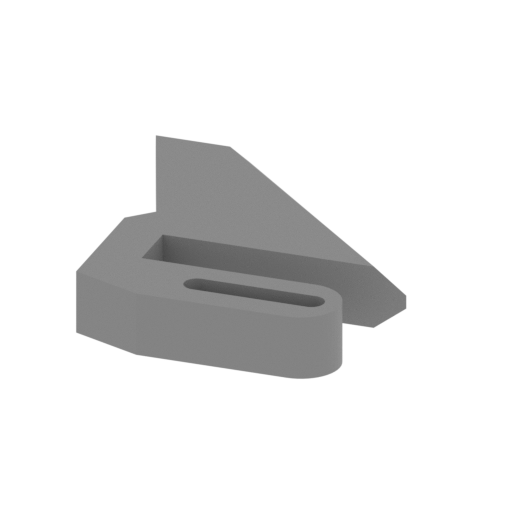

_31_shoulder_wing_x2 (re paired).stl
0.02 MiB 18 min <1 m 26 x 29 x 5 Download

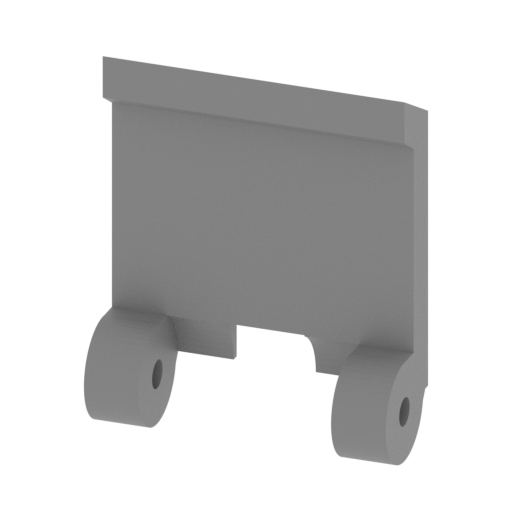

_33_pelvis_claw_1_x2 (rep aired).stl
0.09 MiB 30 min <1 m 21 x 8 x 26 Download

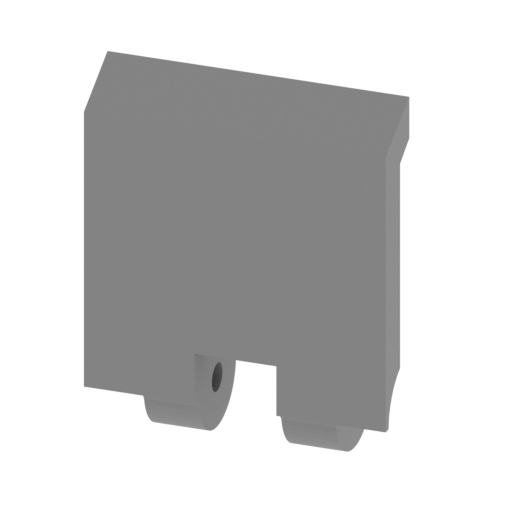

_34_pelvis_claw_2 x2 (rep aired).stl
0.08 MiB 31 min <1 m 21 x 8 x 26 Download

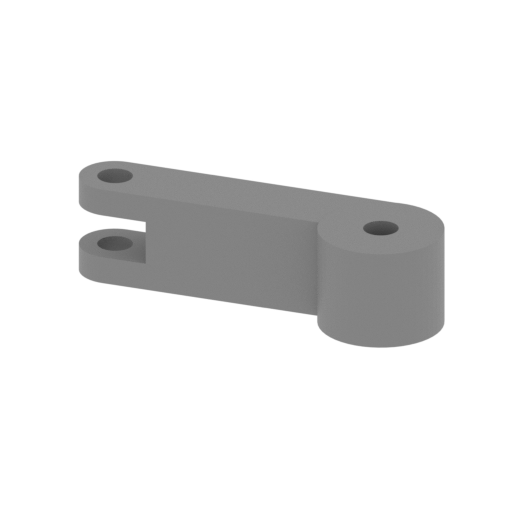

_35_pelvis_claw_3_x2 (rep aired).stl
0.11 MiB 8 min <1 m 22 x 7 x 6 Download

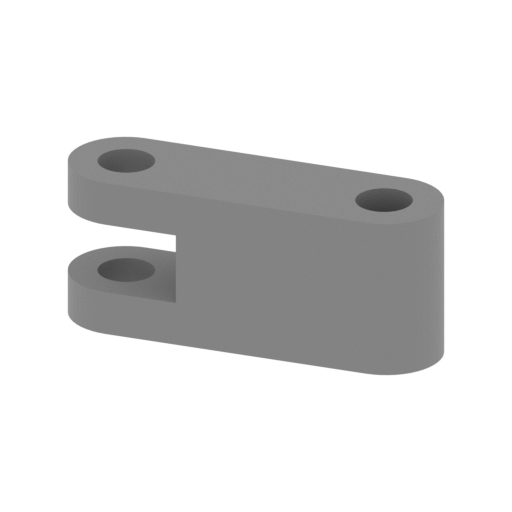

_36_pelvis_claw_4_x2 (rep aired).stl
0.07 MiB 6 min <1 m 14 x 4 x 6 Download

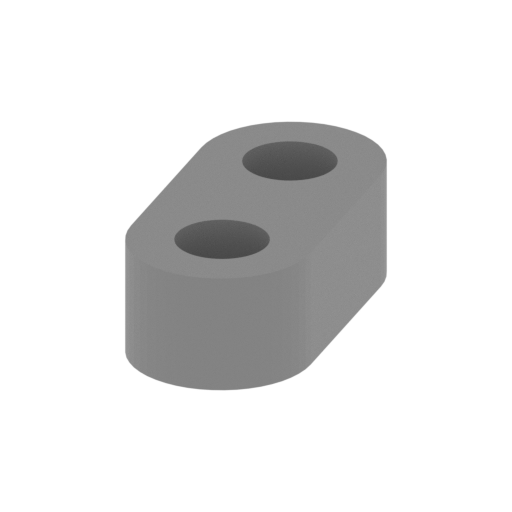

_37_pelvis_claw_5_x2 (rep aired).stl
0.03 MiB 3 min <1 m 4 x 8 x 3 Download

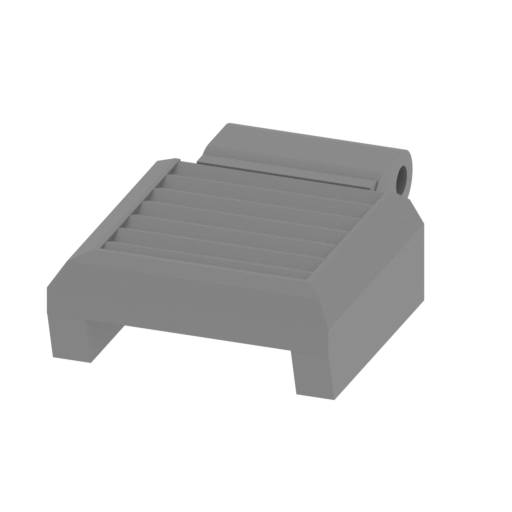

_38_pelvis_door (repaired ).stl
0.10 MiB 26 min <1 m 19 x 25 x 7 Download

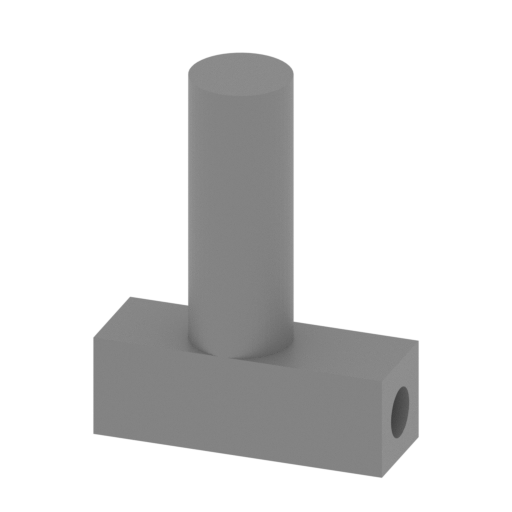

_39_pelvis_joint_truck_x2 (repaired).stl
0.24 MiB 8 min <1 m 12 x 4 x 15 Download

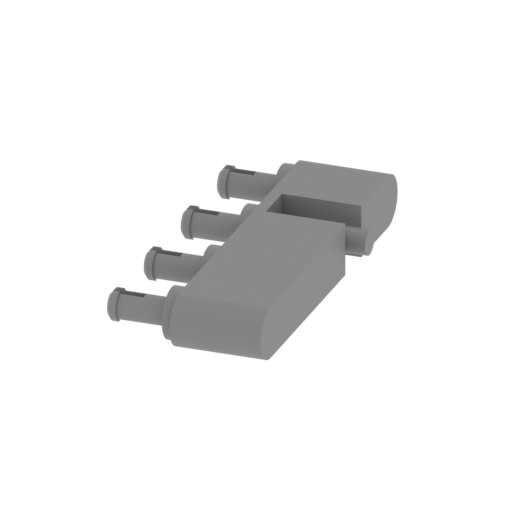

_40_pelvis_pelvis_block_t ruck_x2 (repaired).stl
0.40 MiB 1 h 6 min 1 m 29 x 60 x 9 Download

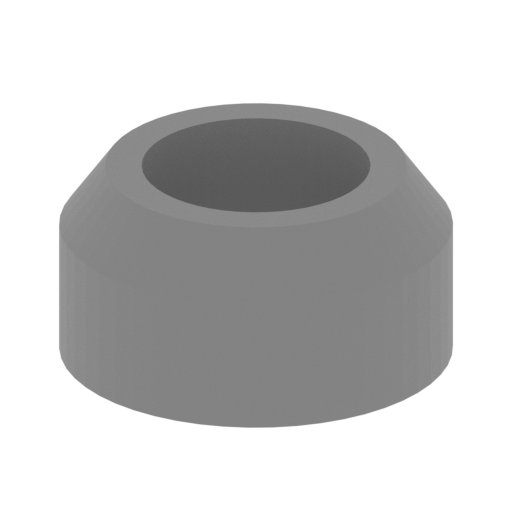

_42_pelvis_pin_lock_x2 (r epaired).stl
0.03 MiB 3 min <1 m 7 x 7 x 3 Download
_43_pelvis_sword (repaire d).stl
0.04 MiB 2 h 38 min 1 m 13 x 6 x 218 Download
_44_pelvis_truck_2_x2 (re paired).stl
0.05 MiB 15 min <1 m 9 x 39 x 7 Download
_45_pelvis_truck_lock_x2 (repaired).stl
0.04 MiB 25 min <1 m 60 x 11 x 10 Download

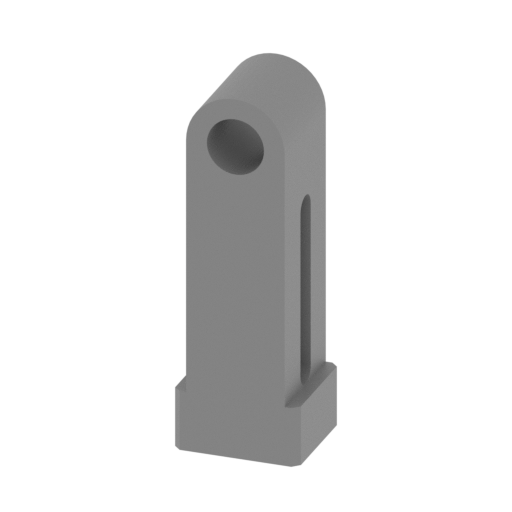

_46_pelvis_truck_1_x2 (re paired).stl
0.08 MiB 29 min <1 m 9 x 8 x 26 Download

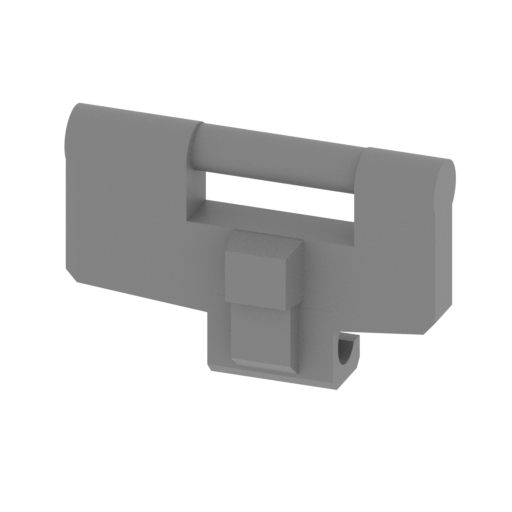

_47_pelvis_truck_x38 (rep aired).stl
0.22 MiB 12 min <1 m 18 x 5 x 12 Download

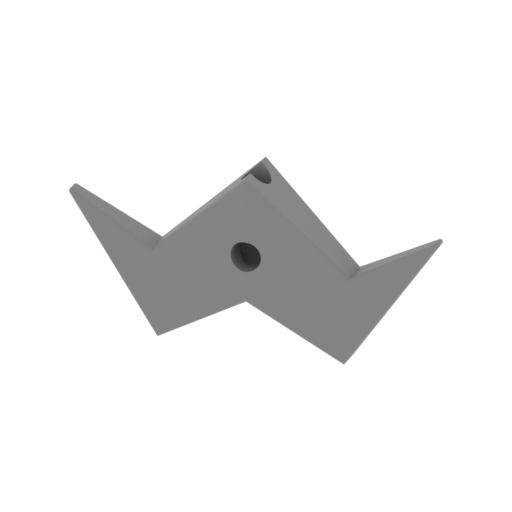

_48_pelvis_v_logo_x2 (rep aired).stl
0.11 MiB 49 min <1 m 56 x 9 x 28 Download

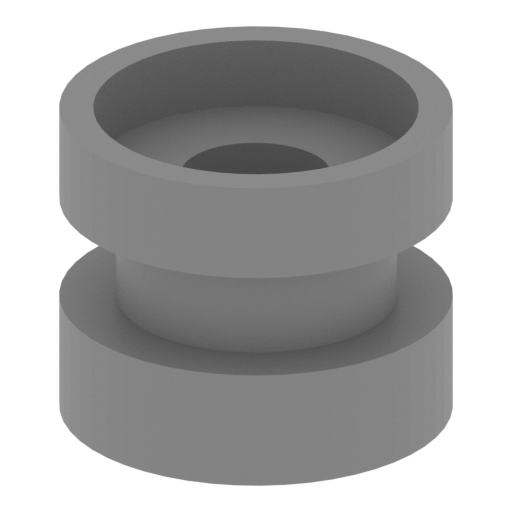

_49_pelvis_wheels_x8 (rep aired).stl
0.10 MiB 17 min <1 m 14 x 14 x 11 Download

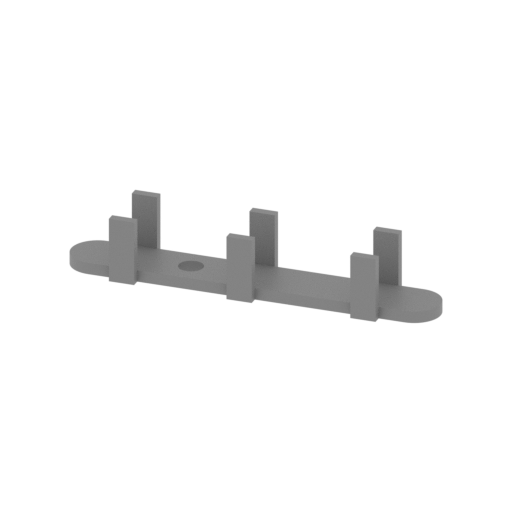

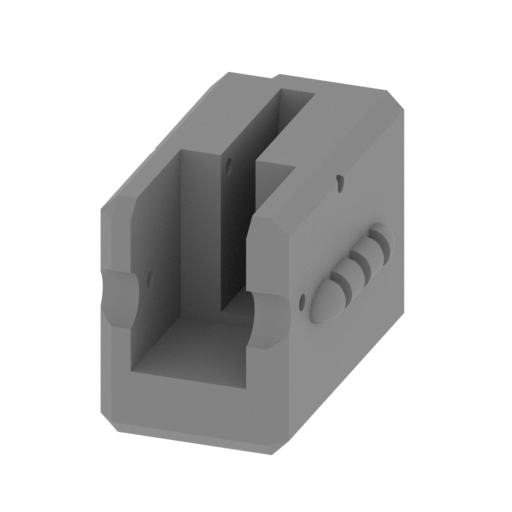

_50_leg_1_L (repaired).st l
1.71 MiB 2 h 52 min 1 m 27 x 43 x 28 Download

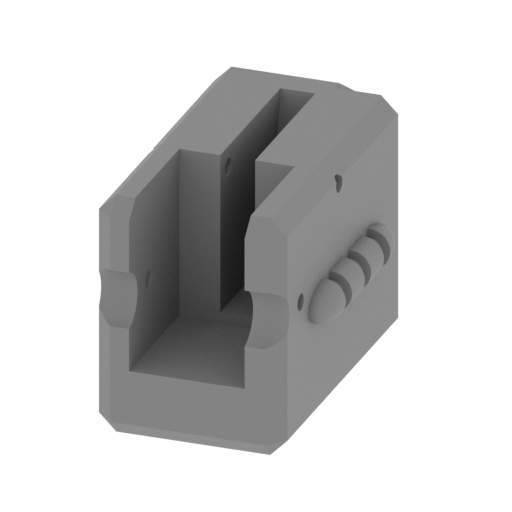

_51_leg_1_ R (repaired).s tl
1.71 MiB 2 h 51 min 1 m 27 x 43 x 28 Download

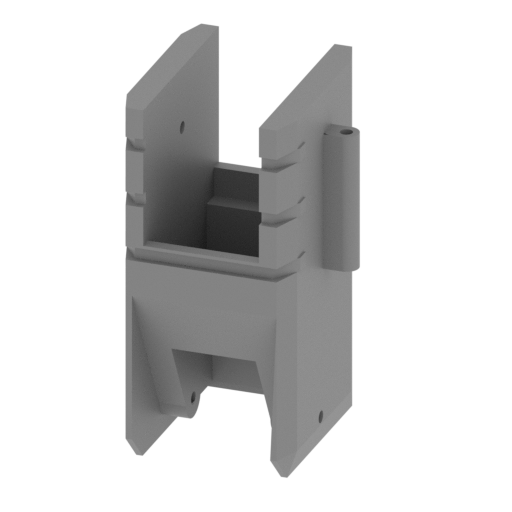

_52_leg_2_L (repaired).st l
0.36 MiB 4 h 11 min 2 m 33 x 35 x 59 Download

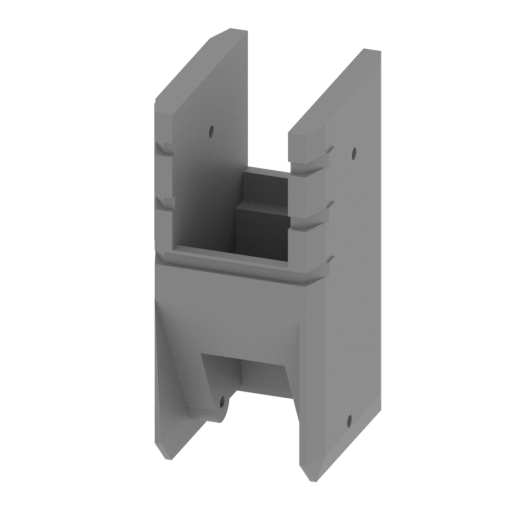

_53_leg_2_R (repaired).st l
0.36 MiB 4 h 8 min 2 m 33 x 35 x 59 Download

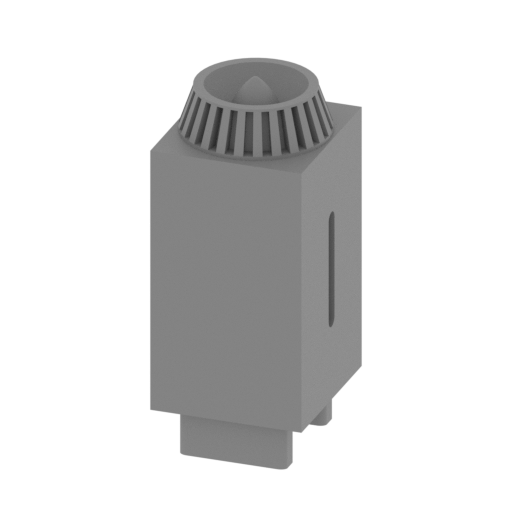

_54_leg_3_L (repaired).st l
0.52 MiB 1 h 42 min 1 m 18 x 20 x 45 Download

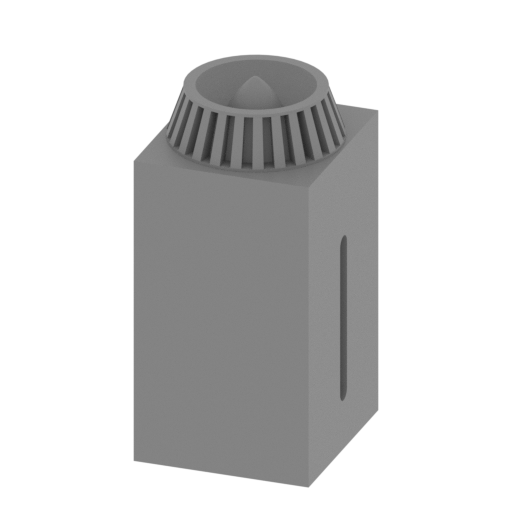

_55_leg_3_R (repaired).st l
0.51 MiB 1 h 41 min 1 m 18 x 20 x 39 Download

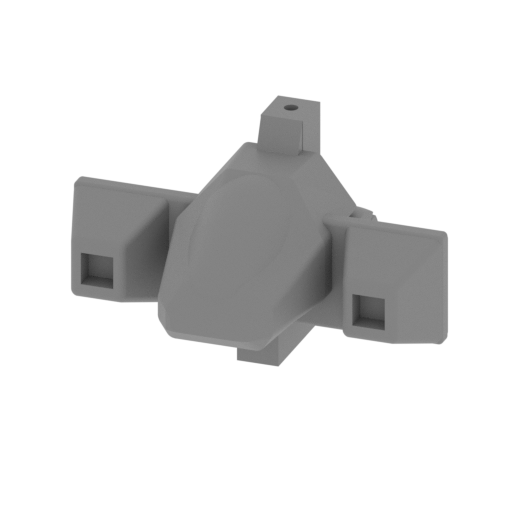

_56_leg_cab (repaired).st l
4.33 MiB 2 h 51 min 2 m 53 x 39 x 32 Download
_57_leg_hip_1_x2 (repaire d).stl
0.63 MiB 18 min <1 m 9 x 9 x 18 Download
_58_leg_hip_2_x2 (repaire d).stl
0.63 MiB 25 min <1 m 11 x 11 x 20 Download
_59_leg_joint_knee_x2 (re paired).stl
0.01 MiB 18 min <1 m 10 x 7 x 18 Download

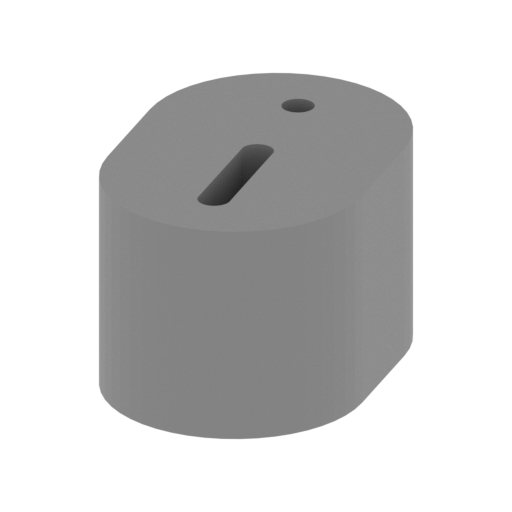

_60_leg_joint_leg x2 (rep aired).stl
0.06 MiB 30 min <1 m 16 x 23 x 14 Download

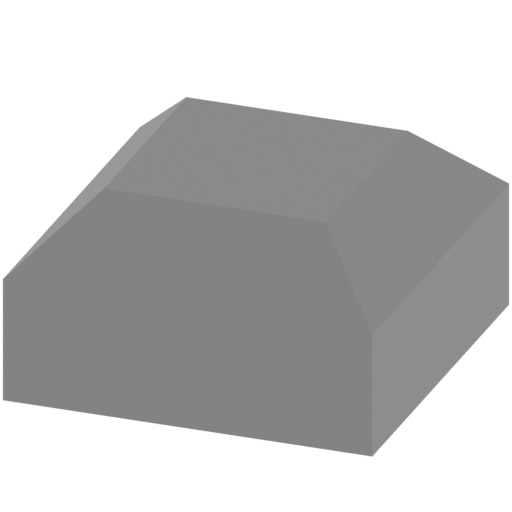

_61_leg_knee_x2 (repaire d).stl
0.01 MiB 9 min <1 m 11 x 11 x 6 Download

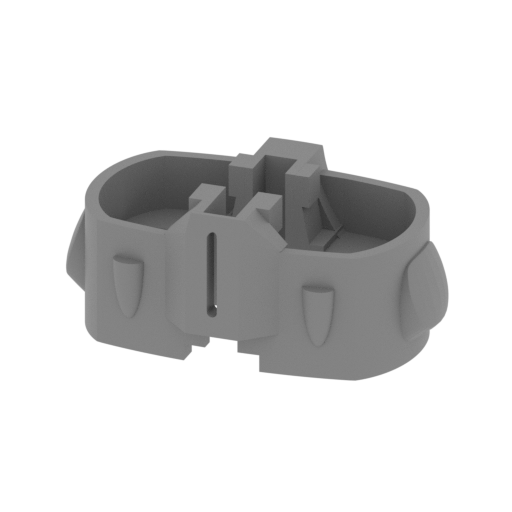

_62_leg_pelvis (repaired) .stl
1.21 MiB 4 h 44 min 3 m 72 x 47 x 33 Download
_63_leg_rear_wing_x2 (rep aired).stl
0.04 MiB 14 min <1 m 4 x 19 x 14 Download

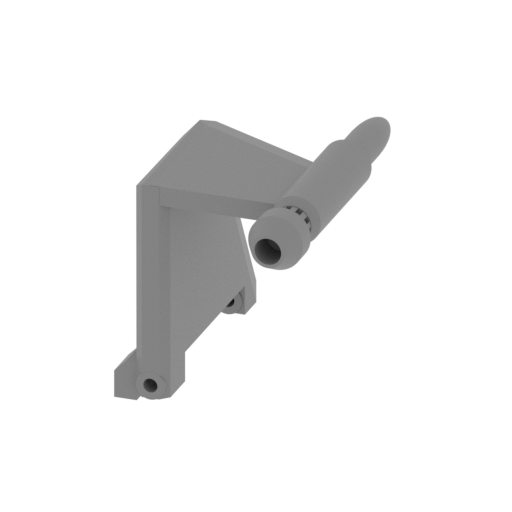

_64_leg_wing_L (repaired) .stl
0.41 MiB 2 h 11 min 2 m 30 x 52 x 34 Download

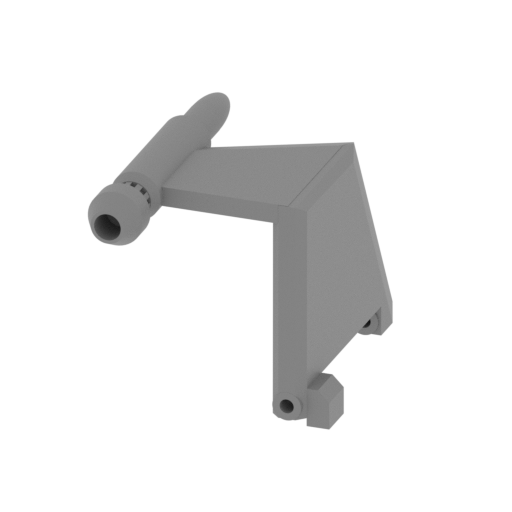

_65_leg_wing_R (repaired) .stl
0.41 MiB 2 h 10 min 2 m 30 x 52 x 34 Download

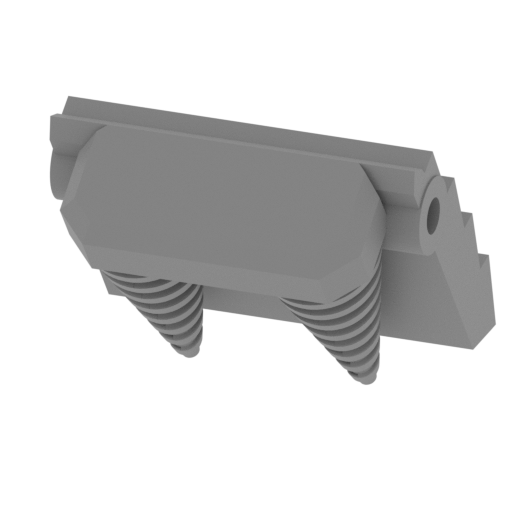

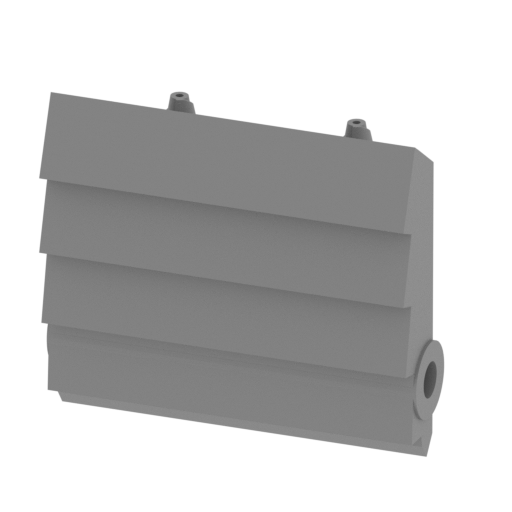

_66_foot_door_L (repaire d).stl
2.91 MiB 33 min <1 m 21 x 10 x 19 Download
_67_foot_door_R (repaired ).stl
2.91 MiB 41 min <1 m 21 x 17 x 16 Download

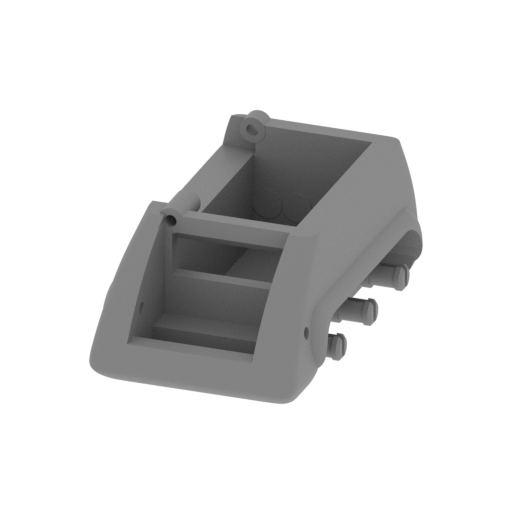

_68_foot_p_1_L (repaired) .stl
2.47 MiB 3 h 36 min 2 m 38 x 62 x 23 Download

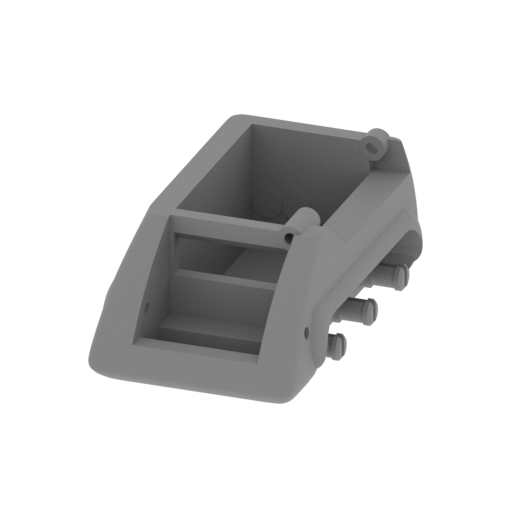

_69_foot_p_1_R repaired). stl
2.47 MiB 3 h 36 min 2 m 38 x 62 x 23 Download

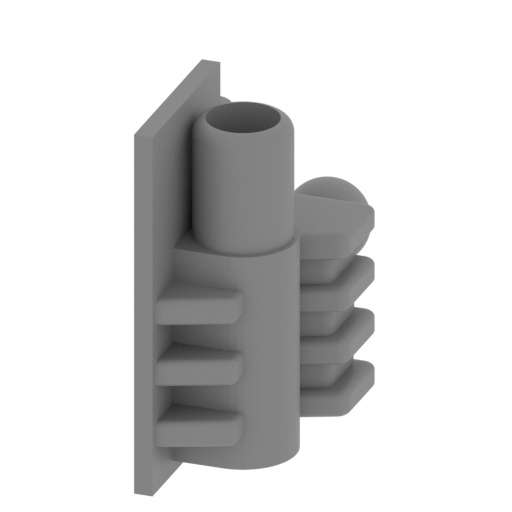

_70_foot_p_2_L (repaired) .stl
1.37 MiB 1 h 16 min 1 m 16 x 30 x 34 Download

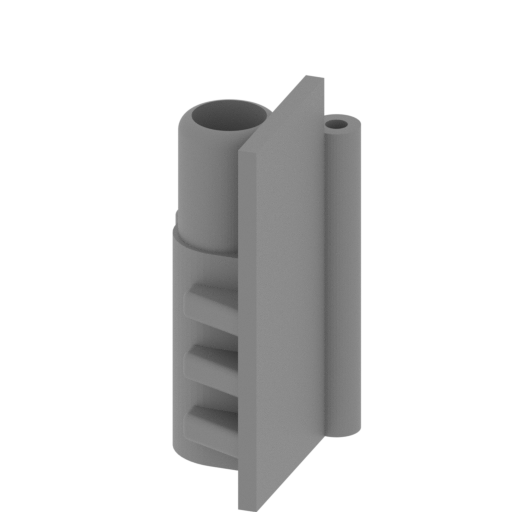

_71_foot_p_2_R (repaired) .stl
1.37 MiB 1 h 17 min 1 m 16 x 30 x 34 Download
_72_foot_p_3_L (repaired) .stl
1.21 MiB 1 h 43 min 1 m 41 x 14 x 37 Download

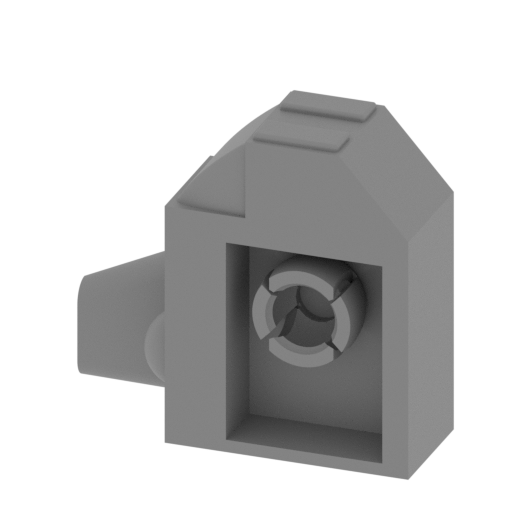

_73_foot_p_3_R (repaired) .stl
1.25 MiB 1 h 56 min 1 m 41 x 19 x 37 Download

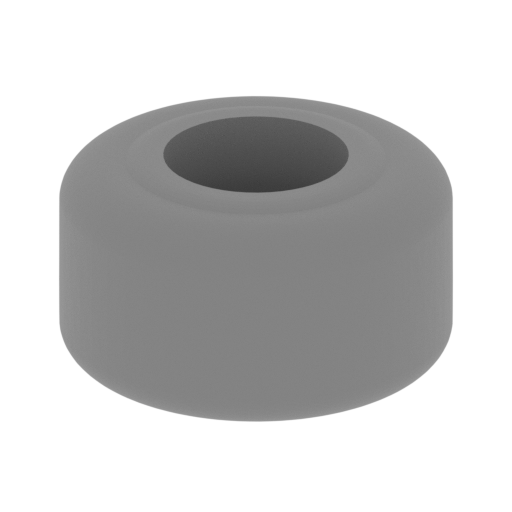

_74_foot_wheels_x12 (repa ired).stl
0.90 MiB 8 min <1 m 12 x 12 x 7 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download

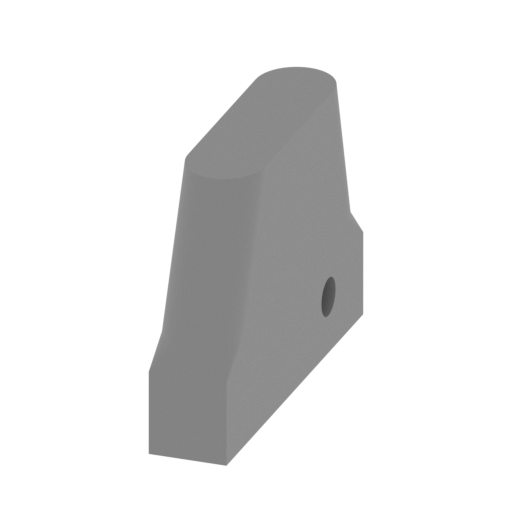

Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

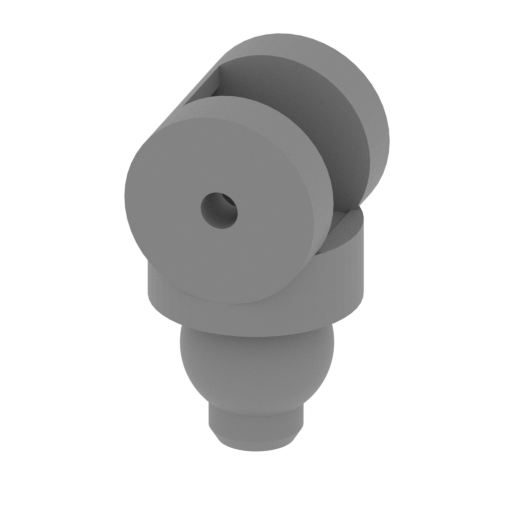

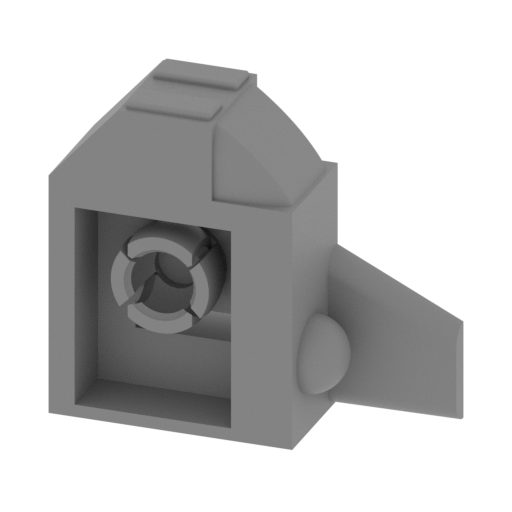

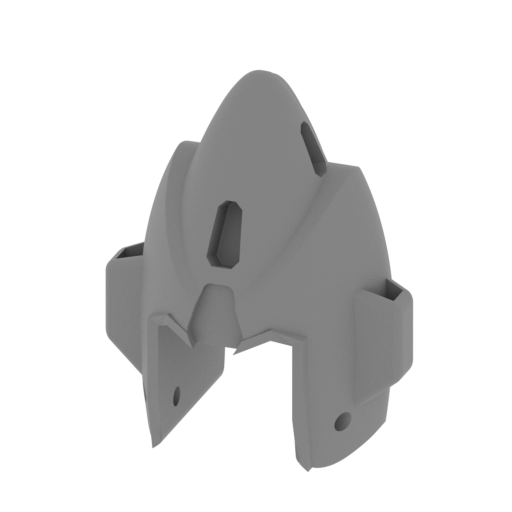

_1_1_head_v2 (repaired).s tl
11.89 MiB 1 h 55 min 1 m 32 x 25 x 40 Download

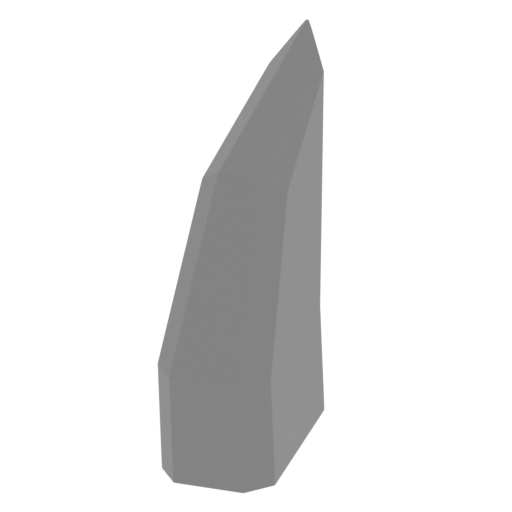

_1_2_head_horn_front_v2 ( repaired).stl
0.30 MiB 4 min <1 m 3 x 8 x 11 Download

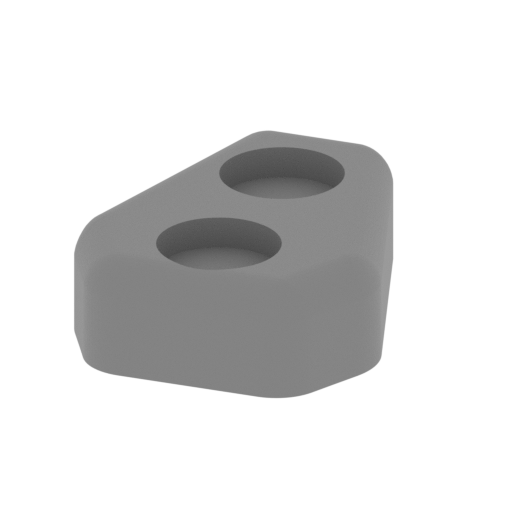

_1_3_head_panel_v2 (repai red).stl
0.20 MiB 2 min <1 m 6 x 7 x 2 Download

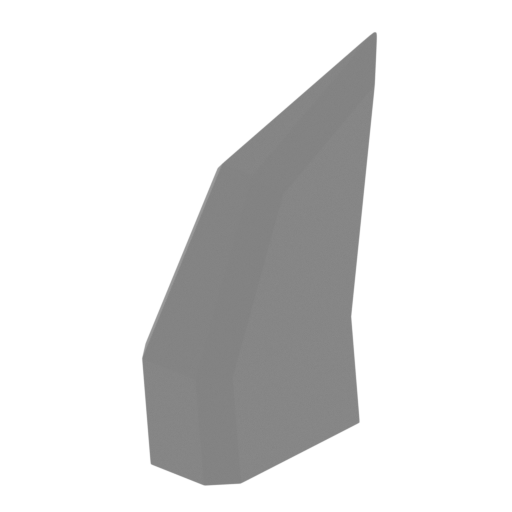

_1_4_head_horn_side_x2_v2 (repaired).stl
0.30 MiB 3 min <1 m 4 x 7 x 9 Download

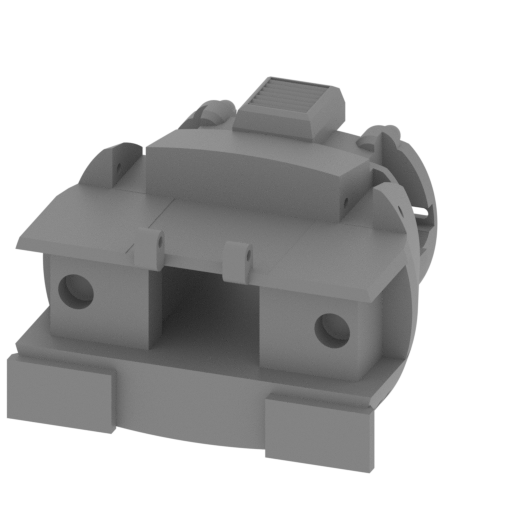

_32_pelvis (repaired).stl
1.82 MiB 11 h 24 min 7 m 67 x 67 x 47 Download

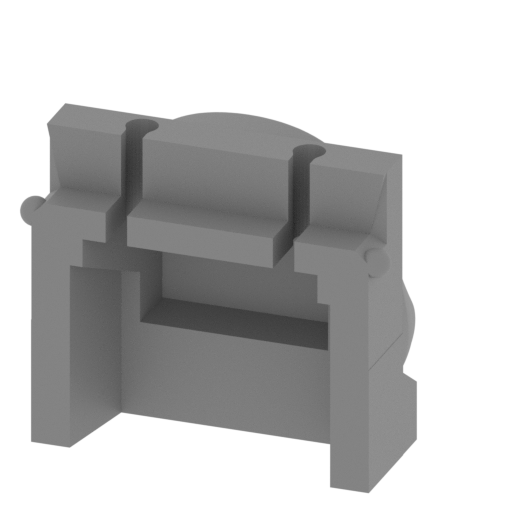

_41_pelvis_pelvis_cab (re paired) (1).stl
6.44 MiB 56 min 1 m 26 x 21 x 21 Download
...

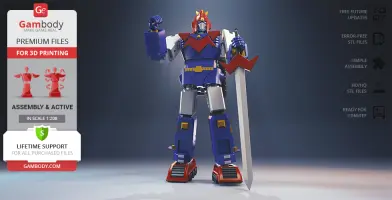

ABOUT THIS 3D MODEL

All of a sudden, a mysterious and ruthless race of horned humanoid aliens has invaded the Earth and unleashed their Beast Fighters onto the planet. In order to stop the Boazan invaders and prevent the alien conquest of the home planet, a group of specially trained individuals is assembled to become the pilots of the Voltes V, also known as "Super Electromagnetic Machine Voltes V". This formidable battle robot comprises five separate “Volt Machines”, each operated by a brave hero. Directly from the 80s, Voltes V finally joins our selection of 3D printing Super Robots!

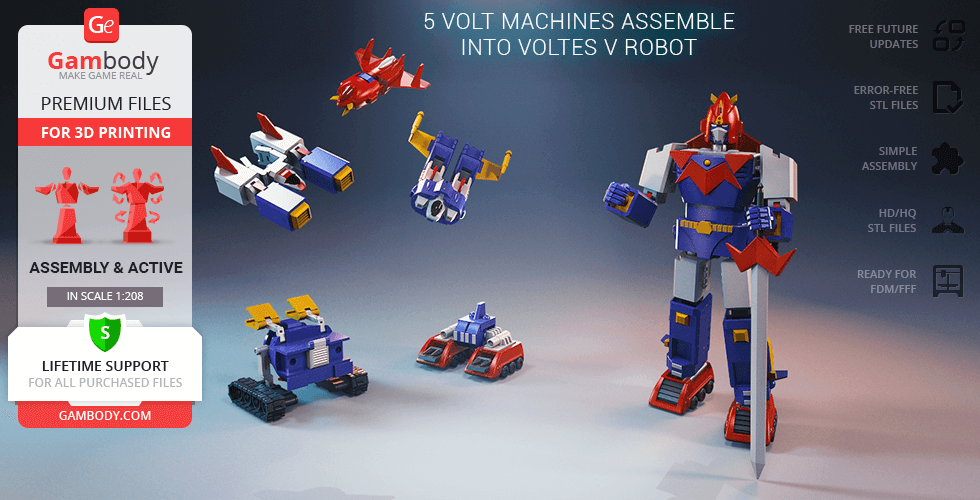

Known to be an exceptional engineer and a fan of classic Japanese mecha, the author of the Voltes V 3D printing model dedicated much thought and effort to the preparation of the super robot that is to be assembled out of five separate machines. Indeed, the fully combined Voltes V comprises Volt Crewzer, Volt Bomber, Volt Panzer, Volt Frigate and Volt Lander that can be displayed independently as well! Reinforce the struggle against Boazan invaders by 3D printing your own Voltes V!

ADAPTATION FOR 3D PRINTING

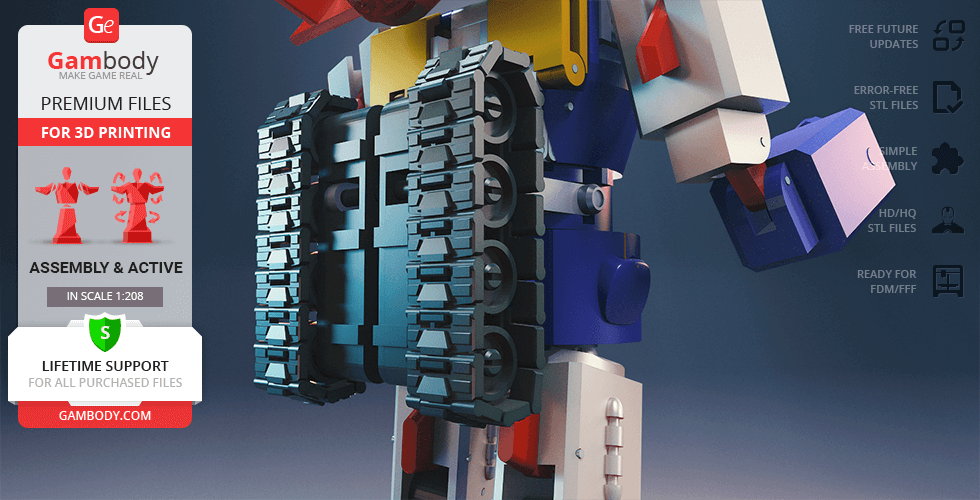

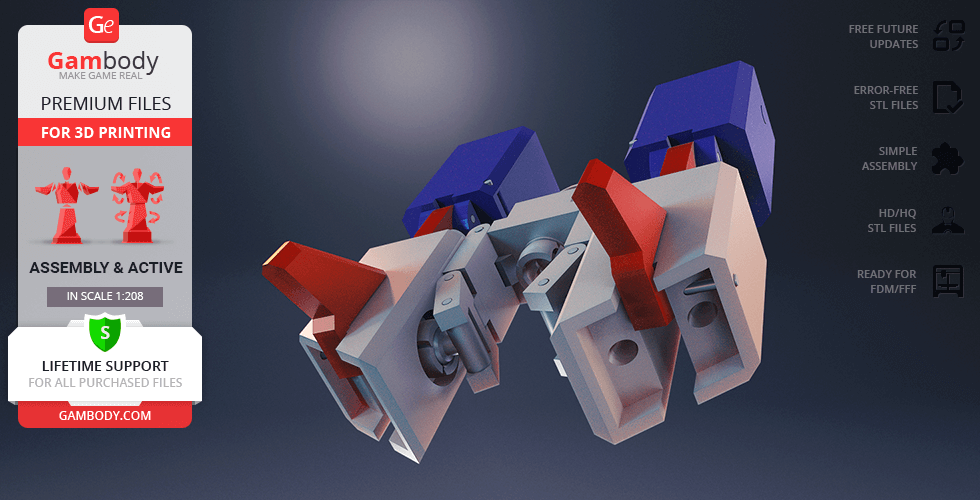

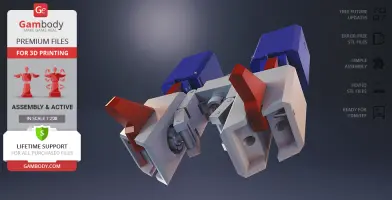

Voltes V model for 3D printing is a fully articulated assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 40 hours in total. In order to ensure the transformation of five separate Voltes into Voltes V robot, the joints of the model were equipped with a system of articulated interlocking mechanisms

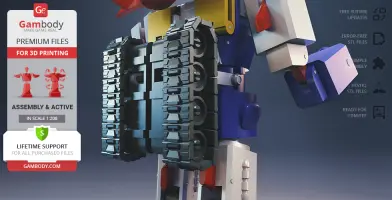

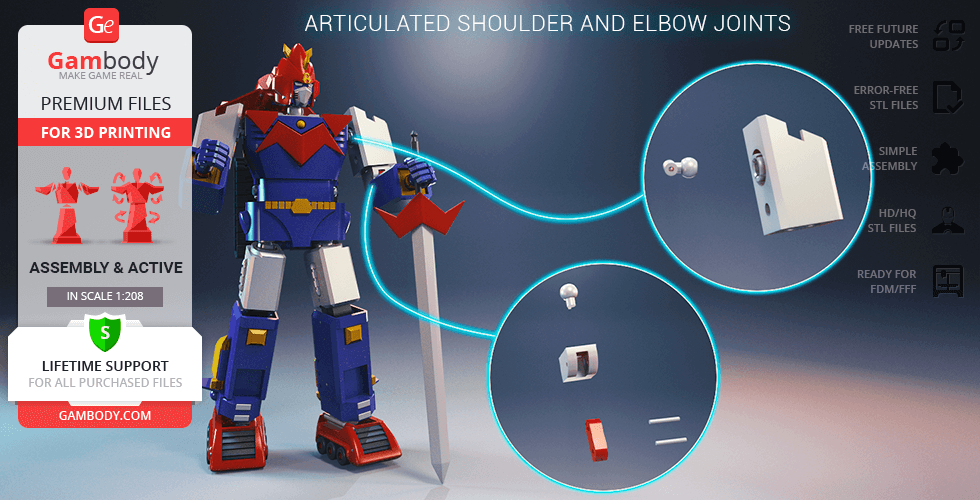

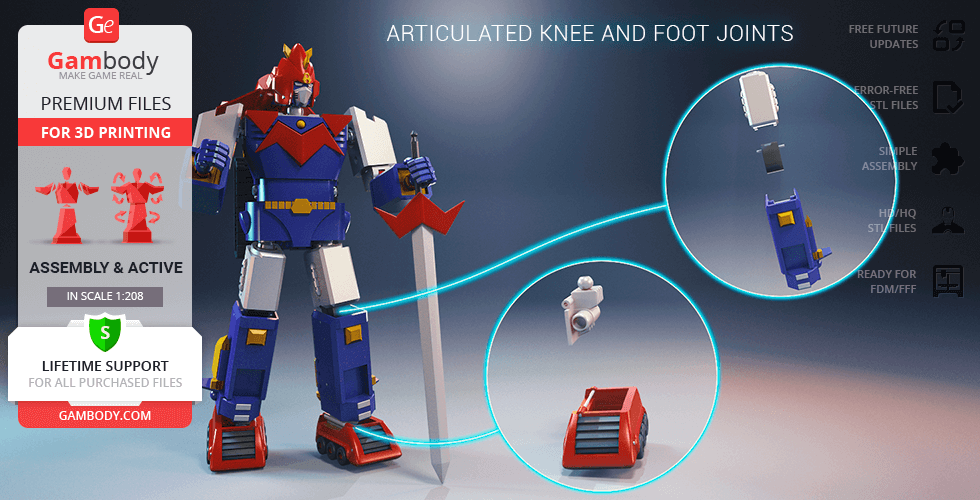

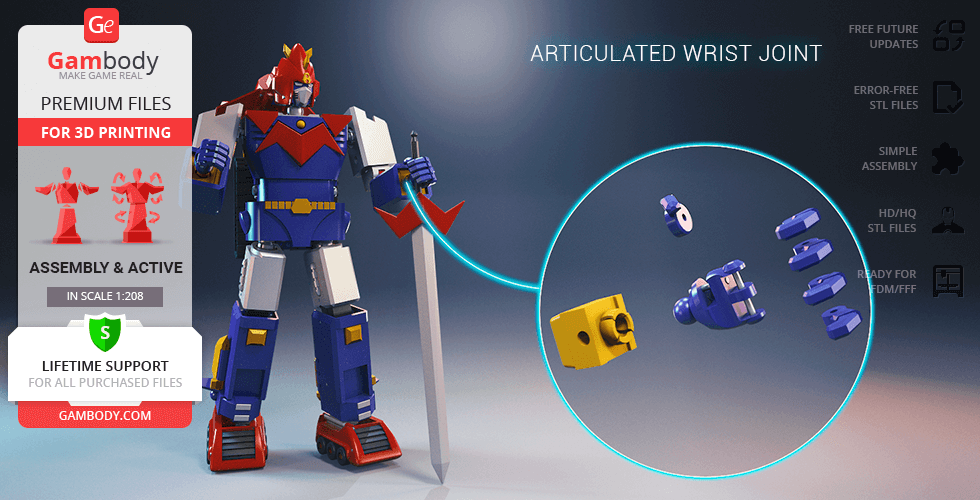

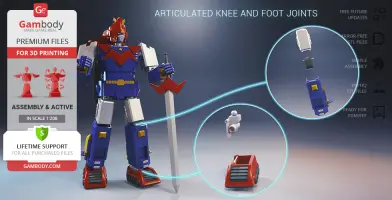

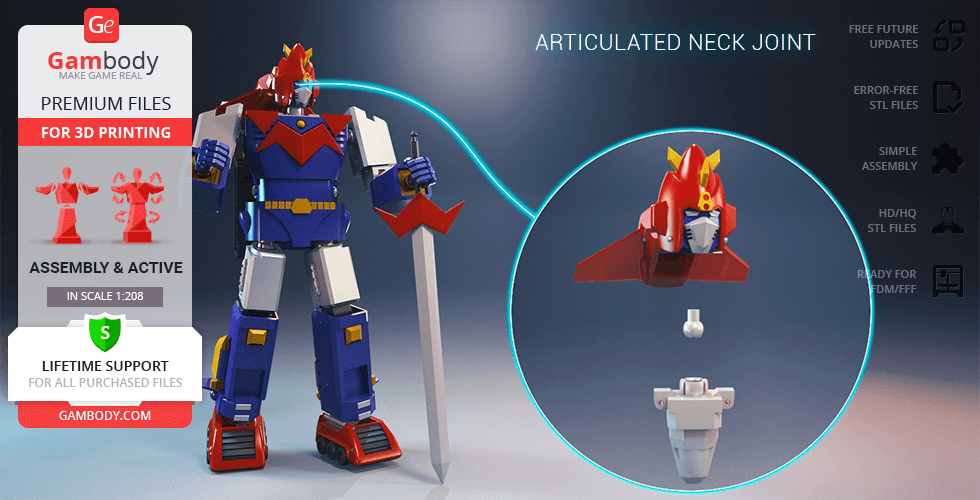

For you to have an opportunity to display your Voltes V in various positions, robot’s neck, shoulders, elbows, wrists, fingers, knee and feet were made articulated. The model can be assembled without glue or screws but you will need additional “pins” to secure the parts. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA.

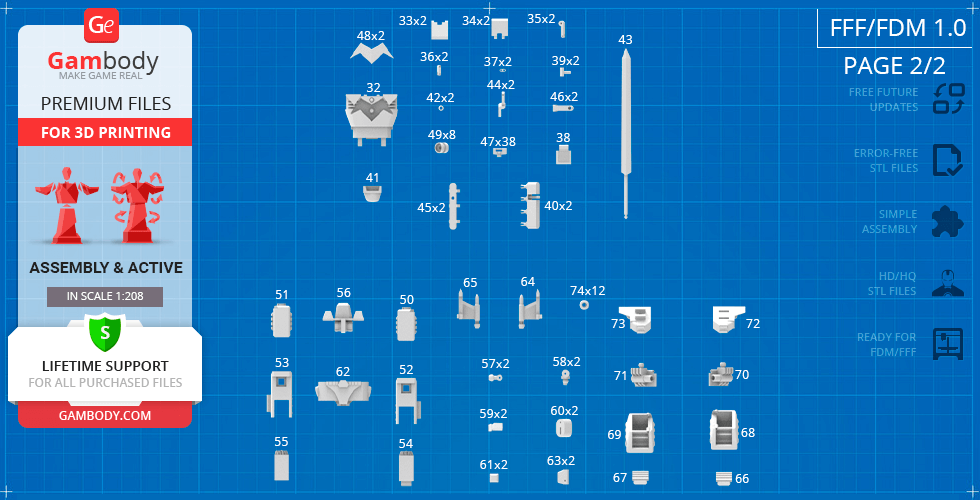

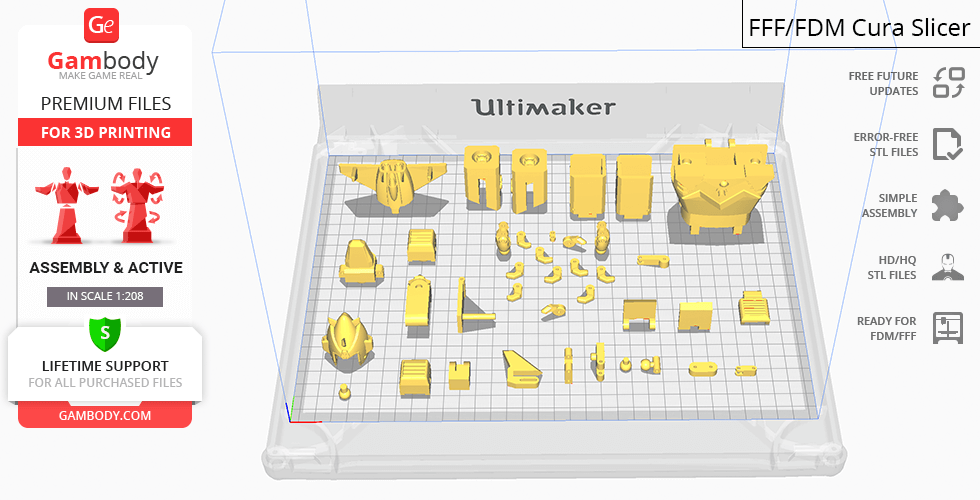

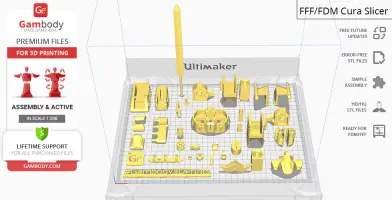

All the assembly parts are provided in STL files in recommended positions that were worked out to ensure the smoothness of the details’ surfaces after printing and to make sure that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 version in PDF format. Make sure to watch "Assembly video" in the photo preview section and read the "Assembly Manual" before getting down to the Voltes V model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the height of the Voltes V which is 58000 mm. The 3D printing model's chosen scale is 1:208 for the FFF/FDM version.

VERSION'S SPECIFICATIONS

FFF/FDM 1.0 version features:- Contains 74 parts;- Volt Crewzer stands 30 mm tall, 75 mm wide, 80 mm deep;- Volt Bomber stands 43 mm tall, 81 mm wide, 103 mm deep;- Volt Panzer stands 86 mm tall, 104 mm wide, 75 mm deep;- Volt Frigate stands 48 mm tall, 133 mm wide, 146 mm deep;- Volt Lander stands 61 mm tall, 97 mm wide, 67 mm deep;- Voltes V (all parts combined) stands 278 mm tall, 122 mm wide, 92 mm deep;- Each robot’s joint is articulated which allows the model's transformation into 5 separate Voltes;- Voltes' neck, shoulders, elbows, wrists, fingers, knee and feet + the tracks and the wheels are articulated;- The model can be assembled with 1.75 PLA pins only;- Watch "Assembly video" to see the pins coloured red; - With any file of the model, you will also receive the instructions on the assembly peculiarities in a PDF file "Assembly Manual";- All parts are divided in such a way that you will print them with the smallest number of support structures.

You can get the model of Voltes V for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Voltes V 3D Printing Model at Gambody YouTube channel.

Also, you may like other Robot 3D Printing Models as well as other Anime 3D Printing Figurines.

_______FAQ: Where can I print a model if I have no printer?How to get started with 3D printing?How to set up my 3D printer?How to choose right 3D model print bed positioning? How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus
