Ebon Hawk 3D Printing Model | Assembly

(6)
cm: 49 w x 50 d x 10 h
in: 19.291 w x 19.685 d x 3.937 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Ebon Hawk 3D Printing Model comes in 2 versions for each 3D printer type (FFF/FDM/DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

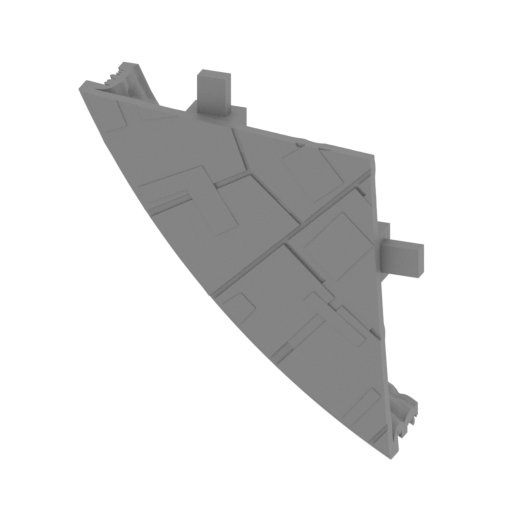

ebon 50cm_1 (repaired).st l
8.21 MiB 8 h 39 min 5 m 87 x 32 x 92 Download

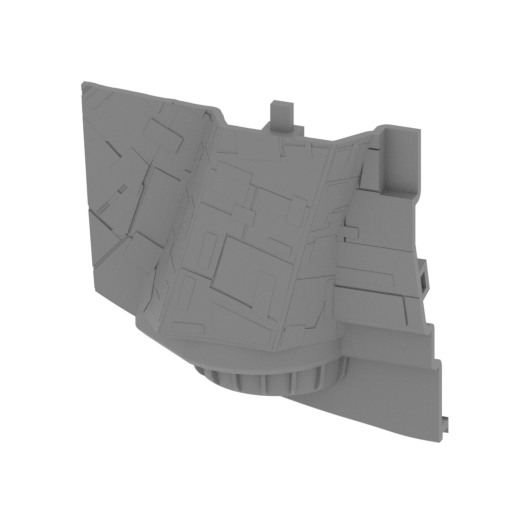

ebon 50cm_2 (repaired).st l
4.31 MiB 23 h 29 min 17 m 120 x 49 x 133 Download

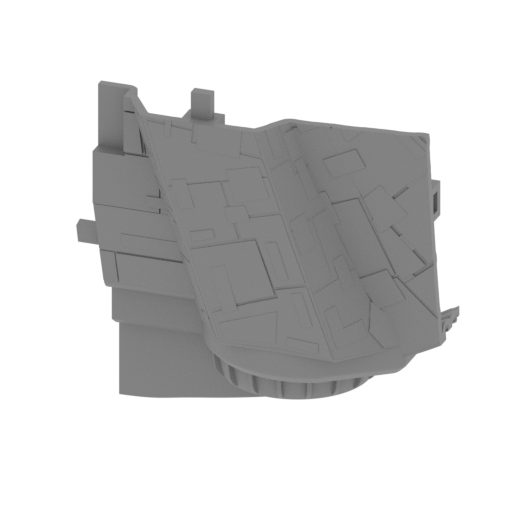

ebon 50cm_3 (repaired).st l
3.97 MiB 23 h 32 min 17 m 128 x 49 x 133 Download

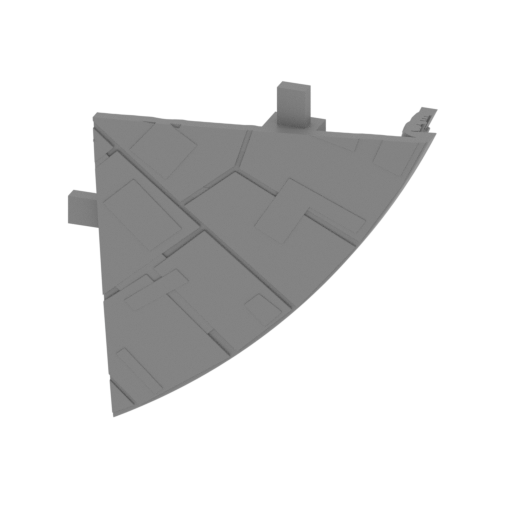

ebon 50cm_4 (repaired).st l
7.33 MiB 8 h 47 min 5 m 88 x 32 x 92 Download

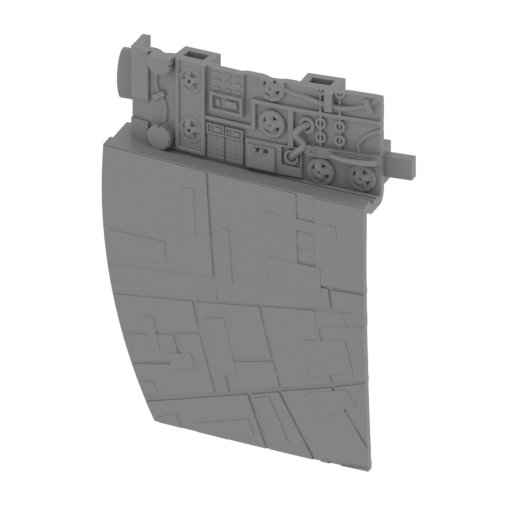

ebon 50cm_5 (repaired).st l
13.13 MiB 19 h 3 min 13 m 104 x 37 x 125 Download

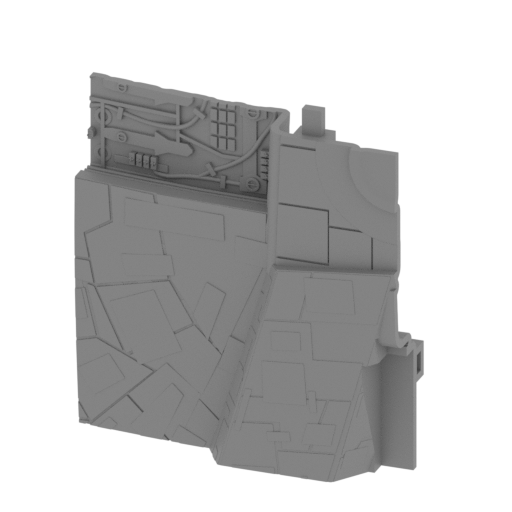

ebon 50cm_6 (repaired).st l
6.38 MiB 23 h 30 min 18 m 120 x 56 x 134 Download

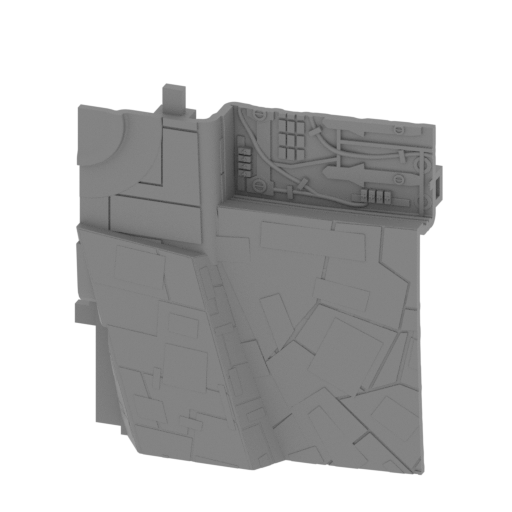

ebon 50cm_7 (repaired).st l
6.76 MiB 23 h 9 min 18 m 128 x 56 x 134 Download

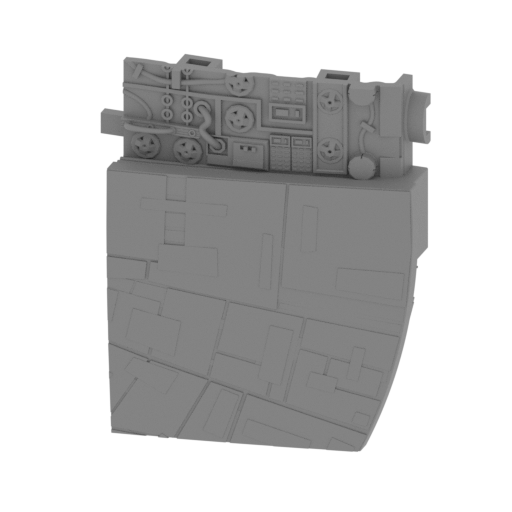

ebon 50cm_8 (repaired).st l
11.93 MiB 19 h 16 min 13 m 106 x 37 x 125 Download

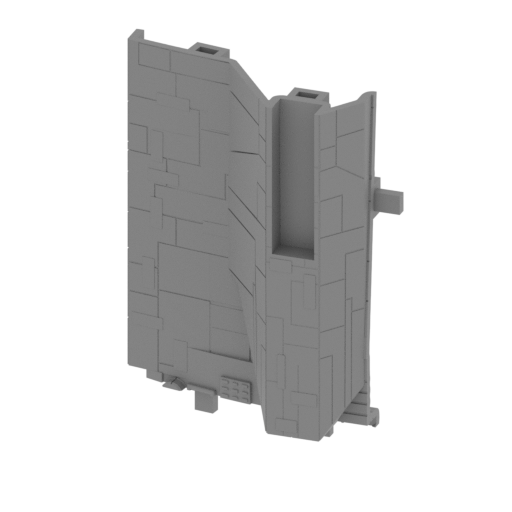

ebon 50cm_9 (repaired).st l
1.54 MiB 14 h 45 min 10 m 105 x 46 x 135 Download

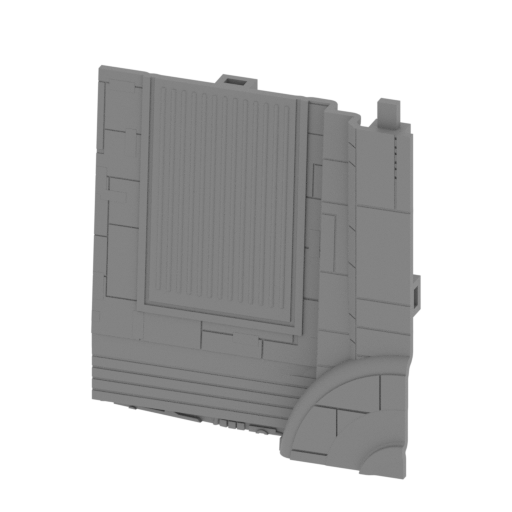

ebon 50cm_10 (repaired).s tl
1.87 MiB 12 h 55 min 9 m 120 x 36 x 135 Download

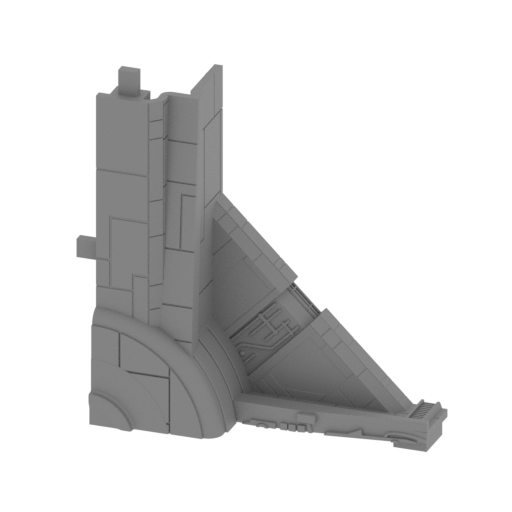

ebon 50cm_11 (repaired).s tl
1.81 MiB 11 h 16 min 7 m 128 x 48 x 141 Download

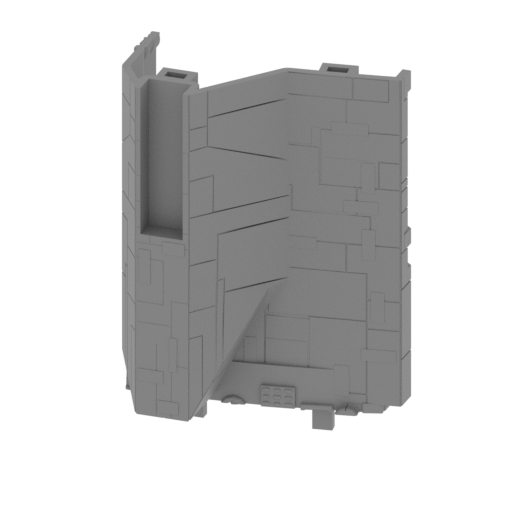

ebon 50cm_12 (repaired).s tl
1.56 MiB 14 h 53 min 9 m 96 x 46 x 135 Download

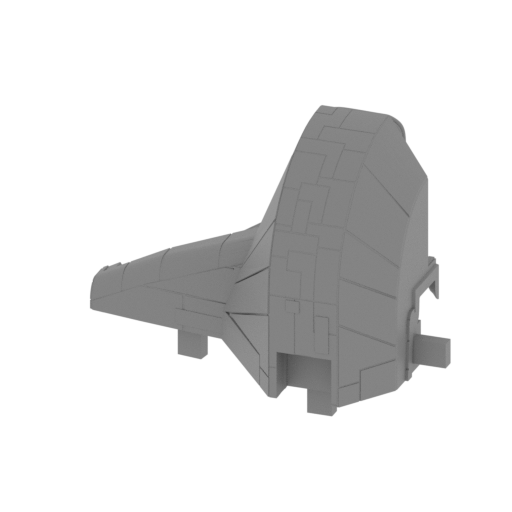

ebon 50cm_13 (repaired).s tl
3.58 MiB 10 h 29 min 7 m 105 x 46 x 77 Download

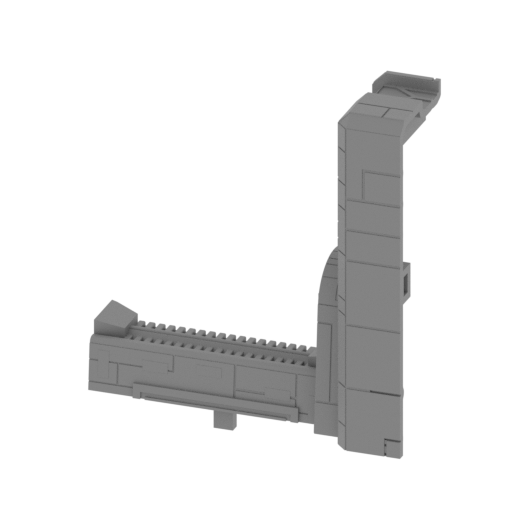

ebon 50cm_14 (repaired).s tl
1.66 MiB 16 h 53 min 13 m 120 x 40 x 135 Download

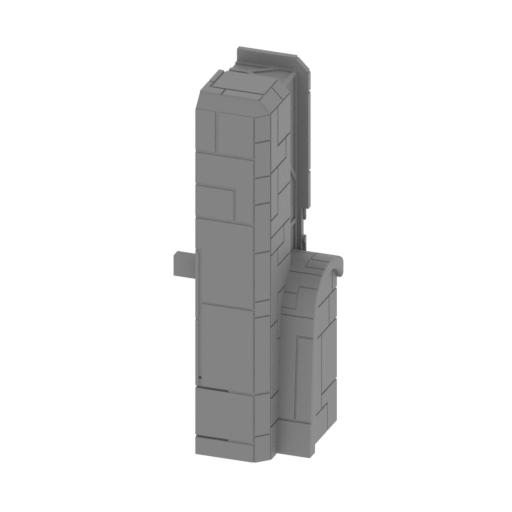

ebon 50cm_15 (repaired).s tl
0.96 MiB 11 h 29 min 9 m 45 x 40 x 126 Download

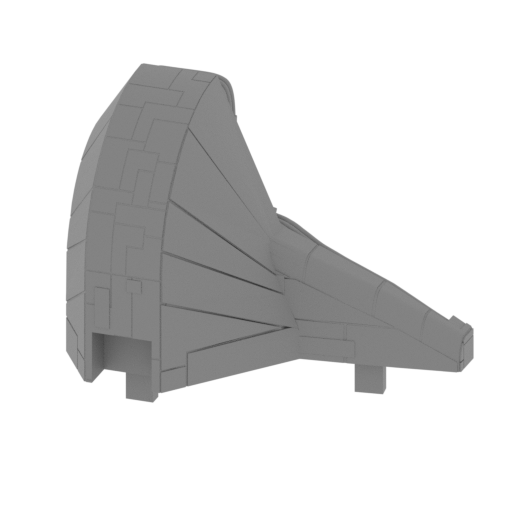

ebon 50cm_16 (repaired).s tl
3.50 MiB 10 h 11 min 7 m 96 x 46 x 77 Download

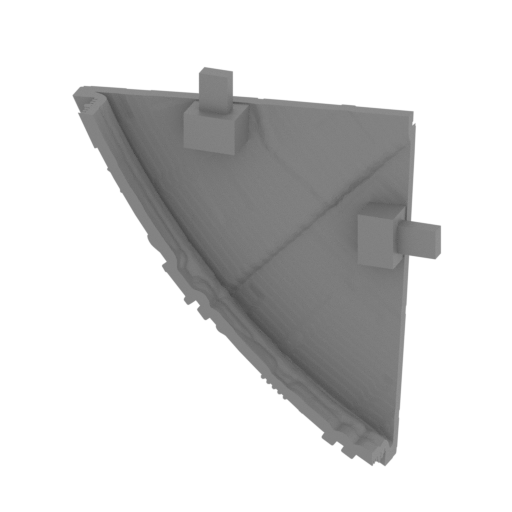

ebon 50cm_17 (repaired).s tl
4.74 MiB 7 h 5 min 4 m 87 x 29 x 92 Download

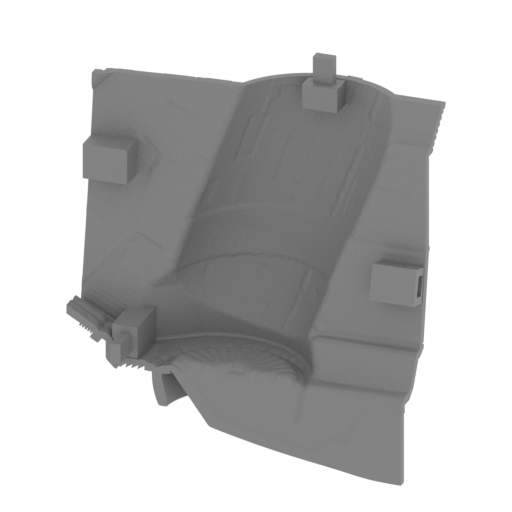

ebon 50cm_18 (repaired).s tl
3.10 MiB 21 h 40 min 15 m 120 x 62 x 133 Download

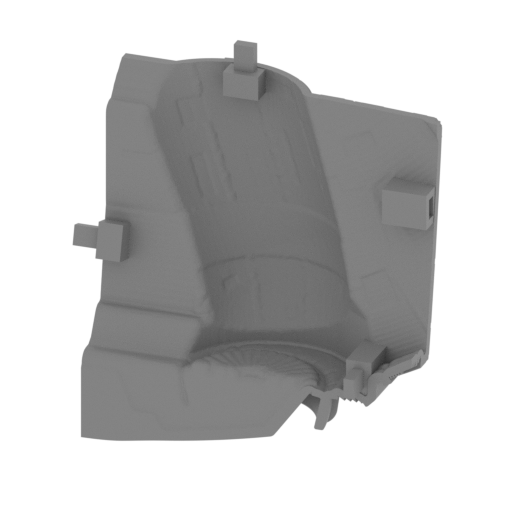

ebon 50cm_19 (repaired).s tl
3.23 MiB 21 h 34 min 15 m 128 x 62 x 133 Download

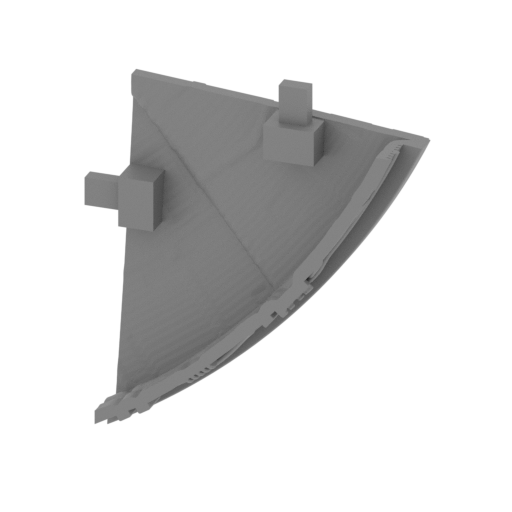

ebon 50cm_20 (repaired).s tl
4.79 MiB 7 h 9 min 4 m 88 x 30 x 92 Download

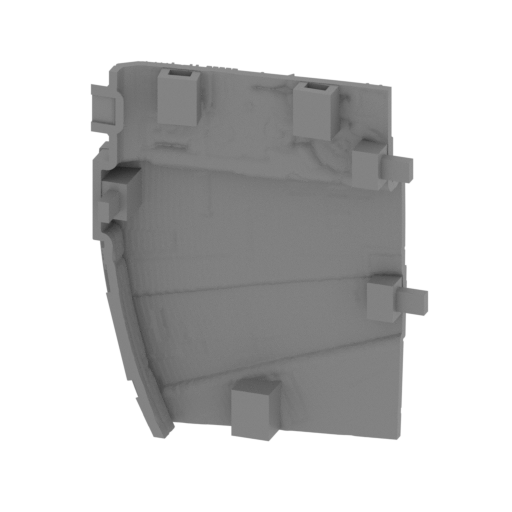

ebon 50cm_21 (repaired).s tl
7.69 MiB 17 h 13 min 12 m 104 x 43 x 125 Download

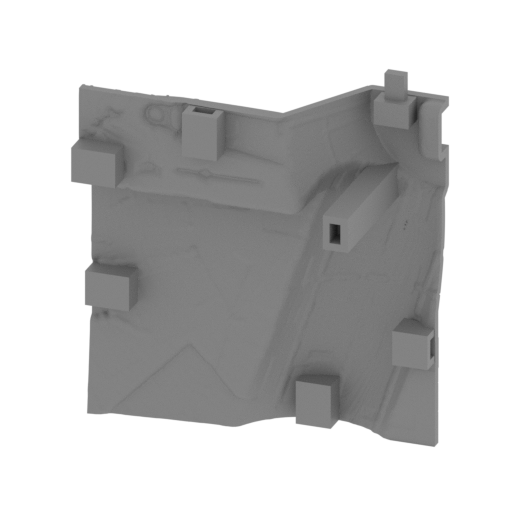

ebon 50cm_22 (repaired).s tl
8.76 MiB 24 h 39 min 19 m 120 x 54 x 134 Download

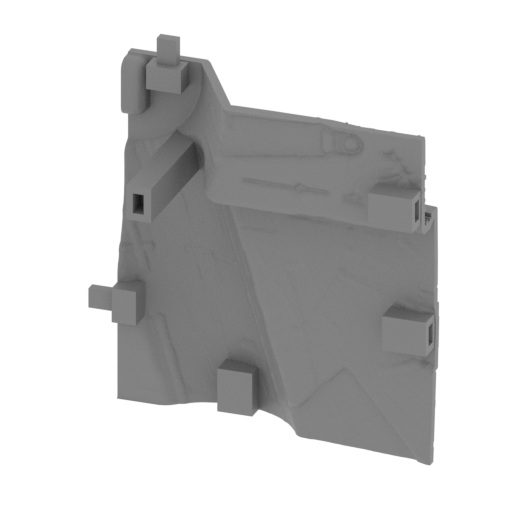

ebon 50cm_23 (repaired).s tl
7.13 MiB 23 h 31 min 18 m 128 x 54 x 134 Download

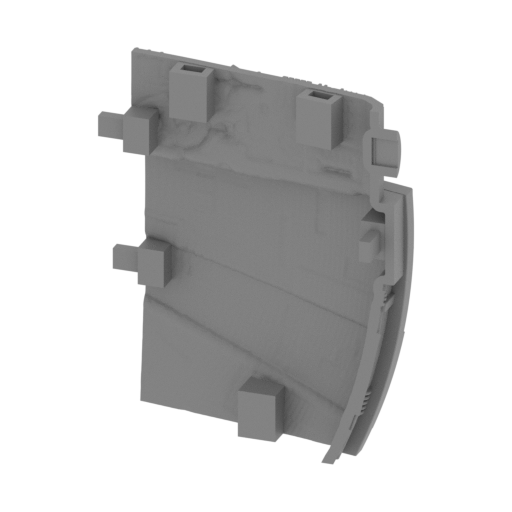

ebon 50cm_24 (repaired).s tl
7.89 MiB 17 h 49 min 12 m 106 x 43 x 125 Download

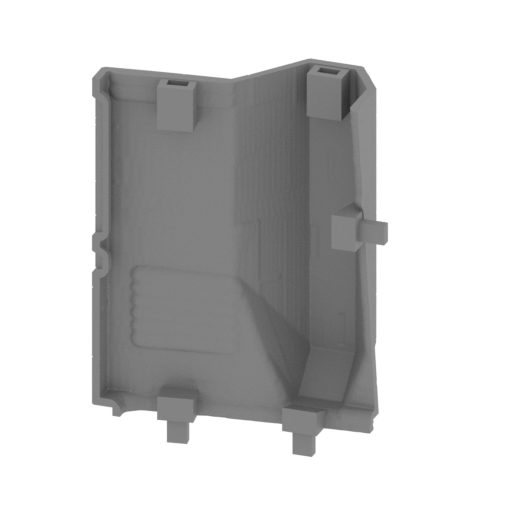

ebon 50cm_25 (repaired).s tl
2.25 MiB 14 h 12 min 9 m 105 x 42 x 135 Download

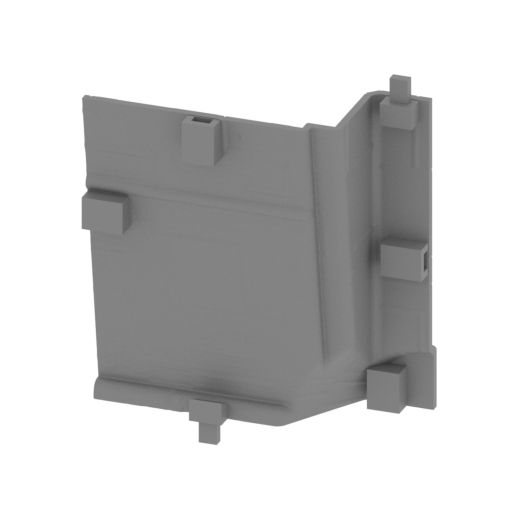

ebon 50cm_26 (repaired).s tl
1.66 MiB 14 h 40 min 10 m 120 x 56 x 144 Download

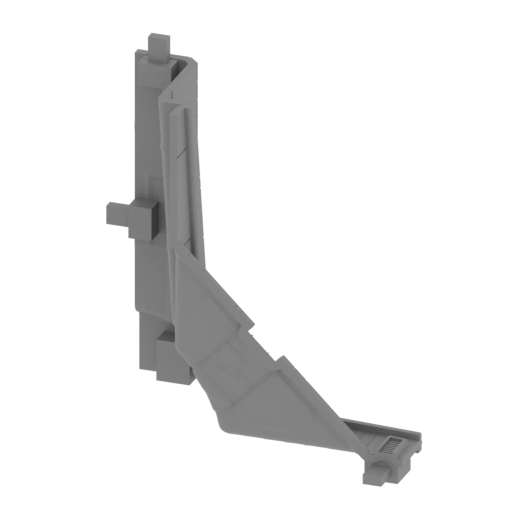

ebon 50cm_27 (repaired).s tl
1.81 MiB 10 h 32 min 6 m 128 x 63 x 141 Download

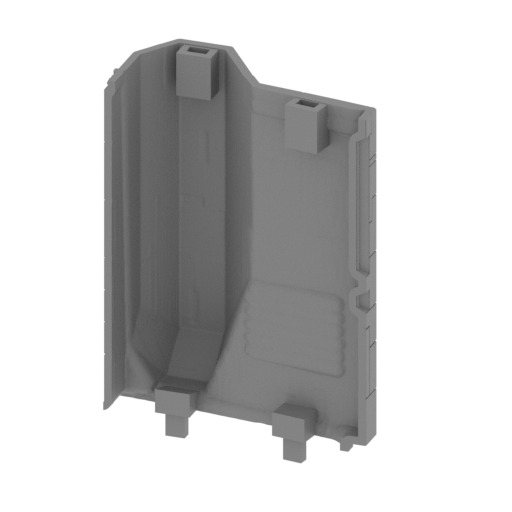

ebon 50cm_28 (repaired).s tl
2.35 MiB 13 h 53 min 9 m 96 x 42 x 135 Download

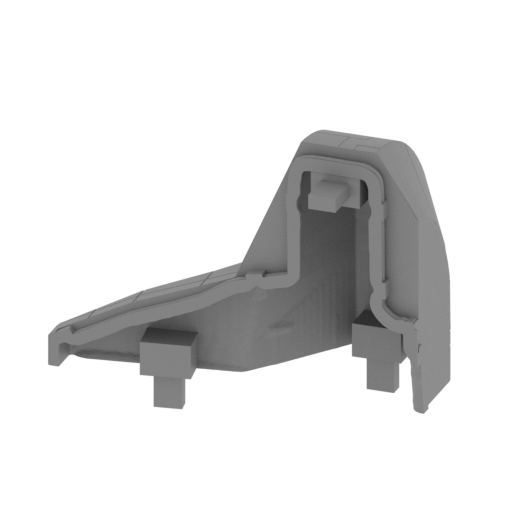

ebon 50cm_29 (repaired).s tl
3.54 MiB 9 h 9 min 7 m 96 x 51 x 77 Download

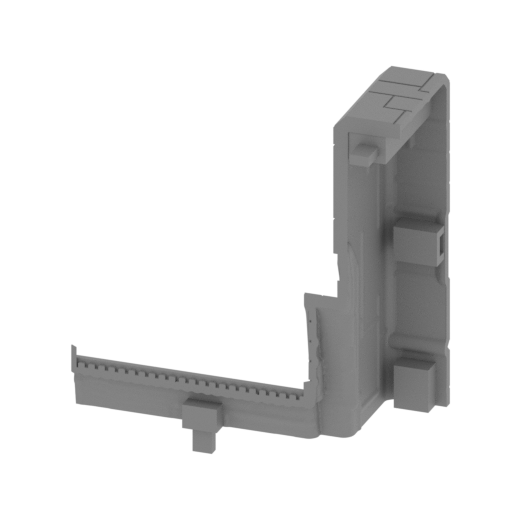

ebon 50cm_30 (repaired).s tl
1.17 MiB 16 h 15 min 13 m 120 x 58 x 135 Download

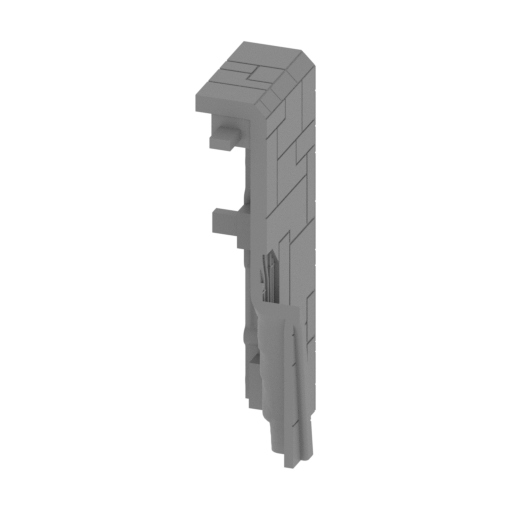

ebon 50cm_31 (repaired).s tl
0.83 MiB 13 h 36 min 11 m 45 x 58 x 126 Download

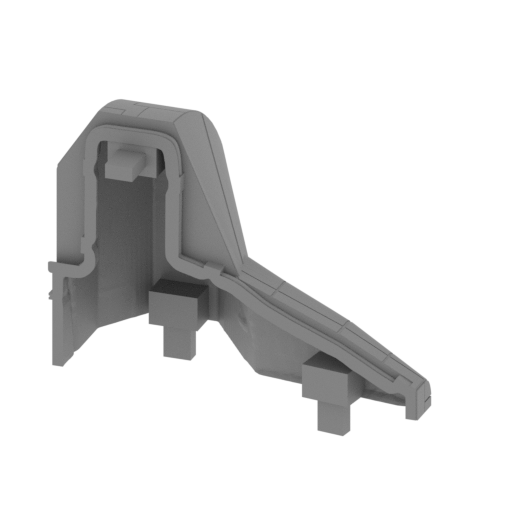

ebon 50cm_32 (repaired).s tl
3.27 MiB 9 h 13 min 7 m 96 x 51 x 77 Download

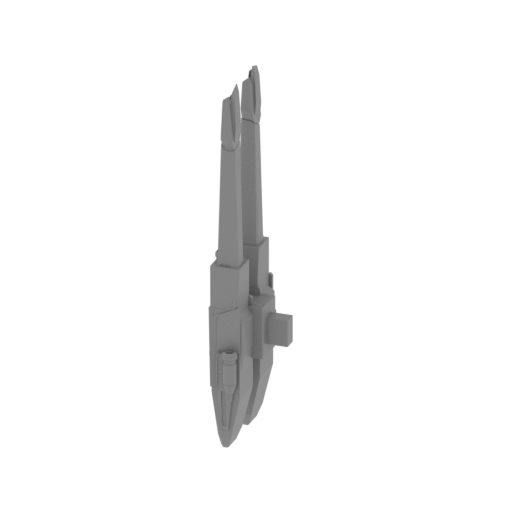

ebon 50cm_33 (repaired).s tl
20.71 MiB 3 h 49 min 2 m 23 x 41 x 126 Download

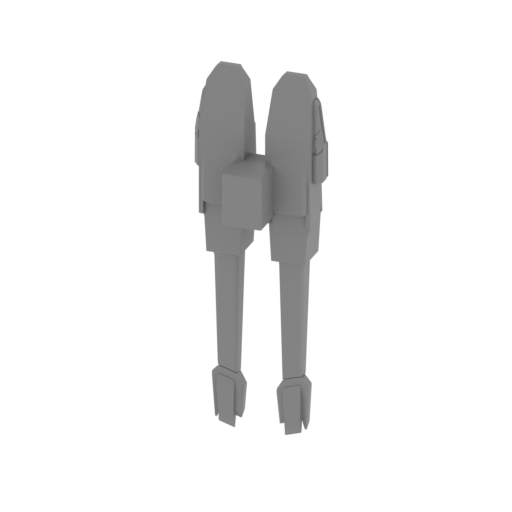

ebon 50cm_34 (repaired).s tl
19.66 MiB 4 h 10 min 3 m 35 x 21 x 100 Download

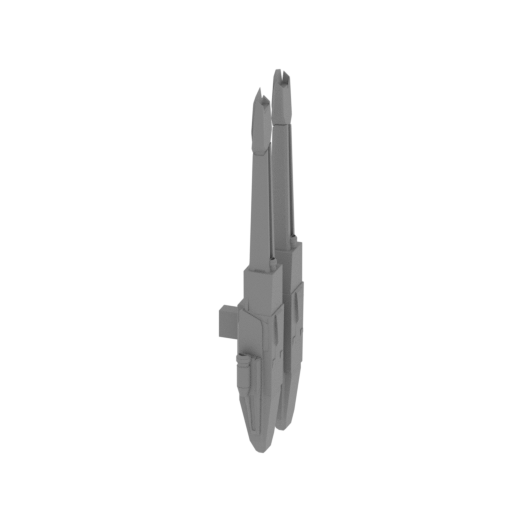

ebon 50cm_35 (repaired).s tl
20.95 MiB 3 h 53 min 2 m 24 x 41 x 126 Download

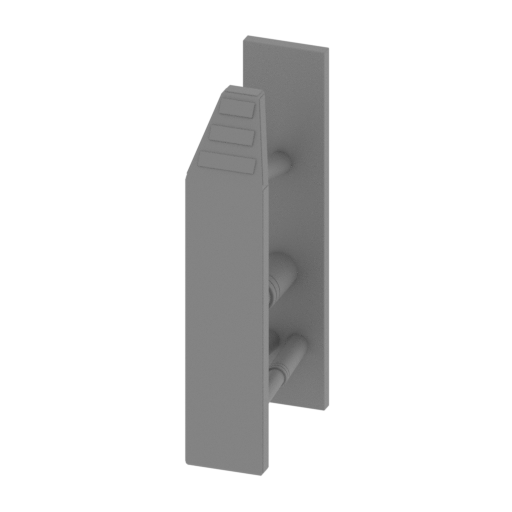

ebon 50cm_36 (repaired).s tl
0.70 MiB 1 h 58 min 1 m 15 x 32 x 68 Download

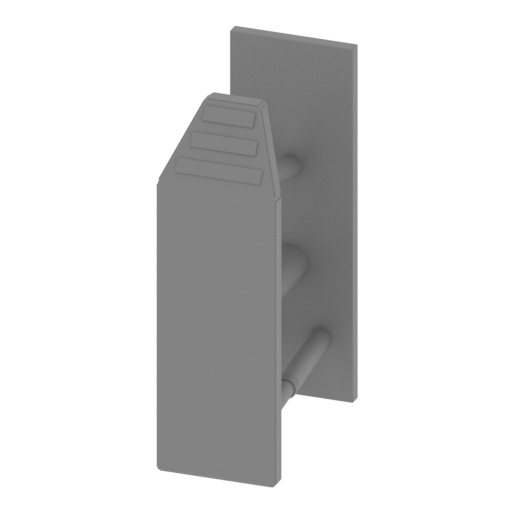

ebon 50cm_37 (repaired).s tl
0.70 MiB 2 h 46 min 2 m 23 x 40 x 68 Download
ebon 50cm_38 (repaired).s tl
0.70 MiB 1 h 57 min 1 m 15 x 32 x 68 Download
...

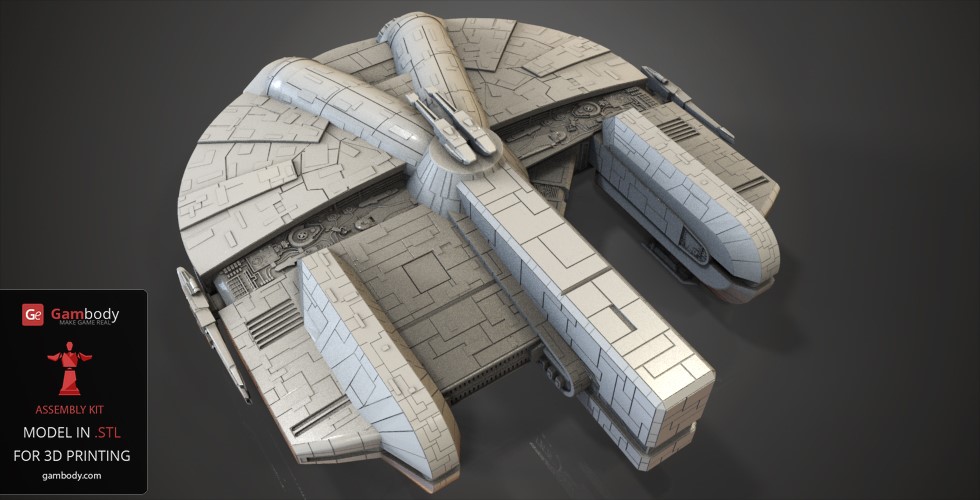

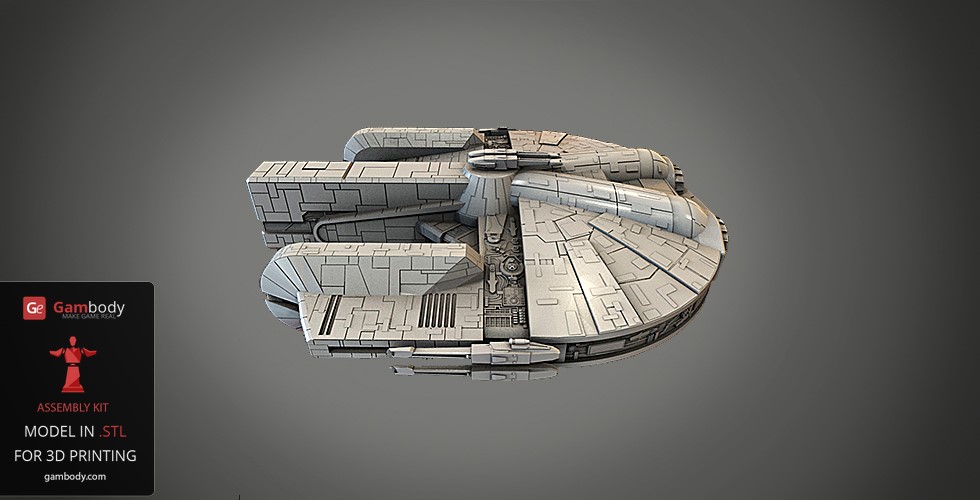

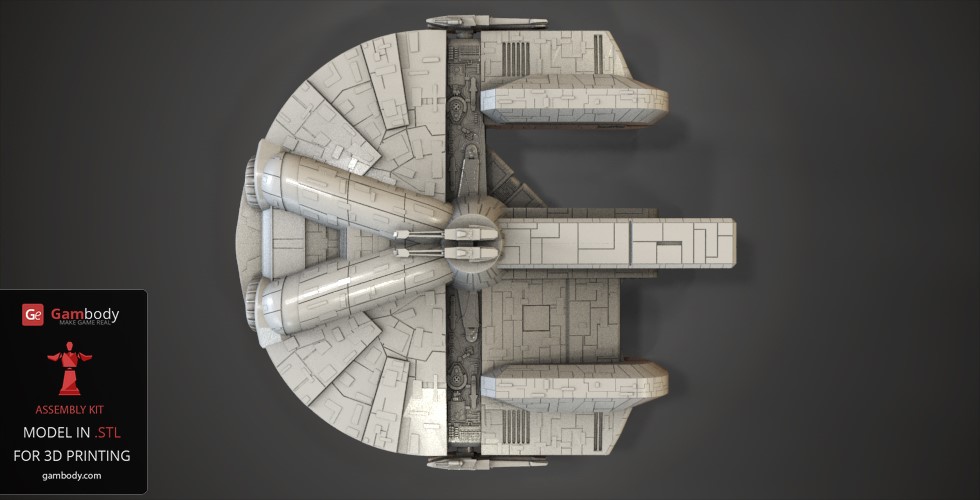

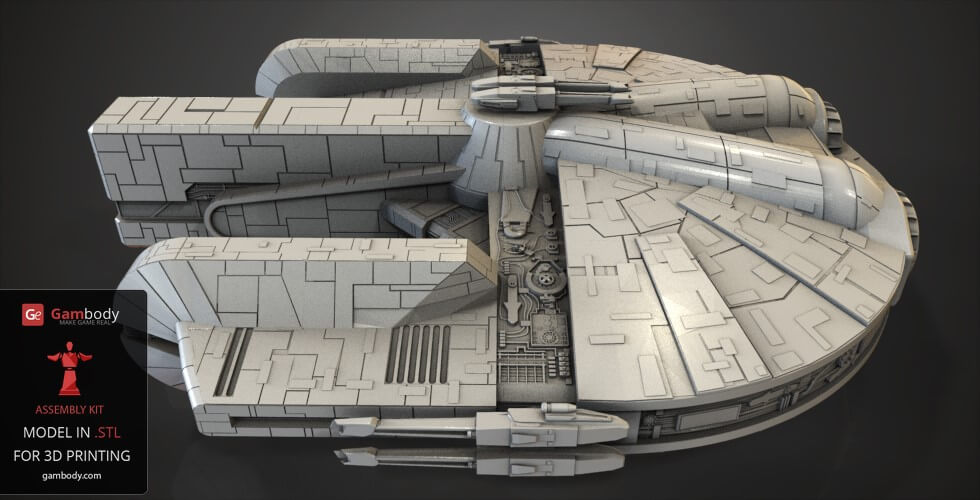

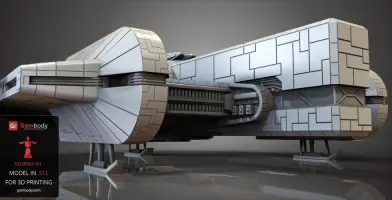

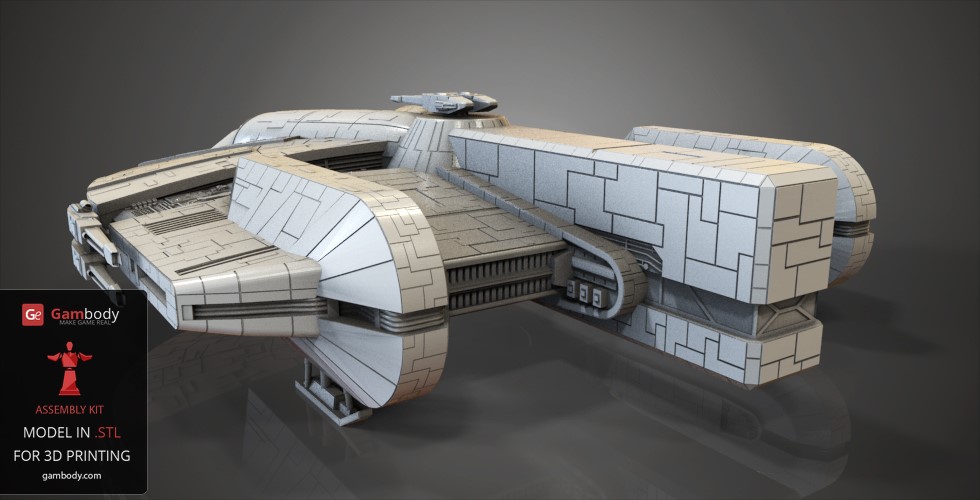

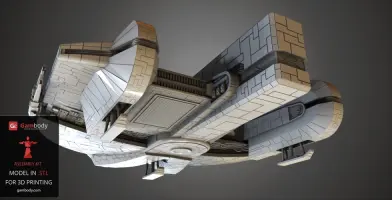

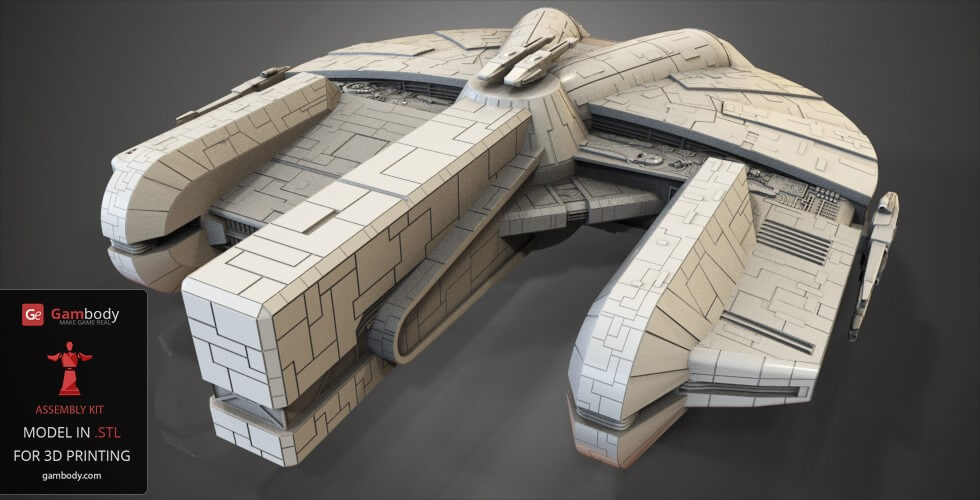

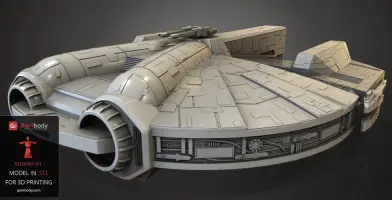

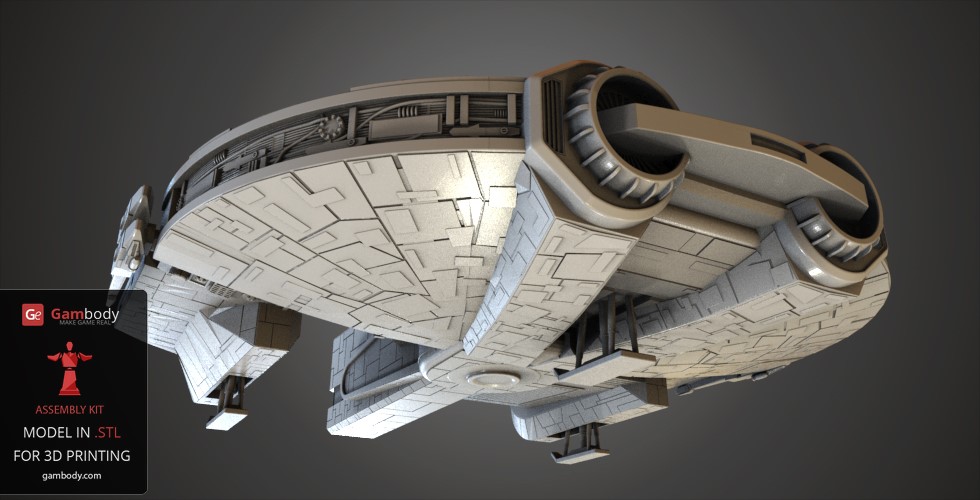

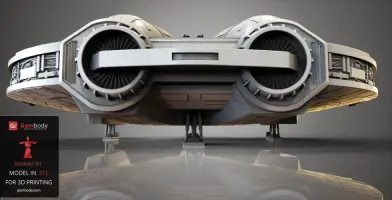

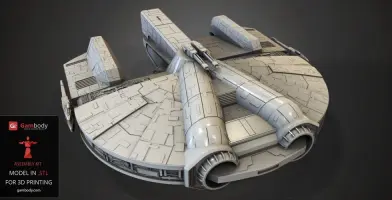

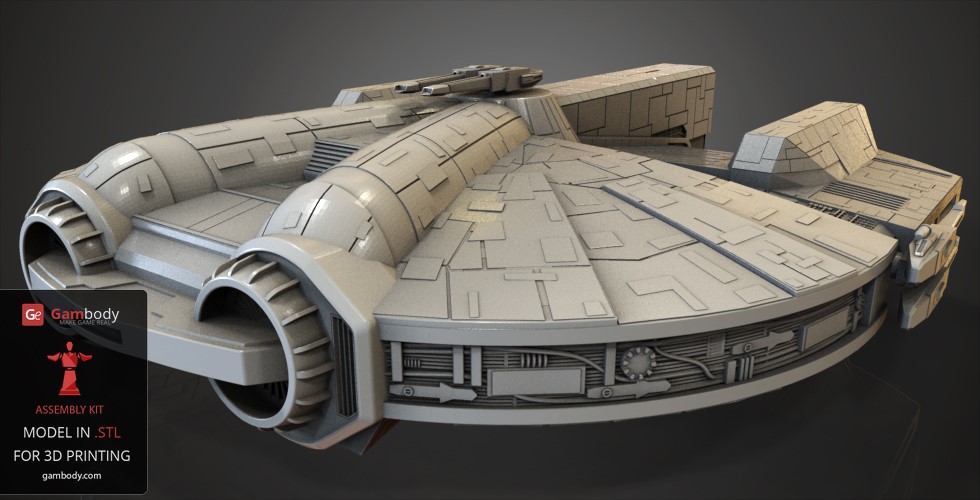

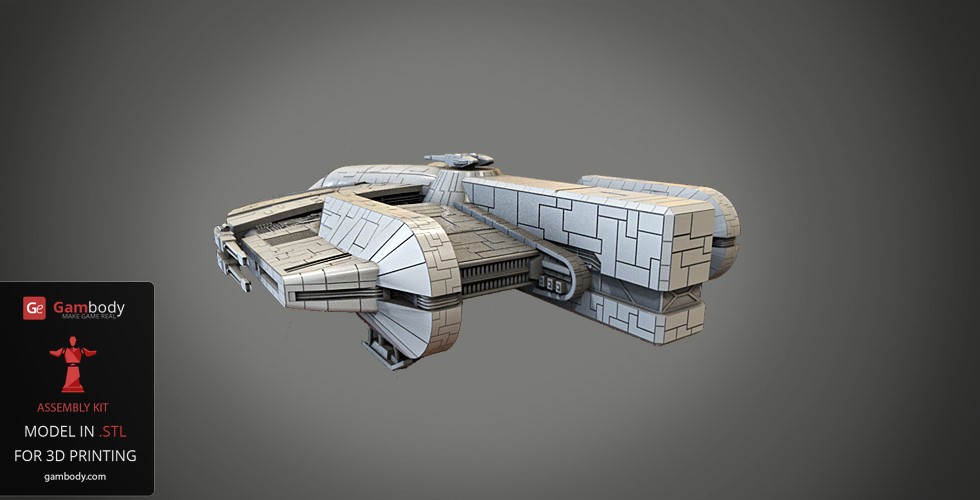

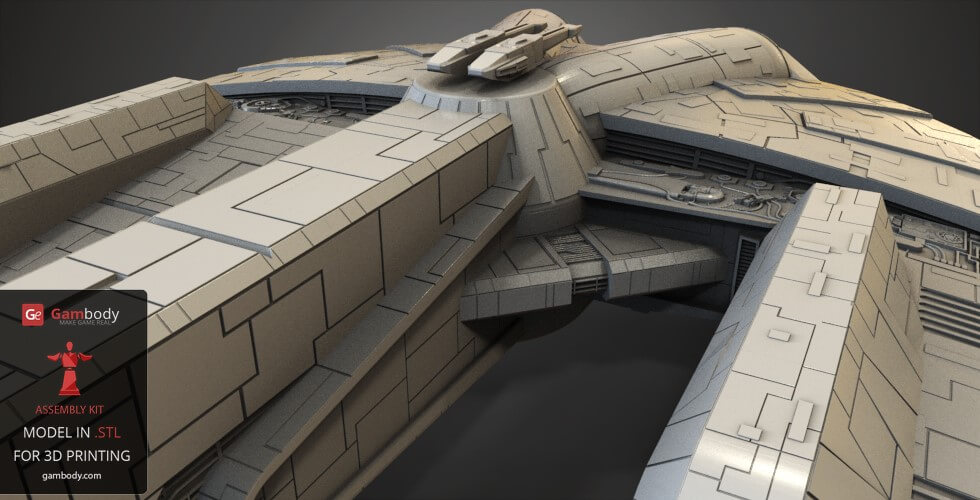

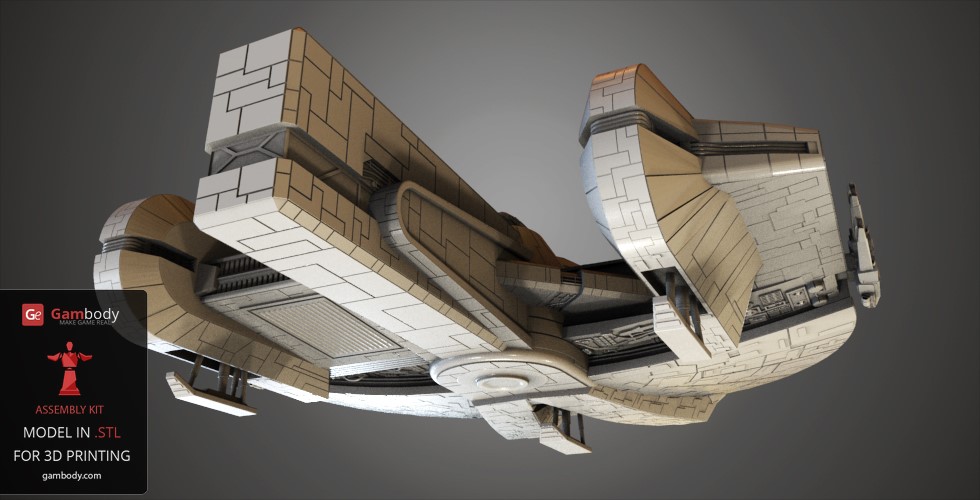

This is the Ebon Hawk 3D model as seen in the Star Wars game Knights of the Old Republic. The ship was a freighter widely used during the Jedi Civil War.

Its history sees it passing from hand to hand until it reached Raven, who made it its personal starship. He used it for search and destroy missions. After Raven escapes the Republic space, the faith of the starship remained unknown, until five years later is suddenly reappeared.

Ebon Hawk starship is equipped with incredible weaponry: dual turbolaser turret at the dorsal and underbelly side and dual heavy quad laser cannons. It holds a crew of up to 3 members and up to 8 passengers.

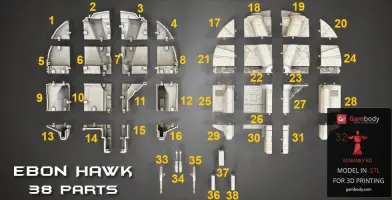

The ship consists of 38 parts.

Scale: The model's scale was calculated from the Ebon Hawk's actual length that is 24 meters. The 3D printing model's chosen scale is 1/48 for the FFF/FDM version and 1/96 for the SLS version.

FFF/FDM version dimensions:
A printed model is 100 mm tall, 490 mm wide, 500 mm deep;

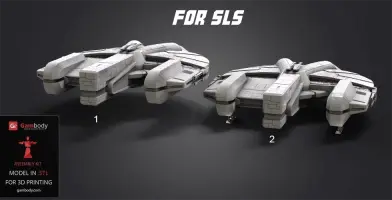

SLS version dimensions:
A printed model is 50 mm tall, 245 mm wide, 250 mm deep;

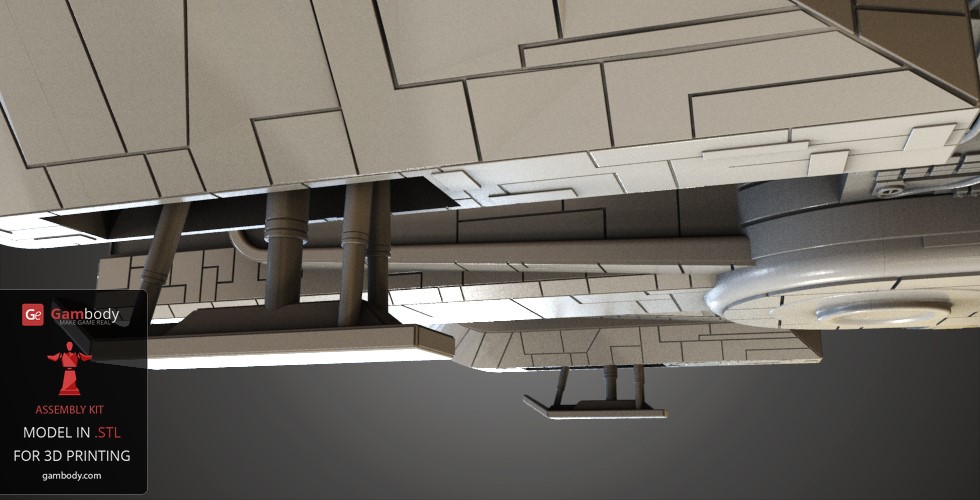

It does include landing gear but you may need to enforce it with a rod to hold the weight of the ship in case you want to display it in landing position.

The Ebon Hawk 3D model was created in Autodesk Maya and converted to STL files for 3D printing. The files are checked and corrected in Netfabb. The parts have been prepared for printing bed 14cm ×14cm ×17cm or larger.

Download Ebon Hawk 3D model STL files by clicking the green Buy button in the top right corner of the model's page. Add the files to your shopping cart. Continue to checkout. Pay securely with PayPal or your credit card. Download the files in a .zip folder together with the printing recommendations.

Use the services of our partners, 3DHubs and Treatstock, to print the model directly from our website.

Generic

This model was tested in Cura 2.3.1. To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest

Infill

Infill Density: 25%
Infill Line Distance: 3.2 mm
Infill Pattern: Grid
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Standby Temperature: 175°C
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 60 mm/s
Infill Speed: 80 mm/s
Wall Speed: 30 mm/s
Outer Wall Speed: 30 mm/s
Inner Wall Speed: 60 mm/s
Top/Bottom Speed 15 mm/s
Support Speed: 60 mm/s
Support Infill Speed: 60 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 15 mm/s
Initial Layer Print Speed: 15 mm/s
Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed 15 mm/s
Maximum Z Speed: 0 mm/s

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm

Cooling

Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 30 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.1 mm
Support Top Distance: 0.1 mm
Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 20
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Experimental

Extra Skin Wall Count: 0

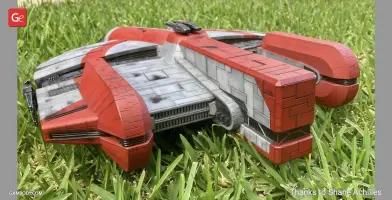

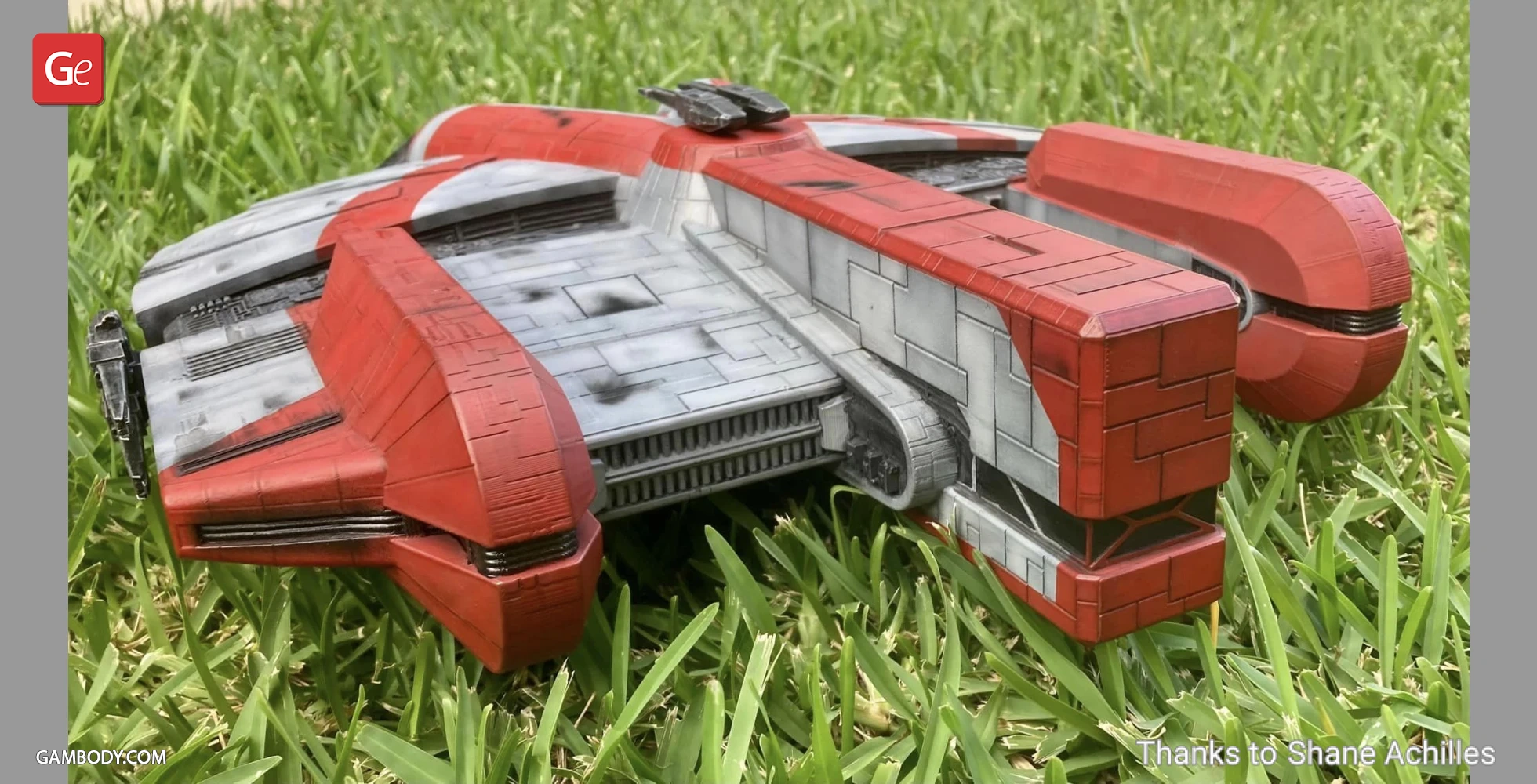

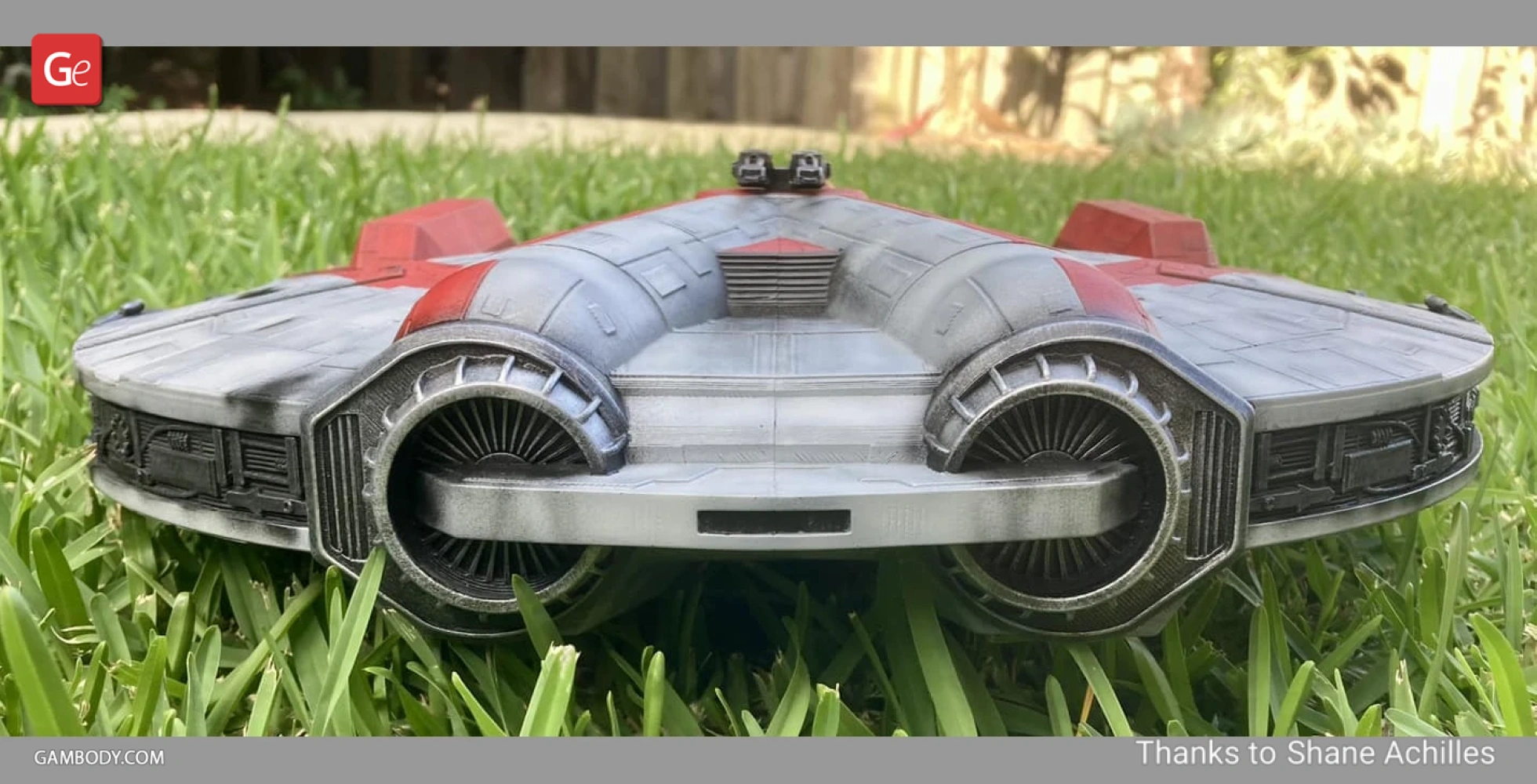

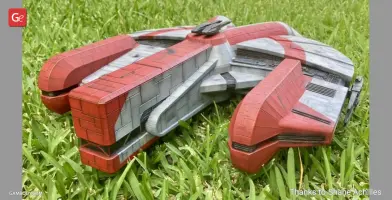

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
