Swarm Host 3D Printing Model | Static + Assembly

(3)
cm: 17.22 w x 12.19 d x 17 h
in: 6.78 w x 4.799 d x 6.693 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

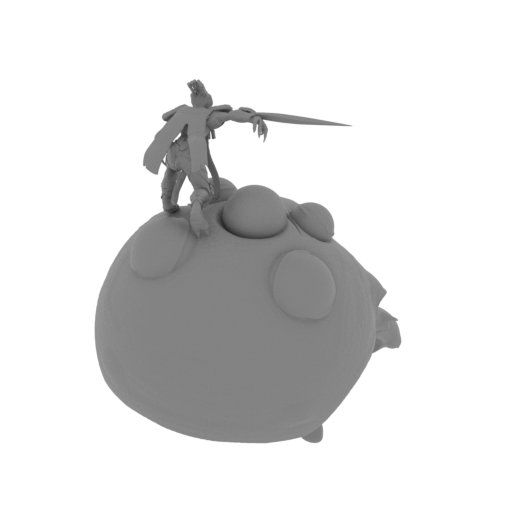

Swarm_uncut (repaired).st l
19.70 MiB 81 h 1 min 64 m 122 x 172 x 170 Download

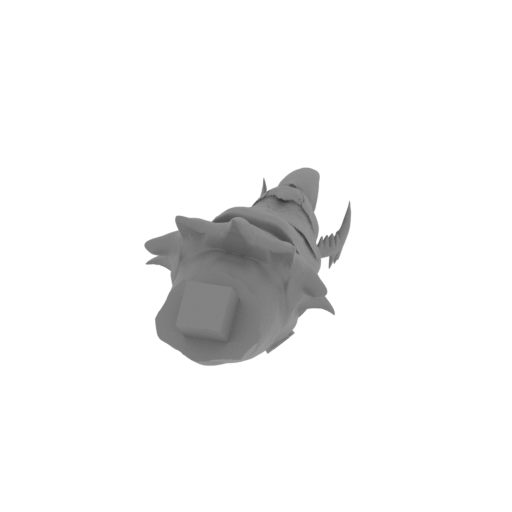

(1)Starcraft_Body (repair ed).stl
2.37 MiB 6 h 33 min 4 m 50 x 98 x 47 Download

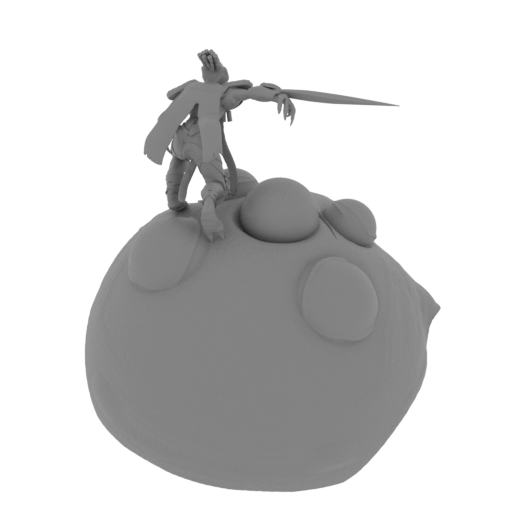

(2)Starcraft_Back (repair ed).stl
15.77 MiB 53 h 33 min 40 m 122 x 120 x 142 Download

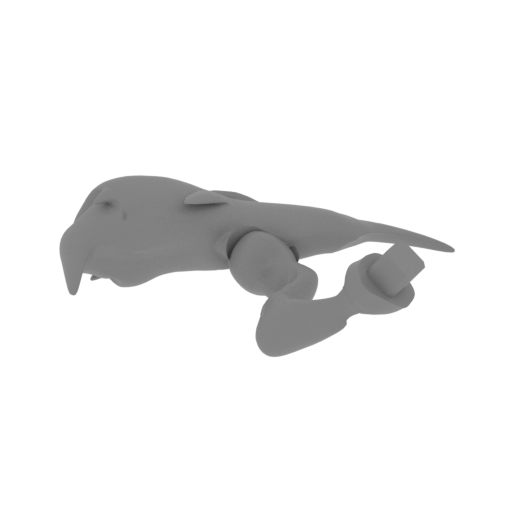

(3)Starcraft_R_F_leg (rep aired).stl
0.73 MiB 1 h 30 min 1 m 64 x 37 x 20 Download

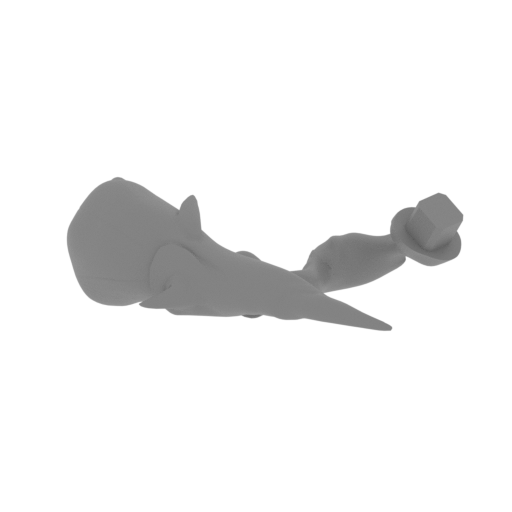

(4)Starcraft_L_F_leg (rep aired).stl
0.72 MiB 1 h 30 min 1 m 63 x 36 x 20 Download

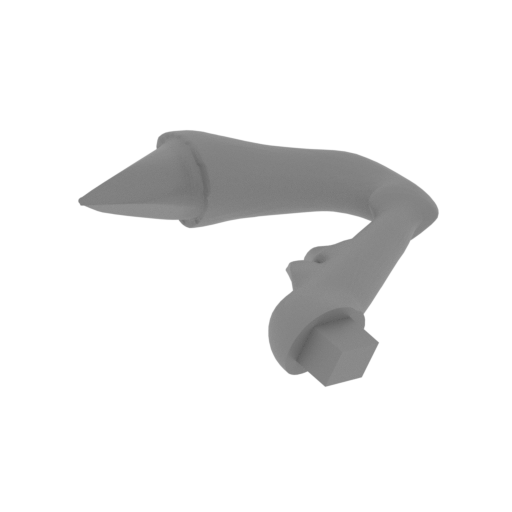

(5)Starcraft_R_Rr_leg (re paired).stl
0.34 MiB 43 min <1 m 38 x 41 x 10 Download

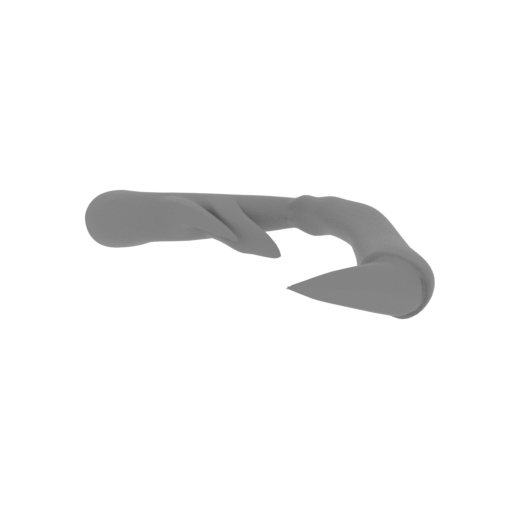

(6)Starcraft_L_Rr_leg (re paired).stl
0.34 MiB 43 min <1 m 57 x 37 x 10 Download

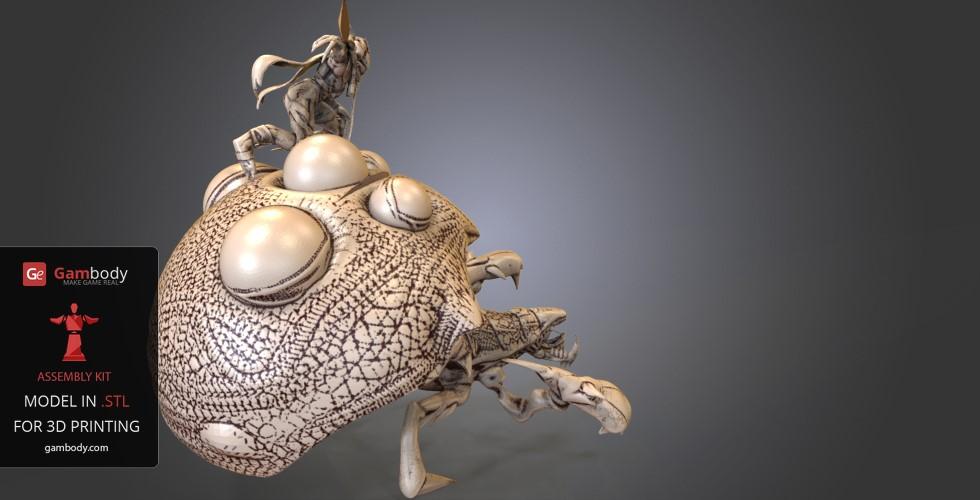

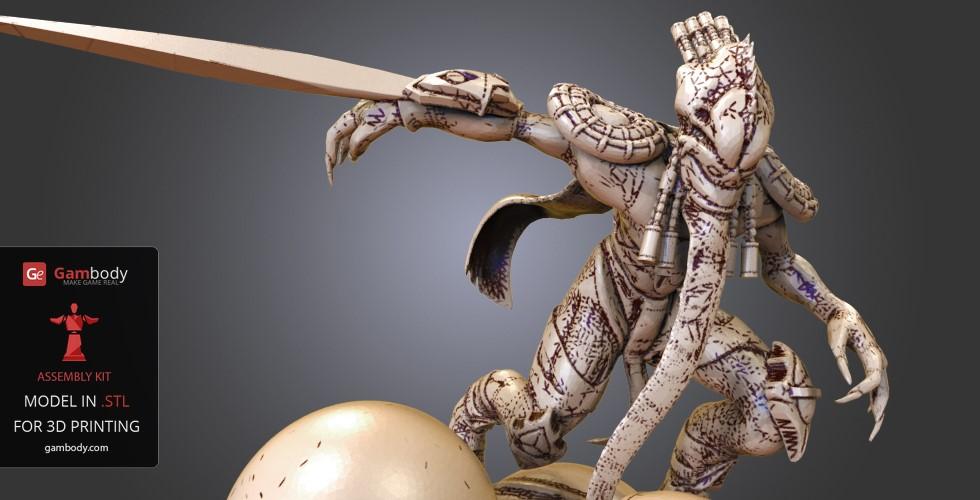

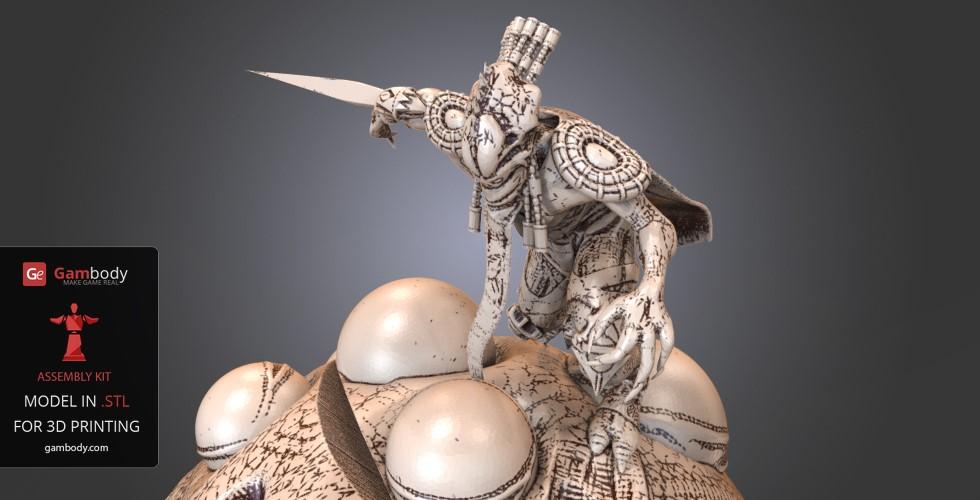

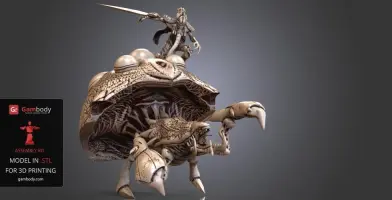

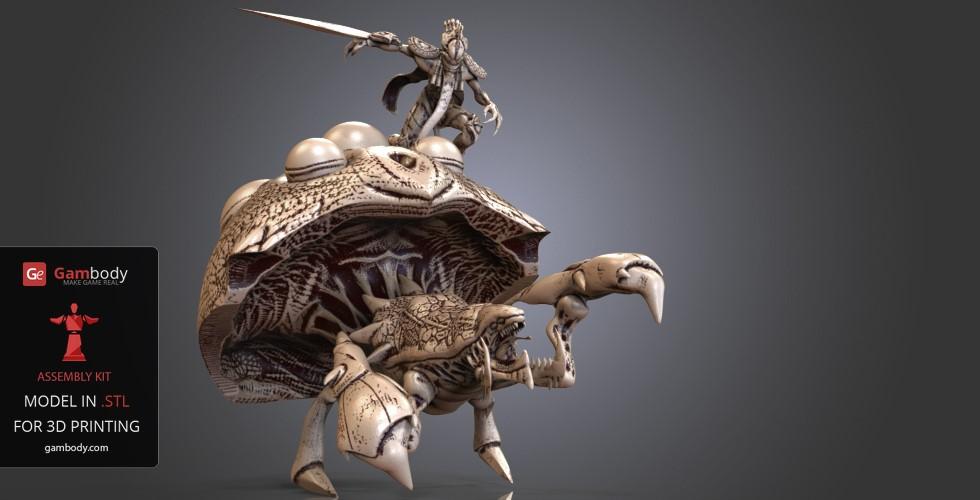

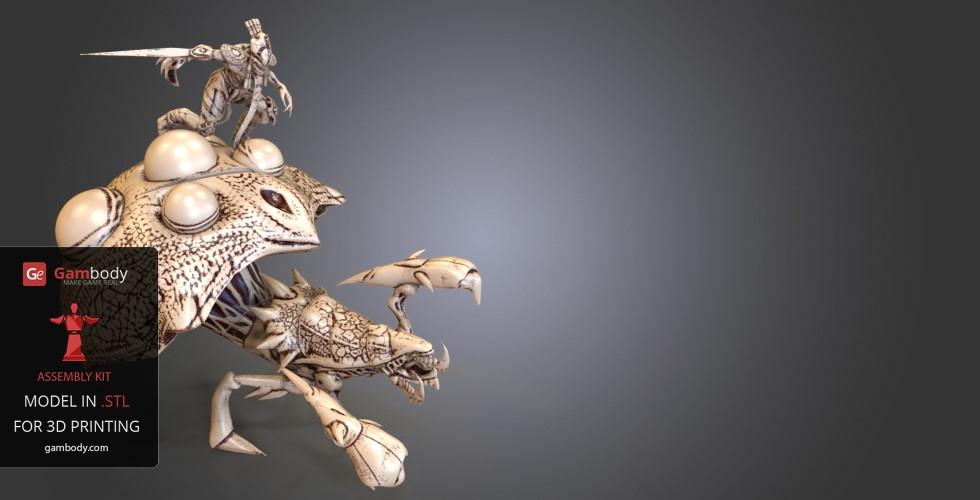

Swarm Host 3D model is inspired by the unit from this video game franchise. Although it doesn't have weapons of its own, it represents an entire army.

The in-game unit spits parasitic symbiotics which attack the enemy. They use their acidic saliva as a weapon against the near enemies.

Swarm Host 3D model is a mushroom-shaped unit with grinder legs that allow him to quickly bury itself. The legs have capillaries through wich acidic blood flows. Whenever the Swarm Host digs, the capillaries break and the acidic blood softens the soil, which makes the burial fast enough for him to hide from the enemy.

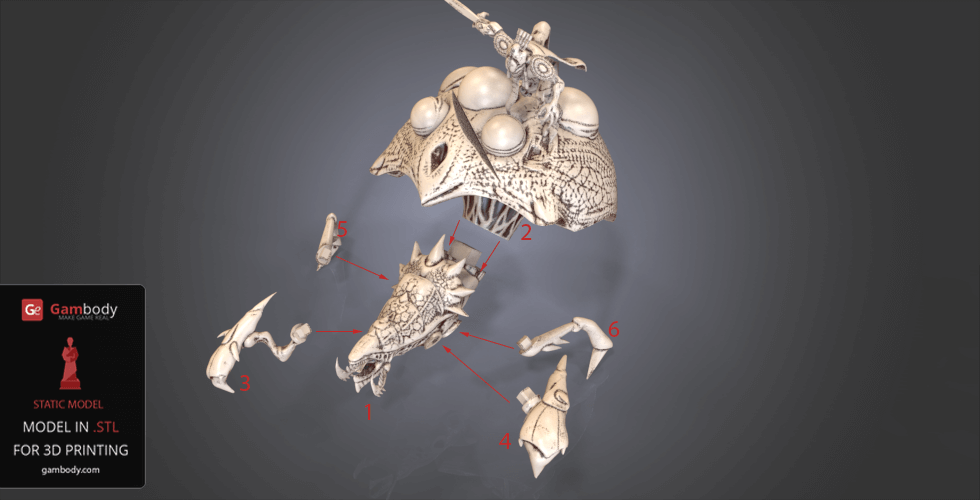

The 3D model is created in Autodesk Maya modeling program. The files are converted to STL and are made solid. The 3D printing model is split into 6 parts for an easy handling of the files during 3D printing and for less support use. There's also an unsplit version of the 3D model.

Note: 3D print the unsplit 3D model on SLS/SLA 3D printers for accurate results.

After being 3D printed, Swarm Host 3D model will stand 172 mm wide, 170 mm tall, and 121 mm deep.

Buy Swarm Host 3D model STL files by clicking the green Buy button on the model's page. Proceed to checkout. Pay securely with PayPal or your credit card. As soon as the payment is processed, you can download the STL files in a .zip folder together with the printing instructions.

3D print the files with 3DHubs or Treatstock directly from our website. Select the files you want to 3D print and click the Print with 3DHubs or Print with Treatstock buttons.

Generic

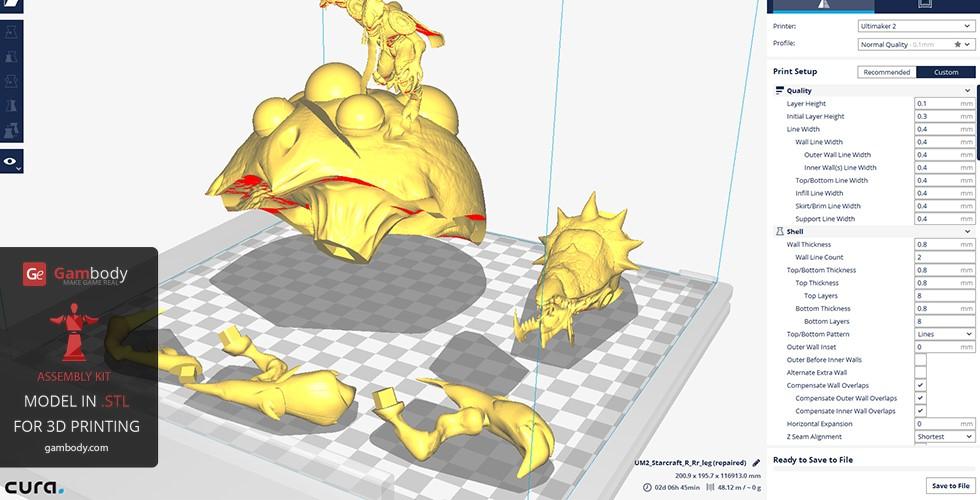

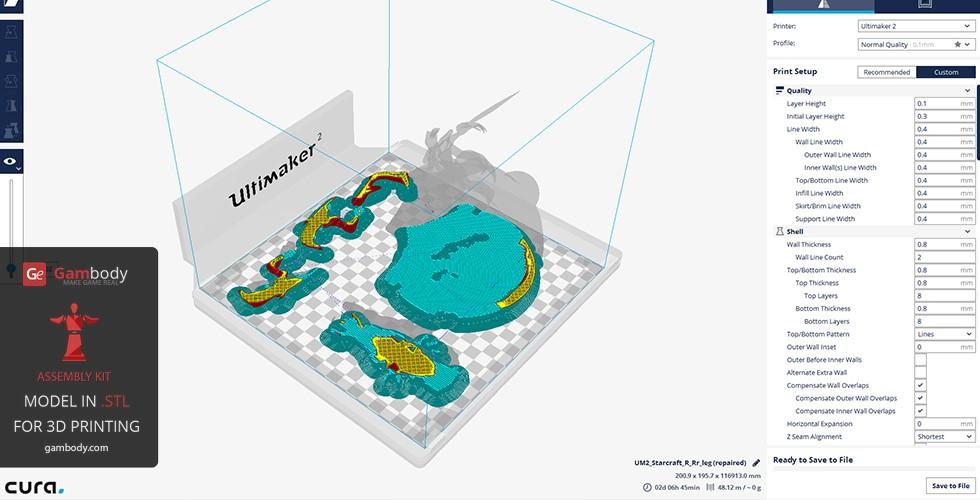

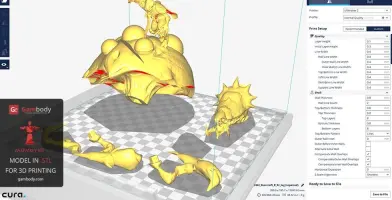

This model was tested in Cura 2.3.1. To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest

Infill

Infill Density: 25%
Infill Line Distance: 3.2 mm
Infill Pattern: Grid
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Standby Temperature: 175°C
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 60 mm/s
Infill Speed: 80 mm/s
Wall Speed: 30 mm/s
Outer Wall Speed: 30 mm/s
Inner Wall Speed: 60 mm/s
Top/Bottom Speed 15 mm/s
Support Speed: 60 mm/s
Support Infill Speed: 60 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 15 mm/s
Initial Layer Print Speed: 15 mm/s
Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed 15 mm/s
Maximum Z Speed: 0 mm/s

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm

Cooling

Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 30 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.1 mm
Support Top Distance: 0.1 mm
Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 20
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Experimental

Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
