Anime Girl 3D Printing Figurine | Static

(3)
cm: 7.5 w x 11.6 d x 16 h
in: 2.953 w x 4.567 d x 6.299 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

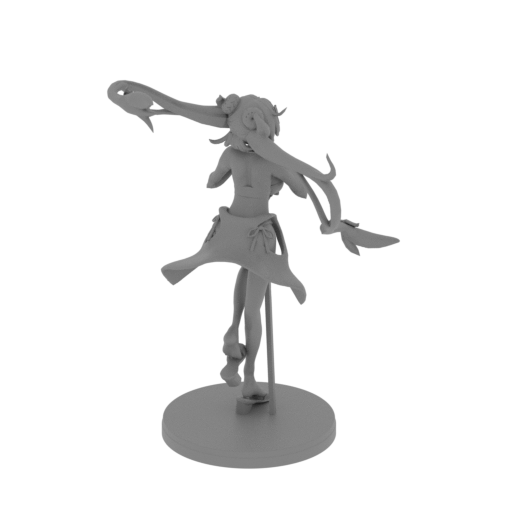

girl (repaired).stl
48.89 MiB 28 h 39 min 21 m 117 x 76 x 160 Download

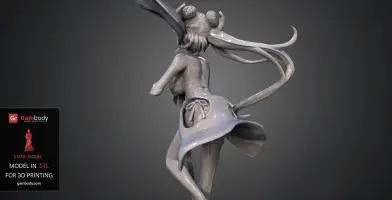

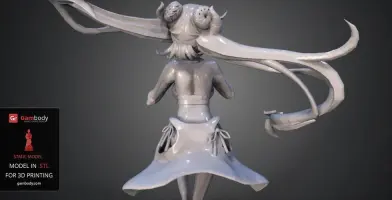

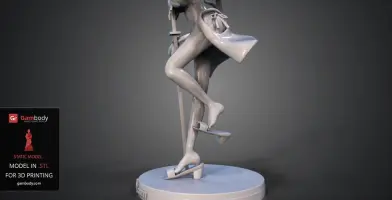

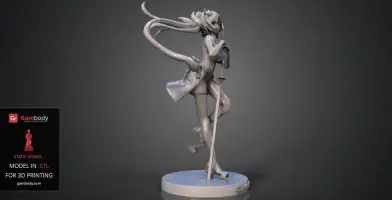

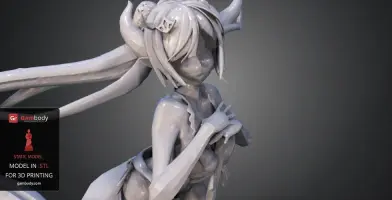

The Anime Girl 3D model is inspired by the well-known Japanese anime character. If you're a fan of this kind of animation, you can start collecting 3D printing animation miniatures.

You can display the model on your desk or shelf, or you can surprise your friends with a nicely sculpted 3D model.

The 3D printing model was created in Autodesk Maya. It is available for download in a single STL file, which was thoroughly checked and corrected in Netfabb. The STL file is made solid to facilitate its handling and printing using any slicing program.

After being 3D printed, the model will stand 7.5 cm wide, 16 cm tall and 11.6 cm deep.

Buy Anime Girl 3D model STL file by clicking the green Buy button in the top-right corner of the model's page. Proceed to checkout. Provide your credit card of PayPal details and download the file.

Use the 3D printing services of our partners, 3DHubs and Treatstock, to 3D print the model, if you don't own a 3D printer of your own. Select the STL file (put the check mark int he box next to the STL file) and click the Print with 3DHubs or Print with Treatstock button.

Generic

This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality

  • Layer height: 0.1mm*
  • Initial layer thickness: 0.3mm
  • Bottom/top pattern: lines
  • Skin perimeter line count: 0
  • Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

As a STL file provider, our goal is to ensure that the files are error-free and printable in the most accurate way. This is why we only test print the most difficult segments of the model’s parts.

The model's parts have been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups:

  • Infill speed: 30mm/s
  • Outer shell speed : 30mm/s
  • Inner shell speed: 20mm/s
  • Top/bottom speed: 20mm/s
  • Support speed: 50mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 30mm/s
  • Amount of slower layers: 4

Infill:

  • Infill pattern: Grid
  • Line distance: 1.5mm
  • Infill overlap: 20%
  • Infill layers: 0

Support:

  • Enable support: Check
  • Placement: Everywhere
  • Overhang angle: 30°
  • X/Y distance: 0.7mm
  • Top distance: 0.2mm
  • Bottom distance: 0.2mm
  • Stair step height: 0.5mm
  • Join distance: 0.7mm
  • Area smoothing: 0.6mm
  • Use towers: check
  • Pattern: Grid
  • Line distance: 1.5mm

Platform adhesion:

  • Type: Brim
  • Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations:

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation.  Apply other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
