You will get instant access to the STL files of Chibi Monkey D. Luffy 3D Printing Model | Assembly after completing your purchase. Simply add the model to your cart and check out using PayPal, credit or debit card, Apple Pay, Google Pay, Alipay, or other available payment methods.
Watch the assembly video for Chibi Monkey D. Luffy 3D Printing Model | Assembly, and explore more tutorials, behind-the-scenes content, 3D printing timelapses, and painting guides on the official Gambody YouTube channel.
This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.
Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

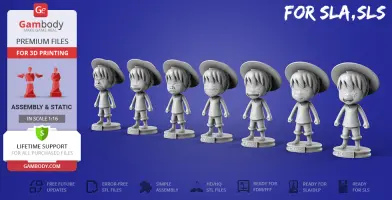

Chibi Monkey D. Luffy 3D Printing Miniature comes in 2 versions for each 3D printer type (FDM/FFF, DLP/SLA/SLS). Files for each version are available for download after the purchase.
Detailed information about this model is available in the DESCRIPTION section.
Before printing, take a look at Printing Details for recommended settings and tips to achieve better results.
| File name | Size (mm | in) | Size(mb) | Printing Time / Resin | |||
|---|---|---|---|---|---|---|

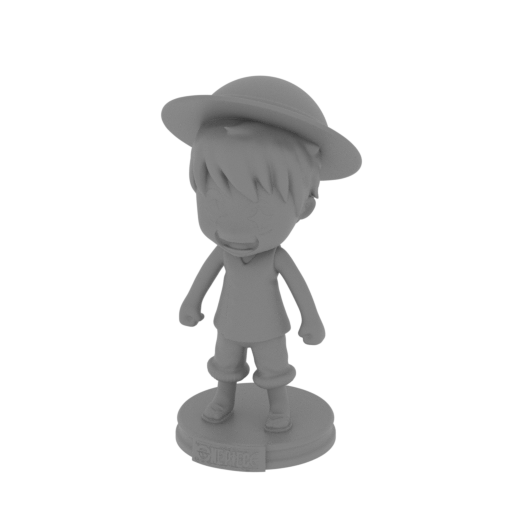

 | 7_Monkey_D_Luffy_7_SLA_SLS (repaired).stl 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | Size: 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | File size: 27.44 mb | Printing Time / Resin: — / — | ||

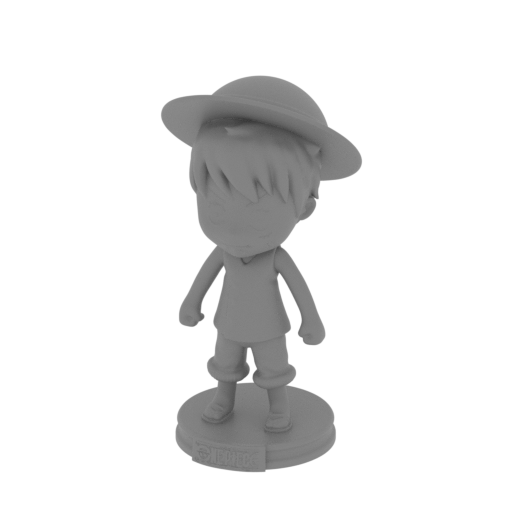

 | 6_Monkey_D_Luffy_6_SLA_SLS (repaired).stl 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | Size: 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | File size: 27.40 mb | Printing Time / Resin: — / — | ||
 | 5_Monkey_D_Luffy_5_SLA_SLS (repaired).stl 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | Size: 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | File size: 27.42 mb | Printing Time / Resin: — / — | ||

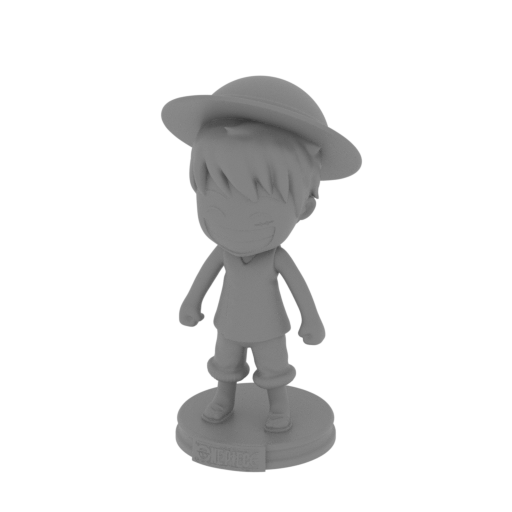

 | 4_Monkey_D_Luffy_4_SLA_SLS (repaired).stl 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | Size: 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | File size: 27.38 mb | Printing Time / Resin: — / — | ||

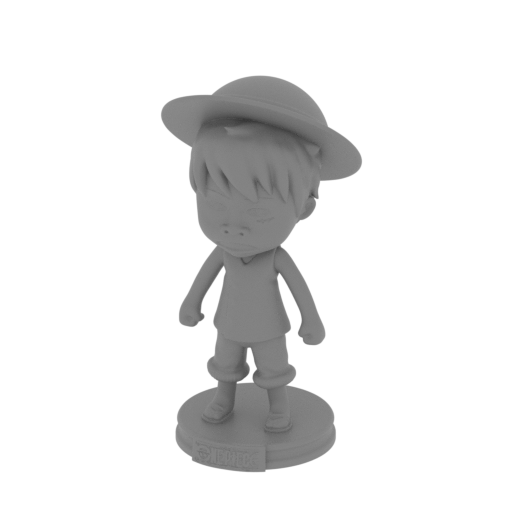

 | 3_Monkey_D_Luffy_3_SLA_SLS (repaired).stl 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | Size: 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | File size: 27.41 mb | Printing Time / Resin: — / — | ||

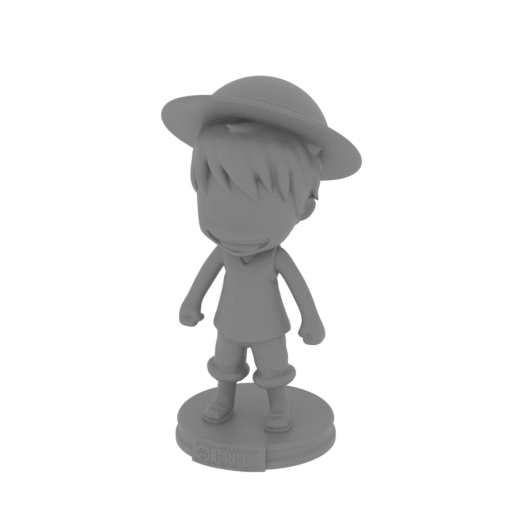

 | 2_Monkey_D_Luffy_2_SLA_SLS (repaired).stl 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | Size: 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | File size: 27.30 mb | Printing Time / Resin: — / — | ||

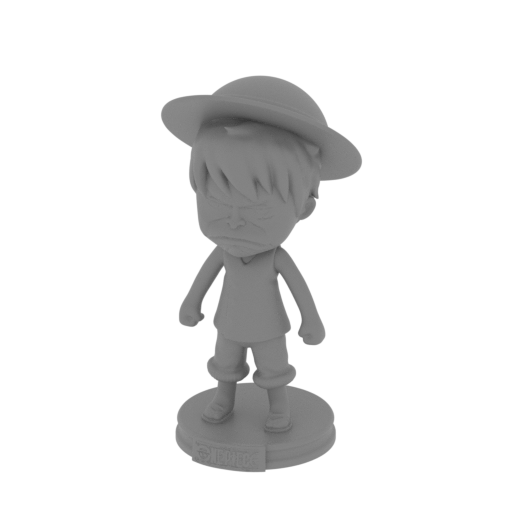

 | 1_Monkey_D_Luffy_1_SLA_SLS (repaired).stl 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | Size: 66 x 57 x 125 mm | 2.6 x 2.24 x 4.92 in | File size: 27.43 mb | Printing Time / Resin: — / — | ||
HISTORY OF MONKEY D. LUFFY
Monkey D. Luffy, also known as “Straw Hat Luffy”, is the main protagonist of the manga and anime One Piece. He is the founder and captain of the increasingly infamous and powerful pirate crew Straw Hat Pirates, as well as one of its top four fighters. His lifelong dream is to become the Pirate King by finding the legendary treasure left behind by the late Pirate King, Gol D. Roger. He believes that being the Pirate King means having the most freedom in the world. After his invasion of Totto Land and actions against the Yonko Big Mom, he is currently considered by the global press to be the Fifth Emperor.

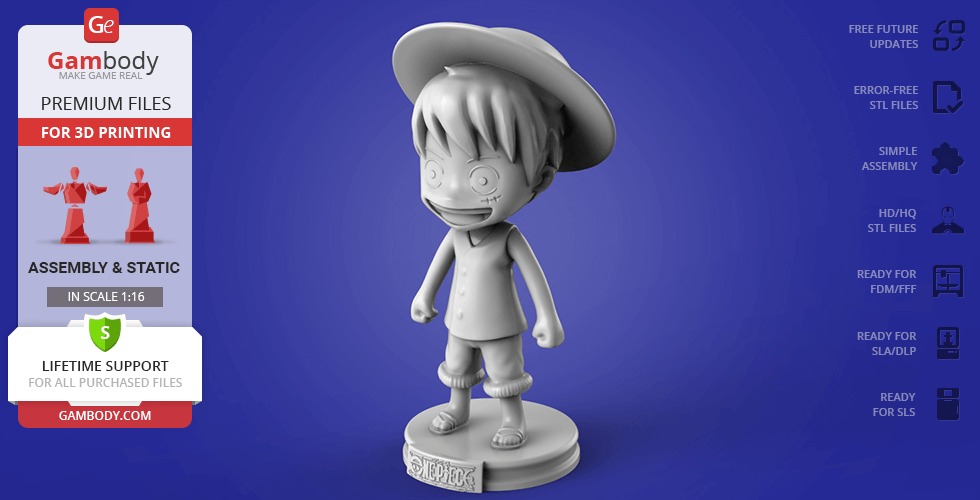

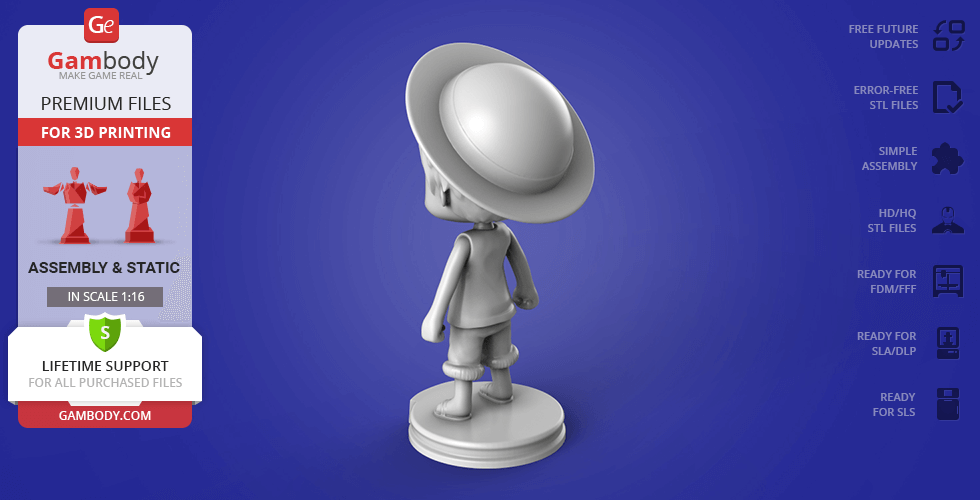

ABOUT THIS 3D MINIATURE
The model is saved in STL files, a format supported by most 3D printers.

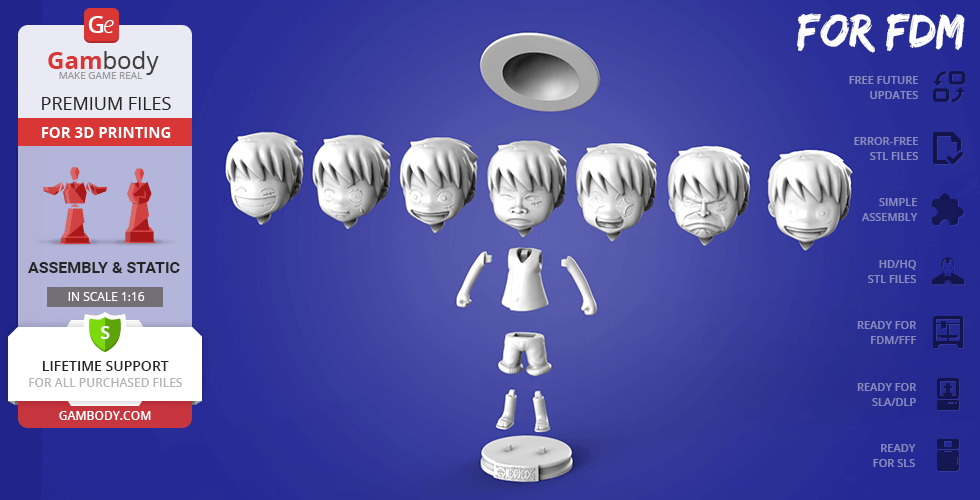

FFF/FDM version features:

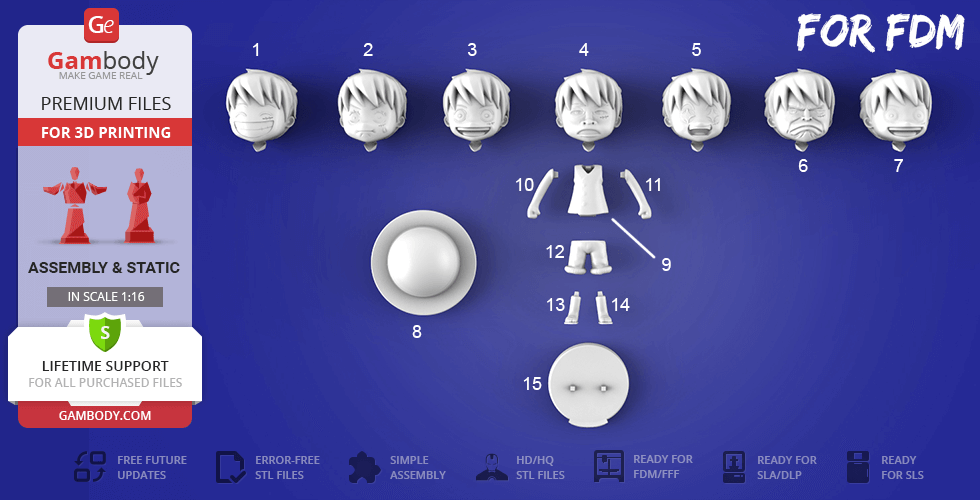

- Consists of 15 parts;

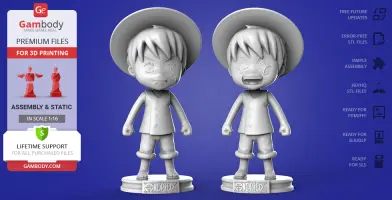

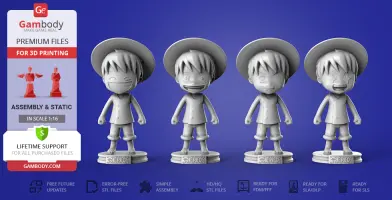

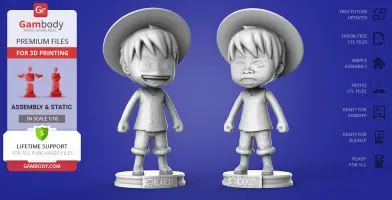

- Contain 7 heads with different emotions;
- Has a divided platform and hat;
- All parts are divided in such a way that you will print them with the smallest amount of supports.
DLP/SLA/SLS version features:

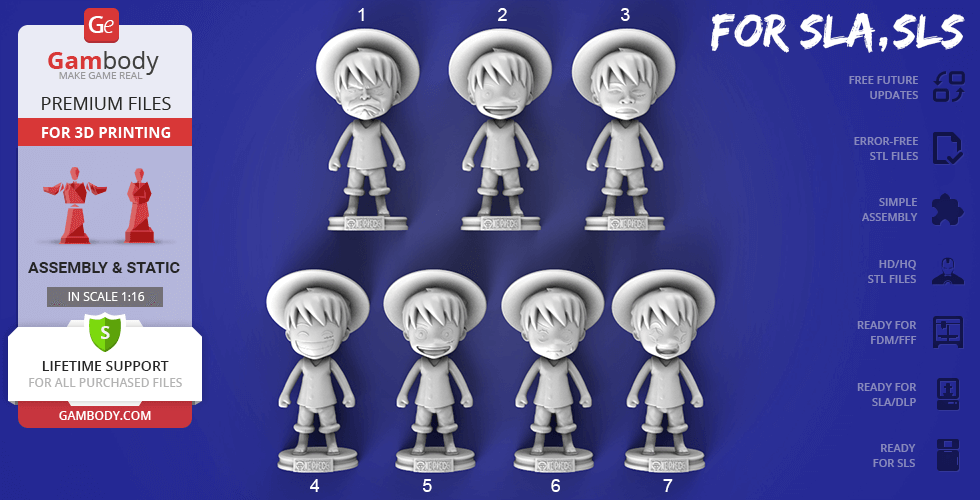

- Same as FDM but made as 1 part in 7 diffrent variants for economy your material;
All STL files for 3D printing have been checked in Netfabb and no errors were shown.
Note: Before starting 3D printing the model, read the Printing Details for CURA 3.4.1. or Simplify3D softwares.
There are 15 parts for FFF/FDM version and 7 part for DLP/SLA/SLS version.
Scale: Height of Monkey D. Luffy is 1720 mm. The scale of this miniature was made in proportion to him: 1/16 for FDM/SLA/SLS version.

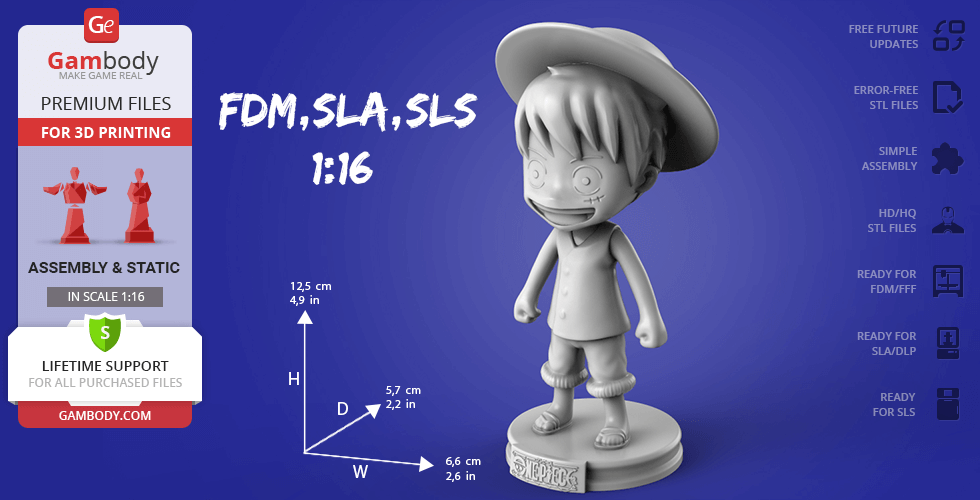

FFF/FDM/DLP/SLA/SLS version dimensions:
After being printed will stand - 125 mm tall, 66 mm wide, 57 mm deep;
- Has a few details, to keep printing costs down.
WHAT WILL YOU GET AFTER PURCHASE?
- STL files of Chibi Monkey D. Luffy 3D Miniature for 3D printing which consist of 22 parts;
- 2 versions of files for this model for FFF/FDM, DLP/SLA/SLS;
- High-poly detailed miniature of Chibi Monkey D. Luffy;
- Detailed settings that we provide for Cura 3.4.1. and Simplify3D for the best print;
- Full technical support from the Gambody Support Team.
Watch the tutorial video on how to assemble Chibi Monkey D. Luffy 3D Printing Miniature at Gambody YouTube channel.
You can get Miniature of Chibi Monkey D. Luffy for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your Credit card.
Also, you may like other Chibi 3D Printing Miniatures as well as Anime Figurines.
_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?
Average customer rating (4 reviews)
3.5
Ratings breakdown
Click a star rating to filter reviews
Overall experience
Level of detail in the model
3.5
Model cut quality and assembly guide
3.5
Clarity and accuracy of the model page
3.5
Level of detail in the model
4
Model cut quality and assembly guide
4
Clarity and accuracy of the model page
4
This feedback is from a user who hasn't purchased this model Level of detail in the model
1
Model cut quality and assembly guide
1
Clarity and accuracy of the model page
1
This feedback is from a user who hasn't purchased this model Level of detail in the model
4
Model cut quality and assembly guide
4
Clarity and accuracy of the model page
4
This feedback is from a user who hasn't purchased this model
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model To avoid printing issues and achieve the best quality, we highly recommend applying the following settings:
Generic

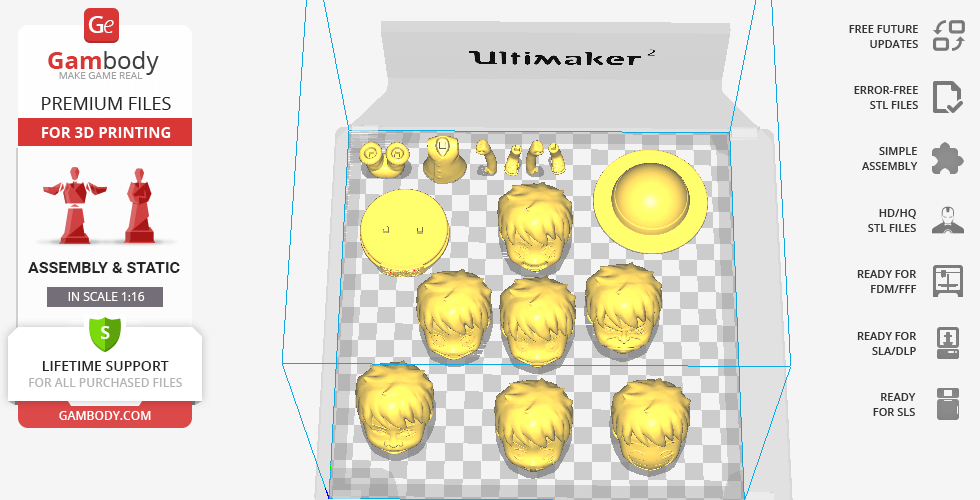

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.
Cura printing recommendations:
To avoid printing problems, we recommend the following settings:
Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
Initial Layer Line Width: 100%
Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1
Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s
Speed
Print Speed: 45 mm/s
Infill Speed: 50 mm/s
Wall Speed: 22.5 mm/s
Outer Wall Speed: 22.5 mm/s
Inner Wall Speed: 45 mm/s
Top/Bottom Speed: 15 mm/s
Support Speed: 45 mm/s
Support Infill Speed: 45 mm/s
Travel Speed: 60 mm/s
Initial Layer Speed: 22.5 mm/s
Initial Layer Print Speed: 22.5 mm/s
Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2
Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s
Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
Support Top Distance: 0.3 mm
Support Bottom Distance: 0.3 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°
Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 18
Brim Only on Outside: Check
Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm
Special Modes
Print Sequence: All at Once
Surface Mode: Normal
Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%
Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
Simplify3D printing recommendations:
This model was tested with PLA material.
To avoid printing problems, we recommend the following settings:
Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto
Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min
Wipe Distance: 5.00 mm
Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out
First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%
Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5
Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers
External Infill Angle Offsets: 45/-45 deg
Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers
Dense Support Layers: 0
Dense Infill Percentage: 70%
Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg
Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1
Support Infill Angles: 45 deg
Temperature
Extruder 1 Temperature: 210
Heated Bed: 60
Cooling
Increase fan speed for layers below: 45.0 sec
Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%
Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min
Adjust printing speed for layers below: 15.0 sec
Allow speed reduction down to: 20%
Other
Unsupported area threshold: 20.0 sq m
