Menthuthuyoupi 3D Printing Figurine | Assembly

(4)
cm: 10.7 w x 9.65 d x 24.5 h
in: 4.213 w x 3.799 d x 9.646 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

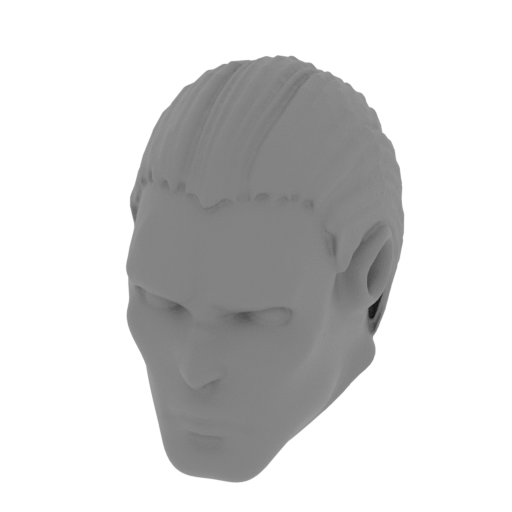

1_Head.stl
2.52 MiB 1 h 36 min 1 m 22 x 30 x 32 Download

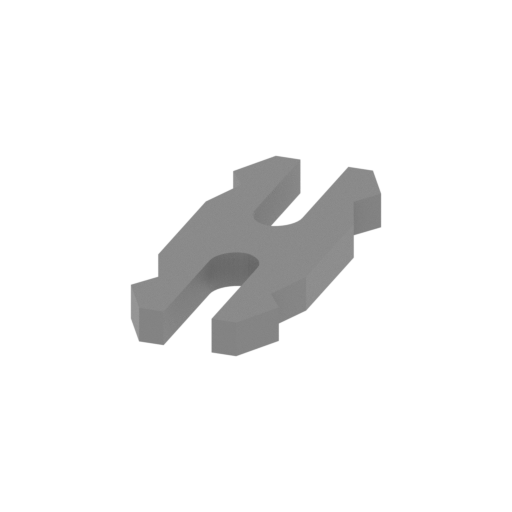

2_Ge_lock_7S (x8).STL
0.02 MiB 2 min <1 m 5 x 13 x 1 Download

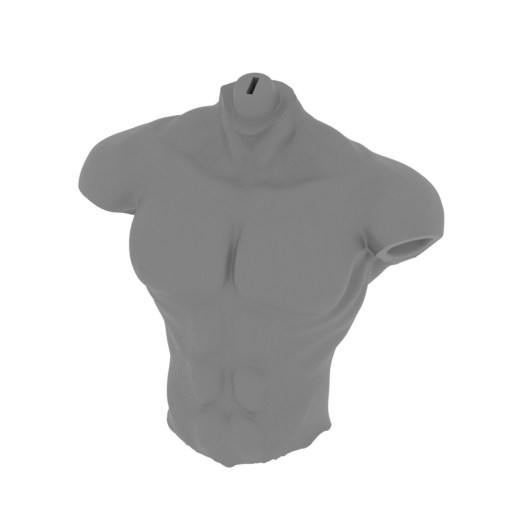

3_Body.stl
6.41 MiB 10 h 34 min 7 m 87 x 42 x 89 Download

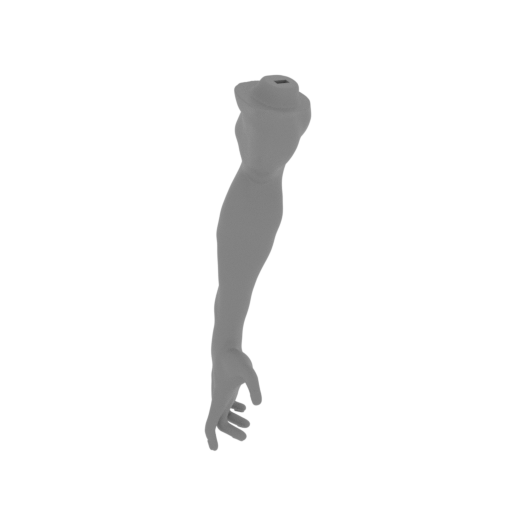

4_arm_R.stl
2.84 MiB 1 h 58 min 1 m 25 x 37 x 103 Download

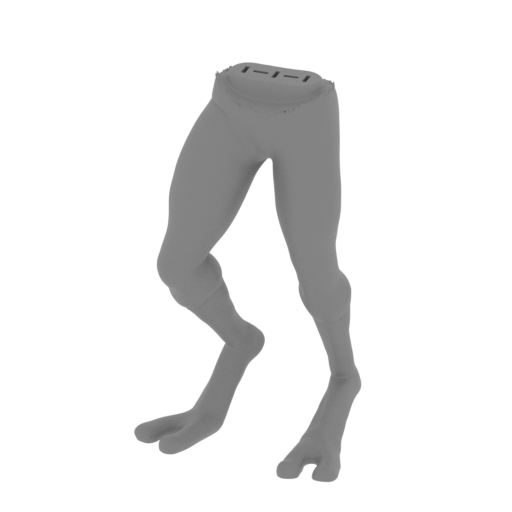

5_Legs.stl
8.14 MiB 9 h 19 min 6 m 75 x 60 x 131 Download

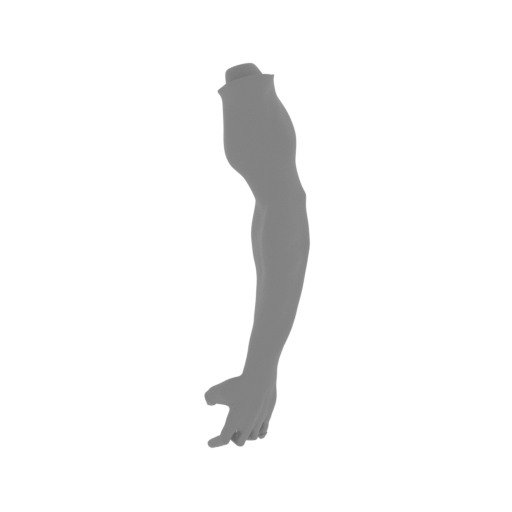

6_arm_L.stl
2.78 MiB 1 h 58 min 1 m 26 x 35 x 103 Download

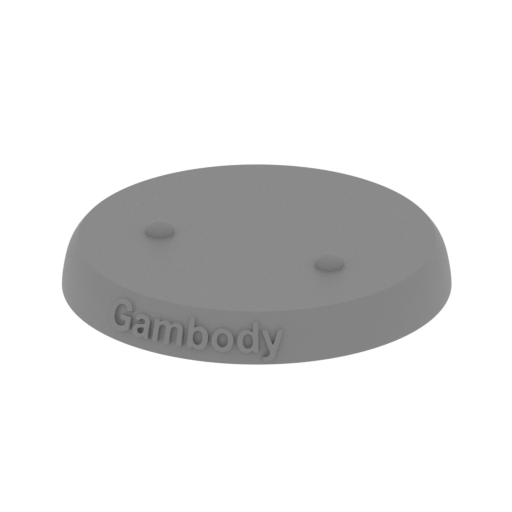

7_platform.stl
3.31 MiB 6 h 40 min 4 m 95 x 96 x 16 Download

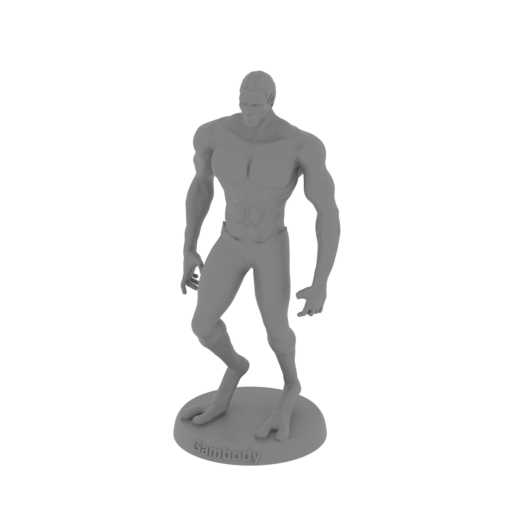

8_Menthuthuyoupi.STL
23.60 MiB 32 h 43 min 19 m 107 x 96 x 245 Download

HISTORY OF THE MENTHUTHUYOUPI

The only one of the Guardsmen of Ant-King was created using the genes of the Magical beast. Above 2 meters tall. His lower limbs as the animal, skin is dark red, hips covered with hair. He looks like a satyr with black hair. He is able to arbitrarily change his body, for example, to grow the wings, tentacles, eyes. The peculiarity of his character is simplicity and straightforwardness. Menthuthuyoupi is more animal, he has almost no human genes and people's egocentrism and fluctuations. Youpi easily throws away useless emotional and is always ready to fulfill the duty of the Guardsman.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

Features:

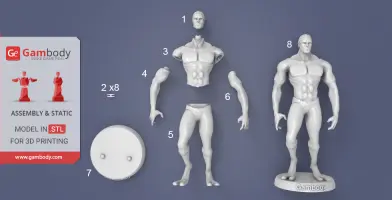

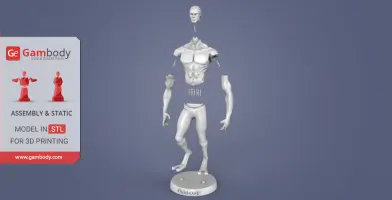

- Contains 8 parts.

- Made with Locks. One part of Lock you need to print 8 times;

- Made with platform.

- Contains 1 piece variant;

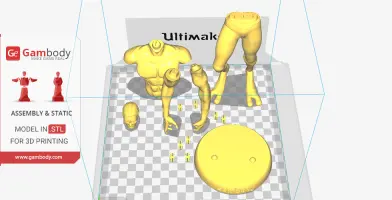

- All parts are divided in such way that you will print them with the smallest amount of supports.

STL files for 3D printing has been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.1.0. Software.

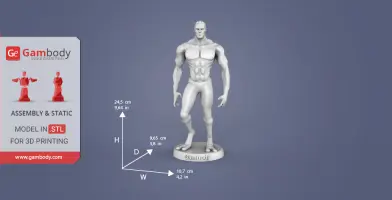

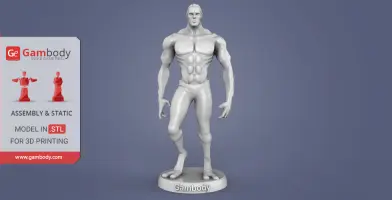

Dimensions: After being printed will stand: 245 mm tall, 107 mm wide, 96.5 mm deep;

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Menthuthuyoupi for 3D printing.
- Contain divided into pieces and 1 piece variants;

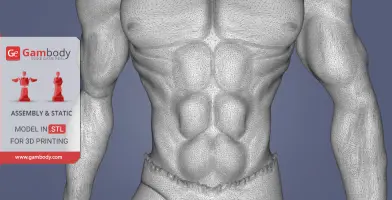

- High-poly detailed miniature of Menthuthuyoupi.

- Detailed settings that we provide for Cura 3.1.0. for the best print.

- Full technical support from the Gambody Support Team.

Watch the tutorial video of how to assemble Menthuthuyoupi 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Menthuthuyoupi for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other 3D Miniatures of anime heroes.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?



Generic

This model was tested in Cura 3.1.0. and printed on an Ultimaker 2 in PLA material.

To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Slicing Tolerance: Middle
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill

Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check
Maximum Resolution: 0.01 mm
Merged Meshes Overlap: 0.15 mm

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
