Saori Kido 3D Printing Figurine | Assembly

(1)
cm: 18.9 w x 15.8 d x 34 h
in: 7.441 w x 6.22 d x 13.386 h

Source Files

|

Description

|

Printing Details

This 3D model of Saori Kido consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 4 versions of Saori Kido STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, SLS - files for all versions are available for download after the purchase;
  • STL files of high-poly Saori Kido Figurine for 3D printing consist of 45 files;
  • Sizes for:
  • FFF/FDM: 340 mm tall, 189 mm wide, 158 mm deep;
  • DLP/SLA/SLS: 170 mm tall, 94 mm wide, 79 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

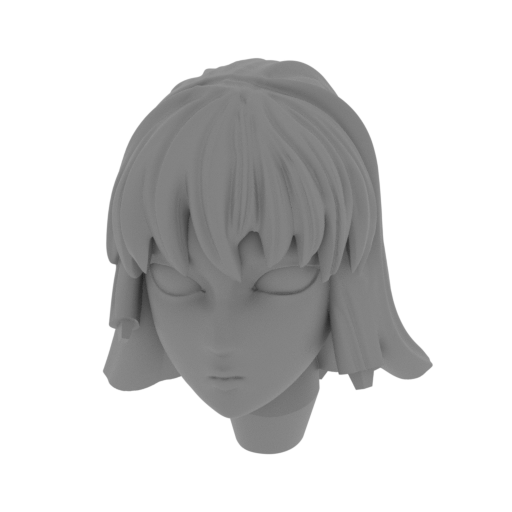

1_head_FDM(repaired).stl
42.72 MiB 1 h 25 min 1 m 27 x 25 x 32 Download

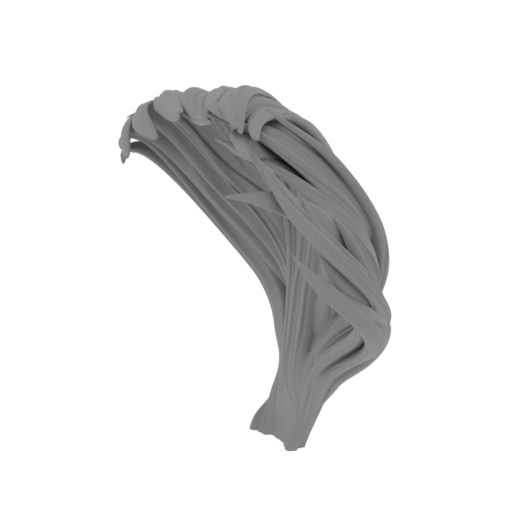

2_hair_back_FDM(repaired) .stl
43.46 MiB 51 h 30 min 38 m 139 x 144 x 130 Download

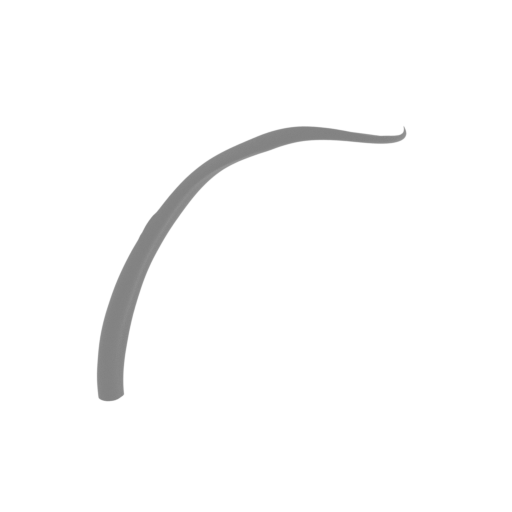

3_hair_R_FDM(repaired).st l
7.86 MiB 47 min <1 m 46 x 16 x 50 Download

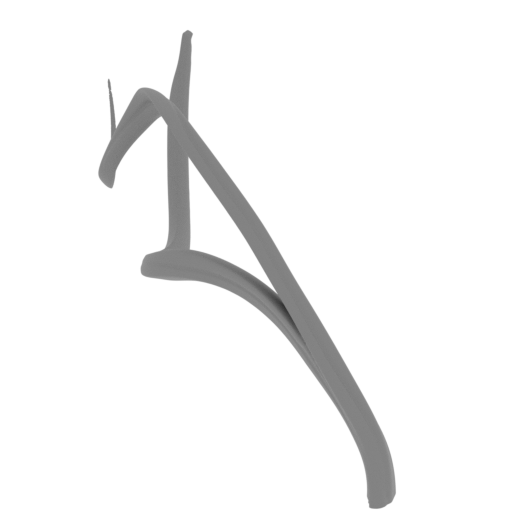

4_hair_L_FDM(repaired).st l
12.59 MiB 58 min 1 m 46 x 38 x 42 Download

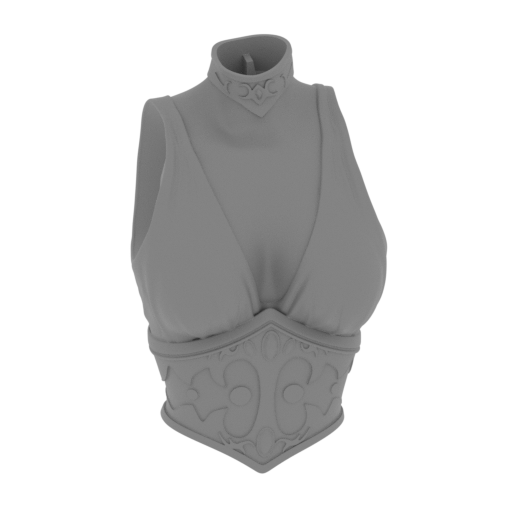

5_body_FDM(repaired).stl
26.52 MiB 2 h 6 min 1 m 33 x 35 x 45 Download

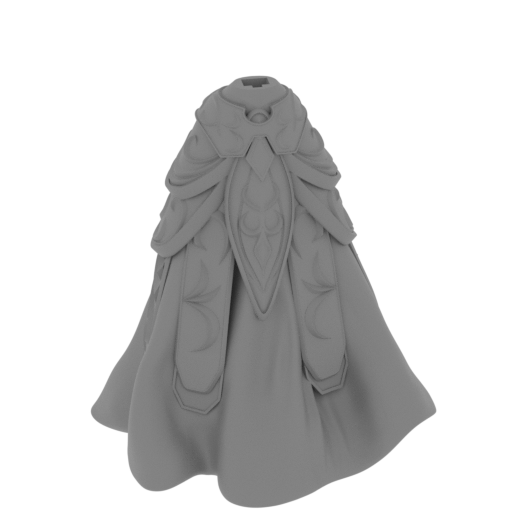

6_legs_FDM(repaired).stl
73.59 MiB 30 h 5 min 13 m 118 x 113 x 132 Download

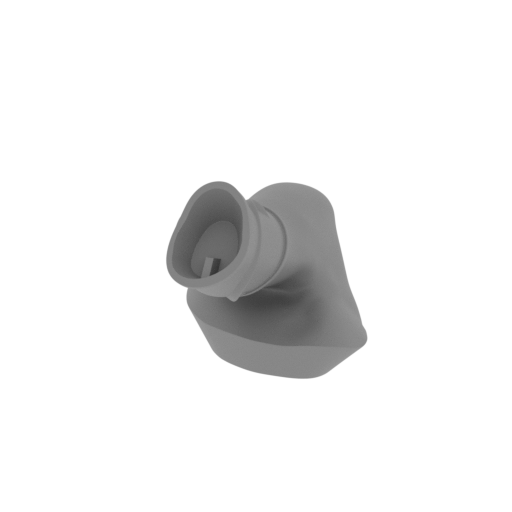

7_arm_R_1_FDM(repaired).s tl
13.71 MiB 33 min <1 m 17 x 32 x 22 Download

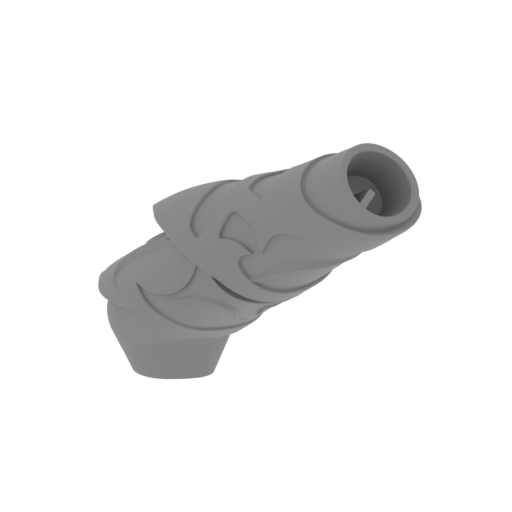

8_arm_R_2_FDM(repaired).s tl
13.31 MiB 26 min <1 m 25 x 14 x 22 Download

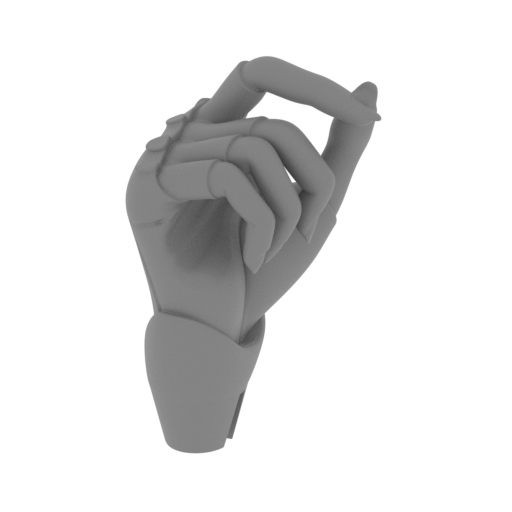

9_hand_R_FDM(repaired).st l
10.44 MiB 15 min <1 m 10 x 9 x 17 Download

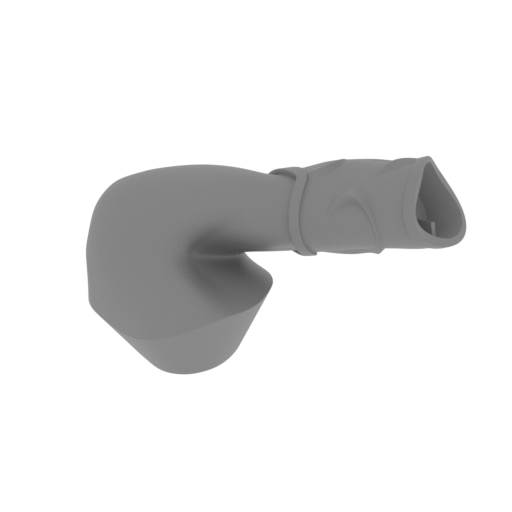

10_arm_L_1_FDM(repaired). stl
15.93 MiB 31 min <1 m 31 x 19 x 17 Download

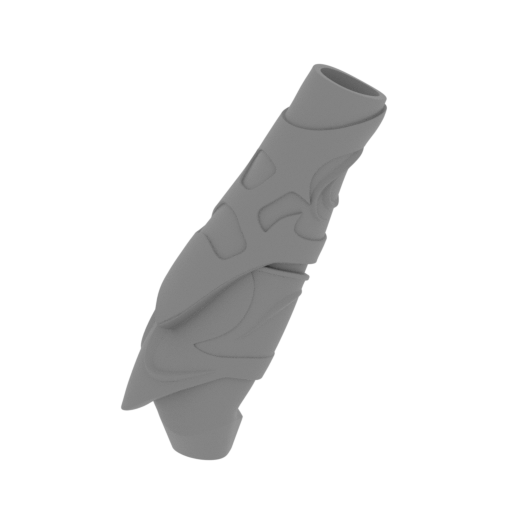

11_arm_L_2_FDM(repaired). stl
17.15 MiB 29 min <1 m 16 x 14 x 28 Download

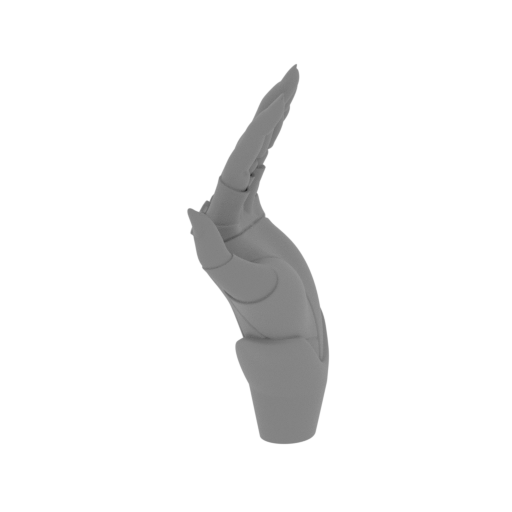

12_hand_L_FDM(repaired).s tl
8.52 MiB 12 min <1 m 8 x 11 x 23 Download

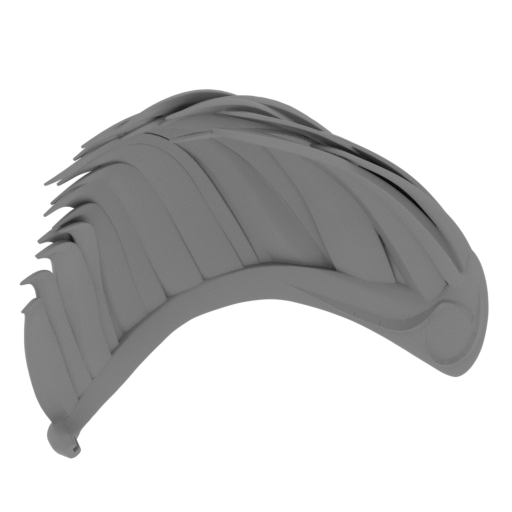

13_wing_R_FDM(repaired).s tl
22.79 MiB 11 h 57 min 8 m 88 x 84 x 78 Download

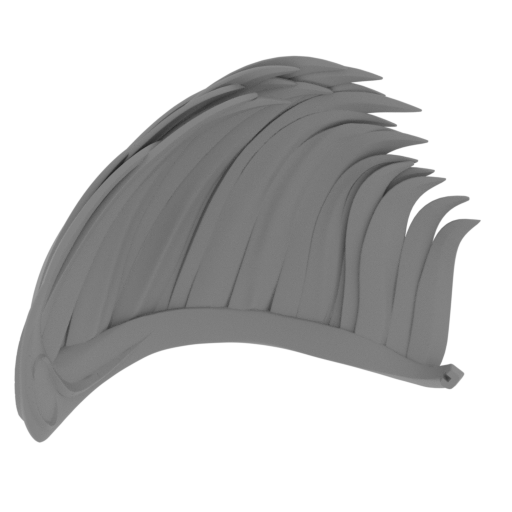

14_wing_L_FDM(repaired).s tl
23.47 MiB 9 h 31 min 5 m 90 x 90 x 72 Download

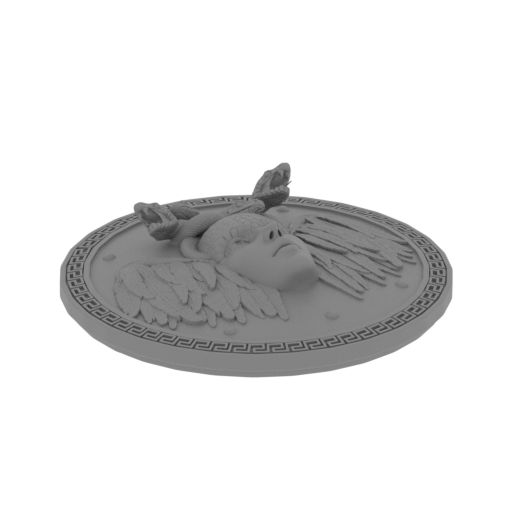

15_shield_FDM(repaired).s tl
23.83 MiB 12 h 11 min 7 m 109 x 109 x 27 Download

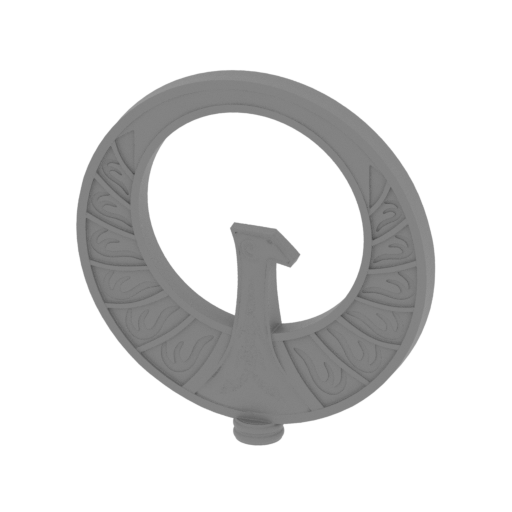

16_golden_staff_1_FDM(rep aired).stl
20.01 MiB 1 h 4 min <1 m 43 x 6 x 45 Download

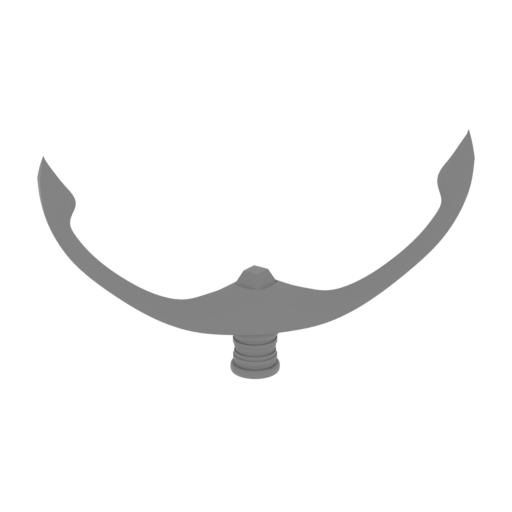

17_golden_staff_2_FDM(rep aired).stl
13.23 MiB 34 min <1 m 50 x 29 x 31 Download

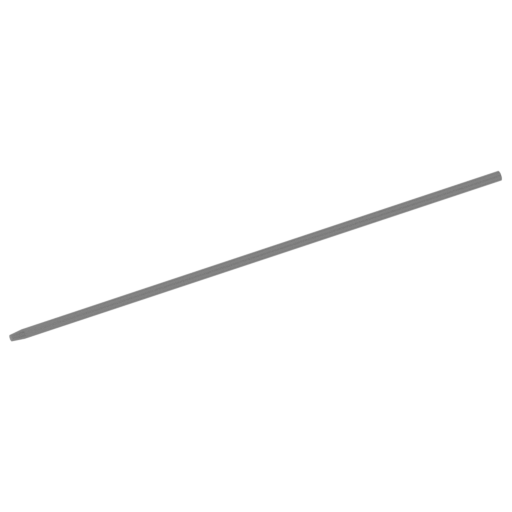

18_golden_staff_3_FDM(rep aired).stl
1.48 MiB 59 min 1 m 119 x 122 x 25 Download

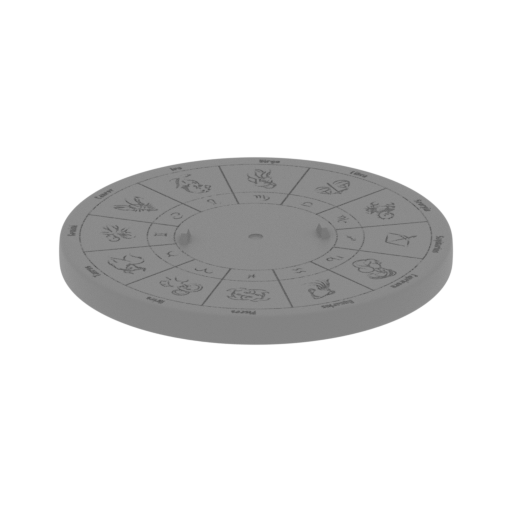

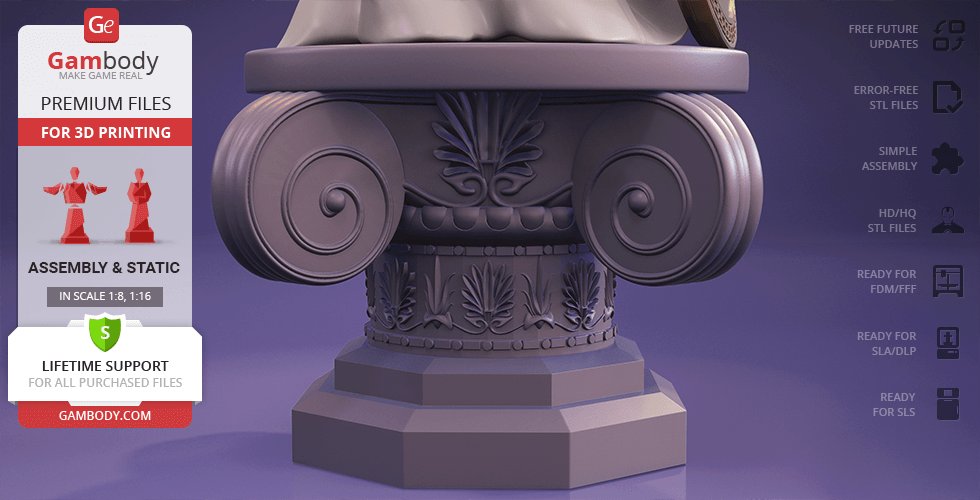

19_platform_1_FDM(repaire d).stl
38.22 MiB 17 h 58 min 12 m 131 x 131 x 21 Download

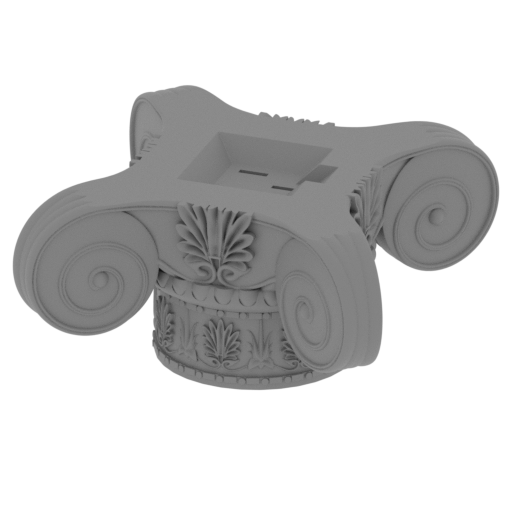

20_platform_2_FDM(repaire d).stl
29.94 MiB 45 h 59 min 26 m 128 x 128 x 66 Download

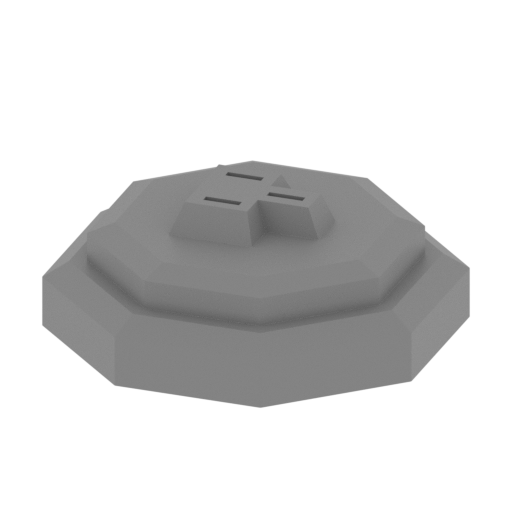

21_platform_3_FDM(repaire d).stl
14.78 MiB 14 h 4 min 8 m 101 x 101 x 36 Download

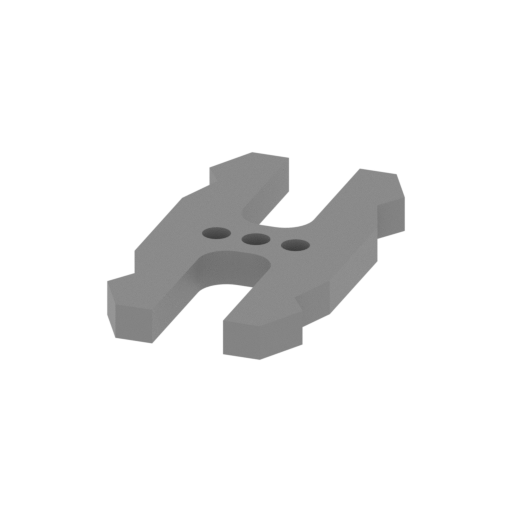

22_Ge_lock_10H(x6)_FDM(re paired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

Saori Kido is one of the protagonists of Saint Seiya: Knights of the Zodiac Japanese manga series. Saori is the reincarnation of Athena, the goddess of love, strategy, and hope. Saori is guided by Mitsumasa Kido, in whom she sees a father and who protects her from forces of evil. The personality of Saori is a combination of haughtiness and serenity, at the same time she is sacrificing and loving. Saori, who was born with the aim of leading her Saints in Holy Wars, is capable of enduring pain and showing courage to protect Earth and its inhabitants.

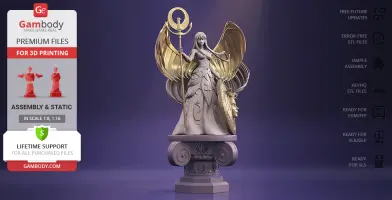

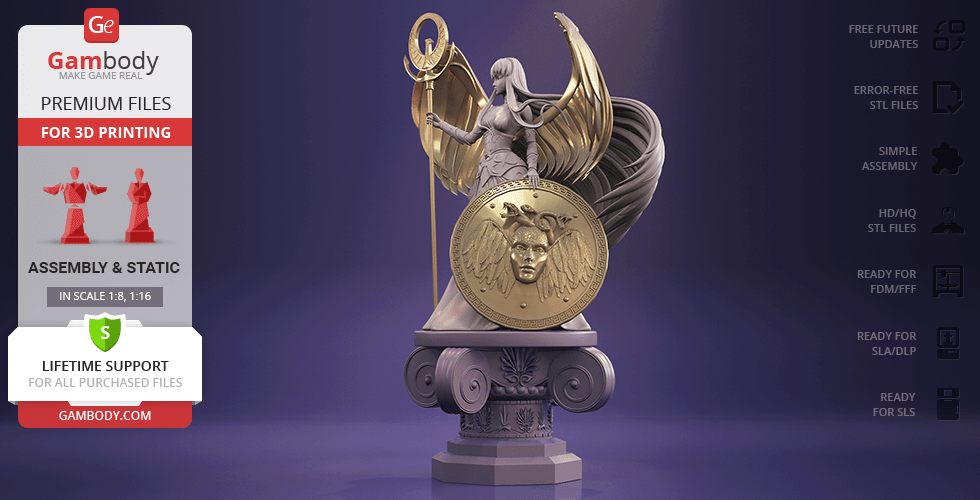

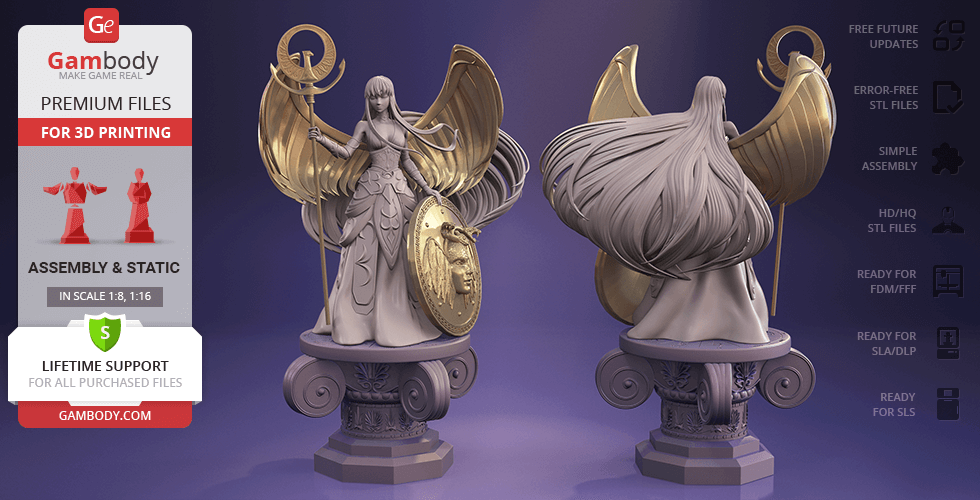

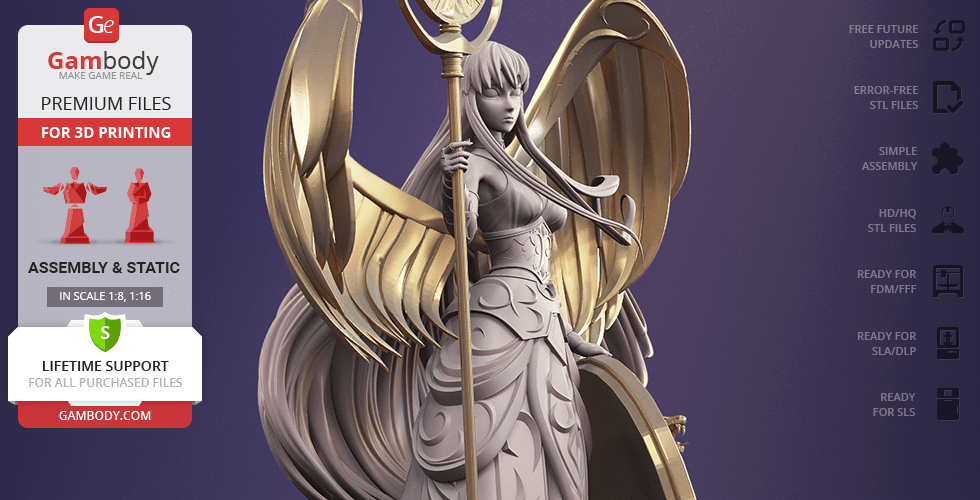

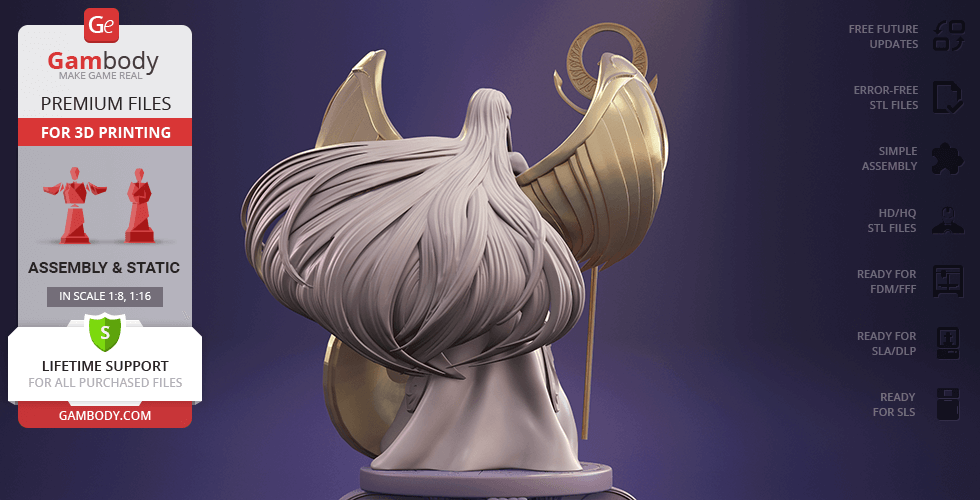

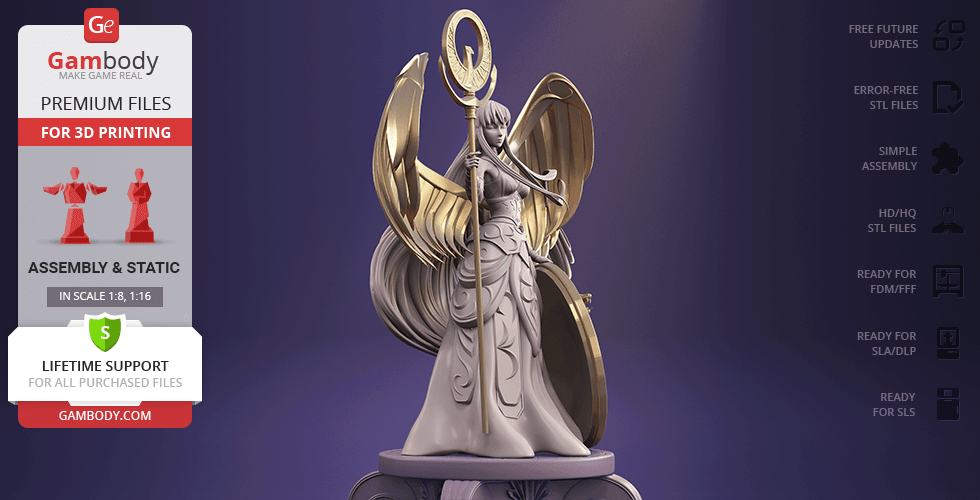

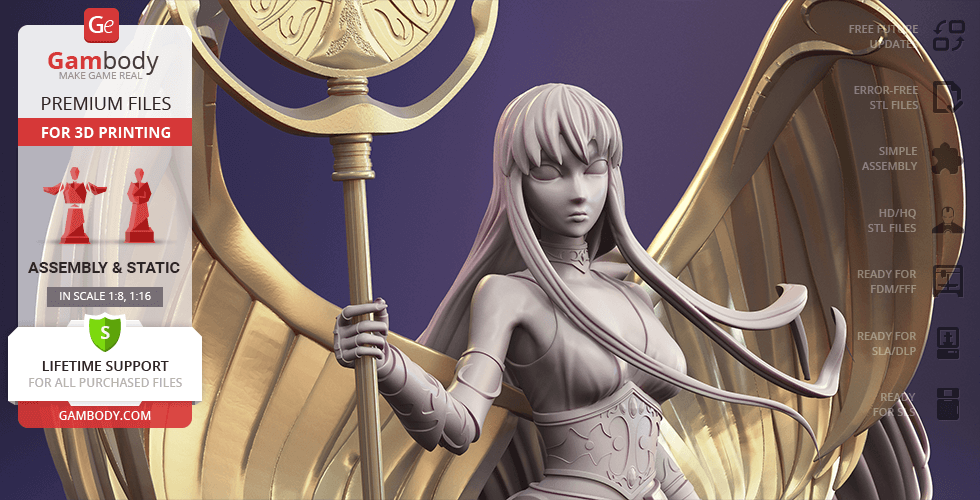

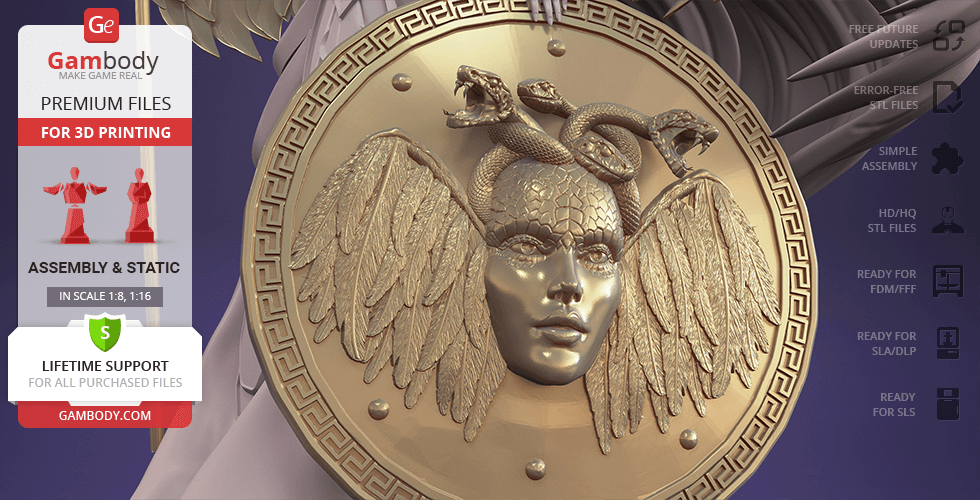

Inspired by the female protagonist of Saint Seiya, our talented 3D artist created this impressive figurine for 3D printing. The cloth of Saori features huge golden wings, the heroine is depicted holding an Aegis shield featuring the head of Gorgon in one hand and a golden staff in another. The long flowing hair of the woman hides the wings; Athena God cloth, that covers most of the body of Saori, features armored platting. With all the decorations and textures, just imagine how special this figurine will look on your exhibits!

ADAPTATION FOR 3D PRINTING

Saori Kido for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 65 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the character to be depicted harmoniously in the intended pose.

The figurine’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurine are connected, Saori Kido was divided into convenient assembly parts.

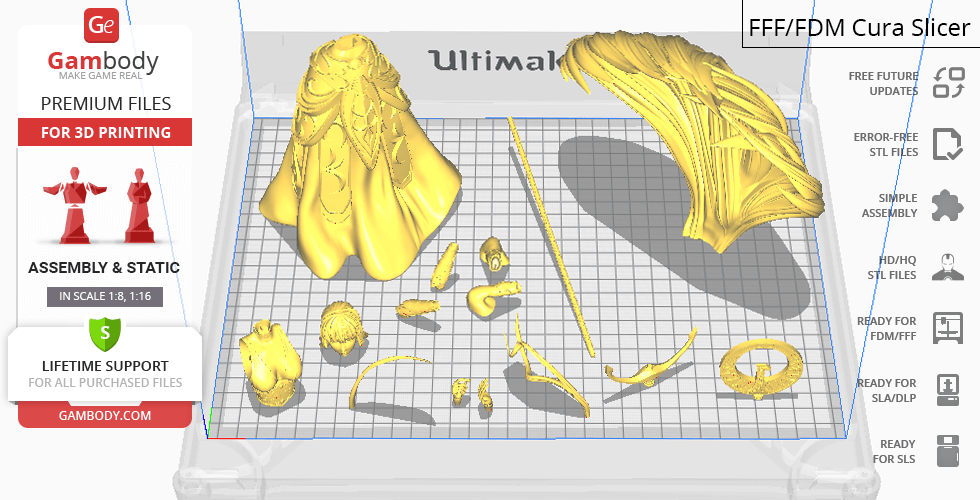

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to Saori Kido.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The figurine’s scale was calculated from the height of Saori Kido which is 1550 mm. The 3D printing figurine’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

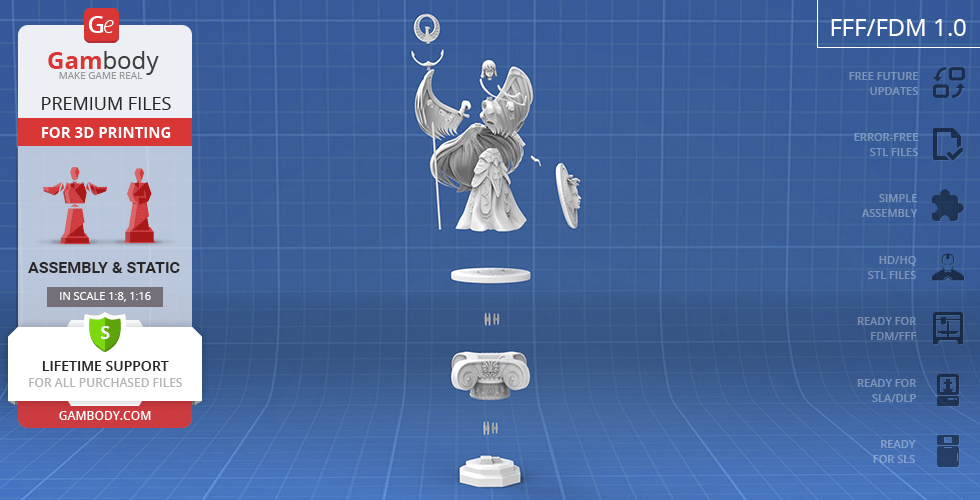

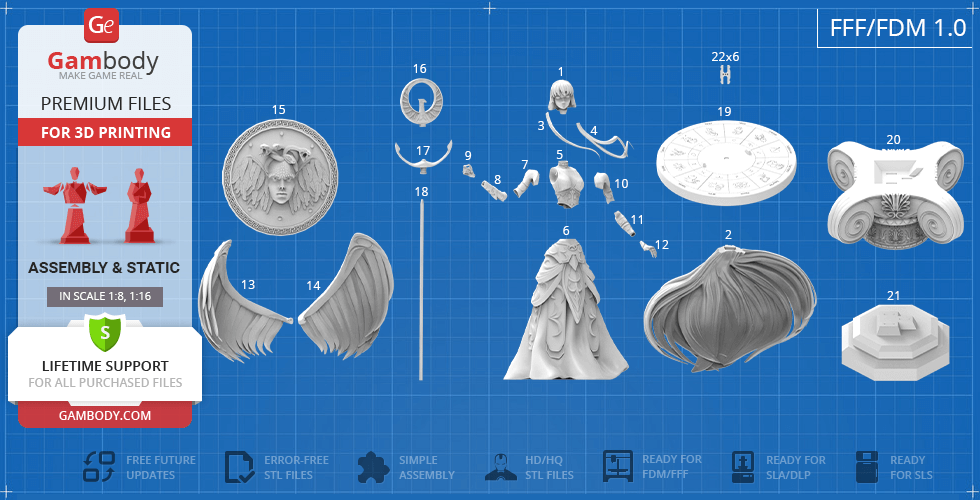

FFF/FDM 1.0 versions features:

  • Contains 22 parts;
  • A printed figurine is 340 mm tall, 189 mm wide, 158 mm deep;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

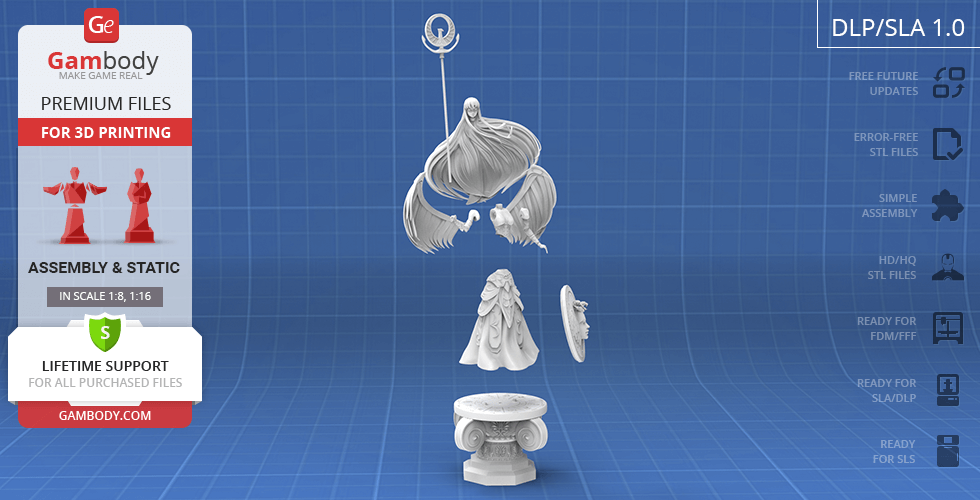

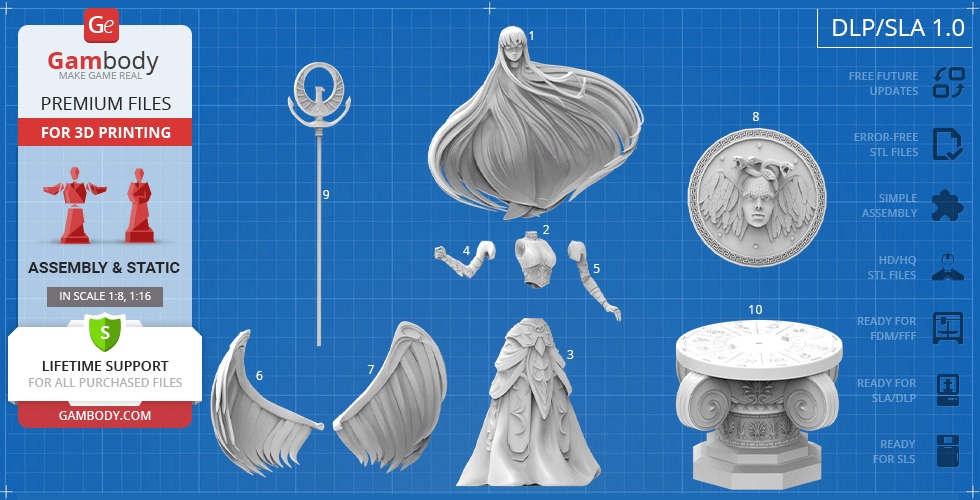

DLP/SLA 1.0 versions features:

  • Contains 10 parts;
  • A printed figurine is 170 mm tall, 94 mm wide, 79 mm deep;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

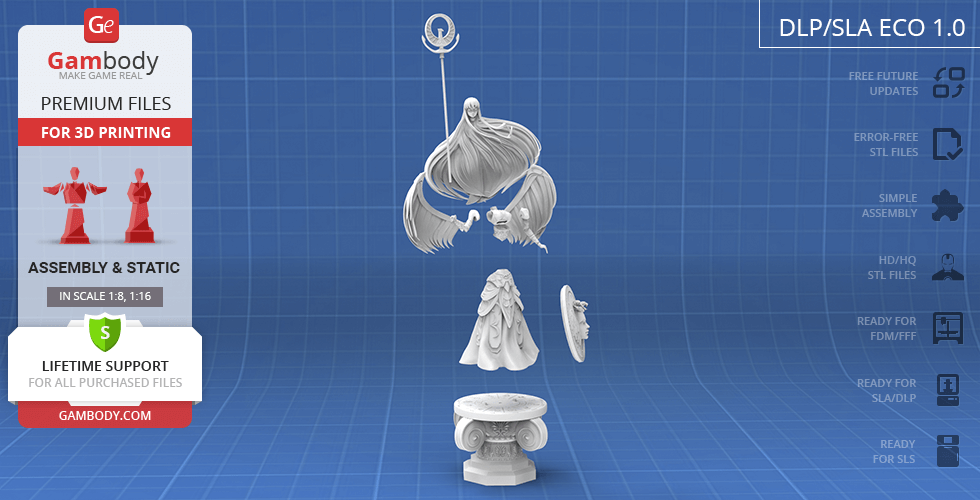

DLP/SLA Eco 1.0 versions features:

  • Contains 10 parts;
  • A printed figurine is 170 mm tall, 94 mm wide, 79 mm deep;
  • Some parts are manually hollowed out to save resin.

SLS 1.0 versions features:

  • Contains 3 parts - a solid Saori Kido figurine on and separately from the platform.

You can get the figurine of Saori Kido for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Saori Kido 3D Printing Figurine on Gambody YouTube channel.

Also, you may like other Anime 3D Printing Figurines.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

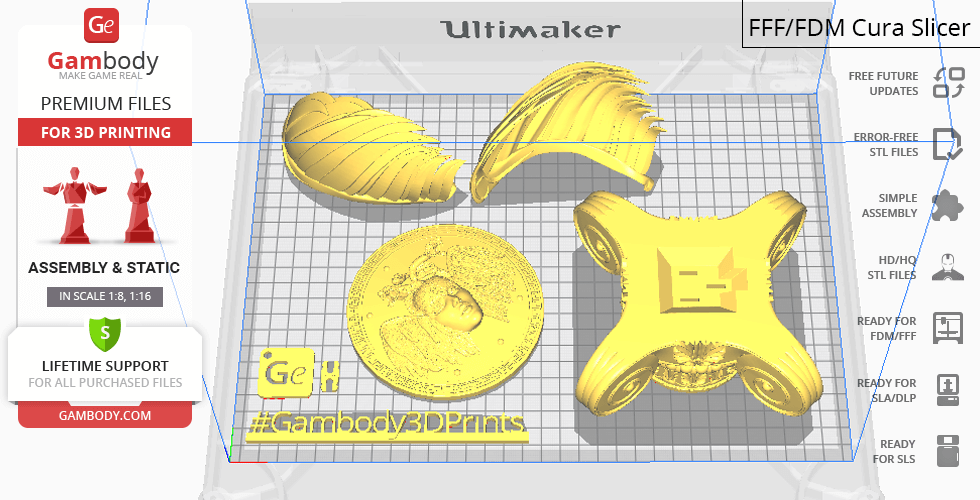

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
