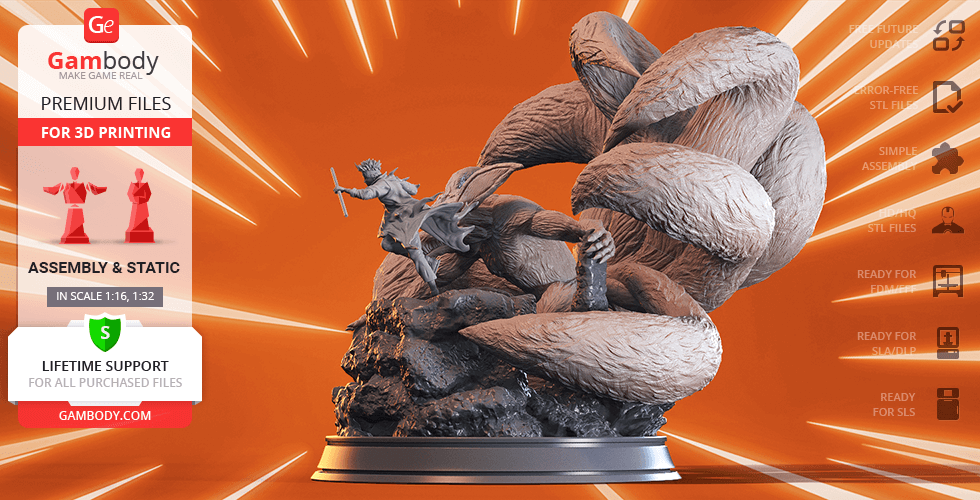

Naruto and Kurama 3D Printing Figurines in Diorama | Assembly

(11)
cm: 34.1 w x 33.8 d x 31 h
in: 13.425 w x 13.307 d x 12.205 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

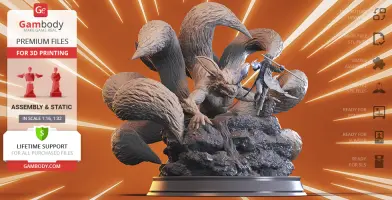

Naruto and Kurama 3D Printing Figurines in Diorama come in 4 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

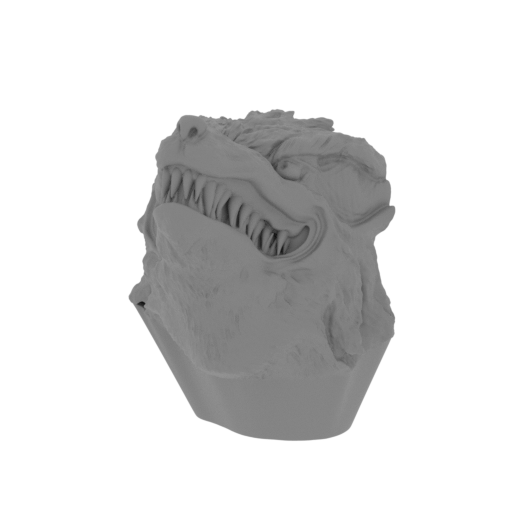

1_head_Kurama_FDM(repaire d).stl
21.04 MiB 5 h 59 min 3 m 43 x 55 x 62 Download

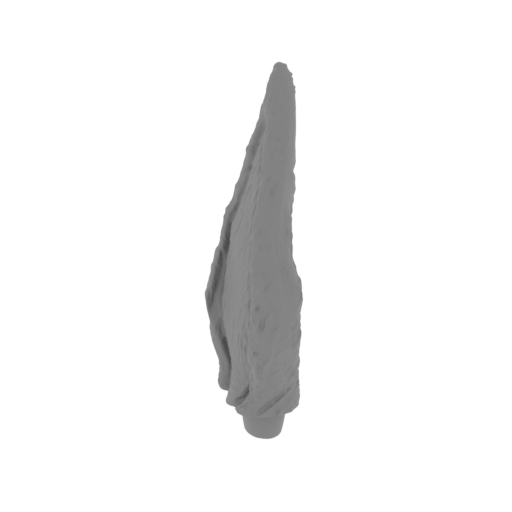

2_ear_R_Kurama_FDM(repair ed).stl
8.51 MiB 45 min <1 m 17 x 18 x 55 Download

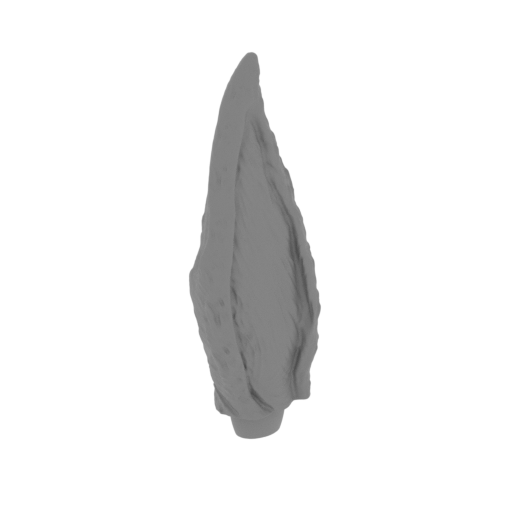

3_ear_L_Kurama_FDM(repair ed).stl
8.35 MiB 44 min <1 m 16 x 18 x 54 Download

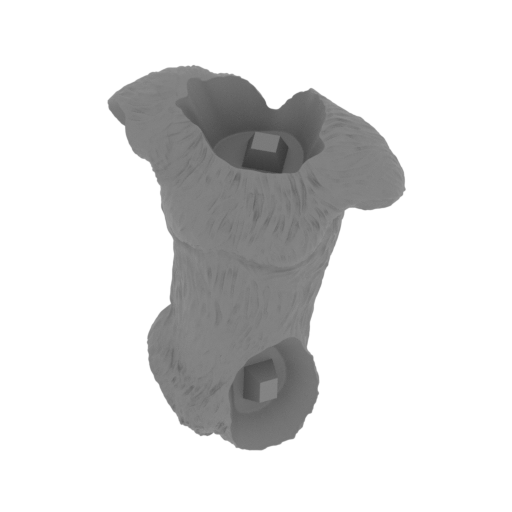

4_body_Kurama_FDM(repaire d).stl
21.70 MiB 15 h 51 min 10 m 80 x 49 x 107 Download

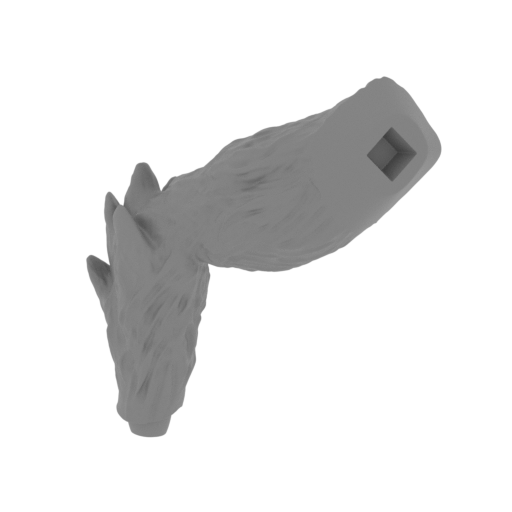

5_arm_R_Kurama_FDM(repair ed).stl
15.73 MiB 3 h 6 min 2 m 56 x 22 x 62 Download

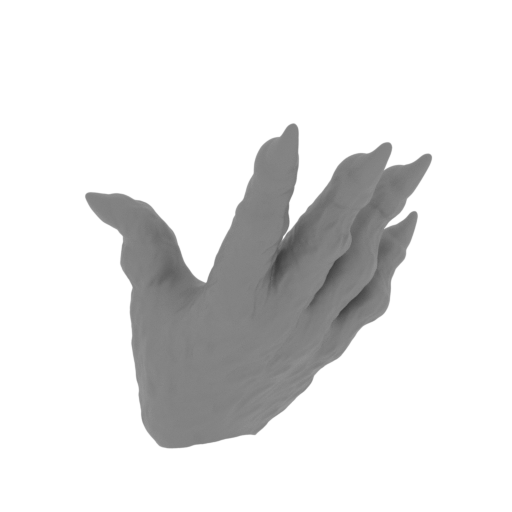

6_hand_R_Kurama_FDM(repai red).stl
11.39 MiB 1 h 3 min 1 m 34 x 23 x 42 Download

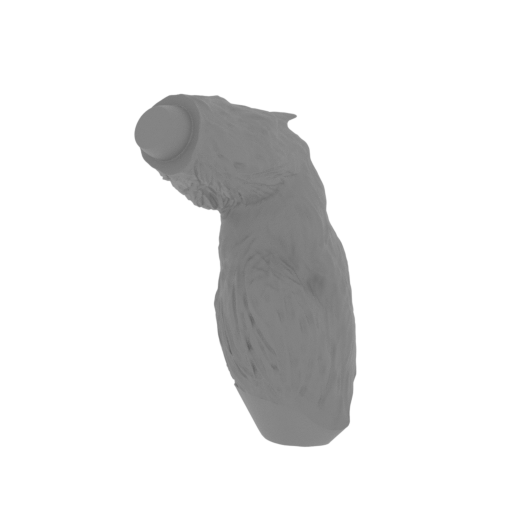

7_arm_L_Kurama_FDM(repair ed).stl
15.64 MiB 2 h 52 min 2 m 32 x 39 x 62 Download

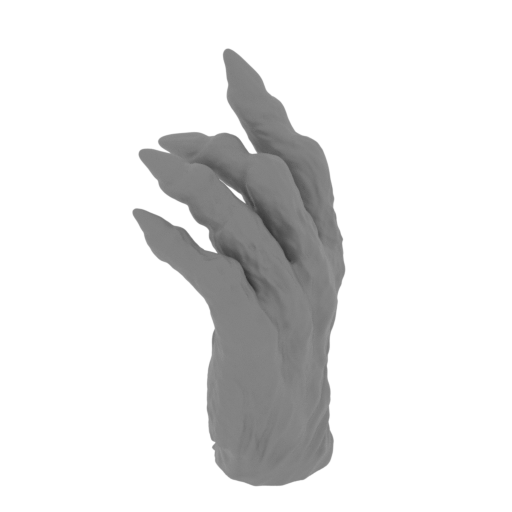

8_hand_L_Kurama_FDM(repai red).stl
10.40 MiB 1 h 6 min 1 m 20 x 31 x 39 Download

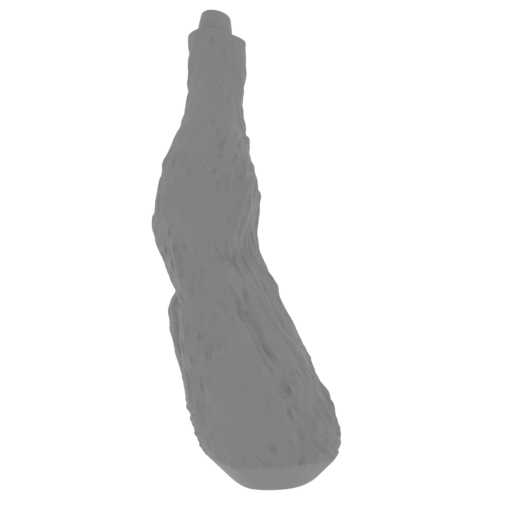

9_leg_R_Kurama_FDM(repair ed).stl
17.16 MiB 5 h 34 min 4 m 53 x 71 x 89 Download

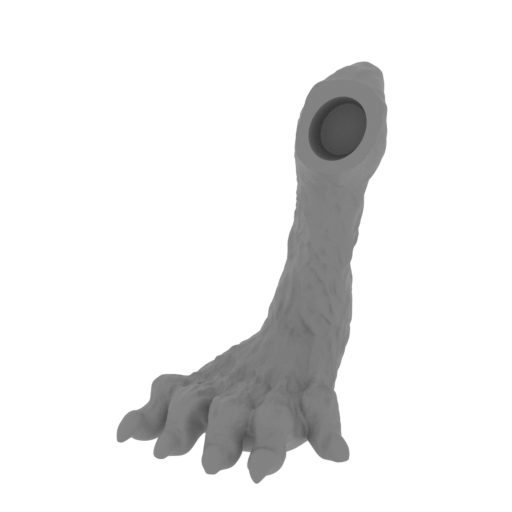

10_foot_R_Kurama_FDM(repa ired).stl
8.26 MiB 1 h 25 min 1 m 36 x 32 x 56 Download

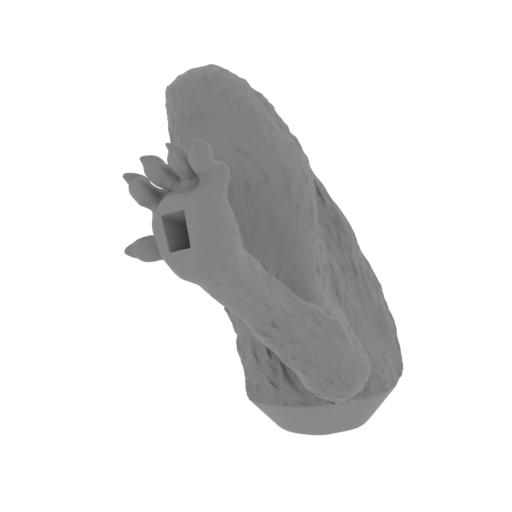

11_leg_L_Kurama_FDM(repai red).stl
17.82 MiB 5 h 56 min 4 m 51 x 71 x 74 Download

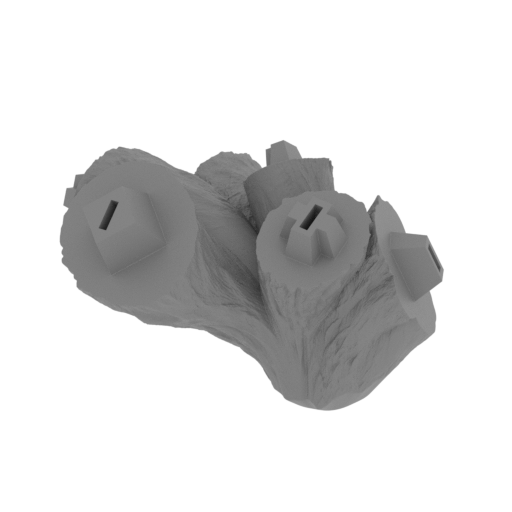

12_tail_1_Kurama_FDM(repa ired).stl
18.65 MiB 13 h 17 min 8 m 92 x 82 x 54 Download

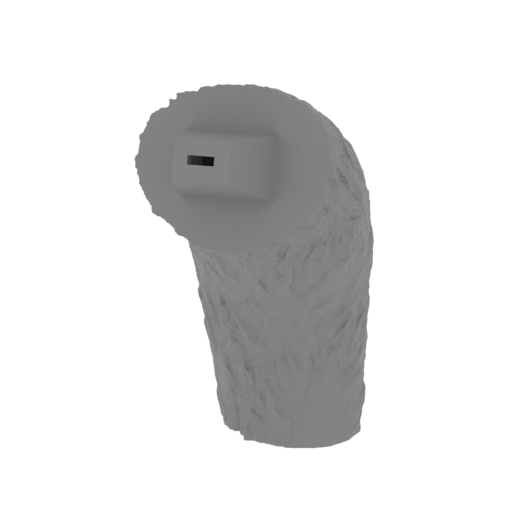

13_tail_2_Kurama_FDM(repa ired).stl
31.54 MiB 8 h 56 min 6 m 55 x 51 x 91 Download

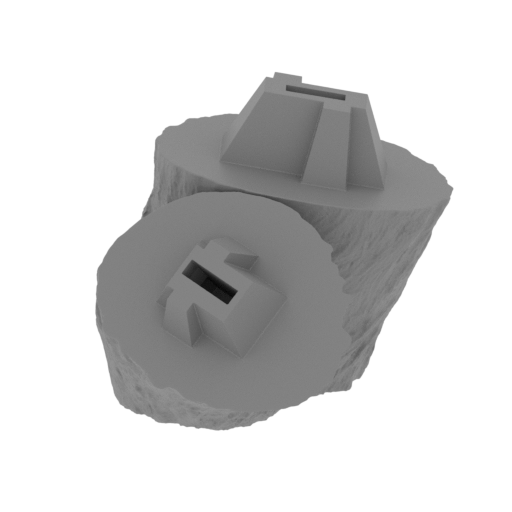

14_tail_3_Kurama_FDM(repa ired).stl
14.15 MiB 3 h 14 min 2 m 43 x 49 x 40 Download

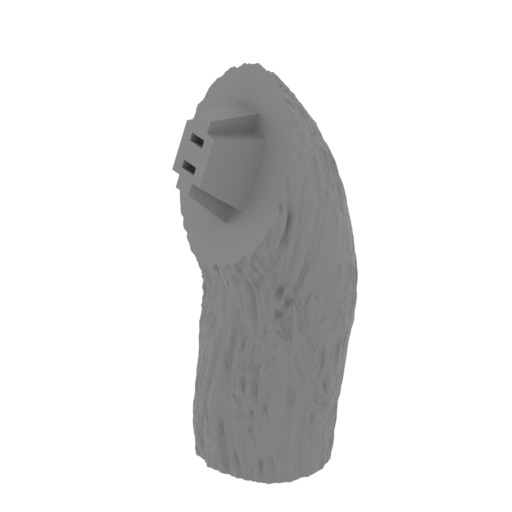

15_tail_4_Kurama_FDM(repa ired).stl
17.99 MiB 9 h 56 min 6 m 55 x 57 x 104 Download

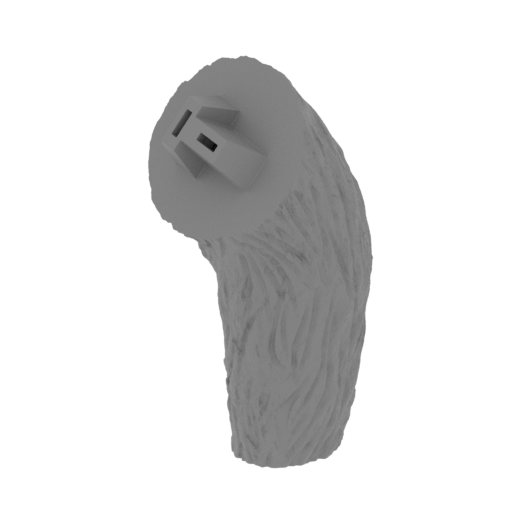

16_tail_5_Kurama_FDM(repa ired).stl
14.64 MiB 9 h 29 min 6 m 60 x 47 x 99 Download

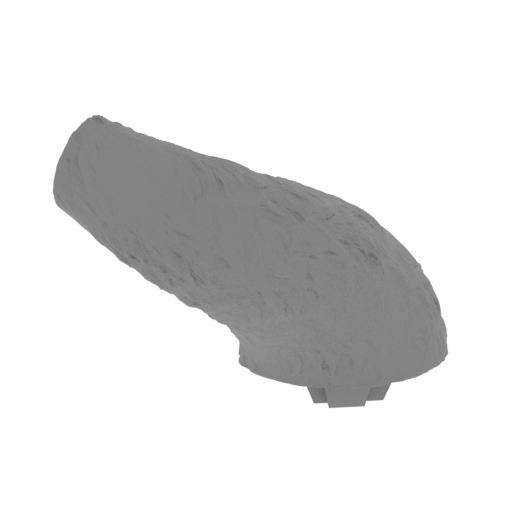

17_tail_6_Kurama_FDM(repa ired).stl
19.49 MiB 16 h 38 min 12 m 78 x 99 x 92 Download

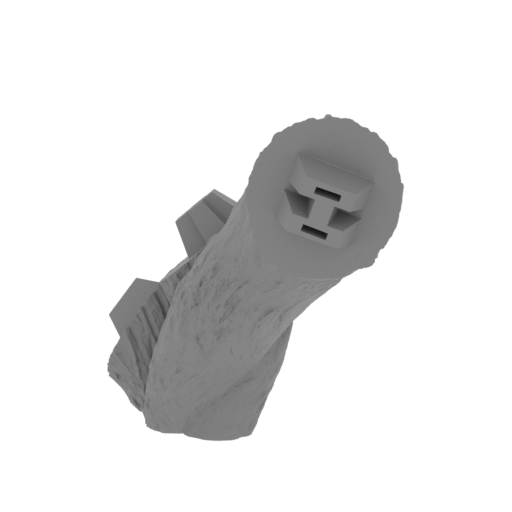

18_tail_7_Kurama_FDM(repa ired).stl
16.06 MiB 13 h 57 min 9 m 98 x 64 x 110 Download

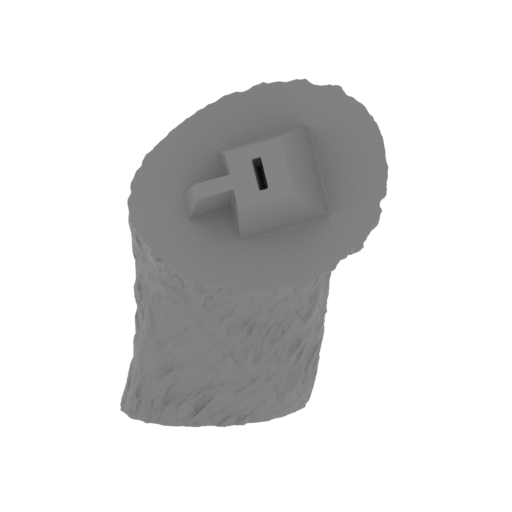

19_tail_8_Kurama_FDM(repa ired).stl
14.31 MiB 10 h 55 min 8 m 69 x 57 x 90 Download

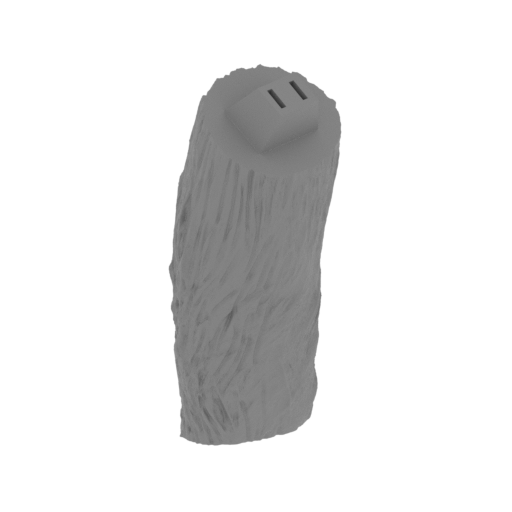

20_tail_9_Kurama_FDM(repa ired).stl
15.64 MiB 10 h 9 min 6 m 47 x 52 x 120 Download

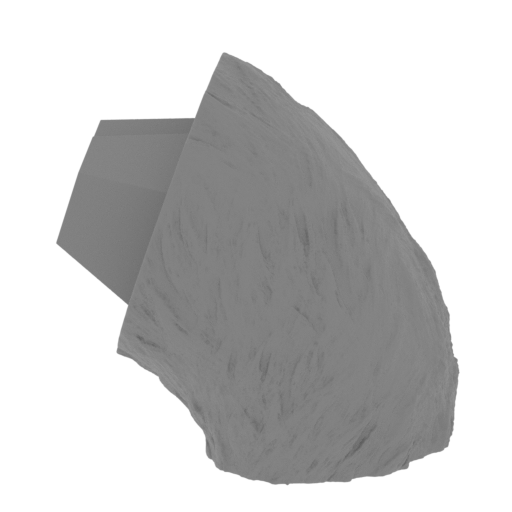

21_tail_10_Kurama_FDM(rep aired).stl
15.40 MiB 12 h 44 min 8 m 76 x 65 x 73 Download

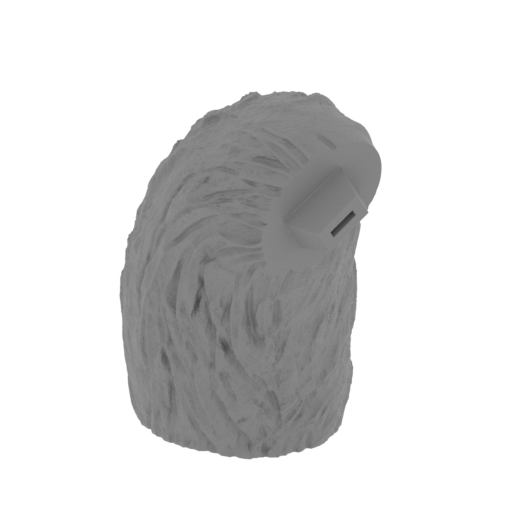

22_tail_11_Kurama_FDM(rep aired).stl
16.82 MiB 15 h 41 min 10 m 71 x 77 x 92 Download

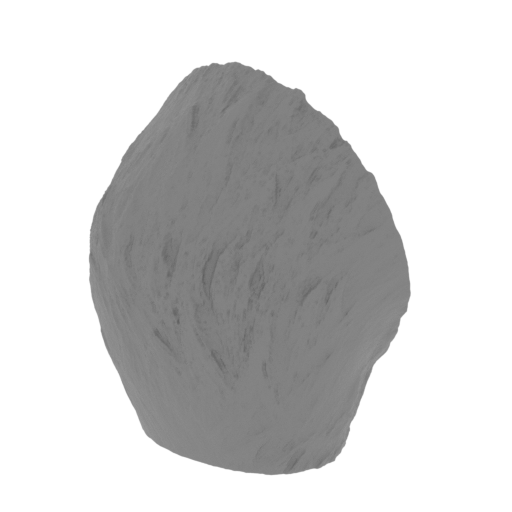

23_tail_12_Kurama_FDM(rep aired).stl
16.03 MiB 6 h 19 min 4 m 59 x 45 x 69 Download

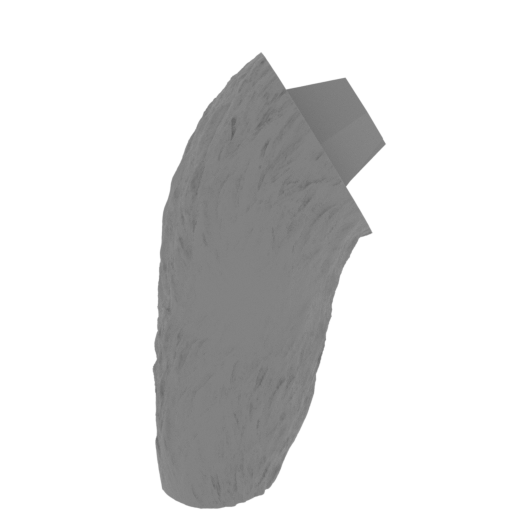

24_tail_13_Kurama_FDM(rep aired).stl
15.57 MiB 14 h 54 min 10 m 49 x 95 x 100 Download

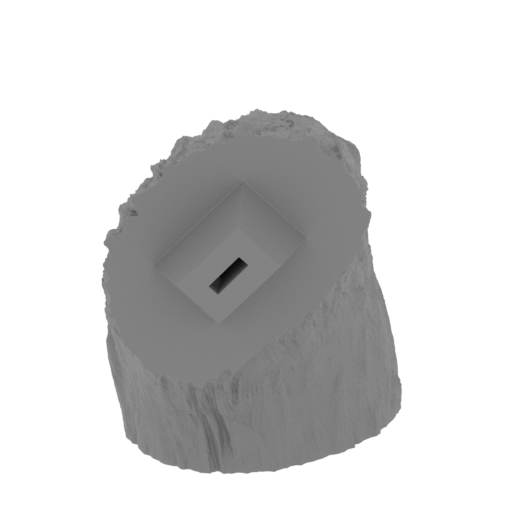

25_tail_14_Kurama_FDM(rep aired).stl
19.43 MiB 7 h 44 min 5 m 51 x 66 x 65 Download

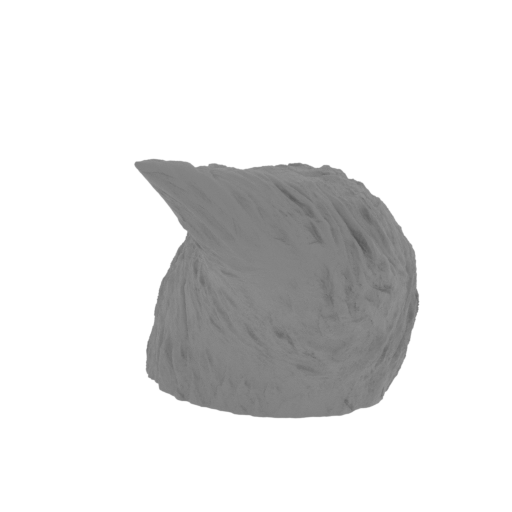

26_tail_15_Kurama_FDM(rep aired).stl
18.08 MiB 15 h 23 min 10 m 75 x 100 x 90 Download

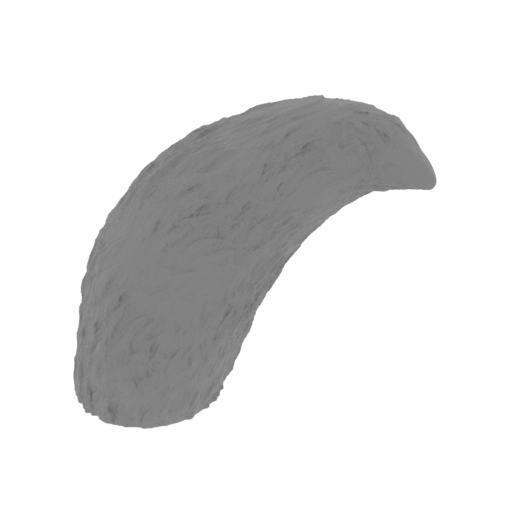

27_tail_16_Kurama_FDM(rep aired).stl
16.11 MiB 15 h 49 min 11 m 104 x 65 x 85 Download

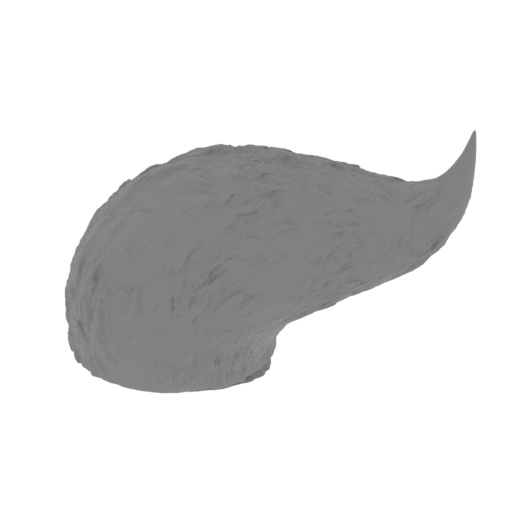

28_tail_17_Kurama_FDM(rep aired).stl
15.25 MiB 19 h 6 min 12 m 118 x 68 x 72 Download

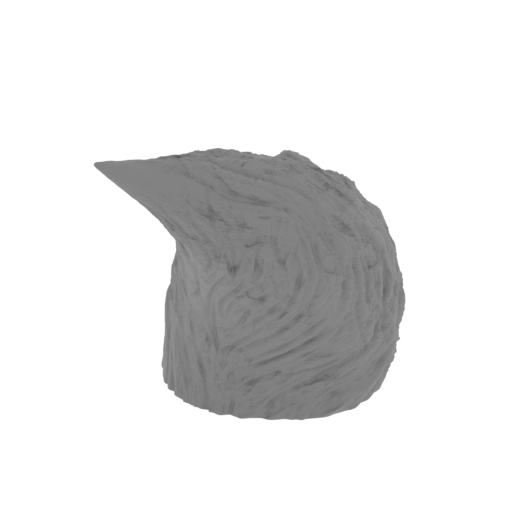

29_tail_18_Kurama_FDM(rep aired).stl
18.62 MiB 17 h 41 min 11 m 68 x 103 x 89 Download

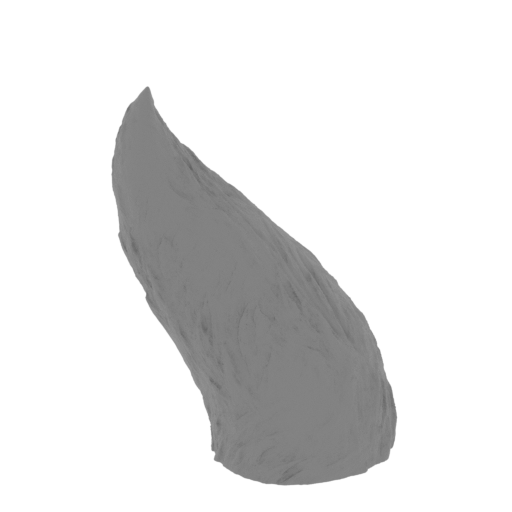

30_tail_19_Kurama_FDM(rep aired).stl
17.98 MiB 15 h 56 min 9 m 93 x 69 x 127 Download

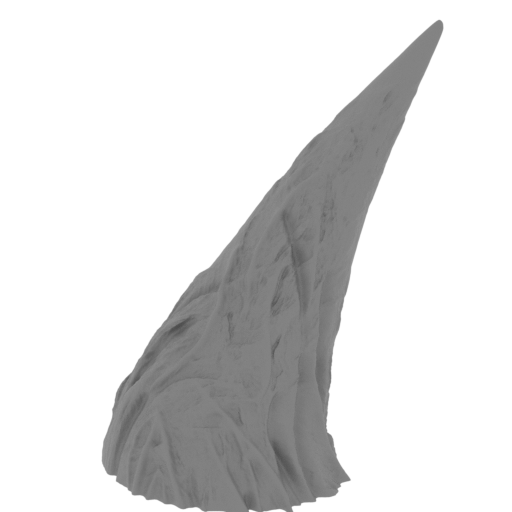

31_tail_20_Kurama_FDM(rep aired).stl
10.28 MiB 2 h 32 min 1 m 39 x 58 x 59 Download

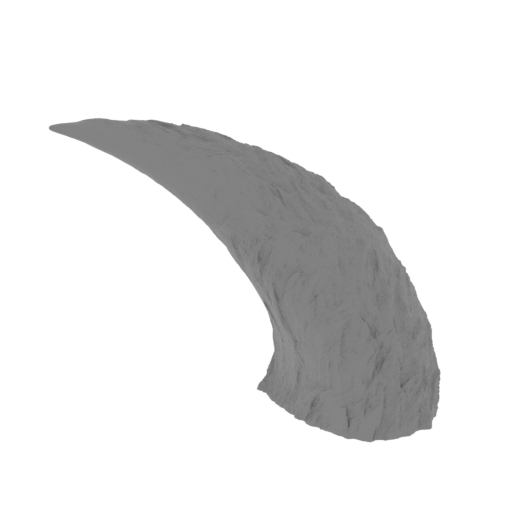

32_tail_21_Kurama_FDM(rep aired).stl
17.53 MiB 8 h 50 min 6 m 99 x 46 x 74 Download

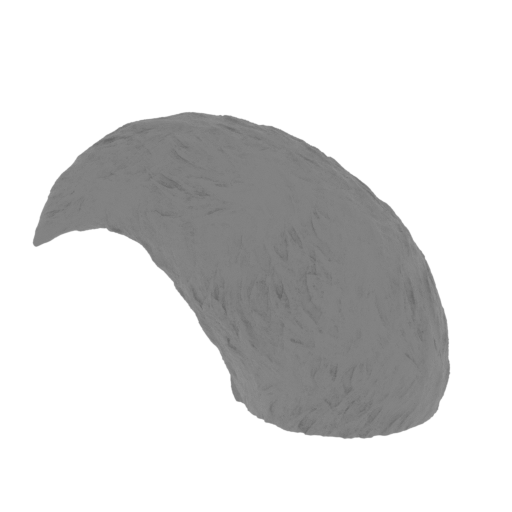

33_tail_22_Kurama_FDM(rep aired).stl
18.60 MiB 17 h 17 min 11 m 107 x 62 x 84 Download

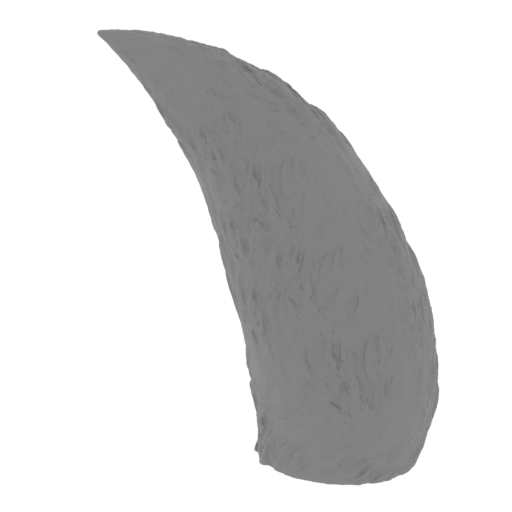

34_tail_23_Kurama_FDM(rep aired).stl
17.81 MiB 19 h 19 min 12 m 116 x 63 x 114 Download

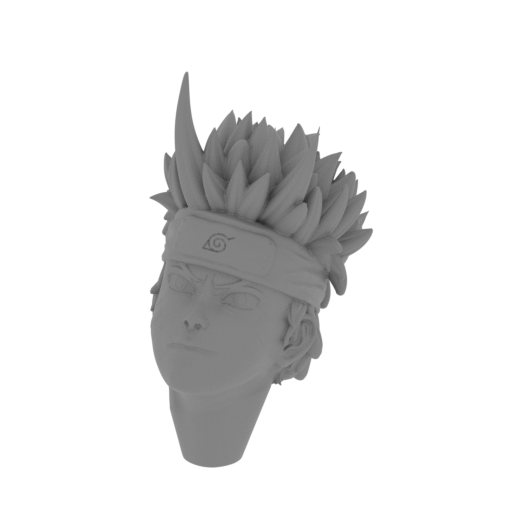

35_head_Naruto_FDM(repair ed).stl
14.76 MiB 29 min <1 m 12 x 18 x 22 Download

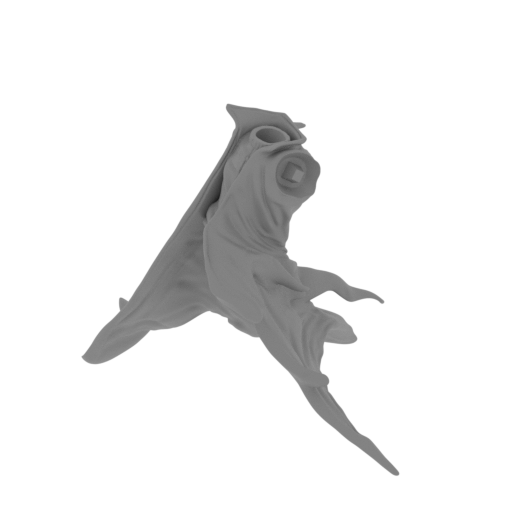

36_body_Naruto_FDM(repair ed).stl
26.80 MiB 5 h 8 min 3 m 79 x 60 x 65 Download

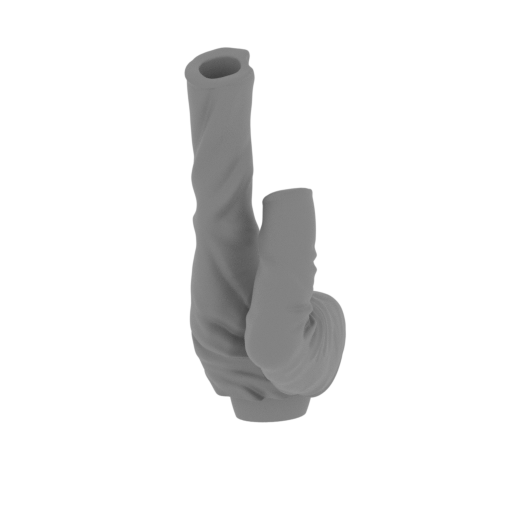

37_legs_Naruto_FDM(repair ed).stl
27.45 MiB 1 h 9 min 1 m 21 x 28 x 50 Download

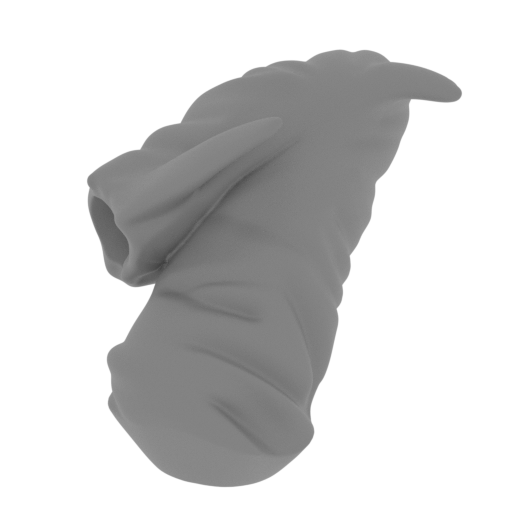

38_arm_R_Naruto_FDM(repai red).stl
11.68 MiB 20 min <1 m 17 x 18 x 17 Download

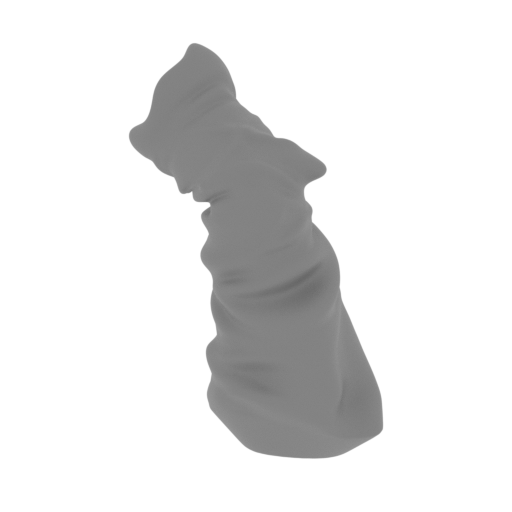

39_arm_L_Naruto_FDM(repai red).stl
17.06 MiB 25 min <1 m 18 x 10 x 25 Download

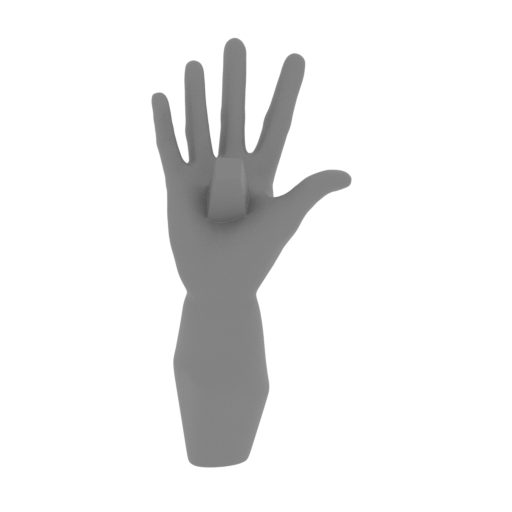

40_hand_R_Naruto_FDM(repa ired).stl
9.67 MiB 6 min <1 m 7 x 8 x 14 Download

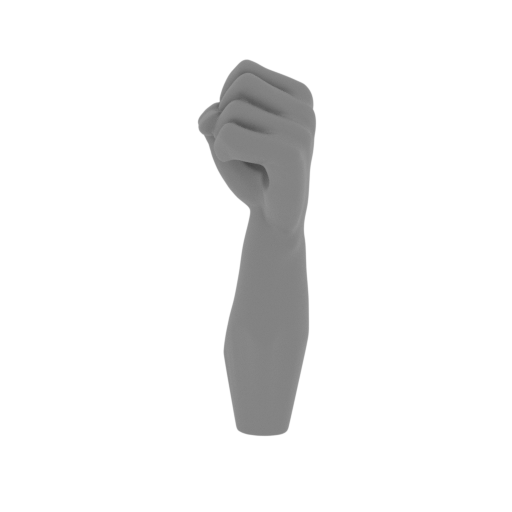

41_hand_L_Naruto_FDM(repa ired).stl
10.44 MiB 10 min <1 m 6 x 6 x 17 Download

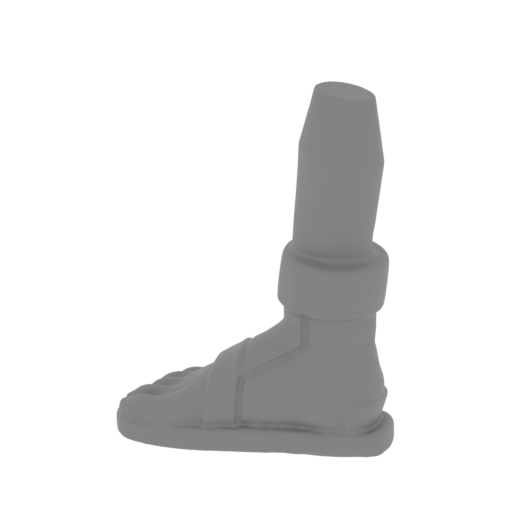

42_foot_R_Naruto_FDM(repa ired).stl
15.08 MiB 9 min <1 m 13 x 6 x 19 Download

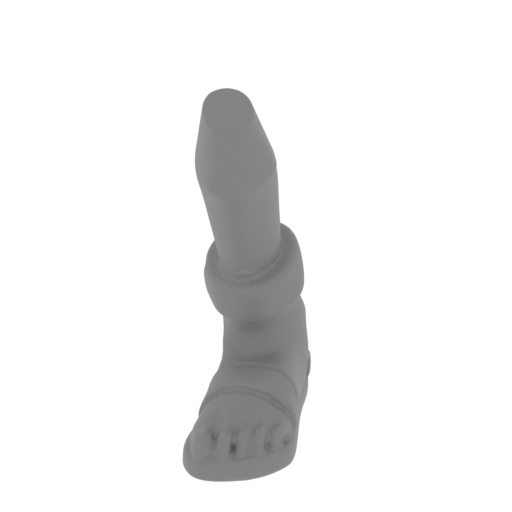

43_foot_L_Naruto_FDM(repa ired).stl
16.78 MiB 11 min <1 m 7 x 14 x 21 Download

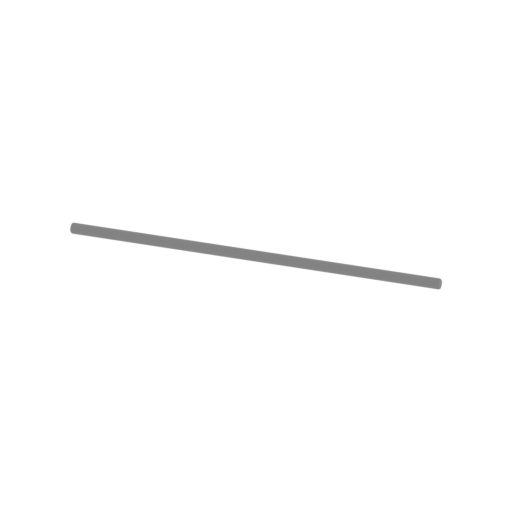

44_stick_FDM(repaired).st l
5.33 MiB 6 min <1 m 74 x 2 x 2 Download

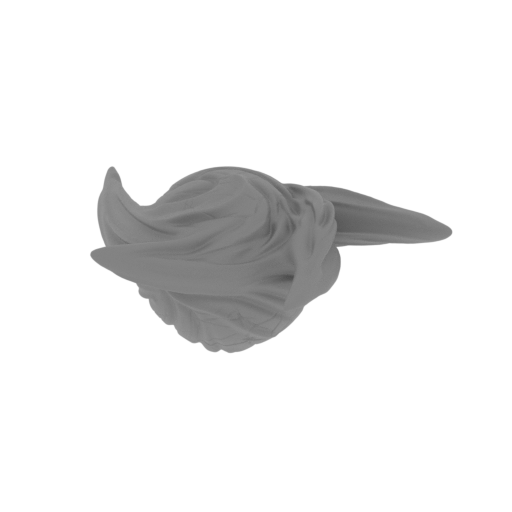

45_Rasengan_FDM(repaired) .stl
8.41 MiB 8 min <1 m 16 x 12 x 7 Download

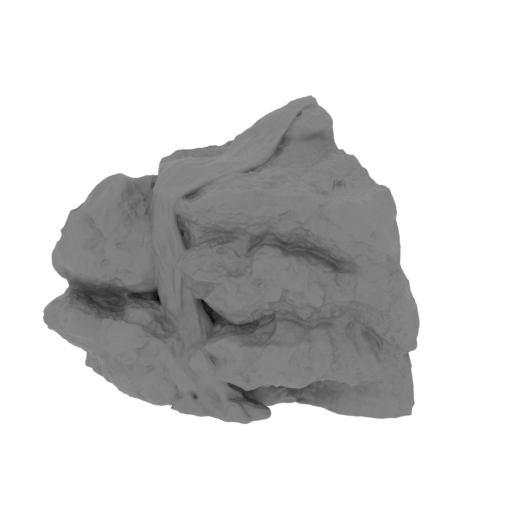

46_platform_1_FDMrepaired ).stl
18.17 MiB 39 h 9 min 23 m 153 x 100 x 98 Download

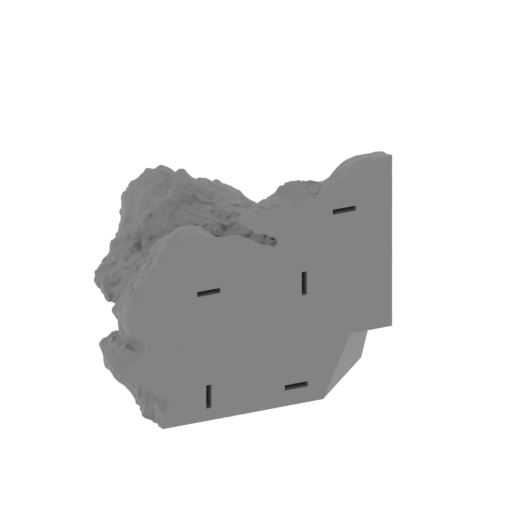

47_platform_2_FDMrepaired ).stl
18.04 MiB 33 h 20 min 20 m 107 x 151 x 97 Download

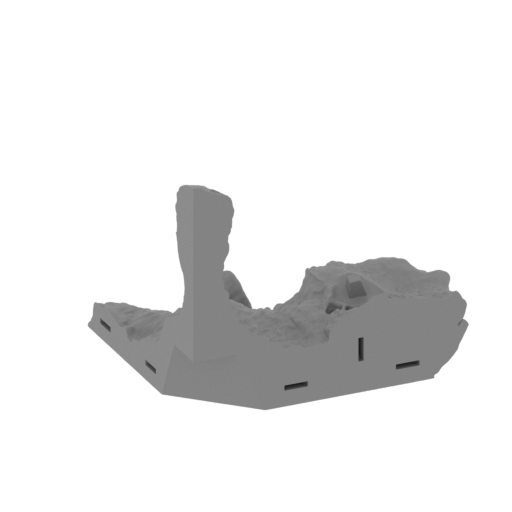

48_platform_3_FDMrepaired ).stl
14.25 MiB 15 h 2 min 8 m 149 x 104 x 98 Download

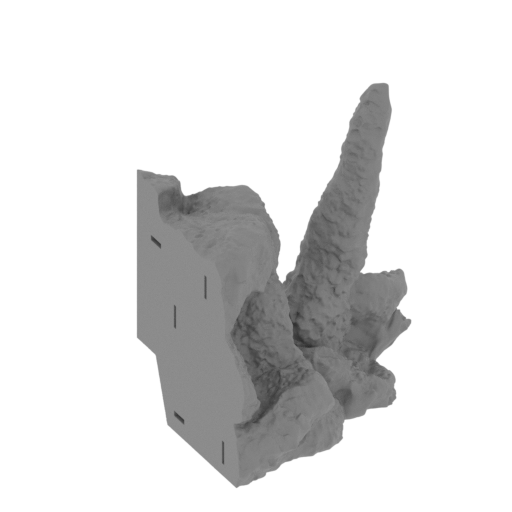

49_platform_4_FDMrepaired ).stl
18.46 MiB 29 h 58 min 17 m 97 x 154 x 133 Download

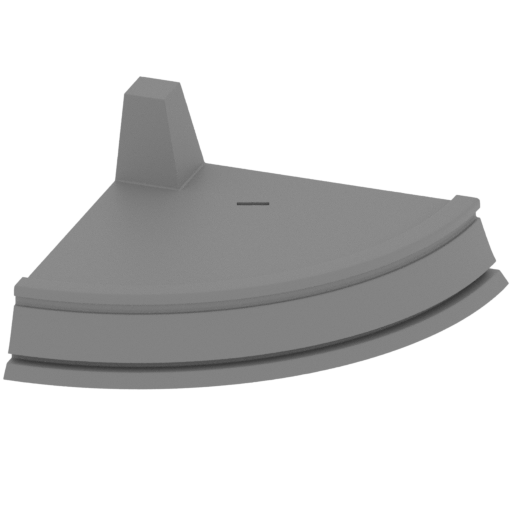

50_platform_5_FDMrepaired ).stl
33.45 MiB 18 h 21 min 11 m 119 x 119 x 50 Download

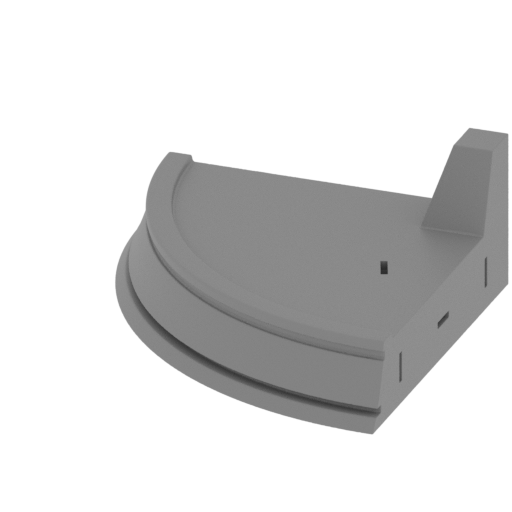

51_platform_6_FDMrepaired ).stl
30.85 MiB 18 h 14 min 11 m 120 x 119 x 50 Download

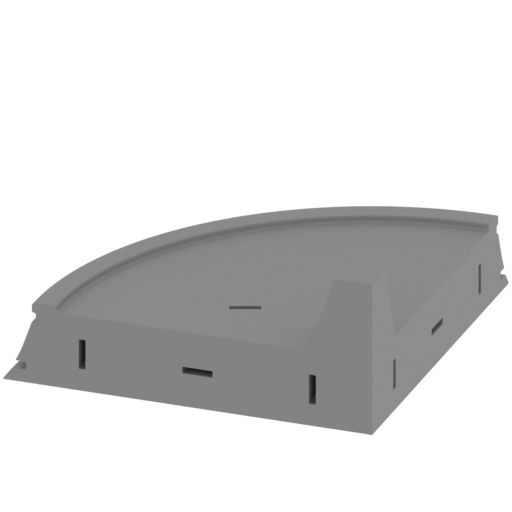

52_platform_7_FDMrepaired ).stl
29.83 MiB 18 h 23 min 11 m 120 x 119 x 50 Download

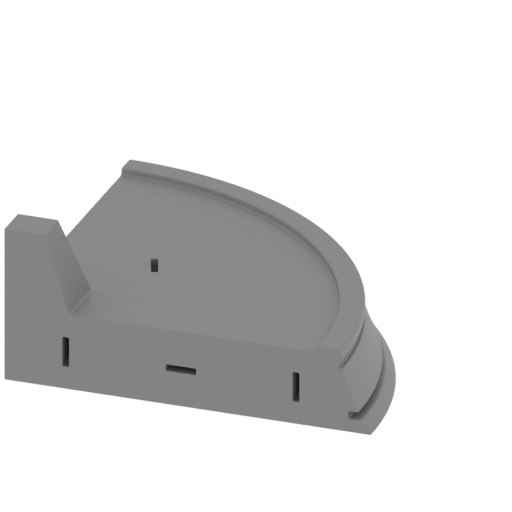

53_platform_8_FDMrepaired ).stl
29.57 MiB 18 h 17 min 11 m 119 x 119 x 50 Download

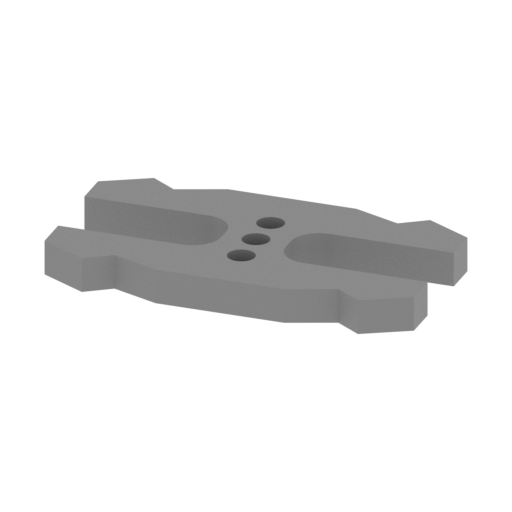

54_Ge_lock_10H(x31)_FDM(r epaired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

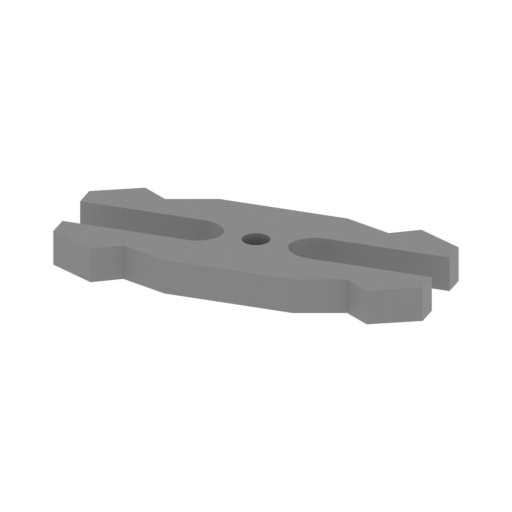

55_Ge_lock_7S(x28)_FDM(re paired).stl
0.02 MiB 3 min <1 m 18 x 7 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

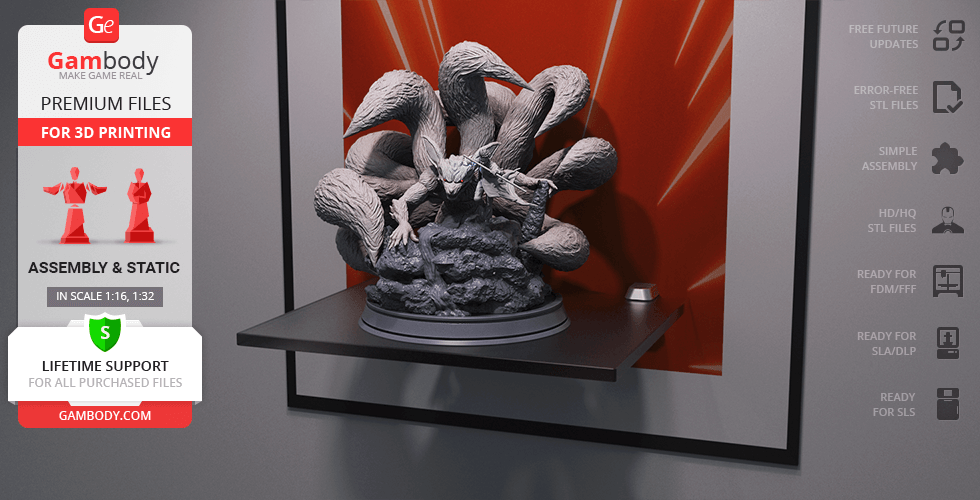

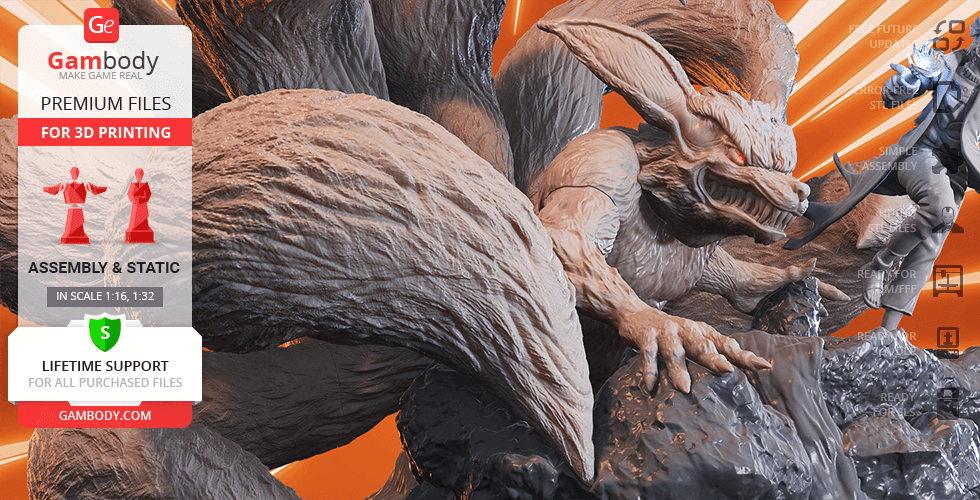

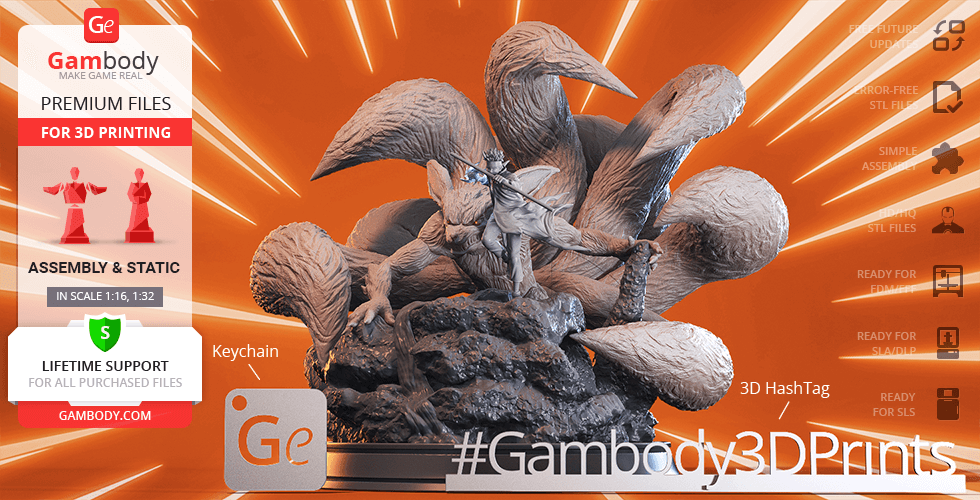

ABOUT THIS 3D FIGURINE

Kurama is a nine-tailed beast who was sealed into the body of Naruto Uzumaki on the day of shinobi’s birth. What started as an extremely antagonistic bond turned over time into a trusted partnership that even allowed Naruto to achieve a Tailed Beast Mode. The author of the majestic Naruto and Kurama diorama for 3D printing made sure to depict the might of the iconic duo in all its glory. The Demon Fox is proudly showcasing its nine long swiping tails while baring its teeth easily terrifying any hostile ninja or beast on their way. 3D printing kitsune clutches at a large rock that its jinchuriki Naruto is mounted on. The ninja is depicted mid-jump making it look as if the scene takes place in the middle of an intense battle. Naruto for 3D printing raises his right hand to perform one of his trademark Rasengan and holds a stick high in the left hand as if in defense. The 3D artist spent 210 hours to create the brilliant action scene that will definitely be to the taste of any fan of the legendary manga series. One look at the Naruto and Kurama diorama is enough to imagine the Nine-Tails encouraging the ninja in combat with its usual “Naruto. Let’s show them our power.” Meticulous attention to detail that demonstrated the author of the model guarantees unlimited creative opportunities for all 3D printing enthusiasts. We are thrilled to see what your Naruto and Kurama diorama will look like once printed and painted!

ADAPTATION FOR 3D PRINTING

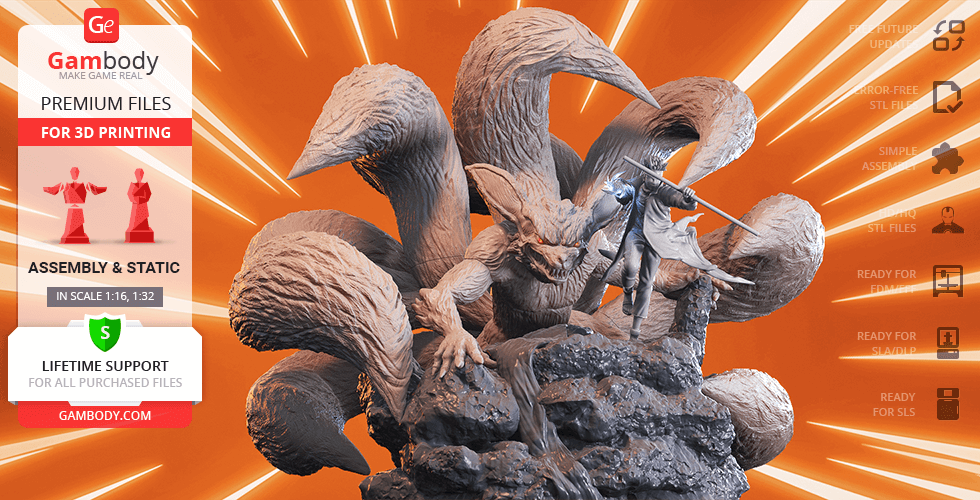

Naruto and Kurama figurines in diorama for 3D printing are static assembly models and the diorama’s moderation and adaptation for different types of 3D printers took Gambody team 55 hours in total. The anatomy of both figurines was thoroughly reviewed in the course of the moderation process for the allies to be proportionally depicted in the intended action scene. The models' cutting was chosen by our team to minimise the amount of filament needed for generated support and some of the diorama's parts were hollowed out for you to save resin in the model’s Eco version. Besides, the figurines were divided into as many assembly parts as needed to fit even the smallest 3D printers' build plates and for you to nevertheless receive a large nine-tailed beast after the assembly. For you to have the cleanest printing result possible the model was divided into many assembly parts, e.g. all nine long tails, kitsune’s ears, the Rasengan, stick in Naruto’s hand, his feet, hands, etc. are provided as separate STL files. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Naruto's actual height that is 1660 mm. The 3D printing figurines' chosen scale is 1/16 for the FFF/FDM version and 1/32 for the DLP/SLA/SLS versions.

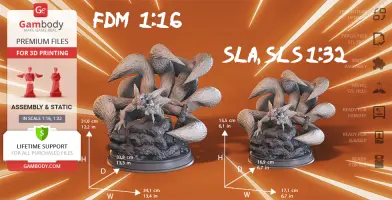

VERSIONS' SPECIFICATIONS

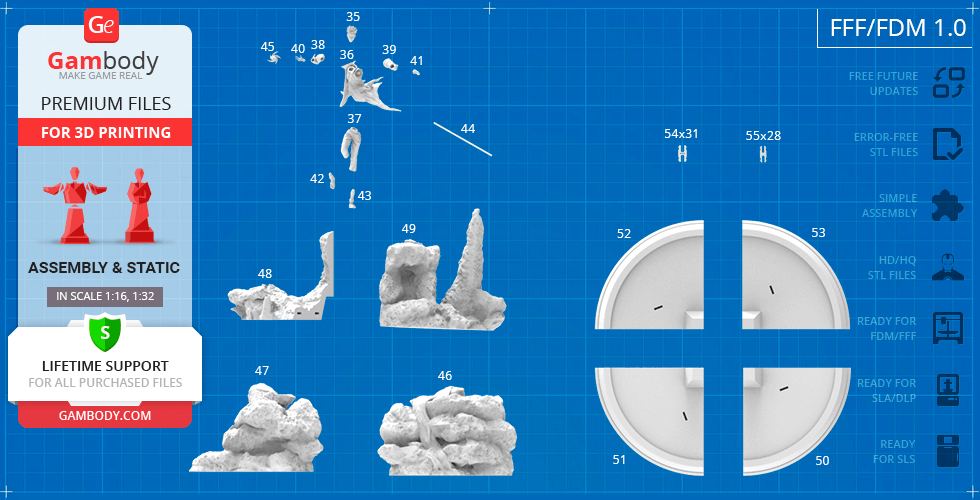

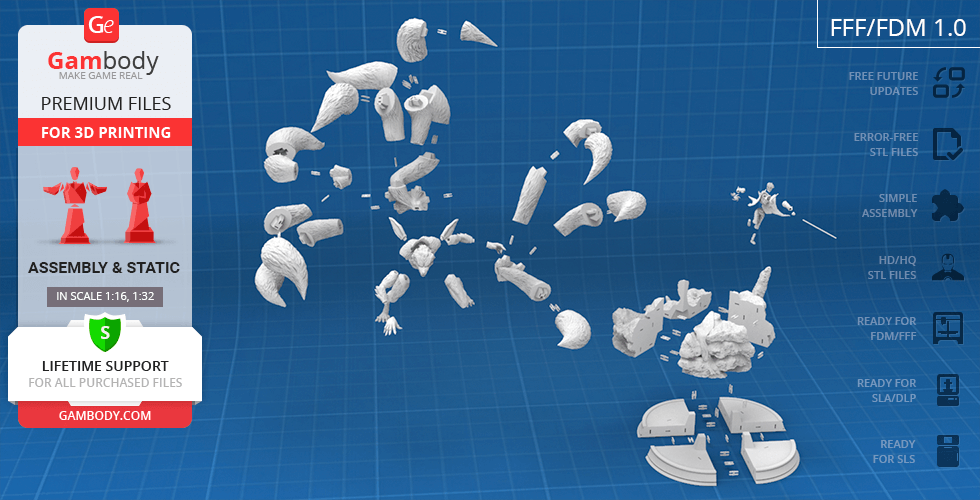

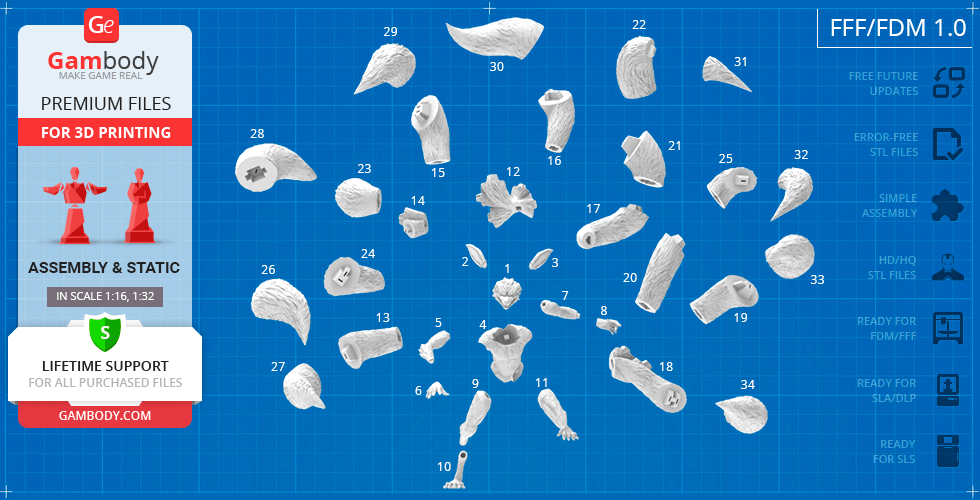

FFF/FDM 1.0 version features:
- Contains 55 parts;
- A printed model is 310 mm tall, 341 mm wide, 338 mm deep;
- Assembly kit includes locks to attach the model's parts securely without glue. One lock 54_Ge_lock_10H(x31)​ needs to be printed 31 times; lock 55_Ge_lock_7S(x28) needs to be printed 28 times;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

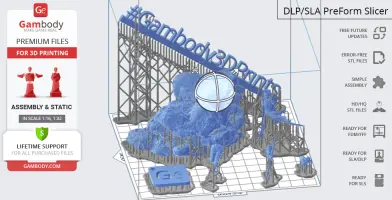

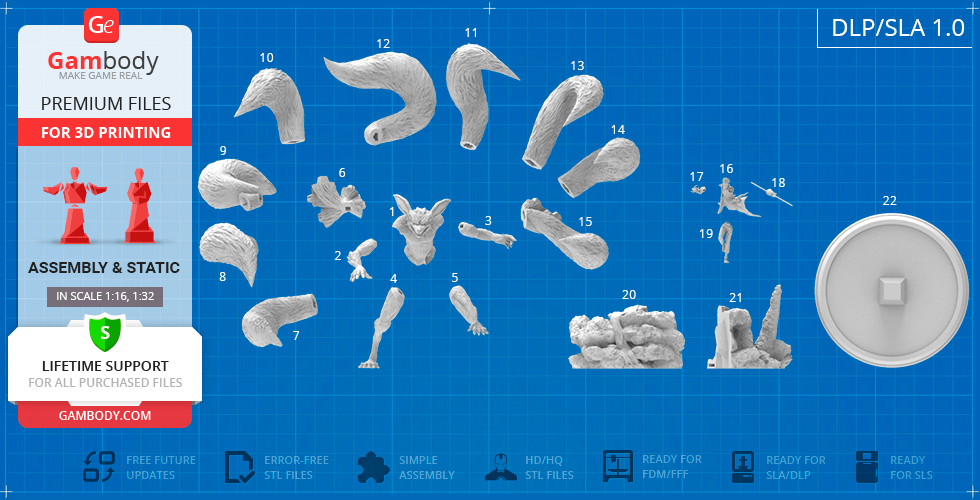

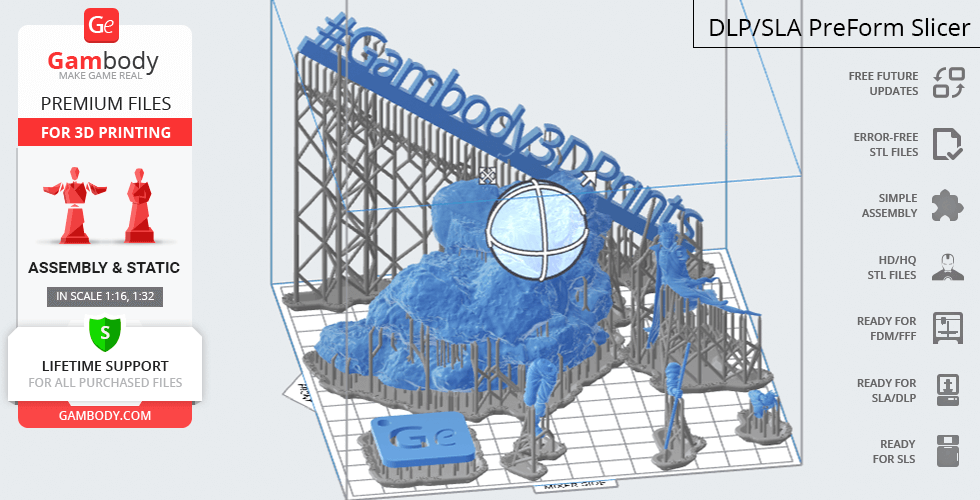

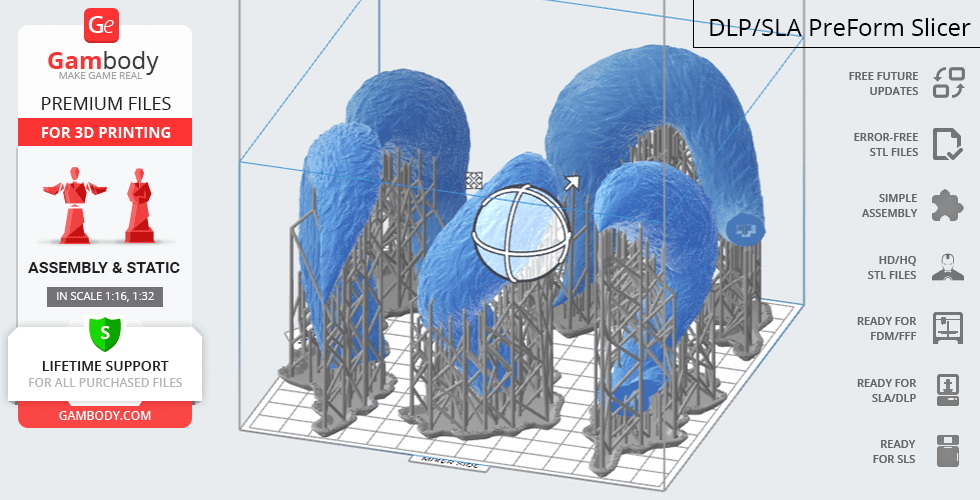

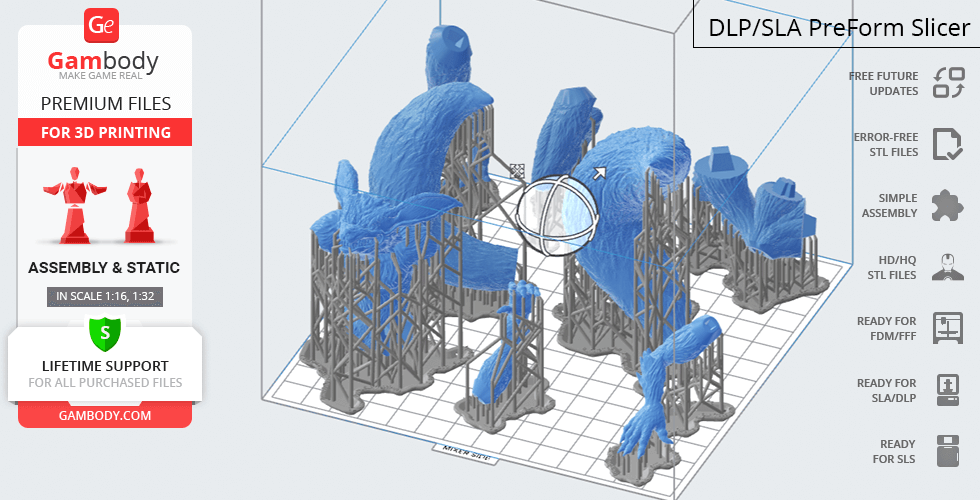

DLP/SLA 1.0 version features:
- Contains 22 parts;
- A printed model is 155 mm tall, 171 mm wide, 169 mm deep;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

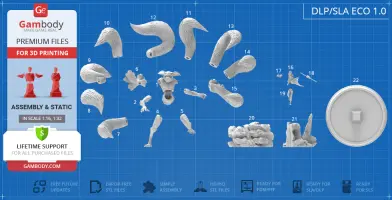

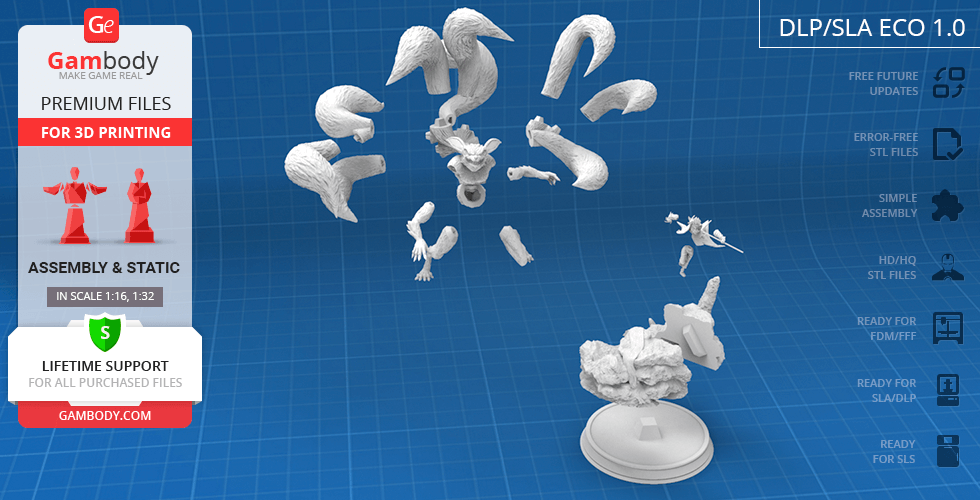

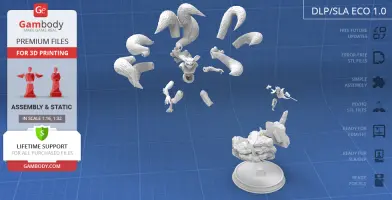

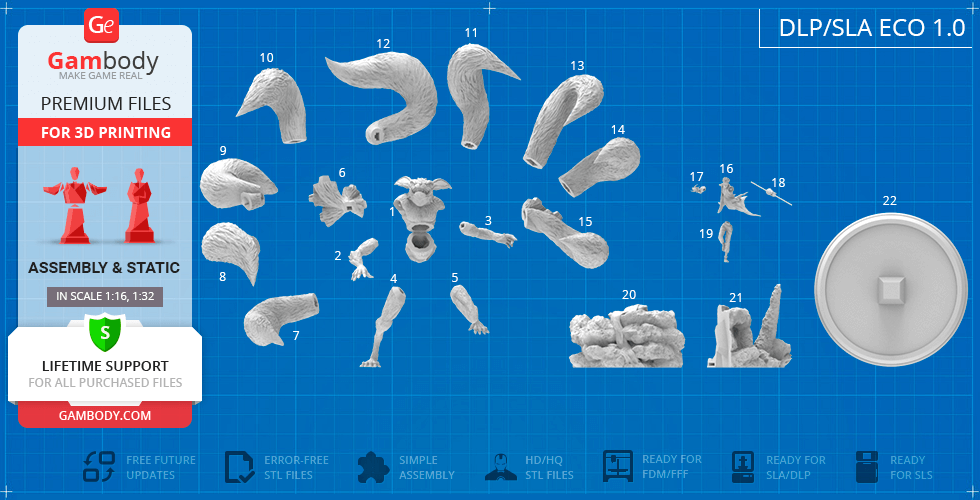

DLP/SLA Eco 1.0 version features:
- Contains 22 parts;
- A printed model is 155 mm tall, 171 mm wide, 169 mm deep;
- Contains some hollowed out parts to save resin.

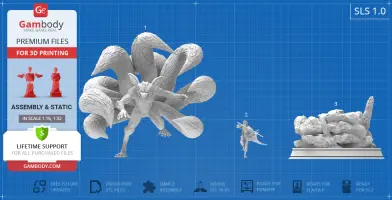

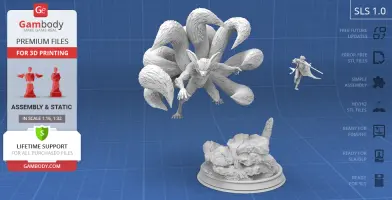

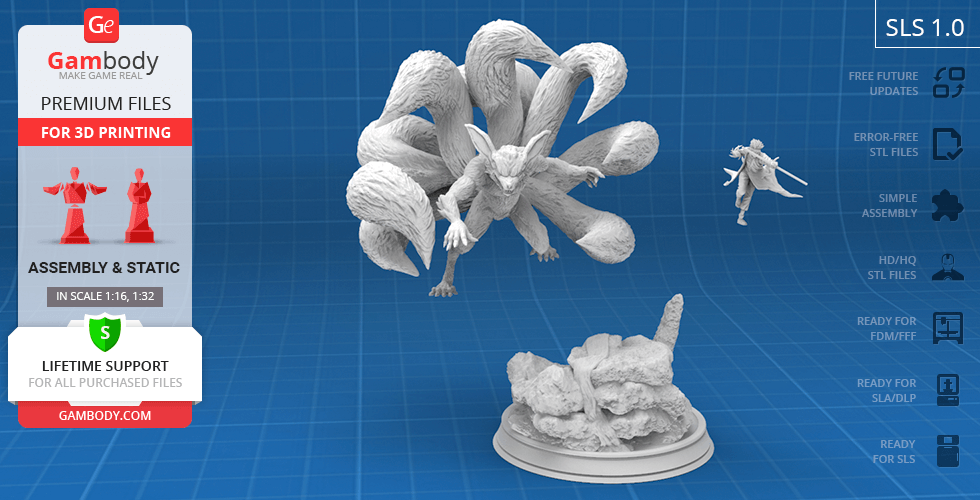

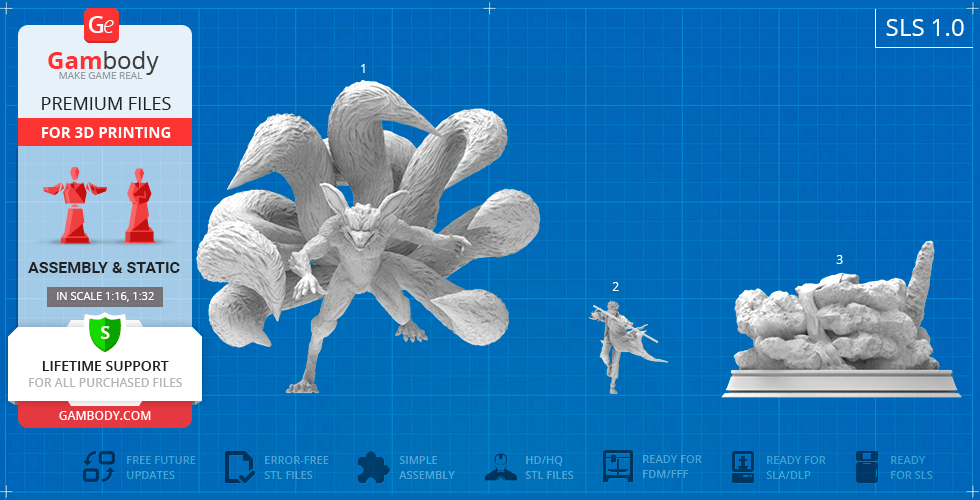

SLS 1.0 version features:
- Made as solid one-piece figurines;
- A printed model is 155 mm tall, 171 mm wide, 169 mm deep;
- Contains 3 parts - solid Naruto and Kurama figurines with the platform separated.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Naruto and Kurama 3D Printing Figurines in Diorama for 3D printing which consist of 102 parts;
- 4 versions of files for this model for FFF/FDM, DLP/SLA, DLP/SLA Eco and SLS;
- High-poly detailed figurines of Naruto and Kurama;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the figurines of Naruto and Kurama for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Naruto and Kurama​ 3D Printing Figurines in Diorama at Gambody YouTube channel.

Also, you may like Jiraiya & Gamabunta 3D Printing Figurines in Diorama as well as other Anime 3D Printing Models and Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

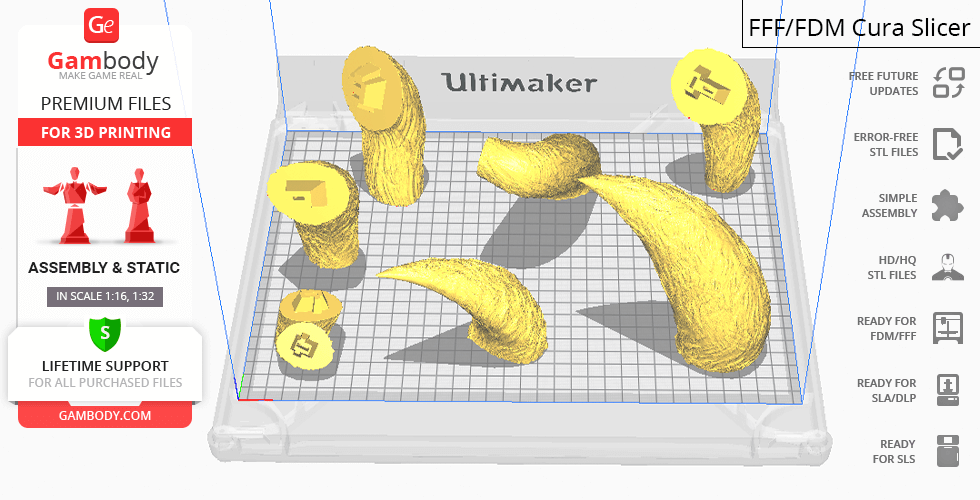

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

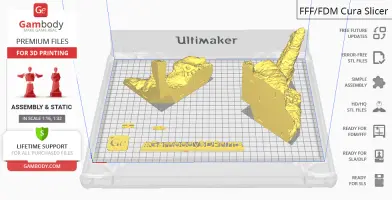

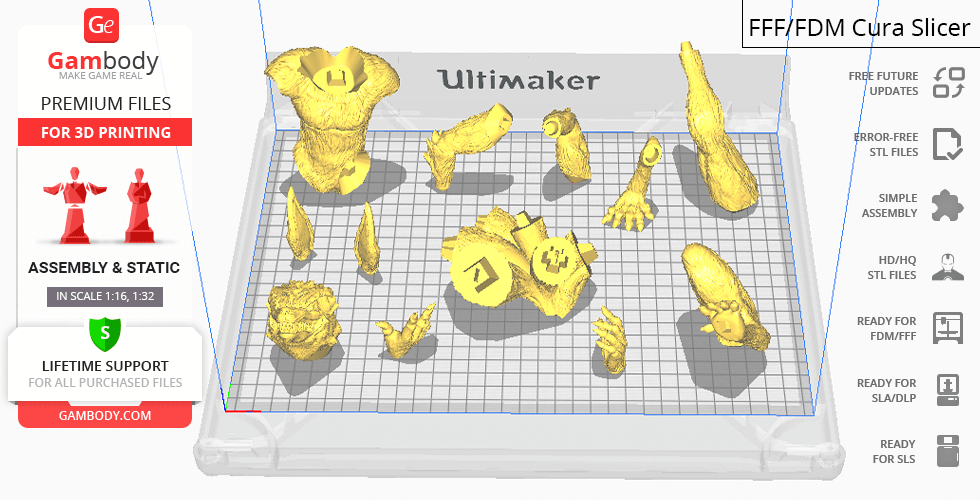

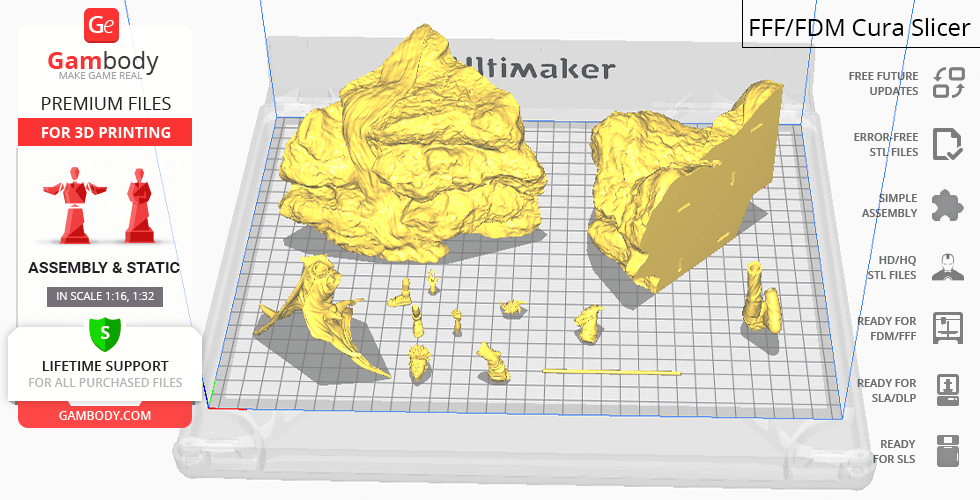

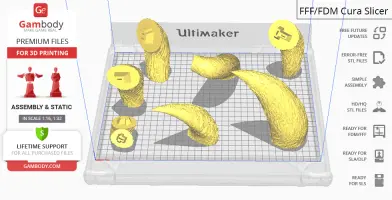

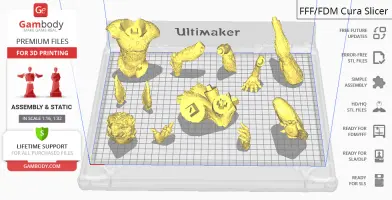

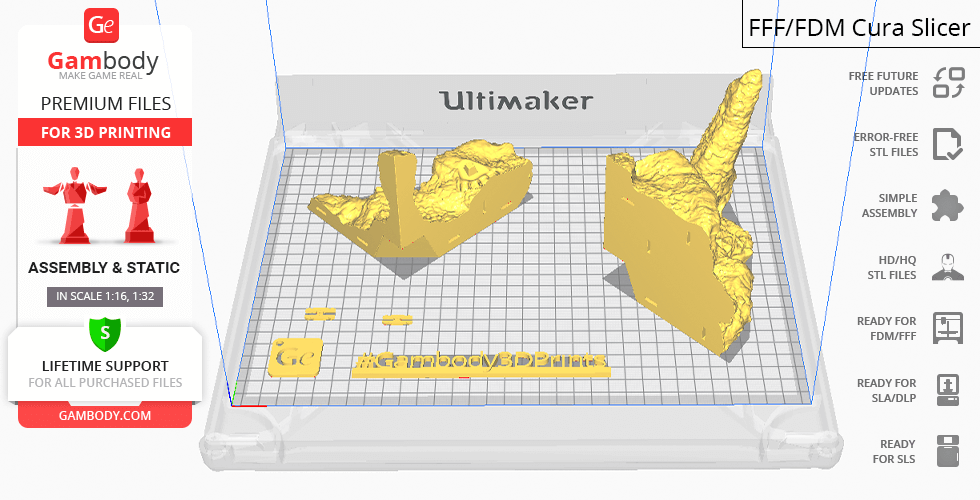

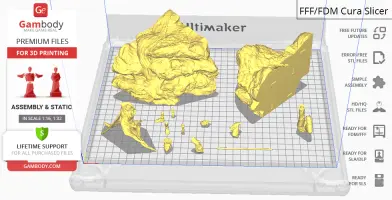

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
