Supernatural Sam and Dean 3D Printing Figurines in Diorama | Assembly

(1)
cm: 22.8 w x 22.8 d x 26.5 h
in: 8.976 w x 8.976 d x 10.433 h

Source Files

|

Description

|

Printing Details

This Diorama consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 4 versions of Supernatural Sam and Dean diorama STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco and SLS - files for all versions are available for download after the purchase;
  • STL files of high-poly Supernatural Sam and Dean diorama for 3D printing consist of 55 files;
  • Sizes for:
  • FFF/FDM: 265 mm tall, 228 mm wide, 228 mm deep;
  • DLP/SLA/SLS: 133 mm tall, 114 mm wide, 114 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

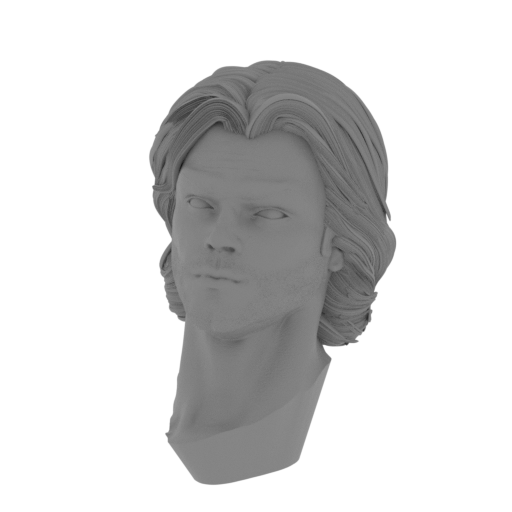

1_Sam_head_FDM(repaired). stl
40.86 MiB 2 h 12 min 1 m 27 x 34 x 42 Download

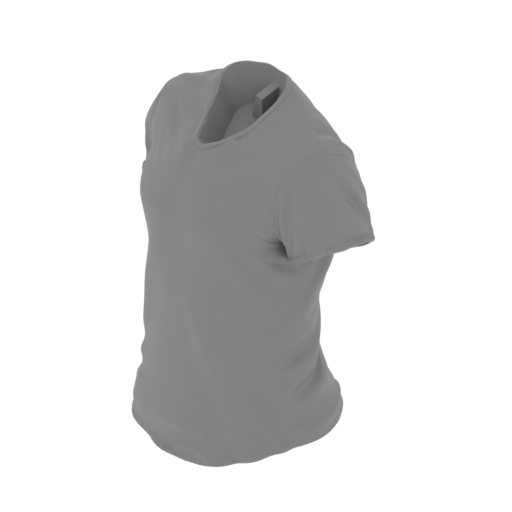

2_Sam_body_FDM(repaired). stl
50.39 MiB 8 h 47 min 5 m 59 x 49 x 81 Download

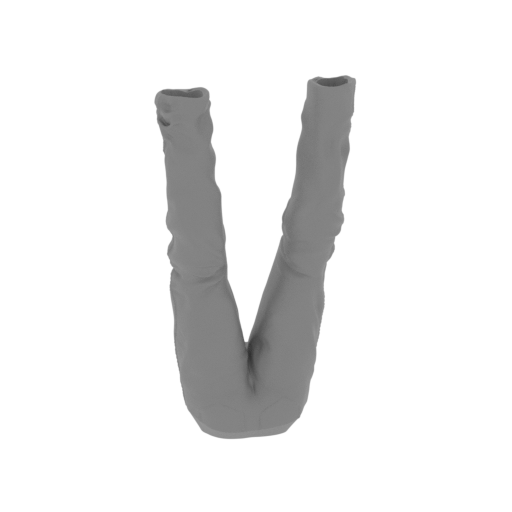

3_Sam_legs_FDM(repaired). stl
45.56 MiB 11 h 15 min 6 m 64 x 57 x 139 Download

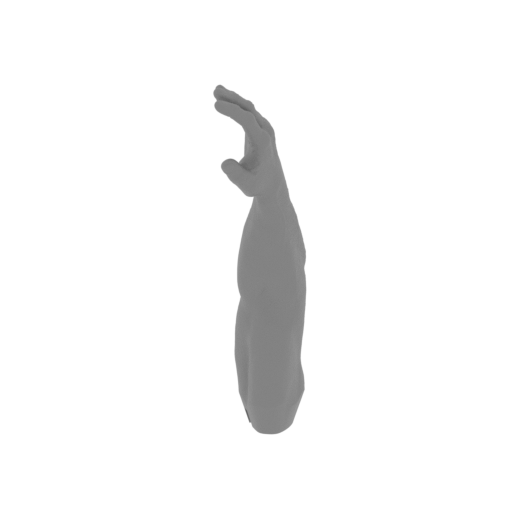

4_Sam_arm_R_FDM(repaired) .stl
22.26 MiB 1 h 25 min 1 m 15 x 28 x 72 Download

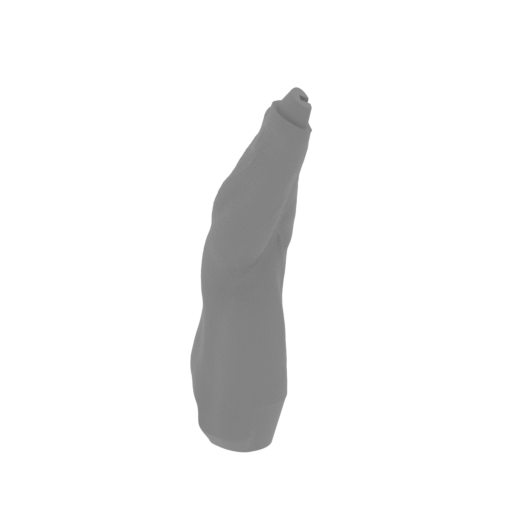

5_Sam_arm_L_FDM(repaired) .stl
18.02 MiB 47 min <1 m 20 x 15 x 54 Download

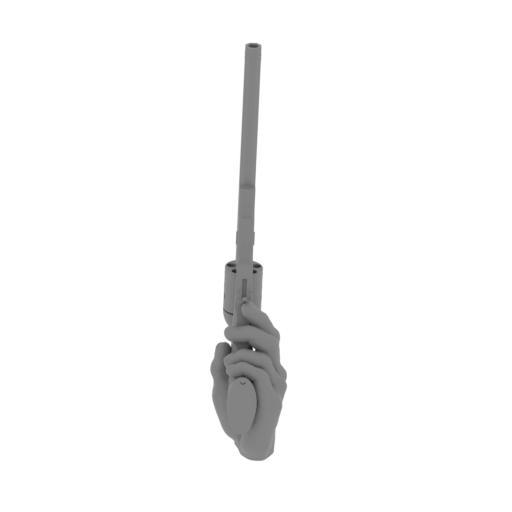

6_Sam_hand_L_with_gun_FDM (repaired).stl
18.91 MiB 1 h <1 m 15 x 26 x 63 Download

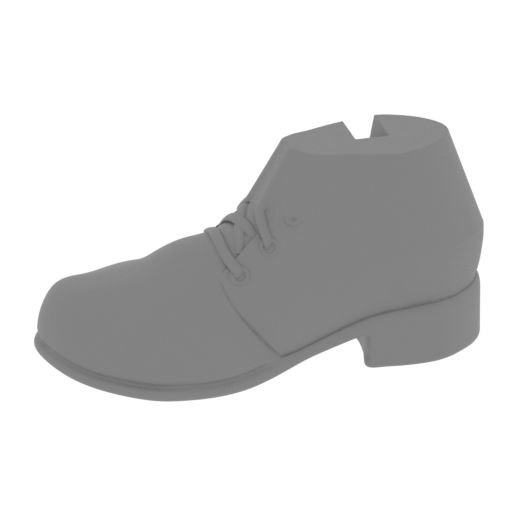

7_Sam_foot_R_FDM(repaired ).stl
16.84 MiB 41 min <1 m 33 x 27 x 19 Download

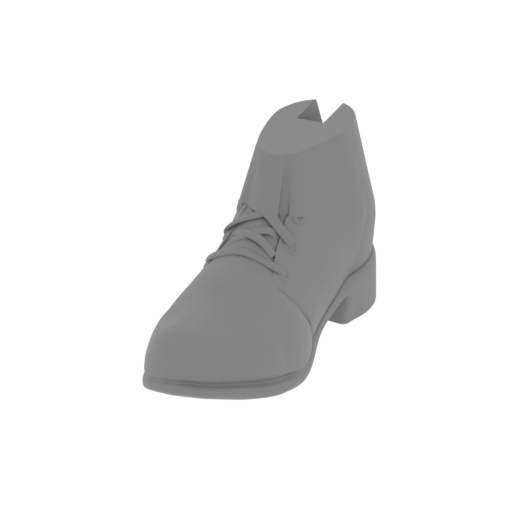

8_Sam_foot_L_FDM(repaired ).stl
16.67 MiB 42 min <1 m 15 x 38 x 20 Download

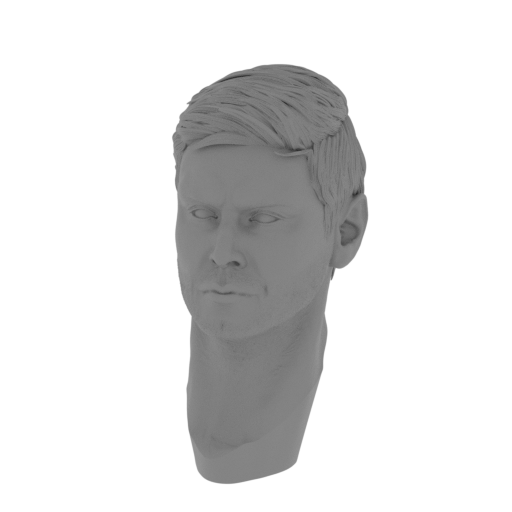

9_Dean_head_FDM(repaired) .stl
45.52 MiB 1 h 49 min 1 m 22 x 29 x 44 Download

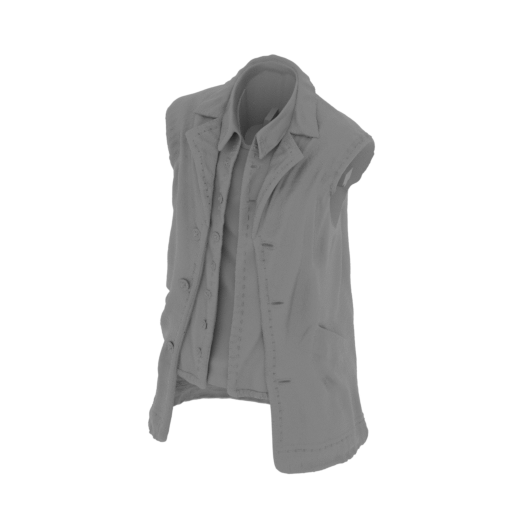

10_Dean_body_FDM(repaired ).stl
52.19 MiB 14 h 30 min 8 m 60 x 44 x 105 Download

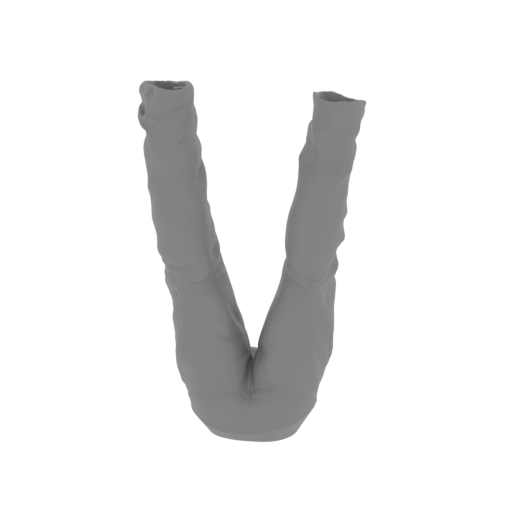

11_Dean_legs_FDM(repaired ).stl
47.20 MiB 10 h 30 min 6 m 76 x 45 x 133 Download

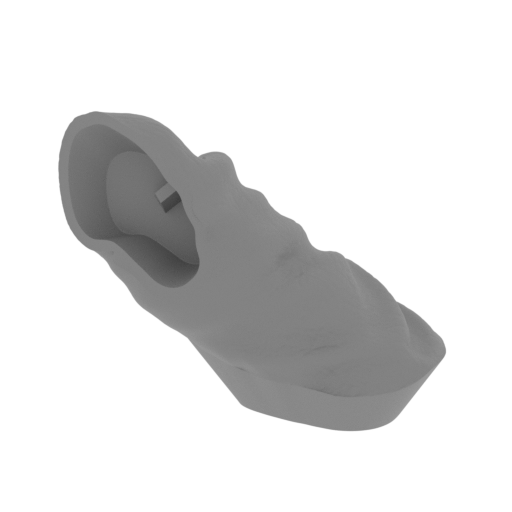

12_Dean_arm_R_1_FDM(repai red).stl
14.81 MiB 57 min 1 m 38 x 22 x 29 Download

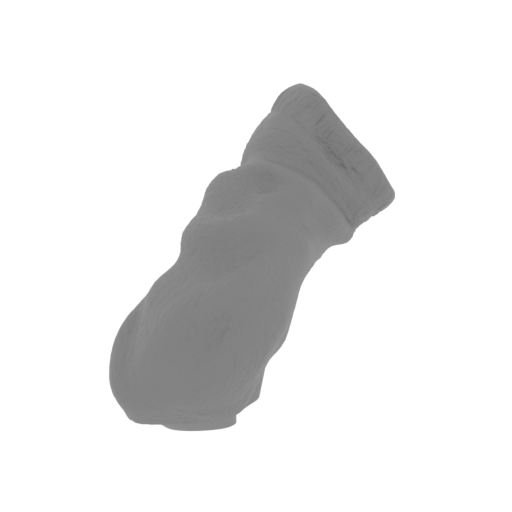

13_Dean_arm_R_2_FDM(repai red).stl
15.26 MiB 1 h 12 min 1 m 22 x 42 x 29 Download

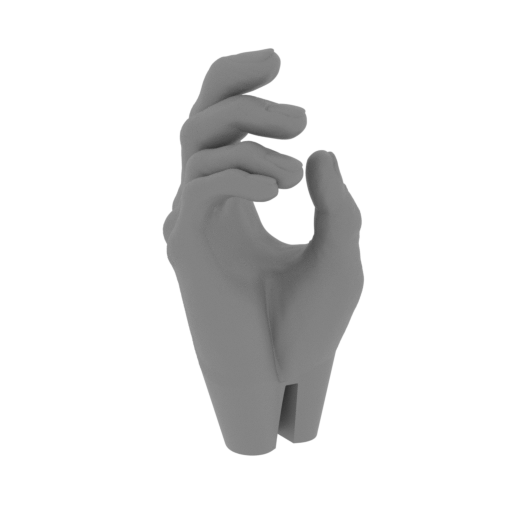

14_Dean_hand_R_FDM(repair ed).stl
12.11 MiB 28 min <1 m 14 x 14 x 27 Download

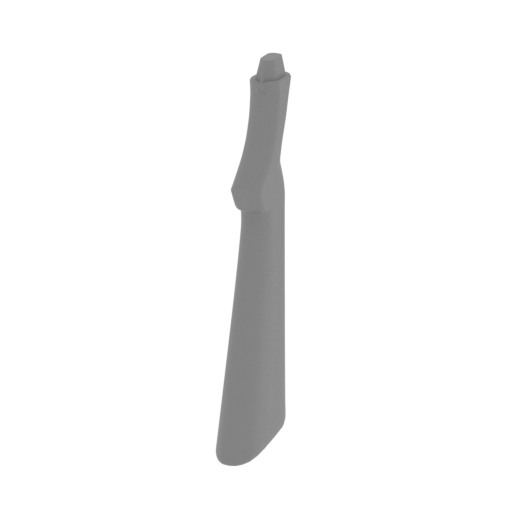

16_Dean_shotgun_2_FDM(rep aired).stl
16.60 MiB 44 min <1 m 6 x 21 x 50 Download

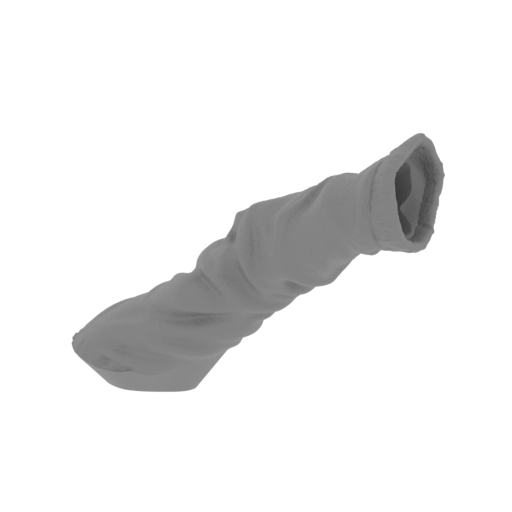

17_Dean_arm_L_FDM(repaire d).stl
25.72 MiB 2 h 27 min 2 m 61 x 25 x 48 Download

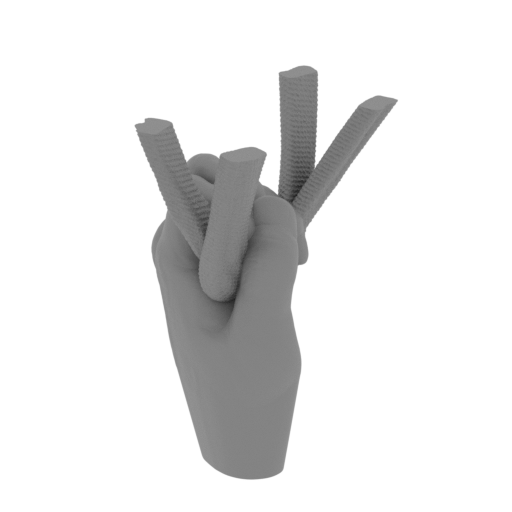

18_Dean_hand_L_FDM(repair ed).stl
22.03 MiB 32 min <1 m 13 x 24 x 25 Download

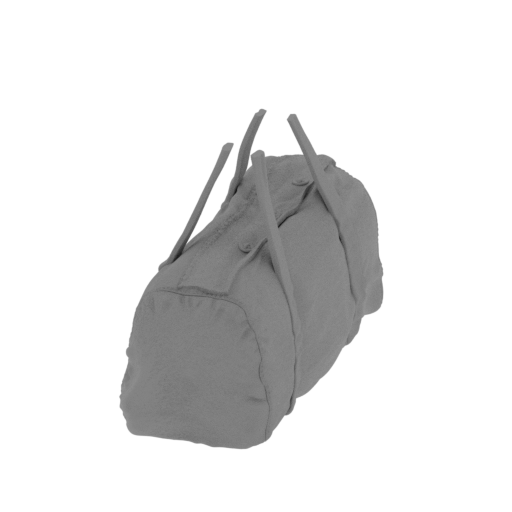

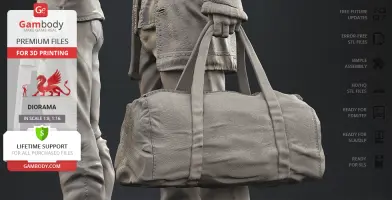

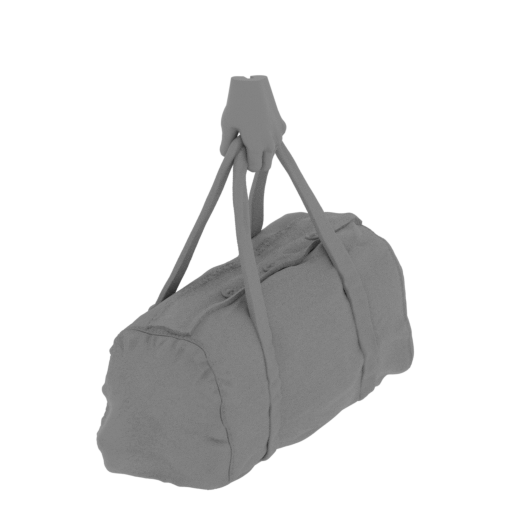

19_Dean_bag_FDM(repaired) .stl
30.22 MiB 7 h 31 min 4 m 36 x 82 x 56 Download

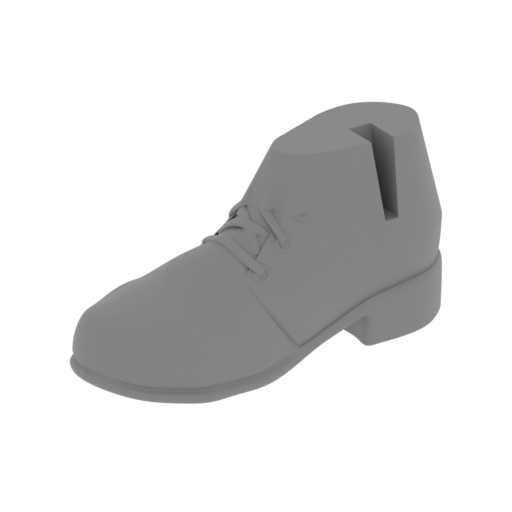

20_Dean_foot_R_FDM(repair ed).stl
17.31 MiB 41 min <1 m 25 x 34 x 19 Download

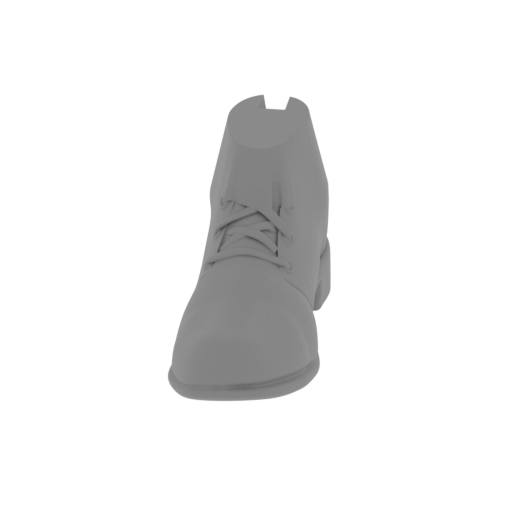

21_Dean_foot_L_FDM(repair ed).stl
17.61 MiB 41 min <1 m 17 x 38 x 20 Download

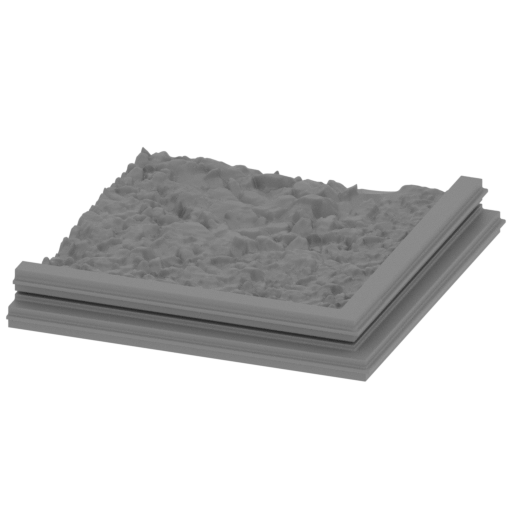

22_platform_1_FDM(repaire d).stl
19.90 MiB 17 h 3 min 8 m 114 x 116 x 16 Download

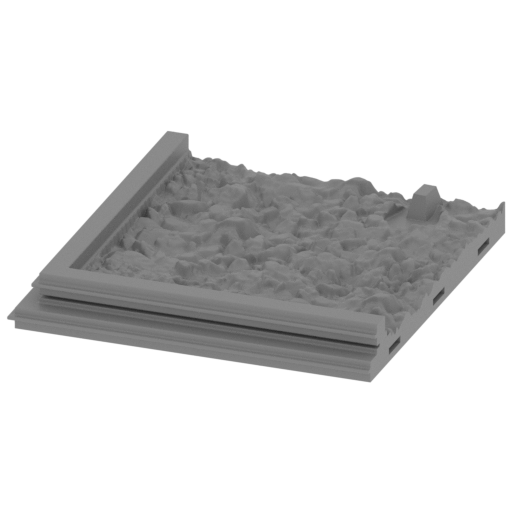

23_platform_2_FDM(repaire d).stl
19.72 MiB 16 h 43 min 8 m 114 x 116 x 16 Download

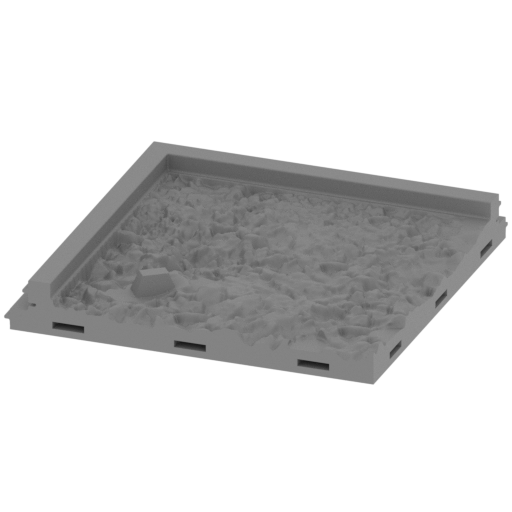

24_platform_3_FDM(repaire d).stl
18.95 MiB 16 h 2 min 8 m 114 x 112 x 16 Download

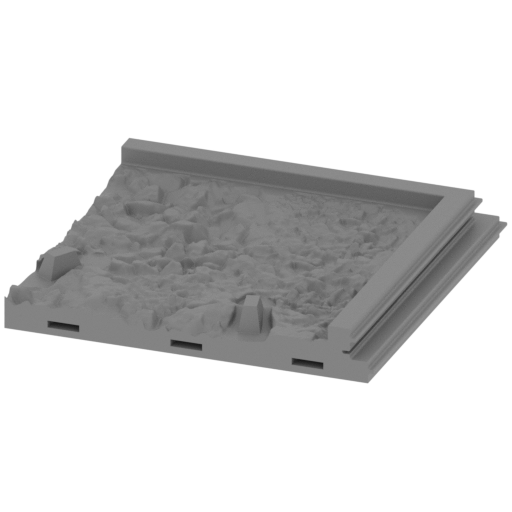

25_platform_4_FDM(repaire d).stl
18.99 MiB 15 h 59 min 8 m 114 x 112 x 16 Download

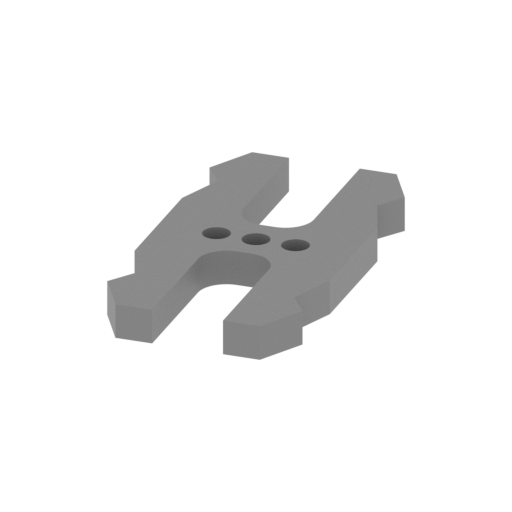

26_ge_lock_10H(x14)_FDM(r epaired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
15_Dean_shotgun_1_FDM(rep aired).stl
14.80 MiB 42 min <1 m 97 x 5 x 12 Download
...

ABOUT THIS 3D MODEL

Sam and Dean Winchester, the protagonists of an American dark fantasy TV series “Supernatural”, are two brothers who dedicate their lives to a constant struggle against evil supernatural creatures. The murder of the mother of hunters, Mary Winchester, committed by the demon Azazel became the impetus for the decision of the brothers to find and punish the culprit. In search of their father, who reveals the mystery of the death of his wife, Sam and Dean fight against demons, ghosts, monsters, and other abnormal beings, without losing the spirit and leaving room for humor. Chevrolet Impala 1967, Dean Winchester’s “Baby”, is another trademark of the show and aids the Winchesters in their hunting activities.

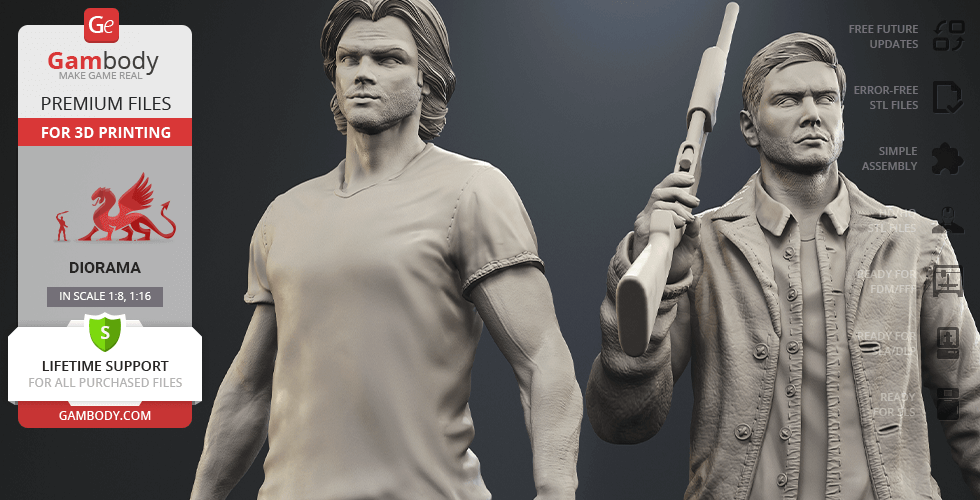

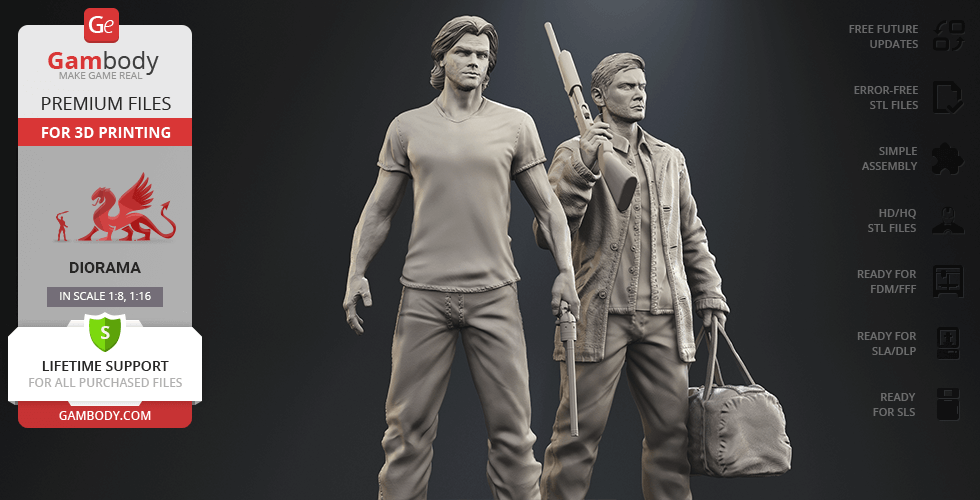

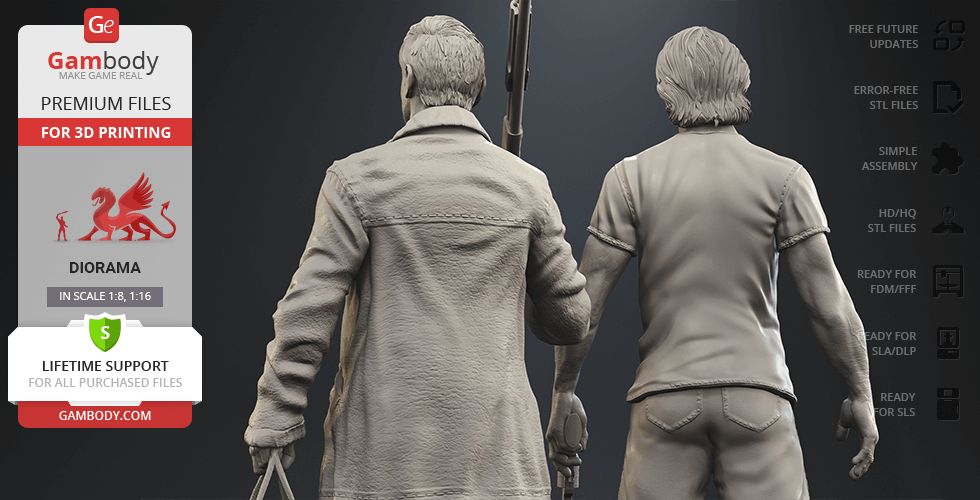

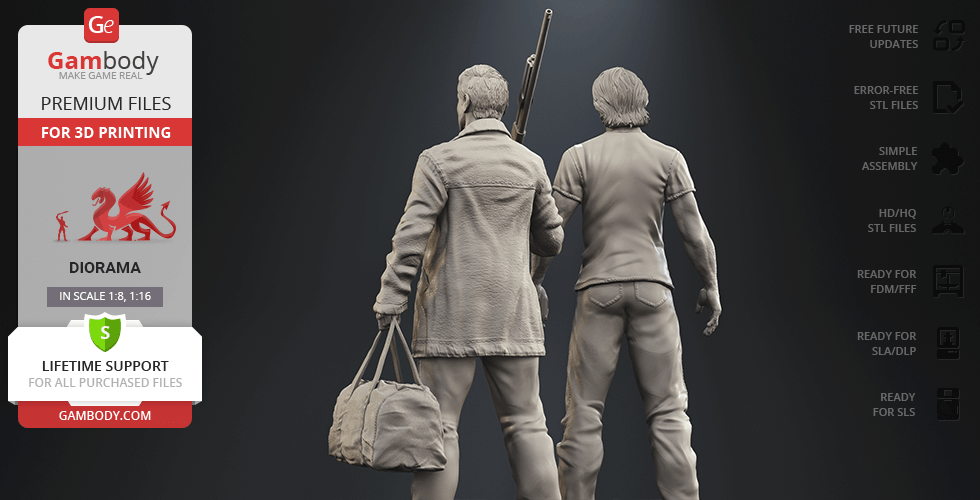

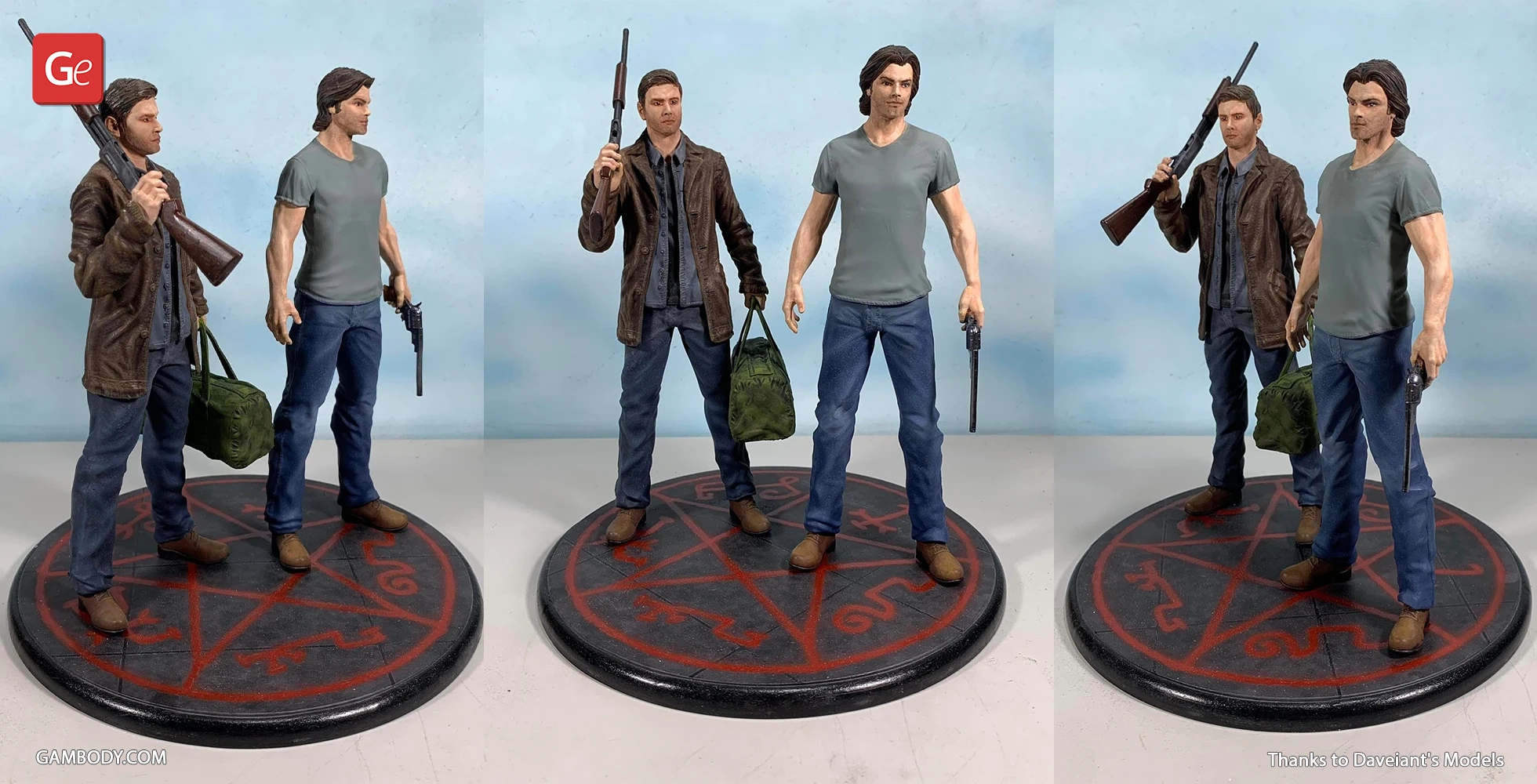

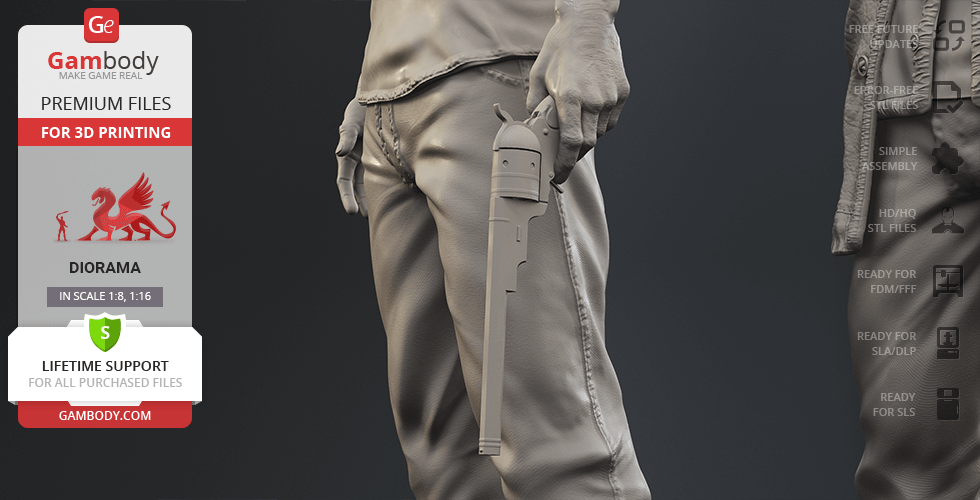

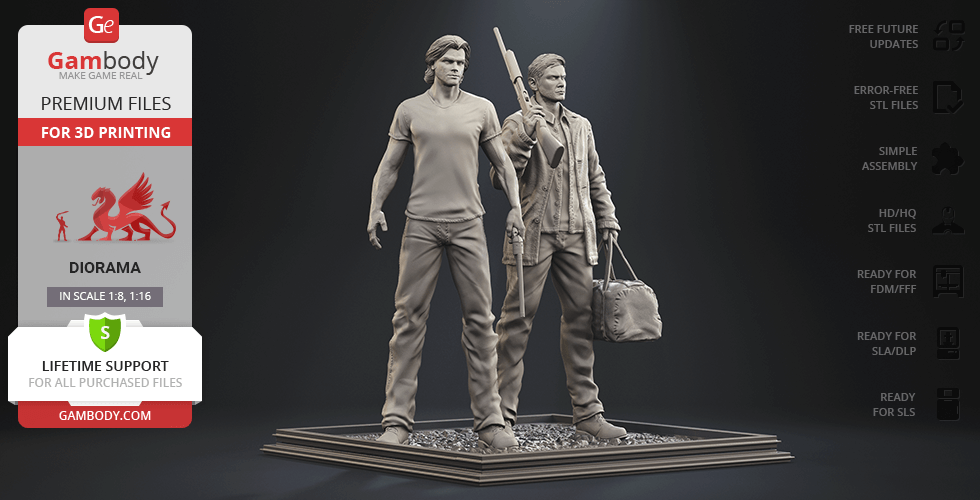

Inspired by the beloved by spectators adventure television series, our contributing 3D artists created this great diorama for 3D printing. The appearance of both protagonists is made with great mastery - the recognizable hairstyles of the brothers, their physique and their facial shape, even the stubble on their faces, the author has thought through the design of the figurines down to the finest detail. The chosen positions of Sam and Dean speak of the decisiveness and fearlessness of hunters. Equipped with a scoped rifle and Colt and enlisting the support of each other, this couple is ready to confront the most evil enemies of all time! But who said that they don’t need an ally?

ADAPTATION FOR 3D PRINTING

Sam and Dean 3D printing figurines in diorama is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 30 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the movie characters to be depicted harmoniously in the intended poses.

The cutting of the figurines was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurines are connected, Sam and Dean 3D printing figurines were divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to Supernatural Sam and Dean diorama.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

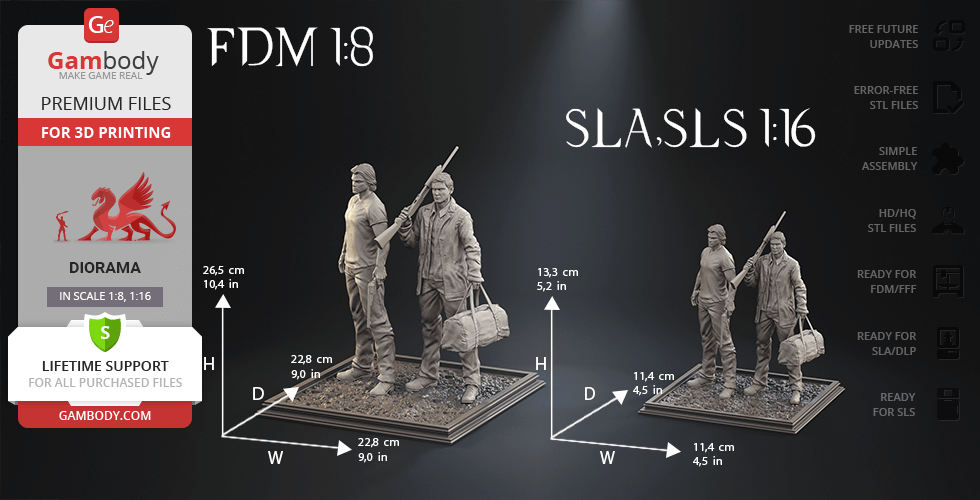

The 3D printing figurines’ chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

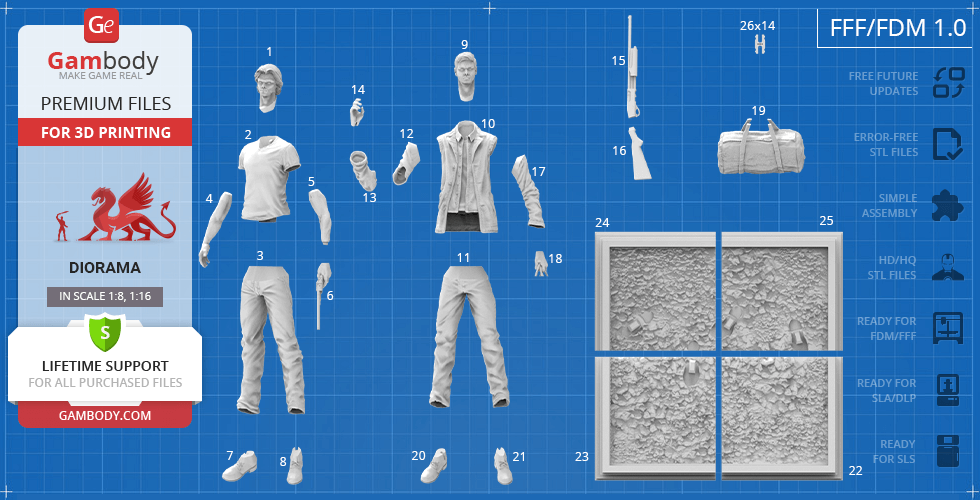

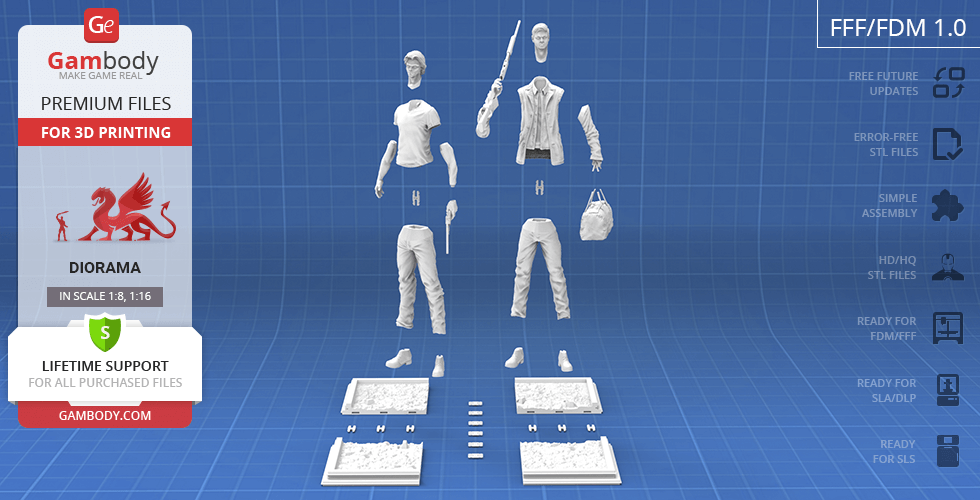

FFF/FDM 1.0 versions features:

  • Contains 26 parts;
  • A printed diorama is 265 mm tall, 228 mm wide, 228 mm deep;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

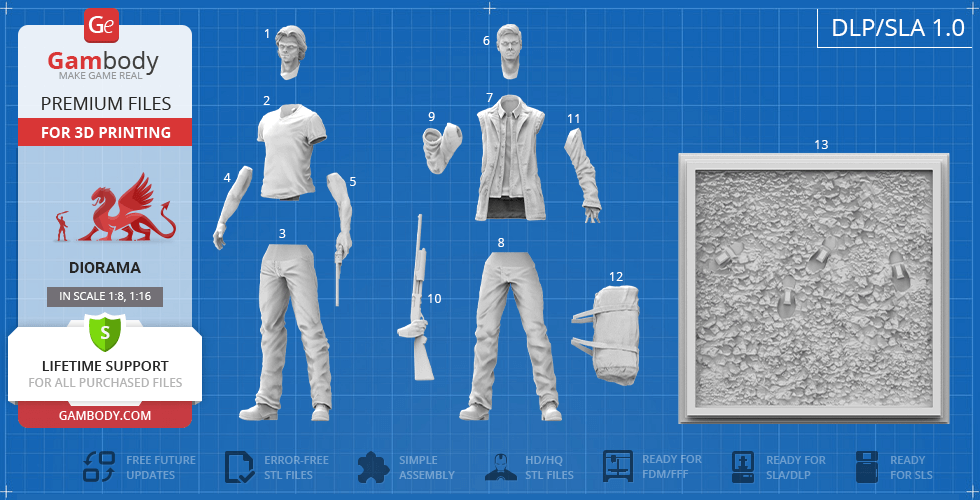

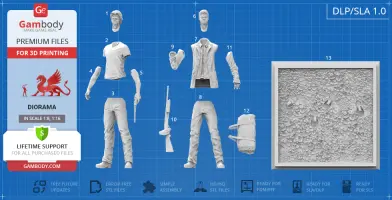

DLP/SLA 1.0 versions features:

  • Contains 13 parts;
  • A printed diorama is 133 mm tall, 114 mm wide, 114 mm deep;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

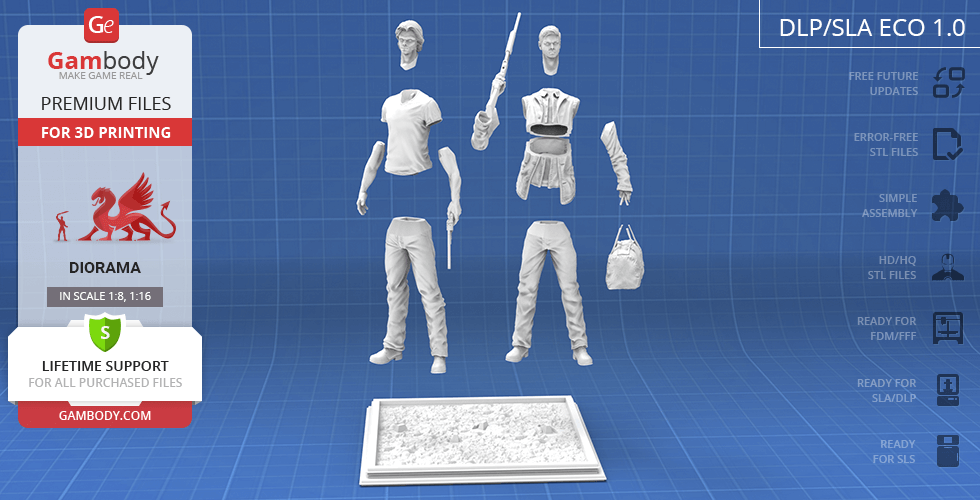

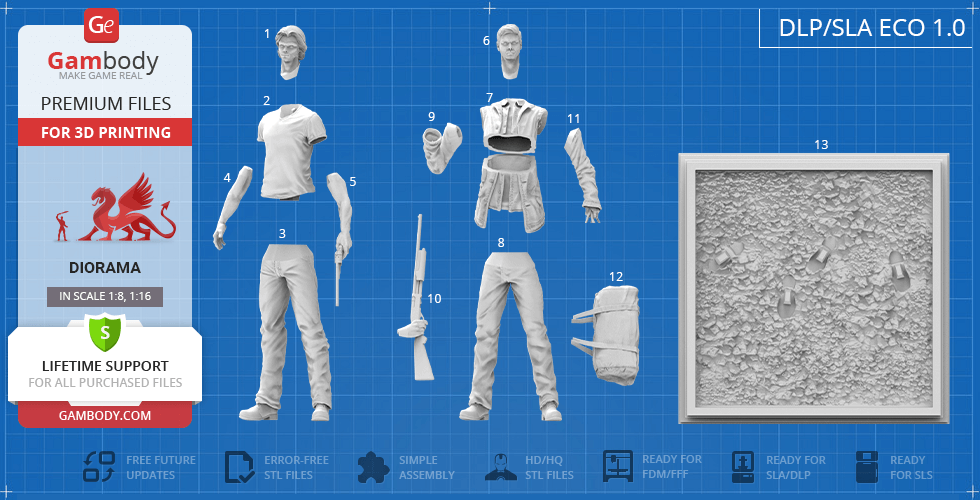

DLP/SLA Eco 1.0 versions features:

  • Contains 13 parts;
  • A printed diorama is 133 mm tall, 114 mm wide, 114 mm deep;
  • Some parts are manually hollowed out to save resin.

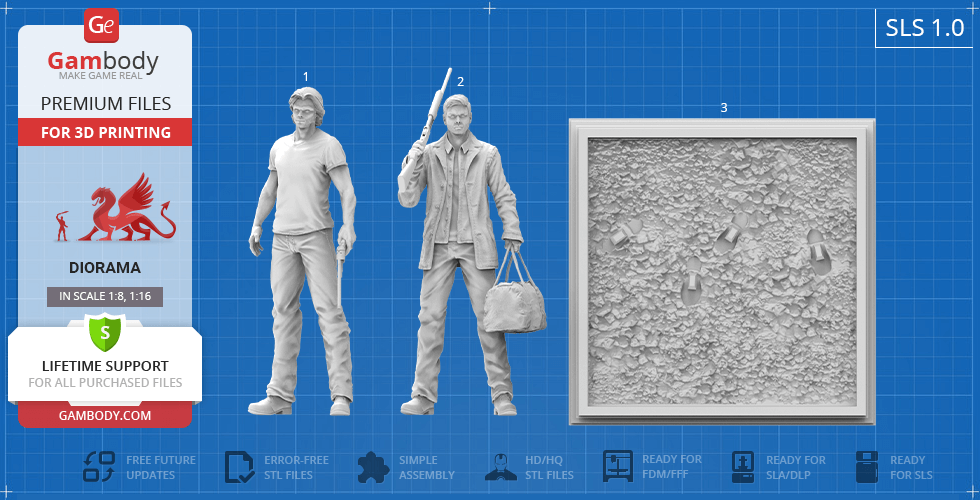

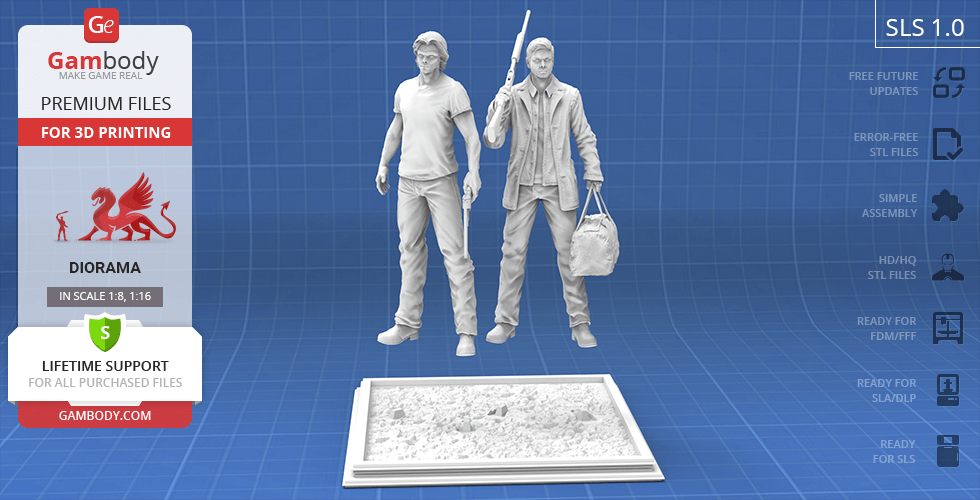

SLS 1.0 versions features:

  • Contains 3 parts - solid Sam and Dean figurines and the platform;
  • A printed diorama is 133 mm tall, 114 mm wide, 114 mm deep.

You can get the model of Supernatural Sam and Dean Figurines in Diorama for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Supernatural Sam and Dean 3D Printing Figurines in Diorama on Gambody YouTube channel.

Also, you may like Dean Winchester 3D Printing Figurine and Chevrolet Impala 1967 3D Printing Model, as well as other Dark Fantasy figurines for 3D printing.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

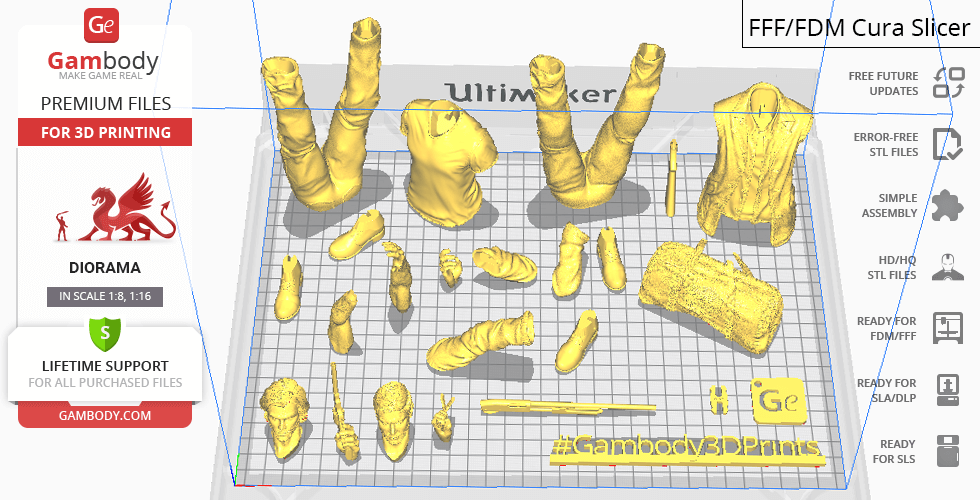

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
