New Vegas 3D Printing Figurines in Diorama | Assembly

(2)
cm: 23.4 w x 10.1 d x 22 h
in: 9.213 w x 3.976 d x 8.661 h

Source Files

|

Description

|

Printing Details

This diorama of New Vegas 3D Printing Figurines consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

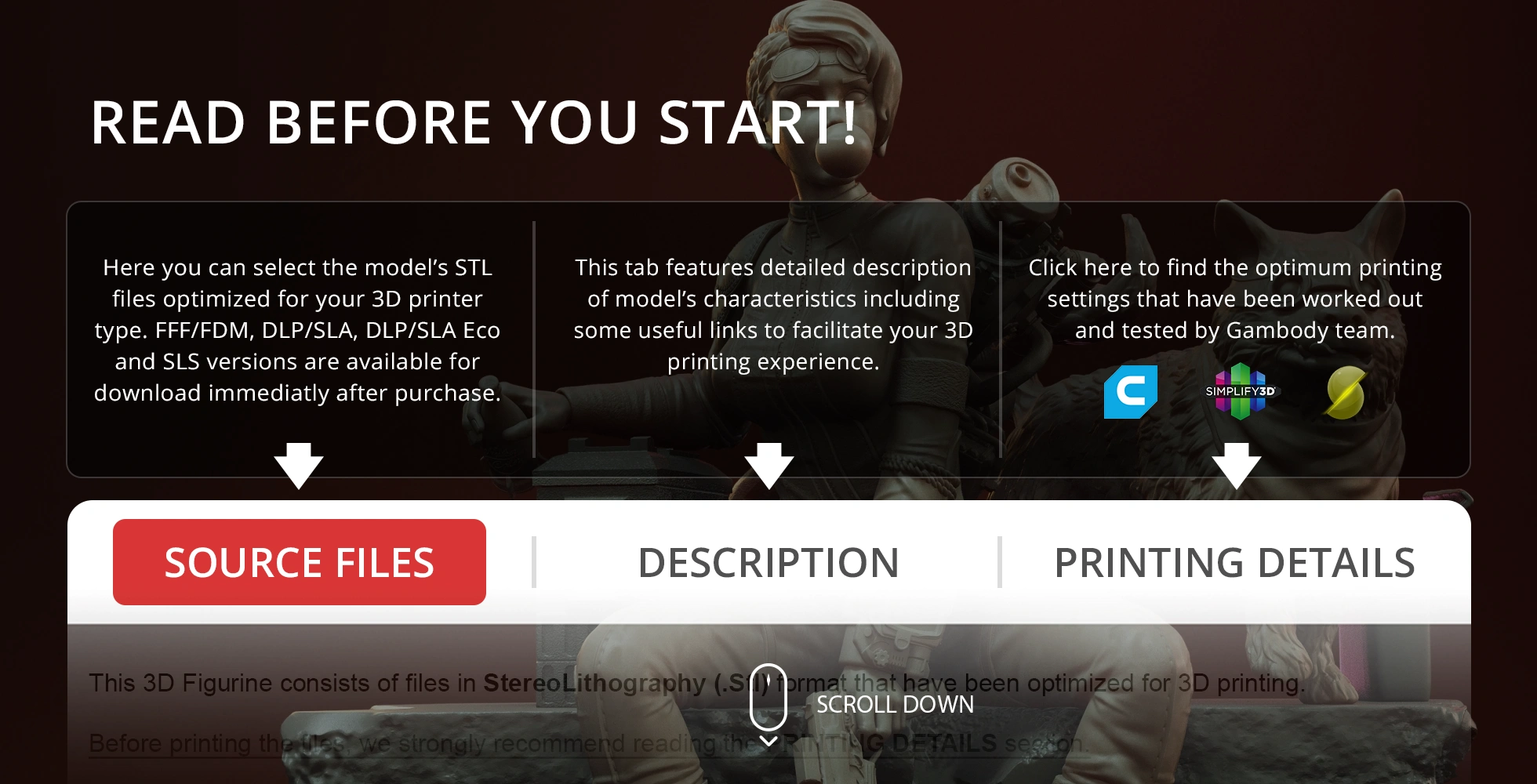

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 4 versions of New Vegas Diorama STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, SLS - files for all versions are available for download after the purchase;
  • STL files of high-poly New Vegas Diorama for 3D printing consist of 62 files;
  • Sizes for:
  • FFF/FDM: 220 mm tall, 234 mm wide, 101 mm deep;
  • DLP/SLA/SLS: 110 mm tall, 117 mm wide, 51 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

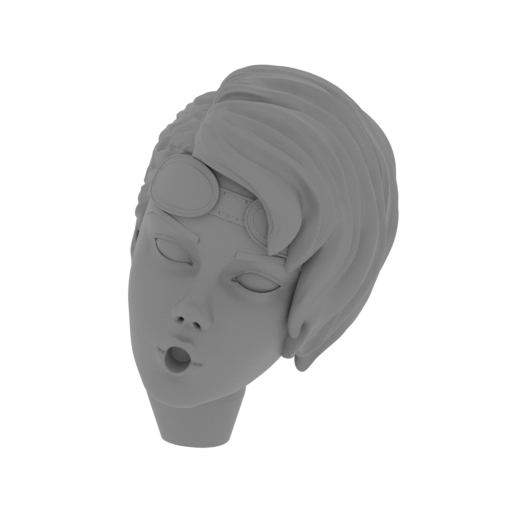

1_Fallout_Girl_head_FDM(r epaired).stl
26.55 MiB 1 h 19 min 1 m 23 x 29 x 33 Download

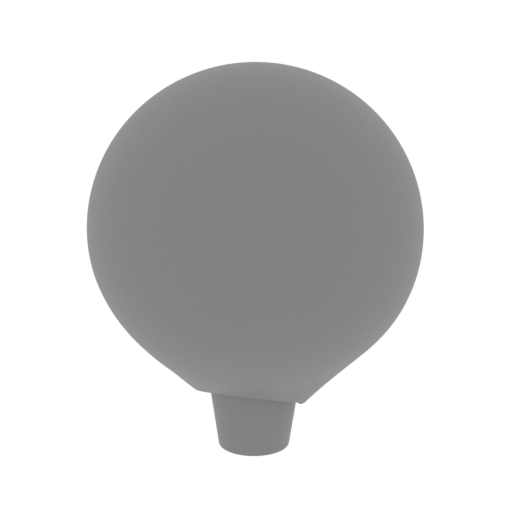

2_Fallout_Girl_buble_gum_ FDM(repaired).stl
7.48 MiB 7 min <1 m 8 x 8 x 9 Download

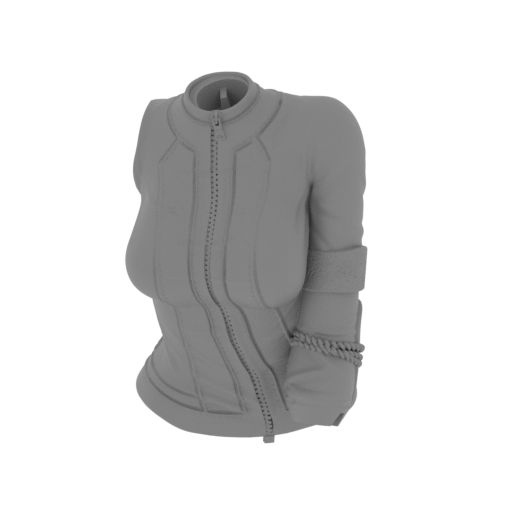

3_Fallout_Girl_body_FDM(r epaired).stl
42.69 MiB 4 h 27 min 2 m 40 x 41 x 62 Download

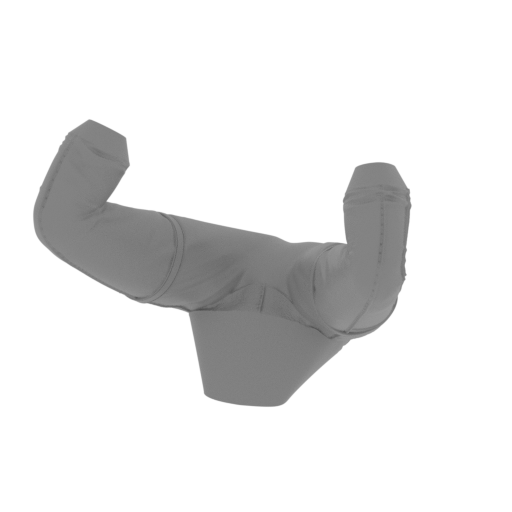

4_Fallout_Girl_legs_FDM(r epaired).stl
23.33 MiB 7 h 22 min 4 m 84 x 59 x 65 Download

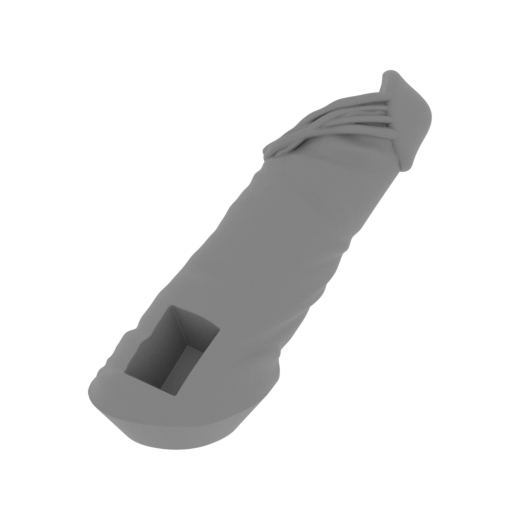

5_Fallout_Girl_arm_R_1_FD M(repaired).stl
11.57 MiB 44 min <1 m 23 x 35 x 27 Download

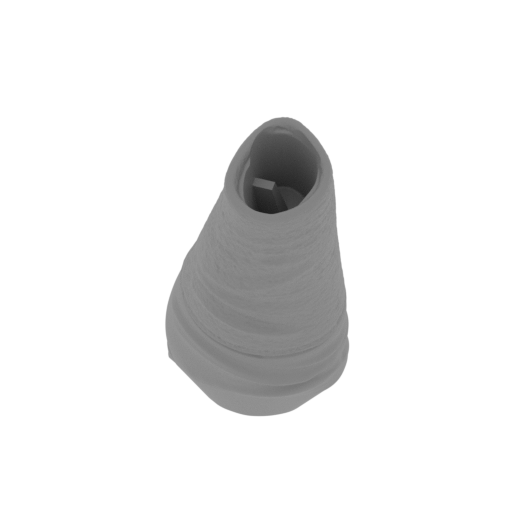

6_Fallout_Girl_arm_R_2_FD M(repaired).stl
13.85 MiB 26 min <1 m 16 x 24 x 24 Download

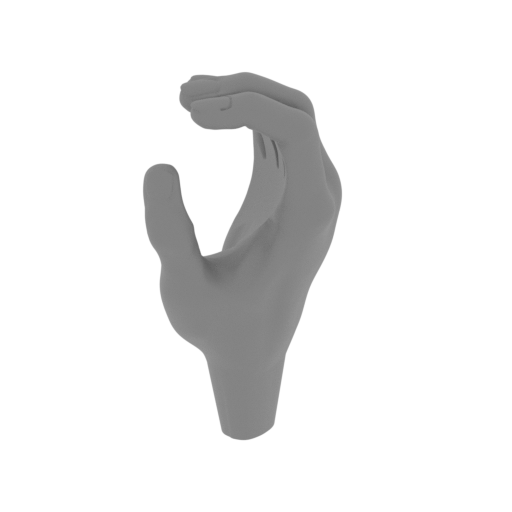

7_Fallout_Girl_hand_R_FDM (repaired).stl
8.01 MiB 22 min <1 m 9 x 13 x 22 Download

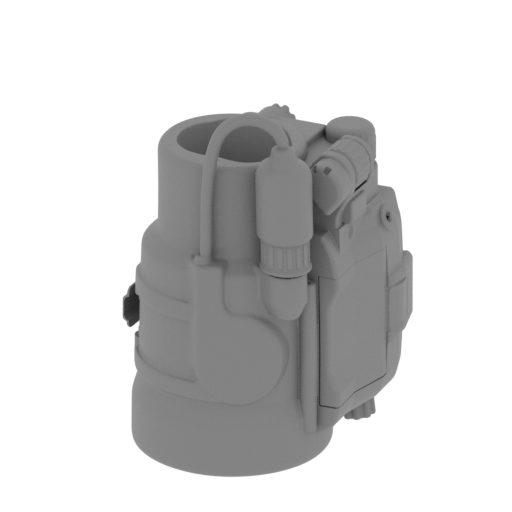

8_Fallout_Girl_arm_L_FDM( repaired).stl
15.03 MiB 44 min <1 m 16 x 14 x 23 Download

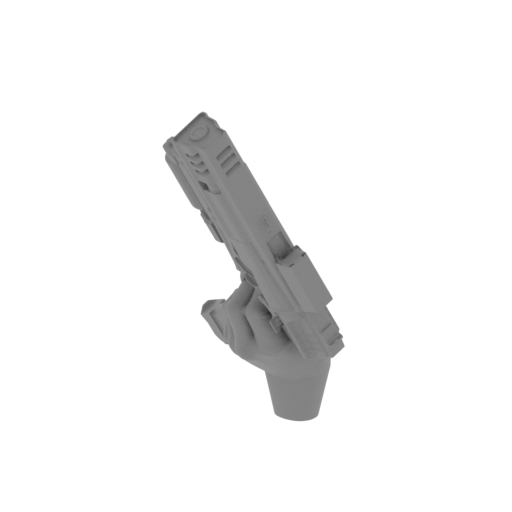

9_Fallout_Girl_hand_with_ gun_L_FDM(repaired).stl
21.40 MiB 57 min <1 m 21 x 30 x 39 Download

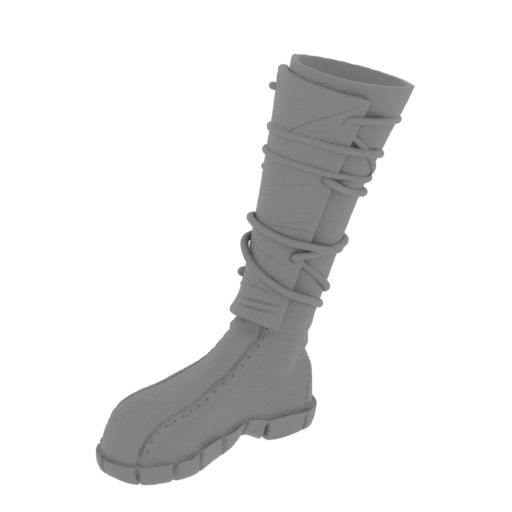

10_Fallout_Girl_foot_R_FD M(repaired).stl
16.76 MiB 1 h 39 min 1 m 31 x 39 x 48 Download

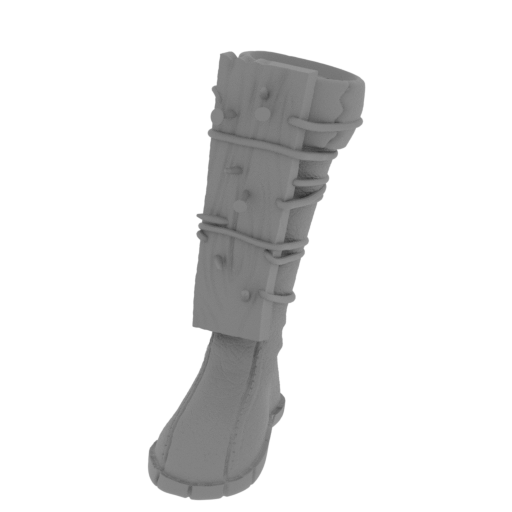

11_Fallout_Girl_foot_L_FD M(repaired).stl
18.06 MiB 2 h 22 min 1 m 18 x 45 x 49 Download

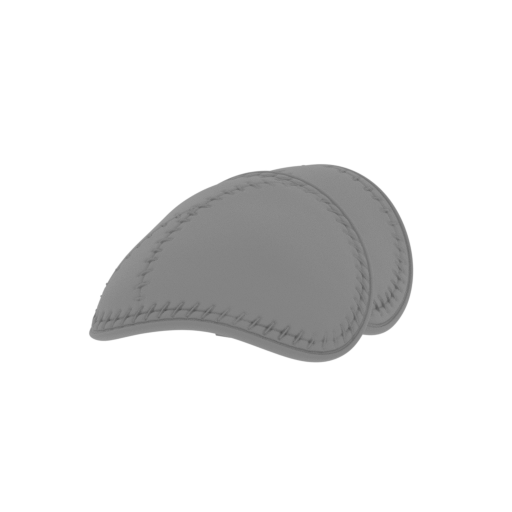

12_Fallout_Girl_scapular_ R_FDM(repaired).stl
10.59 MiB 21 min <1 m 17 x 23 x 8 Download

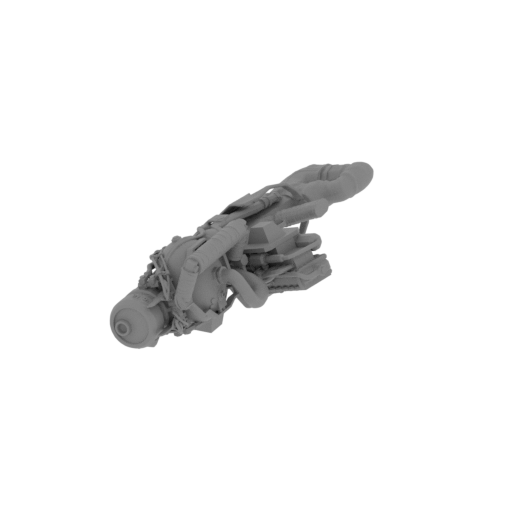

13_Fallout_Girl_machine_g un_1_FDM(repaired).stl
19.97 MiB 5 h 36 min 3 m 38 x 86 x 28 Download

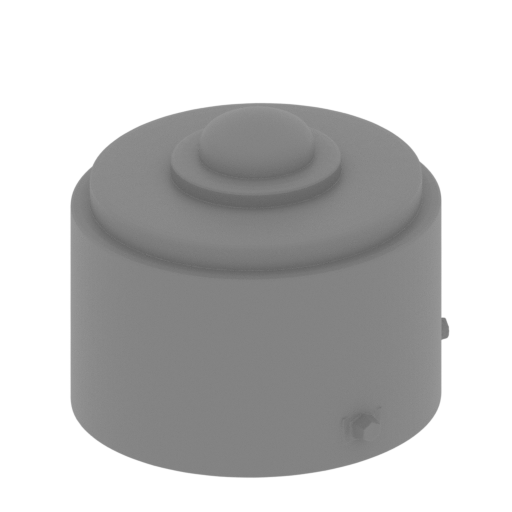

14_Fallout_Girl_machine_g un_2_FDM(repaired).stl
10.29 MiB 16 min <1 m 15 x 16 x 13 Download

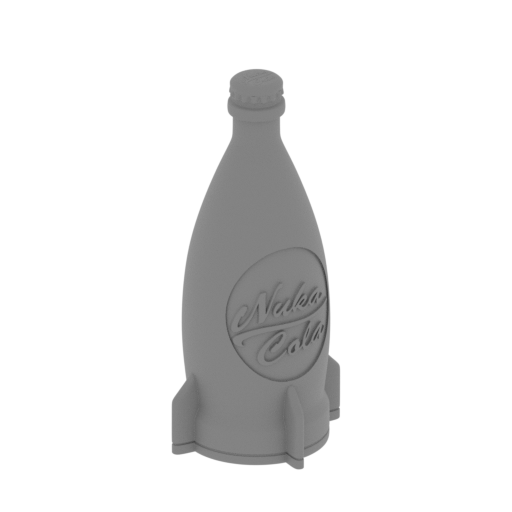

15_botle_FDM(repaired).st l
9.41 MiB 14 min <1 m 8 x 8 x 22 Download

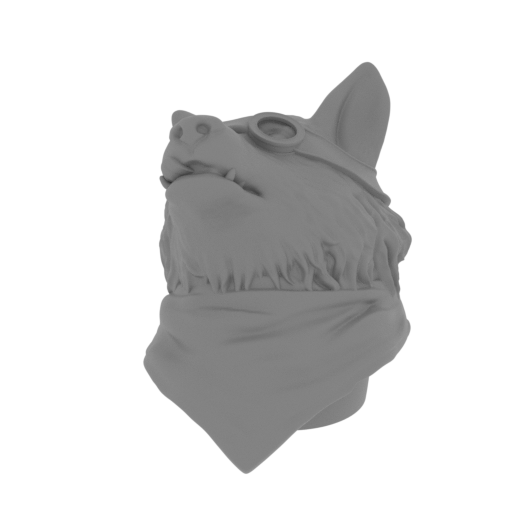

16_dog_head_FDM(repaired) .stl
18.40 MiB 2 h 37 min 1 m 36 x 46 x 38 Download

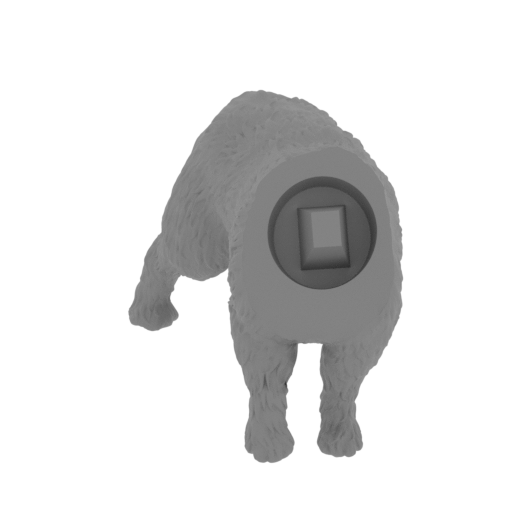

17_dog_body_FDM(repaired) .stl
24.85 MiB 7 h 41 min 5 m 69 x 74 x 56 Download

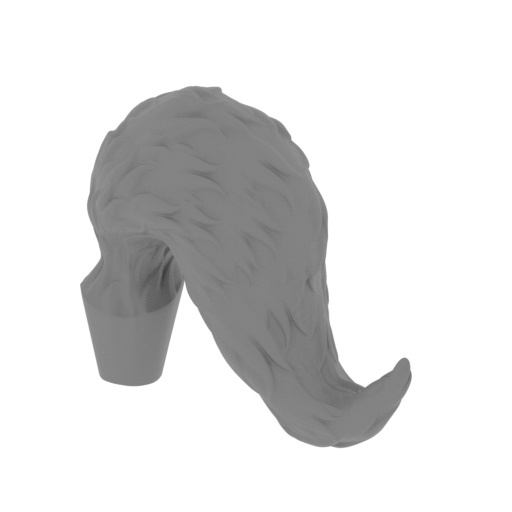

18_dog_tail_FDM(repaired) .stl
11.92 MiB 56 min 1 m 37 x 19 x 32 Download

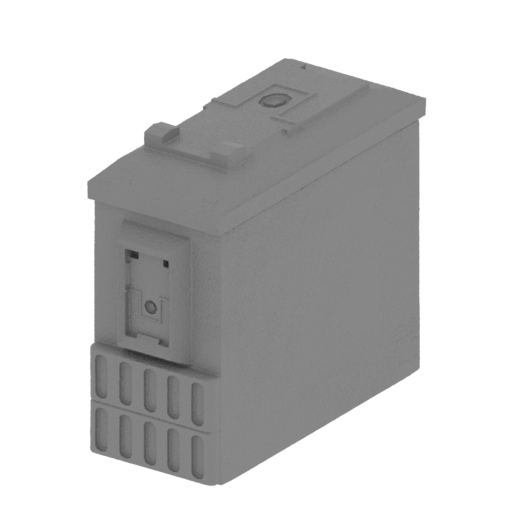

19_box_big_FDM(repaired). stl
13.96 MiB 3 h 12 min 2 m 29 x 47 x 41 Download

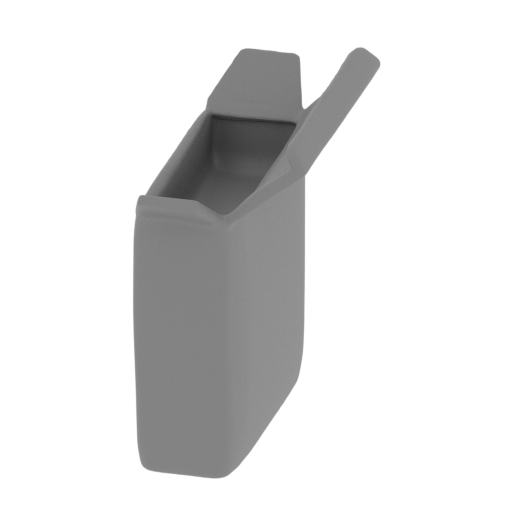

20_box_small_FDM(repaired ).stl
8.71 MiB 1 h 18 min 1 m 17 x 34 x 32 Download

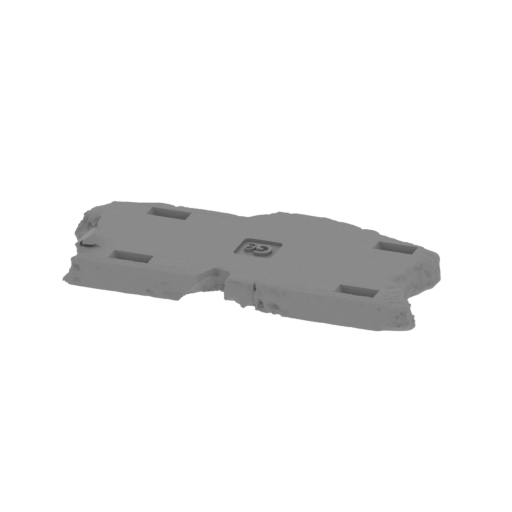

21_platform_1_FDM(repaire d).stl
22.38 MiB 12 h 59 min 7 m 176 x 80 x 18 Download

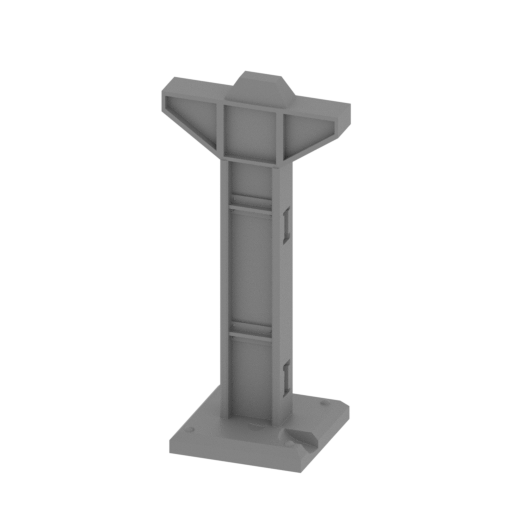

22_platform_2_FDM(repaire d).stl
19.26 MiB 7 h 37 min 5 m 53 x 39 x 110 Download

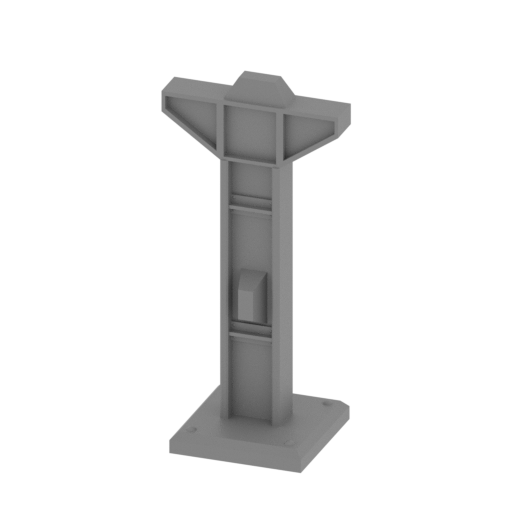

23_platform_3_FDM(repaire d).stl
19.56 MiB 7 h 36 min 5 m 53 x 39 x 110 Download
24_platform_4_FDM(repaire d).stl
14.35 MiB 7 h 32 min 5 m 53 x 39 x 110 Download

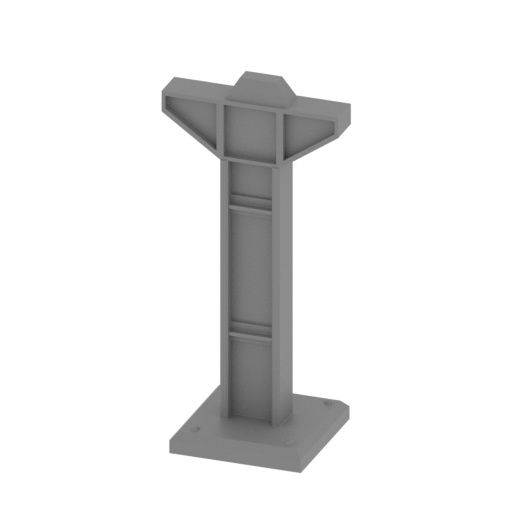

25_platform_5_FDM(repaire d).stl
18.65 MiB 7 h 29 min 5 m 53 x 39 x 110 Download

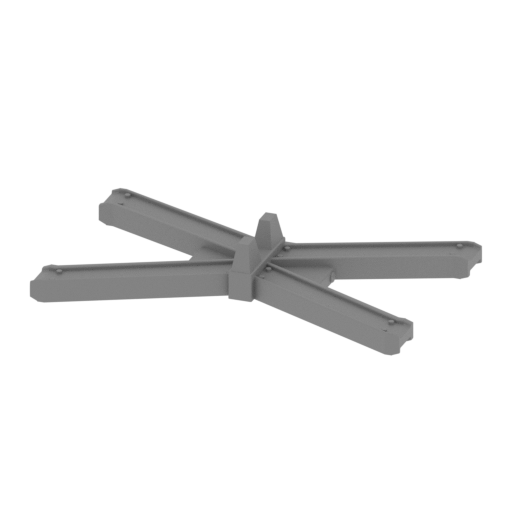

26_platform_6_FDM(repaire d).stl
19.75 MiB 1 h 60 min 1 m 94 x 57 x 14 Download

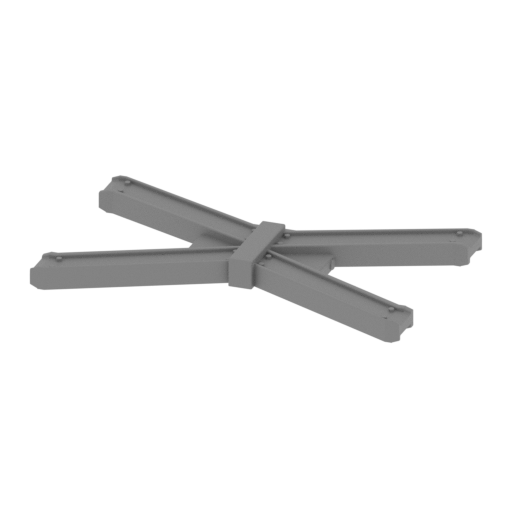

27_platform_7_FDM(repaire d).stl
19.76 MiB 1 h 54 min 1 m 94 x 57 x 7 Download

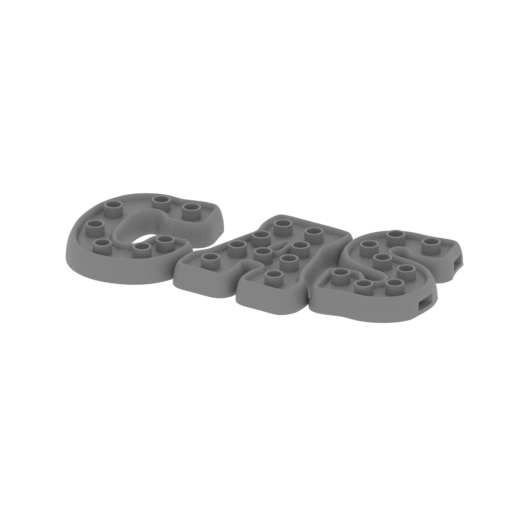

28_platform_8_FDM(repaire d).stl
37.23 MiB 5 h 24 min 3 m 127 x 61 x 10 Download

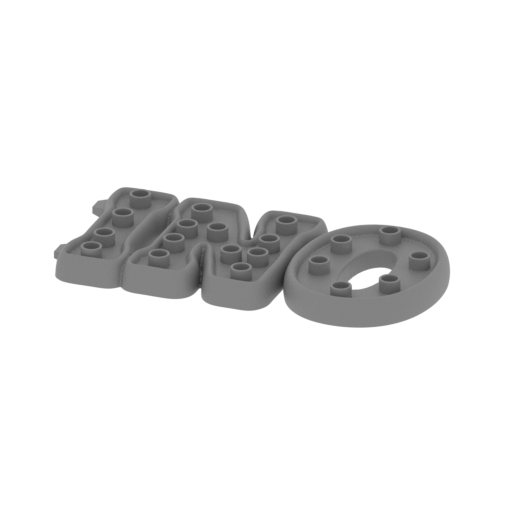

29_platform_9_FDM(repaire d).stl
37.71 MiB 4 h 50 min 3 m 113 x 56 x 10 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

The popularity of the Fallout franchise grows every day with the new game releases and a new generation of players coming after the success of the “Fallout” TV series. The gameplay of each game of the series immerses the player in the locations of the post-apocalyptic world where they are tasked to complete the quests armed with weapons of different classes and supported by their permanent companions. In Fallout: New Vegas the protagonist, upon learning basic survival skills, chases their assassin on the way to the New Vegas Strip and gets acquainted with Mojave Wasteland and various factions and groups simultaneously.

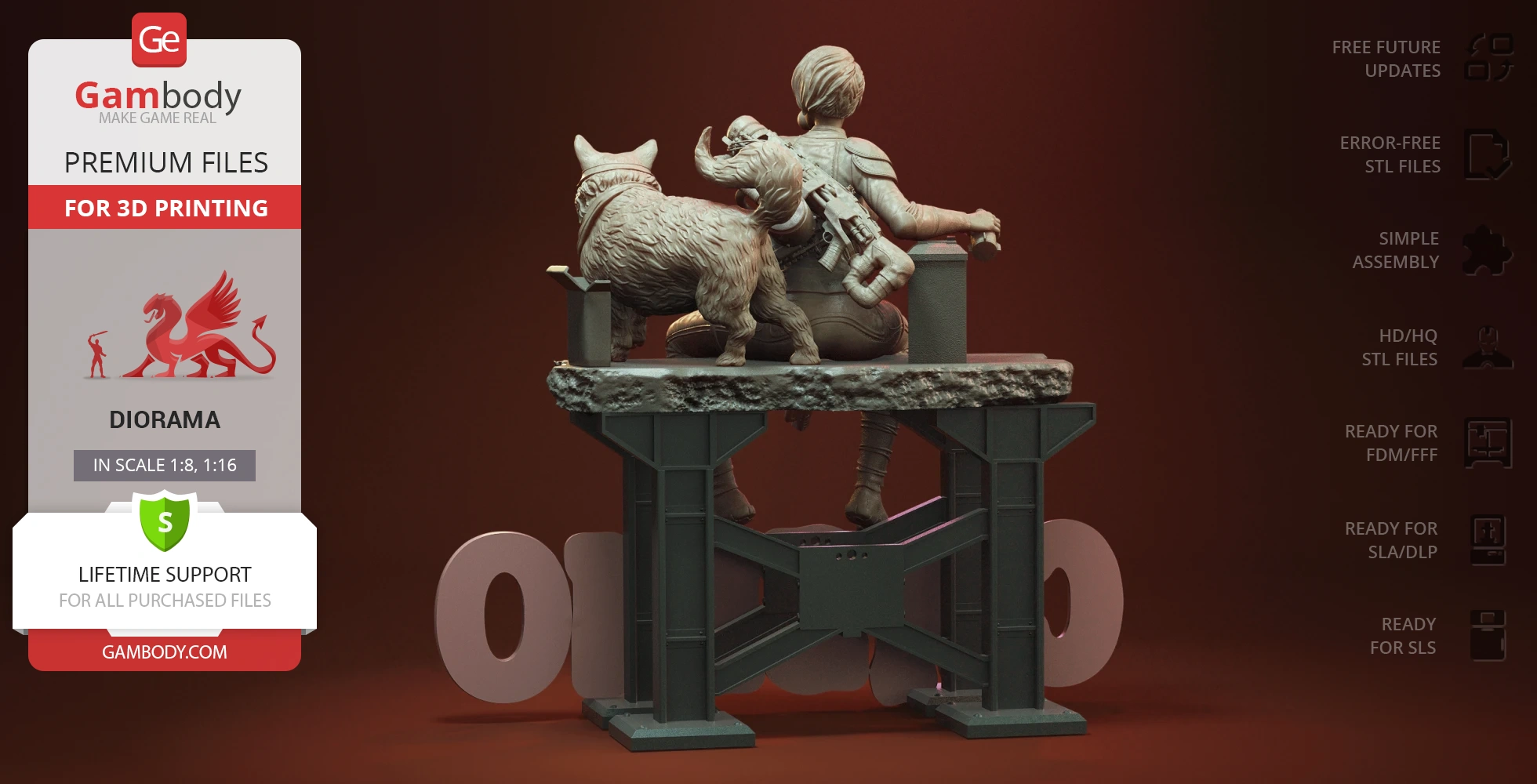

New Vegas 3D Printing Figurines in Diorama is a work of our contributing 3D artist that can impress every Fallout fan with its authenticity and level of detail. The female player is depicted in a Vault jumpsuit, there is a Pip-Boy computer on her left wrist, the left hand holds a Pistol, and the right one is shown with a Nuka-Bombdrop. The posture of the fellow companion Dogmeat with its cute goggles and bandana expresses its carelessness which is also read in the character of his owner. The platform featuring "casino" lettering is a perfect choice for this diorama as it adds special charm and uniqueness to the scene. It looks like you have found a great exhibit for your collection of video game printables!

ADAPTATION FOR 3D PRINTING

New Vegas diorama for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 71 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the characters to be depicted harmoniously in the intended pose.

The figurines’ cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurines are connected, the characters were divided into convenient assembly parts.

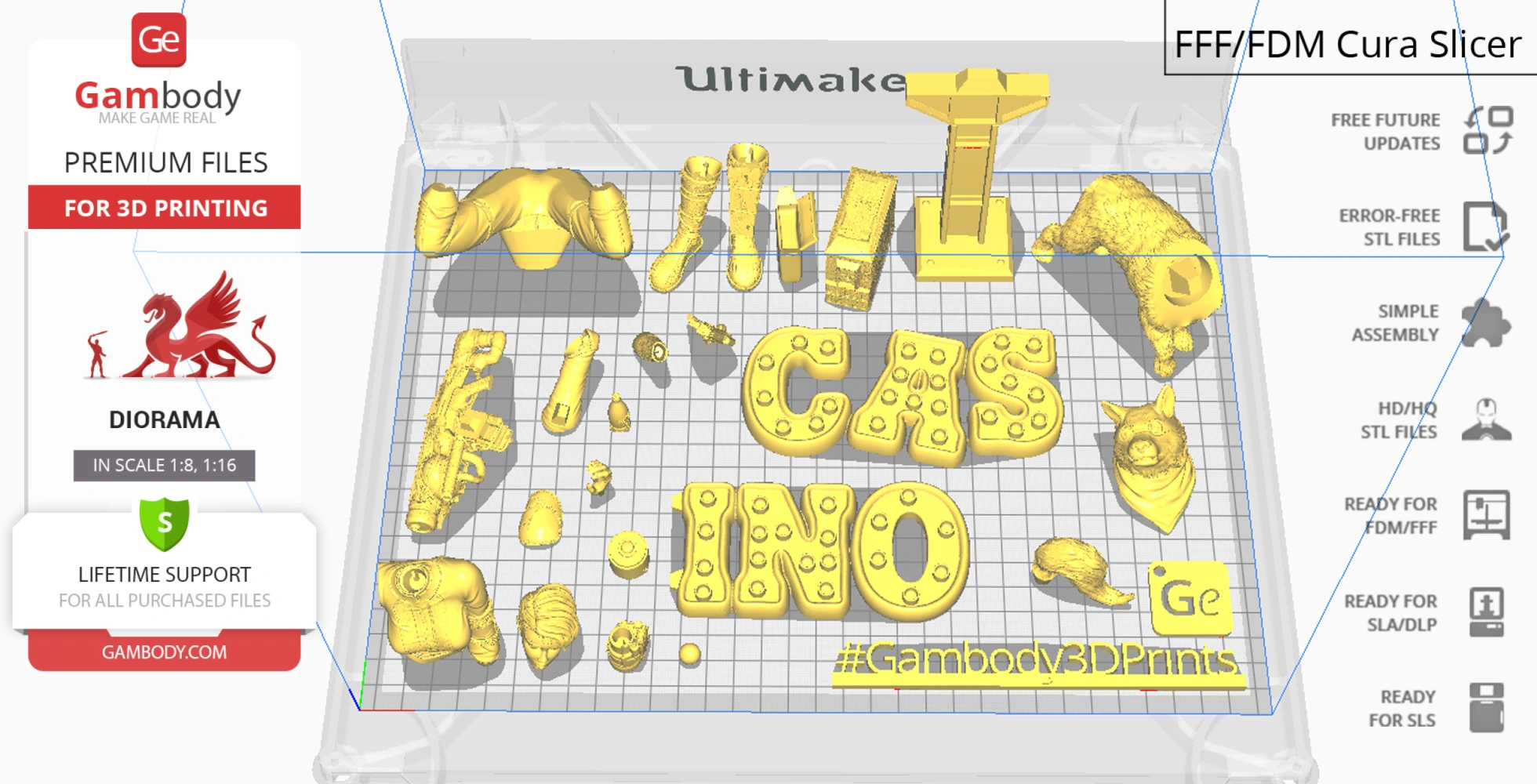

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to the New Vegas 3D printing figurines in diorama.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The scale for the diorama was calculated from the height of the characters. The chosen scales of this diorama for 3D printing are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

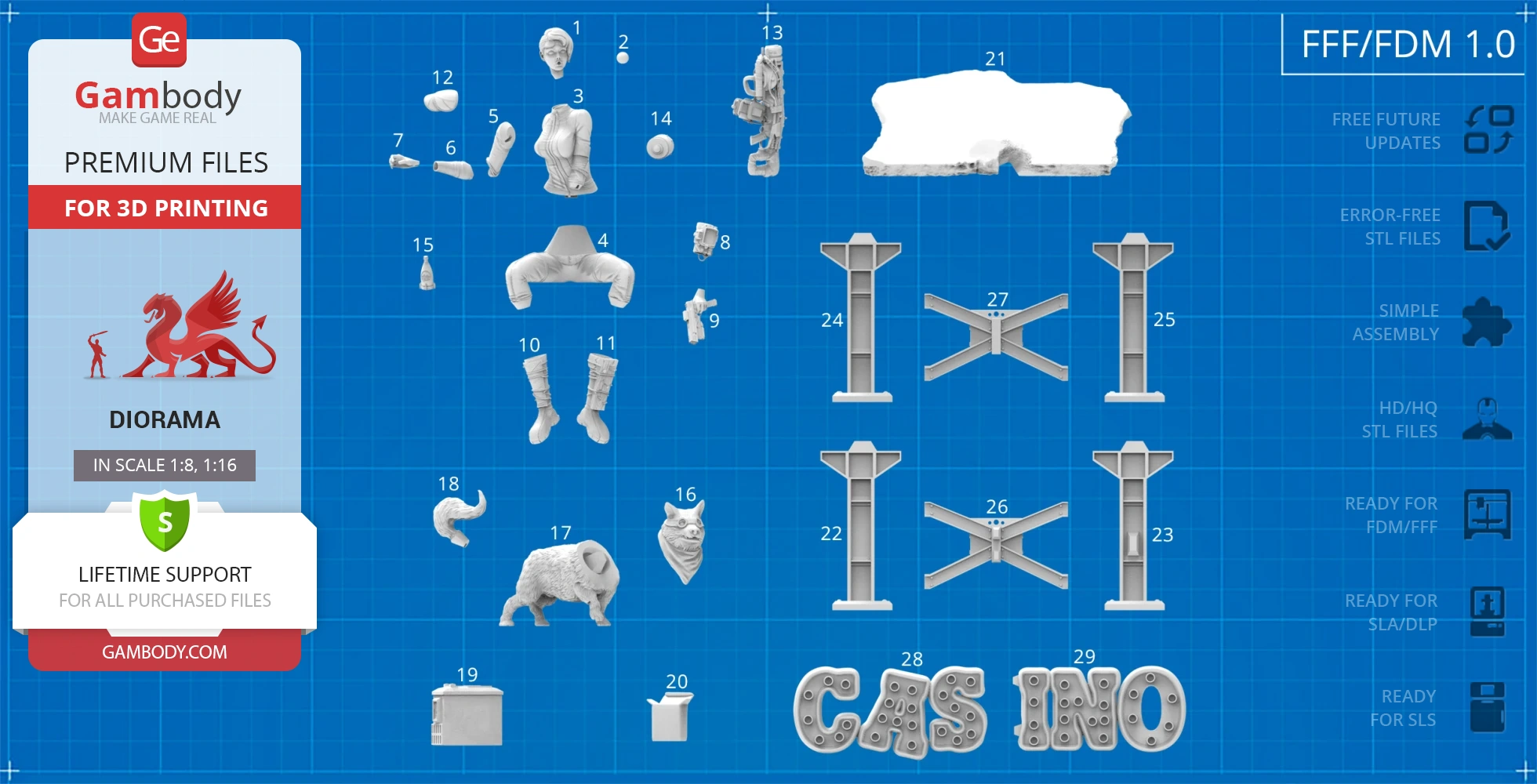

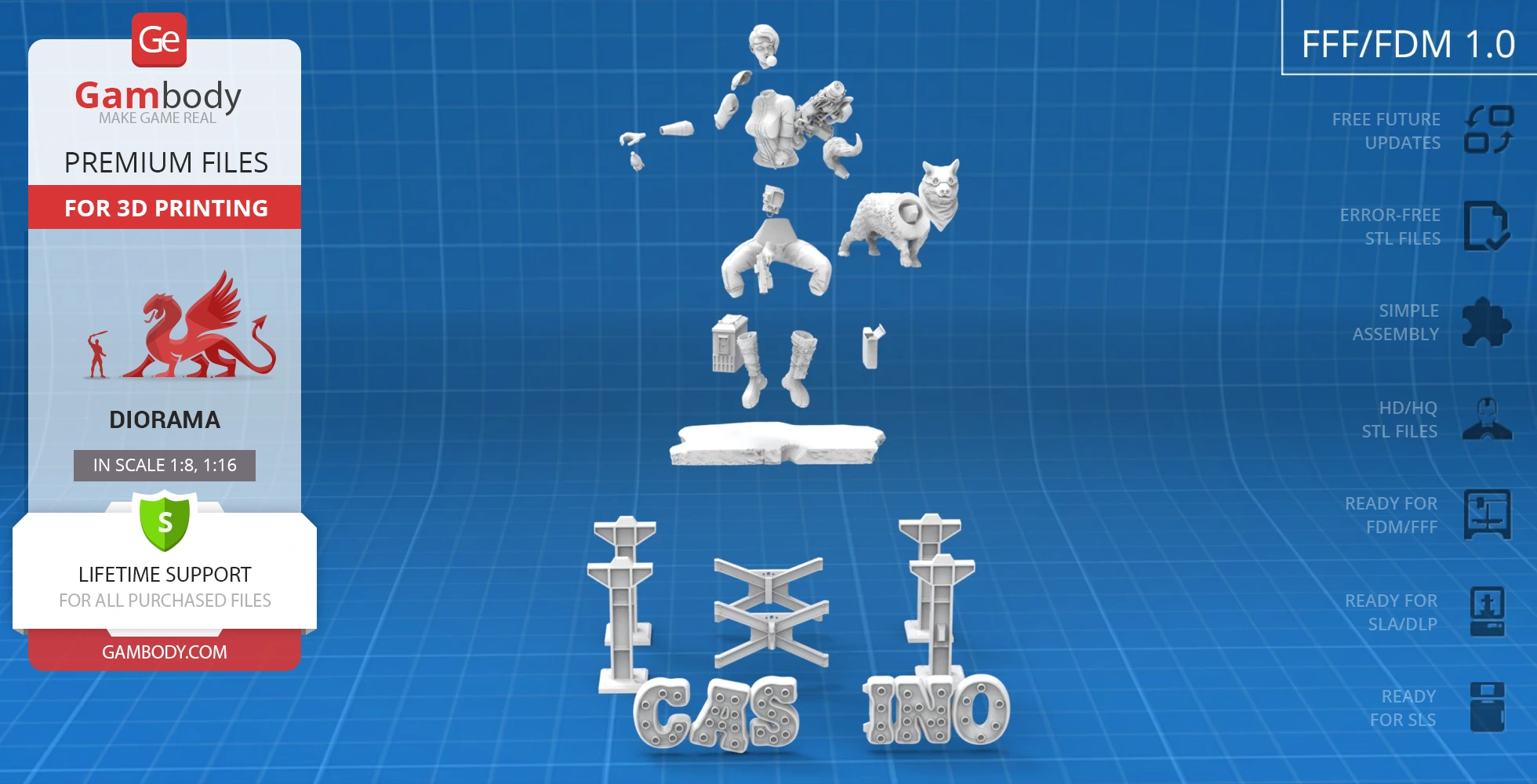

FFF/FDM 1.0 versions features:

  • Contains 29 parts;
  • A printed diorama is 220 mm tall, 234 mm wide, 101 mm deep;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

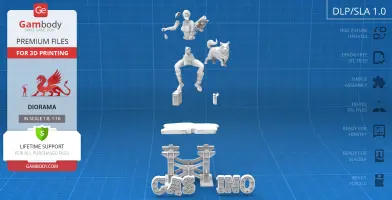

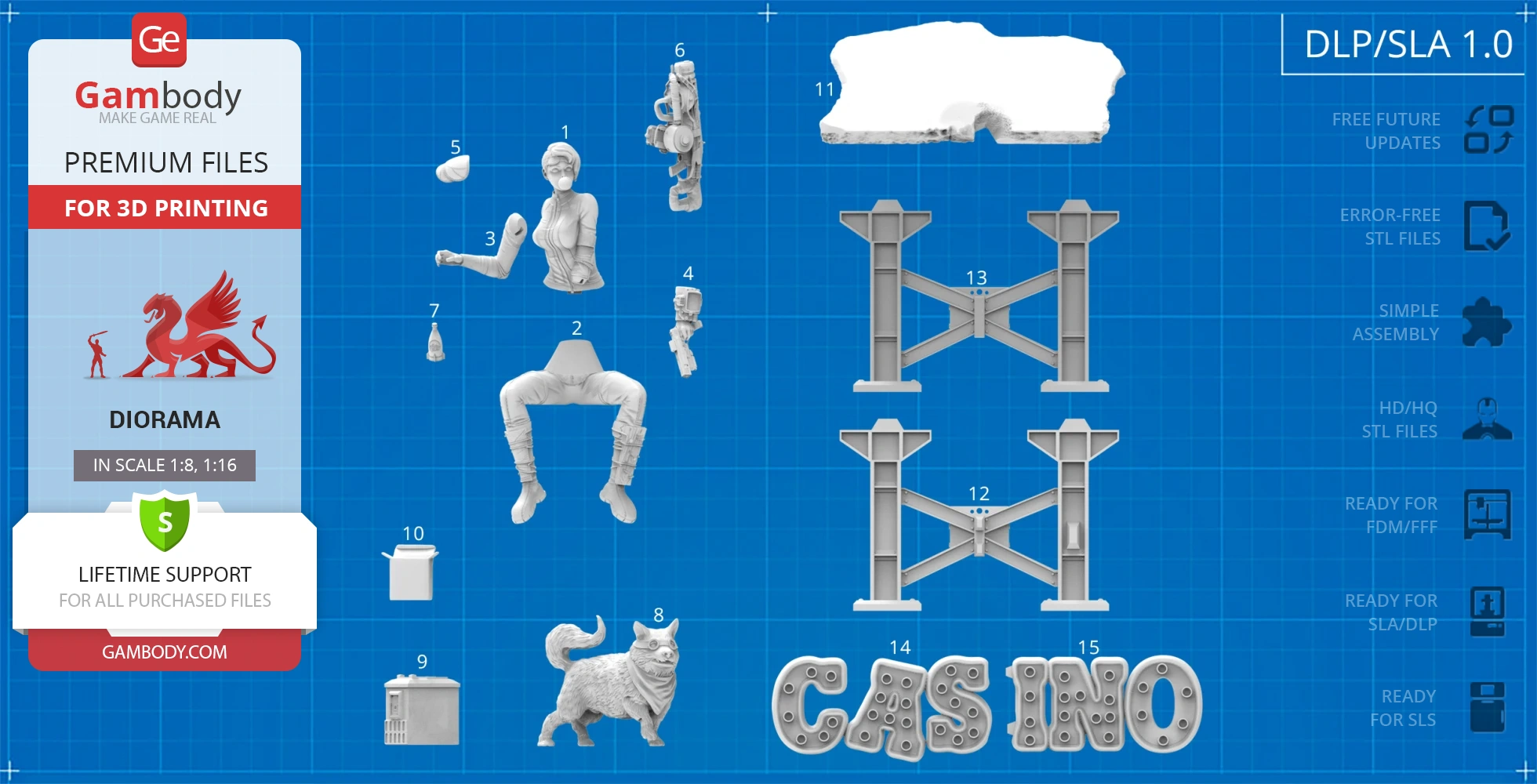

DLP/SLA 1.0 versions features:

  • Contains 15 parts;
  • A printed diorama is 110 mm tall, 117 mm wide, 51 mm deep;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

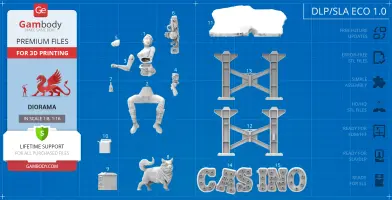

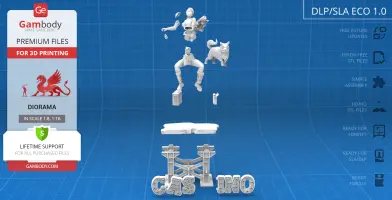

DLP/SLA Eco 1.0 versions features:

  • Contains 15 parts;
  • A printed diorama is 110 mm tall, 117 mm wide, 51 mm deep;
  • Some parts are manually hollowed out to save resin.

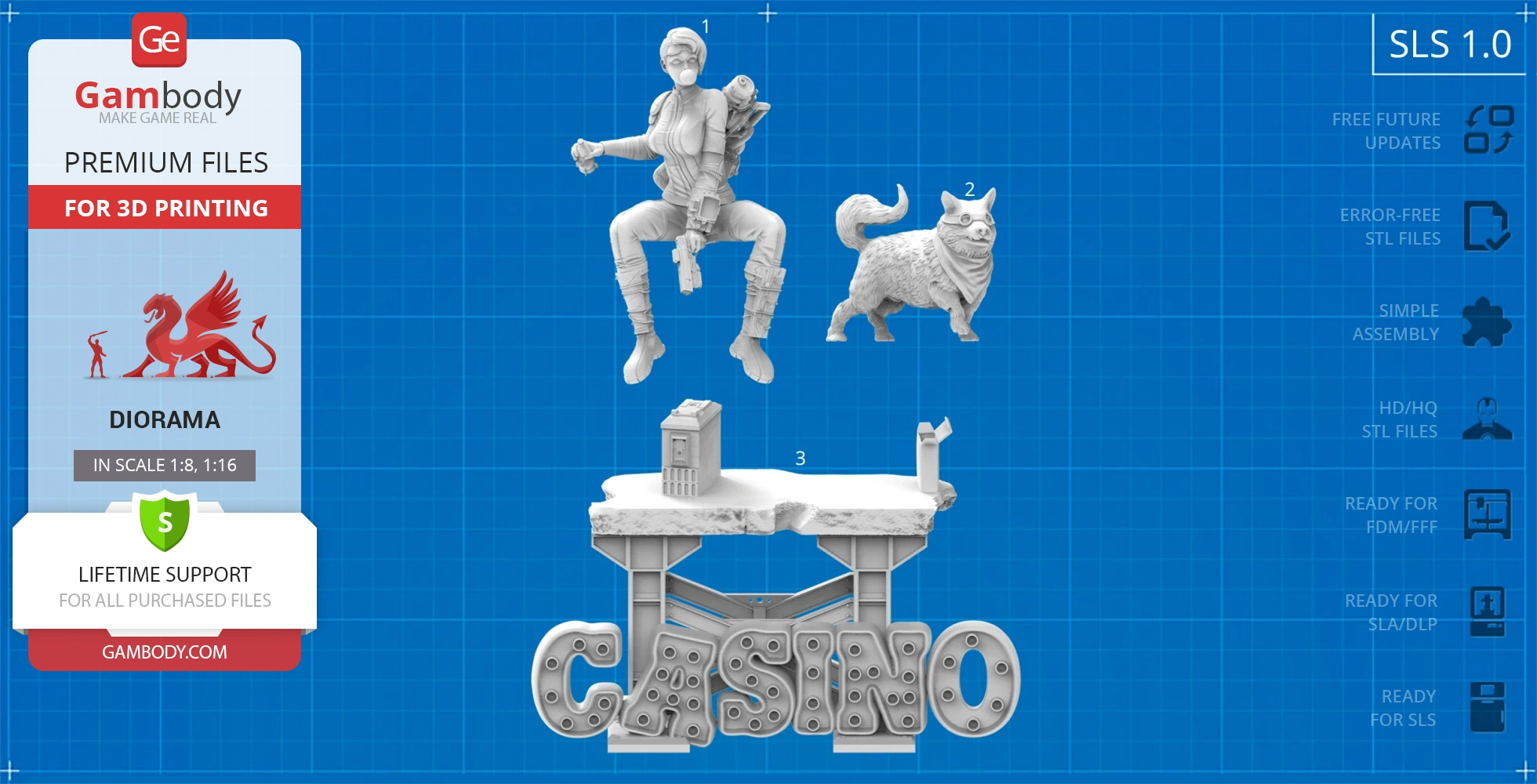

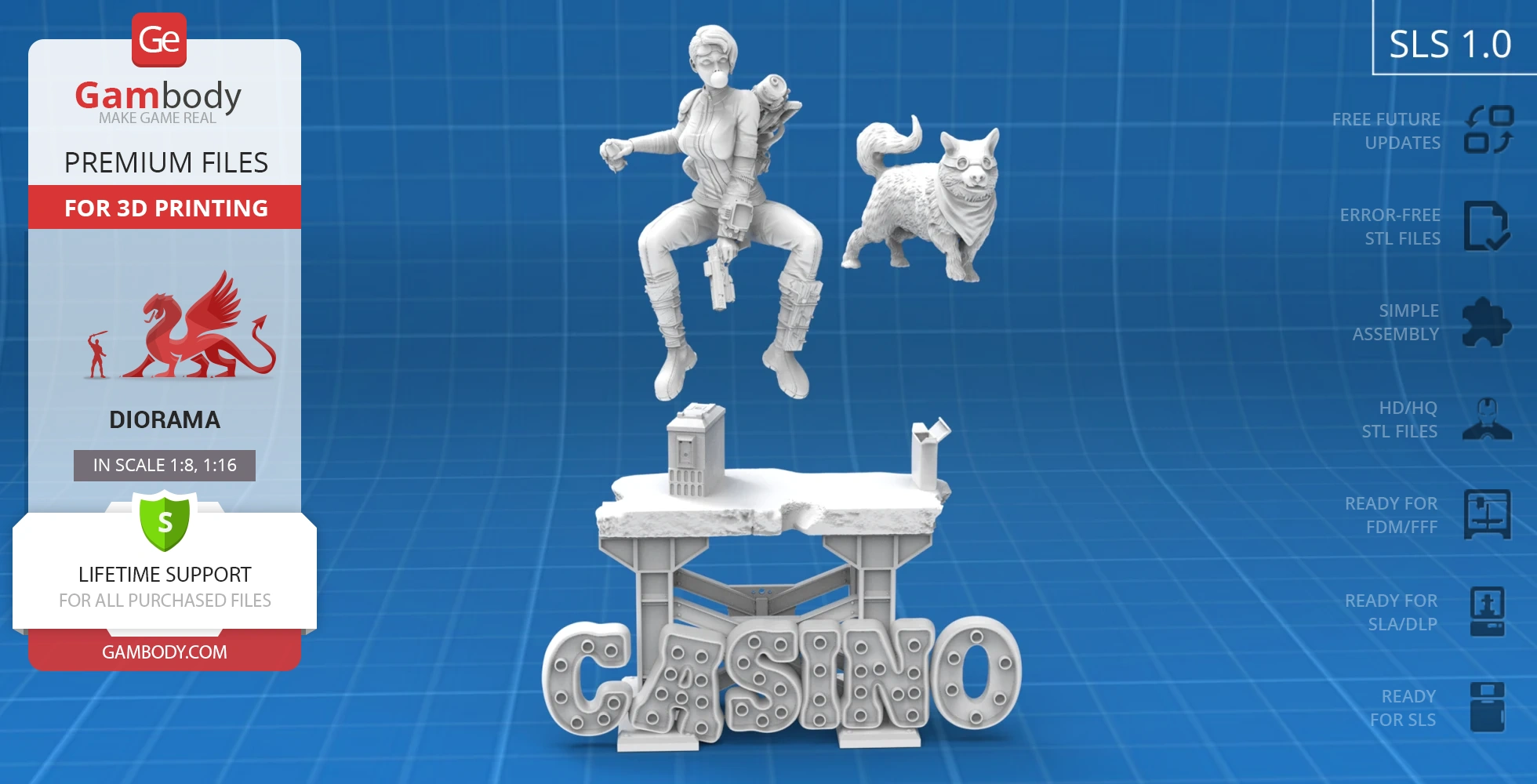

SLS 1.0 versions features:

  • Contains 3 parts - solid figurines on and separately from the stylised platform.

You can get the figurine of New Vegas Diorama for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble New Vegas 3D Printing Figurines in Diorama on Gambody YouTube channel.

Also, you may like other Fallout and Video Games 3D Printing Models.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
