Terran Thor 3D Printing Model | Assembly + Action

(7)
cm: 33.7 w x 26 d x 29.2 h
in: 13.268 w x 10.236 d x 11.496 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

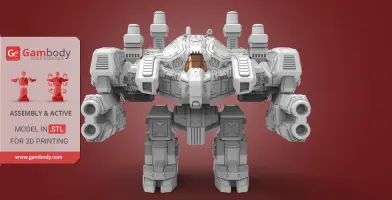

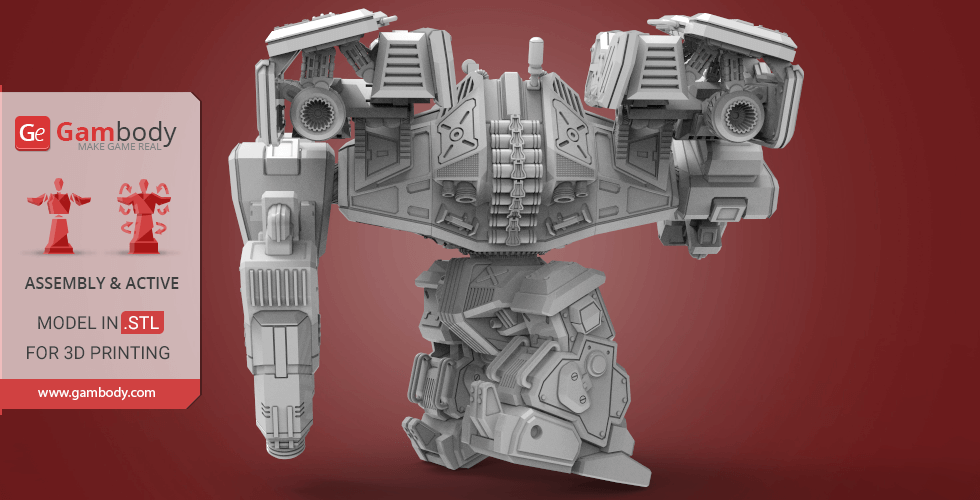

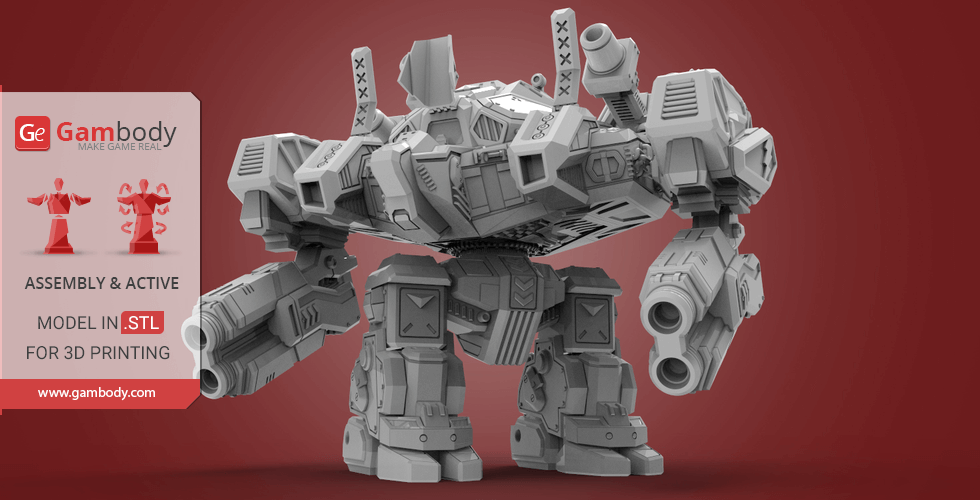

Version 1 and Version 2 are the STL files for  Terran Thor 3D Model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

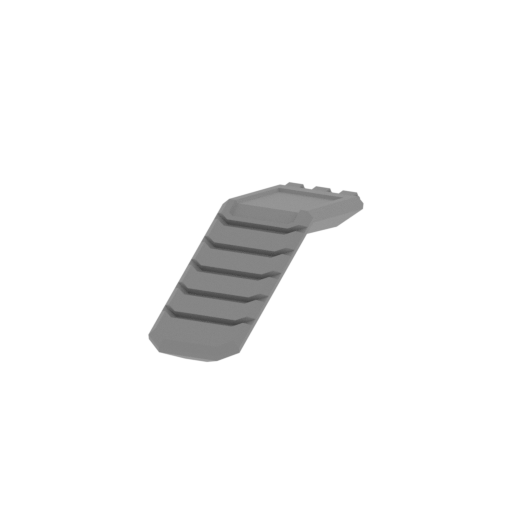

1_rocket_cap_R (repaired) .stl
0.55 MiB 58 min 1 m 14 x 58 x 12 Download
2_rocket_holder_cap_R (re paired).stl
0.09 MiB 12 min <1 m 15 x 5 x 11 Download

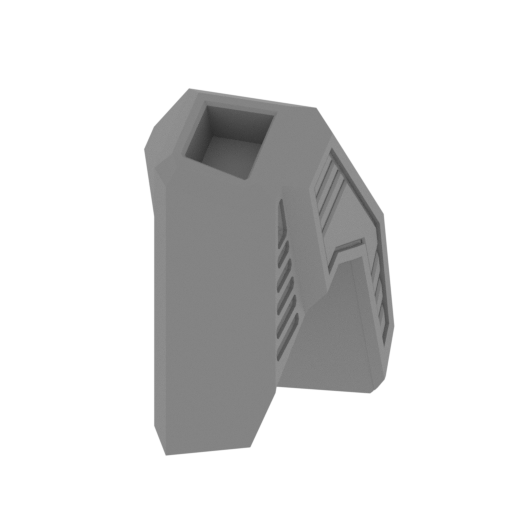

3_rocket_R (repaired).stl
1.88 MiB 6 h 36 min 4 m 32 x 57 x 67 Download

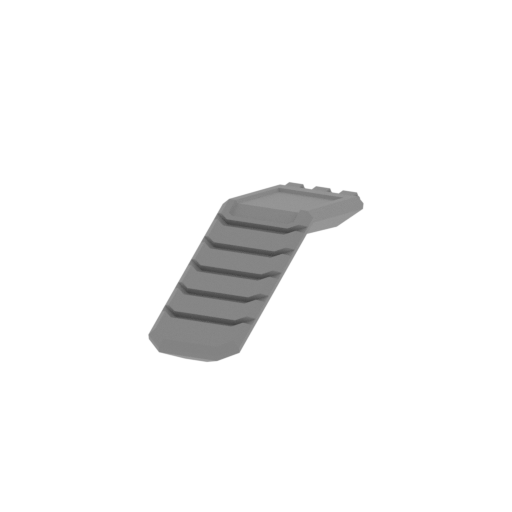

4_rocket_cap_L (repaired) .stl
0.55 MiB 58 min 1 m 14 x 58 x 12 Download

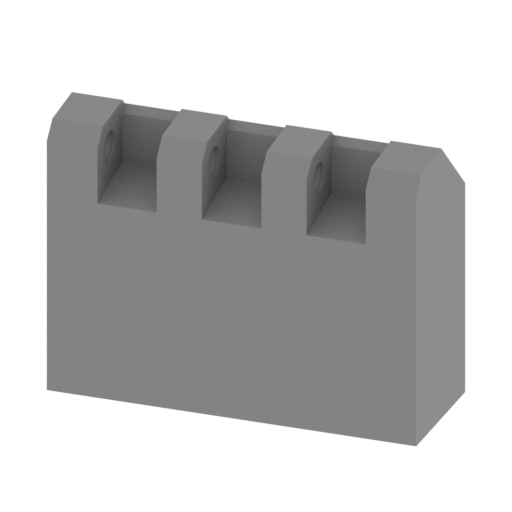

5_rocket_holder_cap_L (re paired).stl
0.09 MiB 12 min <1 m 15 x 5 x 11 Download

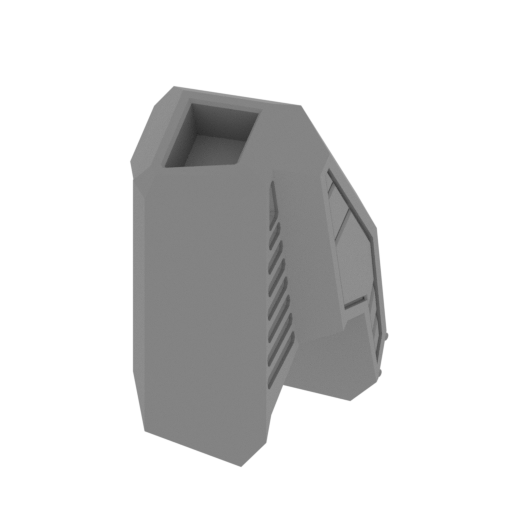

6_rocket_L (repaired).stl
1.88 MiB 6 h 35 min 4 m 32 x 57 x 67 Download

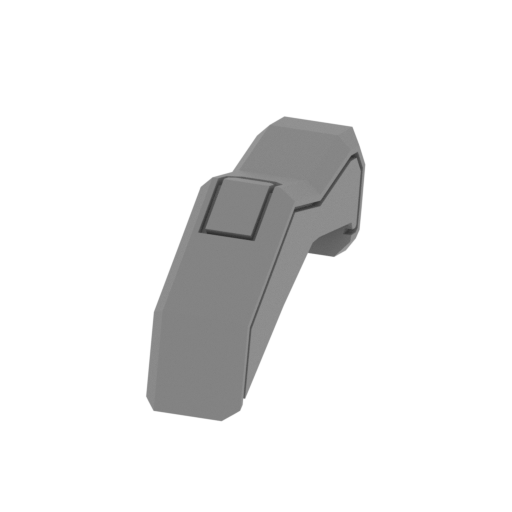

7_nose_1 (repaired).stl
0.06 MiB 2 h 43 min 2 m 17 x 65 x 31 Download

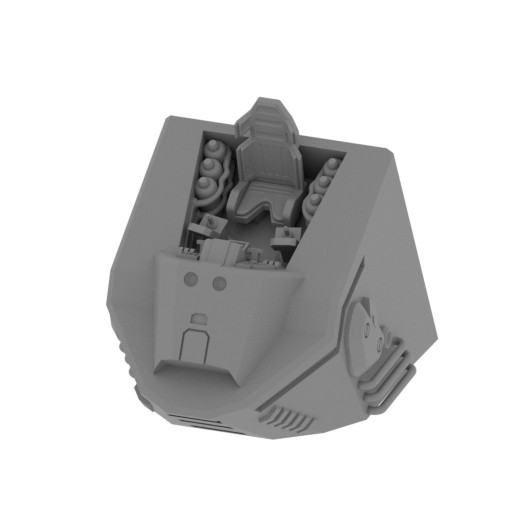

8_nose_2 (repaired).stl
6.41 MiB 7 h 54 min 4 m 46 x 67 x 53 Download

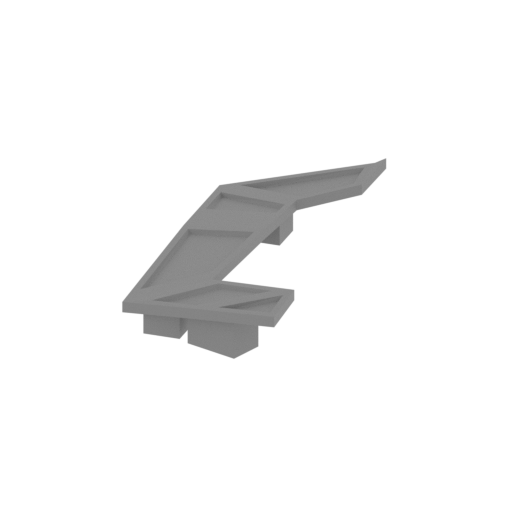

9_shoulder_cap_R (repaire d).stl
0.02 MiB 3 h 23 min 2 m 45 x 96 x 17 Download

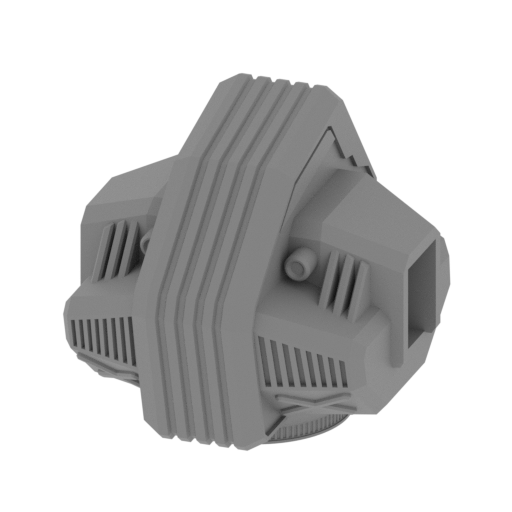

10_pelvis (repaired).stl
0.59 MiB 19 h 28 min 12 m 75 x 86 x 71 Download

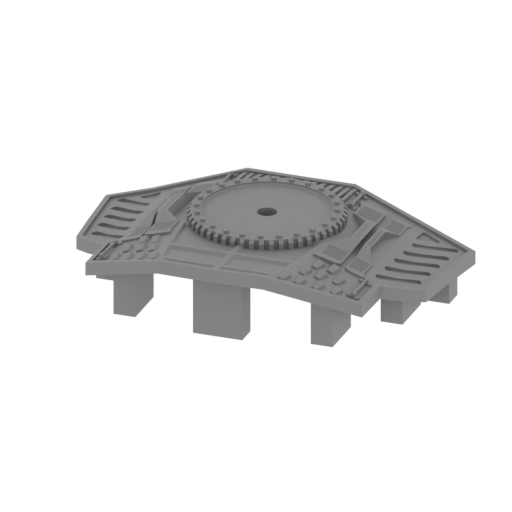

11_body_cap (repaired).st l
0.72 MiB 21 h 36 min 15 m 139 x 93 x 29 Download

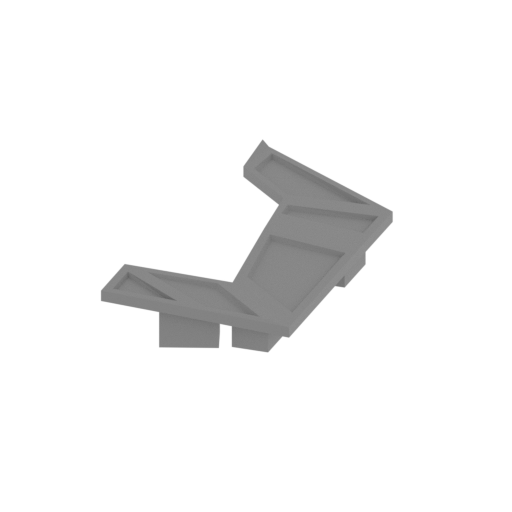

12_shoulder_cap_L (repair ed).stl
0.02 MiB 3 h 20 min 2 m 45 x 96 x 17 Download

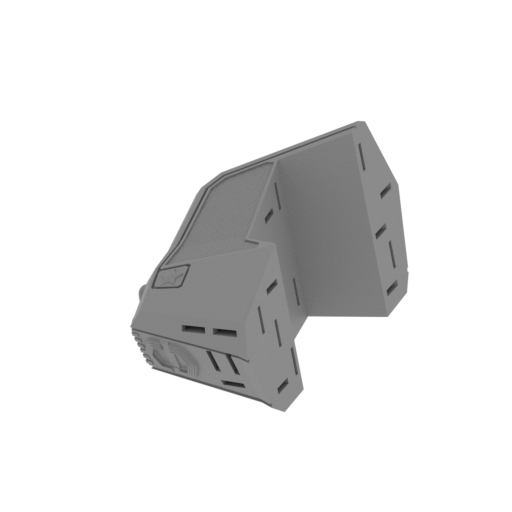

13_shoulder_R (repaired). stl
2.26 MiB 19 h 17 min 11 m 66 x 131 x 68 Download

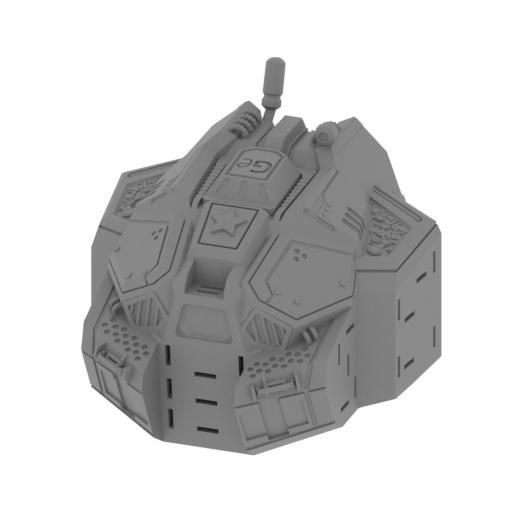

14_body (repaired).stl
10.10 MiB 103 h 16 min 76 m 146 x 167 x 130 Download

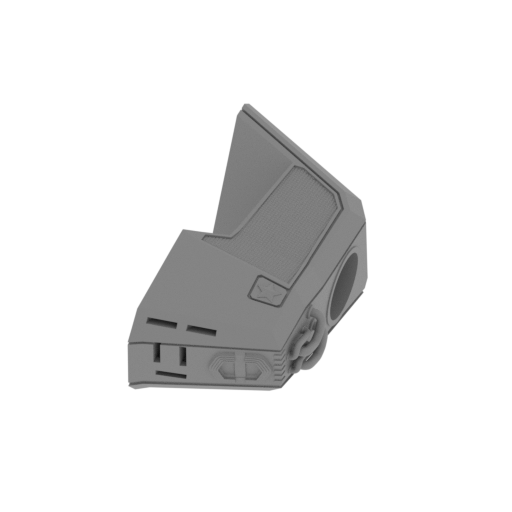

15_shoulder_L (repaired). stl
2.25 MiB 19 h 13 min 11 m 66 x 131 x 68 Download

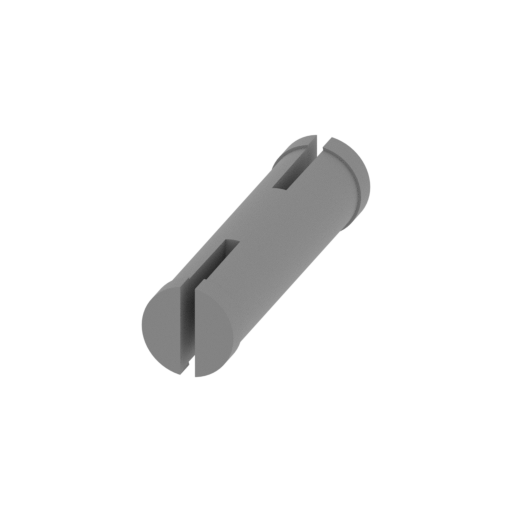

16_GE_Connector_C_D (repa ired).stl
0.08 MiB 14 min <1 m 7 x 30 x 7 Download

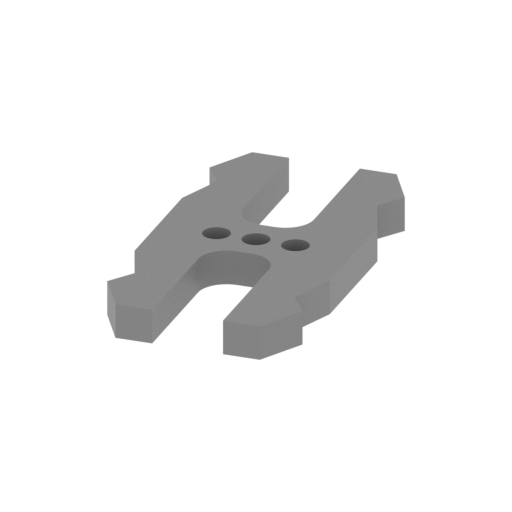

17_ge_lock_10h_x89 (repai red).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

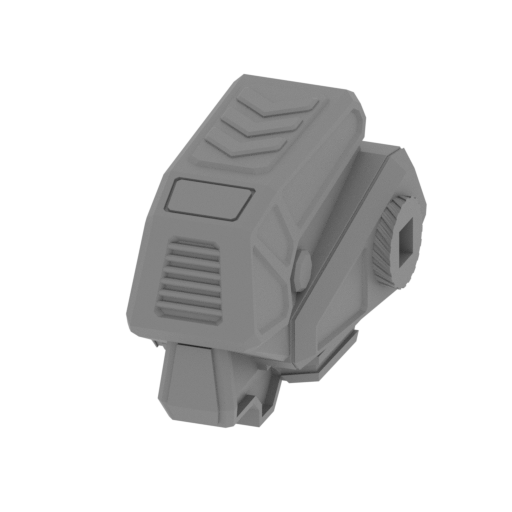

18_arm_1_R (repaired).stl
0.21 MiB 22 h 6 min 14 m 65 x 105 x 79 Download
19_arm_2_R (repaired).stl
0.80 MiB 23 h 5 min 14 m 44 x 64 x 163 Download

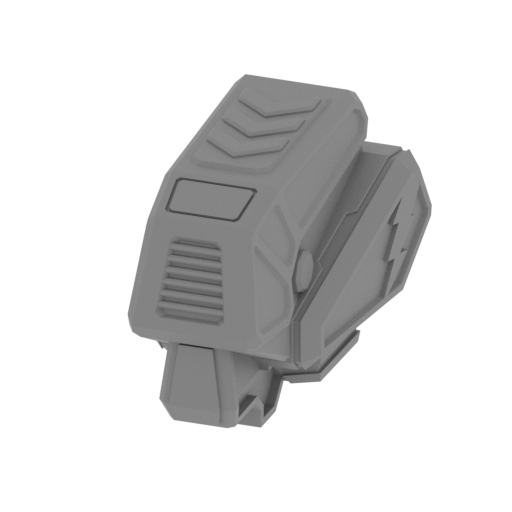

20_arm_1_L (repaired).stl
0.21 MiB 22 h 1 min 14 m 65 x 105 x 79 Download

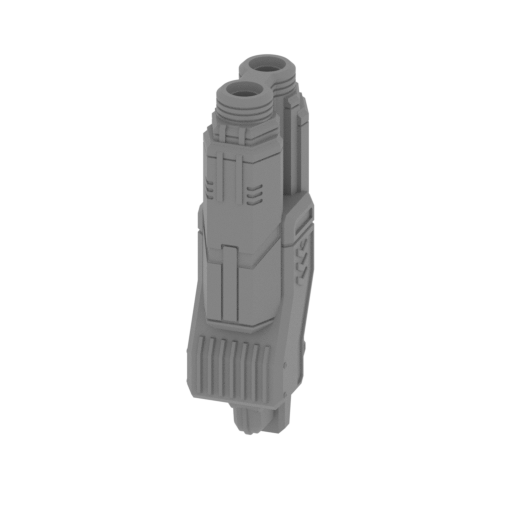

21_arm_2_L (repaired).stl
0.80 MiB 23 h 3 min 14 m 44 x 64 x 163 Download

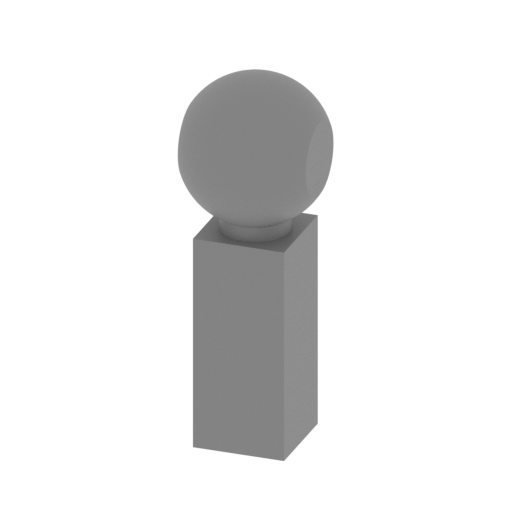

22_Axis_1_C_Joint_x4 (rep aired).stl
0.43 MiB 42 min <1 m 15 x 17 x 42 Download

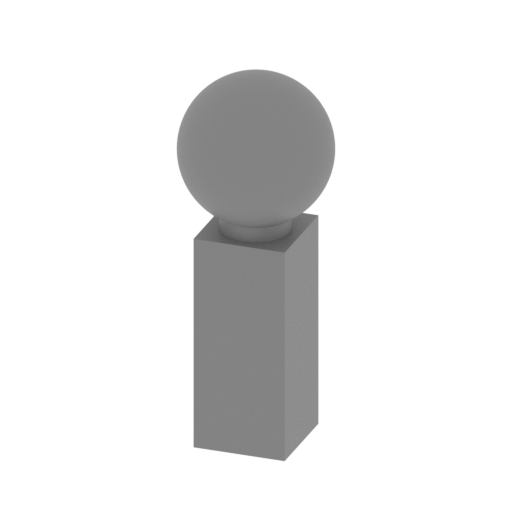

23_Axis_2_C_Joint_x4 (rep aired).stl
0.51 MiB 42 min <1 m 17 x 17 x 42 Download

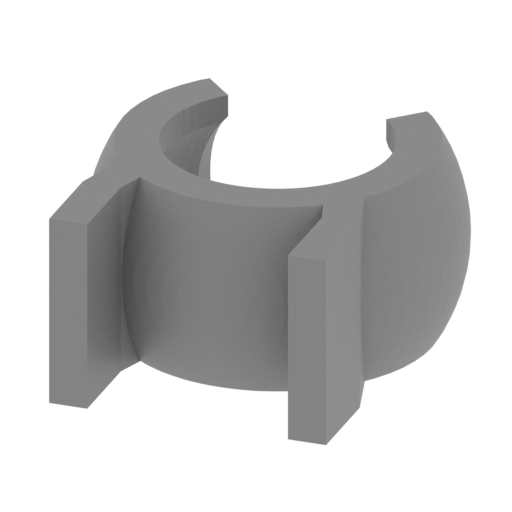

24_C_Claw_x8 (repaired).s tl
0.17 MiB 21 min <1 m 22 x 22 x 11 Download

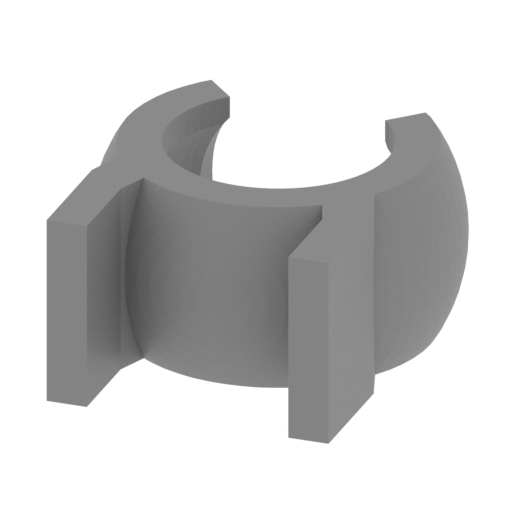

25_B_Claw_x4 (repaired).s tl
0.16 MiB 15 min <1 m 18 x 19 x 10 Download

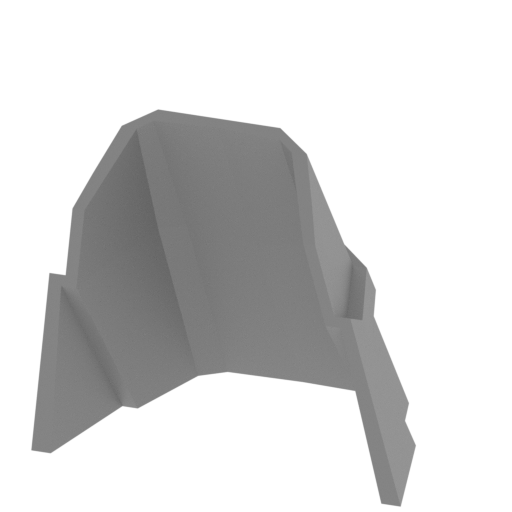

26_cabine (repaired).stl
0.51 MiB 54 min <1 m 34 x 31 x 34 Download

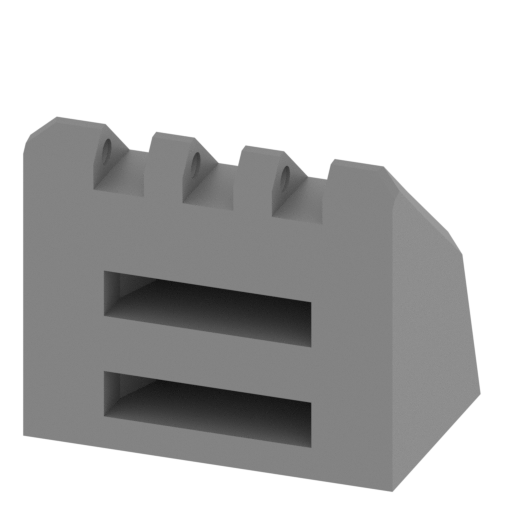

27_cabine_holder (repaire d).stl
0.10 MiB 23 min <1 m 17 x 12 x 15 Download

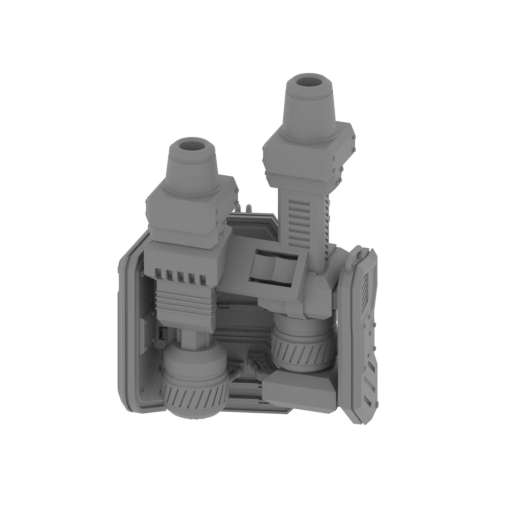

28_Gun_R (repaired).stl
5.65 MiB 43 h 40 min 27 m 105 x 74 x 167 Download

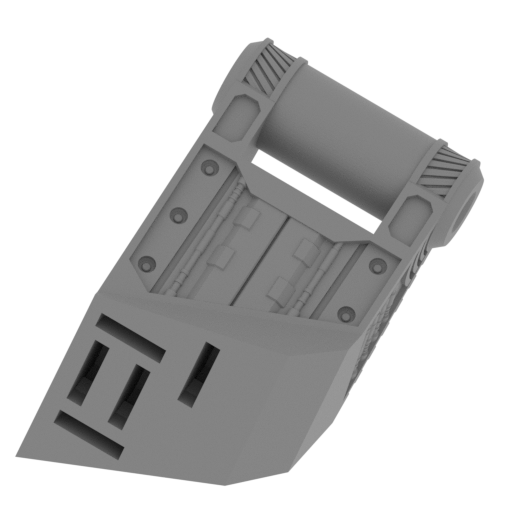

29_Gun_holder_R (repaired ).stl
1.19 MiB 4 h 27 min 3 m 51 x 42 x 48 Download

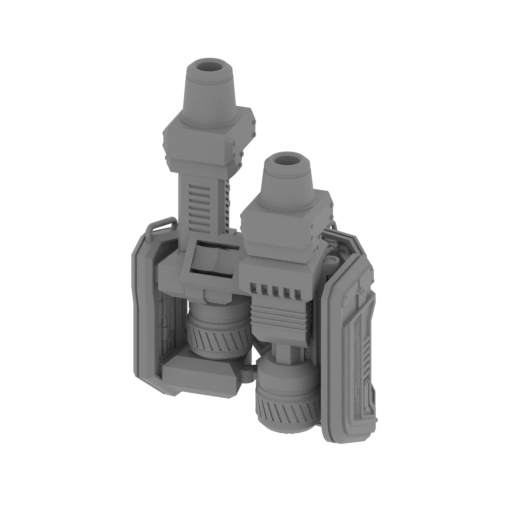

30_Gun_L (repaired).stl
5.65 MiB 43 h 32 min 27 m 105 x 74 x 167 Download

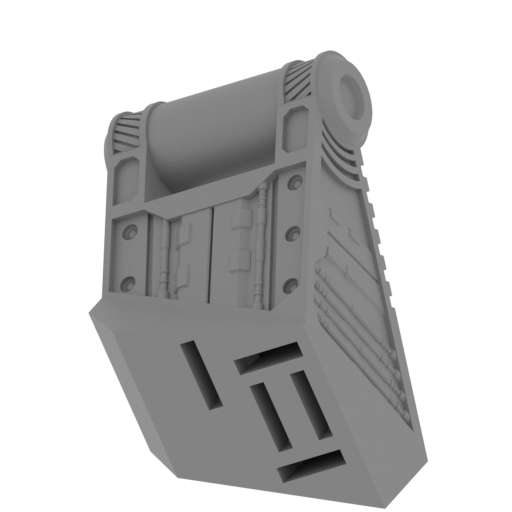

31_Gun_holder_L (repaired ).stl
1.20 MiB 4 h 22 min 2 m 52 x 42 x 47 Download

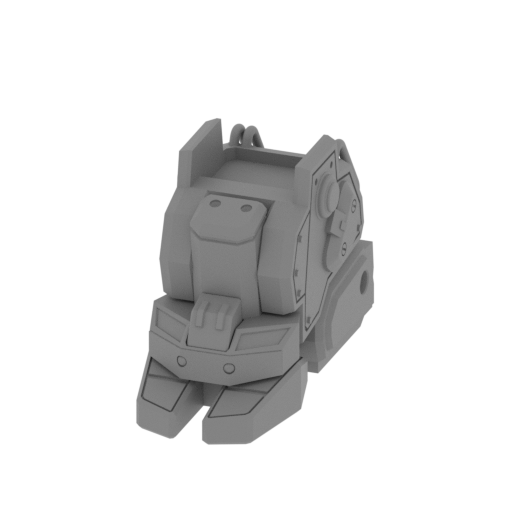

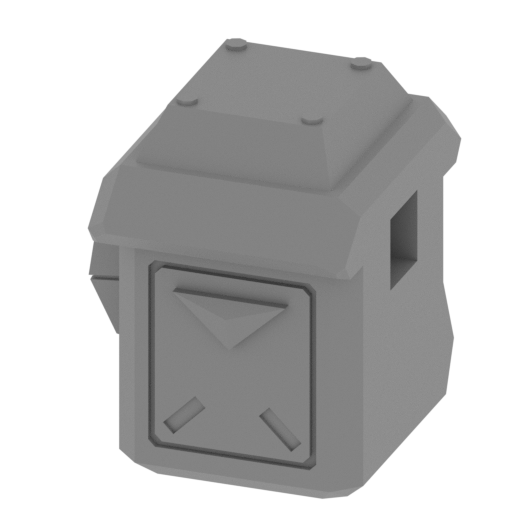

32_leg_2_R (repaired).stl
0.10 MiB 7 h 20 min 5 m 43 x 50 x 54 Download
33_leg_1_R (repaired).stl
1.55 MiB 23 h 41 min 13 m 56 x 131 x 81 Download

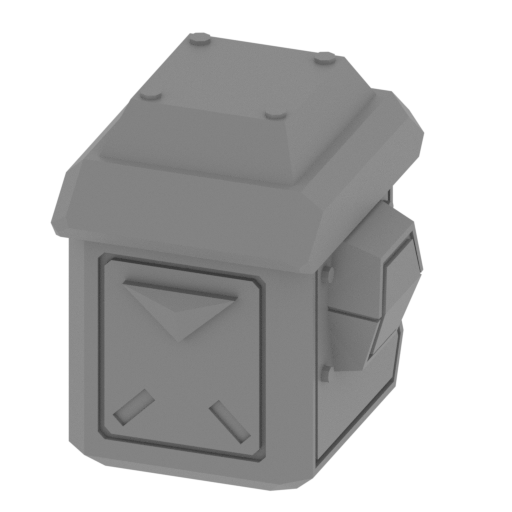

34_leg_2_L (repaired).stl
0.10 MiB 7 h 24 min 5 m 43 x 50 x 54 Download
35_leg_1_L (repaired).stl
1.55 MiB 23 h 42 min 13 m 56 x 131 x 81 Download

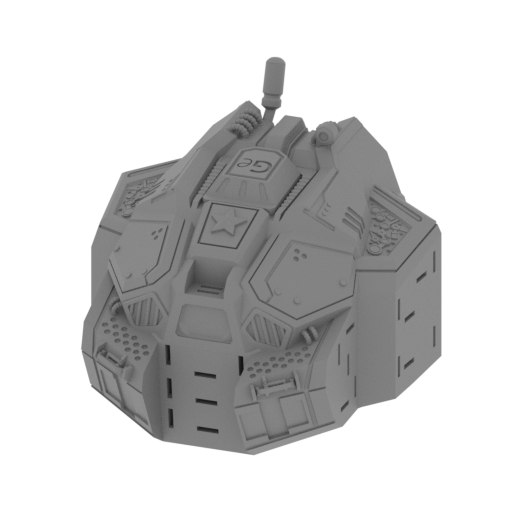

v2_body_weld (repaired).s tl
10.06 MiB 106 h 57 min 60 m 146 x 167 x 130 Download

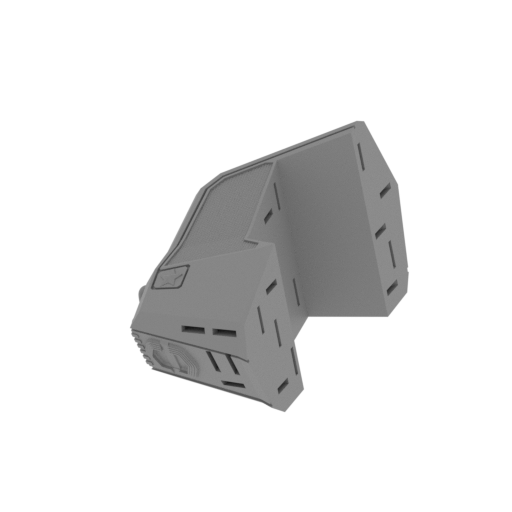

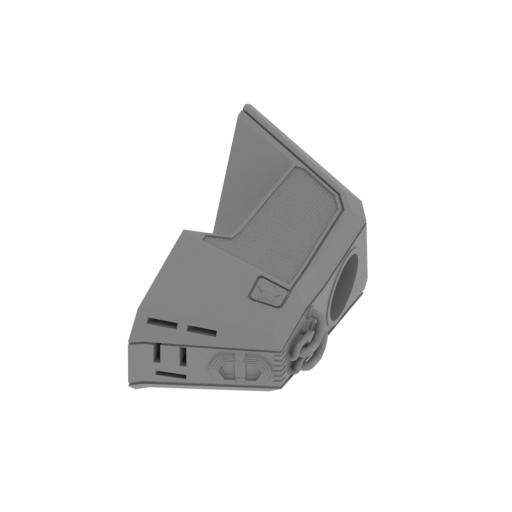

v2_shoulder_L_weld (repai red).stl
2.26 MiB 18 h 38 min 10 m 66 x 131 x 68 Download
v2_shoulder_R_weld (repa ired).stl
2.26 MiB 18 h 42 min 10 m 66 x 131 x 68 Download
...

HISTORY OF THE TERRAN THOR

Initially, the Thor project was a secret invention of the Terrans. Its invention took a long time. But in the end, there was a monster whose equipment is comparable more with the whole base than with a robot. A pair of powerful particle accelerators and a powerful artillery system complete with anti-personnel cannons. The main guns cause serious damage to land forces and buildings, and missile launchers allow keeping enemy air forces at a distance. As a protection for all of this serves the modular plates from the durable connection of neo-steel and ceramics that are easily replaced on the battlefield if necessary. Its plating can withstand penetration of armor-piercing shells and disperse the rays of energy weapons, perfectly protecting the pilot and the internal systems of the machine. The inner layer of this coating is very heat-resistant and protects from fragments of shrapnel or fragments of damaged armor. This assault robot can not be called invulnerable, but it is pretty close to this term.

ABOUT THIS 3D MODEL

Terran Thor model for 3D printing was created in Maya. The model is saved in STL files, a format supported by most 3D printers

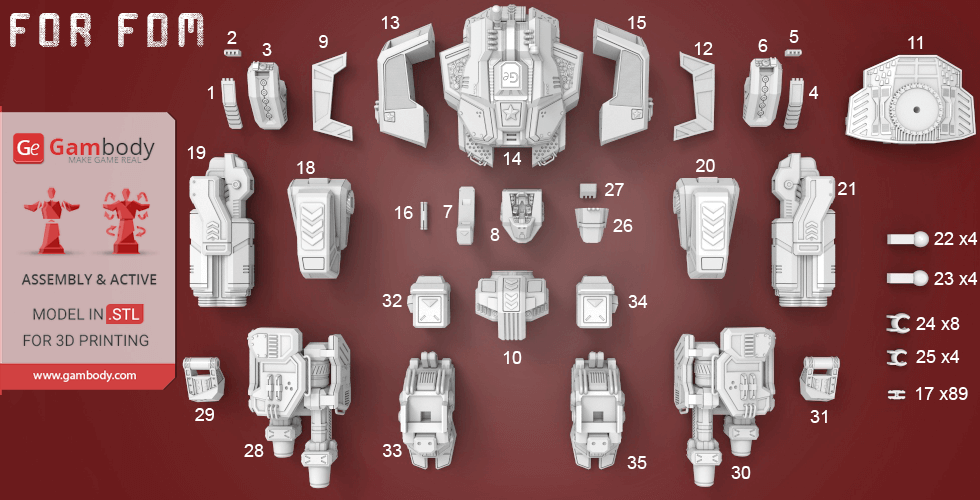

FDM version features:

- Contains 35 parts;

- Made with high detalisation;

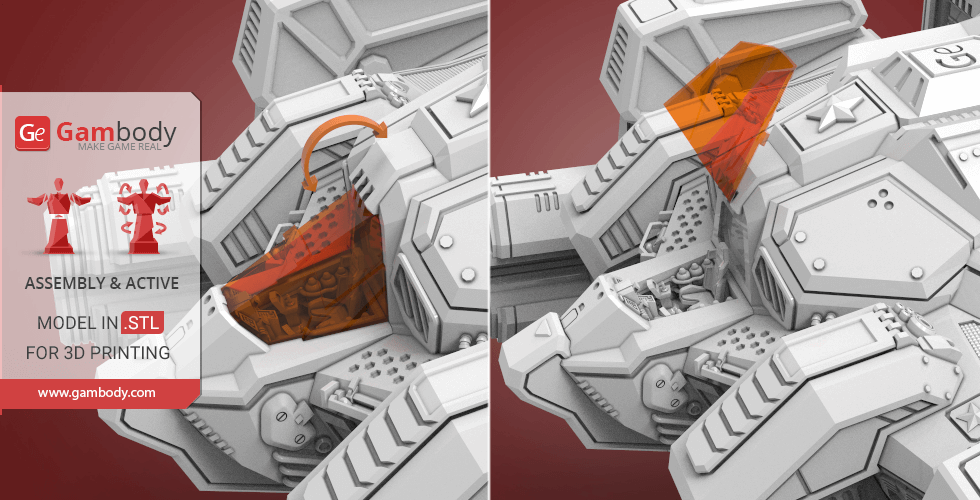

- Contains maximum movable ellements: arms, trorso, legs, weapons, launchers;

- Made with Locks, Connectors, and Joints. One part of Lock (17_ge_lock_10h_x89) you need to print 89 times. Parts of Joints (22_Axis_1_C_Joint_x4) and (23_Axis_2_C_Joint_x4) you need to print 4 times each. One part of Claw (24_C_Claw_x8) for joints you need to print 8 times. Second part of Claw (25_B_Claw_x4) you need to print 4 times.
- All parts are divided in such way that you will print them with the smallest amount of supports. Also made a special feature for 9, 11, and 12 parts that divided from model for getting the best quality of surfaces printed parts and using the smallest amount of support.

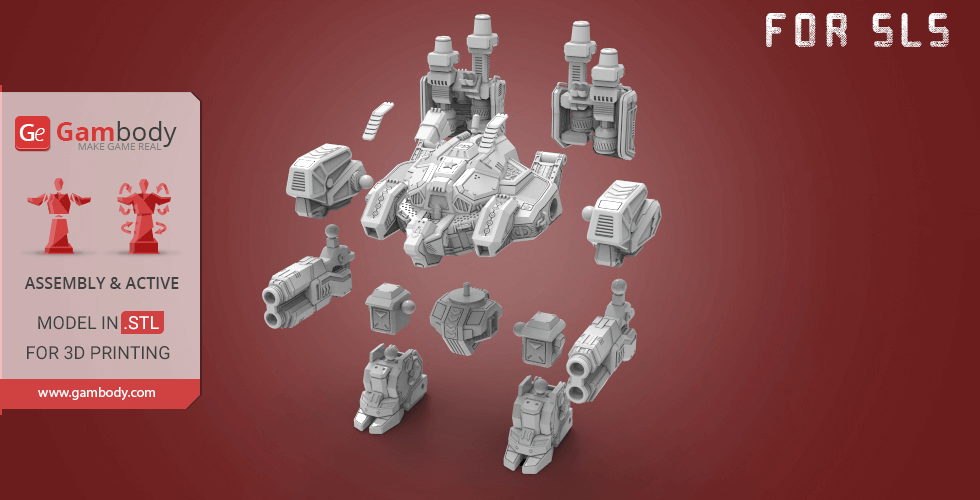

SLS/SLA version features:
- Contains 15 parts;
- Contains movable elements: arms, torso, legs, launchers;
- Smaller than FDM version;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.1.0. Software.

There are 35 parts for FFF/FDM version, 15 parts for SLS/SLA version.


All parts of Claws, Locks and Connector should be printed at 100% infill.

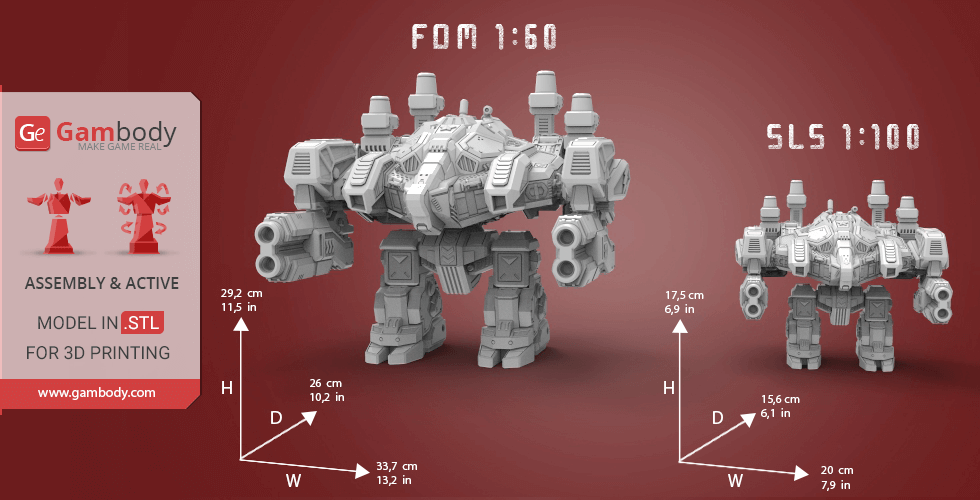

Scale: His tall is 19800 mm. Model made as 1/60 scale in FDM version and 1/100 in SLS/SLA version.

FDM version dimensions:

After being printed will stand - 292 mm tall, 337 mm wide, 260 mm deep;


SLS/SLA version dimensions:

After being printed will stand - 175 mm tall, 200 mm wide, 156 mm deep;


WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Terran Thor model for 3D printing which consists of 50 parts;

- 2 versions of files for this model for FFF/FDM and SLS/SLA;

- Made with maximum movable parts;

- High-poly detailed model of Terran Thor;

- Detailed settings that we provide for Cura 3.1.0. for the best print;

- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Terran Thor 3D Printing Model at Gambody YouTube channel.

You can get Model of Terran Thor for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also you can get more SpaceCraft models and collect your universe of this game.
