MWO Cyclops 3D Printing Model | Assembly + Action

(4)
cm: 25.1 w x 17 d x 34.6 h
in: 9.882 w x 6.693 d x 13.622 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

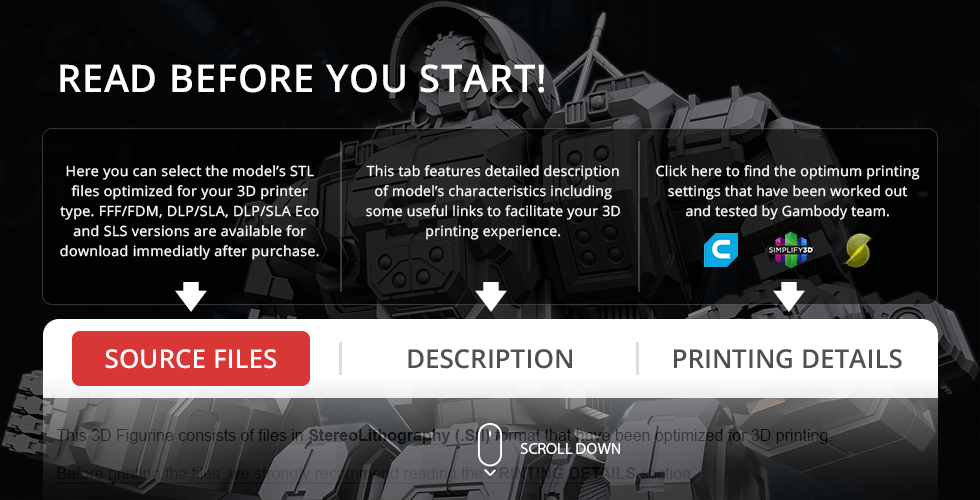

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

MWO Cyclops 3D Printing Model comes in 2 versions for each 3D printer type (FFF/FDM, DLP/SLA/SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

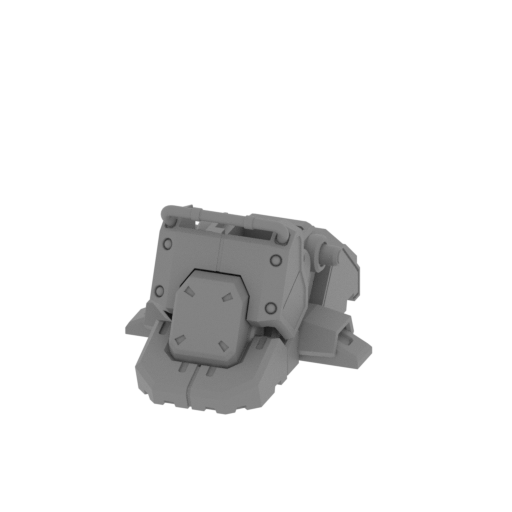

1_foot_R_FDM (repaired).s tl
3.15 MiB 7 h 56 min 4 m 65 x 103 x 46 Download

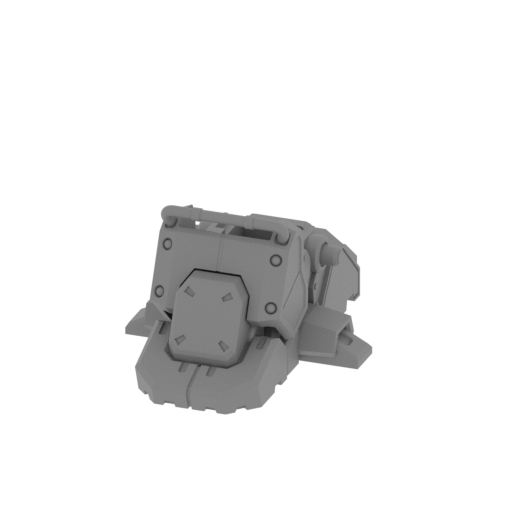

2_foot_L_FDM (repaired).s tl
3.13 MiB 7 h 60 min 4 m 65 x 103 x 46 Download

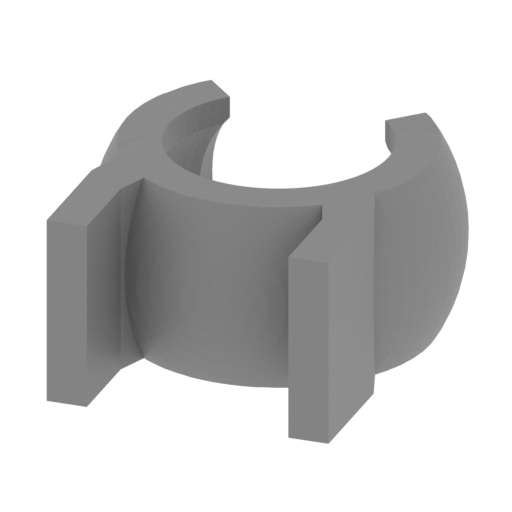

3_B_Claw_x2 (repaired).st l
0.16 MiB 14 min <1 m 18 x 19 x 10 Download

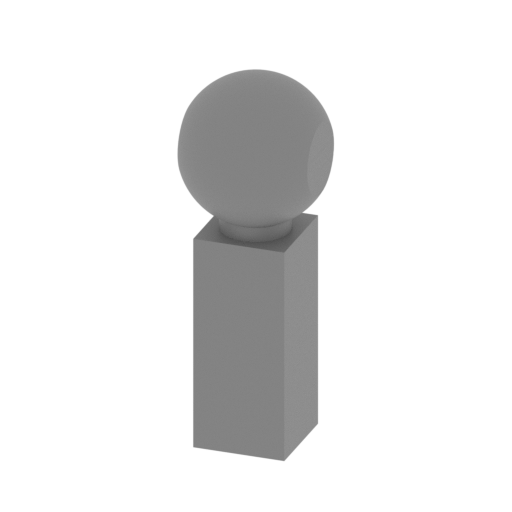

4_Axis_1_B_Joint_x2 (repa ired).stl
0.30 MiB 41 min <1 m 13 x 15 x 37 Download

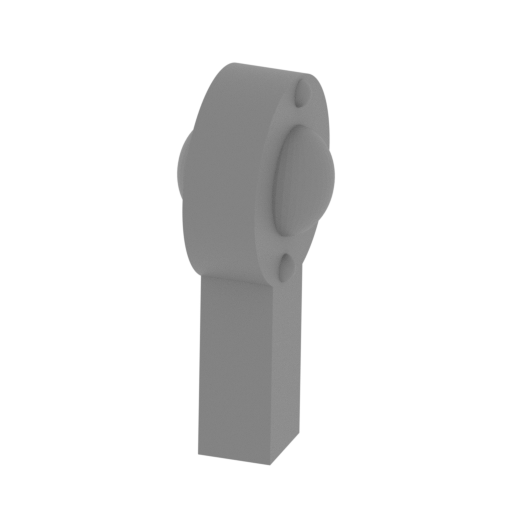

7_shin_connector_R (repai red).stl
0.50 MiB 35 min <1 m 13 x 18 x 32 Download

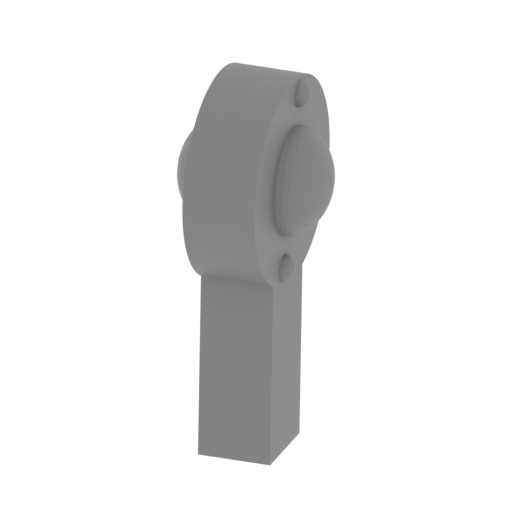

8_shin_connector_L (repai red).stl
0.50 MiB 35 min <1 m 13 x 18 x 32 Download

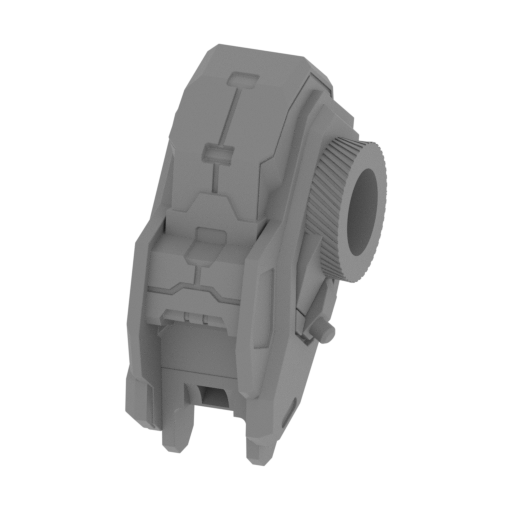

9_leg_R_FDM (repaired).st l
3.62 MiB 12 h 36 min 8 m 43 x 68 x 87 Download

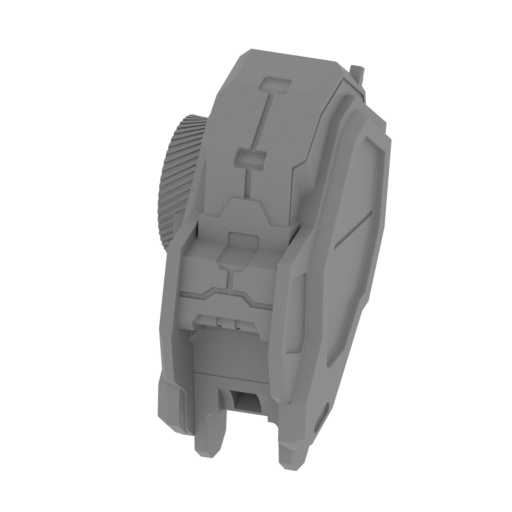

10_leg_L_FDM (repaired).s tl
3.61 MiB 12 h 23 min 8 m 43 x 68 x 87 Download

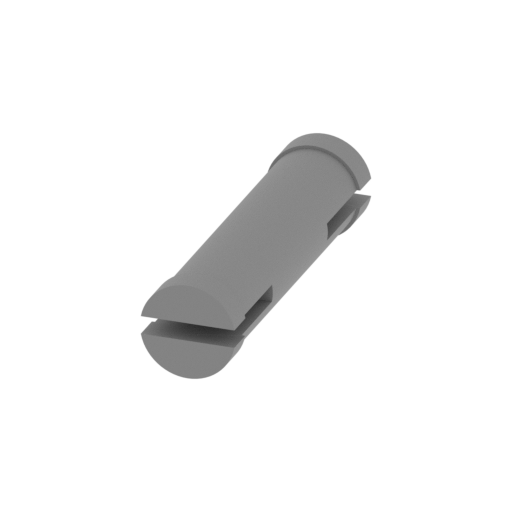

11_GE_Connector_B_C_x4 (r epaired).stl
0.08 MiB 10 min <1 m 6 x 25 x 6 Download

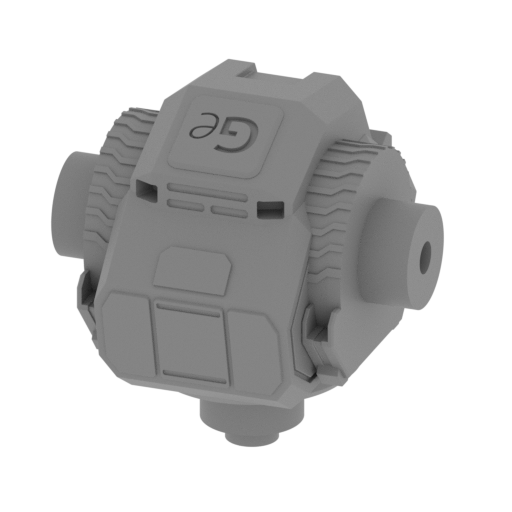

12_pelvis_FDM (repaired). stl
3.61 MiB 14 h 5 min 9 m 70 x 73 x 71 Download

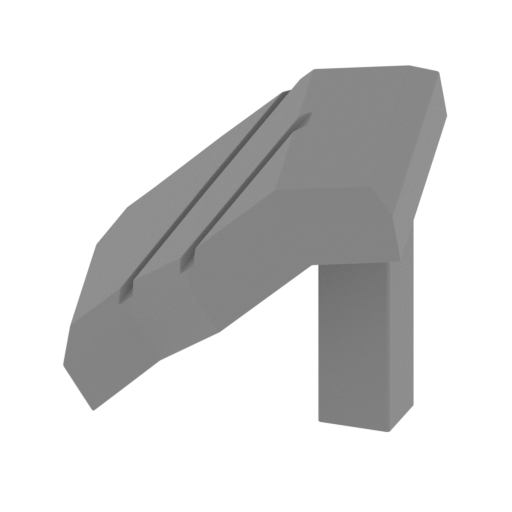

13_pelvis_armor_front_R_F DM (repaired).stl
0.38 MiB 19 min <1 m 17 x 13 x 16 Download

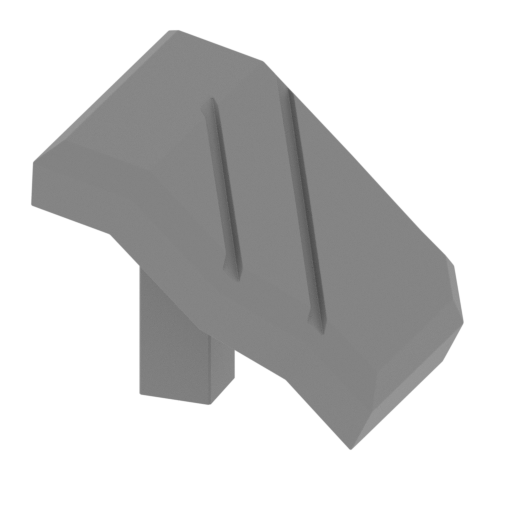

14_pelvis_armor_front_L_F DM (repaired).stl
0.38 MiB 21 min <1 m 17 x 13 x 16 Download

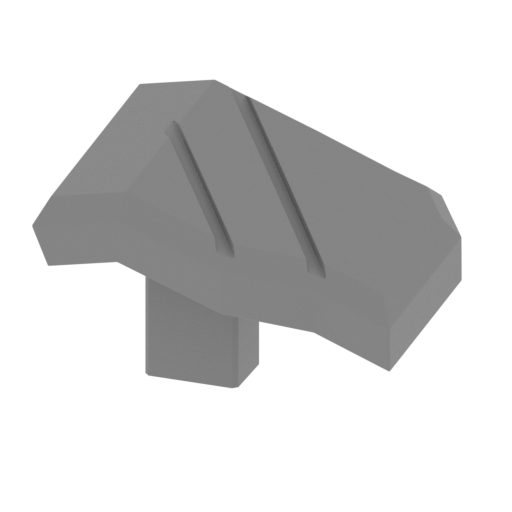

15_pelvis_armor_back_R_FD M (repaired).stl
0.38 MiB 21 min <1 m 19 x 13 x 14 Download

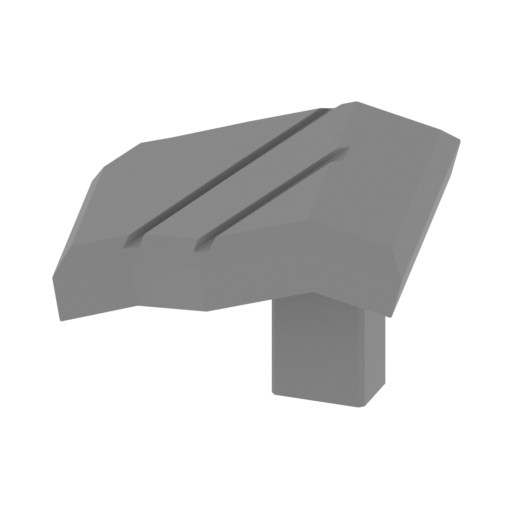

16_pelvis_armor_back_L_FD M (repaired).stl
0.38 MiB 21 min <1 m 19 x 13 x 14 Download

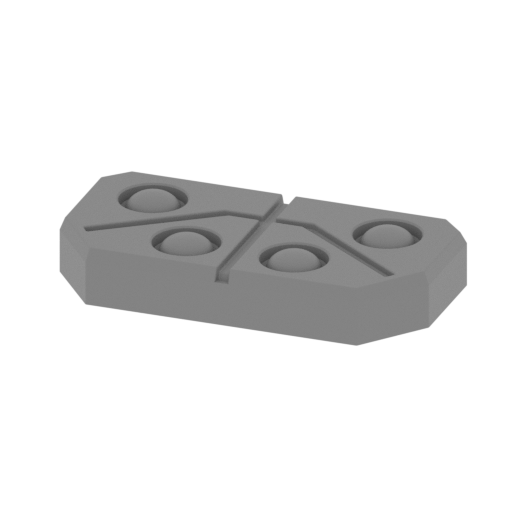

18_front_gun_FDM (repaire d).stl
1.02 MiB 13 min <1 m 24 x 12 x 4 Download

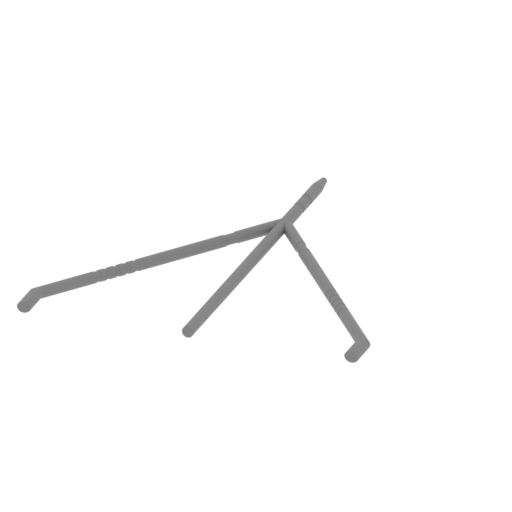

19_anten_1_FDM (repaired) .stl
0.45 MiB 24 min <1 m 79 x 86 x 3 Download

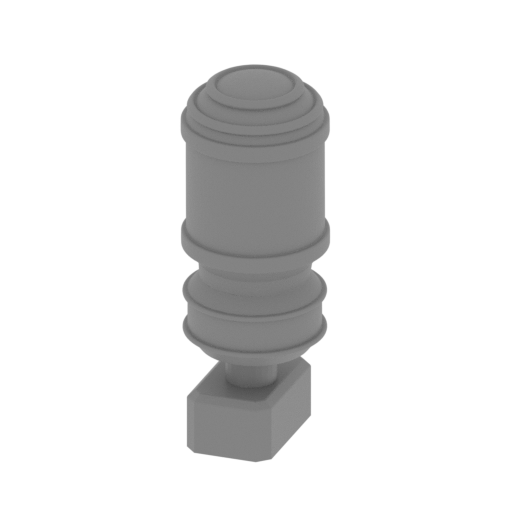

20_anten_2_FDM (repaired) .stl
1.88 MiB 19 min <1 m 8 x 9 x 22 Download

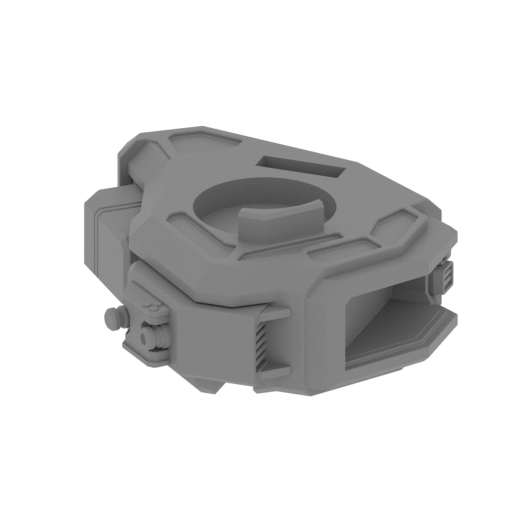

21_shoulder_R_FDM (repair ed).stl
1.60 MiB 11 h 22 min 7 m 87 x 84 x 37 Download

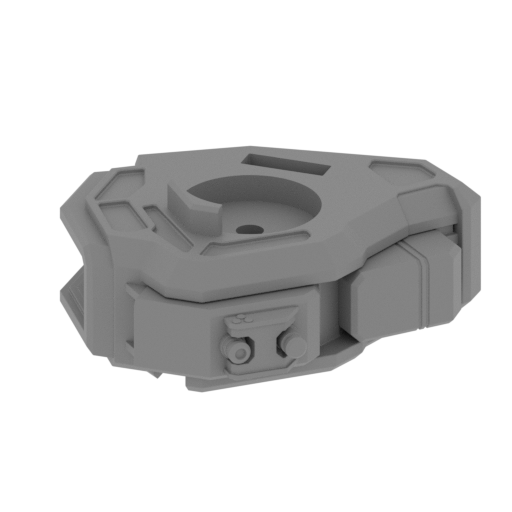

22_shoulder_L_FDM (repair ed).stl
1.61 MiB 11 h 22 min 7 m 87 x 84 x 37 Download

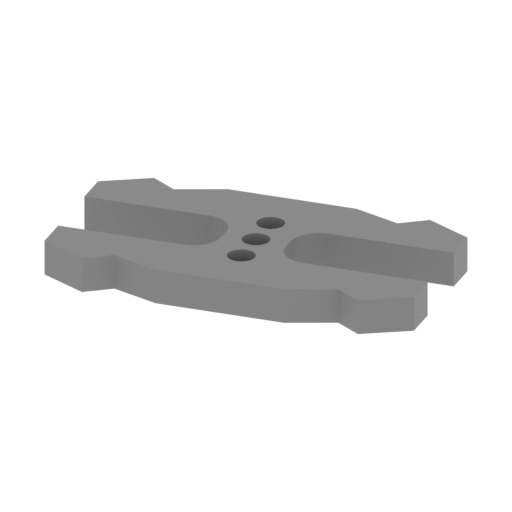

23_Ge_lock_10H_x8 (repair ed).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

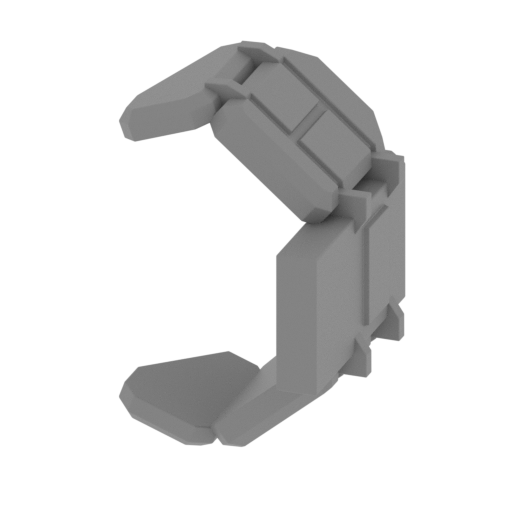

24_arm_shield_R_FDM (repa ired).stl
0.57 MiB 3 h 26 min 2 m 33 x 36 x 51 Download

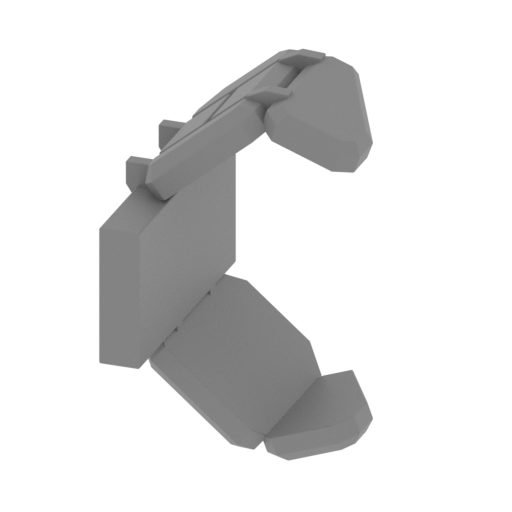

25_arm_shield_L_FDM (repa ired).stl
0.57 MiB 3 h 24 min 2 m 33 x 36 x 51 Download

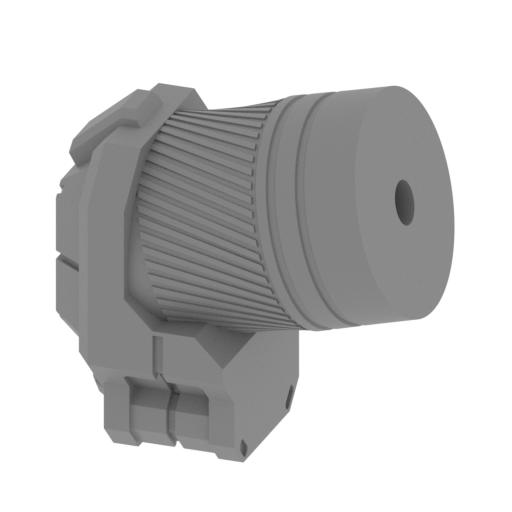

26_arm_R_FDM (repaired).s tl
2.08 MiB 5 h 17 min 3 m 51 x 34 x 53 Download

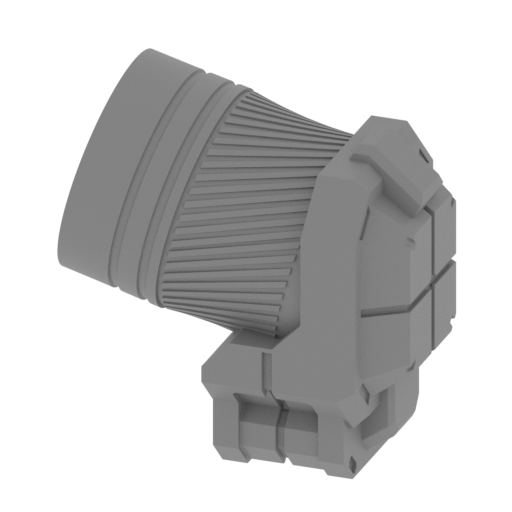

27_arm_L_FDM (repaired).s tl
2.08 MiB 5 h 17 min 3 m 51 x 34 x 53 Download

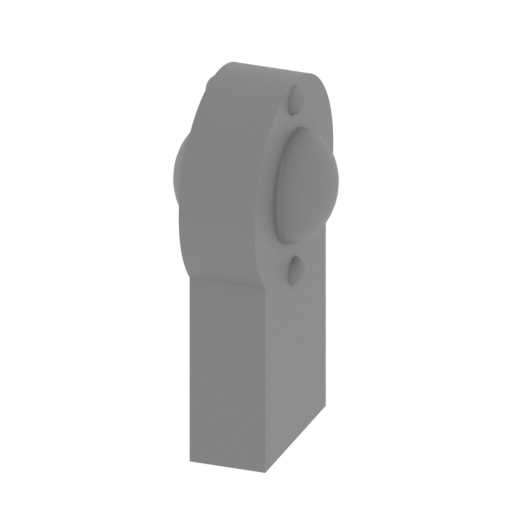

28_hand_connector_R (repa ired).stl
0.51 MiB 45 min <1 m 15 x 21 x 36 Download

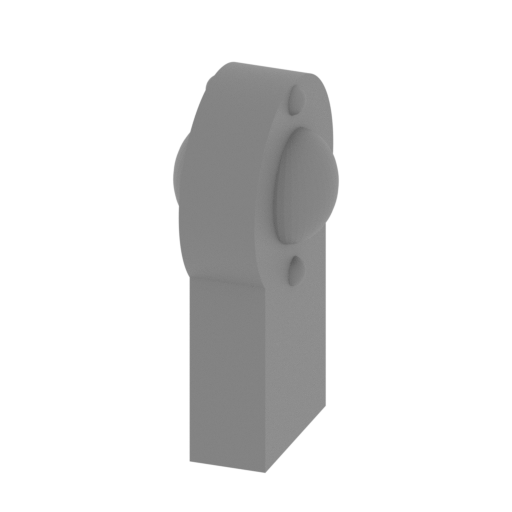

29_hand_connector_L (repa ired).stl
0.53 MiB 44 min <1 m 15 x 21 x 36 Download

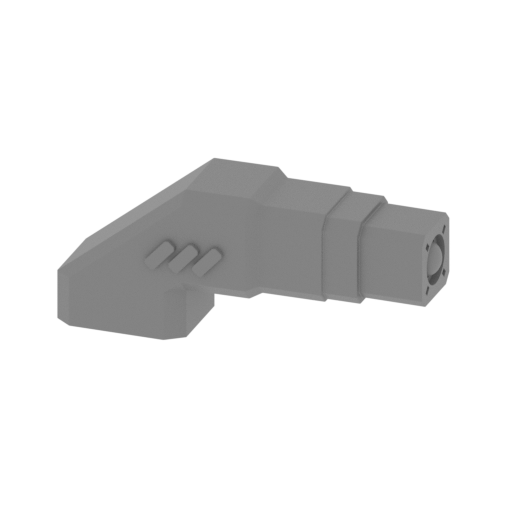

32_hand_gun_R_FDM (repair ed).stl
0.34 MiB 1 h 29 min 1 m 57 x 17 x 23 Download

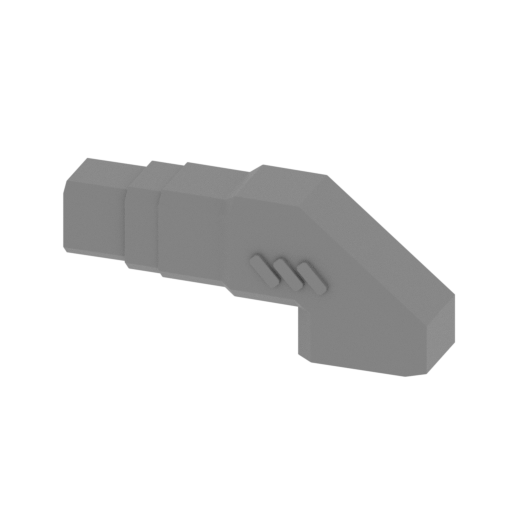

33_hand_gun_L_FDM (repair ed).stl
0.34 MiB 1 h 30 min 1 m 57 x 17 x 23 Download

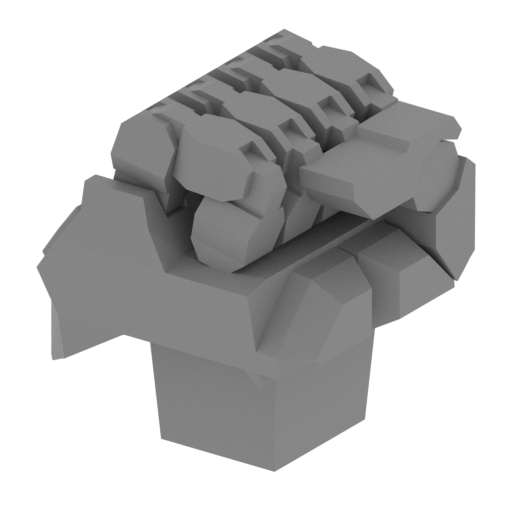

34_wrist_R_FDM (repaired) .stl
0.16 MiB 1 h 33 min 1 m 28 x 25 x 28 Download

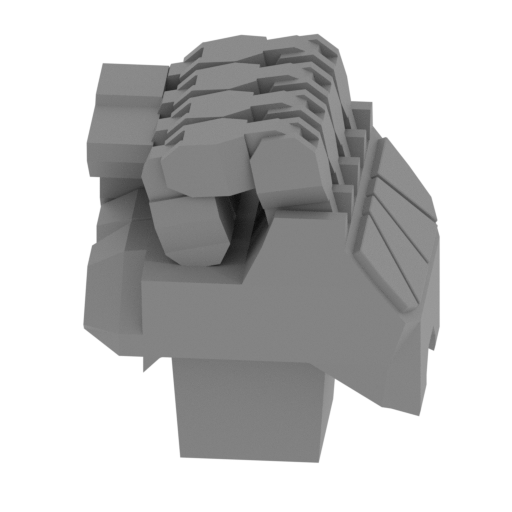

35_wrist_L_FDM (repaired) .stl
0.16 MiB 1 h 34 min 1 m 28 x 25 x 28 Download

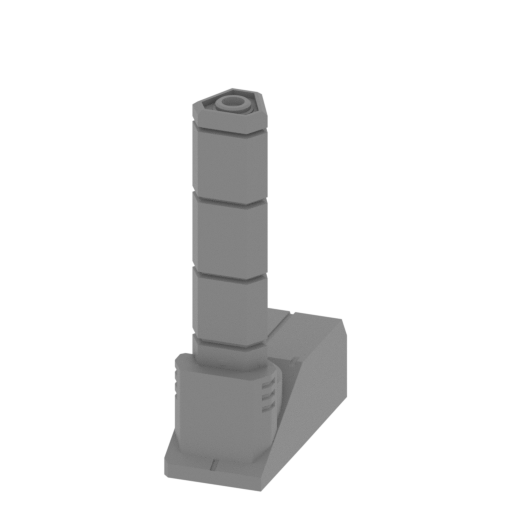

36_shoulder_gun_R_FDM (re paired).stl
0.35 MiB 1 h 25 min 1 m 15 x 36 x 56 Download

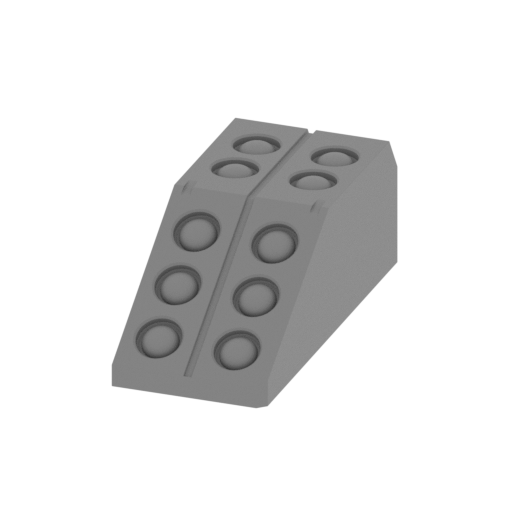

37_shoulder_gun_L_FDM (re paired).stl
1.38 MiB 40 min <1 m 15 x 36 x 13 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

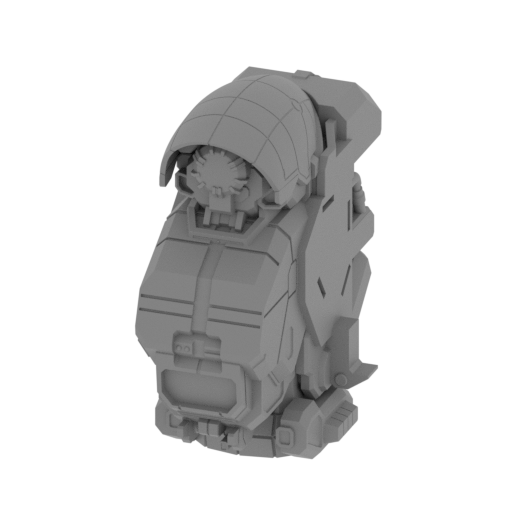

16_body_FDM (repaired).st l
24.99 MiB 35 h 16 min 20 m 67 x 103 x 116 Download

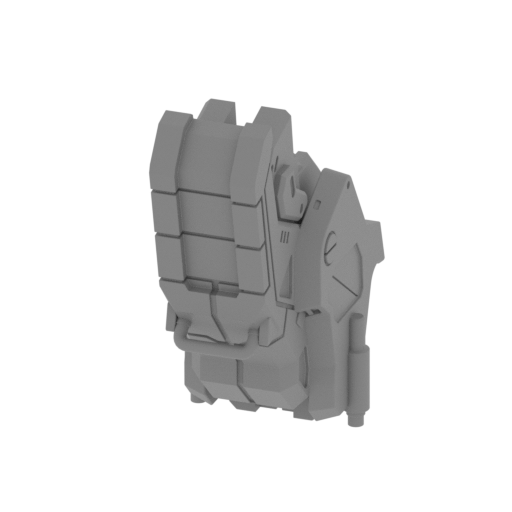

5_shin_R_FDM (repaired).s tl
6.15 MiB 12 h 20 min 7 m 44 x 71 x 89 Download
6_shin_L_FDM (repaired).s tl
6.15 MiB 12 h 20 min 7 m 44 x 71 x 89 Download

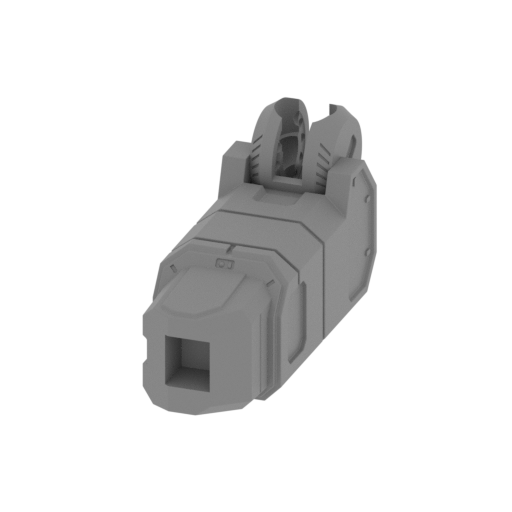

30_hand_R_FDM (repaired). stl
3.82 MiB 8 h 36 min 5 m 32 x 93 x 49 Download

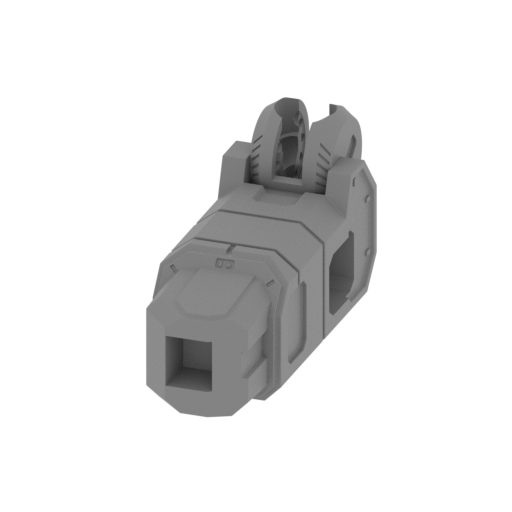

31_hand_L_FDM (repaired). stl
3.82 MiB 8 h 34 min 5 m 32 x 93 x 49 Download
...

ABOUT THIS 3D MODEL

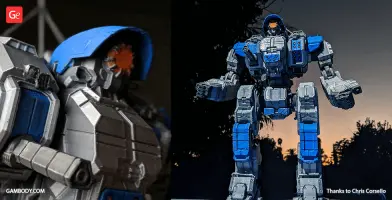

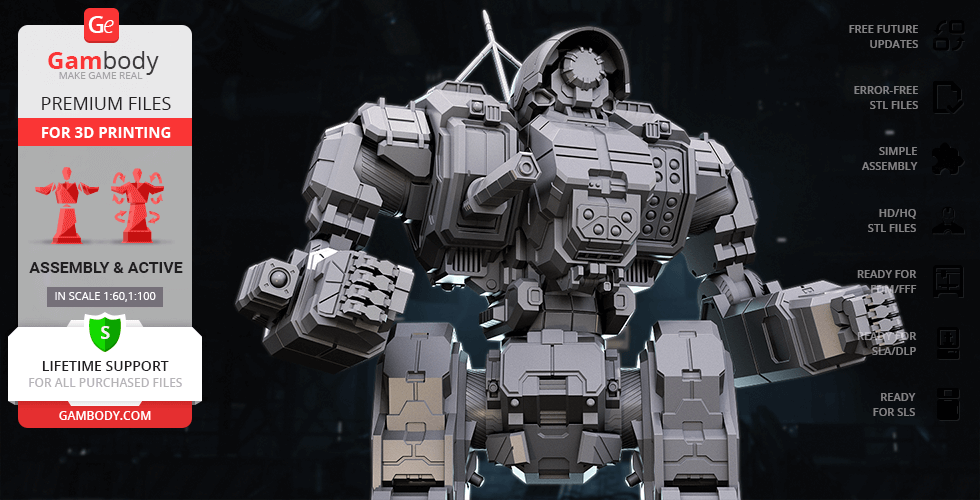

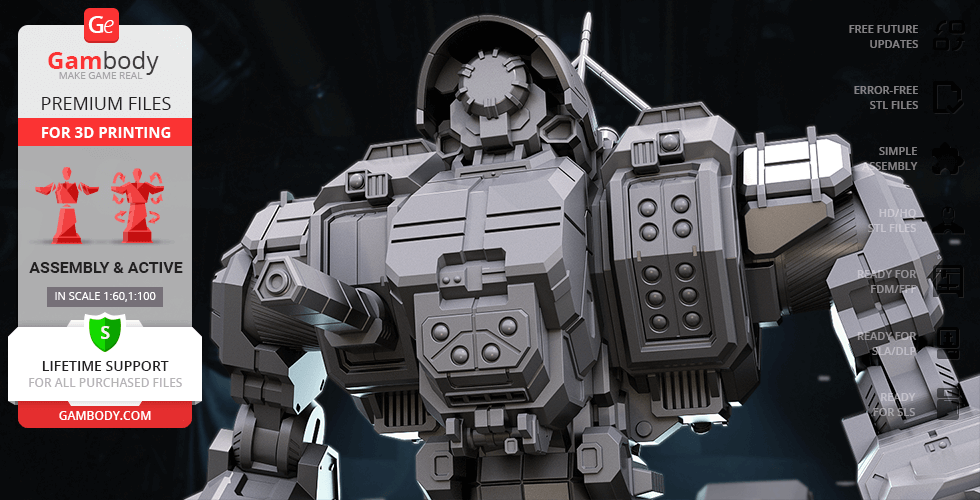

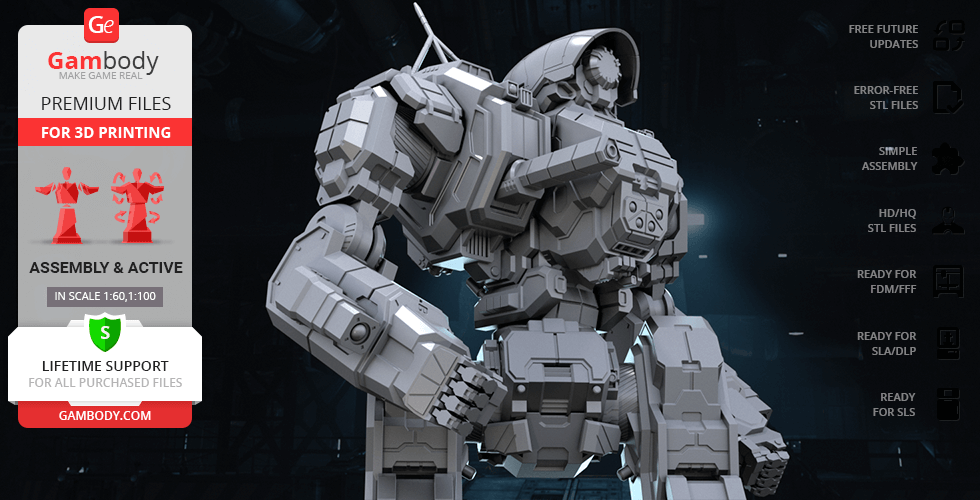

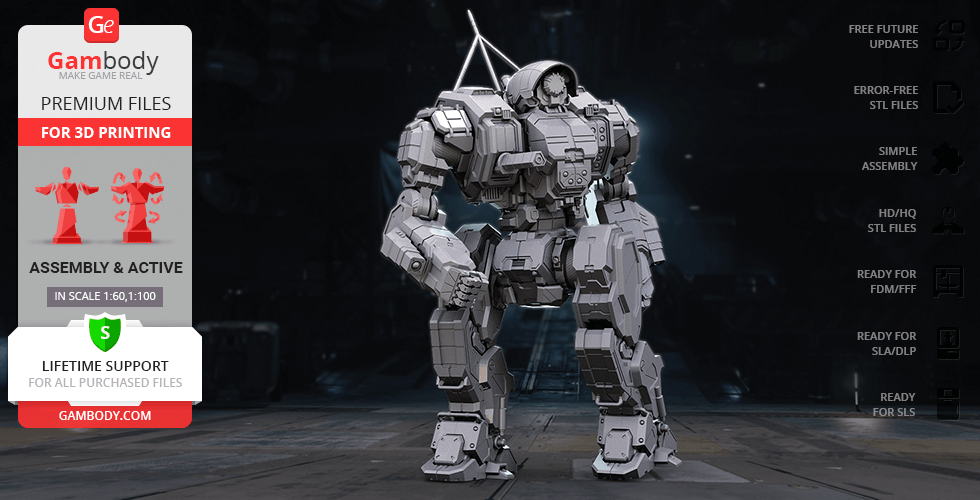

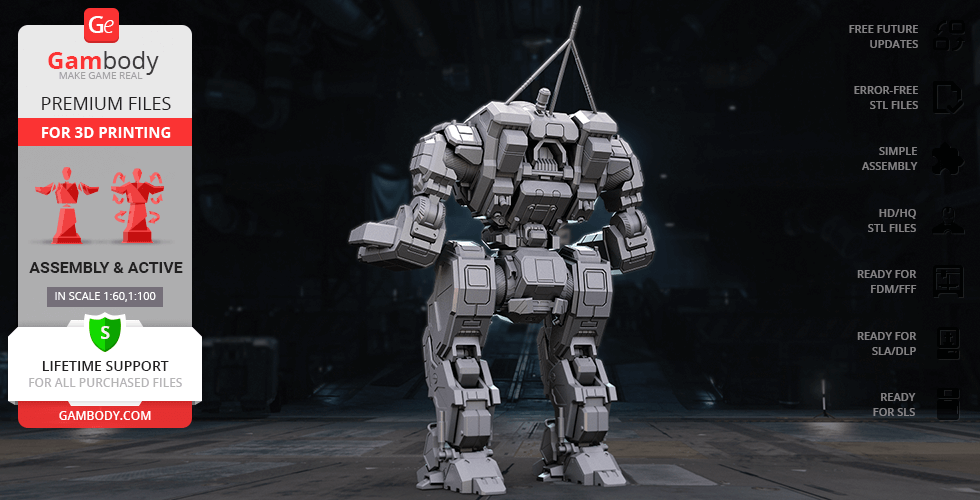

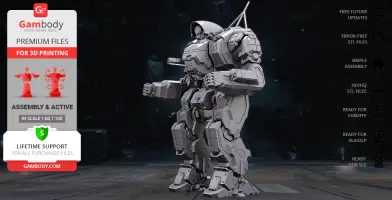

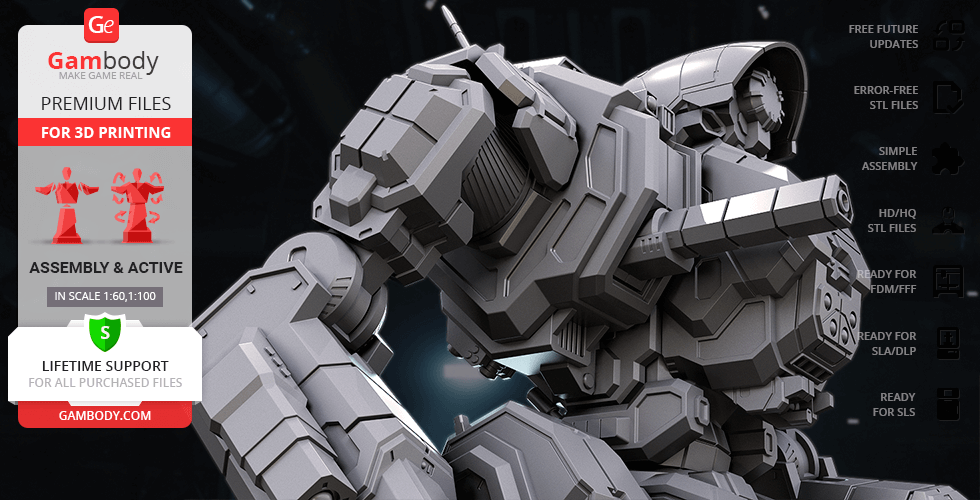

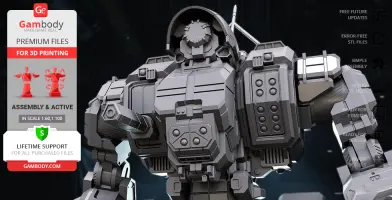

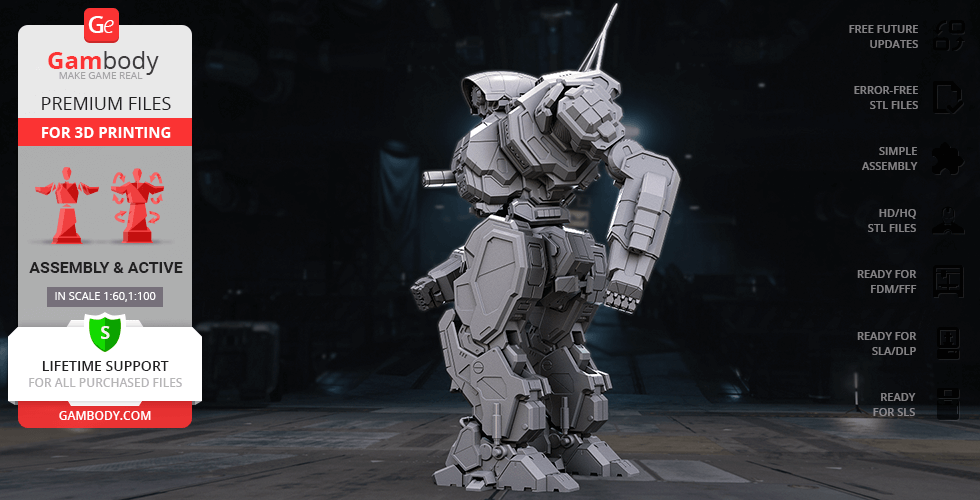

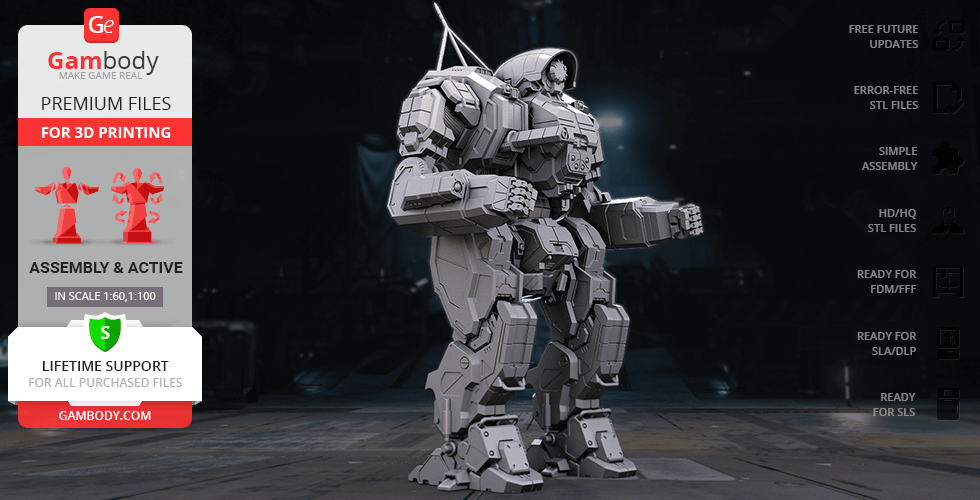

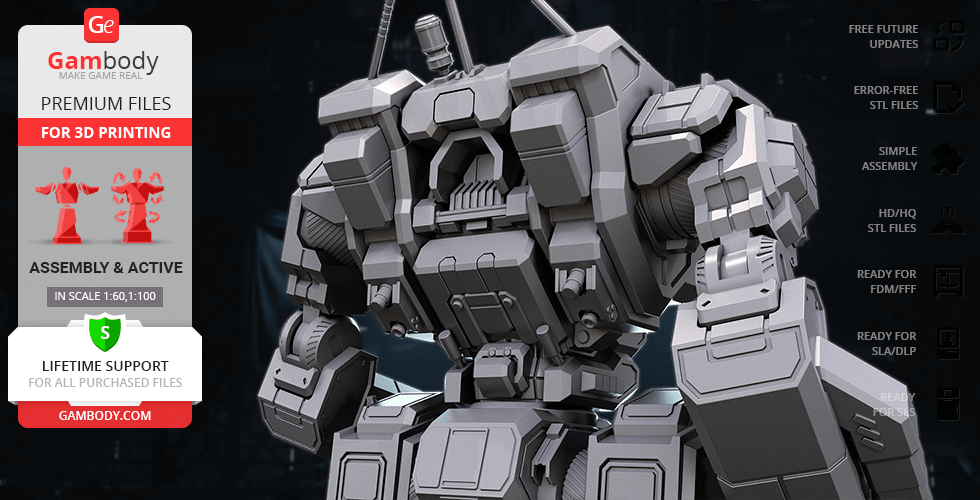

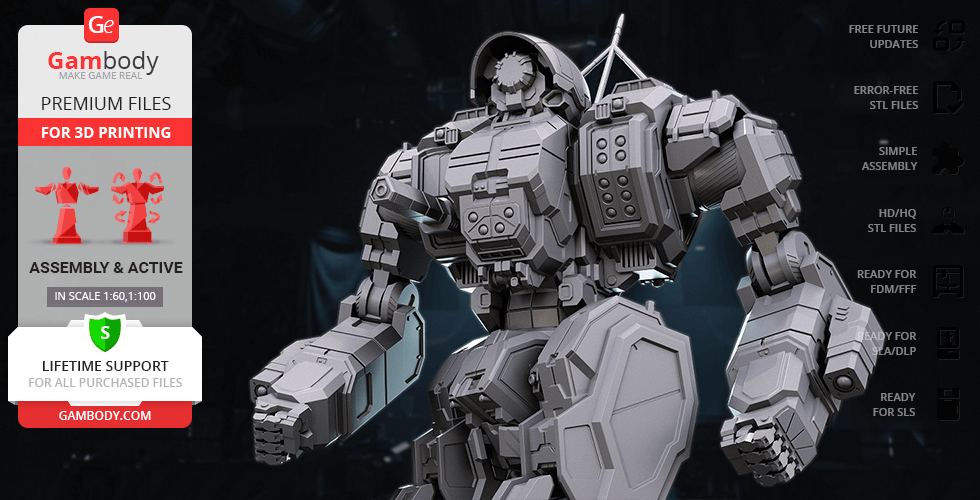

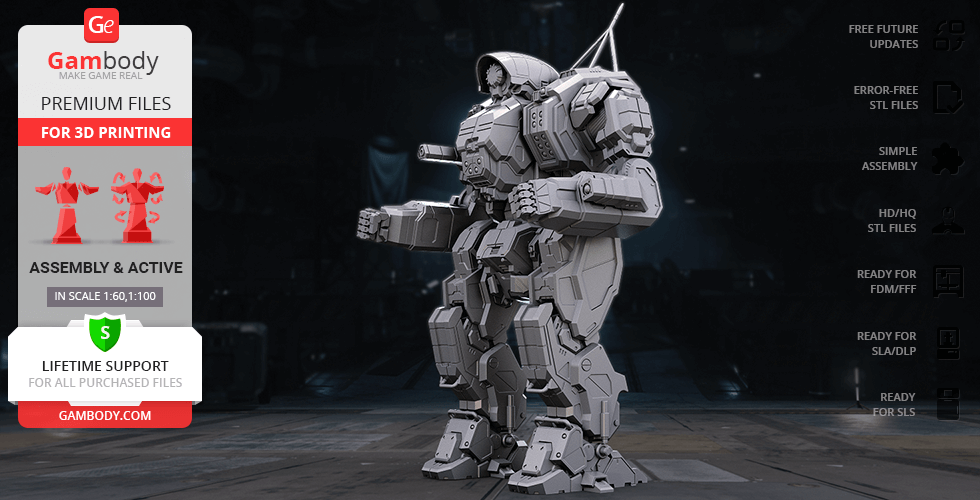

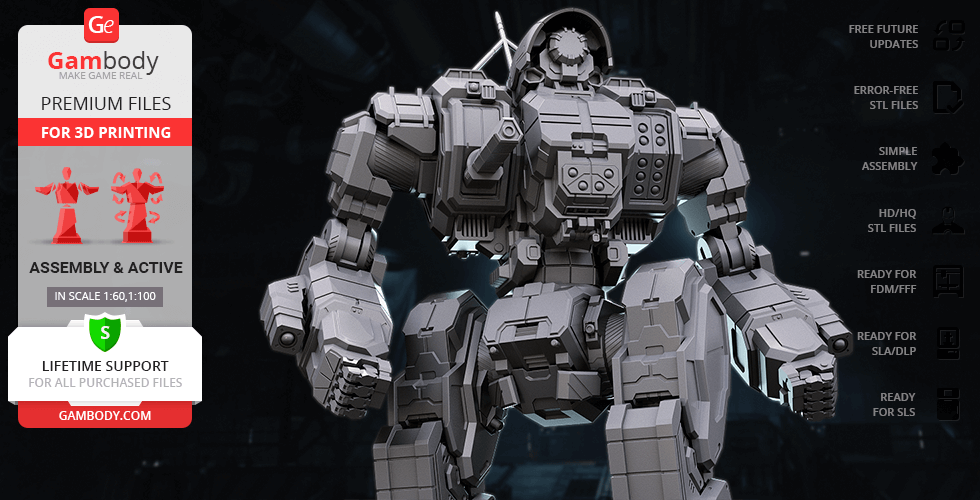

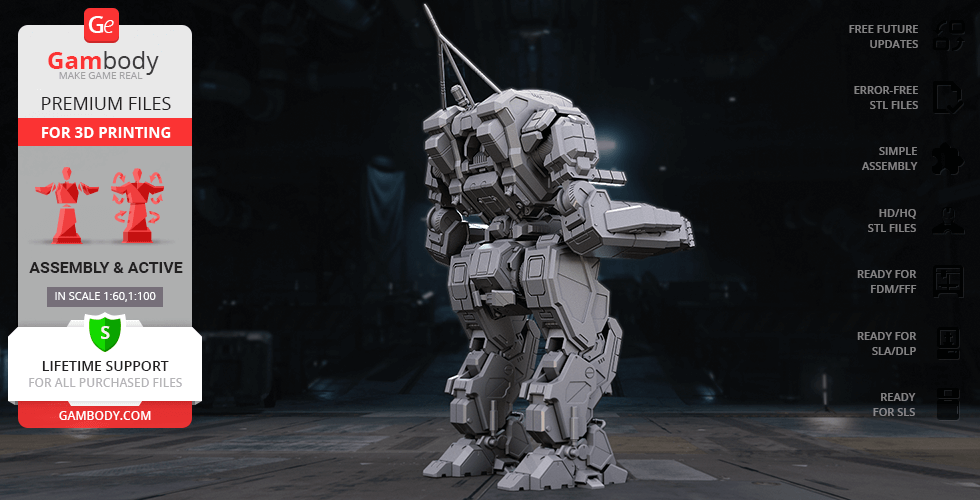

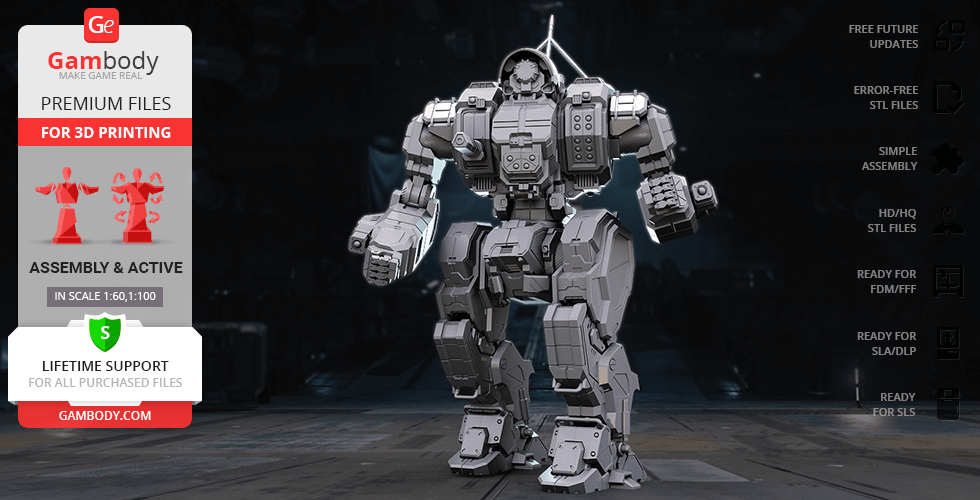

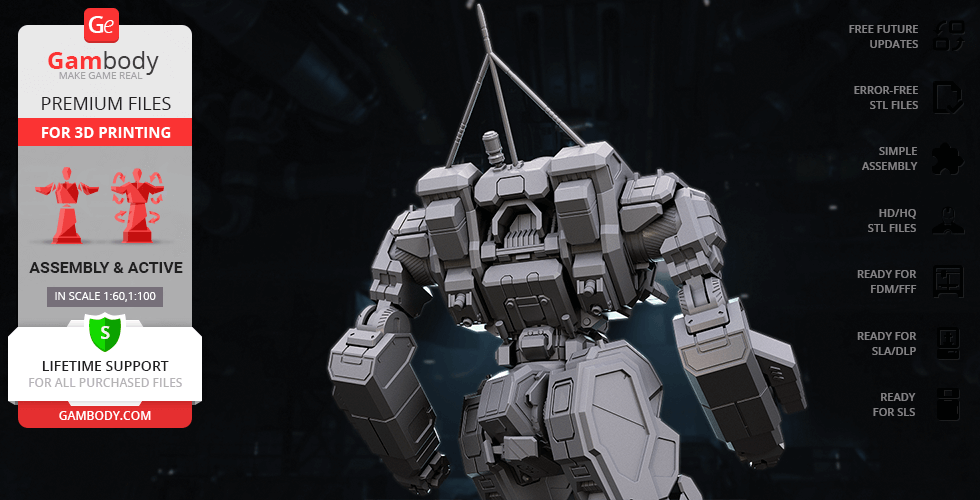

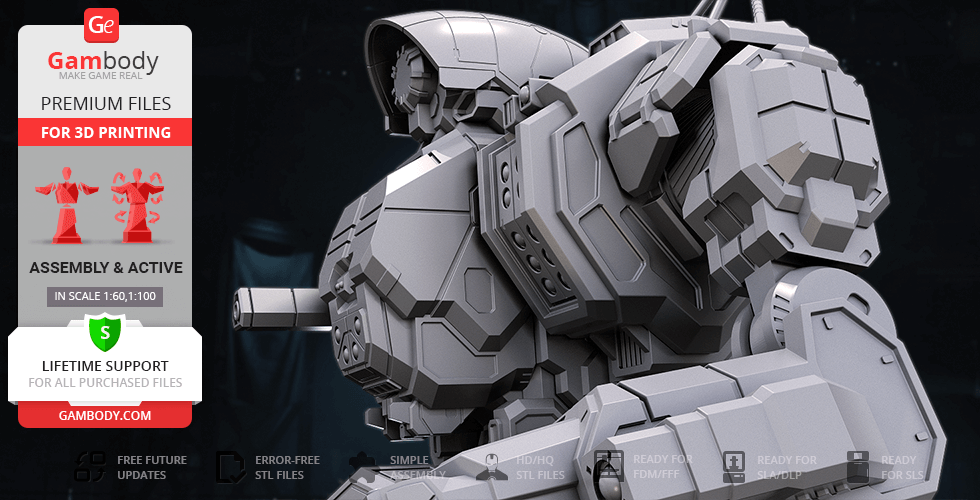

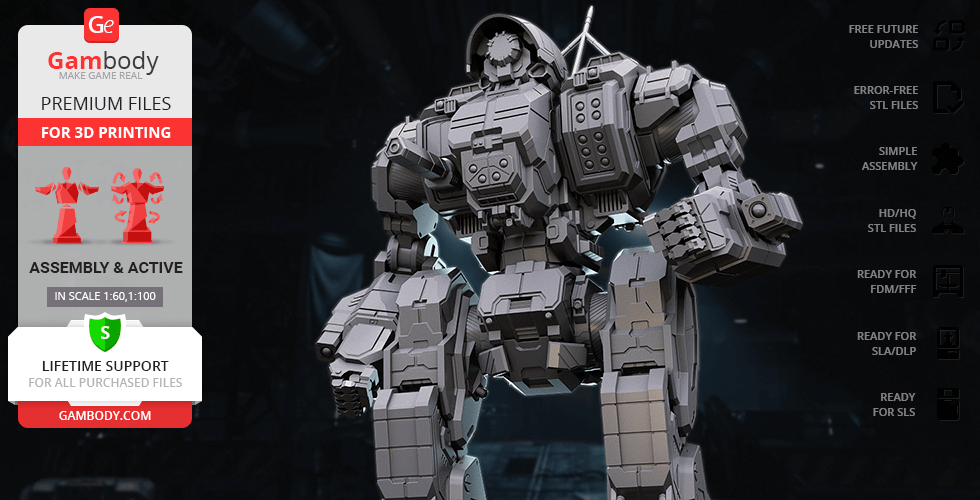

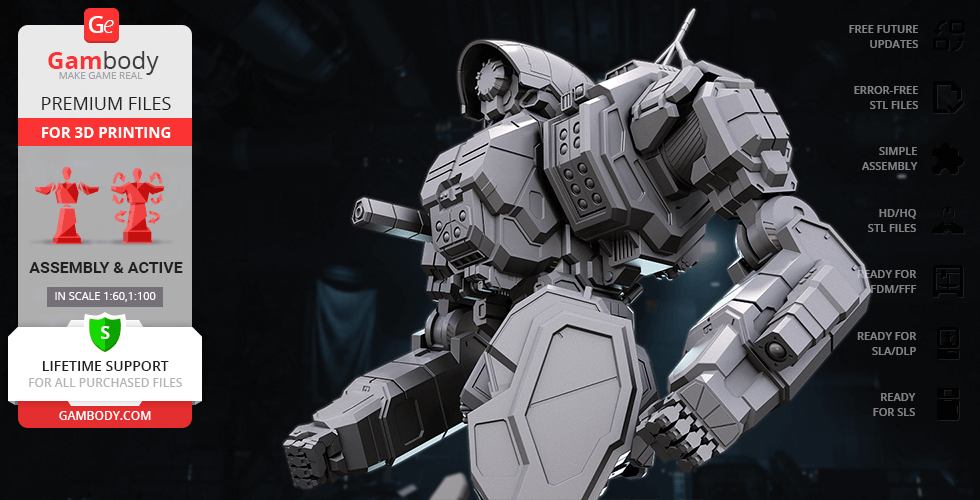

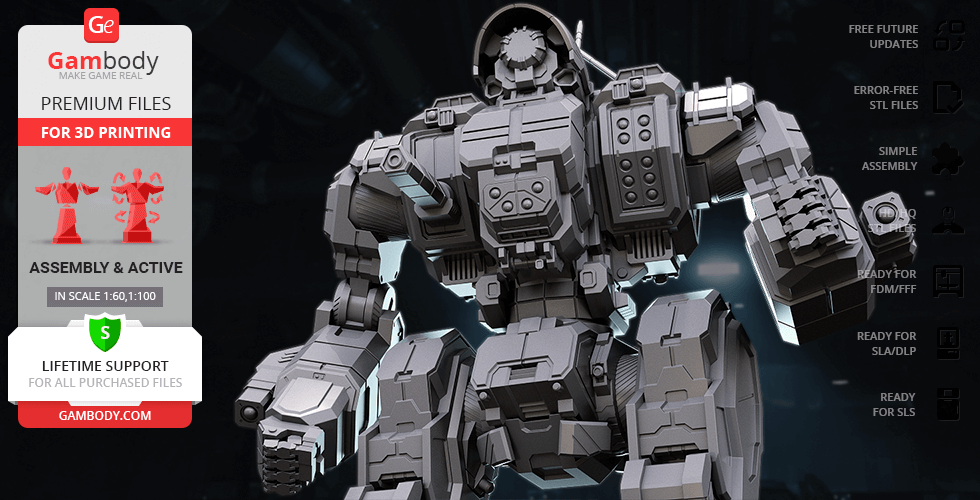

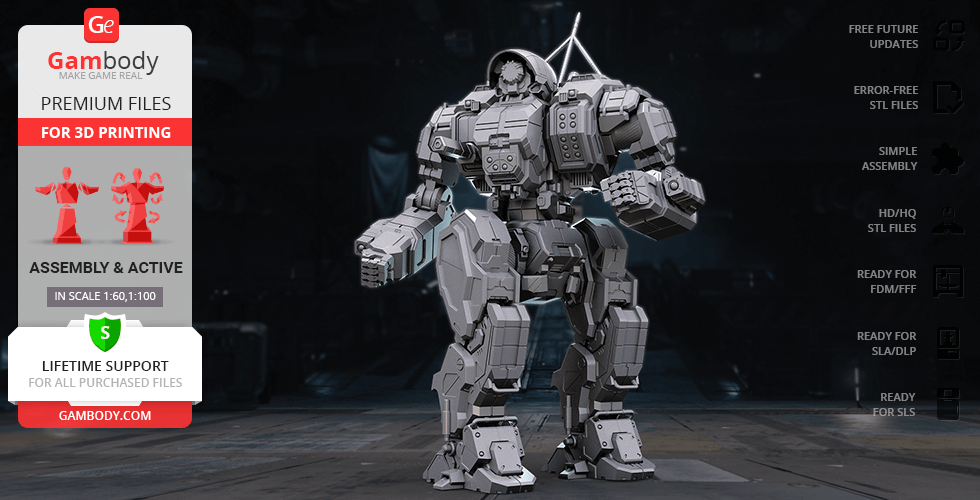

The Cyclops is an assault class BattleMech that weighs 90 tons and is known to be equipped with an arsenal built to handle almost any situation on the battlefield. The main distinctive feature of the Cyclops is its advanced electronics including the sophisticated holographic Tacticon B-2000 Battle Computer that significantly increases the sensor range of both the Cyclops and all friendly ‘Mechs nearby. The MWO fans single out this ‘Mech for its appearance, speed and relative toughness, noting that the Cyclops can inflict enough damage to take down even the heaviest of 'Mechs if aimed well.  So to prove the point, the author of this model for 3D printing depicted the BattleMech with all its assets that are indeed essential when protecting the field commanders in heavy situations. The 3D artist spent 72 hours for the 3D printing Cyclops to be equipped with a powerful LRM-10 missile launcher in the left torso and Zeus-36 Autocannon/20 mounted in the right torso. The former one is known to fire not one but 10 mighty long-range missiles and the latter one is able to cause massive damage within very short range! The 3D printing Cyclops is, of course, also equipped with its distinctive antennae on the top, being absolutely ready to join your 3D printed MechWarrior headquarters!

ADAPTATION FOR 3D PRINTING

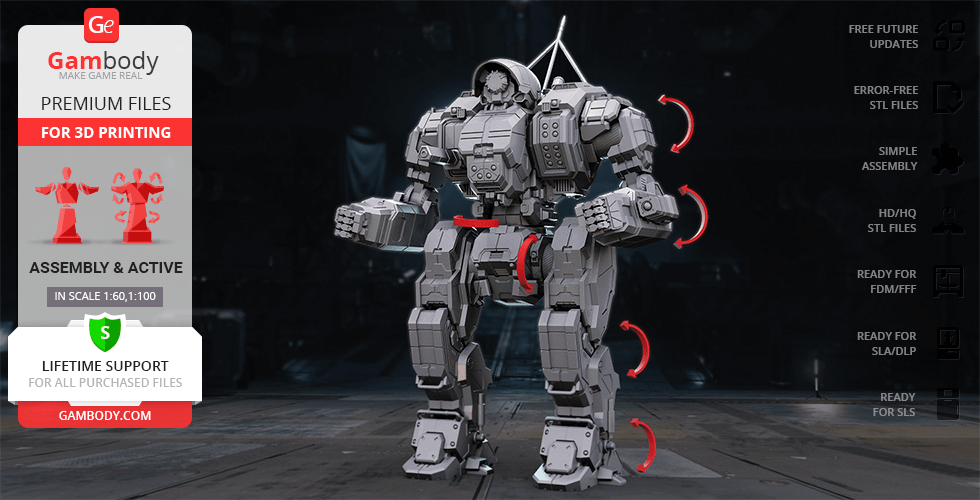

MWO Cyclops 3D printing model is an action assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 22 hours in total. The model’s cutting was chosen by our team to minimise the amount of filament needed for generated support. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. To allow the Cyclops’ multidirectional movement and rotation the ball-and-socket joints and one-axis joints with lockers were introduced. The joints that ensure the Mech's movability are provided as separate files for you to be able to print them again if the joints' friction happens to lose rigidity. The LRM-10 missile launcher, Zeus-36 Autocannon as well as other armaments the Cyclops is equipped with are assembled in such a way that can be potentially replaced when the alternative Guns Pack for the Mech is released.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the Cyclops' actual height that is 17500 mm. The 3D printing model's chosen scale is 1/60 for the FFF/FDM version and 1/100 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

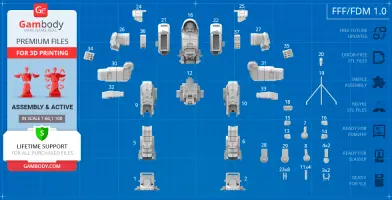

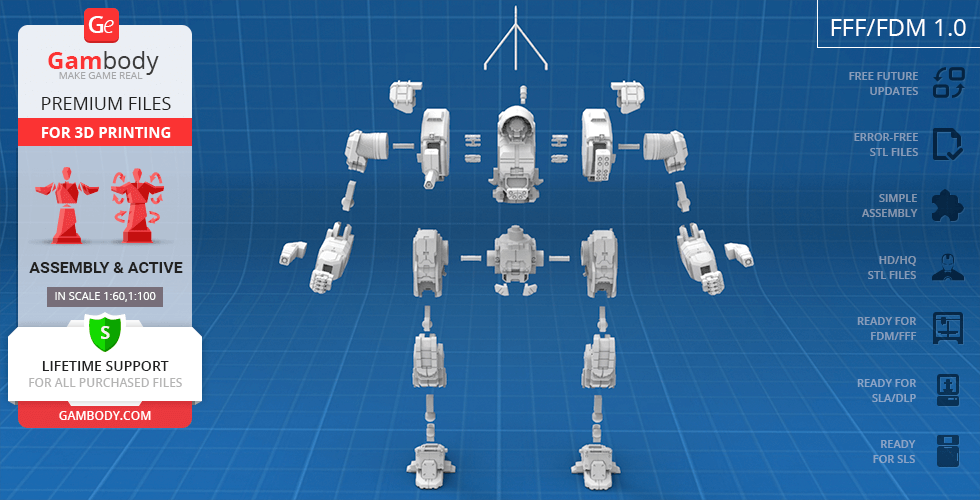

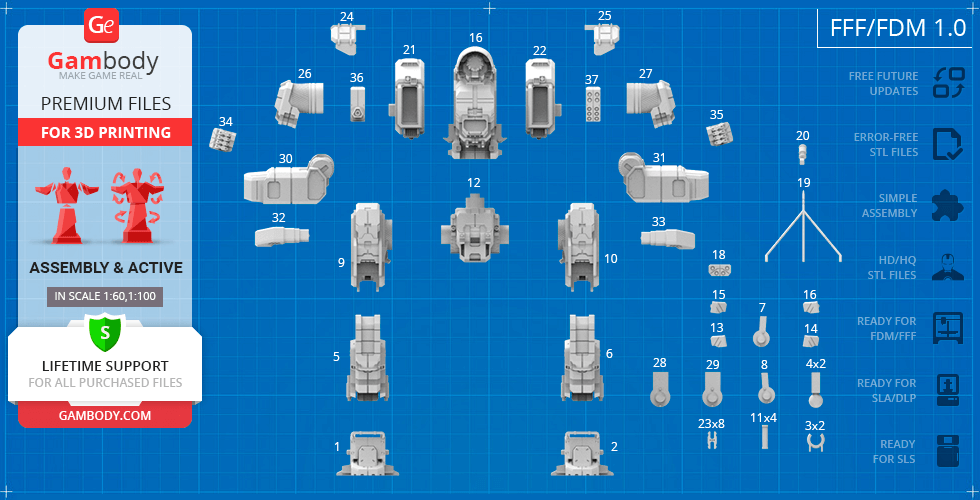

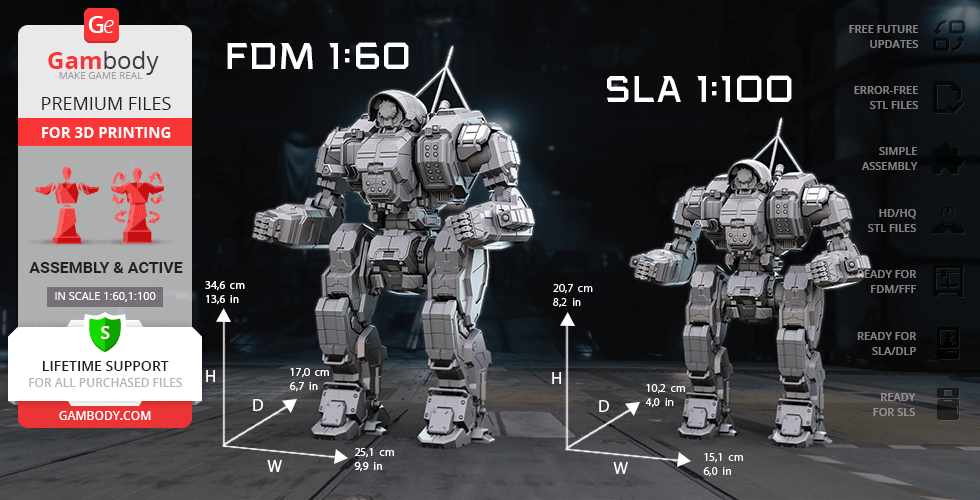

FFF/FDM 1.0 version features:
- Contains 37 parts;
- A printed model is 346 mm tall, 251 mm wide, 170 mm deep;
- Made with several sets of special joints to ensure the model's articulation;
- Assembly kit includes locks to connect the parts without glue. One lock 23_Ge_lock_10H_x8 needs to be printed 8 times;
- All parts are divided in such a way that you will print them with the smallest number of support structures and so to ensure the smoothness of the details’ surfaces.

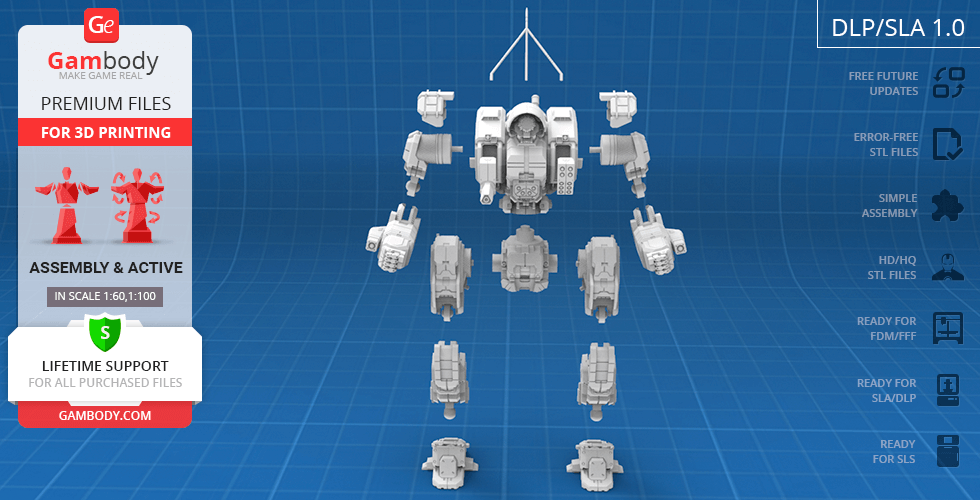

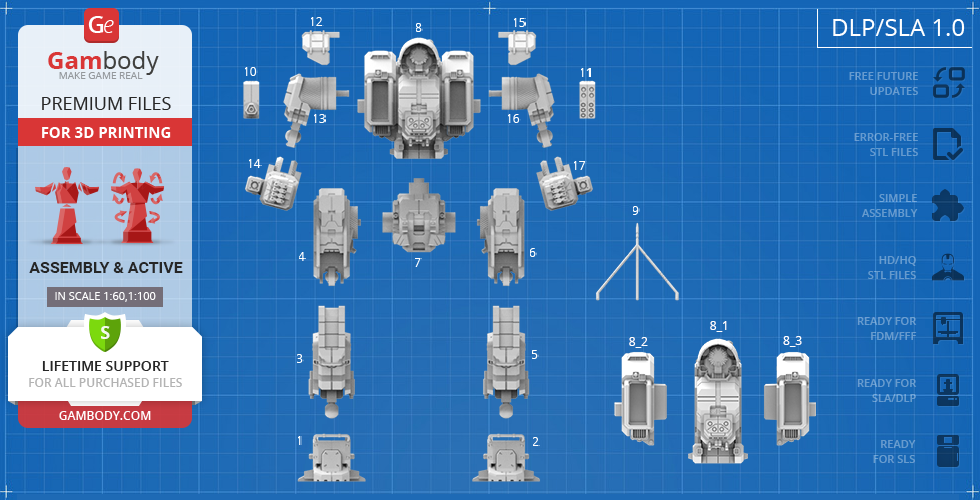

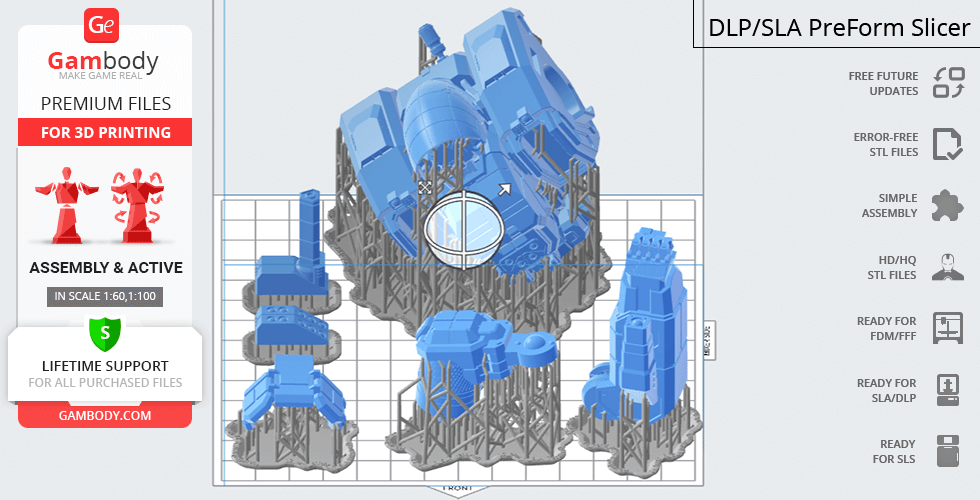

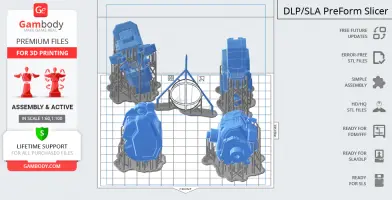

DLP/SLA/SLS 1.0 version features:
- Contains 17 parts;
- A printed model is 207 mm tall, 151 mm wide, 102 mm deep;
- Made with special joints to ensure the model's articulation;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

WHAT WILL YOU GET AFTER PURCHASE?

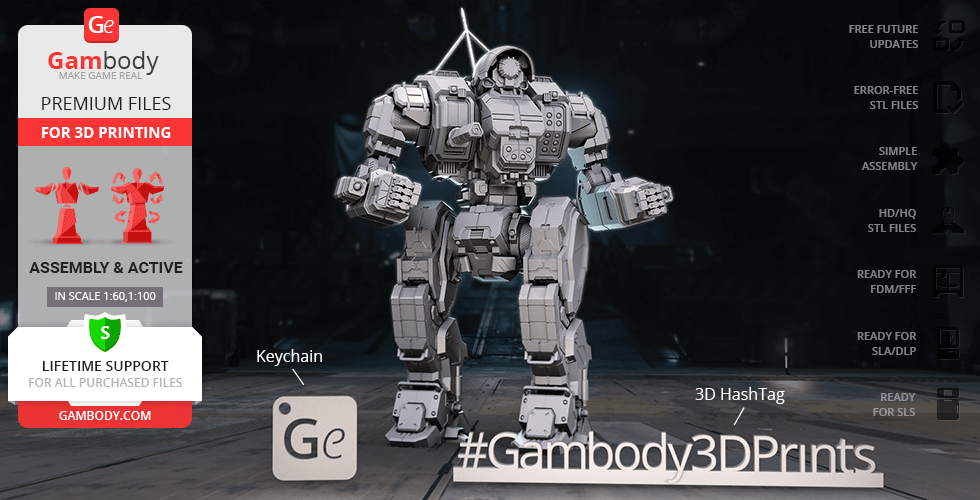

- STL files of MWO Cyclops 3D Printing Model which consist of 54 parts;
- 2 versions of files of this model for FFF/FDM and DLP/SLA/SLS printers;
- High-poly detailed model of MWO Cyclops;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of MWO Cyclops for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble MWO Cyclops 3D Printing Model at Gambody YouTube channel.

Also, you may like other Mech Warrior 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

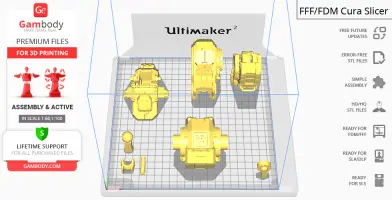

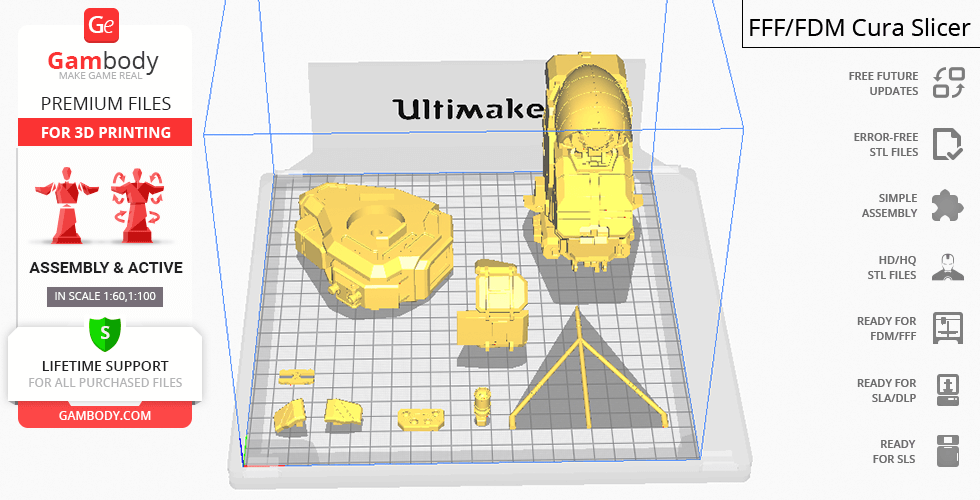

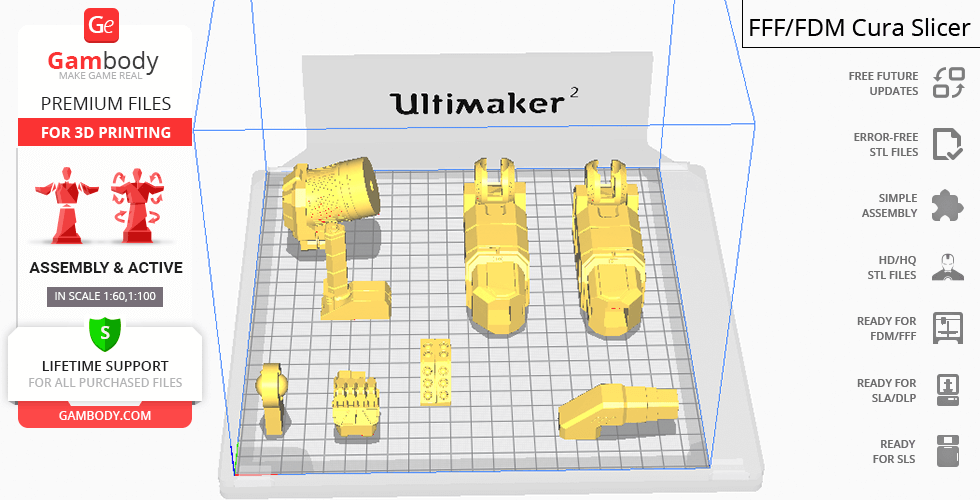

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90Ëš
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 3 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
