MWO Warhawk 3D Printing Model | Assembly + Action

(13)
cm: 18.8 w x 15.3 d x 30.5 h
in: 7.402 w x 6.024 d x 12.008 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

MWO Warhawk 3D Printing Model comes in 3 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

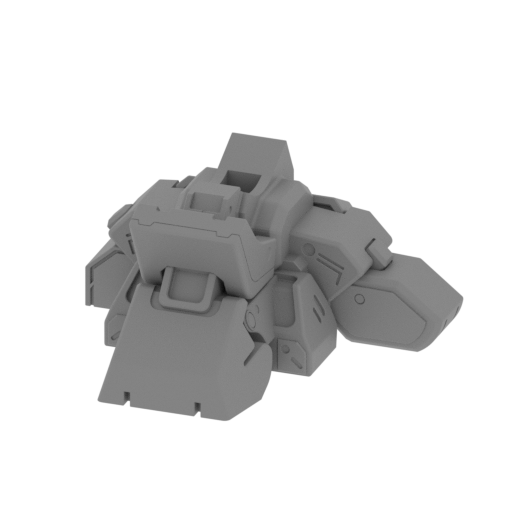

1_Foot_L_fdm (repaired).s tl
4.13 MiB 7 h 43 min 4 m 79 x 82 x 38 Download
2_Leg_L_fdm (repaired).st l
4.56 MiB 8 h 25 min 5 m 34 x 53 x 90 Download
3_Pipe_Leg_1_L_fdm (repai red).stl
0.50 MiB 3 min <1 m 14 x 8 x 3 Download
4_Pipe_Leg_2_L_fdm (repai red).stl
0.50 MiB 3 min <1 m 14 x 8 x 3 Download

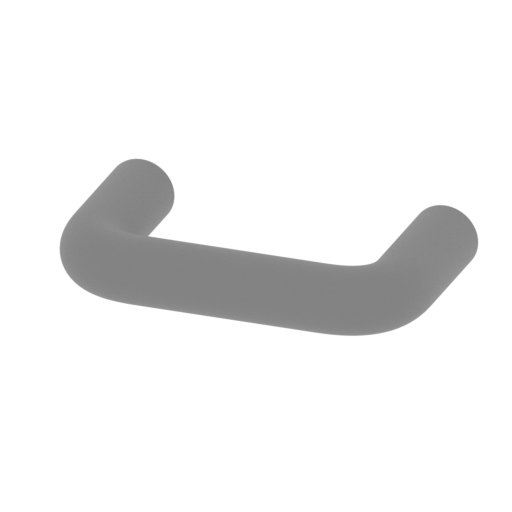

5_Pipe_Leg_3_L_fdm (repai red).stl
0.50 MiB 3 min <1 m 14 x 8 x 3 Download

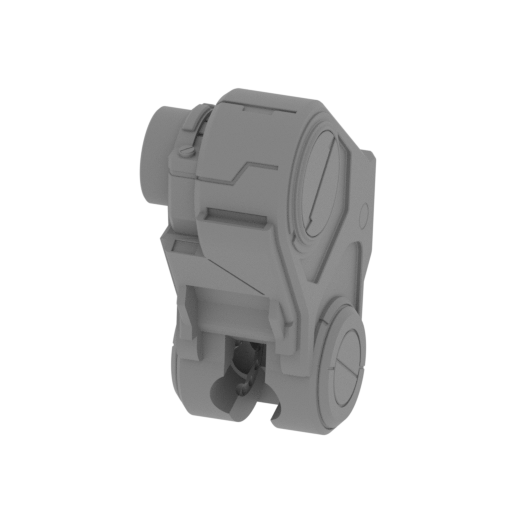

6_Shin_L_fdm (repaired).s tl
7.31 MiB 9 h 25 min 5 m 38 x 60 x 82 Download

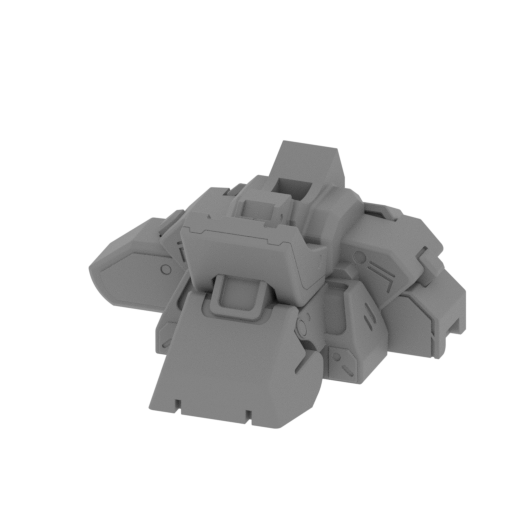

7_Foot_R_fdm (repaired).s tl
2.04 MiB 7 h 41 min 4 m 79 x 82 x 38 Download

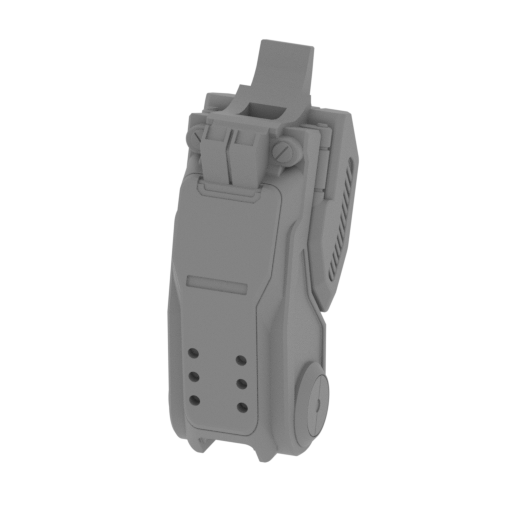

8_Leg_R_fdm (repaired).st l
4.63 MiB 8 h 24 min 5 m 34 x 53 x 90 Download

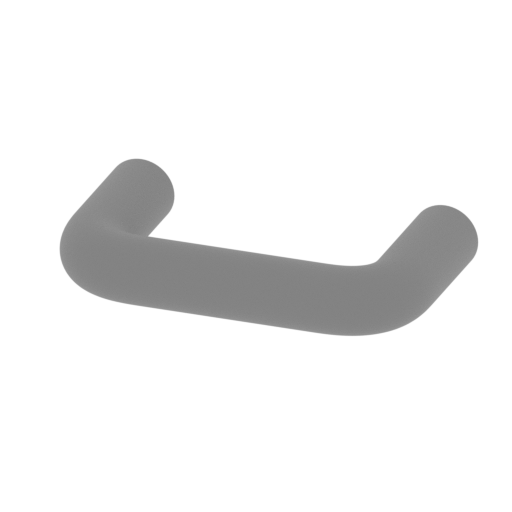

9_Pipe_Leg_1_R_fdm (repai red).stl
0.50 MiB 3 min <1 m 14 x 8 x 3 Download

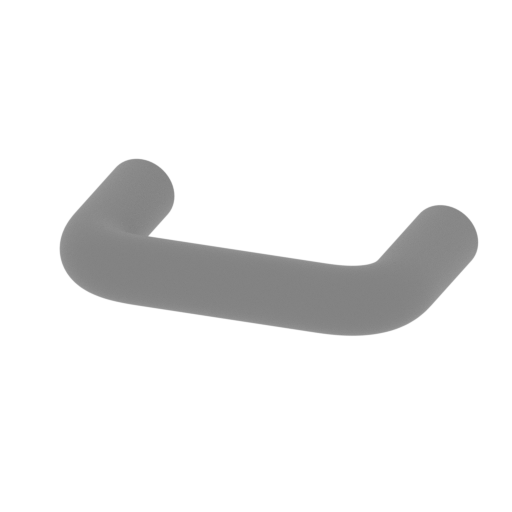

10_Pipe_Leg_2_R_fdm (repa ired).stl
0.50 MiB 3 min <1 m 14 x 8 x 3 Download
11_Pipes_Leg_3_R_fdm (rep aired).stl
0.50 MiB 3 min <1 m 14 x 8 x 3 Download

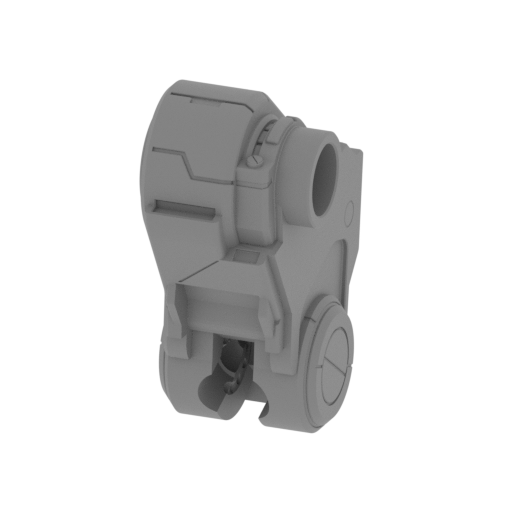

12_Shin_R_fdm (repaired). stl
7.48 MiB 9 h 18 min 5 m 38 x 60 x 82 Download

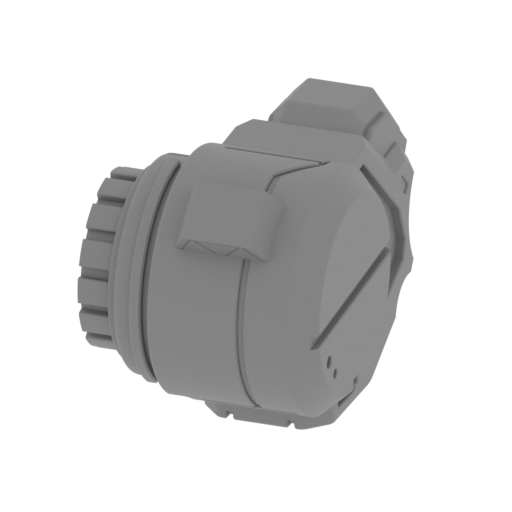

13_Arm_L_fdm (repaired).s tl
0.72 MiB 6 h 22 min 4 m 41 x 61 x 45 Download
14_Hand_L_fdm (repaired). stl

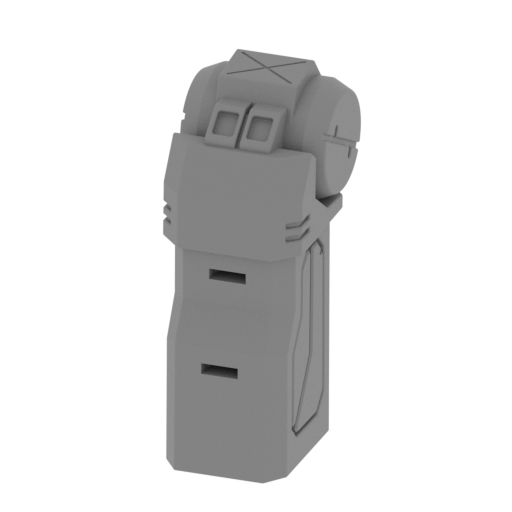

5.54 MiB 6 h 58 min 4 m 30 x 41 x 76 Download

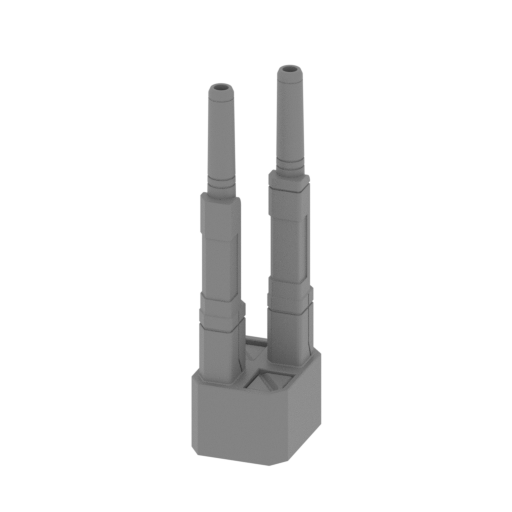

15_Weapon_1_L_fdm (repair ed).stl
0.76 MiB 1 h 51 min 1 m 21 x 26 x 79 Download
16_Weapon_2_L_fdm (repair ed).stl

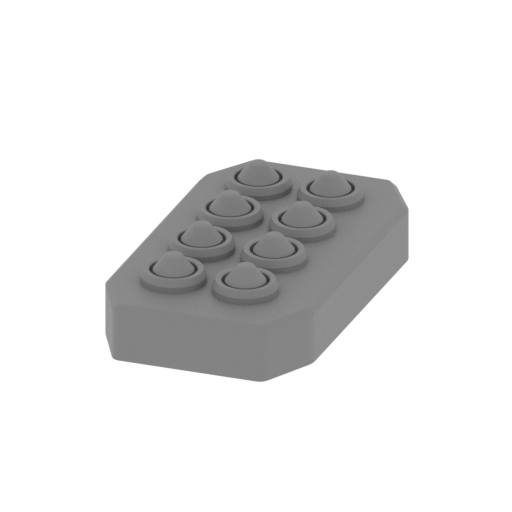

0.42 MiB 15 min <1 m 14 x 24 x 6 Download

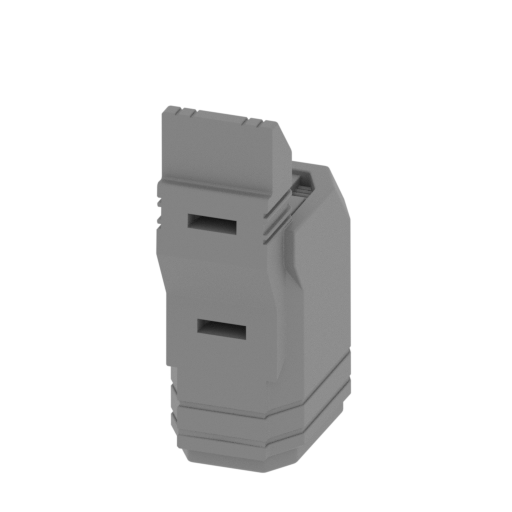

17_Weapon_3_L_fdm (repair ed).stl
0.30 MiB 2 h 40 min 2 m 20 x 37 x 57 Download

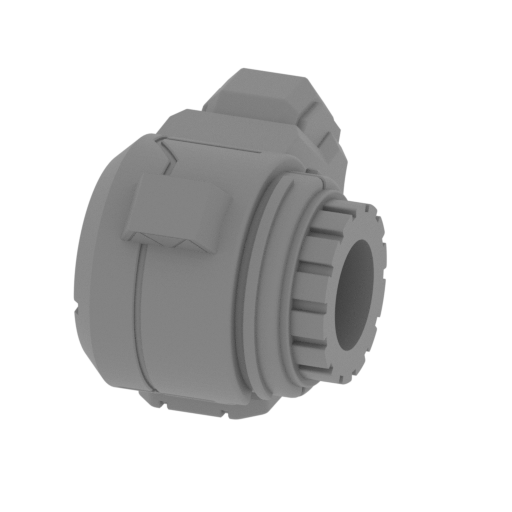

18_Arm_R_fdm (repaired).s tl
0.72 MiB 6 h 23 min 4 m 41 x 61 x 45 Download
19_Hand_R_fdm (repaired). stl
5.53 MiB 7 h 1 min 4 m 30 x 41 x 76 Download

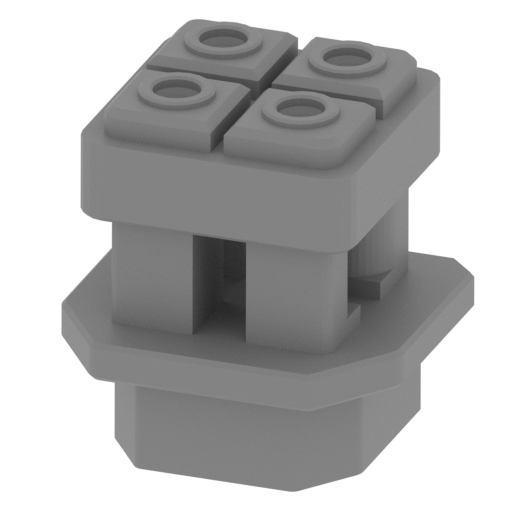

21_Weapon_2_R_fdm (repair ed).stl
0.11 MiB 31 min <1 m 16 x 14 x 17 Download
23_Pelvis_fdm (repaired). stl

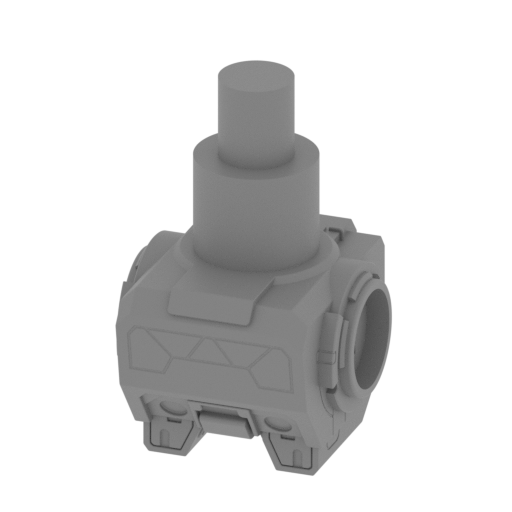

1.17 MiB 9 h 5 m 51 x 57 x 81 Download

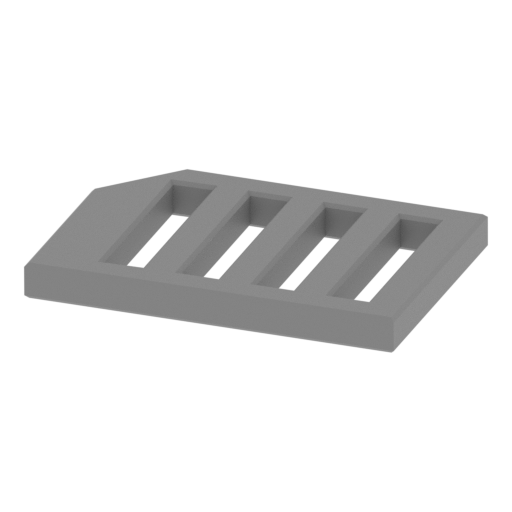

24_Lattice_R_fdm (repaire d).stl
0.02 MiB 2 min <1 m 10 x 7 x 1 Download
25_Lattice_L_fdm (repaire d).stl
0.02 MiB 2 min <1 m 10 x 7 x 1 Download

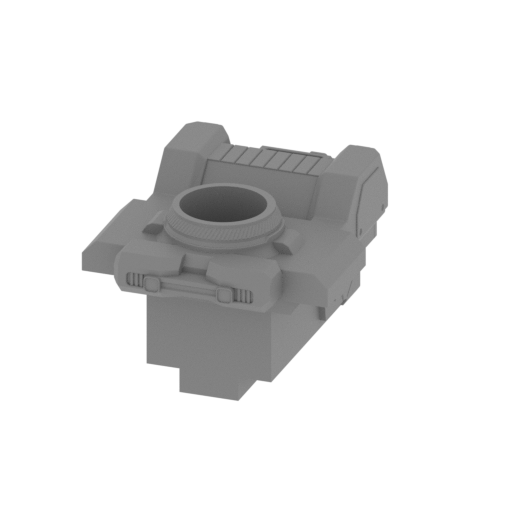

26_Body_Bot_fdm (repaired ).stl
1.88 MiB 22 h 23 min 15 m 78 x 117 x 57 Download
27_Pipes_R_fdm (repaired) .stl
0.27 MiB 2 min <1 m 11 x 8 x 2 Download

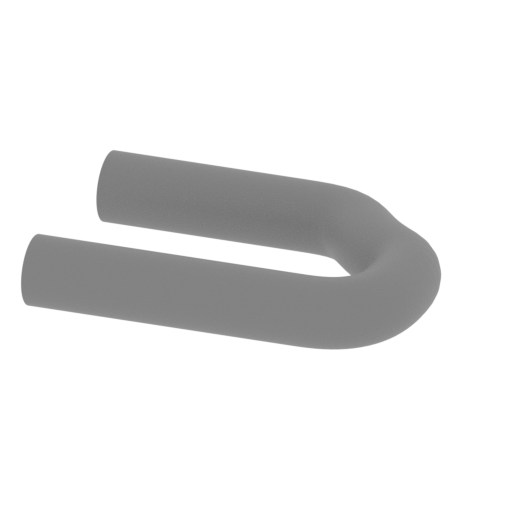

28_Pipes_L_fdm (repaired) .stl
0.27 MiB 2 min <1 m 11 x 8 x 2 Download

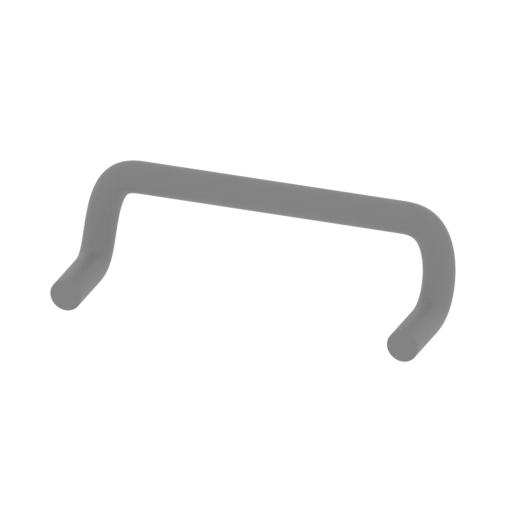

29_Pipes_body_fdm (repair ed).stl
0.55 MiB 10 min <1 m 30 x 9 x 9 Download

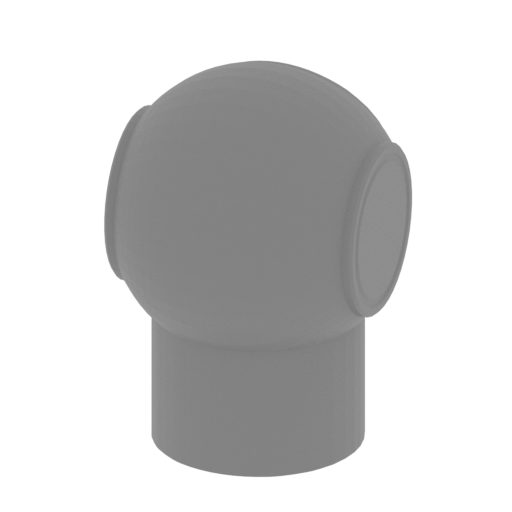

30_Camera_fdm (repaired). stl
0.23 MiB 11 min <1 m 9 x 10 x 13 Download
31_Body_Top_1_fdm (repair ed).stl
0.62 MiB 16 h 27 min 9 m 91 x 71 x 82 Download

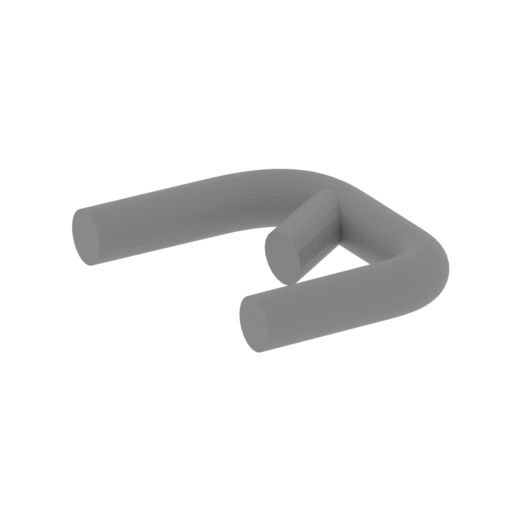

32_Pipes_fdm (repaired).s tl
0.18 MiB 4 min <1 m 18 x 16 x 3 Download
33_Pipes1_fdm (repaired). stl
0.18 MiB 4 min <1 m 18 x 16 x 3 Download

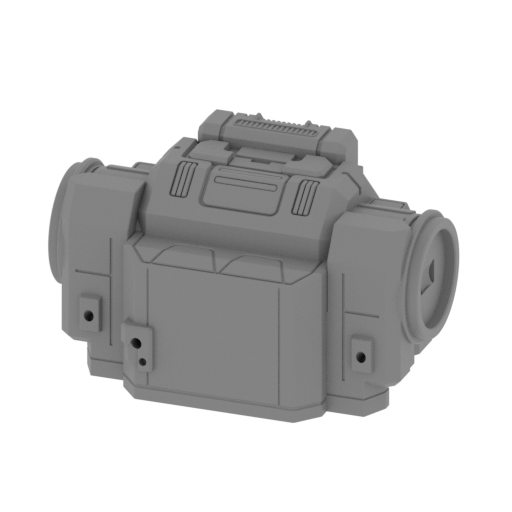

34_Body_Top_2_fdm (repair ed).stl
2.07 MiB 24 h 48 min 15 m 113 x 74 x 68 Download

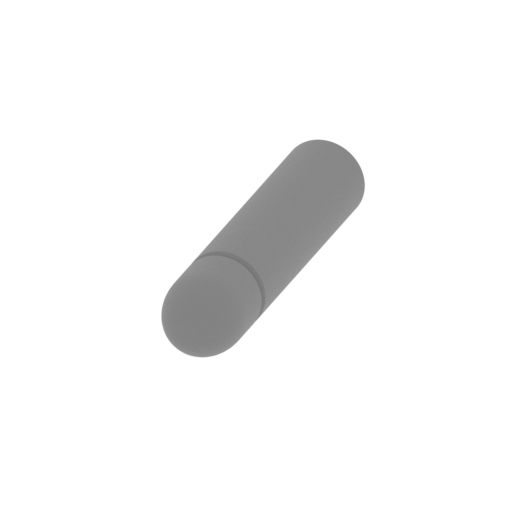

35_Anten_2_fdm (repaired) .stl
0.20 MiB 3 min <1 m 3 x 13 x 3 Download

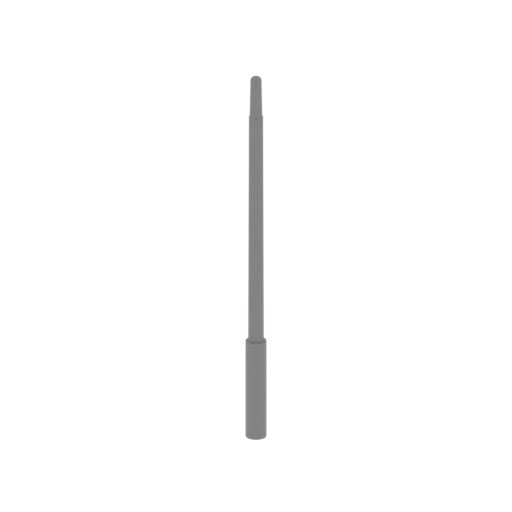

36_Anten_fdm (repaired).s tl
0.26 MiB 10 min <1 m 3 x 3 x 61 Download
37_Anten_fdm (repaired).s tl
0.31 MiB 1 min <1 m 2 x 8 x 2 Download

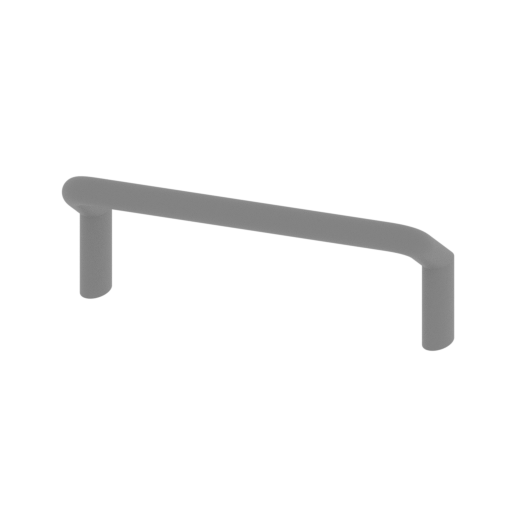

38_Foot_Pipes_L_fdm (repa ired).stl
0.62 MiB 30 min <1 m 47 x 14 x 19 Download
39_Foot_Pipes_R_fdm (repa ired).stl
0.62 MiB 30 min <1 m 47 x 14 x 19 Download

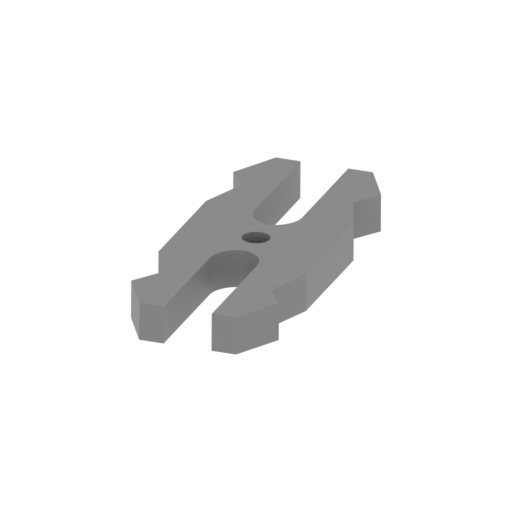

40_Ge_Lock_7h_x4 (repaire d).stl
0.02 MiB 4 min <1 m 7 x 18 x 2 Download

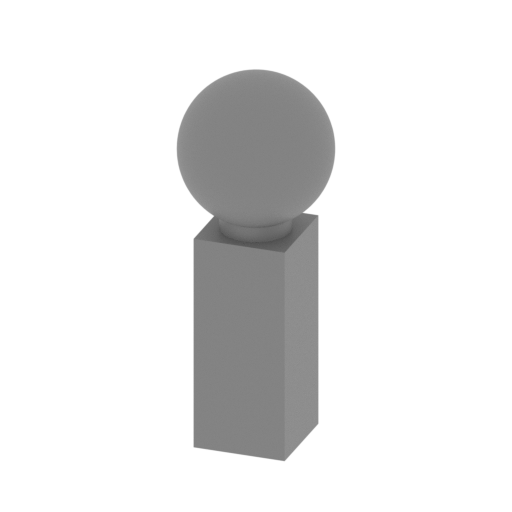

41_Claw_fdm_x4 (repaired) .stl
0.28 MiB 28 min <1 m 11 x 11 x 27 Download

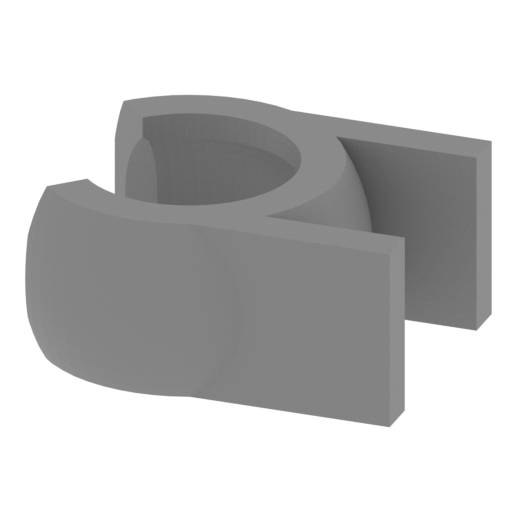

42_Joint_fdm_x4 (repaired ).stl
0.15 MiB 8 min <1 m 14 x 13 x 7 Download

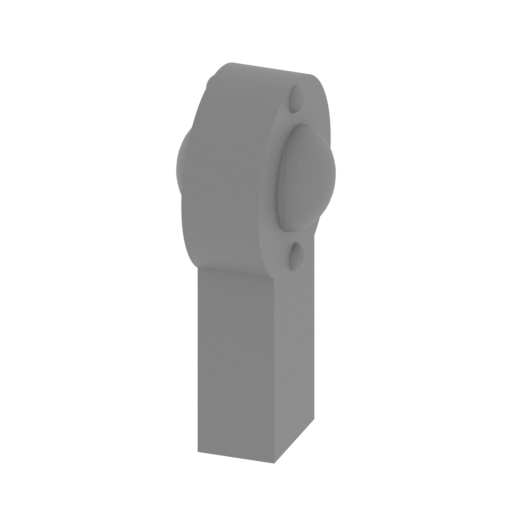

43_Connector_Foot_fdm_x2( repaired).stl
0.53 MiB 47 min <1 m 15 x 19 x 36 Download

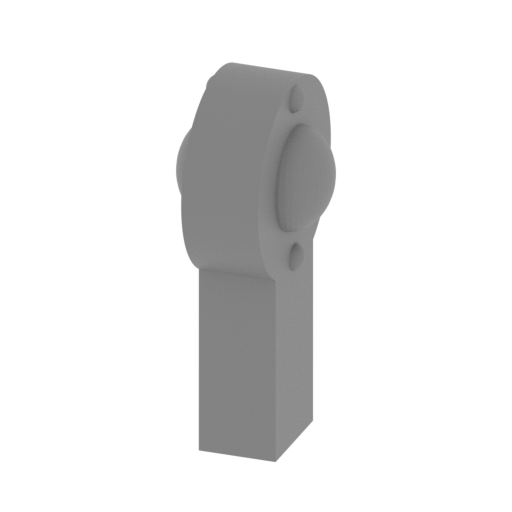

44_Connector_Hand_fdm_x2 (repaired).stl
0.53 MiB 42 min <1 m 15 x 19 x 35 Download

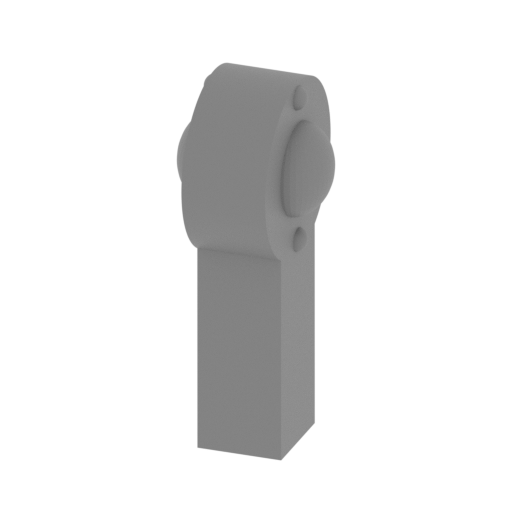

45_Connector_Leg_fdm_x2 ( repaired).stl
0.52 MiB 50 min <1 m 16 x 19 x 40 Download
46_Ge_Lock_10h_x14 (repai red).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

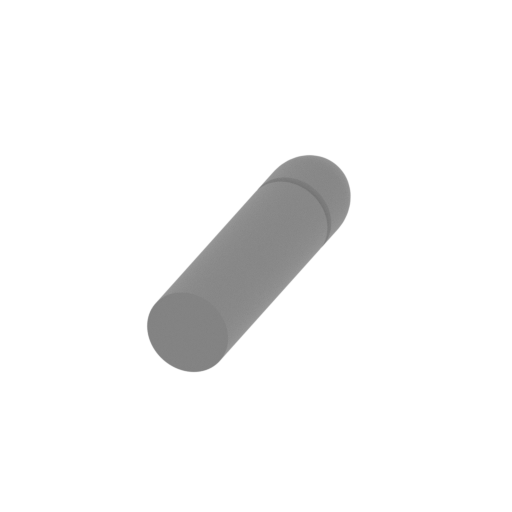

47_Anten_1_fdm (repaired) .stl
0.20 MiB 3 min <1 m 3 x 13 x 3 Download

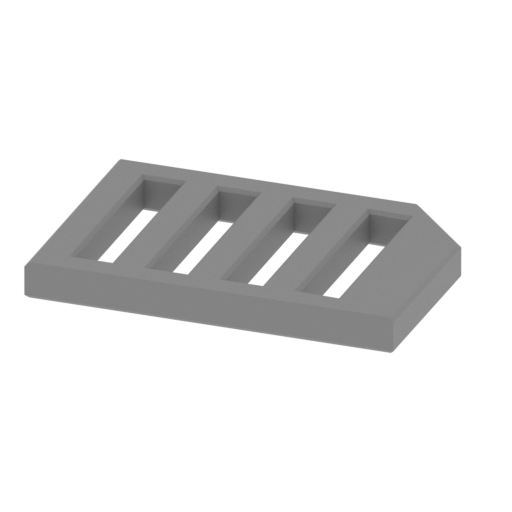

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

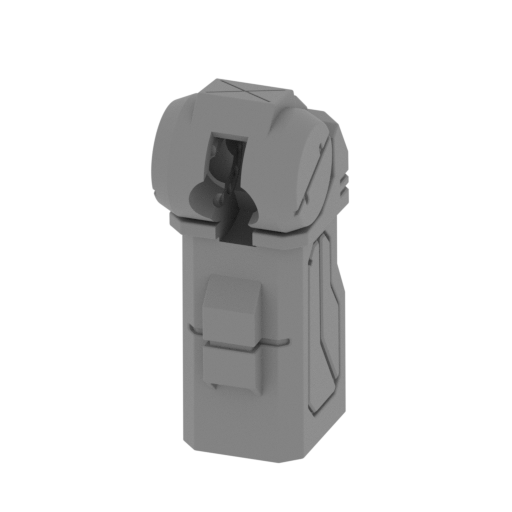

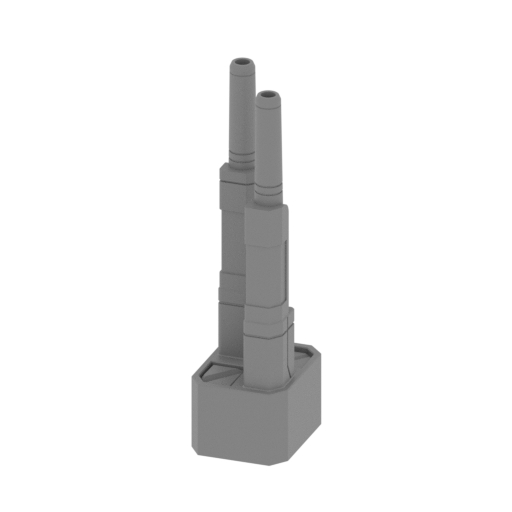

20_Weapon_1_R_fdm (repair ed).stl
0.76 MiB 1 h 55 min 1 m 21 x 26 x 79 Download

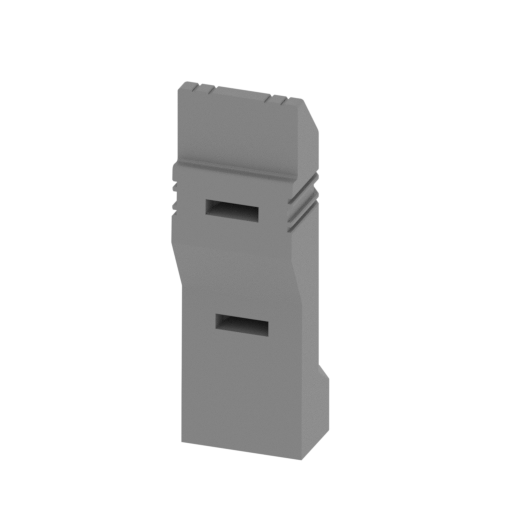

22_Weapon_3_R_fdm (repair ed).stl
0.15 MiB 1 h 42 min 1 m 17 x 19 x 52 Download
...

ABOUT THIS 3D MODEL

Warhawk, also known as Masakari, is an 85-ton Battlemech that was produced by Clan Smoke Jaguar and is considered to be one of the oldest Clan Mechs introduced. Not particularly great for ballistic-based configurations, Warhawk is known to be pretty good at energy and missile launchers builds. Despite the general disagreement about this Mech’s efficiency, the author of Warhawk model for 3D printing decided to take up the project and spent 124 hours to create the famous assault giant with a huge torso and a nice arsenal of long-range weapons. As MWO fans have probably already figured out, the 3D artist didn’t go for any of the conventional Warhawk’s configurations. It was the concept art by Alex “Flyingdebris” Iglesias that served as the main source of the author’s inspiration. Masakari 3D printing model was designed taking into account all robot’s fine pipes, antennas and framework details in order to make sure that the Battlemech will be interesting to print, assemble and paint. Warhawk did have its in-game ups and downs but we are sure that many MWO enthusiasts will be happy to welcome the sturdy Mech to one’s 3D printing collection. Gambody certainly is proud of such an excellent addition to the MechWarrior category on our website.

ADAPTATION FOR 3D PRINTING

MWO Warhawk 3D printing model is an action assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 42 hours in total. The model’s cutting was chosen by our team to minimise the amount of filament needed for generated support, such fine details as antennas, pipes etc. come separately. Model is cut in many assembly parts that are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. To allow the multidirectional movement and rotation of the Warhawk model, the ball-and-socket joints and one-axis joints with lockers were introduced. The joints that ensure the Mech's movability are provided as separate files as well for you to be able to print them again if the joints' friction happens to lose rigidity. Missile launchers, autocannons, as well as other weapons Warhawk is equipped with are assembled in such a way that can be potentially replaced when the alternative Guns Pack for the Mech is released.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

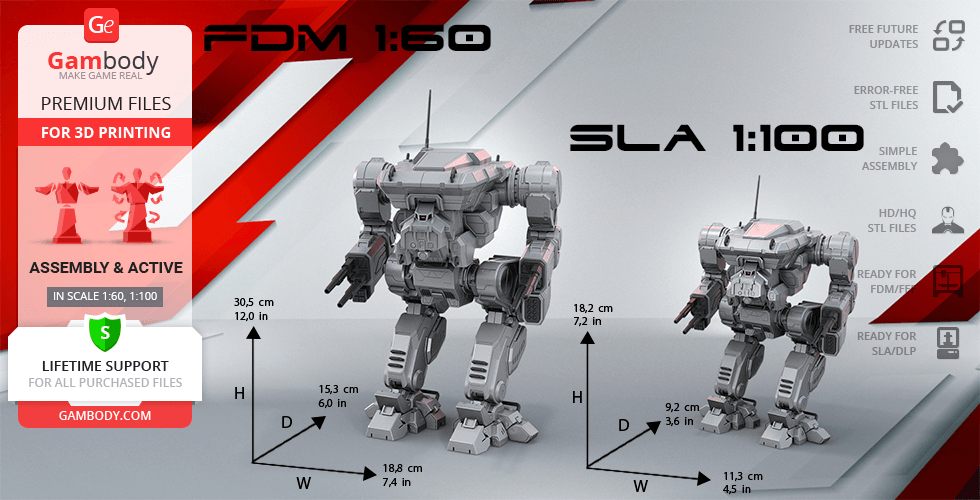

The model's scale was calculated from Warhawk's actual height that is 15000 mm. The 3D printing model's chosen scale is 1/60 for the FFF/FDM version and 1/100 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

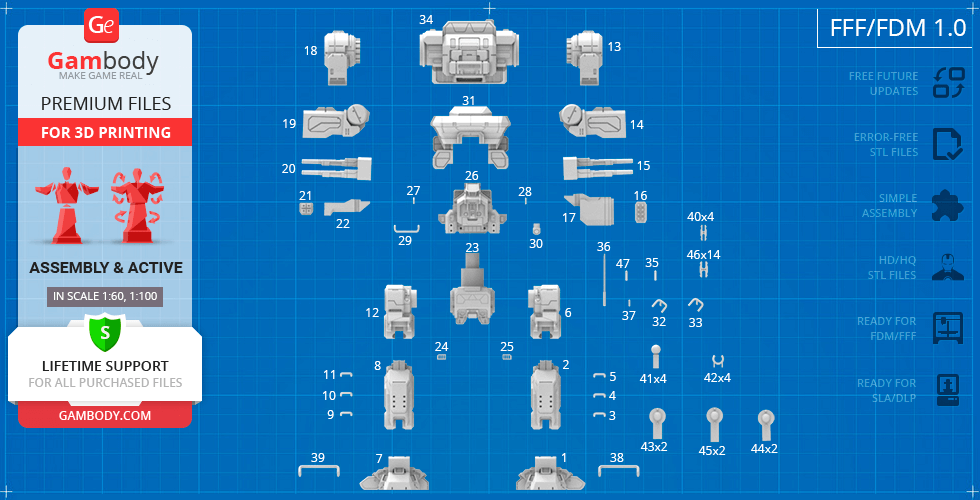

FFF/FDM 1.0 version features:
- Contains 47 parts;
- A printed model is 305 mm tall, 188 mm wide, 153 mm deep;
- Made with several sets of special joints to ensure the model's articulation;
- Assembly kit includes locks to connect the parts without glue. One lock 40_Ge_Lock_7h_x4​ needs to be printed 4 times; lock 46_Ge_Lock_10h_x14 needs to be printed 14 times;
- All parts are divided in such a way that you will print them with the smallest number of support structures and so to ensure the smoothness of the details’ surfaces.

DLP/SLA/SLS 1.0 version features:
- Contains 13 parts;
- A printed model is 182 mm tall, 113 mm wide, 92 mm deep;
- Made with special joints to ensure the model's articulation;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

SLS 1.0 version features:
- Contains 1 part;
- A printed model is 182 mm tall, 113 mm wide, 92 mm deep;
- Made as a solid one-piece Mech.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of MWO Warhawk 3D Printing Model which consist of 61 parts;
- 3 versions of files of this model for FFF/FDM and DLP/SLA/SLS printers;
- High-poly detailed model of MWO Warhawk;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of MWO Warhawk for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble MWO Warhawk 3D Printing Model at Gambody YouTube channel.

Also, you may like other Mech Warrior 3D Printing Models.
