You will get instant access to the STL files of ED-209 (1987) 3D Printing Model | Assembly + Action after completing your purchase. Simply add the model to your cart and check out using PayPal, credit or debit card, Apple Pay, Google Pay, Alipay, or other available payment methods.
Watch the assembly video for ED-209 (1987) 3D Printing Model | Assembly + Action, and explore more tutorials, behind-the-scenes content, 3D printing timelapses, and painting guides on the official Gambody YouTube channel.
This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.
Before printing the files, we strongly recommend reading the PRINTING DETAILS section.
ED-209 (1987) 3D Printing Model comes in 2 versions for different 3D printer types (FFF/FDM, DLP/SLA/SLS). Files for each version are available for download after the purchase.
Detailed information about this 3D printing model is available in the DESCRIPTION section.
Before printing, take a look at Printing Details for recommended settings and tips to achieve better results.

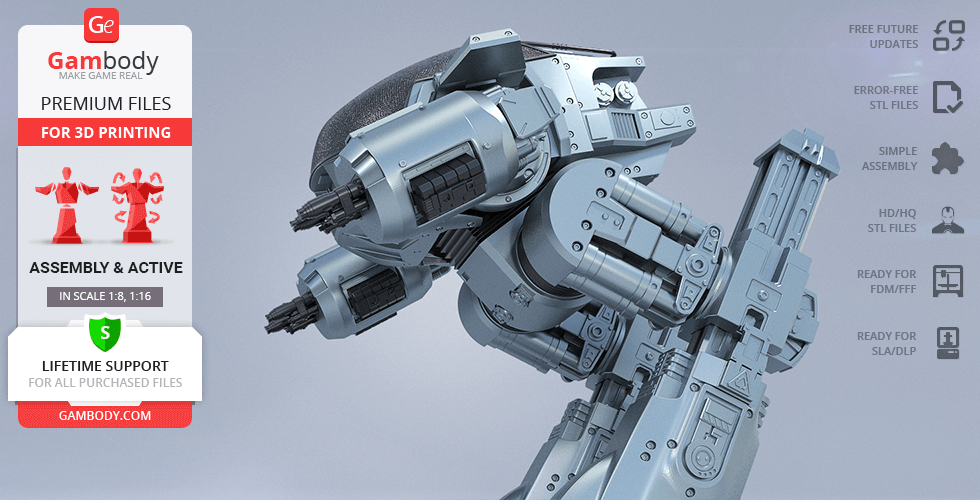

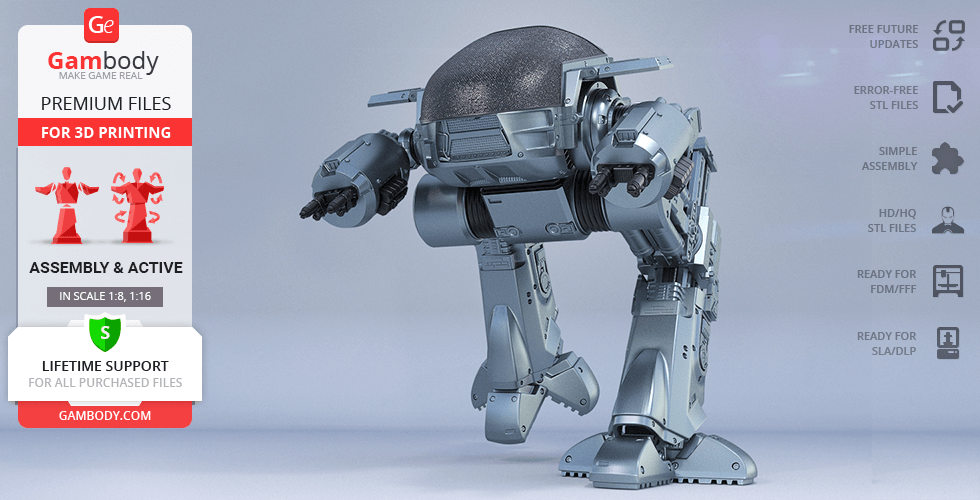

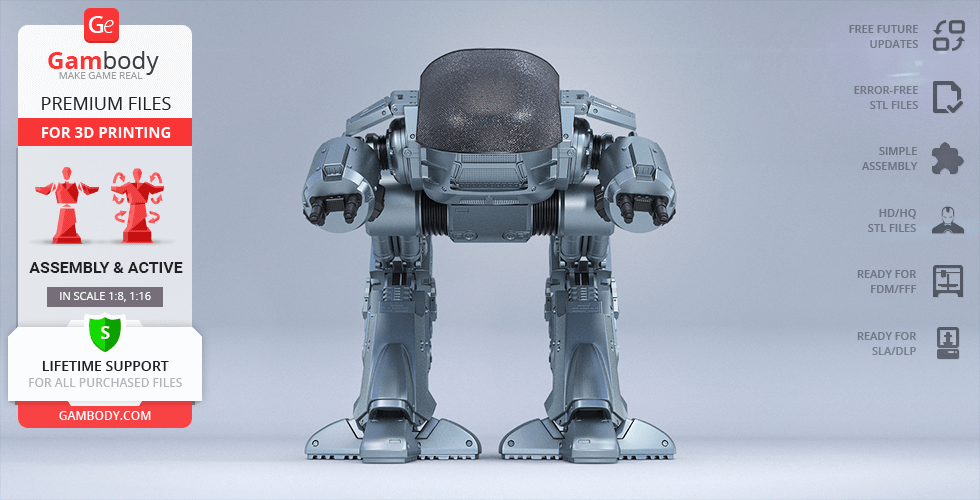

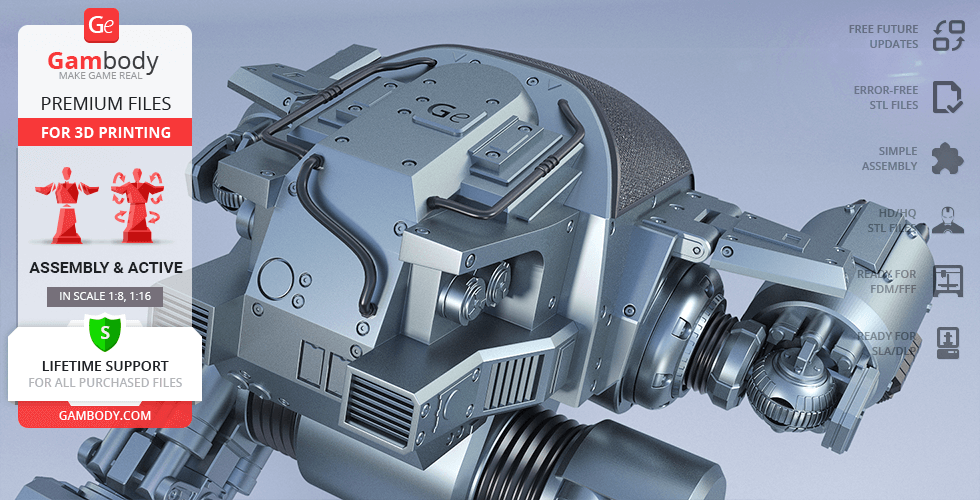

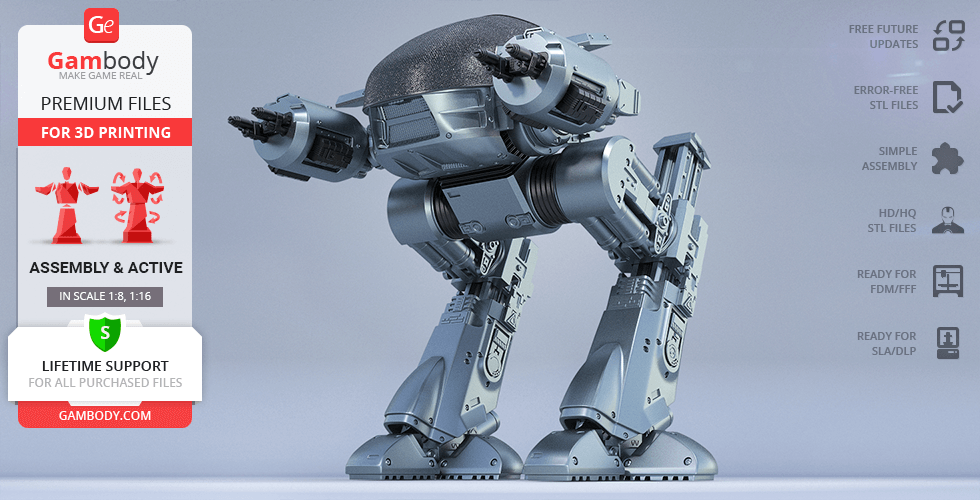

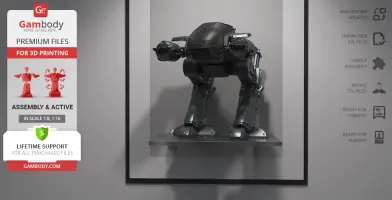

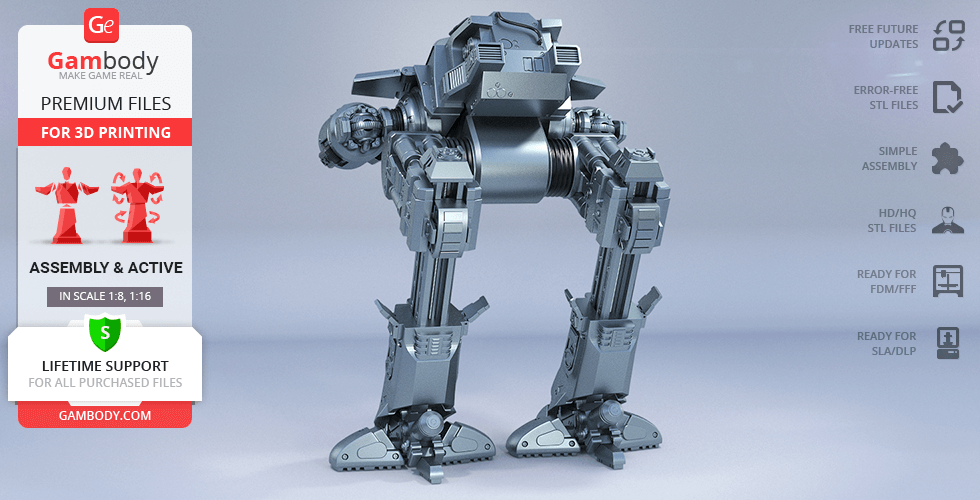

ABOUT THIS 3D MODEL

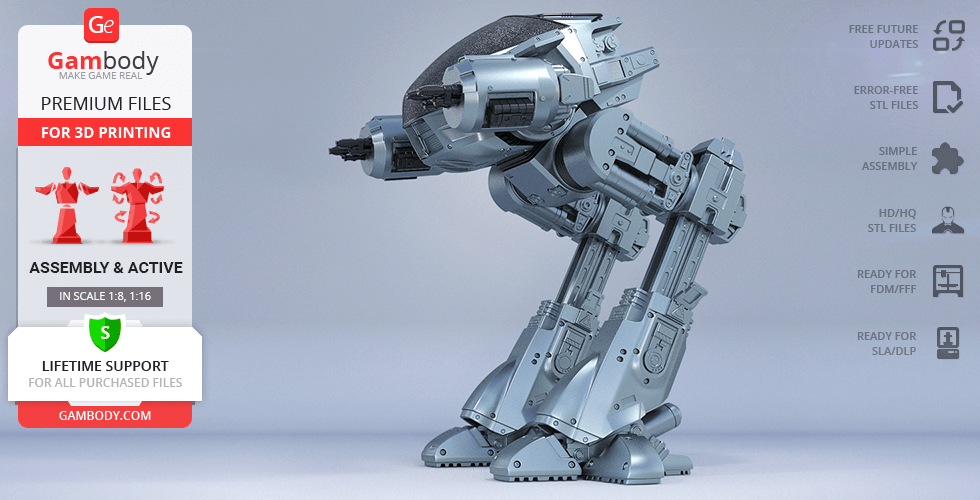

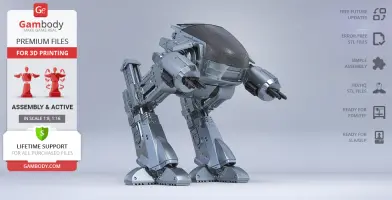

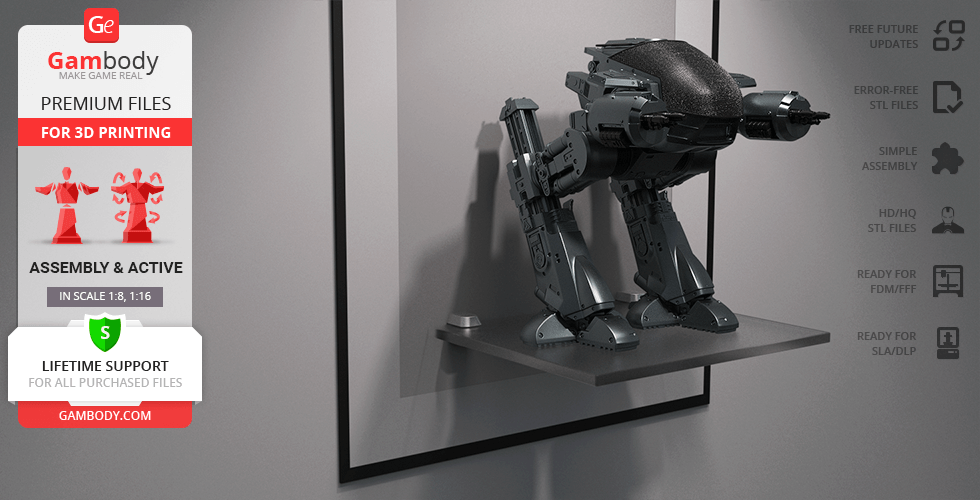

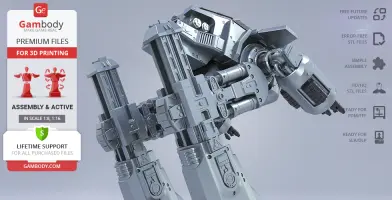

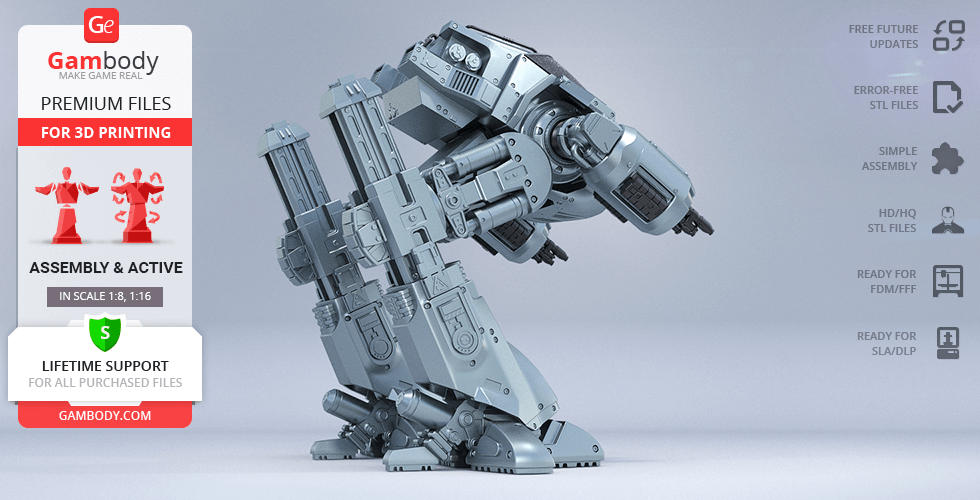

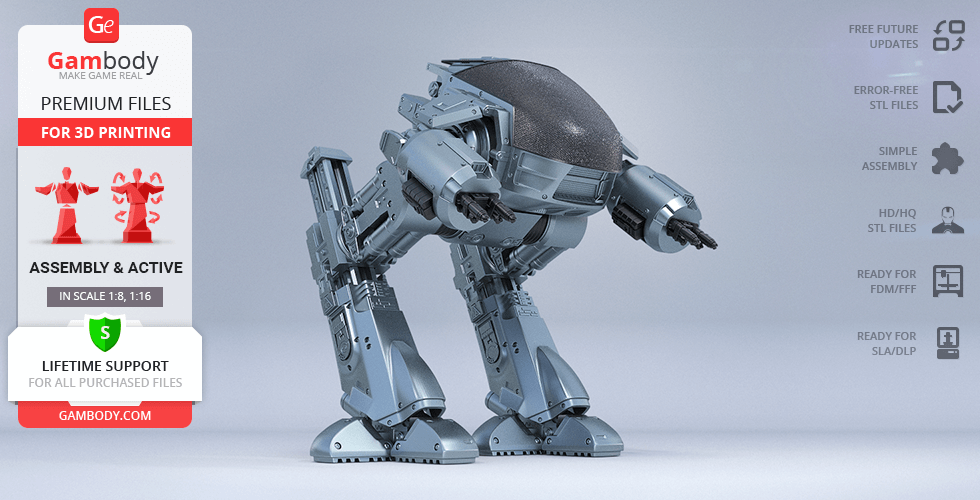

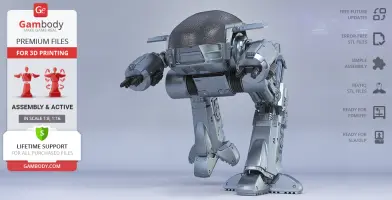

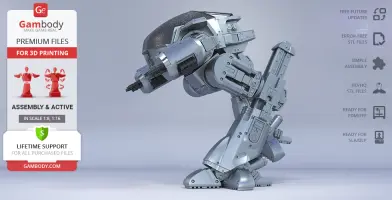

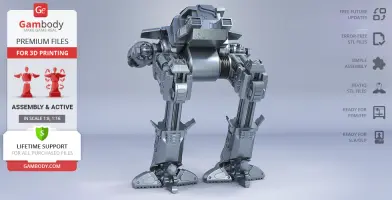

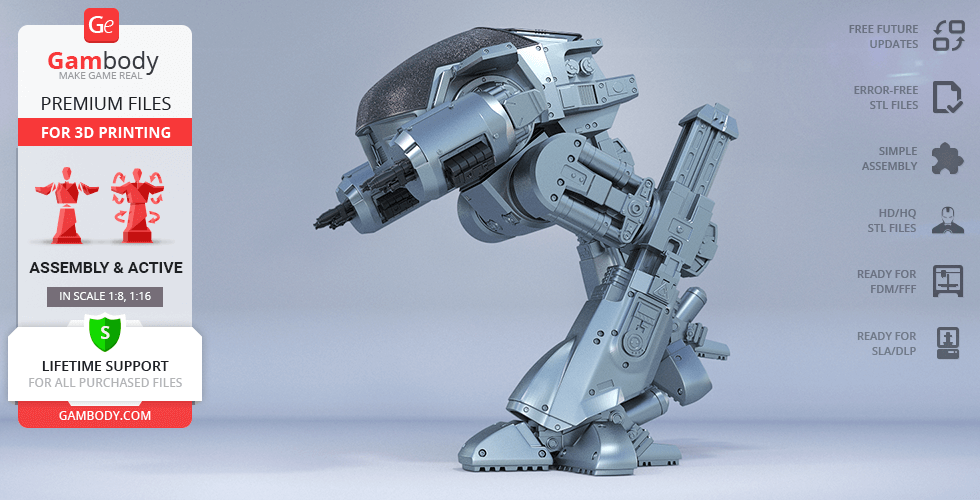

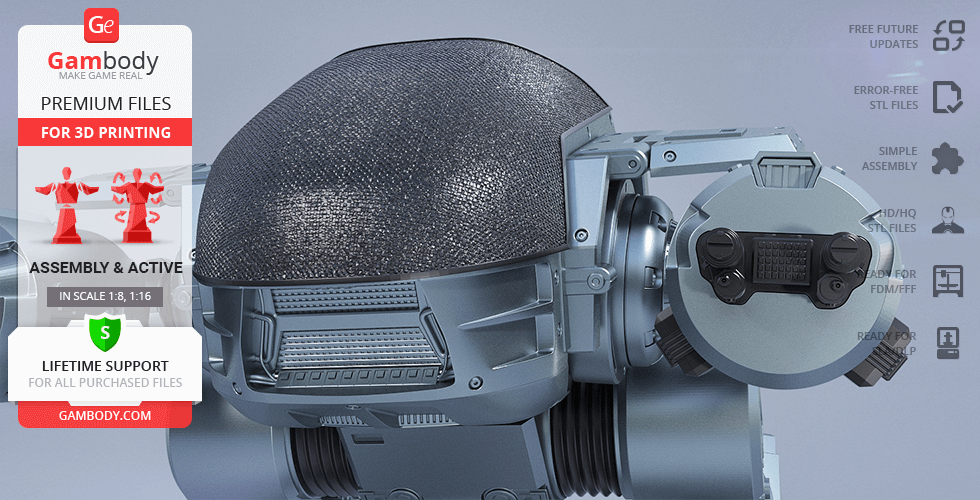

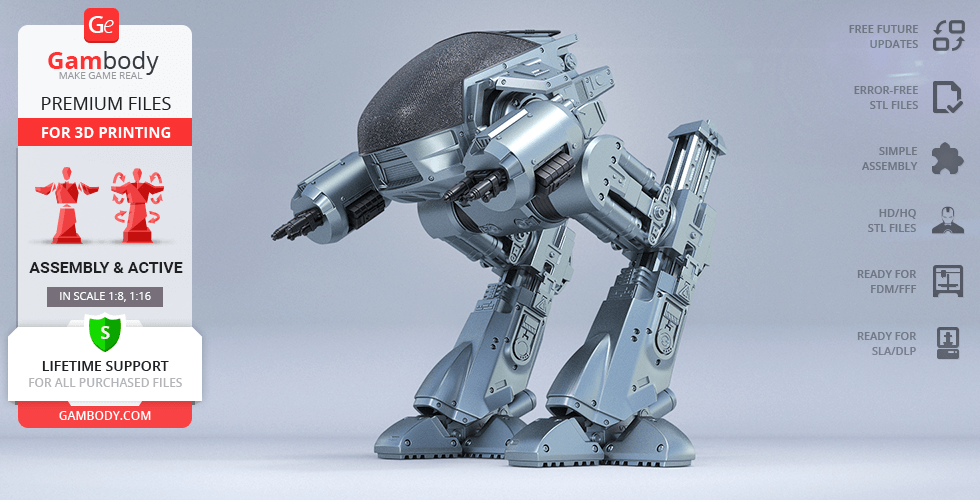

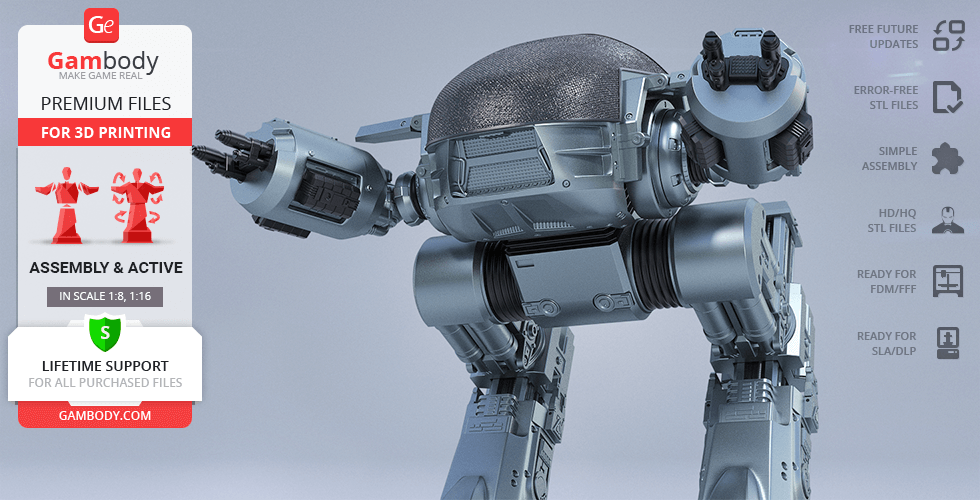

The large Enforcement Droid of 209 Series, better known as ED-209, was a large robot programmed for law enforcement that starred in the iconic 1987 RoboCop film. There were only a few scenes featuring the armoured ED-209 in the movie but that turned out to be enough for the malfunctioning Droid to acquire the iconic status and take its firm stand in VFX film history. Immediately after the release of the ED-209 model from the 2014 RoboCop remake our team was overwhelmed with the franchise fans’ requests who were eager to see the original and well-loved Enforcement Droid. Thankfully, the author of the first peacekeeping machine for 3D printing was delighted with general enthusiasm so wasted no time and got down to the project at once. It took the 3D artist circa 145 hours for all RoboCop fans to get the very original menacing Droid for 3D printing. ED-209 model is made with patrol robot’s signature radar-like head, “metal” grating around the front of the head and a grill mouth. As expected, the bossy street fighter for 3D printing is depicted with large machine guns for arms that are equipped with two left 20 mm cannons, right 20 mm cannon and heat-seeking missile launcher. The machine-gun wielding ED-209 for 3D printing looks absolutely ready to wreak havoc while engaged in its ”urban pacification” duty! Order the STL files of the classic villainous Droid and 3D print your own coolest movie robot of all time!
ADAPTATION FOR 3D PRINTING

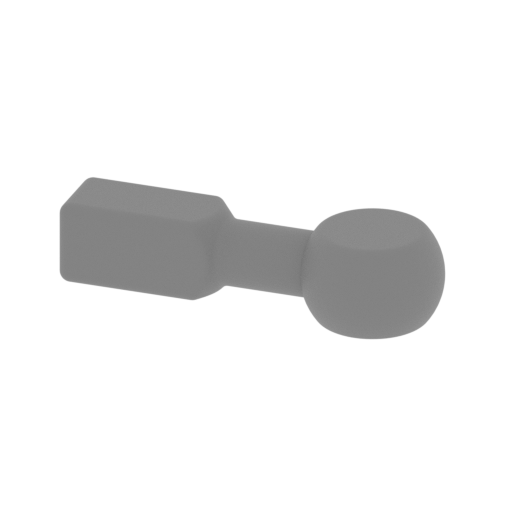

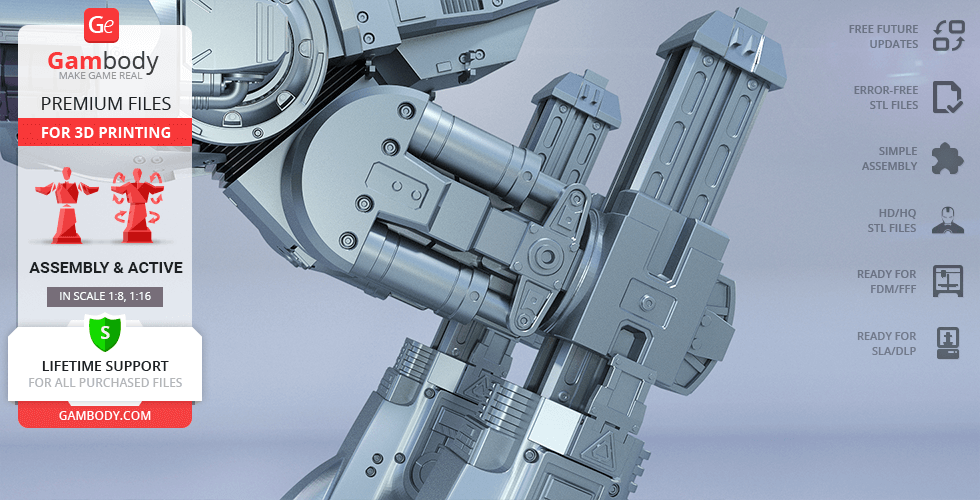

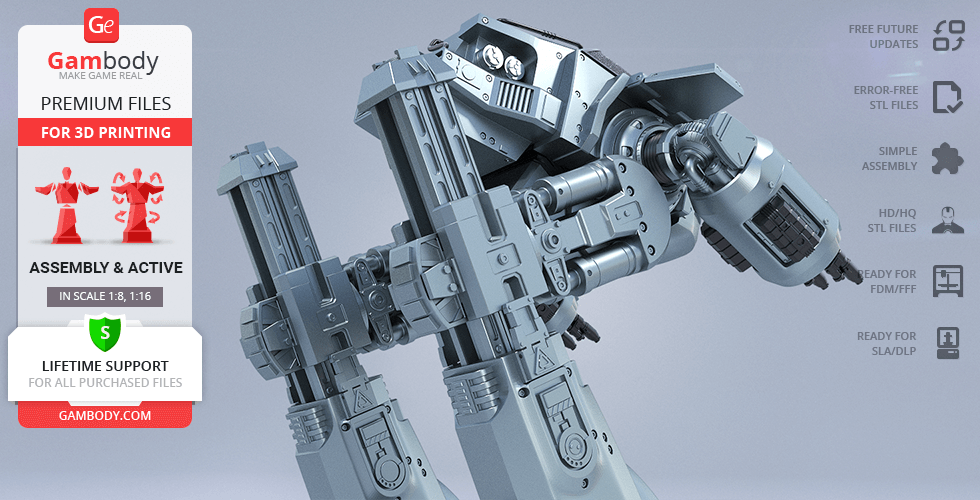

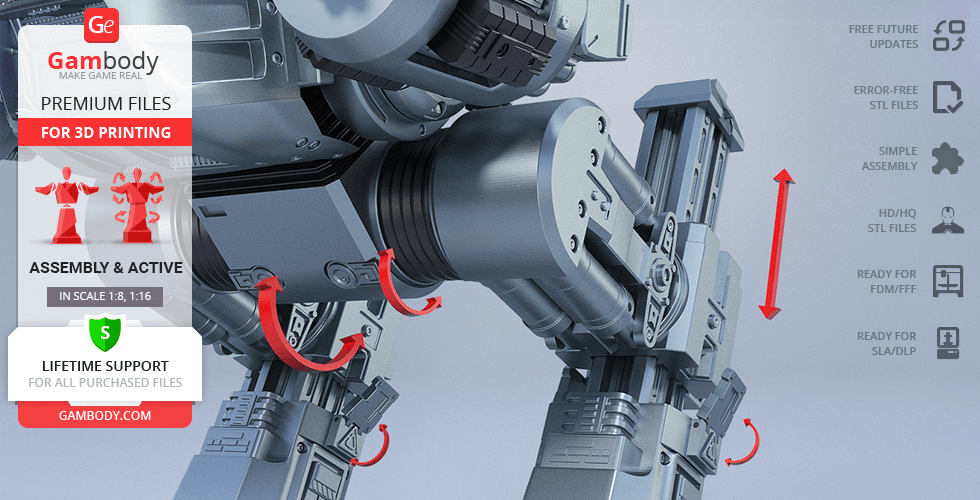

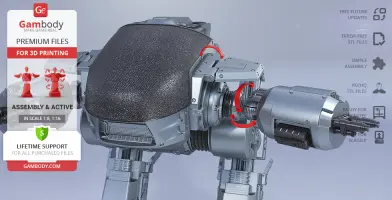

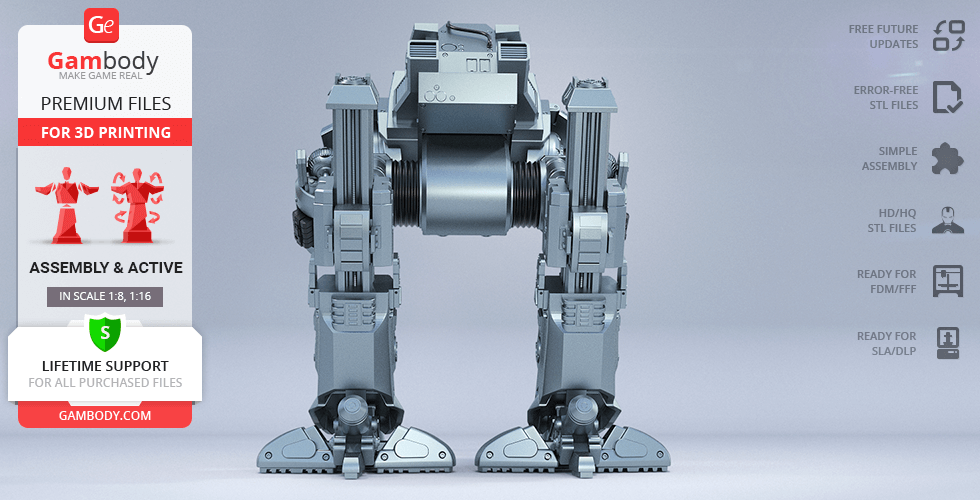

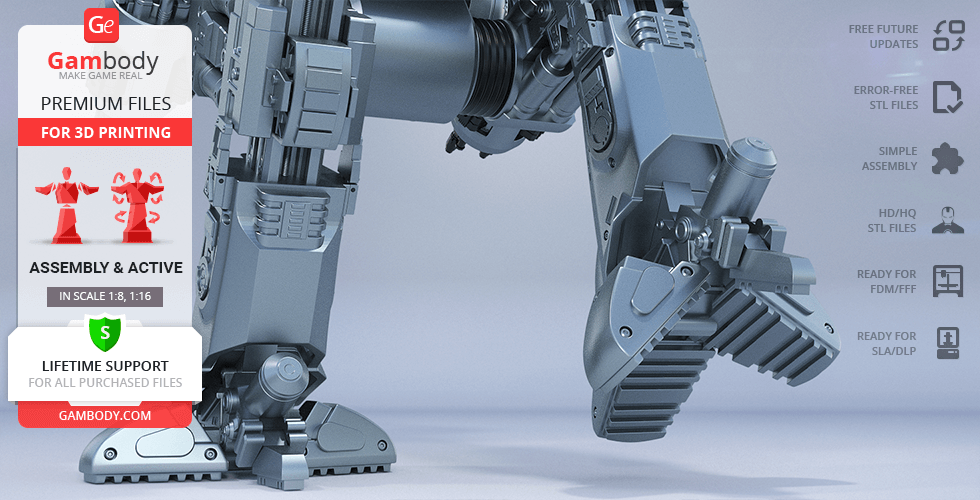

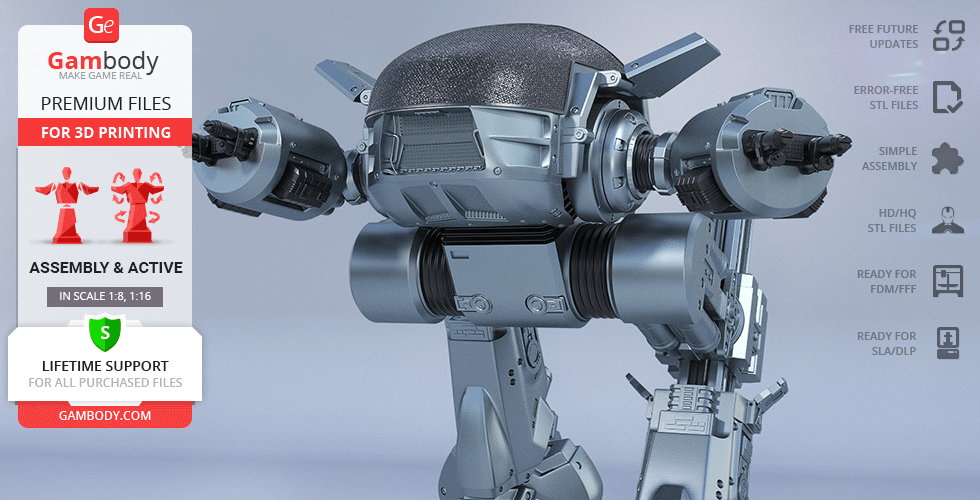

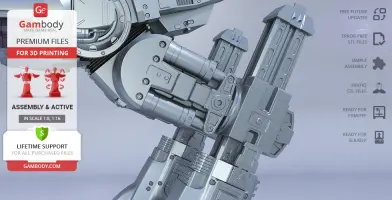

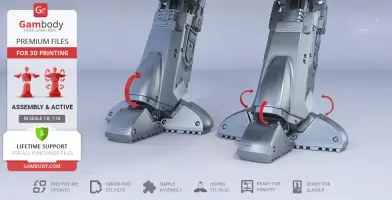

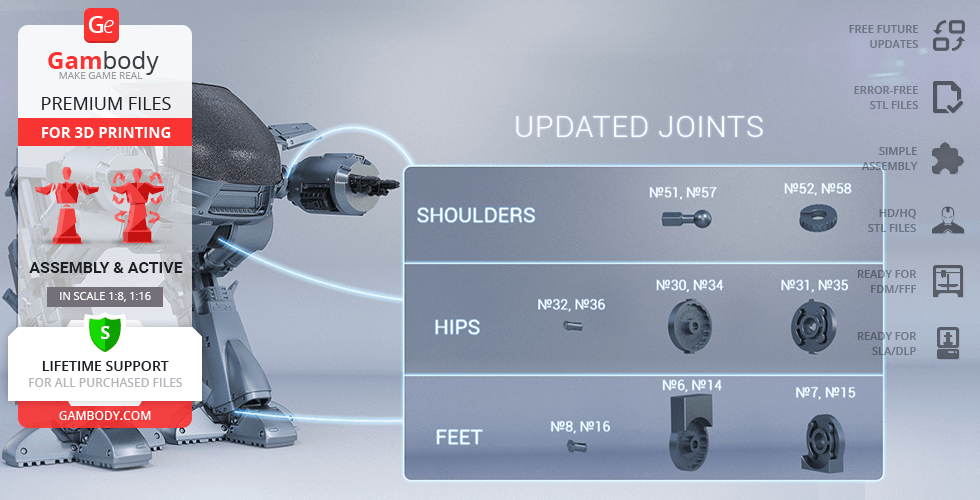

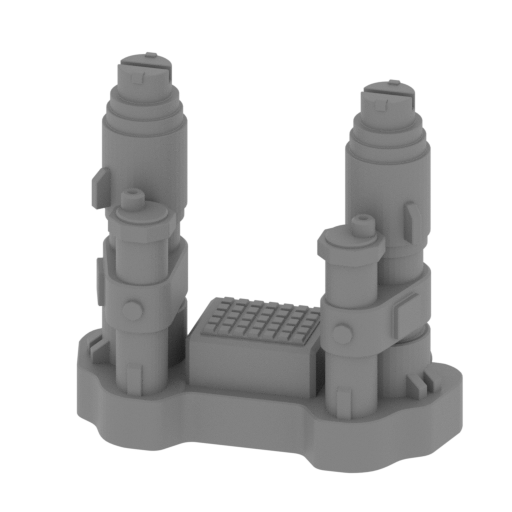

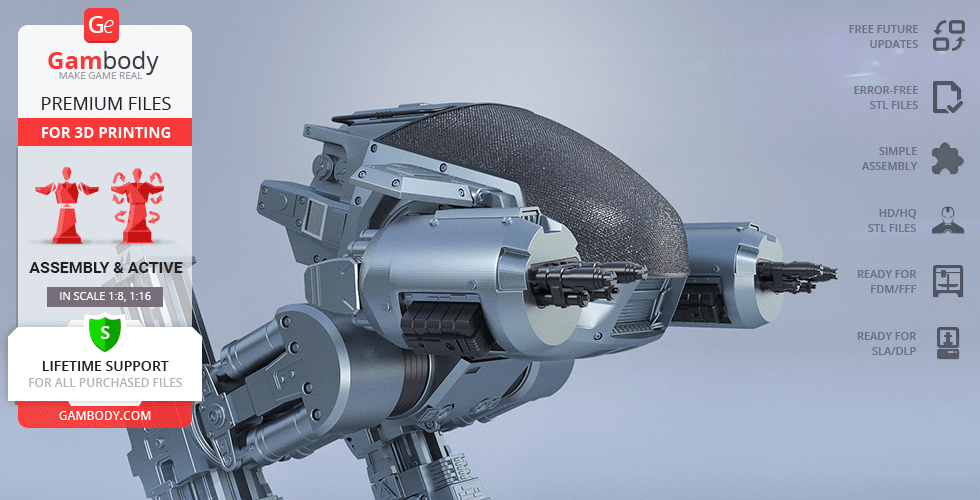

ED-209 (1987) 3D printing model is an action assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 46 hours in total. In order to ensure the droid’s multidirectional movement, the model was divided into many assembly parts and special mechanisms were introduced into all model’s joints to give you an opportunity to display ED-209 in a variety of positions, i.e. robot’s body, hips, front and rear toes etc. are movable and knee joints slide up to make the robot taller. With the same purpose, the robot’s gun pods can make a full rotation. To allow the multidirectional movement and rotation of the droid model, the ball-and-socket joints were introduced. For the articulated robot to stand firm in any position you may choose, the feet and hip joints are provided with locking mechanism. The joints that ensure the robot’s movability are provided as separate files as well for you to be able to print them again if the joints' friction happens to lose rigidity. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. Model’s assembly requires additional “pins” to secure the parts. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA. We highly recommend that you watch "Assembly video" in the photo preview section before assembling the Droid. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format.
The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

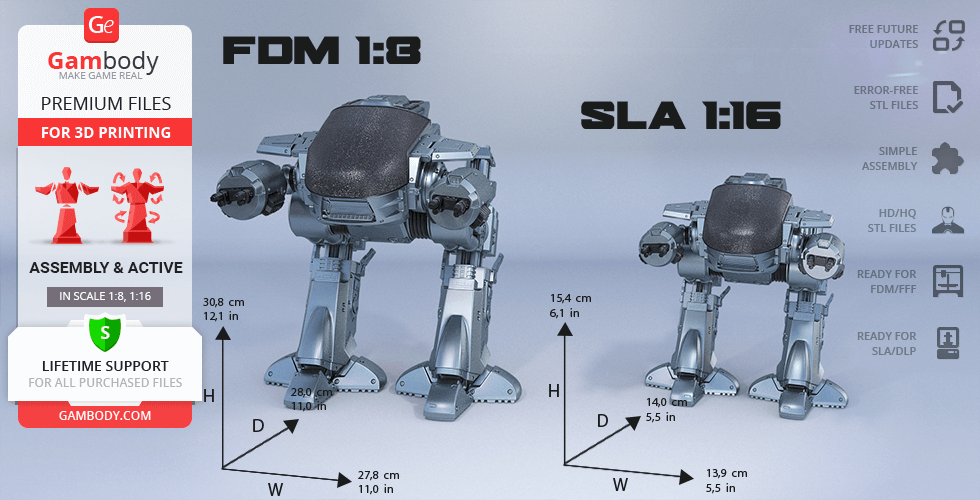

The model's scale was calculated from ED-209's actual height that is 2400 mm. The 3D printing model's chosen scale is 1/8 for FFF/FDM version and 1/16 for DLP/SLA/SLS version.
VERSIONS' SPECIFICATIONS

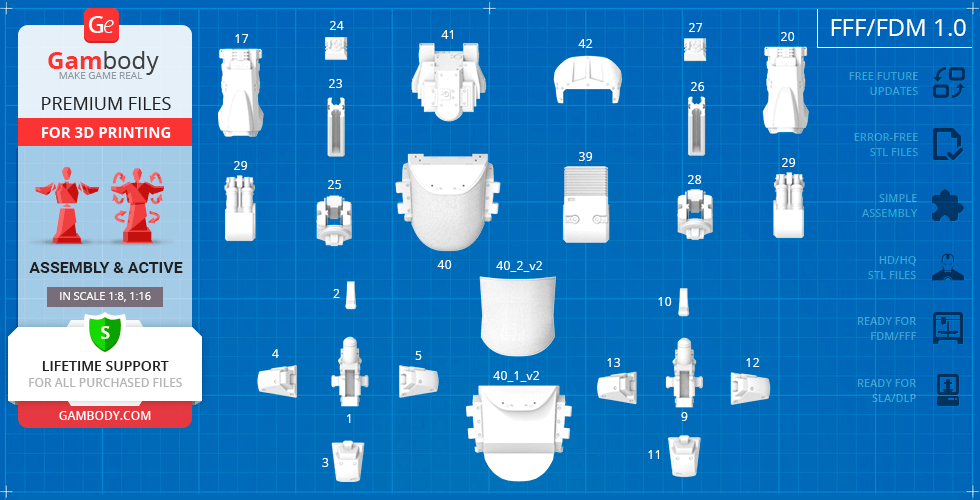

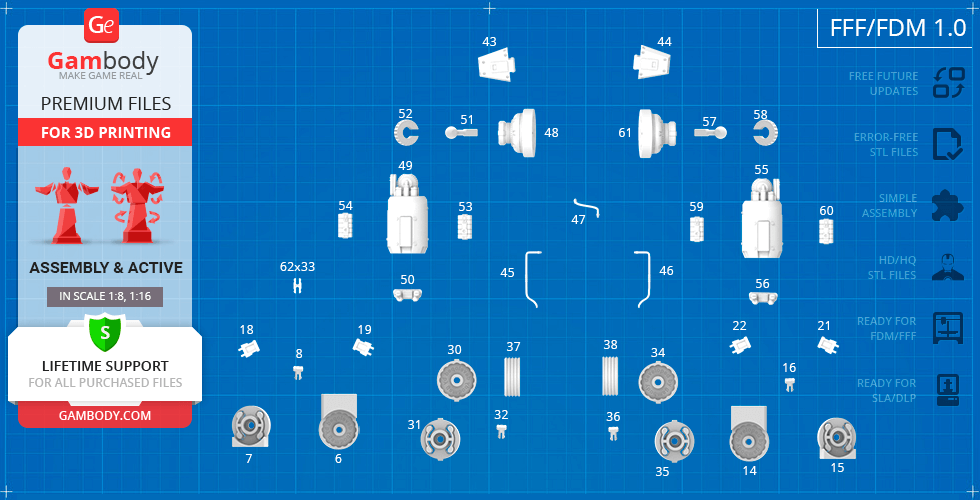

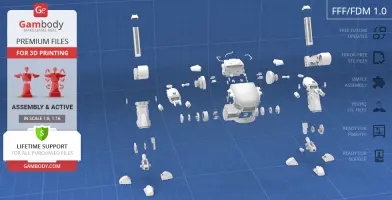

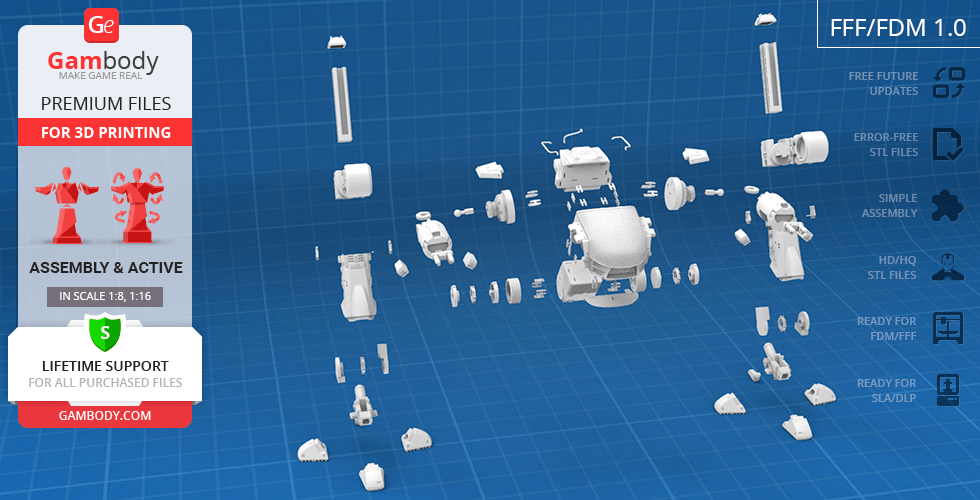

FFF/FDM 1.0 version features:

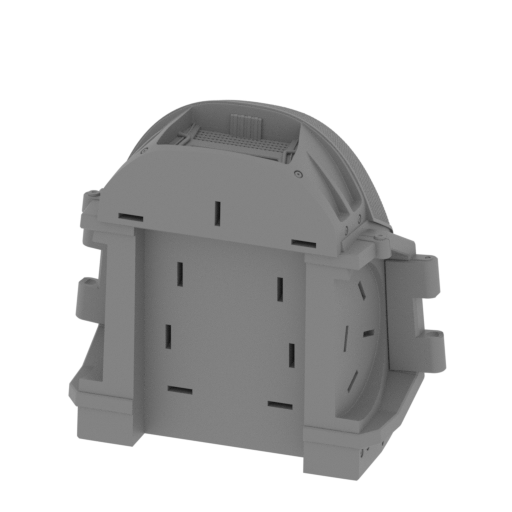

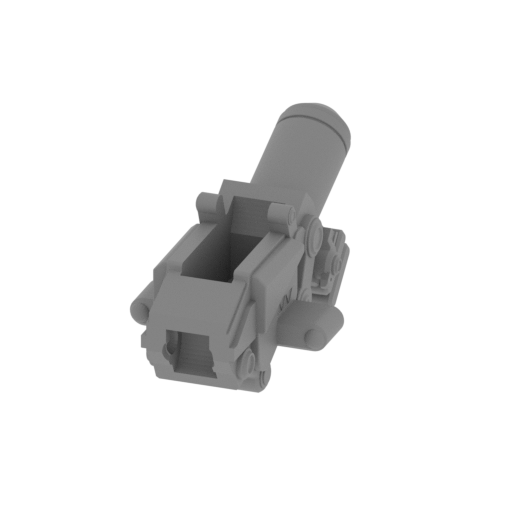

- Contains 62 parts;
- A printed model is 308 mm tall, 278 mm wide, 280 mm deep;
- Made with several sets of special joints to ensure the model's articulation;

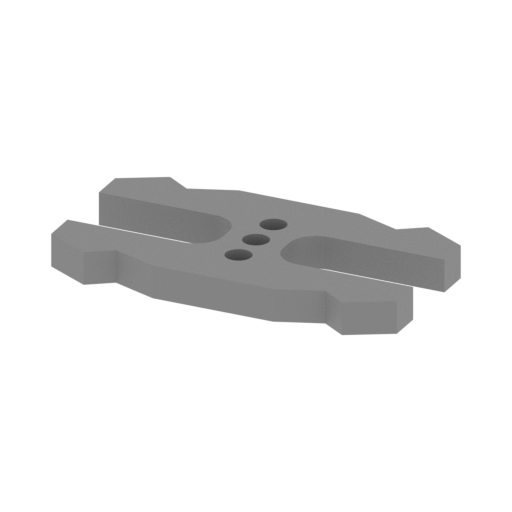

- Assembly kit includes lock 62_Ge_lock_10H_x33 to connect the parts without glue that needs to be printed 33 times;
- Model’s assembly requires additional “pins” to secure the parts. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA;

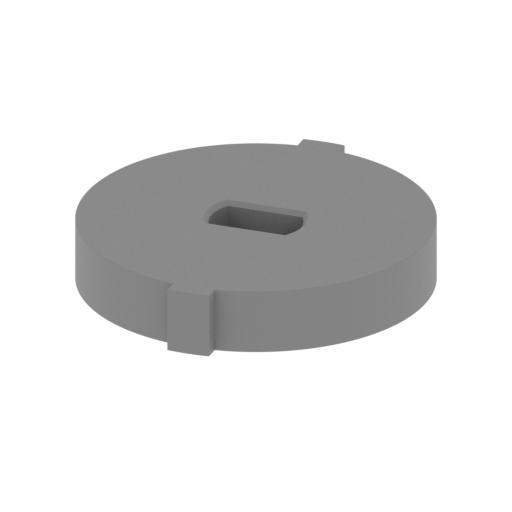

- It is recommended to print parts 30_leg_joint_part_a_R and 34_leg_joint_part_a_L with 100% Infill;
- All parts are divided in such a way that you will print them with the smallest number of support structures and so to ensure the smoothness of the details’ surfaces.

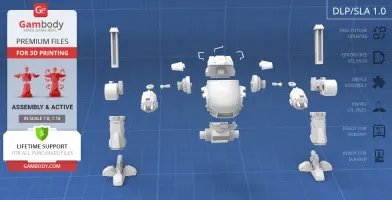

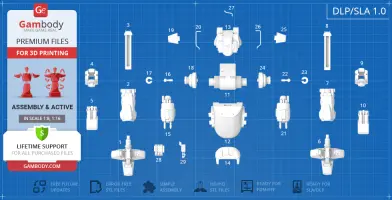

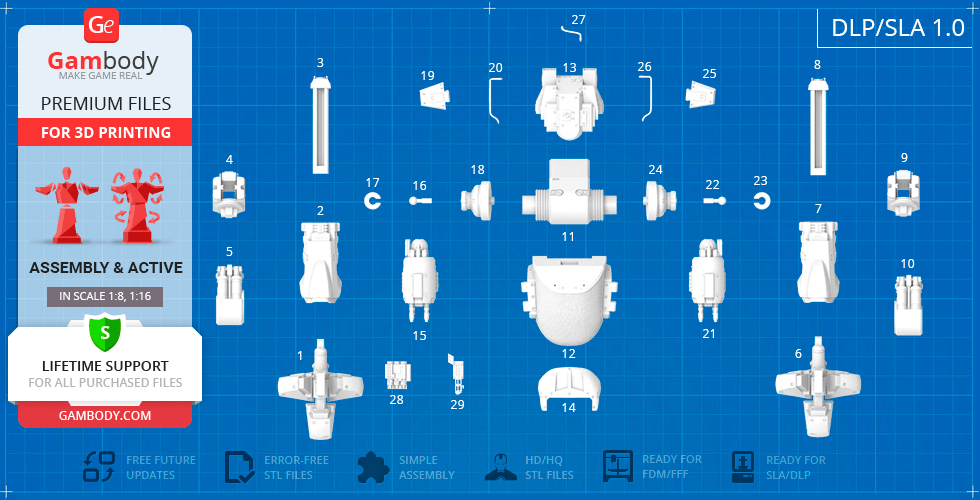

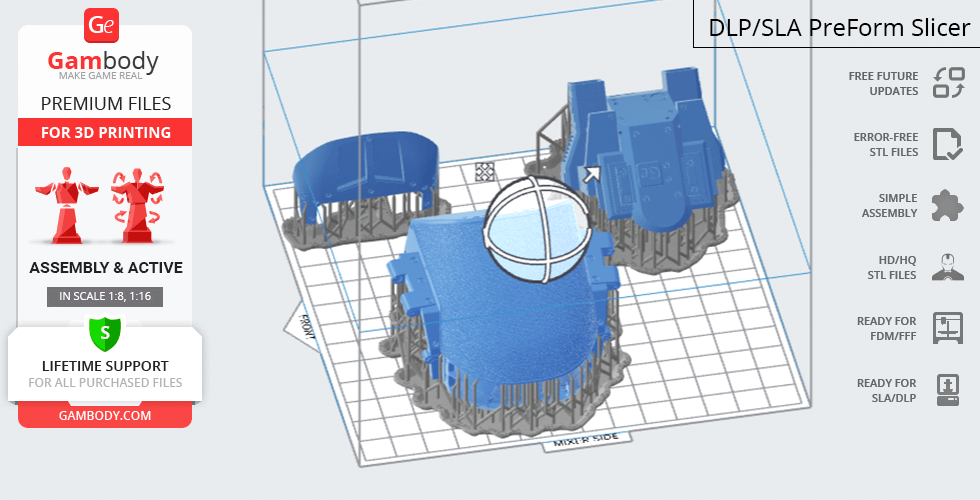

DLP/SLA/SLS 1.0 version features:
- Contains 27 parts;
- A printed model is 154 mm tall, 139 mm wide, 140 mm deep;
- Made with special joints to ensure the model's articulation;

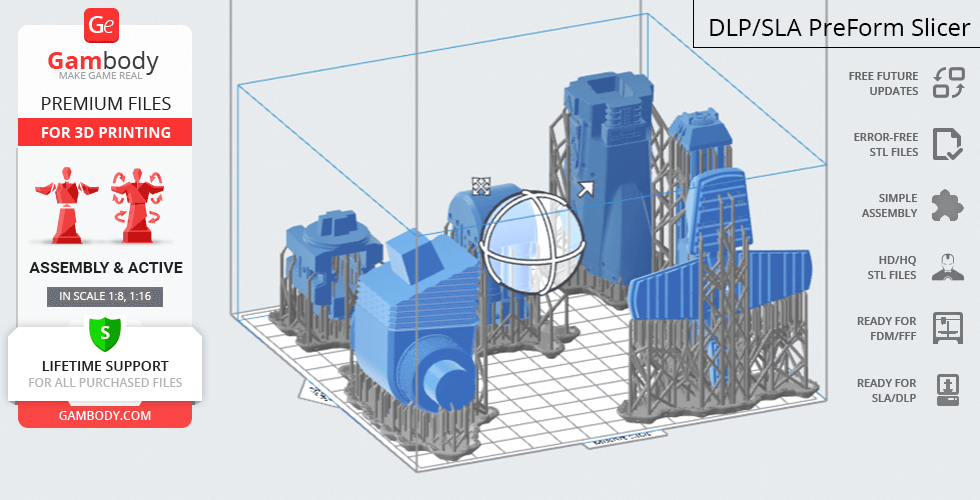

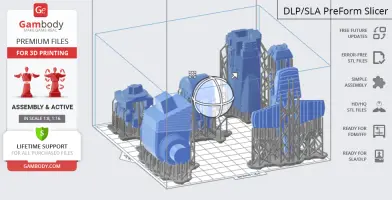

- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.
WHAT WILL YOU GET AFTER PURCHASE?

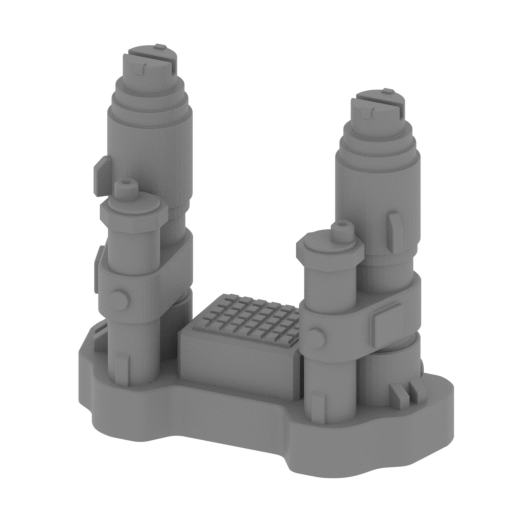

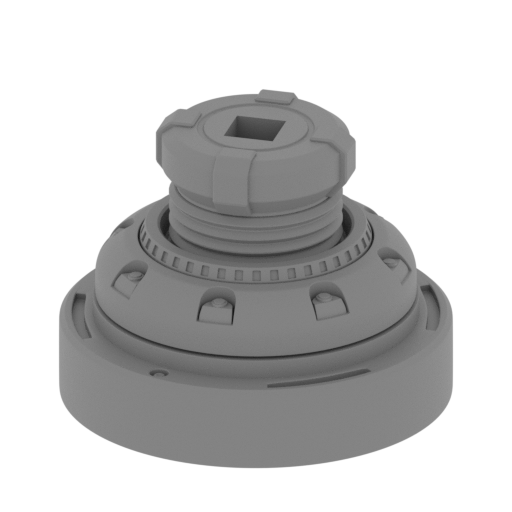

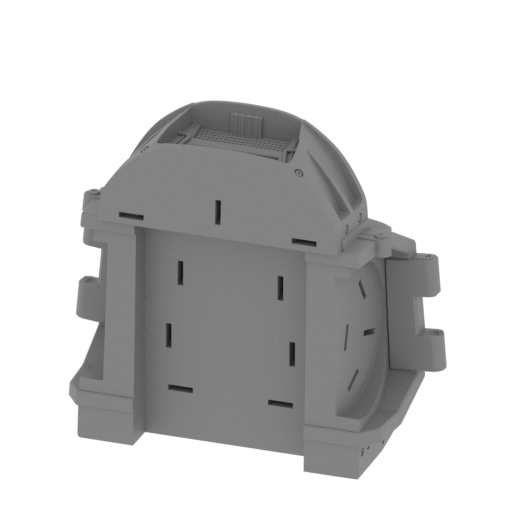

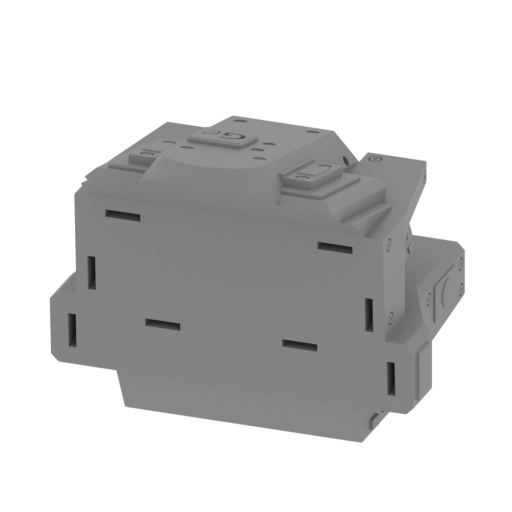

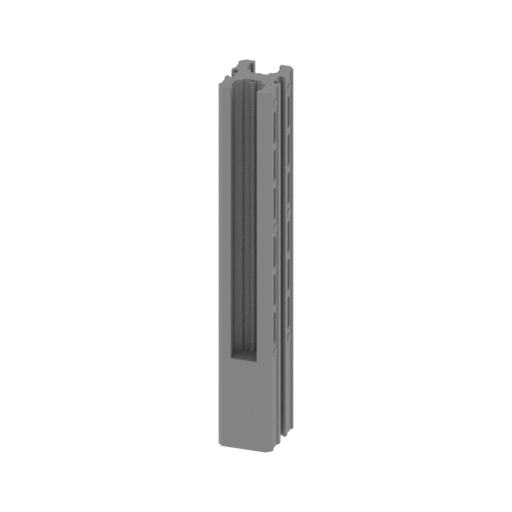

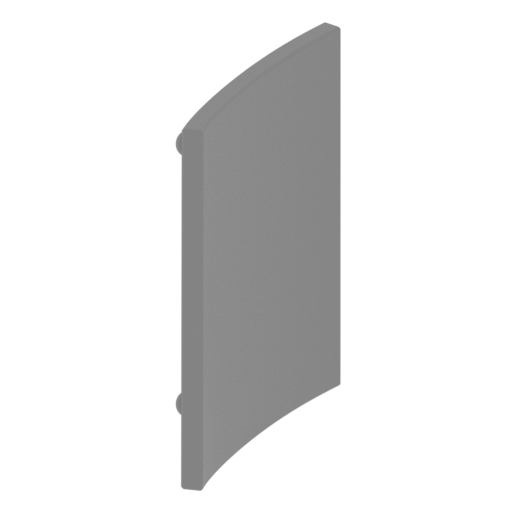

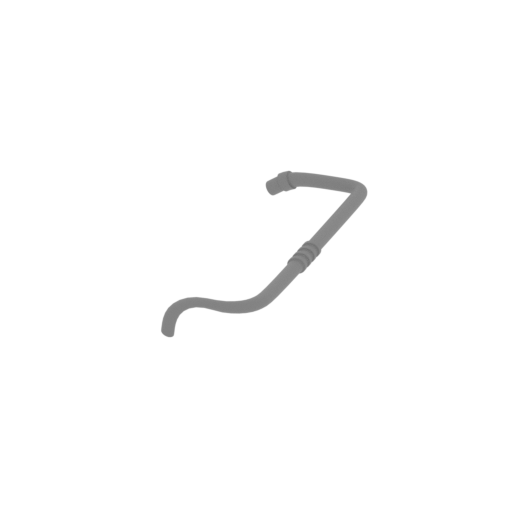

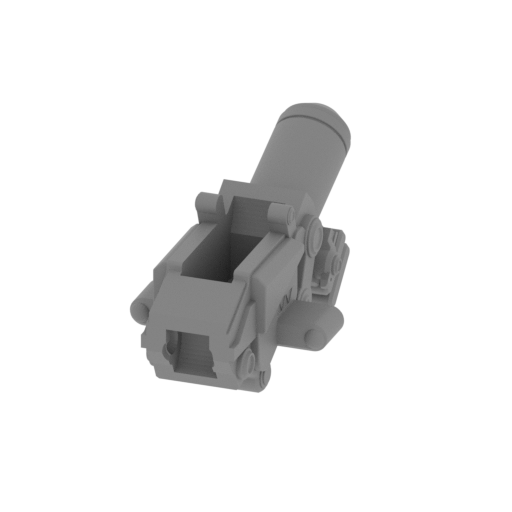

- STL files of ED-209 (1987) 3D Printing Model which consist of 89 parts;
- 2 versions of files of this model for FFF/FDM and DLP/SLA/SLS printers;
- High-poly detailed model of ED-209 (1987);
- Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format;

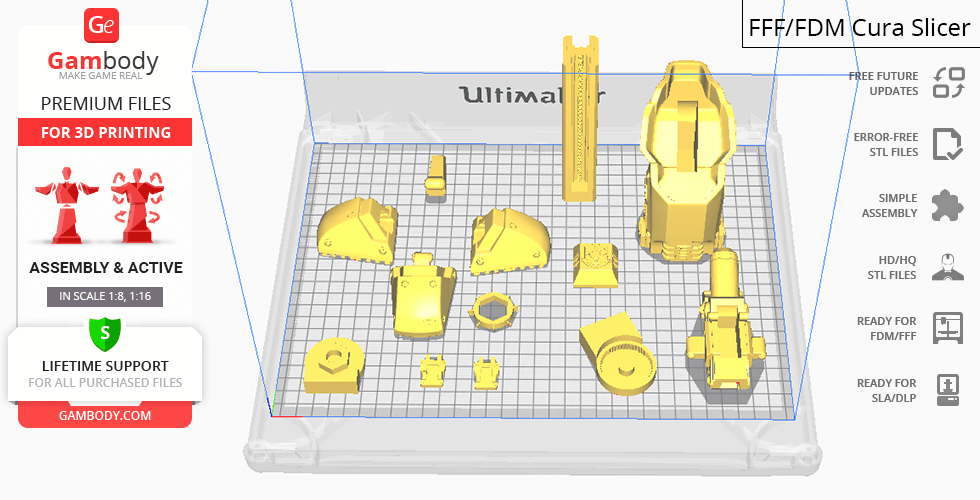

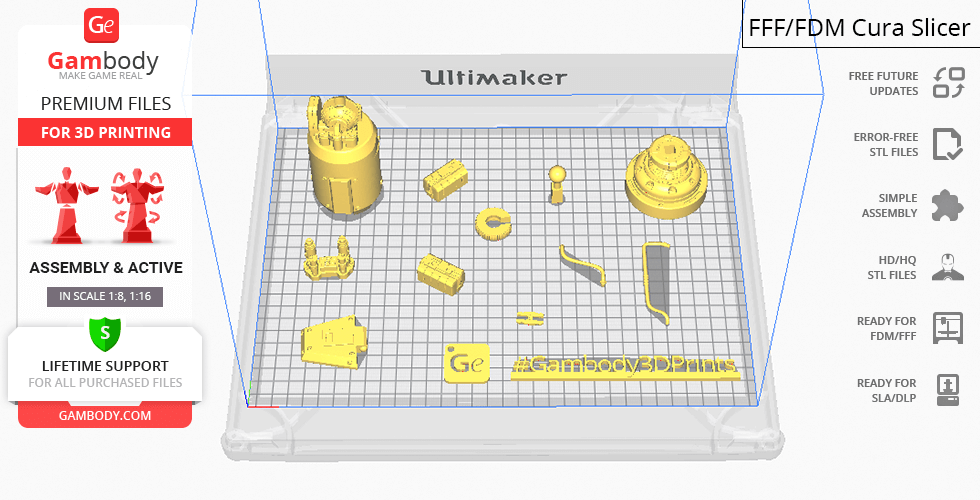

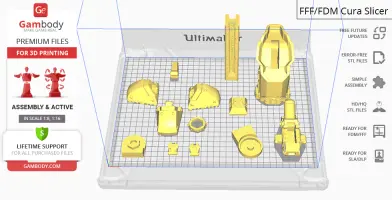

- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.
You can get the model of ED-209 (1987) for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.
Watch the tutorial on how to assemble ED-209 (1987) 3D Printing Model at Gambody YouTube channel.
Also, you may like ED-209 (2014)3D Printing Model as well as other Robot 3D Printing Models.
_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?
Average customer rating (15 reviews)
4.6
Ratings breakdown
Click a star rating to filter reviews
Overall experience
Level of detail in the model
4.6
Model cut quality and assembly guide
4.5
Clarity and accuracy of the model page
4.6
Level of detail in the model
4.3
Model cut quality and assembly guide
4
Clarity and accuracy of the model page
4.5
Verified purchase
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Verified purchase Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Verified purchase Level of detail in the model
4
Model cut quality and assembly guide
4
Clarity and accuracy of the model page
4
This feedback is from a user who hasn't purchased this model Level of detail in the model
3
Model cut quality and assembly guide
3
Clarity and accuracy of the model page
3
Verified purchase Level of detail in the model
2
Model cut quality and assembly guide
2
Clarity and accuracy of the model page
2
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Verified purchase Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Community Support Team To avoid printing issues and achieve the best quality, we highly recommend applying the following settings:
Generic
Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.
Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.
Note:
You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
All connectors should be printed at 100% Infill.
Bambu Lab printing recommendations:
These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.
To avoid printing problems, we recommend the following settings:download
Cura printing recommendations:

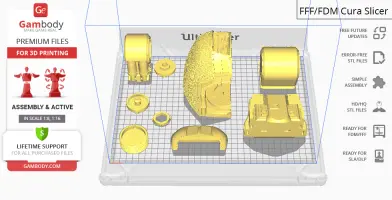

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.
To avoid printing problems, we recommend the following settings:download
Simplify3D printing recommendations:
These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.
To avoid printing problems, we recommend the following settings:download
Slic3r printing recommendations:
These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.
To avoid printing problems, we recommend the following settings:download
PrusaSlicer printing recommendations:
These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.
To avoid printing problems, we recommend the following settings:download
