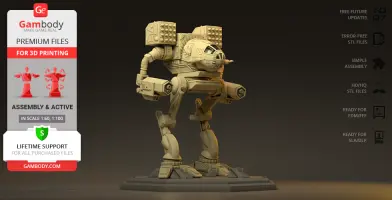

Mad Cat Classic Mech 3D Printing Model | Assembly + Action

(7)
cm: 16.1 w x 11.7 d x 21.7 h
in: 6.339 w x 4.606 d x 8.543 h

Source Files

|

Description

|

Printing Details

This 3D Model of MadCat Classic Mech consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of MadCat Classic Mech STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly MadCat Classic Mech 3D Model for 3D printing consist of 103 files;
  • Sizes for:

FFF/FDM: 217 mm tall, 161 mm wide, 117 mm deep;

FFF/FDM on the platform: 233 mm tall, 229 mm wide, 229 mm deep;

DLP/SLA: 130 mm tall, 97 wide, 70 mm deep;

DLP/SLA on the platform: 138 mm tall, 132 wide, 133 mm deep

  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

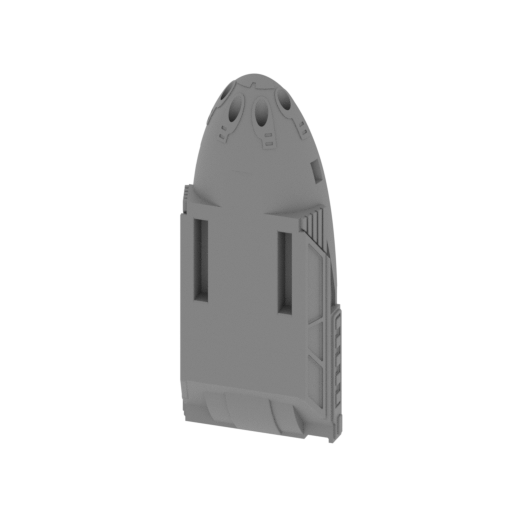

_01_bodyPart_a_FDM (repai red).stl
4.26 MiB 7 h 36 min 4 m 48 x 23 x 112 Download
_02_bodyPart_b_FDM (repai red).stl

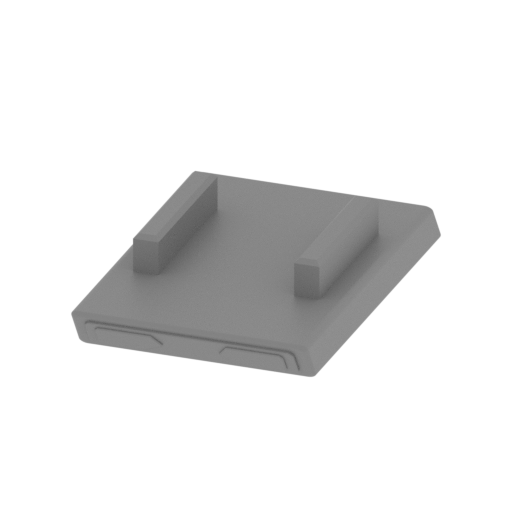

0.24 MiB 1 h 52 min 1 m 38 x 58 x 13 Download
_03_bodyPart_c_FDM (repai red).stl
1.69 MiB 7 h 58 min 5 m 52 x 39 x 47 Download

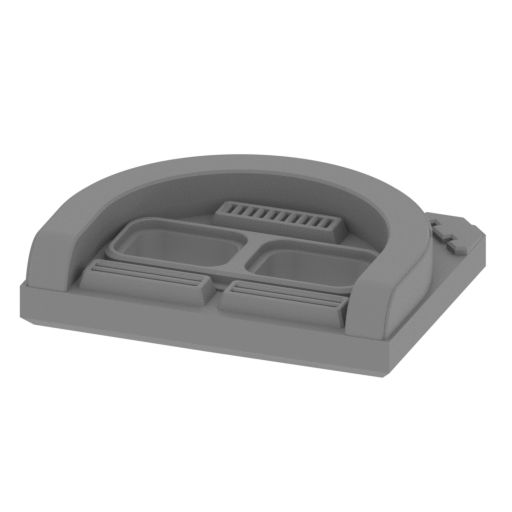

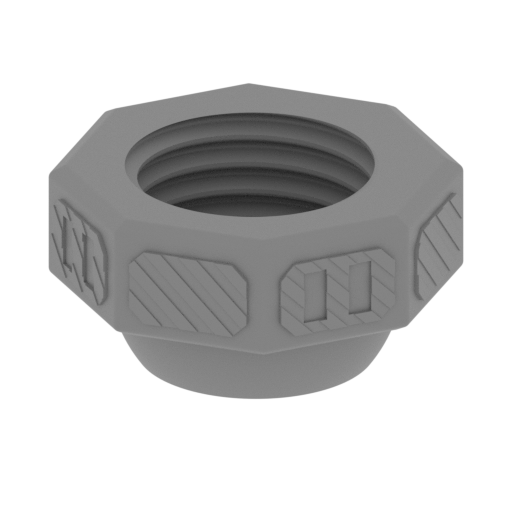

_04_batteryCap_FDM (repai red).stl
0.49 MiB 1 h 32 min 1 m 46 x 34 x 11 Download

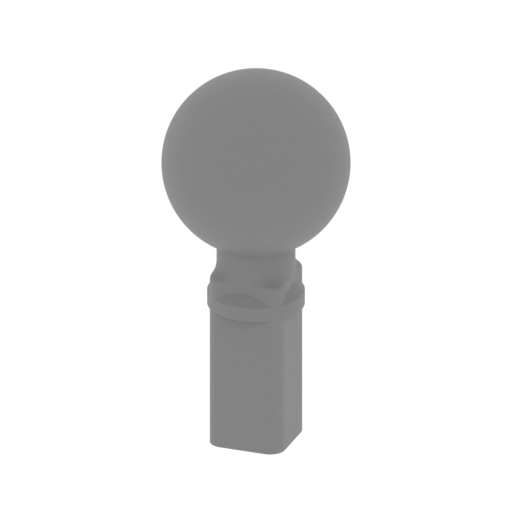

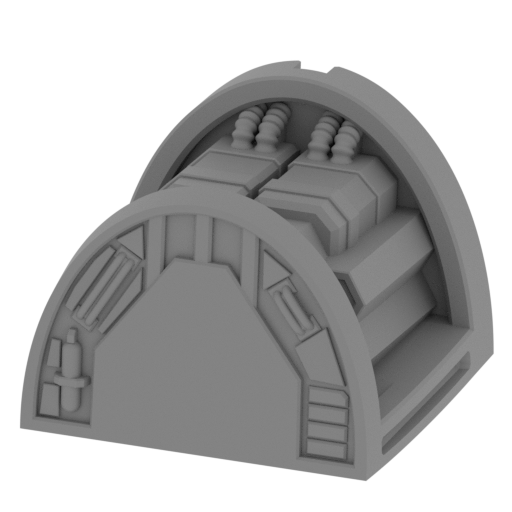

_07_cockpitDecorPart_FDM (repaired).stl
7.45 MiB 2 h 21 min 1 m 36 x 33 x 26 Download

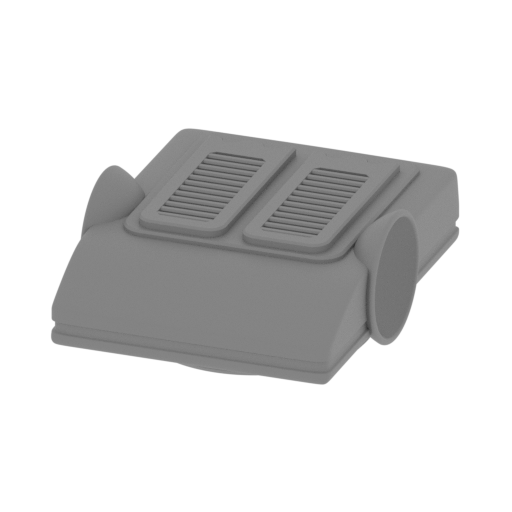

_08_pelvis_FDM (repaired) .stl
6.62 MiB 4 h 33 min 3 m 46 x 58 x 23 Download

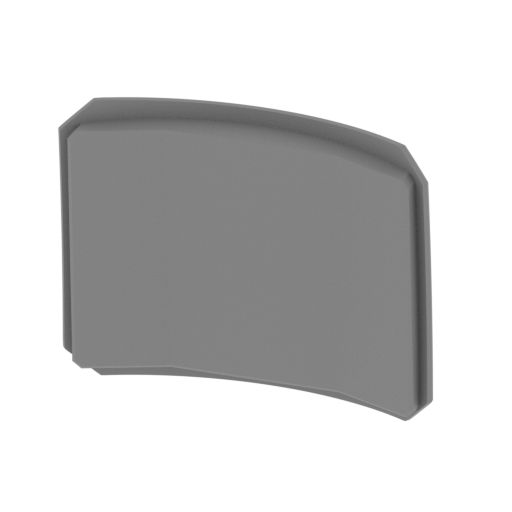

_10_cokcpitCapPart_b_FDM (repaired).stl
0.25 MiB 16 min <1 m 22 x 6 x 17 Download

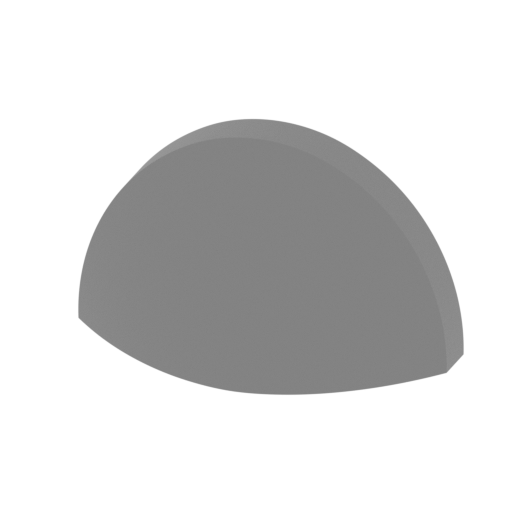

_11_cockpitGlass_a_FDM (r epaired).stl
1.80 MiB 6 min <1 m 15 x 5 x 9 Download

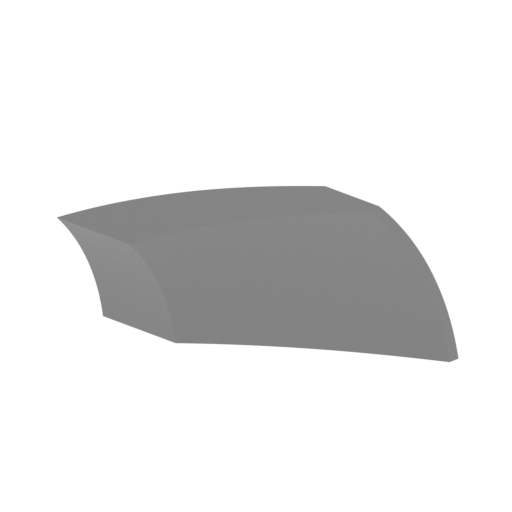

_12_cockpitGlass_b_L_FDM (repaired).stl
0.20 MiB 9 min <1 m 20 x 8 x 10 Download

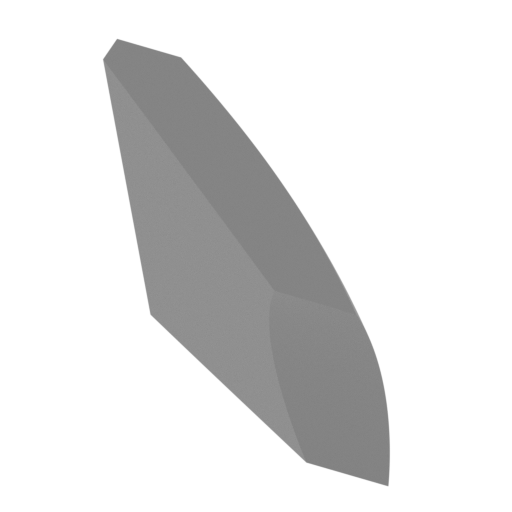

_13_cockpitGlass_d_Mid_FD M (repaired).stl
0.13 MiB 10 min <1 m 14 x 14 x 12 Download

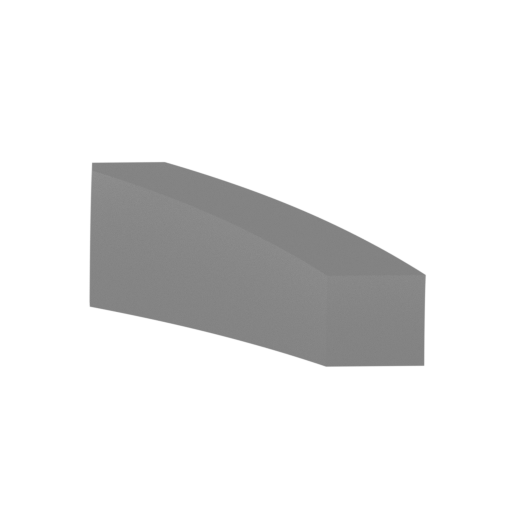

_14_cockpitGlass_c_R_FDM (repaired).stl
0.20 MiB 9 min <1 m 20 x 8 x 10 Download

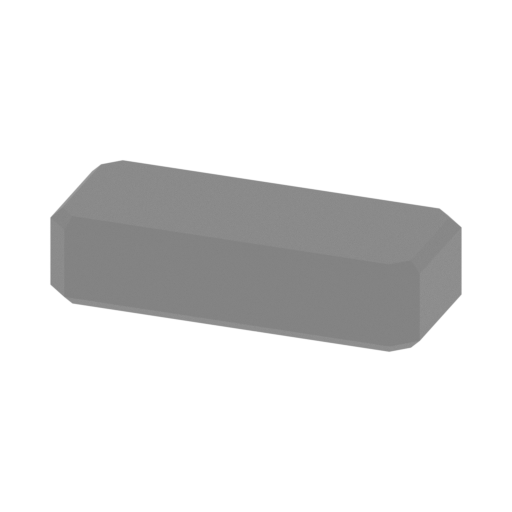

_15_cockpitDashboardGlass _b_FDM (repaired).stl
0.01 MiB 2 min <1 m 8 x 3 x 2 Download

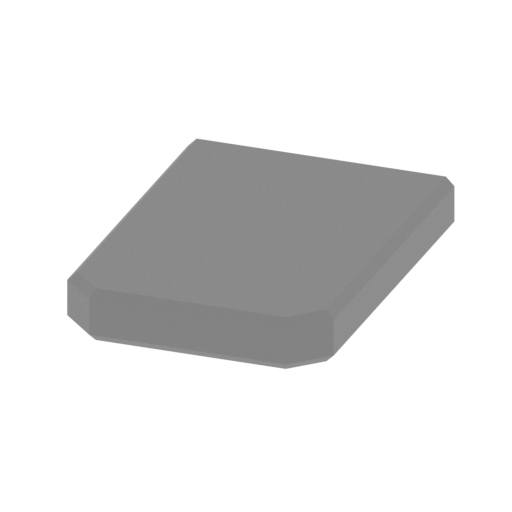

_16_cockpitDashboardGlass _a_FDM (repaired).stl
0.01 MiB 2 min <1 m 6 x 8 x 1 Download

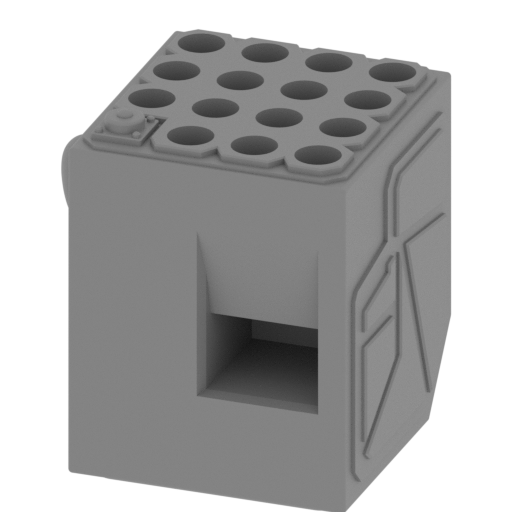

_18_rocketlauncher_R_FDM (repaired).stl
2.95 MiB 3 h 49 min 2 m 33 x 33 x 39 Download

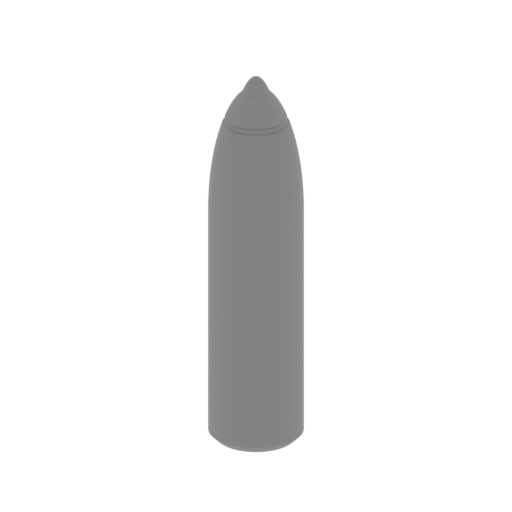

_19_rocket_X30_FDM (repai red).stl
0.80 MiB 7 min <1 m 4 x 4 x 18 Download

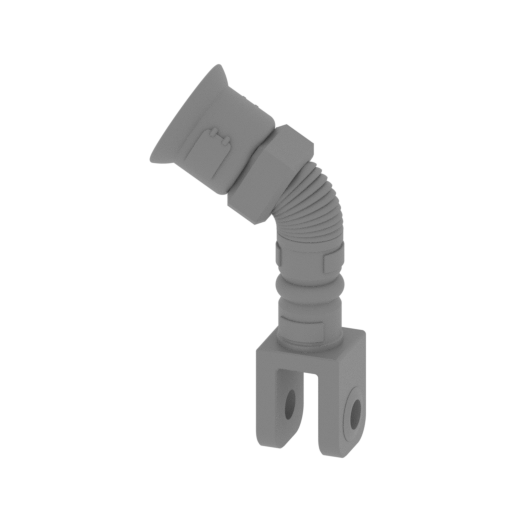

_20_arm_X2_FDM (repaired) .stl
3.94 MiB 1 h 44 min 1 m 29 x 17 x 54 Download

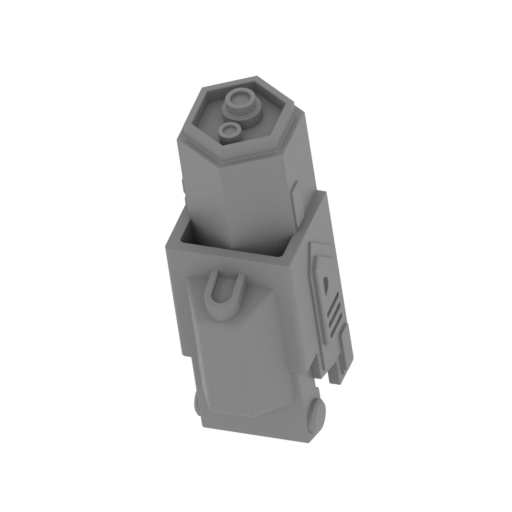

_21_armGun_a_L_FDM (repai red).stl
0.66 MiB 3 h 13 min 2 m 24 x 37 x 65 Download

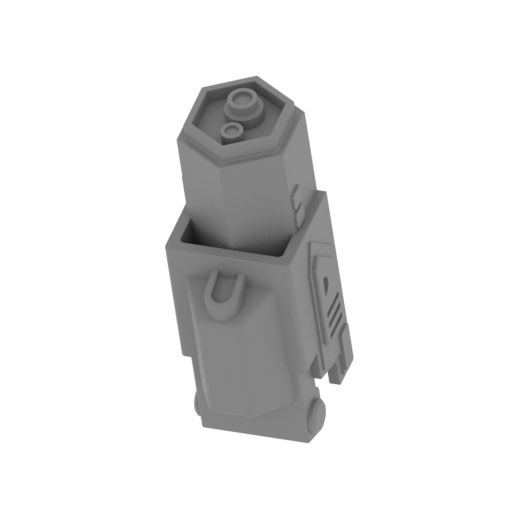

_22_armGun_b_R_FDM (repai red).stl
0.66 MiB 3 h 15 min 2 m 24 x 37 x 65 Download

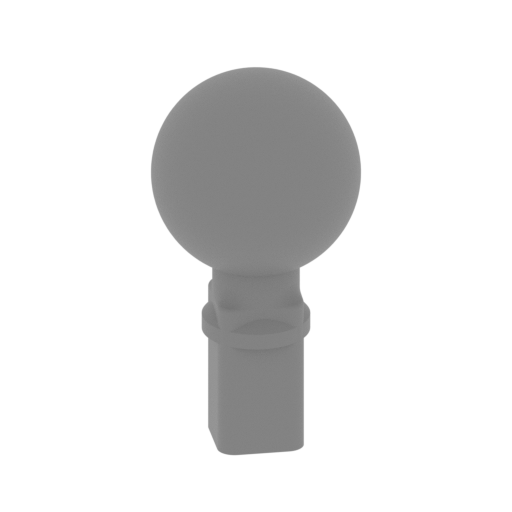

_23_shoulderPaert_a_X2_FD M (repaired).stl
0.86 MiB 17 min <1 m 10 x 10 x 18 Download
_24_shoulderPaert_b_X2_FD M (repaired).stl
3.64 MiB 17 min <1 m 18 x 18 x 10 Download

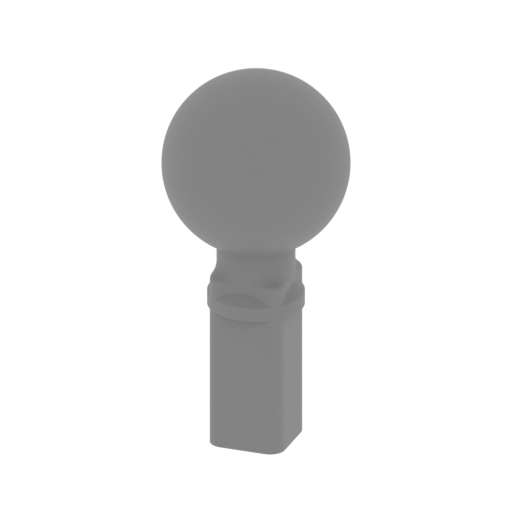

_25_pelvisConnector_a_X2_ FDM (repaired).stl
1.01 MiB 25 min <1 m 11 x 11 x 24 Download
_26_pelvisConnector_b_X2_ FDM (repaired).stl
4.68 MiB 45 min <1 m 25 x 25 x 13 Download

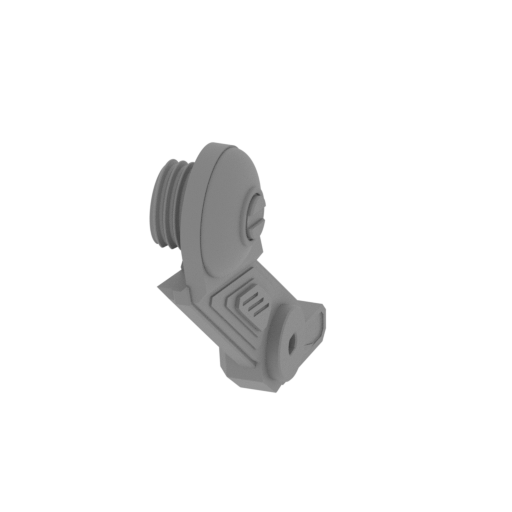

_27_leg_R_FDM (repaired). stl
5.71 MiB 3 h 22 min 2 m 19 x 72 x 63 Download

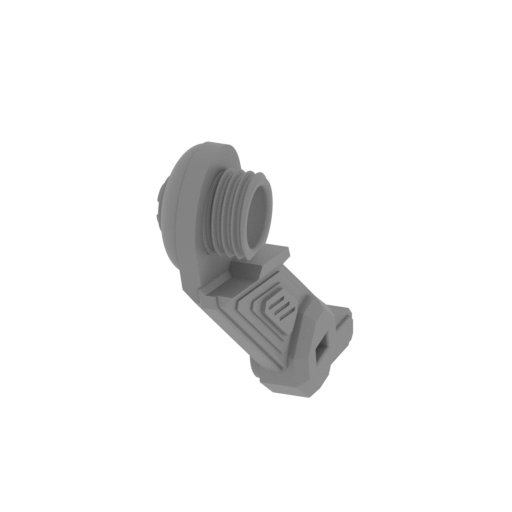

_28_leg_L_FDM (repaired). stl
5.68 MiB 3 h 22 min 2 m 19 x 72 x 63 Download

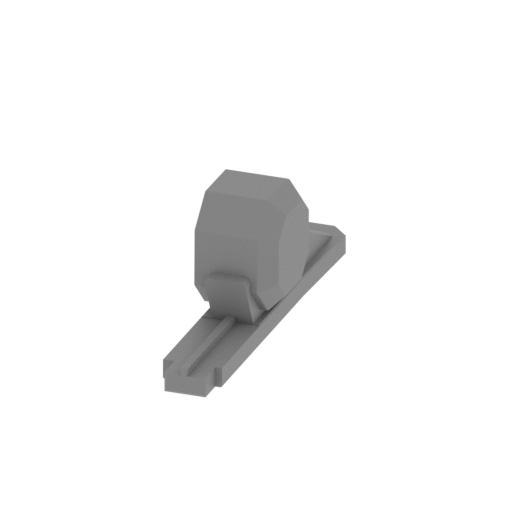

_29_legPart_a_L_FDM (repa ired).stl
0.48 MiB 55 min 1 m 12 x 57 x 23 Download

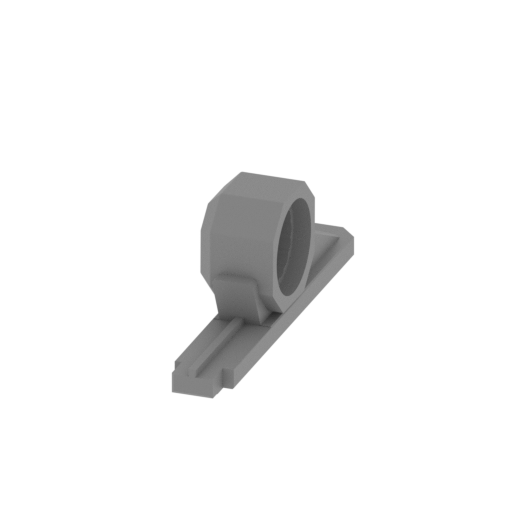

_30_legPart_b_R_FDM (repa ired).stl
0.48 MiB 55 min 1 m 12 x 57 x 23 Download
_31_legPart_c_X2_FDM (rep aired).stl
2.64 MiB 17 min <1 m 12 x 32 x 9 Download
_33_footConnector_a_X2_FD M (repaired).stl
1.20 MiB 31 min <1 m 14 x 14 x 29 Download

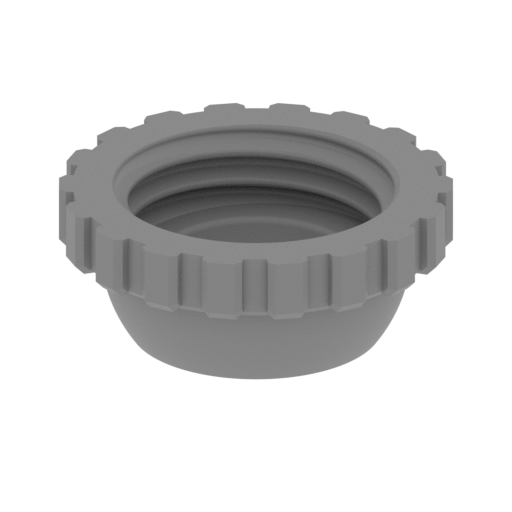

_34_footConnector_b_X2_FD M (repaired).stl
3.67 MiB 46 min <1 m 29 x 29 x 12 Download

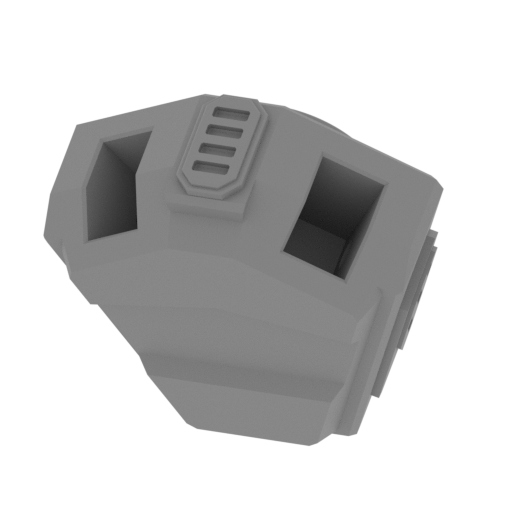

_35_foot_X2_FDM (repaired ).stl
2.97 MiB 2 h 11 min 1 m 36 x 30 x 36 Download

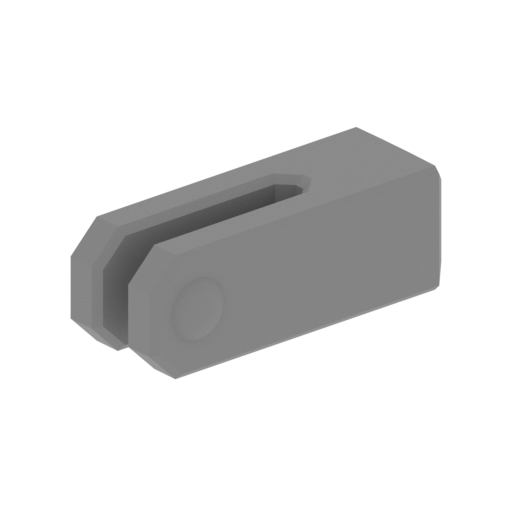

_36_footFingerPin_X6_FDM (repaired).stl
0.10 MiB 7 min <1 m 13 x 17 x 6 Download

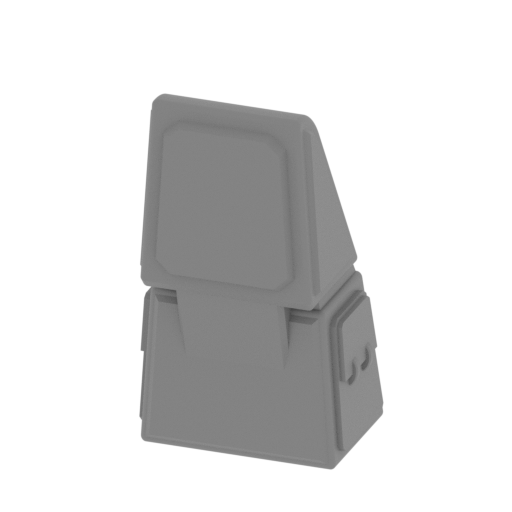

_37_footFinger_X6_FDM (re paired).stl
0.40 MiB 41 min <1 m 18 x 15 x 30 Download

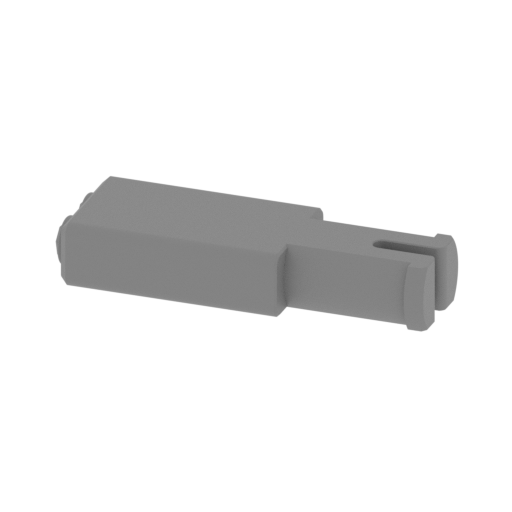

_38_kneePin_X2_FDM (repai red).stl
0.24 MiB 4 min <1 m 16 x 6 x 3 Download

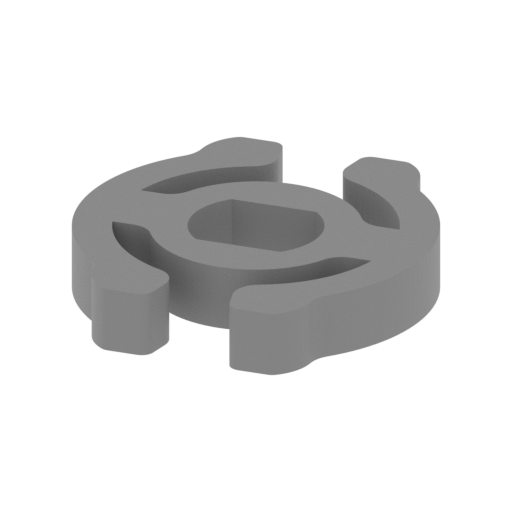

_39_kneeConnector_X2_FDM (repaired).stl
0.13 MiB 6 min <1 m 11 x 12 x 2 Download

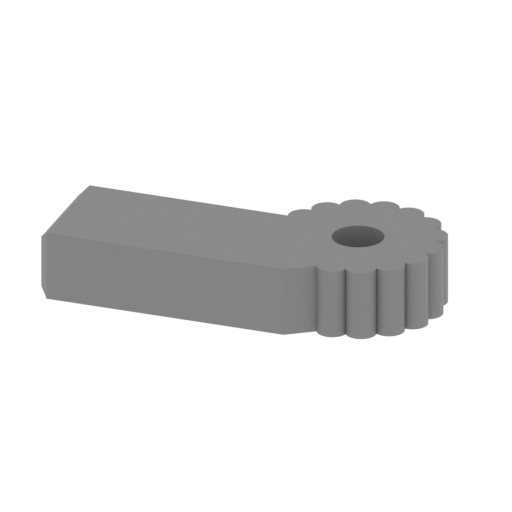

_40_armGunConnector_X2_FD M (repaired).stl
0.37 MiB 17 min <1 m 32 x 15 x 6 Download

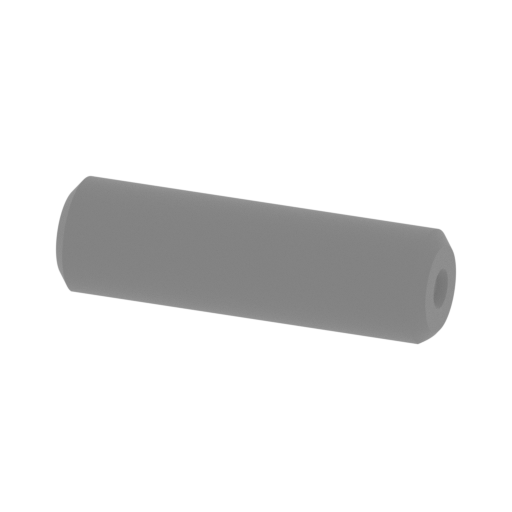

_41_armAxis_X2_FDM (repai red).stl
0.12 MiB 4 min <1 m 13 x 4 x 4 Download

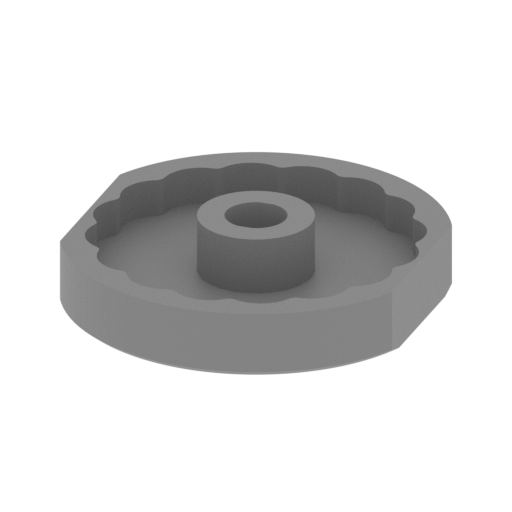

_42_pelvisConnectorPart_a _FDM (repaired).stl
0.15 MiB 22 min <1 m 23 x 25 x 6 Download

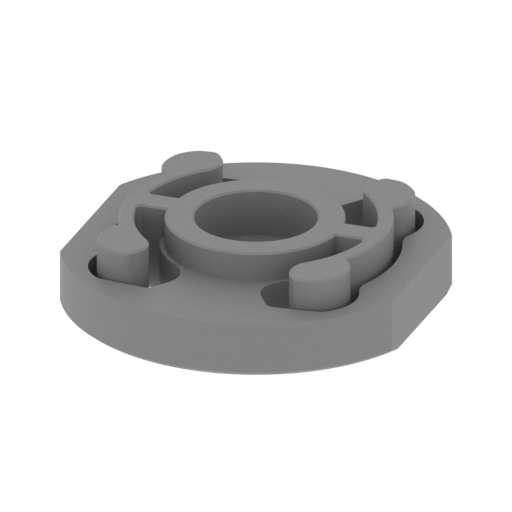

_43_pelvisConnectorPart_b _FDM (repaired).stl
0.26 MiB 32 min <1 m 23 x 25 x 6 Download

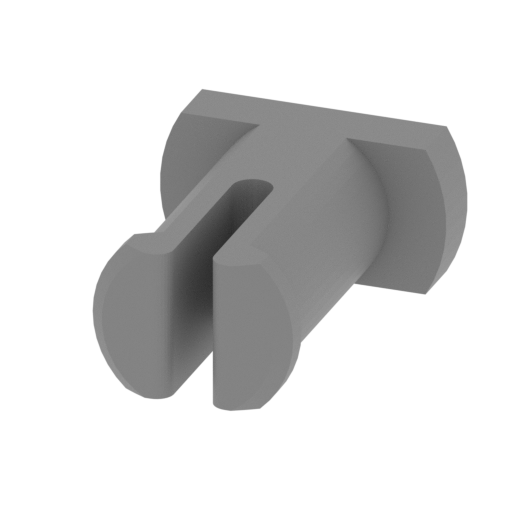

_44_pelvisConnectorPart_c _FDM (repaired).stl
0.04 MiB 3 min <1 m 6 x 8 x 3 Download

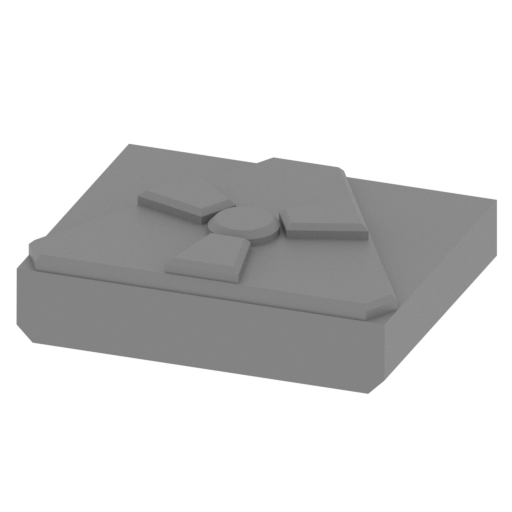

_45_decorTailXray_FDM (re paired).stl
0.05 MiB 2 min <1 m 7 x 6 x 2 Download

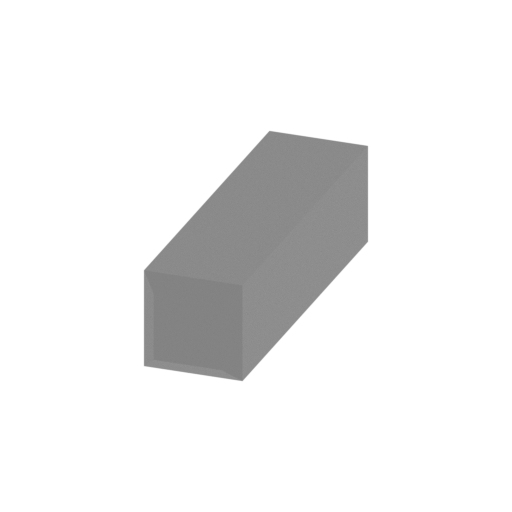

_46_pinV1_X4_FDM (repaire d).stl
0.00 MiB 4 min <1 m 4 x 15 x 4 Download

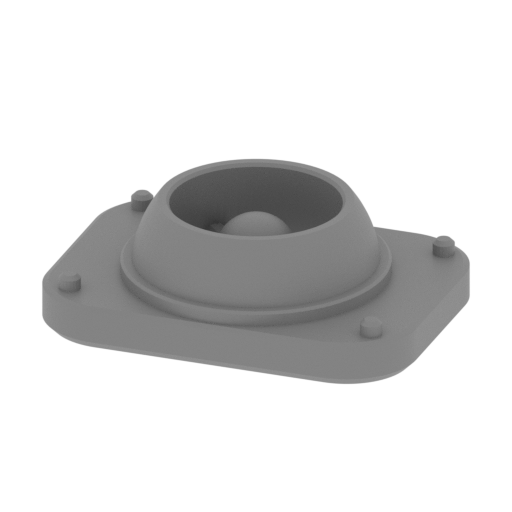

_47_engineExhaust_X2_FDM (repaired).stl
0.41 MiB 7 min <1 m 14 x 10 x 4 Download

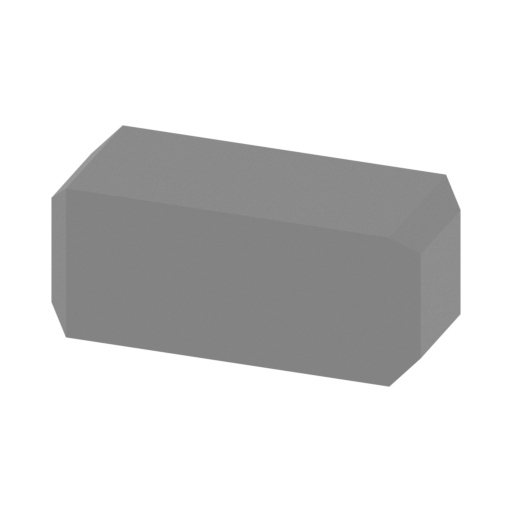

_48_shoulderPin_X2_FDM (r epaired).stl
0.01 MiB 16 min <1 m 23 x 10 x 10 Download

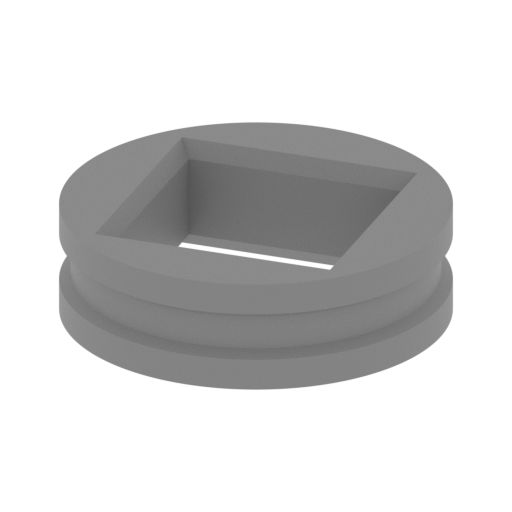

_49_shoulderPart_a_X2_FDM (repaired).stl
0.18 MiB 11 min <1 m 17 x 17 x 5 Download

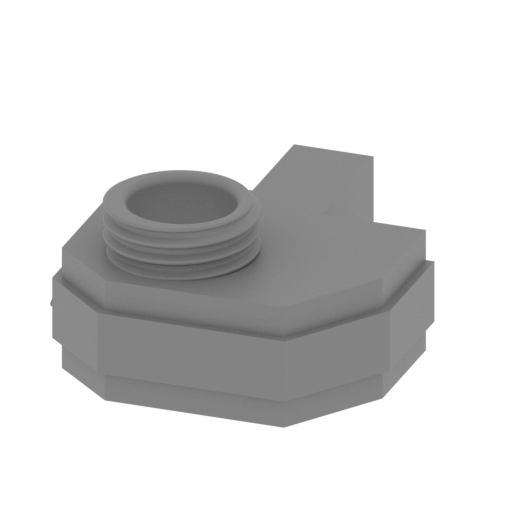

_50_shoulderPart_a_FDM (r epaired).stl
2.32 MiB 1 h 2 min 1 m 31 x 35 x 16 Download

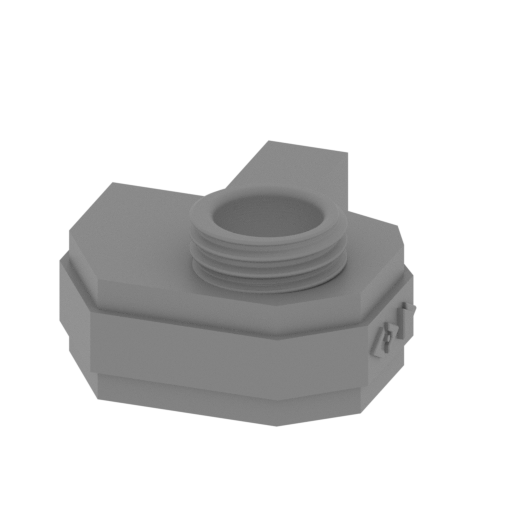

_51_shoulderPart_b_FDM (r epaired).stl
2.32 MiB 1 h 1 min 1 m 31 x 35 x 16 Download

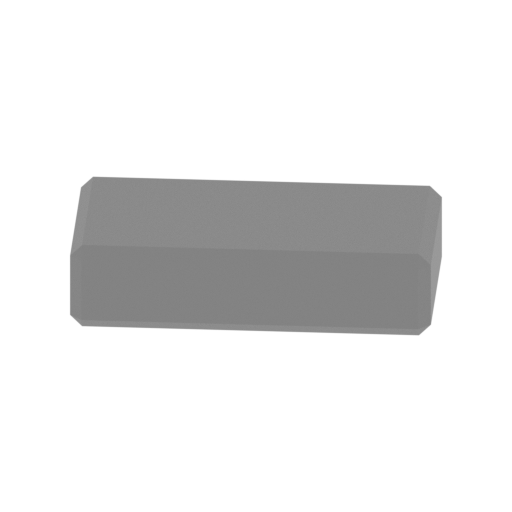

_52_gunV2Pin_X2_FDM (repa ired).stl
0.01 MiB 4 min <1 m 13 x 9 x 3 Download

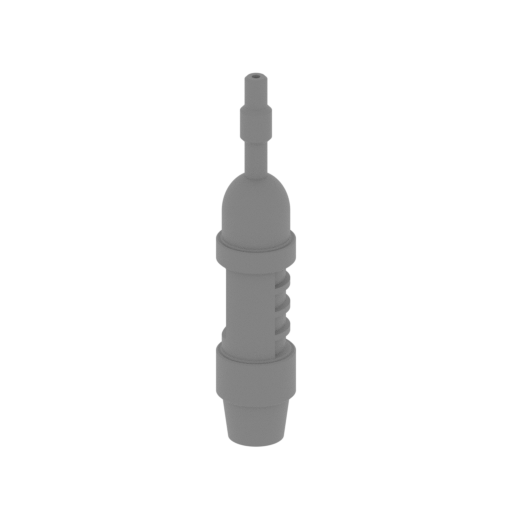

_53_gun_V2_a_L_FDM (repai red).stl
0.57 MiB 21 min <1 m 7 x 7 x 34 Download
_54_gun_V2_b_R_FDM (repai red).stl
0.57 MiB 21 min <1 m 7 x 7 x 34 Download
_55_gun_V1_X4_FDM (repair ed).stl
0.14 MiB 2 min <1 m 3 x 3 x 10 Download

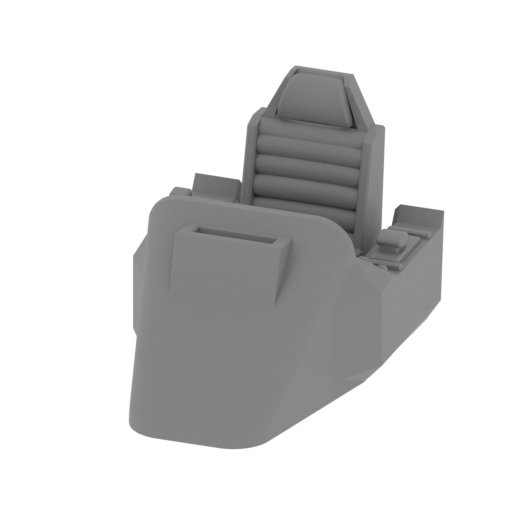

_56_cockpit_FDM (repaired ).stl
1.58 MiB 52 min <1 m 20 x 30 x 18 Download
_57_standPin_X4_FDM (repa ired).stl
0.00 MiB 36 min <1 m 50 x 15 x 7 Download

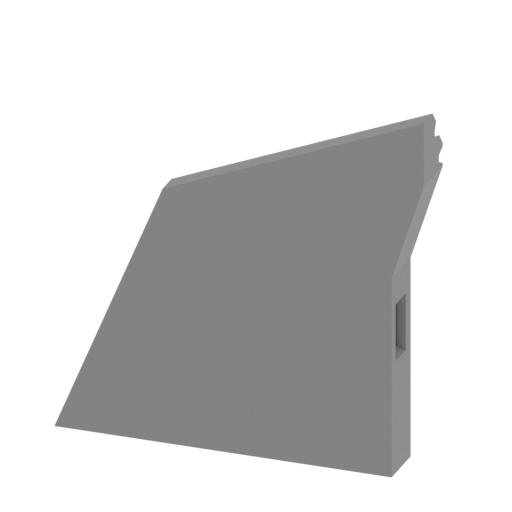

_58_standPart_a_FDM (repa ired).stl
0.04 MiB 11 h 25 min 7 m 115 x 28 x 114 Download

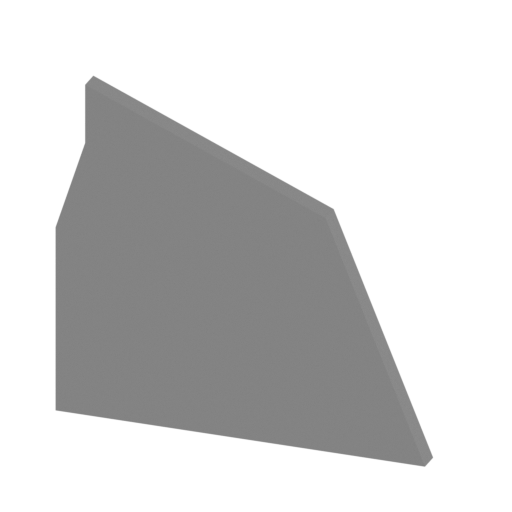

_59_standPart_b_FDM (repa ired).stl
0.05 MiB 14 h 16 min 8 m 124 x 29 x 114 Download

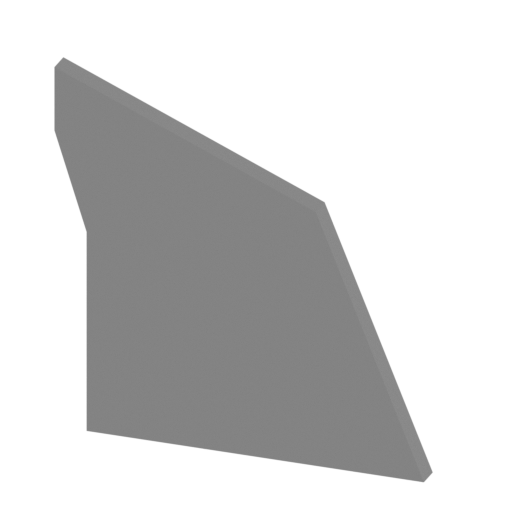

_60_standPart_c_FDM (repa ired).stl
0.04 MiB 11 h 33 min 7 m 115 x 28 x 114 Download
_61_standPart_d_FDM (repa ired).stl
0.05 MiB 13 h 60 min 8 m 124 x 29 x 114 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

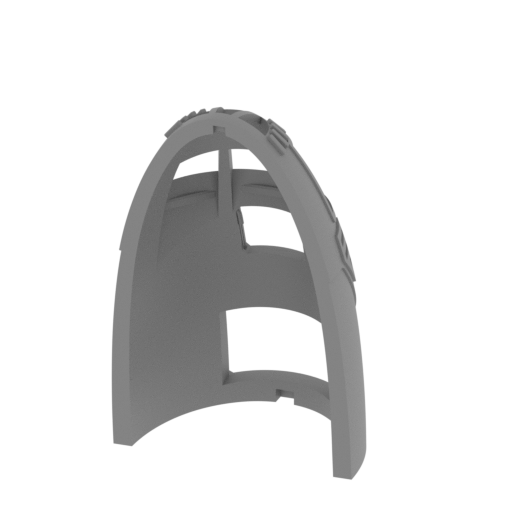

_05_cokcpitCapClear_FDM ( repaired).stl
5.04 MiB 3 h 11 min 2 m 43 x 36 x 67 Download

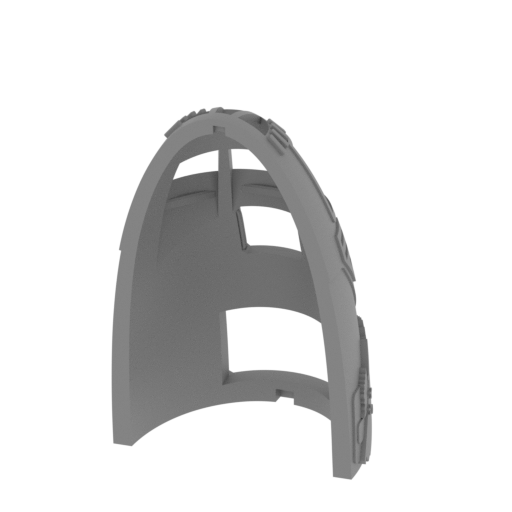

_06_cokcpitCapWithLogo_FD M (repaired).stl
6.30 MiB 3 h 22 min 2 m 45 x 36 x 67 Download

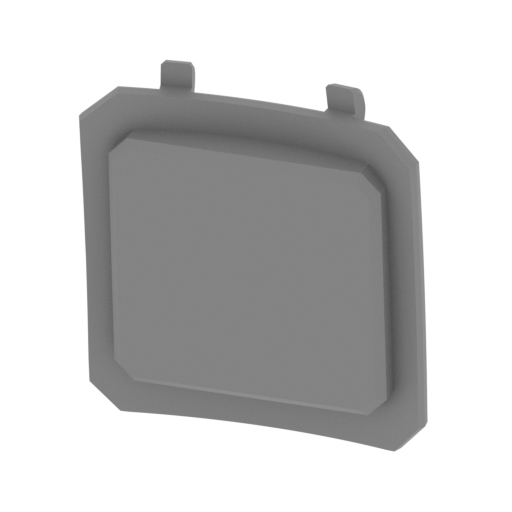

_09_cokcpitCapPart_a_FDM (repaired).stl
0.16 MiB 11 min <1 m 14 x 3 x 15 Download

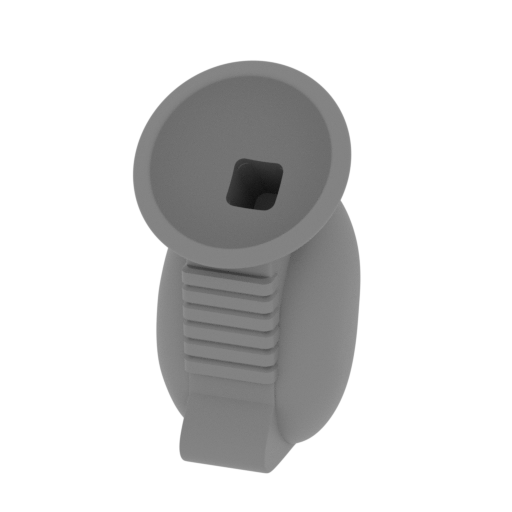

_32_legPart_d_X2_FDM (rep aired).stl
8.29 MiB 1 h 54 min 1 m 26 x 29 x 46 Download

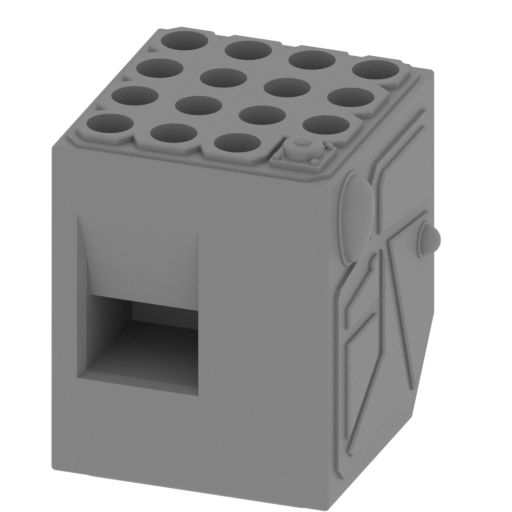

_17_rocketlauncher_L_FDM (repaired).stl
2.92 MiB 3 h 51 min 2 m 33 x 33 x 39 Download
...

ABOUT THIS 3D MODEL

MadCat is a fast heavy MechWarrior that was first introduced in 2945 as a representative of the OmniMech Clan. Its design is so remarkable and distinctive that it has eventually become emblematic of the BattleTech universe in general. Though its official name is Timber Wolf, the deadly Mech is widely known as MadCat bearing a certain resemblance both to Marauder (Mad) and Catapult (Cat). The first time the nickname was designated to the Mech was when Inner Sphere’s targeting computer couldn’t identify it between the two. MadCat is actually much more powerful than both MechWarriors. Hardly had it been created when Clan Wolf as well as any other Clan immediately understood its great value. Timber Wolf can boast an impressive combination of energy and missile weaponry that guarantees considerable firepower during the hottest of confrontations.

The new MadCat model was designed by another 3D artist and is completely reworked. The model has canonical design configurations, a detailed interior with a pilot's seat, optional glass or plastic windows and tunnels for LED wiring to lighten-up engines and cockpit. The articulation of the MadCat Classic Mech is provided by new, more secure, and durable joints. MadCat Classic Mech will steal the heart of every BattleMech fan!

ADAPTATION FOR 3D PRINTING

MadCat Classic Mech for 3D printing is a fully active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 47 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the Mech was divided into convenient assembly parts.

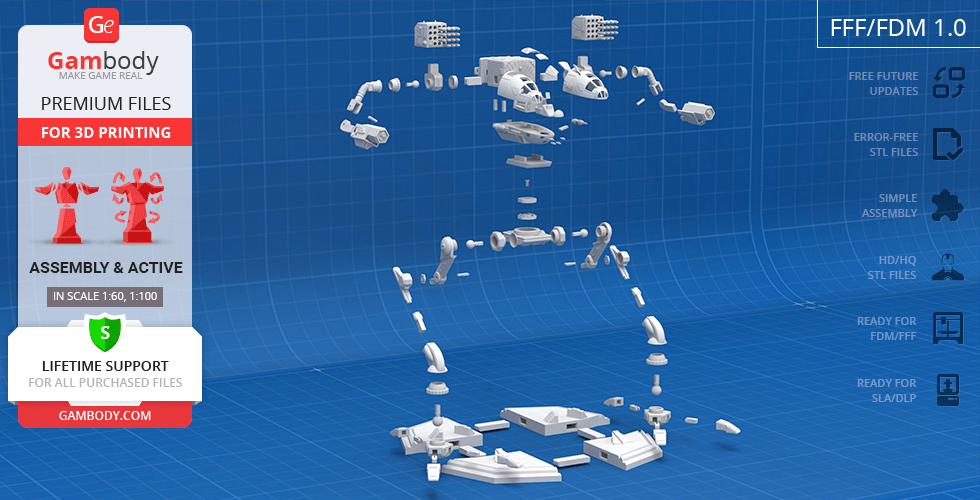

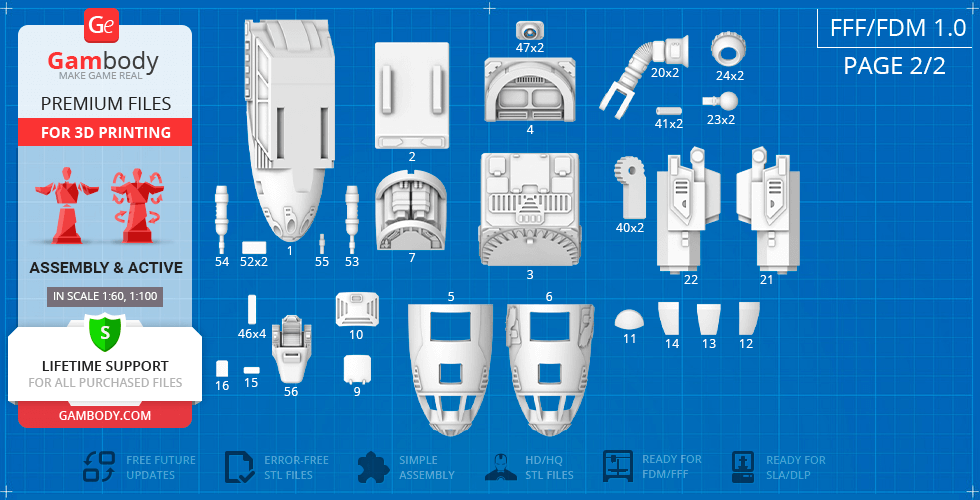

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the MadCat Classic Mech model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of the MadCat Classic Mech which is 12600 mm. The 3D printing model’s chosen scales are 1:60 for the FFF/FDM version and 1:100 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.0 version features:

  • Contains 61 parts;
  • A printed model is 217 mm tall, 161 mm wide, 117 mm deep;
  • A printed model on the platform is 233 mm tall, 229 mm wide, 229 mm deep;
  • Detailed cockpit interior and missile compartment;
  • Optional glass or plastic windows;
  • Articulated toes;

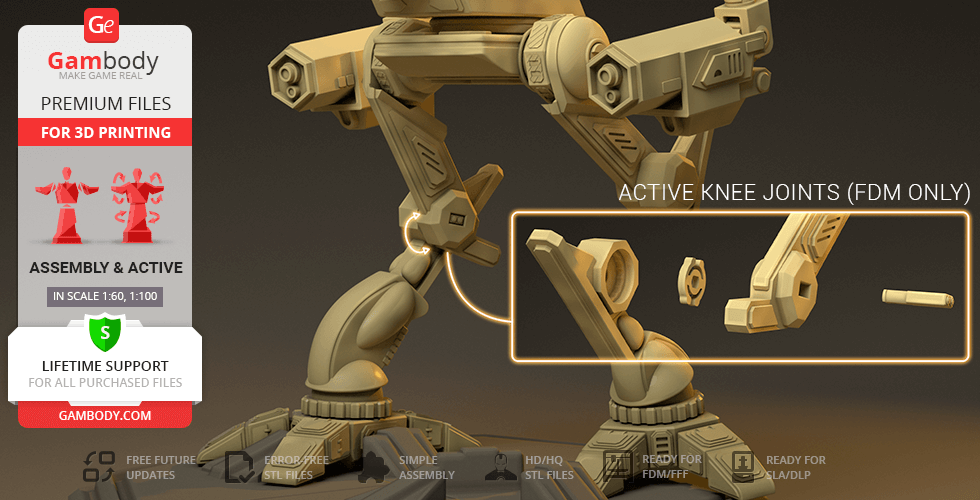

  • Knees bend, ankle joints move freely;
  • Active hip joints;
  • Rotating torso;
  • Battery compartment hidden under the back cover;
  • Removable cap to access the cockpit;
  • Removable cap to access missile compartment;
  • Two cockpit cover options: with and without the emblem;
  • Detachable missiles system;
  • Tunnels for LED wiring are provided to the cockpit and the back of the engine;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:

  • Contains 42 parts;
  • A printed model is 130 mm tall, 97 wide, 70 mm deep;
  • A printed model on the platform is 138 mm tall, 132 wide, 133 mm deep;
  • Detailed cockpit interior and missile compartment;
  • Optional glass or plastic windows;
  • Articulated toes;
  • Knees bend, ankle joints move freely;
  • Active hip joints;
  • Rotating torso;
  • Battery compartment hidden under the back cover;
  • Removable cap to access the cockpit;
  • Removable cap to access missile compartment;
  • Two cockpit cover options: with and without the emblem;
  • Detachable missiles system;
  • Tunnels for LED wiring are provided to the cockpit and the back of the engine;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of MadCat Classic Mech for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the MadCat Classic Mech 3D Printing Model on Gambody YouTube channel.

Also, you may like the MWO Timber Wolf and Mad Cat MkII 3D Printing Models, and other Mech models and figurines for 3D Printing.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Comments
