Sentinel 3D Printing Model | Assembly + Action

(11)
cm: 33.9 w x 36 d x 35.9 h
in: 13.346 w x 14.173 d x 14.134 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

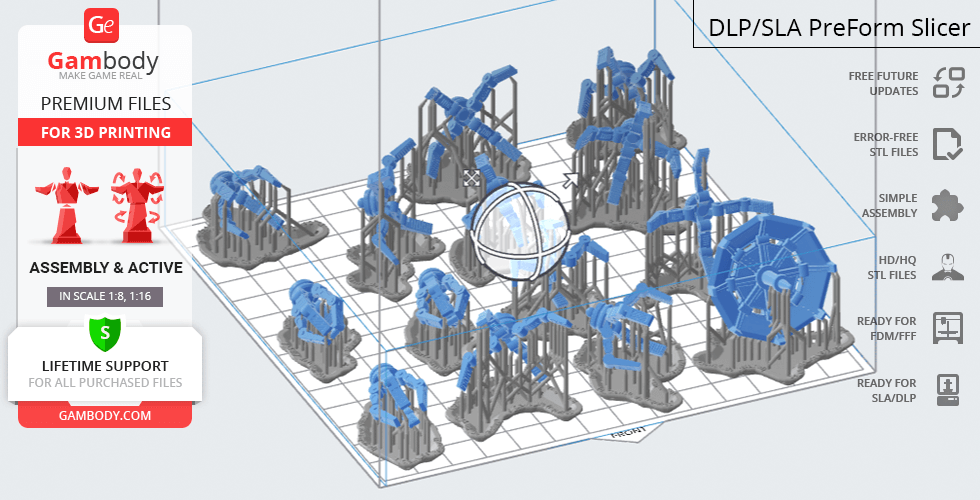

Sentinel 3D Printing Model comes in 2 versions for FFF/FDM and DLP/SLA/SLS 3D printers. STL files of all versions are available for download after purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

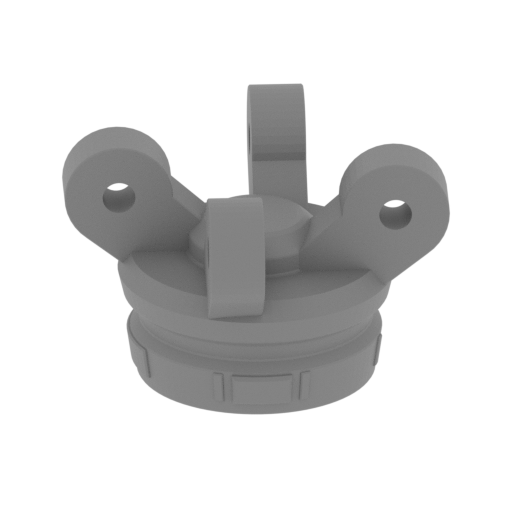

1_ClawBase_x13_fdm (repai red).stl
0.44 MiB 31 min <1 m 23 x 23 x 14 Download

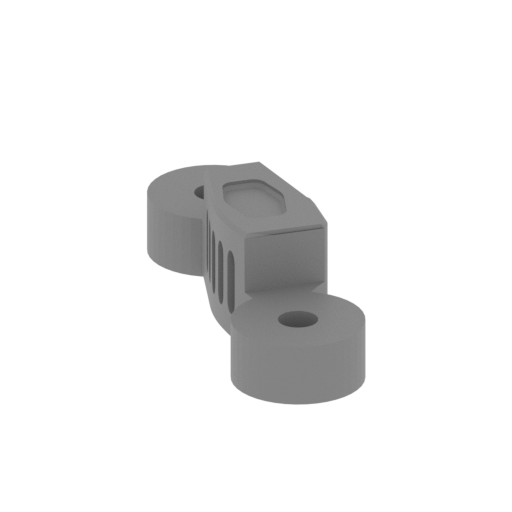

2_FingerB_x52_fdm (repair ed).stl
0.19 MiB 6 min <1 m 15 x 19 x 6 Download

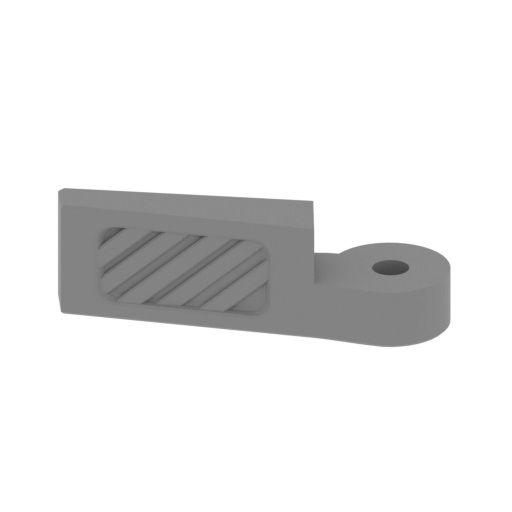

3_FingerA_x52_fdm (repair ed).stl
0.16 MiB 7 min <1 m 20 x 8 x 6 Download

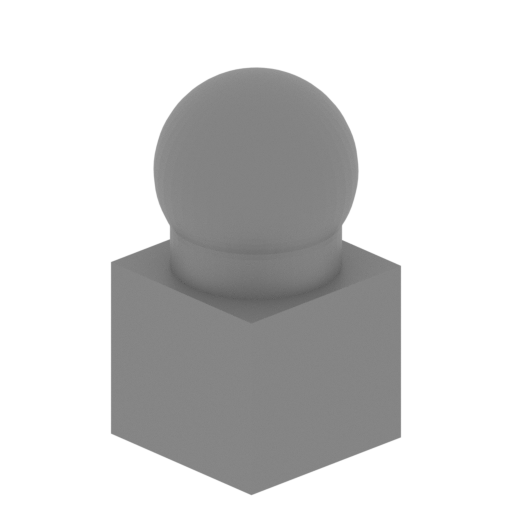

4_Joint_x13_fdm (repaired ).stl
0.11 MiB 7 min <1 m 8 x 8 x 11 Download

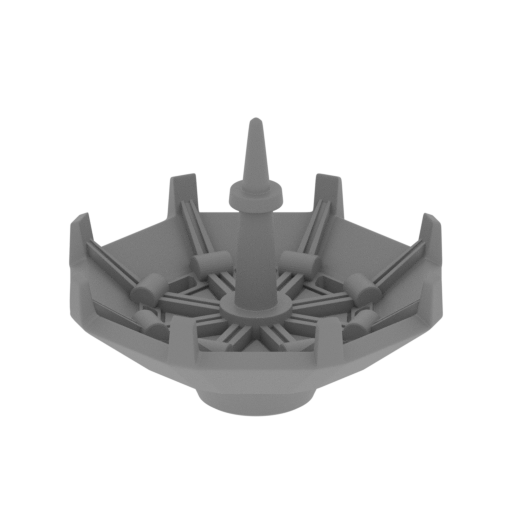

5_ClawAntenna_fdm (repair ed).stl
3.58 MiB 7 h 4 m 71 x 71 x 55 Download

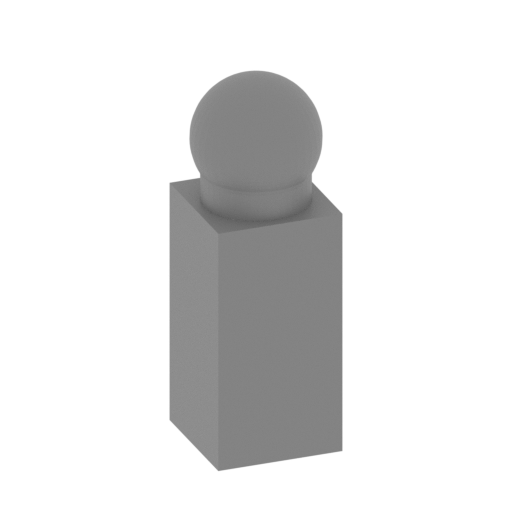

6_JointAntenna_fdm (repai red).stl
0.11 MiB 11 min <1 m 8 x 8 x 17 Download
7_Tail_x602_fdm (repaired ).stl
1.35 MiB 11 min <1 m 13 x 13 x 13 Download

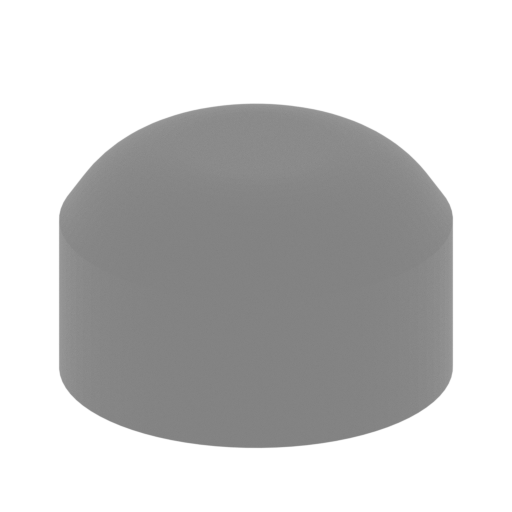

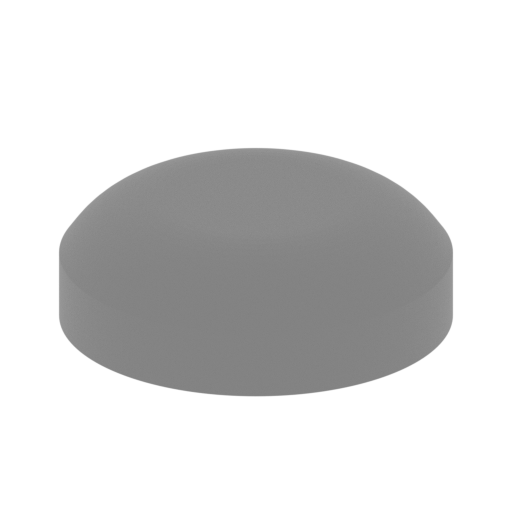

8_Eye_1_fdm (repaired).st l
0.26 MiB 9 min <1 m 16 x 16 x 5 Download

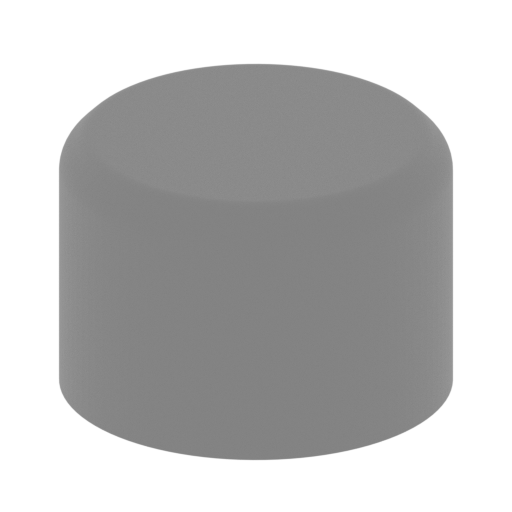

9_Eye_2_fdm (repaired).st l
0.18 MiB 3 min <1 m 6 x 6 x 4 Download

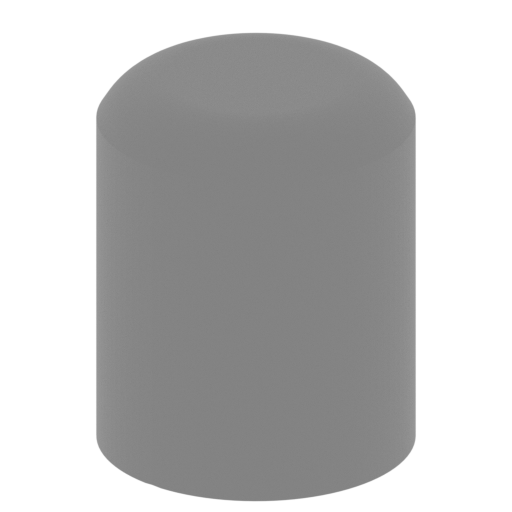

10_Eye_3_fdm (repaired).s tl
0.17 MiB 1 min <1 m 3 x 3 x 3 Download

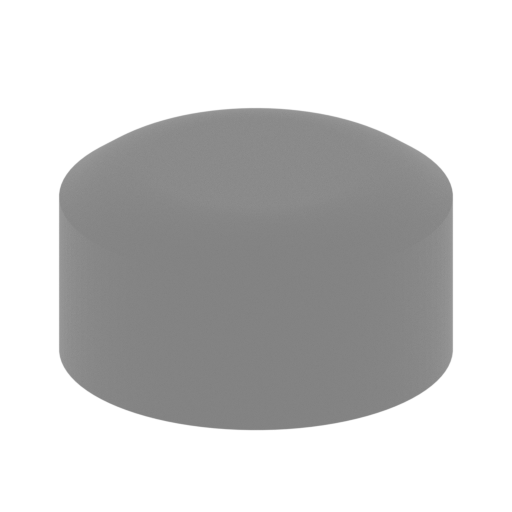

11_Eye_4_fdm (repaired).s tl
0.16 MiB 4 min <1 m 7 x 7 x 4 Download
12_Eye_5_fdm (repaired).s tl
0.18 MiB 2 min <1 m 5 x 5 x 3 Download
13_Eye_6_fdm (repaired).s tl
0.18 MiB 2 min <1 m 5 x 5 x 4 Download
14_Eye_7_fdm (repaired).s tl
0.16 MiB 3 min <1 m 7 x 7 x 4 Download

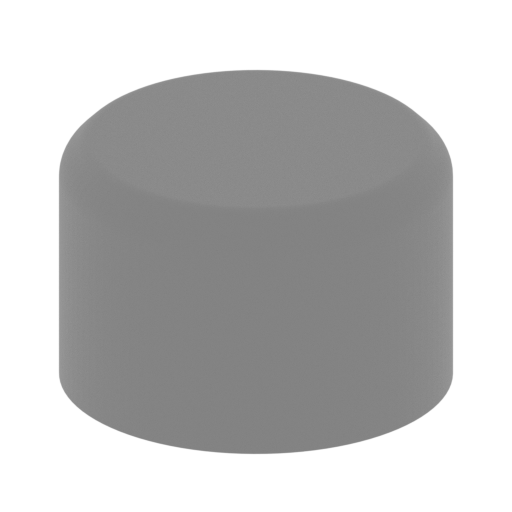

15_Eye_8_fdm (repaired).s tl
0.18 MiB 3 min <1 m 6 x 6 x 4 Download

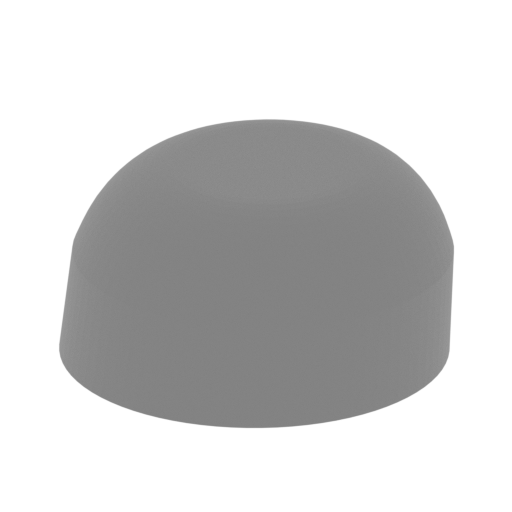

16_Eye_9_fdm (repaired).s tl
0.13 MiB 4 min <1 m 8 x 8 x 4 Download

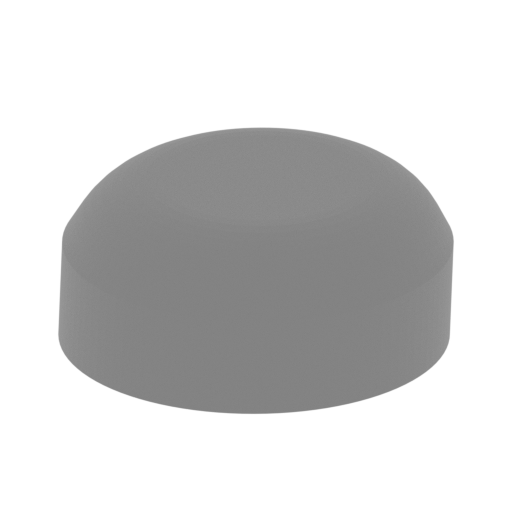

17_Eye_10_fdm (repaired). stl
0.12 MiB 3 min <1 m 8 x 8 x 3 Download
18_Eye_11_fdm (repaired). stl
0.12 MiB 4 min <1 m 7 x 7 x 5 Download

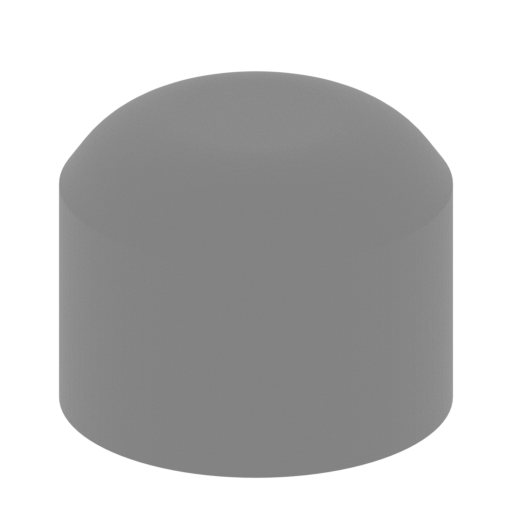

19_Eye_12_fdm (repaired). stl
0.17 MiB 1 min <1 m 4 x 4 x 3 Download

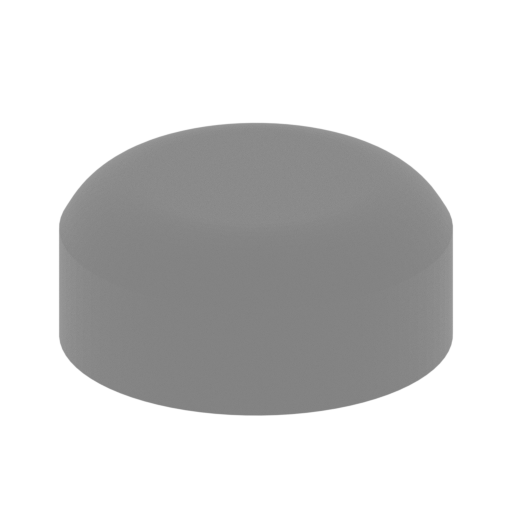

20_Eye_13_fdm (repaired). stl
0.13 MiB 5 min <1 m 10 x 10 x 4 Download

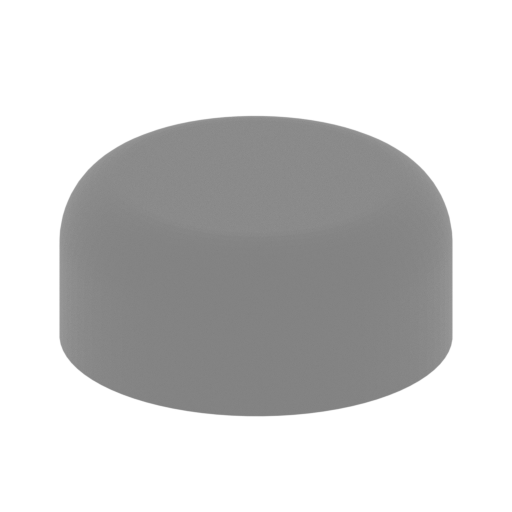

21_Eye_14_fdm (repaired). stl
0.12 MiB 7 min <1 m 12 x 12 x 5 Download

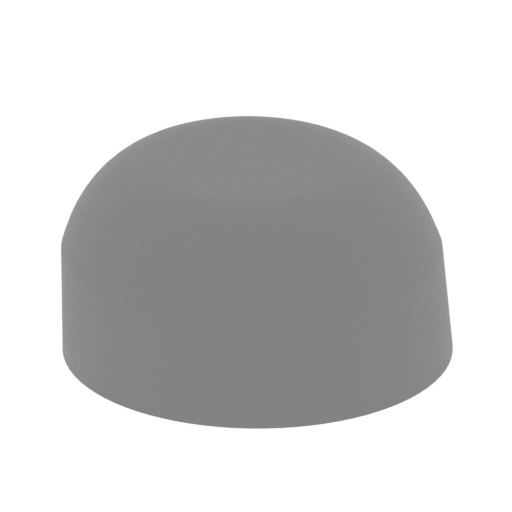

22_Eye_15_fdm (repaired). stl
0.13 MiB 4 min <1 m 8 x 8 x 4 Download

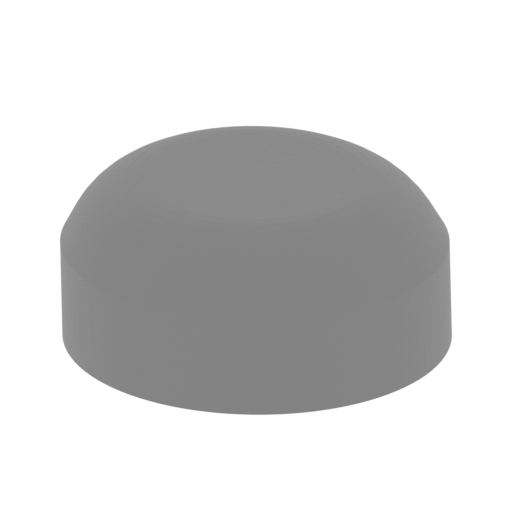

23_Eye_16_fdm (repaired). stl
0.12 MiB 3 min <1 m 8 x 8 x 3 Download

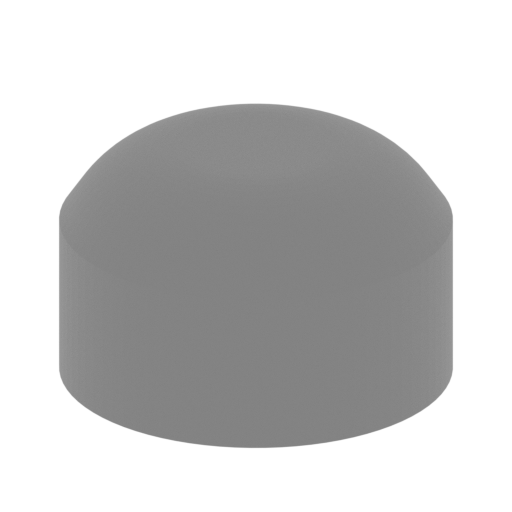

24_Eye_17_fdm (repaired). stl
0.12 MiB 4 min <1 m 7 x 7 x 5 Download
25_Eye_18_fdm (repaired). stl
0.17 MiB 1 min <1 m 4 x 4 x 3 Download

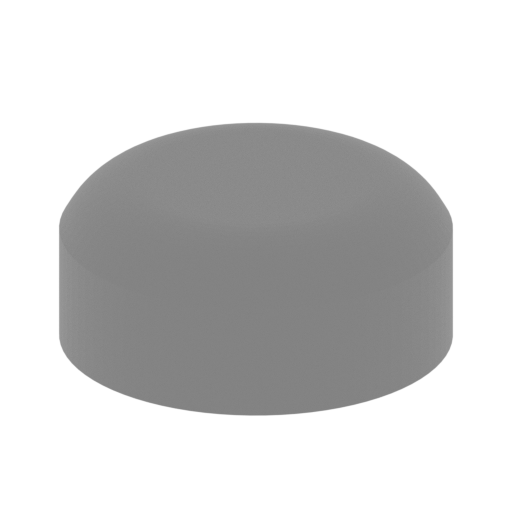

26_Eye_19_fdm (repaired). stl
0.13 MiB 5 min <1 m 10 x 10 x 4 Download
27_Eye_20_fdm (repaired). stl
0.12 MiB 7 min <1 m 12 x 12 x 5 Download

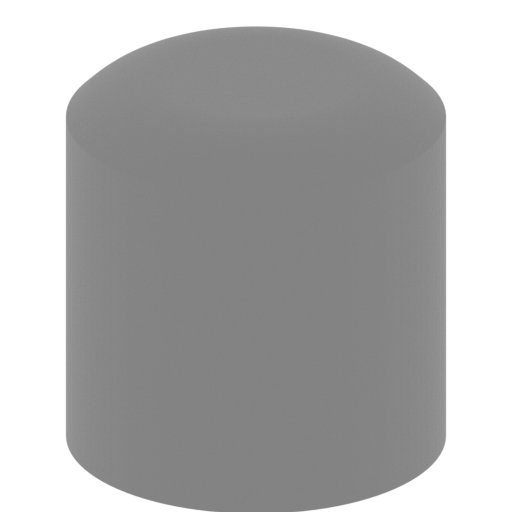

28_Eye_21_fdm (repaired). stl
0.17 MiB 1 min <1 m 3 x 3 x 4 Download

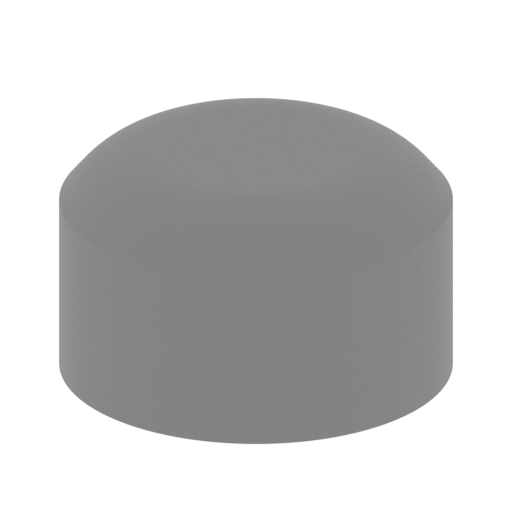

29_Eye_22_fdm (repaired). stl
0.16 MiB 4 min <1 m 7 x 7 x 4 Download

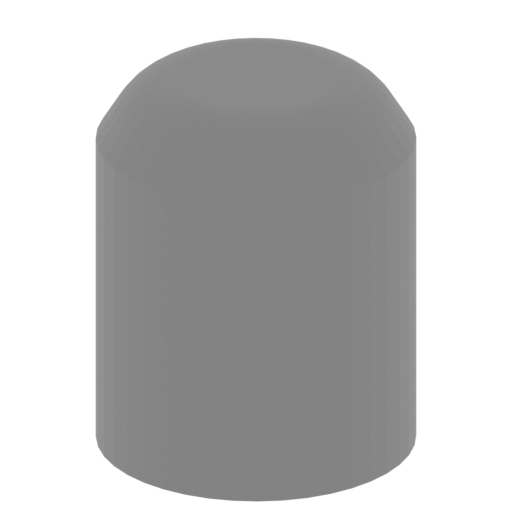

30_Eye_23_fdm (repaired). stl
0.06 MiB 1 min <1 m 3 x 3 x 4 Download

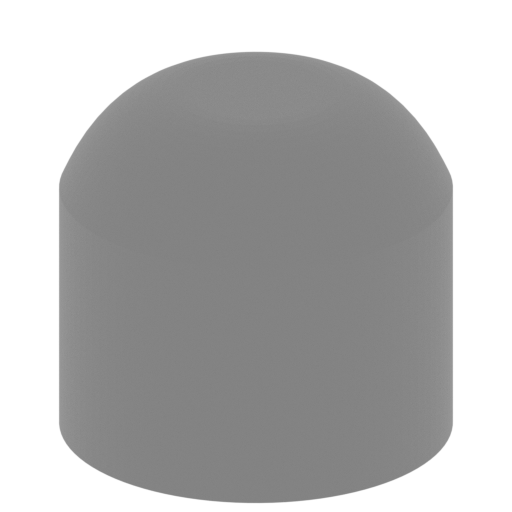

31_Eye_24_fdm (repaired). stl
0.17 MiB 2 min <1 m 5 x 5 x 5 Download
32_Eye_25_fdm (repaired). stl
0.16 MiB 4 min <1 m 7 x 7 x 4 Download
33_Eye_26_fdm (repaired). stl
0.06 MiB 1 min <1 m 3 x 3 x 4 Download
34_Eye_27_fdm (repaired). stl
0.17 MiB 2 min <1 m 5 x 5 x 5 Download

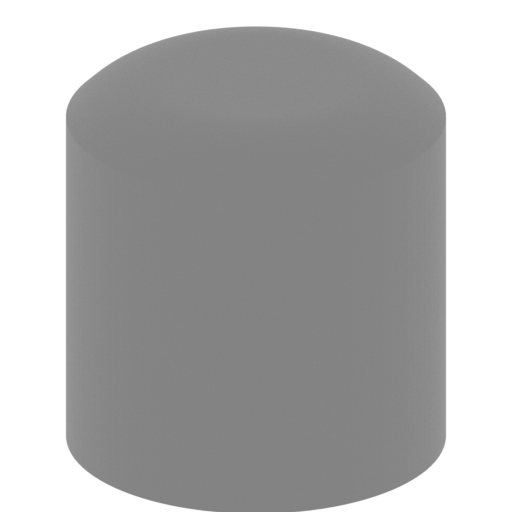

35_Eye_28_fdm (repaired). stl
0.17 MiB 1 min <1 m 3 x 3 x 4 Download

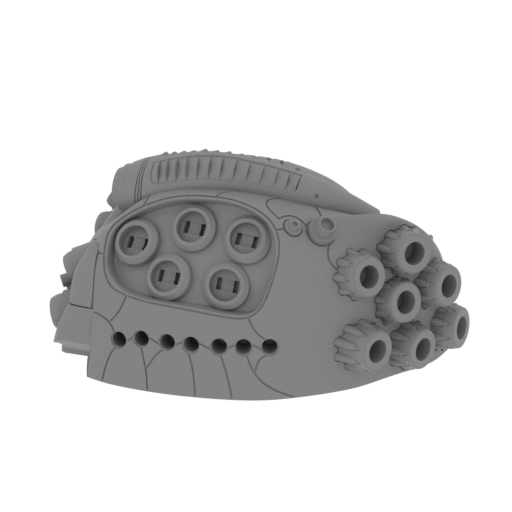

36_Body_L_fdm (repaired). stl
52.02 MiB 55 h 1 min 35 m 158 x 97 x 87 Download
37_Body_R_fdm (repaired). stl
49.09 MiB 55 h 9 min 35 m 158 x 97 x 88 Download

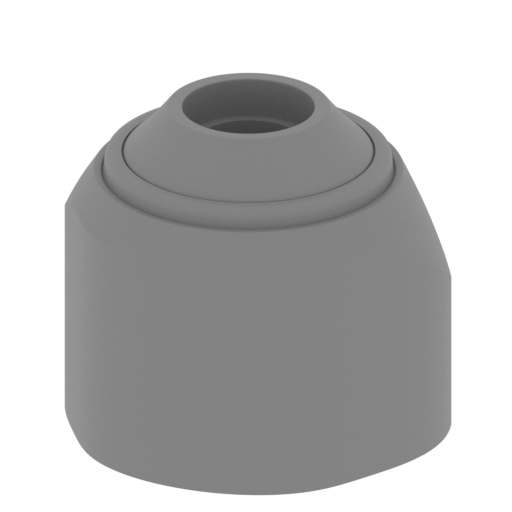

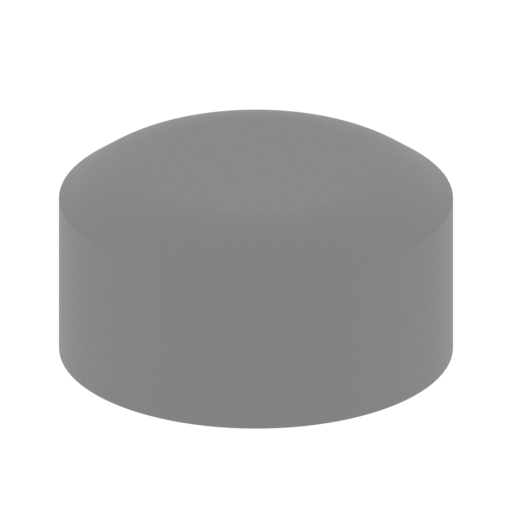

38_MainEye_fdm (repaired) .stl
1.20 MiB 4 h 34 min 3 m 49 x 48 x 43 Download
39_Mouth_fdm (repaired).s tl
0.57 MiB 37 min <1 m 27 x 18 x 19 Download

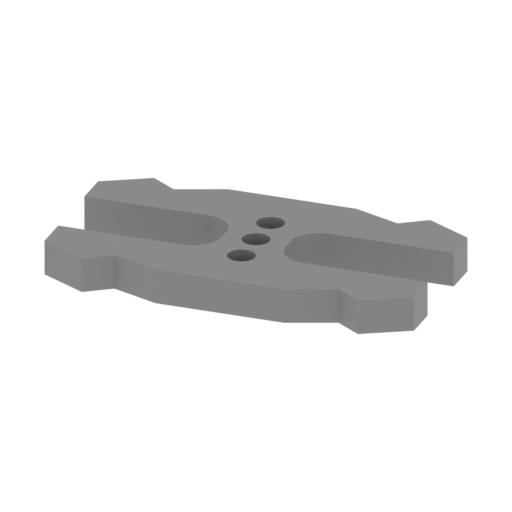

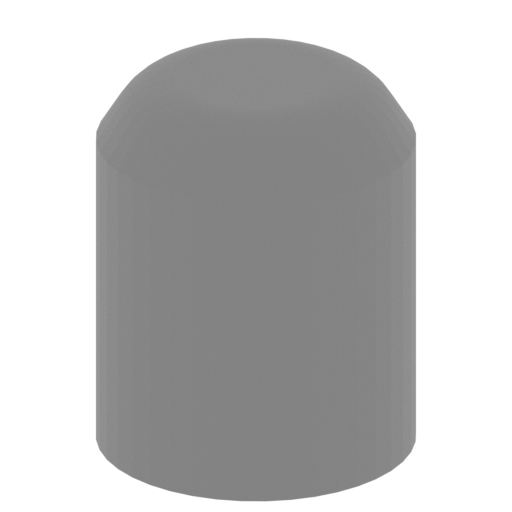

40_Ge_lock_x9 (repaired). stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

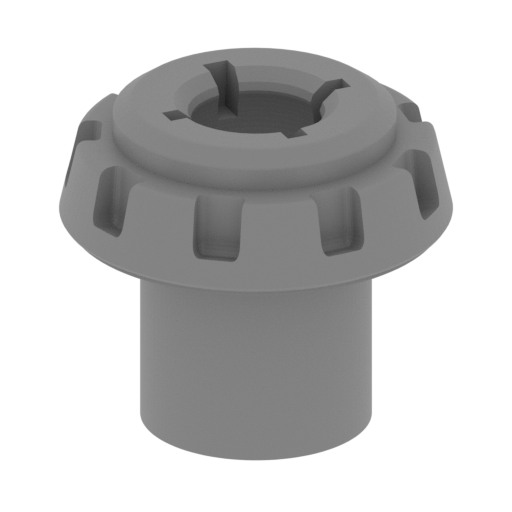

41_Fastening_X14_fdm (rep aired).stl
0.45 MiB 20 min <1 m 16 x 16 x 14 Download

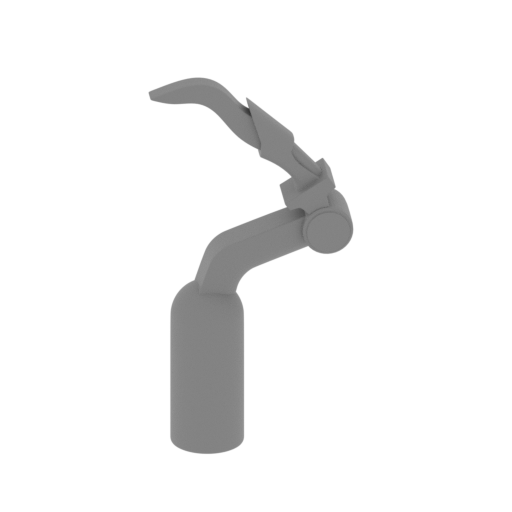

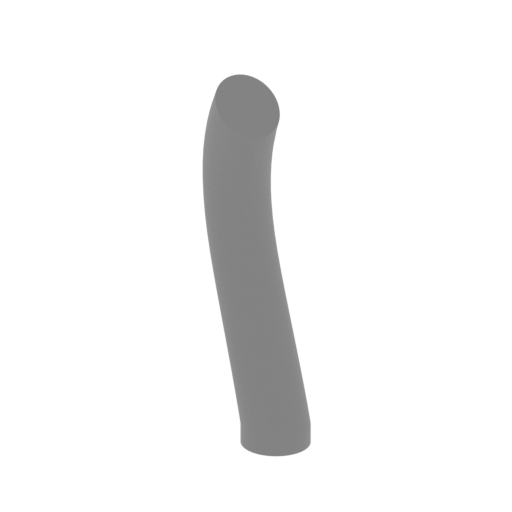

42_Paw_x14_fdm (repaired) .stl
1.47 MiB 29 min <1 m 16 x 10 x 32 Download

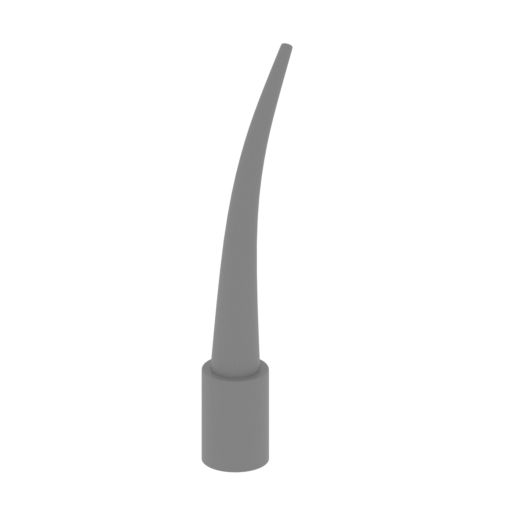

43_Antenna_B_fdm (repaire d).stl
0.34 MiB 16 min <1 m 5 x 14 x 30 Download

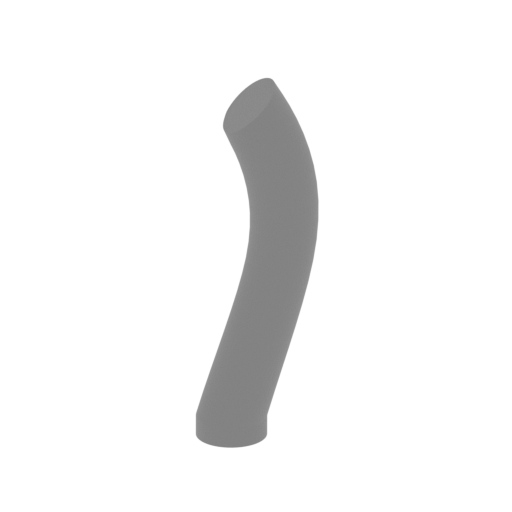

44_Trube_R_fdm (repaired) .stl
0.10 MiB 17 min <1 m 10 x 8 x 32 Download
45_Antenna_L_fdm (repaire d).stl
0.34 MiB 8 min <1 m 3 x 9 x 20 Download
46_Trube_L_fdm (repaired) .stl
0.10 MiB 16 min <1 m 9 x 8 x 32 Download

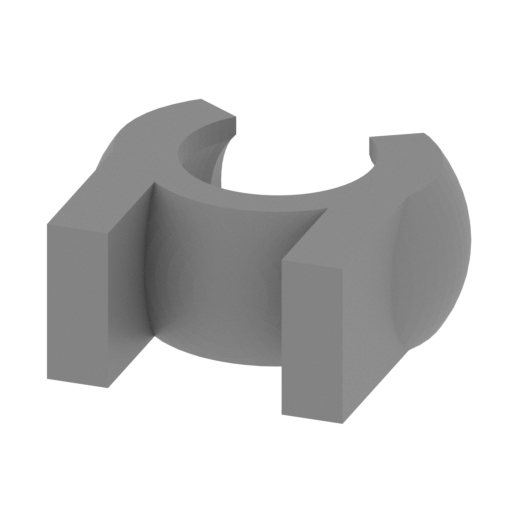

47_Hand_claw_x10_fdm(repa ired).stl
0.15 MiB 5 min <1 m 11 x 10 x 5 Download

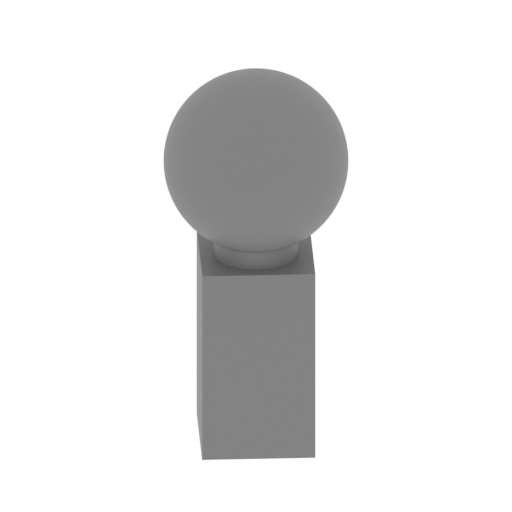

48_Hand_Joint_x10_fdm (re paired).stl
0.28 MiB 9 min <1 m 7 x 7 x 16 Download

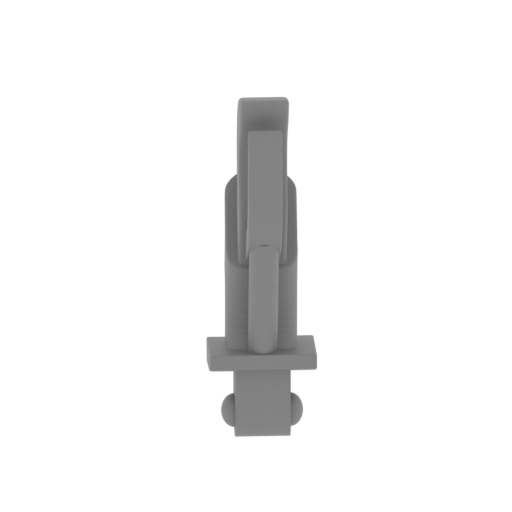

49_Hand_A_x10_fdm (repair ed).stl
1.30 MiB 32 min <1 m 12 x 14 x 35 Download

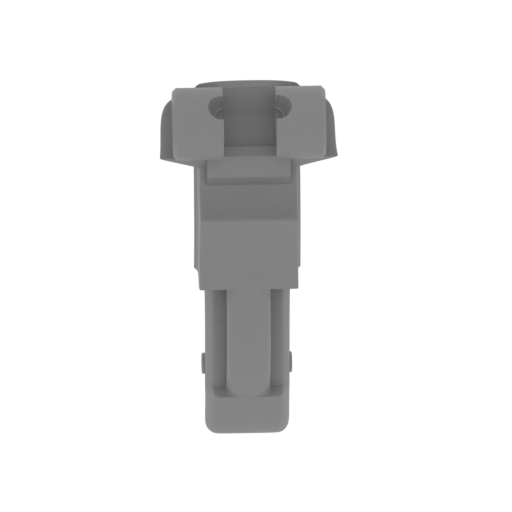

50_Hand_B_x10_fdm (repair ed).stl
4.64 MiB 49 min <1 m 17 x 18 x 38 Download

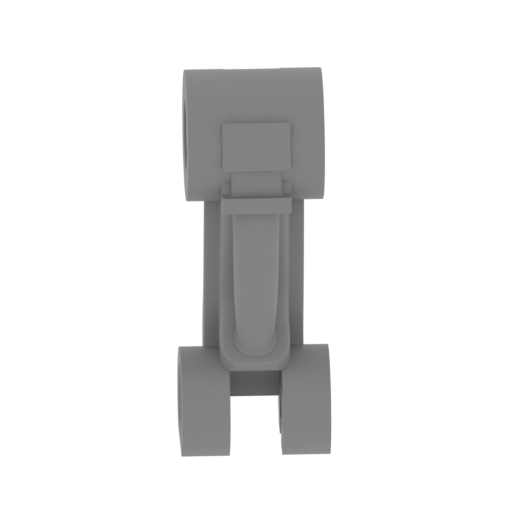

51_Hand_C_x10_fdm (repair ed).stl
4.77 MiB 49 min <1 m 15 x 15 x 33 Download

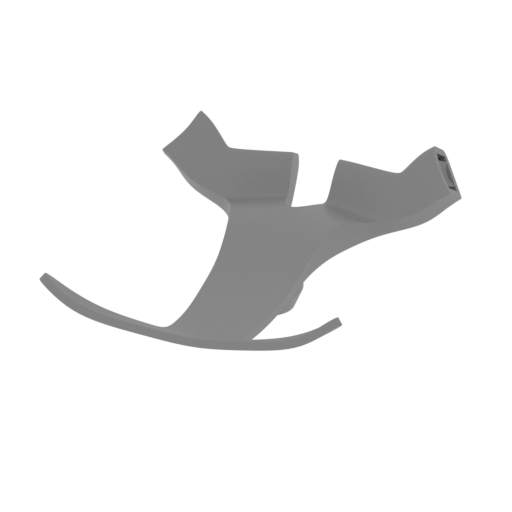

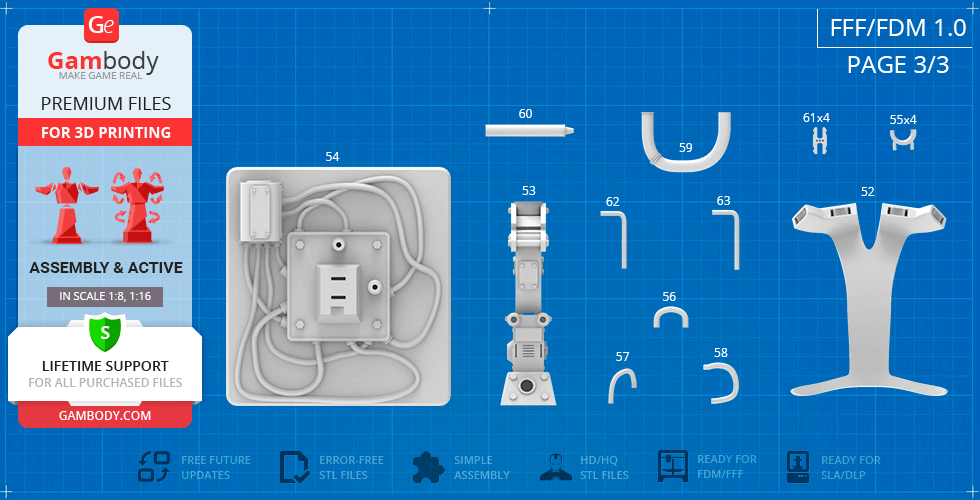

52_Base1_fdm (repaired).s tl
3.95 MiB 9 h 33 min 7 m 107 x 130 x 43 Download

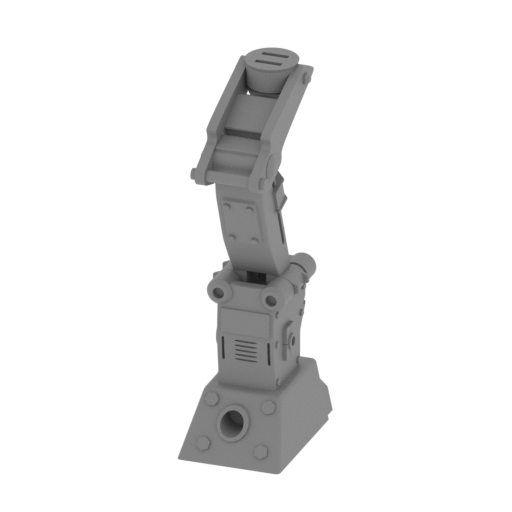

53_Base2_fdm (repaired).s tl
7.38 MiB 15 h 57 min 11 m 38 x 60 x 138 Download

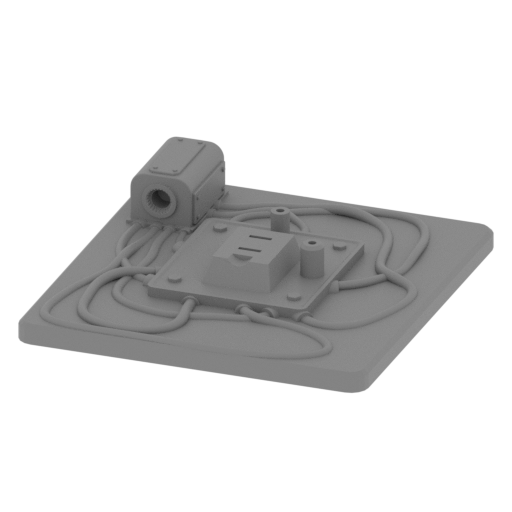

54_Platform_fdm (repaired ).stl
15.23 MiB 24 h 10 min 13 m 152 x 161 x 33 Download

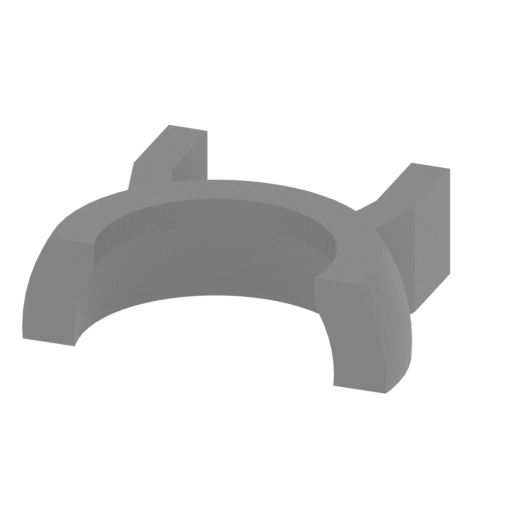

55_Lock_x4_fdm (repaired) .stl
0.09 MiB 7 min <1 m 18 x 14 x 5 Download

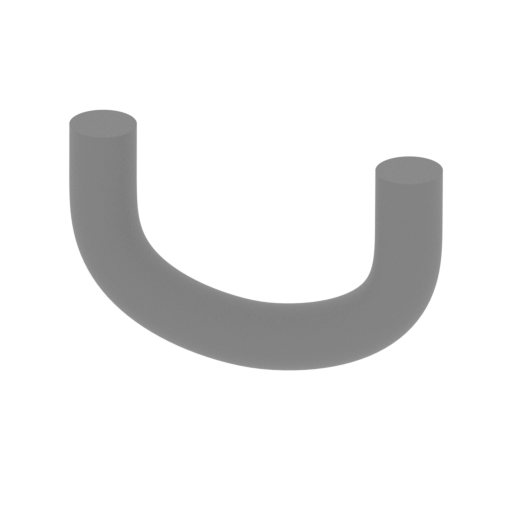

56_Trube3_fdm (repaired). stl
0.54 MiB 13 min <1 m 24 x 4 x 14 Download

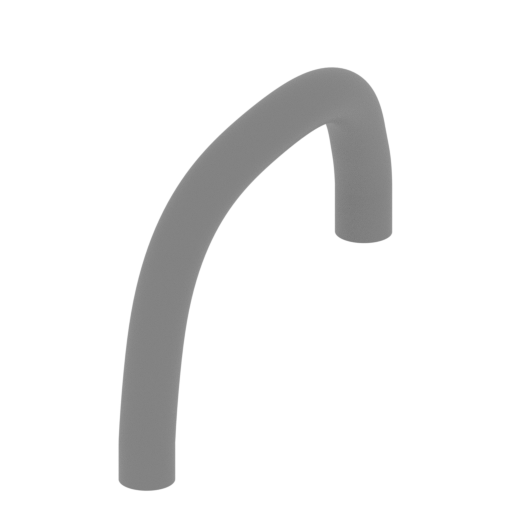

57_Trube4_fdm (repaired). stl
0.72 MiB 23 min <1 m 11 x 20 x 24 Download

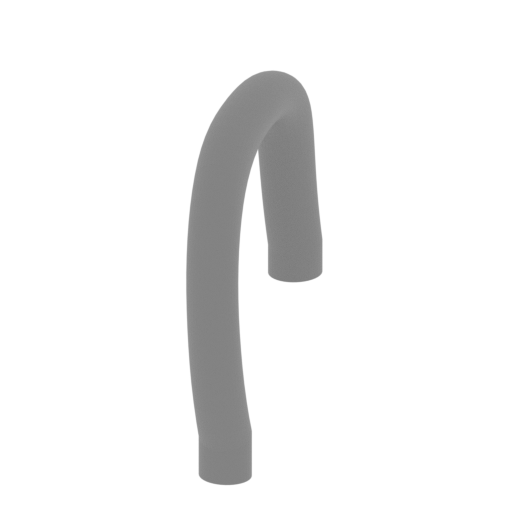

58_Trube5_fdm (repaired). stl
0.19 MiB 25 min <1 m 7 x 28 x 24 Download

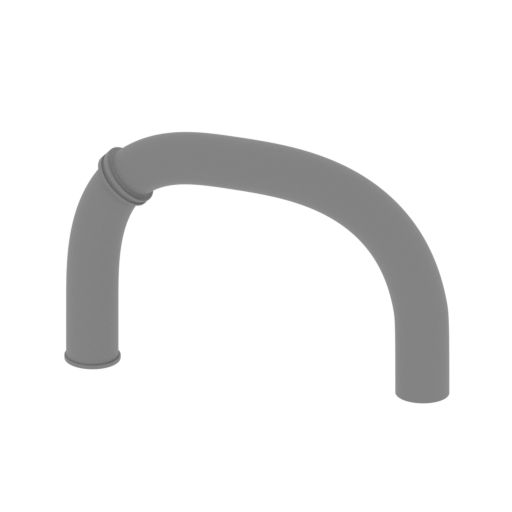

59_BigTrube1_fdm (repaire d).stl
10.58 MiB 1 h 27 min 1 m 61 x 14 x 41 Download

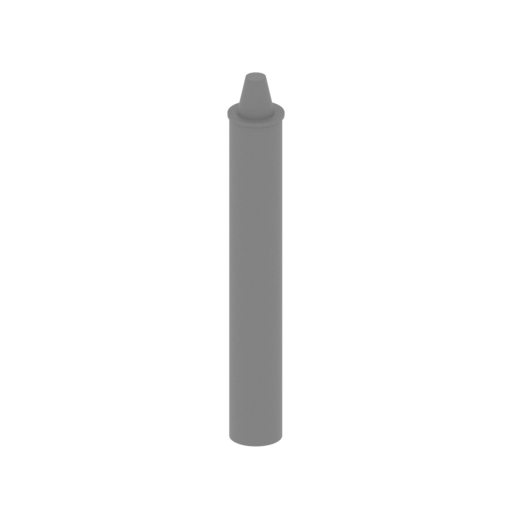

60_BigTrube2_fdm (repaire d).stl
0.88 MiB 50 min <1 m 9 x 9 x 60 Download
61_KlopStand_x4 (repaired ).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

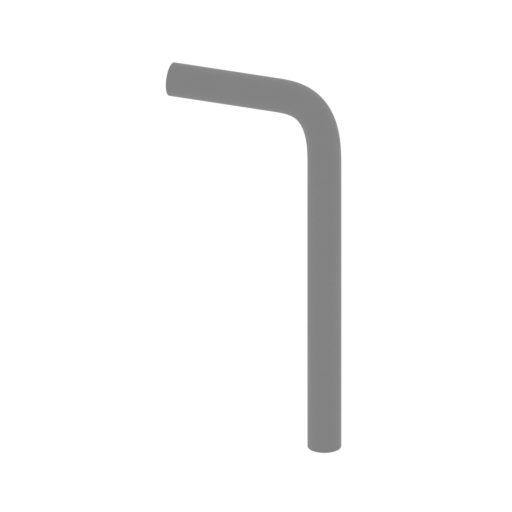

62_Trube1_fdm (repaired). stl
0.14 MiB 35 min <1 m 18 x 3 x 39 Download

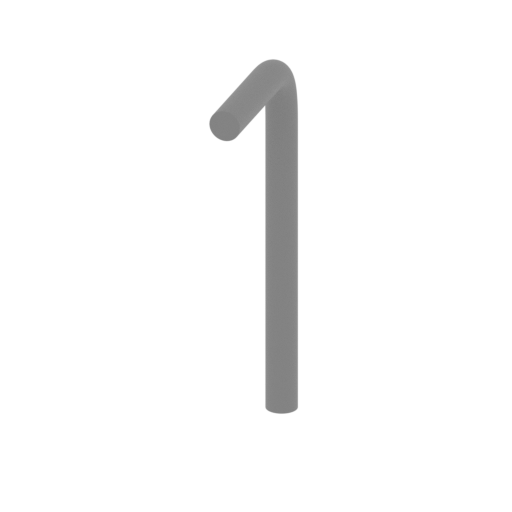

63_Trube2_fdm (repaired). stl
0.13 MiB 38 min <1 m 3 x 19 x 40 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

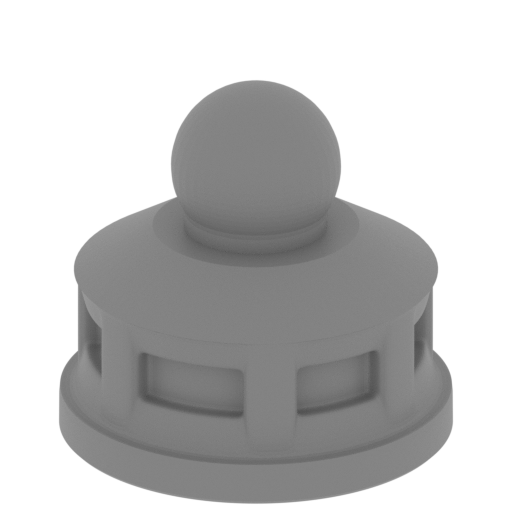

7_Tail_v2_x602_5%_smaller _ball (repaired).stl
1.36 MiB 11 min <1 m 13 x 13 x 12 Download
7_Tail_v3_x602_7%_smaller _ball (repaired).stl
1.36 MiB 11 min <1 m 13 x 13 x 12 Download

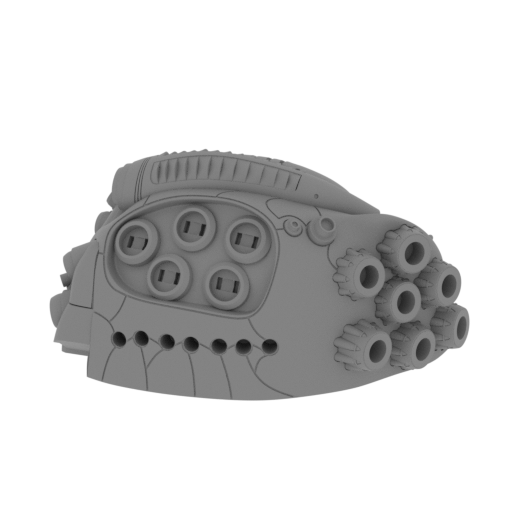

36_v2_Body_L_not_hollow_f dm (repaired).stl
45.91 MiB 47 h 23 min 26 m 158 x 97 x 87 Download

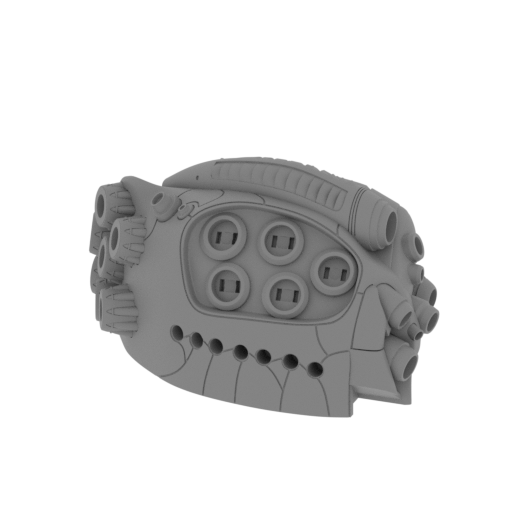

37_v2_Body_R_not_hollow_f dm (repaired).stl
43.08 MiB 47 h 14 min 26 m 158 x 97 x 88 Download
...

ABOUT THIS 3D MODEL

Sentinels are terrifying multi-tentacled killing machines that maintain the physical structures of the Matrix within The Wachowskis’ franchise of the same name. A strong resemblance of the machines to cephalopods resulted in the Human Resistance calling them “squiddies”. Similar to squids Sentinels move in large swarms, usually patrolling the now-dead human cities in search of wandering humans. The deadly machines move through the air with ease and are considered to be using some kind of sophisticated hover pad technology, far more improved than the one used in transportation utilized by Human Resistance. The frightening swarm of antagonists that serve to eradicate humankind is undoubtedly an impressive part of the iconic sci-fi universe. Thanks to our talented contributing 3D artist who dedicated circa 180 hours working on the project the awesome Sentinel model is now available for 3D printing. The author of the model did a spectacular job depicting the dreadful robotic appearance of the Sentinel, with its large pod-shaped head and many sharp-clawed tentacles extending from the back. In addition to numerous round eyes on the robot’s head, the 3D artist made sure to equip one of the model’s many tentacles with a satellite dish that is known to serve as an audio and visual sensor. Paying the utmost attention to fine details, the 3D artist carefully included two sets of crab-like appendages on both sides of the machine’s belly, as well as small antennas and sensors on top of its head. The Battle of Zion starring hundreds of piloted APUs under Captain Mifune’s command is a truly remarkable robotic battle scene. Now, thanks to the possibilities that 3D printing technology offers, you can recreate the actual scenario at home! The STL files of Sentinel, the killing machine designed for search and destroy, are ready for download!

ADAPTATION FOR 3D PRINTING

Sentinel model for 3D printing is a highly articulated action assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 65 hours in total. In order to ensure the multidirectional movement of the Squiddy’s appendages, the model was divided into many assembly parts and special mechanisms were introduced into all model’s joints to give you an opportunity to display the machine in a variety of positions or scenarios. Thus, the model’s crab-like appendages in front are movable in all four junctions and every single joint comprising each model’s long tentacle rotates with the help of a ball-and-claw connection. It is recommended to assemble each tentacle using 43 tail parts but you can make any tentacle shorter and longer by adding or removing these tail pieces. Every single Sentinel’s claw in FFF/FDM version is fully articulated as well. The assembly of these movable claws requires additional “pins”. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA. All Sentinel's eyes are provided separately in the model’s FFF/FDM 1.0 version for you to print them in the transparent filament. The machine's body is hollow in both model’s versions for you to introduce LED wiring and light up the eyes. All assembly parts are provided in STL files in recommended positions that were worked out to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. We highly recommend that you watch "Assembly video" in the photo preview section before assembling the Sentinel. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual size of the Sentinel's head that is 1400mm x 1120mm x 770mm. The 3D printing model's chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS versions.

VERSION SPECIFICATIONS

FFF/FDM 1.0 version features:
- Contains 63 parts;
- A printed model is 359 mm tall, 339 mm wide, 360 mm deep;
- Made with several sets of special joints to ensure the model's articulation - all Sentinel’s claws, crab-like handstentacles, and the satellite dish are fully articulated;
- The assembly of Sentinel's articulated claws requires additional “pins”. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA;
- There are many assembly parts that need to be printed multiple times - the number of required copies (x5, x20 etc.) is indicated in the title of the file in “Source files” tab, e.g. file "1_ClawBase_x13" needs to be printed 13 times;
- Every single joint comprising each tentacle rotates with the help of a ball-and-claw connection;
- In order to assemble one tentacle, it is recommended to print the part “7_Tail_x602” 43 times. But you can make any tentacle shorter and longer by adding or removing parts“7_Tail_x602” ;
- All Sentinel's eyes are provided separately for you to print them in transparent filament;

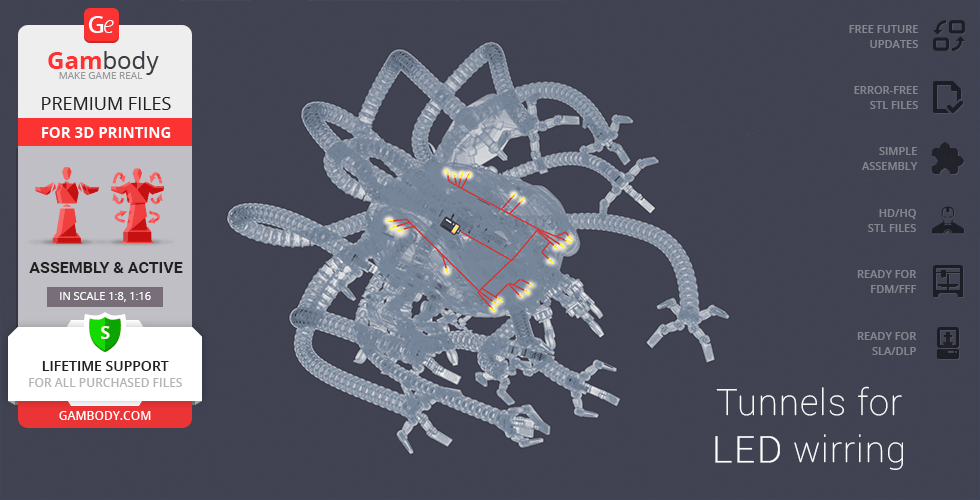

- The machine's body is hollow for you to introduce LED wiring;
- The model comes with a special stand for you to conveniently display the round Sentinel with its many long tentacles;
- Assembly kit includes locks to connect the model's body and display stand securely without glue. Lock 40_Ge_lock_x9 needs to be printed 9 times; lock 55_Lock_x4 needs to be printed 4 times;
- It is highly recommended that you watch "Assembly video" in the photo preview section and read "Assembly Manual" in PDF before assembling the Sentinel;
- There are alternative variants of the tentacle part 7_Tail_v2_x602_5%_smaller_ball and 7_Tail_v3_x602_7%_smaller_ball that have slightly shortened "stems" and the ball connector decreased in size by 5% and 7% respectively;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA/SLS 1.0 version features:

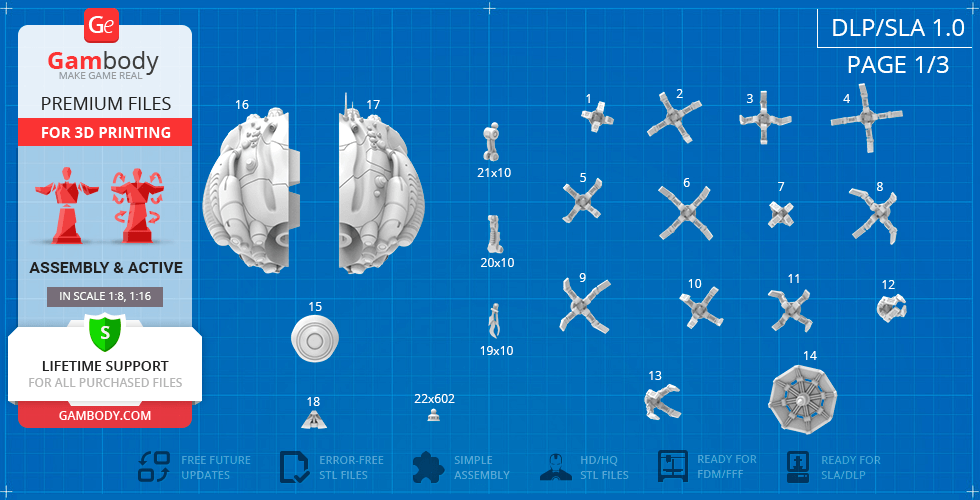

- Contains 26 parts;
- A printed model is 180 mm tall, 170 mm wide, 180 mm deep;
- Made with several sets of special joints to ensure the model's articulation - all Sentinel’s crab-like hands, the satellite dish, and tentacles are fully articulated;
- There are many assembly parts that need to be printed multiple times - the number of required copies (x5, x20 etc.) is indicated in the title of the file in “Source files” tab, e.g. file "19_Hand1_A_x10" needs to be printed 10 times;
- The model's claws are static but they are saved in different positions that you can attach to the tentacles as you prefer;
- Every single joint comprising each tentacle rotates with the help of a ball-and-claw connection;
- In order to assemble one tentacle, it is recommended to print the part “22_Tail_x602” 43 times. But you can make any tentacle shorter and longer by adding or removing parts“22_Tail_x602” ;
- The machine's body is hollow for you to introduce LED wiring;
- The model comes with a special stand for you to conveniently display the round Sentinel with its many long tentacles;
- It is highly recommended that you watch "Assembly video" in the photo preview section and read "Assembly Manual" in PDF before assembling the Sentinel;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of​​​​ Sentinel for 3D printing which consist of 89 parts;
- 2 versions of files for this model for FFF/FDM and DLP/SLA/SLS;
- High-poly detailed model of Sentinel;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of Sentinel​​​​​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the Sentinel​​​​​ 3D Printing Model at Gambody YouTube channel.

Also, you may like Neo 3D Printing Figurine, as well as Matrix APU​​​​​ 3D Printing Model.
