Clank 3D Printing Model | Assembly

(3)
cm: 18.6 w x 17.4 d x 35.6 h
in: 7.323 w x 6.85 d x 14.016 h

Source Files

|

Description

|

Printing Details

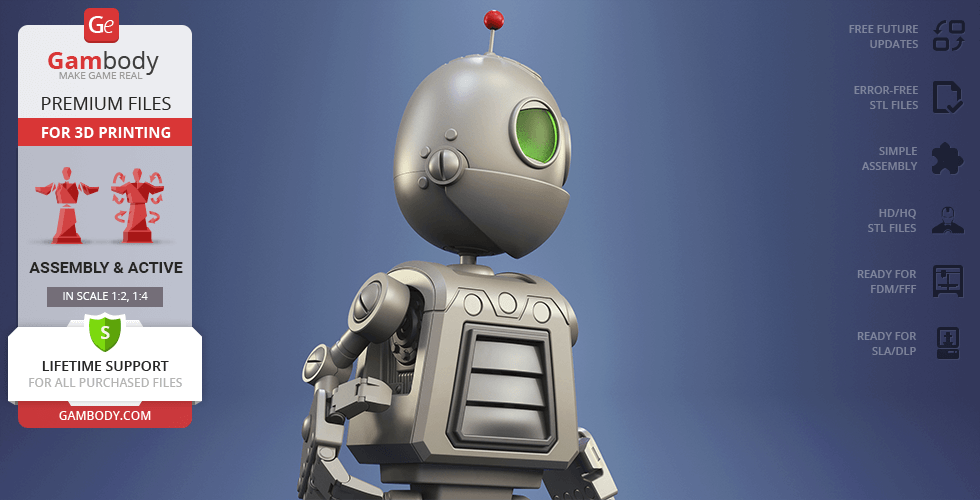

This 3D model of Clank consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 3 versions of Clank STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Clank Model for 3D printing consist of 109 files;
  • Sizes for:
  • FFF/FDM: 356 mm tall, 186 mm wide, 174 mm deep;
  • DLP/SLA Active: 178 mm tall, 93 mm wide, 87 mm deep;
  • DLP/SLA Static: 178 mm tall, 93 mm wide, 87 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

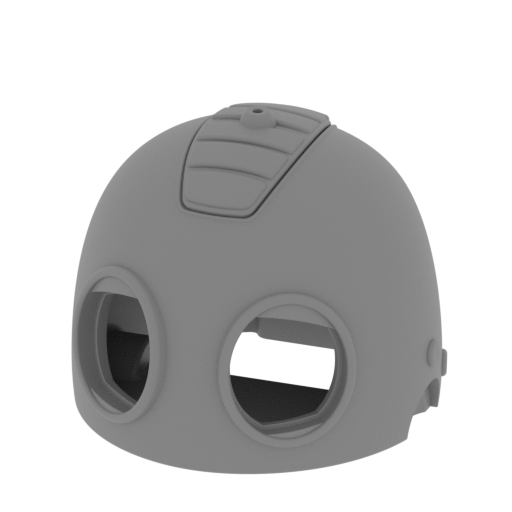

_01_head_1_FDM.stl
30.51 MiB 17 h 26 min 12 m 83 x 86 x 69 Download

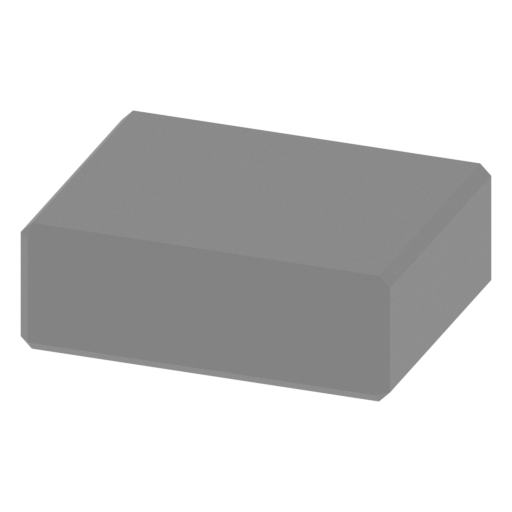

_02_head_pin_x3_FDM.stl
0.00 MiB 4 min <1 m 10 x 8 x 4 Download

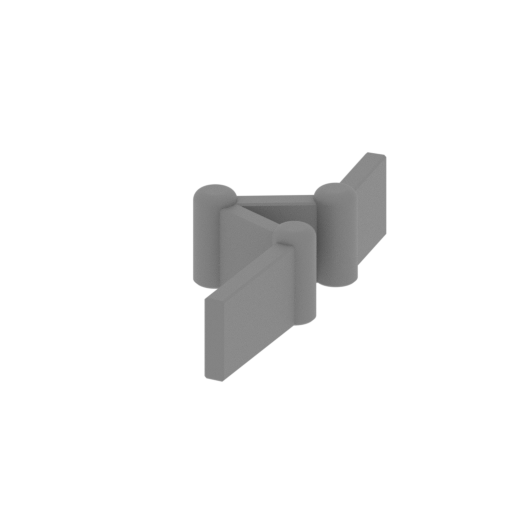

_03_tongue_FDM.stl
0.62 MiB 13 min <1 m 14 x 36 x 9 Download

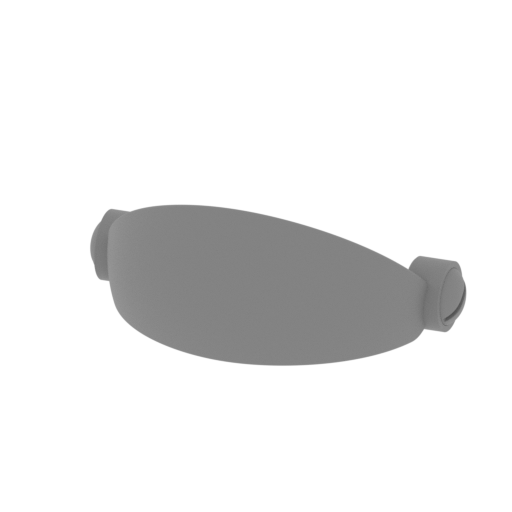

_04_jaw_FDM.stl
11.48 MiB 3 h 30 min 2 m 101 x 51 x 41 Download

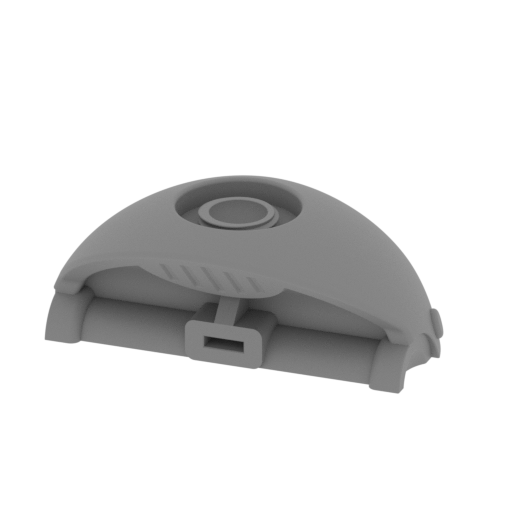

_05_head_2_FDM.stl
13.12 MiB 7 h 23 min 4 m 77 x 61 x 31 Download

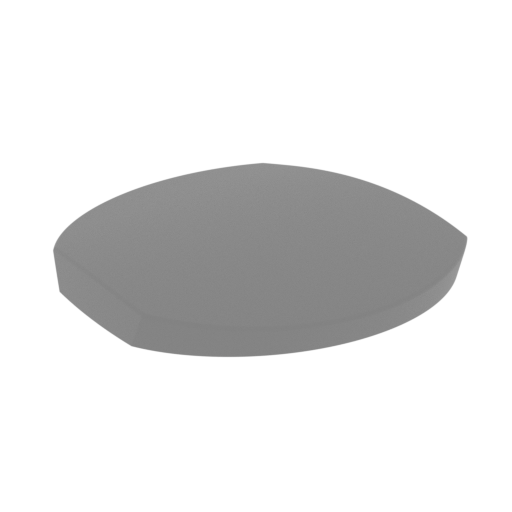

_06_eye_R_FDM.stl
1.40 MiB 21 min <1 m 28 x 27 x 4 Download

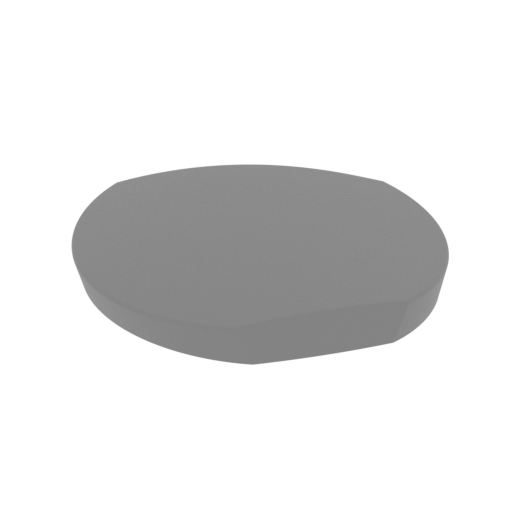

_07_eye_L__FDM.stl
1.40 MiB 21 min <1 m 28 x 27 x 4 Download

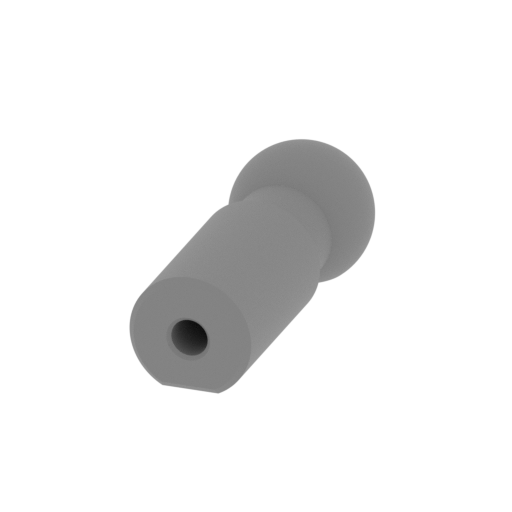

_09_neck_FDM.stl
1.82 MiB 26 min <1 m 11 x 30 x 10 Download

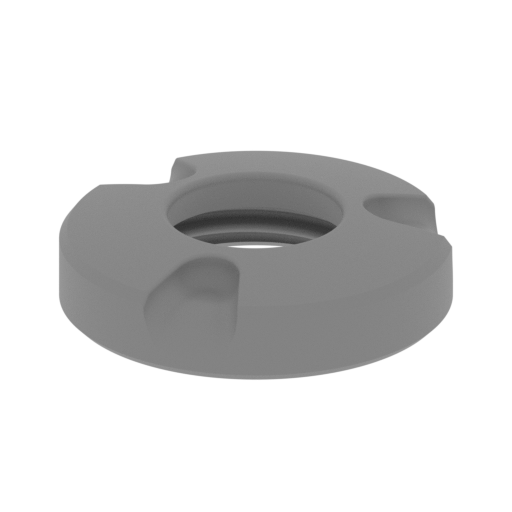

_10_neck_screw_FDM.stl
3.72 MiB 21 min <1 m 24 x 24 x 6 Download

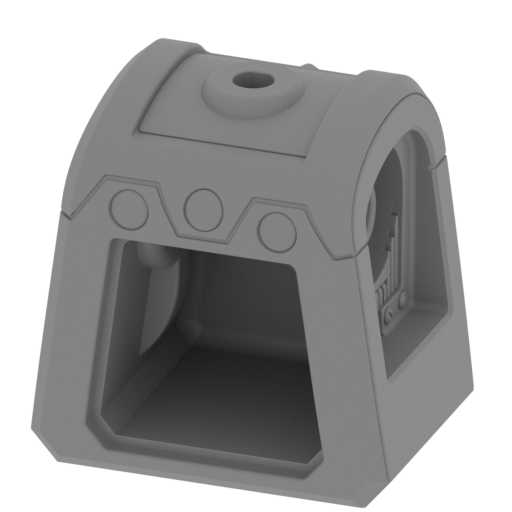

_11_body_FDM.stl
73.24 MiB 38 h 6 min 25 m 94 x 76 x 96 Download

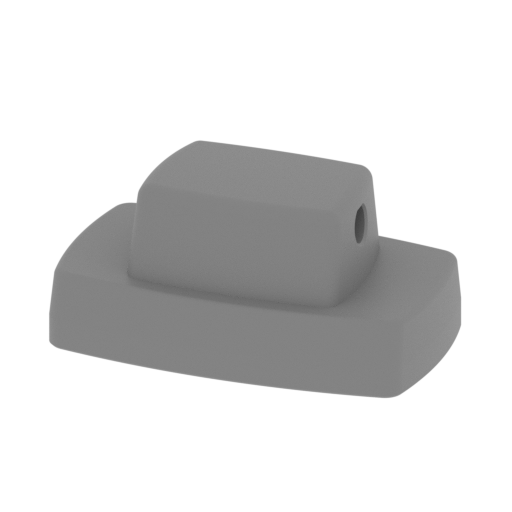

_12_pelvis_FDM.stl
3.89 MiB 5 h 13 min 3 m 75 x 45 x 33 Download

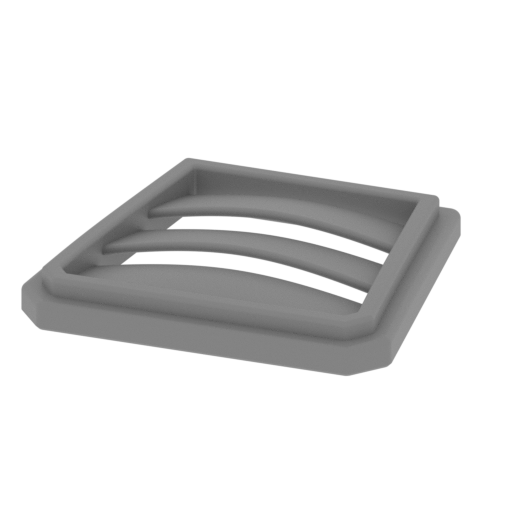

_13_body_cap_FDM.stl
9.97 MiB 2 h 50 min 2 m 61 x 57 x 9 Download

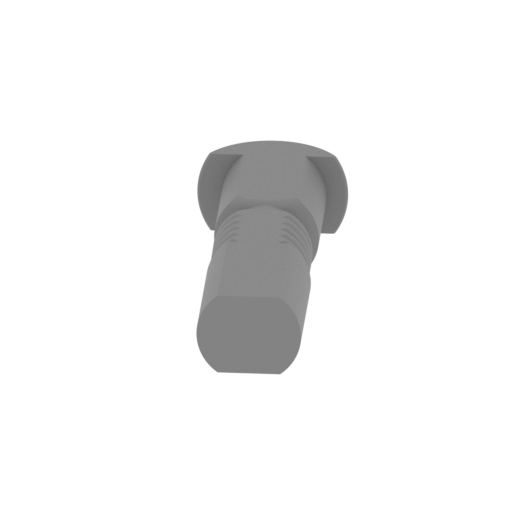

_14_shoulder pin_1_x2_FDM .stl
3.27 MiB 13 min <1 m 17 x 30 x 6 Download

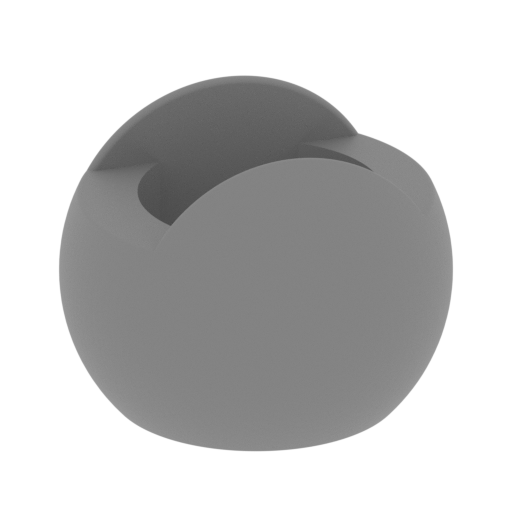

_15_shoulder pin_2_x2_FDM .stl
1.42 MiB 10 min <1 m 13 x 13 x 10 Download

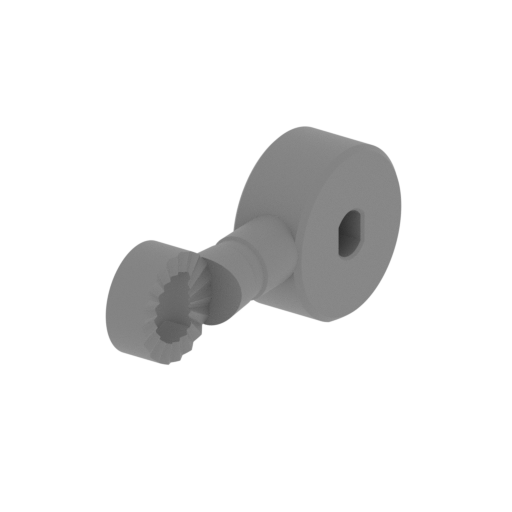

_18_arm_R_1_FDM.stl
4.61 MiB 2 h 12 min 1 m 31 x 67 x 30 Download

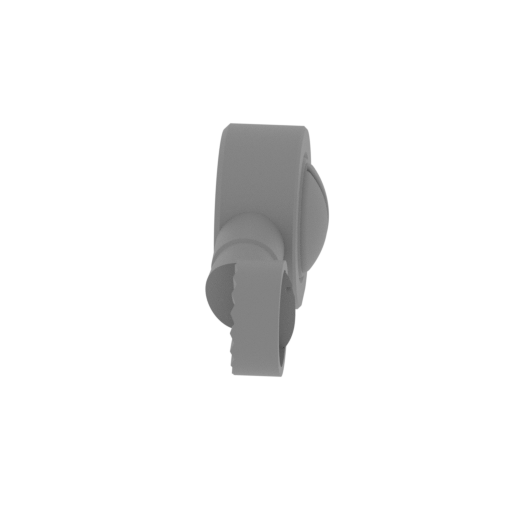

_19_arm_L_1_FDM.stl
4.62 MiB 2 h 13 min 1 m 31 x 67 x 30 Download

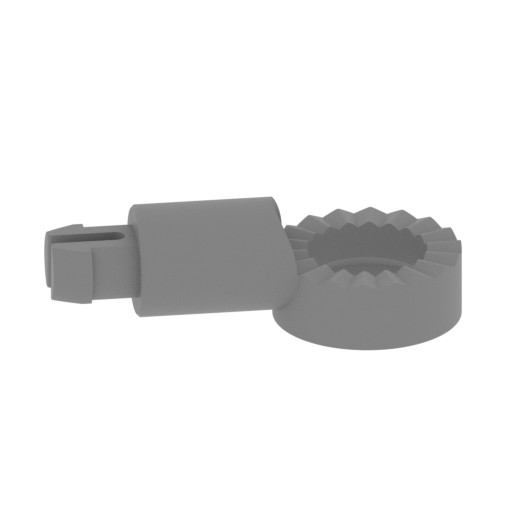

_20_arm_R_2_FDM.stl
1.87 MiB 35 min <1 m 41 x 29 x 13 Download

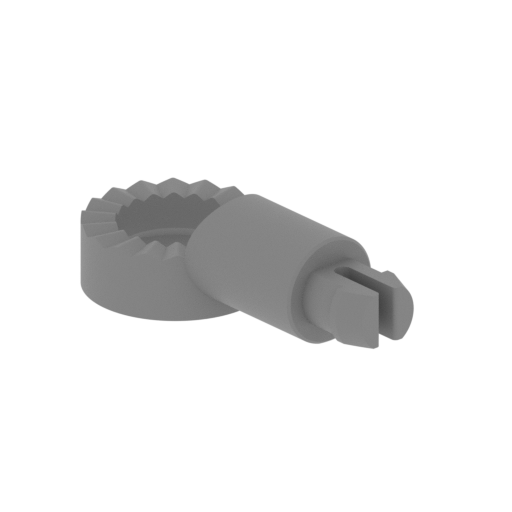

_21_arm_L_2_FDM.stl
1.87 MiB 35 min <1 m 41 x 29 x 13 Download

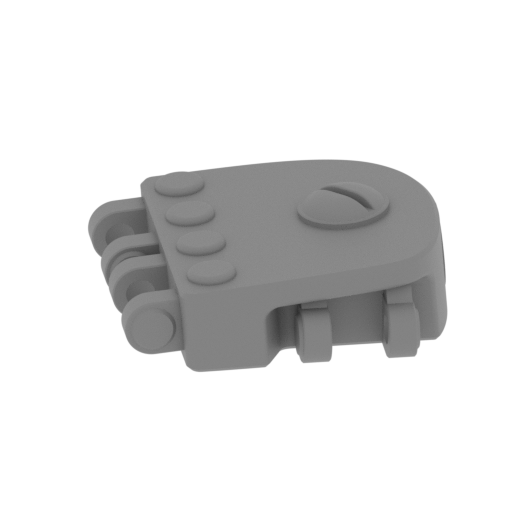

_23_hand_R_FDM.stl
4.70 MiB 2 h 27 min 1 m 56 x 49 x 17 Download

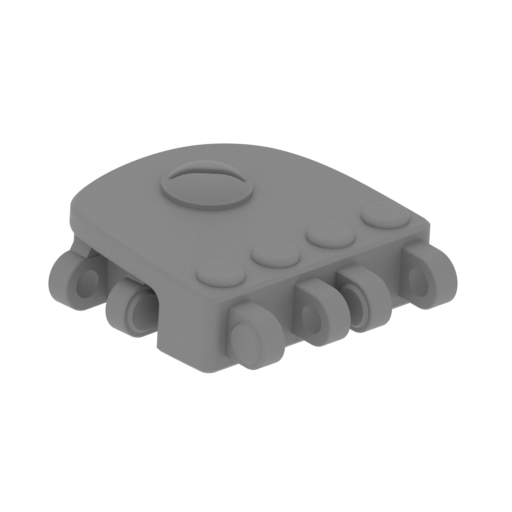

_24_hand_L_FDM.stl
4.79 MiB 2 h 28 min 1 m 56 x 49 x 17 Download

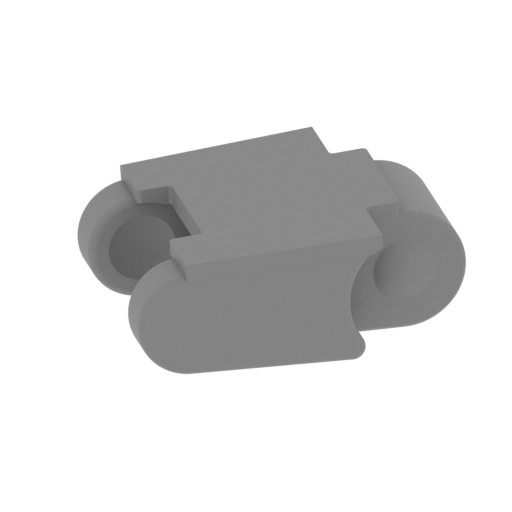

_25_finger_1_x6_FDM.stl
1.24 MiB 19 min <1 m 23 x 21 x 8 Download

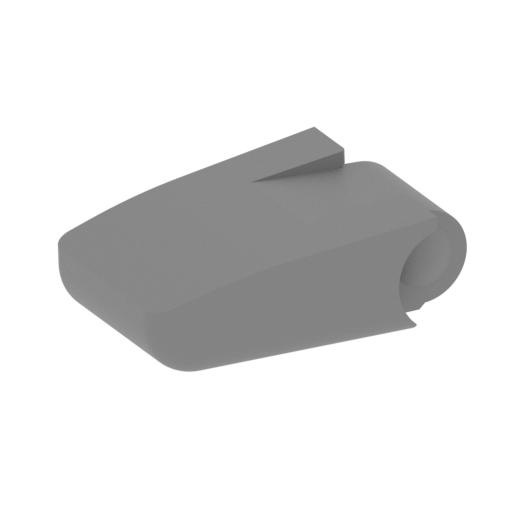

_26_finger_2_x4_FDM.stl
0.59 MiB 18 min <1 m 22 x 24 x 8 Download

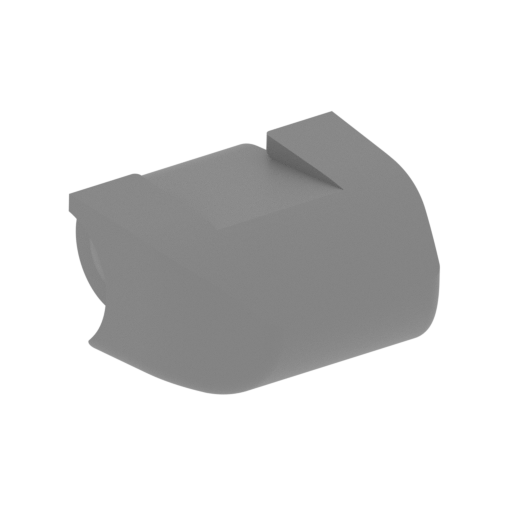

_27_finger_3_x2_FDM.stl
0.55 MiB 13 min <1 m 18 x 17 x 8 Download

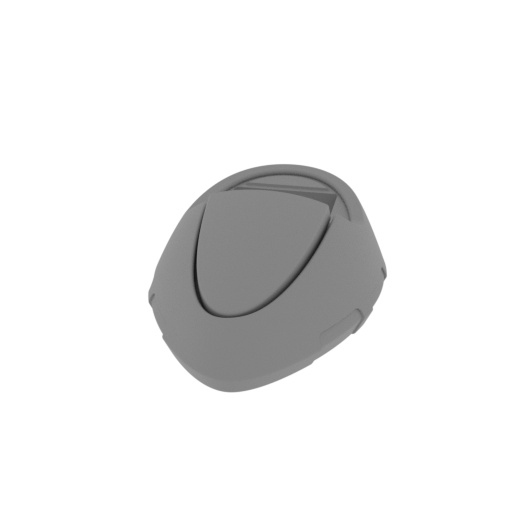

_28_foot_1_x2_FDM.stl
15.61 MiB 4 h 18 min 2 m 51 x 84 x 28 Download

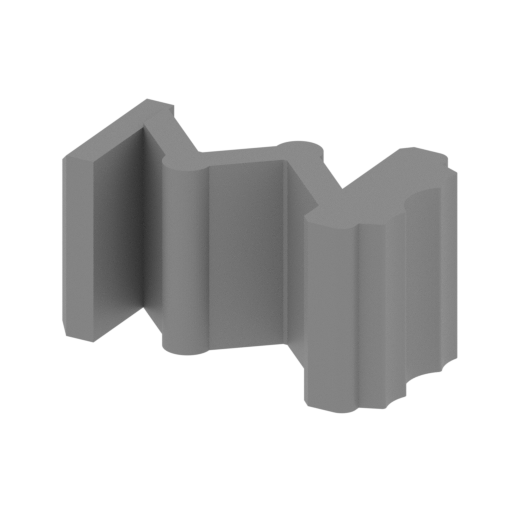

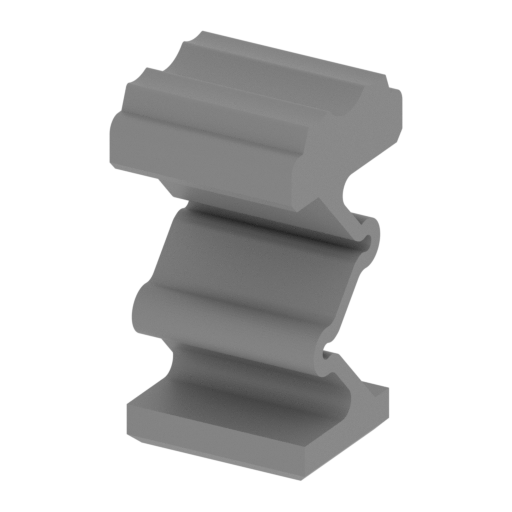

_29_foot_2_x2_FDM.stl
0.82 MiB 10 min <1 m 19 x 11 x 10 Download

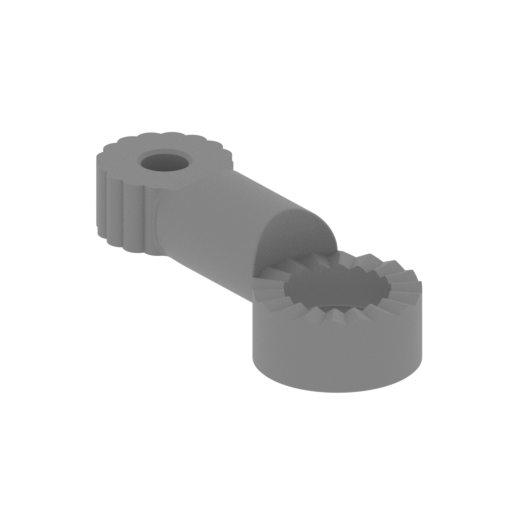

_31_foot_4_x2_FDM.stl
3.71 MiB 1 h 9 min 1 m 51 x 40 x 17 Download

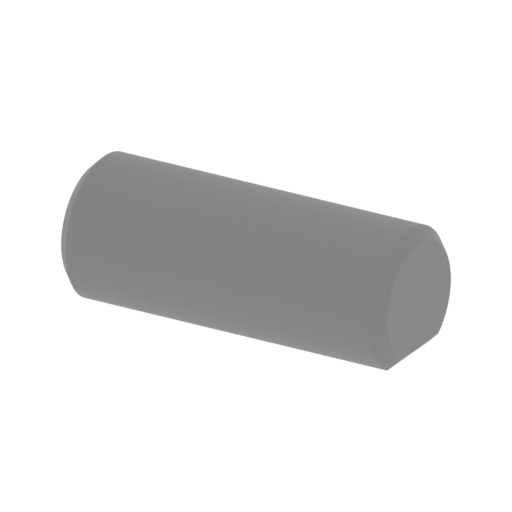

_32_foot_pin_1_x2_FDM.stl
0.24 MiB 6 min <1 m 16 x 8 x 6 Download

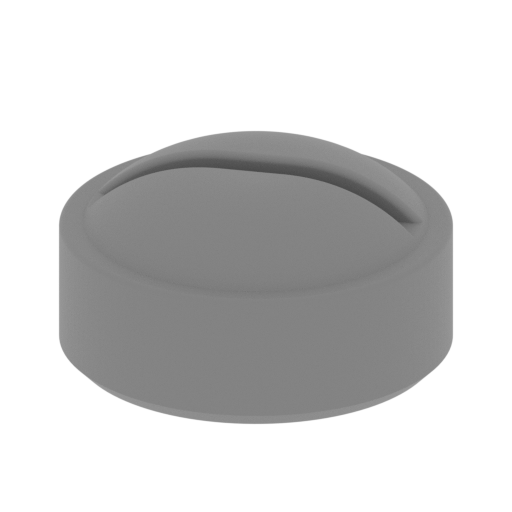

_33_foot_pin_cap_x2_FDM.s tl
1.02 MiB 8 min <1 m 13 x 13 x 7 Download

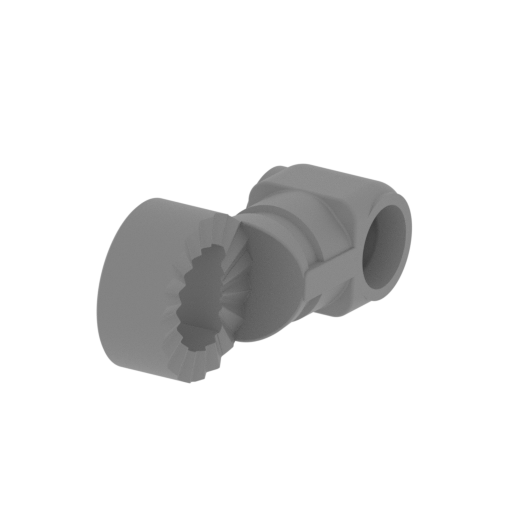

_34_foot_5_R_FDM.stl
14.18 MiB 1 h 39 min 1 m 26 x 50 x 22 Download

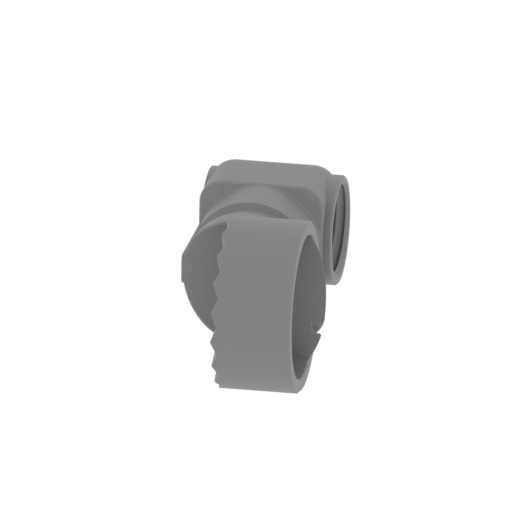

_35_foot_5_L_FDM.stl
14.18 MiB 1 h 39 min 1 m 26 x 50 x 22 Download

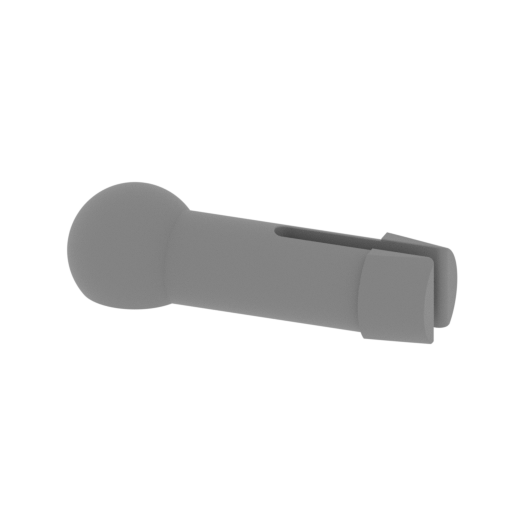

_37_foot_pin_3_x2_FDM.stl
2.23 MiB 13 min <1 m 29 x 10 x 8 Download

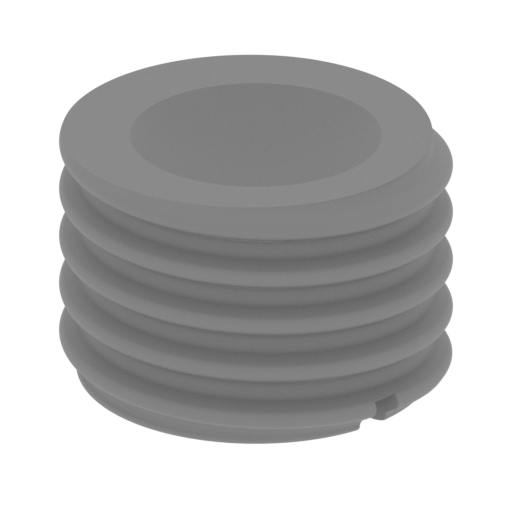

_38_foot_screw_R_FDM.stl
6.00 MiB 12 min <1 m 11 x 11 x 8 Download

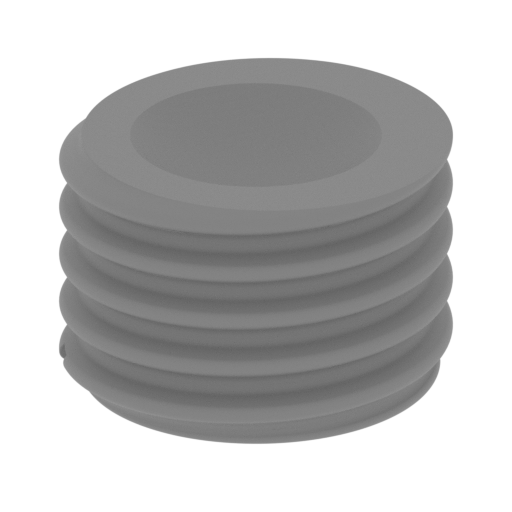

_39_foot_screw_L_FDM.stl
6.00 MiB 13 min <1 m 11 x 11 x 8 Download

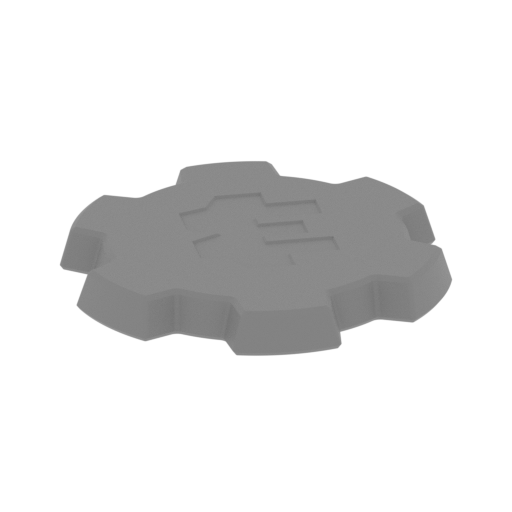

_40_stand_FDM.stl
5.54 MiB 28 h 20 min 16 m 180 x 174 x 20 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

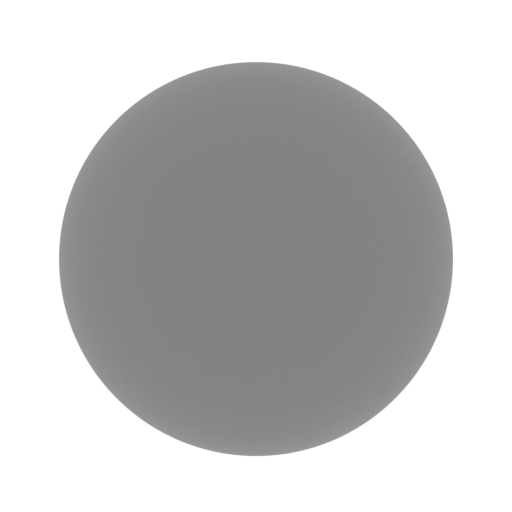

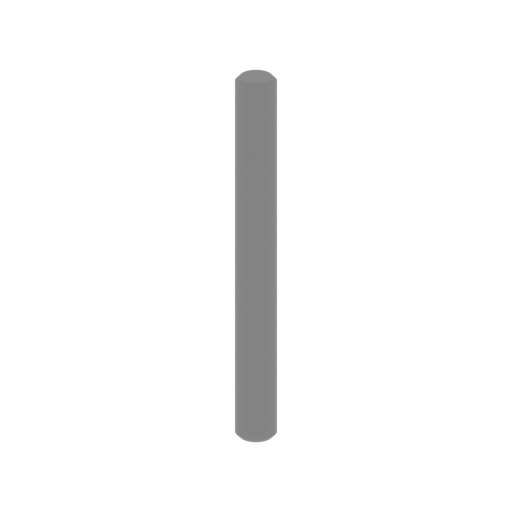

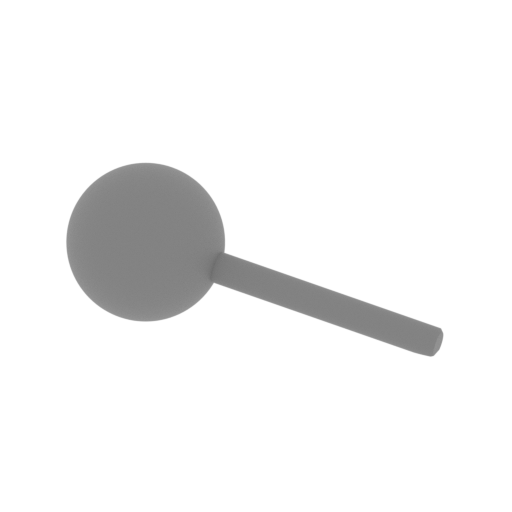

08_antenna_FDM.stl
0.94 MiB 10 min <1 m 25 x 10 x 10 Download

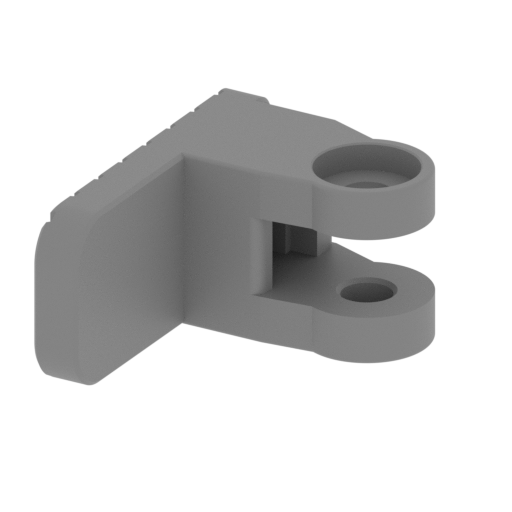

_30_foot_3_R_FDM.stl
1.34 MiB 1 h 51 min 1 m 39 x 46 x 22 Download

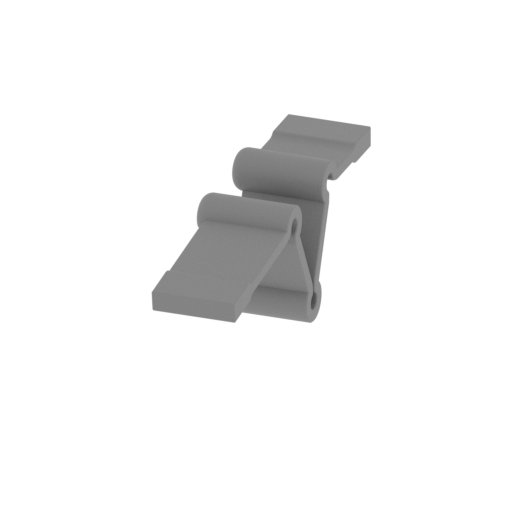

_03_tongue_FDM (2).stl
1.30 MiB 28 min <1 m 9 x 36 x 14 Download
_29_foot_2_x2_FDM.stl
1.45 MiB 20 min <1 m 11 x 12 x 18 Download
_16_shoulder_screw_R_FDM. stl
12.14 MiB 1 h 9 min 1 m 34 x 34 x 12 Download

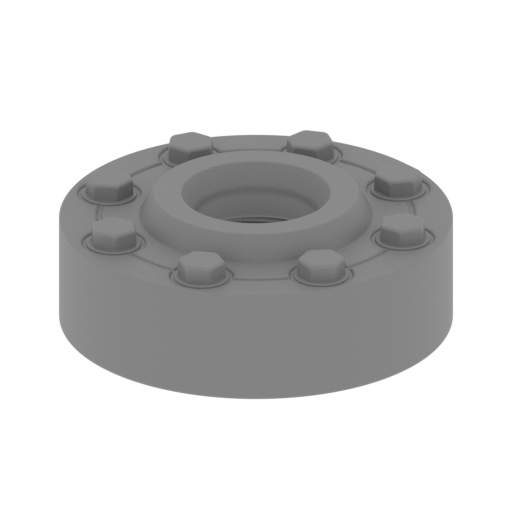

_17_shoulder_screw_L_FDM. stl
12.14 MiB 1 h 9 min 1 m 34 x 34 x 12 Download

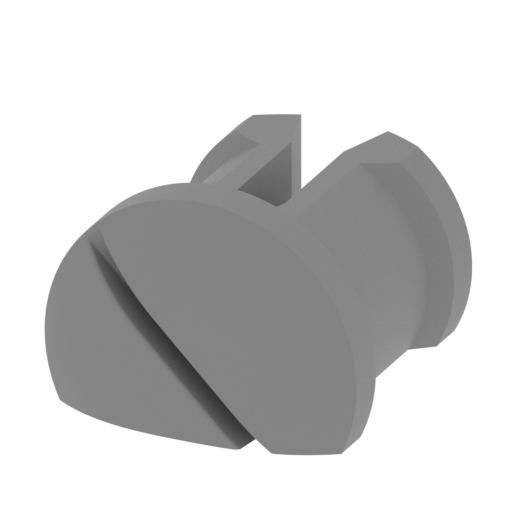

_22_arm_pin_L_FDM.stl
1.20 MiB 17 min <1 m 16 x 19 x 12 Download

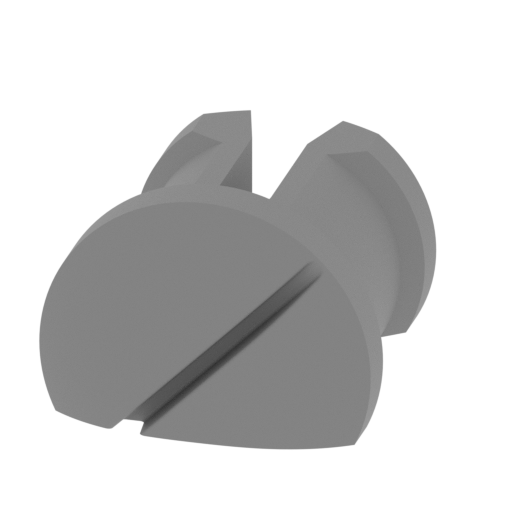

_22_arm_pin_R_FDM.stl
1.20 MiB 17 min <1 m 16 x 19 x 12 Download

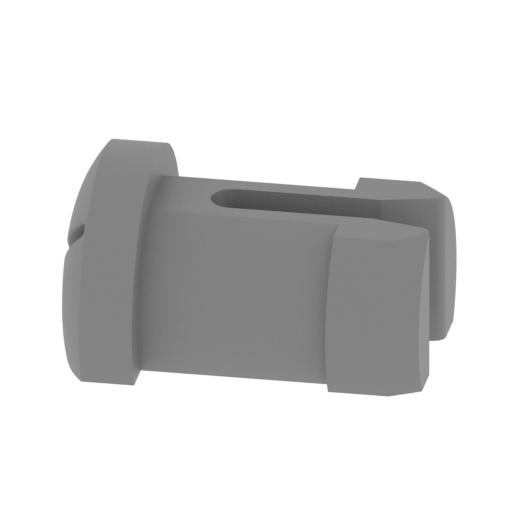

_36_foot_pin_2_L_FDM.stl
1.38 MiB 26 min <1 m 26 x 20 x 13 Download

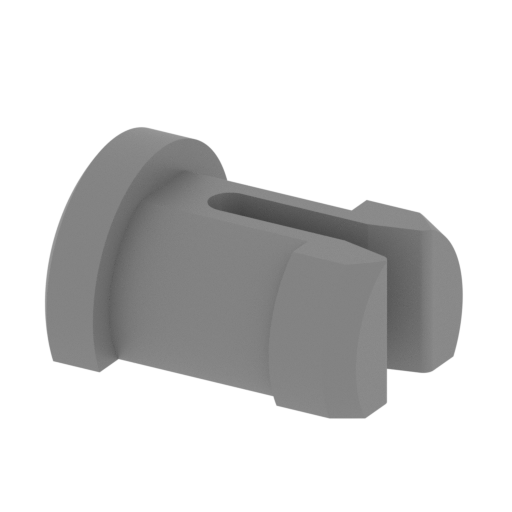

_36_foot_pin_2_R_FDM.stl
1.38 MiB 26 min <1 m 26 x 20 x 13 Download

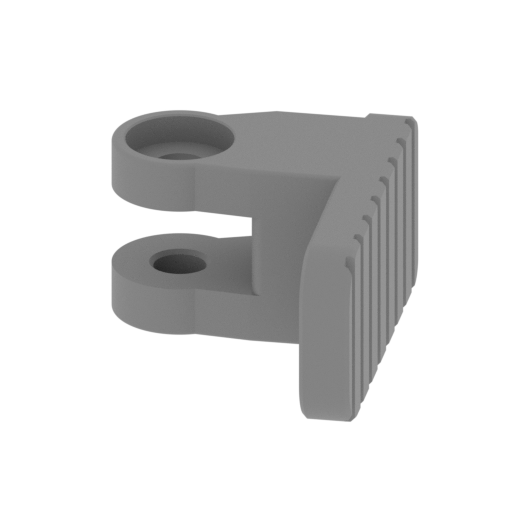

_30_foot_3_L_FDM.stl
1.34 MiB 1 h 53 min 1 m 39 x 46 x 22 Download
...

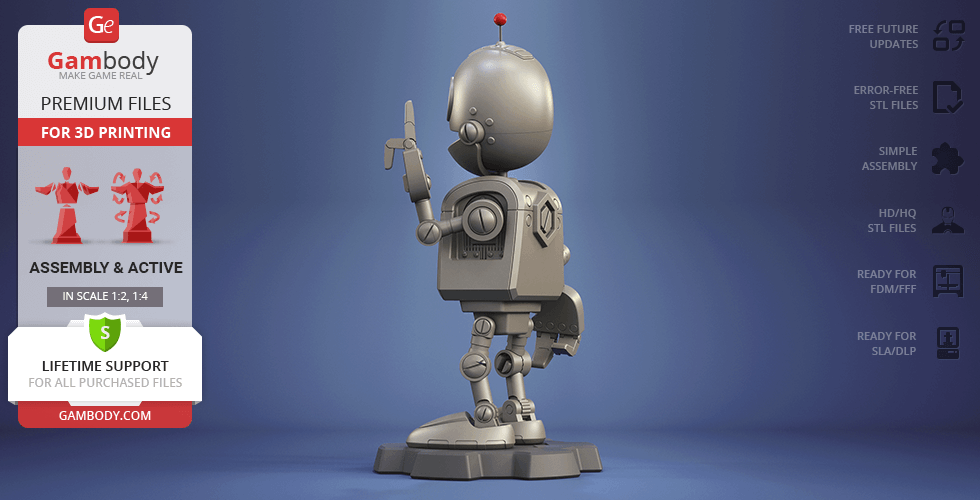

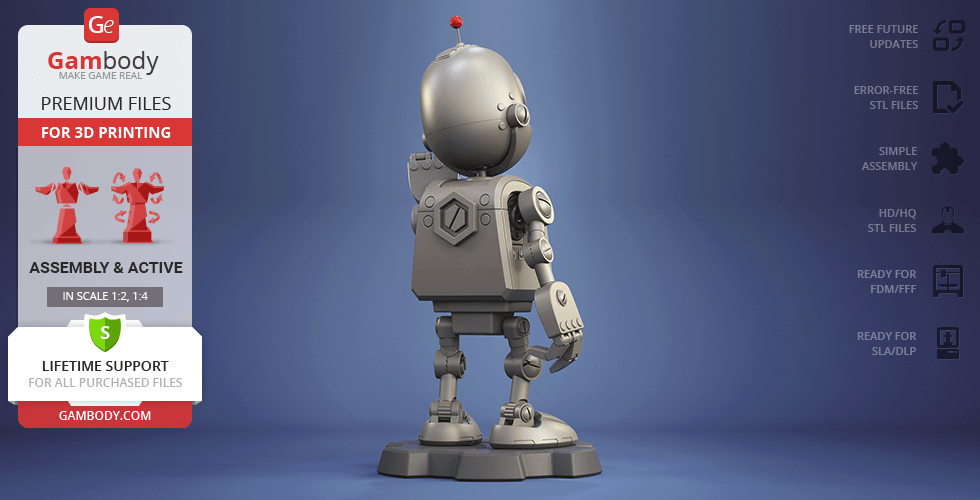

ABOUT THIS 3D MODEL

Ratchet & Clank action-adventure video games tells the story of an intergalactic hero Ratchet and his best friend and partner Clank. Together they share many adventures, saving galaxies from criminals and supervillains, with Dr. Nefarious being their main enemy. Clank was created on the planet Quartu, it is a small robot with large circular eyes, an antenna on the head, and small articulated arms and legs. Clank is very intelligent, he has a curious nature and a good sense of humor. Together with Ratchet and Rivet, XJ-0461 embarks on missions to protect the universe and save its inhabitants.

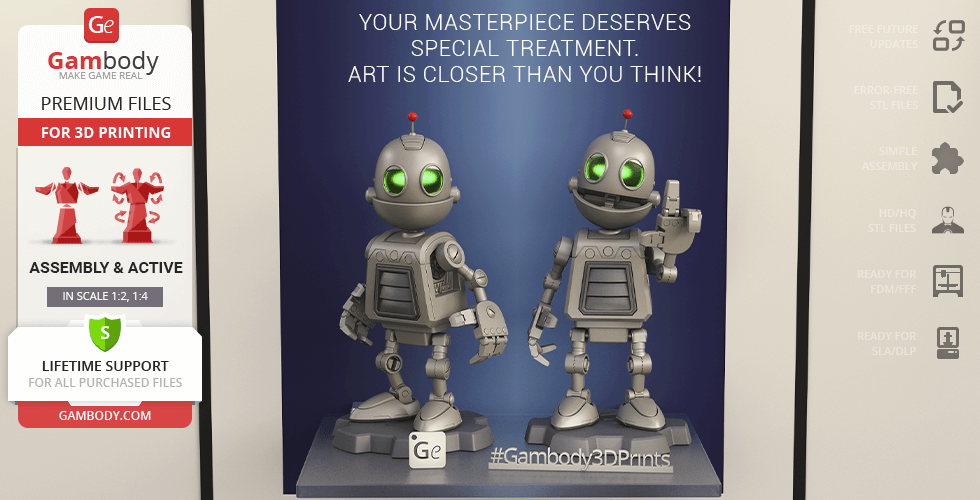

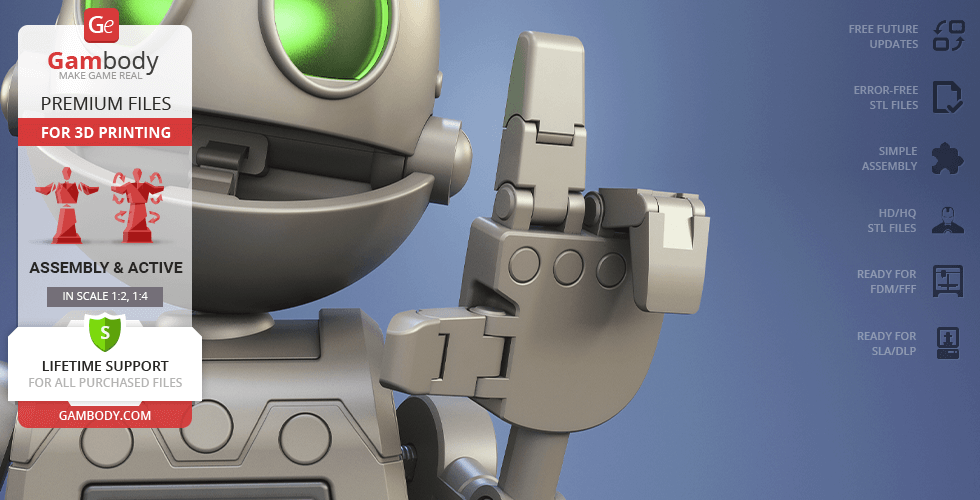

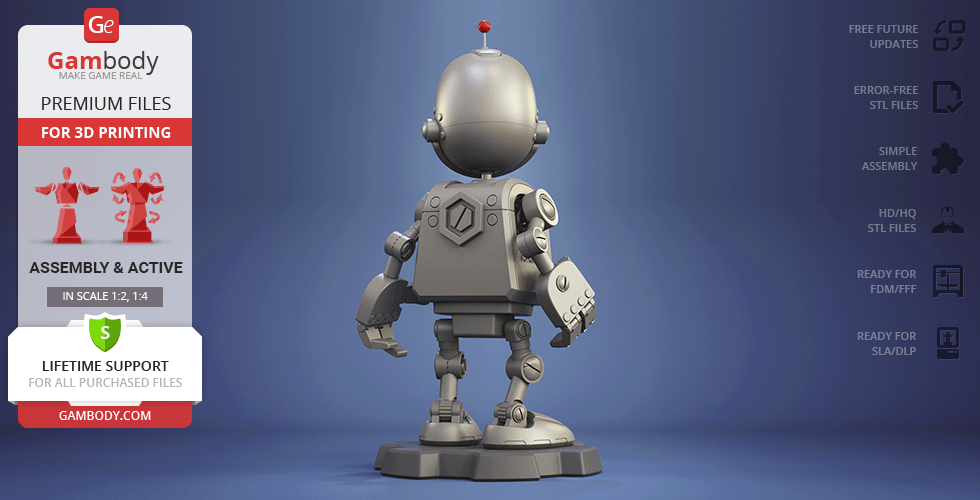

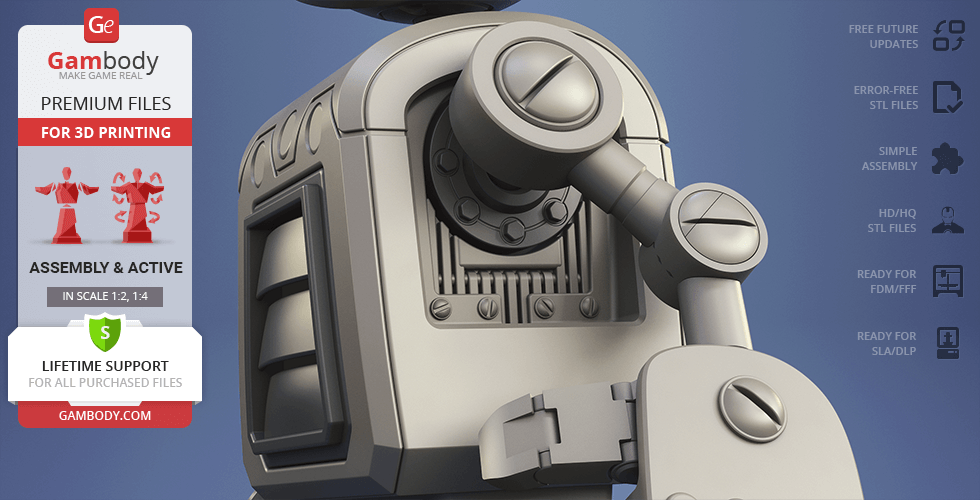

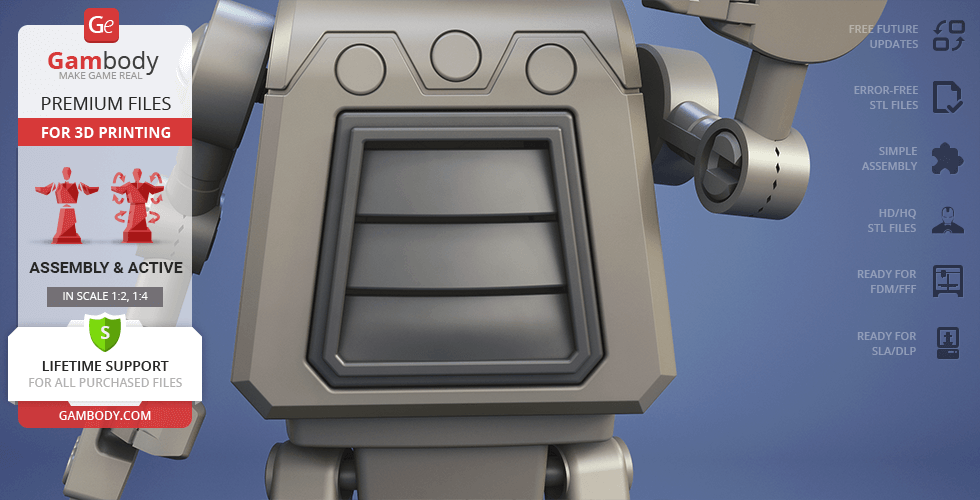

Our contributing 3D artist created this amazing model for 3D printing under the impression of this lovely character from the Ratchet & Clank shooting game. The design of the robot is developed with great accuracy to make the model as close to the original as possible. The wise robot is easily recognizable for his big eyes, radio antenna, and typical body proportions - big head and torso, short arms and legs, and massive palms and feet. The model is fully active, moreover, you can install LED wiring to light up the eyes of the robot. Just imagine how great your collection will look with this marvelous exhibit!

ADAPTATION FOR 3D PRINTING

The Clank model for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 91 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the robot was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Clank 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

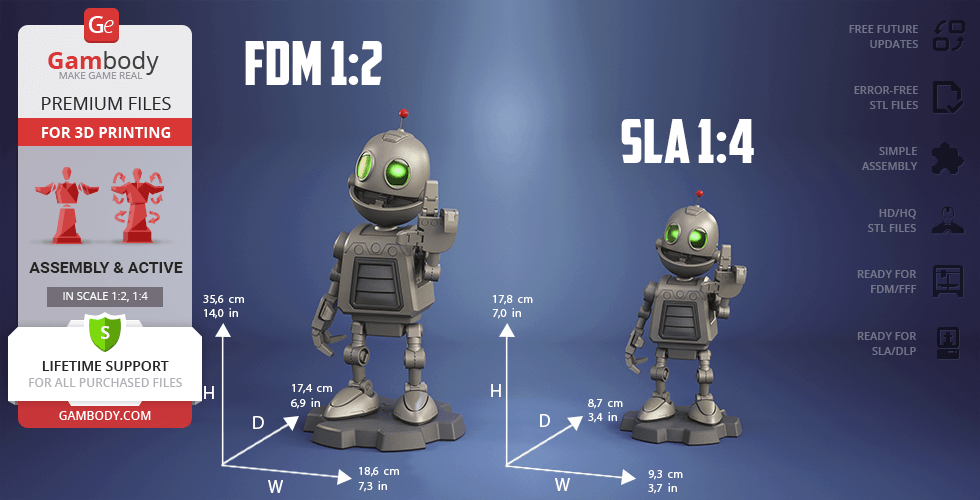

The model’s scale was calculated from the height of Clank which is 660 mm. The 3D printing model’s chosen scales are 1:2 for the FFF/FDM version and 1:4 for the DLP/SLA version.

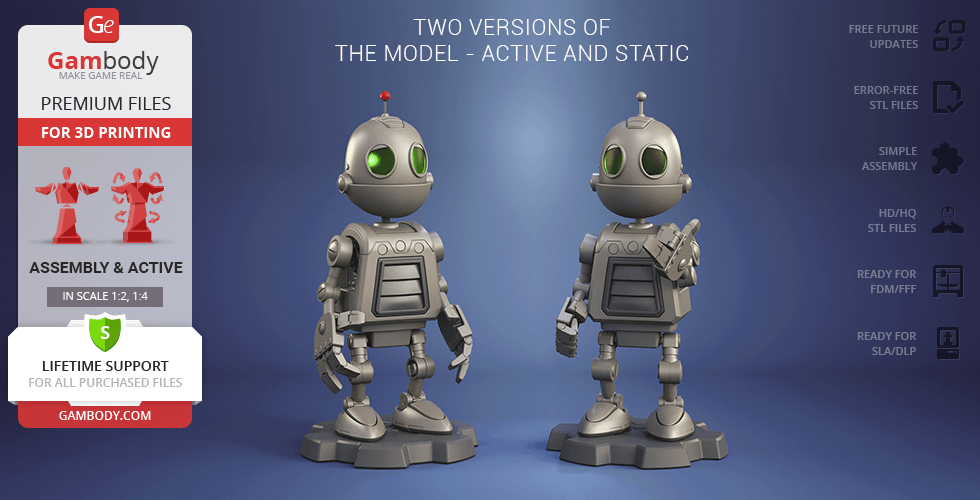

VERSIONS’ SPECIFICATIONS

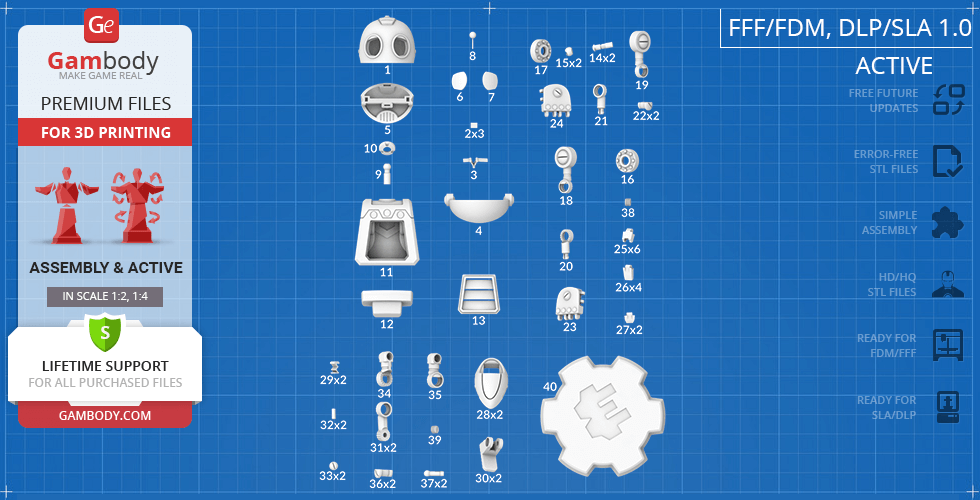

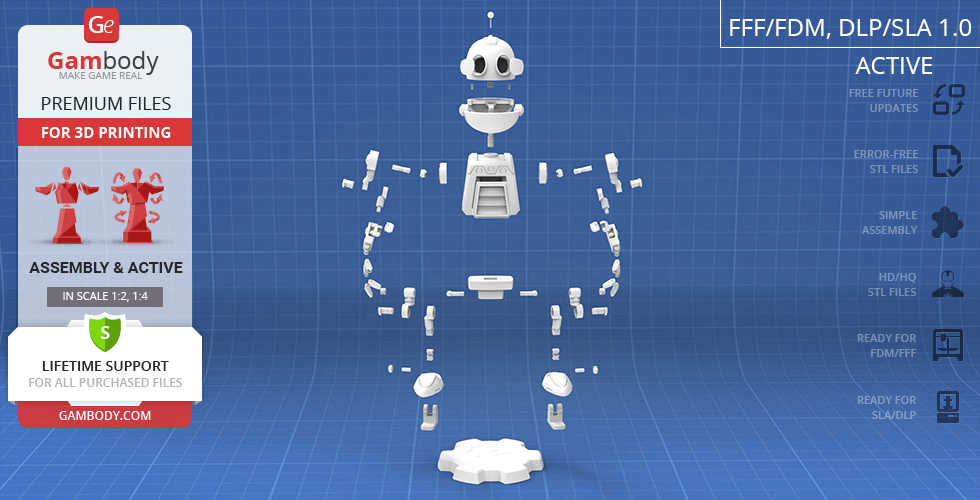

FFF/FDM 1.0 version features:

  • Contains 45 parts;

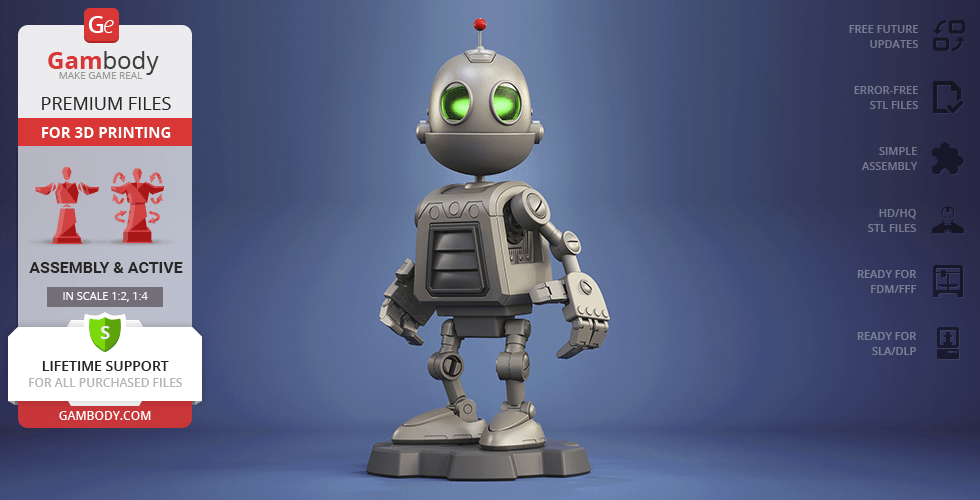

  • A printed model is 356 mm tall, 186 mm wide, 174 mm deep;

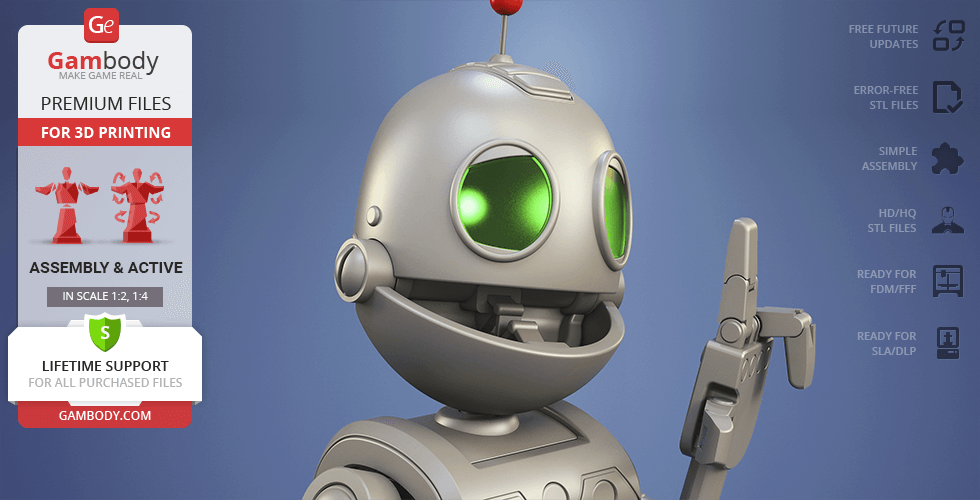

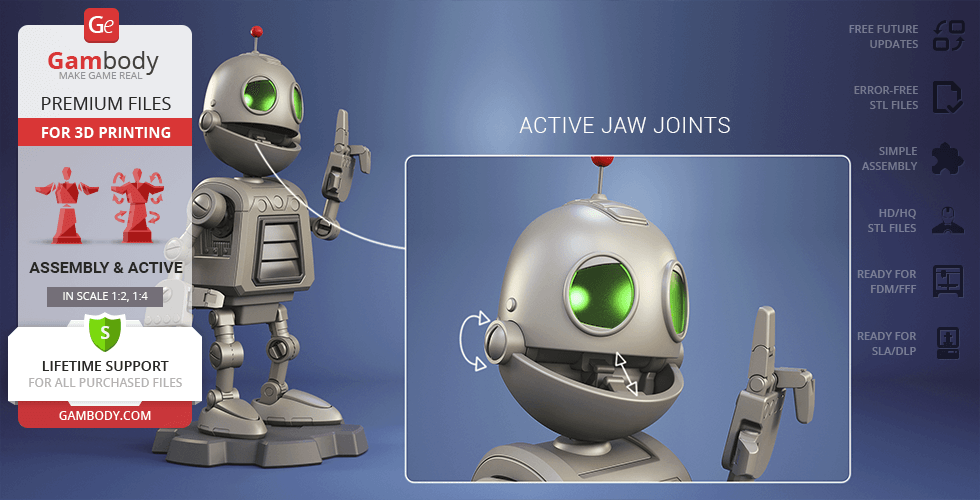

  • Active jaw joints;

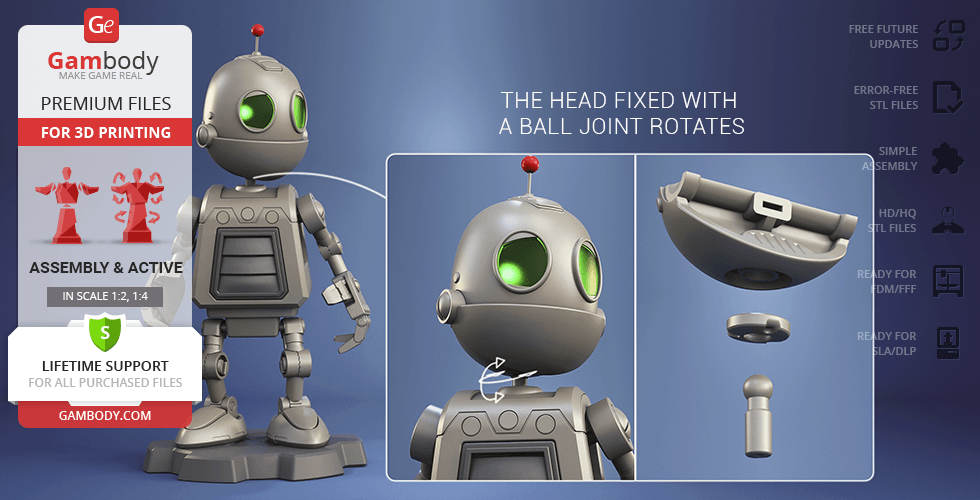

  • The head fixed with a ball joint rotates;

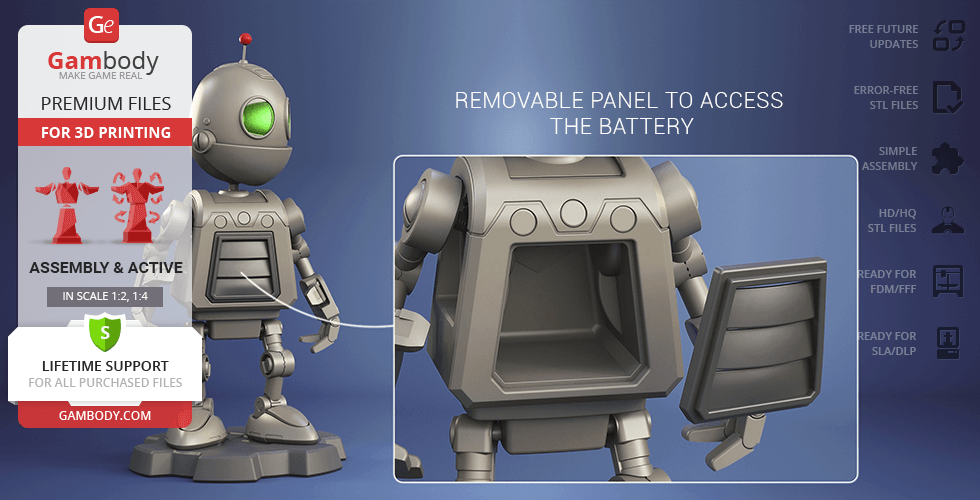

  • Removable panel to access the battery;

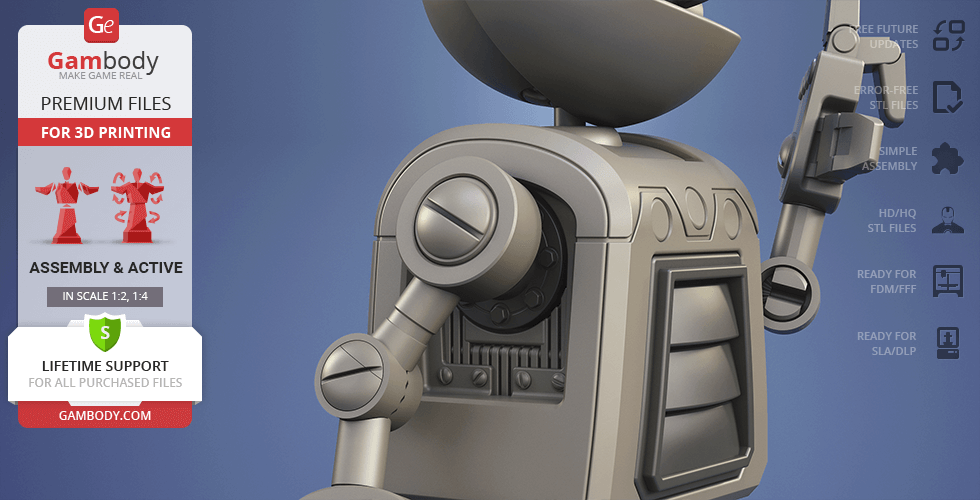

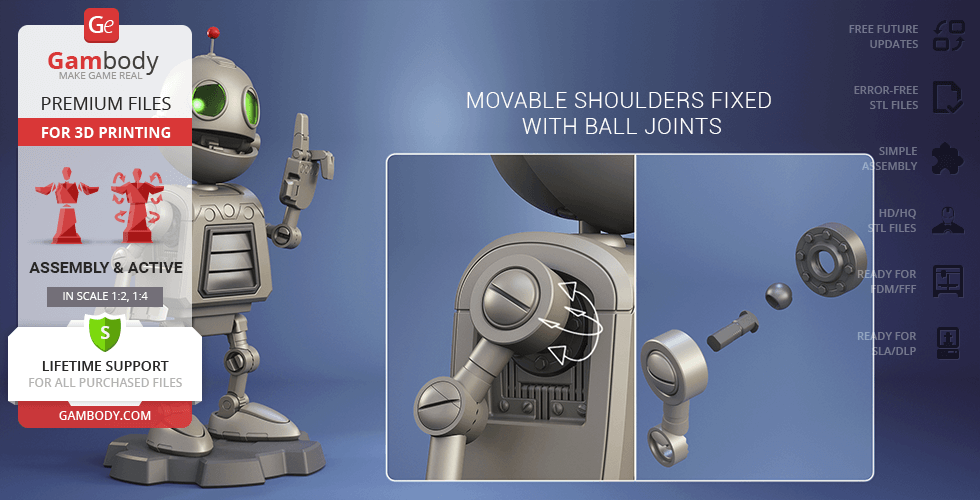

  • Movable shoulders fixed with ball joints;

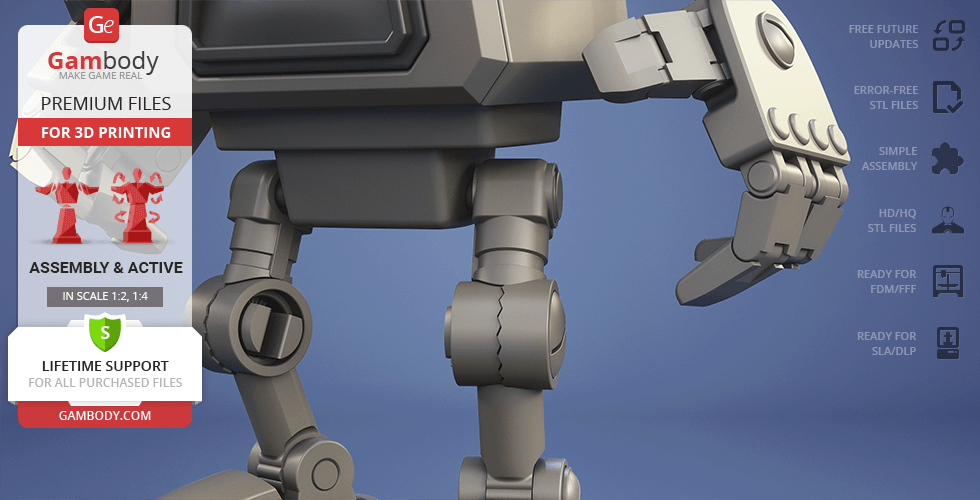

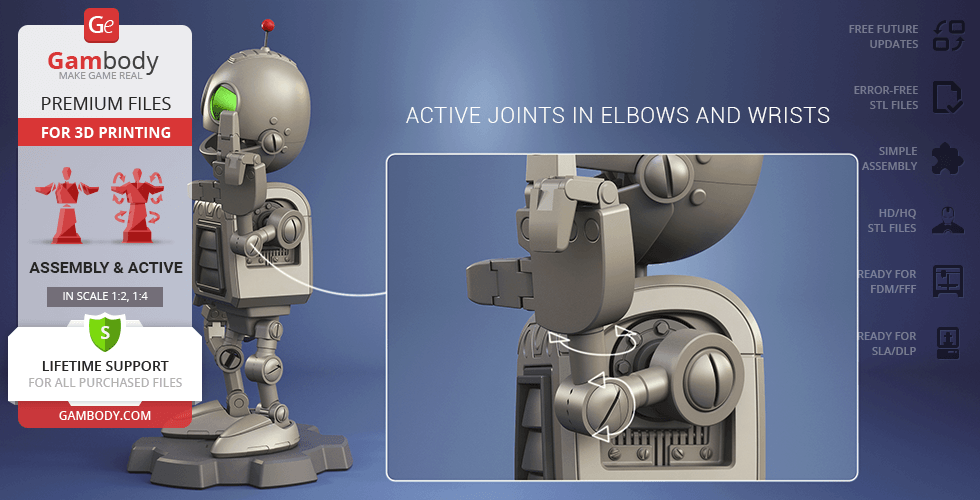

  • Active joints in elbows and wrists;

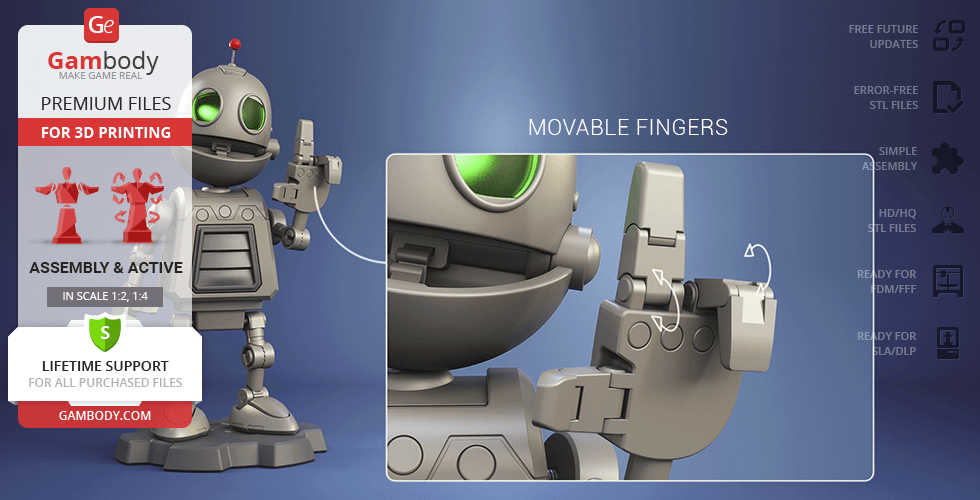

  • Movable fingers;
  • Active hip joints;

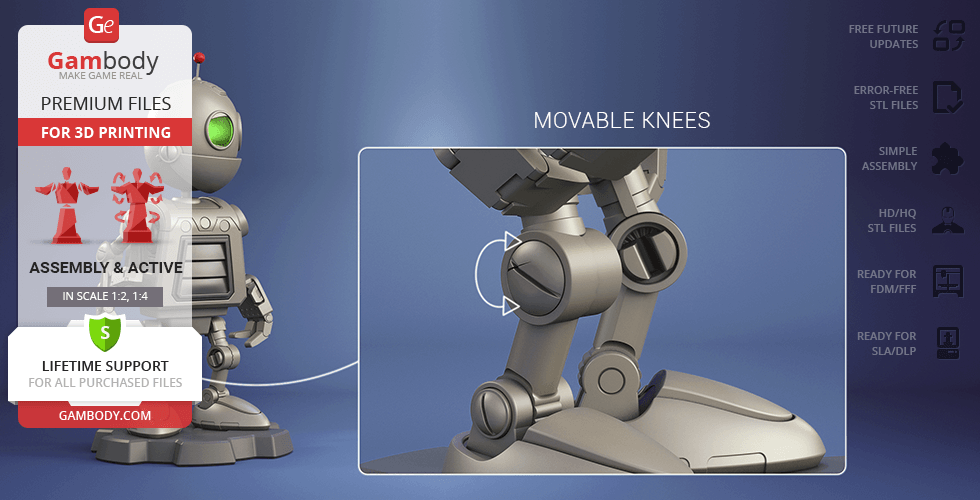

  • Movable knees;

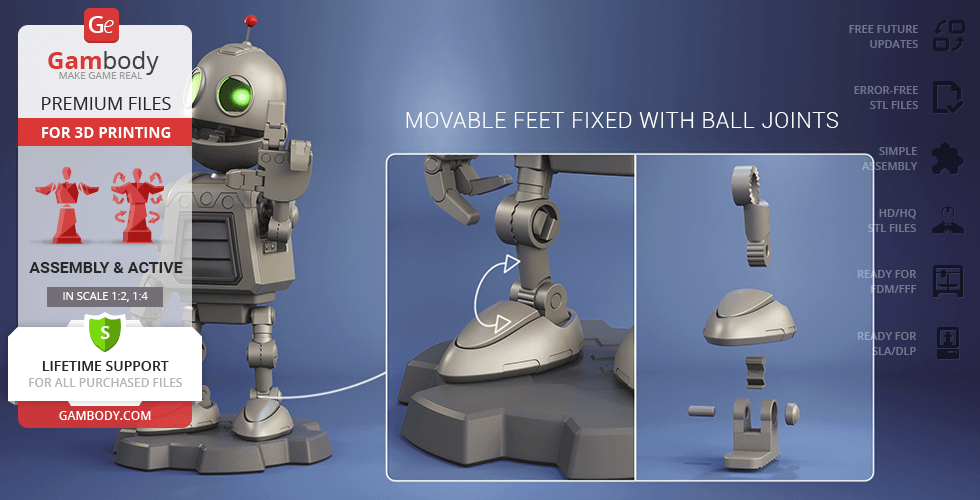

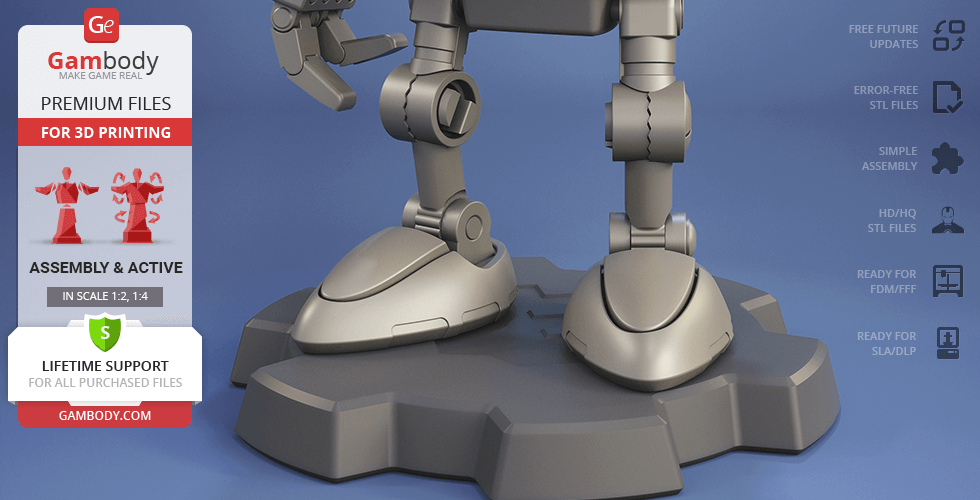

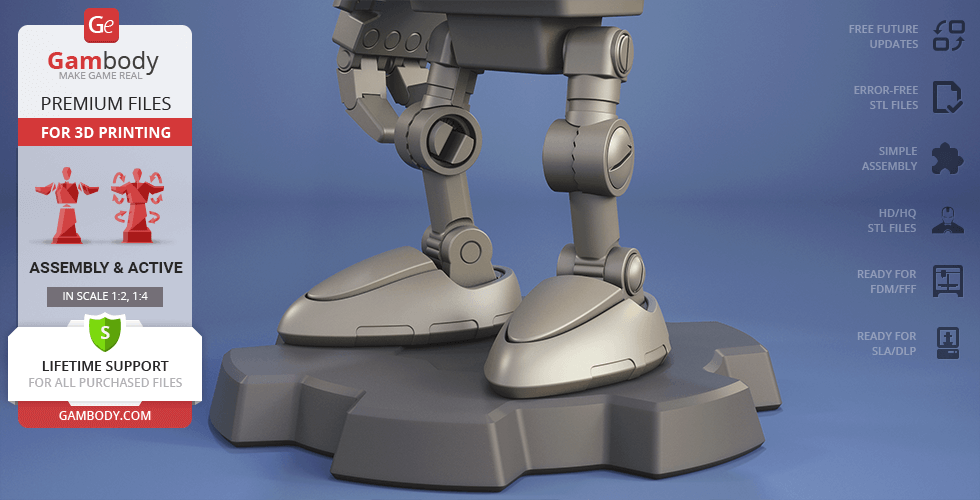

  • Movable feet fixed with ball joints;
  • Tunnels for LED wiring to light up the eyes;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA Active 1.0 version features:

  • Contains 40 parts;
  • A printed model is 178 mm tall, 93 mm wide, 87 mm deep;
  • Active jaw joints;
  • The head fixed with a ball joint rotates;
  • Removable panel to access the battery;
  • Movable shoulders fixed with ball joints;
  • Active joints in elbows and wrists;
  • Movable fingers;
  • Active hip joints;
  • Movable knees;
  • Movable feet fixed with ball joints;
  • Tunnels for LED wiring to light up the eyes;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

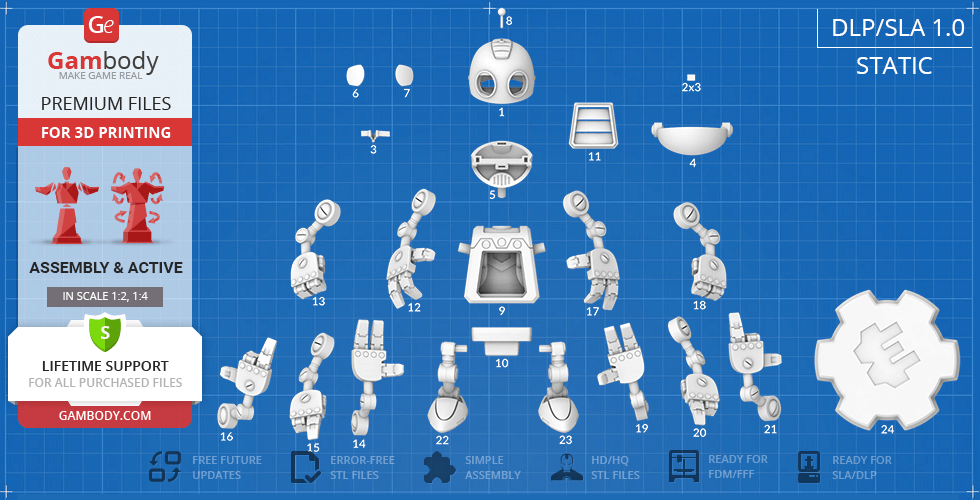

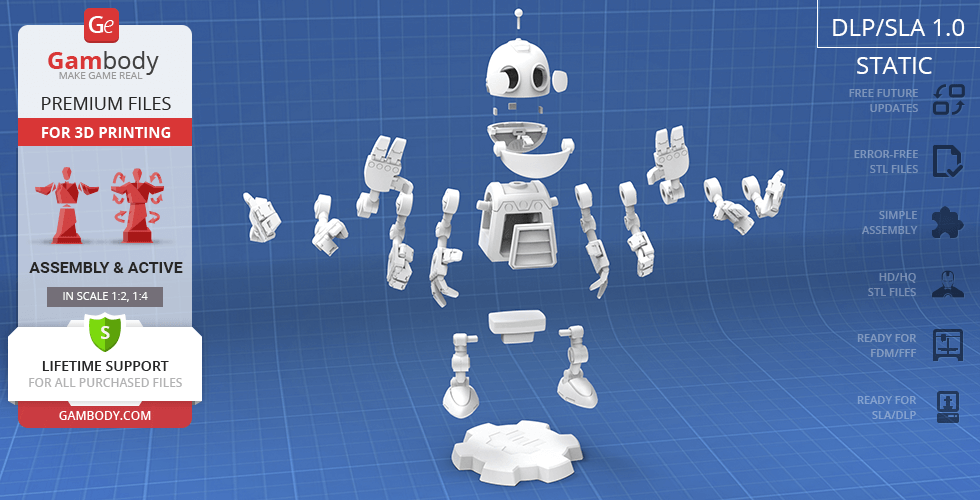

DLP/SLA Static 1.0 version features:

  • Contains 24 parts;
  • A printed model is 178 mm tall, 93 mm wide, 87 mm deep;
  • Removable panel to access the battery;
  • Movable jaw;
  • There are 5 variants of hand gestures;
  • Tunnels for LED wiring to light up the eyes;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Clank model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Clank 3D Printing Model on Gambody YouTube channel.

Also, you may like Rivet Bust 3D Printing Figurine and other Video Games 3D Printing Models.

________

FAQ

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

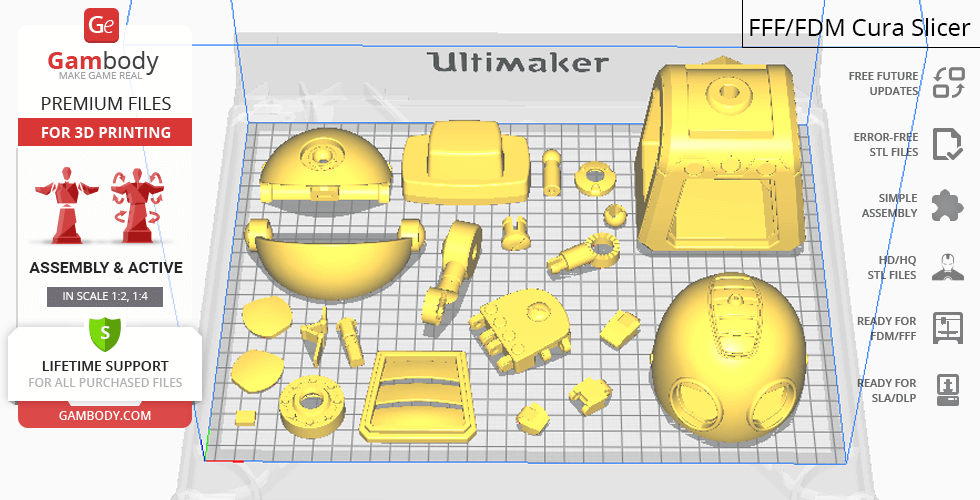

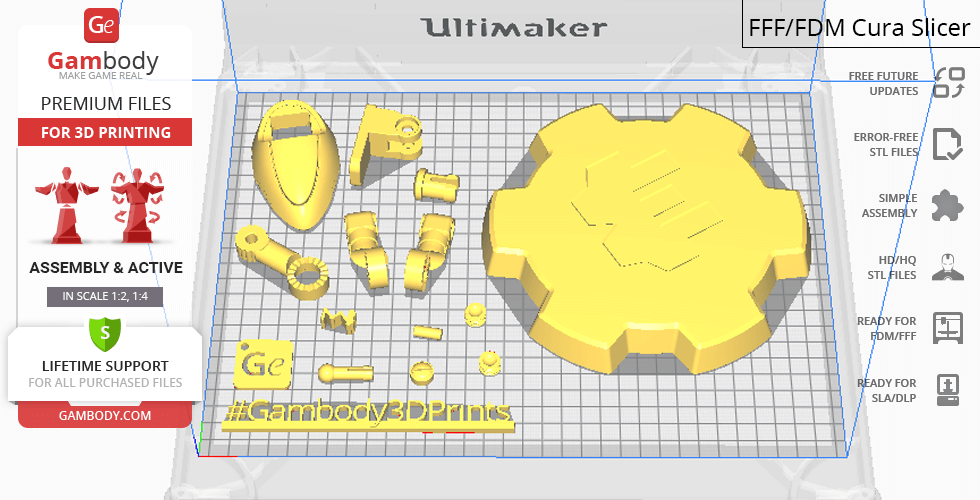

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
