Premium Stock

Guns Pack for UrbanMech 3D Printing Models | Assembly

(4)
cm: 2.7 w x 10.3 d x 4.4 h
in: 1.063 w x 4.055 d x 1.732 h

Source Files

|

Description

|

Printing Details

This 3D Models consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Guns Pack for UrbanMech 3D Printing Model comes in 1 version for FFF/FDM 3D Printers. Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_gun_1_top_L (repaired). stl
0.05 MiB 12 min <1 m 6 x 29 x 8 Download
2_gun_2_top_L (repaired). stl
0.02 MiB 12 min <1 m 6 x 29 x 8 Download
3_gun_1_back_L (repaired) .stl
0.12 MiB 15 min <1 m 10 x 10 x 14 Download

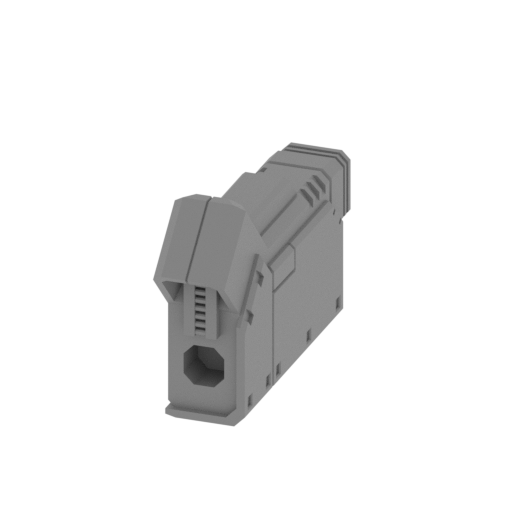

4_gun_1_L (repaired).stl
0.43 MiB 1 h 56 min 1 m 13 x 55 x 33 Download

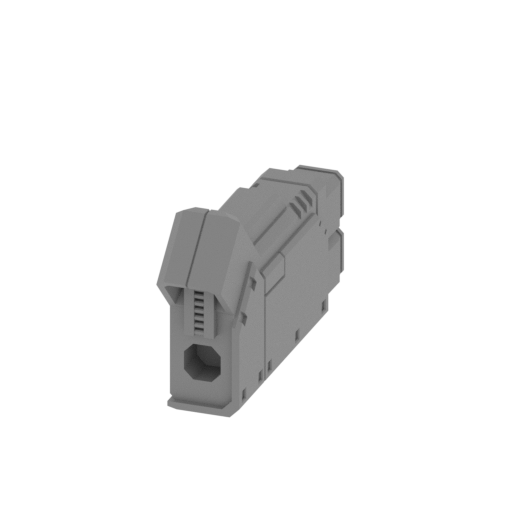

5_gun_2_L (repaired).stl
0.42 MiB 1 h 58 min 1 m 13 x 61 x 33 Download
6_gun_3_L (repaired).stl
0.51 MiB 2 h 22 min 1 m 22 x 65 x 33 Download
7_gun_4_L (repaired).stl
0.29 MiB 1 h 42 min 1 m 13 x 48 x 33 Download
8_gun_base_1_A_R (repaire d).stl
0.43 MiB 2 h 37 min 1 m 22 x 40 x 46 Download
9_gun_base_2_A_R (repaire d).stl
0.22 MiB 45 min <1 m 17 x 32 x 20 Download
10_Ge_lock_10H_(x4) (repa ired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
11_turret_A_1_R (repaired ).stl
0.65 MiB 32 min <1 m 12 x 12 x 33 Download
12_turret_A_2_R (repaired ).stl
2.16 MiB 33 min <1 m 12 x 12 x 28 Download
13_turret_A_3_R (repaired ).stl
2.42 MiB 35 min <1 m 12 x 12 x 34 Download
14_turret_A_4_R (repaired ).stl
0.80 MiB 37 min <1 m 12 x 12 x 42 Download
15_gun_base_B_R (repaired ).stl
0.40 MiB 2 h 40 min 2 m 22 x 40 x 54 Download
16_turret_B_1_R (repaired ).stl
0.07 MiB 52 min 1 m 16 x 35 x 20 Download
17_turret_B_2_R (repaired ).stl
0.22 MiB 1 h 14 min 1 m 16 x 37 x 57 Download

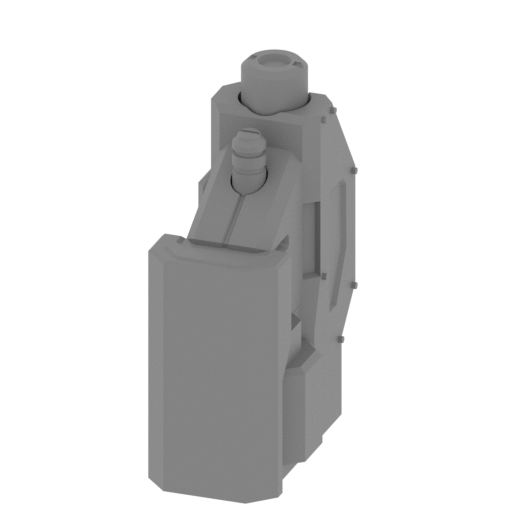

18_gun_base_C_R (repaired ).stl
0.46 MiB 2 h 57 min 2 m 27 x 43 x 54 Download

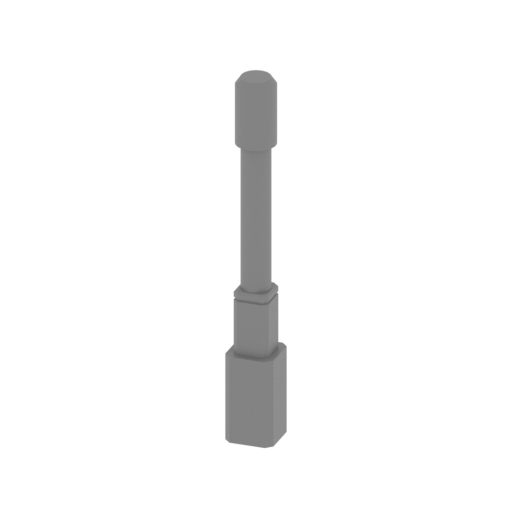

19_turret_C_1_R (repaired ).stl
0.06 MiB 10 min <1 m 4 x 4 x 32 Download
20_turret_C_2_R (repaired ).stl
0.06 MiB 10 min <1 m 4 x 4 x 32 Download
21_gun_base_1_D_R (repair ed).stl
0.22 MiB 2 h 14 min 1 m 22 x 40 x 46 Download

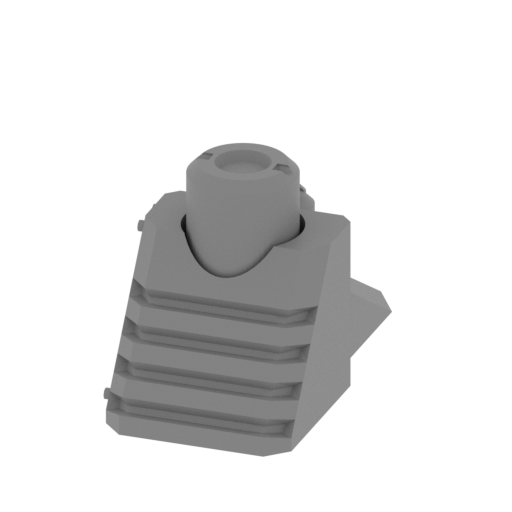

22_gun_base_2_D_R (repair ed).stl
0.22 MiB 45 min <1 m 17 x 32 x 20 Download
23_turret_D_1_R (repaired ).stl
2.89 MiB 1 h 31 min 1 m 18 x 30 x 32 Download
24_turret_D_2_R (repaired ).stl
2.91 MiB 1 h 30 min 1 m 18 x 30 x 32 Download
25_body_grid_front (repai red).stl
0.81 MiB 30 min <1 m 15 x 20 x 14 Download
26_flasher_1 (repaired).s tl
0.19 MiB 21 min <1 m 38 x 13 x 10 Download
27_flasher_2_for_antens ( repaired).stl
0.11 MiB 23 min <1 m 38 x 13 x 10 Download

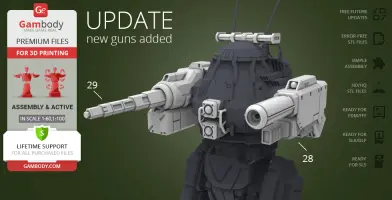

28_gun_5_L (repaired).stl
0.48 MiB 2 h 24 min 1 m 13 x 81 x 33 Download
29_turret_A_5_R (repaired ).stl
0.21 MiB 42 min <1 m 12 x 12 x 58 Download
...

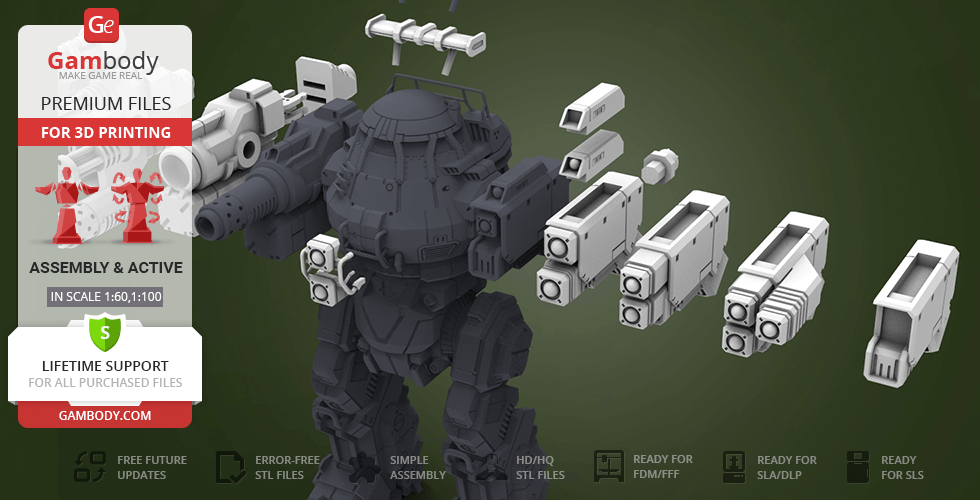

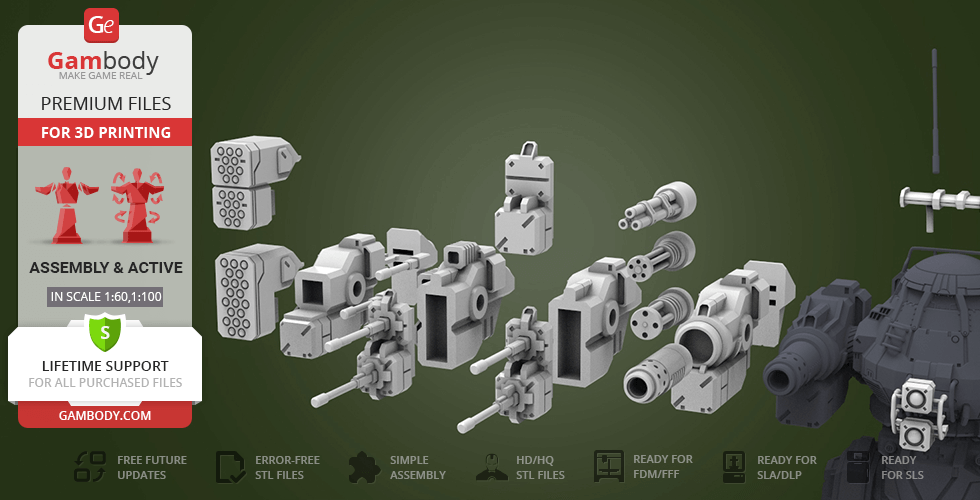

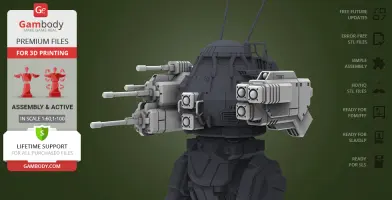

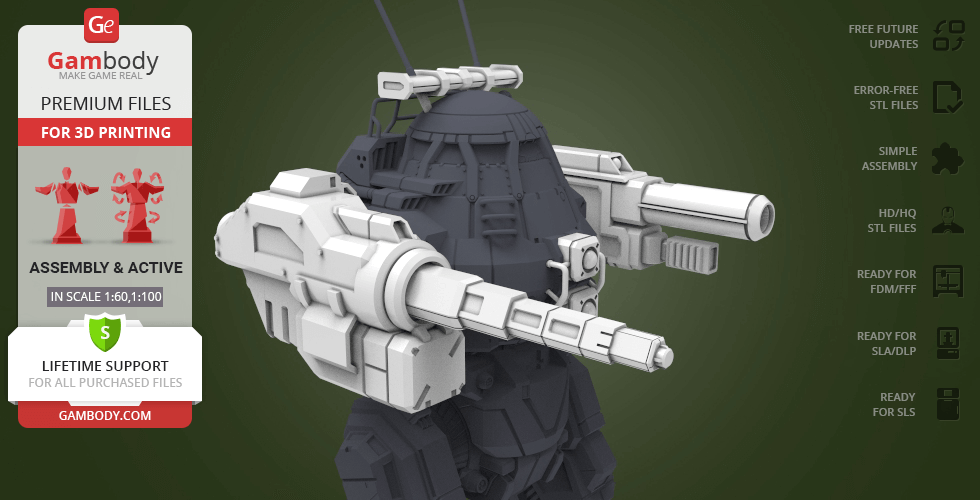

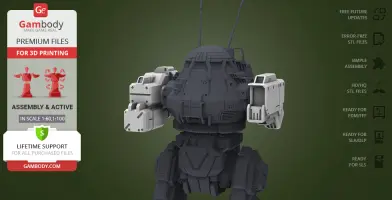

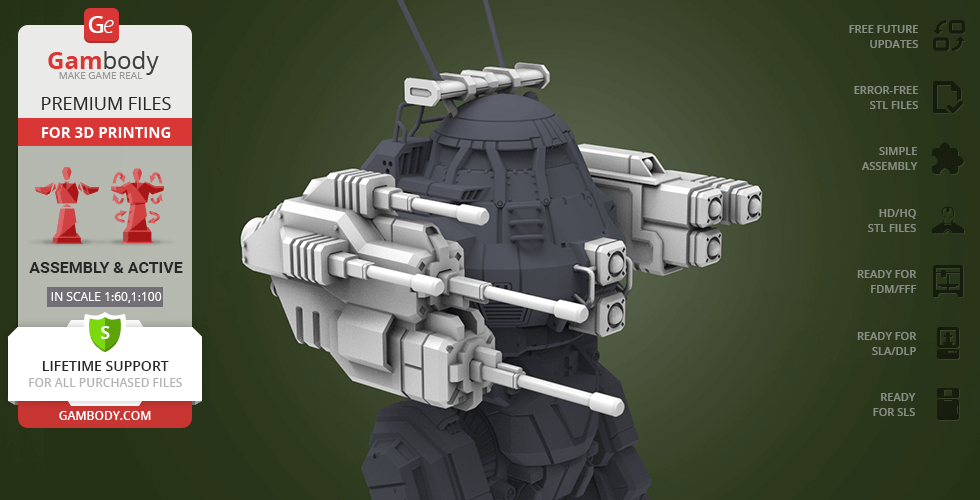

MWO WEAPON KIT FOR URBANMECH

This set of weapons contains assembly kits for various UrbanMech variants. Choose the best weapon upgrade for your Mech before it joins a new battle. The most popular weapons are presented to your attention. You can equip your mech with lasers and take sniper shots at your enemies, or you can choose rocket launchers if you prefer the firepower of the heavy artillery. Also, you will get the legendary K9 set that will show your enemies who the boss is, and many other gun builds like machine gun or missiles. Use them to create your most desirable UrbanMech. Here is a full list of guns:
1. UM-R63
2. UM-R60L
3. UM-K9
4. UM-R68
5. UM-SC

ABOUT THIS 3D MODELS

The model is saved in STL files, a format supported by most 3D printers

Features:

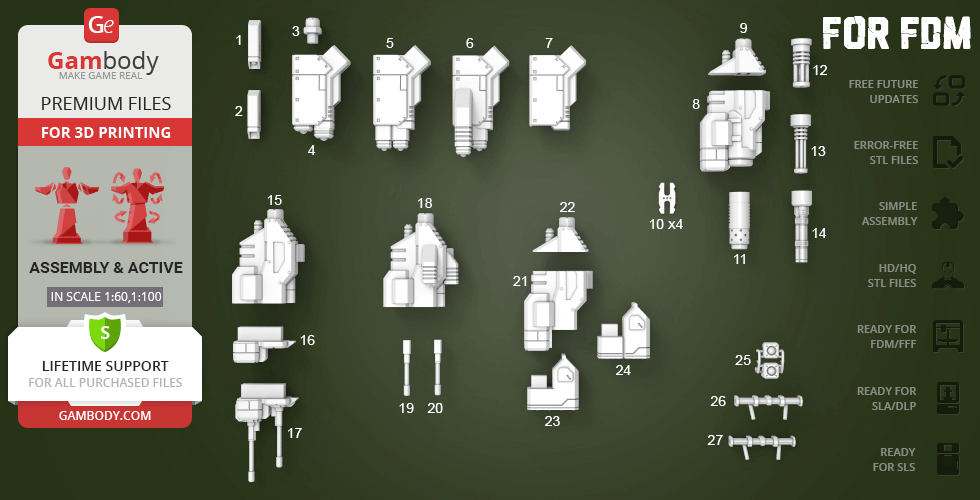

- Contain 27 parts;
- Made with Locks. One part of Lock (10_Ge_lock_10H_(x4)) you need to print 4 times;
- Contain K9 Pack;
- Contain Lasers Pack;
- Contain Auto Cannons Pack;
- Contain Flare Gun Pack;
- Contain Pulse Laser;
- Contain Machine Gun Pack;

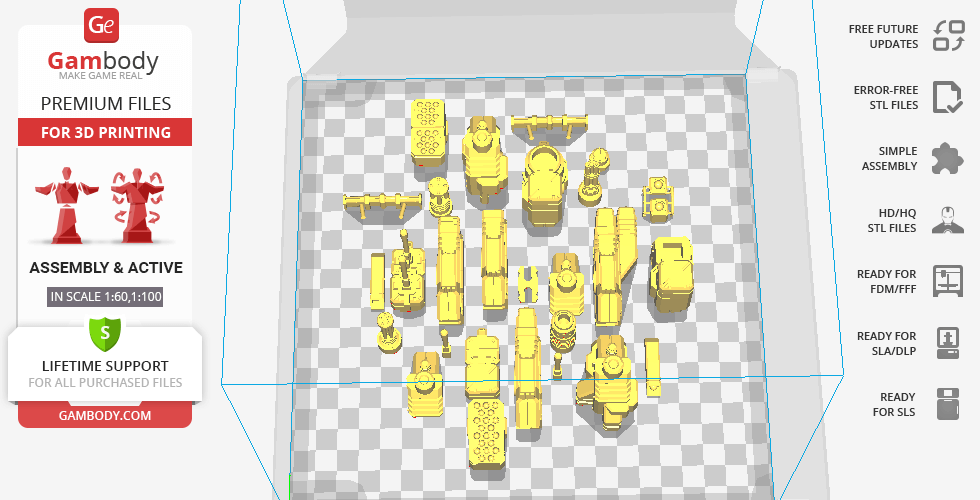

- All parts are divided in such way that you will print them with the smallest amount of supports.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.4.1. or Simplify3D Software.

Scale: MWO UrbanMech height is 10000 mm. The scale of this models made 1/60 for FFF/FDM version and 1/100 for DLP/SLA/SLS version.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Guns Pack for UrbanMech 3D Model for 3D printing which consist of 27 parts;
- Specially adapted files for FFF/FDM 3D Printers;
- High-poly detailed models of Guns for UrbanMech;
- Detailed settings that we provide for Cura 3.4.1. and Simplify3D for the best print;
- Full technical support from the Gambody Support Team.

You can get Models of Guns Pack for UrbanMech for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Guns Pack for UrbanMech 3D Printing Model at Gambody YouTube channel.

Here you can find UrbanMech 3D Model. Also, you may like other Mechs 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90Ëš
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
