B1 Battle Droid 3D Printing Model | Assembly + Action

(19)
cm: 6.2 w x 7.8 d x 24.8 h
in: 2.441 w x 3.071 d x 9.764 h

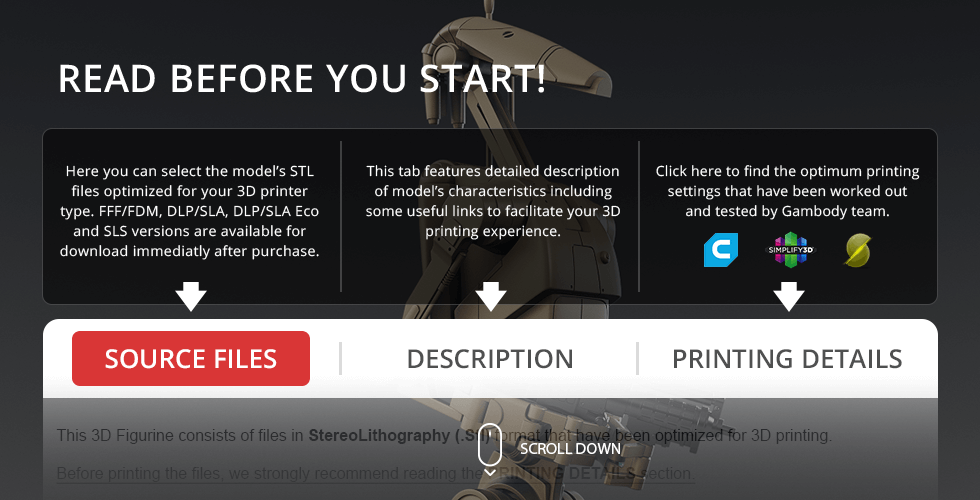

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

B1 Battle Droid 3D Printing Model comes in 3 versions for FFF/FDM, DLP/SLA and SLS 3D printers. Files for each version are available for download after purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

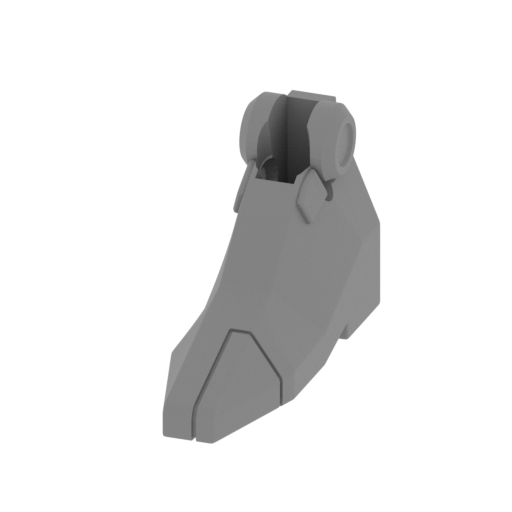

1_foot_R_FDM (repaired).s tl
4.53 MiB 31 min <1 m 11 x 33 x 20 Download
2_foot_L_FDM (repaired).s tl
4.53 MiB 32 min <1 m 11 x 33 x 20 Download

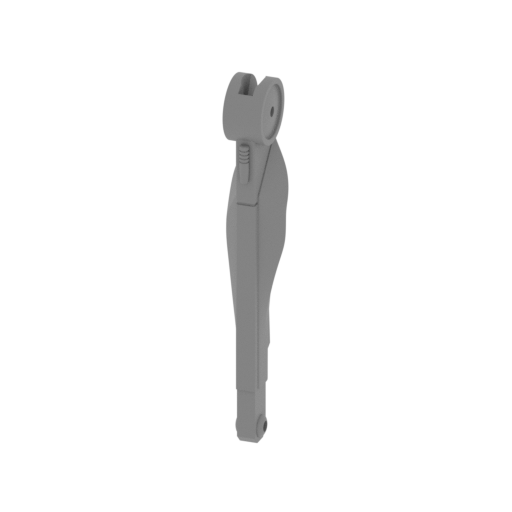

3_shin_R_FDM (repaired).s tl
5.91 MiB 1 h 16 min <1 m 11 x 13 x 68 Download

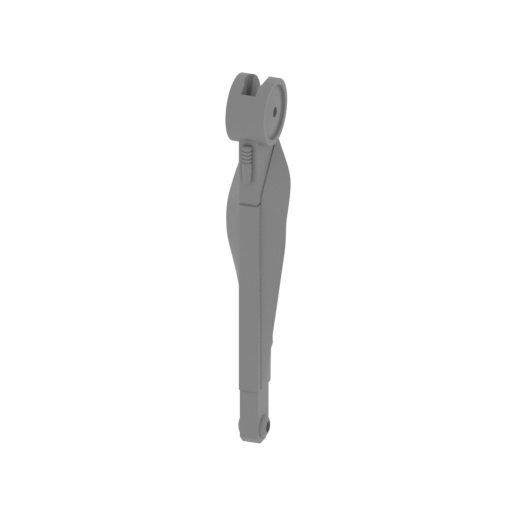

4_shin_L_FDM (repaired).s tl
5.92 MiB 1 h 15 min 1 m 11 x 13 x 68 Download

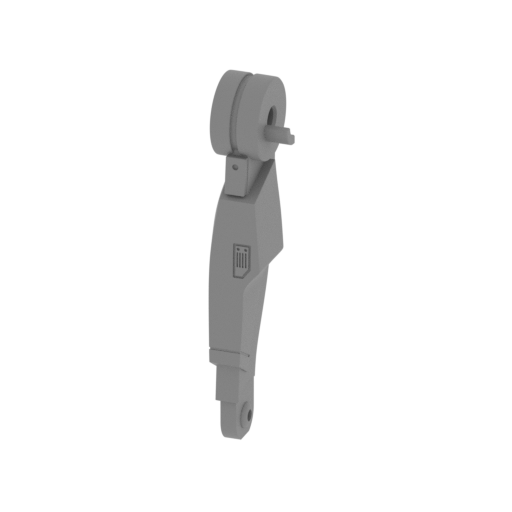

5_leg_R_FDM (repaired).st l
6.90 MiB 1 h 15 min 1 m 13 x 14 x 61 Download

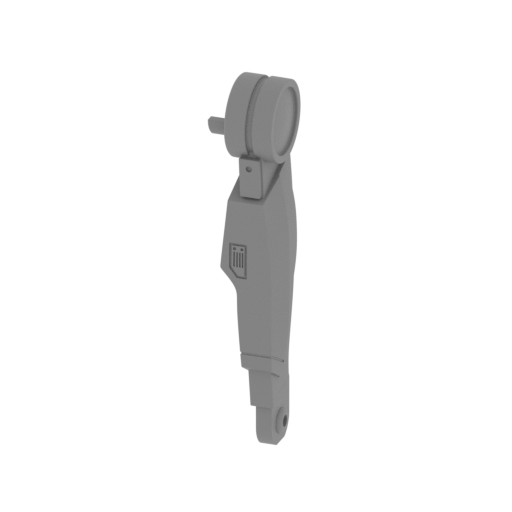

6_leg_L_FDM (repaired).st l
6.90 MiB 1 h 14 min 1 m 13 x 14 x 61 Download
7_connector_leg_R_FDM (re paired).stl
0.08 MiB 4 min <1 m 15 x 4 x 4 Download

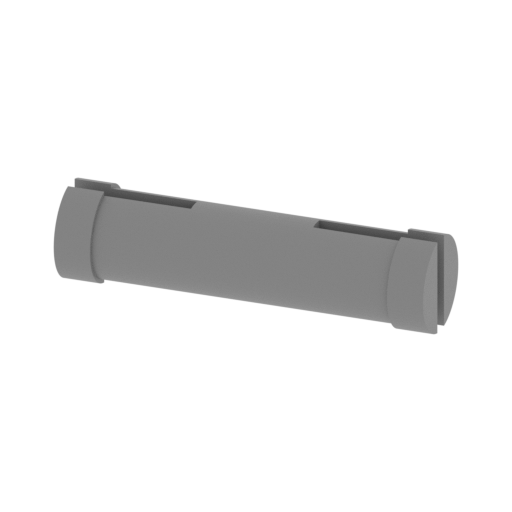

8_connector_leg_L_FDM (re paired).stl
0.08 MiB 4 min <1 m 15 x 4 x 4 Download

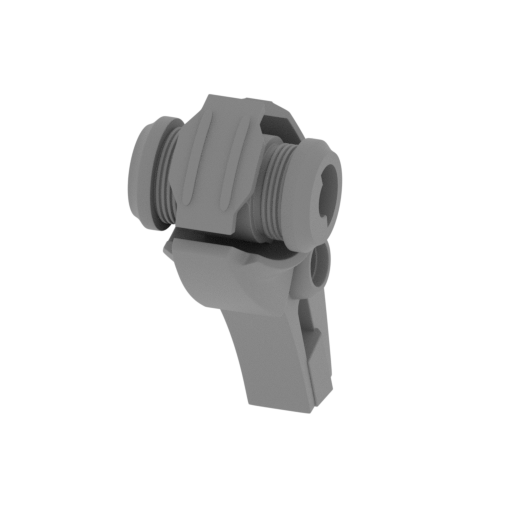

9_pelvis_FDM (repaired).s tl
17.83 MiB 1 h 47 min 1 m 20 x 34 x 41 Download

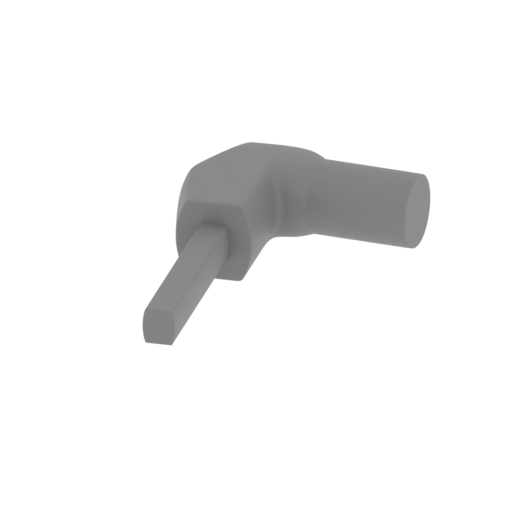

10_piston_in_R_FDM (repai red).stl
1.00 MiB 5 min <1 m 11 x 20 x 4 Download

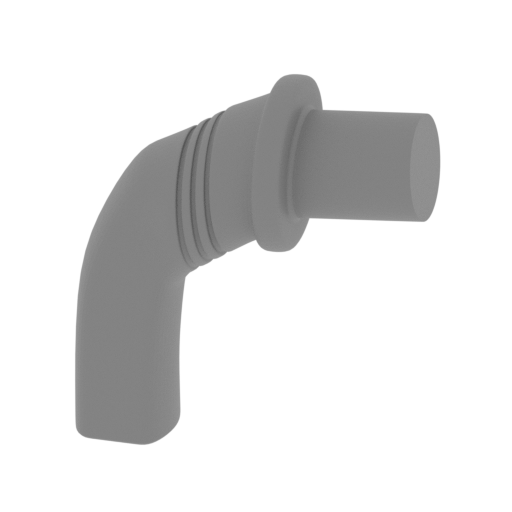

11_piston_out_R_FDM (repa ired).stl
1.29 MiB 15 min <1 m 14 x 7 x 15 Download

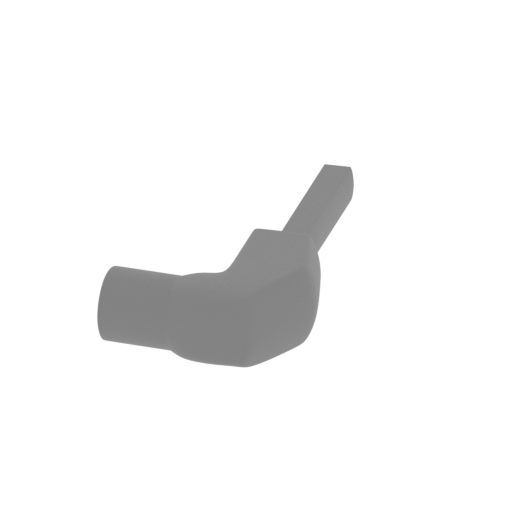

12_piston_in_L_FDM (repai red).stl
1.00 MiB 5 min <1 m 10 x 20 x 4 Download

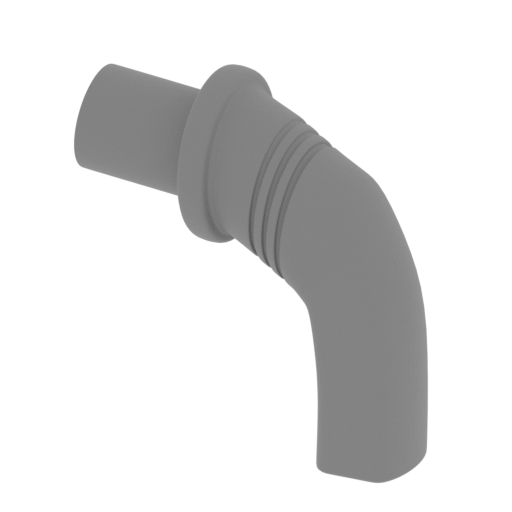

13_piston_out_L_FDM (repa ired).stl
1.29 MiB 15 min <1 m 14 x 7 x 15 Download

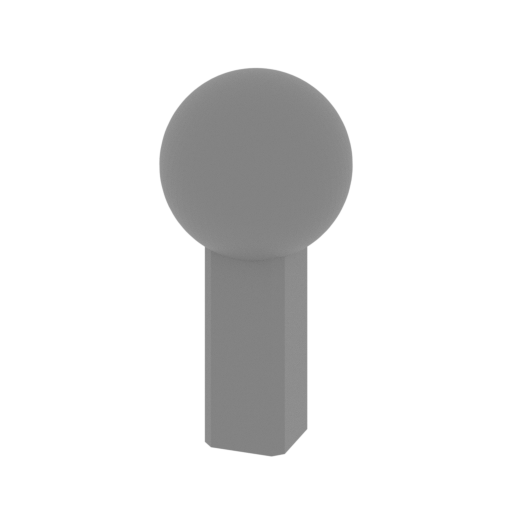

14_body_joint_FDM (repair ed).stl
0.30 MiB 20 min <1 m 10 x 10 x 20 Download

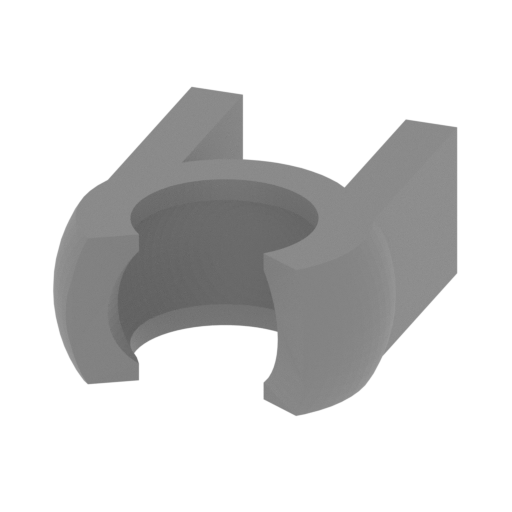

15_body_claw_FDM (repaire d).stl
0.16 MiB 8 min <1 m 14 x 15 x 6 Download

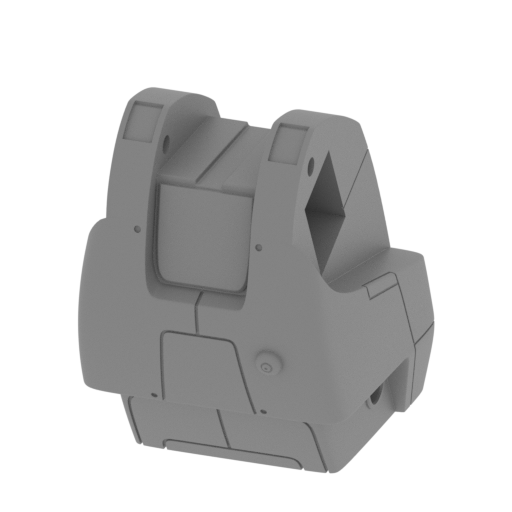

16_body_FDM (repaired).st l
13.66 MiB 2 h 55 min 2 m 29 x 36 x 41 Download

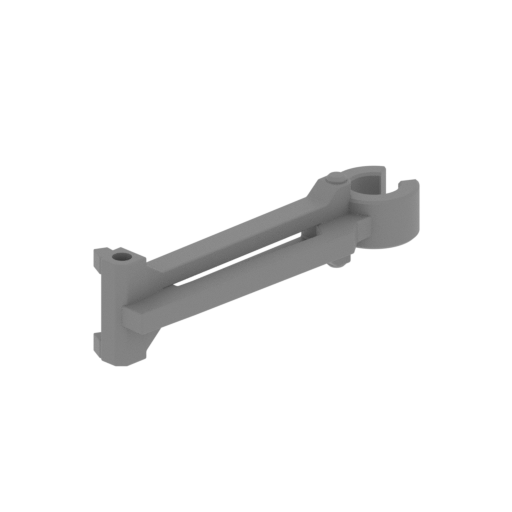

17_neck_FDM (repaired).st l
0.46 MiB 26 min <1 m 24 x 40 x 11 Download

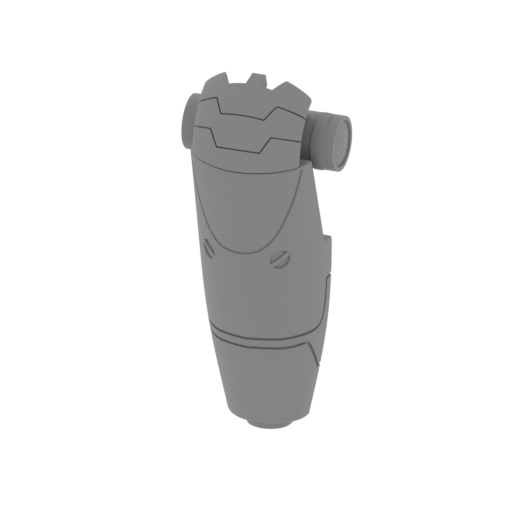

18_head_1_FDM (repaired). stl
9.49 MiB 1 h 5 min 1 m 20 x 15 x 48 Download

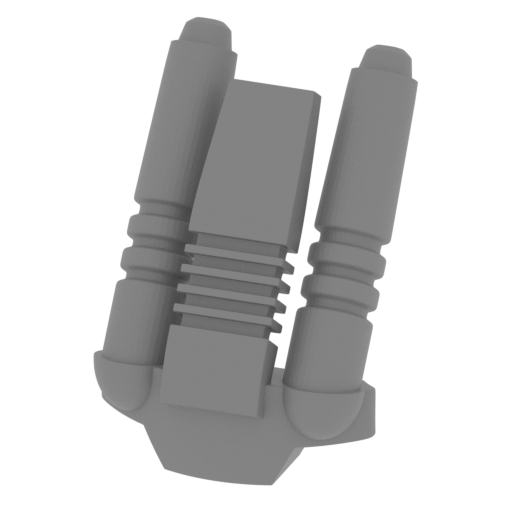

19_head_2_FDM (repaired). stl
2.68 MiB 22 min <1 m 14 x 13 x 19 Download

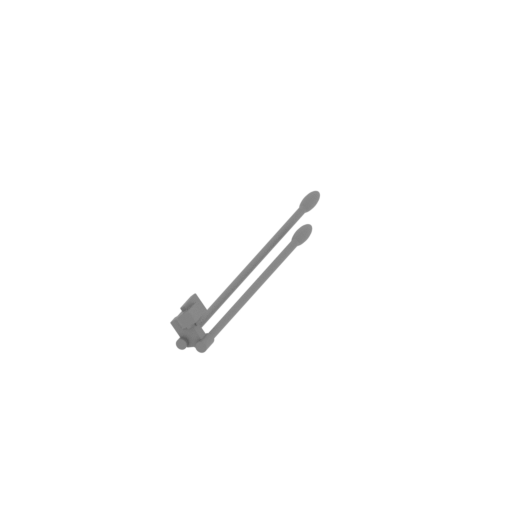

20_anten_FDM (repaired).s tl
0.81 MiB 13 min <1 m 8 x 72 x 8 Download

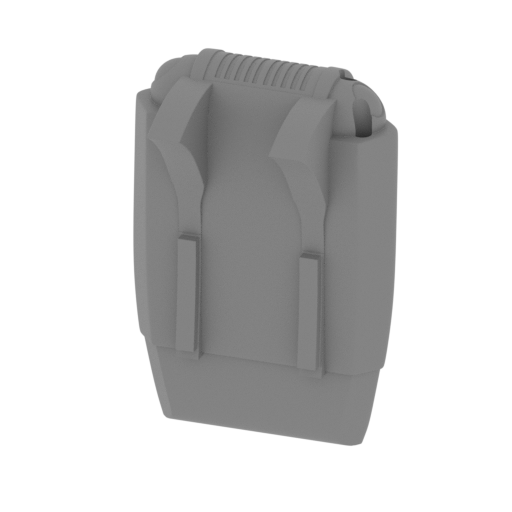

21_backpack_FDM (repaired ).stl
9.67 MiB 1 h 55 min 1 m 34 x 23 x 49 Download

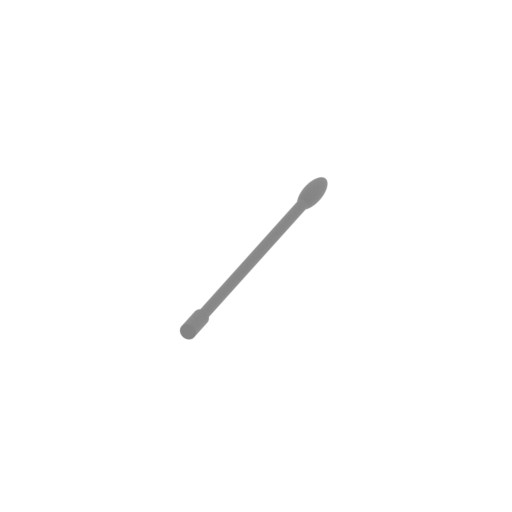

22_backpack_anten_1_FDM ( repaired).stl
0.18 MiB 4 min <1 m 2 x 49 x 2 Download

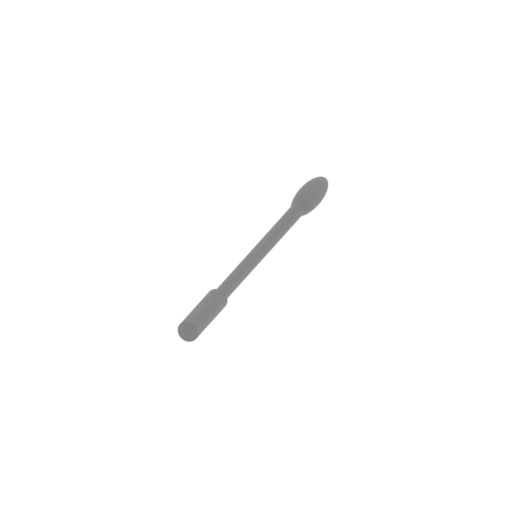

23_backpack_anten_2_FDM ( repaired).stl
0.16 MiB 3 min <1 m 2 x 40 x 2 Download

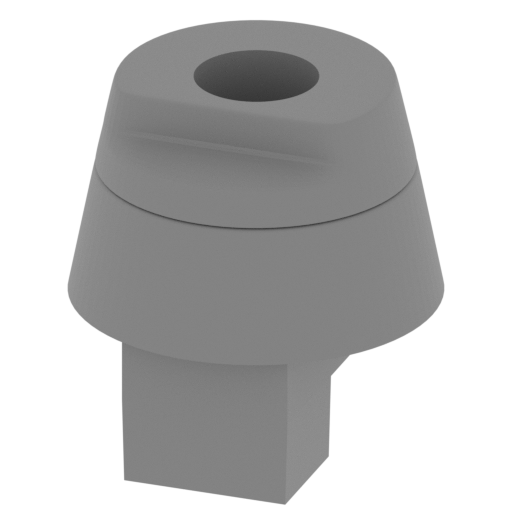

24_shoulder_1_R_FDM (repa ired).stl
0.52 MiB 25 min <1 m 17 x 17 x 18 Download
25_shoulder_2_R_FDM (repa ired).stl
0.42 MiB 14 min <1 m 14 x 12 x 14 Download

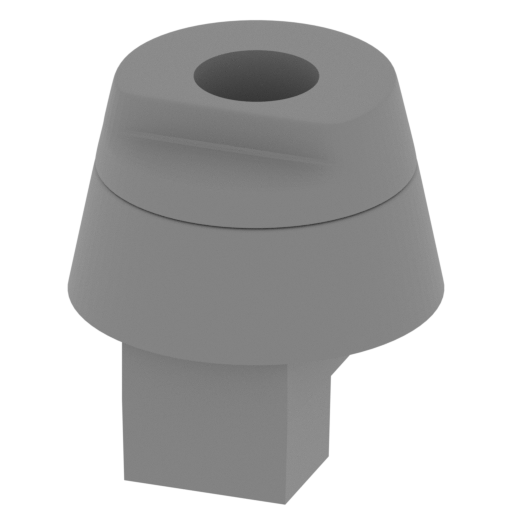

26_shoulder_1_L_FDM (repa ired).stl
0.52 MiB 25 min <1 m 17 x 17 x 18 Download

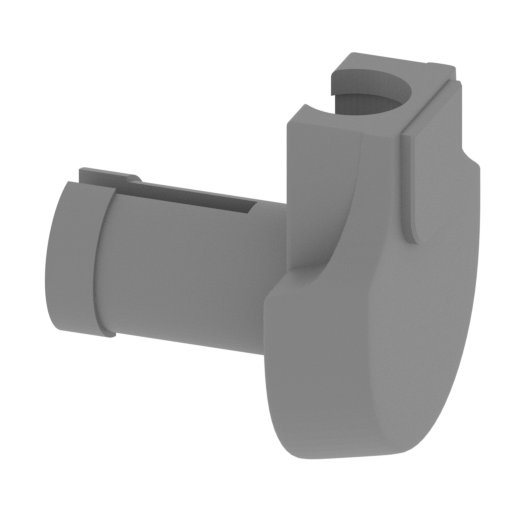

27_shoulder_2_L_FDM (repa ired).stl
0.42 MiB 14 min <1 m 14 x 12 x 14 Download

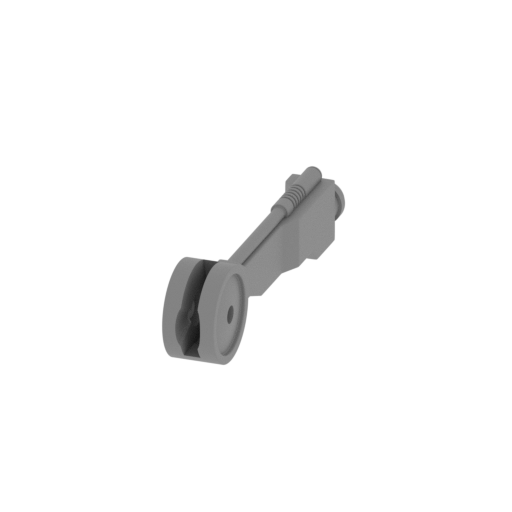

28_arm_R_FDM (repaired).s tl
1.61 MiB 18 min <1 m 6 x 40 x 11 Download

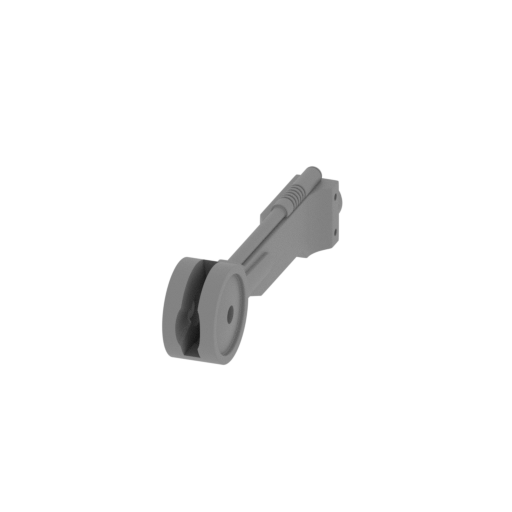

29_arm_L_FDM (repaired).s tl
1.61 MiB 18 min <1 m 6 x 40 x 11 Download

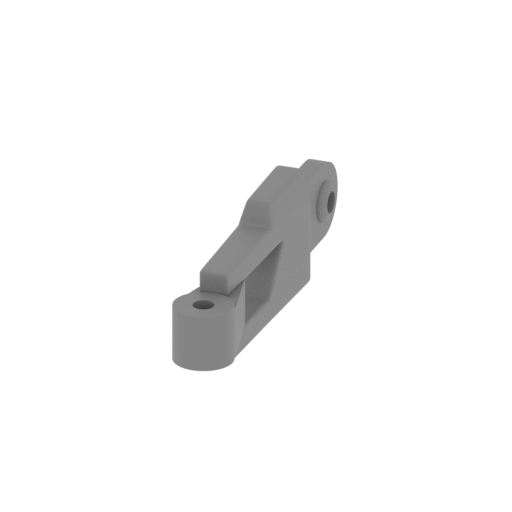

30_hand_R_FDM (repaired). stl
0.55 MiB 14 min <1 m 6 x 33 x 11 Download

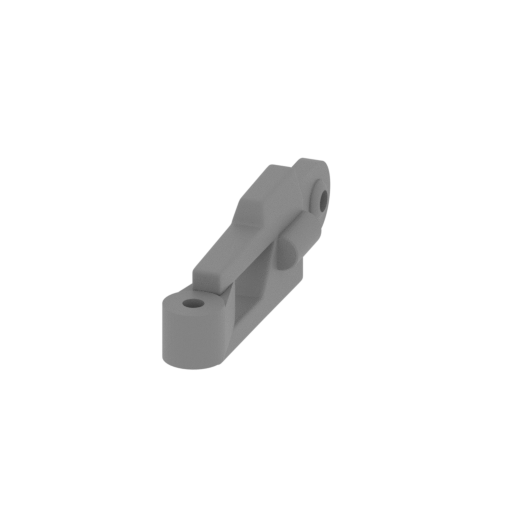

31_hand_L_FDM (repaired). stl
0.55 MiB 14 min <1 m 6 x 33 x 11 Download

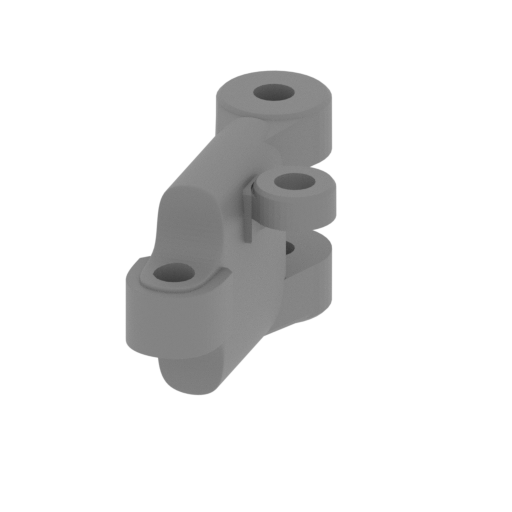

32_wrist_R_FDM (repaired) .stl
1.51 MiB 12 min <1 m 8 x 18 x 10 Download

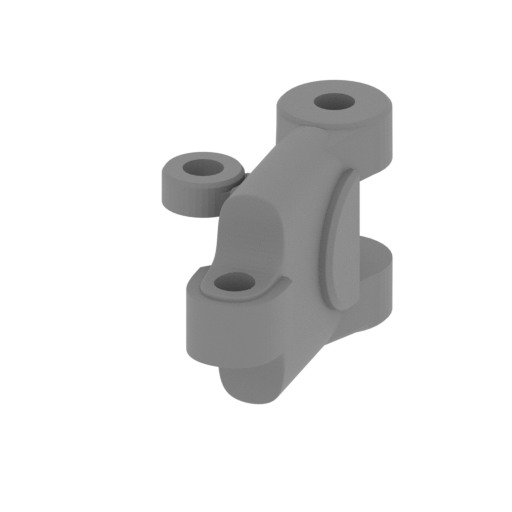

33_wrist_L_FDM (repaired) .stl
1.51 MiB 12 min <1 m 8 x 18 x 10 Download

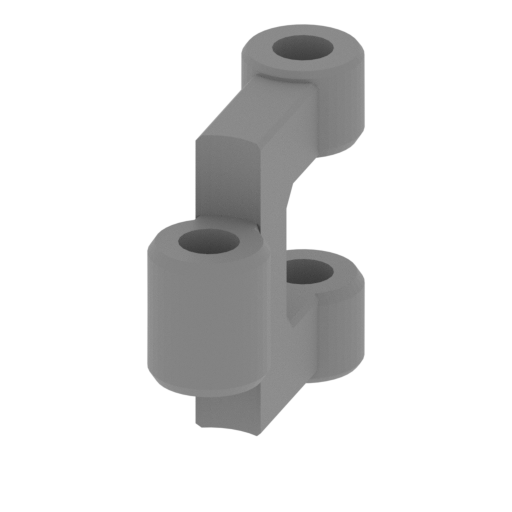

34_finger_a_R_FDM (repair ed).stl
0.12 MiB 8 min <1 m 4 x 12 x 10 Download

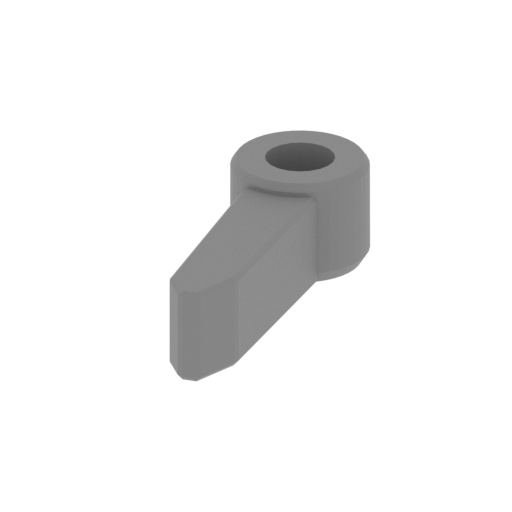

35_finger_b_R_FDM (repair ed).stl
0.04 MiB 2 min <1 m 4 x 11 x 3 Download

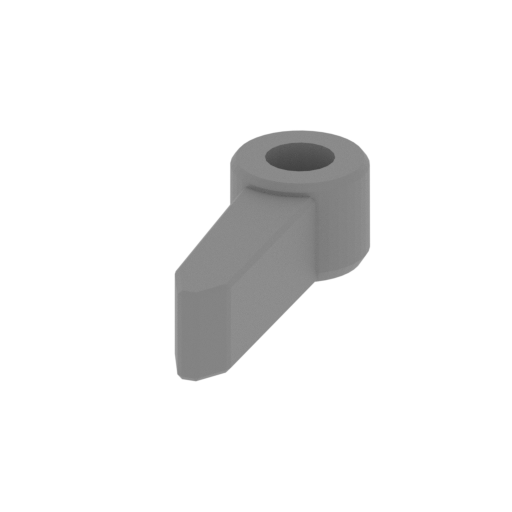

36_finger_c_R_FDM (repair ed).stl
0.04 MiB 3 min <1 m 4 x 11 x 3 Download

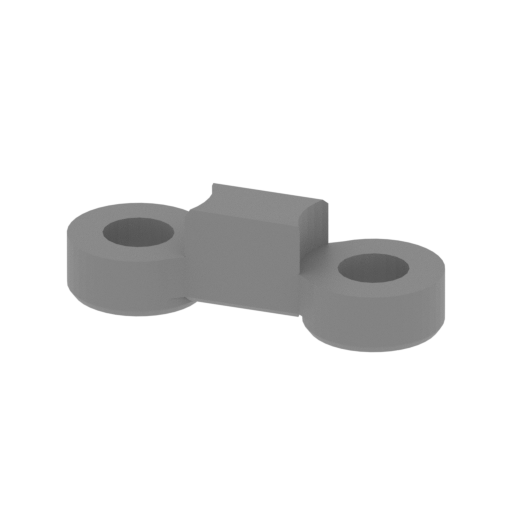

37_finger_d_R_FDM (repair ed).stl
0.09 MiB 2 min <1 m 10 x 4 x 3 Download

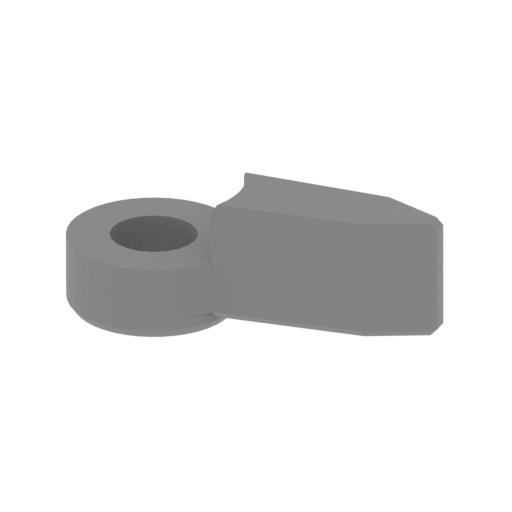

38_finger_e_R_FDM (repair ed).stl
0.05 MiB 2 min <1 m 8 x 4 x 3 Download

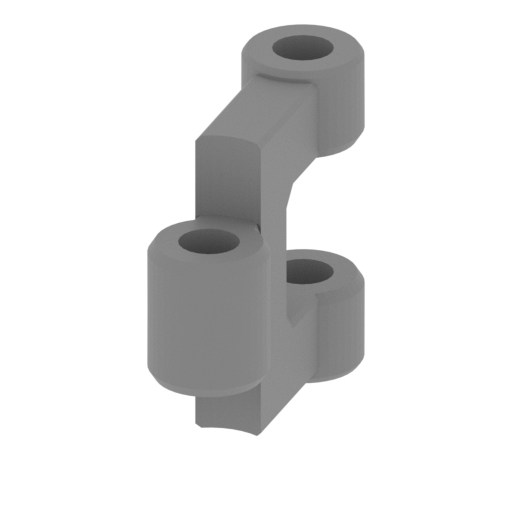

39_finger_a_L_FDM (repair ed).stl
0.12 MiB 8 min <1 m 4 x 12 x 10 Download

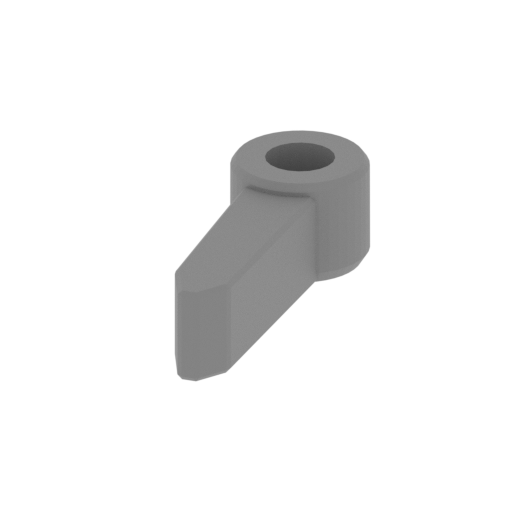

40_finger_b_L_FDM (repair ed).stl
0.04 MiB 2 min <1 m 4 x 11 x 3 Download
41_finger_c_L_FDM (repair ed).stl
0.04 MiB 2 min <1 m 4 x 11 x 3 Download

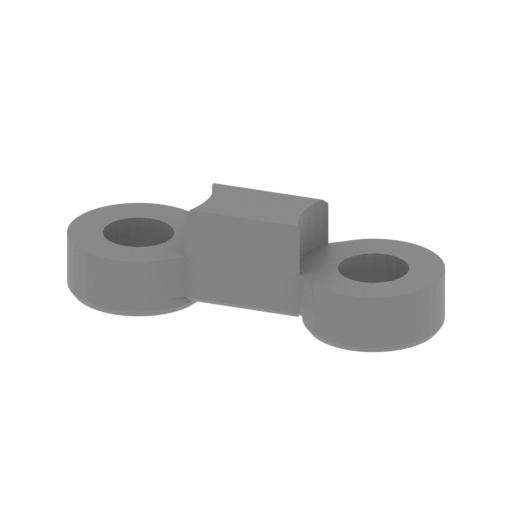

42_finger_d_L_FDM (repair ed).stl
0.09 MiB 2 min <1 m 10 x 4 x 3 Download

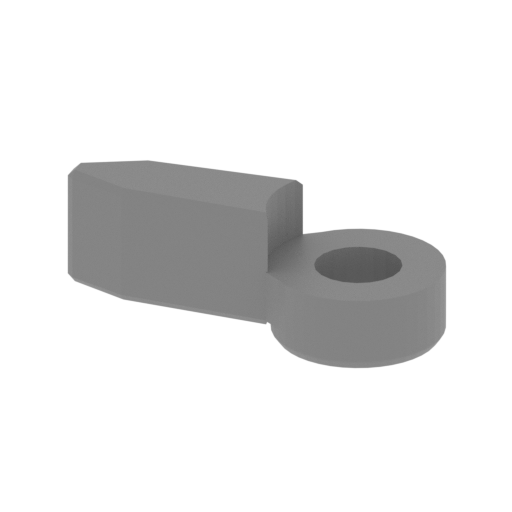

43_finger_e_L_FDM (repair ed).stl
0.05 MiB 2 min <1 m 8 x 4 x 3 Download

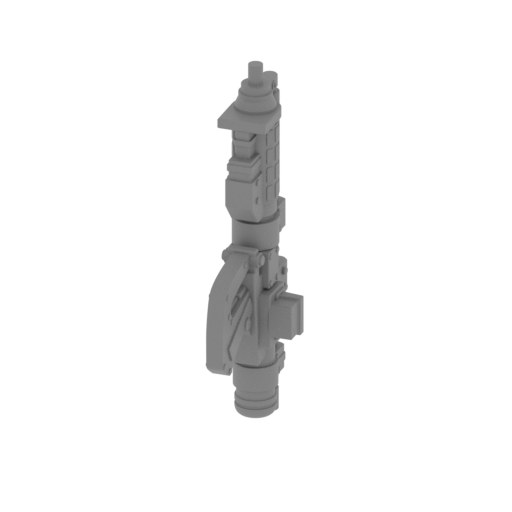

44_E_5_blaster_rifle_FDM (repaired).stl
4.61 MiB 1 h 25 min 1 m 12 x 26 x 57 Download

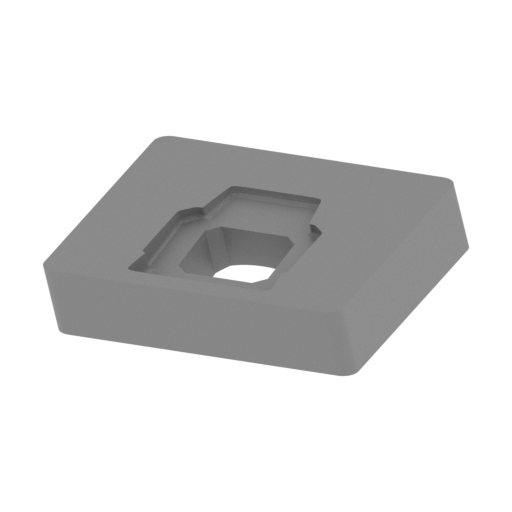

45_body_cap_FDM (repaired ).stl
0.27 MiB 10 min <1 m 15 x 19 x 4 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

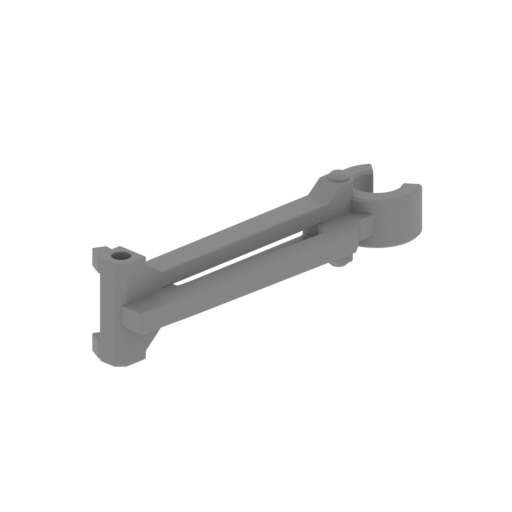

17_neck_v2_wider_claw_FDM (repaired).stl
0.45 MiB 25 min <1 m 24 x 40 x 11 Download
...

ABOUT THIS 3D MODEL

"Roger, roger."

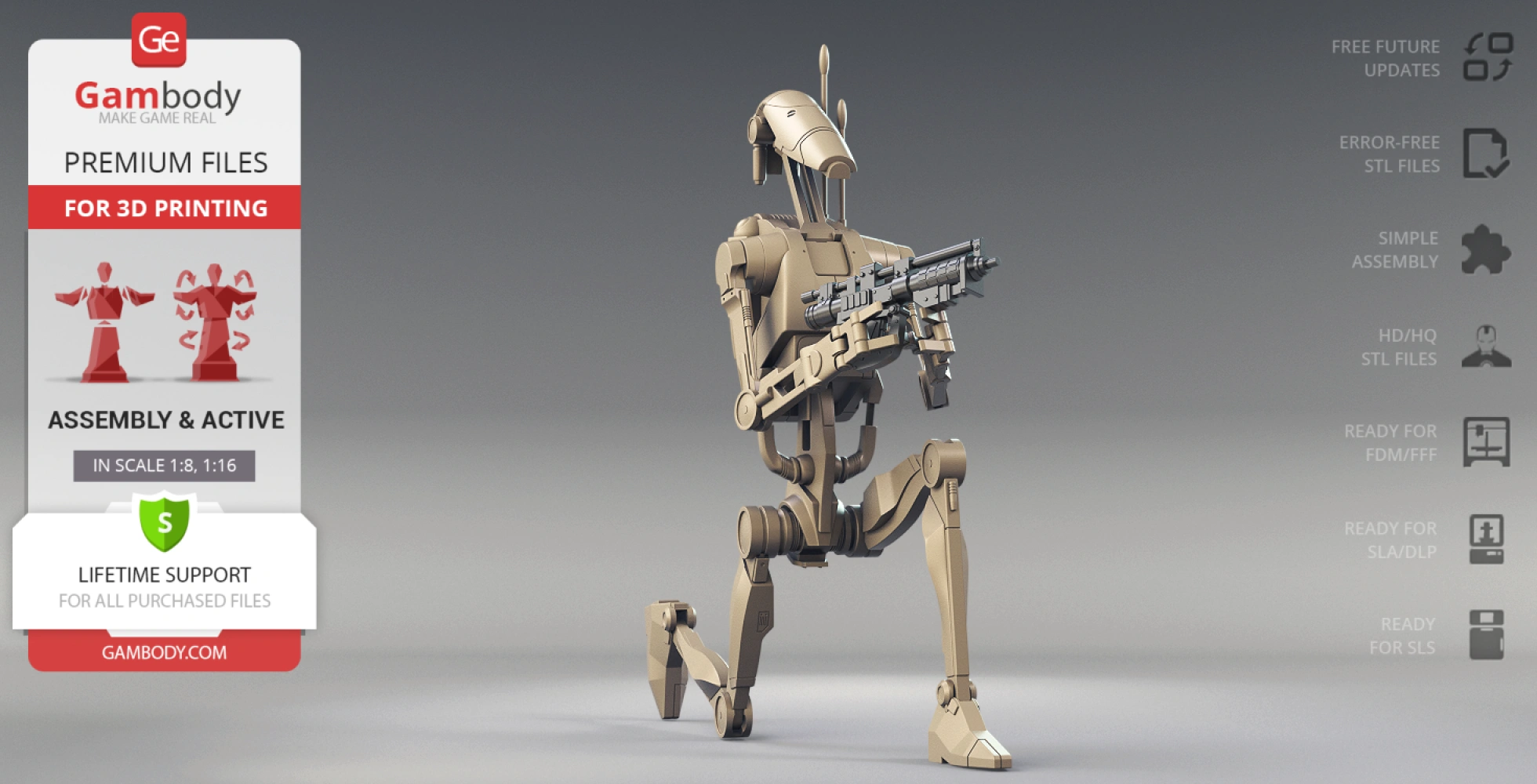

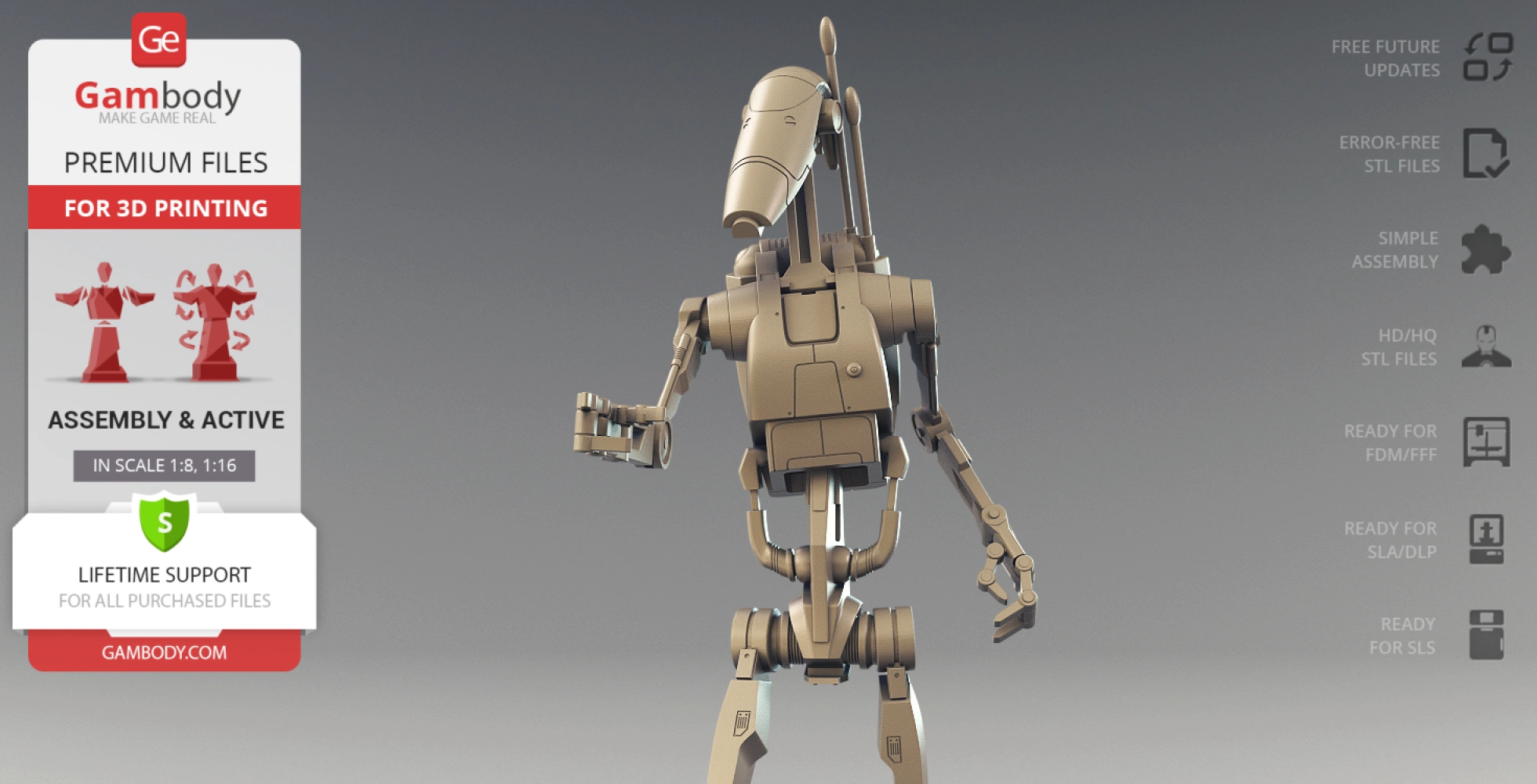

B1 Battle Droid, also known as Standard Battle Droid or simply Clanker, is a crucial member of the Separatist/CIS army and a brilliant comic relief of the Star Wars prequel trilogy. Designed to resemble their Geonosian creators, Battle Droids proved to be absolutely ineffective alone but could be deadly in large numbers. The humanoid robots are dim-witted, extremely fragile, and have little tactical intelligence but are very cheap to produce so the decision was reached to create millions of droid copies to overwhelm the enemy not in power but through sheer numbers. Our contributing 3D artist was taken by the idea of creating the backbone of the Confederate fighting force for 3D printing and spent 95 hours working on a B1 Battle Droid model. The Clanker for 3D printing has the unit’s trademark elongated face and a pair of specialized movement processors in the back of the head. The author of the model made sure to equip the Droid with the unit’s standardized E-5 blaster rifle and a backpack device that is known to be needed for power augmentation in order for the droids to operate in the field without recharge for a longer period of time. There is also a pair of long signal reception booster antennas extending from the backpack of a 3D printing robot that can be optionally displayed alone on the droid’s back. B1 Battle Droids might be the easily controlled mindless soldiers but some personality quirks revealed by “programming glitches” made the unit well-loved among Star Wars fans. 3D print your own Droid legion - the STL files are waiting for you to download!

ADAPTATION FOR 3D PRINTING

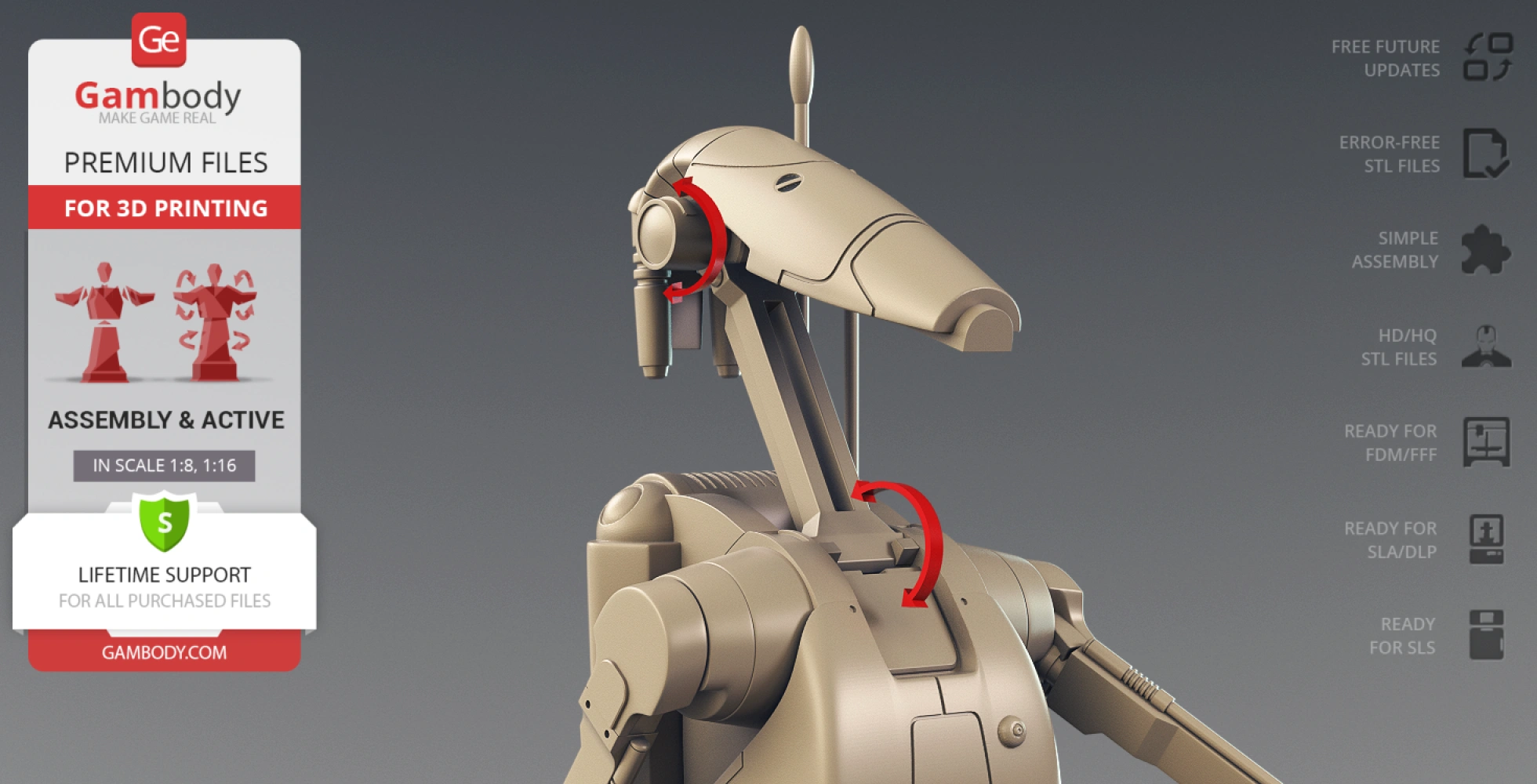

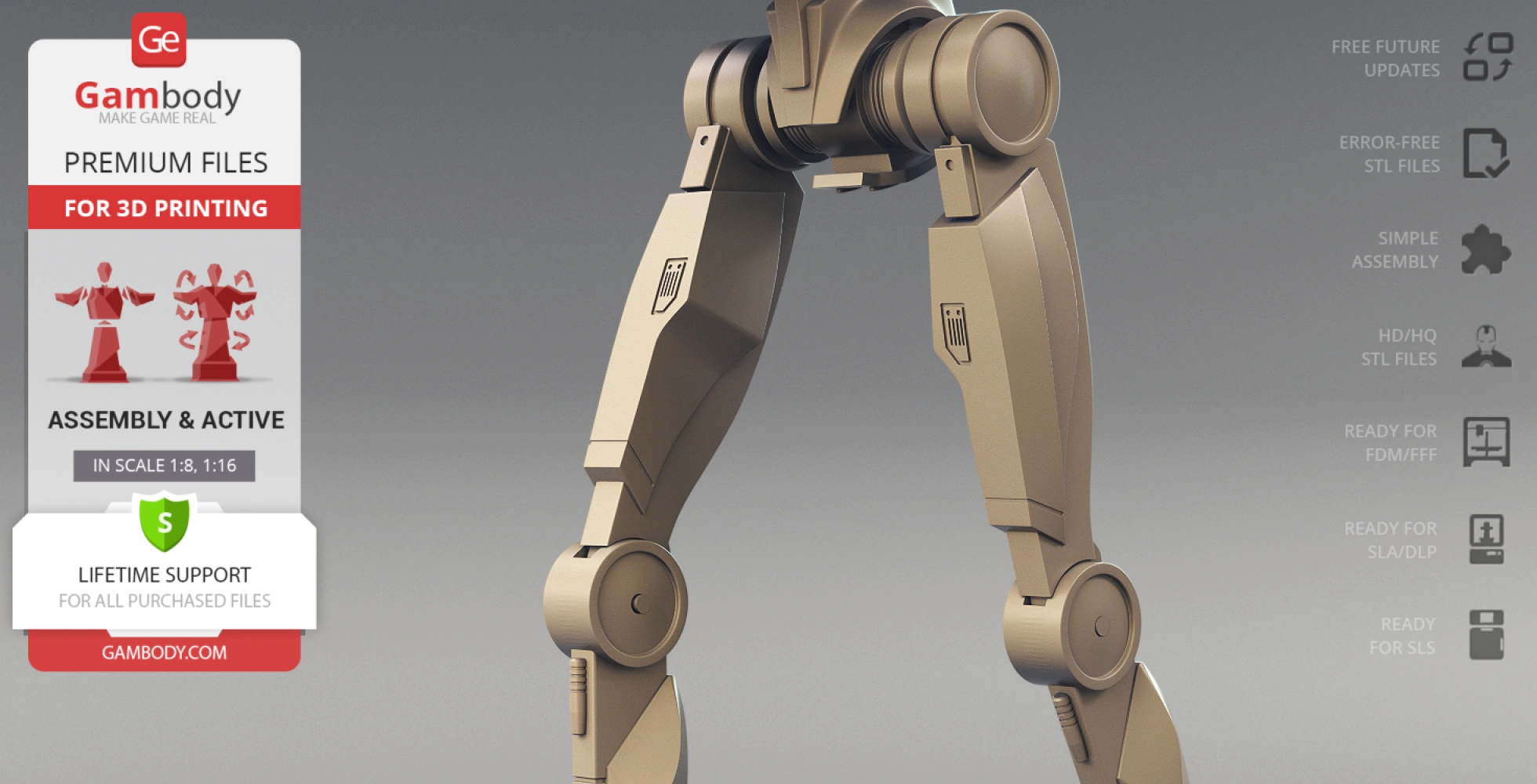

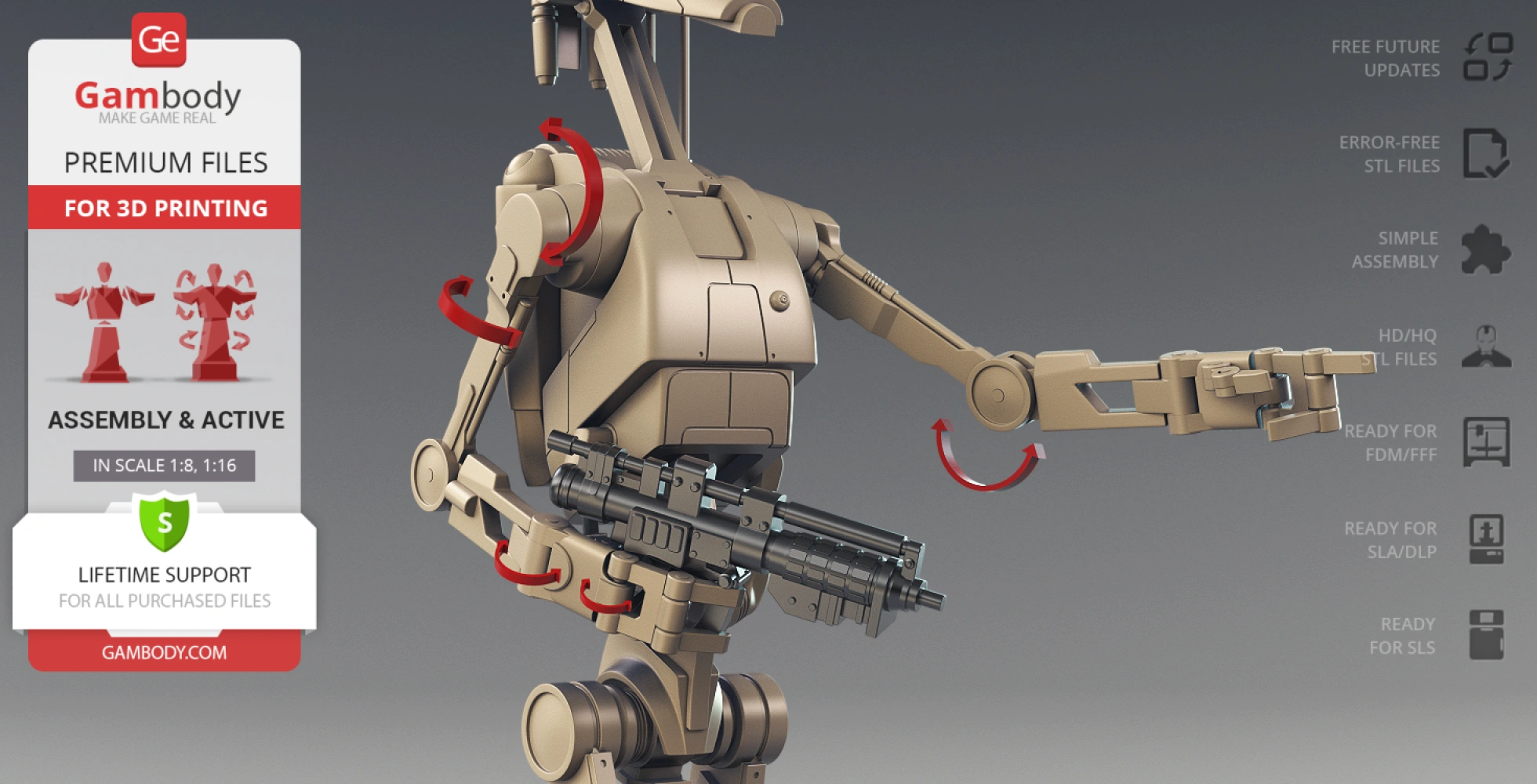

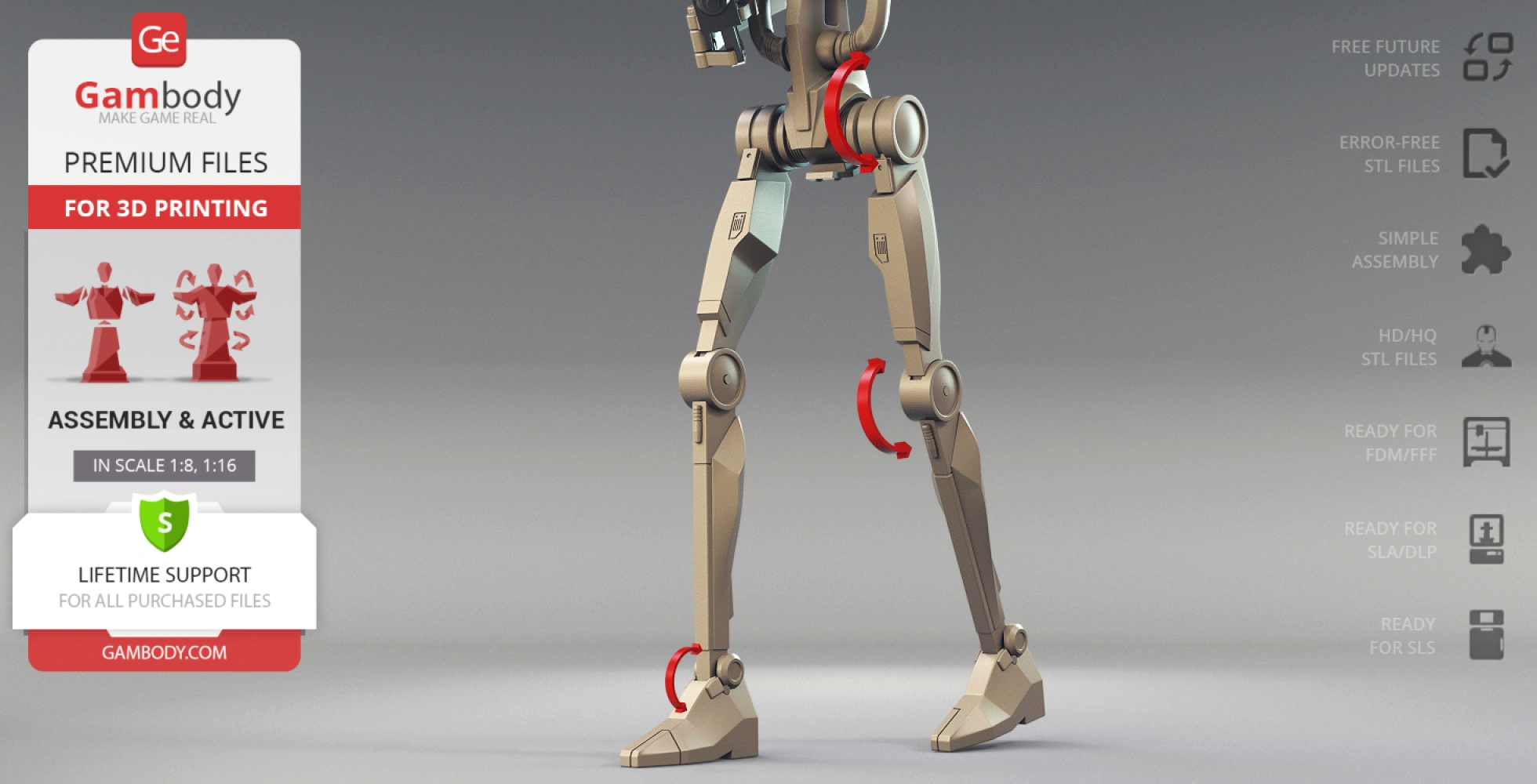

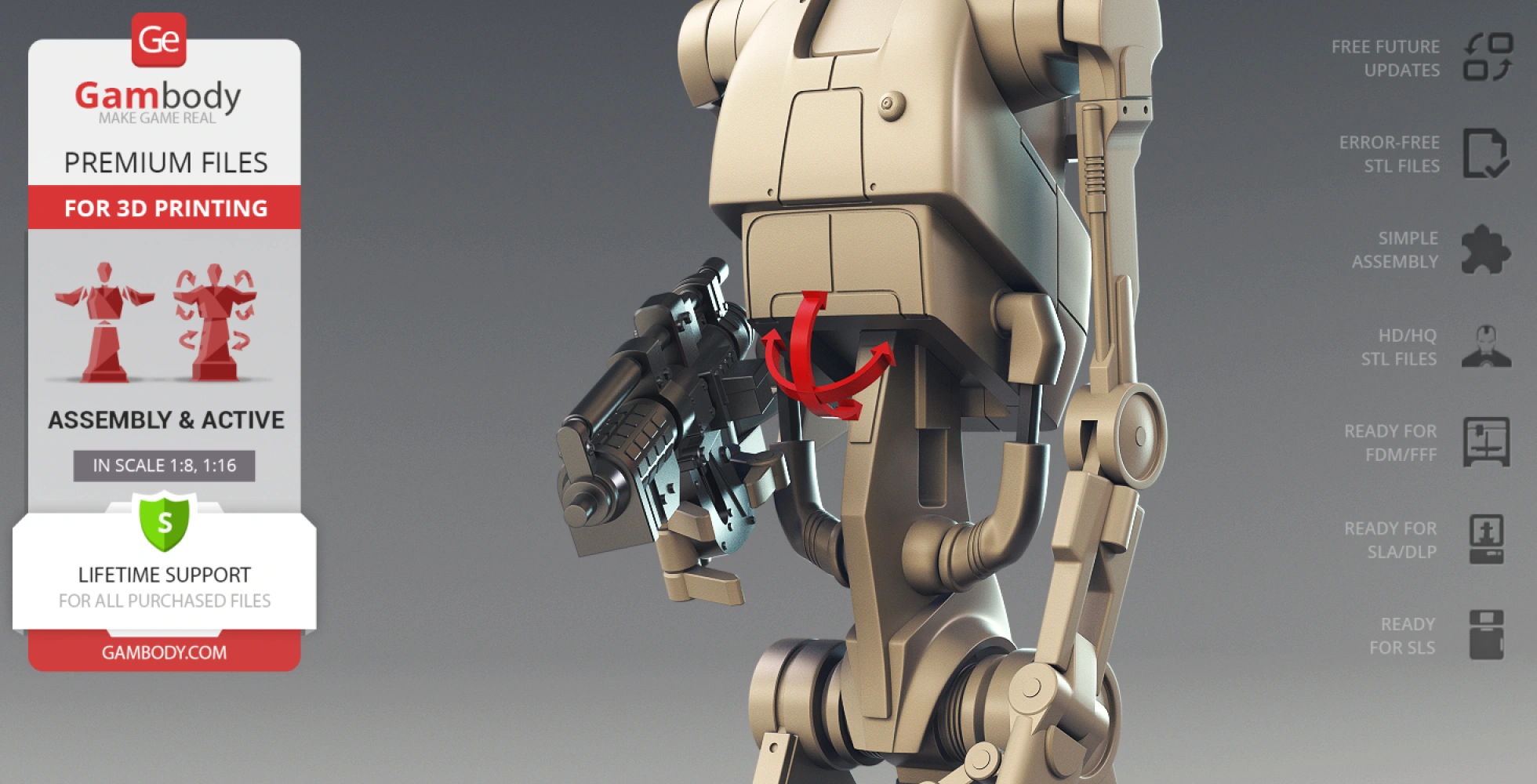

B1 Battle Droid model for 3D printing is a highly articulated assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 39 hours in total. In order to ensure the robot’s multidirectional movement, it was divided into many assembly parts and special mechanisms were introduced into all model’s joints to give you an opportunity to display B1 Battle Droid in a variety of positions, i.e. droid’s head, neck, shoulder, elbow, wrist, finger, hip, knee and ankle are movable and the droid’s pelvis is equipped with the ball-and-claw joint. For the articulated robot to stand firm in any position you may choose, most of the joints are provided with locking mechanisms. Droid’s back can be optionally displayed with antennas or backpack+antennas and the E-5 blaster rifle can be placed into Droid’s hands as you prefer by folding the fingers. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. The model’s assembly in FFF/FDM 1.0 version requires additional “pins” to secure the parts. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA. We highly recommend that you watch "Assembly video" in the photo preview section before assembling the Droid. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from B1 Battle Droid​​​'s actual height that is 1930 mm. The 3D printing model's chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS versions.

VERSION SPECIFICATIONS

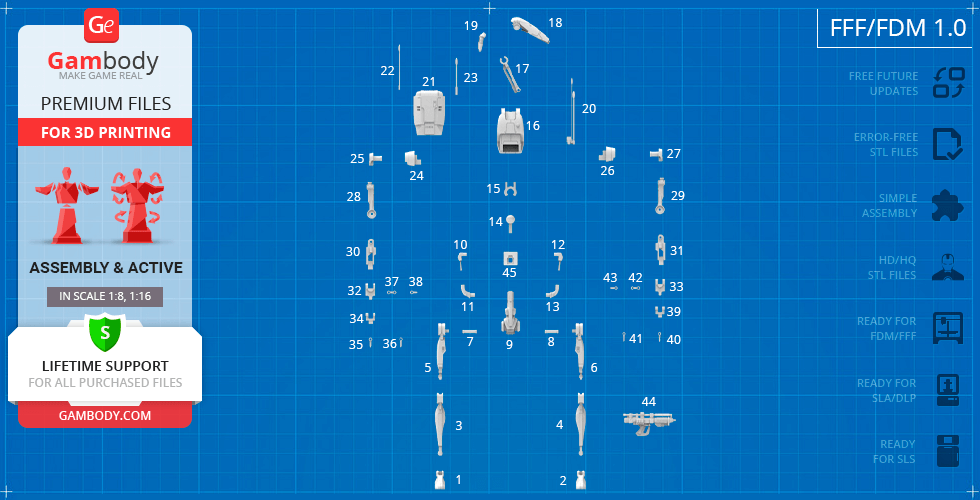

FFF/FDM 1.0 version features:
- Contains 45 parts;
- A printed model is 248 mm tall, 62 mm wide, 78 mm deep;
- Each robot’s joint (head, neck, shoulder, elbow, wrist, finger, pelvis, hip, kneeankle) is articulated which allows the model's multidirectional movement;
- This version's assembly requires additional “pins” to secure the parts. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA;

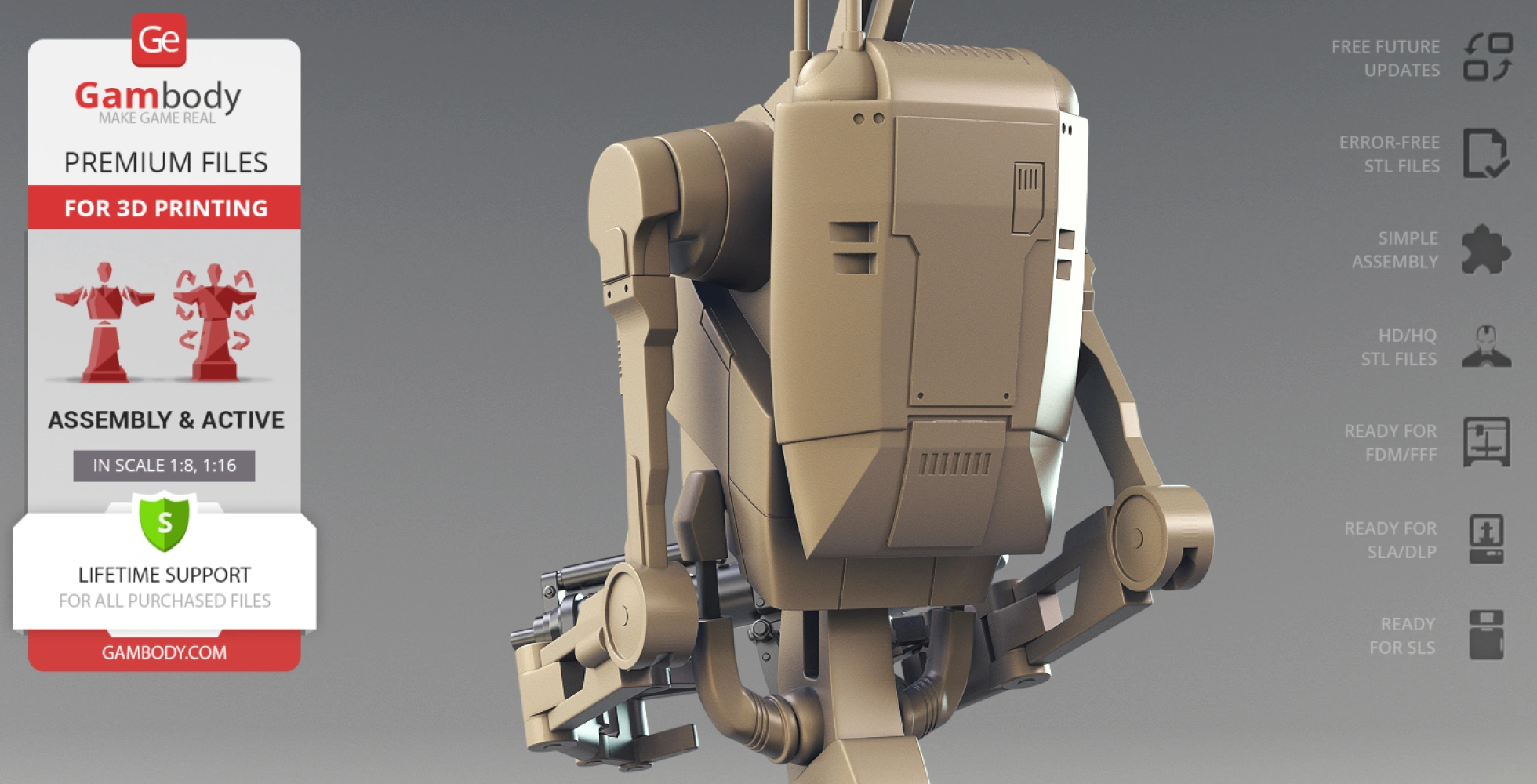

- Droid’s back can be optionally displayed with antennas or backpack+antennas;
- You can put the E-5 blaster rifle into Droid’s hands as you prefer by folding the fingers;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

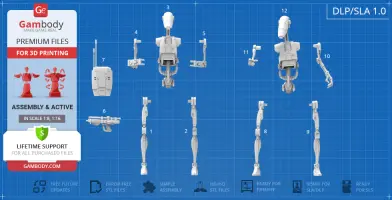

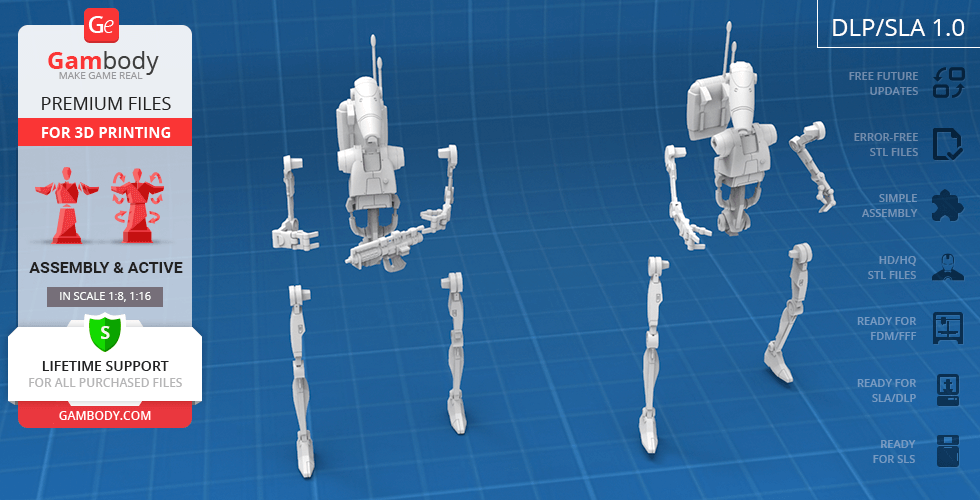

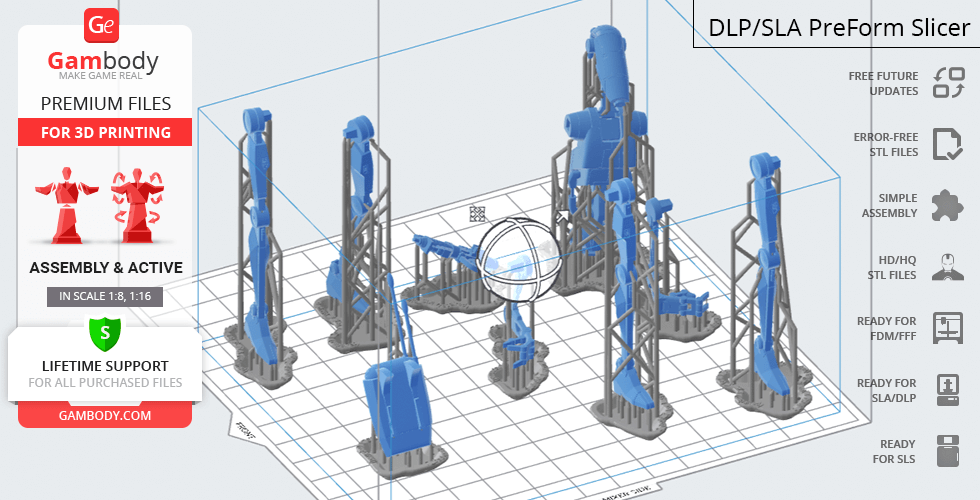

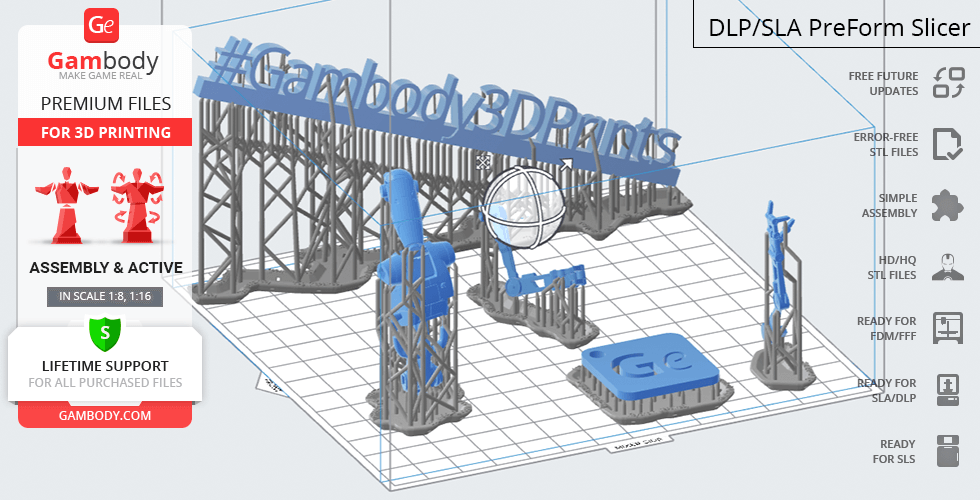

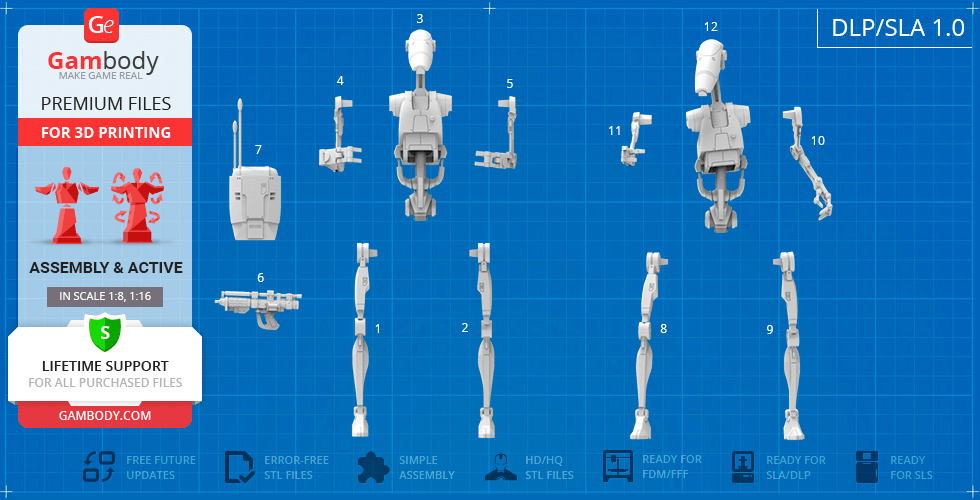

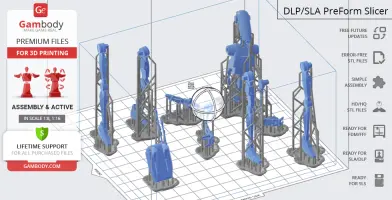

DLP/SLA 1.0 version features:
- Contains 12 parts;
- A printed model is 124 mm tall, 31 mm wide, 39 mm deep;
- Comprises parts for you to assemble Droid either in an action pose or in a static pose holding an E-5 blaster rifle;
- Can be displayed with or without backpack+antennas;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

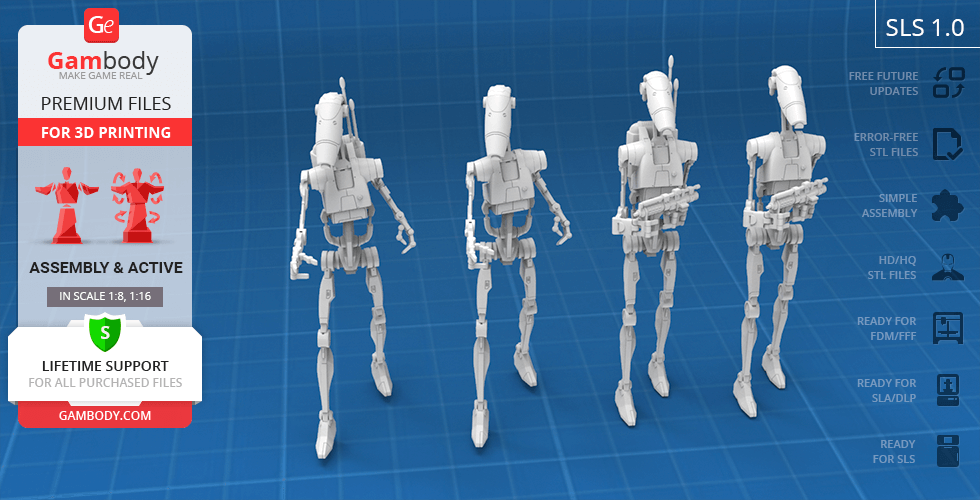

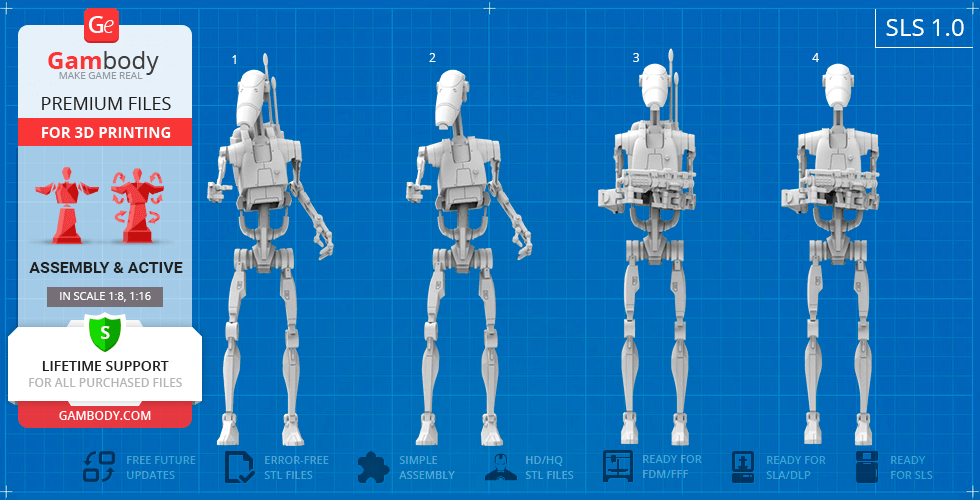

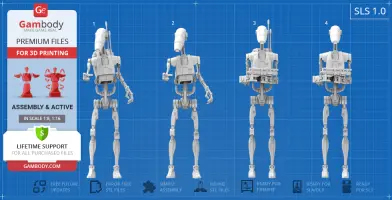

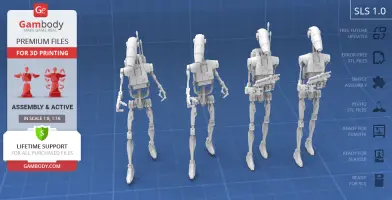

SLS 1.0 version features:
- Made as a solid one-piece figurine;
- A printed model is 124 mm tall, 31 mm wide, 39 mm deep;
- Contains 4 parts - solid models in an action pose with and without backpack+antennas; solid models in a static pose holding an E-5 blaster rifle with and without backpack+antennas.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of B1 Battle Droid​​​ Model for 3D printing which consist of 61 parts;
3 versions of files for this model for FFF/FDM, DLP/SLA and SLS;
- High-poly detailed model of B1 Battle Droid​​​;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of B1 Battle Droid​​​​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble B1 Battle Droid​​​ 3D Printing Model at Gambody YouTube channel.

Also, you may like other Space War Online 3D Printing Figurines as well as other Droid 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

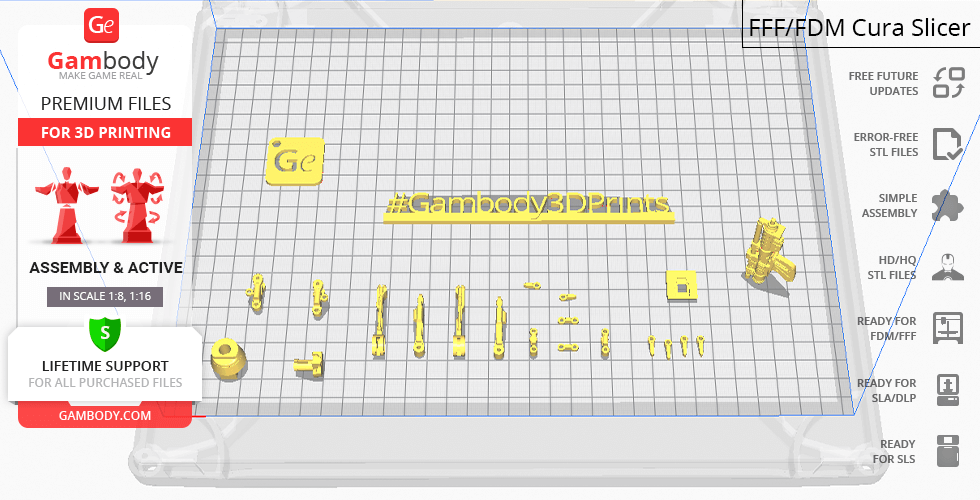

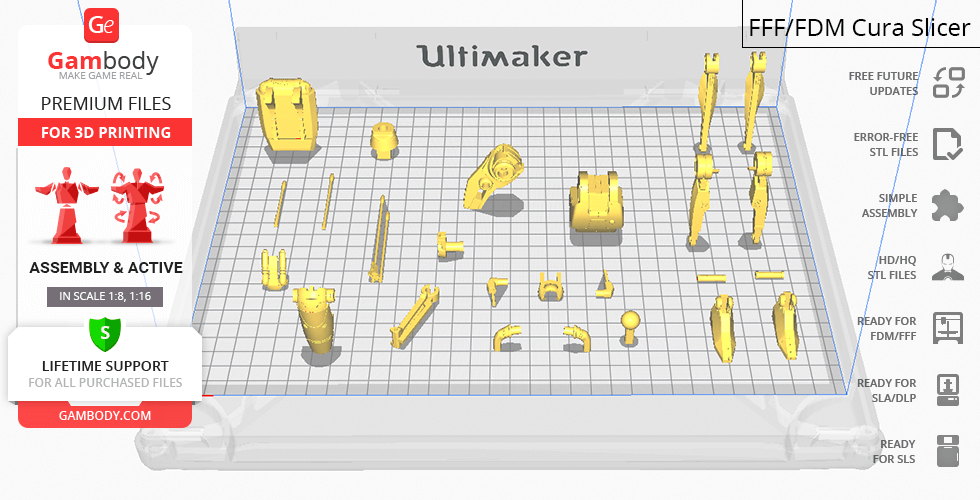

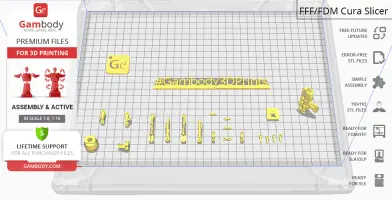

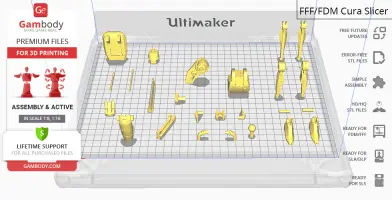

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
