EVE 3D Printing Model | Assembly + Action

(7)
cm: 24.4 w x 20.1 d x 39.9 h
in: 9.606 w x 7.913 d x 15.709 h

Source Files

|

Description

|

Printing Details

This 3D Model of EVE from 2008 WALL-E consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 2 versions of WALL-E's EVE STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase

- STL files of high-poly EVE 3D Model for 3D printing consist of 120 parts

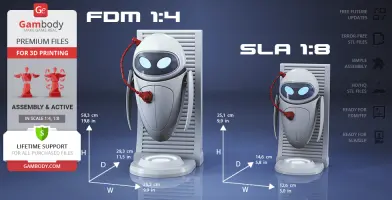

- Sizes:
FFF/FDM: 399 mm tall, 244 mm wide, 201 mm deep (simple stand)
FFF/FDM: 503 mm tall, 252 mm wide, 293 mm deep (repair platform)
DLP/SLA: 200 mm tall, 122 mm wide, 100 mm deep (simple stand)
DLP/SLA: 251 mm tall, 126 mm wide, 146 mm deep (repair platform)

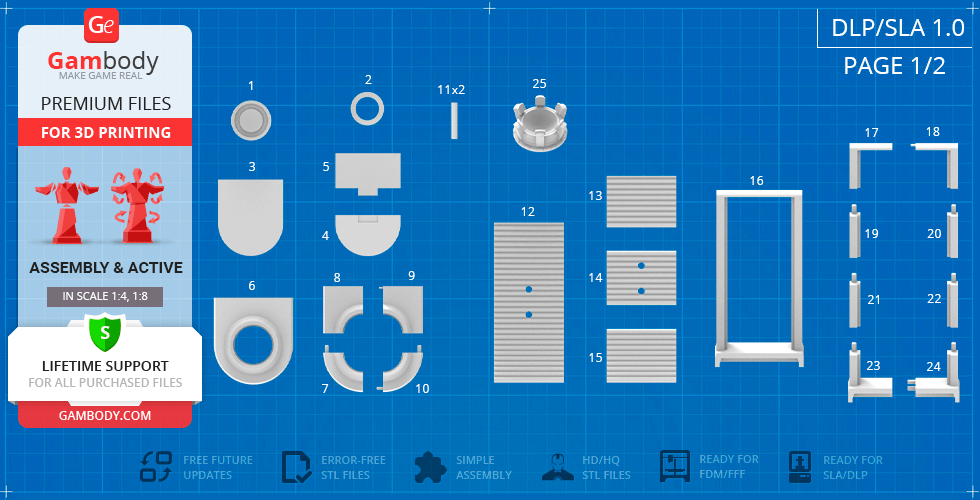

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

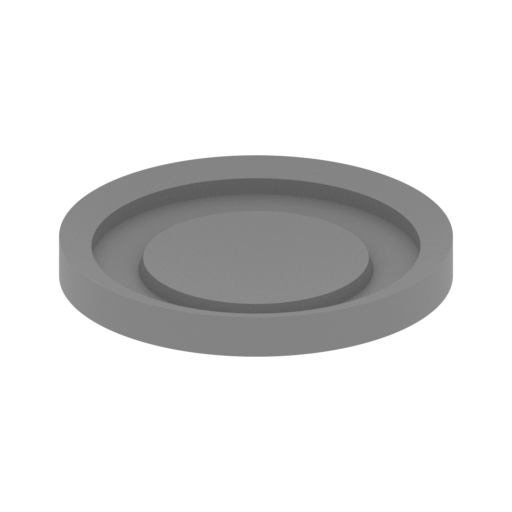

_1_platform_a_ring_1_FDM (repaired).stl
0.82 MiB 8 h 54 min 5 m 114 x 114 x 13 Download

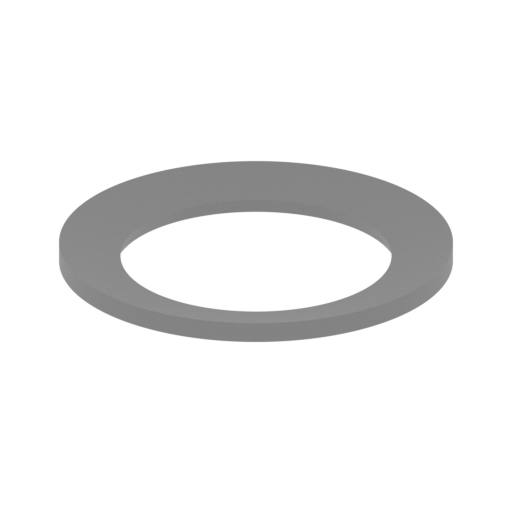

_2_platform_a_ring_2_FDM (repaired).stl
0.49 MiB 3 h 22 min 2 m 95 x 95 x 7 Download

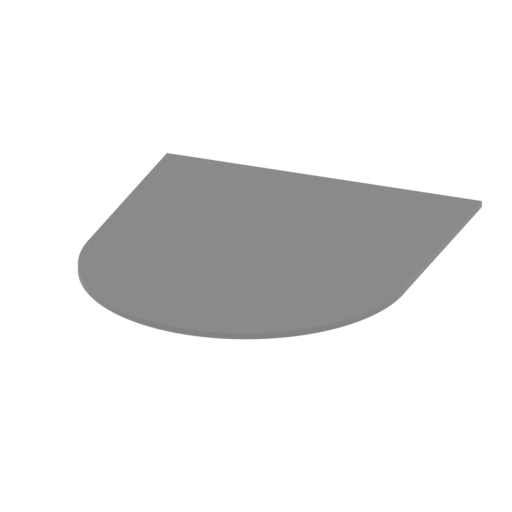

_3_platform_a_cap_full_FD M (repaired).stl
0.11 MiB 17 h 32 min 10 m 185 x 217 x 4 Download

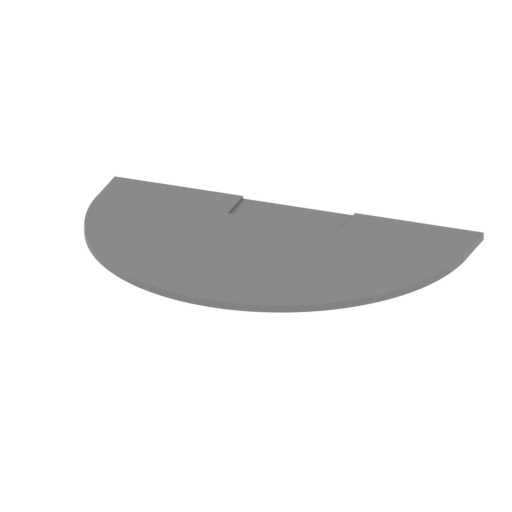

_4_platform_a_cap_cut_1_F DM (repaired).stl
0.09 MiB 8 h 45 min 5 m 185 x 117 x 4 Download

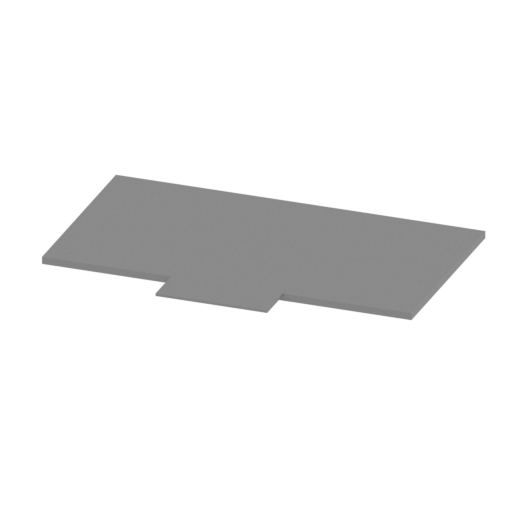

_5_platform_a_cap_cut_2_F DM (repaired).stl
0.04 MiB 9 h 38 min 5 m 185 x 121 x 4 Download

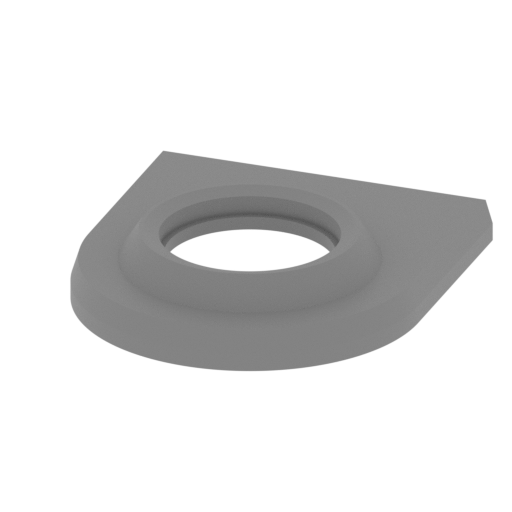

_6_platform_a_base_full_F DM (repaired).stl
1.21 MiB 83 h 32 min 64 m 225 x 247 x 47 Download

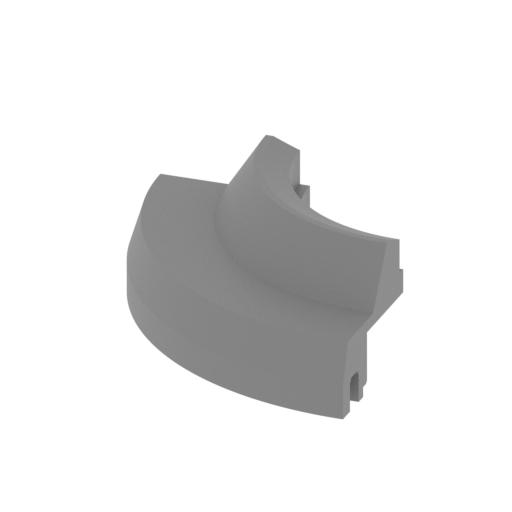

_7_platform_a_base_cut_1_ FDM (repaired).stl
0.43 MiB 17 h 6 min 12 m 113 x 134 x 47 Download

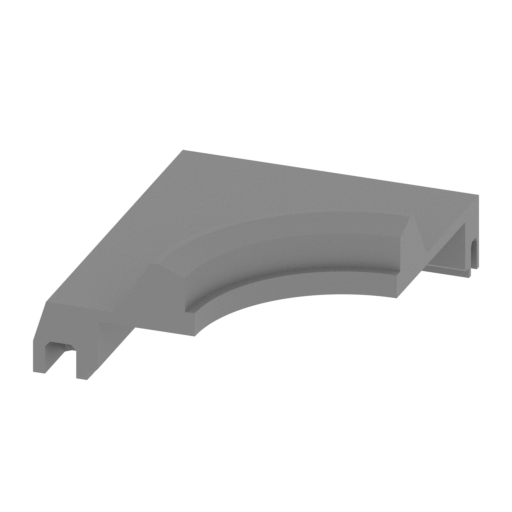

_8_platform_a_base_cut_2_ FDM (repaired).stl
0.29 MiB 25 h 54 min 20 m 113 x 134 x 47 Download

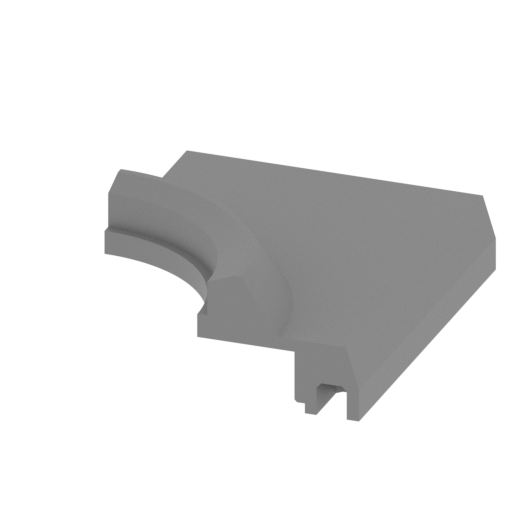

_9_platform_a_base_cut_3_ FDM (repaired).stl
0.30 MiB 26 h 4 min 21 m 125 x 134 x 47 Download

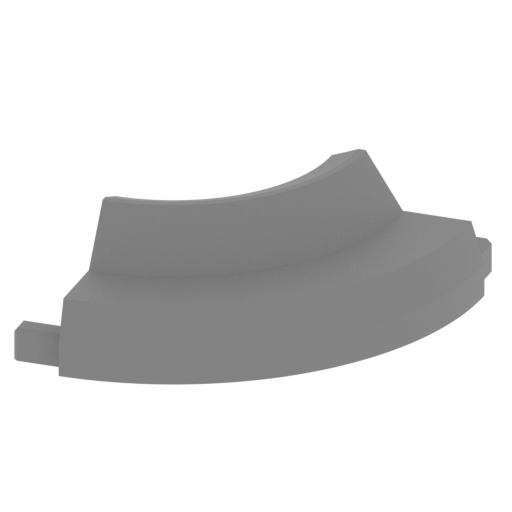

_10_platform_a_base_cut_4 _FDM (repaired).stl
0.42 MiB 17 h 12 min 13 m 132 x 134 x 47 Download

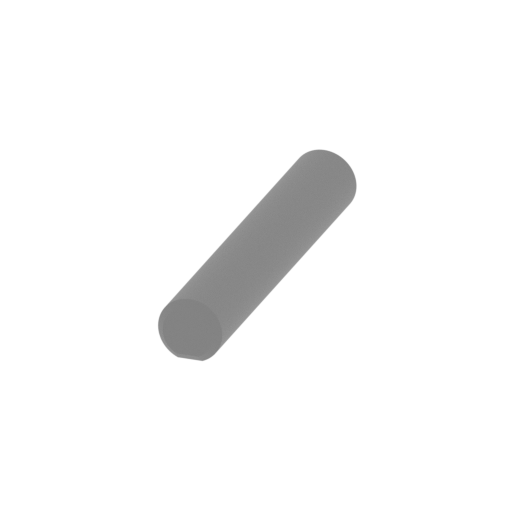

_11_platform_a_wall_pin_x 2_FDM (repaired).stl
0.10 MiB 2 h 26 min 1 m 18 x 104 x 17 Download
_12_platform_a_wall_in_fu ll_FDM (repaired).stl
20.46 MiB 66 h 24 min 40 m 41 x 455 x 199 Download

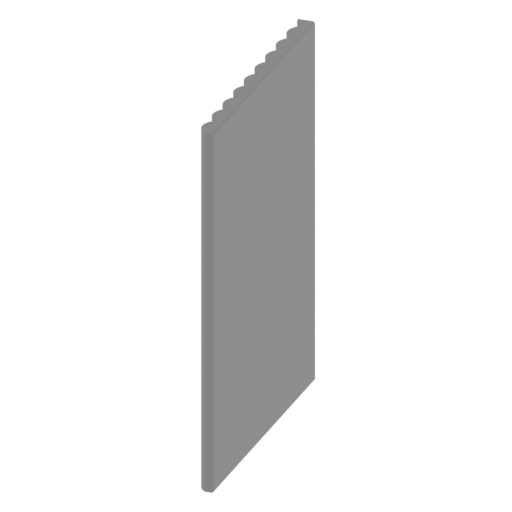

_13_platform_a_wall_in_cu t_1_FDM (repaired).stl
6.50 MiB 20 h 57 min 13 m 9 x 147 x 199 Download

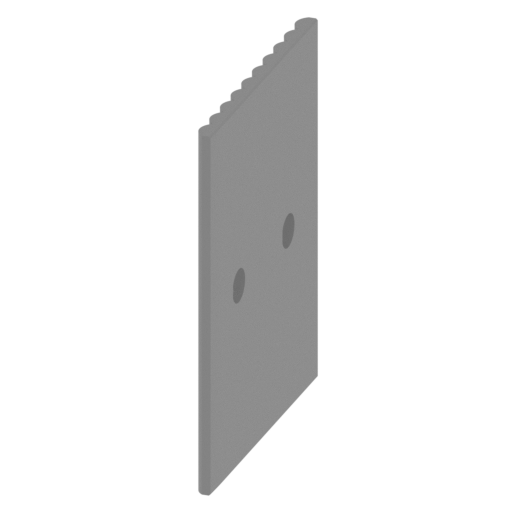

_14_platform_a_wall_in_cu t_2_FDM (repaired).stl
6.93 MiB 24 h 8 min 14 m 9 x 155 x 199 Download

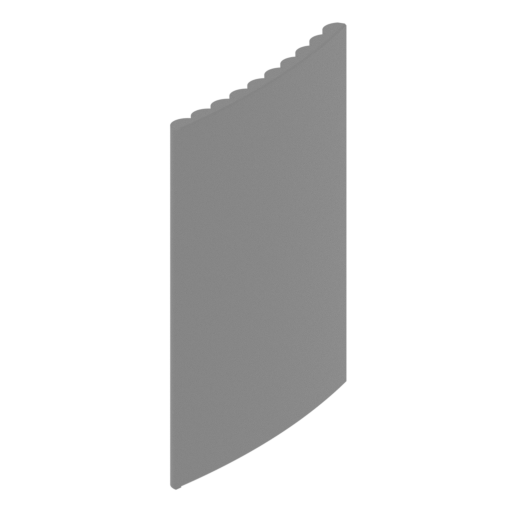

_15_platform_a_wall_in_cu t_3_FDM (repaired).stl
7.12 MiB 21 h 51 min 14 m 41 x 153 x 199 Download
_16_platform_a_wall_full_ FDM (repaired).stl
0.92 MiB 120 h 25 min 73 m 252 x 503 x 90 Download

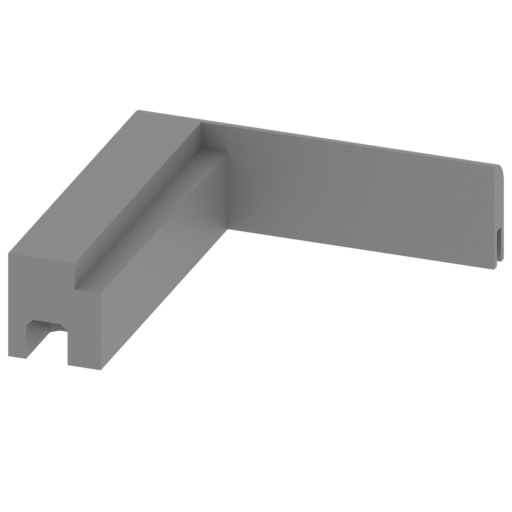

_17_platform_a_wall_cut_1 _FDM (repaired).stl
0.37 MiB 11 h 46 min 7 m 122 x 126 x 36 Download

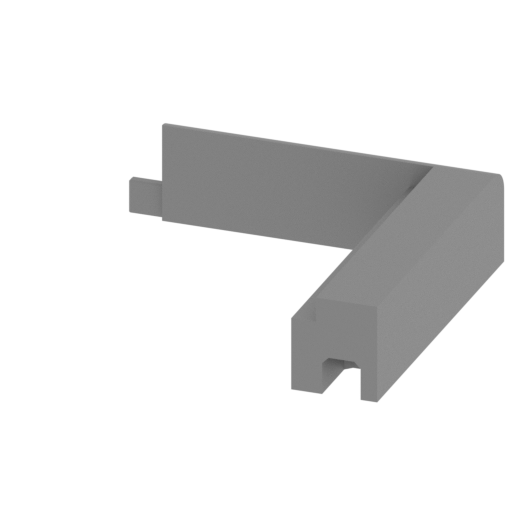

_18_platform_a_wall_cut_2 _FDM (repaired).stl
0.38 MiB 11 h 49 min 7 m 135 x 126 x 36 Download

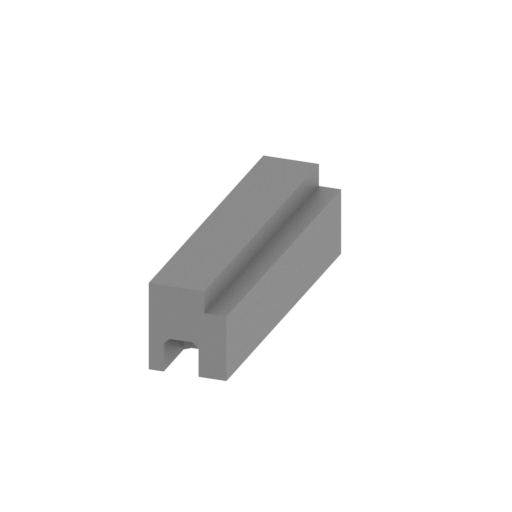

_19_platform_a_wall_cut_3 _FDM (repaired).stl
0.04 MiB 9 h 32 min 6 m 32 x 150 x 36 Download

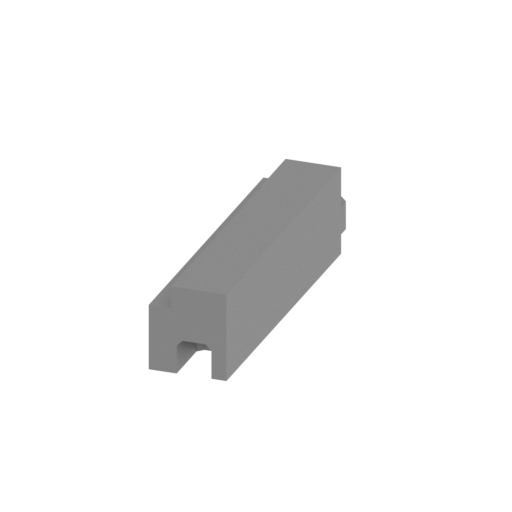

_20_platform_a_wall_cut_4 _FDM (repaired).stl
0.04 MiB 9 h 33 min 6 m 32 x 150 x 36 Download

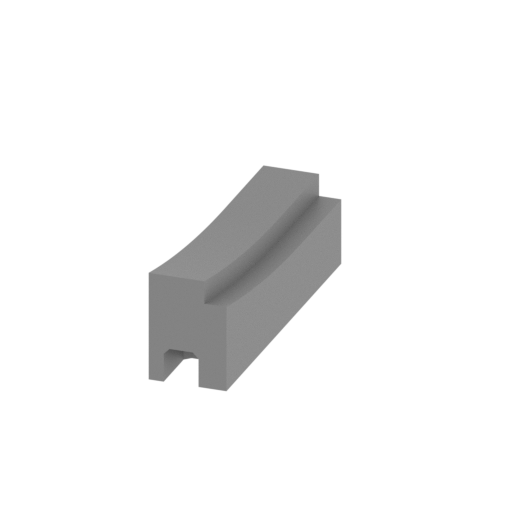

_21_platform_a_wall_cut_5 _FDM (repaired).stl
0.07 MiB 10 h 18 min 6 m 32 x 150 x 44 Download

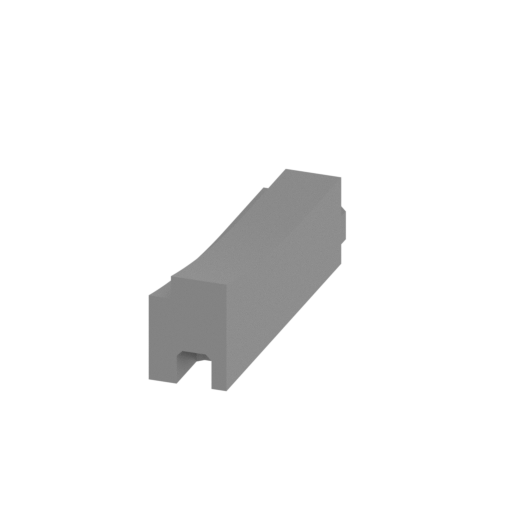

_22_platform_a_wall_cut_6 _FDM (repaired).stl
0.07 MiB 10 h 17 min 6 m 32 x 150 x 44 Download

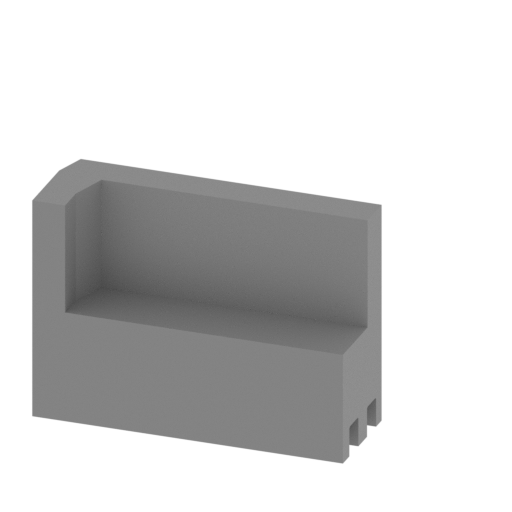

_23_platform_a_wall_cut_7 _FDM (repaired).stl
0.11 MiB 31 h 40 min 19 m 126 x 150 x 90 Download

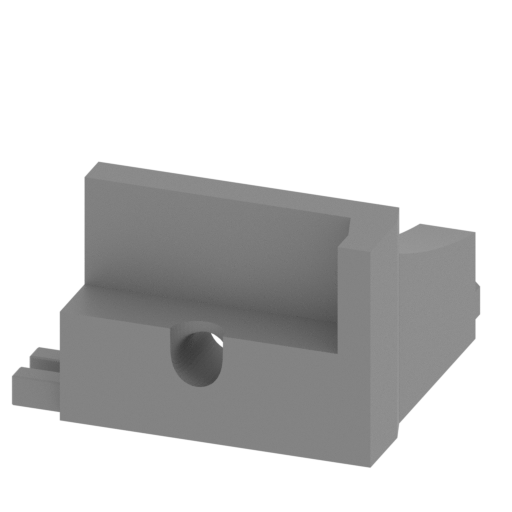

_24_platform_a_wall_cut_8 _FDM (repaired).stl
0.19 MiB 32 h 27 min 20 m 148 x 150 x 90 Download

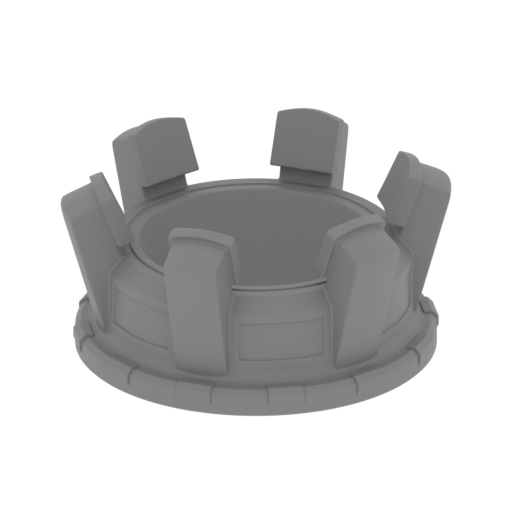

_25_platform_b_FDM (repai red).stl
39.32 MiB 49 h 49 min 29 m 155 x 167 x 81 Download

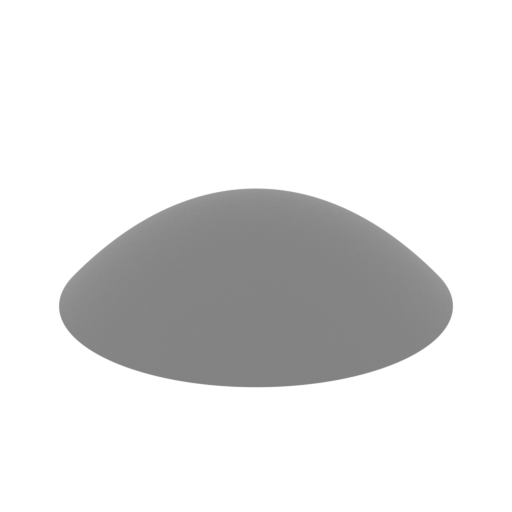

_26_body_bot_FDM (repaire d).stl
7.80 MiB 5 h 3 min 3 m 80 x 80 x 22 Download

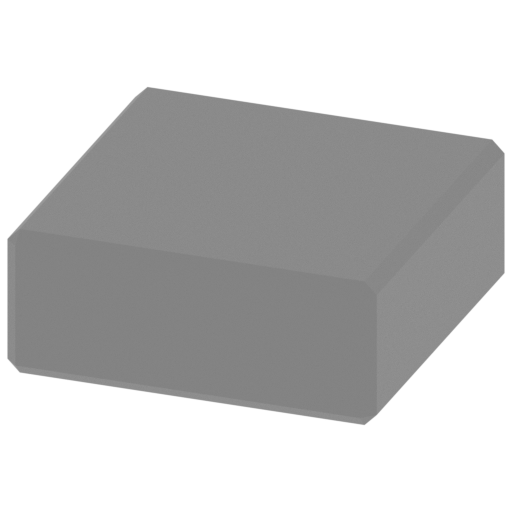

_27_body_bot_connector_FD M (repaired).stl
0.01 MiB 58 min 1 m 30 x 30 x 12 Download

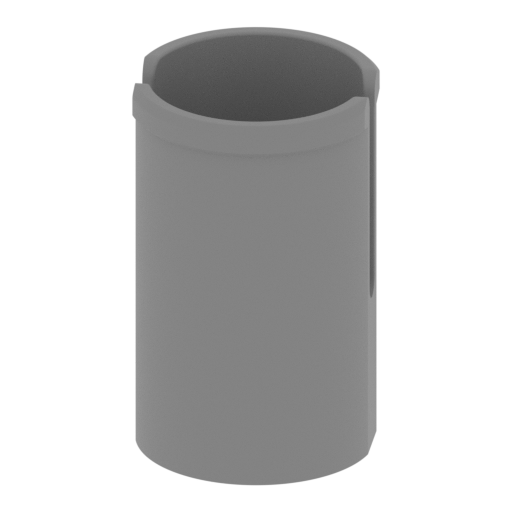

_28_body_arm_connector_1_ x2_FDM (repaired).stl
1.85 MiB 3 h 2 min 2 m 36 x 37 x 57 Download

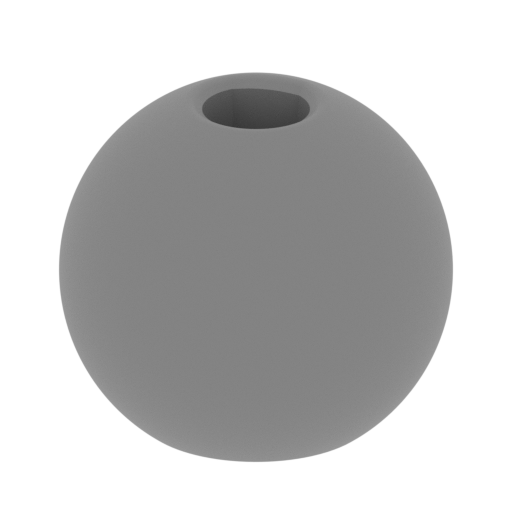

_29_body_arm_connector_2_ x2_FDM (repaired).stl
1.42 MiB 1 h 12 min 1 m 30 x 30 x 26 Download

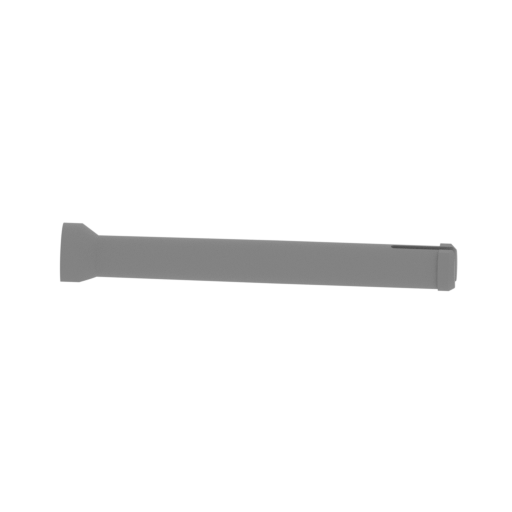

_30_body_arm_connector_3_ x2_FDM (repaired).stl
0.13 MiB 34 min <1 m 73 x 29 x 9 Download

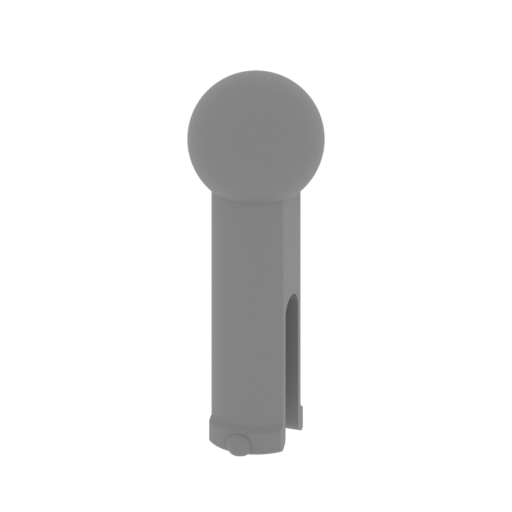

_31_body_head_connector_F DM (repaired).stl
1.74 MiB 3 h 6 min 2 m 30 x 30 x 86 Download

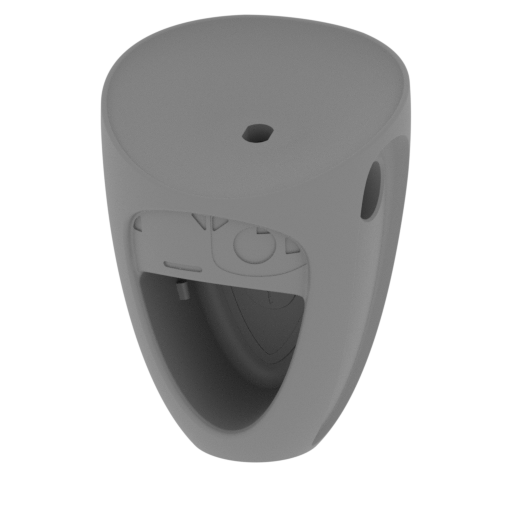

_32_body_full_with_holes_ FDM (repaired).stl
46.94 MiB 264 h 15 min 189 m 190 x 190 x 241 Download

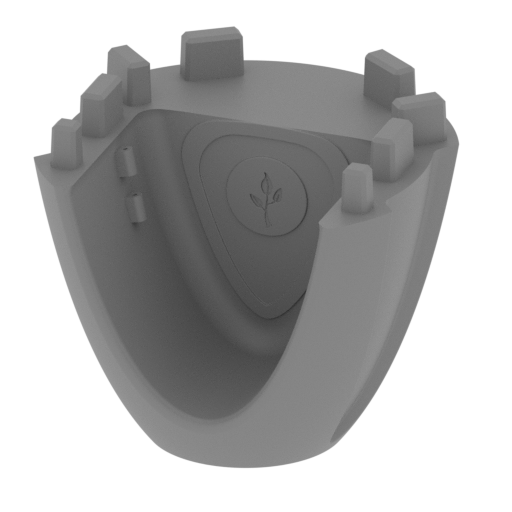

_33_body_cut_1_with_holes _FDM (repaired).stl
17.29 MiB 73 h 48 min 43 m 160 x 149 x 143 Download
_34_body_cut_2_with_holes _FDM (repaired).stl
30.54 MiB 141 h 52 min 89 m 190 x 190 x 117 Download

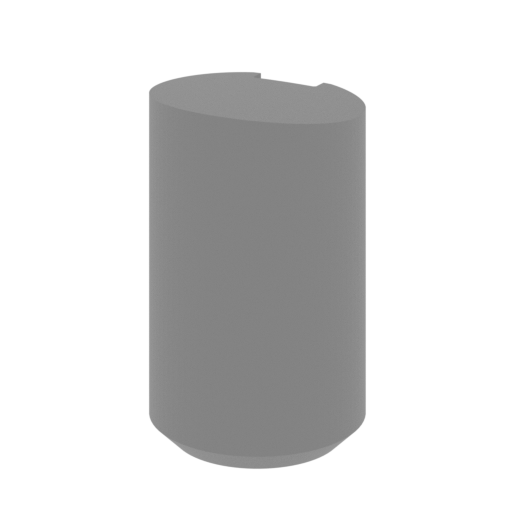

_35_body_cap_bot_1_FDM (r epaired).stl
0.09 MiB 52 min <1 m 18 x 17 x 33 Download

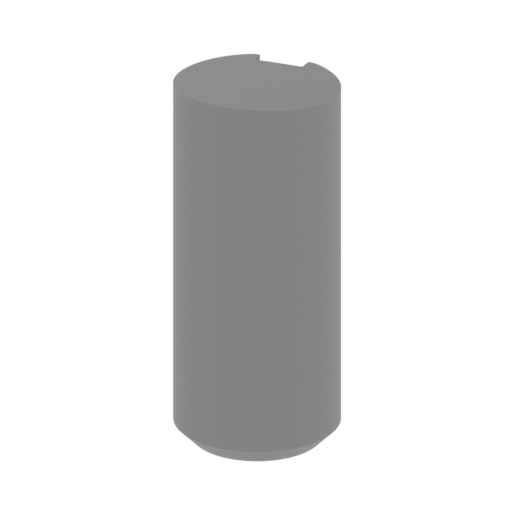

_36_body_cap_bot_2_FDM (r epaired).stl
0.10 MiB 1 h 8 min 1 m 18 x 17 x 42 Download

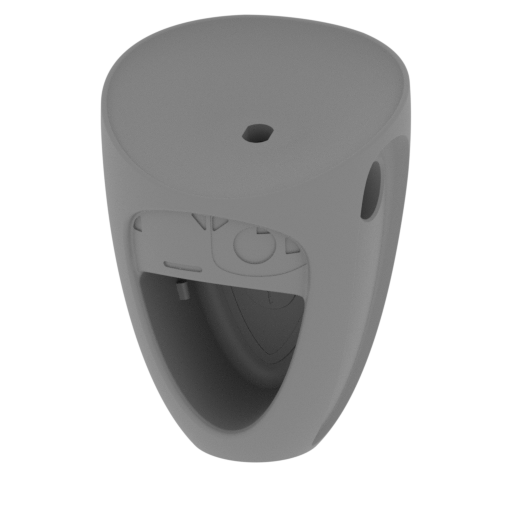

_37_body_full_clear_FDM ( repaired).stl
46.87 MiB 261 h 32 min 187 m 190 x 190 x 241 Download

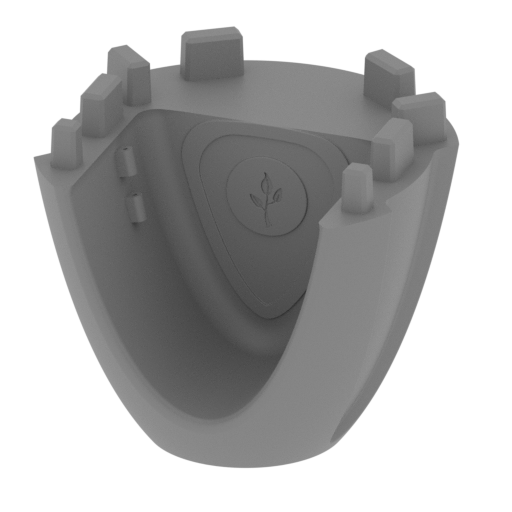

_38_body_cut_1_clear_FDM (repaired).stl
17.26 MiB 72 h 12 min 43 m 160 x 149 x 143 Download

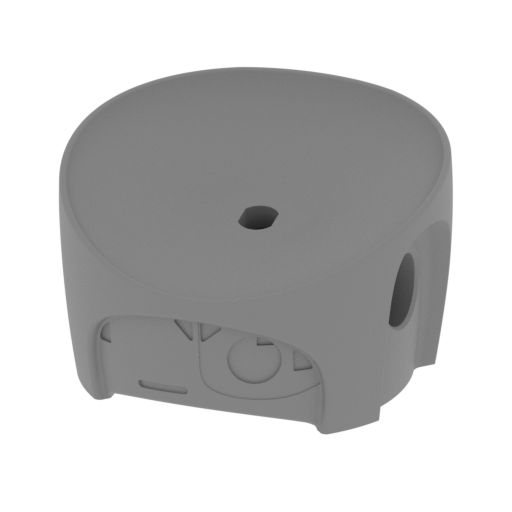

_39_body_cut_2_clear_FDM (repaired).stl
30.50 MiB 140 h 60 min 89 m 190 x 190 x 117 Download

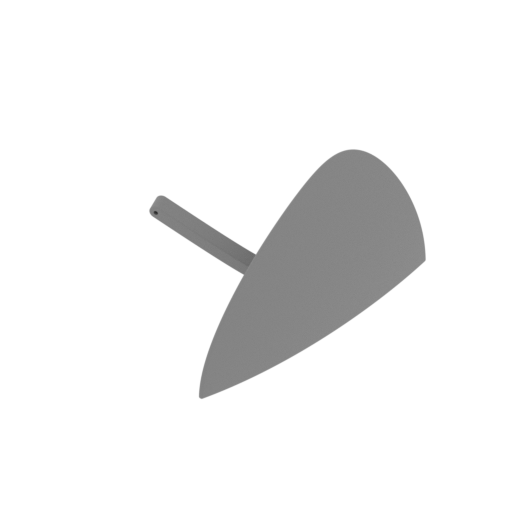

_40_door_R_FDM (repaired) .stl
22.27 MiB 6 h 60 min 4 m 91 x 165 x 60 Download

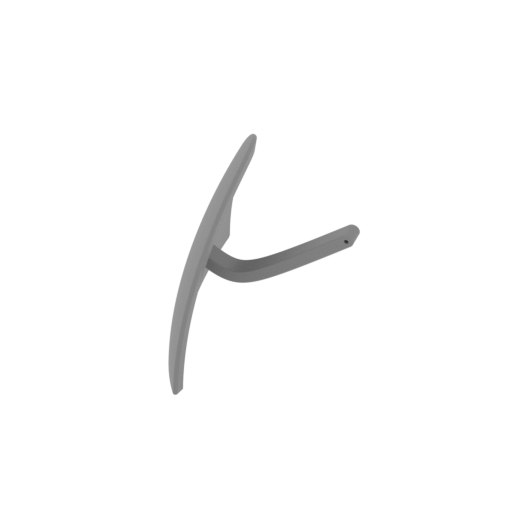

_41_door_L_FDM (repaired) .stl
22.27 MiB 6 h 56 min 4 m 91 x 165 x 60 Download

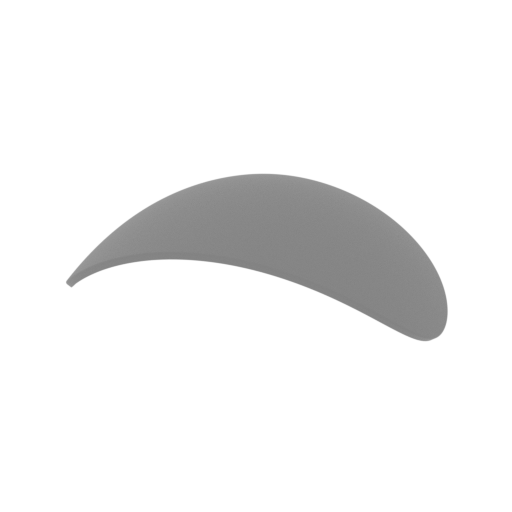

_42_head_glass_FDM (repai red).stl
14.33 MiB 28 h 22 min 26 m 161 x 89 x 49 Download

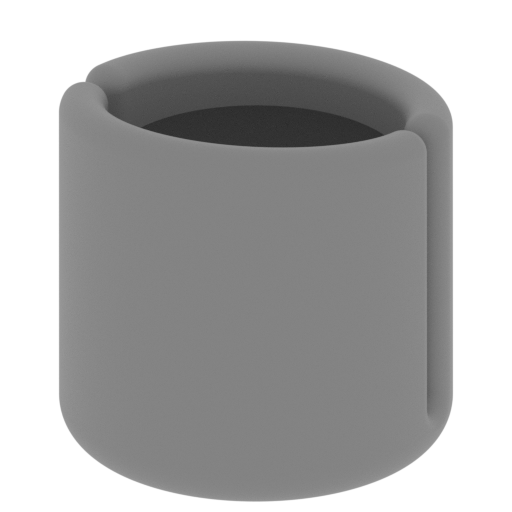

_43_head_connector_FDM (r epaired).stl
2.63 MiB 1 h 58 min 1 m 34 x 34 x 34 Download

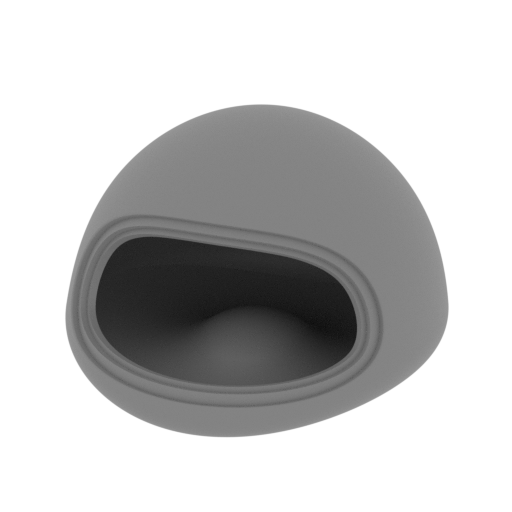

_44_head_FDM (repaired).s tl
25.12 MiB 133 h 22 min 103 m 187 x 193 x 141 Download

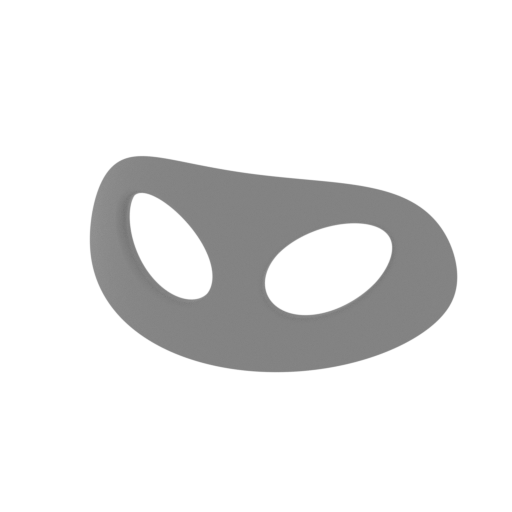

_45_eye_1_FDM (repaired). stl
10.26 MiB 8 h 42 min 5 m 150 x 46 x 76 Download

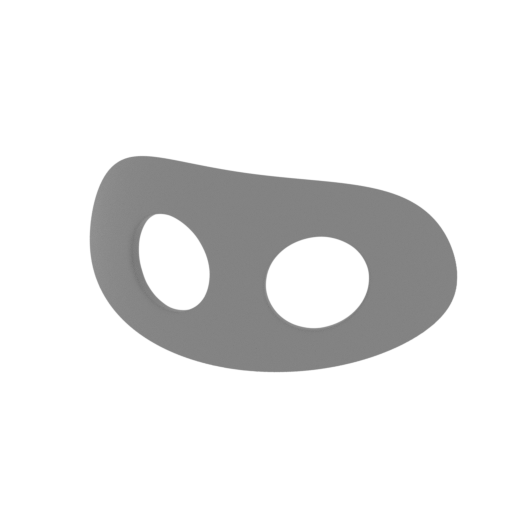

_46_eye_2_FDM (repaired). stl
10.33 MiB 8 h 27 min 5 m 150 x 46 x 75 Download

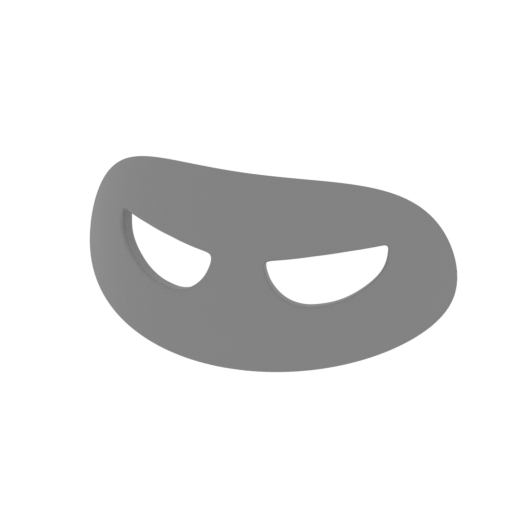

_47_eye_3_FDM (repaired). stl
10.40 MiB 9 h 6 min 6 m 150 x 46 x 75 Download

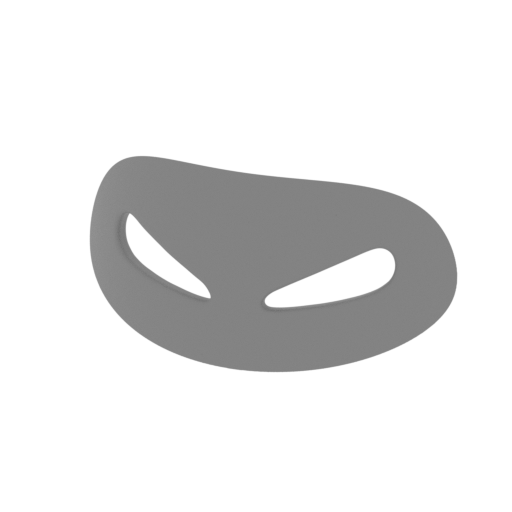

_48_eye_4_FDM (repaired). stl
10.37 MiB 8 h 59 min 5 m 150 x 46 x 75 Download

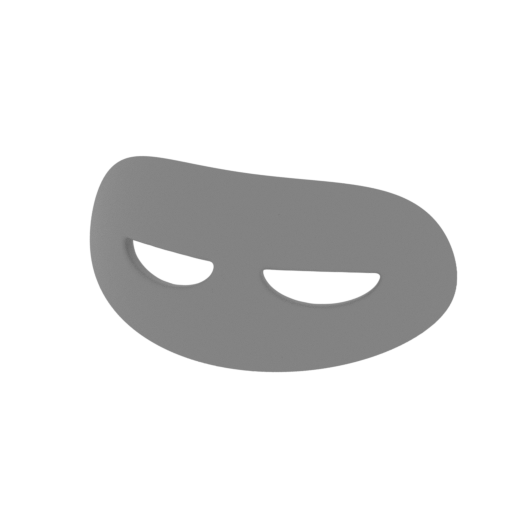

_49_eye_5_FDM (repaired). stl
10.43 MiB 8 h 46 min 5 m 150 x 46 x 75 Download

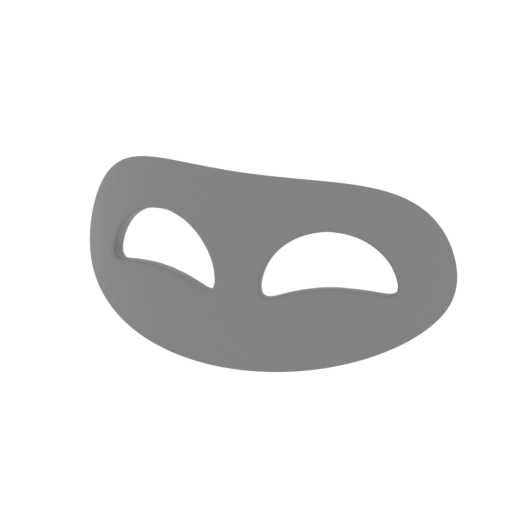

_50_eye_6_FDM (repaired). stl
10.36 MiB 8 h 52 min 5 m 150 x 46 x 75 Download

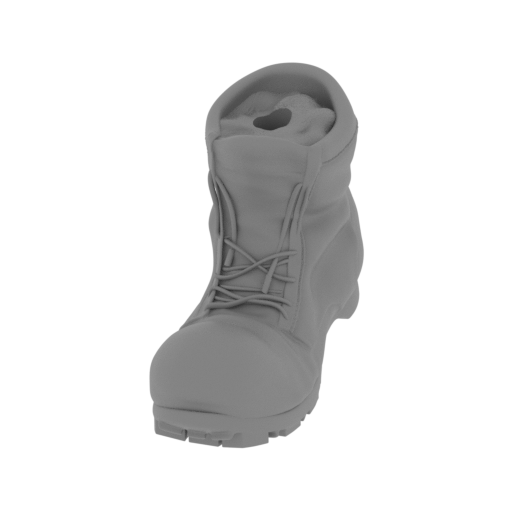

_51_boot_FDM (repaired).s tl
14.74 MiB 2 h 49 min 1 m 24 x 58 x 43 Download

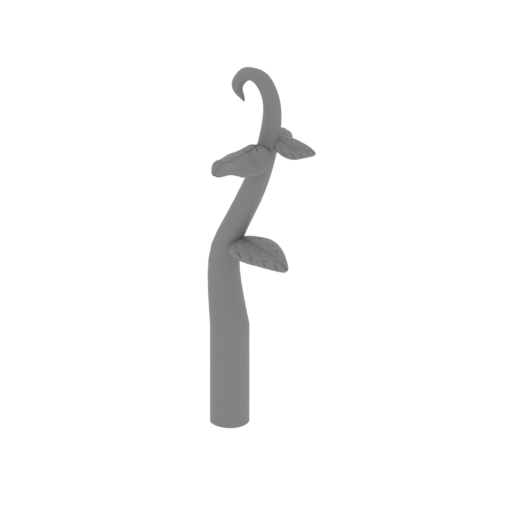

_52_flower_FDM (repaired) .stl
11.93 MiB 1 h 2 min 1 m 17 x 20 x 56 Download

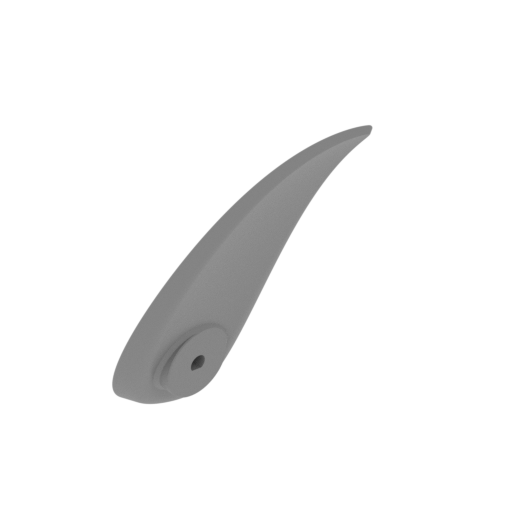

_53_arm_full_R_FDM (repai red).stl
25.51 MiB 14 h 34 min 9 m 131 x 84 x 172 Download

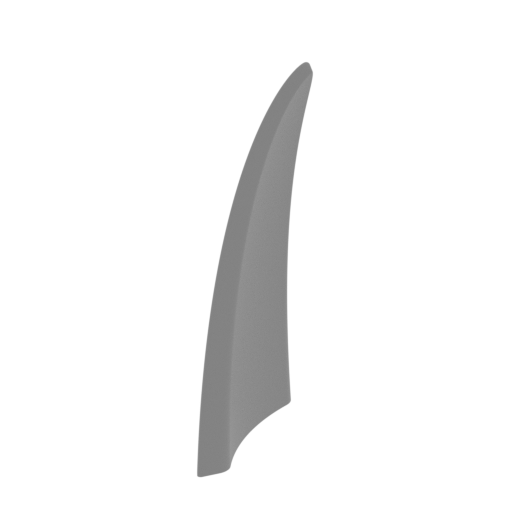

_54_arm_cut_1_R_FDM (repa ired).stl
12.79 MiB 3 h 53 min 3 m 25 x 68 x 117 Download

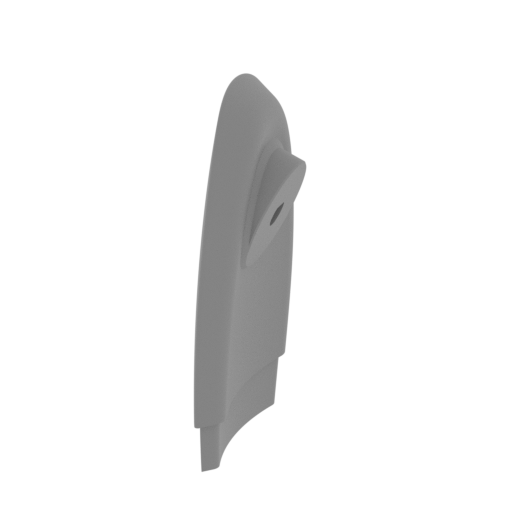

_55_arm_cut_2_R_FDM (repa ired).stl
13.85 MiB 7 h 49 min 5 m 28 x 73 x 117 Download

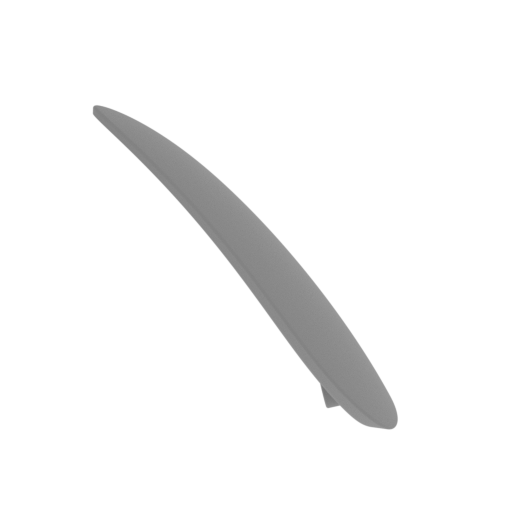

_56_arm_full_L_FDM (repai red).stl
25.52 MiB 14 h 51 min 9 m 110 x 118 x 168 Download

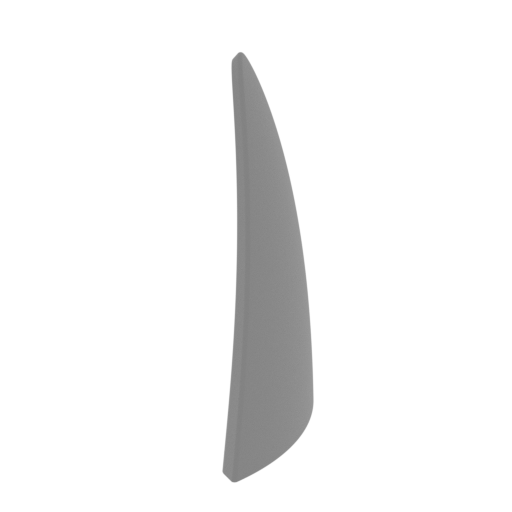

_57_arm_cut_1_L_FDM (repa ired).stl
12.79 MiB 3 h 53 min 3 m 25 x 68 x 117 Download

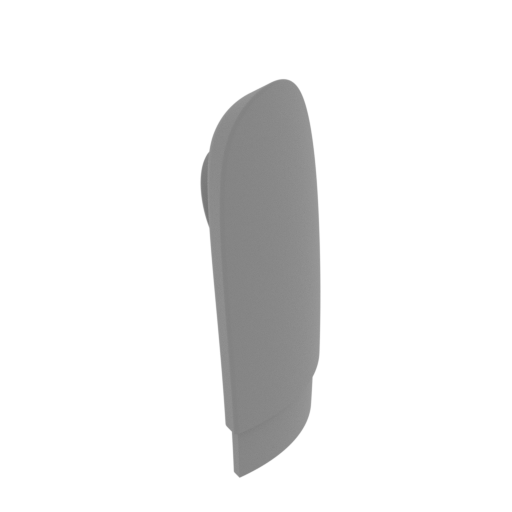

_58_arm_cut_2_L_FDM (repa ired).stl
13.84 MiB 7 h 44 min 5 m 28 x 73 x 117 Download

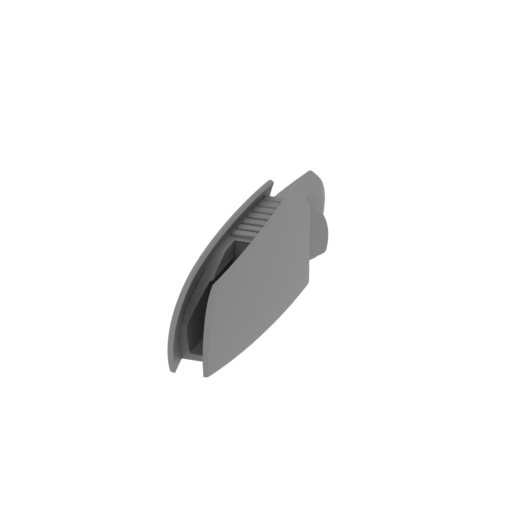

_59_arm_gun_1_R_FDM (repa ired).stl
8.98 MiB 12 h 45 min 7 m 33 x 174 x 43 Download

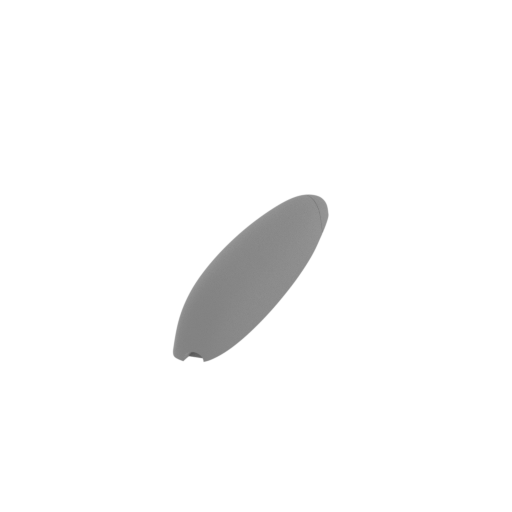

_60_arm_gun_2_R_FDM (repa ired).stl
3.82 MiB 6 h 30 min 4 m 31 x 173 x 29 Download

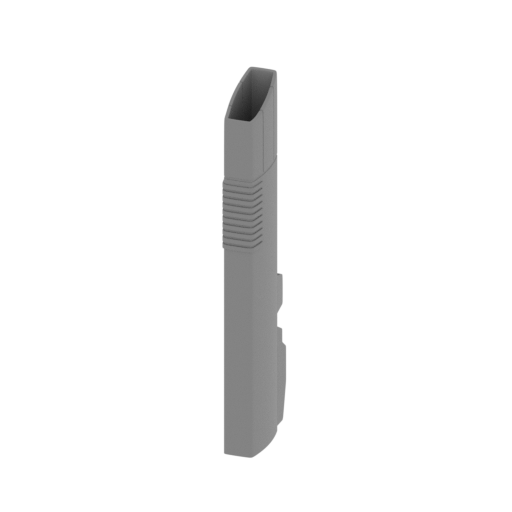

_61_arm_gun_3_R_FDM (repa ired).stl
3.78 MiB 3 h 56 min 2 m 13 x 35 x 127 Download

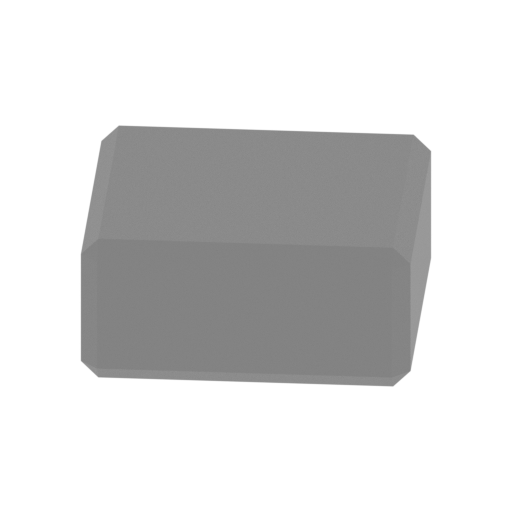

_62_arm_gun_4_R_FDM (repa ired).stl
0.01 MiB 40 min <1 m 30 x 29 x 12 Download

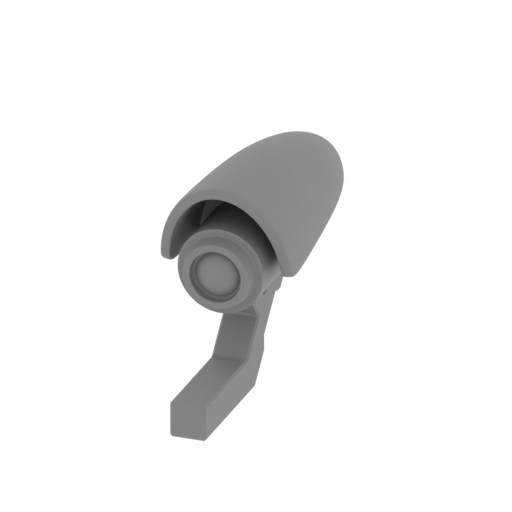

_63_arm_gun_5_R_FDM (repa ired).stl
1.74 MiB 2 h 34 min 2 m 22 x 61 x 37 Download

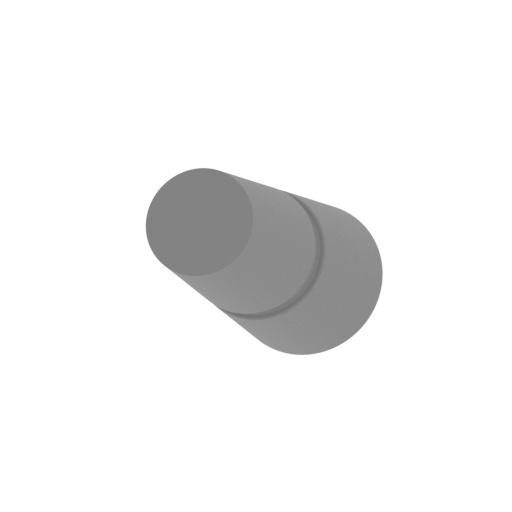

_64_arm_gun_6_R_FDM (repa ired).stl
0.20 MiB 27 min <1 m 11 x 28 x 21 Download

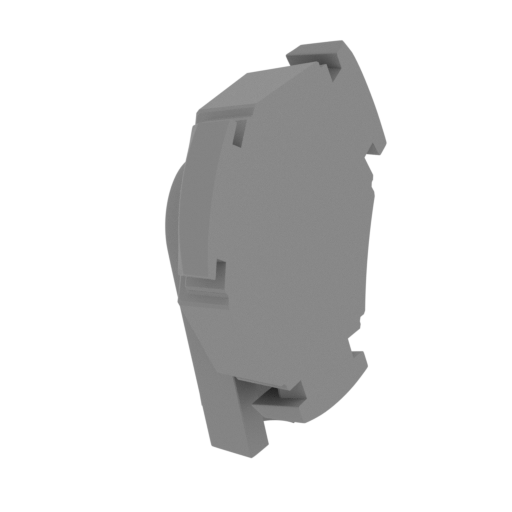

_65_rs_1_FDM (repaired).s tl
0.95 MiB 2 h 9 min 1 m 23 x 46 x 48 Download

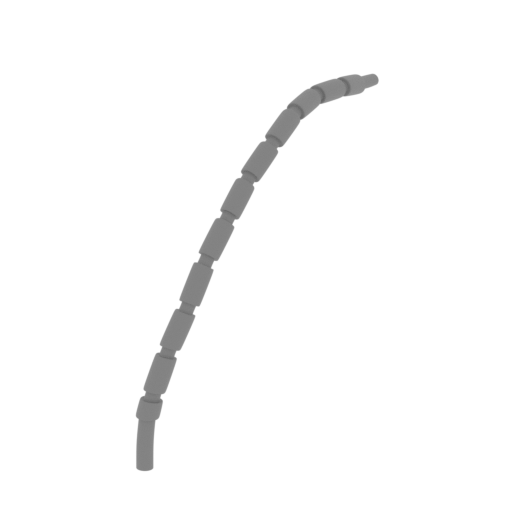

_66_rs_2_FDM (repaired).s tl
2.82 MiB 9 h 25 min 7 m 48 x 160 x 131 Download

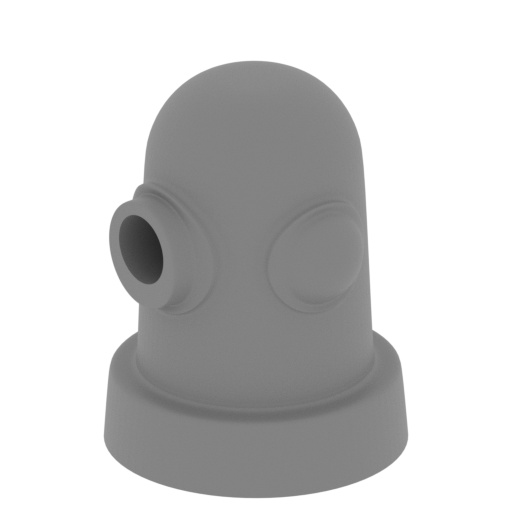

_67_rs_3_FDM (repaired).s tl
1.16 MiB 56 min 1 m 23 x 23 x 30 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

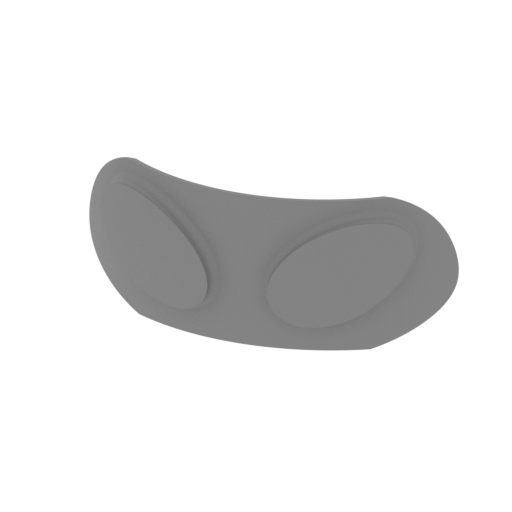

_68_eye_cap_1_FDM (repair ed).stl
2.82 MiB 4 h 39 min 2 m 130 x 36 x 54 Download
_69_eye_cap_2_FDM (repair ed).stl
2.50 MiB 4 h 1 min 2 m 131 x 36 x 54 Download
_70_eye_cap_3_FDM (repair ed).stl
2.31 MiB 4 h 17 min 3 m 131 x 36 x 54 Download

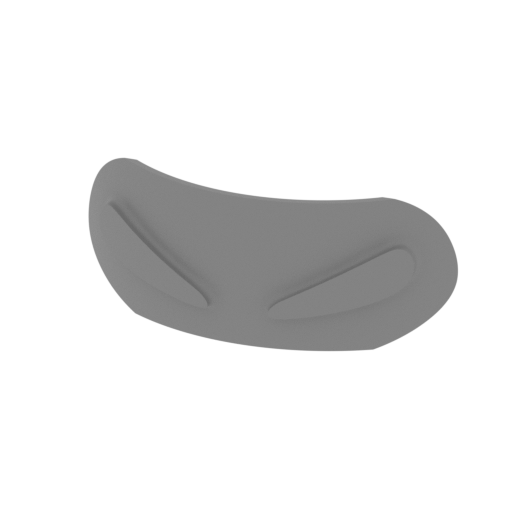

_71_eye_cap_4_FDM (repair ed).stl
2.45 MiB 4 h 16 min 3 m 131 x 35 x 54 Download

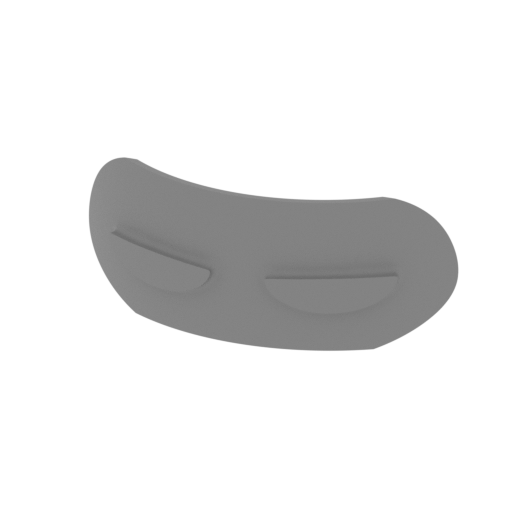

_72_eye_cap_5_FDM (repair ed).stl
2.32 MiB 4 h 5 min 2 m 131 x 36 x 54 Download

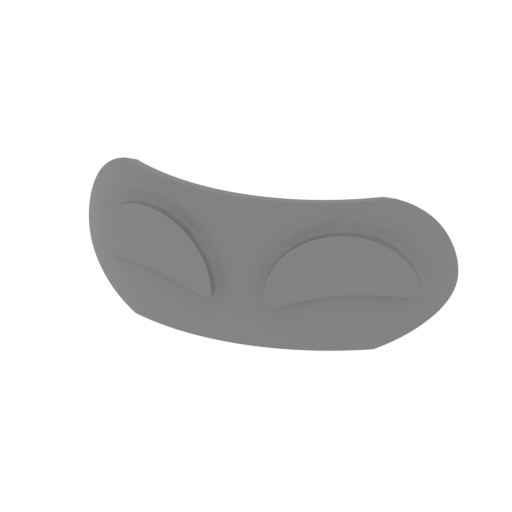

_73_eye_cap_6_FDM (repair ed).stl
2.53 MiB 4 h 35 min 3 m 131 x 36 x 54 Download
...

ABOUT THIS 3D MODEL

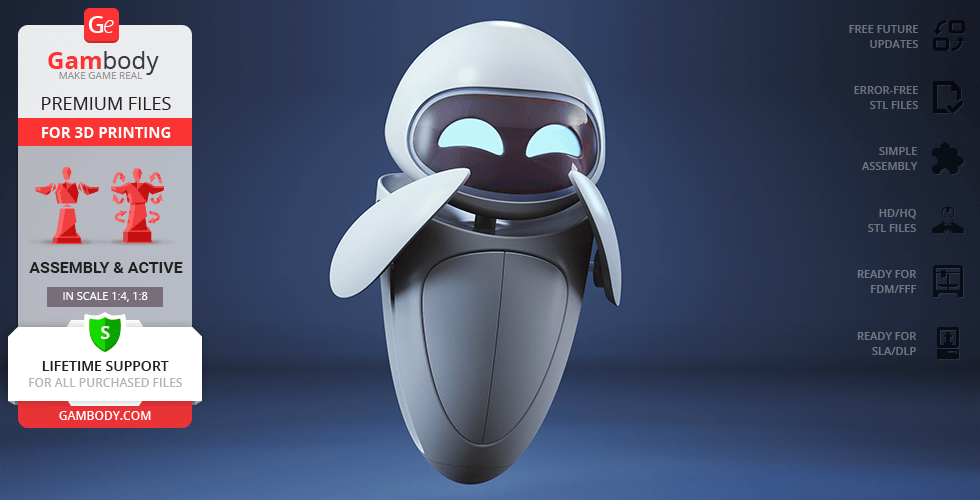

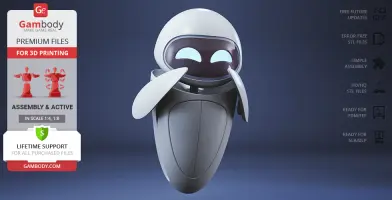

EVE stands for Extraterrestrial Vegetation Evaluator, an egg-shaped advanced probe droid who was sent to Earth on a scanning mission for signs of sustainable life. Determined to complete her mission, EVE ignores the romantic advances of a trash compactor WALL-E at first but eventually falls in love with the lovely robot. Together the pair discovers the true meaning of friendship, love, and hope, and their discovery of a sprouting plant helps bring life back to the planet.

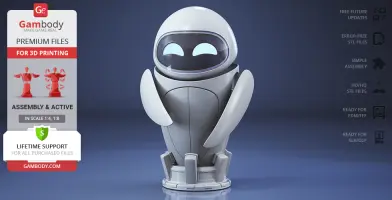

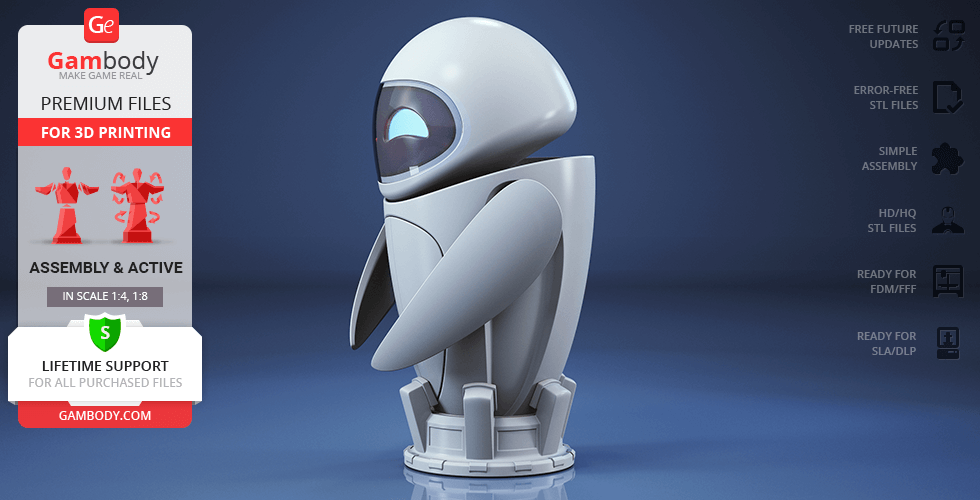

The beautiful EVE model for 3D printing is designed with six interchangeable face variants and several articulated mechanisms for your delicate probe droid to express any emotion you prefer. WALL-E is finally no longer lonely in Gambody’s catalogue, and so should the WALL-E in your 3D printed collection be!

ADAPTATION FOR 3D PRINTING

EVE for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 40 hours in total.

For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the Extraterrestrial Vegetation Evaluator model was divided into many assembly parts, and special mechanisms were introduced into all model’s movable elements to give you an opportunity to display EVE in a variety of positions and scenes.

All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the EVE model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the height of EVE which is 1466 mm. The 3D printing model’s chosen scale is 1:4 for the FFF/FDM version and 1:8 for the DLP/SLA version.

VERSIONS' SPECIFICATIONS

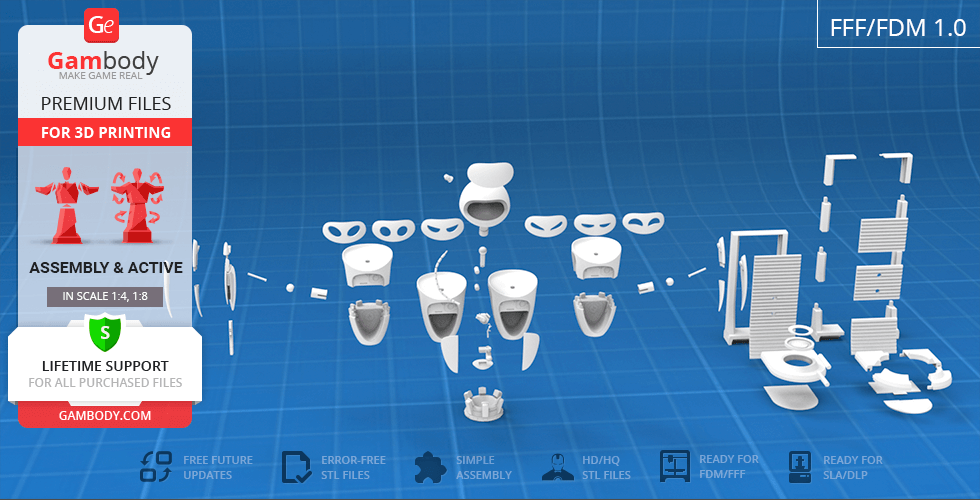

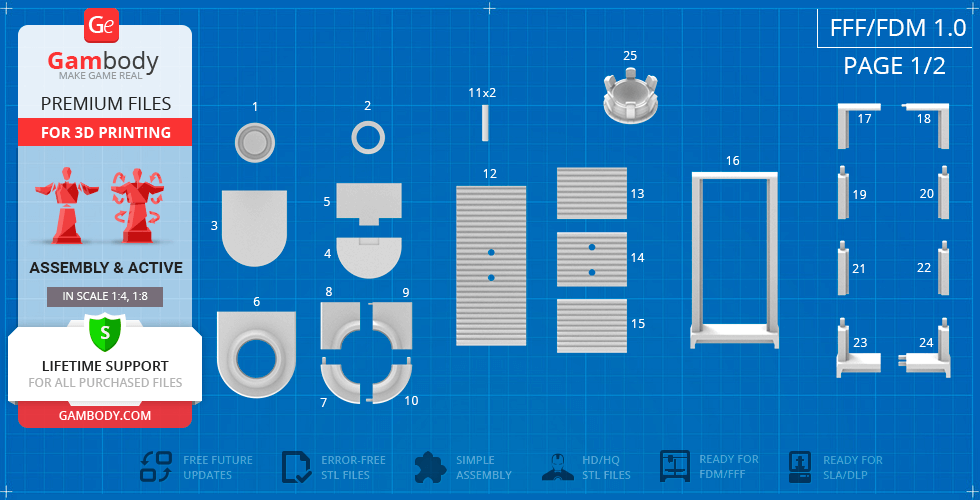

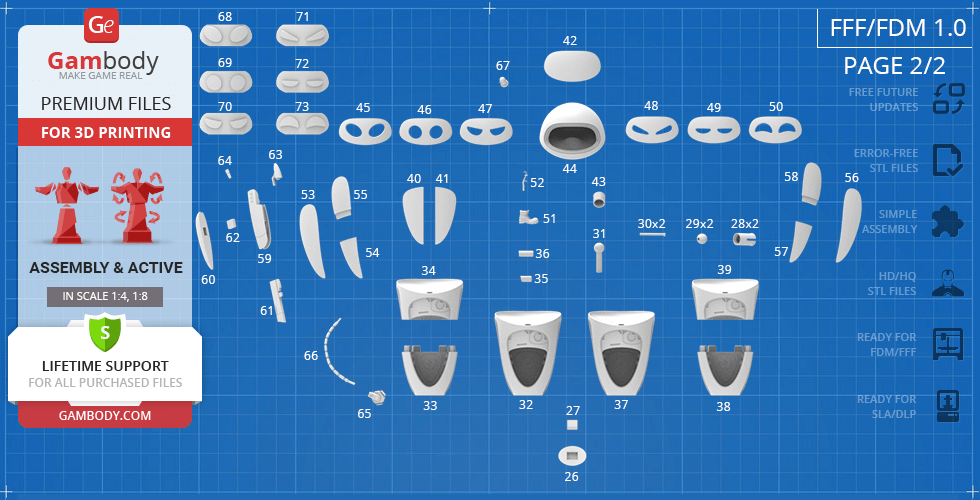

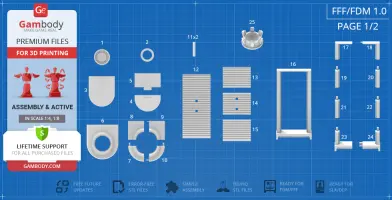

FFF/FDM 1.0 version features:
- Contains 67 parts;
- A printed model stands 399 mm tall, 244 mm wide, 201 mm deep (simple stand); 503 mm tall, 252 mm wide, 293 mm deep (repair platform);

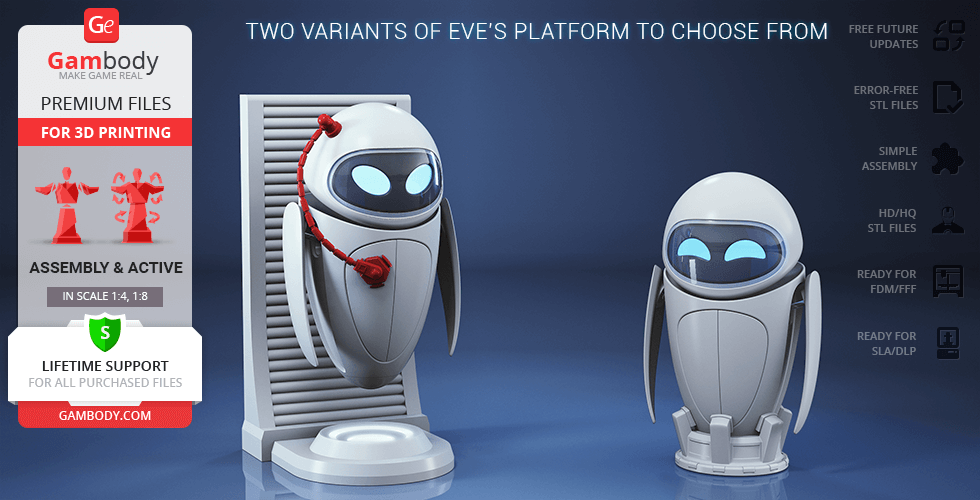

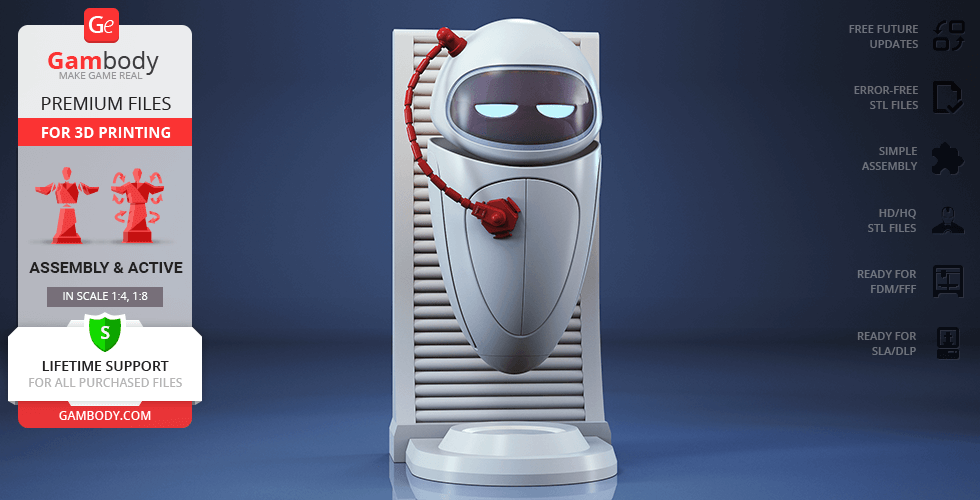

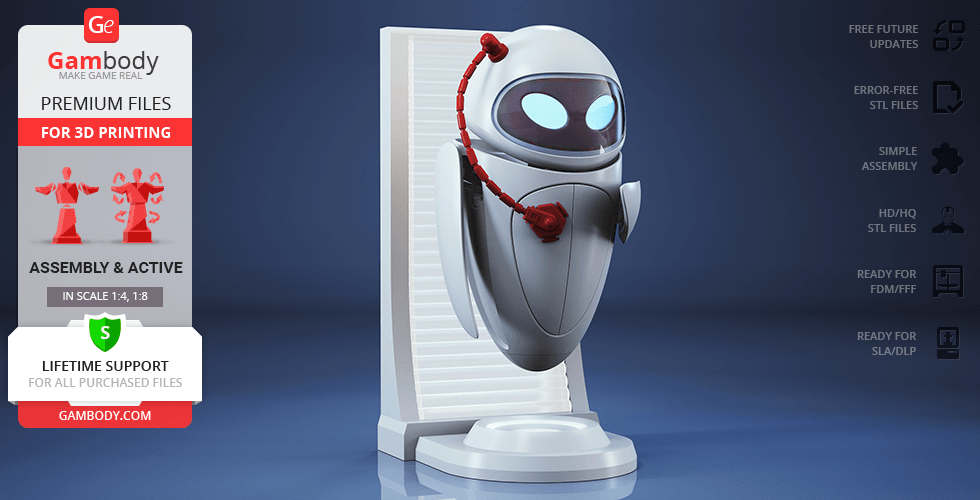

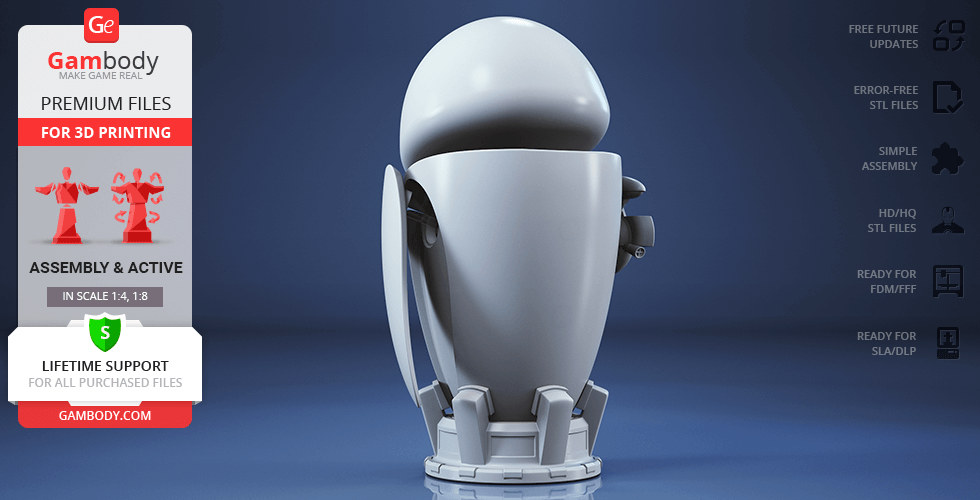

- There are two variants of EVE’s platform to choose from - a bigger repair platform and a simple stand;

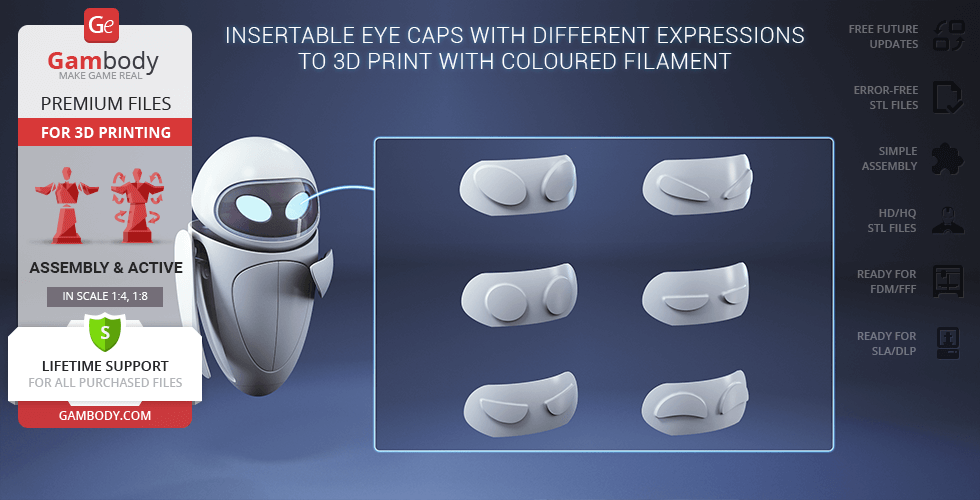

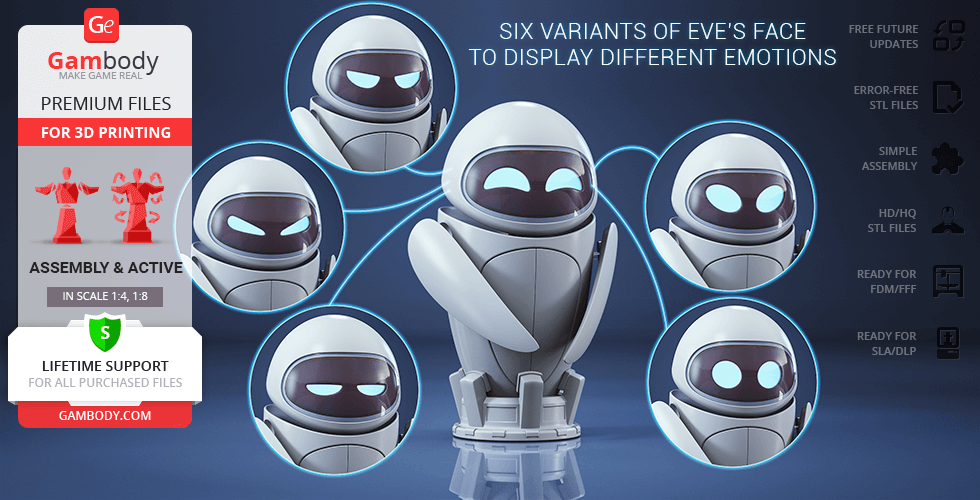

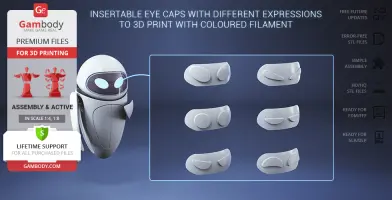

- Six variants of EVE’s face will help you display different emotions;

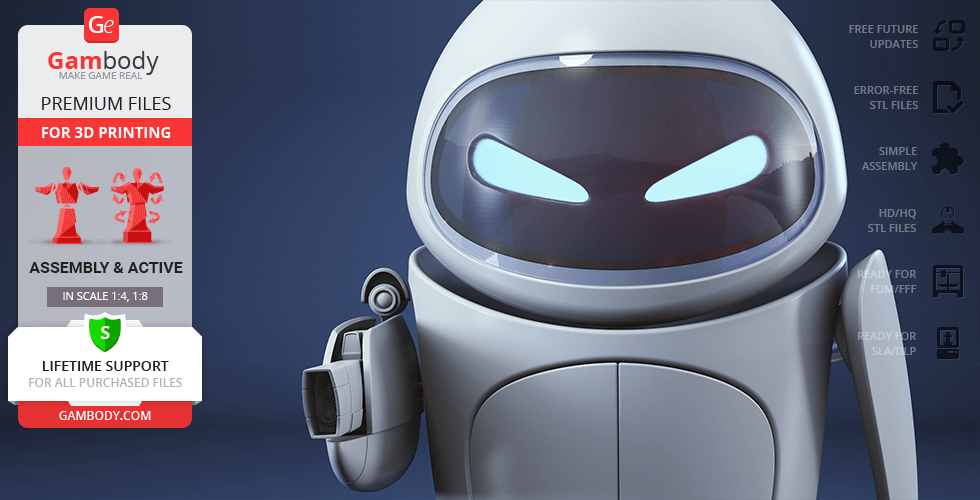

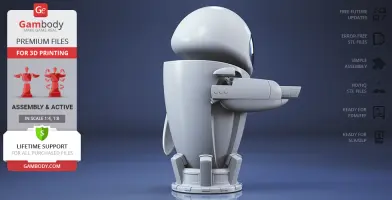

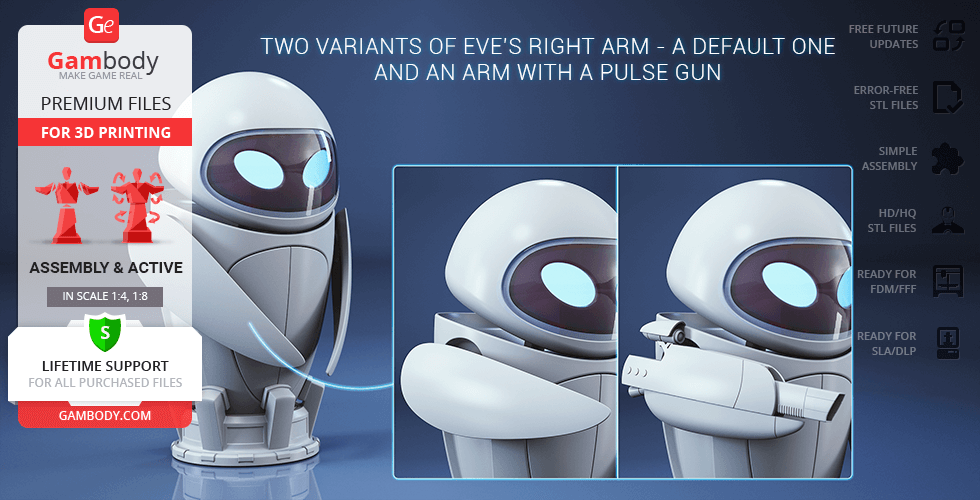

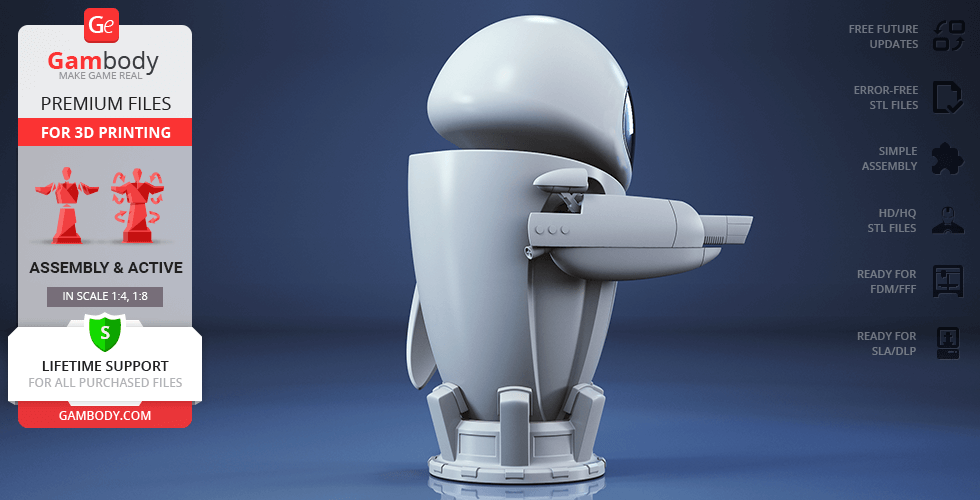

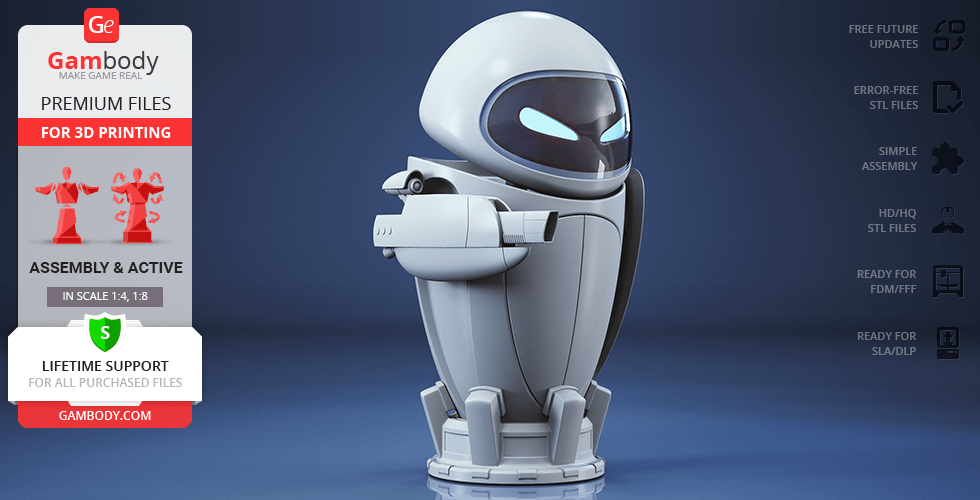

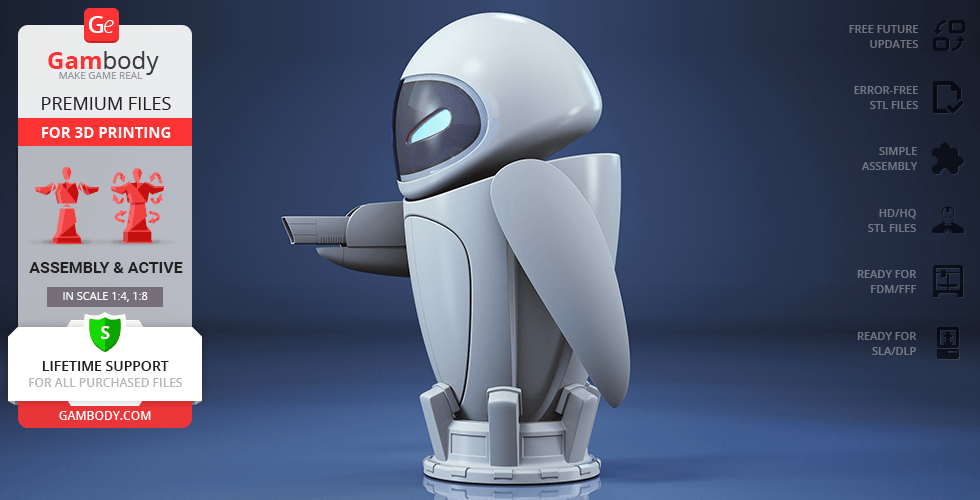

- There are two variants of EVE’s right arm - a default one and an arm with a pulse gun;

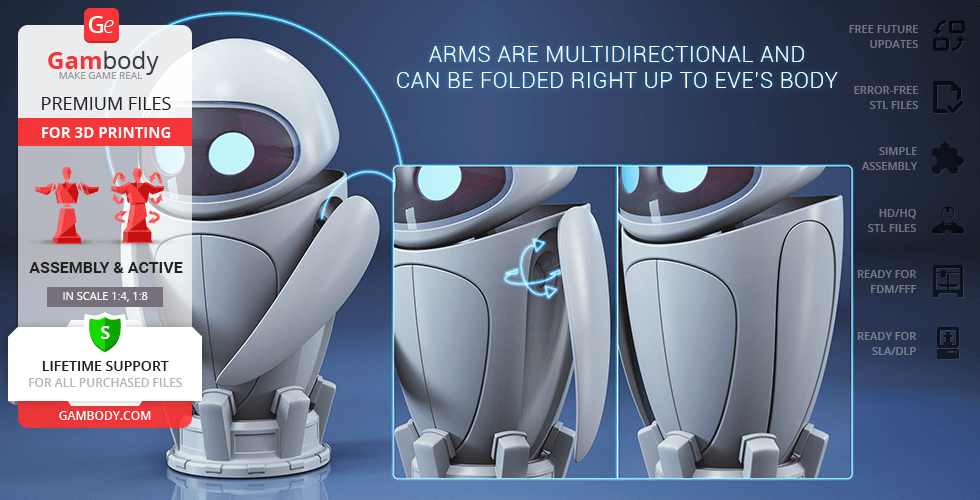

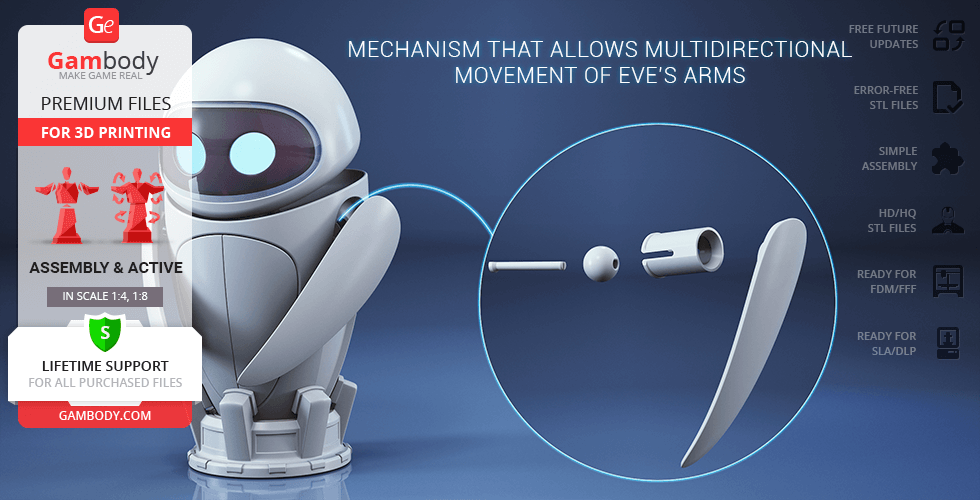

Arms are multidirectional and can be folded right up to EVE’s body;

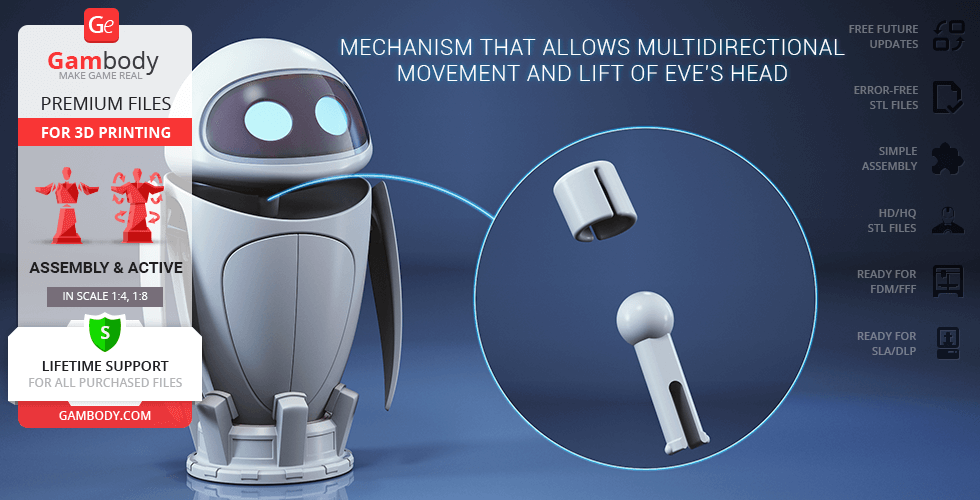

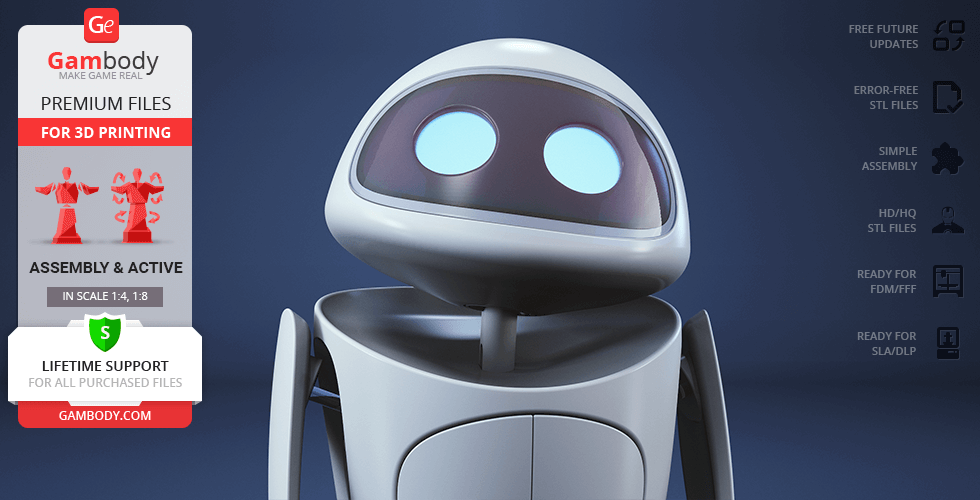

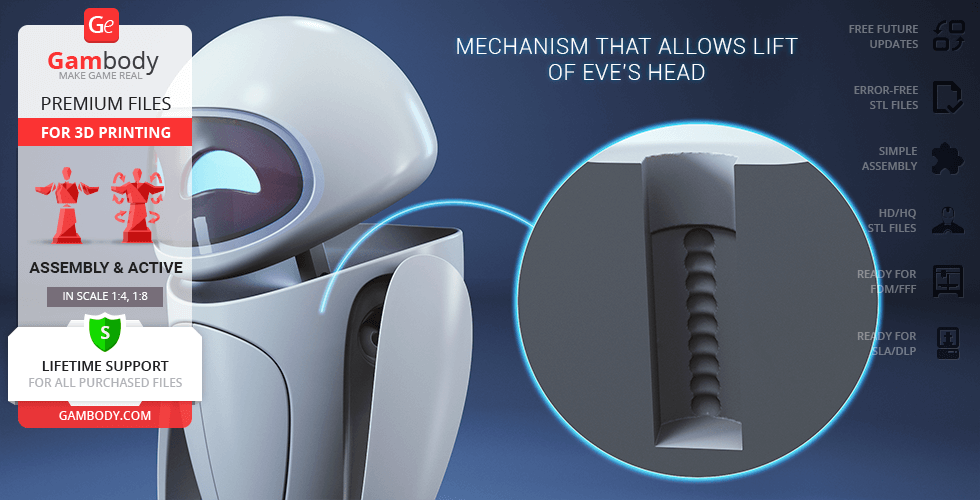

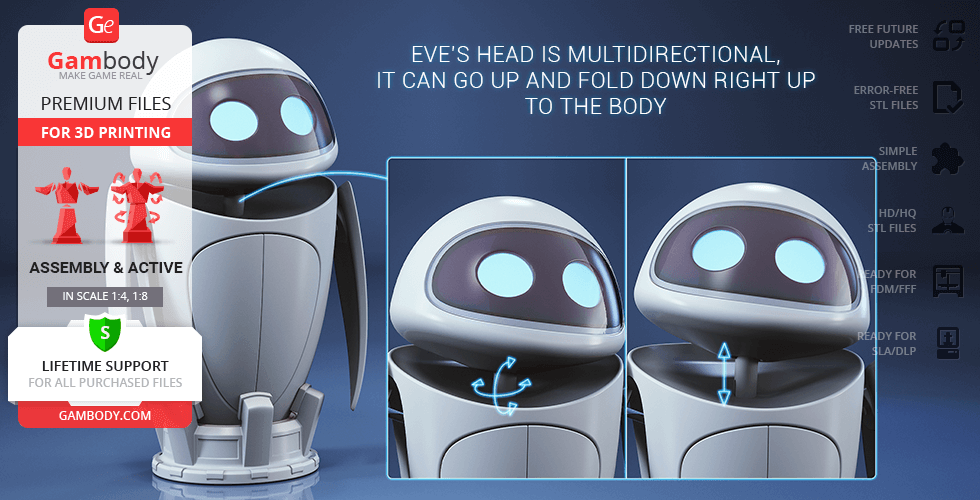

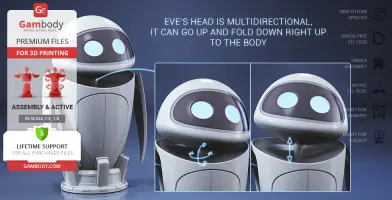

- EVE’s head is multidirectional as well, it can go up and fold down right up to the body;

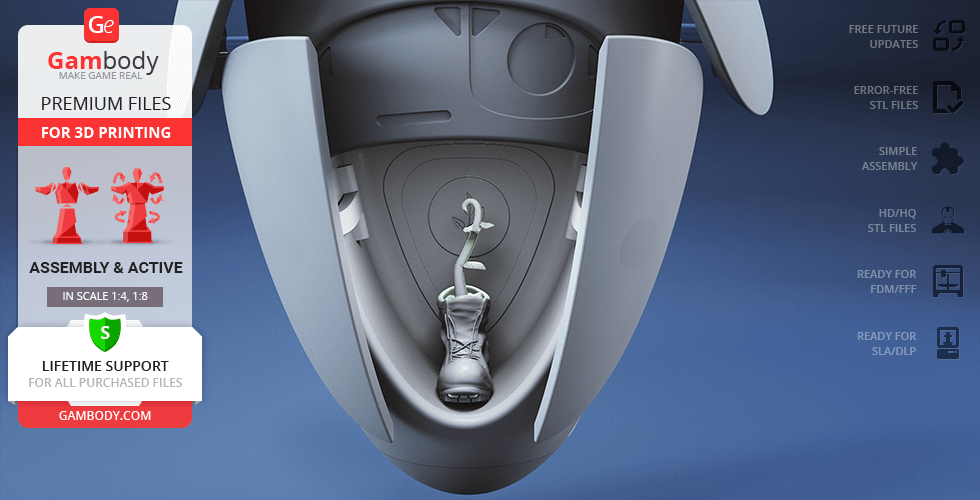

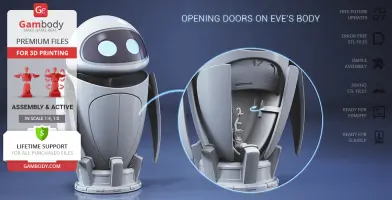

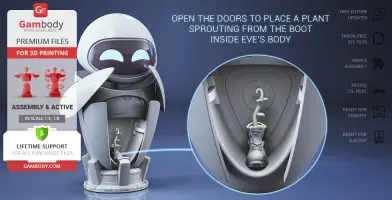

Doors on EVE’s belly open to place WALL-E's plant sprouting from the boot inside EVE’s body;
- There are four variants of EVE’s body - two variants are solid, while the other two are split to be assembled;
- One pair of body variants has notches to install EVE on the repair platform. You may use corks to conceal these notches if you choose to display EVE on a simple stand;

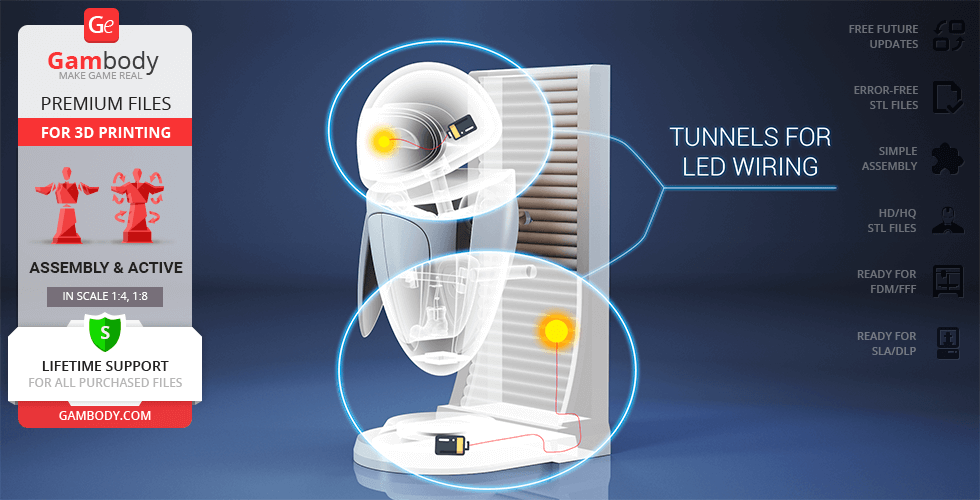

- Tunnels throughout the robot’s body and repair platform are provided for LED wiring to light up the face and platform's charging element;
- Assembly of the articulated elements in the FDM version requires additional “pins” that do not come in STL files but can be made out of short pieces of regular 1.75mm filament;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

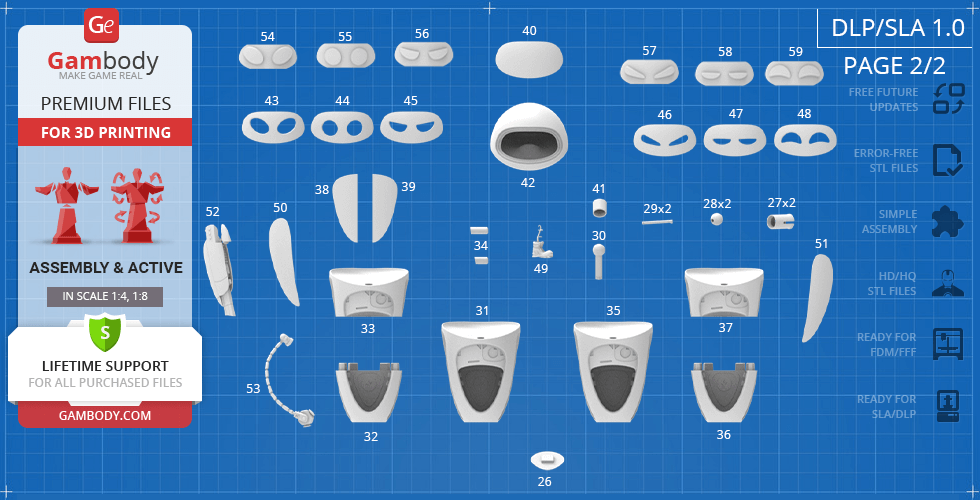

DLP/SLA 1.0 version features:
- Contains 53 parts;
- A printed model stands 200 mm tall, 122 mm wide, 100 mm deep (simple stand); 251 mm tall, 126 mm wide, 146 mm deep (repair platform);
- There are two variants of EVE’s platform to choose from - a bigger repair platform and a simple stand;
- Six variants of EVE’s face will help you display different emotions;
- There are two variants of EVE’s right arm - a default one and an arm with a pulse gun;
Arms are multidirectional and can be folded right up to EVE’s body;
- EVE’s head is multidirectional as well, it can go up and fold down right up to the body;
Doors on EVE’s belly open to place WALL-E's plant sprouting from the boot inside EVE’s body;
- There are four variants of EVE’s body - two variants are solid, while the other two are split to be assembled;
- One pair of body variants has notches to install EVE on the repair platform. You may use corks to conceal these notches if you choose to display EVE on a simple stand;
- Tunnels throughout the robot’s body and repair platform are provided for LED wiring to light up the face and platform's charging element;
- Assembly of the articulated elements in the SLA version requires additional “pins” that do not come in STL files but can be made out of short pieces of a regular paper clip;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of EVE for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble EVE 3D Printing Model at Gambody YouTube channel.

Also, you may like WALL-E 3D Printing Model, as well as more Cartoons 3D Printing Models​​​​​​.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

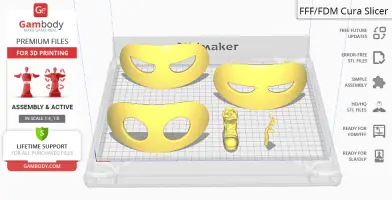

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

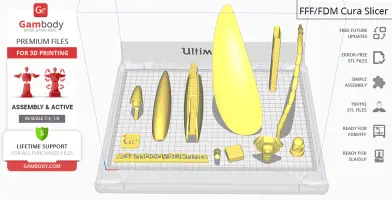

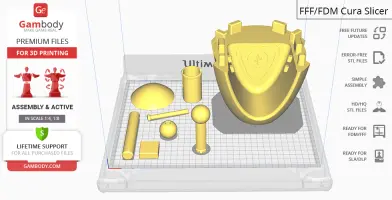

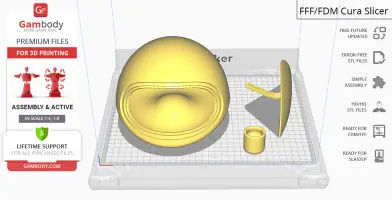

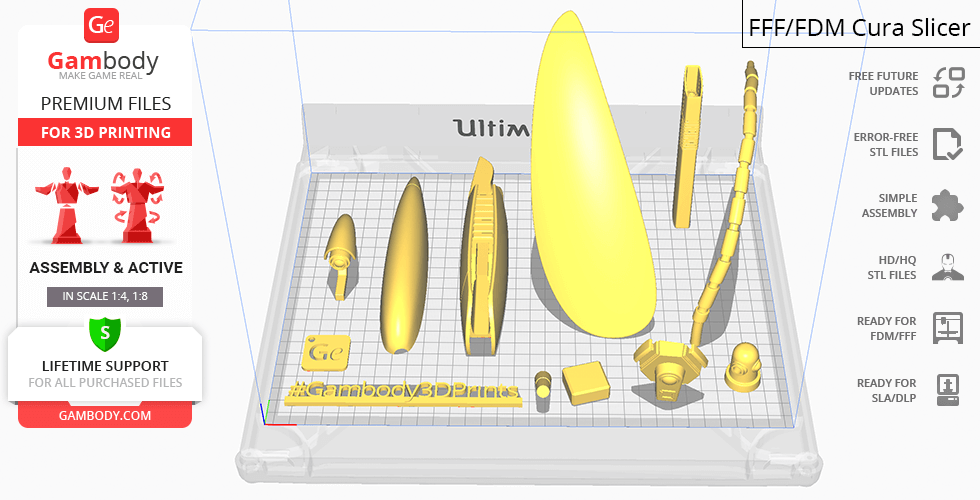

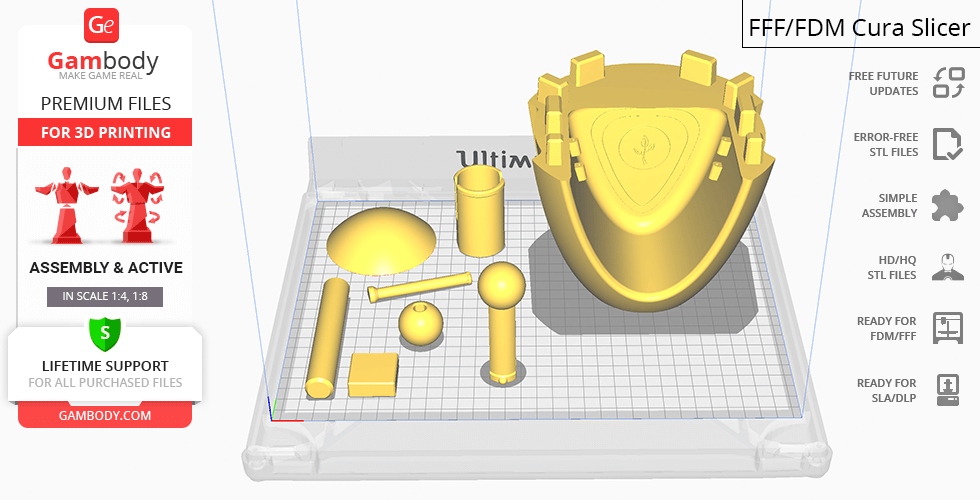

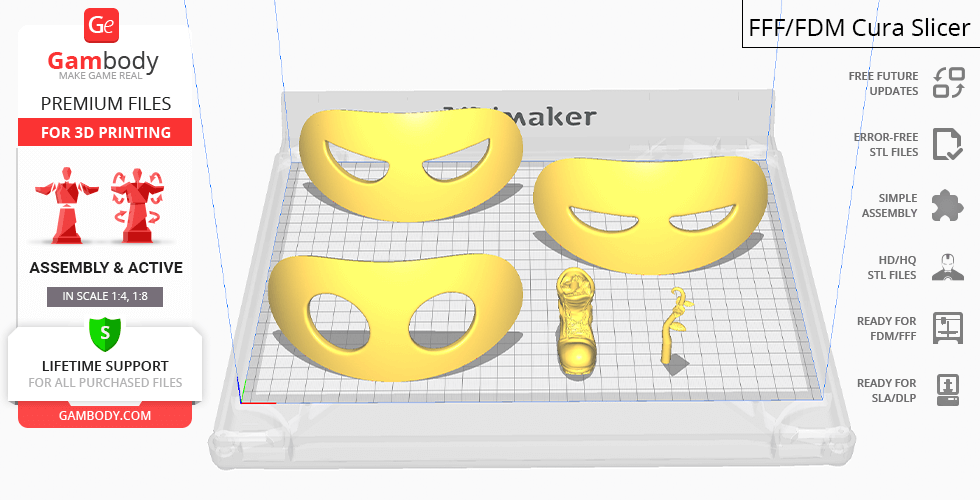

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
