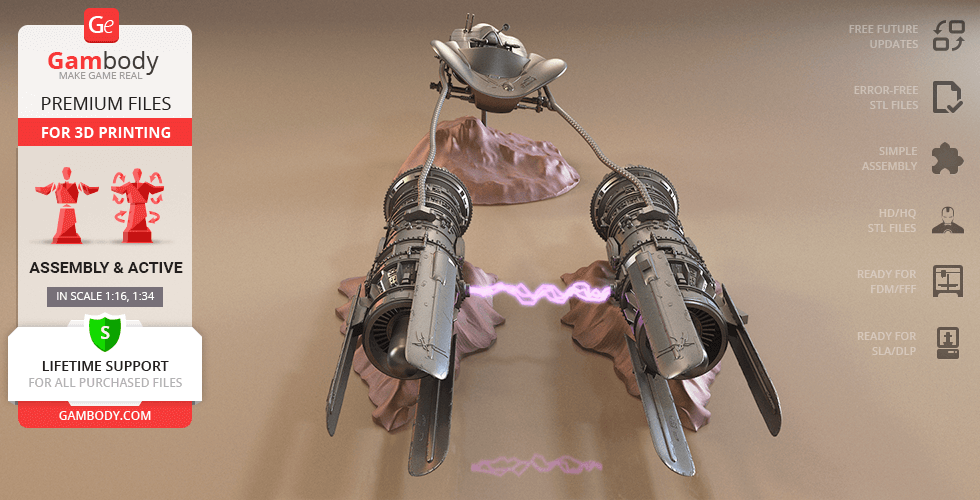

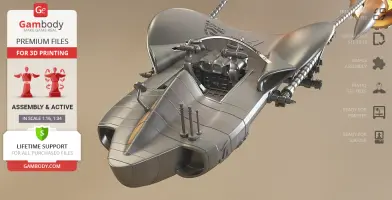

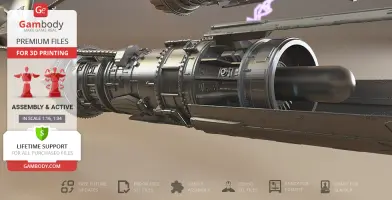

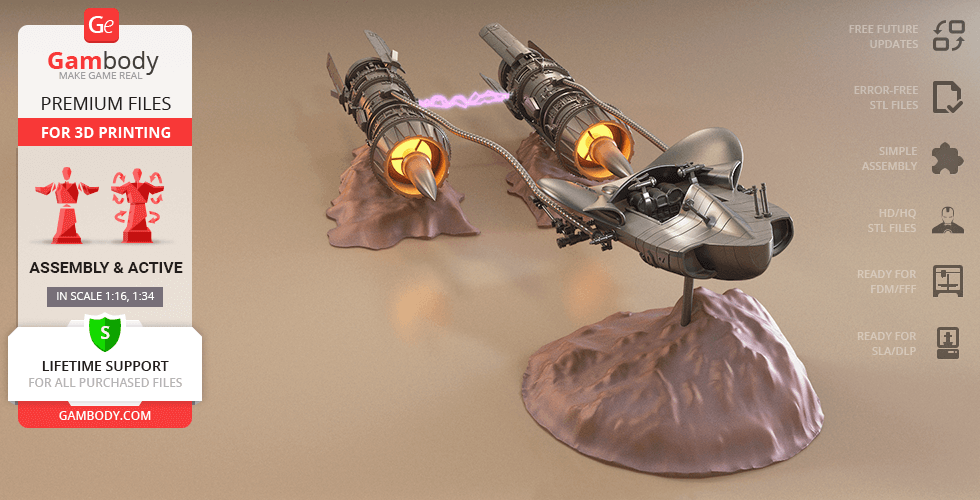

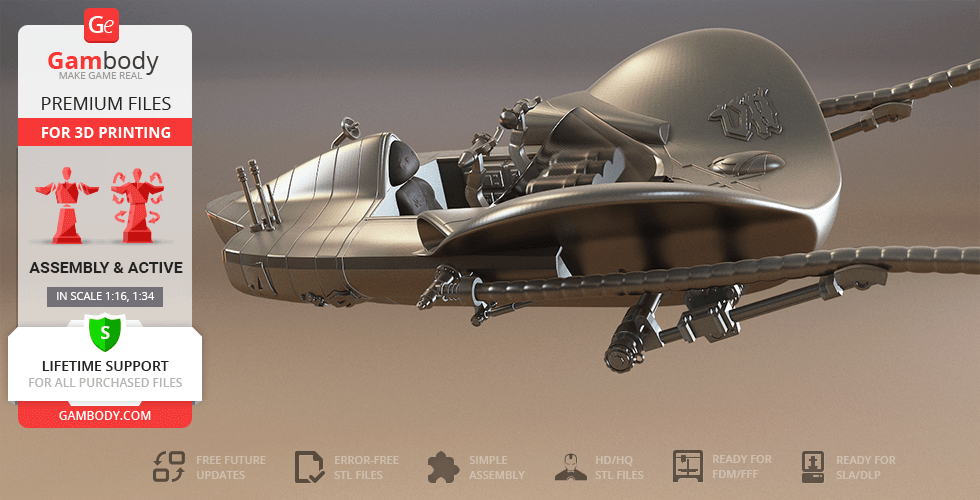

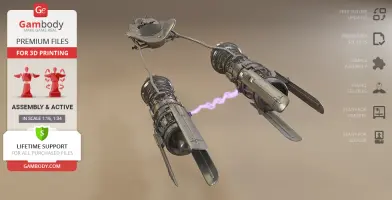

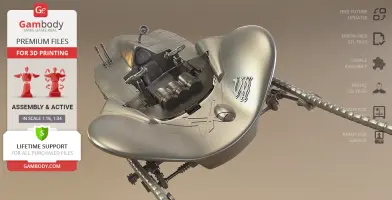

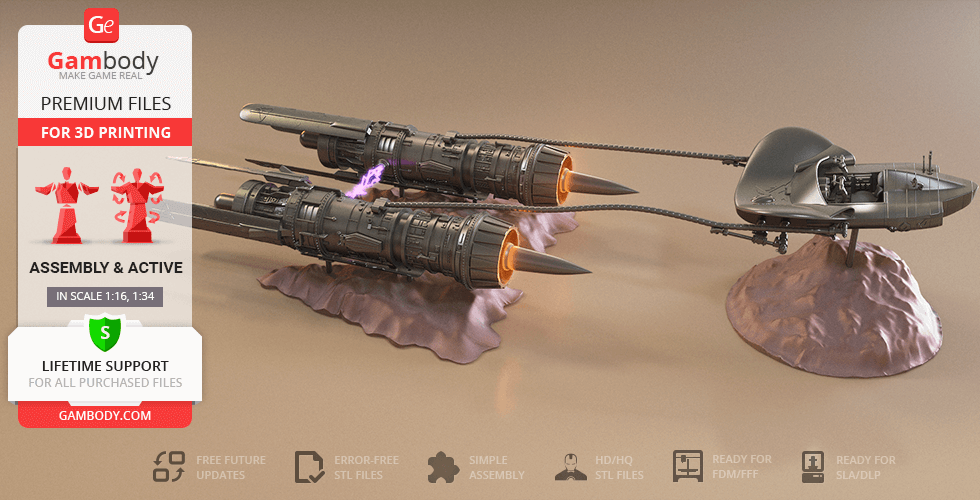

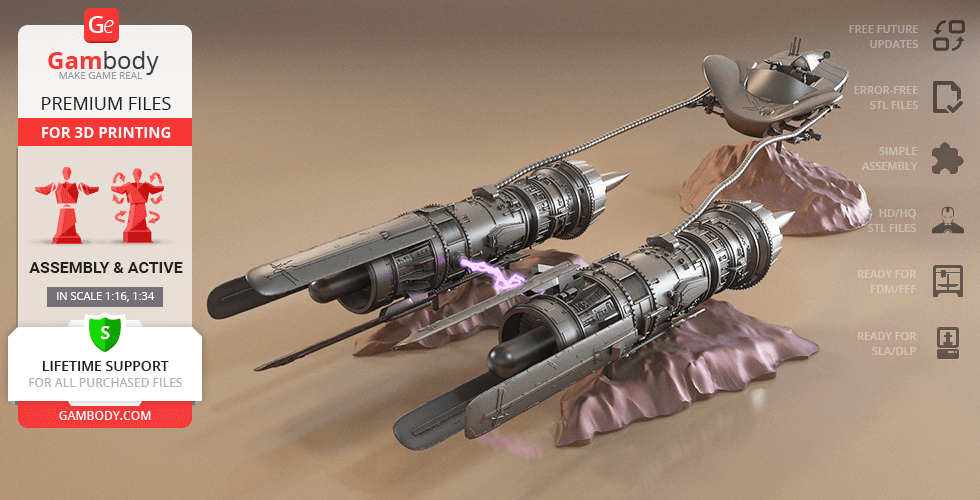

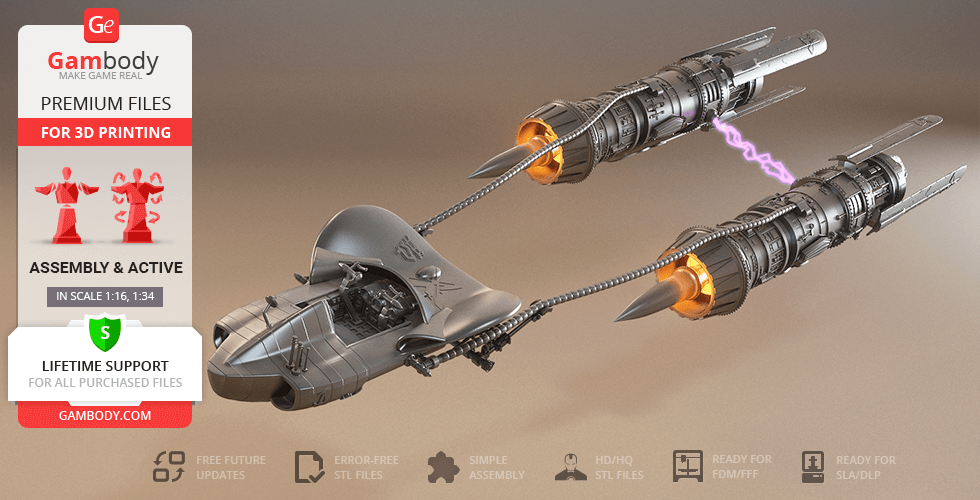

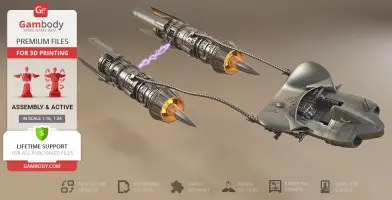

Anakin's Podracer 3D Printing Model | Assembly + Action

(2)
cm: 31.2 w x 72.3 d x 16.3 h
in: 12.283 w x 28.465 d x 6.417 h

Source Files

|

Description

|

Printing Details

This 3D Model of Anakin's Podracer consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

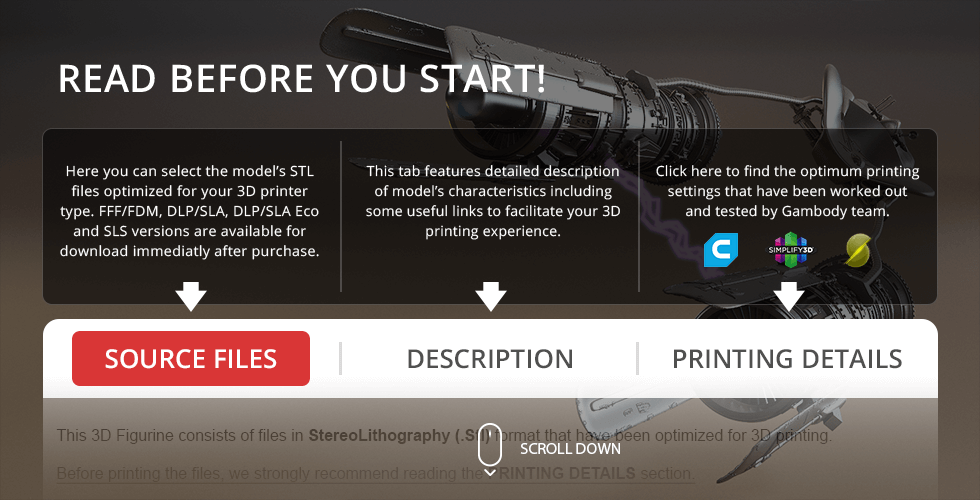

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 2 versions of Anakin's Podracer STL files for FFF/FDM and DLP/SLA/SLS - files for both versions are available for download after the purchase

- STL files of high-poly Anakin's Podracer 3D Model for 3D printing consist of 128 parts

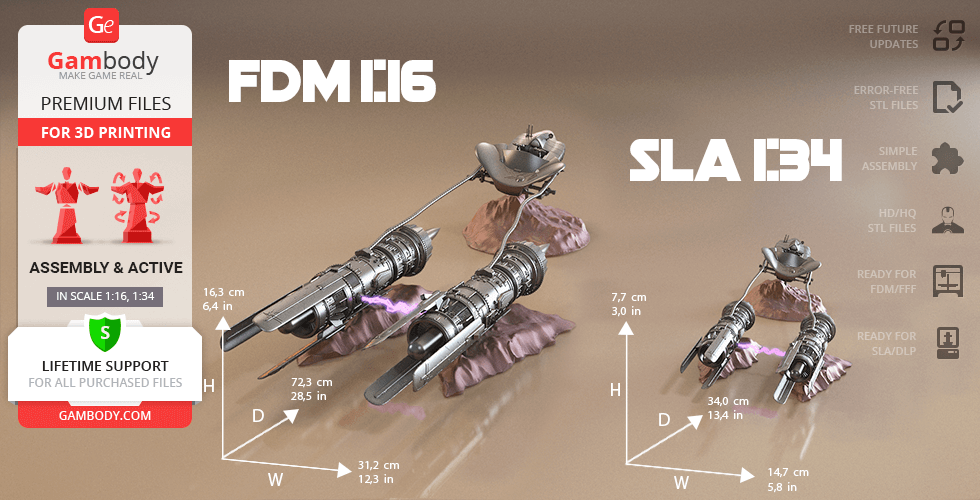

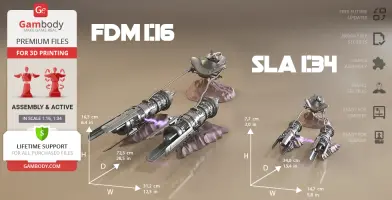

- Sizes:
FFF/FDM: 163 mm tall, 312 mm wide, 723 mm deep
​DLP/SLA/SLS: 77 mm tall, 147 mm wide, 340 mm deep

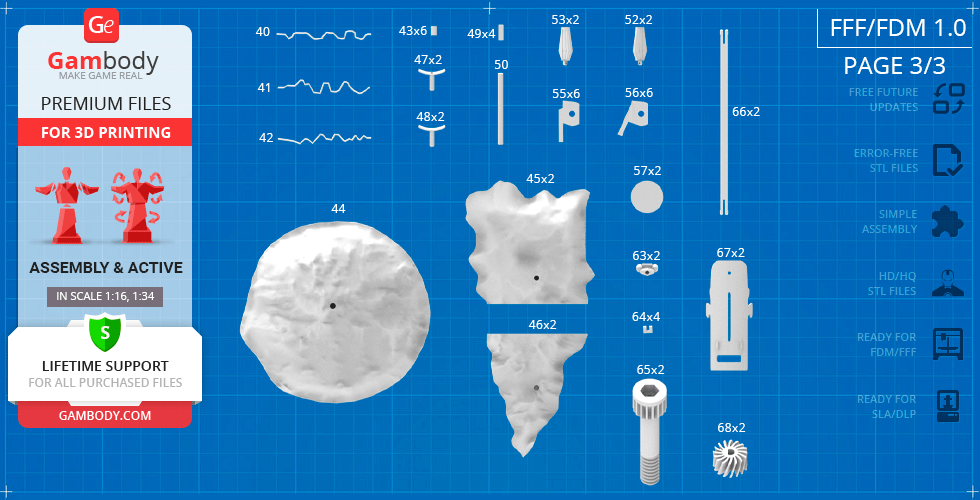

Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

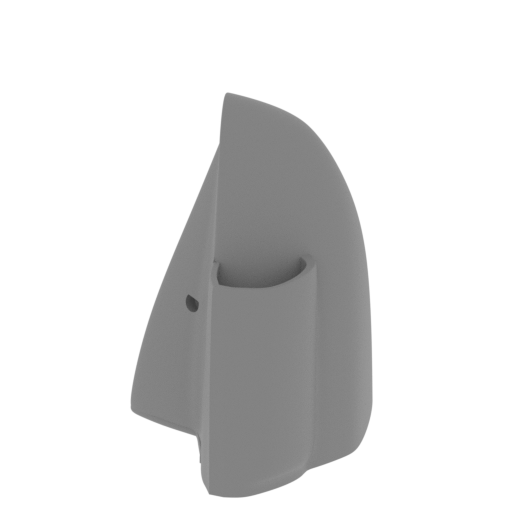

_1_cabin_back_FDM (repair ed) (repaired).stl
4.74 MiB 7 h 59 min 5 m 51 x 82 x 73 Download

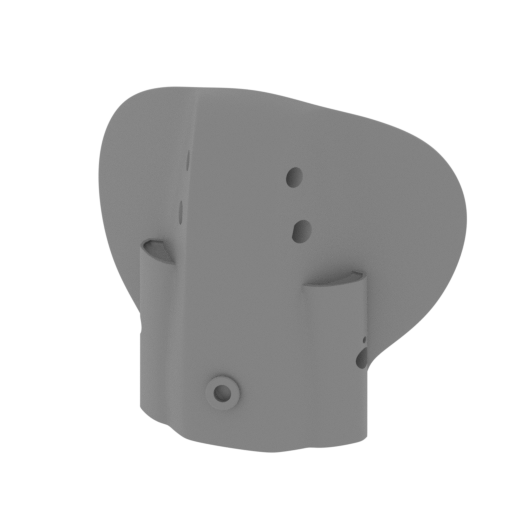

_2_cabin_front_FDM (repai red).stl
14.69 MiB 21 h 5 min 13 m 136 x 60 x 124 Download

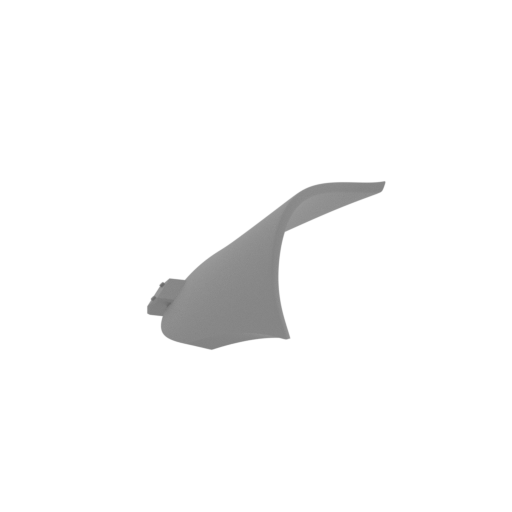

_3_window_FDM (repaired) (repaired).stl
1.94 MiB 1 h 22 min 1 m 40 x 75 x 23 Download

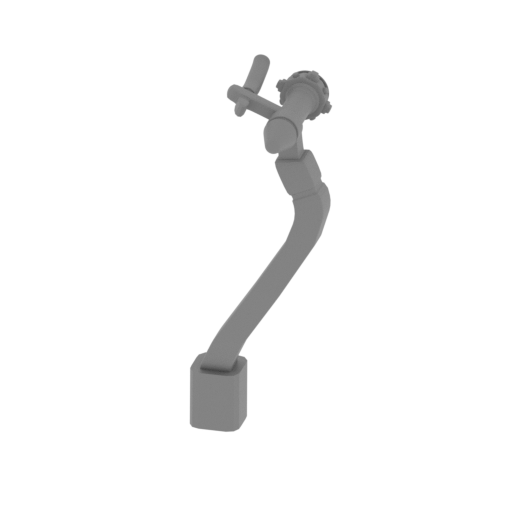

_4_joystick_L_FDM (repair ed) (repaired).stl
1.73 MiB 53 min <1 m 18 x 19 x 47 Download

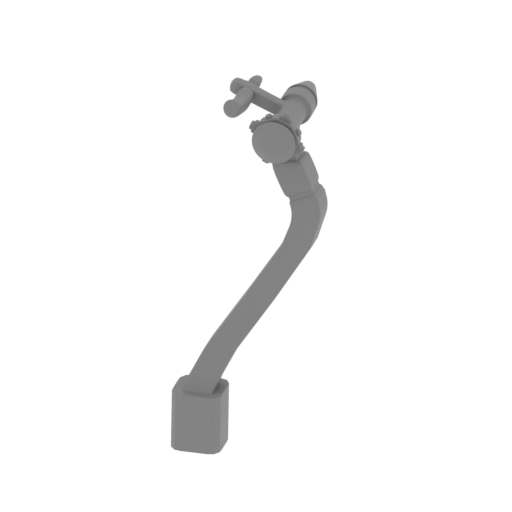

_5_joystick_R_FDM (repair ed) (repaired).stl
1.72 MiB 53 min <1 m 18 x 19 x 47 Download

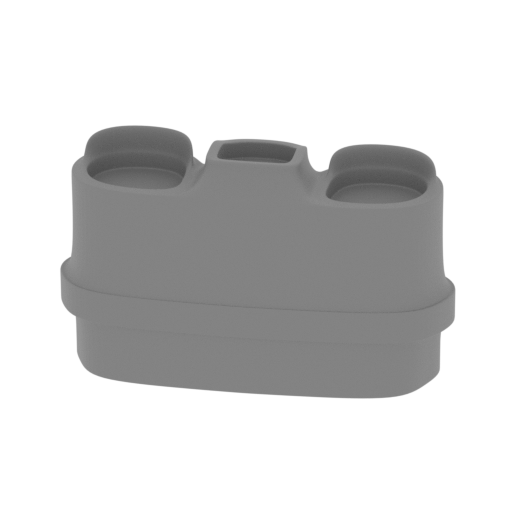

_6_dashboard_FDM (repaire d) (repaired).stl
2.64 MiB 39 min <1 m 33 x 15 x 20 Download

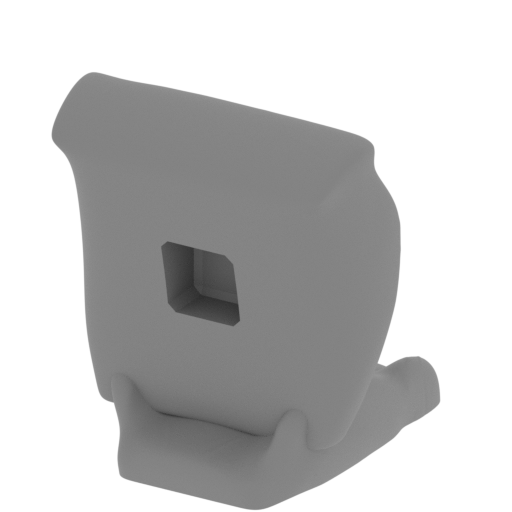

_7_seat_FDM (repaired) (r epaired).stl
37.55 MiB 45 min <1 m 23 x 25 x 27 Download

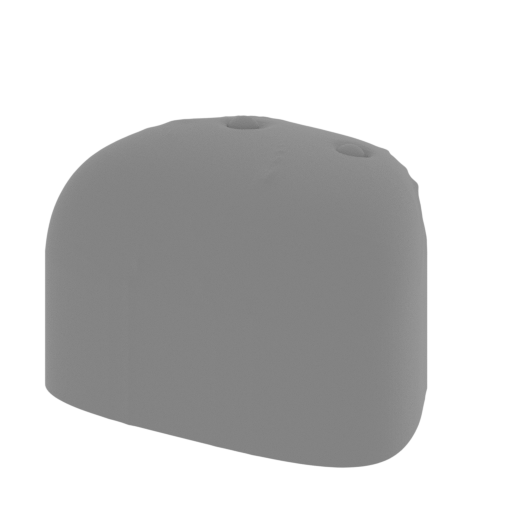

_8_seat_pillow_FDM (repai red) (repaired).stl
0.69 MiB 10 min <1 m 14 x 13 x 10 Download
_9_cabin_antenne_FDM (rep aired) (repaired).stl
0.09 MiB 4 min <1 m 4 x 4 x 21 Download

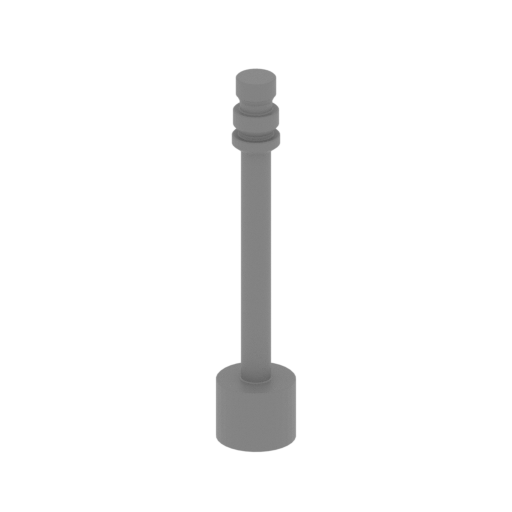

_10_cabin_antenne_FDM (re paired) (repaired).stl
0.09 MiB 4 min <1 m 4 x 4 x 21 Download

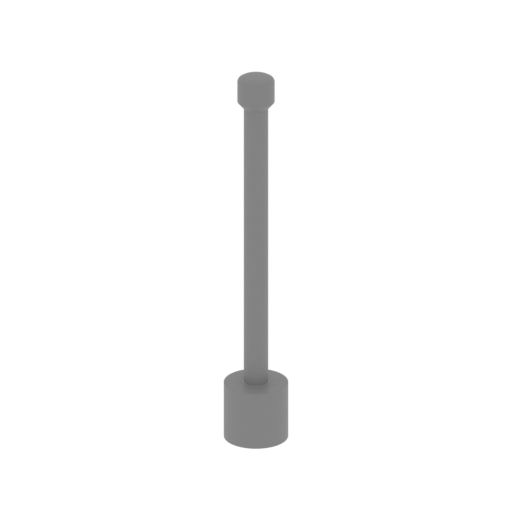

_11_cabin_antenne_FDM (re paired) (repaired).stl
0.06 MiB 1 min <1 m 3 x 3 x 16 Download

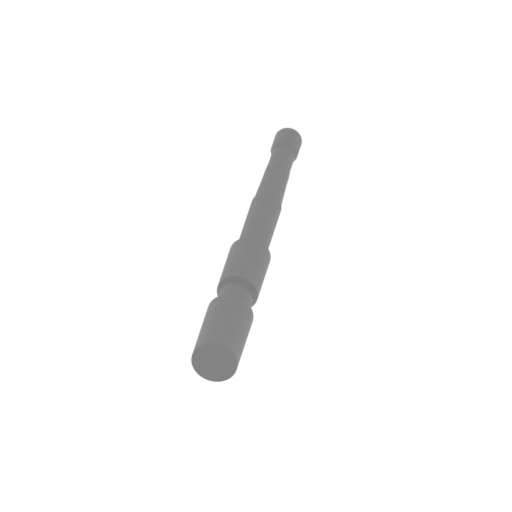

_12_cabin_antenne_FDM (re paired).stl
0.07 MiB 2 min <1 m 4 x 14 x 4 Download

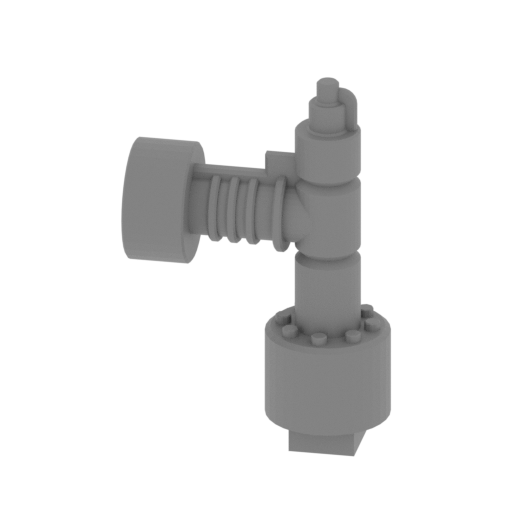

_13_axle_L_FDM (repaired) (repaired).stl
0.25 MiB 23 min <1 m 16 x 9 x 24 Download

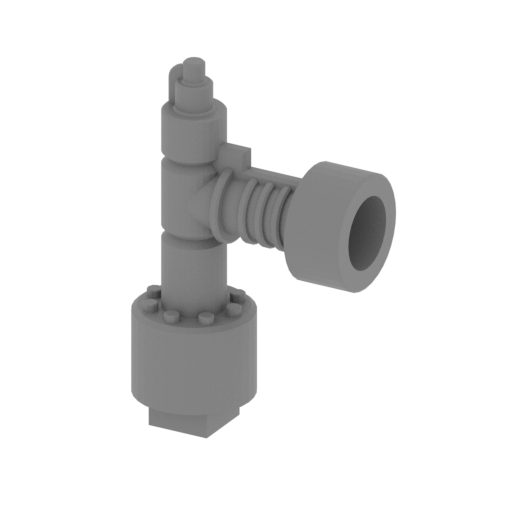

_14_axle_R_FDM (repaired) (repaired).stl
0.25 MiB 23 min <1 m 16 x 9 x 24 Download

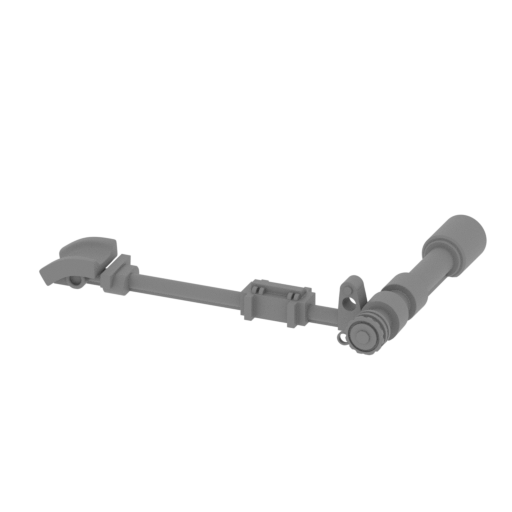

_15_cabin_mechanism_P1_L_ FDM (repaired).stl
5.76 MiB 42 min <1 m 67 x 46 x 9 Download

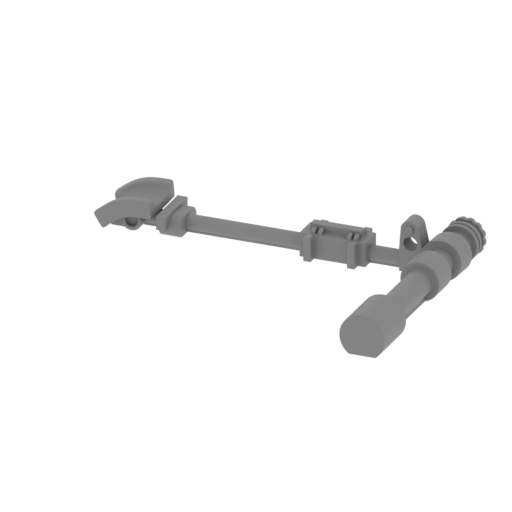

_16_cabin_mechanism_P1_R_ FDM (repaired).stl
5.77 MiB 44 min <1 m 66 x 46 x 10 Download

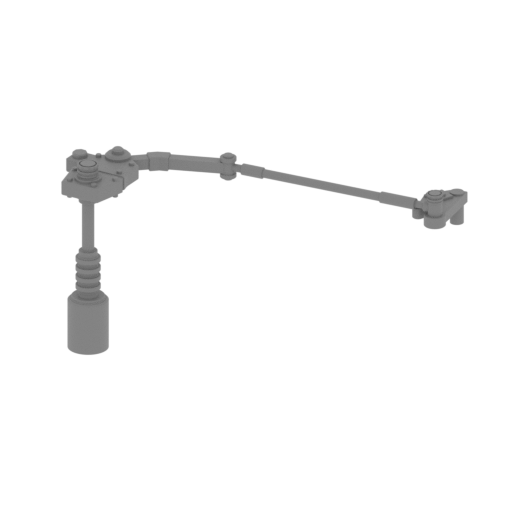

_17_cabin_mechanism_P2_L_ FDM (repaired).stl
7.46 MiB 1 h 25 min 1 m 68 x 27 x 35 Download

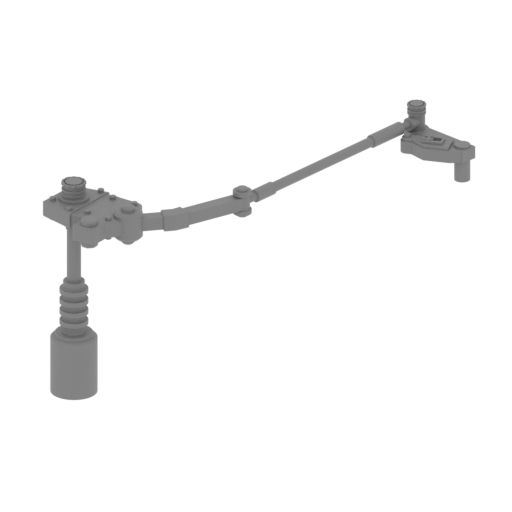

_18_cabin_mechanism_P2_R_ FDM (repaired).stl
7.46 MiB 1 h 23 min 1 m 52 x 60 x 35 Download

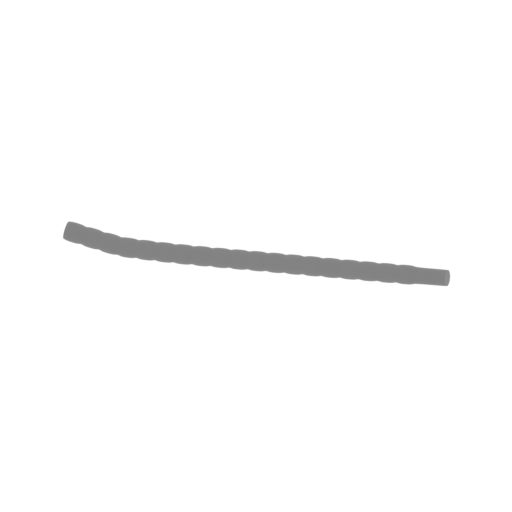

_19_1_pipe_v1_L_1_FDM (re paired) (repaired).stl
5.73 MiB 37 min <1 m 108 x 16 x 8 Download

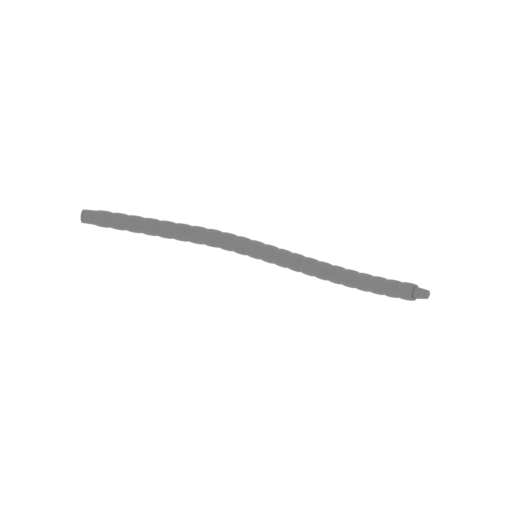

_19_2_pipe_v1_L_2_FDM (re paired) (repaired).stl
6.56 MiB 38 min <1 m 122 x 25 x 6 Download

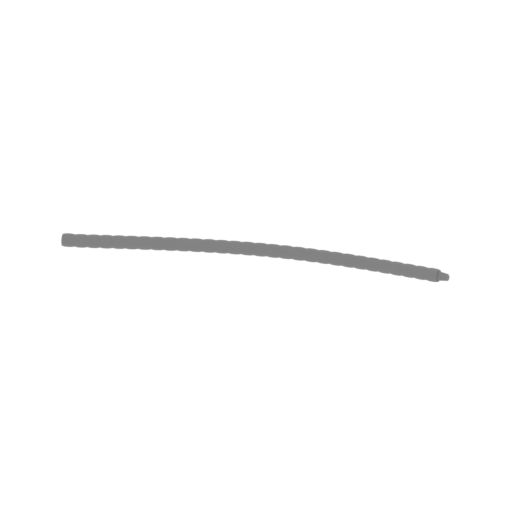

_19_3_pipe_v1_L_3_FDM (re paired) (repaired).stl
8.89 MiB 57 min 1 m 159 x 26 x 7 Download
_20_1_pipe_v1_R_1_FDM (re paired) (repaired).stl
6.85 MiB 42 min <1 m 124 x 11 x 7 Download

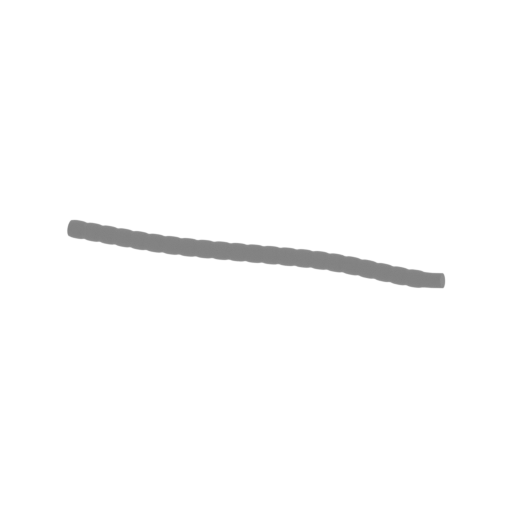

_20_2_pipe_v1_R_2_FDM (re paired) (repaired).stl
8.79 MiB 40 min <1 m 118 x 11 x 7 Download
_20_3_pipe_v1_R_3_FDM (re paired) (repaired).stl
10.34 MiB 44 min <1 m 135 x 10 x 7 Download
_21_pipe_v2_L_FDM (repair ed) (repaired).stl
21.02 MiB 1 h 33 min 1 m 385 x 66 x 15 Download
_22_pipe_v2_R_FDM (repair ed) (repaired).stl
21.03 MiB 1 h 10 min 1 m 376 x 32 x 11 Download

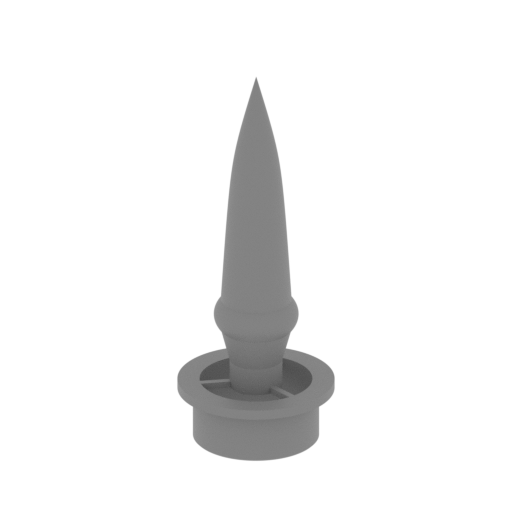

_23_turbine_back_x2_FDM ( repaired) (Shell 1) (repa ired).stl
1.21 MiB 4 h 36 min 3 m 48 x 48 x 119 Download

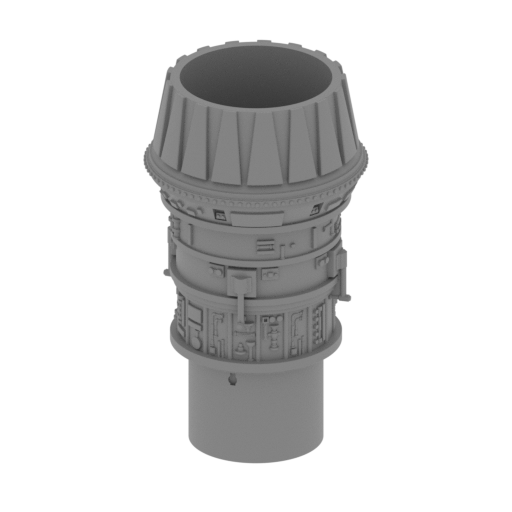

_24_turbine_back_stat_L_F DM (repaired).stl
10.64 MiB 31 h 48 min 22 m 71 x 71 x 124 Download

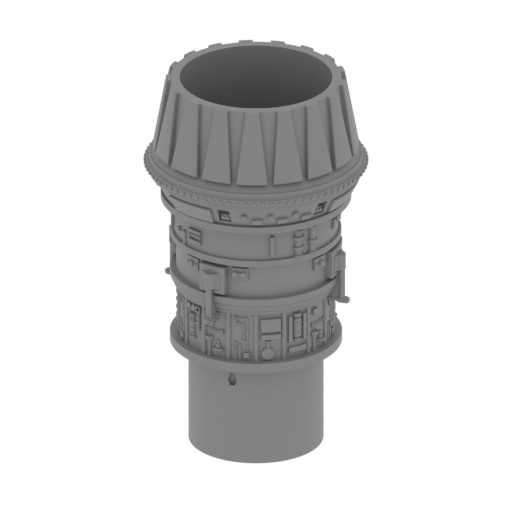

_25_turbine_back_stat_R_F DM (repaired).stl
10.65 MiB 31 h 46 min 22 m 71 x 71 x 124 Download

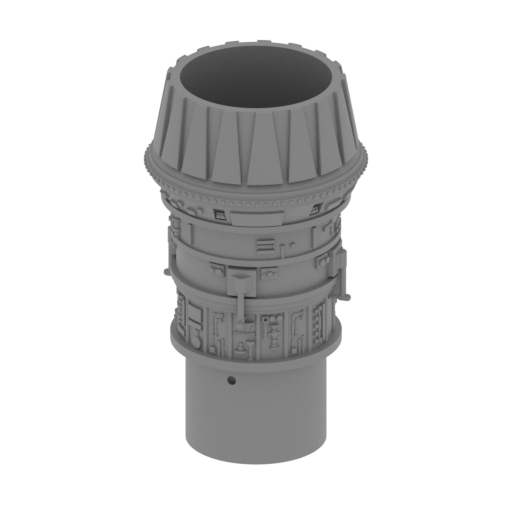

_26_turbine_back_active_L _FDM (repaired).stl
9.40 MiB 29 h 18 min 21 m 71 x 71 x 125 Download

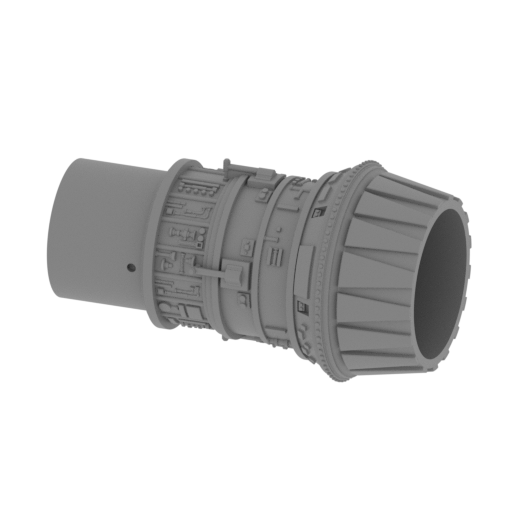

_27_turbine_back_active_R _FDM (repaired).stl
9.40 MiB 31 h 18 min 20 m 125 x 71 x 71 Download

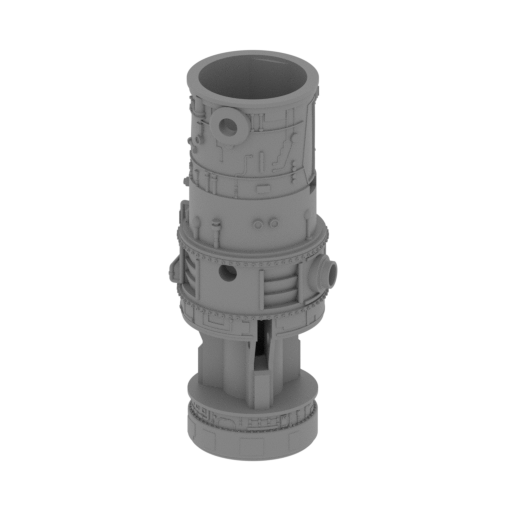

_28_turbine_front_stat_L_ FDM (repaired).stl
23.49 MiB 37 h 19 min 23 m 69 x 65 x 163 Download

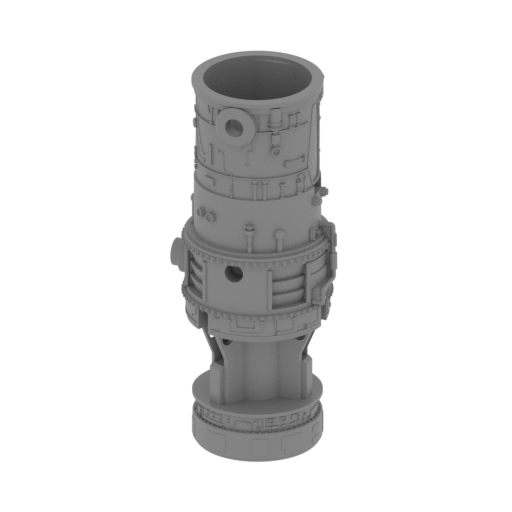

_29_turbine_front_stat_R_ FDM (repaired).stl
23.50 MiB 37 h 2 min 23 m 69 x 65 x 163 Download

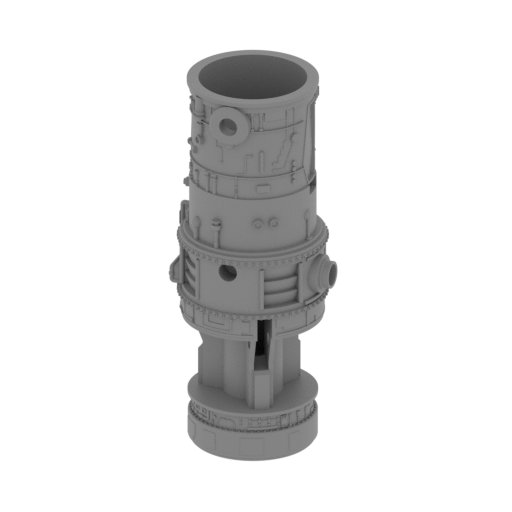

_30_turbine_front_active_ L_FDM (repaired).stl
15.41 MiB 36 h 60 min 23 m 69 x 65 x 163 Download

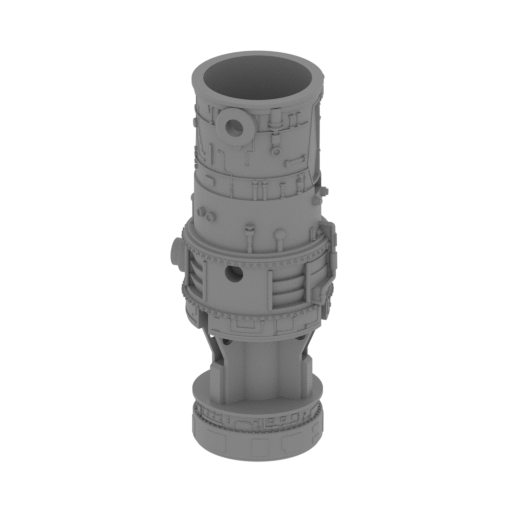

_31_turbine_front_active_ R_FDM (repaired).stl
15.41 MiB 37 h 6 min 23 m 69 x 65 x 163 Download

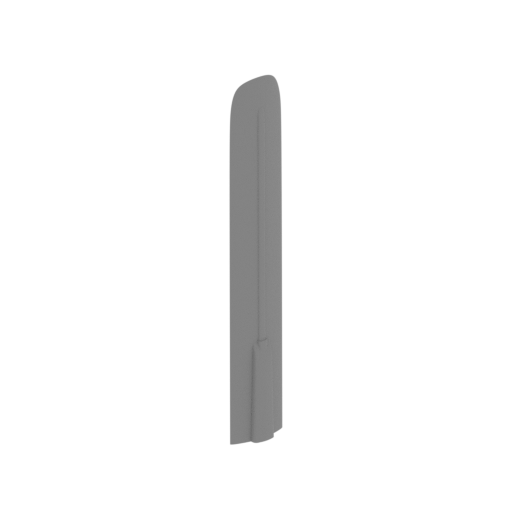

_32_wings_front_x6_FDM (r epaired) (Shell 1) (repai red).stl
1.64 MiB 2 h 26 min 1 m 14 x 22 x 151 Download

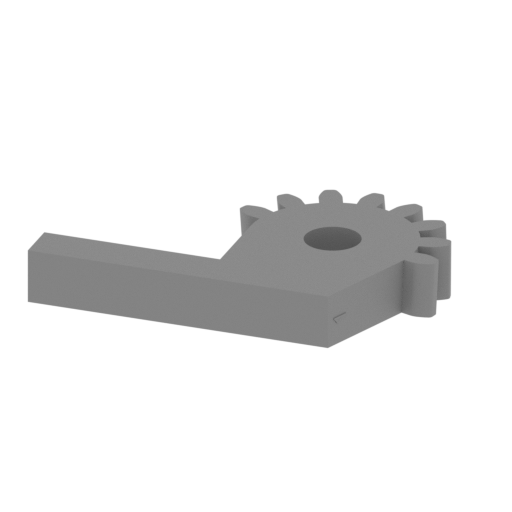

_33_turbine_gear_1_FDM (r epaired) (Shell 1) (repai red).stl
0.77 MiB 28 min <1 m 42 x 27 x 6 Download

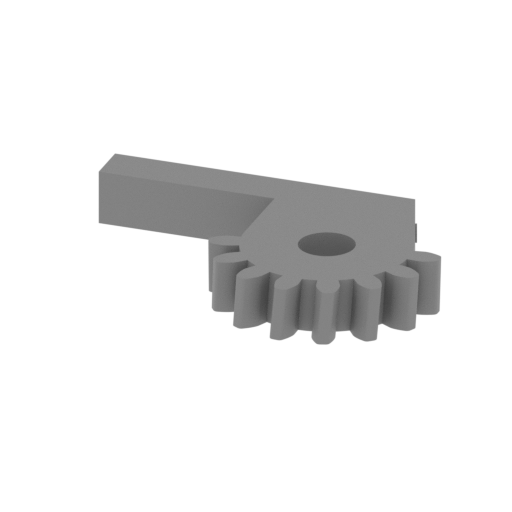

_34_turbine_gear_2_FDM (r epaired) (Shell 1) (repai red).stl
0.83 MiB 28 min <1 m 42 x 27 x 6 Download

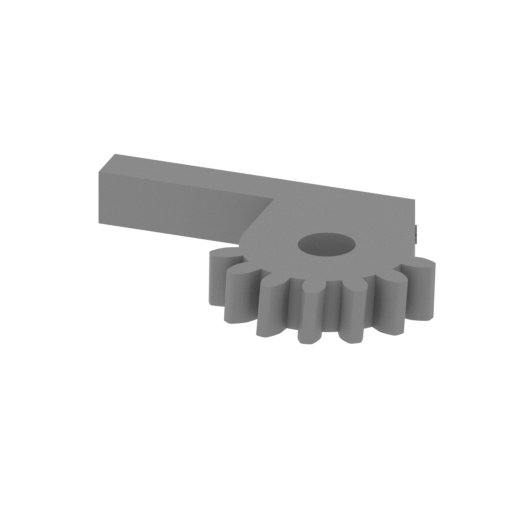

_35_turbine_gear_3_FDM (r epaired) (Shell 1) (repai red).stl
0.79 MiB 27 min <1 m 42 x 27 x 6 Download

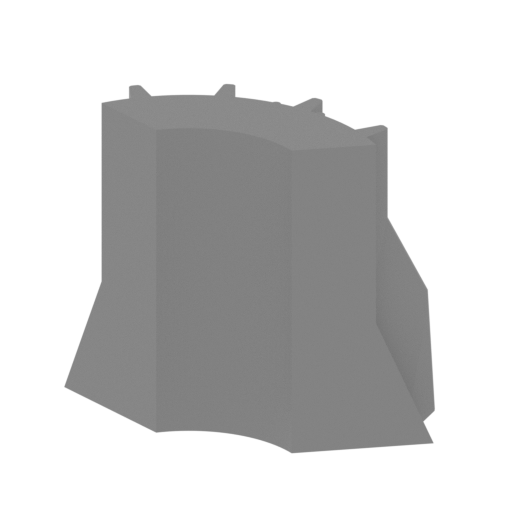

_36_turbine_front_cap_A_x 2_FDM (repaired) (repaire d).stl
0.74 MiB 1 h 23 min 1 m 40 x 19 x 34 Download

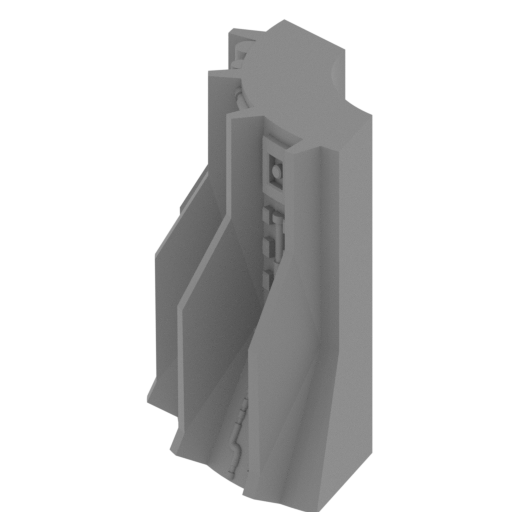

_37_turbine_front_cap_B_x 2_FDM (repaired) (repaire d).stl
1.24 MiB 1 h 33 min 1 m 24 x 36 x 34 Download

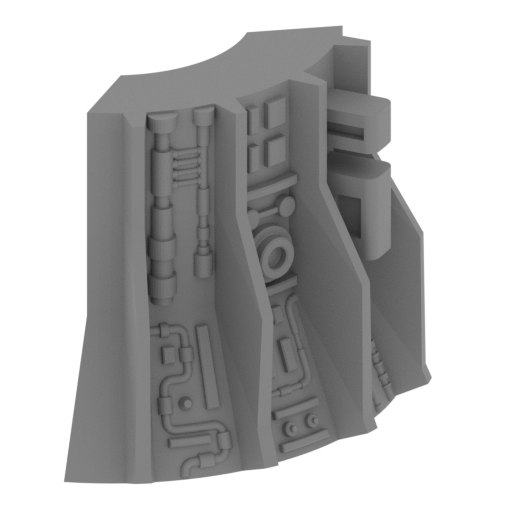

_38_turbine_front_cap_C_x 2_FDM (repaired) (repaire d).stl
1.23 MiB 1 h 38 min 1 m 24 x 35 x 34 Download

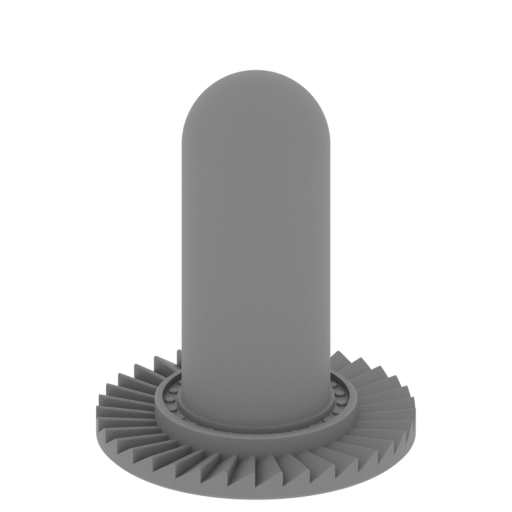

_39_tubine_front_blades_x 2_FDM (repaired) (Shell 2 ).stl
5.28 MiB 2 h 26 min 1 m 43 x 43 x 53 Download

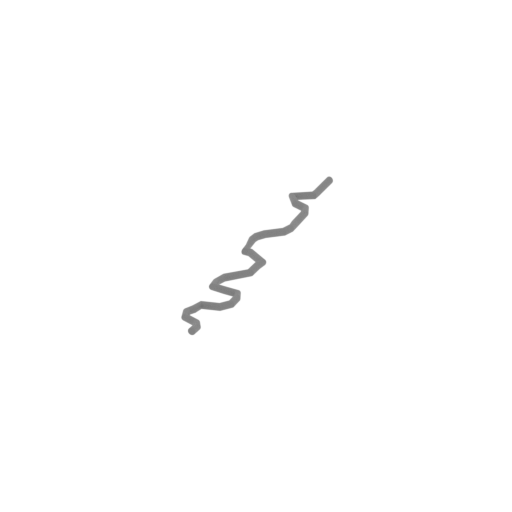

_40_lightning_A_FDM (repa ired) (repaired).stl
0.11 MiB 12 min <1 m 11 x 99 x 3 Download
_41_lightning_B_FDM (repa ired) (repaired).stl
0.08 MiB 21 min <1 m 16 x 97 x 8 Download

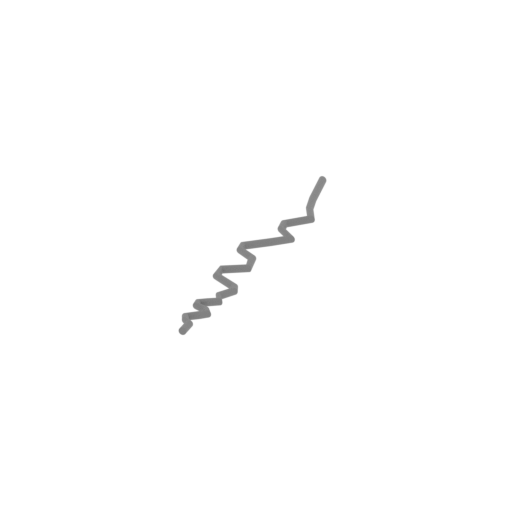

_42_lightning_C_FDM (repa ired) (repaired).stl
0.09 MiB 10 min <1 m 12 x 98 x 2 Download

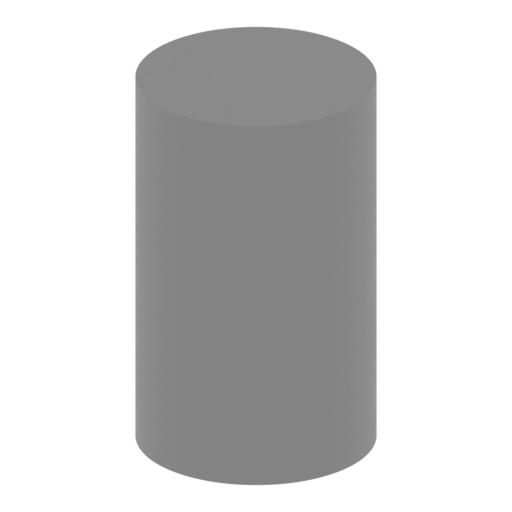

_43_turbine_pin_x6_FDM (r epaired) (Shell 1) (repai red).stl
0.06 MiB 7 min <1 m 6 x 6 x 10 Download

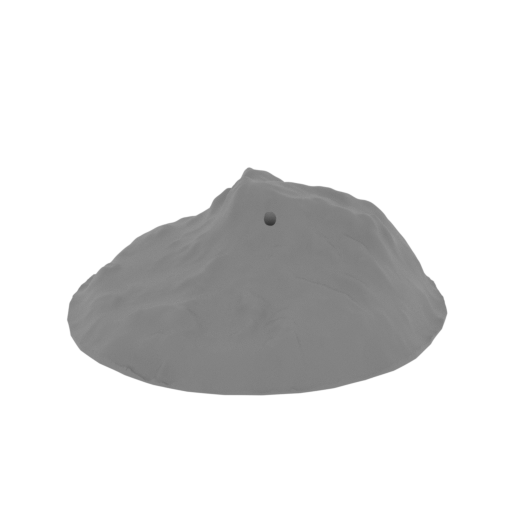

_44_platform_cabin_FDM (r epaired).stl
9.09 MiB 52 h 1 min 30 m 190 x 199 x 66 Download

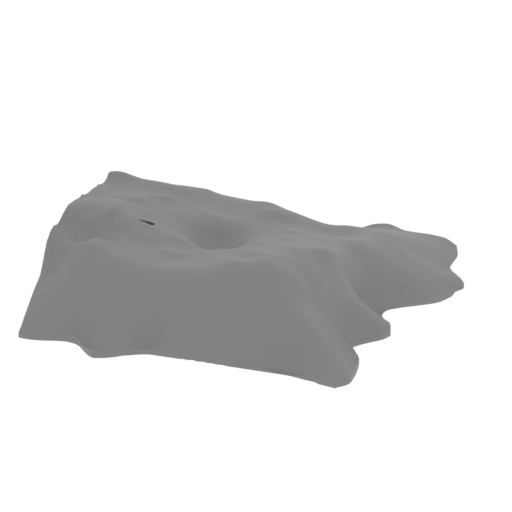

_45_platform_turbine_back _x2_FDM (repaired).stl
4.64 MiB 19 h 22 min 11 m 129 x 135 x 30 Download

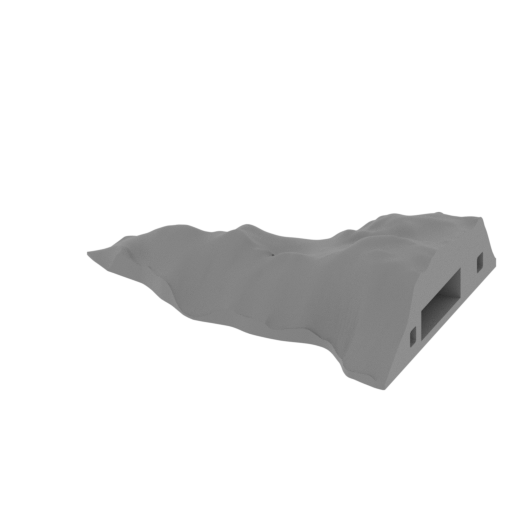

_46_platform_turbine_fron t_x2_FDM (repaired).stl
8.86 MiB 10 h 38 min 6 m 129 x 106 x 32 Download

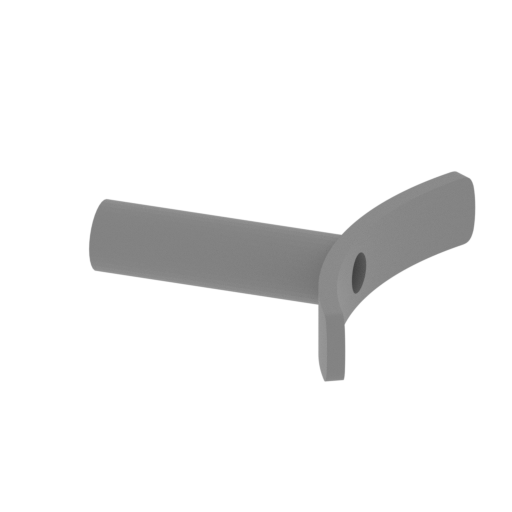

_47_platform_insert_wire_ x2_FDM (repaired) (Shell 1) (repaired).stl
0.35 MiB 10 min <1 m 24 x 29 x 5 Download

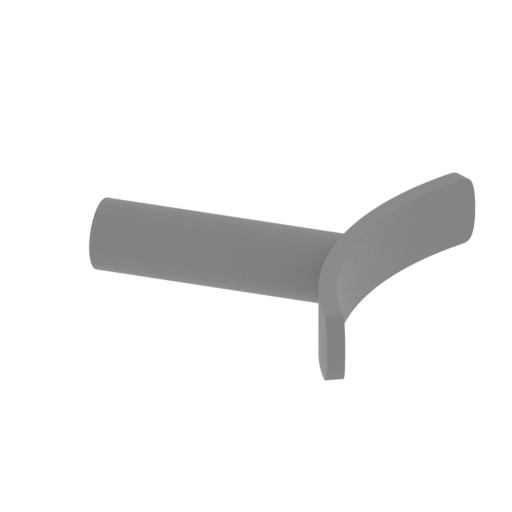

_48_platform_insert_x2_FD M (repaired) (Shell 1) (r epaired).stl
0.33 MiB 8 min <1 m 24 x 29 x 5 Download

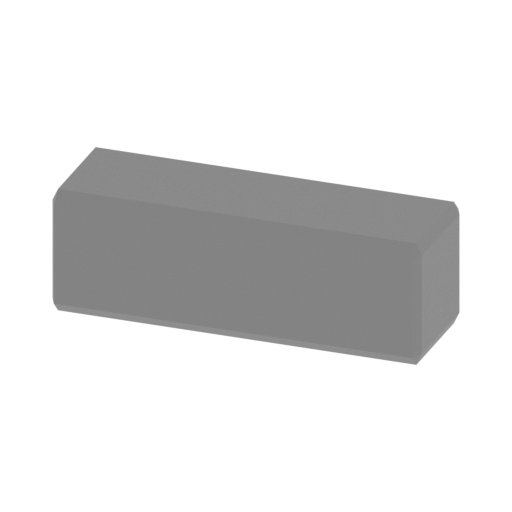

_49_platform_beam_x4_FDM (repaired) (Shell 1) (rep aired).stl
0.01 MiB 6 min <1 m 16 x 6 x 6 Download
_50_platform_insert_back_ FDM (repaired) (repaired) .stl
0.03 MiB 22 min <1 m 75 x 6 x 6 Download

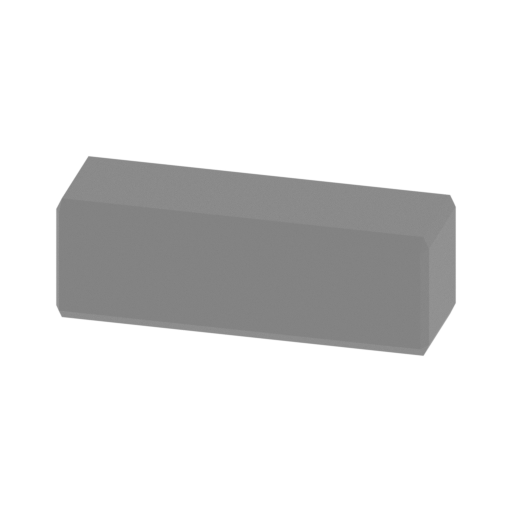

_51_cabin_beam_x2_FDM (re paired) (Shell 1) (repair ed).stl
0.01 MiB 6 min <1 m 17 x 7 x 6 Download

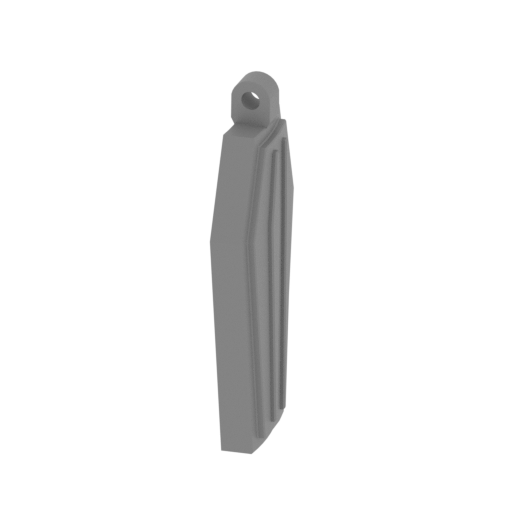

_52_mid_wings_L_x2_FDM (r epaired) (Shell 2).stl
0.03 MiB 33 min <1 m 6 x 17 x 40 Download

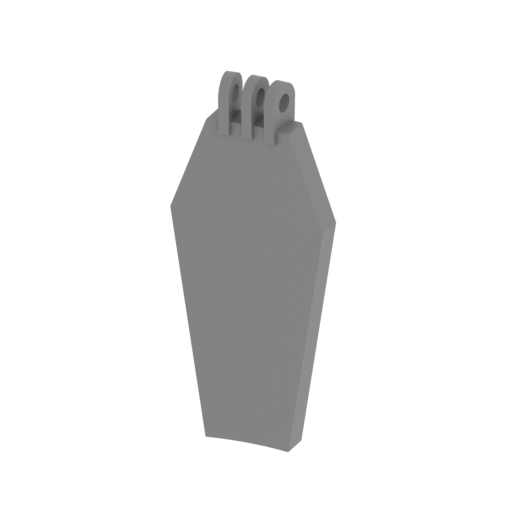

_53_mid_wings_R_x2_FDM (r epaired) (Shell 1) (repai red).stl
0.13 MiB 35 min <1 m 17 x 6 x 40 Download

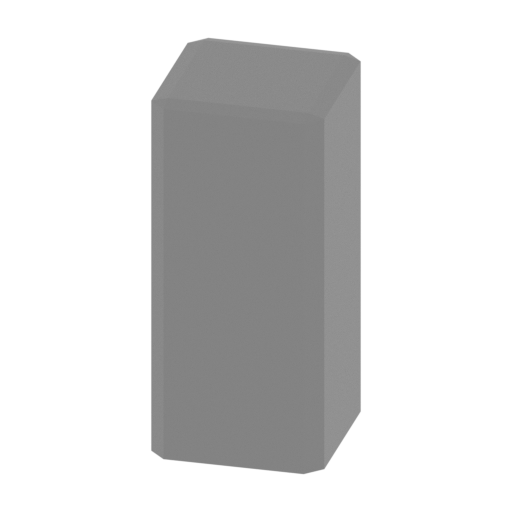

_54_seat_beam_FDM (repair ed) (repaired).stl
0.01 MiB 9 min <1 m 6 x 6 x 12 Download

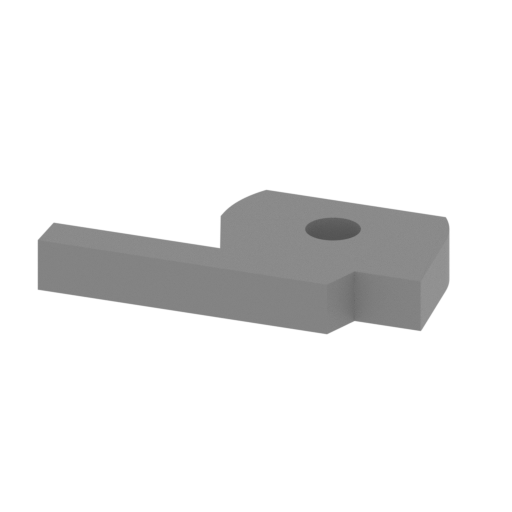

_55_stat_connector_P1_x6_ FDM (repaired) (Shell 1) (repaired).stl
0.40 MiB 27 min <1 m 43 x 22 x 6 Download

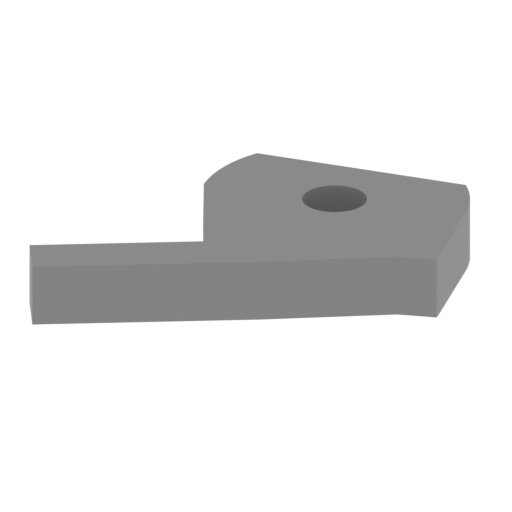

_56_stat_connector_P2_x6_ FDM (repaired) (Shell 1) (repaired).stl
0.41 MiB 27 min <1 m 37 x 32 x 6 Download

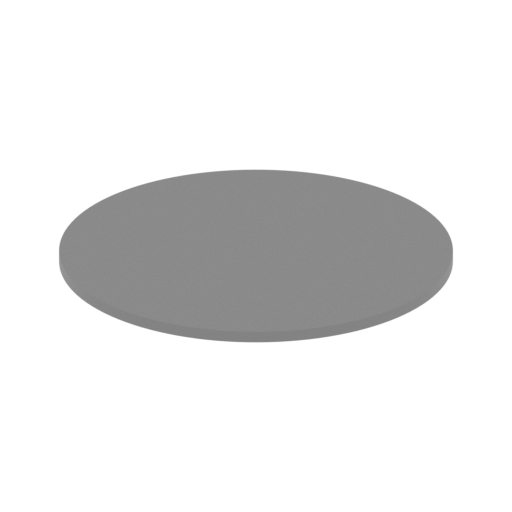

_57_glass_x2_FDM (repaire d) (Shell 1) (repaired).s tl
0.02 MiB 16 min <1 m 34 x 34 x 1 Download

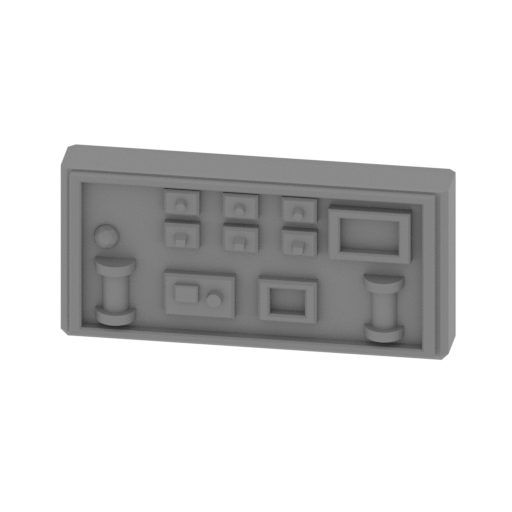

_59_dashboard_P2_FDM (rep aired) (repaired).stl
0.34 MiB 25 min <1 m 29 x 11 x 14 Download

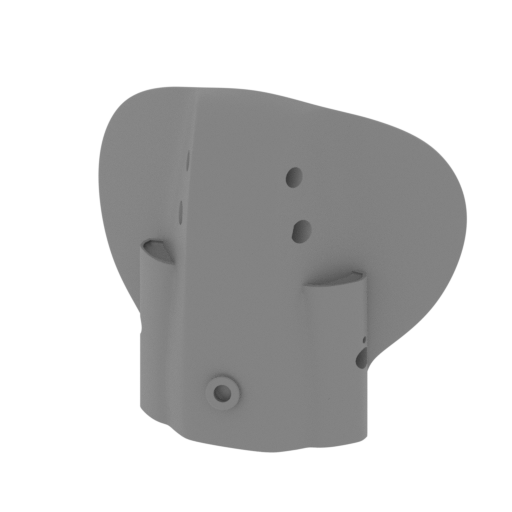

_60_cabin_front_detal_FDM (repaired).stl
43.01 MiB 22 h 18 min 14 m 136 x 60 x 124 Download

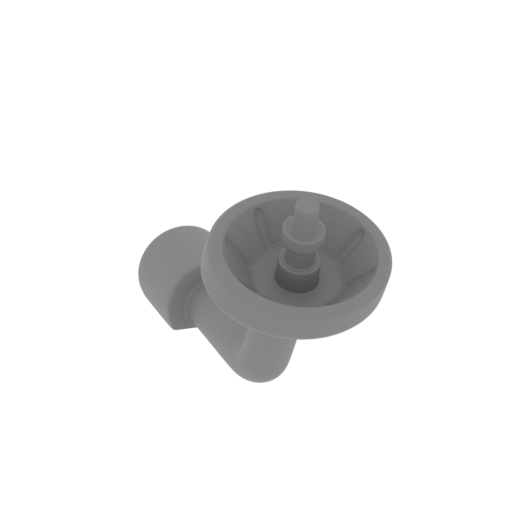

_61_locator_FDM (repaired ) (repaired).stl
2.68 MiB 9 min <1 m 15 x 16 x 11 Download

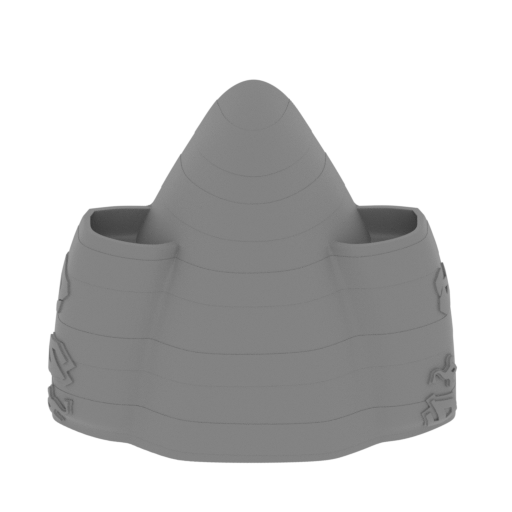

_62_cabin_back_detal_FDM (repaired).stl
40.21 MiB 8 h 25 min 5 m 81 x 51 x 73 Download

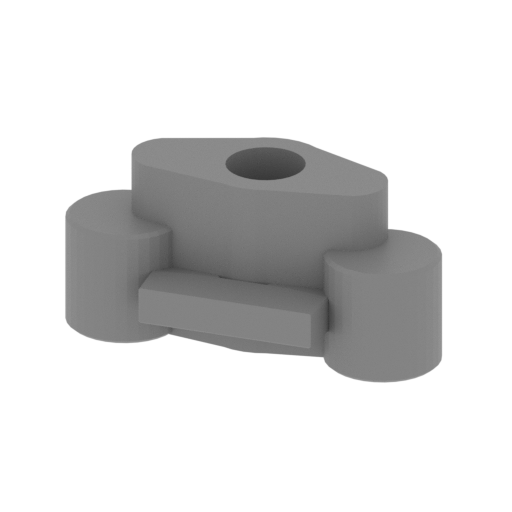

_63_pipe_connect_x2_FDM ( repaired).stl
0.10 MiB 16 min <1 m 23 x 11 x 10 Download

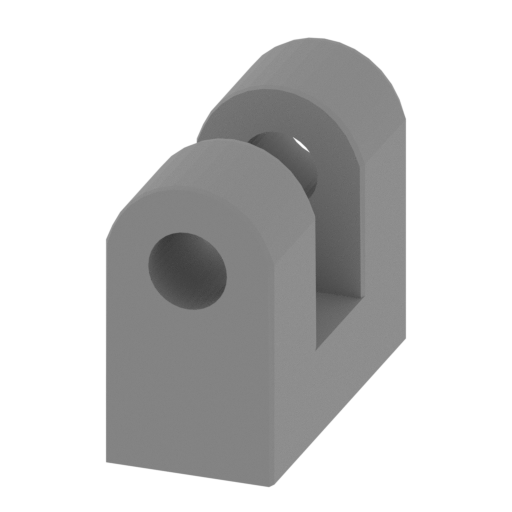

_64_wing_side_connector_x 4_FDM (repaired) (Shell 4 ).stl
0.05 MiB 7 min <1 m 4 x 9 x 7 Download

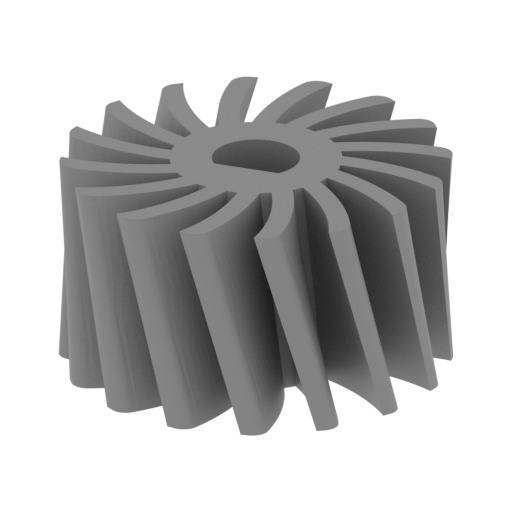

_65_turbine_screw_x2_FDM (repaired) (Shell 2) (rep aired).stl
1.45 MiB 2 h 17 min 1 m 36 x 36 x 20 Download

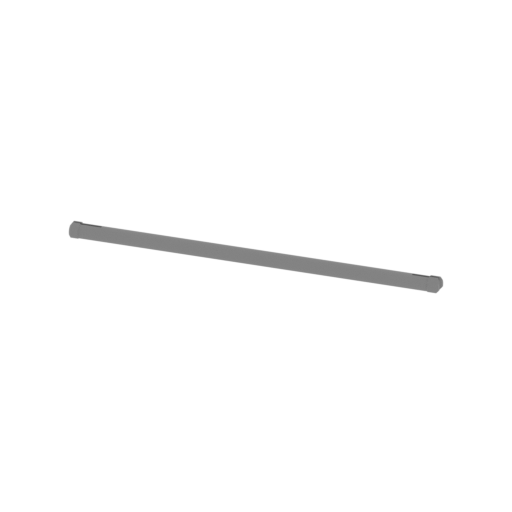

_66_turbine_connector_x2_ FDM (repaired) (Shell 2) (repaired).stl
0.41 MiB 1 h 18 min 1 m 193 x 9 x 7 Download

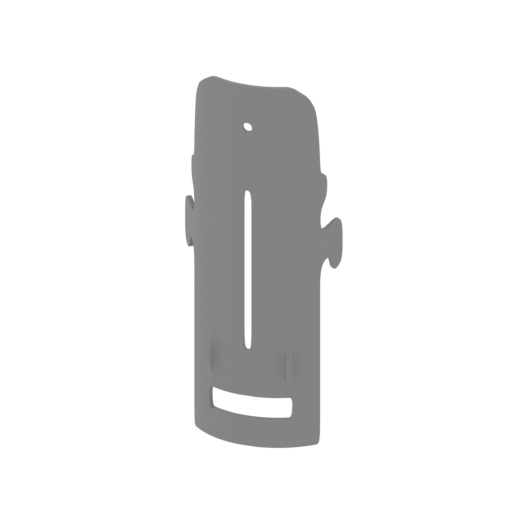

_67_turbine_cap_x2_FDM (r epaired) (Shell 1) (repai red).stl
4.46 MiB 3 h 19 min 2 m 49 x 15 x 115 Download

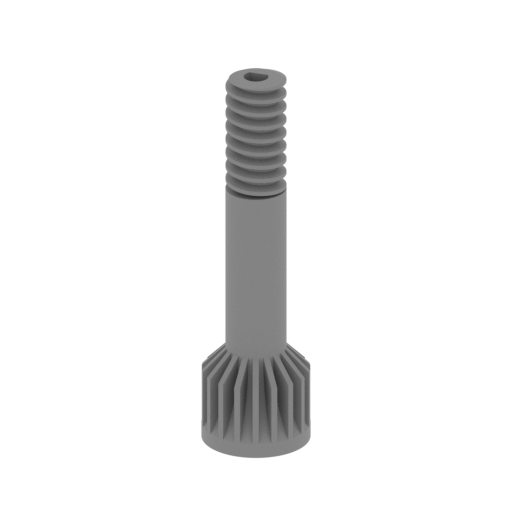

_68_turbine_screw_x2_FDM (repaired) (Shell 1) (rep aired).stl
19.68 MiB 7 h 8 min 4 m 36 x 36 x 129 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

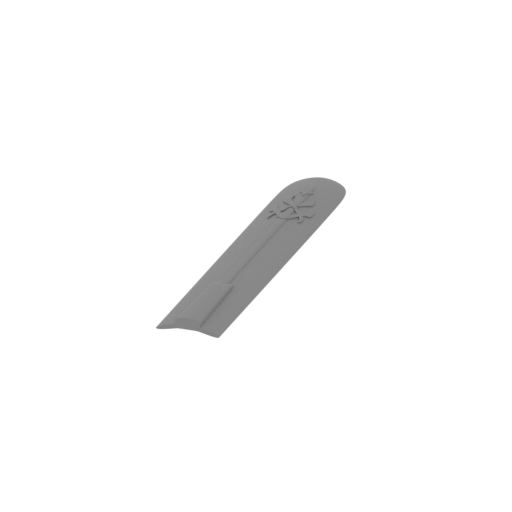

_58_wing_detal_x6_FDM(rep aired).stl
1.99 MiB 3 h 52 min 3 m 26 x 151 x 12 Download
...

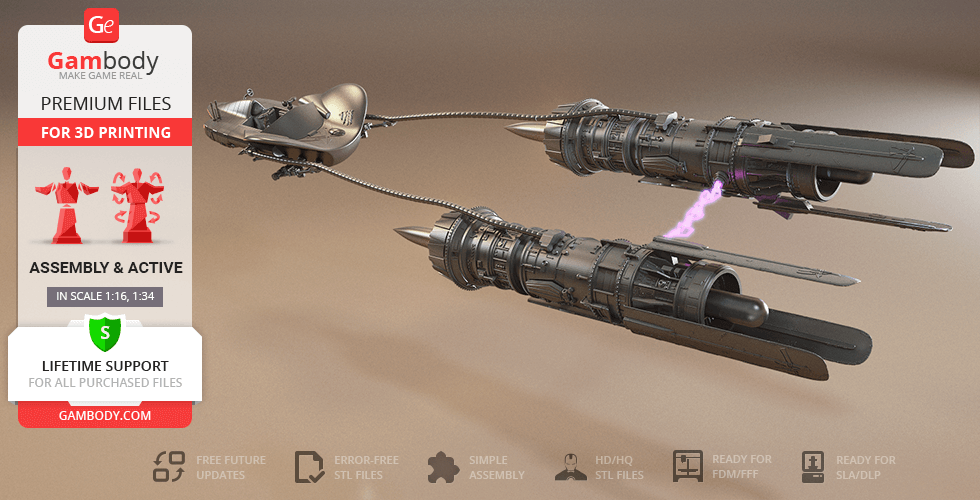

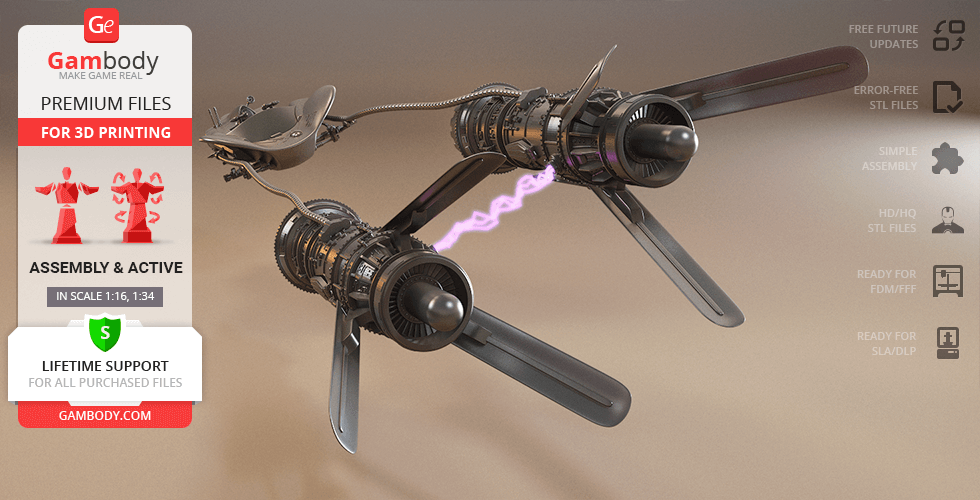

ABOUT THIS 3D MODEL

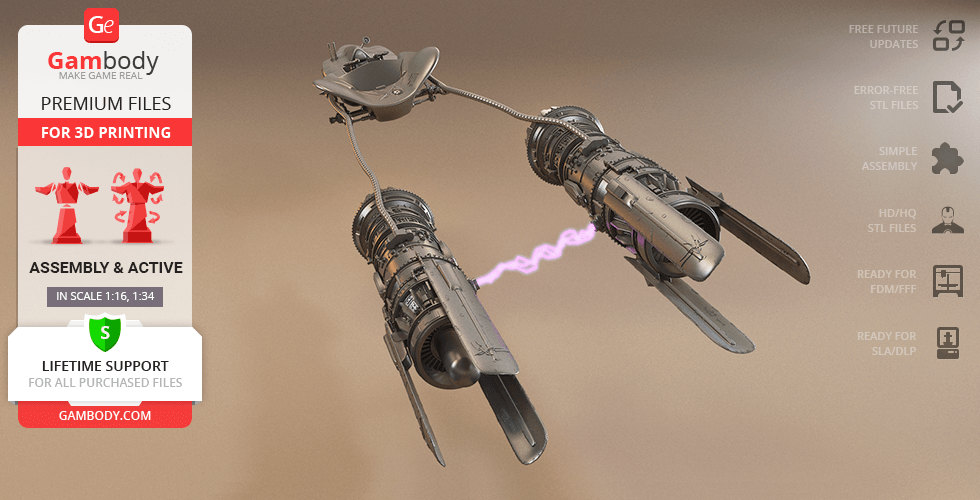

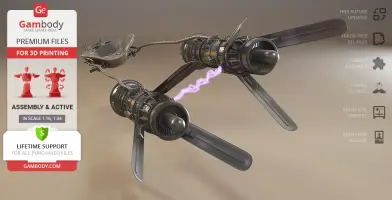

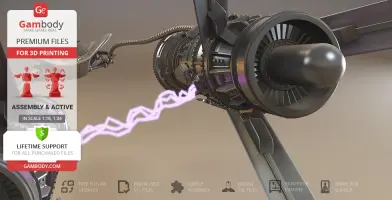

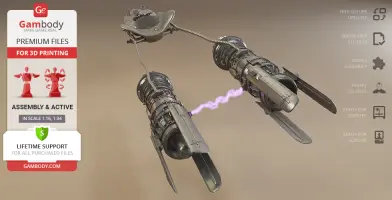

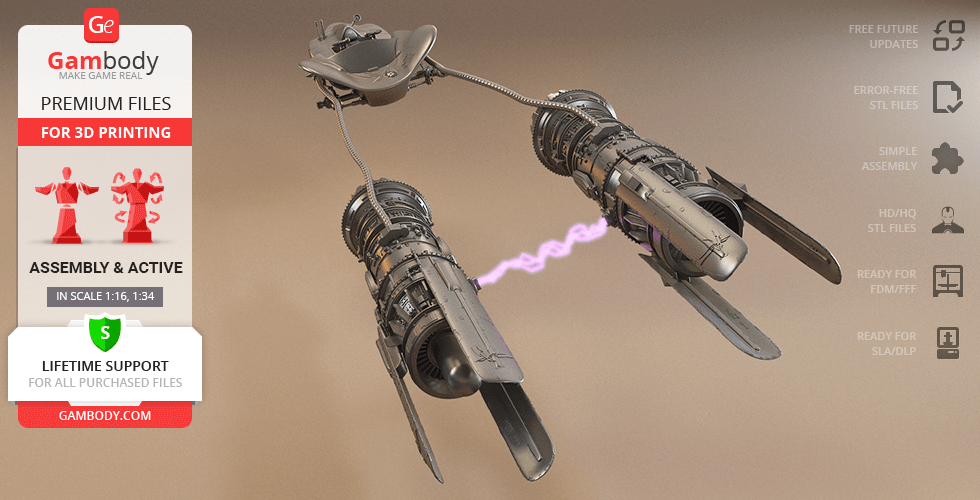

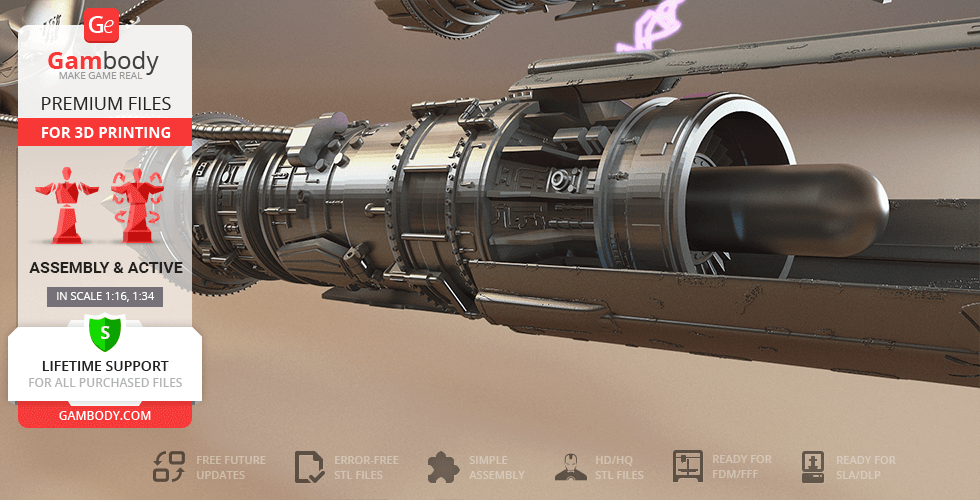

Secretly built by the young slave Anakin Skywalker, the custom repulsorcraft proved to be the fastest Podracer in the key Boonta Eve Classic that earned the boy both victory and freedom. Two lean repulsorlift engines connected to a small cockpit module via Steelton control cables made Anakin’s racing vehicle much more efficient and swifter than all the other competing Podracers. Thus, having won the race on the Tatooine a boy who would later shape galactic history was discovered by the Jedi.

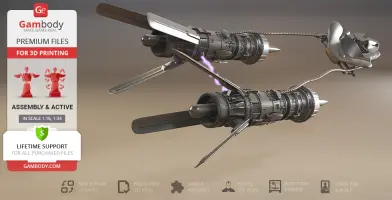

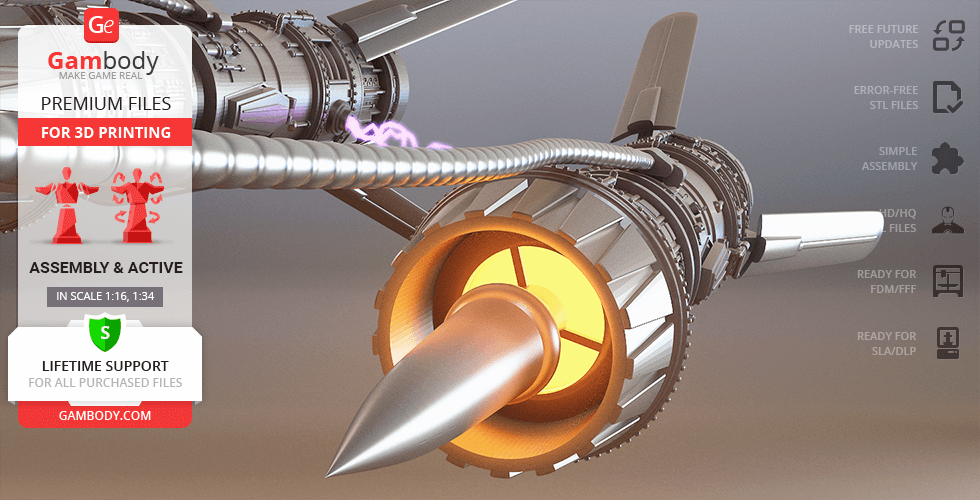

Anakin’s Podracer truly is a remarkable craft of The Phantom Menace instalment of the franchise, and a dear vehicle to any Star Wars fan. Our contributing 3D artist did a perfect job bringing to life the fastest racer ever! Anakin Skywalker’s Podracer for 3D printing boasts incredibly detailed repulsorlift engines, chariot-style Pod with a pilot seat and embossed engravings, and a spirit of adventure that can fortunately be captured by the means of 3D printing!

ADAPTATION FOR 3D PRINTING

Anakin’s Podracer for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 42 hours in total.

For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the Podracer model was divided into many assembly parts, and special mechanisms were introduced into the model’s movable elements to give you options of displaying the iconic Podracer.

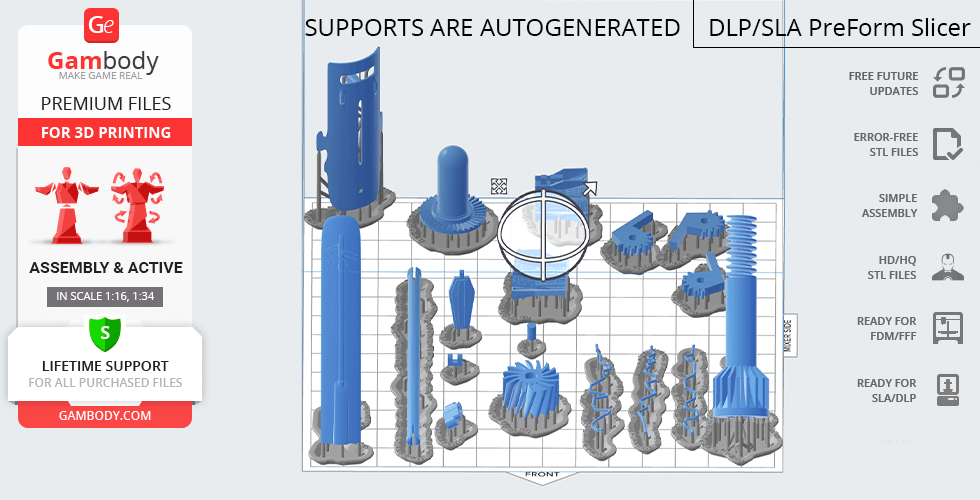

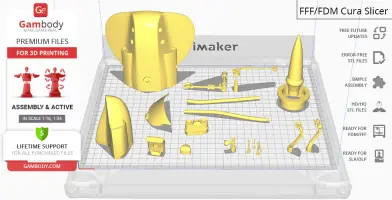

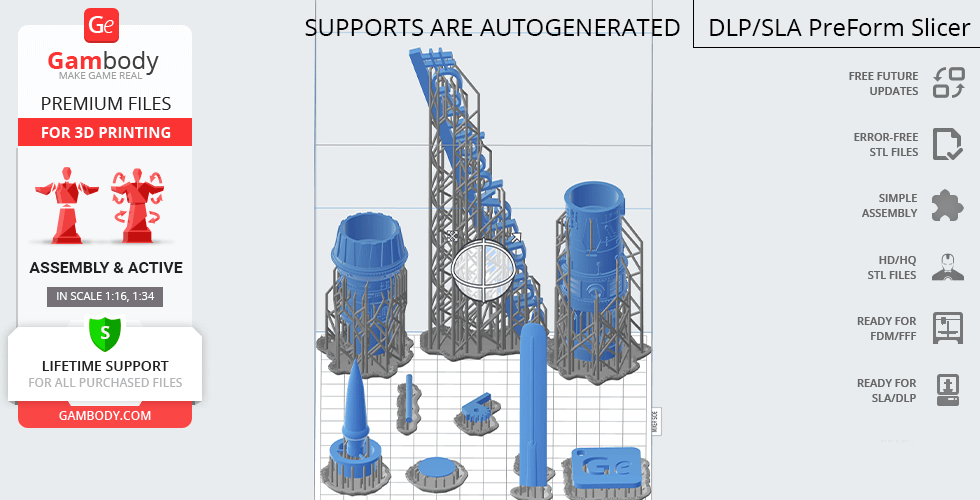

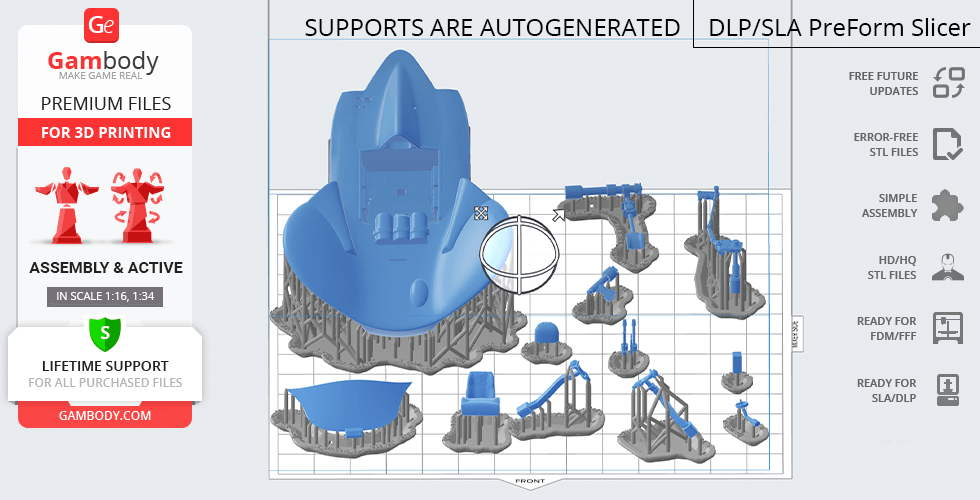

All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Anakin’s Podracer model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual length of the Anakin's Podracer which is 10800 mm. The 3D printing model's chosen scale is 1:16 for the FFF/FDM version and 1:34 for the DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

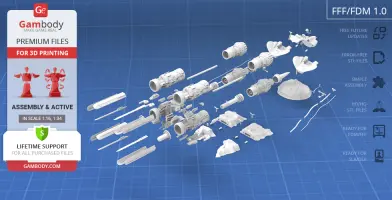

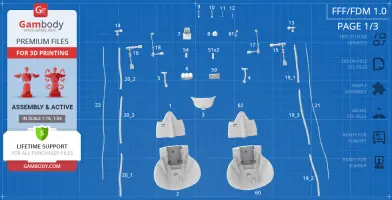

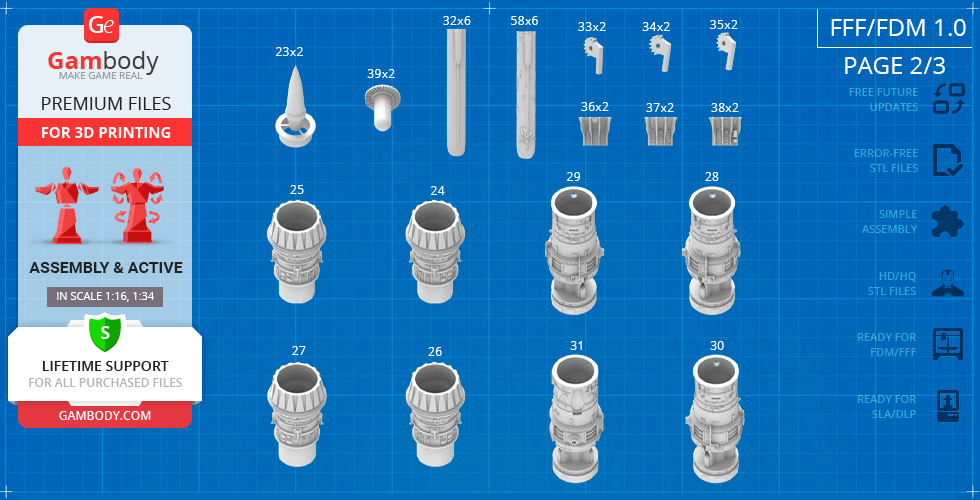

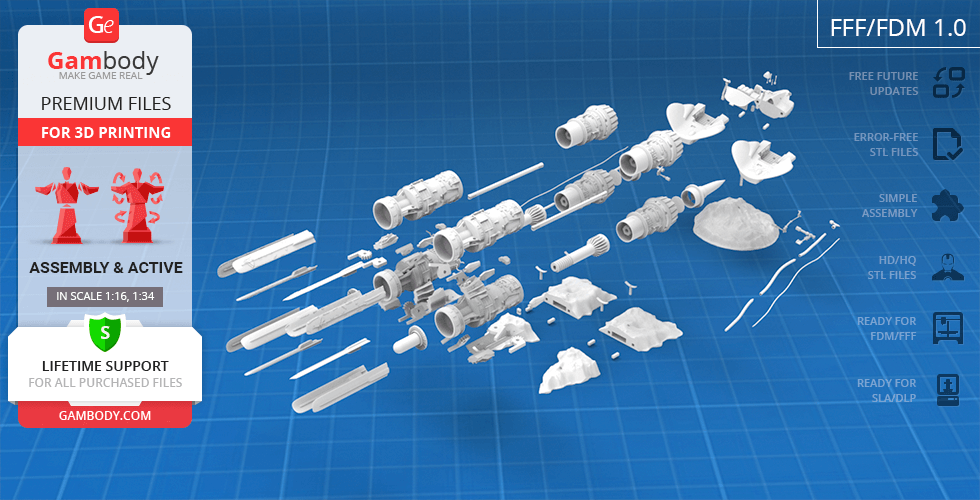

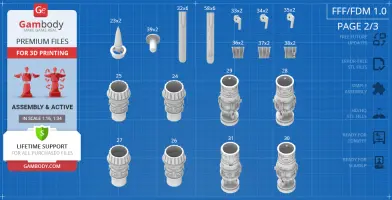

FFF/FDM 1.0 version features:
- Contains 68 parts;
- A printed ship is 163 mm tall, 312 mm wide, 723 mm deep;

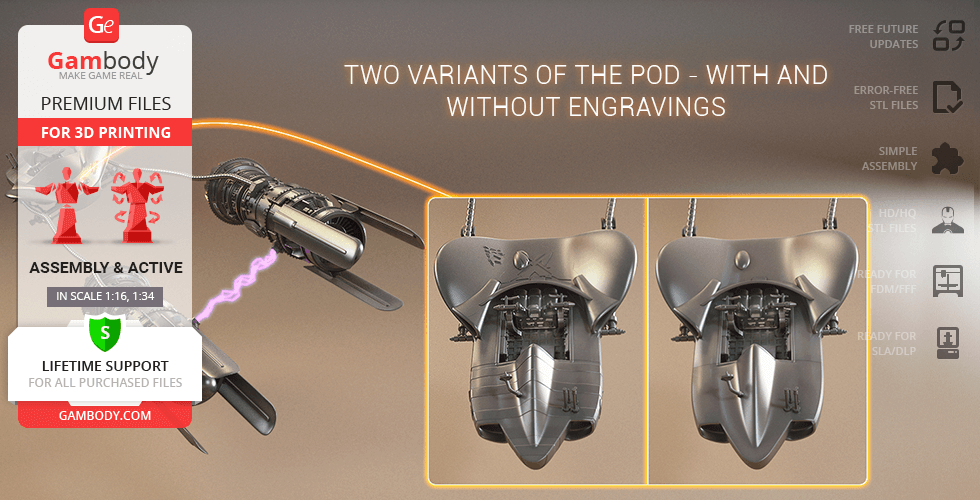

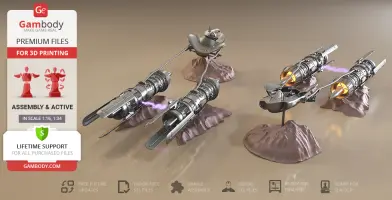

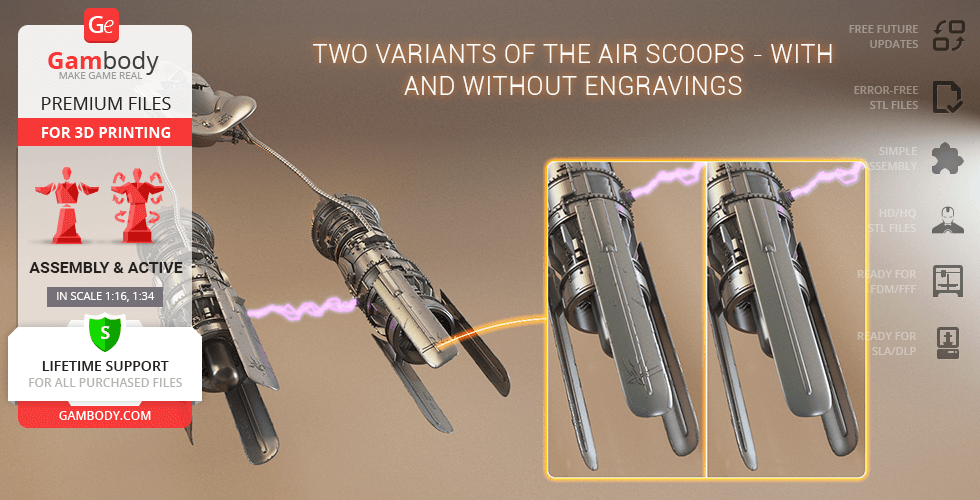

- You can assemble your preferred variant of Podracer - the model can be static or active, with or without engravings on Pod and air scoops (if you want to use decals);

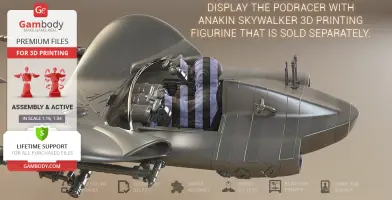

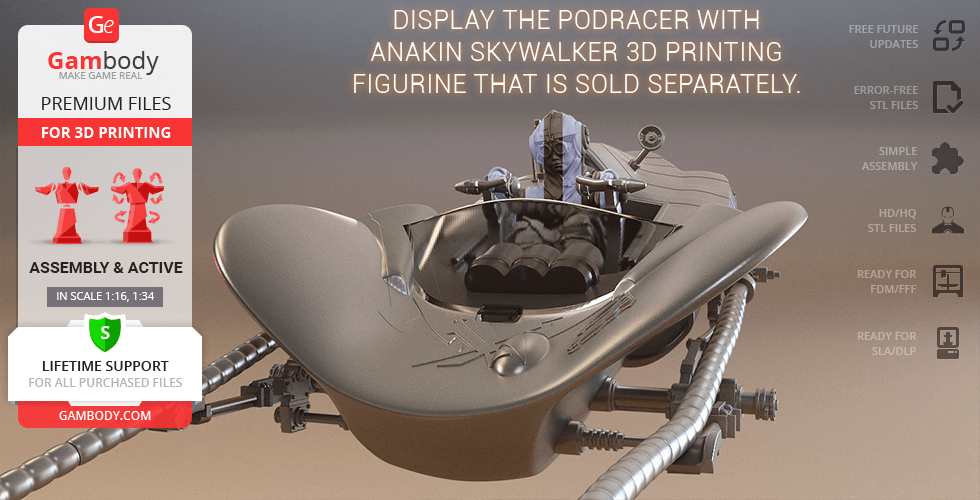

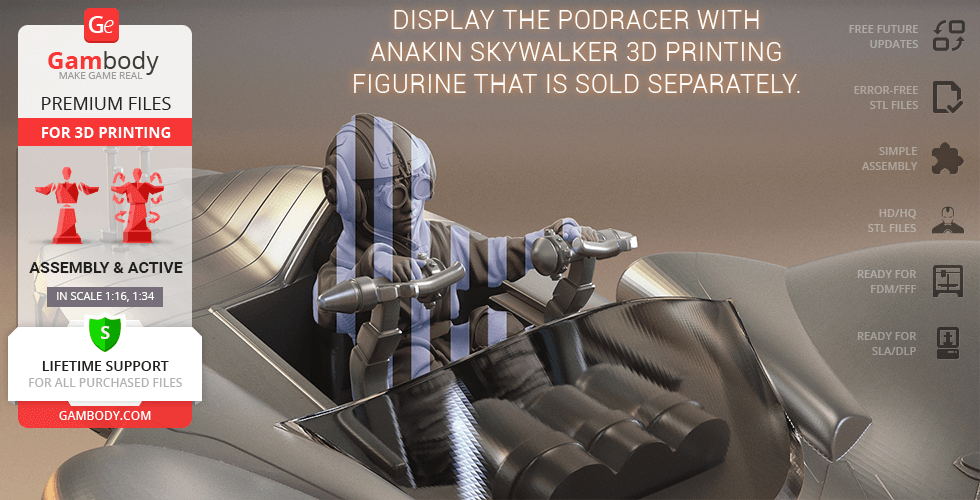

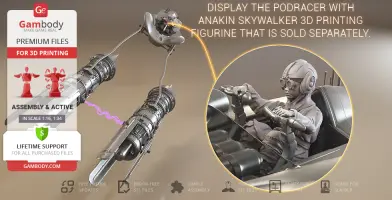

- Display the Podracer with Anakin Skywalker 3D Printing Figurine that is sold separately;

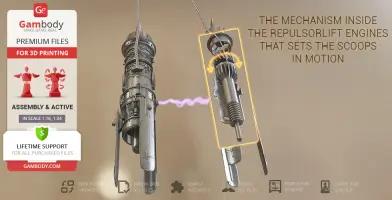

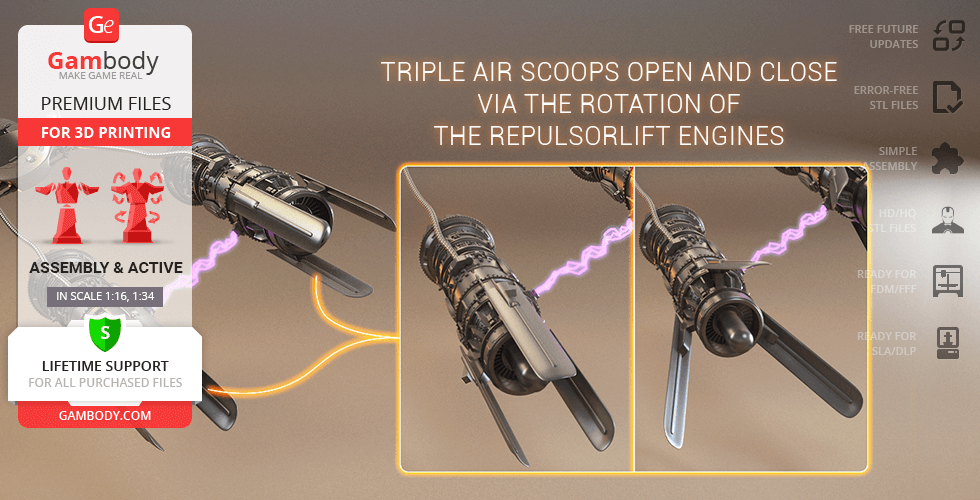

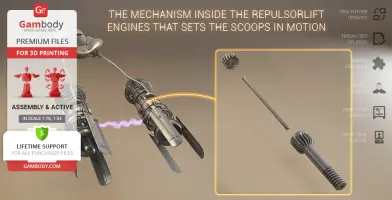

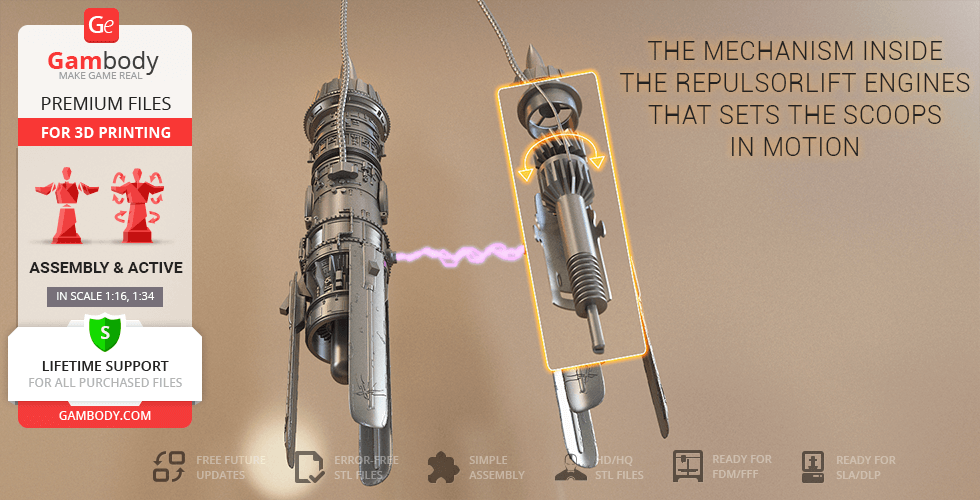

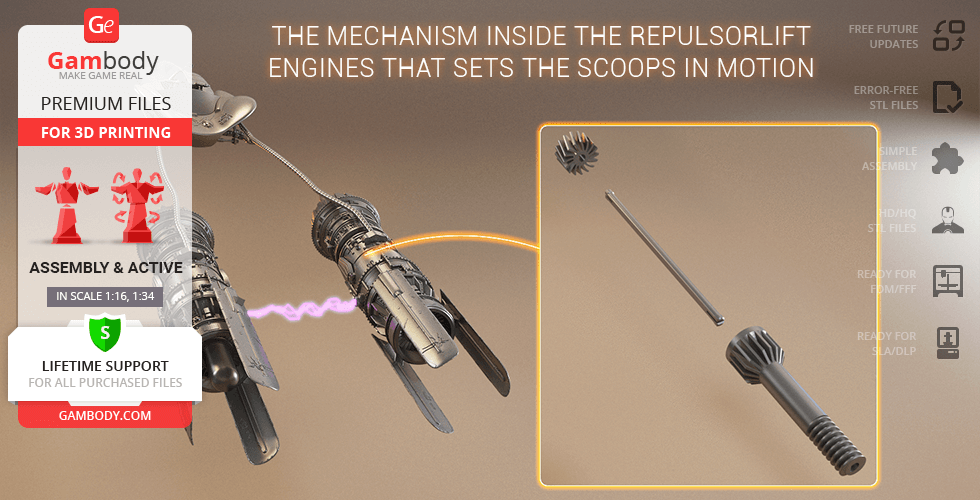

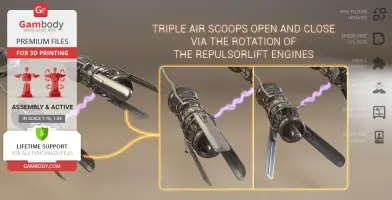

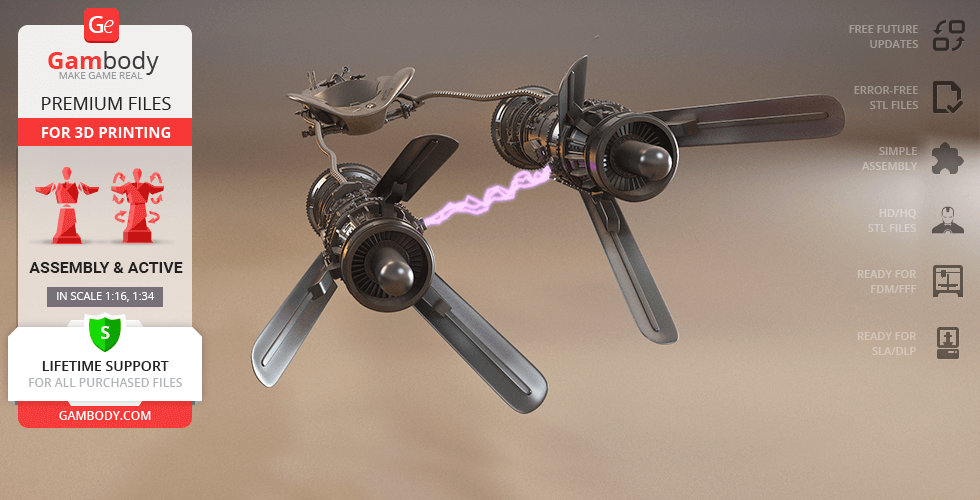

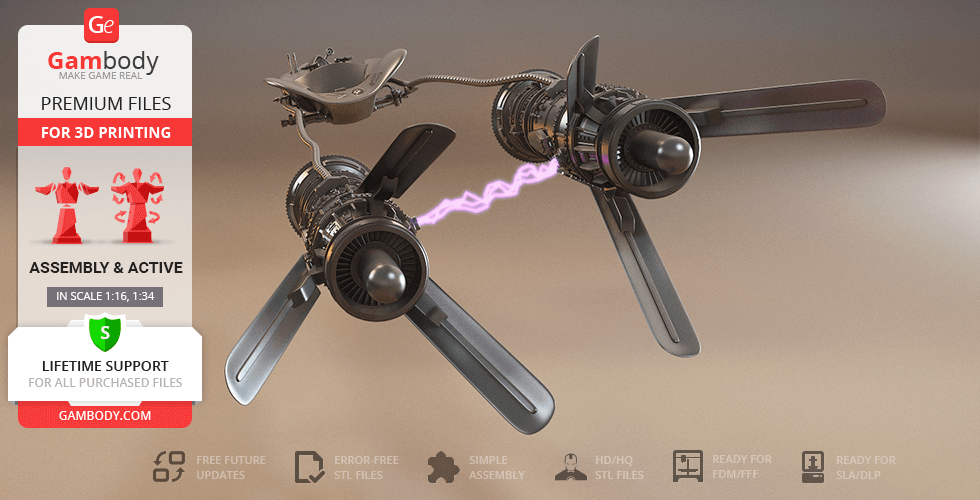

Triple air scoops open and close via the rotation of the repulsorlift engines (active variant);

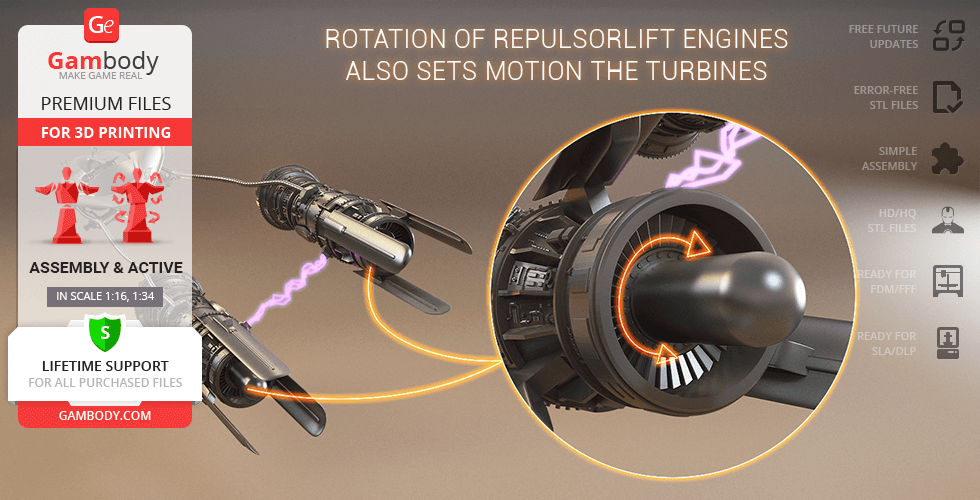

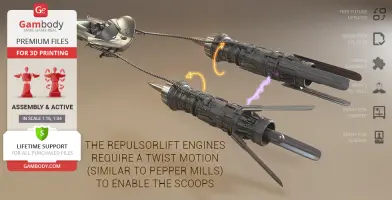

- The repulsorlift engines require a twist motion (similar to pepper mills) to enable the scoops + rotation of repulsorlift engines also sets in motion the turbines (active variant);

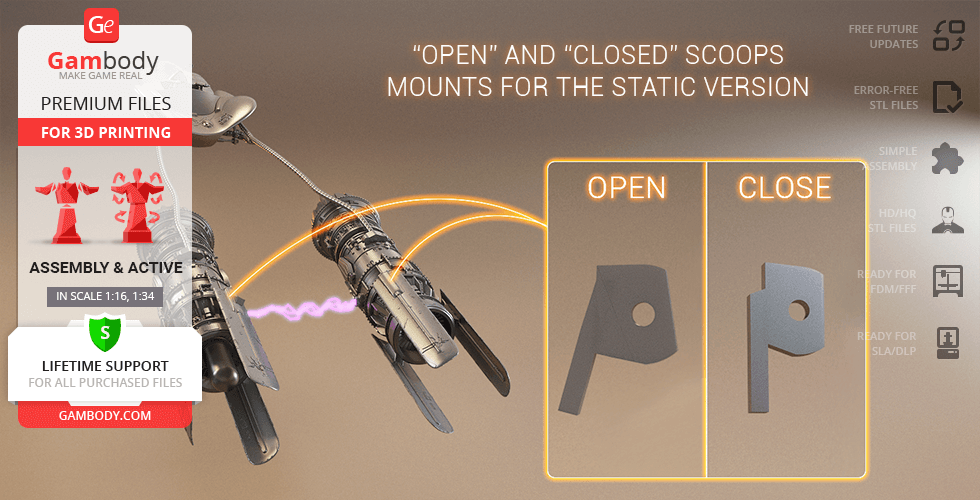

- There are “open” and “closedscoops mounts for the static version;

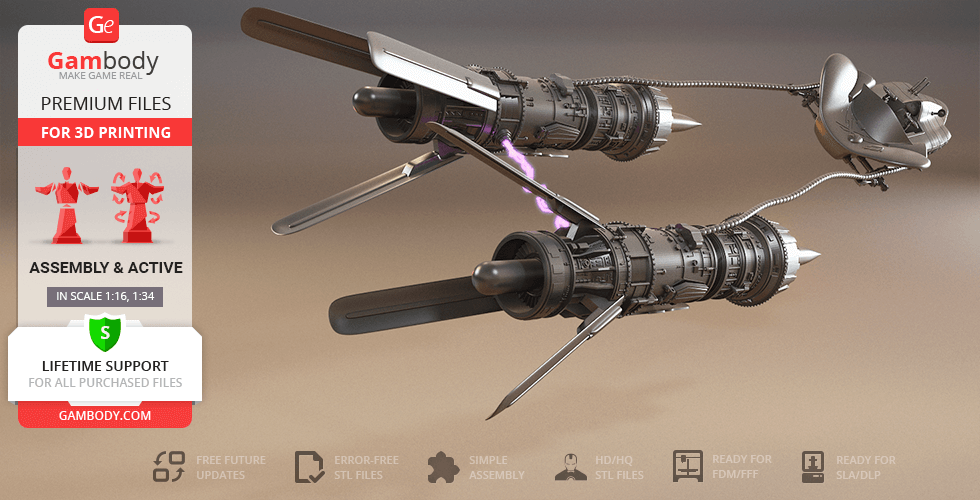

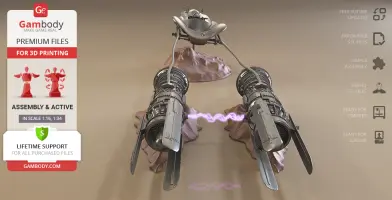

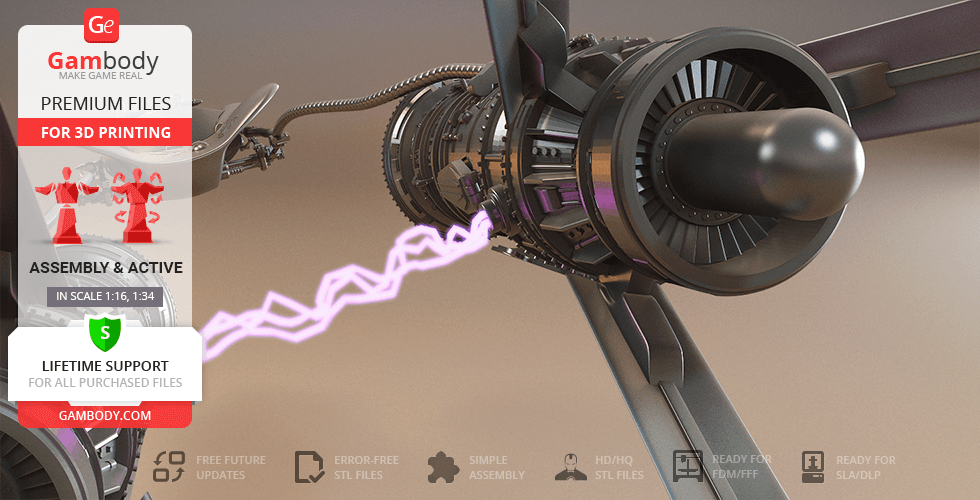

- The Pod connects to two repulsorlift engines by Steelton Control Cables. You can print these cables from the available STL files, or you can use 1.75mm or 3mm filament instead and insert its pieces into designated holes that are designed to fit securely either diameter;

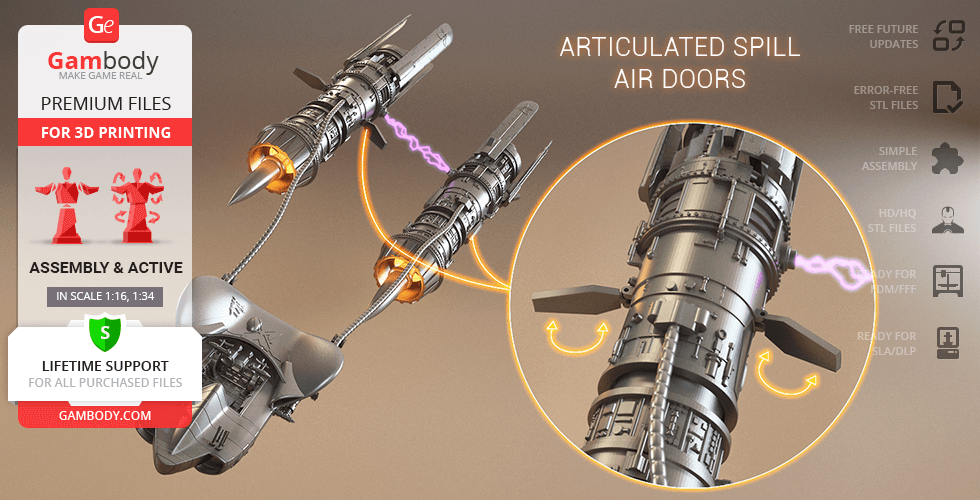

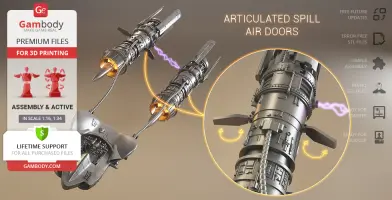

- The assembly of articulated spill air doors (in both active and static variant) requires additional "pins" that can be made out of short pieces of regular 1.75mm filament;
- The curved windscreen and thrust nozzle lids are provided separately to be printed with the transparent filament;

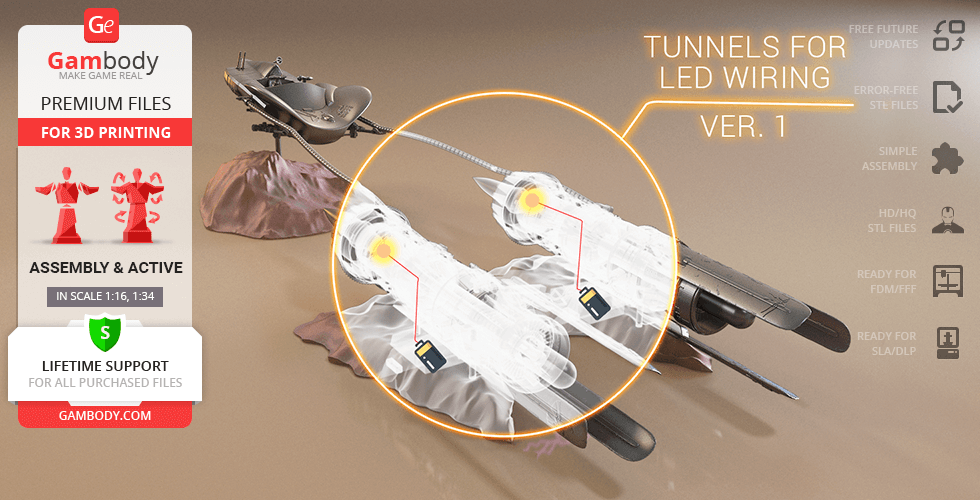

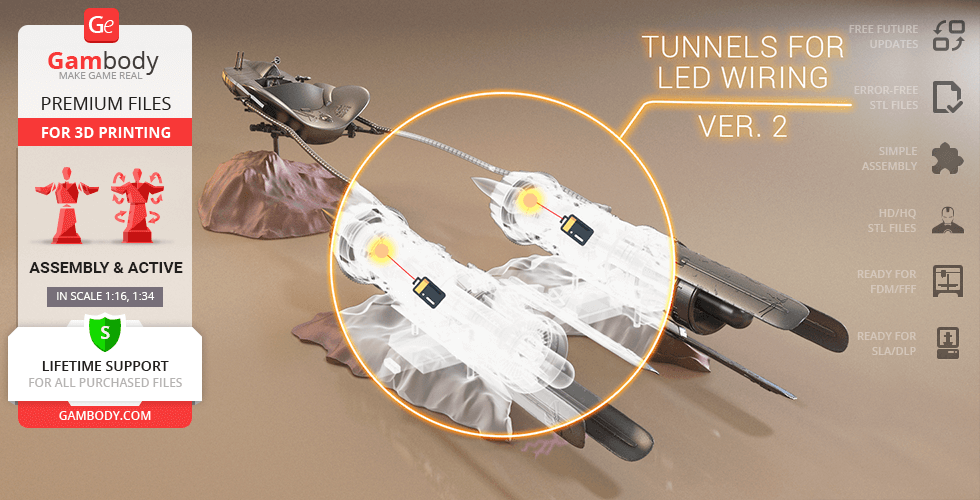

- Model is made hollow for you to introduce LED wiring and light up the thrusters; the battery can be hidden inside the repulsorlift engines or inside the platform;

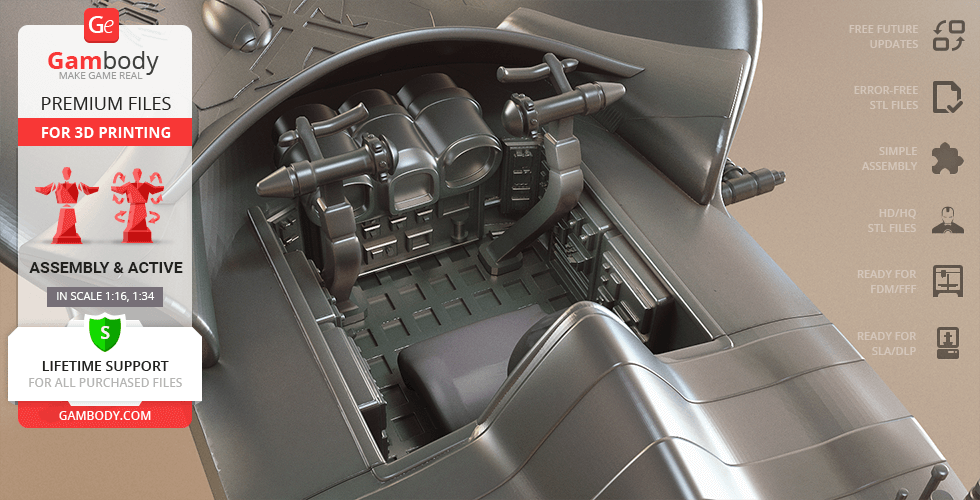

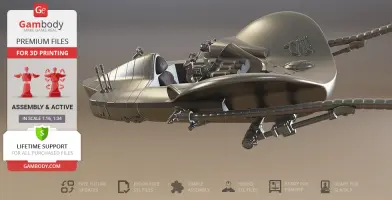

- The highly detailed cockpit module is equipped with a pilot seat;

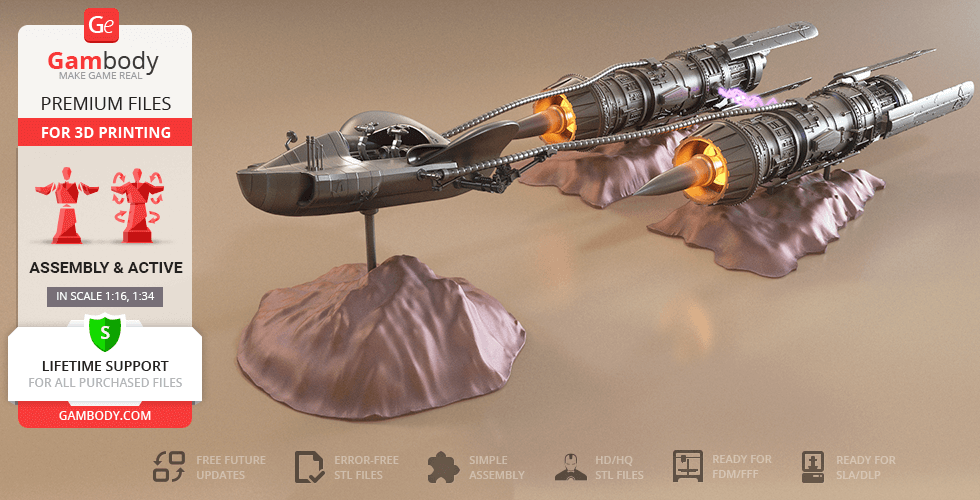

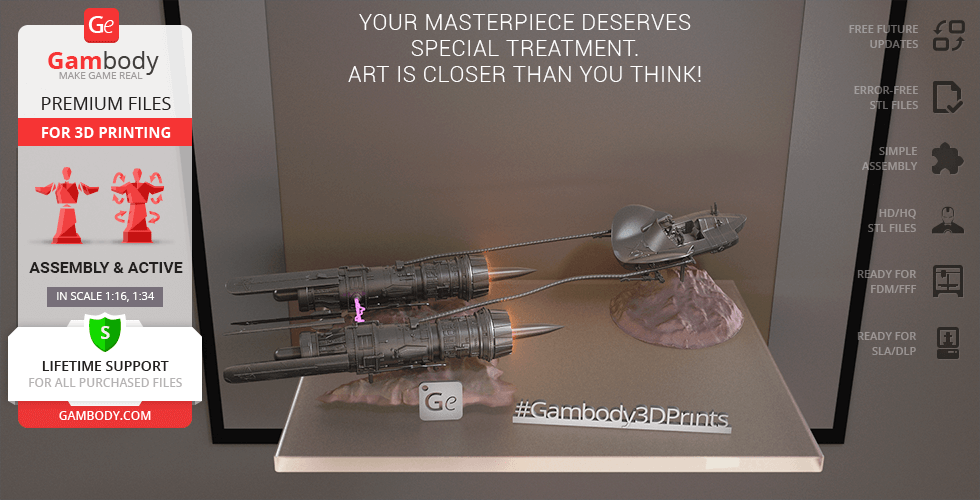

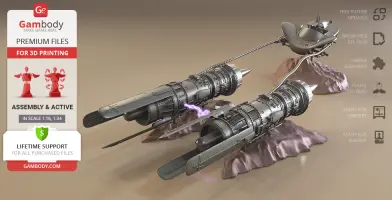

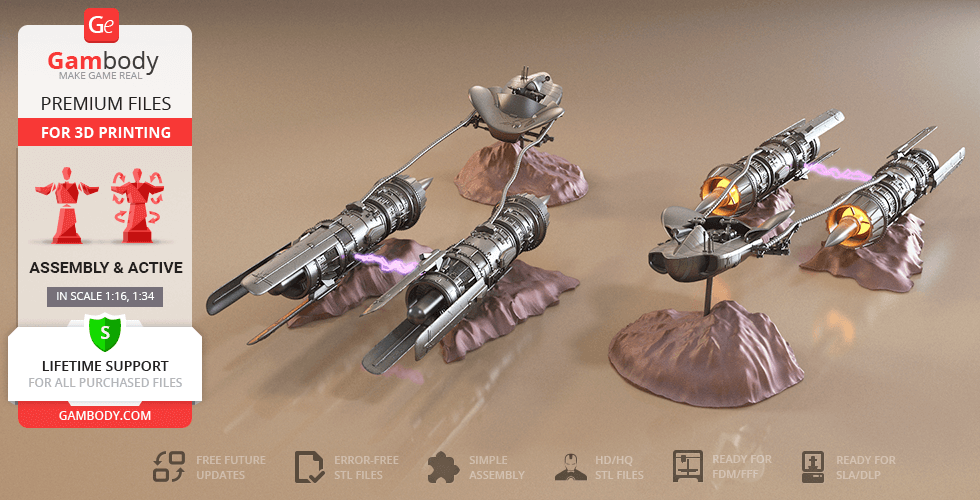

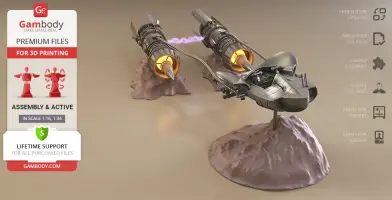

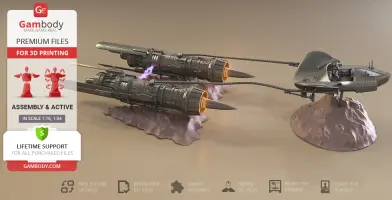

- Podracer comes with a stylised platform for you to recreate the Boonta Eve Classic Podrace;
- Make sure you carefully follow the assembly instructions provided in PDF or in the video guide;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

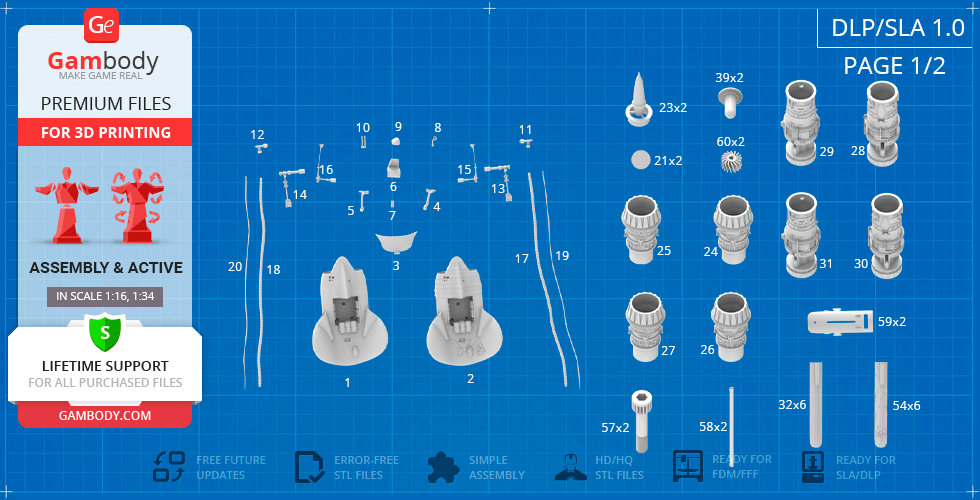

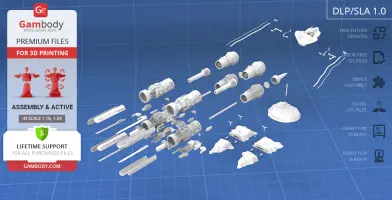

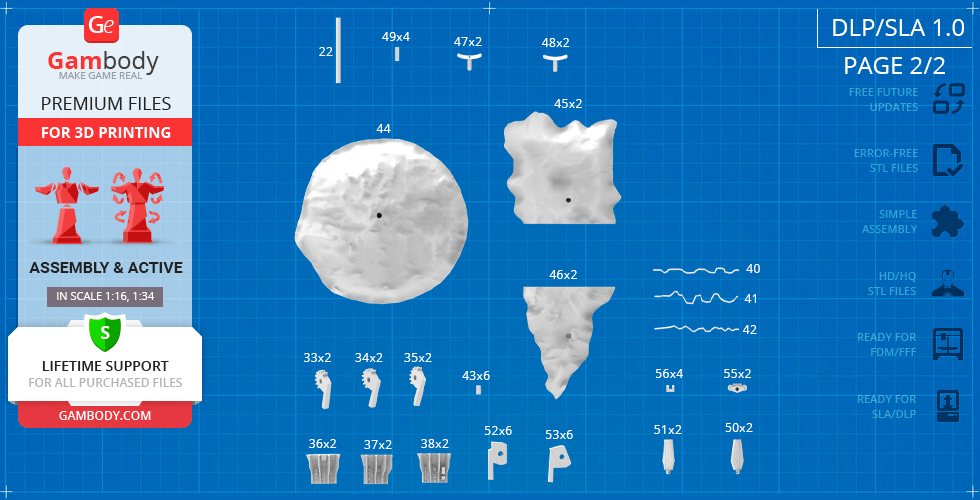

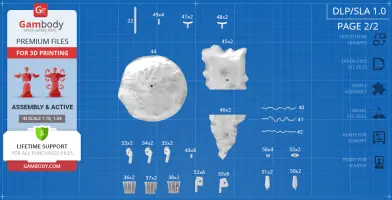

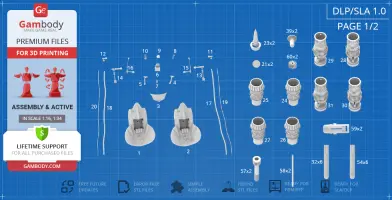

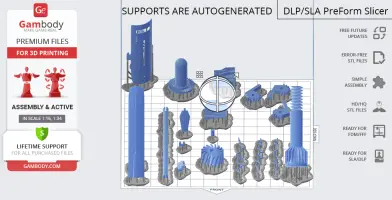

DLP/SLA/SLS 1.0 version features:

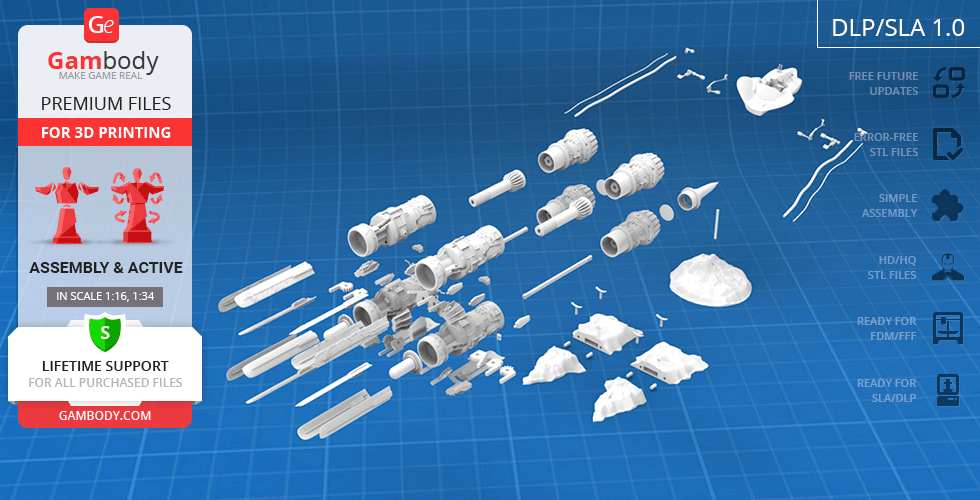

- Contains 60 parts;
- A printed ship is 77 mm tall, 147 mm wide, 340 mm deep;
- You can assemble your preferred variant of Podracer - the model can be static or active, with or without engravings on Pod and air scoops (if you want to use decals);
- Display the Podracer with Anakin Skywalker 3D Printing Figurine that is sold separately;
Triple air scoops open and close via the rotation of the repulsorlift engines (active variant);
- The repulsorlift engines require a twist motion (similar to pepper mills) to enable the scoops + rotation of repulsorlift engines also sets motion the turbines (active variant);
- There are “open” and “closedscoops mounts for the static version;
- The Pod connects to two repulsorlift engines by Steelton Control Cables. You can print these cables from the available STL files, or you can use 1.75mm filament instead and insert its pieces into designated holes that are designed to fit the diameter;
- The assembly of articulated spill air doors (in both active and static variant) requires additional "pins" that can be made out of short pieces of regular paper clip;
- The curved windscreen and thrust nozzle lids are provided separately to be printed with the transparent material;
- Model is made hollow for you to introduce LED wiring and light up the thrusters; the battery can be hidden inside the repulsorlift engines or inside the platform;
- The highly detailed cockpit module is equipped with a pilot seat;
- Podracer comes with a stylised platform for you to recreate the Boonta Eve Classic Podrace;
- Make sure you carefully follow the assembly instructions provided in PDF or in the video guide;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of Anakin's Podracer for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Anakin's Podracer 3D Printing Model at Gambody YouTube channel.

Also, you may like Anakin Skywalker 3D Printing Figurine, other Star Wars 3D Printing Models, as well as more Space Ships 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

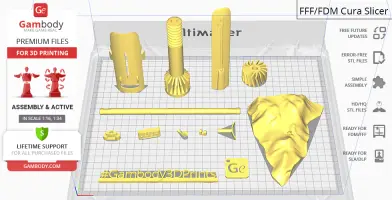

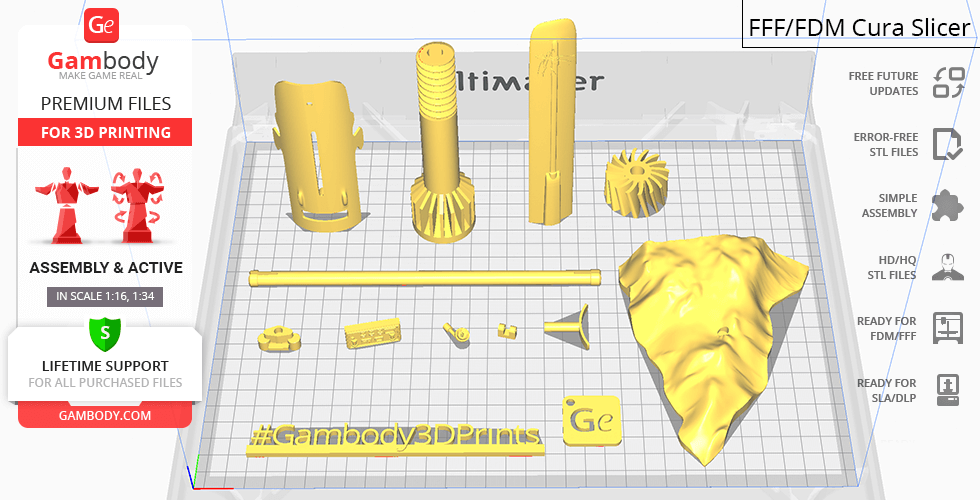

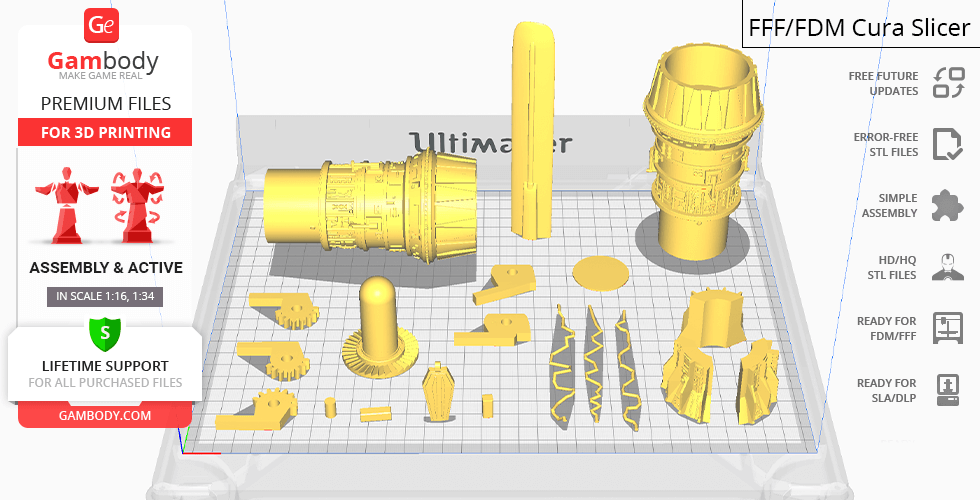

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

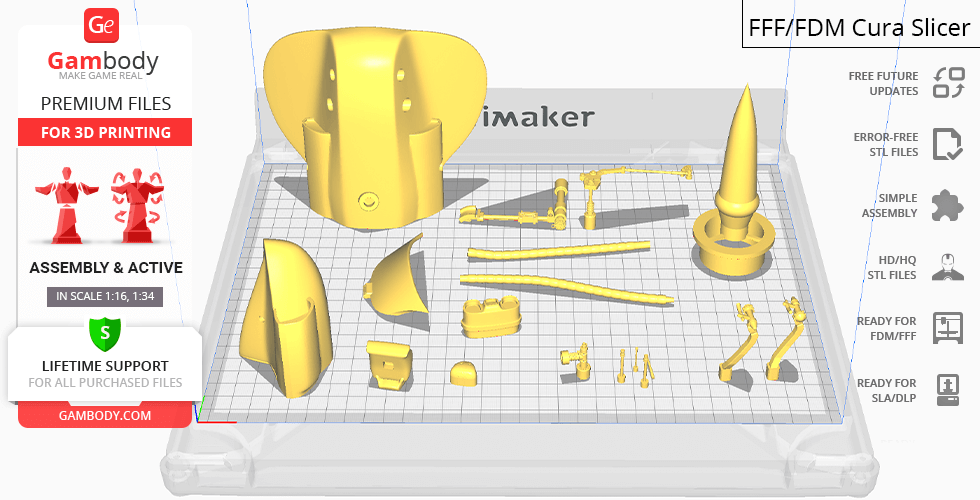

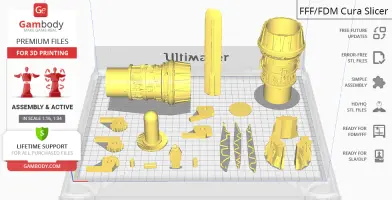

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments
