IG-12 with Grogu in Diorama 3D Printing Model | Assembly

(2)
cm: 14.6 w x 17.4 d x 48.8 h
in: 5.748 w x 6.85 d x 19.213 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 3 versions of IG-12 with Grogu STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly IG-12 with Grogu model for 3D printing consist of 127 files;

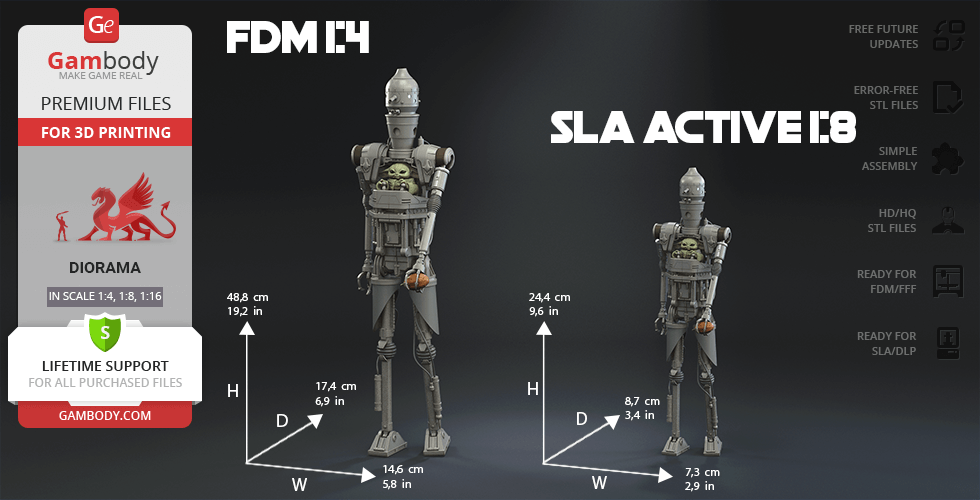

Sizes for:

  • FFF/FDM: 488 mm tall, 146 mm wide, 174 mm deep;
  • DLP/SLA Active: 244 mm tall, 73 mm wide, 87 mm deep;
  • DLP/SLA Static: 122 mm tall, 60 mm wide, 40 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

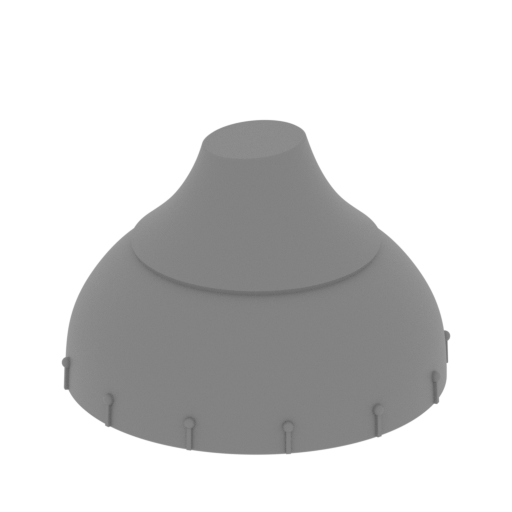

_01_headPart_a_FDM (repai red).stl
2.67 MiB 1 h 50 min 1 m 42 x 42 x 28 Download

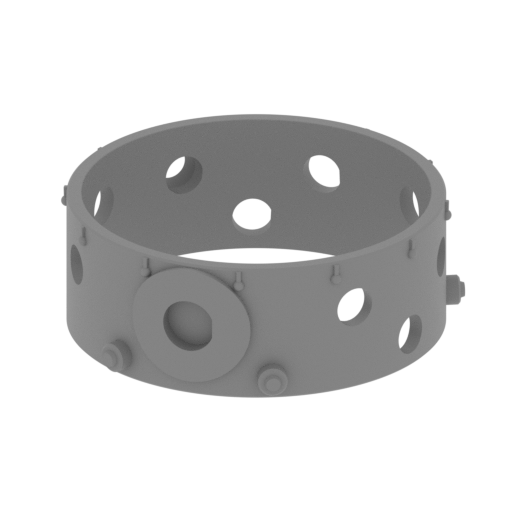

_02_headPart_b_FDM (repai red).stl
1.90 MiB 55 min 1 m 41 x 42 x 15 Download

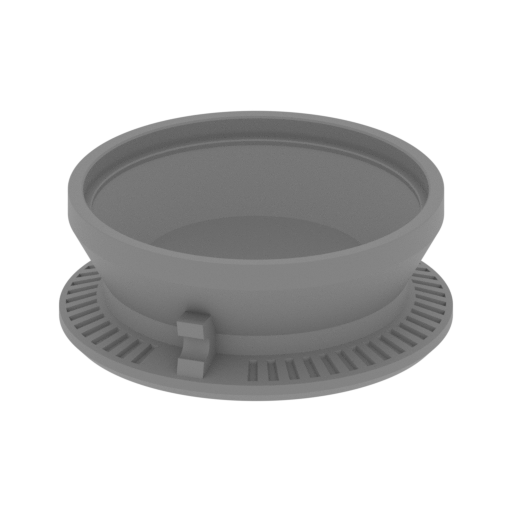

_03_headPart_c_FDM (repai red).stl
0.62 MiB 1 h 21 min 1 m 43 x 43 x 16 Download

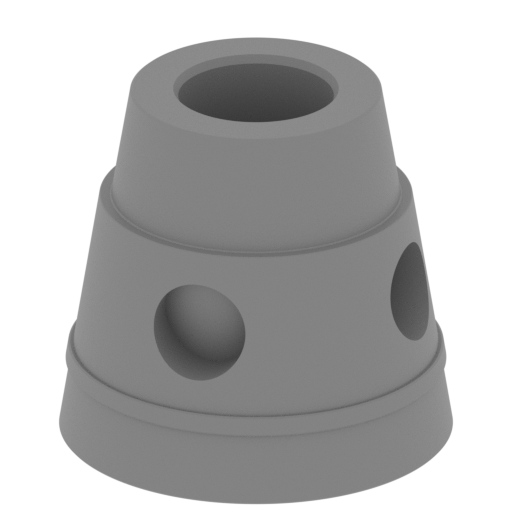

_04_headPart_d_FDM (repai red).stl
0.89 MiB 2 h 56 min 2 m 40 x 40 x 38 Download

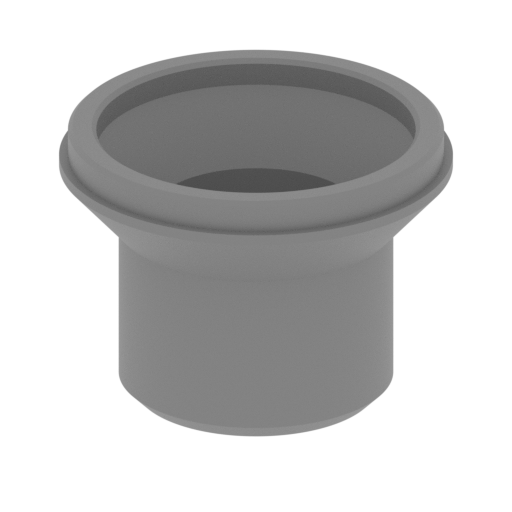

_05_headPart_e_FDM (repai red).stl
0.49 MiB 1 h 11 min 1 m 35 x 35 x 26 Download

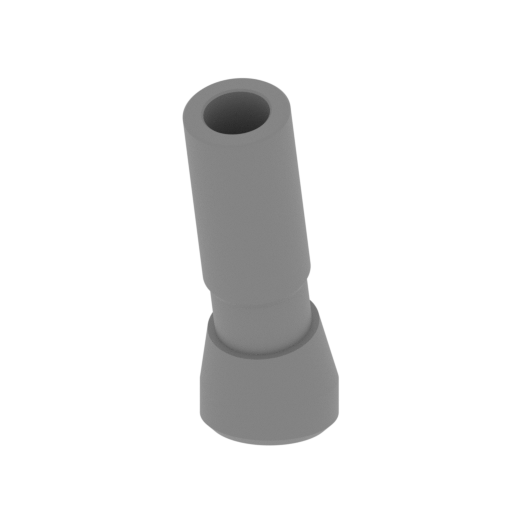

_06_headSensor_a_FDM (rep aired).stl
0.22 MiB 7 min <1 m 6 x 9 x 16 Download

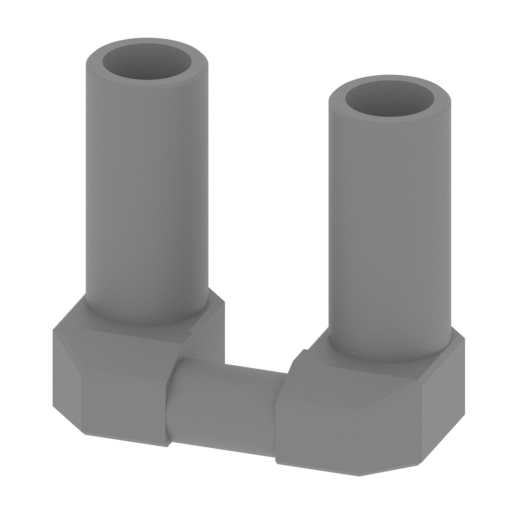

_07_headSensor_b_FDM (rep aired).stl
0.22 MiB 8 min <1 m 11 x 6 x 10 Download

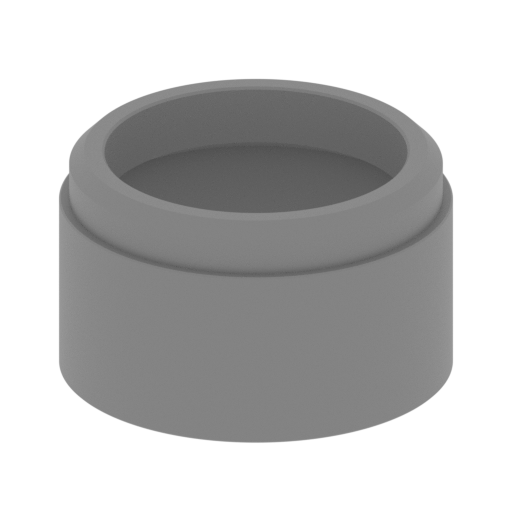

_08_headInnerGlass_FDM (r epaired).stl
0.51 MiB 1 h 25 min 1 m 37 x 37 x 22 Download

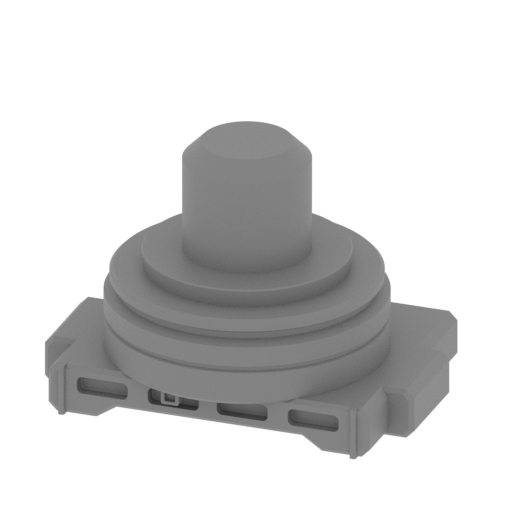

_09_neckPart_FDM (repaire d).stl
0.64 MiB 2 h 15 min 1 m 48 x 41 x 33 Download

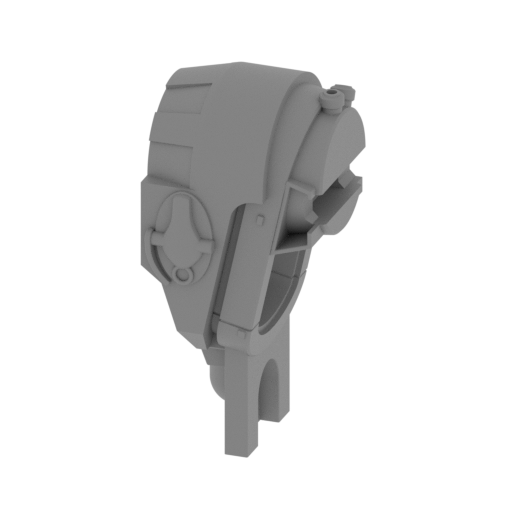

_10_shoulder_R_FDM (repai red).stl
3.38 MiB 7 h 18 min 4 m 33 x 37 x 71 Download

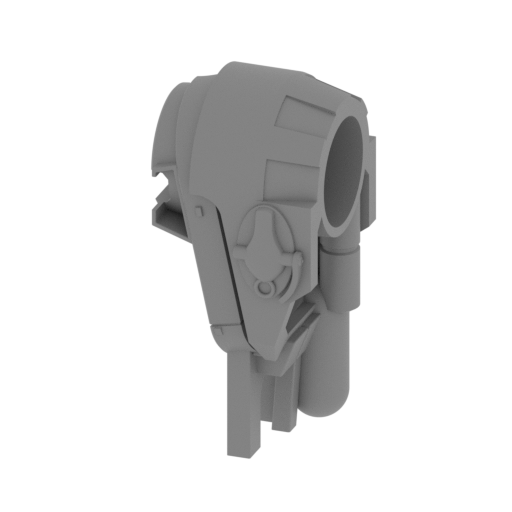

_11_shoulder_L_FDM (repai red).stl
3.18 MiB 7 h 18 min 4 m 33 x 37 x 71 Download

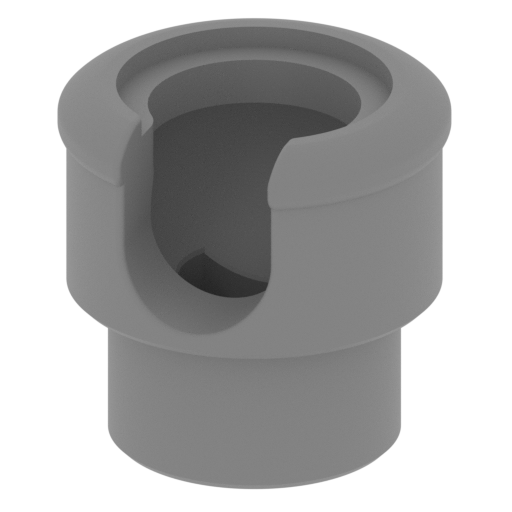

_12_shoulderPart_a_X2_FDM (repaired).stl
1.68 MiB 1 h 12 min 1 m 27 x 26 x 26 Download

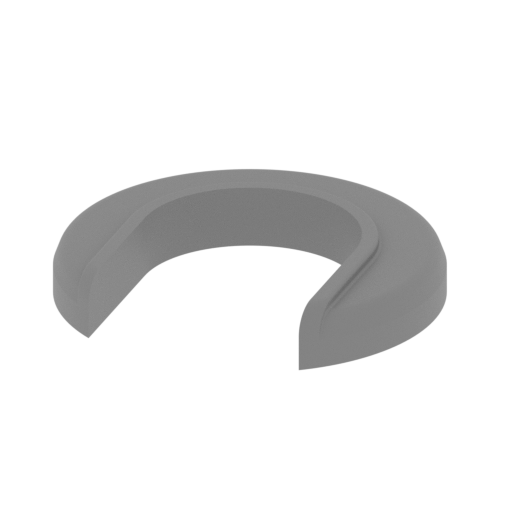

_13_shoulderPart_b_X2_FDM (repaired).stl
0.42 MiB 6 min <1 m 19 x 17 x 3 Download

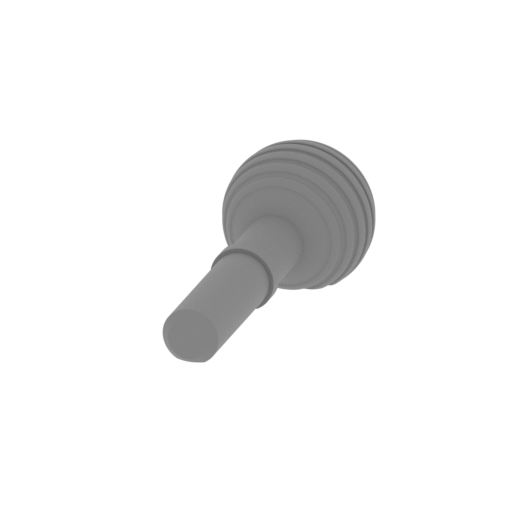

_14_shoulderPart_c_X2_FDM (repaired).stl
8.27 MiB 25 min <1 m 16 x 40 x 14 Download

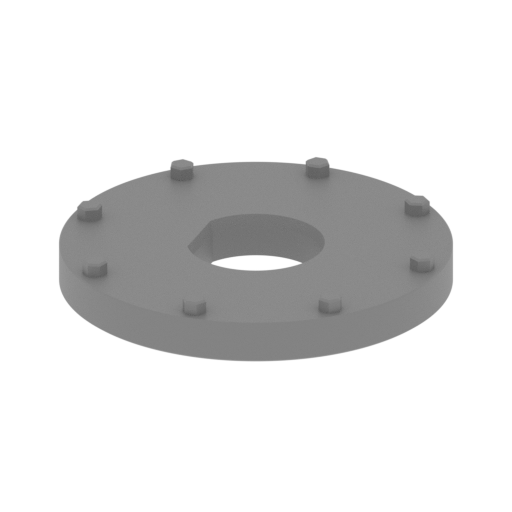

_15_shoulderPart_d_X2_FDM (repaired).stl
0.23 MiB 8 min <1 m 19 x 19 x 3 Download

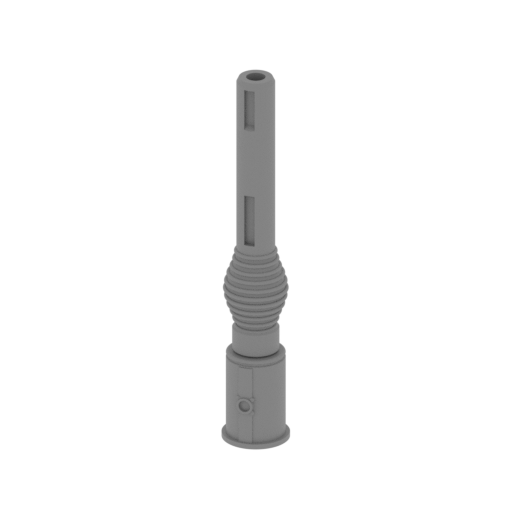

_16_armV1_X2_FDM (repaire d).stl
19.86 MiB 2 h 45 min 1 m 19 x 19 x 108 Download

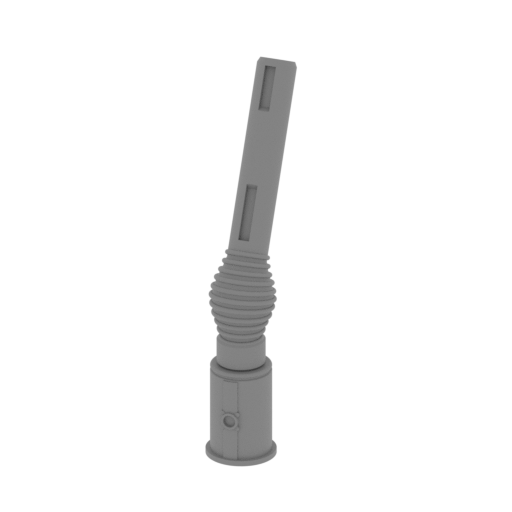

_17_armV2_FDM (repaired). stl
19.88 MiB 2 h 53 min 1 m 19 x 42 x 104 Download

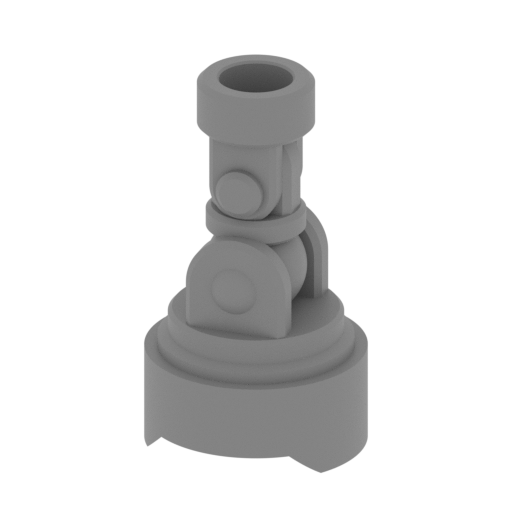

_18_hand_X2_FDM (repaired ).stl
1.81 MiB 41 min <1 m 16 x 16 x 28 Download

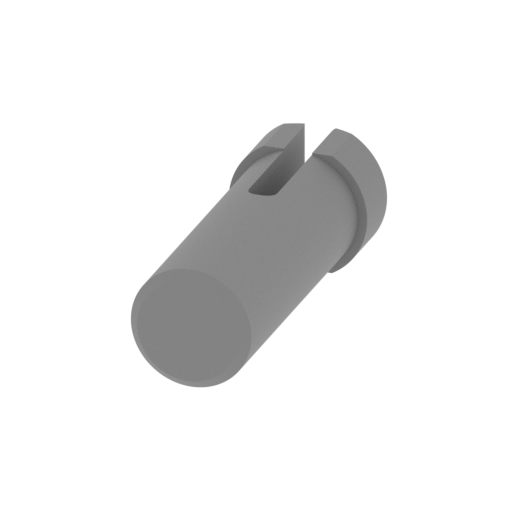

_19_handPin_X2_FDM (repai red).stl
0.15 MiB 5 min <1 m 6 x 15 x 5 Download

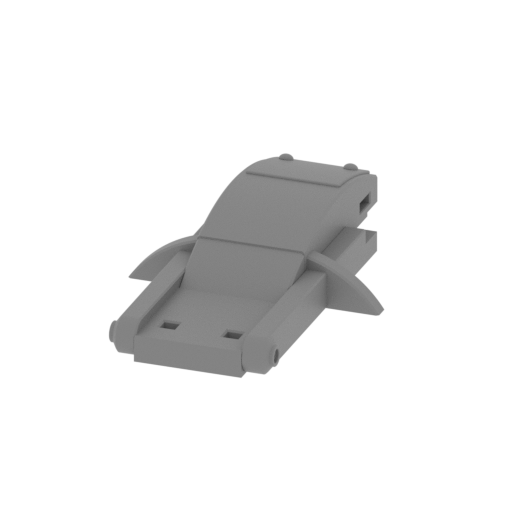

_20_bodyTailPart_FDM (rep aired).stl
0.82 MiB 5 h 57 min 3 m 71 x 105 x 22 Download

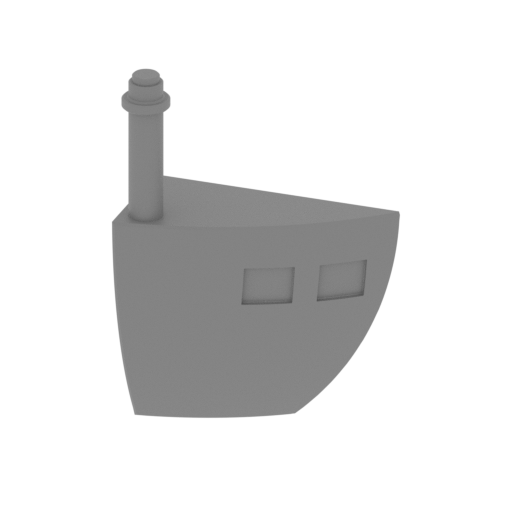

_21_bodyTailPart_a_L_FDM (repaired).stl
0.43 MiB 52 min <1 m 30 x 14 x 45 Download

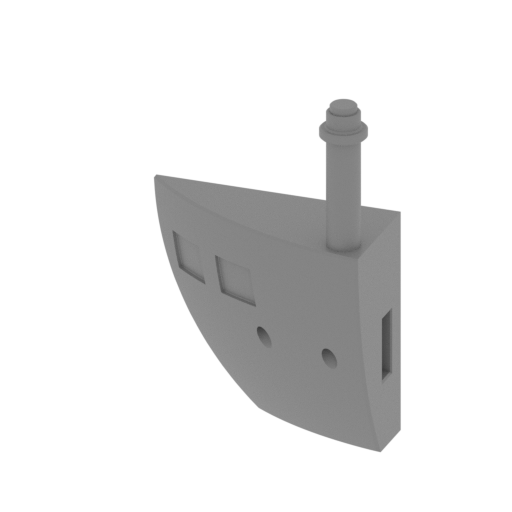

_22_bodyTailPart_b_R_FDM (repaired).stl
0.46 MiB 54 min <1 m 30 x 14 x 45 Download

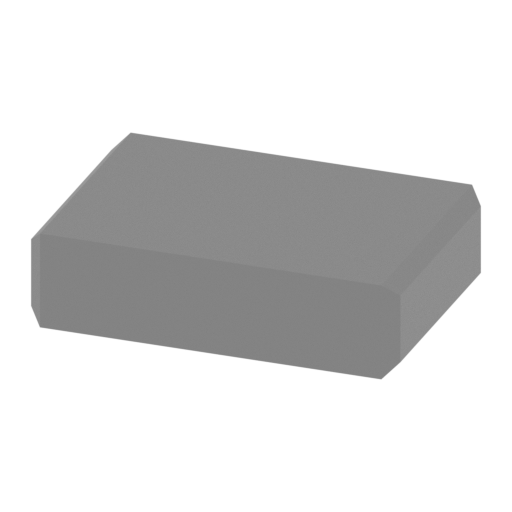

_23_bodyTailPartPin_X2_FD M (repaired).stl
0.01 MiB 4 min <1 m 11 x 8 x 3 Download

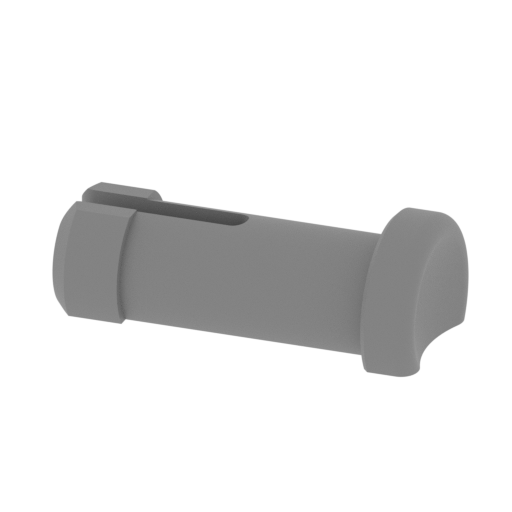

_24_shoulderPin_X2_FDM (r epaired).stl
0.34 MiB 9 min <1 m 21 x 10 x 7 Download

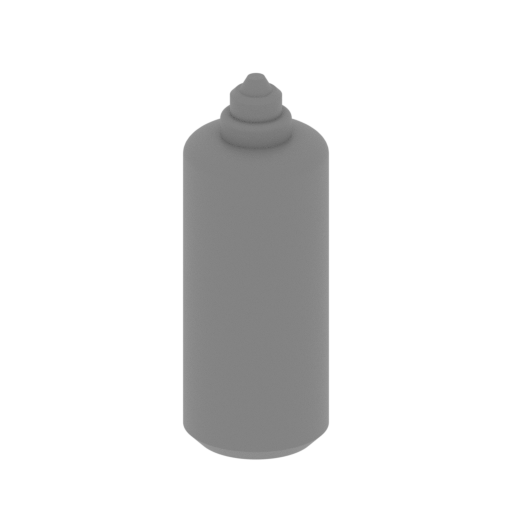

_25_shoulderPart_L_FDM (r epaired).stl
0.46 MiB 17 min <1 m 8 x 8 x 20 Download

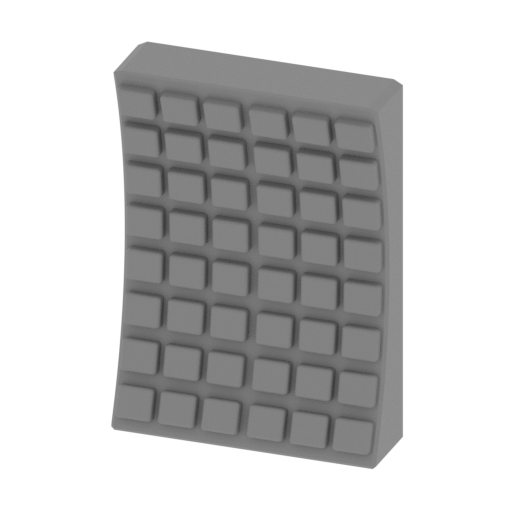

_26_backrest_FDM (repaire d).stl
2.49 MiB 1 h 49 min 1 m 34 x 11 x 47 Download

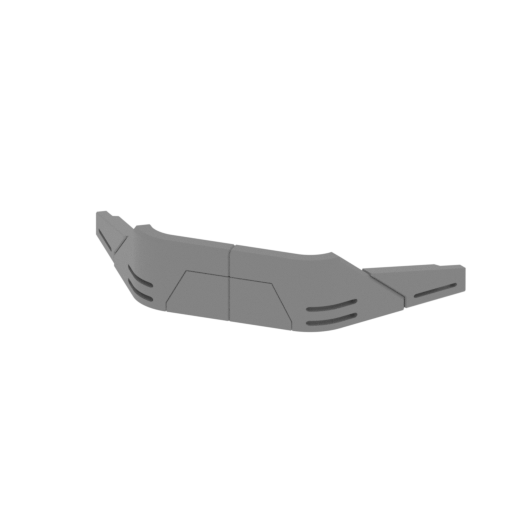

_27_groguSeatCap_FDM (rep aired).stl
0.34 MiB 1 h 3 min 1 m 83 x 33 x 16 Download

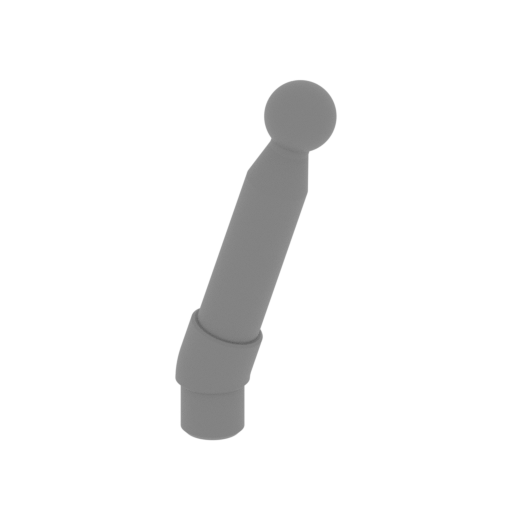

_28_controlHandle_V1_FDM (repaired).stl
1.60 MiB 18 min <1 m 12 x 6 x 29 Download

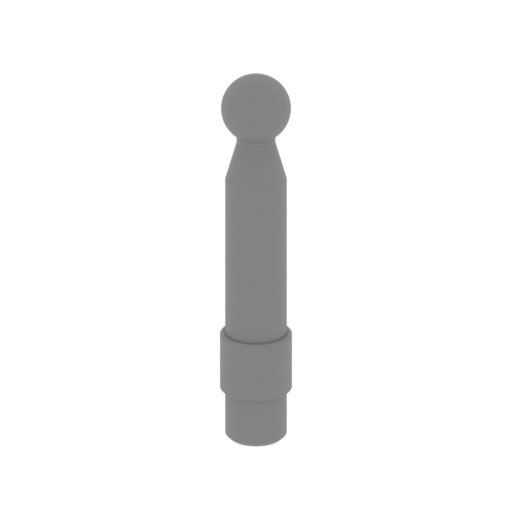

_29_controlHandle_V2_FDM (repaired).stl
1.62 MiB 14 min <1 m 6 x 6 x 30 Download

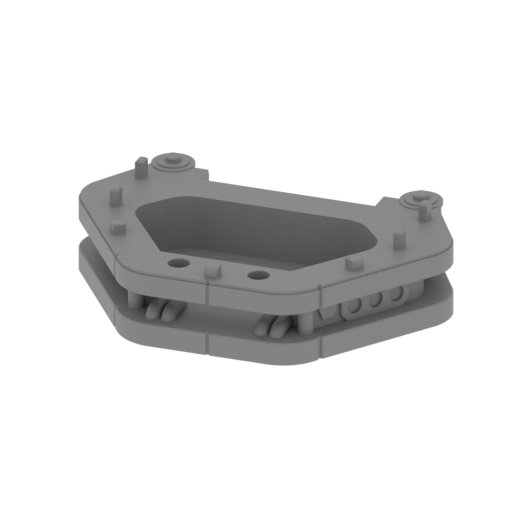

_30_seatPart_FDM (repaire d).stl
2.27 MiB 6 h 18 min 3 m 89 x 63 x 23 Download

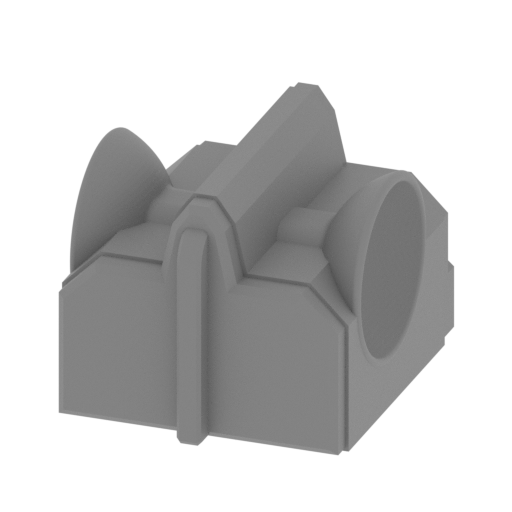

_31_pelvisPart_a_FDM (rep aired).stl
0.89 MiB 2 h 45 min 2 m 33 x 42 x 27 Download

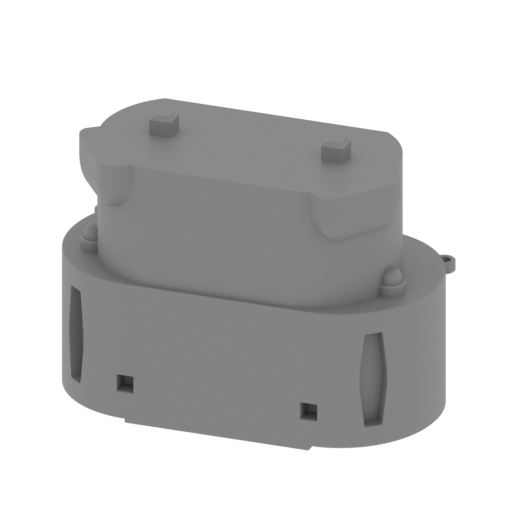

_32_pelvisPart_b_FDM (rep aired).stl
1.63 MiB 7 h 35 min 4 m 68 x 40 x 52 Download

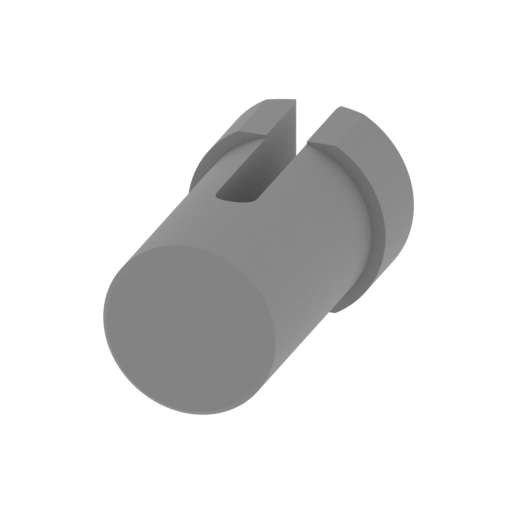

_33_pelvisPinV1_FDM (repa ired).stl
0.15 MiB 35 min <1 m 16 x 30 x 14 Download

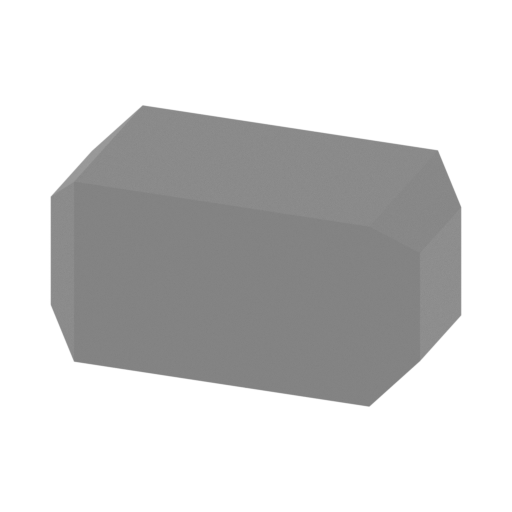

_34_pelvisPInV2_X2_FDM (r epaired).stl
0.01 MiB 3 min <1 m 8 x 4 x 4 Download

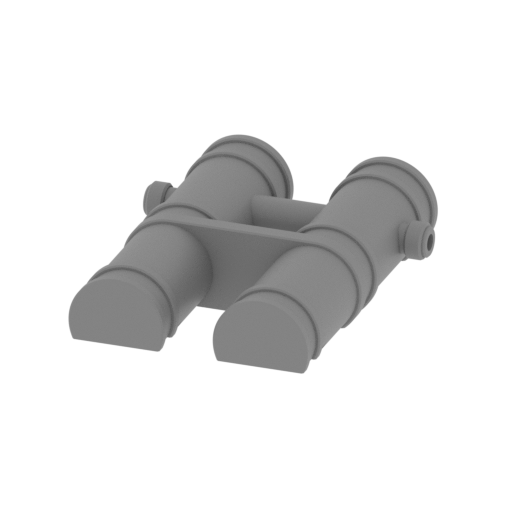

_35_pelvisPart_c_FDM (rep aired).stl
1.30 MiB 1 h 19 min 1 m 35 x 45 x 10 Download

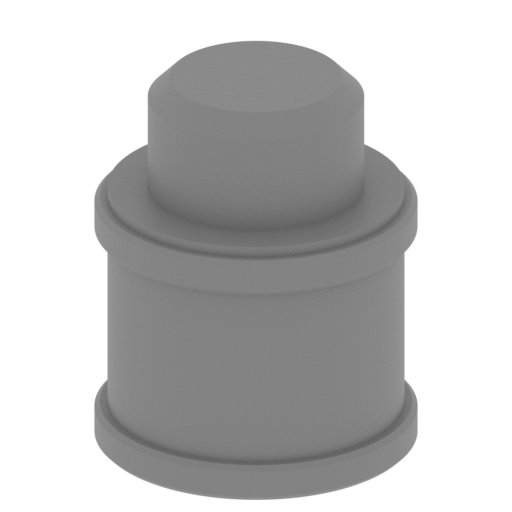

_36_bodyTubePart_X2_FDM ( repaired).stl
0.19 MiB 11 min <1 m 10 x 10 x 12 Download

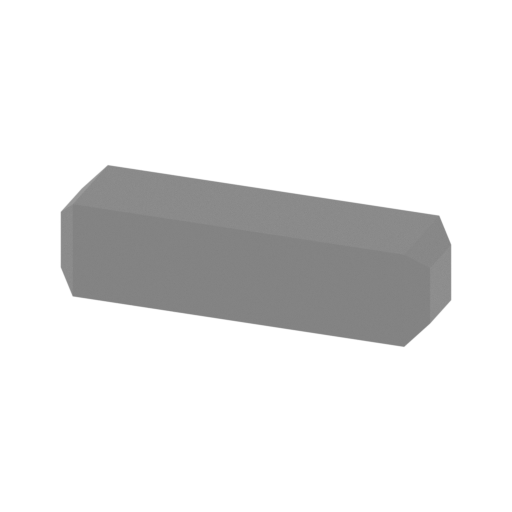

_37_pelvisPInV3_X2_FDM (r epaired).stl
0.00 MiB 4 min <1 m 16 x 4 x 4 Download

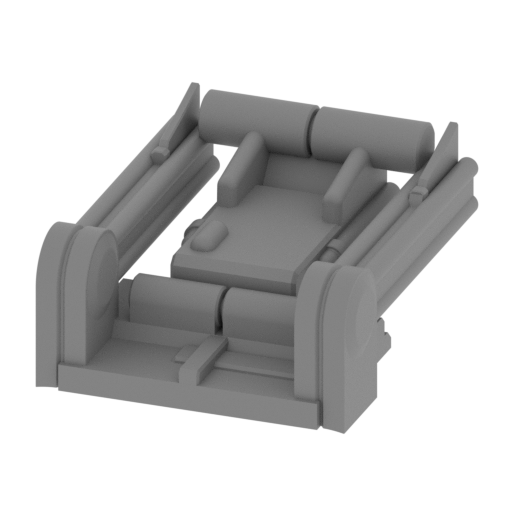

_38_bodyFrontPart_FDM (re paired).stl
3.03 MiB 3 h 12 min 2 m 42 x 48 x 22 Download

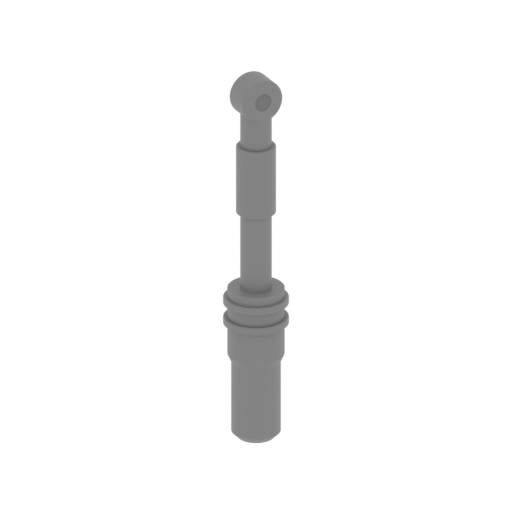

_39_pelvisTubePart_a_X4_F DM (repaired).stl
0.68 MiB 18 min <1 m 7 x 7 x 41 Download

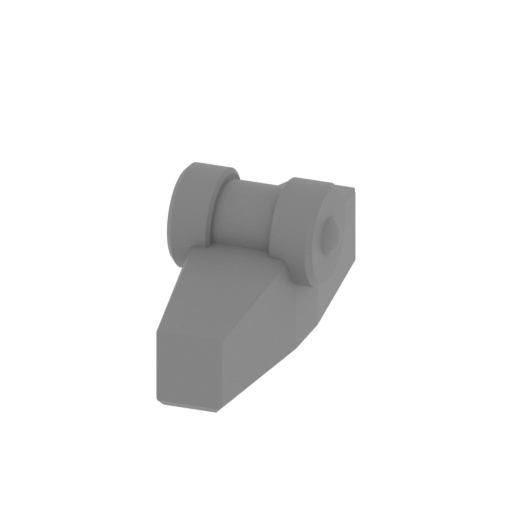

_40_pelvisTubePart_b_X2_F DM (repaired).stl
0.19 MiB 8 min <1 m 8 x 17 x 8 Download

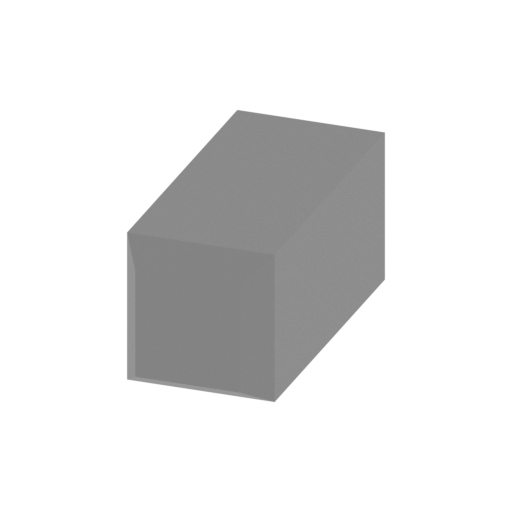

_41_bodyFrontPartPin_X5_F DM (repaired).stl
0.01 MiB 2 min <1 m 3 x 7 x 3 Download

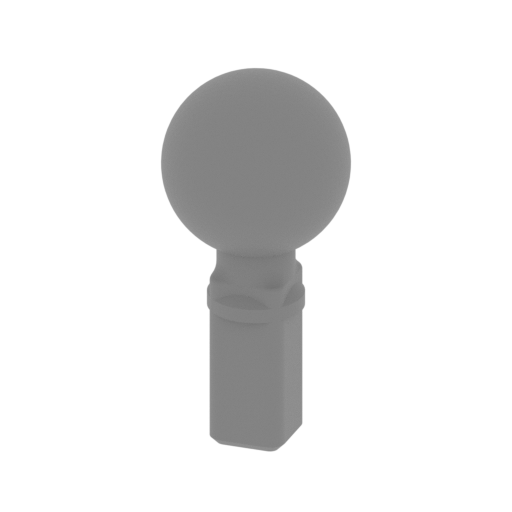

_42_pelvisConnector_X2_FD M (repaired).stl
0.44 MiB 26 min <1 m 12 x 12 x 25 Download

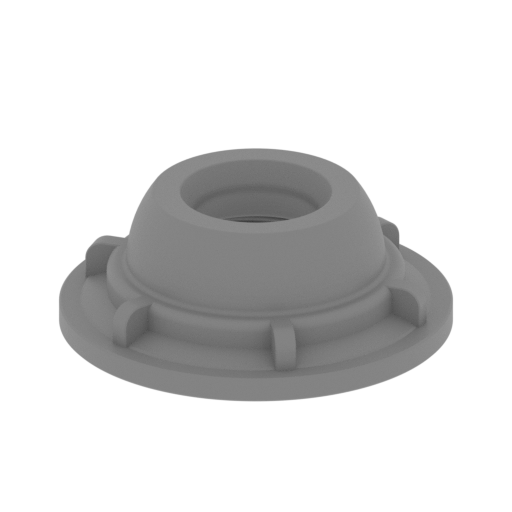

_43_pelvisScrew_X2_FDM (r epaired).stl
2.25 MiB 39 min <1 m 30 x 30 x 11 Download

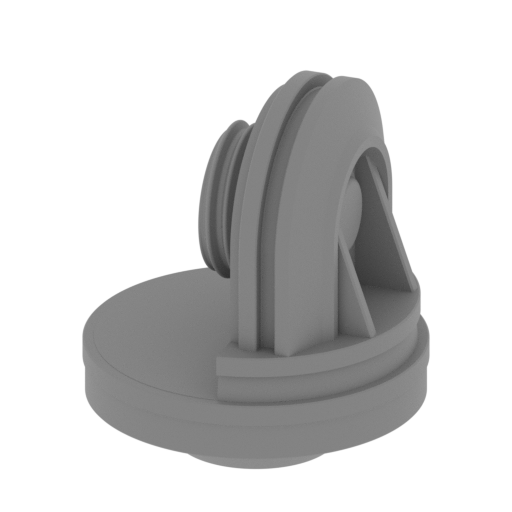

_44_hipPart_X2_FDM (repai red).stl
2.64 MiB 2 h 51 min 2 m 38 x 38 x 43 Download

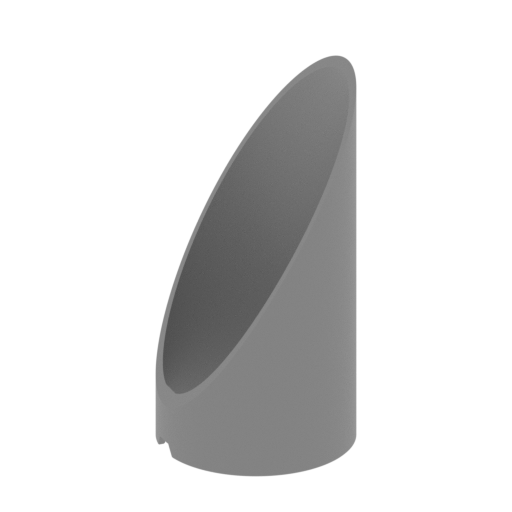

_45_legCover_X2_FDM (repa ired).stl
0.44 MiB 1 h 42 min 1 m 34 x 34 x 66 Download

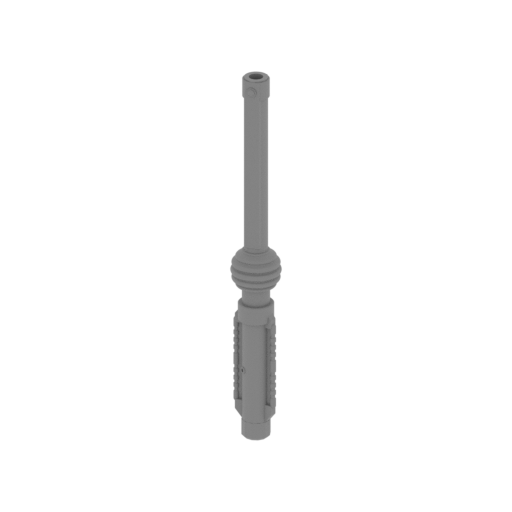

_46_legV1_L_FDM (repaired ).stl
7.28 MiB 6 h 54 min 4 m 25 x 25 x 194 Download

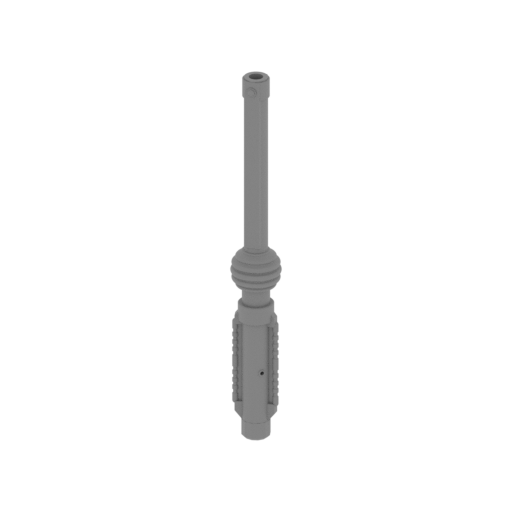

_47_legV1_R_FDM (repaired ).stl
7.20 MiB 7 h 23 min 4 m 25 x 25 x 194 Download

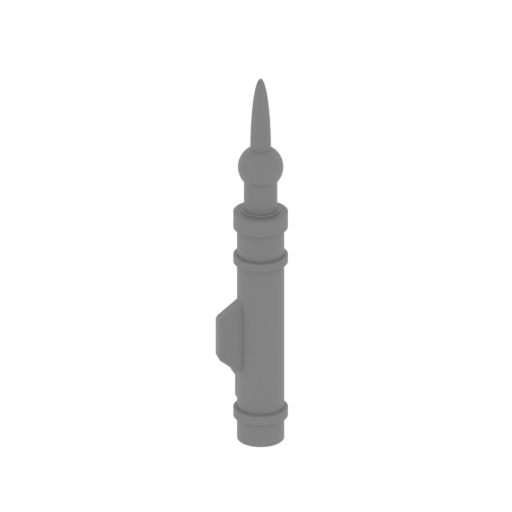

_48_legPart_a_FDM (repair ed).stl
1.42 MiB 1 h 4 min <1 m 12 x 13 x 71 Download

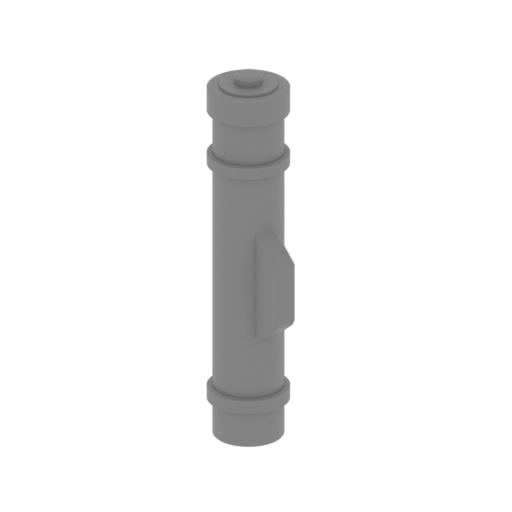

_49_legPart_b_FDM (repair ed).stl
0.42 MiB 52 min <1 m 12 x 11 x 47 Download

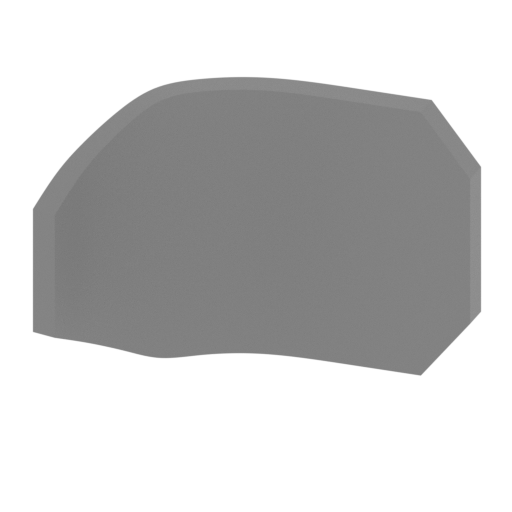

_50_kneePart_X4_FDM (repa ired).stl
0.13 MiB 8 min <1 m 15 x 9 x 11 Download

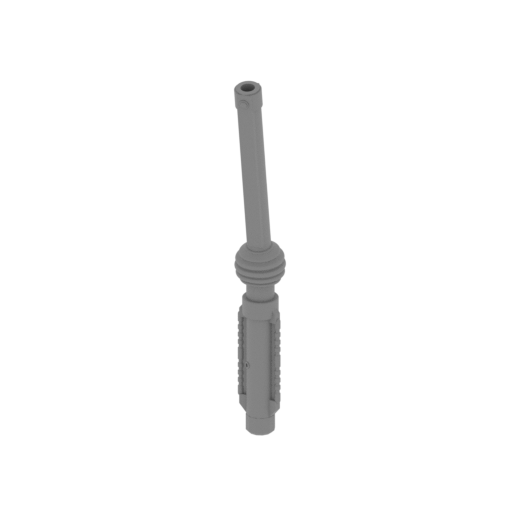

_51_legV2_L_FDM (repaired ).stl
7.28 MiB 8 h 32 min 5 m 25 x 37 x 193 Download

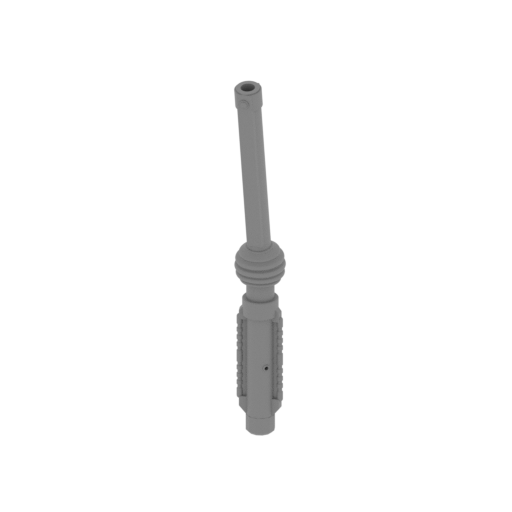

_52_legV2_R_FDM (repaired ).stl
7.13 MiB 8 h 2 min 5 m 25 x 36 x 194 Download

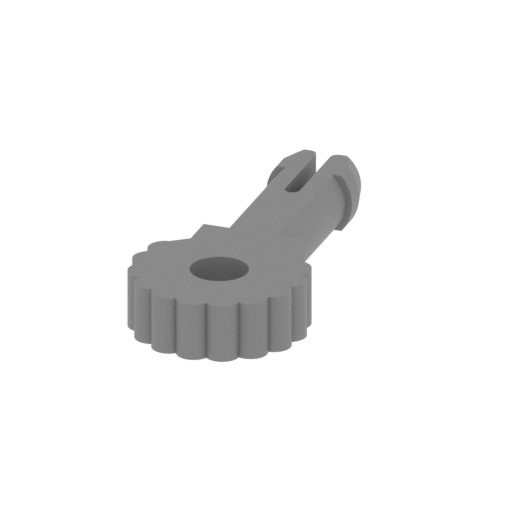

_53_footConnector_X2_FDM (repaired).stl
0.09 MiB 17 min <1 m 16 x 35 x 5 Download

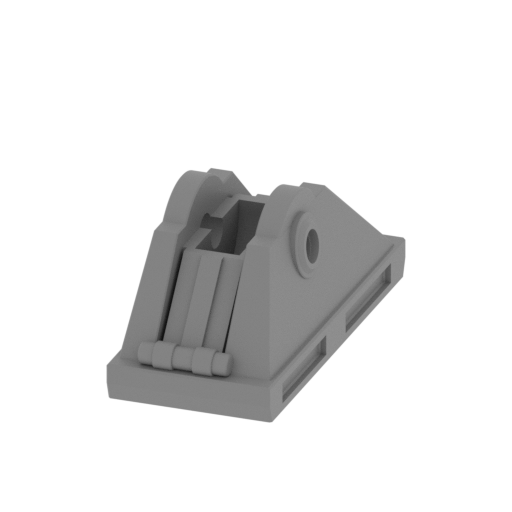

_54_foot_L_FDM (repaired) .stl
1.42 MiB 2 h 51 min 1 m 27 x 61 x 27 Download

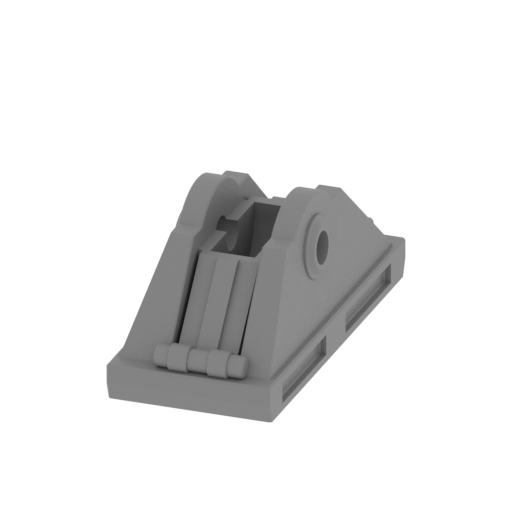

_55_foot_R_FDM (repaired) .stl
1.41 MiB 2 h 53 min 1 m 27 x 61 x 27 Download
_56_footPin_X2_FDM (repai red).stl
0.13 MiB 6 min <1 m 22 x 5 x 4 Download

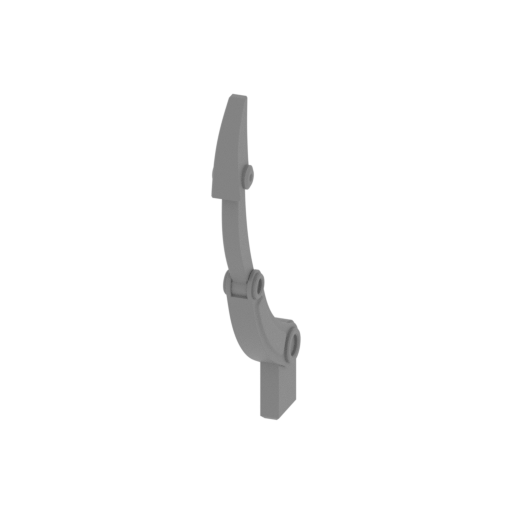

_57_fingerV1_X8_FDM (repa ired).stl
1.00 MiB 22 min <1 m 4 x 17 x 39 Download

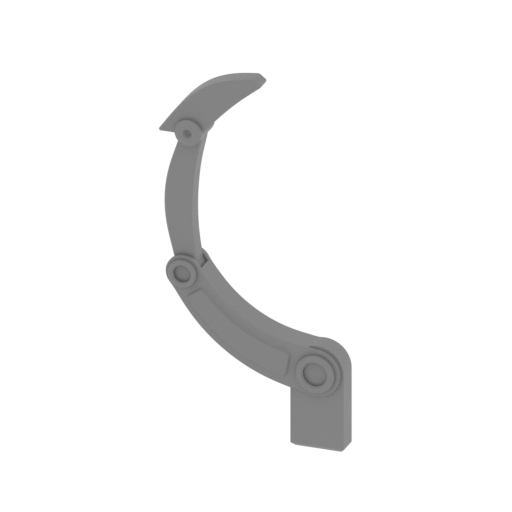

_58_fingerV2_FDM (repaire d).stl
1.00 MiB 26 min <1 m 17 x 4 x 34 Download

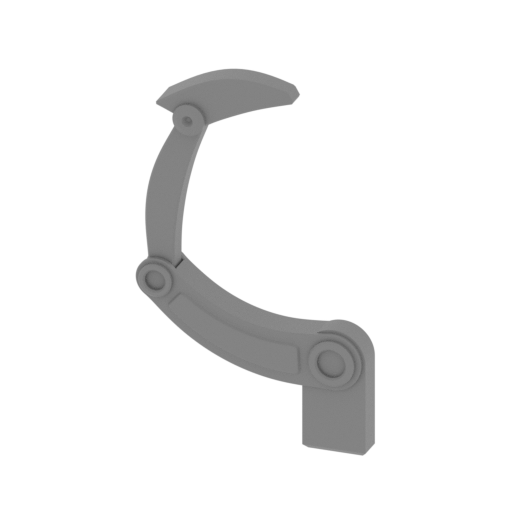

_59_fingerV3_FDM (repaire d).stl
1.00 MiB 22 min <1 m 18 x 4 x 28 Download

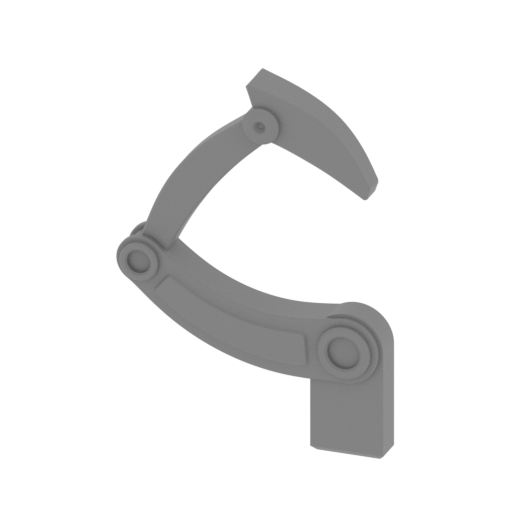

_60_fingerV4_FDM (repaire d).stl
1.00 MiB 21 min <1 m 18 x 4 x 25 Download

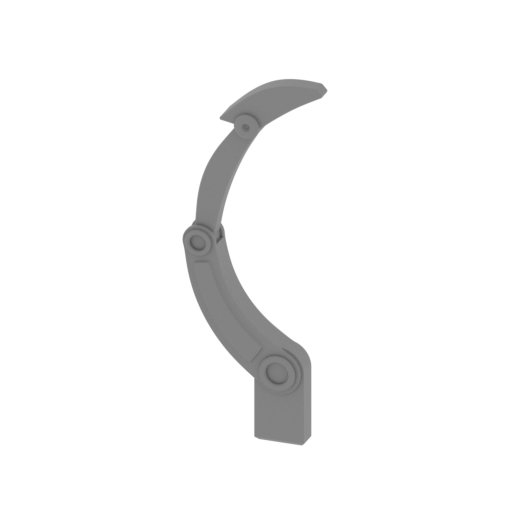

_61_fingerV5_FDM (repaire d).stl
1.00 MiB 28 min <1 m 13 x 4 x 36 Download

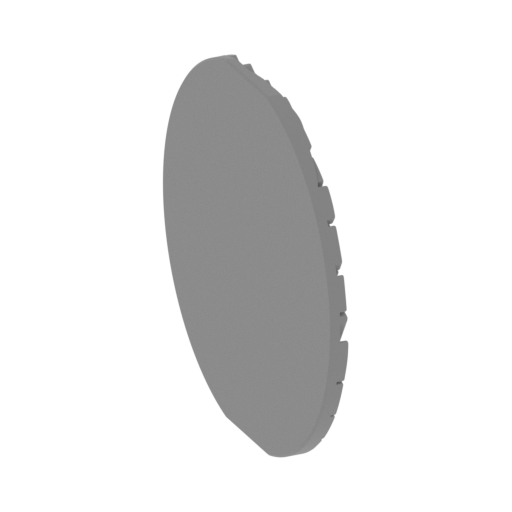

_62_standPart_a_V1_FDM (r epaired).stl
6.19 MiB 27 h 45 min 14 m 132 x 133 x 175 Download

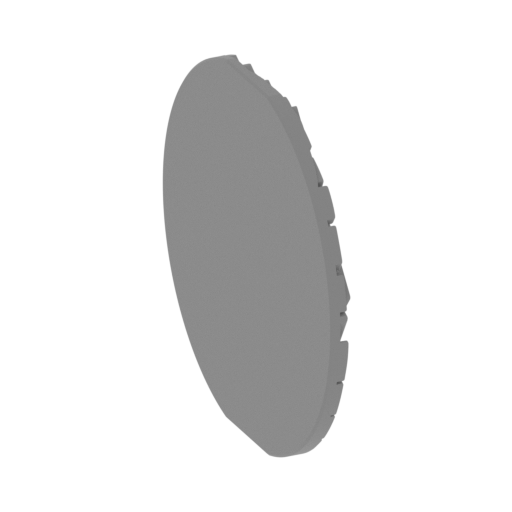

_63_standPart_a_V2_FDM (r epaired).stl
6.67 MiB 30 h 3 min 16 m 132 x 132 x 175 Download
_64_standPart_b_X2_FDM (r epaired).stl
0.16 MiB 9 h 29 min 7 m 100 x 18 x 101 Download

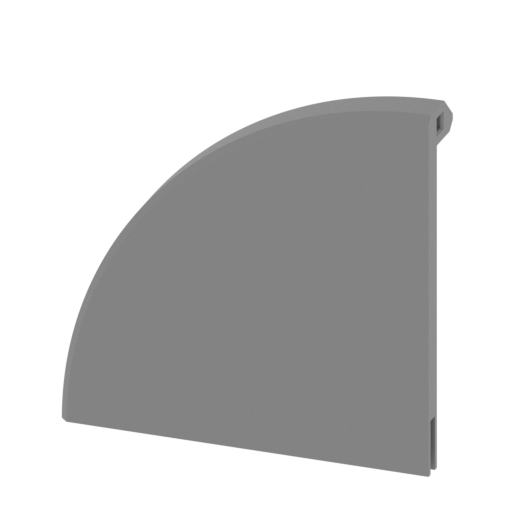

_65_standPart_c_X2_FDM (r epaired).stl
0.16 MiB 9 h 46 min 7 m 101 x 18 x 100 Download

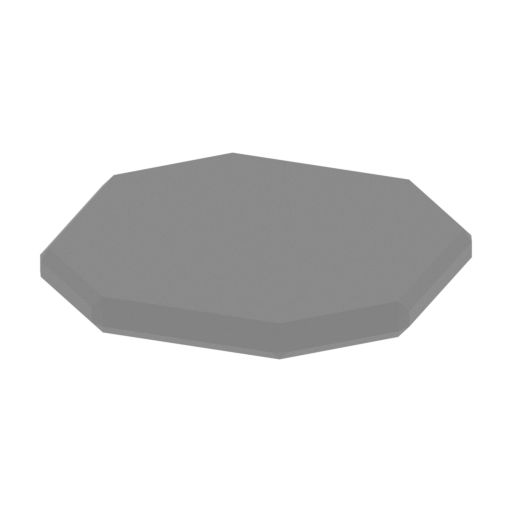

_66_standPInV1_FDM (repai red).stl
0.01 MiB 23 min <1 m 30 x 30 x 3 Download

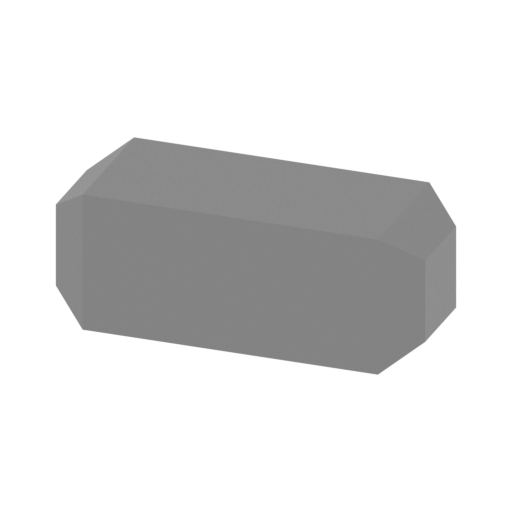

_67_standPInV2_X4_FDM (re paired).stl
0.01 MiB 4 min <1 m 11 x 4 x 4 Download

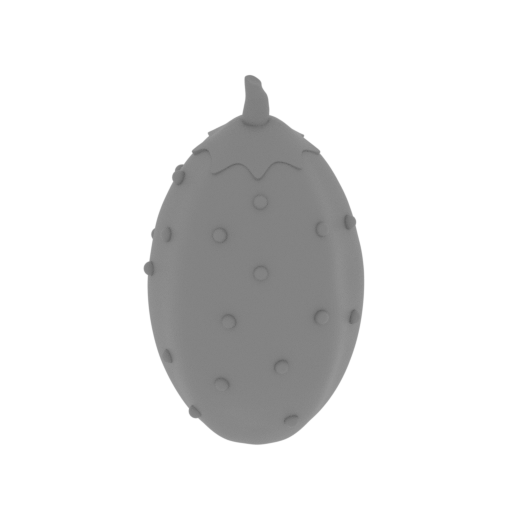

_68_rambodab_FDM (repaire d).stl
2.83 MiB 52 min <1 m 20 x 21 x 37 Download

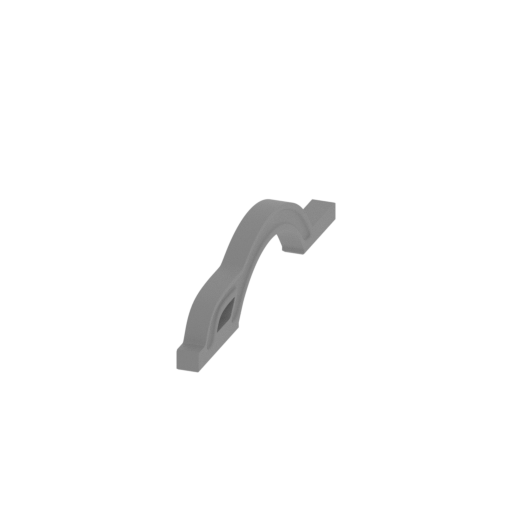

_69_armDecorArc_X2_FDM (r epaired).stl
1.36 MiB 13 min <1 m 3 x 46 x 10 Download

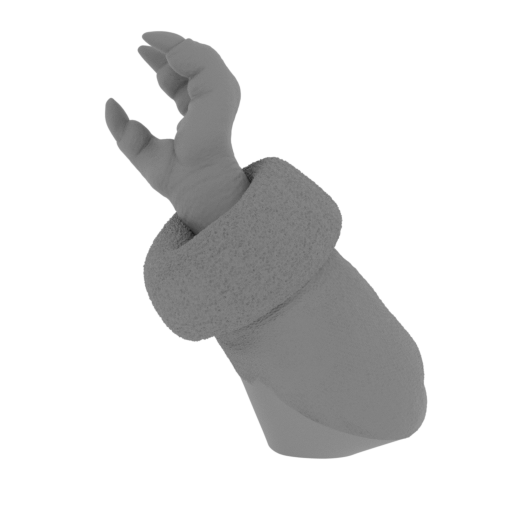

_70_groguArmL_FDM (repair ed).stl
15.96 MiB 59 min <1 m 27 x 21 x 30 Download

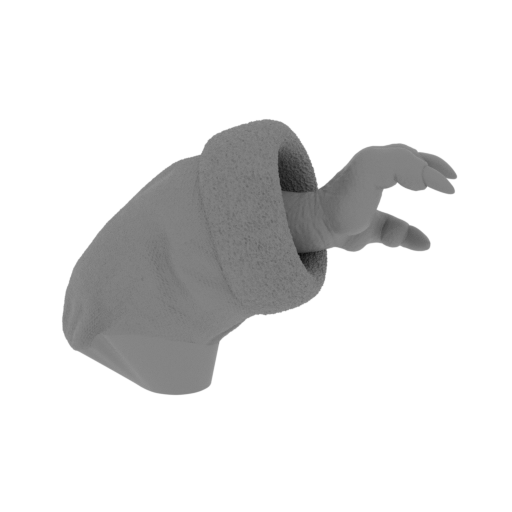

_71_groguArmR_FDM (repair ed).stl
13.77 MiB 59 min 1 m 35 x 19 x 24 Download

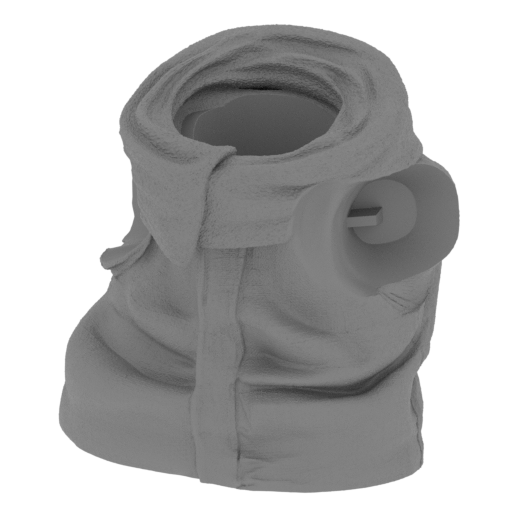

_72_groguBody_FDM (repair ed).stl
22.47 MiB 4 h 27 min 2 m 44 x 36 x 45 Download

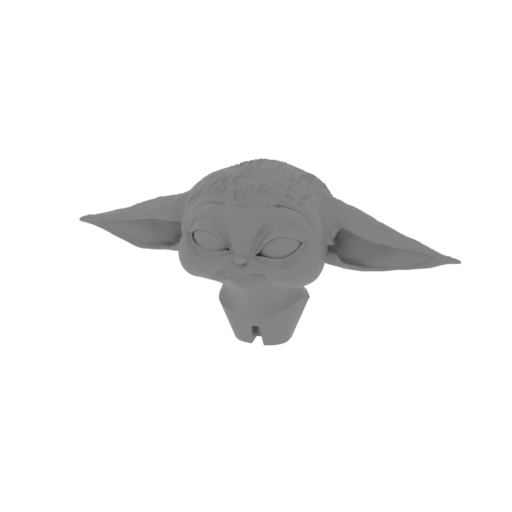

_73_groguHead_FDM (repair ed).stl
16.06 MiB 2 h 33 min 1 m 74 x 29 x 34 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

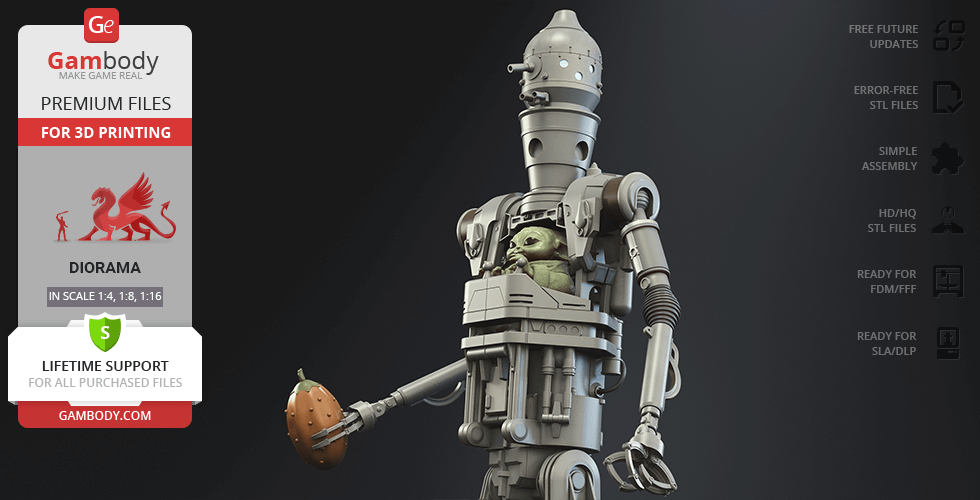

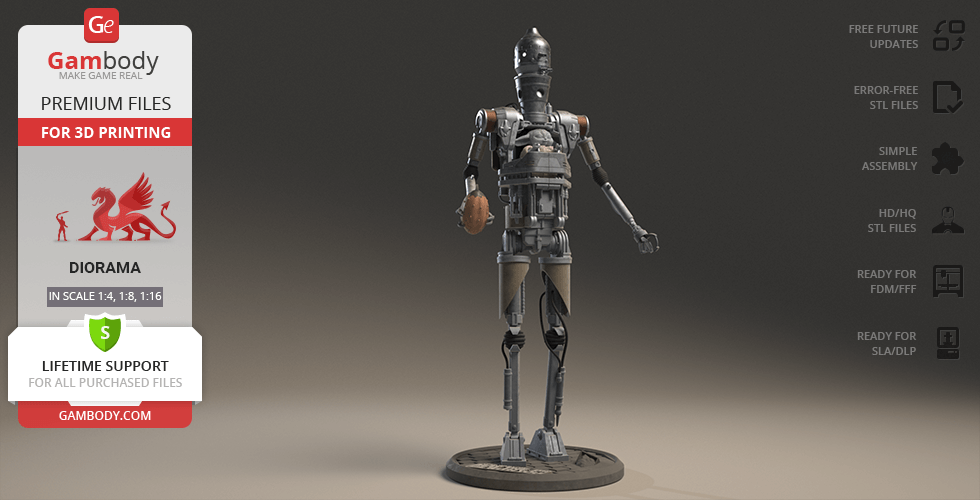

ABOUT THIS 3D MODEL

The IG series of droids were designed as fourth-degree droids, possessed combat-focused upgrades including a variety of sensors to detect movements, heat and sound, and were equipped with damage-resistant armor. IG-11 assassin droid was a bounty hunter during the New Republic Era and in one of the missions the mech was sent on a mission to kill Grogu. This operation united IG-11 with the Mandalorian, another bounty hunter who stopped and destroyed the droid. IG-12 was created from the parts of IG-11 and served as a mech for Grogu. The new mech could be only manually operated, his speech skills were reduced to “yes” and “no” responses. IG-12 was used by Grogu on their way with Mandalorian to their homeworld, the Mandalore planet.

A true fan of the Mandalorian space western television series and the Star Wars universe, our inspired 3D artist created this model of IG-12 with Grogu in diorama for 3D printing. The droid has active mechanisms that give you an opportunity to display the model in different postures. There is an alternative version of the DLP/SLA version of IG-12, a static droid that is holding a fruit stolen from the counter by its tiny pilot. The amazing level of detail, iconic design, and cuteness of the scene chosen for the diorama leave you no chance to pass by this lovely couple!

ADAPTATION FOR 3D PRINTING

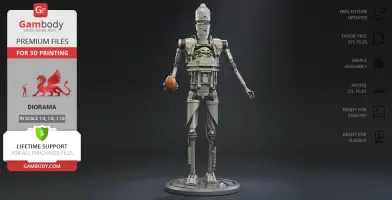

IG-12 with Grogu in Diorama for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 45 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the droid was divided into convenient assembly parts.

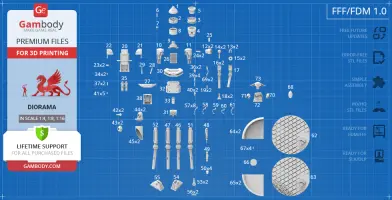

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the IG-12 with Grogu in Diorama 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of the IG-12 Droid which is 1930 mm. The 3D printing model’s chosen scales are 1:4 for the FFF/FDM version, 1:8 for the DLP/SLA Active version and 1:16 for the DLP/SLA Static version.

VERSIONS’ SPECIFICATIONS

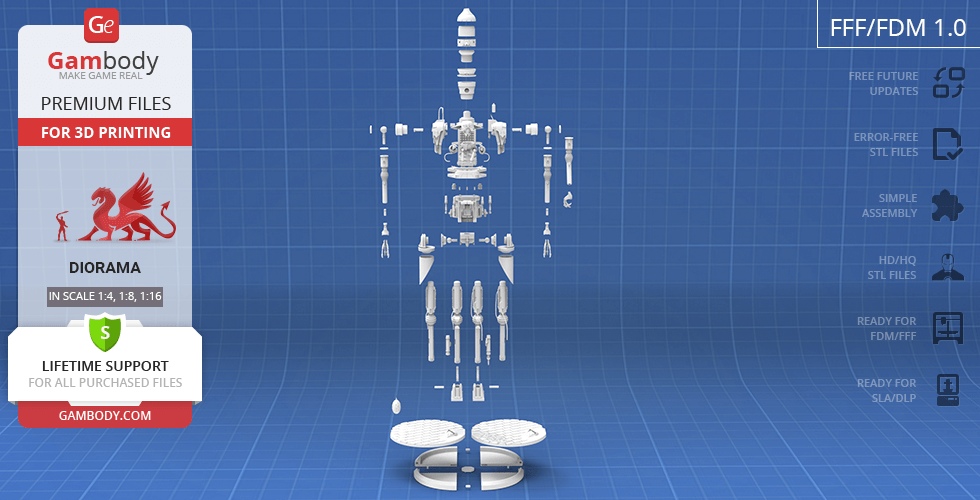

FFF/FDM 1.0 version features:

  • Contains 73 parts;
  • A printed model is 488 mm tall, 146 mm wide, 174 mm deep;

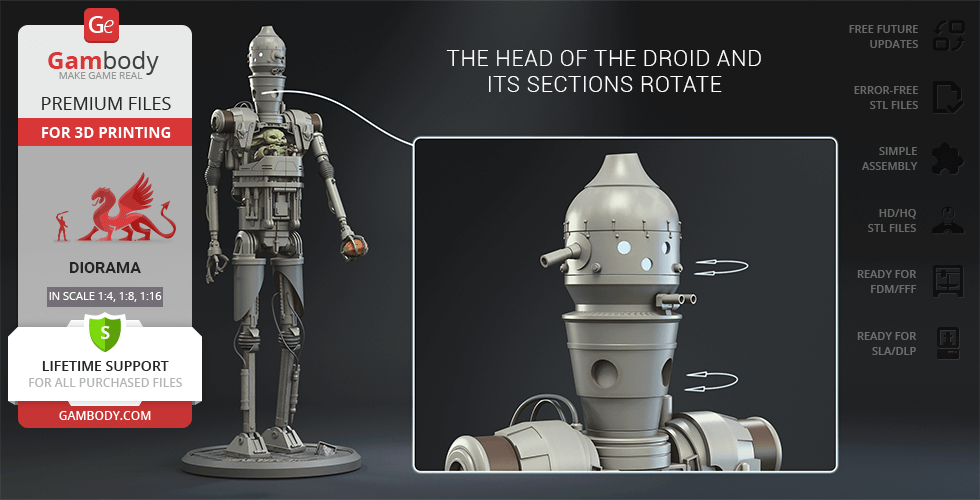

  • The head of the droid and its sections rotate;

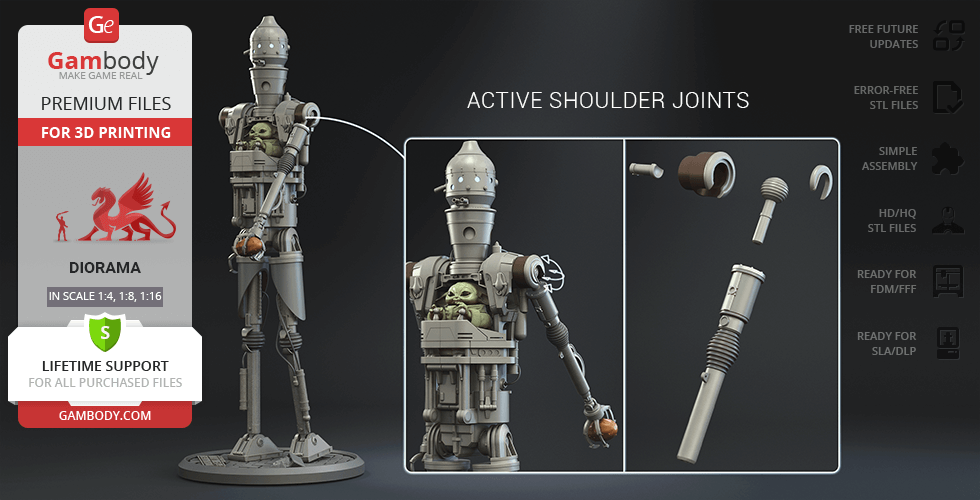

  • Active shoulder joints;
  • Two arm position options - bent at the elbow and straightened;
  • Five variants of claws in different positions;

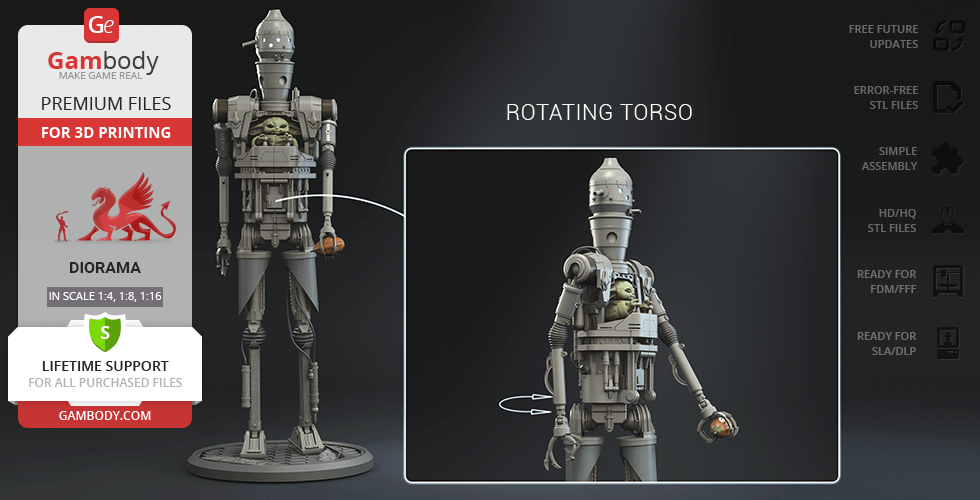

  • Rotating torso;
  • Active joints in the hips;

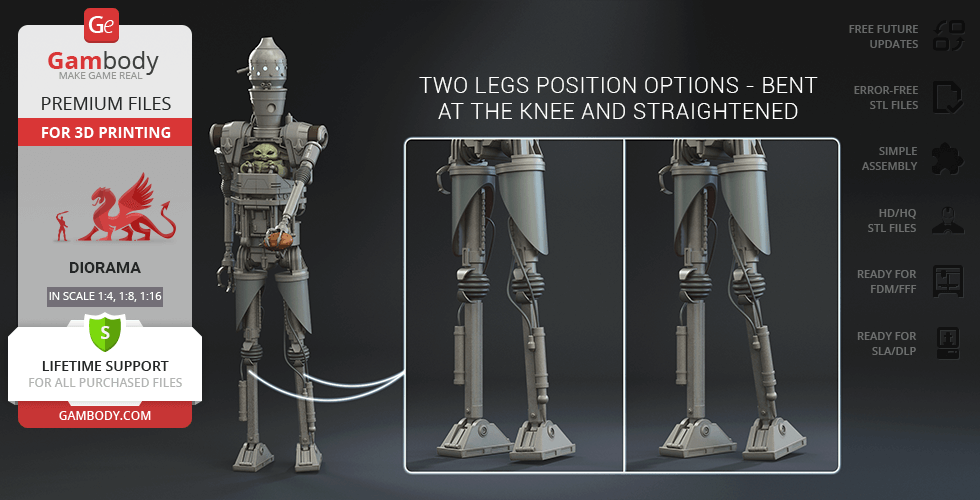

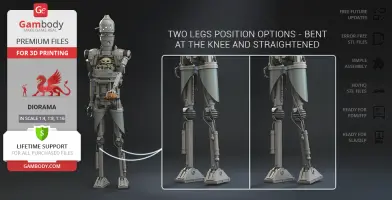

  • Two legs position options - bent at the knee and straightened;

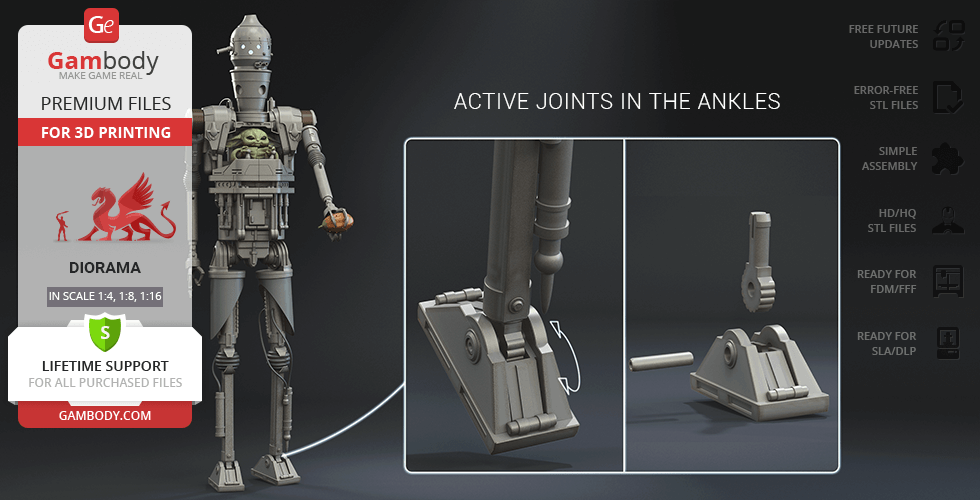

  • Active joints in the ankles;

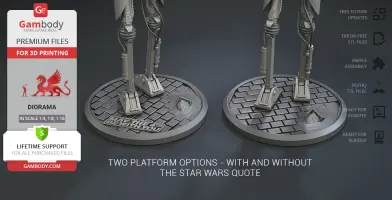

  • Two platform options - with and without the Star Wars quote;

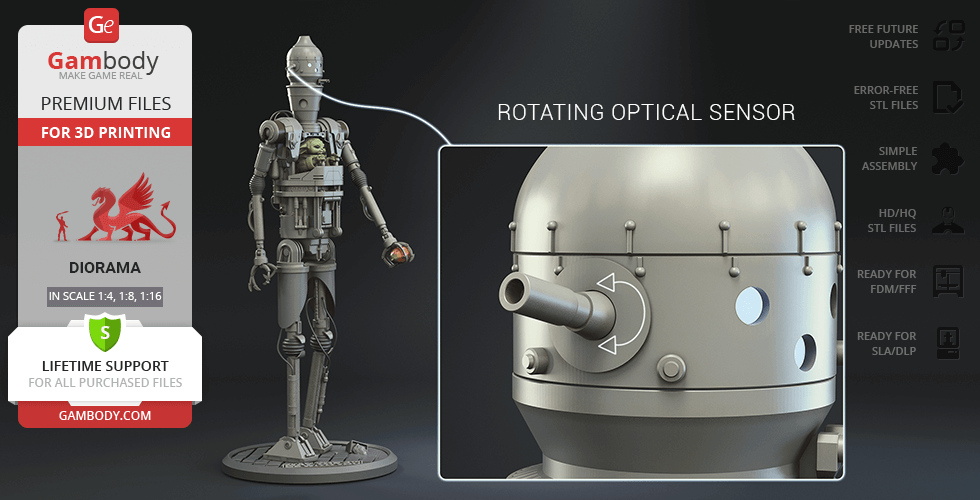

  • Rotating optical sensor;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

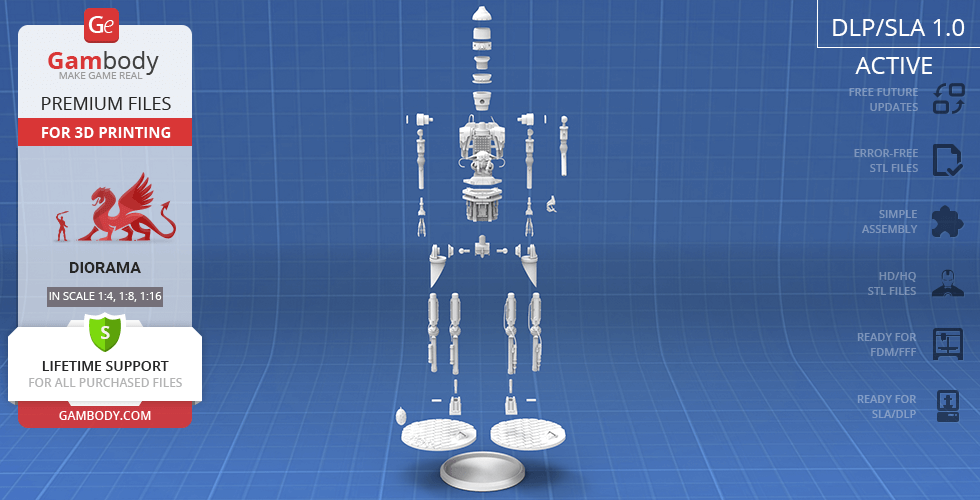

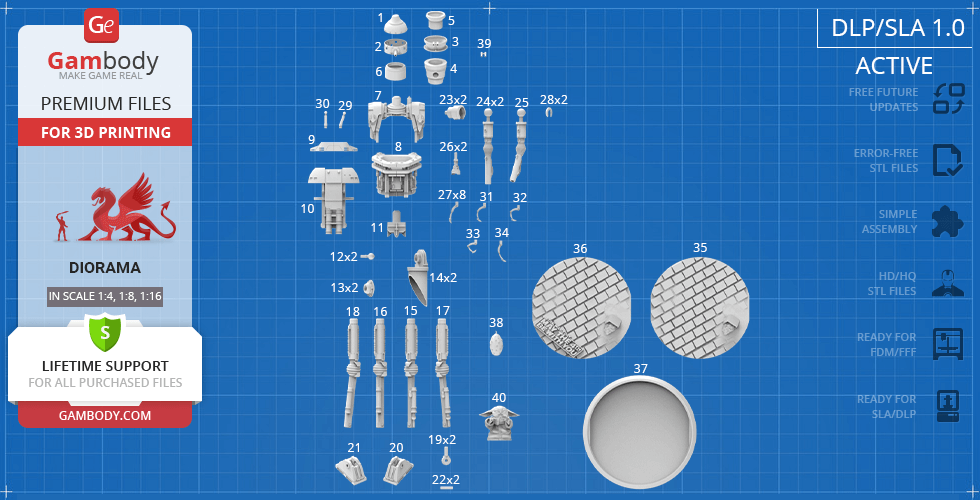

DLP/SLA Active 1.0 version features:

  • Contains 40 parts;
  • A printed model is 244 mm tall, 73 mm wide, 87 mm deep;
  • The head of the droid and its sections rotate;
  • Active shoulder joints;
  • Two arm position options - bent at the elbow and straightened;
  • Five variants of claws in different positions;
  • Rotating torso;
  • Active joints in the hips;
  • Two legs position options - bent at the knee and straightened;
  • Active joints in the ankles;
  • Two platform options - with and without the Star Wars quote;
  • Rotating optical sensor;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

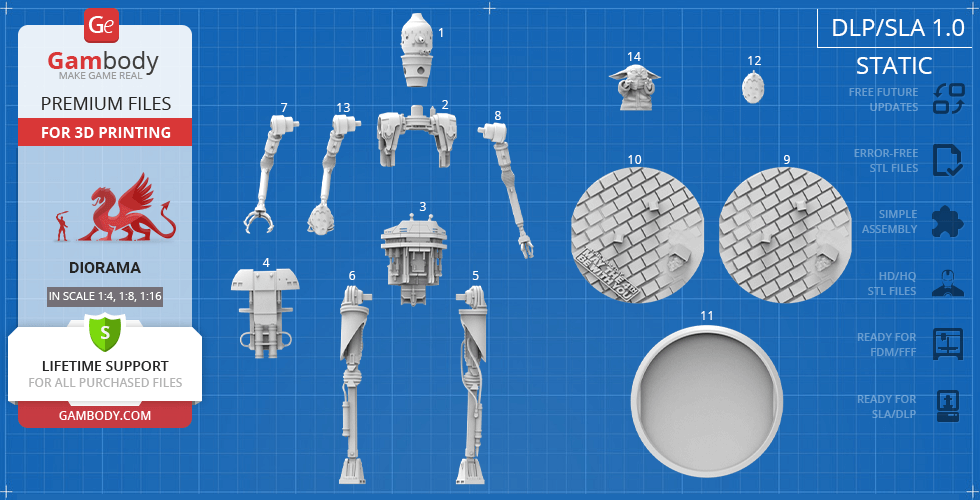

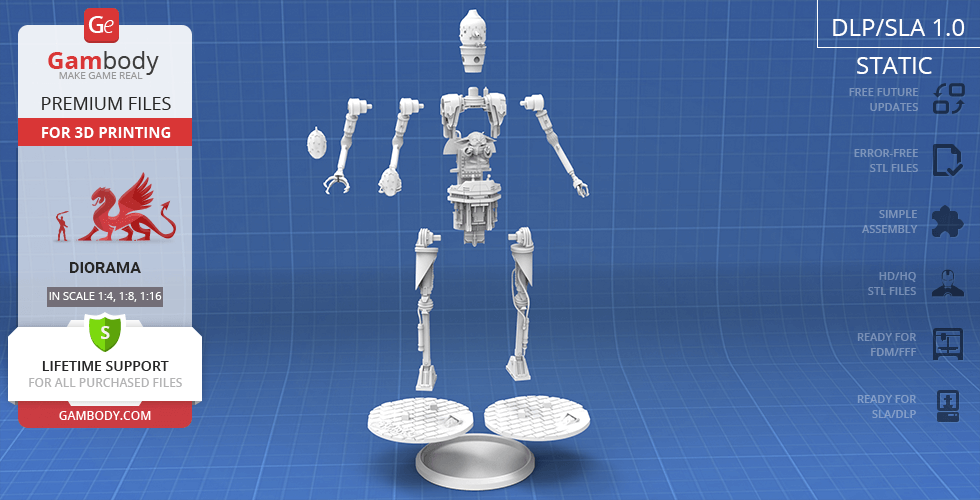

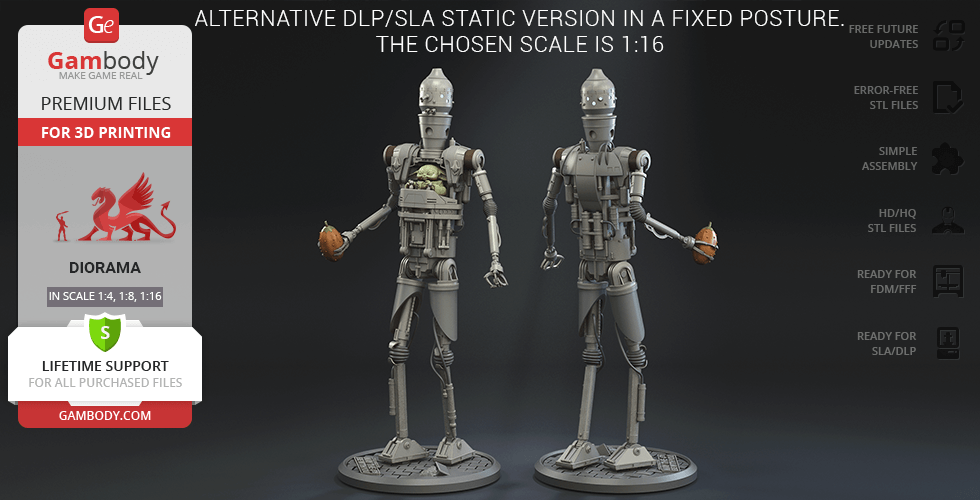

DLP/SLA Static 1.0 version features:

  • Contains 14 parts;
  • A printed model is 122 mm tall, 60 mm wide, 40 mm deep;
  • Two options for the hands - a solid hand with and without the fruit;
  • Two platform options - with and without the Star Wars quote.

You can get the model of IG-12 with Grogu in Diorama for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble IG-12 with Grogu in Diorama 3D Printing Model on Gambody YouTube channel.

Also, you may like the Boba Fett 2022 and Bo-Katan 3D printing figurines, and other Star Wars models and figurines for 3D printing.

________

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

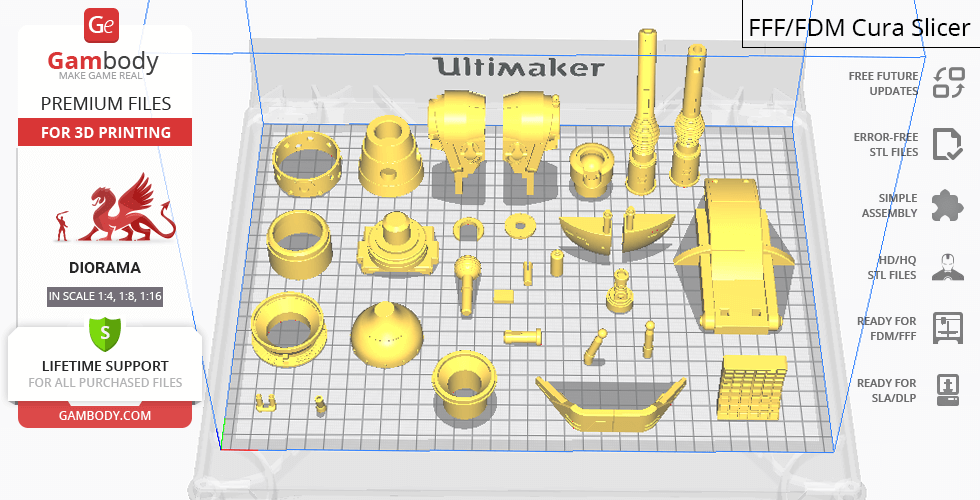

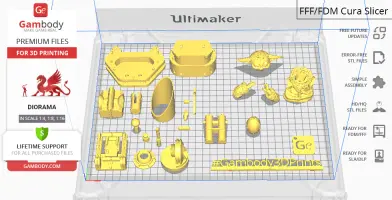

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
