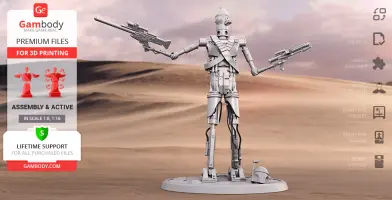

IG-11 Droid 3D Printing Model | Assembly + Action

(7)
cm: 17 w x 17 d x 25.3 h
in: 6.693 w x 6.693 d x 9.961 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

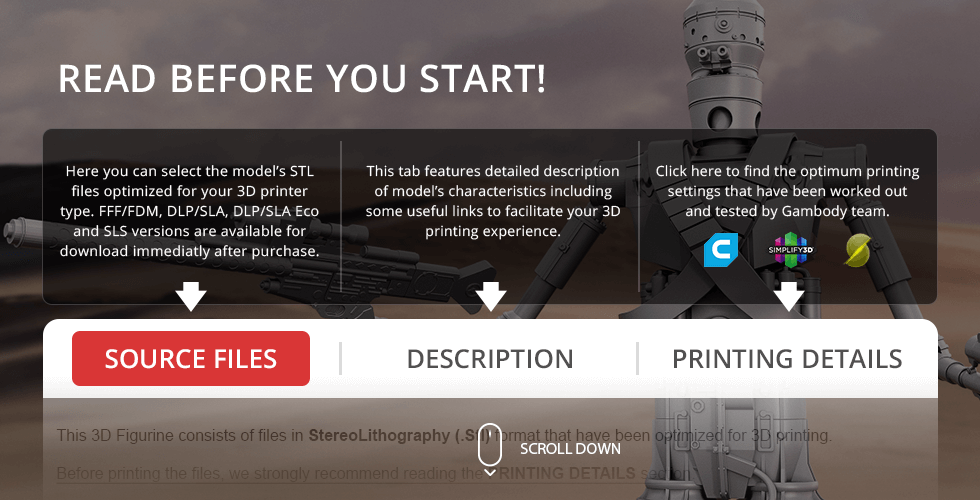

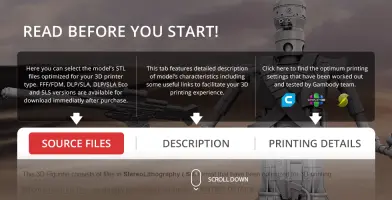

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

IG-11 Droid 3D Printing Model comes in 3 versions for FFF/FDM and DLP/SLA/SLS 3D printers. Files for each version are available for download after purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

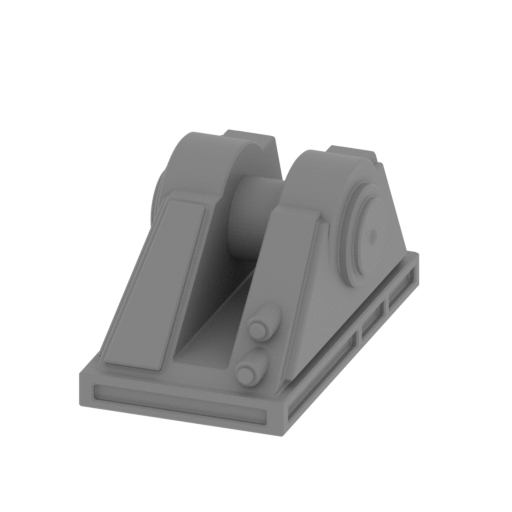

1_foot_R_FDM (repaired).s tl
0.37 MiB 58 min 1 m 21 x 36 x 18 Download

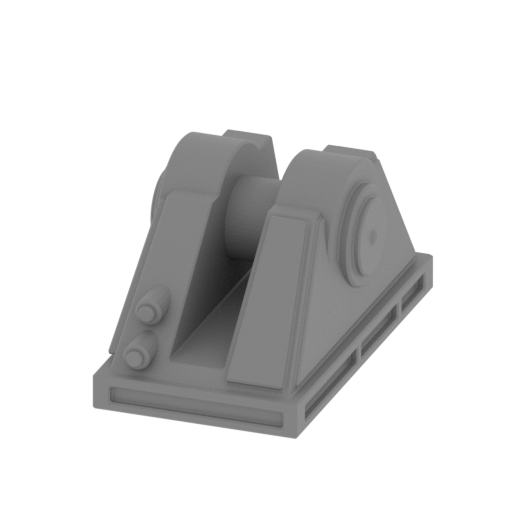

2_foot_L_FDM (repaired).s tl
0.37 MiB 59 min 1 m 21 x 36 x 18 Download

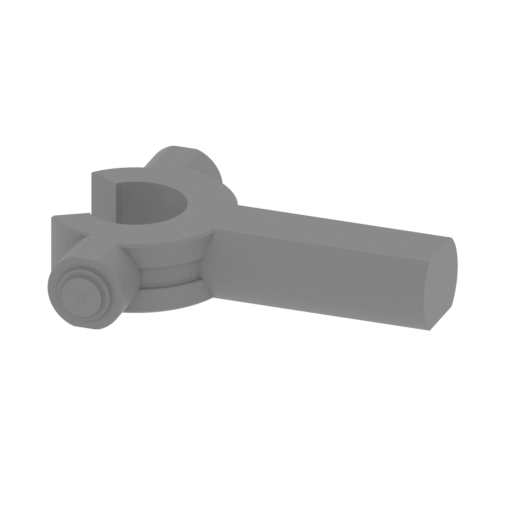

3_foot_connector_R_FDM (r epaired).stl
0.26 MiB 12 min <1 m 27 x 21 x 5 Download

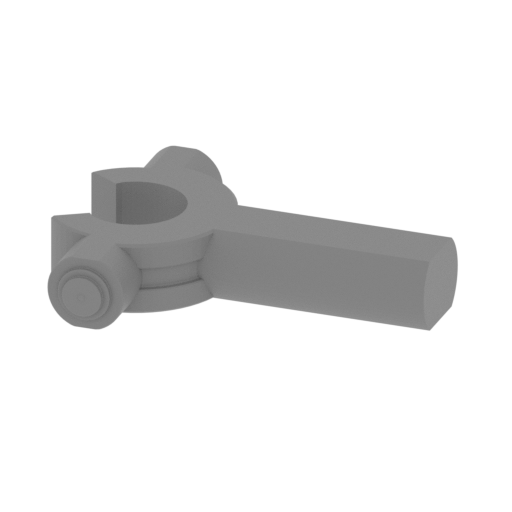

4_foot_connector_L_FDM (r epaired).stl
0.26 MiB 12 min <1 m 27 x 21 x 5 Download

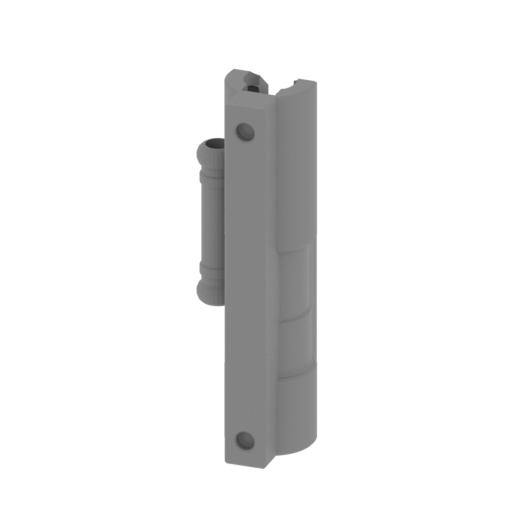

5_shin_R_FDM (repaired).s tl
0.41 MiB 1 h 9 min 1 m 14 x 17 x 43 Download

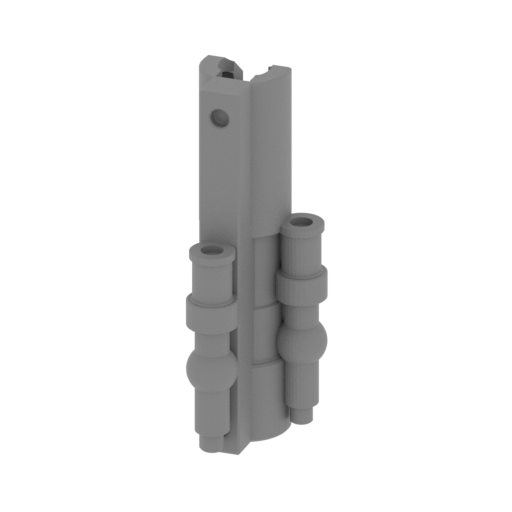

6_shin_L_FDM (repaired).s tl
0.67 MiB 1 h 21 min 1 m 14 x 22 x 43 Download
7_knee_R_FDM (repaired).s tl
0.28 MiB 30 min <1 m 8 x 16 x 34 Download

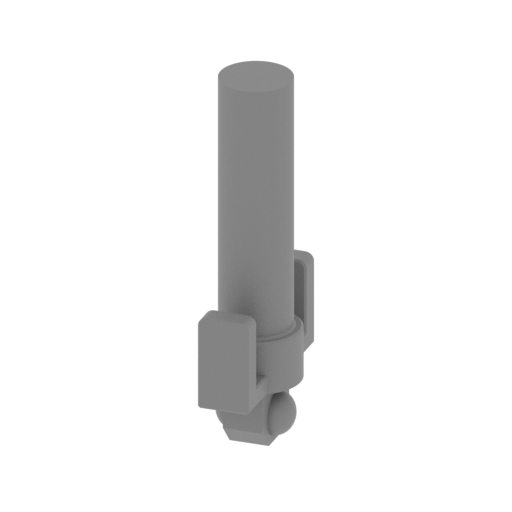

8_knee_L_FDM (repaired).s tl
0.28 MiB 30 min <1 m 8 x 16 x 34 Download

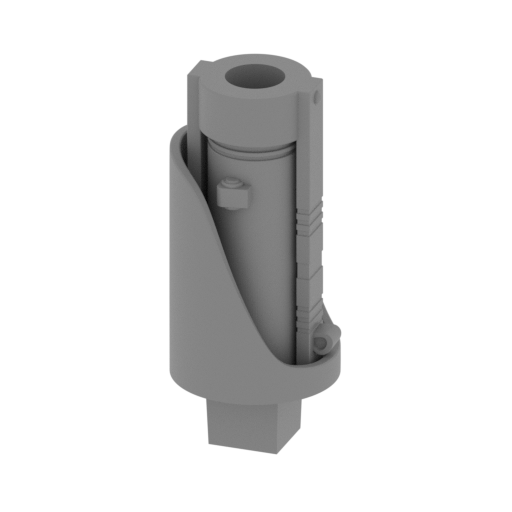

9_leg_R_FDM (repaired).st l
2.50 MiB 1 h 31 min 1 m 19 x 19 x 44 Download

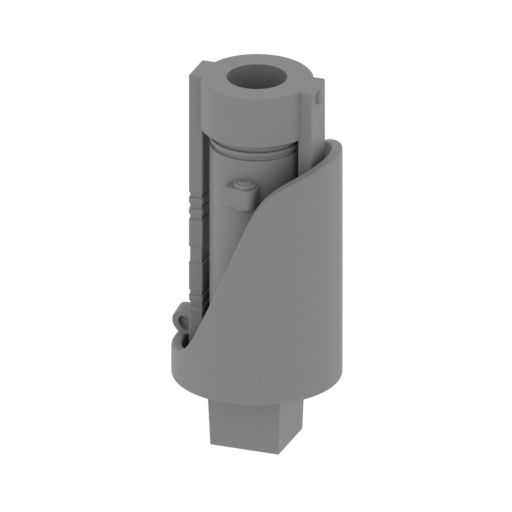

10_leg_L_FDM (repaired).s tl
2.50 MiB 1 h 34 min 1 m 19 x 19 x 44 Download

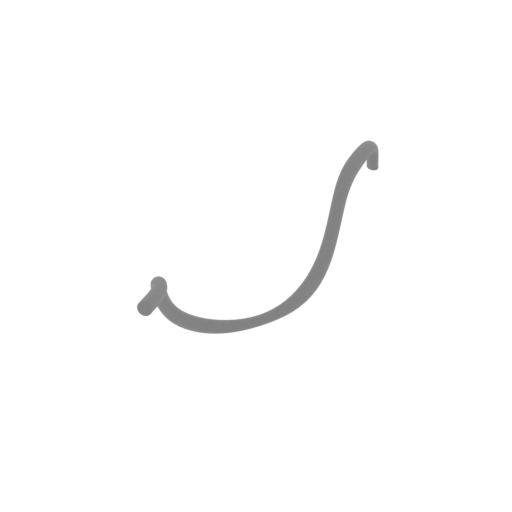

11_shin_pipe_1_R_FDM (rep aired).stl
0.91 MiB 21 min <1 m 20 x 58 x 19 Download

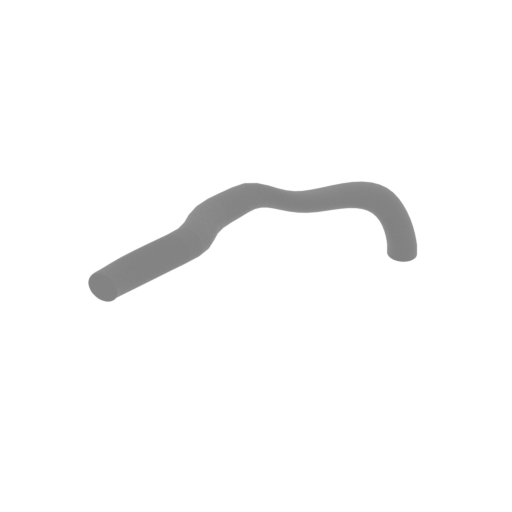

12_shin_pipe_2_R_FDM (rep aired).stl
0.42 MiB 5 min <1 m 11 x 20 x 6 Download

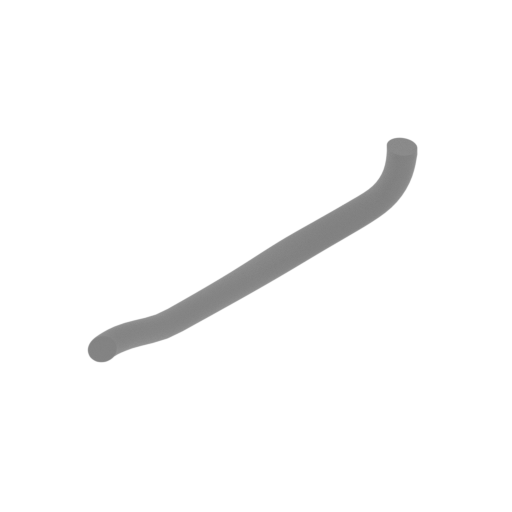

13_shin_pipe_3_R_FDM (rep aired).stl
0.43 MiB 3 min <1 m 11 x 20 x 6 Download

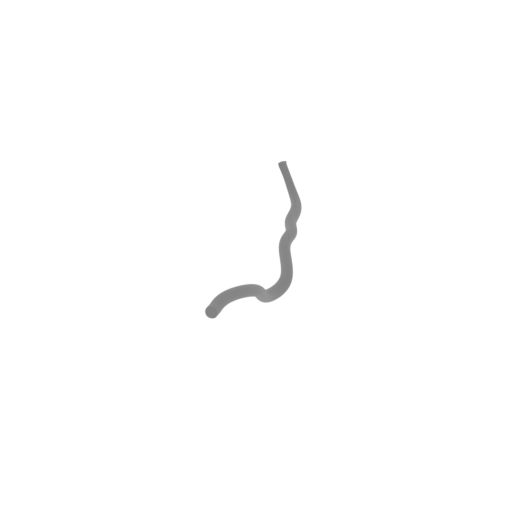

14_shin_pipe_1_L_FDM (rep aired).stl
0.32 MiB 16 min <1 m 16 x 69 x 12 Download

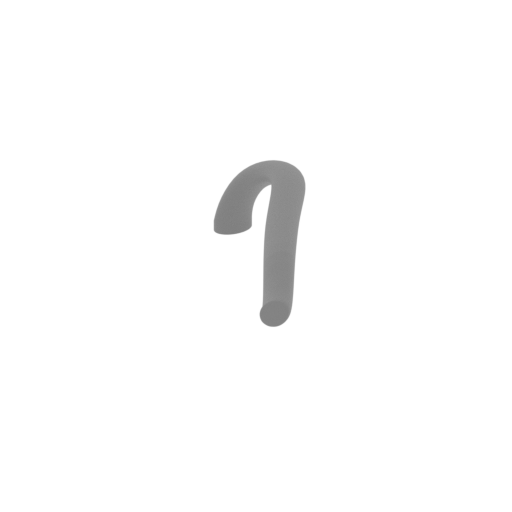

15_shin_pipe_2_L_FDM (rep aired).stl
0.42 MiB 5 min <1 m 11 x 20 x 6 Download

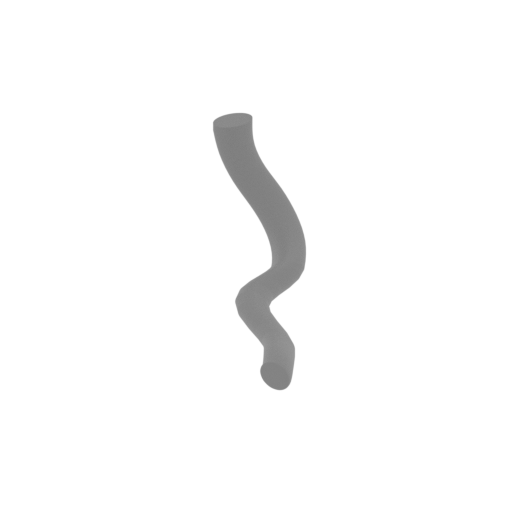

16_shin_pipe_3_L_FDM (rep aired).stl
0.43 MiB 3 min <1 m 11 x 20 x 6 Download

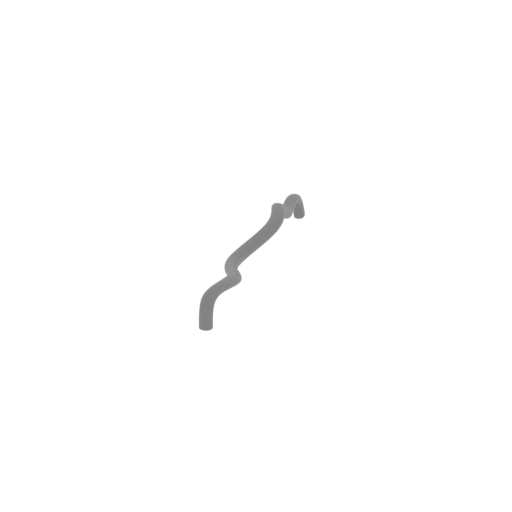

17_shin_pipe_4_L_FDM (rep aired).stl
0.33 MiB 12 min <1 m 8 x 49 x 10 Download

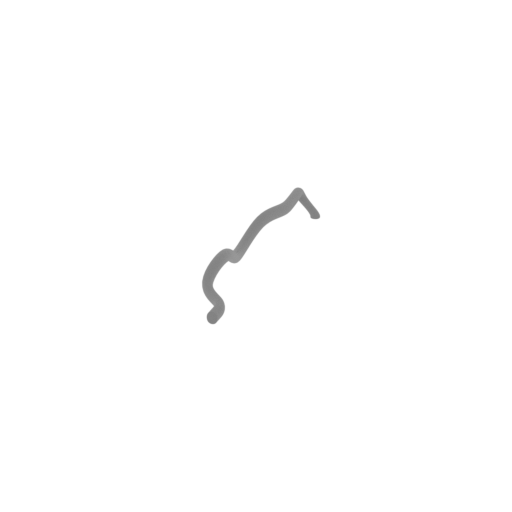

18_shin_pipe_5_L_FDM (rep aired).stl
0.28 MiB 15 min <1 m 10 x 62 x 13 Download

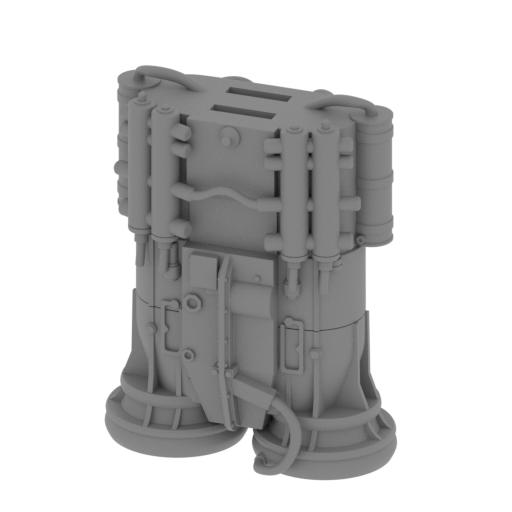

19_pelvis_FDM (repaired). stl
11.87 MiB 5 h 34 min 3 m 45 x 30 x 58 Download

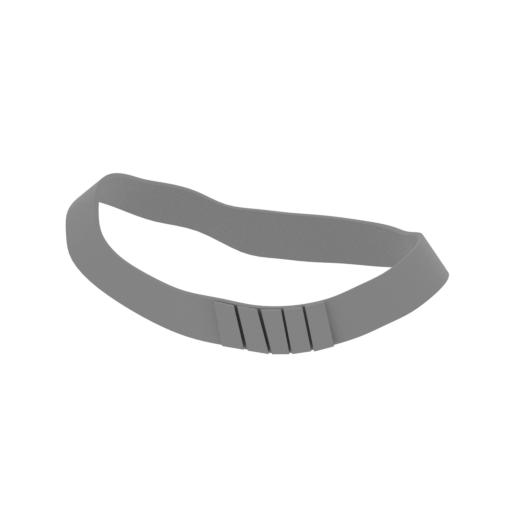

20_belt_bot_FDM (repaired ).stl
1.33 MiB 53 min <1 m 64 x 38 x 18 Download

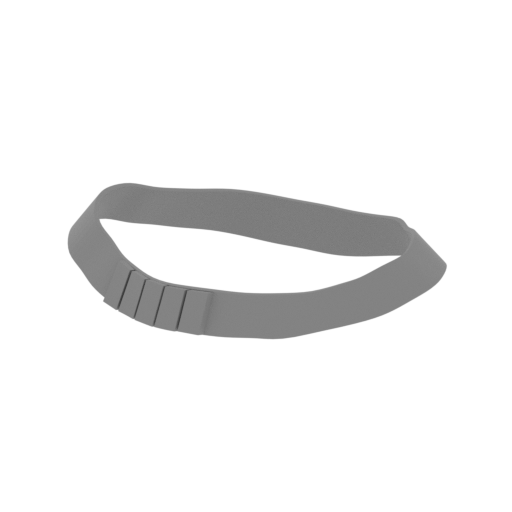

21_belt_top_FDM (repaired ).stl
1.26 MiB 52 min <1 m 67 x 43 x 14 Download

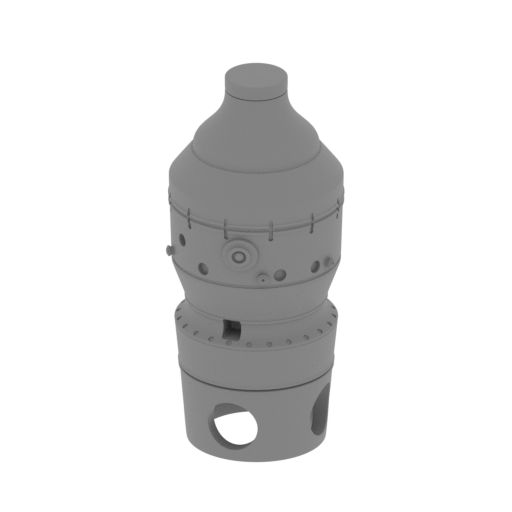

22_head_FDM (repaired).st l
6.56 MiB 1 h 24 min 1 m 20 x 21 x 44 Download

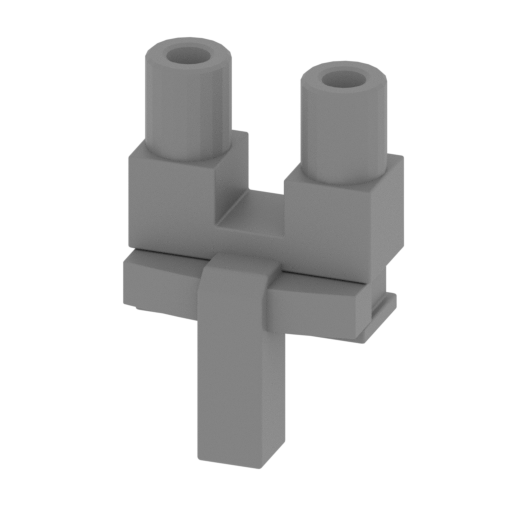

23_head_sensor_FDM (repai red).stl
0.39 MiB 6 min <1 m 7 x 4 x 11 Download

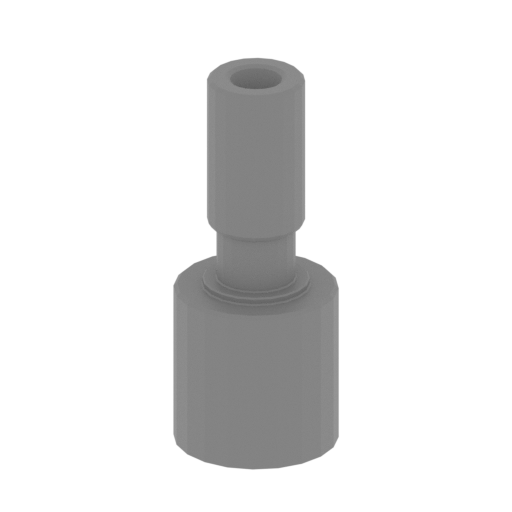

24_head_pipe_FDM (repaire d).stl
0.04 MiB 2 min <1 m 3 x 3 x 8 Download

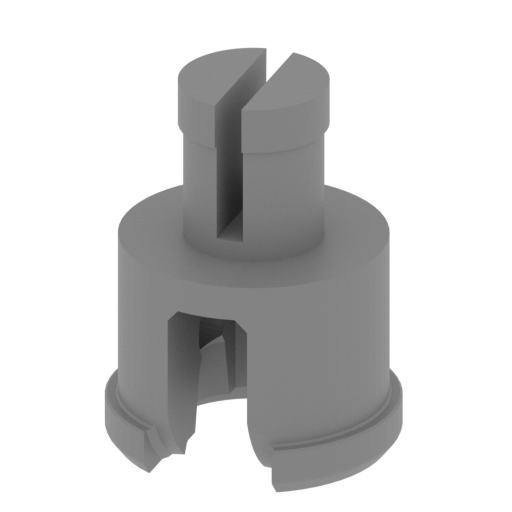

25_shoulder_R_FDM (repair ed).stl
0.29 MiB 17 min <1 m 13 x 12 x 17 Download

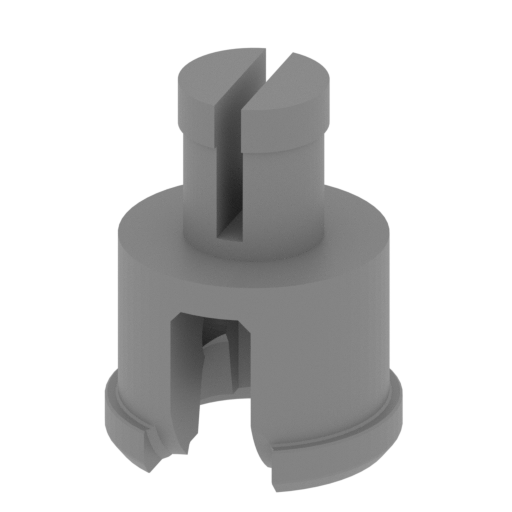

26_shoulder_L_FDM (repair ed).stl
0.29 MiB 17 min <1 m 13 x 12 x 17 Download
27_arm_R_FDM (repaired).s tl
0.60 MiB 33 min <1 m 9 x 14 x 31 Download

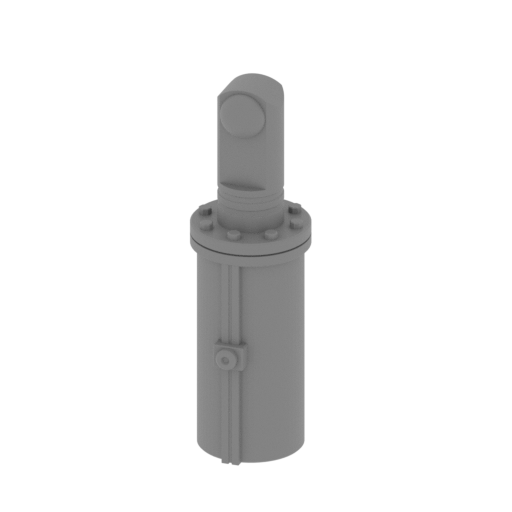

28_arm_L_FDM (repaired).s tl
0.60 MiB 33 min <1 m 9 x 14 x 31 Download

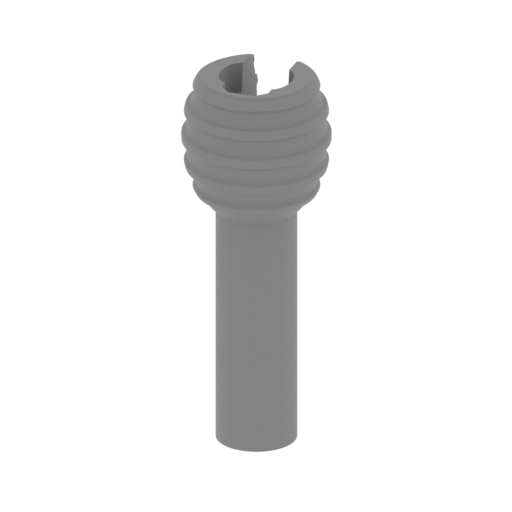

29_elbow_R_FDM (repaired) .stl
1.28 MiB 29 min <1 m 11 x 11 x 28 Download

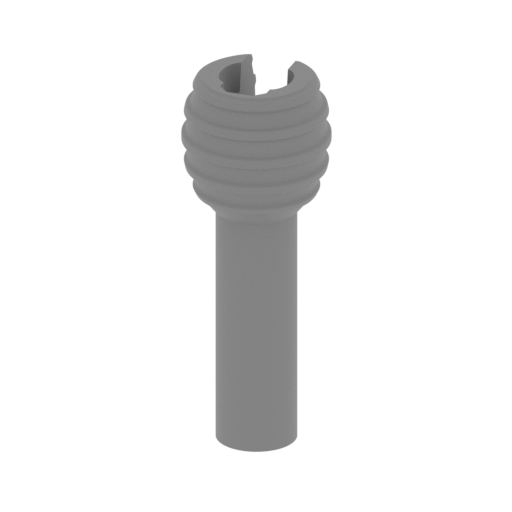

30_elbow_L_FDM (repaired) .stl
1.28 MiB 29 min <1 m 11 x 11 x 28 Download
31_hand_R_FDM (repaired). stl
0.81 MiB 18 min <1 m 11 x 50 x 8 Download

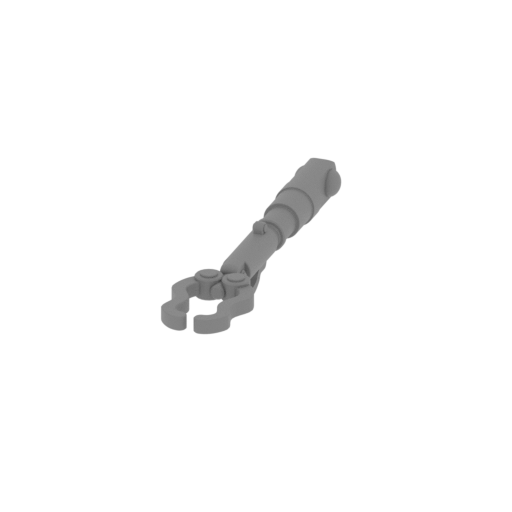

32_hand_L_FDM (repaired). stl
0.81 MiB 18 min <1 m 11 x 50 x 8 Download

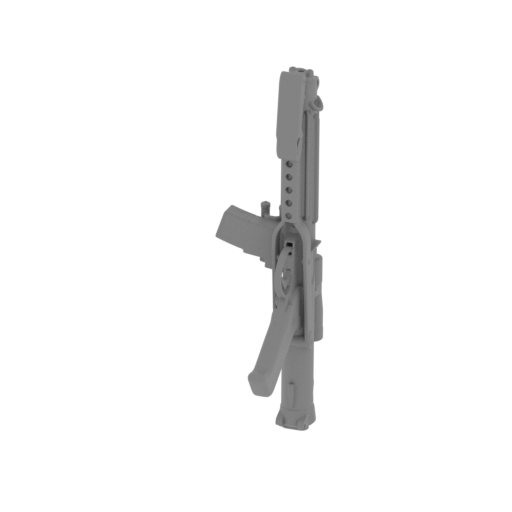

33_blaster_1_FDM (repaire d).stl
5.40 MiB 1 h 33 min 1 m 17 x 26 x 61 Download

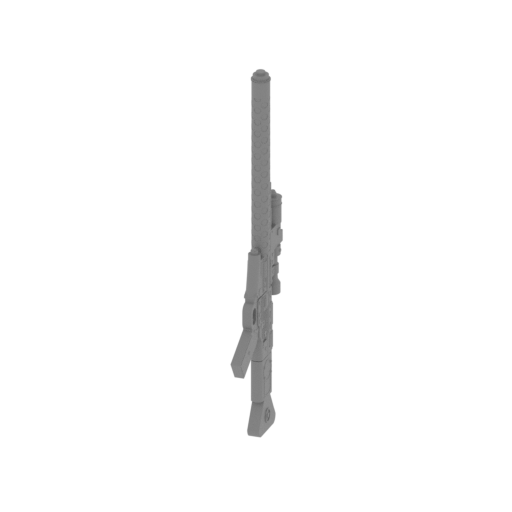

34_blaster_2_FDM (repaire d).stl
6.45 MiB 1 h 55 min 1 m 5 x 33 x 107 Download

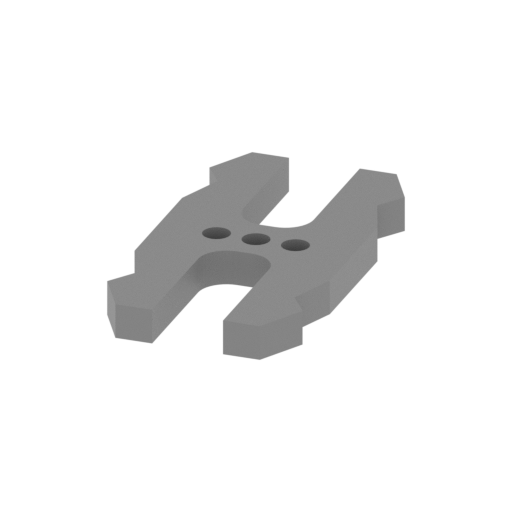

35_Ge_lock_10H_x2_FDM (re paired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

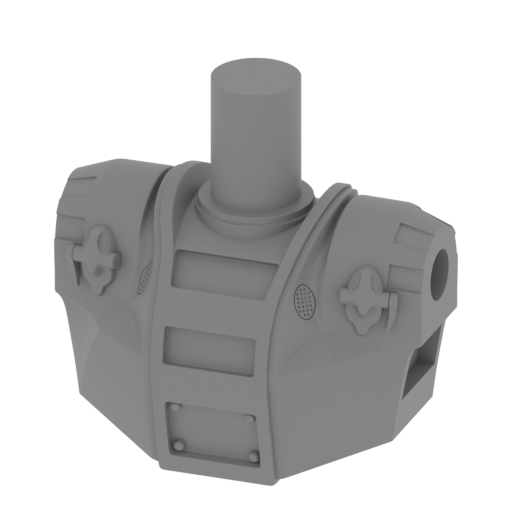

36_body_FDM (repaired).st l
14.17 MiB 3 h 36 min 2 m 46 x 33 x 47 Download

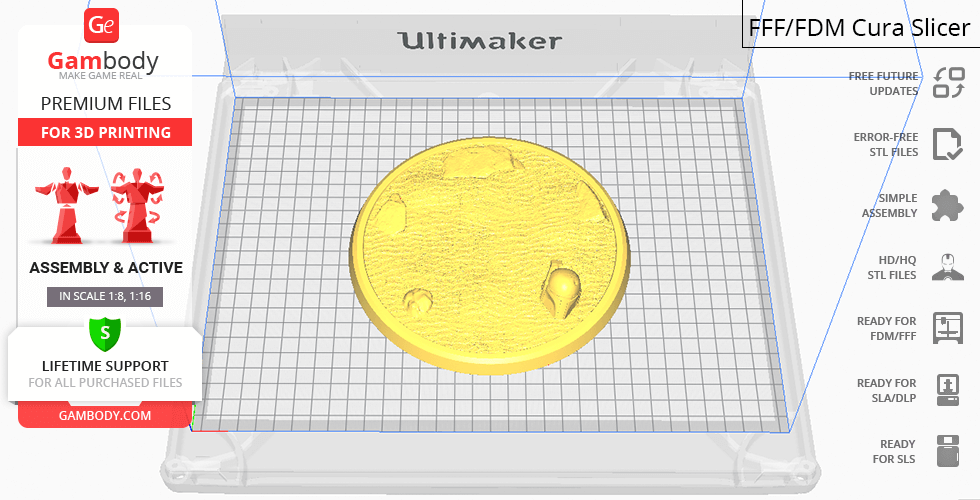

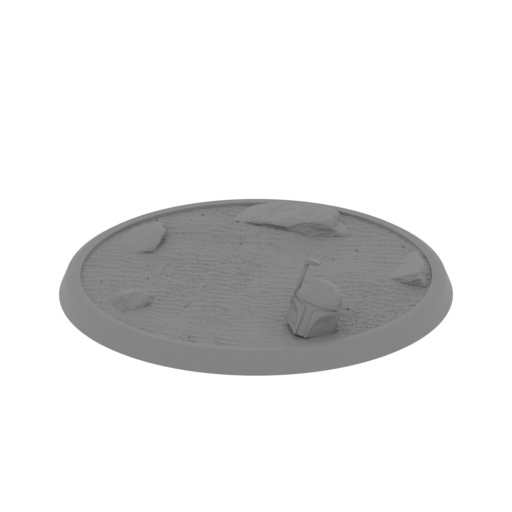

37_platform_FDM (repaired ).stl
24.15 MiB 20 h 1 min 10 m 170 x 170 x 37 Download

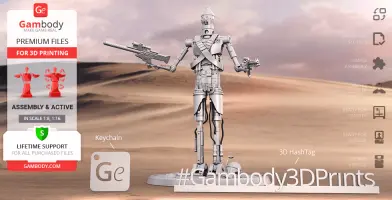

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

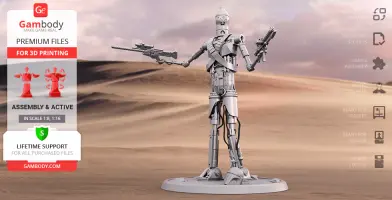

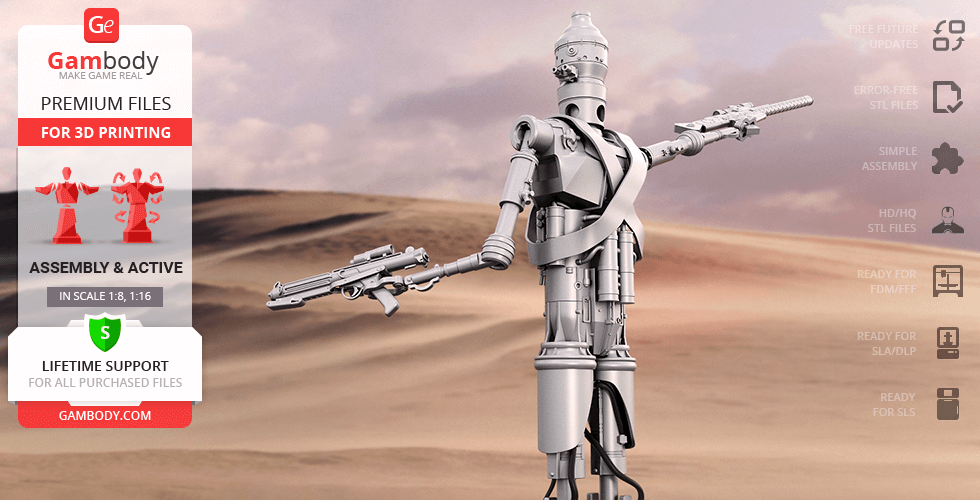

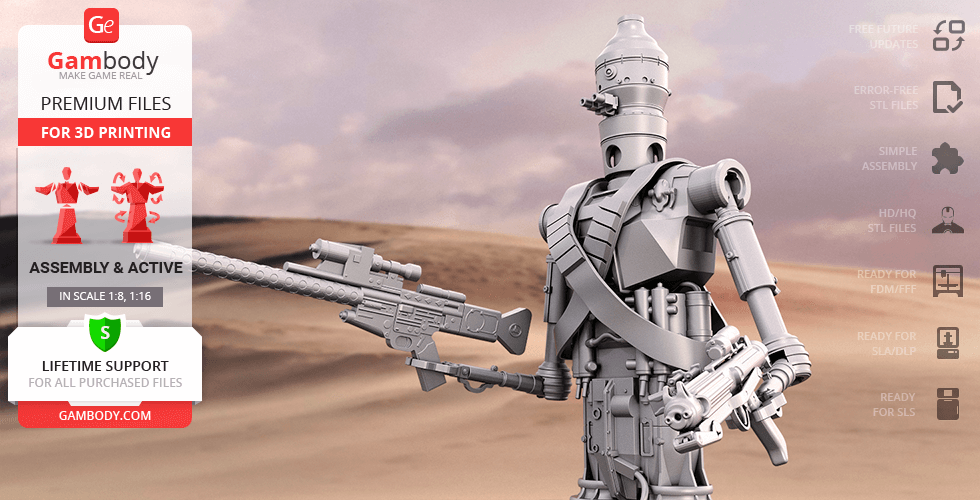

IG-11 assassin-type droid is a too-innocent-for-its-kind robot who appeared in the Star Wars television series The Mandalorian. Masculine-programmed bounty hunter of the IG-series product line is often mistaken with the deadly and feared IG-88 or Phlutdroid. In reality, the assassin droid who is expected to be skilled in security and military functions is more of a “child with a gun” who is seen spinning on its own torso as it rapidly fires blaster bolts in the midst of a gunfight. The author of the IG-11 Droid 3D printing model mentioned that he was very excited for the live-action The Mandalorian and actually start pondering over the possible 3D printing project since the moment the show’s writer Jon Favreau first shared the photo of the future franchise character. The 3D artist spent 88 hours in total to create an IG-11 model for 3D printing that would not only be a nice addition to one’s Star Wars figurines collection but also will become an incredible action figure once printed! Therefore, the 3D printing plated battle droid was developed with meticulous attention to the very finest details making sure to depict the IG-series trademark hideous appearance with its sensors and acid-proof servo wires carrying an arsenal of weapons. As described by Taika Waititi, the actor who voiced IG-11, this robot “doesn't know about sarcasm and doesn't know how to lie”. So now not only the awesome-looking but also extremely nice The Mandalorian plot-line representative can be displayed on your shelf - just print it on your 3D printer.

ADAPTATION FOR 3D PRINTING

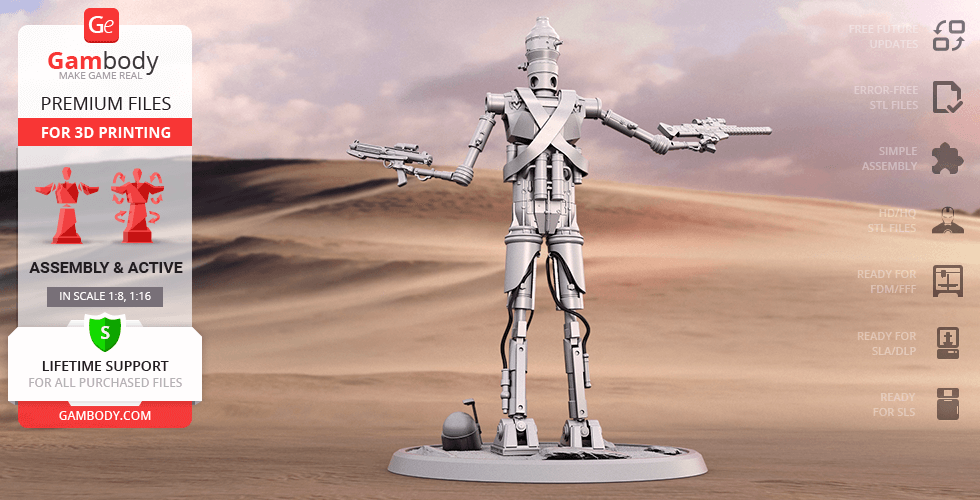

IG-11 Droid model for 3D printing is a highly articulated assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 35 hours in total. In order to ensure the robot’s multidirectional movement, it was divided into many assembly parts and special mechanisms were introduced into all model’s joints to give you an opportunity to display IG-11 Droid in a variety of positions, i.e. robot’s head, shoulders, elbows, hands, knees, feet etc. are movable. Acid-proof Servo Wires that are to be inserted into droid’s legs also come separately and it is recommended to print them with flexible filament to preserve legs’ articulation. Moreover, for you to receive the cleanest printed result, both Pulse cannon and blaster rifle that robot is displayed holding are also provided as several separate files. All assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. We also highly recommend that you watch "Assembly video" in the photo preview section before assembling the droid.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from IG-11 Droid's actual height that is 1960 mm. The 3D printing model's chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS versions.

VERSION SPECIFICATIONS

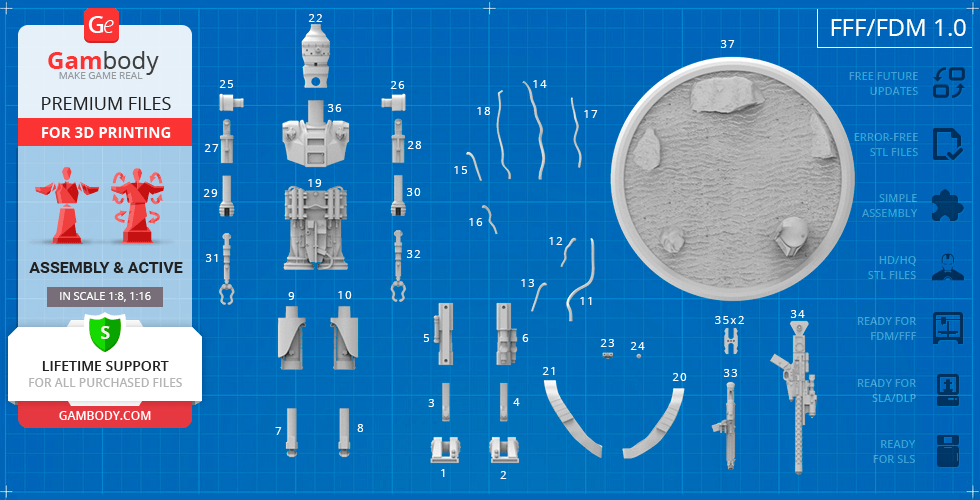

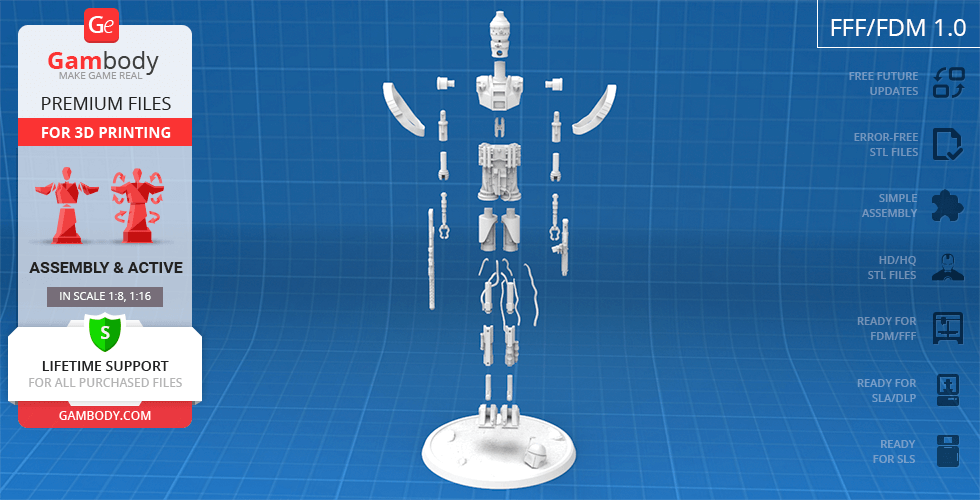

FFF/FDM 1.0 version features:
- Contains 37 parts;

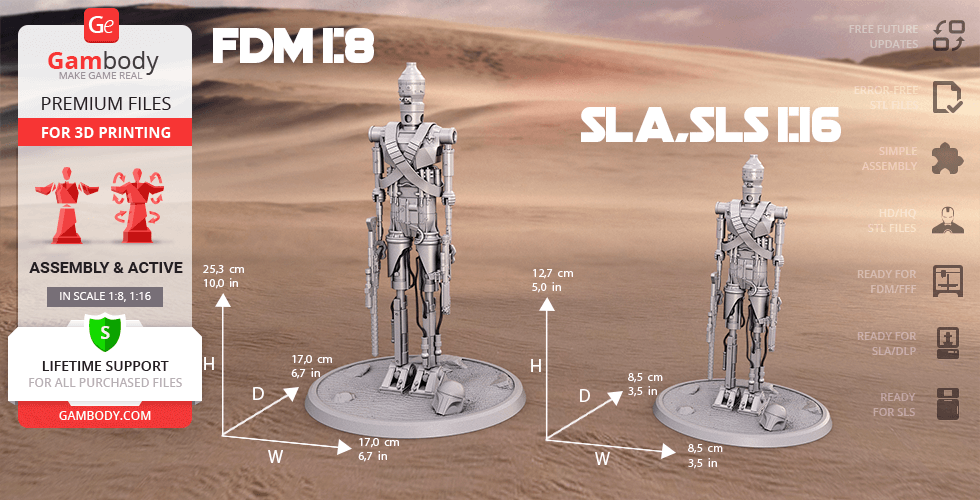

- A printed model is 253 mm tall, 170 mm wide, 170 mm deep;
- Assembly kit includes one lock 35_Ge_lock_10H_x2_FDM to connect parts securely without glue that needs to be printed 2 times;
- Each robot’s joint is articulated which allows the model's movability;
- Acid-proof Servo Wires that are to be inserted into droid’s legs also come separately and it is recommended to print them with flexible filament to preserve legs’ articulation;
- Made with a platform to resemble the deserted planet where IG-11 appears in the series' trailer;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

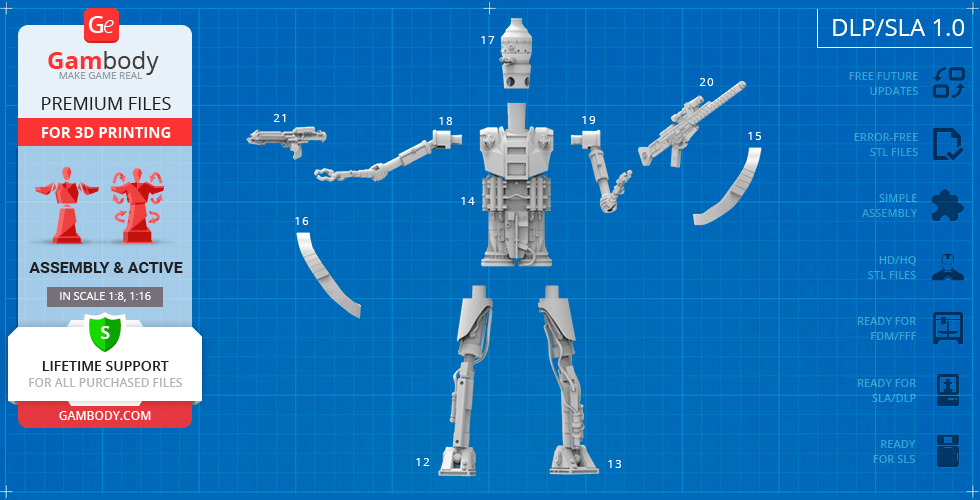

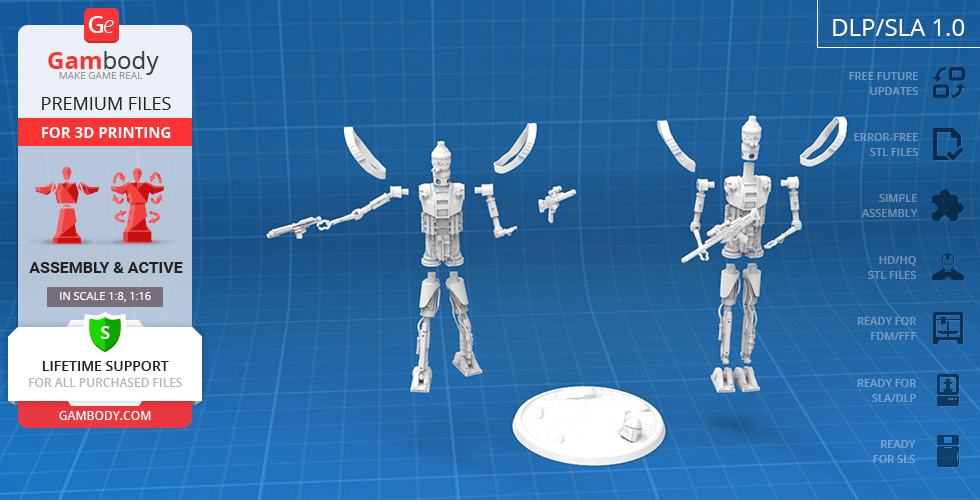

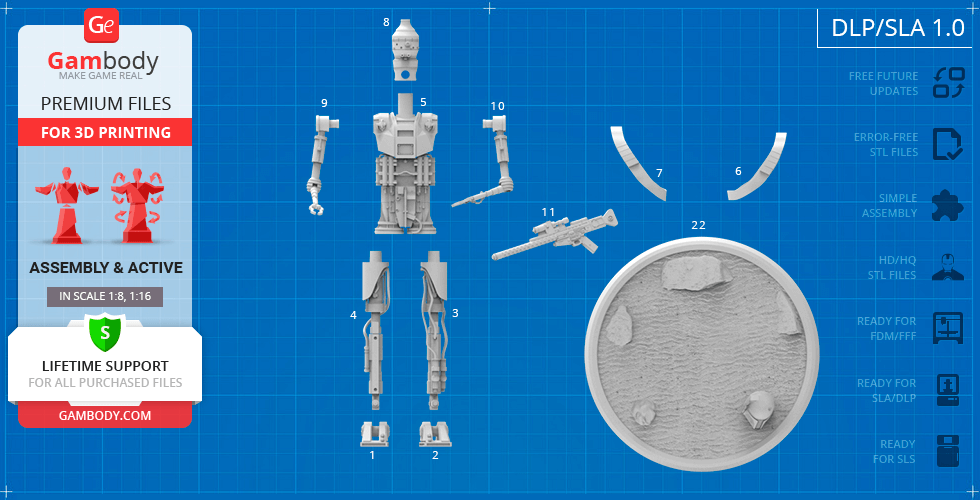

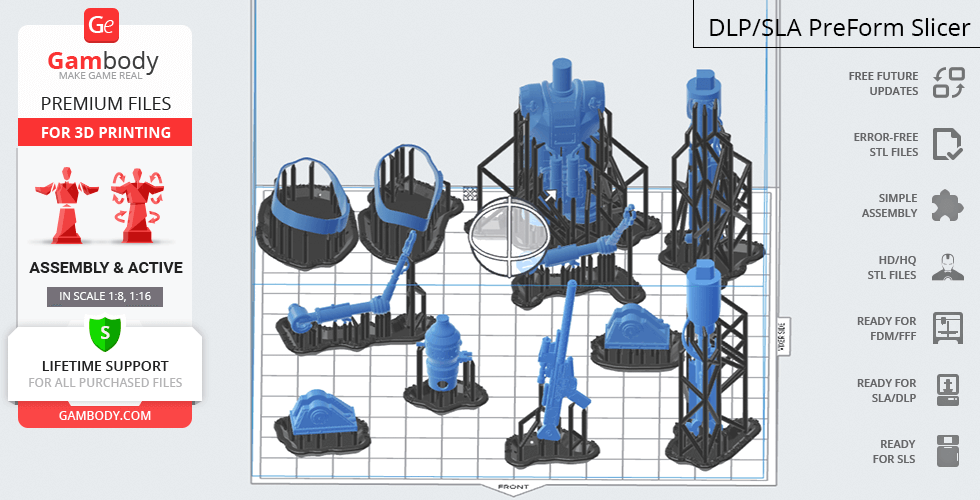

DLP/SLA 1.0 version features:
- Contains 22 parts;
- A printed model is 127 mm tall, 85 mm wide, 85 mm deep;
- Made with a platform to resemble the deserted planet where IG-11 appears in the series' trailer;

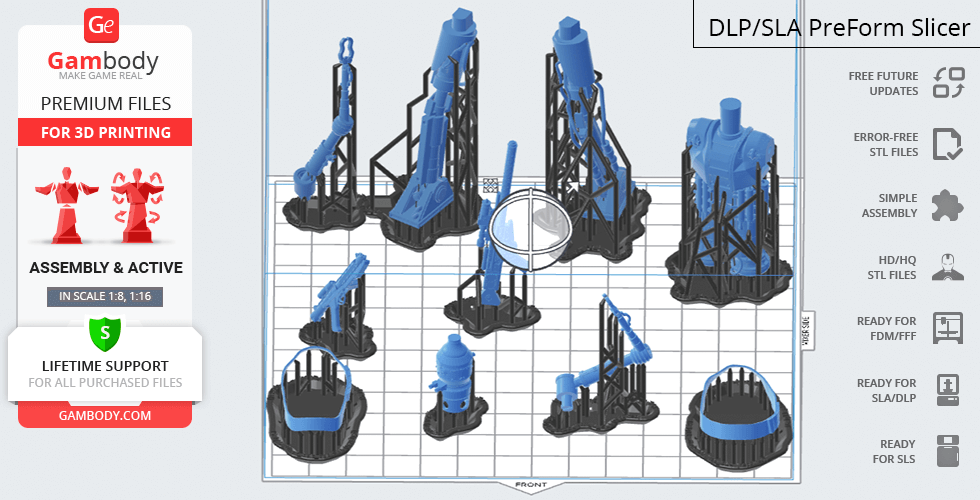

- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

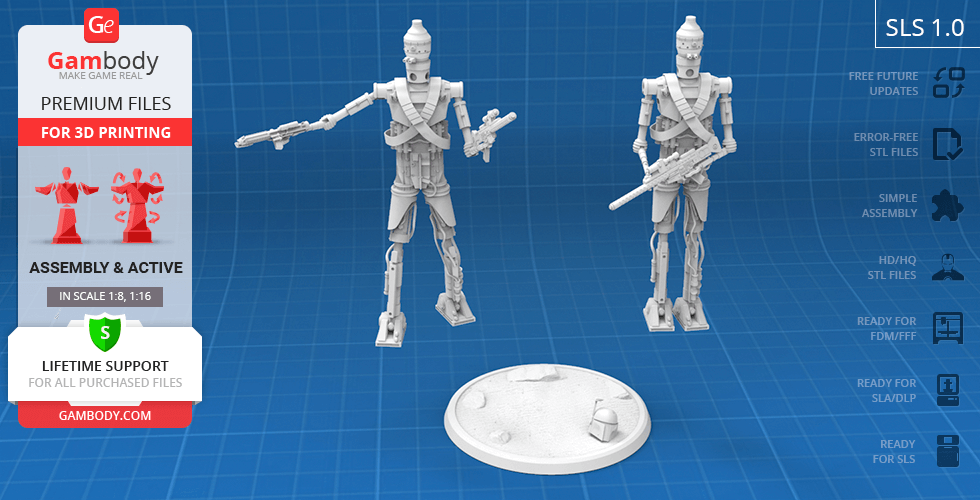

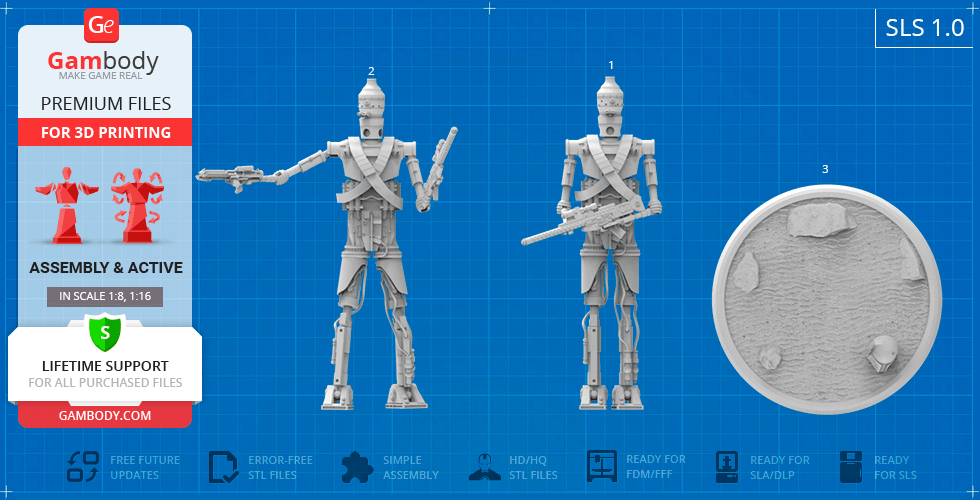

SLS 1.0 version features:
- Made as a solid one-piece figurine;
- A printed model is 127 mm tall, 85 mm wide, 85 mm deep;
- Contains 3 parts - two one-piece models one in static and one in action pose with the platform separated.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of IG-11 Droid​​​ Model for 3D printing which consist of 62 parts;
- High-poly detailed model of IG-11 Droid​​;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of IG-11 Droid​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble IG-11 Droid​ 3D Printing Model at Gambody YouTube channel.

Also, you may like other Space War Online 3D Printing Figurines as well as other Droid 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

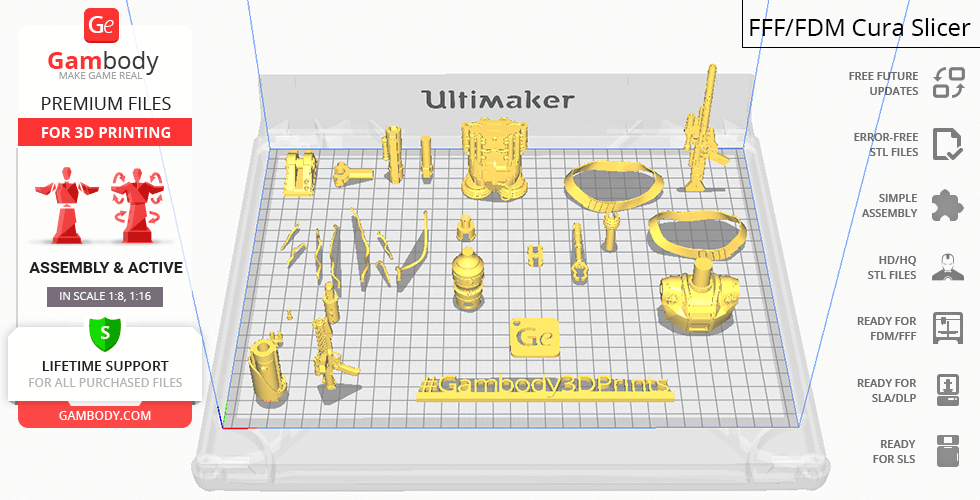

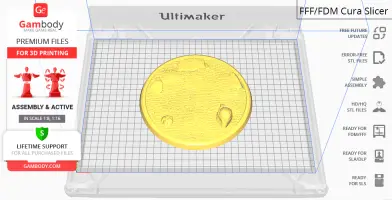

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: Use ABS or PLA Plus filament to print more durable and friction resistant details.

It is recommended to print Servo Wires that are to be inserted into droid’s legs with flexible filament to preserve legs’ articulation.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 80%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 3 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 80%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill density: 80%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
