The Mandalorian and Grogu 3D Printing Figurines in Diorama | Assembly

(4)
cm: 20.7 w x 23.6 d x 26.8 h
in: 8.15 w x 9.291 d x 10.551 h

Source Files

|

Description

|

Printing Details

This diorama of The Mandalorian and Grogu for 3D printing consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

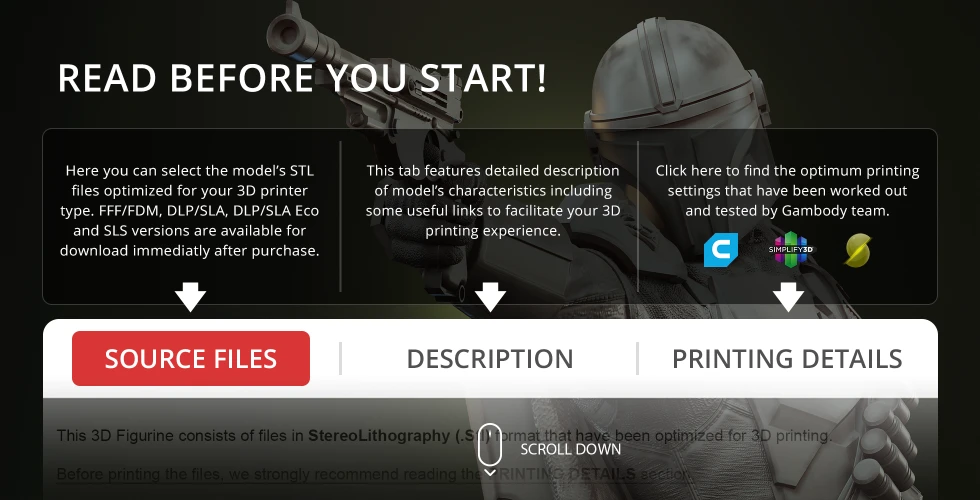

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 4 versions of The Mandalorian and Grogu STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, SLS - files for all versions are available for download after the purchase;
  • STL files of high-poly The Mandalorian and Grogu Figurines for 3D printing in diorama consist of 88 files;
  • Sizes for:
  • FFF/FDM: 268 mm tall, 207 mm wide, 236 mm deep;
  • DLP/SLA/SLS: 134 mm tall, 104 mm wide, 118 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

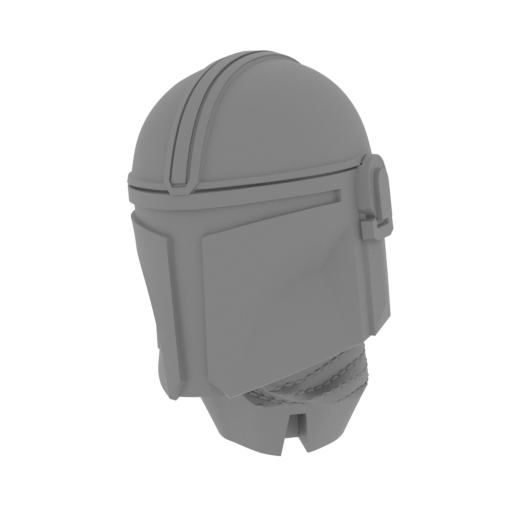

1_head_FDM(repaired).stl
28.35 MiB 2 h 11 min 1 m 28 x 34 x 41 Download

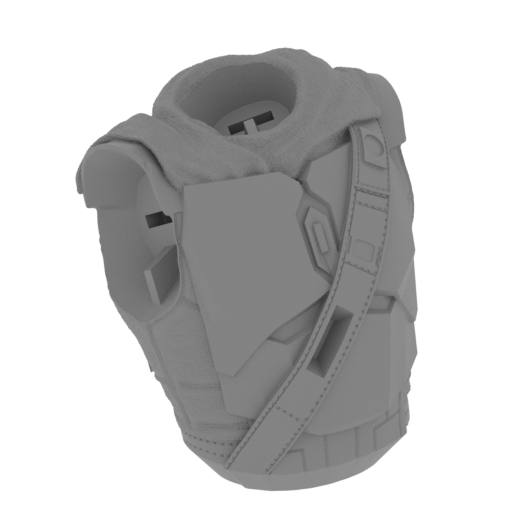

2_body_FDM(repaired).stl
50.24 MiB 9 h 11 min 5 m 55 x 55 x 64 Download

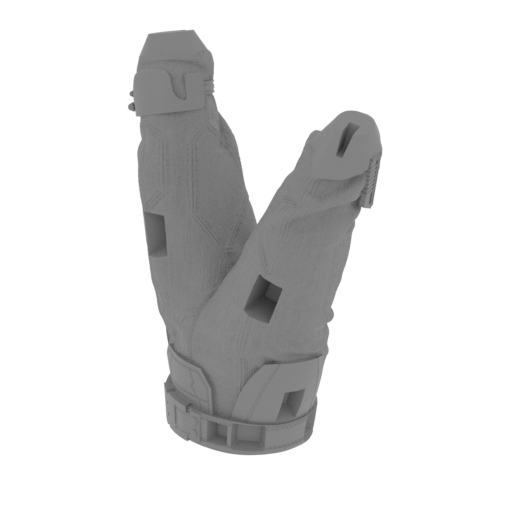

3_legs_FDM(repaired).stl
37.62 MiB 11 h 34 min 7 m 74 x 55 x 94 Download

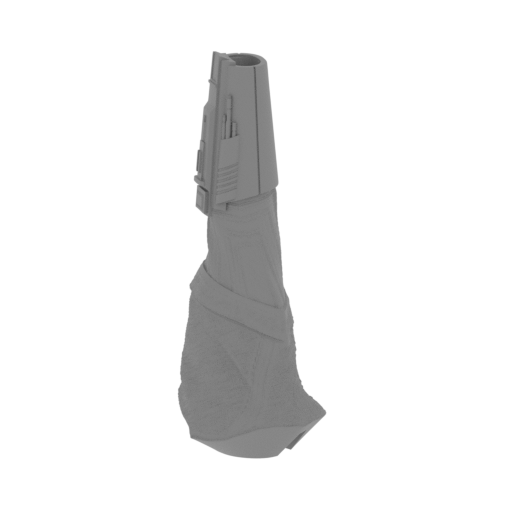

4_arm_R_FDM(repaired).stl
25.23 MiB 2 h 37 min 1 m 29 x 32 x 75 Download

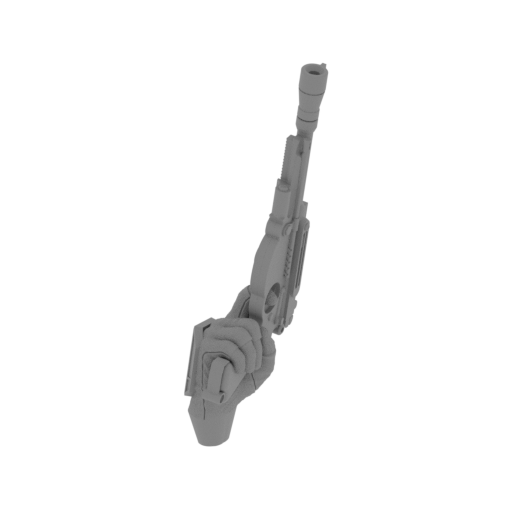

5_hand_R_with_gun_FDM(rep aired).stl
13.61 MiB 1 h 17 min 1 m 19 x 26 x 61 Download

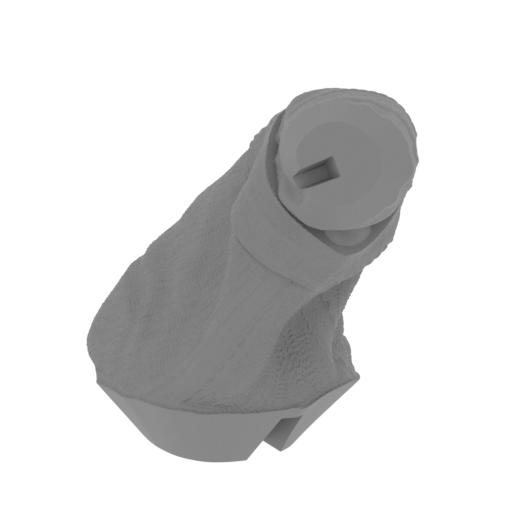

6_arm_L_1_FDM(repaired).s tl
16.90 MiB 1 h 54 min 1 m 37 x 26 x 40 Download

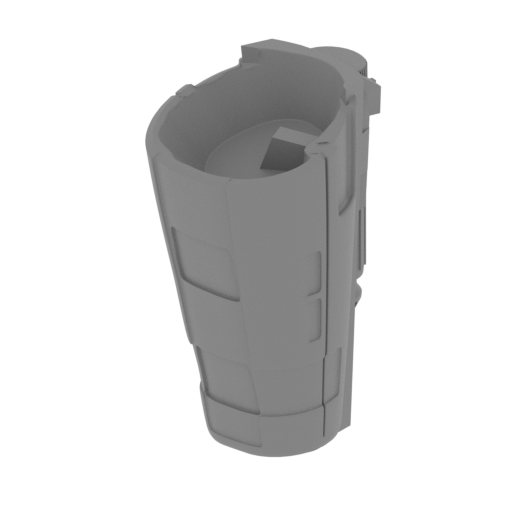

7_arm_L_2_FDM(repaired).s tl
14.69 MiB 45 min <1 m 16 x 18 x 29 Download

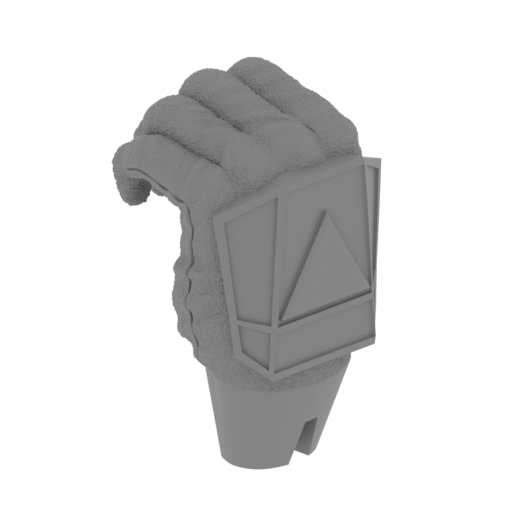

8_hand_L_FDM(repaired).st l
10.35 MiB 28 min <1 m 13 x 15 x 21 Download

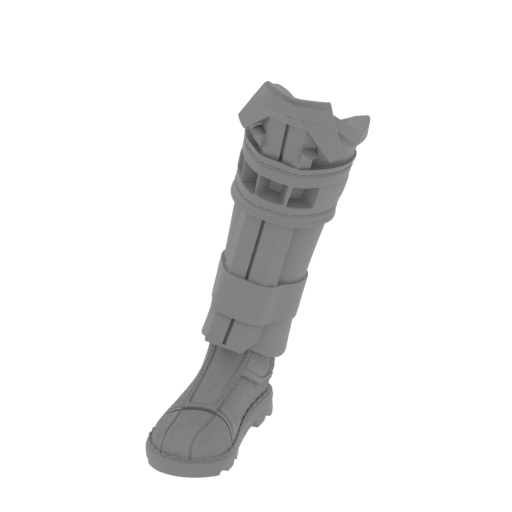

9_foot_R_FDM(repaired).st l
20.80 MiB 3 h 23 min 2 m 31 x 43 x 66 Download

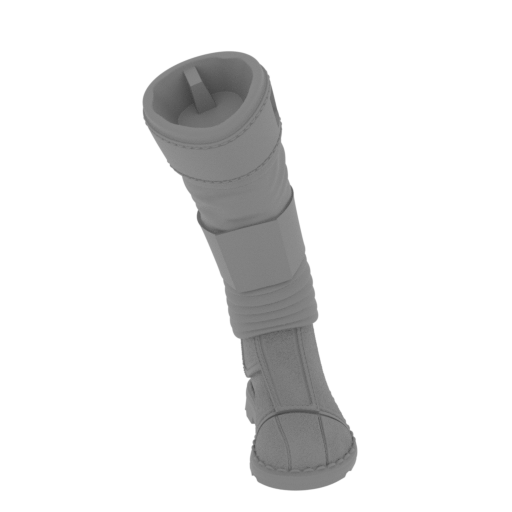

10_foot_L_FDM(repaired).s tl
19.63 MiB 2 h 11 min 1 m 35 x 34 x 58 Download

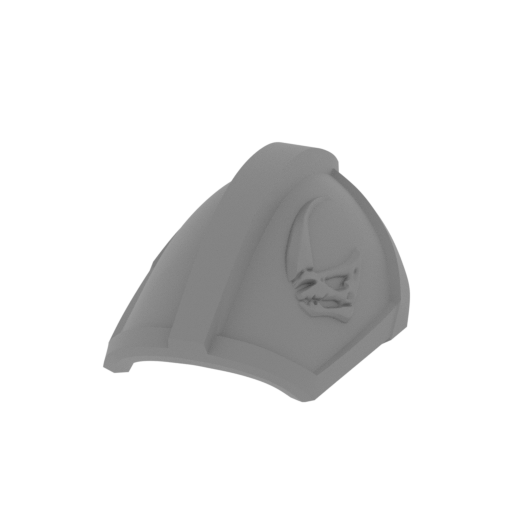

11_scapular_R_FDM(repaire d).stl
9.65 MiB 44 min <1 m 22 x 32 x 14 Download

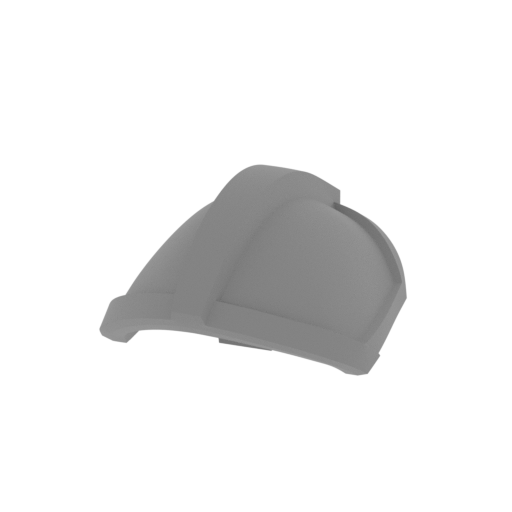

12_scapular_L_FDM(repaire d).stl
10.15 MiB 47 min <1 m 23 x 32 x 14 Download

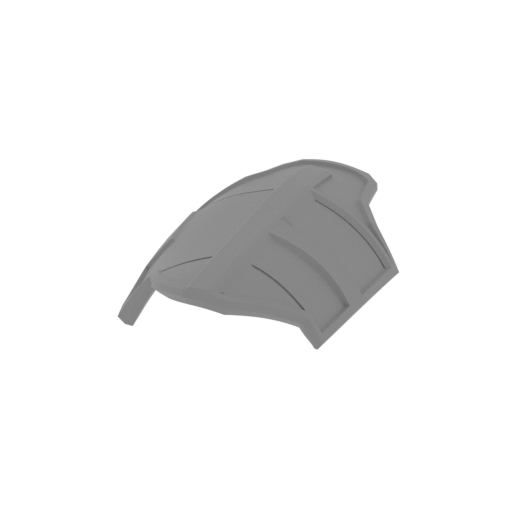

13_armor_leg_R_FDM(repair ed).stl
24.81 MiB 54 min 1 m 26 x 42 x 11 Download

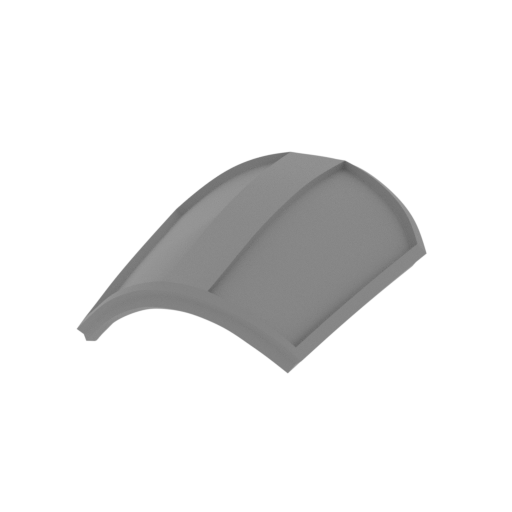

14_armor_leg_L_FDM(repair ed).stl
14.44 MiB 37 min <1 m 23 x 32 x 9 Download

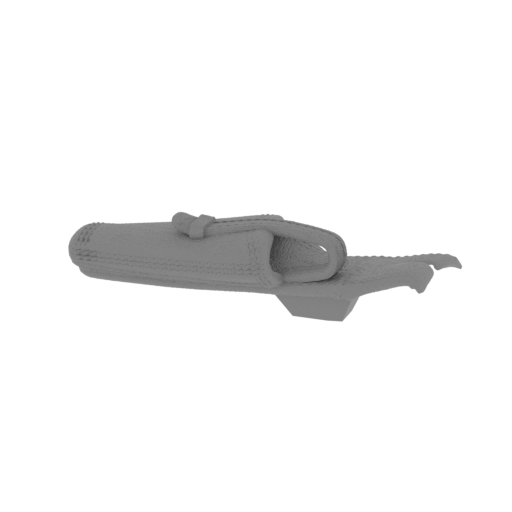

15_holster_FDM(repaired). stl
9.57 MiB 48 min <1 m 45 x 15 x 12 Download

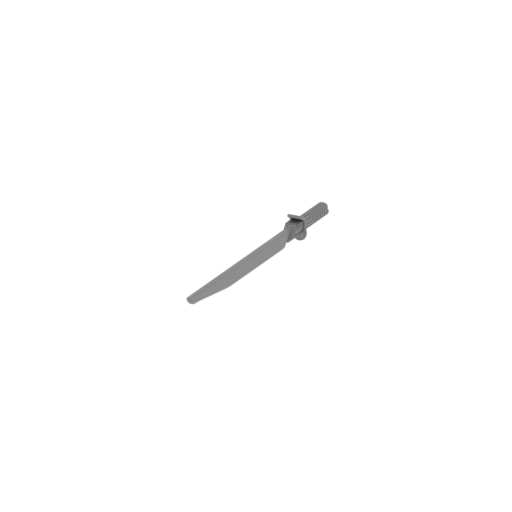

16_sword_FDM(repaired).st l
9.54 MiB 48 min <1 m 5 x 128 x 23 Download

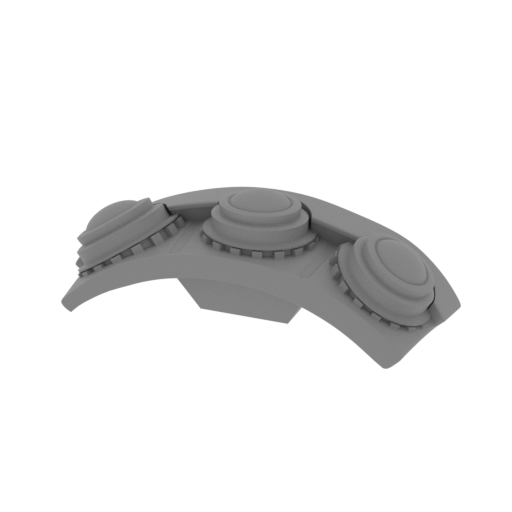

17_belt_charges_FDM(repai red).stl
10.45 MiB 15 min <1 m 23 x 9 x 8 Download

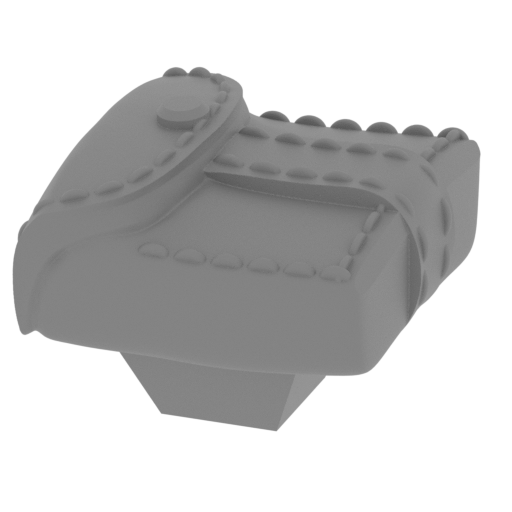

18_pouch_on_belt_1_FDM(re paired).stl
11.25 MiB 10 min <1 m 11 x 11 x 9 Download

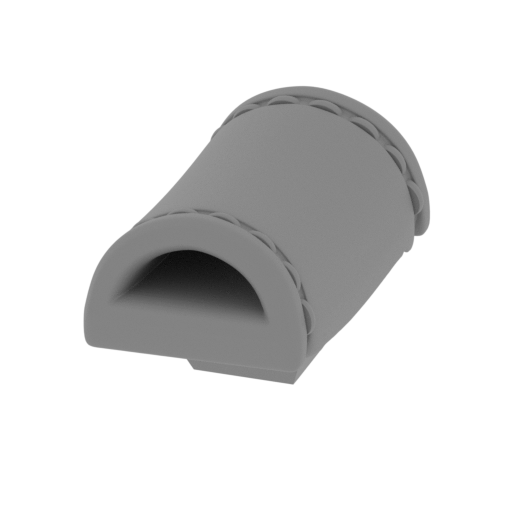

19_pouch_on_belt_2_FDM(re paired).stl
8.81 MiB 9 min <1 m 7 x 12 x 7 Download

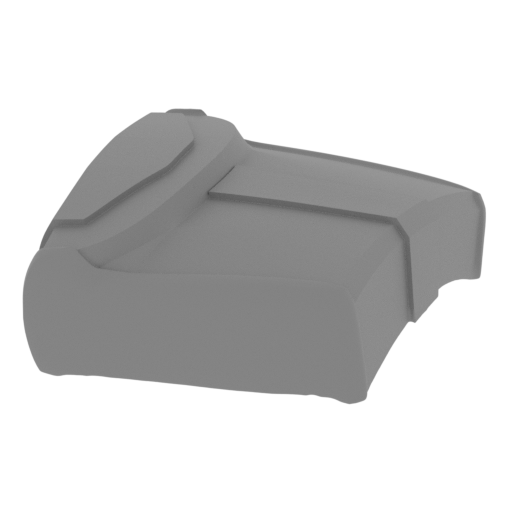

20_pouch_on_foot_L_FDM(re paired).stl
8.09 MiB 10 min <1 m 12 x 12 x 7 Download

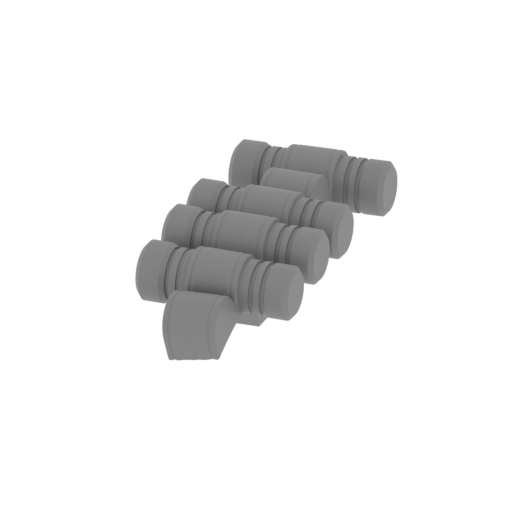

21_bullets_on_chest_FDM(r epaired).stl
11.91 MiB 20 min <1 m 11 x 27 x 8 Download

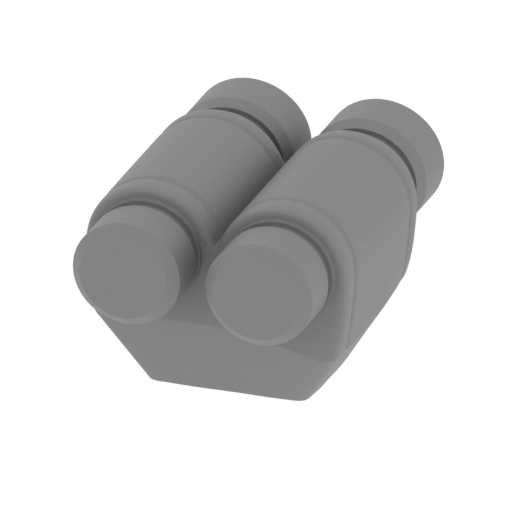

22_bullets_on_belt_1_FDM( repaired).stl
4.04 MiB 9 min <1 m 9 x 13 x 7 Download

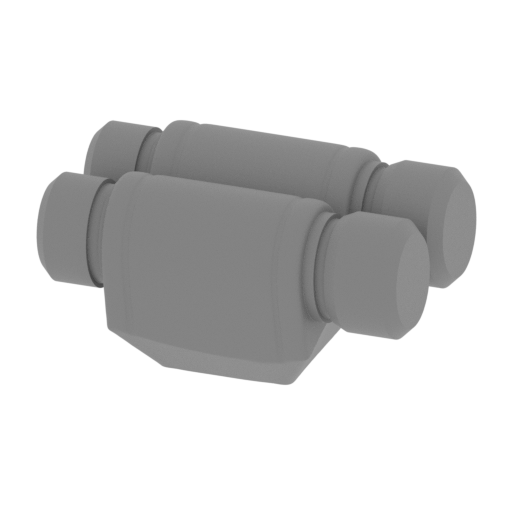

23_bullets_on_belt_2_FDM( repaired).stl
4.01 MiB 8 min <1 m 13 x 9 x 6 Download

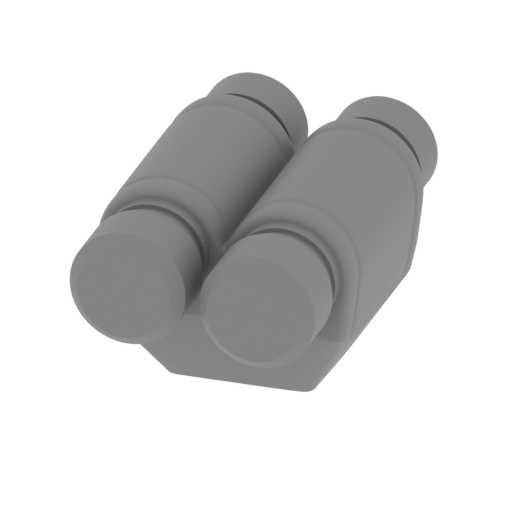

24_bullets_on_belt_3_FDM( repaired).stl
4.09 MiB 9 min <1 m 9 x 13 x 8 Download

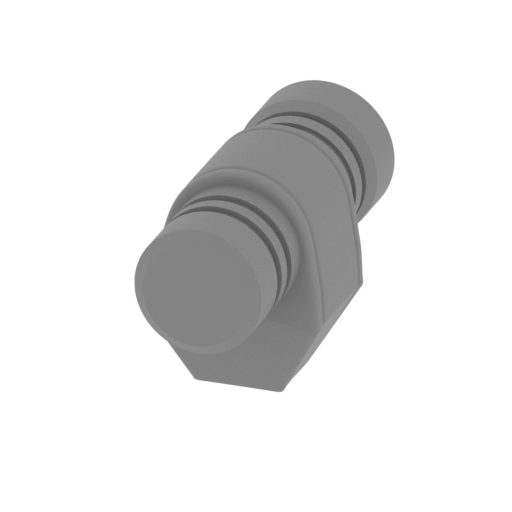

25_bullet_for_foot_R_1_FD M(repaired).stl
3.95 MiB 7 min <1 m 5 x 11 x 7 Download

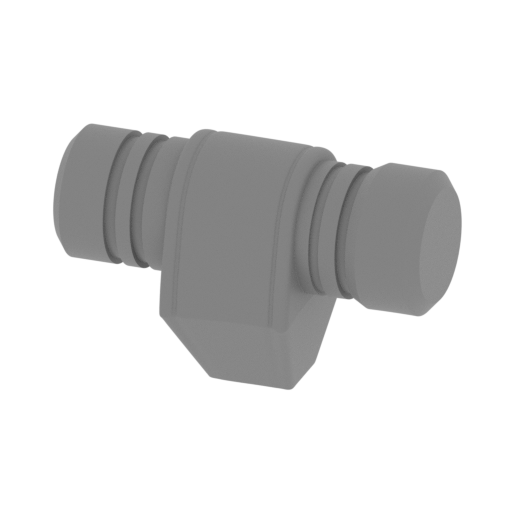

26_bullet_for_foot_R_2_FD M(repaired).stl
3.96 MiB 7 min <1 m 11 x 5 x 7 Download

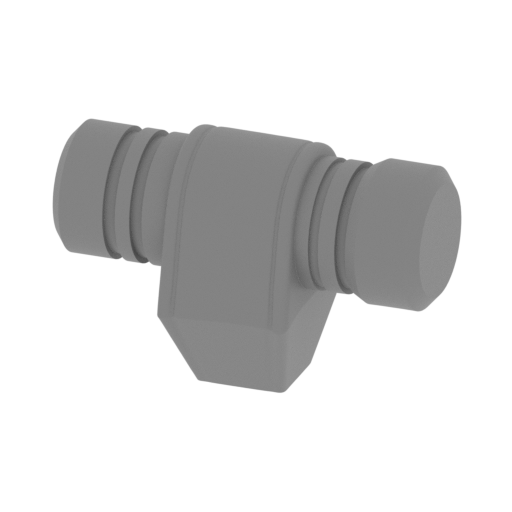

27_bullet_for_foot_R_3_FD M(repaired).stl
3.93 MiB 7 min <1 m 11 x 5 x 7 Download

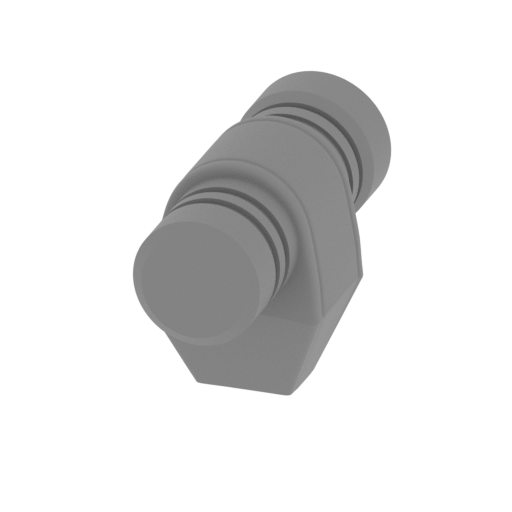

28_bullet_for_foot_R_4_FD M(repaired).stl
3.95 MiB 7 min <1 m 5 x 11 x 7 Download

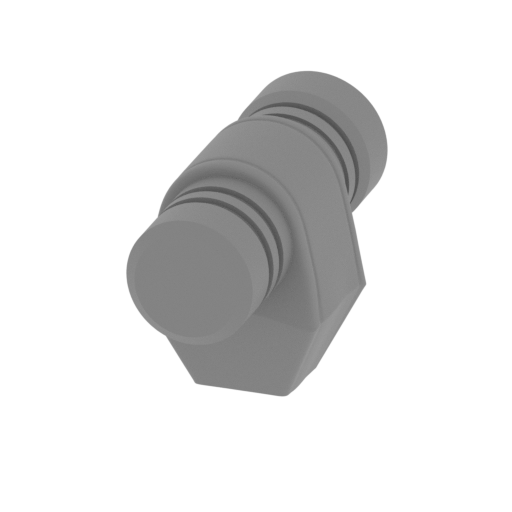

29_bullet_for_foot_R_5_FD M(repaired).stl
3.99 MiB 7 min <1 m 5 x 11 x 7 Download

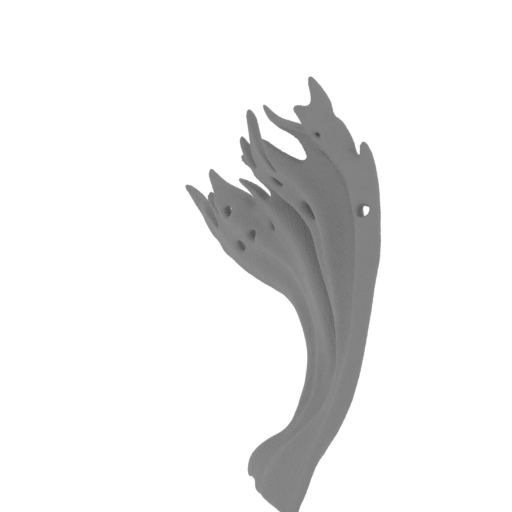

30_cloak_FDM(repaired).st l
42.00 MiB 14 h 2 min 9 m 101 x 135 x 131 Download

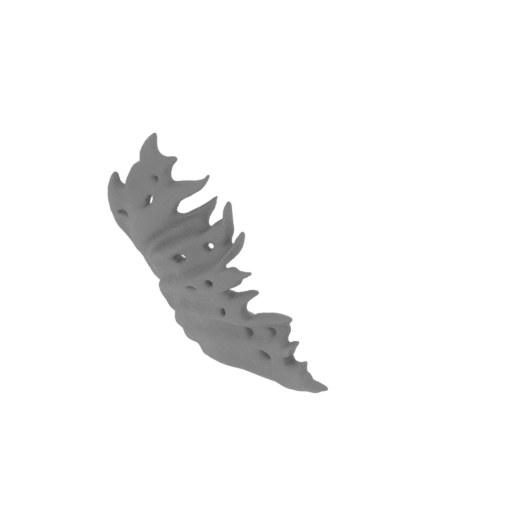

31_cloak_for_jetpack_FDM( repaired).stl
41.19 MiB 15 h 23 min 11 m 107 x 141 x 115 Download

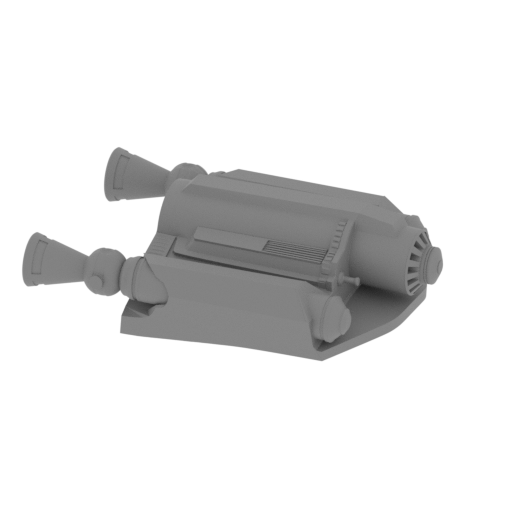

32_jetpack_FDM(repaired). stl
37.27 MiB 3 h 21 min 2 m 59 x 45 x 22 Download

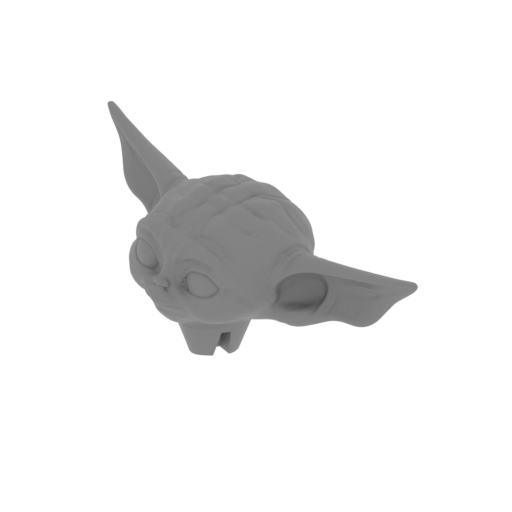

33_Grogu_head_FDM(repaire d).stl
23.05 MiB 39 min <1 m 38 x 22 x 18 Download

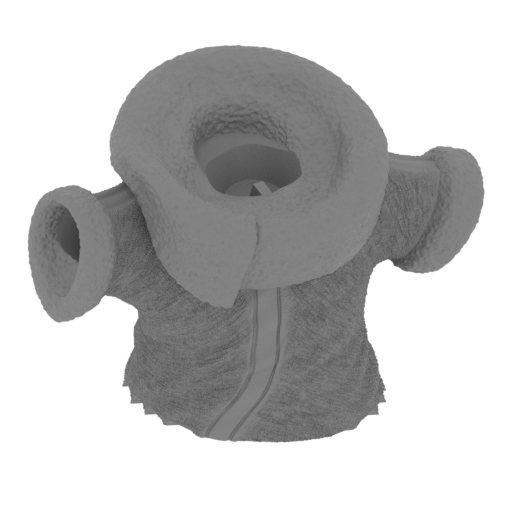

34_Grogu_body_FDM(repaire d).stl
21.95 MiB 1 h 35 min 1 m 31 x 28 x 27 Download

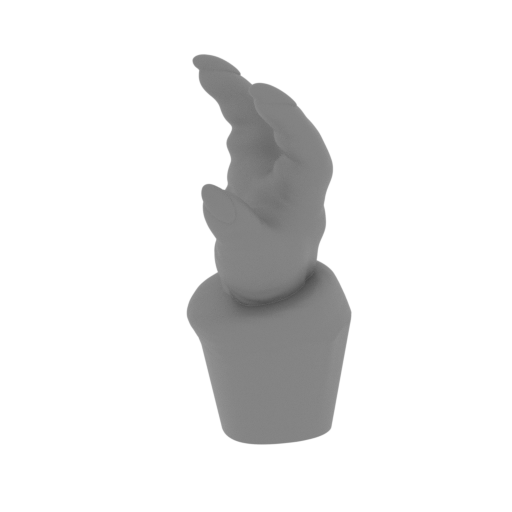

35_Grogu_hand_R_FDM(repai red).stl
7.14 MiB 4 min <1 m 5 x 5 x 11 Download

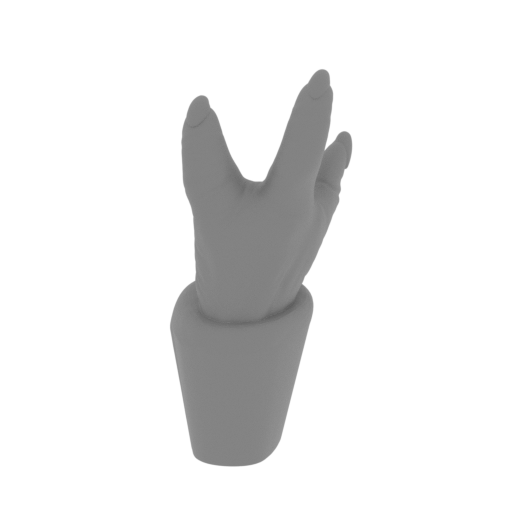

36_Grogu_hand_L_FDM(repai red).stl
7.58 MiB 6 min <1 m 4 x 6 x 11 Download

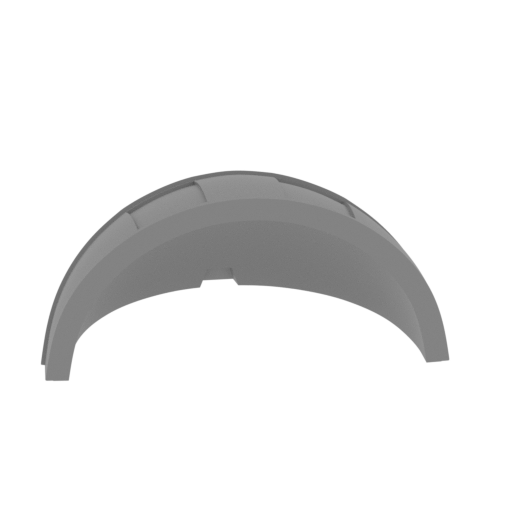

37_hover_pram_top_FDM(rep aired).stl
22.40 MiB 2 h 2 min 1 m 53 x 43 x 25 Download

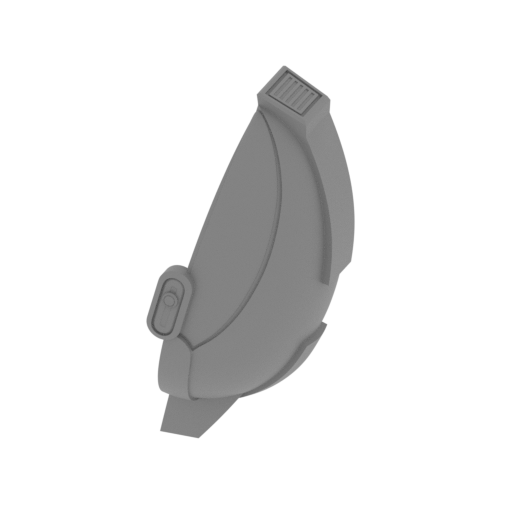

38_hover_pram_low_FDM(rep aired).stl
18.61 MiB 7 h 10 min 4 m 42 x 61 x 89 Download

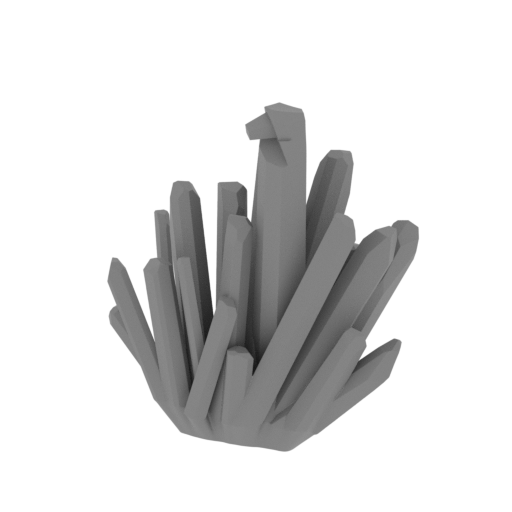

39_crystals_1_FDM(repaire d).stl
32.19 MiB 11 h 14 min 6 m 101 x 53 x 121 Download

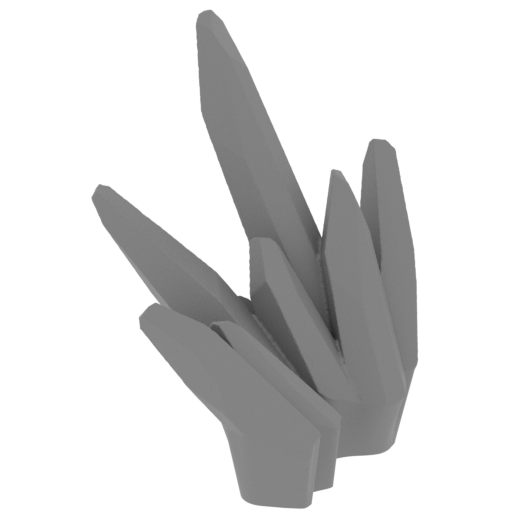

40_crystals_2_FDM(repaire d).stl
16.29 MiB 1 h 19 min 1 m 35 x 44 x 44 Download
41_mandalorian_logo_FDM(r epaired).stl
13.57 MiB 1 h 11 min 1 m 66 x 16 x 11 Download

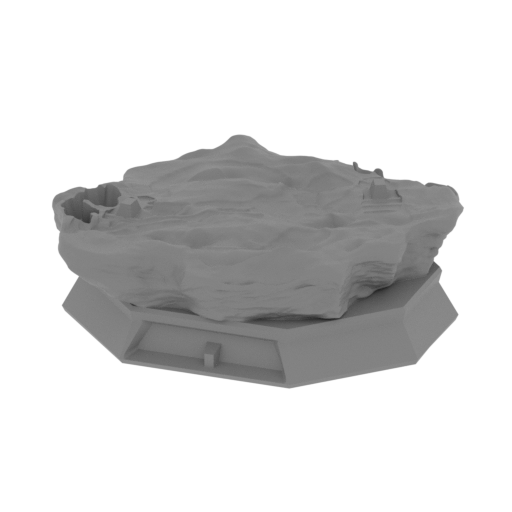

42_platform_FDM(repaired) .stl
39.27 MiB 43 h 58 min 25 m 150 x 128 x 50 Download

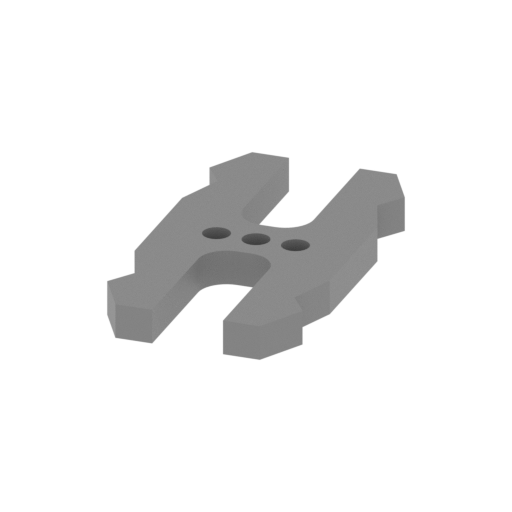

43_ge_lock_10H(x5)_FDM(re paired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

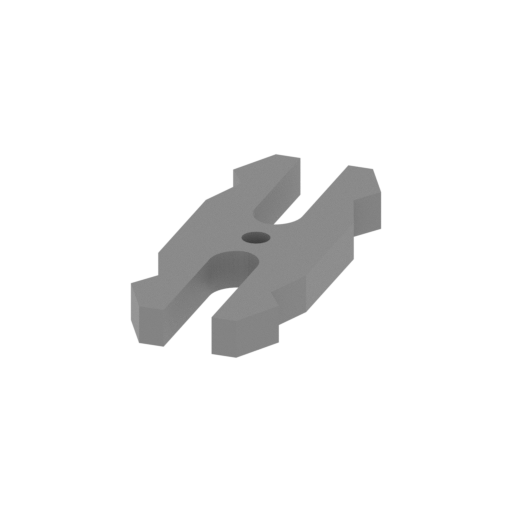

44_ge_lock_7S(x1)_FDM(rep aired).stl
0.02 MiB 4 min <1 m 7 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

The reputed bounty hunter and the titular character of the well-loved TV series within the Star Wars franchise Din Djarin, also known as “The Mandalorian” or “Mando” for short, is one of the most popular and recognizable characters nowadays. The adventures of the Mandalorian who travels across the galaxy on his Razor Crest starship accompanying and protecting the Force-sensitive Child caught the attention of hundreds of thousands of viewers around the world. The touching father-son relationship of the characters made our hearts melt many times.

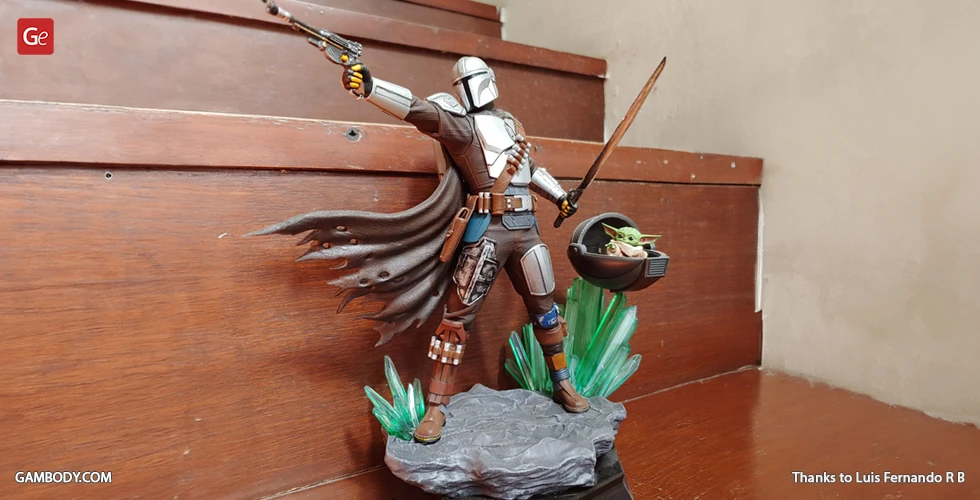

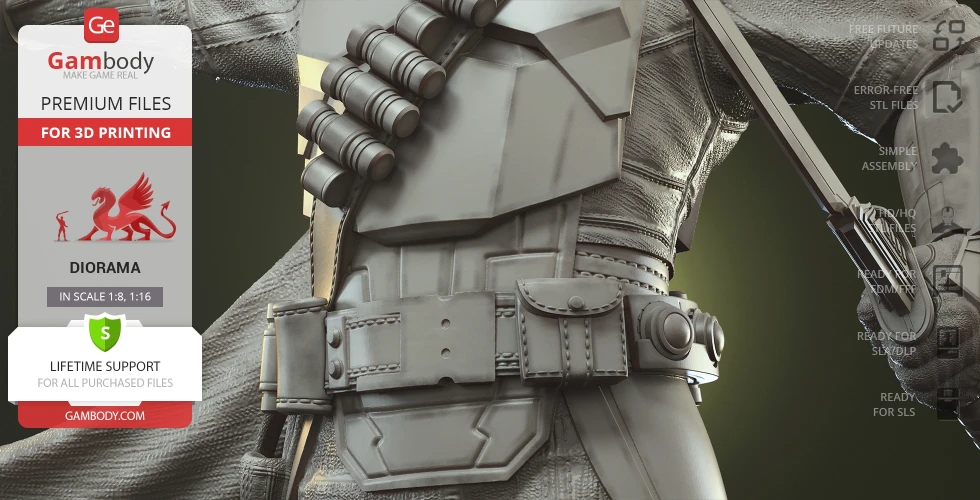

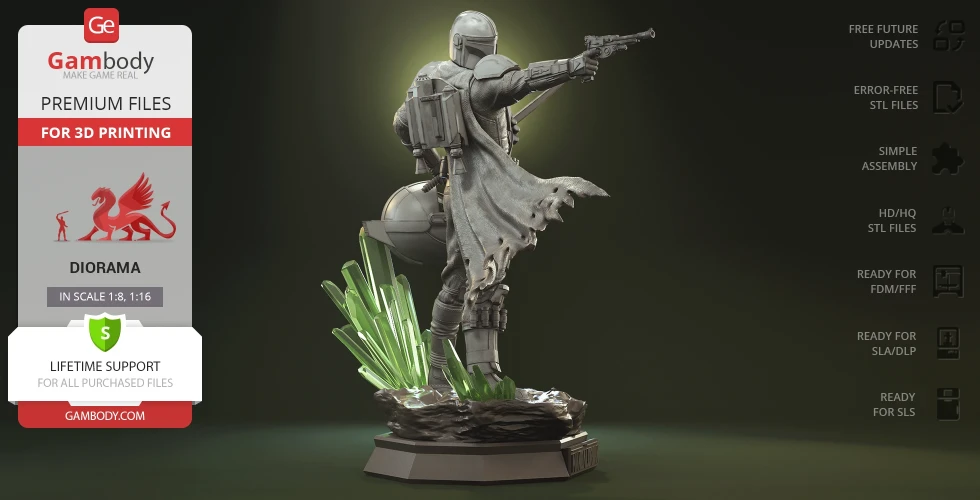

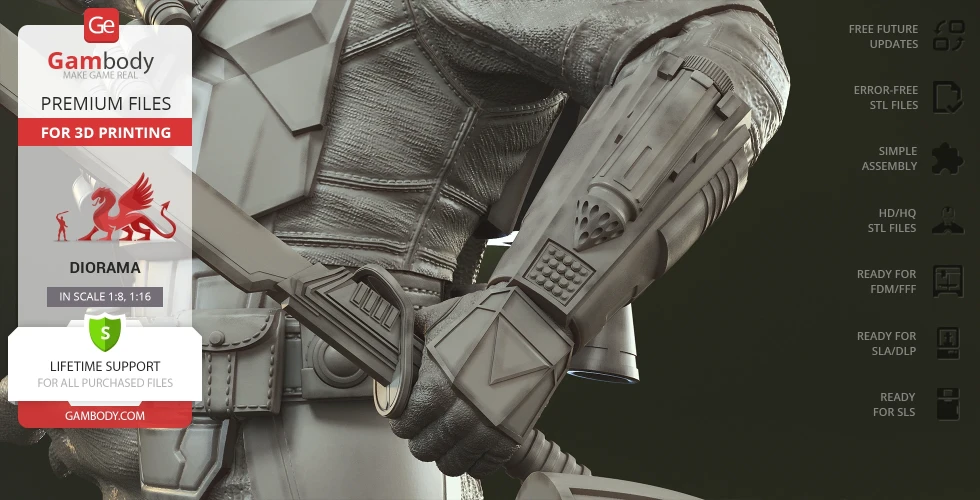

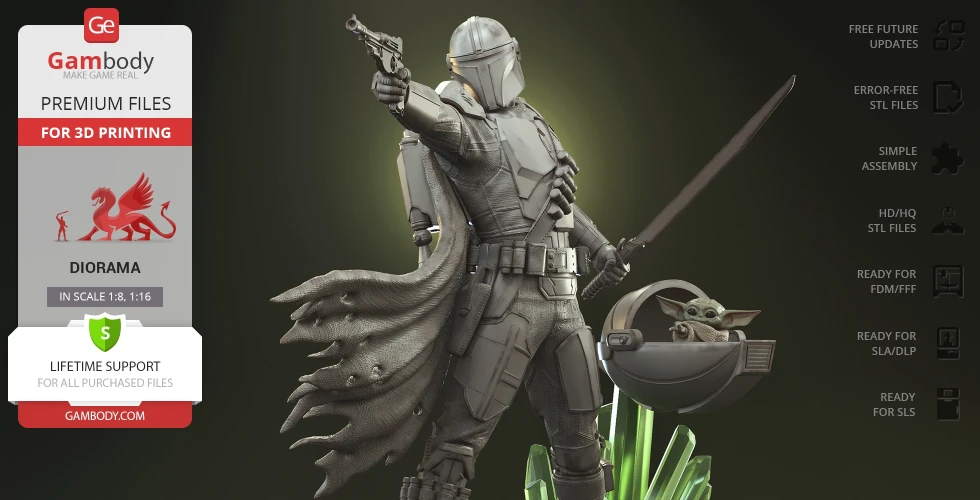

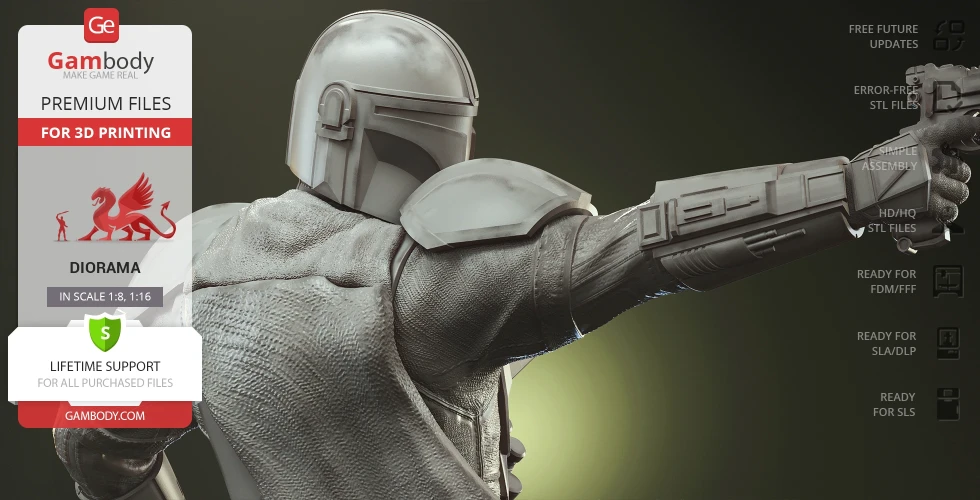

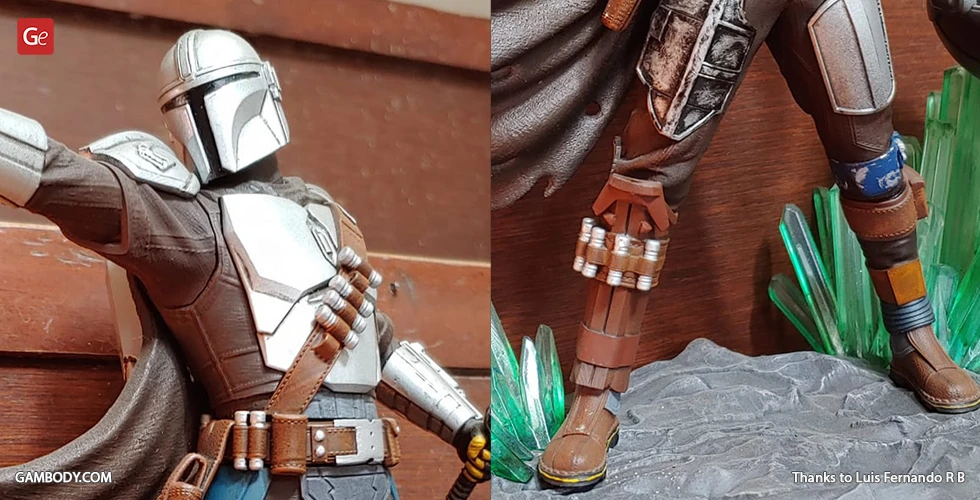

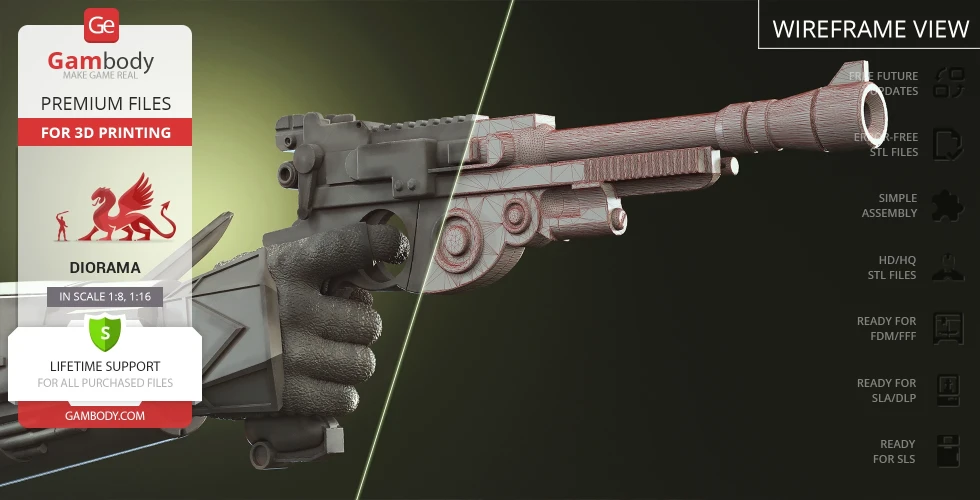

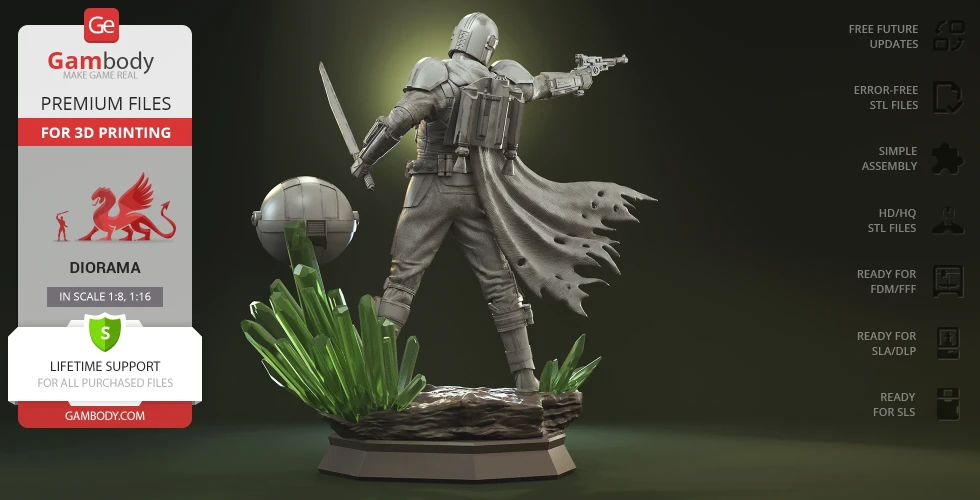

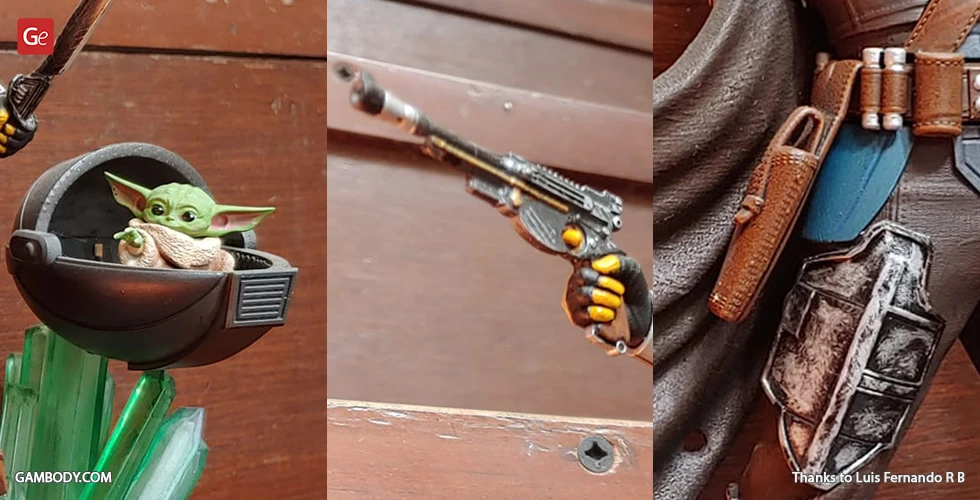

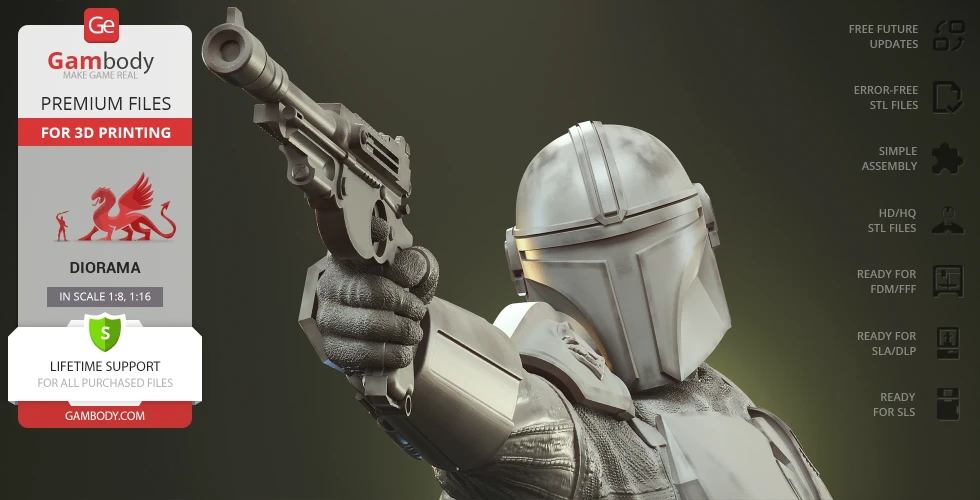

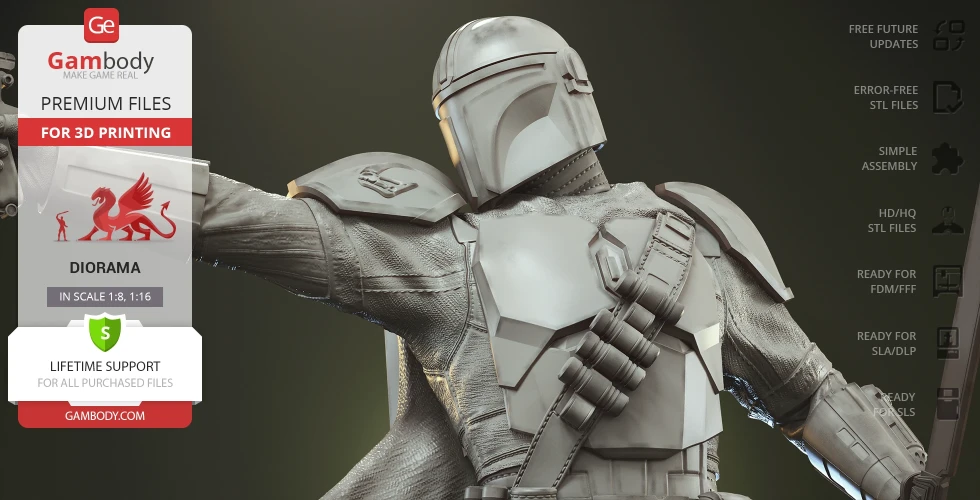

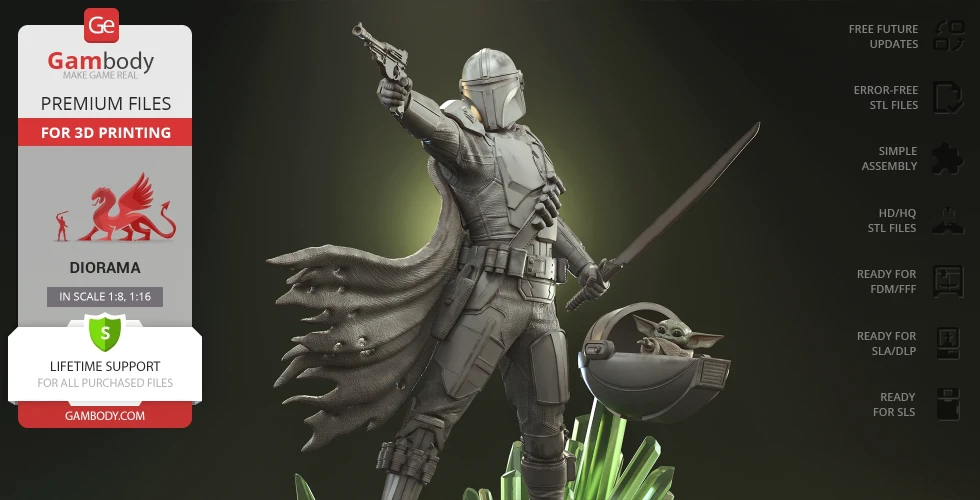

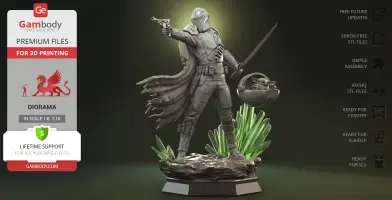

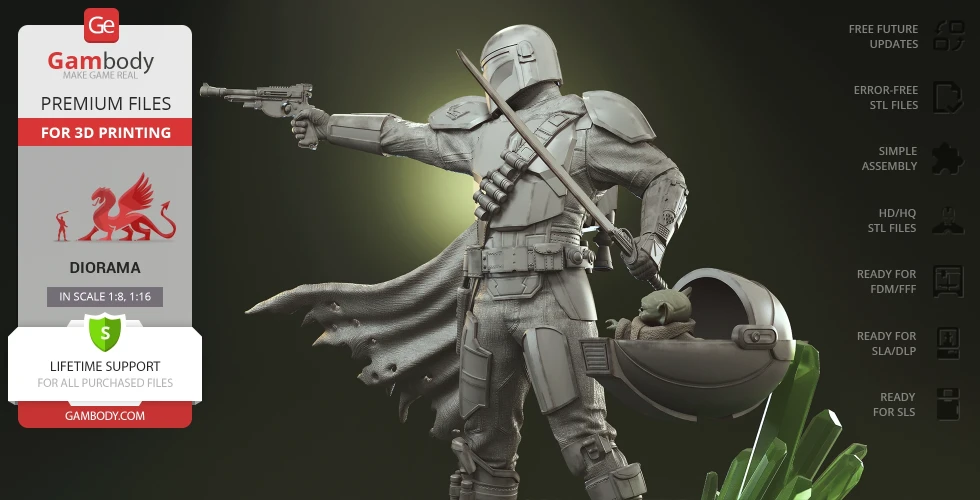

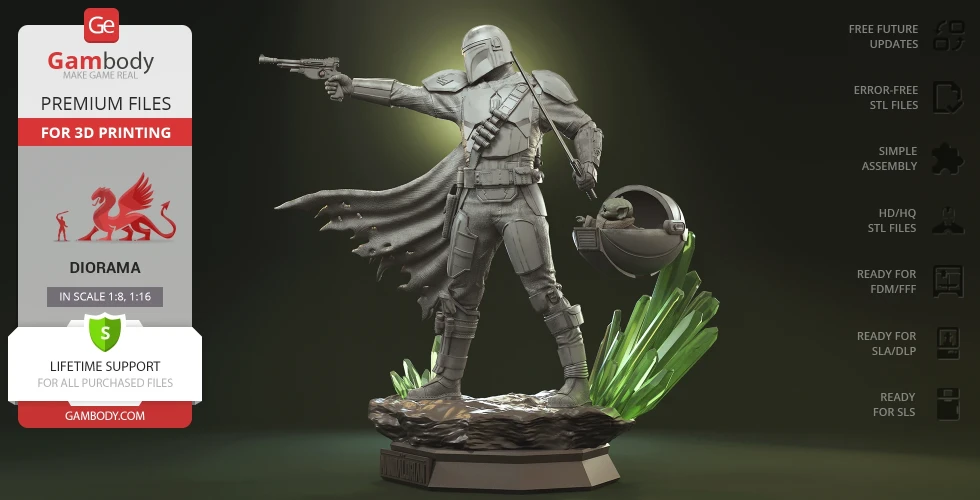

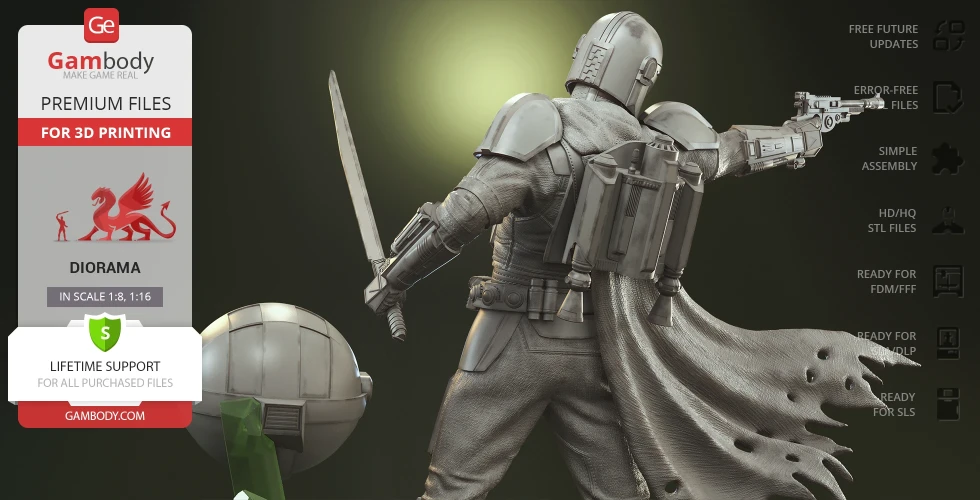

The author of the incredible diorama of The Mandalorian and Grogu for 3D printing put a lot of time and effort into the stunning project. The scene depicts the bounty hunter in a very tense posture: his left hand is holding the Darksaber while the IB-94 blaster in the right hand is pointed straight at the enemy of Din Djarin. The clothing of the hero is covered with armor made from beskar and includes a helmet, plated vest, pauldrons, vambraces, gauntlets, boots, and a cape with a jetpack. Tiny Grogu is shown in his hovering pram, the body of the Child is covered with a big hood, and big eyes express curiosity. Truly authentic and harmonious, this project will bring you an unforgettable experience when printing and assembling. Don't wait and start exploring and printing the files today!

ADAPTATION FOR 3D PRINTING

The Mandalorian and Grogu figurines for 3D printing is a static assembly diorama and its moderation and adaptation for different types of 3D printers took the Gambody team 68 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the characters to be depicted harmoniously in the intended poses.

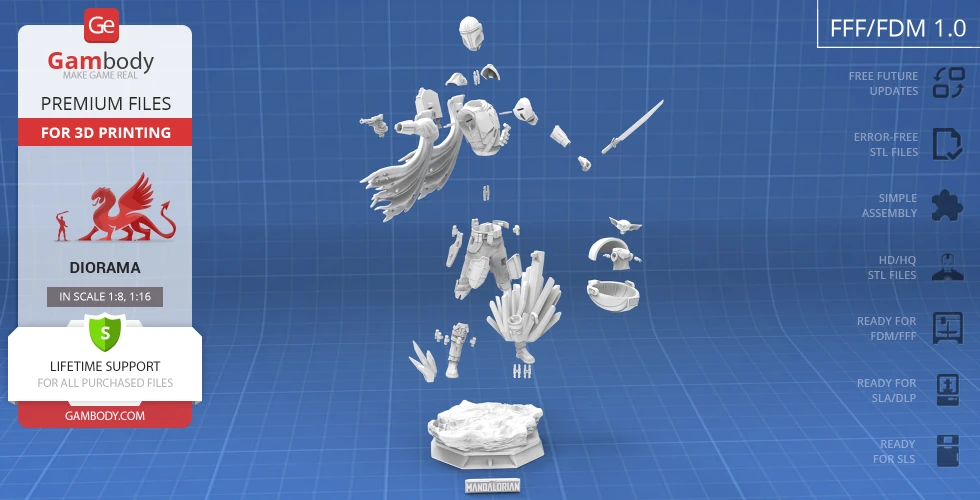

The figurines’ cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurines are connected, the diorama was divided into convenient assembly parts.

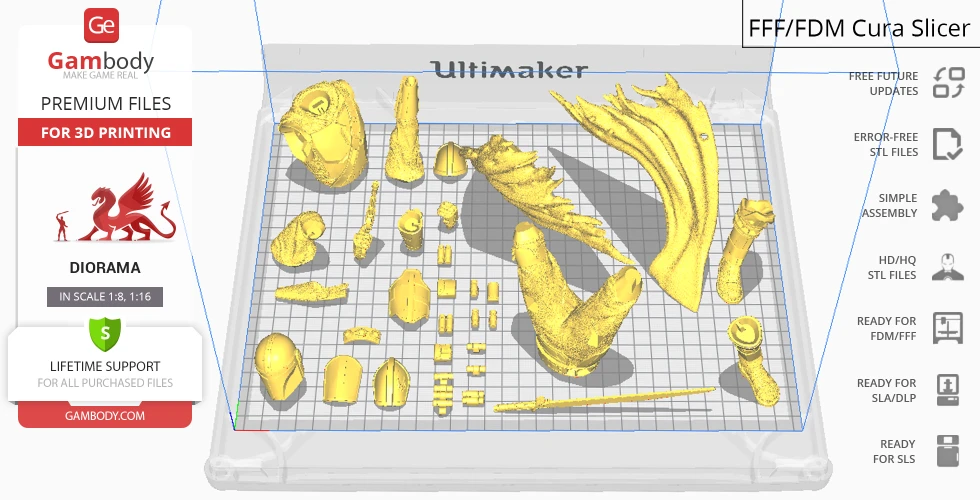

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to The Mandalorian and Grogu.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

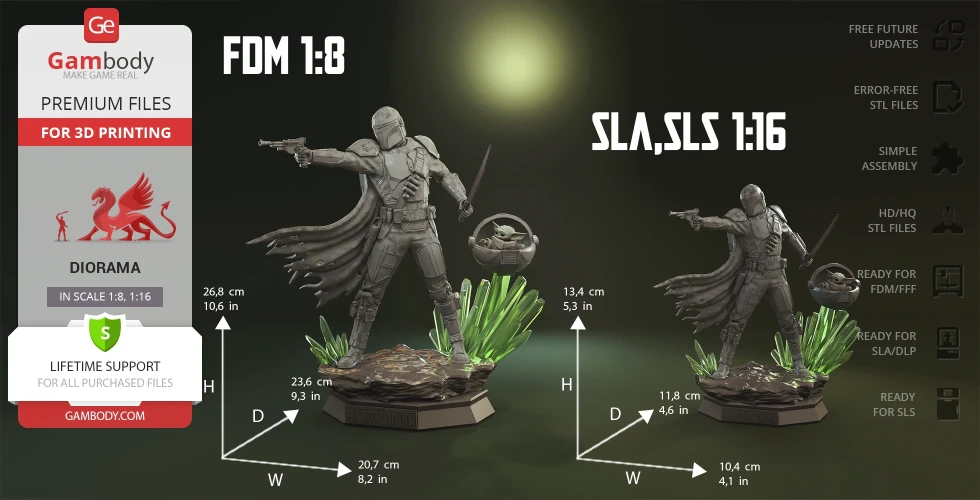

The figurines’ scale was calculated from the height of The Mandalorian. The 3D printing figurine’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

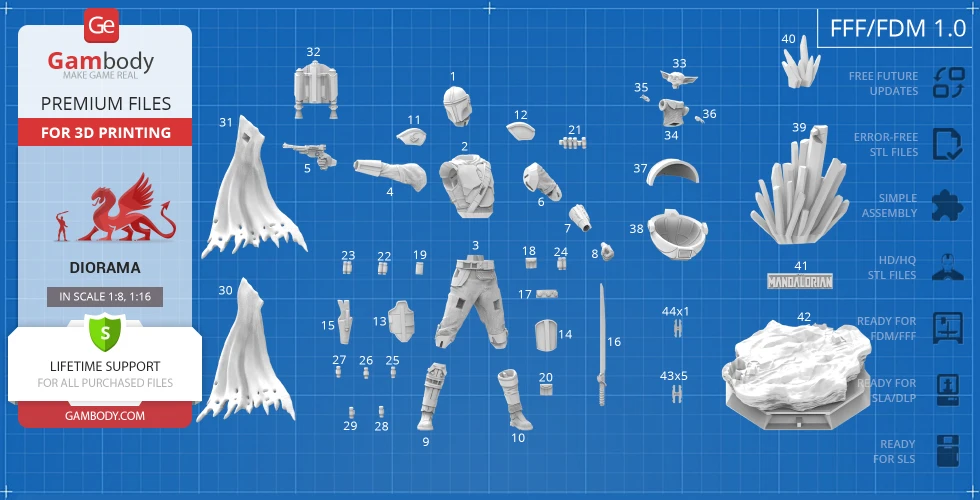

FFF/FDM 1.0 versions features:

  • Contains 44 parts;
  • A printed figurine is 268 mm tall, 207 mm wide, 236 mm deep;
  • Two options for the cape: with and without a socket for the jetpack;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

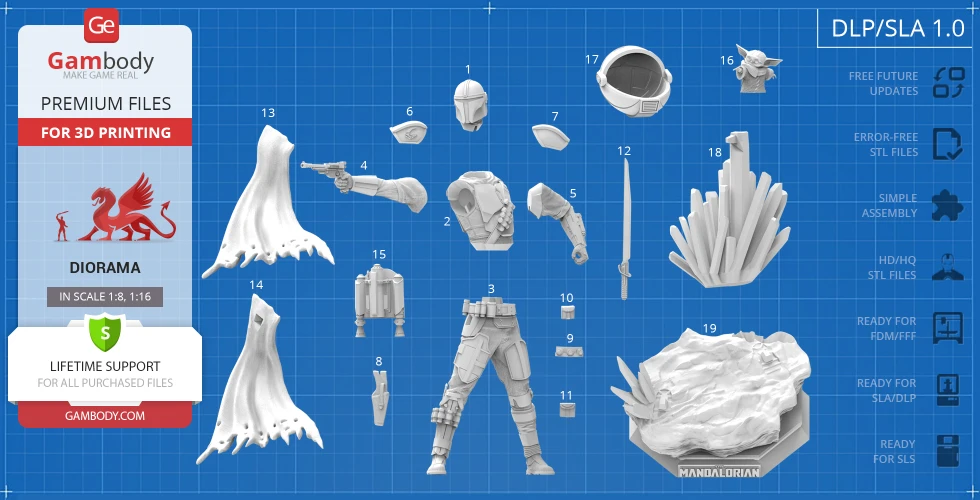

DLP/SLA 1.0 versions features:

  • Contains 19 parts;
  • A printed figurine is 134 mm tall, 104 mm wide, 118 mm deep;
  • Two options for the cape: with and without a socket for the jetpack;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

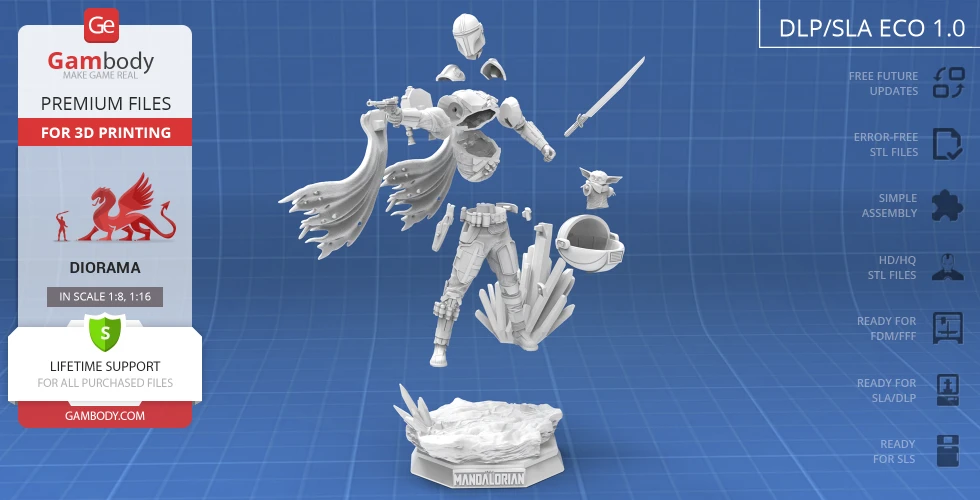

DLP/SLA Eco 1.0 versions features:

  • Contains 19 parts;
  • A printed figurine is 134 mm tall, 104 mm wide, 118 mm deep;
  • Two options for the cape: with and without a socket for the jetpack;
  • Some parts are manually hollowed out to save resin.

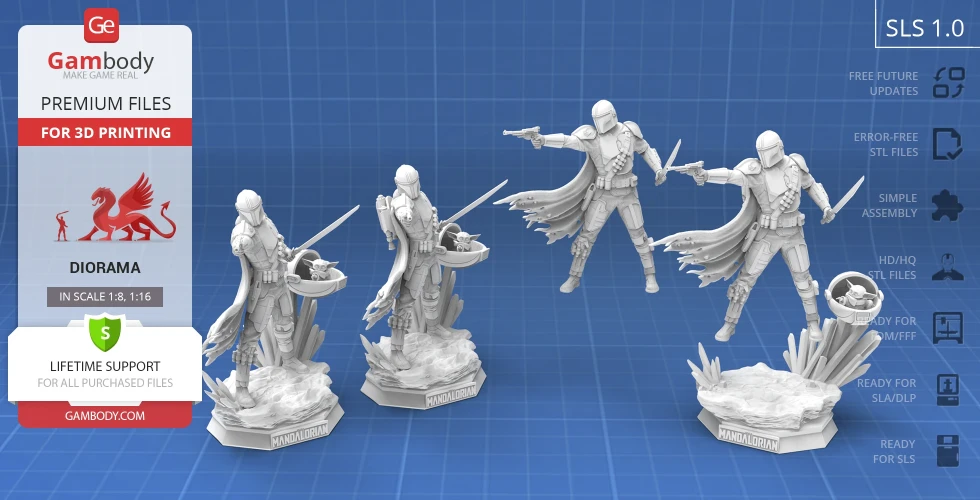

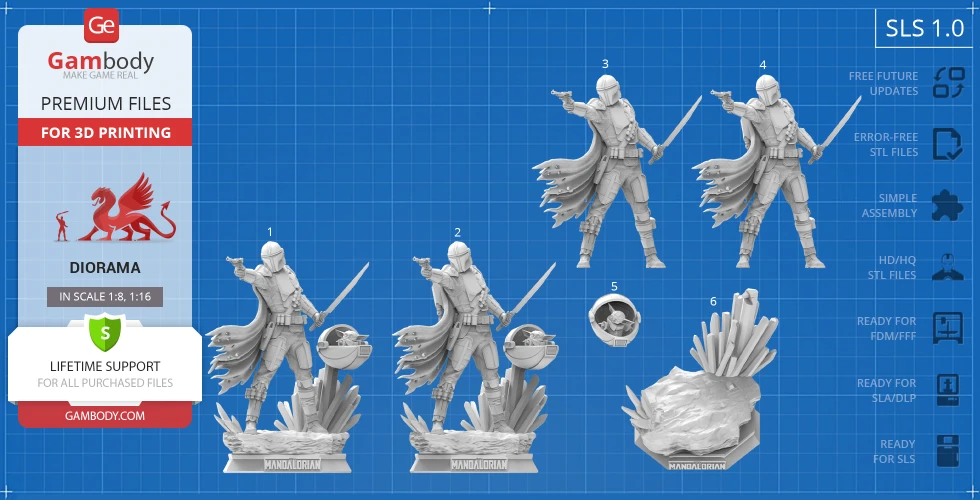

SLS 1.0 versions features:

  • Contains 6 parts - a solid Mandalorian and Grogu figurines on and separately from the stand.

You can get the The Mandalorian and Grogu Figurines for 3D Printing in Diorama immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble The Mandalorian and Grogu 3D Printing Figurines in Diorama on Gambody YouTube channel.

Also, you may like IG-12 with Grogu in Diorama 3D Printing Model and other Star Wars 3D Printing Models.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

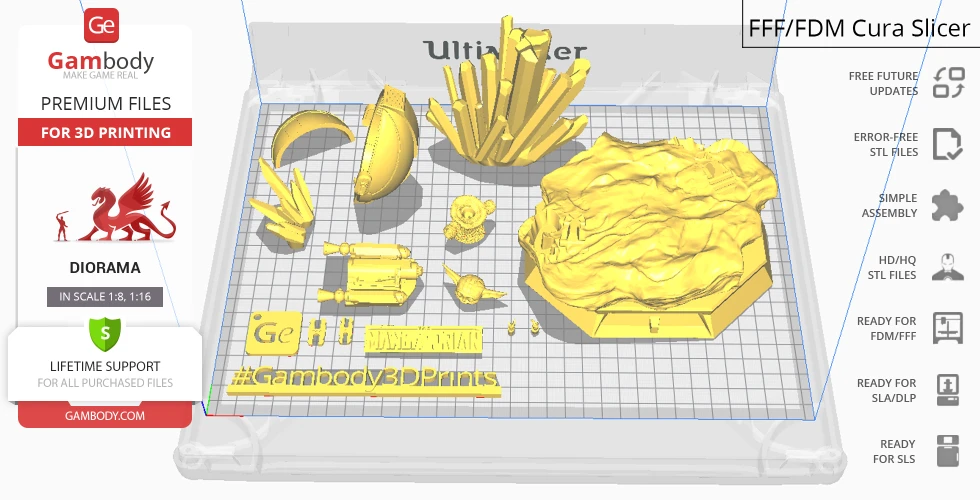

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
