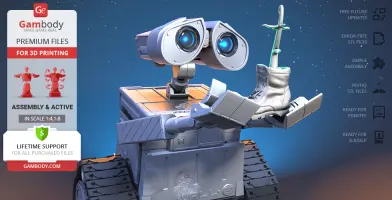

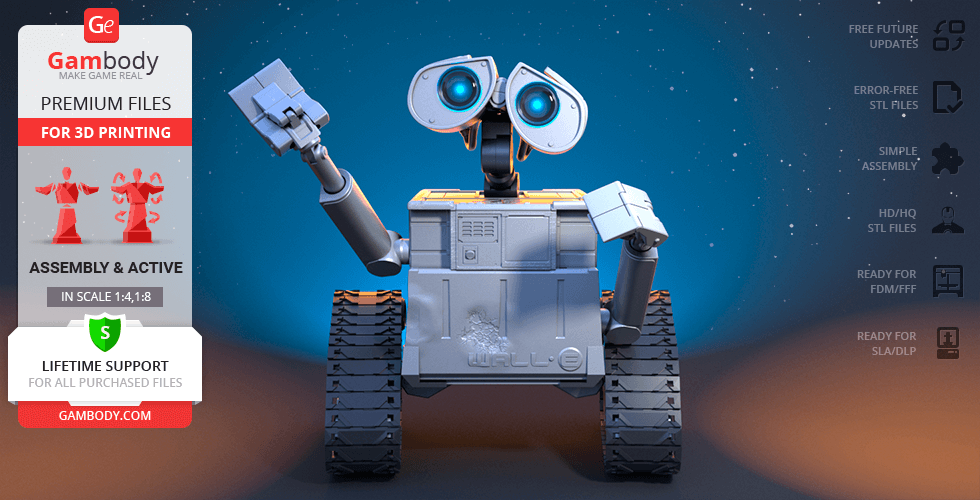

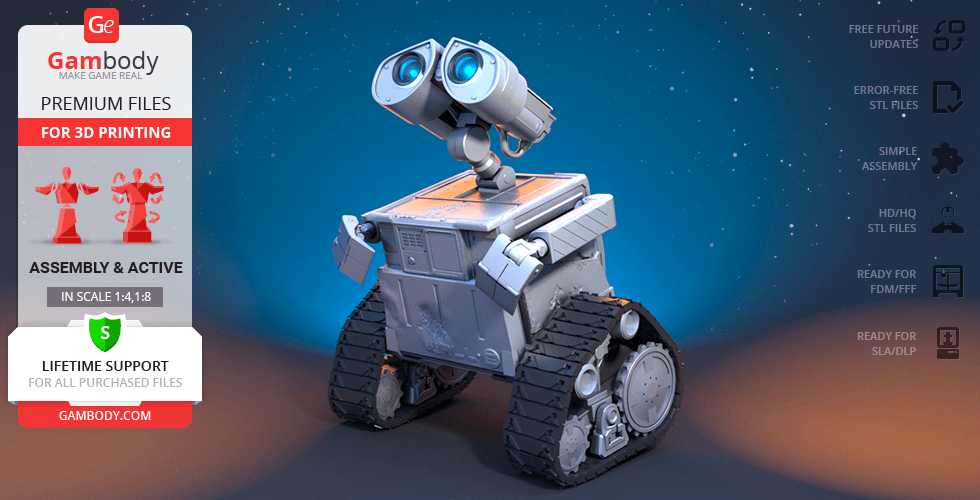

WALL-E 3D Printing Model | Assembly + Action

(16)
cm: 22.2 w x 17.6 d x 25 h
in: 8.74 w x 6.929 d x 9.843 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

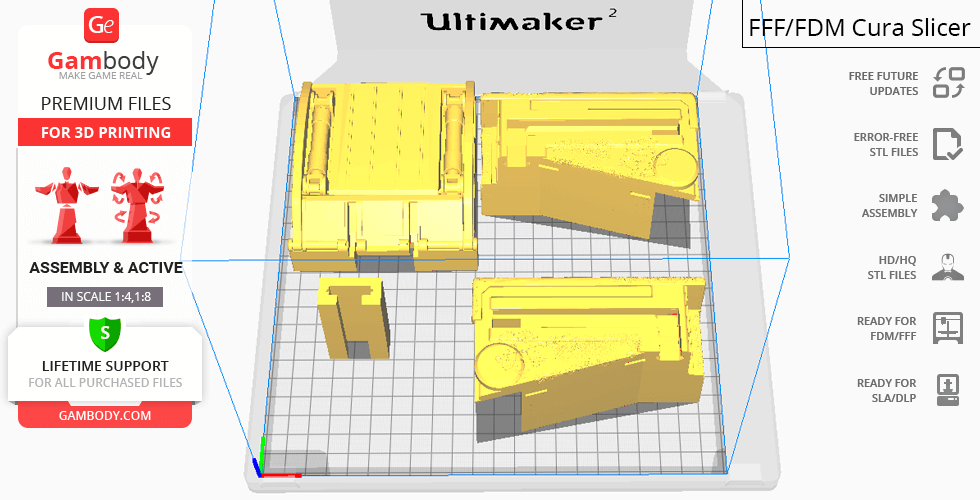

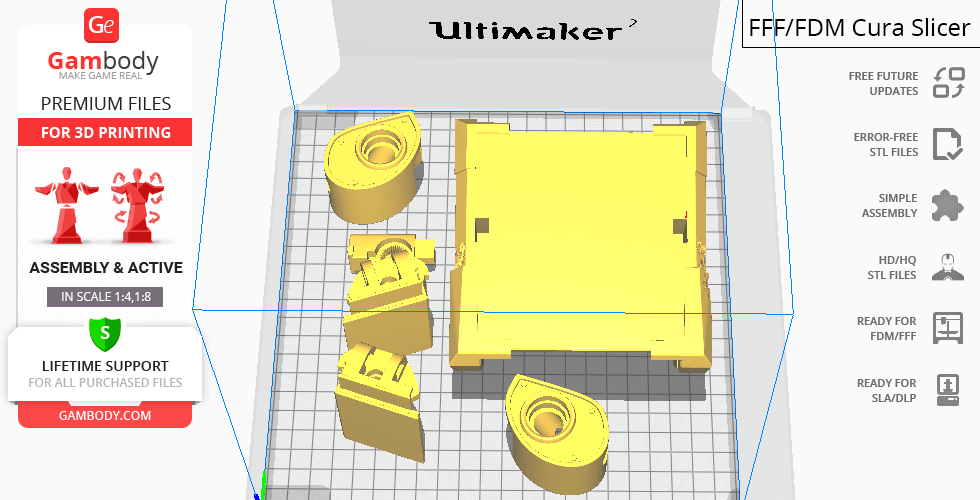

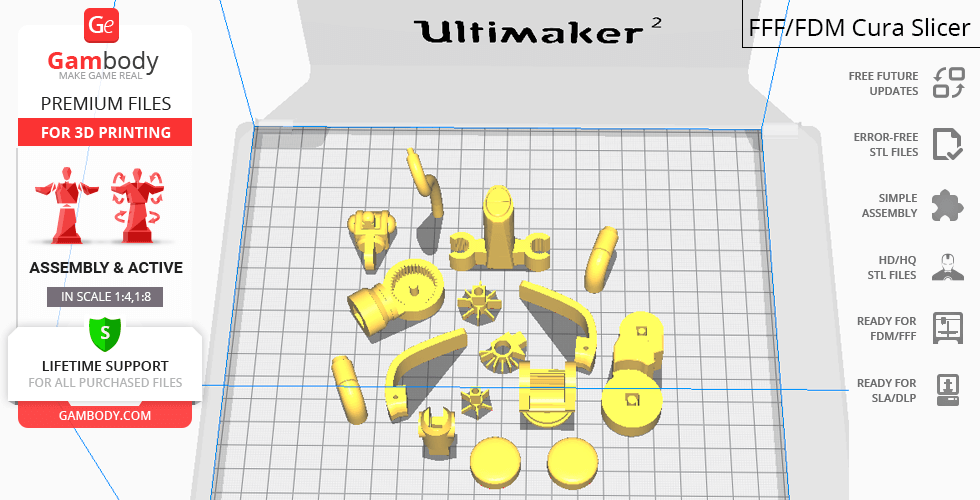

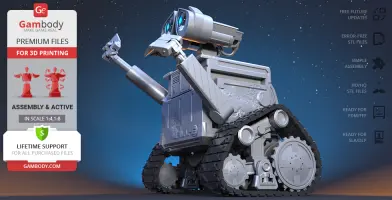

WALL-E 3D Printing Model comes in 2 versions for FFF/FDM and DLP/SLA/SLS 3D printers. STL files of both versions are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

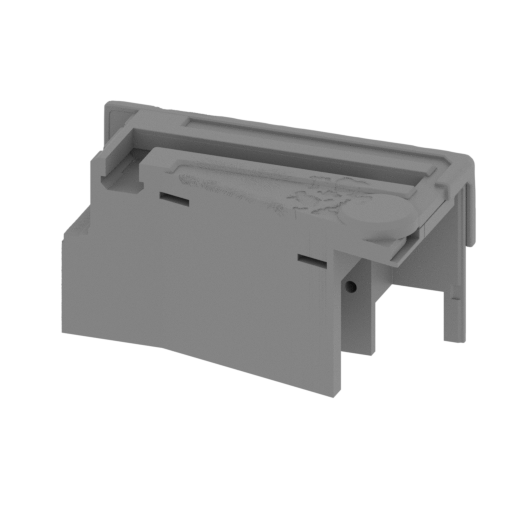

1_Base_1_L_fdm (repaired) .stl
40.31 MiB 19 h 49 min 14 m 111 x 61 x 56 Download

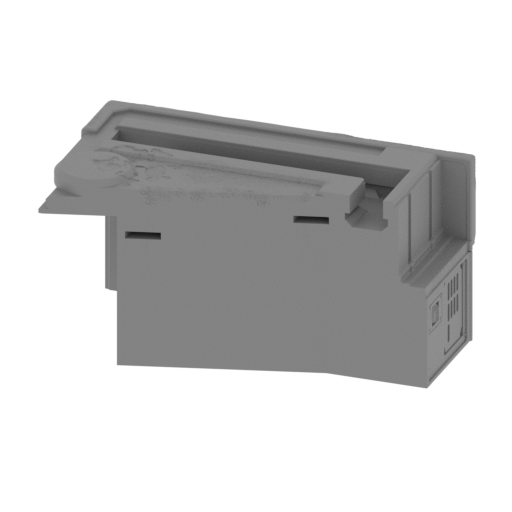

2_Base_1_R_fdm (repaired) .stl
44.66 MiB 20 h 6 min 14 m 111 x 61 x 56 Download

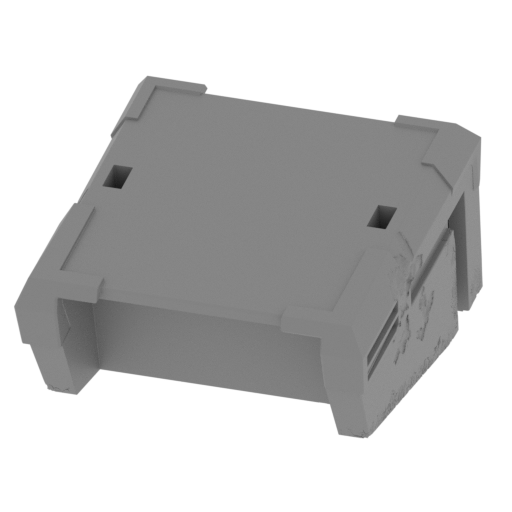

3_Base_2_fdm (repaired).s tl
70.77 MiB 53 h 21 min 38 m 122 x 129 x 76 Download

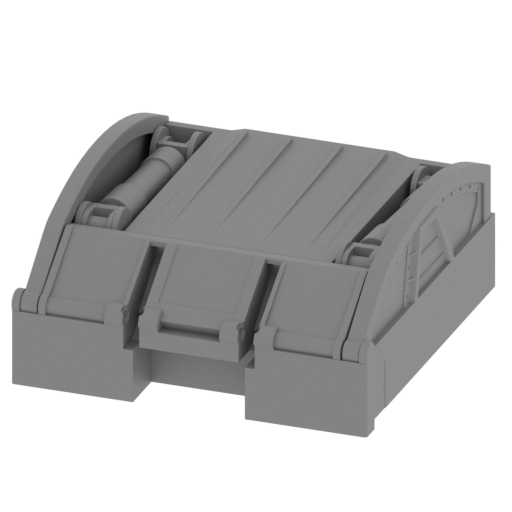

4_Base_3_fdm (repaired).s tl
5.52 MiB 22 h 48 min 13 m 95 x 99 x 44 Download

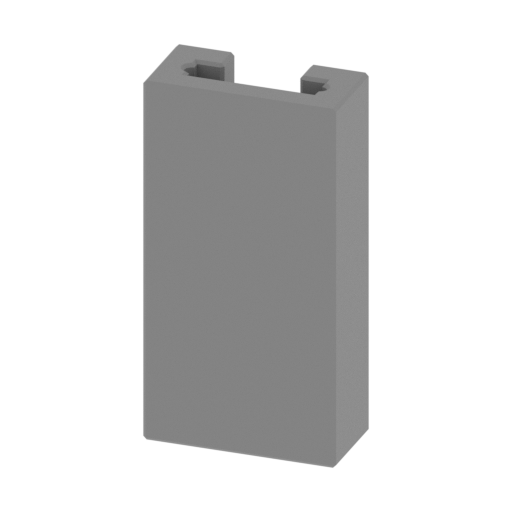

5_Detail_fdm (repaired).s tl
0.01 MiB 1 h 50 min 1 m 30 x 14 x 57 Download
6_Door_fdm (repaired).stl
50.22 MiB 4 h 48 min 3 m 99 x 65 x 8 Download

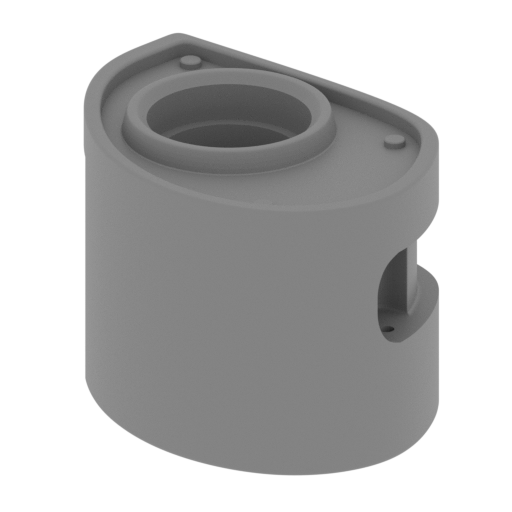

7_Head_1_L_fdm (repaired) .stl
1.43 MiB 4 h 38 min 3 m 48 x 46 x 36 Download

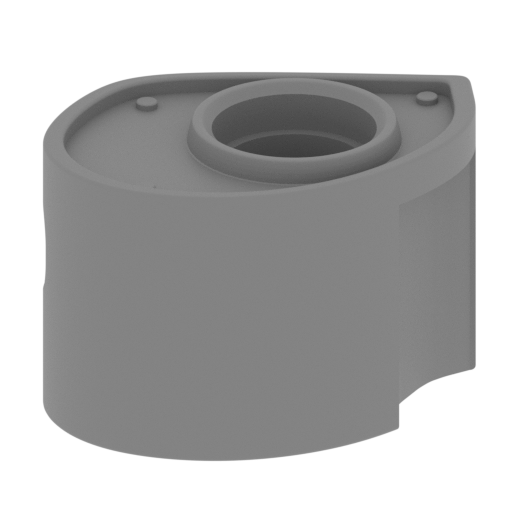

8_Head_1_R_fdm (repaired) .stl
1.44 MiB 4 h 37 min 3 m 48 x 46 x 36 Download

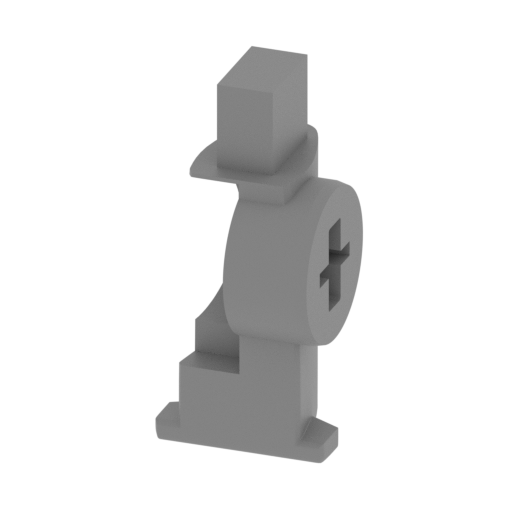

9_Head_2_fdm (repaired).s tl
0.97 MiB 1 h 7 min 1 m 42 x 22 x 19 Download

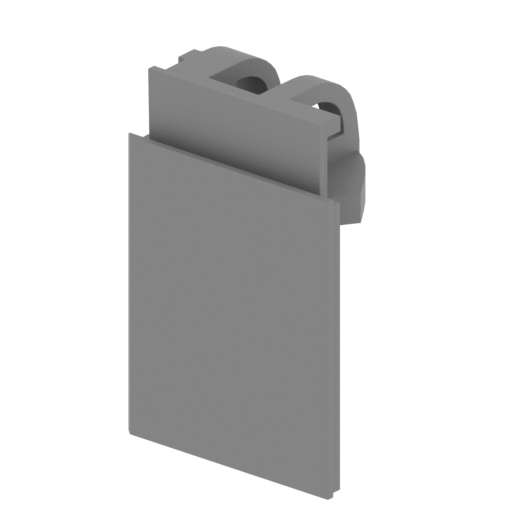

10_Head_2_R_fdm (repaired ).stl
1.05 MiB 5 h 12 min 3 m 39 x 38 x 62 Download

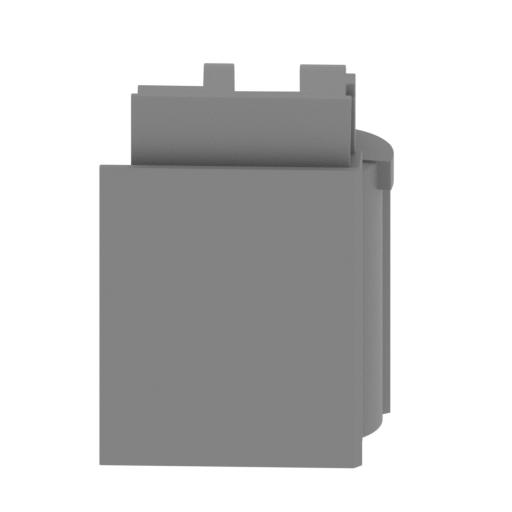

11_Head_2_L_fdm (repaired ).stl
1.05 MiB 5 h 11 min 3 m 39 x 38 x 62 Download

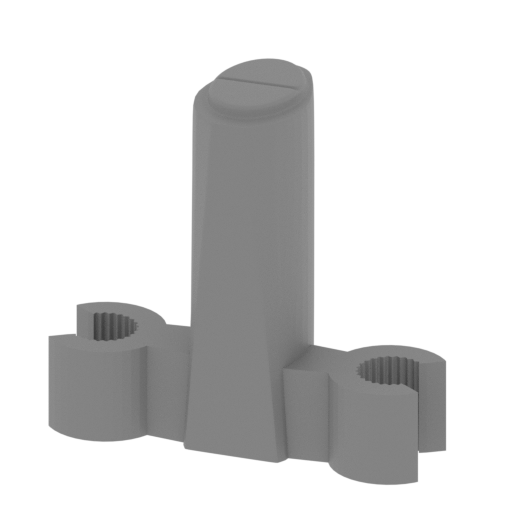

12_Head_1_fdm (repaired). stl
0.47 MiB 1 h 8 min 1 m 42 x 18 x 40 Download

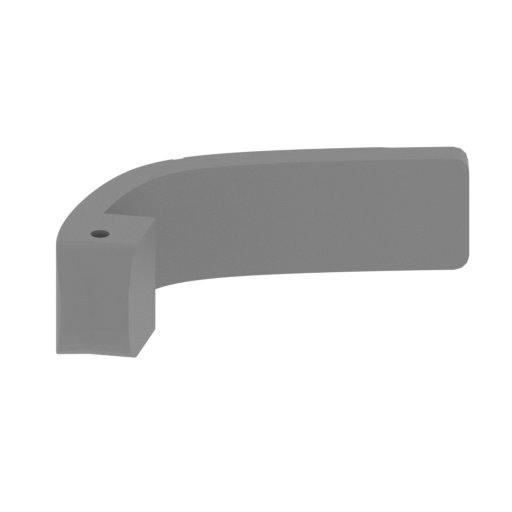

13_Eyebrow_L_fdm (repaire d).stl
0.05 MiB 23 min <1 m 31 x 38 x 12 Download
14_Eyebrow_R_fdm (repaire d).stl
0.05 MiB 22 min <1 m 31 x 38 x 12 Download

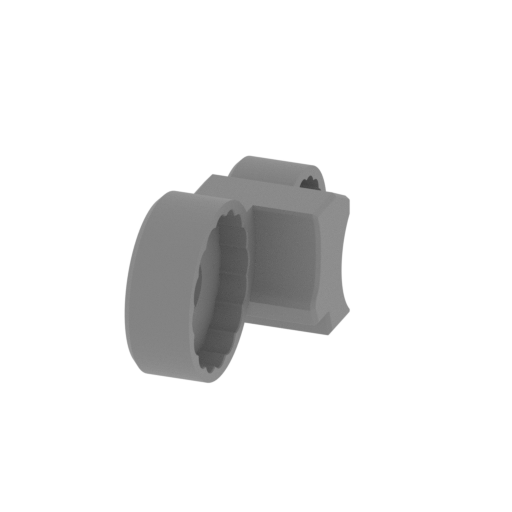

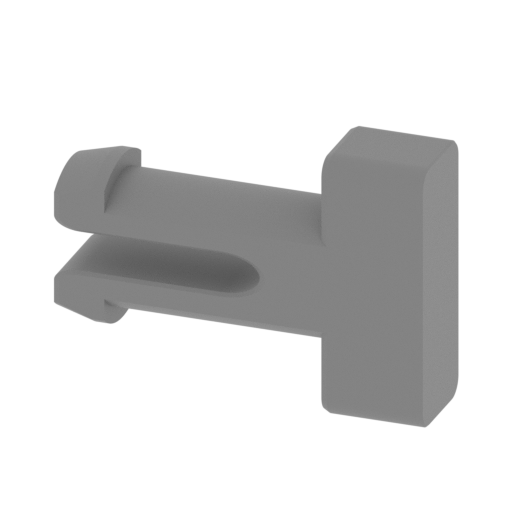

15_Neck_1_fdm (repaired). stl
0.51 MiB 1 h 6 min 1 m 25 x 51 x 18 Download

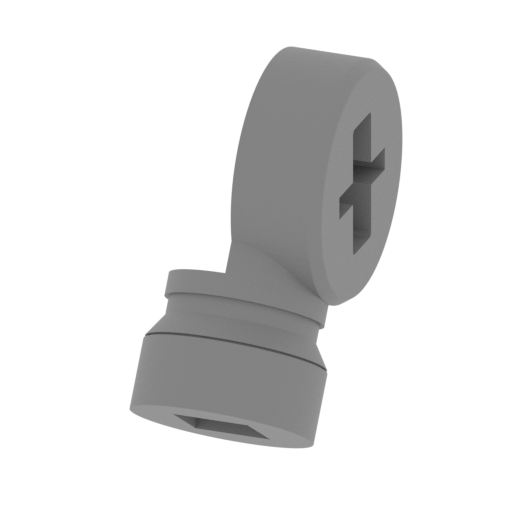

16_Neck_2_fdm (repaired). stl
0.40 MiB 1 h 6 min 1 m 39 x 35 x 19 Download

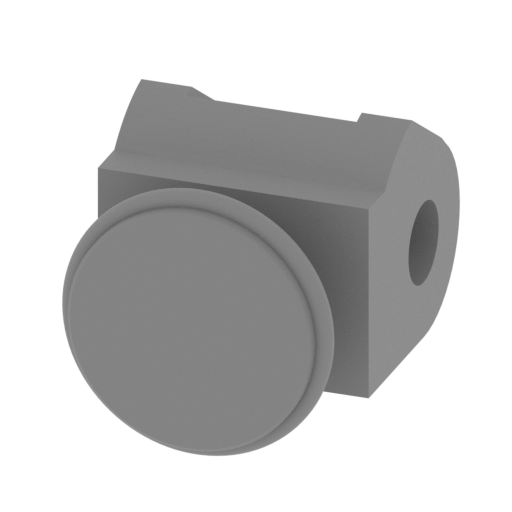

17_Neck_4_fdm (repaired). stl
0.20 MiB 1 h 6 min 1 m 22 x 22 x 30 Download

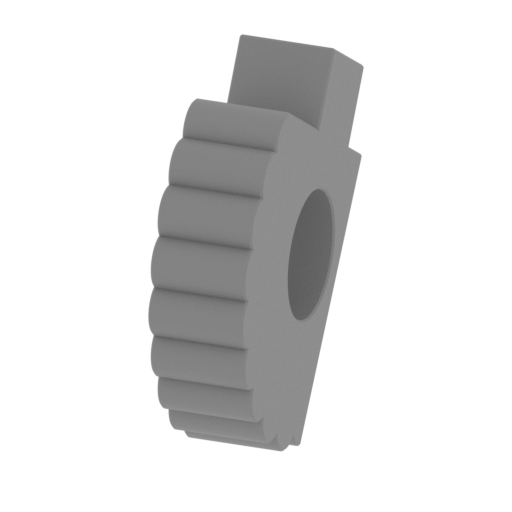

18_Gear_1_fdm (repaired). stl
0.06 MiB 8 min <1 m 19 x 17 x 5 Download

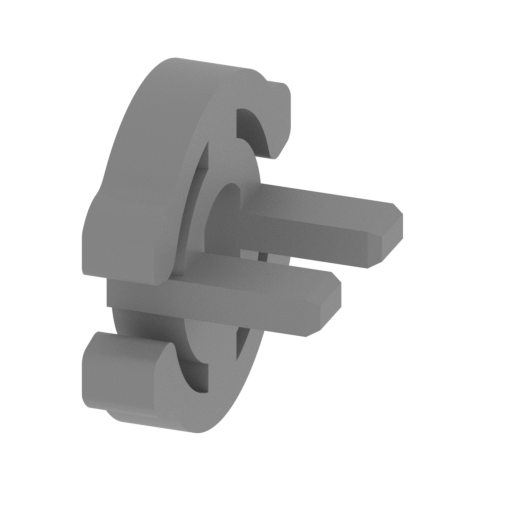

19_Gear_2_fdm (repaired). stl
0.17 MiB 14 min <1 m 18 x 18 x 13 Download

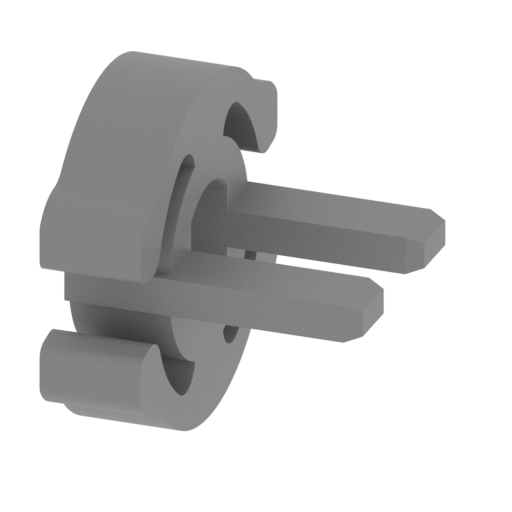

20_Gear_3_fdm (repaired). stl
0.19 MiB 9 min <1 m 13 x 14 x 13 Download

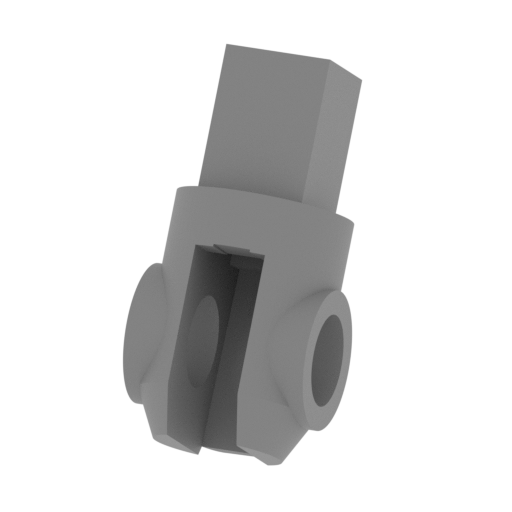

21_Neck_3_fdm (repaired). stl
0.29 MiB 44 min <1 m 13 x 13 x 28 Download

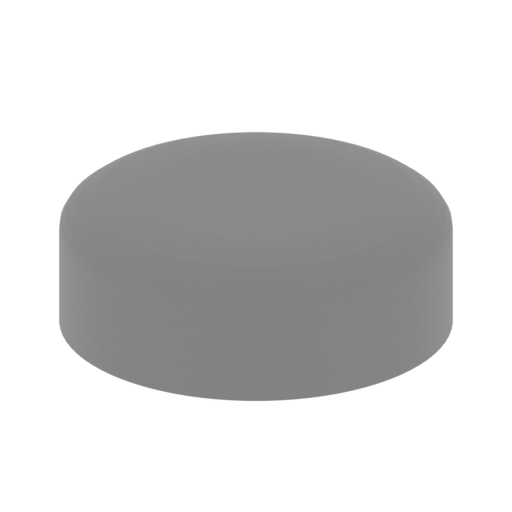

22_Optic_L_fdm (repaired) .stl
0.11 MiB 15 min <1 m 20 x 20 x 7 Download
23_Optic_R_fdm (repaired) .stl
0.11 MiB 15 min <1 m 20 x 20 x 7 Download

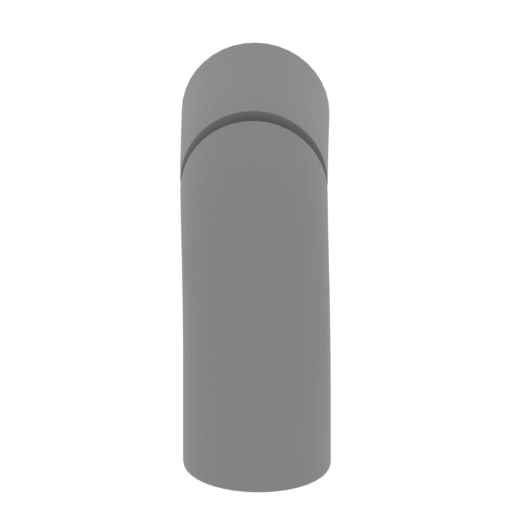

24_Pipe_1_L_fdm (repaired ).stl
0.27 MiB 23 min <1 m 14 x 22 x 19 Download
25_Pipe_1_R_fdm (repaired ).stl
0.27 MiB 23 min <1 m 14 x 22 x 19 Download

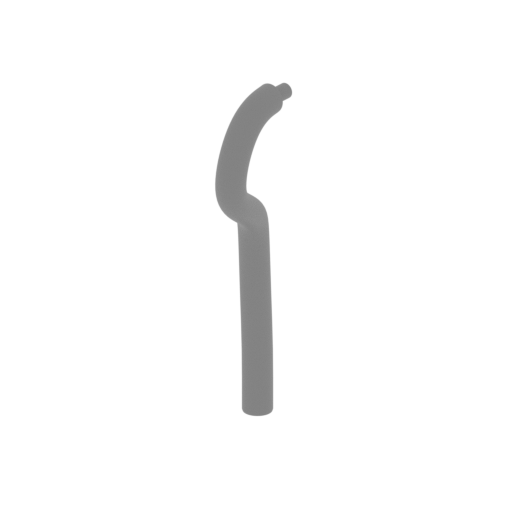

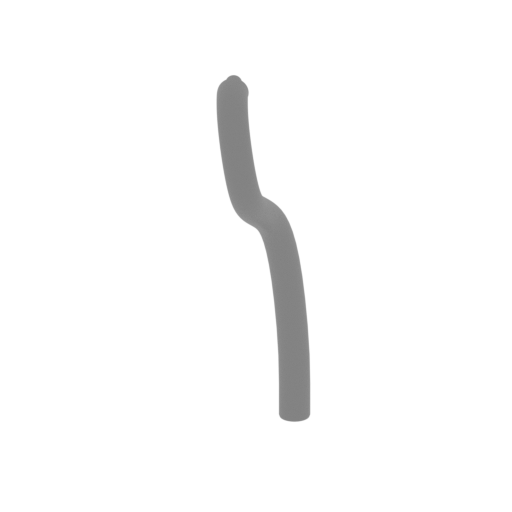

26_Pipe_2_L_fdm (repaired ).stl
0.54 MiB 59 min <1 m 11 x 23 x 62 Download
27_Pipe_2_R_fdm (repaired ).stl
0.54 MiB 58 min <1 m 11 x 23 x 62 Download

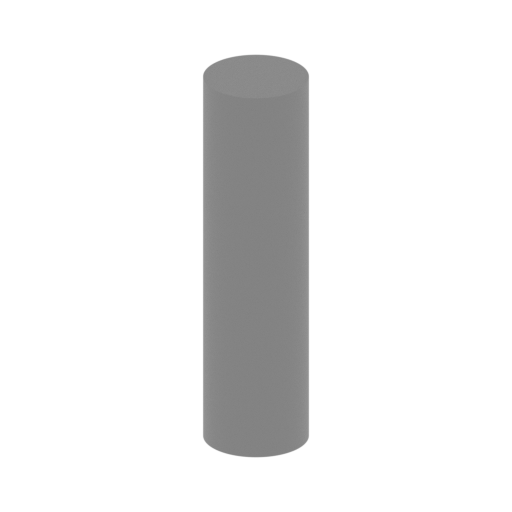

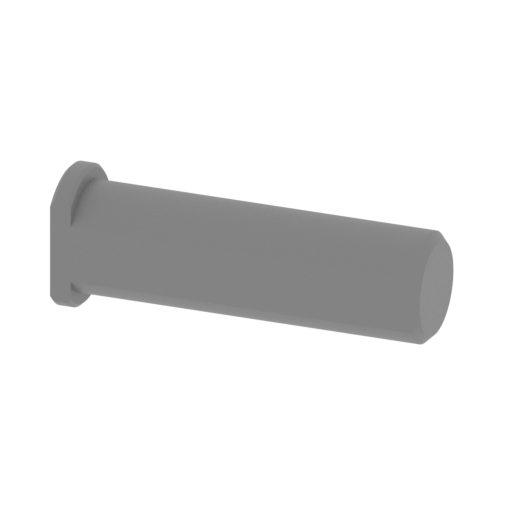

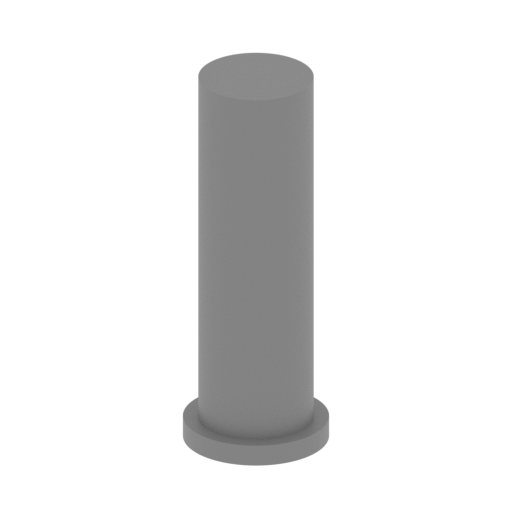

30_Cylinder_fdm (repaired ).stl
0.20 MiB 15 min <1 m 8 x 8 x 22 Download
31_Loop_2_fdm (repaired). stl
0.09 MiB 10 min <1 m 5 x 5 x 19 Download
32_Loop_1_fdm (repaired). stl
0.04 MiB 14 min <1 m 12 x 43 x 6 Download

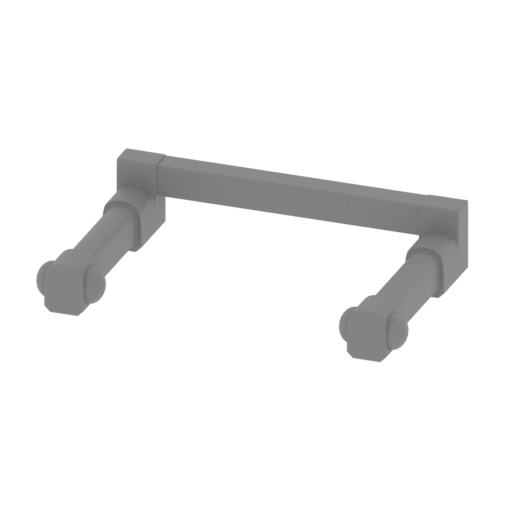

33_Handle_Fdm (repaired). stl
1.68 MiB 18 min <1 m 38 x 23 x 8 Download

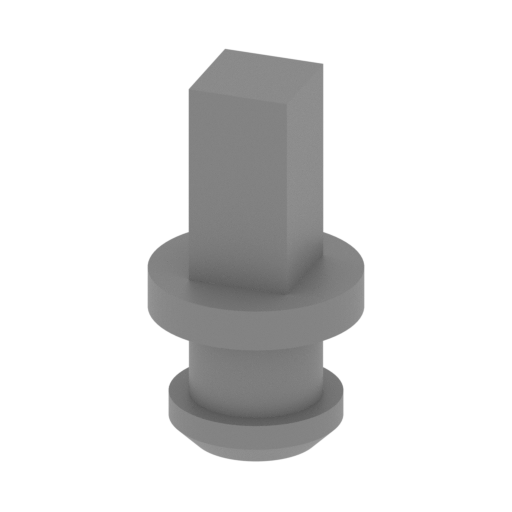

34_Hand_5_R_fdm (repaired ).stl
0.08 MiB 33 min <1 m 15 x 15 x 28 Download
35_Hand_5_L_fdm (repaired ).stl
0.08 MiB 33 min <1 m 15 x 15 x 28 Download
38_Hand_3_R_fdm (repaired ).stl
0.02 MiB 17 min <1 m 13 x 13 x 17 Download

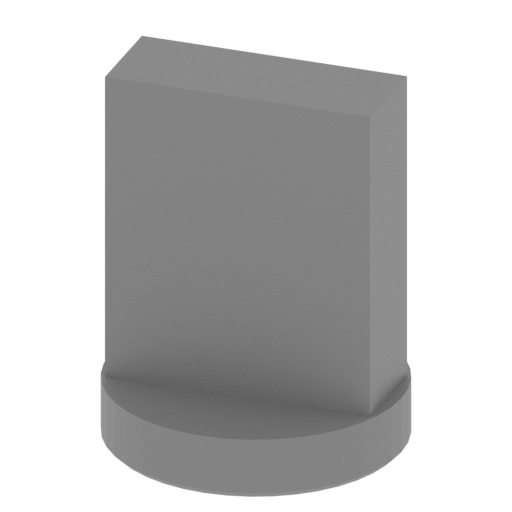

39_Hand_3_L_fdm (repaired ).stl
0.02 MiB 17 min <1 m 13 x 13 x 17 Download

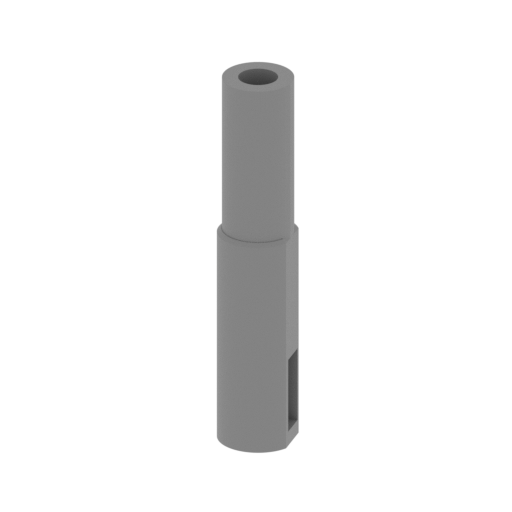

40_Hand_2_R_fdm (repaired ).stl
0.08 MiB 1 h 3 min <1 m 12 x 13 x 61 Download
41_Hand_2_L_fdm (repaired ).stl
0.08 MiB 1 h 3 min 1 m 12 x 13 x 61 Download

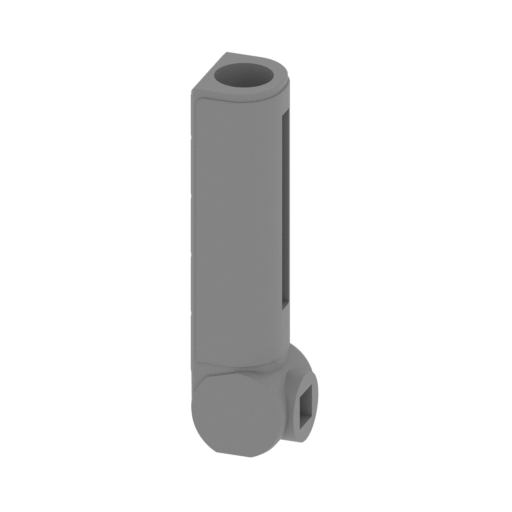

42_Hand_1_R_fdm (repaired ).stl
0.21 MiB 2 h 48 min 2 m 23 x 22 x 85 Download

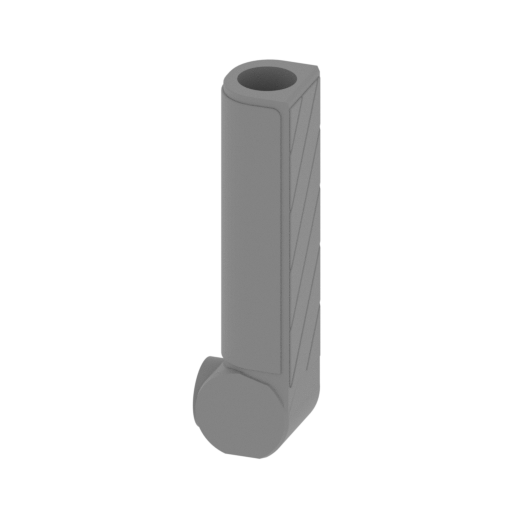

43_Hand_1_L_fdm (repaired ).stl
0.22 MiB 2 h 47 min 2 m 23 x 22 x 85 Download

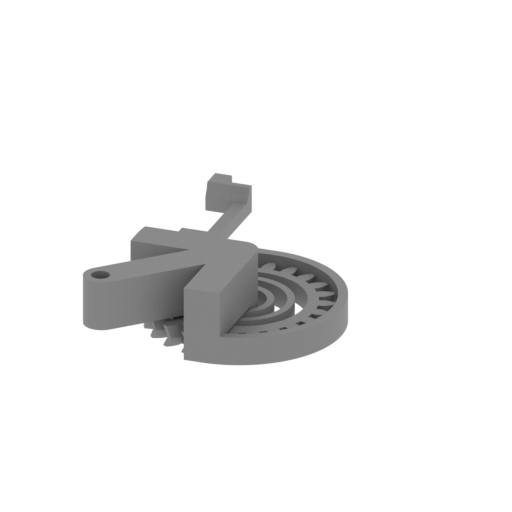

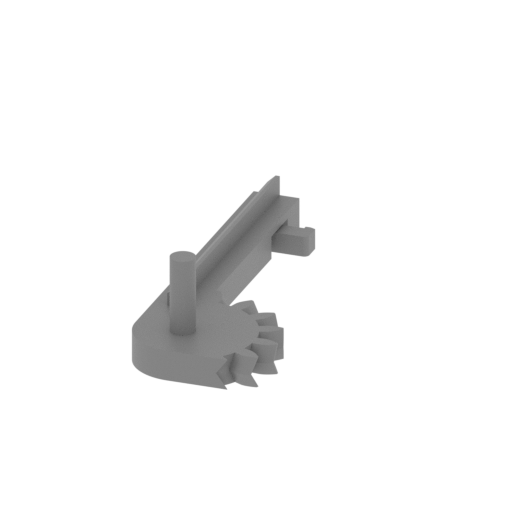

56_Spring_1_fdm (repaired ).stl
4.65 MiB 1 h 11 min 1 m 39 x 65 x 13 Download
57_Spring_2_fdm (repaired ).stl
0.57 MiB 21 min <1 m 17 x 45 x 13 Download

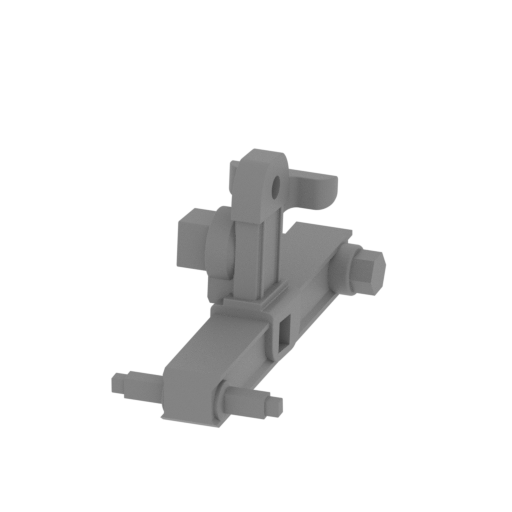

58_Base_Leg_L_fdm (repair ed).stl
3.54 MiB 4 h 22 min 3 m 44 x 96 x 51 Download

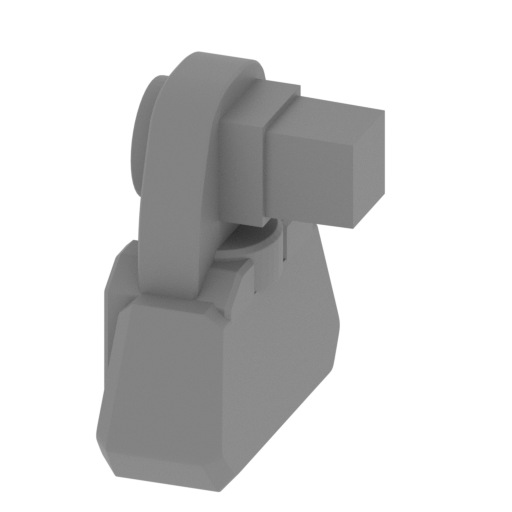

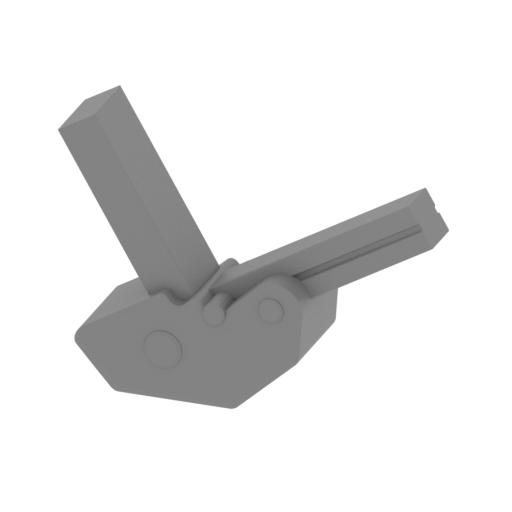

59_Detail_L_fdm (repaired ).stl
0.25 MiB 1 h 49 min 1 m 58 x 17 x 43 Download
60_Detail_2_fdm (repaired ).stl
0.96 MiB 1 h 13 min 1 m 20 x 31 x 33 Download

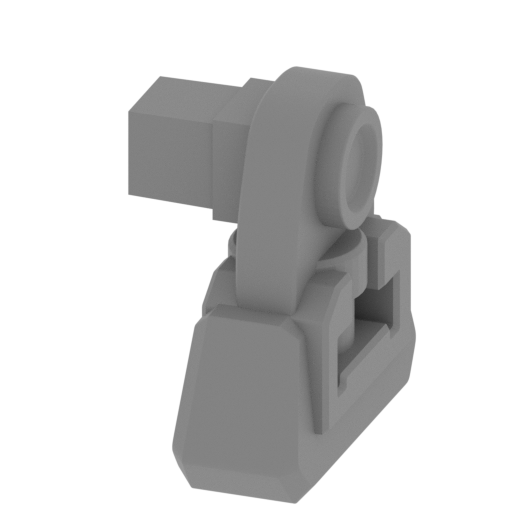

61_Detail_1_fdm (repaired ).stl
0.96 MiB 1 h 12 min 1 m 20 x 31 x 33 Download

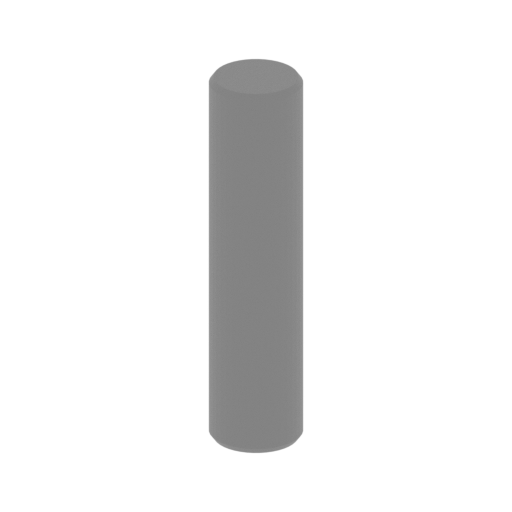

62_CylindrBase_1_fdm (rep aired).stl
0.03 MiB 14 min <1 m 6 x 6 x 24 Download

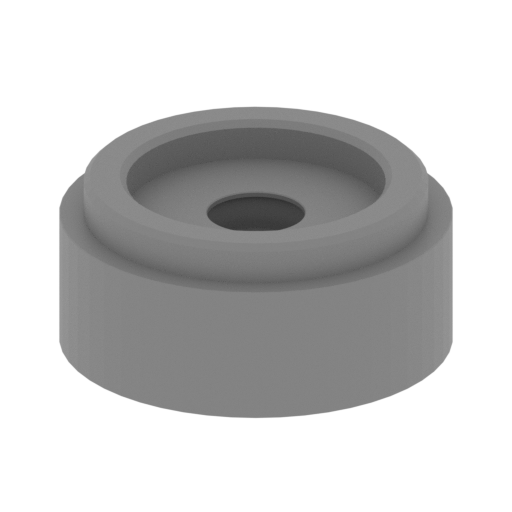

63_Cylindr_x8_fdm (repair ed).stl
0.16 MiB 19 min <1 m 20 x 20 x 9 Download
64_Cube_2_L_fdm (repaired ).stl
0.12 MiB 54 min <1 m 10 x 56 x 19 Download

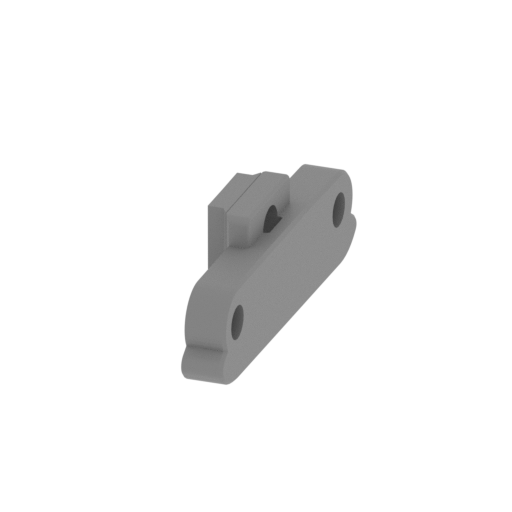

65_Cube_1_L_fdm (repaired ).stl
0.12 MiB 54 min <1 m 10 x 56 x 19 Download

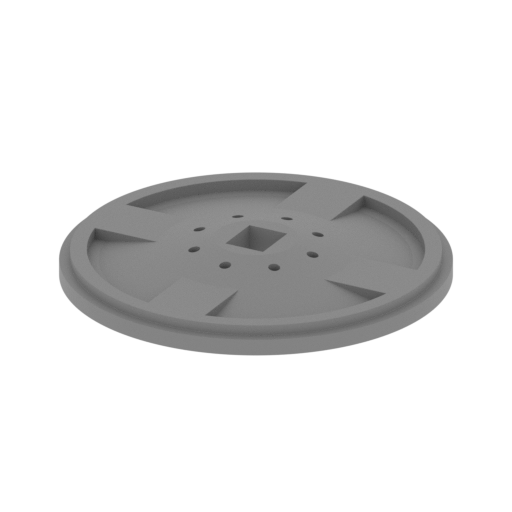

66_Cap_small_X4_fdm (repa ired).stl
0.46 MiB 25 min <1 m 32 x 32 x 3 Download

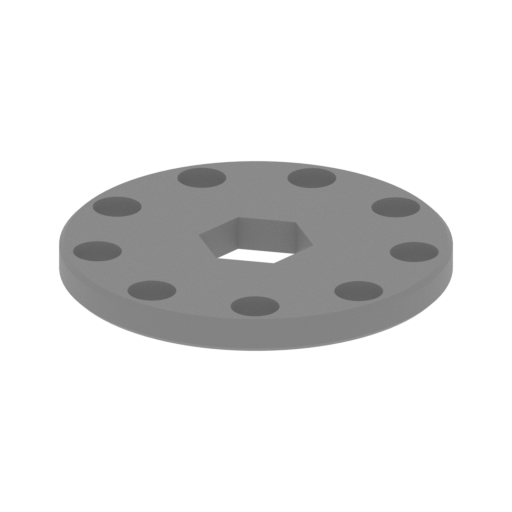

67_Bearing_in_big_x4_fdm (repaired).stl
0.30 MiB 31 min <1 m 37 x 37 x 3 Download

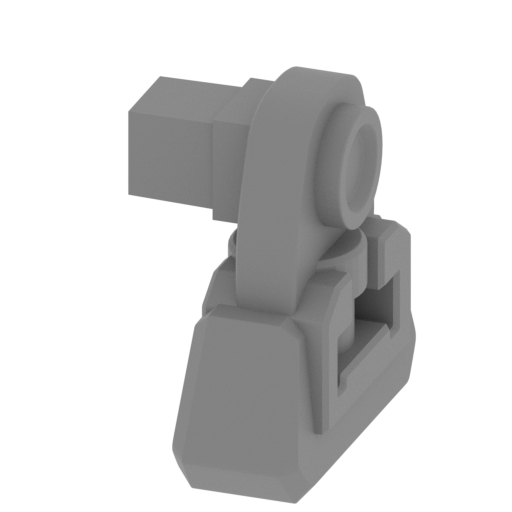

68_Detail_4_fdm (repaired ).stl
0.96 MiB 1 h 12 min 1 m 20 x 31 x 33 Download
69_Detail_3_fdm (repaired ).stl
0.96 MiB 1 h 13 min 1 m 20 x 31 x 33 Download

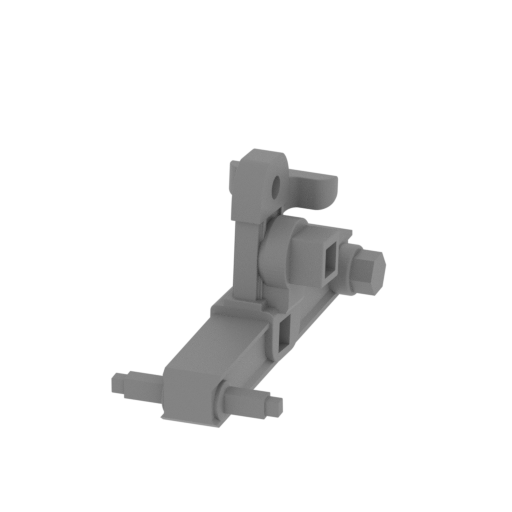

70_Base_Leg_R_fdm (repair ed).stl
3.54 MiB 4 h 23 min 3 m 44 x 96 x 51 Download

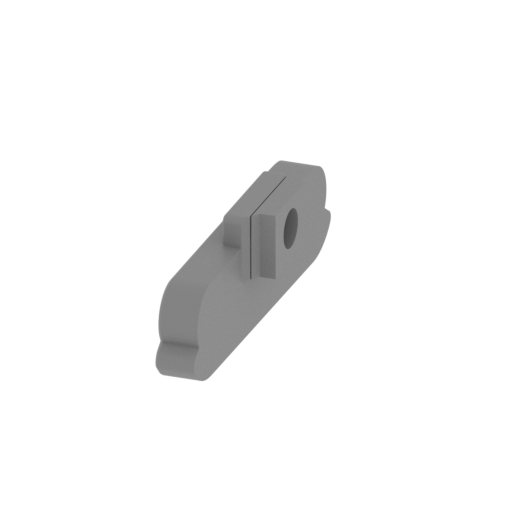

71_Cube_1_R_fdm (repaired ).stl
0.12 MiB 55 min <1 m 10 x 56 x 19 Download
72_Cube_2_R_fdm (repaired ).stl
0.12 MiB 54 min <1 m 10 x 56 x 19 Download
73_CylindrBase_2_fdm (rep aired).stl
0.03 MiB 14 min <1 m 6 x 6 x 24 Download

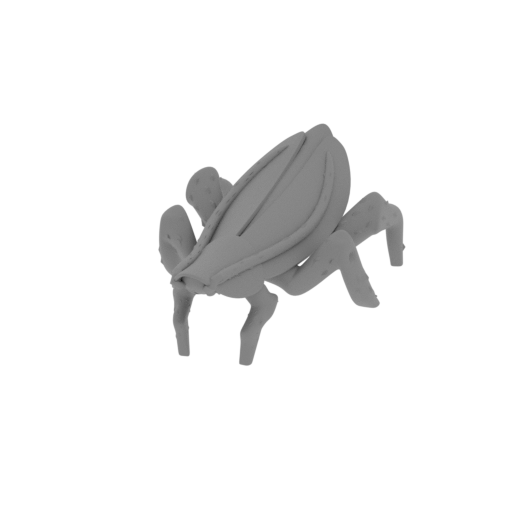

74_Bug_fdm (repaired).stl
5.06 MiB 35 min <1 m 19 x 33 x 11 Download

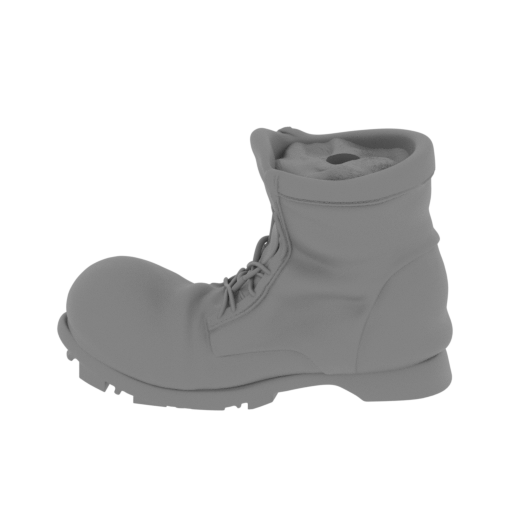

75_Boot_fdm (repaired).st l
14.27 MiB 2 h 36 min 1 m 57 x 28 x 40 Download

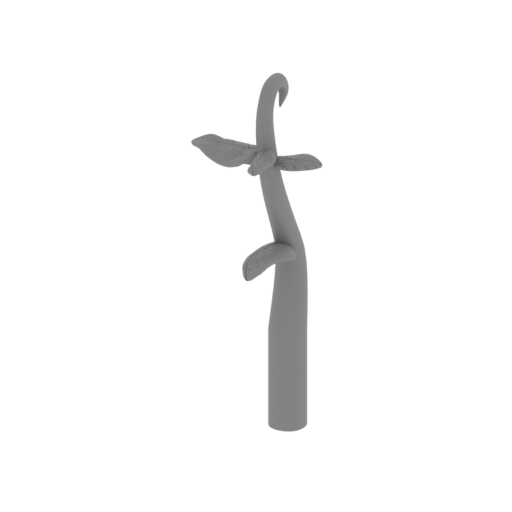

76_Flower_fdm (repaired). stl
11.93 MiB 1 h 2 min 1 m 20 x 17 x 56 Download

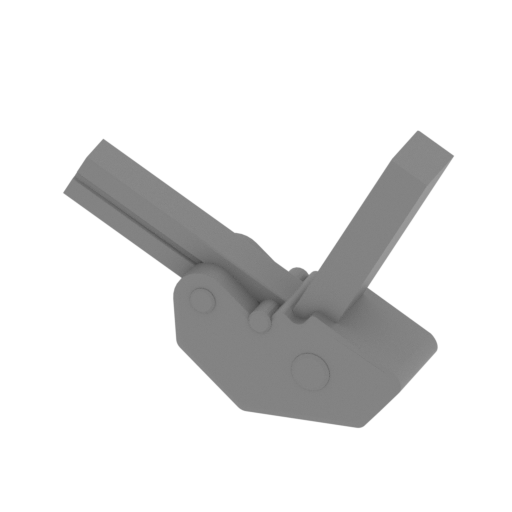

77_Detail_R_fdm (repaired ).stl
0.25 MiB 1 h 47 min 1 m 58 x 17 x 43 Download
78_Pipe_LED_R_fdm (repair ed).stl
0.33 MiB 27 min <1 m 14 x 22 x 19 Download

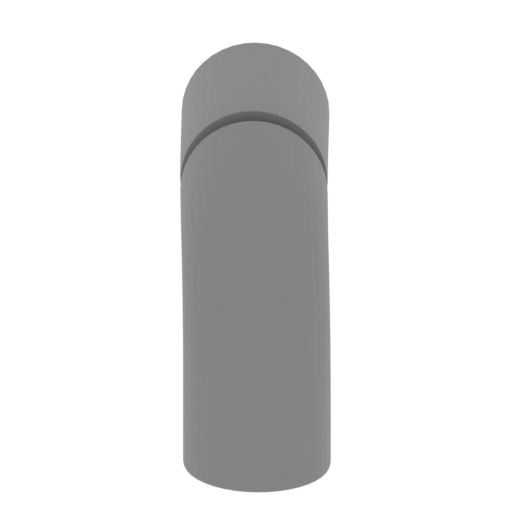

79_Pipe_LED_L_fdm (repair ed).stl
0.33 MiB 27 min <1 m 14 x 22 x 19 Download

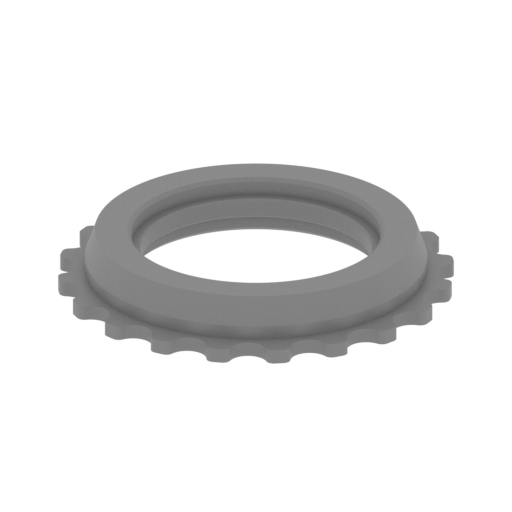

80_BearingCylindr_big_B_x 36_fdm (repaired).stl
0.14 MiB 4 min <1 m 10 x 10 x 8 Download
81_Bearing_out_big_x4_fdm (repaired).stl
0.45 MiB 1 h 45 min 1 m 64 x 64 x 9 Download

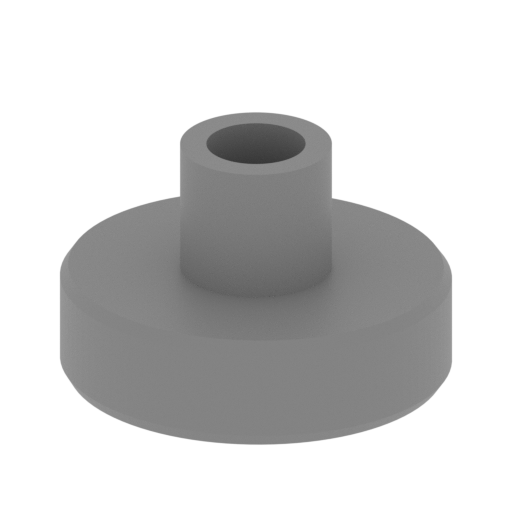

82_BearingCylindr_big_A_x 36_fdm (repaired).stl
0.15 MiB 5 min <1 m 10 x 10 x 6 Download

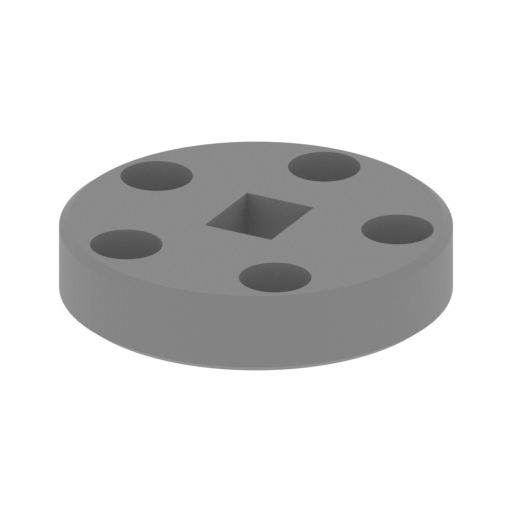

83_Bearing_in_small_x4_fd m (repaired).stl
0.18 MiB 20 min <1 m 25 x 25 x 5 Download

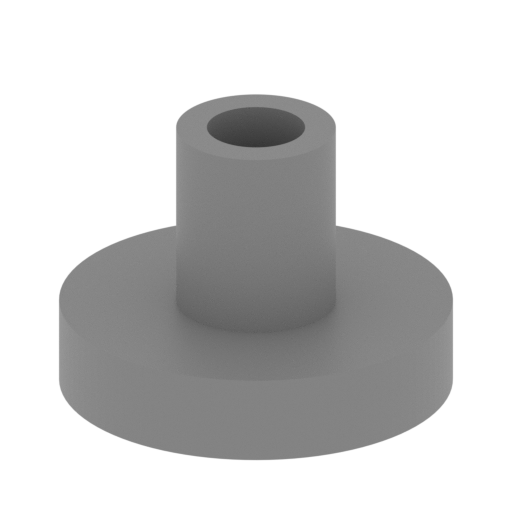

84_Bearing_out_small_x4_f dm (repaired).stl
0.15 MiB 55 min <1 m 36 x 36 x 10 Download
85_BearingCylindr_small_A _x20_fdm (repaired).stl
0.08 MiB 5 min <1 m 10 x 10 x 7 Download

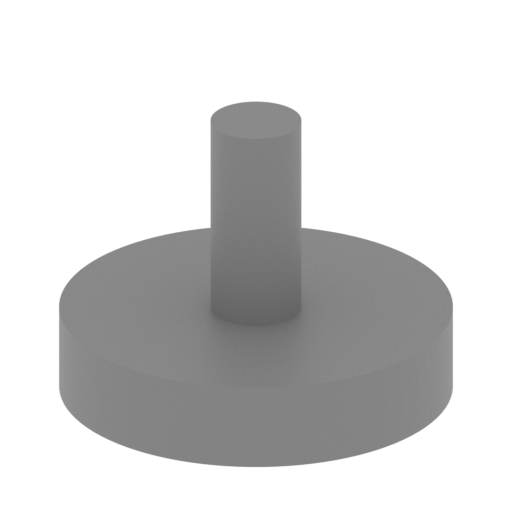

86_BearingCylindr_small_B _x20_fdm (repaired).stl
0.10 MiB 4 min <1 m 10 x 10 x 8 Download
87_Ge_Lock_x11 (repaired) .stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

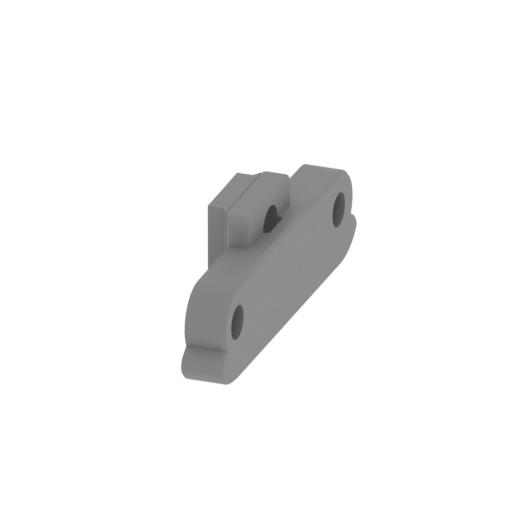

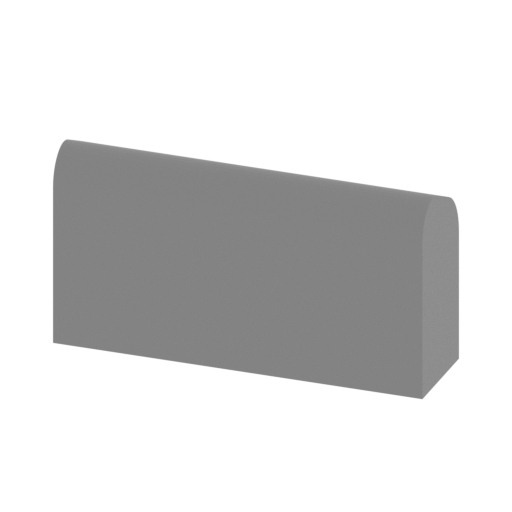

89_Tongue_x72_fdm.stl
0.01 MiB 7 min <1 m 15 x 4 x 8 Download

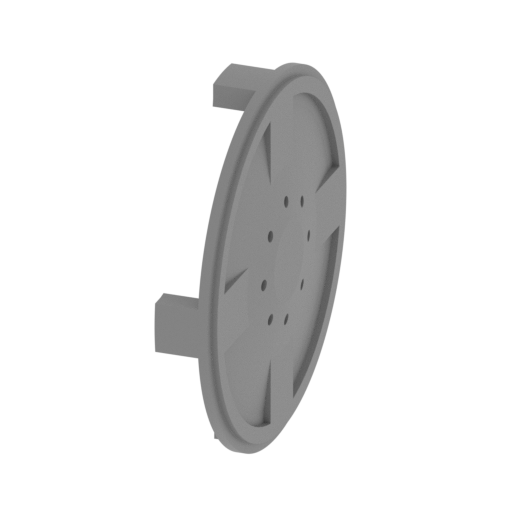

90_Cap_x4_fdm (repaired). stl
0.51 MiB 1 h 53 min 1 m 9 x 52 x 52 Download

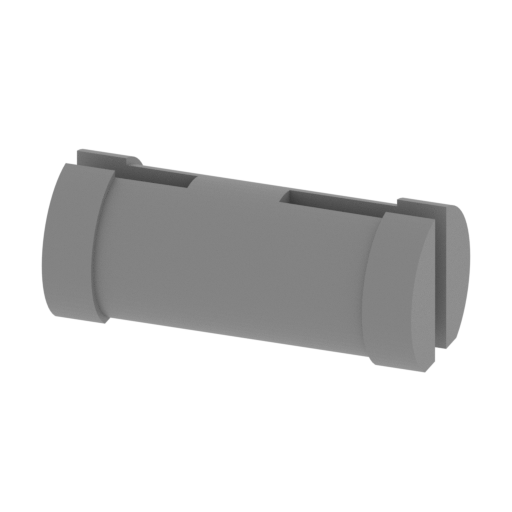

91_Connector_x8_fdm (repa ired).stl
0.09 MiB 5 min <1 m 12 x 5 x 5 Download

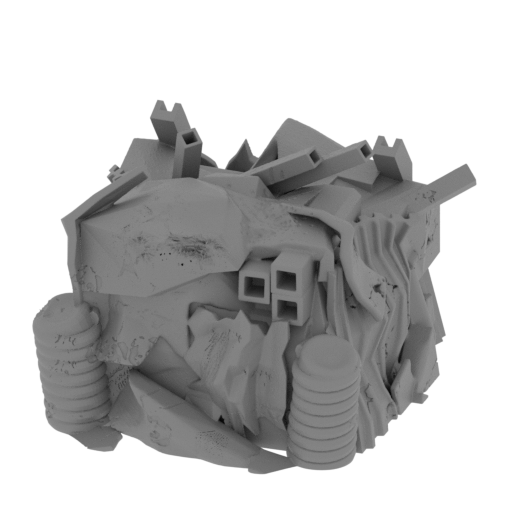

93_Cube_1_fdm(repaired).s tl
60.83 MiB 26 h 25 min 12 m 89 x 89 x 66 Download

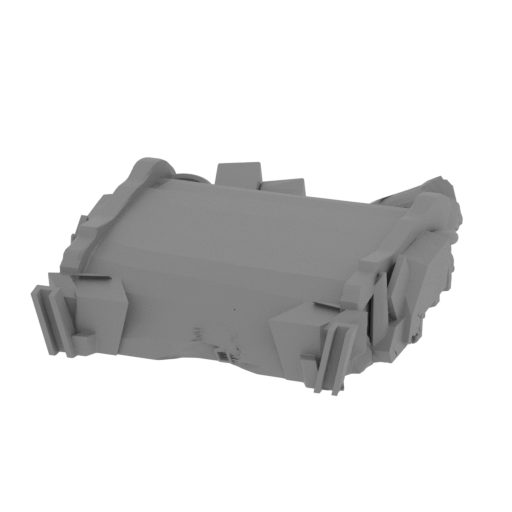

94_Cube_2_fdm(repaired).s tl
20.75 MiB 9 h 49 min 5 m 83 x 89 x 23 Download

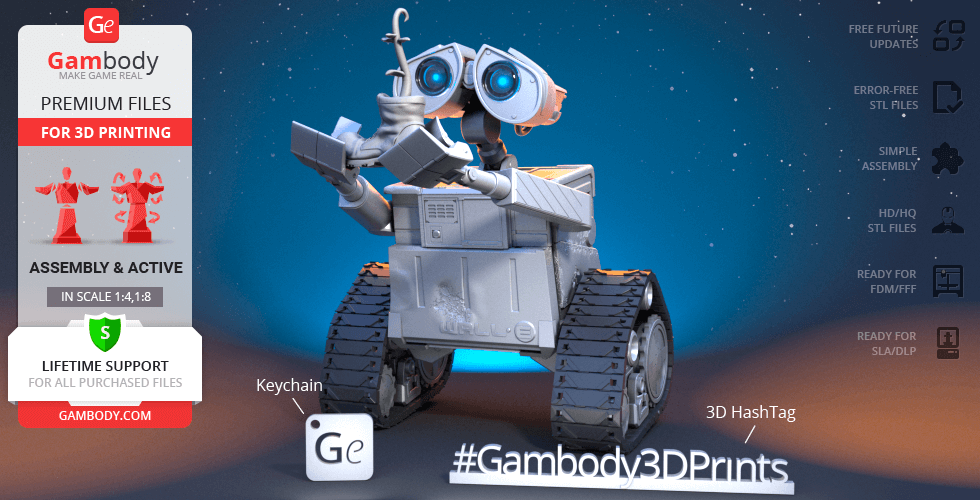

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

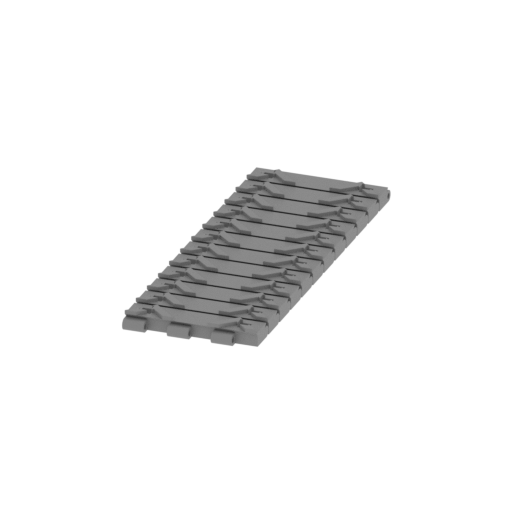

88_Caterpillar_x6_fdm (re paired).stl
3.84 MiB 6 h 7 min 3 m 44 x 124 x 6 Download

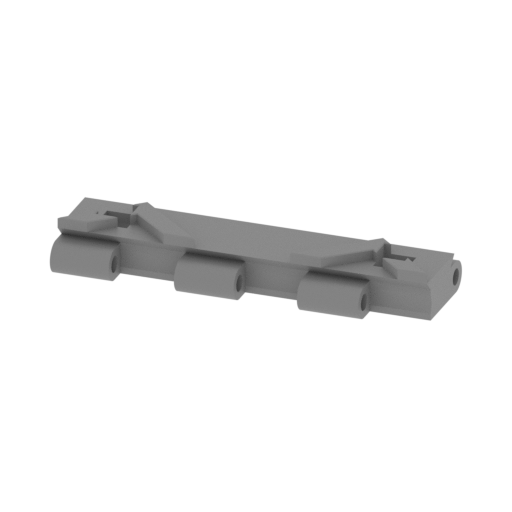

92_Caterpillar_Spare_fdm (repaired).stl
0.44 MiB 32 min <1 m 44 x 14 x 6 Download

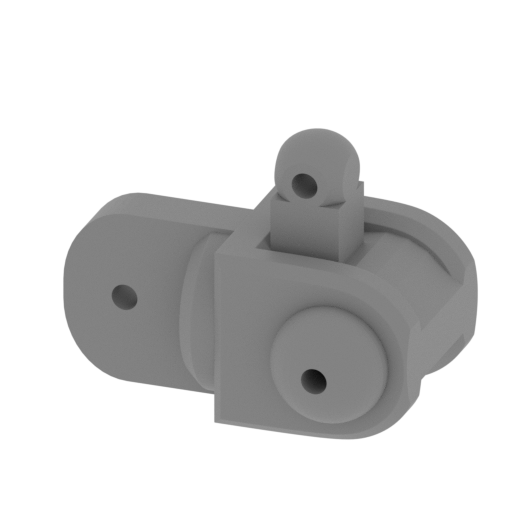

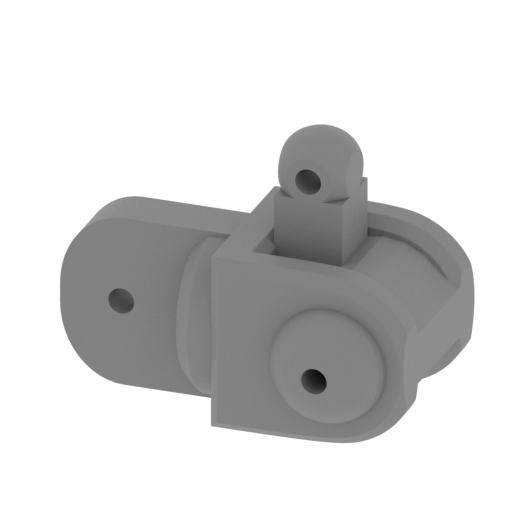

_28_Wrist_R_fdm (repaired ).stl
2.69 MiB 37 min <1 m 26 x 20 x 20 Download
_29_Wrist_L_fdm (repaired ).stl
2.69 MiB 37 min <1 m 26 x 20 x 20 Download

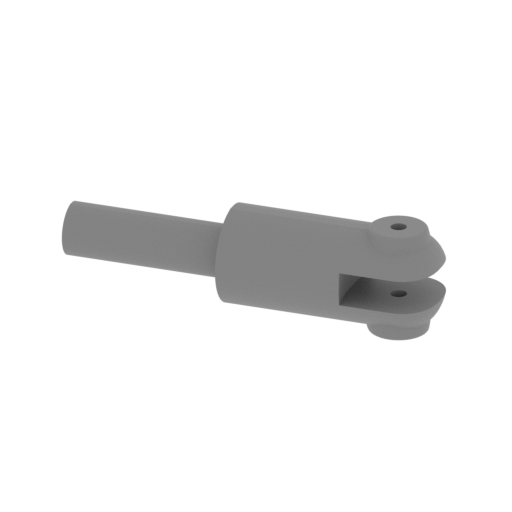

_36_Hand_4_R_fdm.stl
0.15 MiB 31 min <1 m 43 x 11 x 12 Download
_37_Hand_4_L_fdm.stl
0.15 MiB 31 min <1 m 43 x 11 x 12 Download

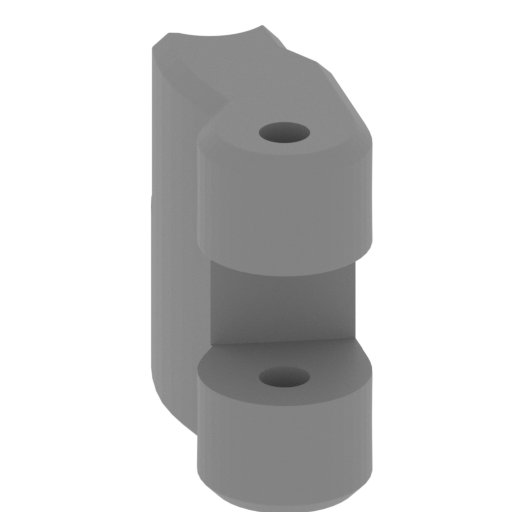

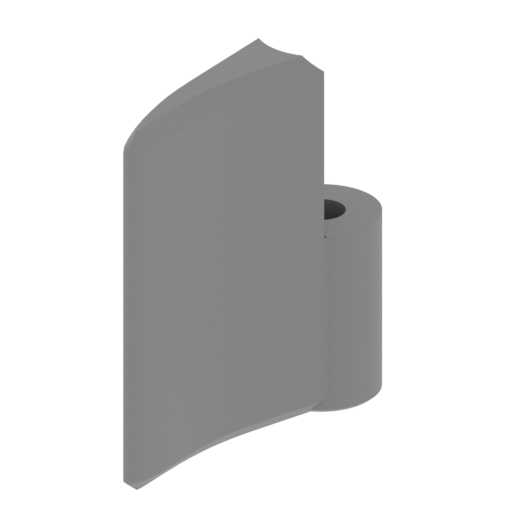

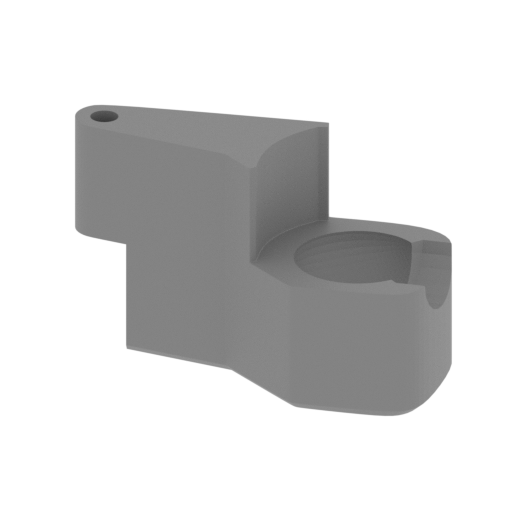

_44_Finger_6_R_fdm (repai red).stl
0.43 MiB 10 min <1 m 6 x 14 x 14 Download

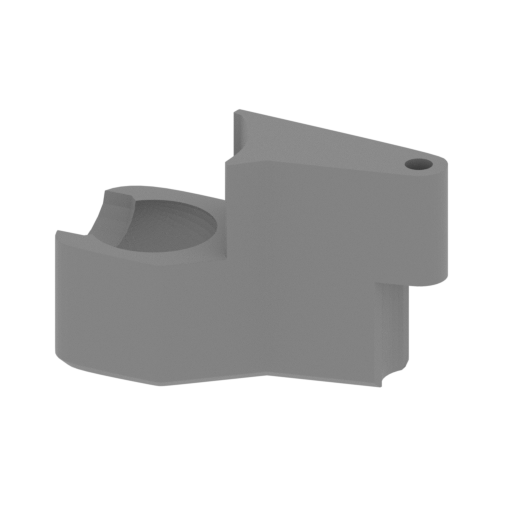

_45_Finger_1_L_fdm (repai red).stl
0.41 MiB 21 min <1 m 25 x 12 x 16 Download

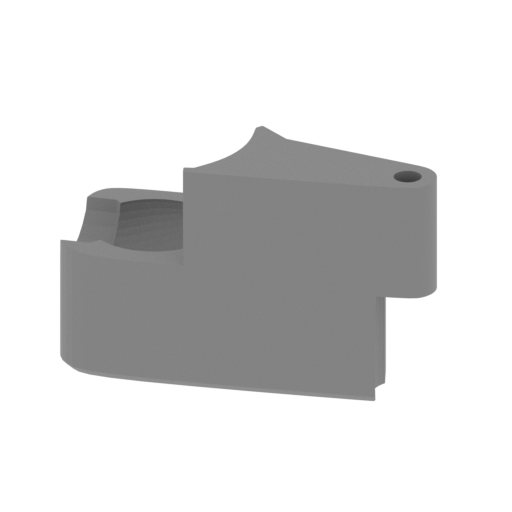

_46_Finger_1_R_fdm (repai red).stl
0.41 MiB 22 min <1 m 25 x 12 x 16 Download
_47_Finger_2_L_fdm (repai red).stl
0.41 MiB 21 min <1 m 25 x 12 x 16 Download

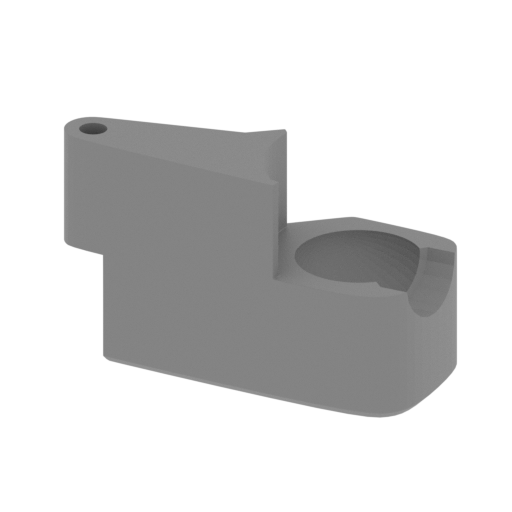

_48_Finger_2_R_fdm (repai red).stl
0.41 MiB 22 min <1 m 25 x 12 x 16 Download

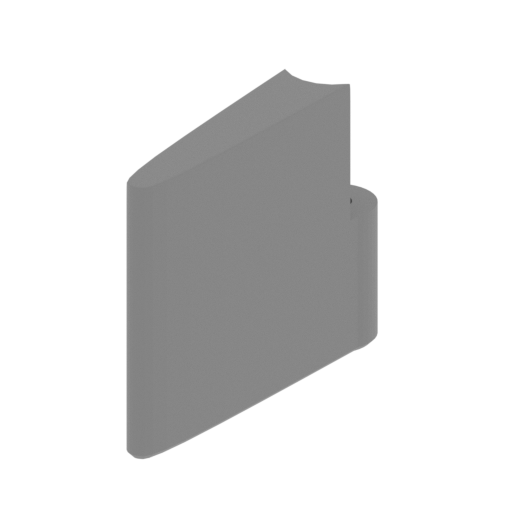

_49_Finger_3_L_fdm (repai red).stl
0.07 MiB 15 min <1 m 7 x 21 x 16 Download

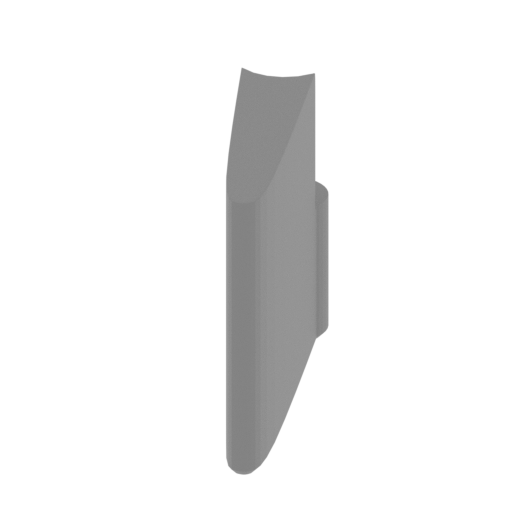

_50_Finger_3_R_fdm (repai red).stl
0.07 MiB 15 min <1 m 7 x 21 x 16 Download
_51_Finger_4_L_fdm (repai red).stl
0.07 MiB 15 min <1 m 7 x 21 x 16 Download
_52_Finger_4_R_fdm (repai red).stl
0.07 MiB 15 min <1 m 7 x 21 x 16 Download

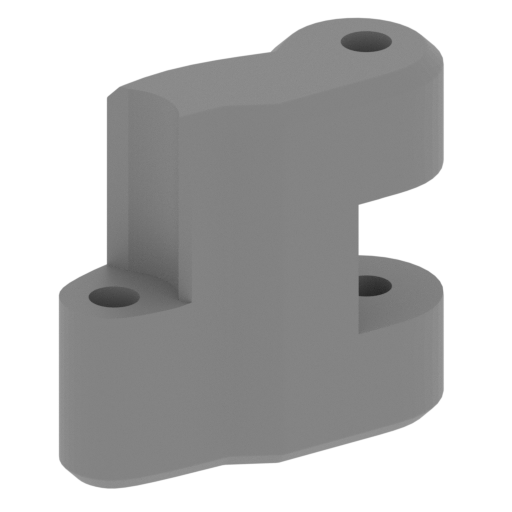

_53_Finger_5_L_fdm (repai red).stl
0.14 MiB 15 min <1 m 11 x 14 x 14 Download
_54_Finger_5_R_fdm (repai red).stl
0.14 MiB 15 min <1 m 11 x 14 x 14 Download

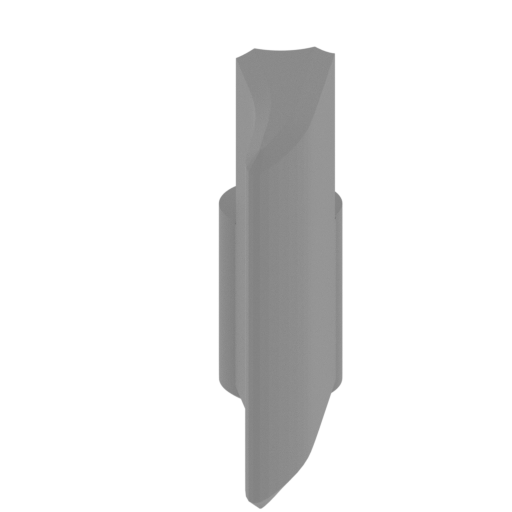

_55_Finger_6_L_fdm (repai red).stl
0.43 MiB 10 min <1 m 6 x 14 x 14 Download

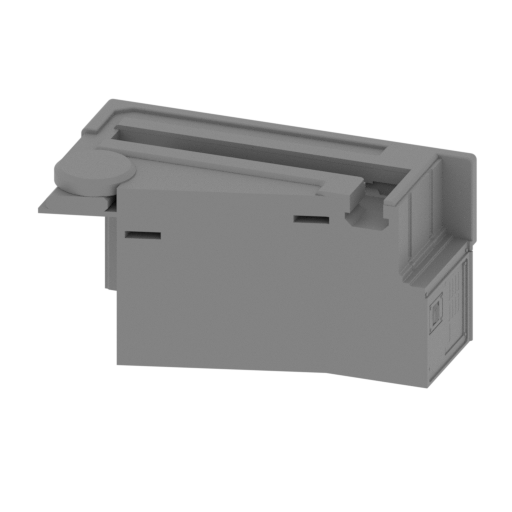

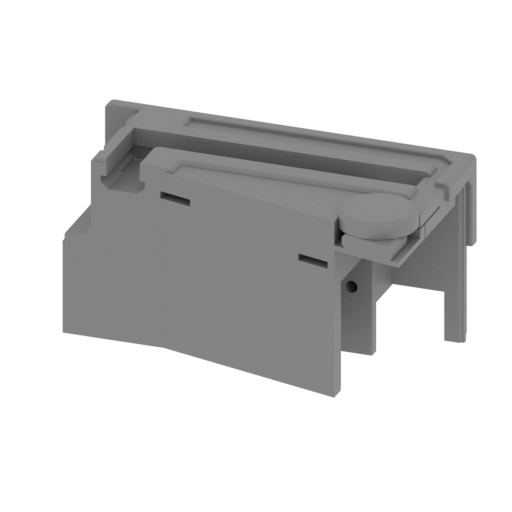

_Base_1_L_clear_fdm (repa ired).stl
1.41 MiB 20 h 36 min 14 m 111 x 61 x 56 Download
_Base_1_R_clear_fdm (repa ired).stl
1.73 MiB 20 h 40 min 14 m 110 x 61 x 56 Download

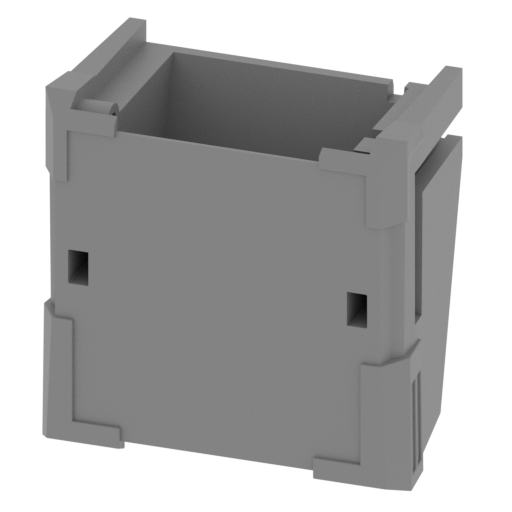

_Base_2_clear_fdm (repair ed).stl
2.21 MiB 46 h 1 min 30 m 123 x 72 x 120 Download

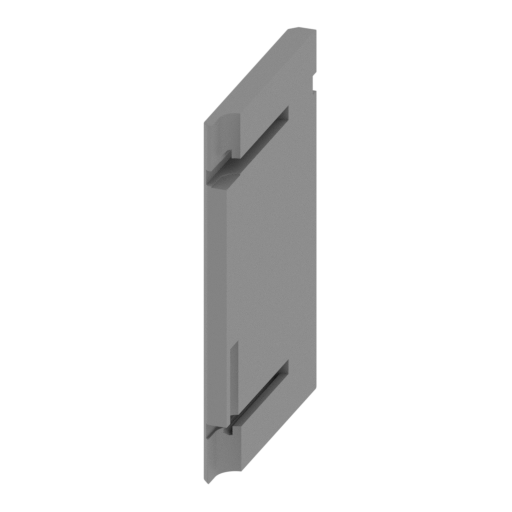

_Door_clear_fdm (repaired ).stl
0.65 MiB 5 h 23 min 3 m 8 x 65 x 98 Download
...

ABOUT THIS 3D MODEL

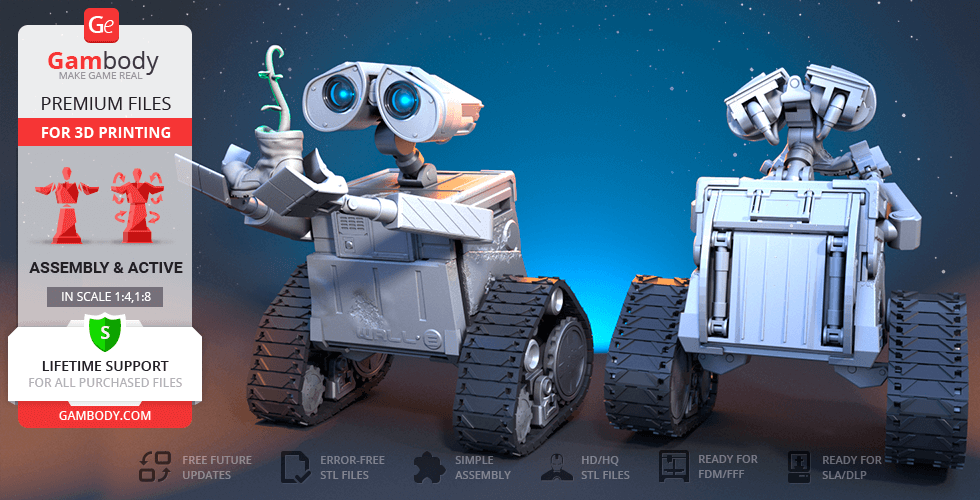

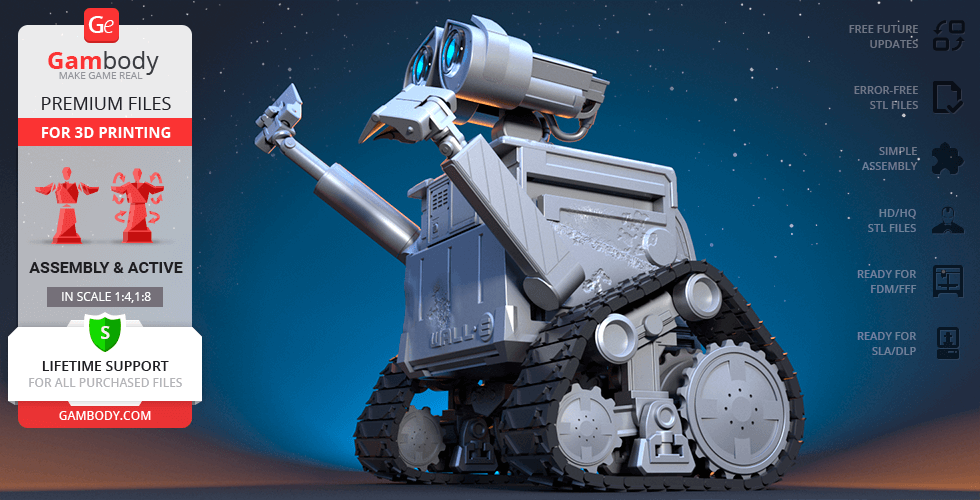

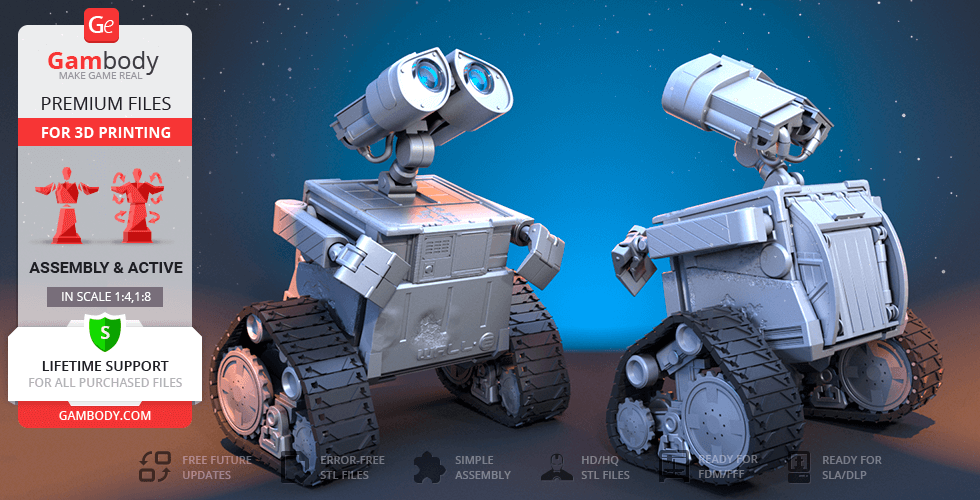

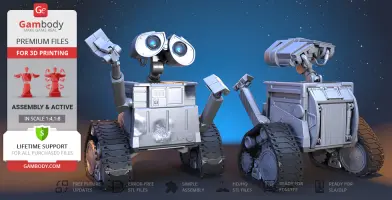

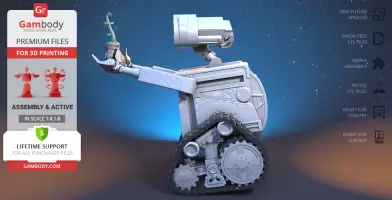

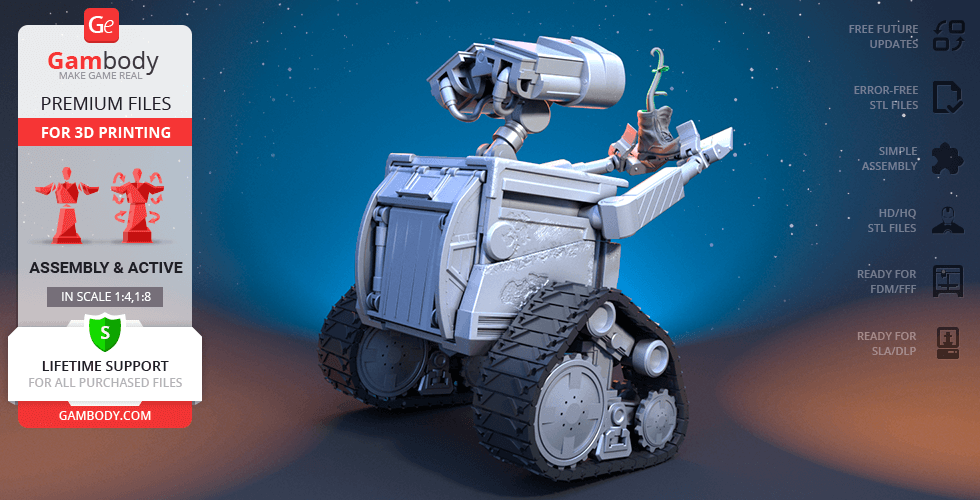

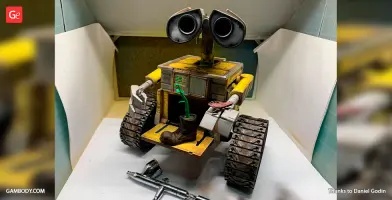

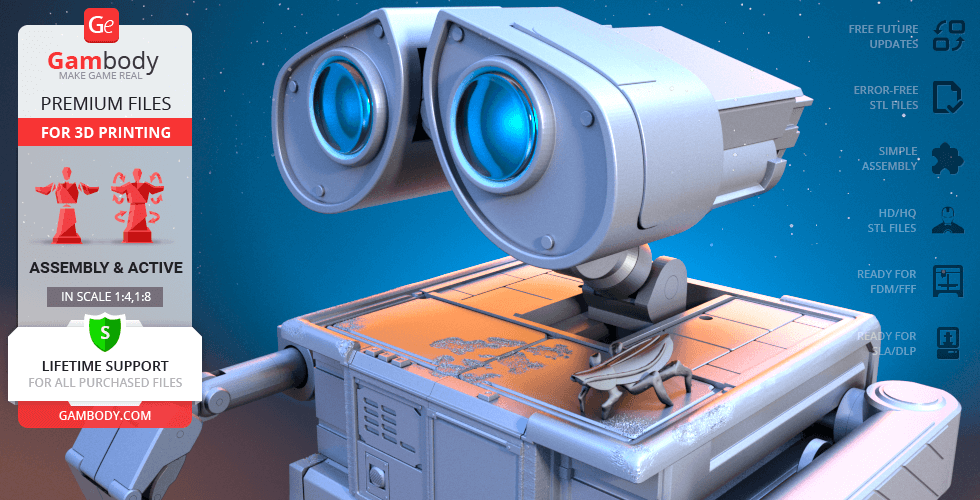

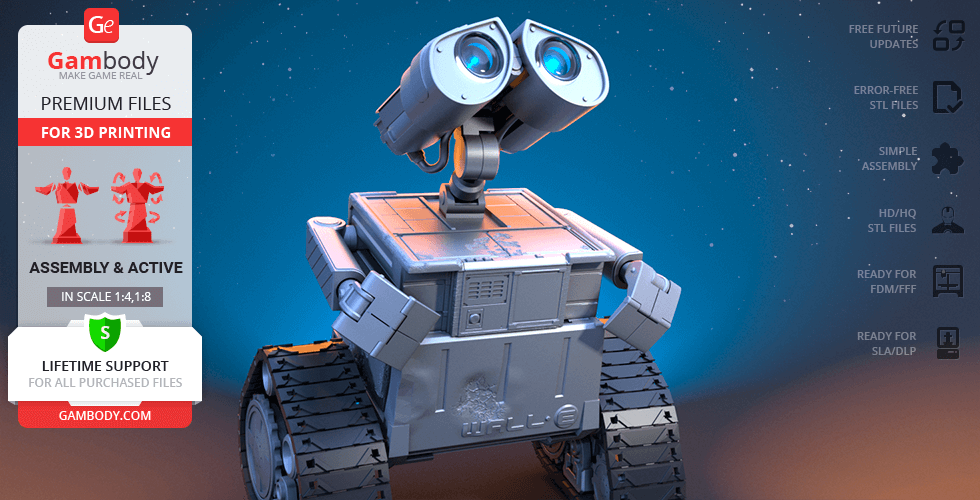

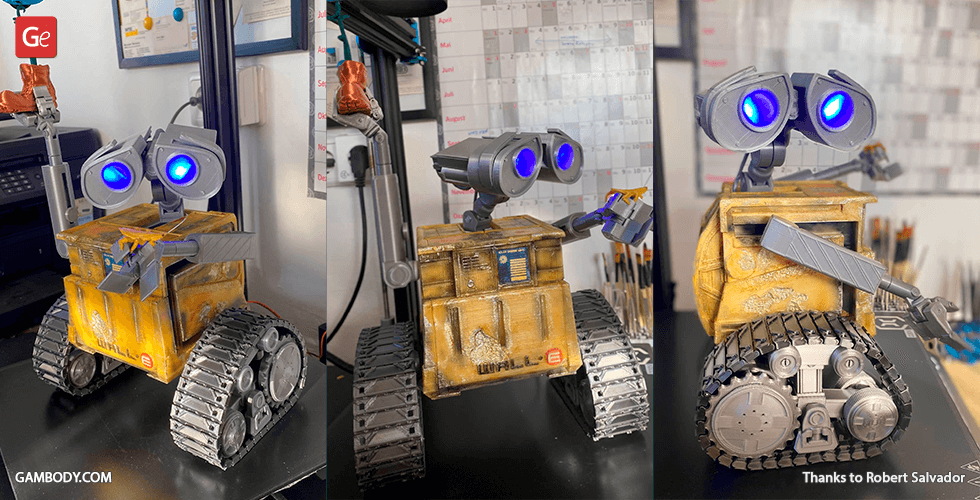

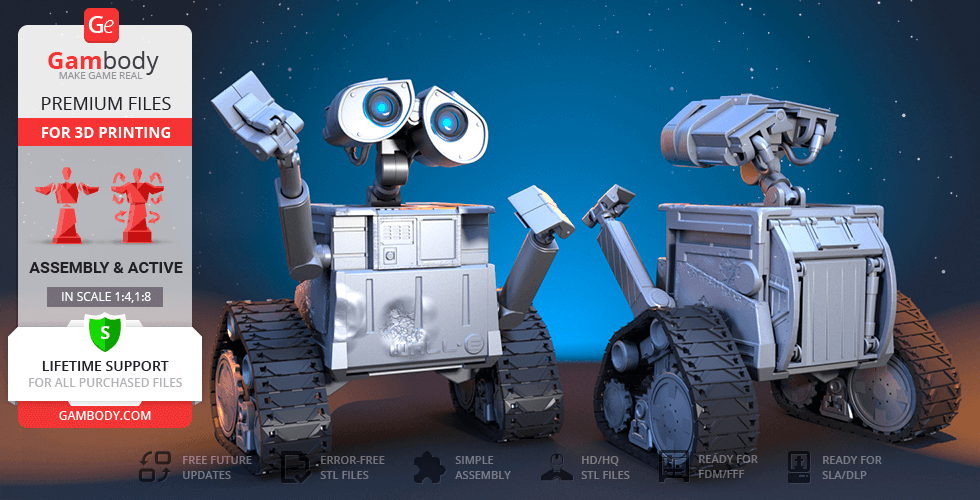

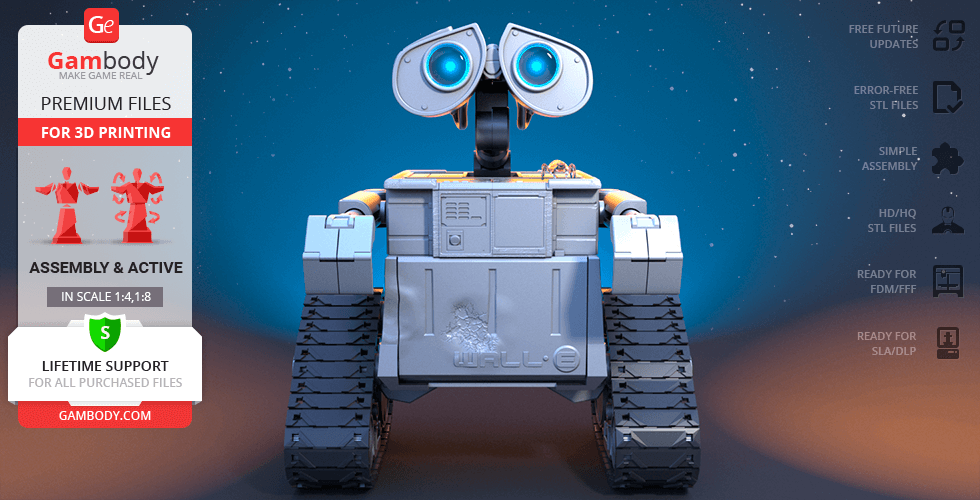

WALL-E, or Waste Allocation Load Lifter: Earth-Class, is a character from a widely beloved animated movie under the same name. The movie tells about the sentient robotic trash compactor, who was the last one stranded on the deserted and ravaged with pollution Earth. After meeting a search droid EVE, WALL-E discovers the true meaning of friendship, love, and hope, and helps to bring life back to the planet. Such a poignant and compelling story deeply moved even the most cold-hearted viewers and inspired our contributing 3D artist for the creation of this adorable WALL-E model for 3D printing. It took the author about 142 hours to sculpt the 3D model of the famous character. The articulated WALL-E can be depicted holding a living plant he found in the wasteland. The plant is sprouting from the boot that WALL-E holds in his three-fingered shovel hands. The robot's binocular eyes are fixed on his treasure, gazing with wonder and admiration. WALL-E’s body, the cube-shaped compactor box, is studded with visible dents, scratches, and chippings that fully portray how old the rusty robot is. The box is also adorned with the front control panel and the iconic logo of the droid. The sculptor did not forget to carve out the tracks for WALL-E’s telescopic arms along the sides of his body. The 3D model of WALL-E stands on the all-terrain treads that feature four independently-actuated sprockets. The caterpillar tracks were recreated with technical accuracy and function like that of a real vehicle. To keep the robot company, the author of the model sculpted his tiny cockroach friend, Hal, that sits on top of WALL-E’s box. Moreover, there is also a garbage cube that comes with the robot to recreate the cute character's occupation on Earth. This wonderful articulated WALL-E model for 3D printing will become a loyal robo-friend for every fan of the movie and a curious piece to exhibit.

ADAPTATION FOR 3D PRINTING

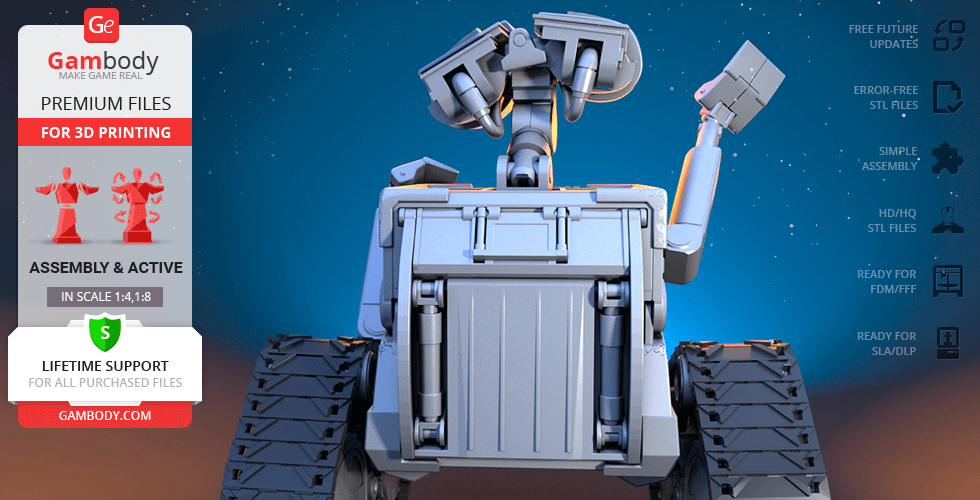

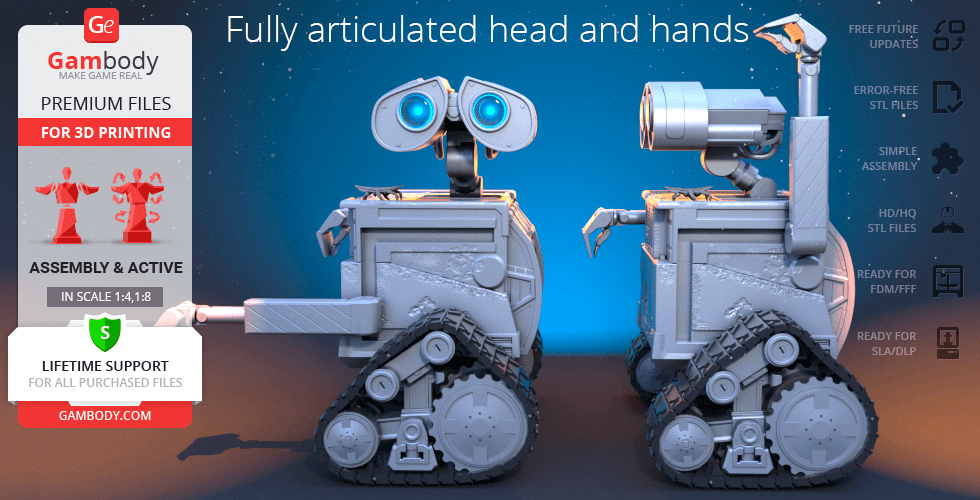

WALL-E model for 3D printing is a highly articulated action assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 50 hours in total. In order to ensure multidirectional movement of the robotic trash compactor, it was divided into many assembly parts and special mechanisms were introduced into all model’s joints to give you an opportunity to display WALL-E in a variety of positions and scenes, i.e. its head, eyes, eyebrows, neck, arms, wrists, fingers, caterpillar tracks, etc. are fully articulated. Thus, the robot’s neck is equipped with an intricate ratchet mechanism system that is made of 3 separate ratchets that allow the firm positioning of WALL-E’s head. The connection of the robot’s arms and body ensures the free movement of WALL-E’s telescopic arms along the carved out tracks. The highly developed system of the model’s multi-section caterpillar tracks is equipped with new rotating gear bearings for an easy and impressive movement of the assembled robot. All assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. We highly recommend that you watch "Assembly video" in the photo preview section before assembling WALL-E.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

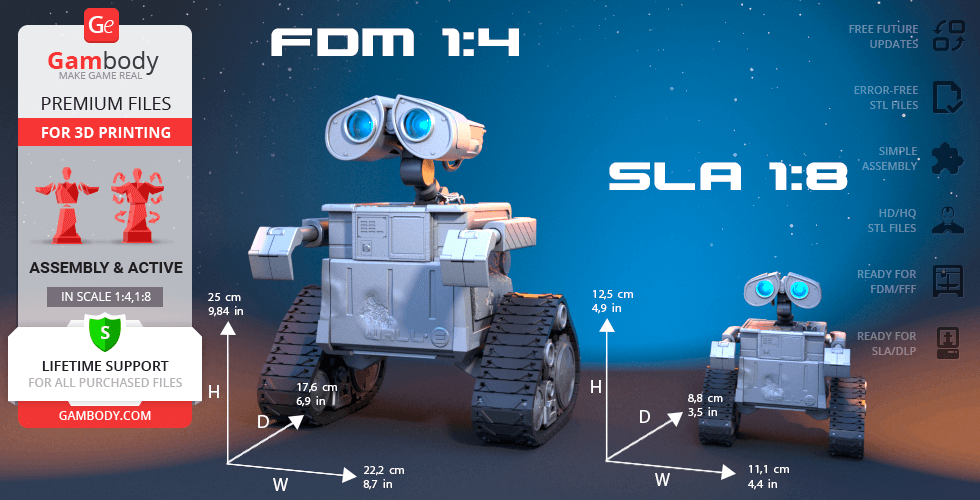

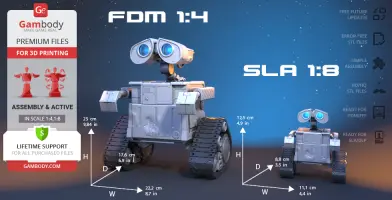

The model's scale was calculated from the actual height of WALL-E that is 1020 mm. The 3D printing model's chosen scale is 1/4 for FFF/FDM version and 1/8 for DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

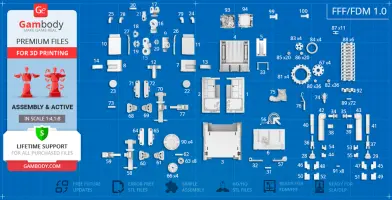

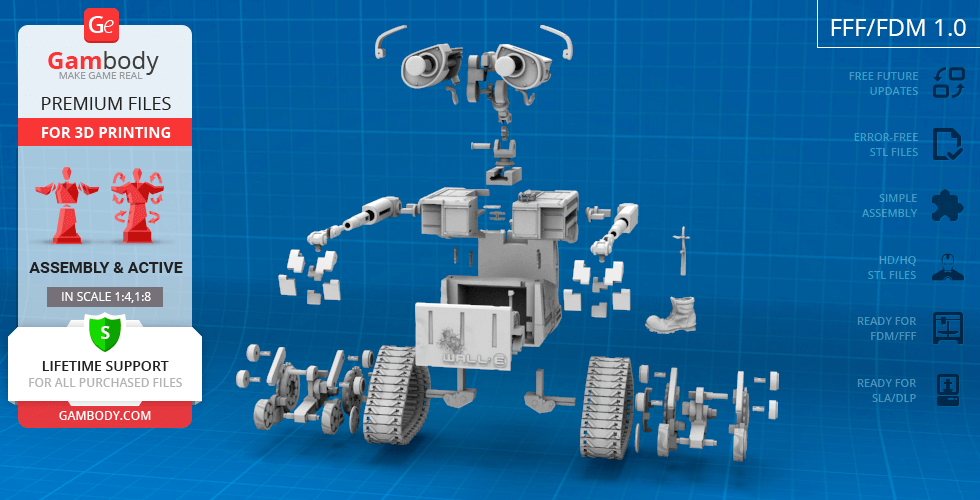

FFF/FDM 1.0 version features:

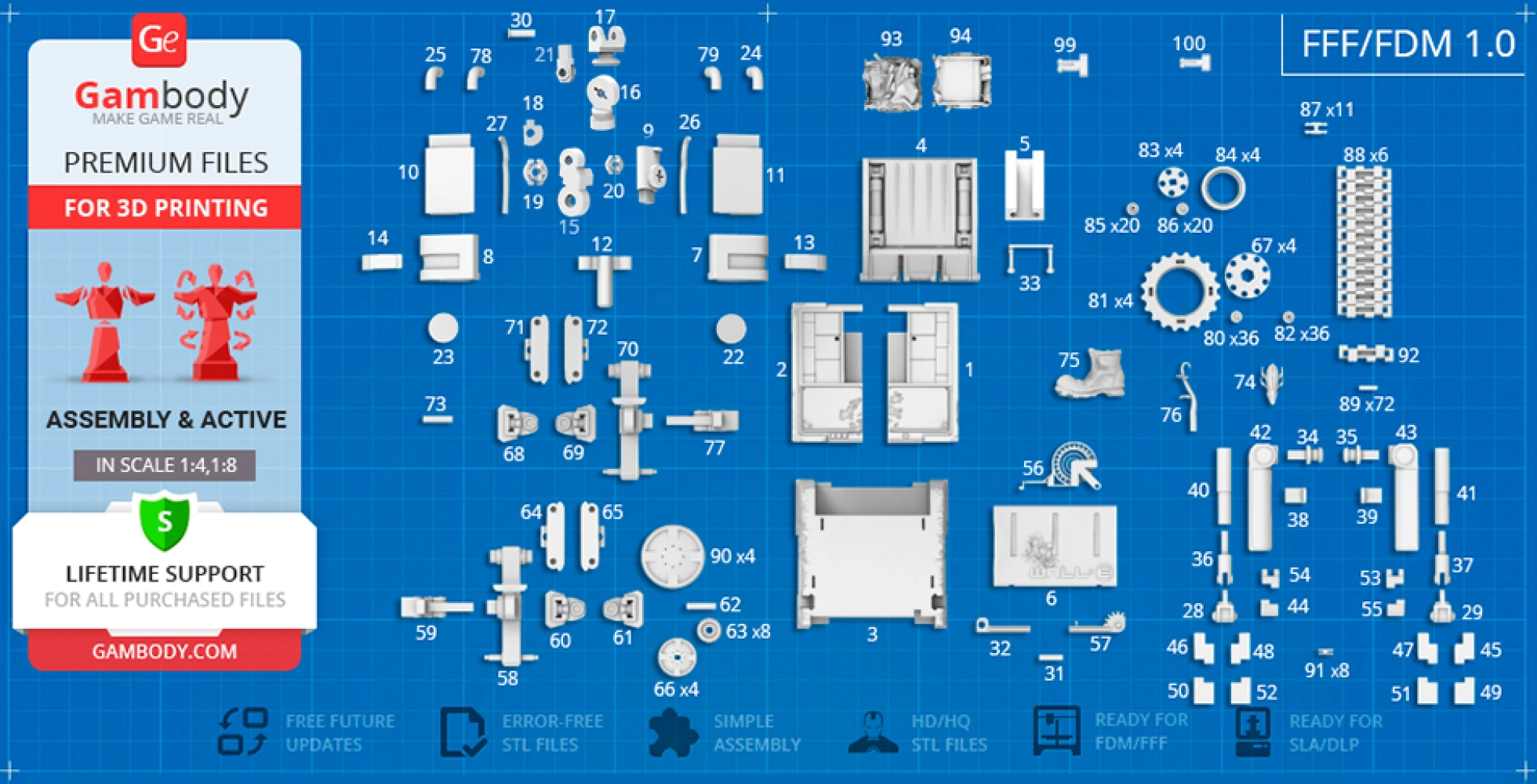

- Contains 94 parts;
- A printed robot is 250 mm tall, 222 mm wide, 176 mm deep;
- Assembly kit includes lock 87_Ge_Lock_x11 to attach the model's parts securely without glue that needs to be printed 11 times;

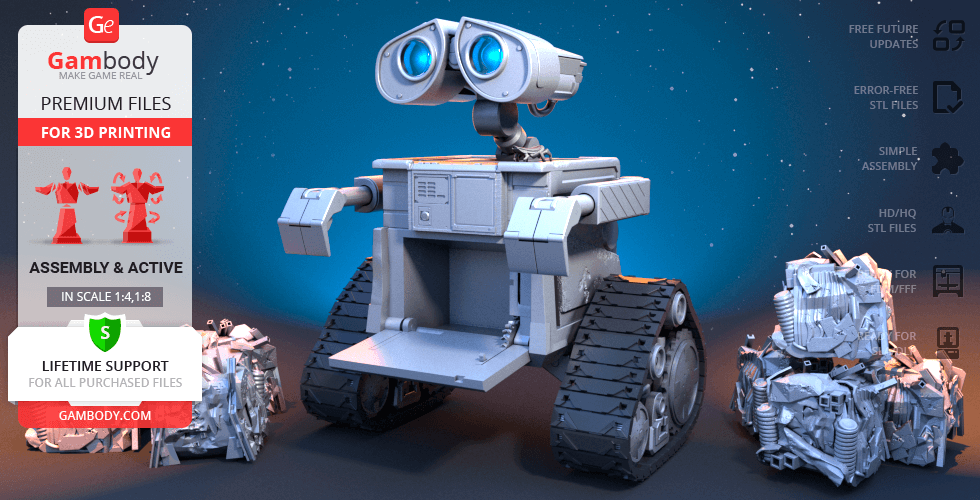

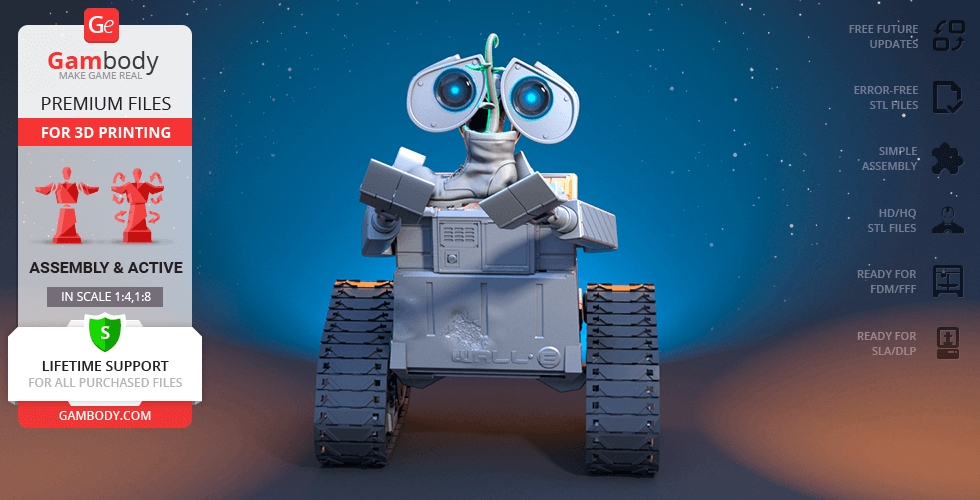

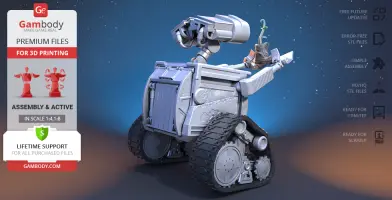

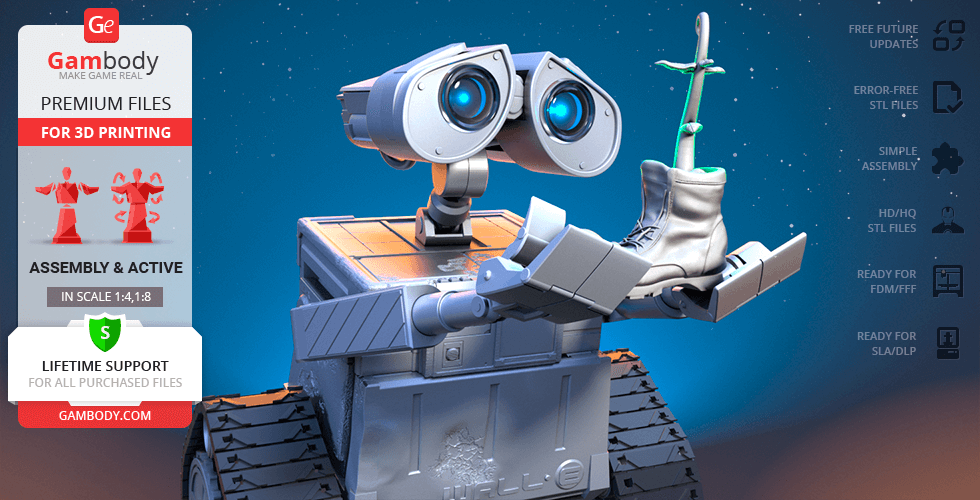

- WALL-E can be displayed holding a plant sprouting from the boot, with or without his cockroach friend, Hal or/and featuring cube(s) of garbage;
- Lenses on the robot’s binocular eyes are provided separately and can be printed with the transparent filament;

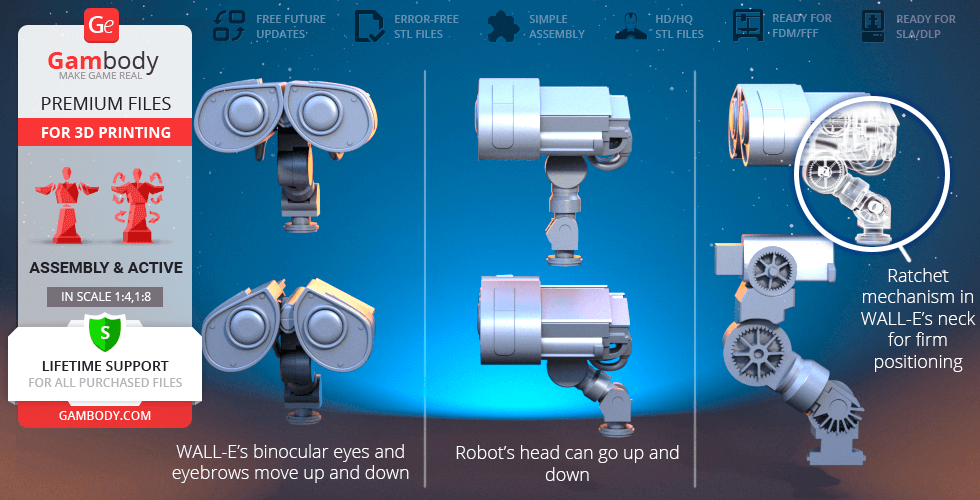

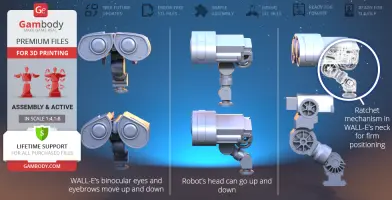

Multidirectional movement of the head+neck and their ability to hold any position you may choose is ensured by a ratchet mechanism system comprised of 3 ratchets;

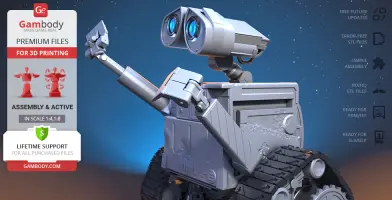

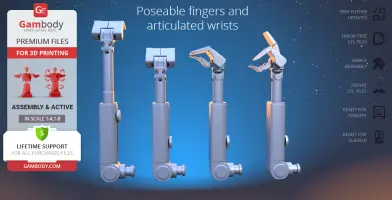

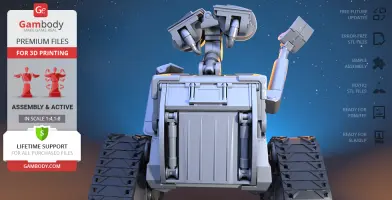

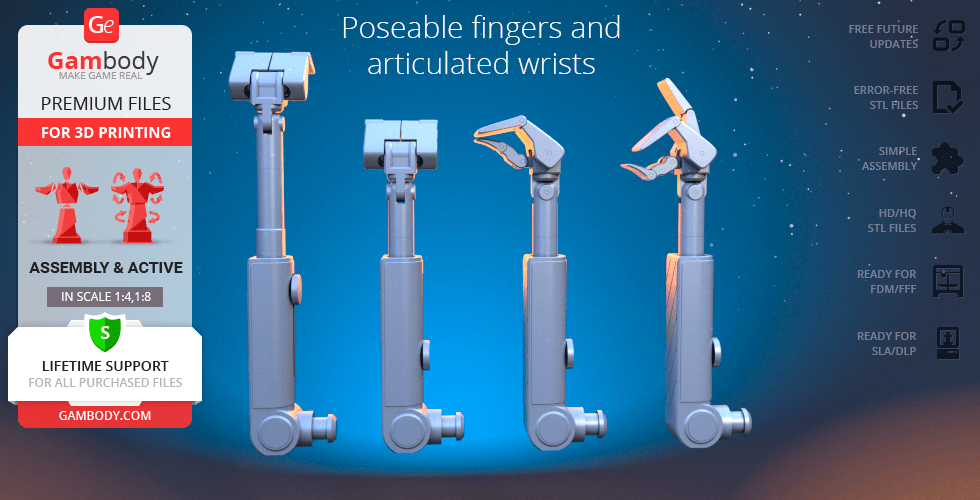

- WALL-E’s shoulder joint can move along the surface of the body; its arms are retractable and wrists are fully articulated;
- The assembly of WALL-E’s poseable eyebrows and fingers requires additional “pins”. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA;

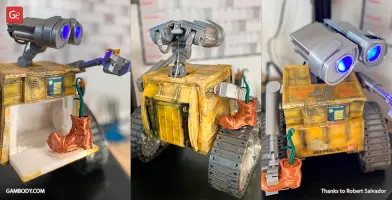

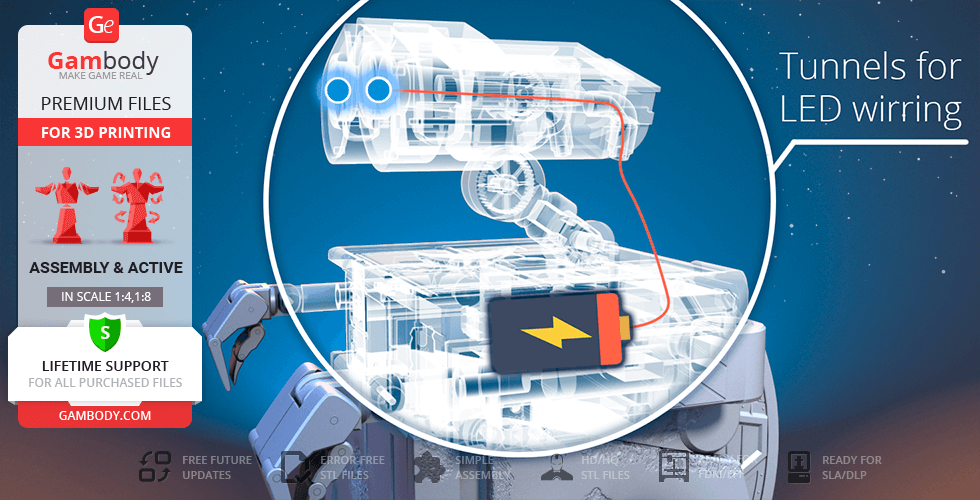

- Tunnels throughout the robot’s body are provided for LED wiring to light up the eyes; a spot to hide the battery is provided inside the body;
Hollow parts 78_Pipe_LED_R_fdm and 79_Pipe_LED_L_fdm were prepared specifically to introduce the LED wiring;

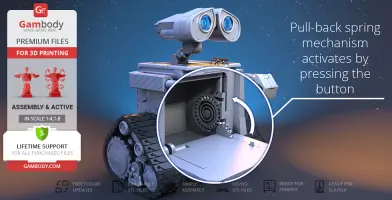

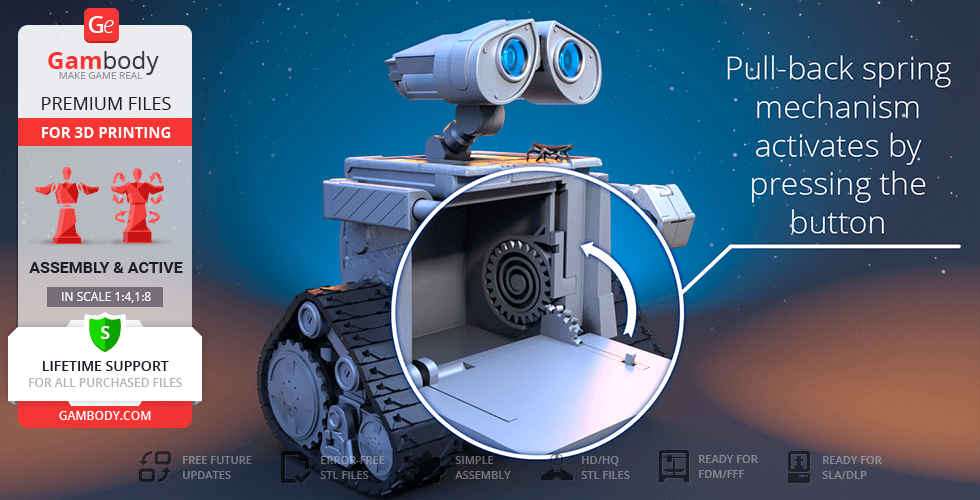

- The door of the cube-shaped compactor box opens up by pressing the button that activates pull-back spring mechanism;

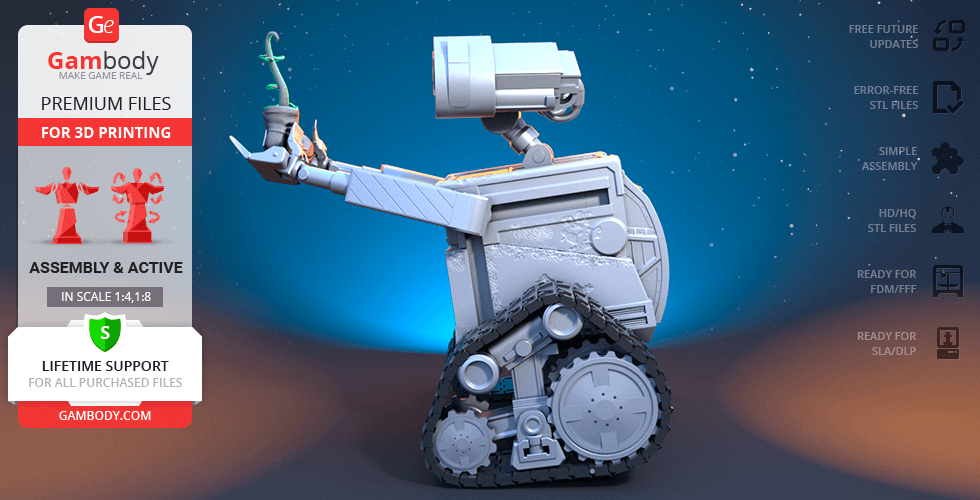

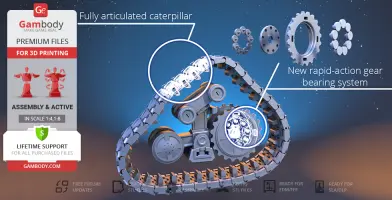

- Articulation of the multi-section caterpillar tracks imitates the movement of the real continuous track; + there is an extra track to prolong the caterpillars if needed;
- The caterpillar tracks change their shape depending on the direction of movement - when moving forward the tracks are triangular, backward - square;

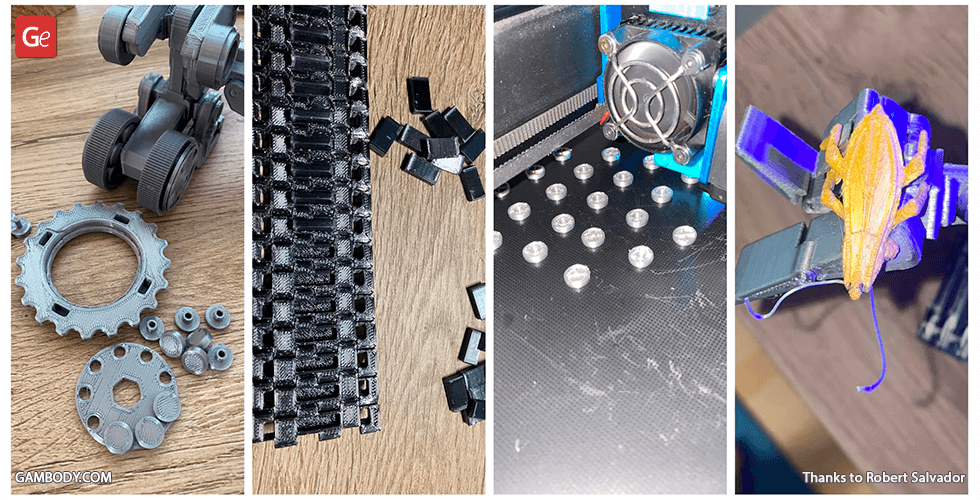

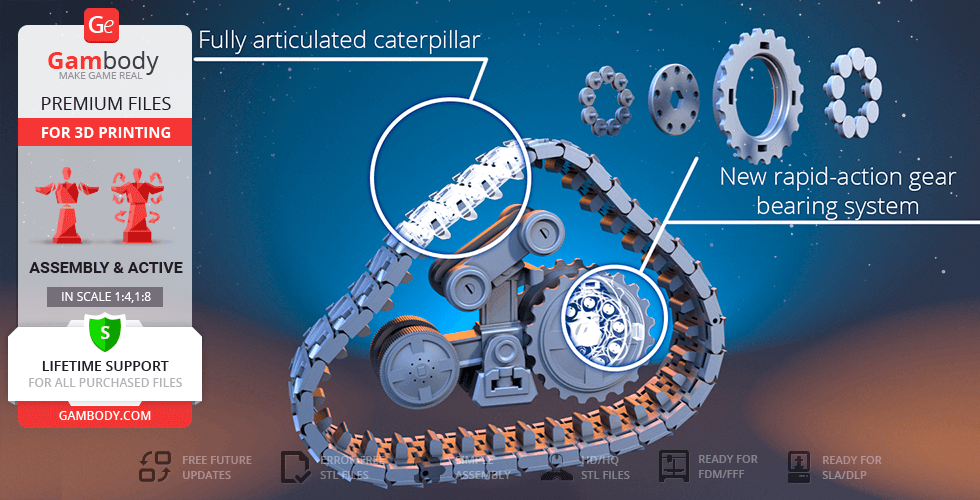

- The tracks are equipped with new rapid-action gear bearing system that guarantees minimal backslash;
- It is highly recommended that you watch "Assembly video" in the photo preview section before assembling the WALL-E;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

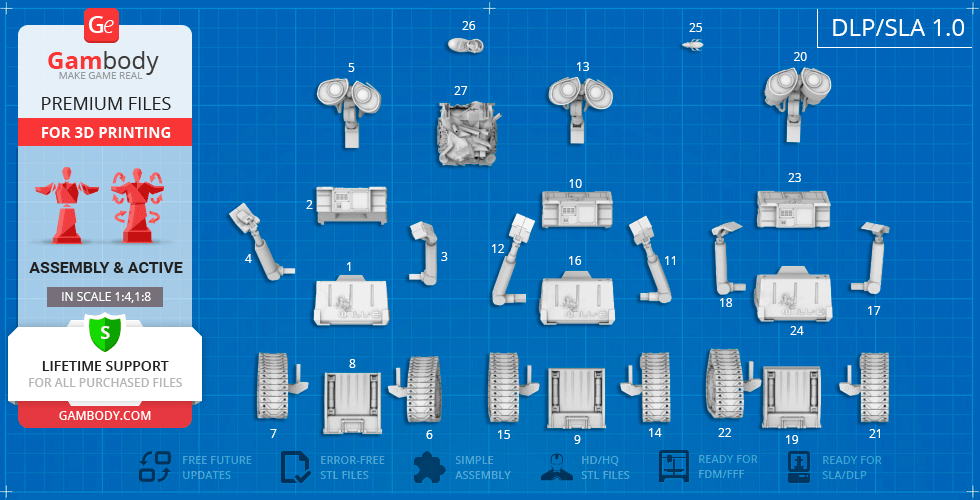

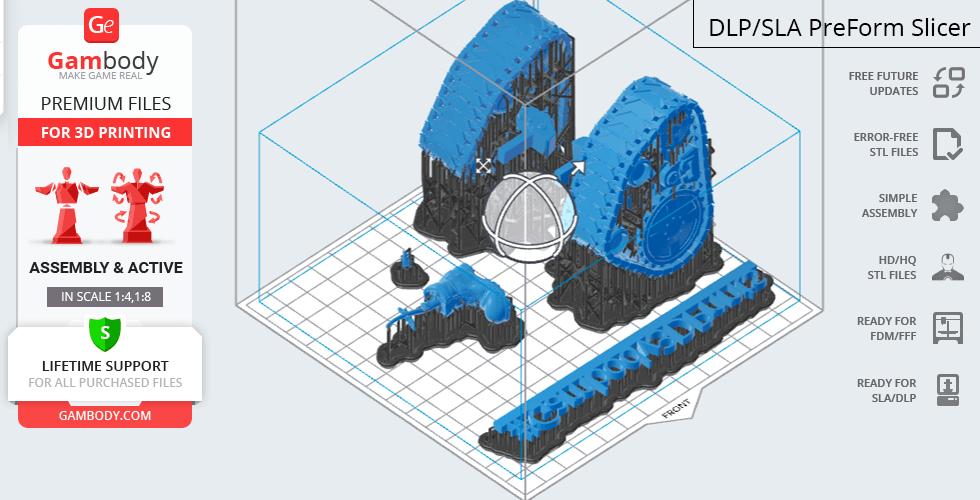

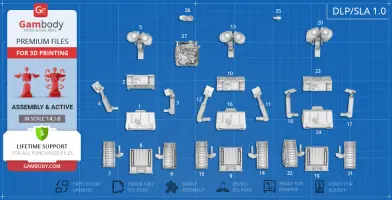

DLP/SLA/SLS 1.0 version features:
- Contains 27 parts;
- A printed model is 125 mm tall, 111 mm wide, 88 mm deep;
- WALL-E can be displayed holding a plant sprouting from the boot, with or without his cockroach friend, Hal or/and featuring cube(s) of garbage;

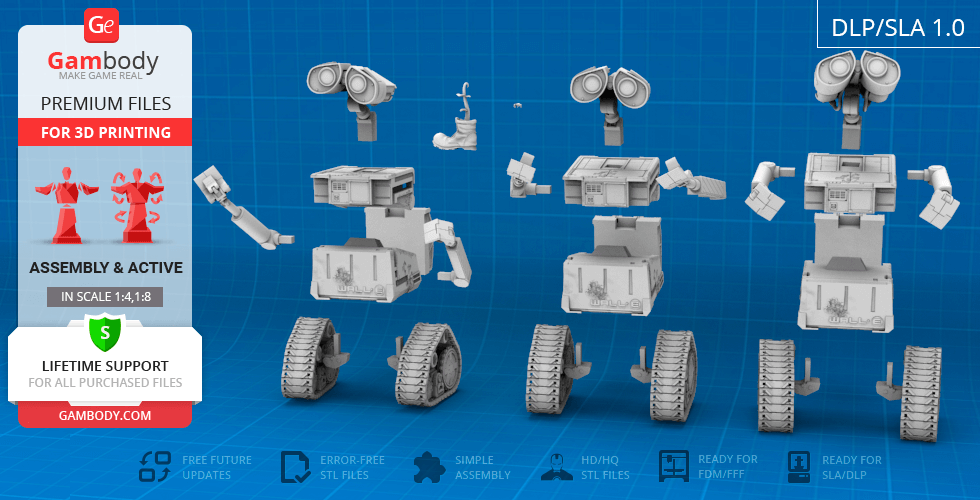

- The robot comes in three different static poses, each requires a separate set of assembly parts;

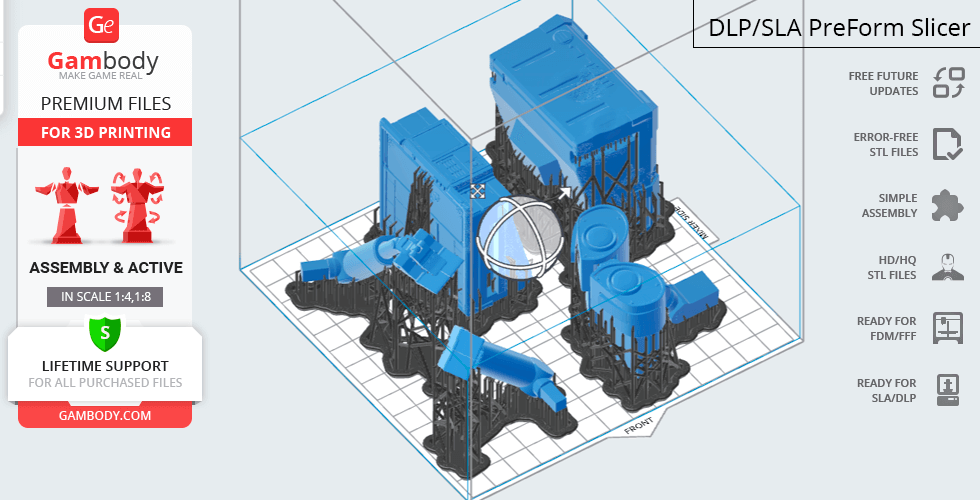

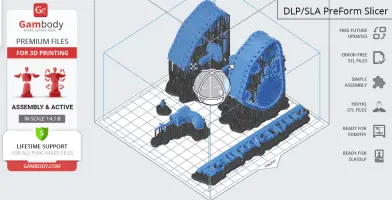

- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of WALL-E Model for 3D printing which consist of 121 parts;
- 2 versions of files for this model for FFF/FDM and DLP/SLA/SLS printers;
- High-poly detailed model of WALL-E;
- Assembly manuals for FFF/FDM and DLP/SLA in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of WALL-E for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

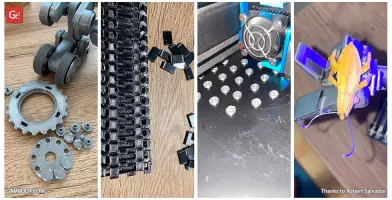

Watch the tutorial on how to assemble WALL-E 3D Printing Model at Gambody YouTube channel.

Also, you may like EVE 3D Printing Model, other Cartoons 3D Printing Figurines, as well as other Robot 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

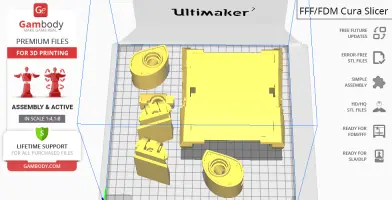

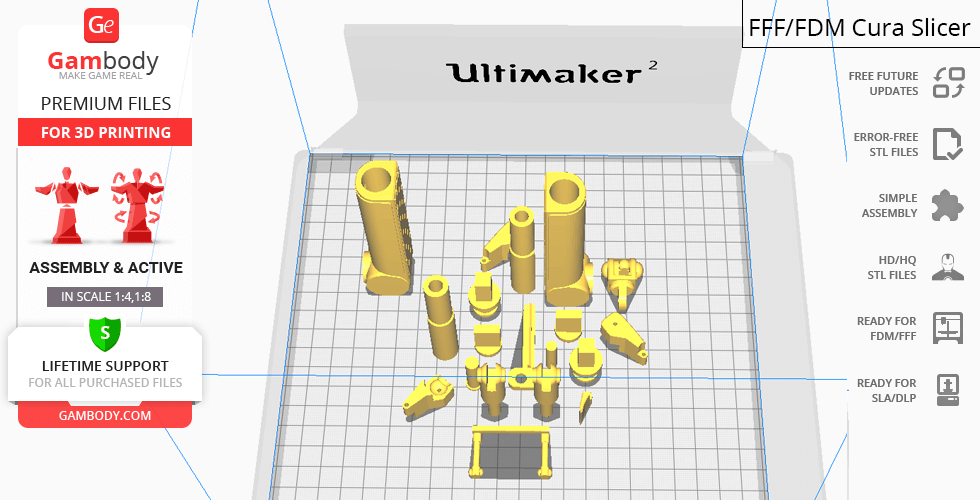

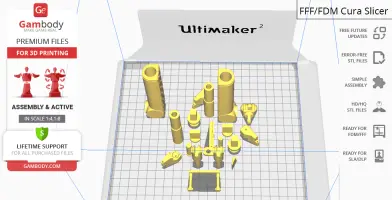

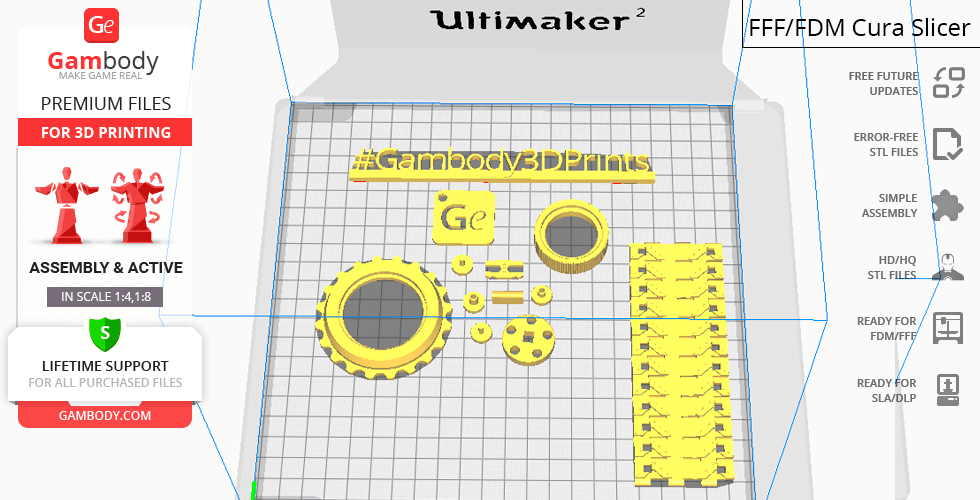

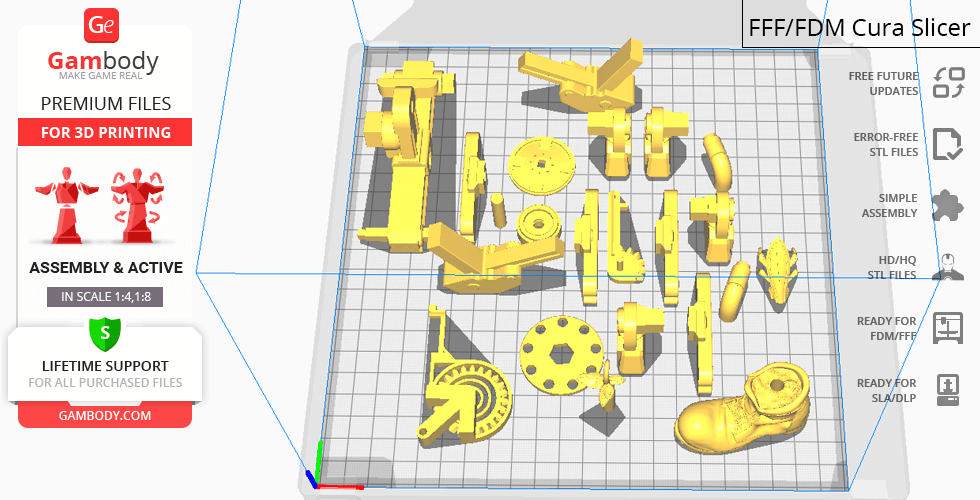

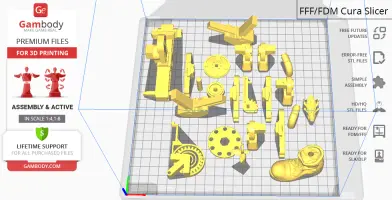

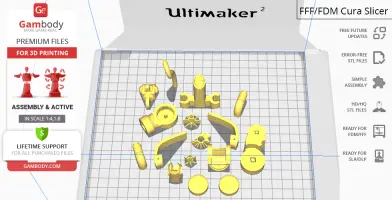

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus
