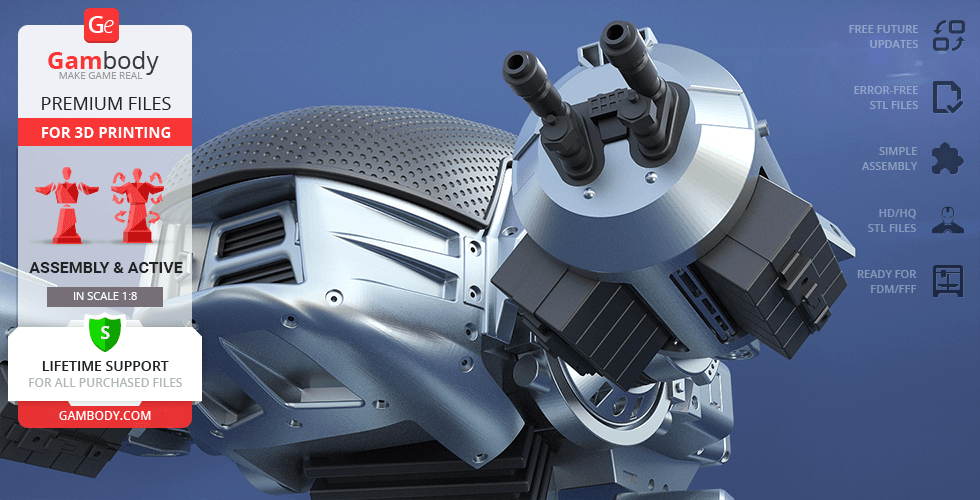

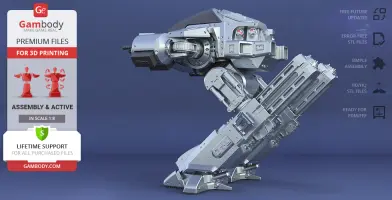

OCP ED-209 (1987) 3D Printing Model | Assembly + Action

(10)

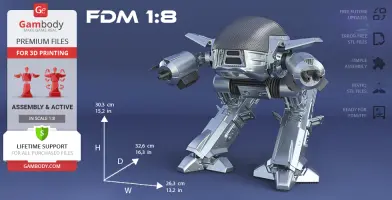

cm: 26.3 w x 32.6 d x 30.3 h
in: 10.354 w x 12.835 d x 11.929 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

OCP ED-209 (1987) 3D Printing Model comes in 1 version for FFF/FDM 3D printers. STL files are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

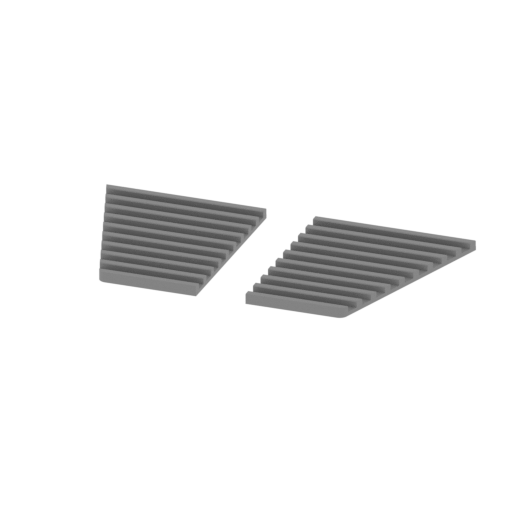

1_LittleToePad_x2 (repair ed).stl
0.05 MiB 42 min <1 m 76 x 39 x 2 Download
2_TailbonePad_x2 (repaire d).stl
0.04 MiB 4 min <1 m 26 x 6 x 2 Download

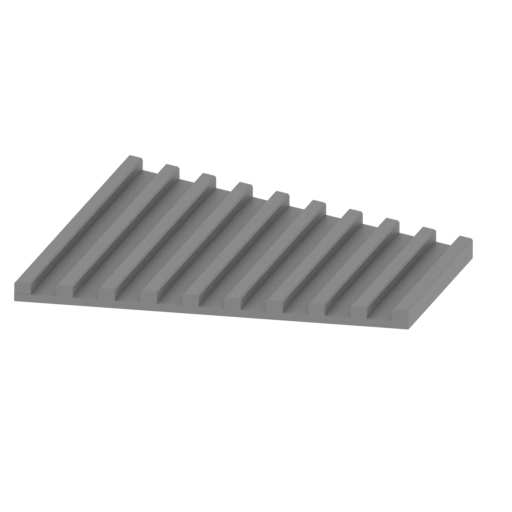

3_BigToePad_x2 (repaired) .stl
0.03 MiB 25 min <1 m 41 x 34 x 2 Download

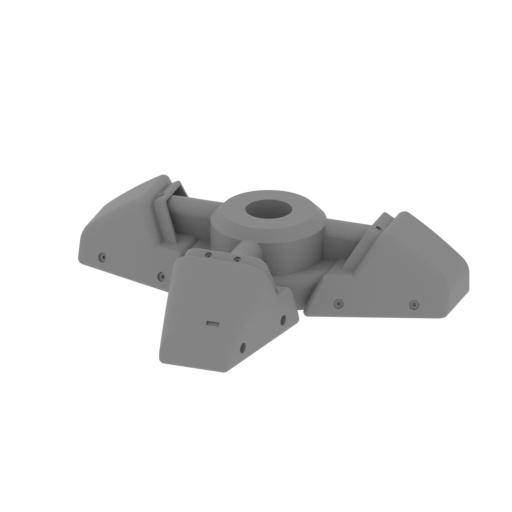

4_Foot_x2 (repaired).stl
1.57 MiB 8 h 50 min 5 m 122 x 116 x 27 Download

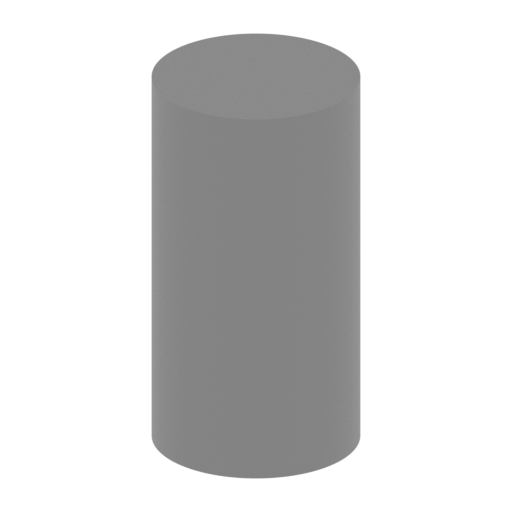

5_Foot_Pin_x2 (repaired). stl
0.08 MiB 27 min <1 m 14 x 14 x 27 Download

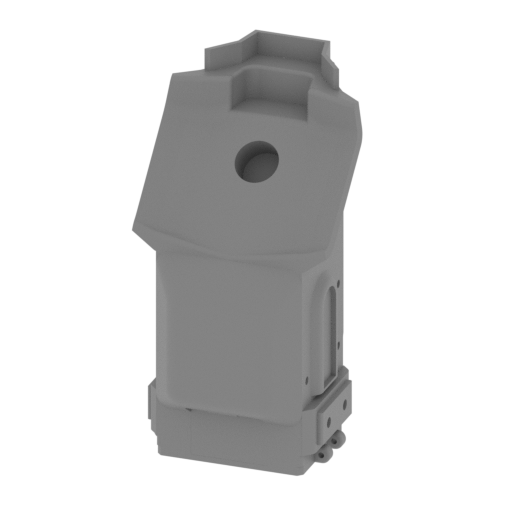

6_LowerFoot Body_x2 (repa ired).stl
1.31 MiB 20 h 44 min 13 m 67 x 71 x 126 Download

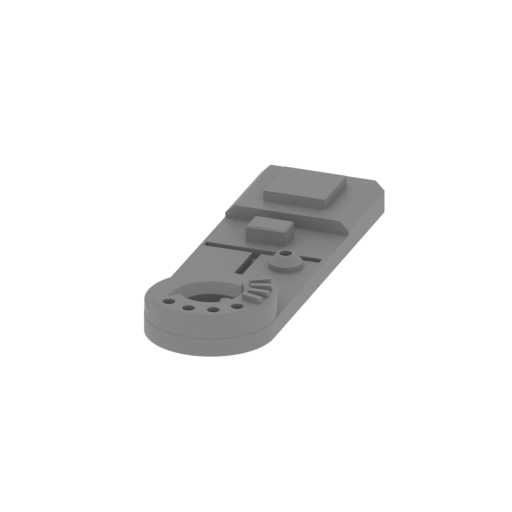

7_LowerFootDetail Panel L _x2 (repaired).stl
0.21 MiB 14 min <1 m 11 x 33 x 4 Download

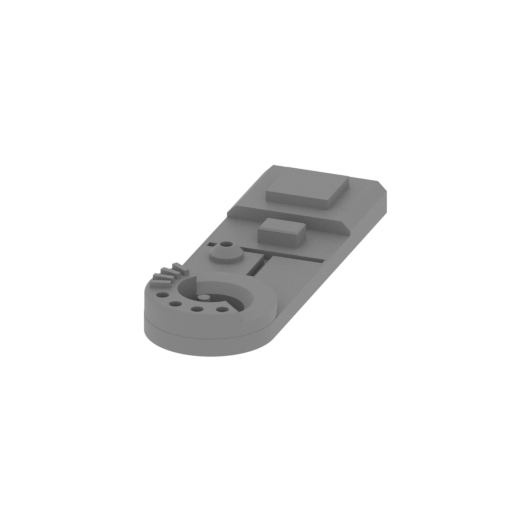

8_LowerFootDetail Panel R _x2 (repaired).stl
0.21 MiB 14 min <1 m 11 x 33 x 4 Download

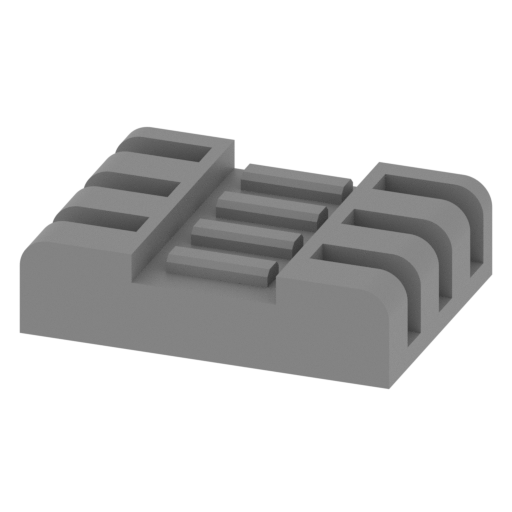

9_LowerFootBlock Detail_x 2 (repaired).stl
0.07 MiB 30 min <1 m 26 x 19 x 7 Download

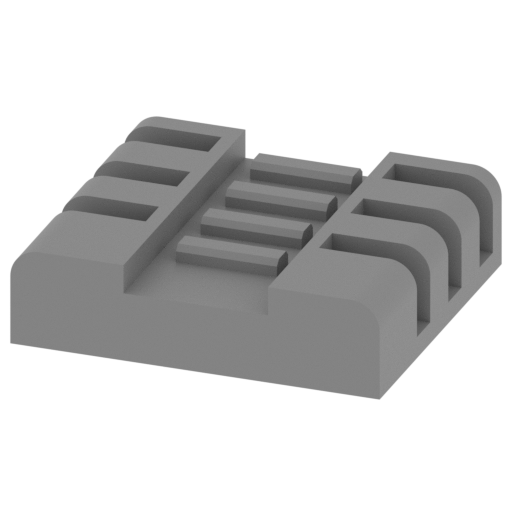

10_LowerFootBlock Detail_ Bottom_x2 (repaired).stl
0.07 MiB 34 min <1 m 26 x 23 x 7 Download

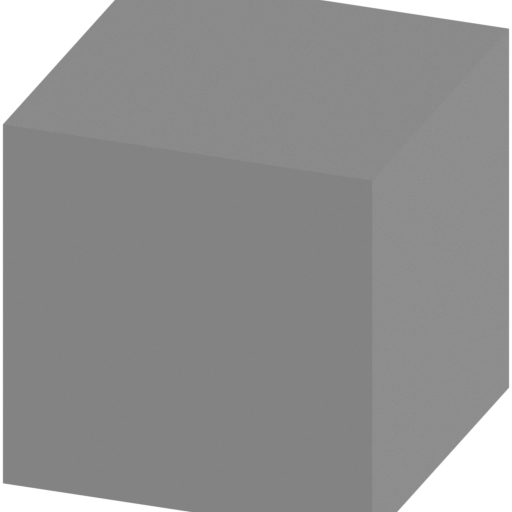

11_Leg_Join_Cube_x2 (repa ired).stl
0.00 MiB 5 min <1 m 6 x 6 x 6 Download

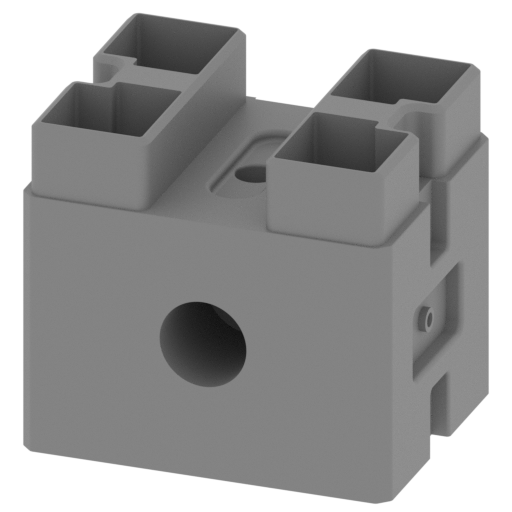

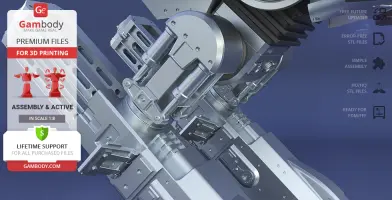

12_Leg_Main_Body_x2 (repa ired).stl
1.36 MiB 5 h 58 min 3 m 50 x 38 x 45 Download
13_Flapper_x4 (repaired). stl
0.47 MiB 32 min <1 m 29 x 31 x 6 Download

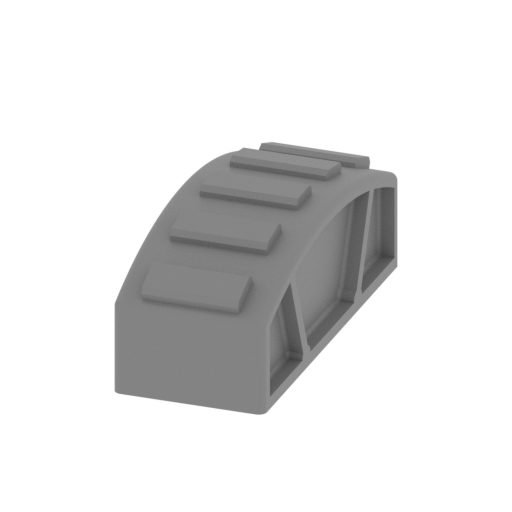

14_Leg_Loaf_x2 (repaired) .stl
0.44 MiB 52 min <1 m 14 x 35 x 14 Download

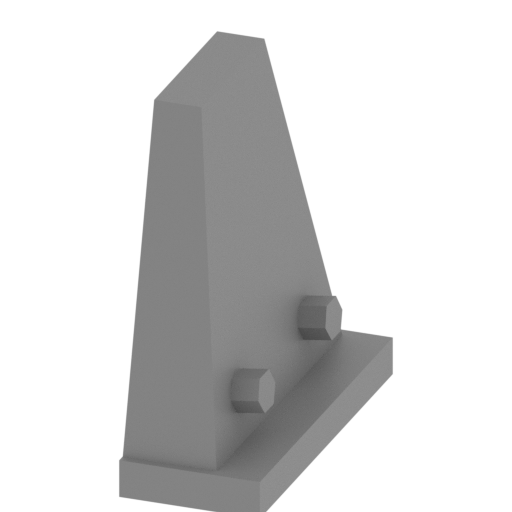

15_Loaf Hanger_x4 (repair ed).stl
0.01 MiB 8 min <1 m 5 x 12 x 13 Download

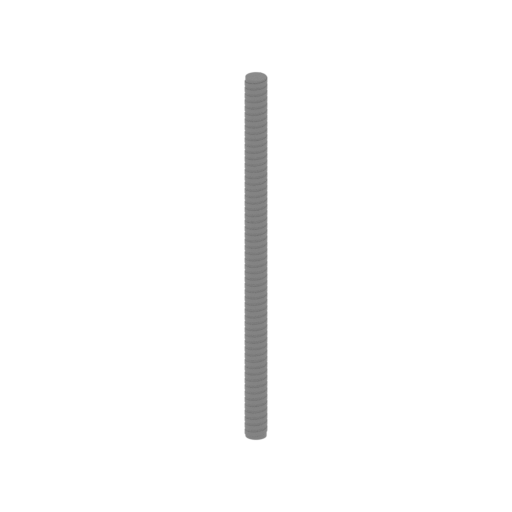

16_Lead_screw_x2 (repaire d).stl
17.24 MiB 59 min <1 m 6 x 6 x 104 Download
17_Rail R_x2 (repaired).s tl
1.15 MiB 3 h 16 min 2 m 34 x 96 x 12 Download

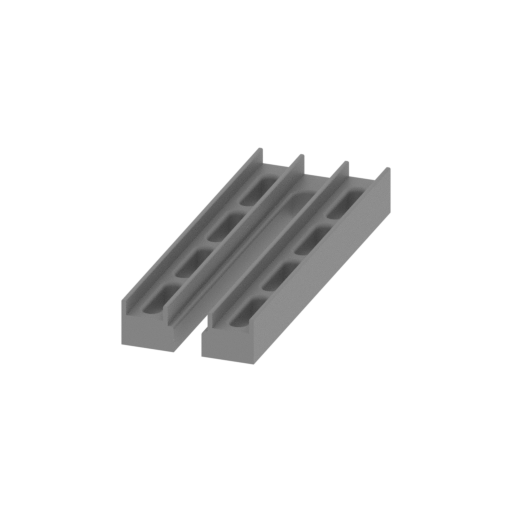

18_Rail L_x2 (repaired).s tl
1.15 MiB 3 h 19 min 2 m 34 x 96 x 12 Download

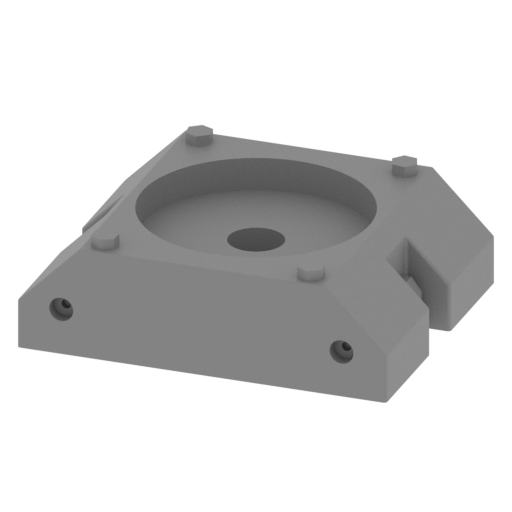

19_Cap_x2 (repaired).stl
0.45 MiB 1 h 39 min 1 m 43 x 34 x 14 Download

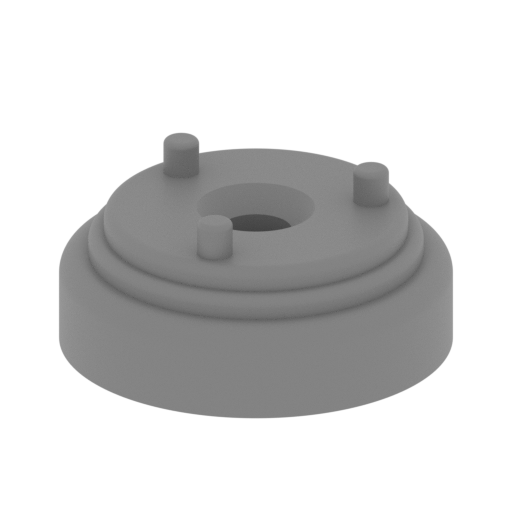

20_Cap_Spinner_x2 (repair ed).stl
0.99 MiB 34 min <1 m 27 x 27 x 12 Download

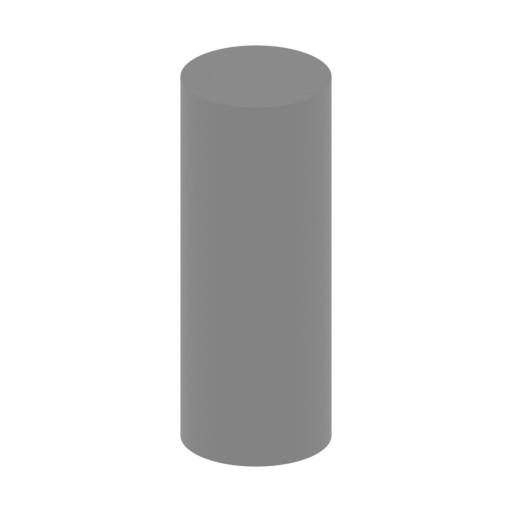

21_LegTowerPin_x2 (repair ed).stl
0.08 MiB 28 min <1 m 11 x 11 x 30 Download

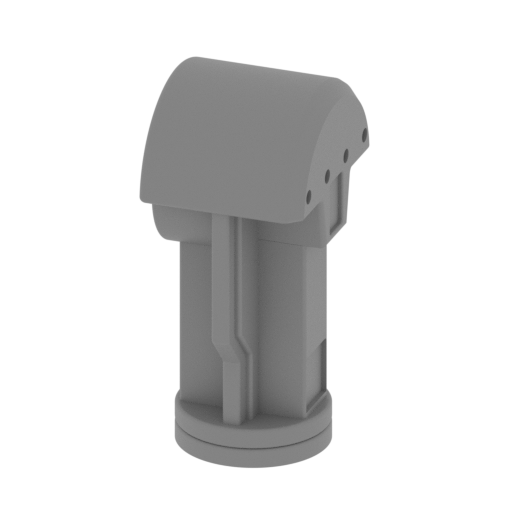

22_LegTower_x2 (repaired) .stl
1.18 MiB 10 h 19 min 7 m 37 x 47 x 84 Download

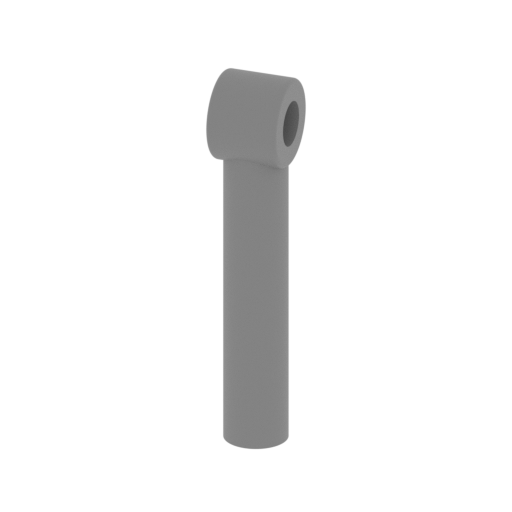

23_ShockShaft_x8 (repaire d).stl
0.30 MiB 34 min <1 m 6 x 8 x 34 Download

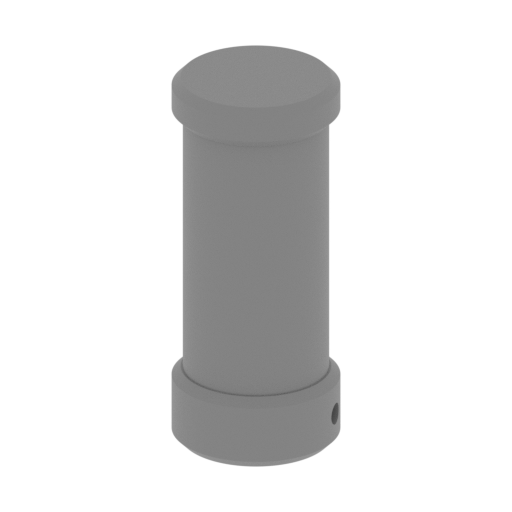

24_ShockTubex_x4 (repaire d).stl
0.22 MiB 28 min <1 m 12 x 12 x 28 Download

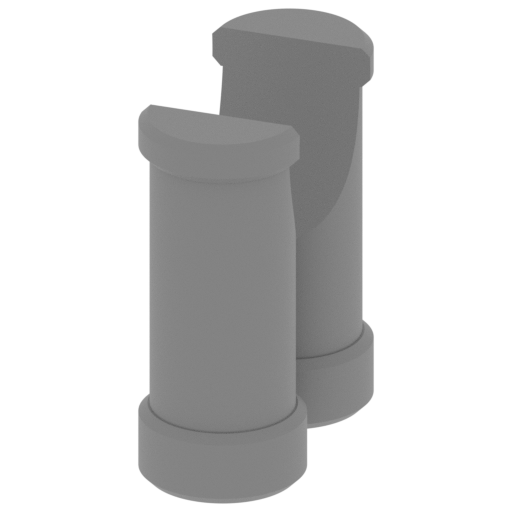

25_ShockTube_Rear_x4 (rep aired).stl
0.39 MiB 42 min <1 m 12 x 26 x 28 Download

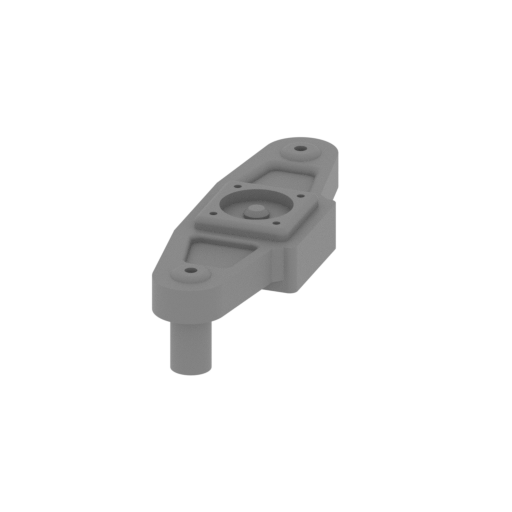

26_Pivot_x4 (repaired).st l
0.49 MiB 31 min <1 m 12 x 38 x 11 Download

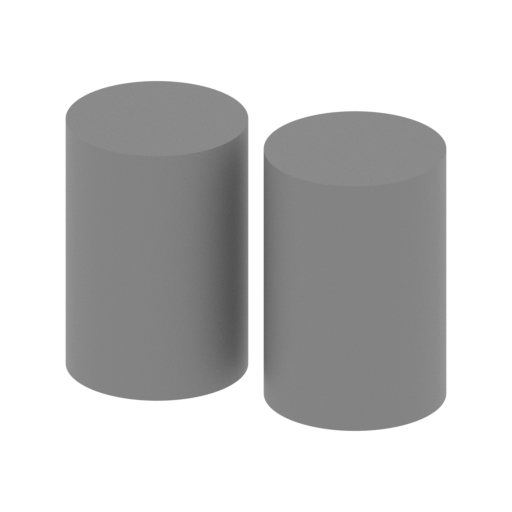

27_LegRod (repaired).stl
0.17 MiB 3 h 2 min 2 m 55 x 26 x 38 Download

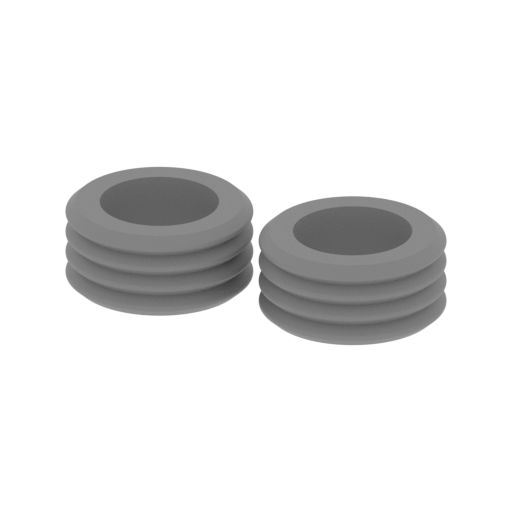

28_LegRubber (repaired).s tl
2.08 MiB 3 h 24 min 2 m 86 x 41 x 19 Download

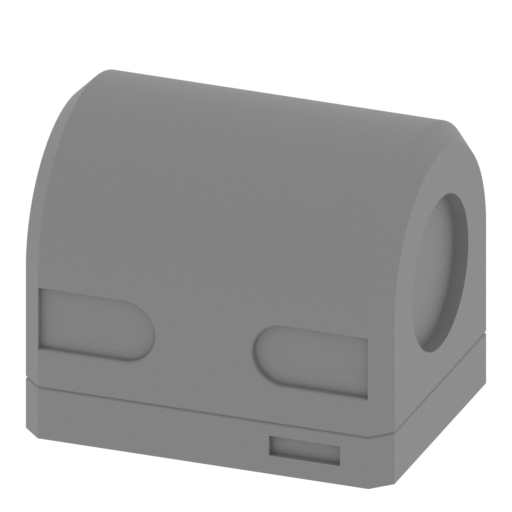

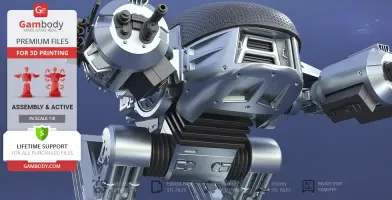

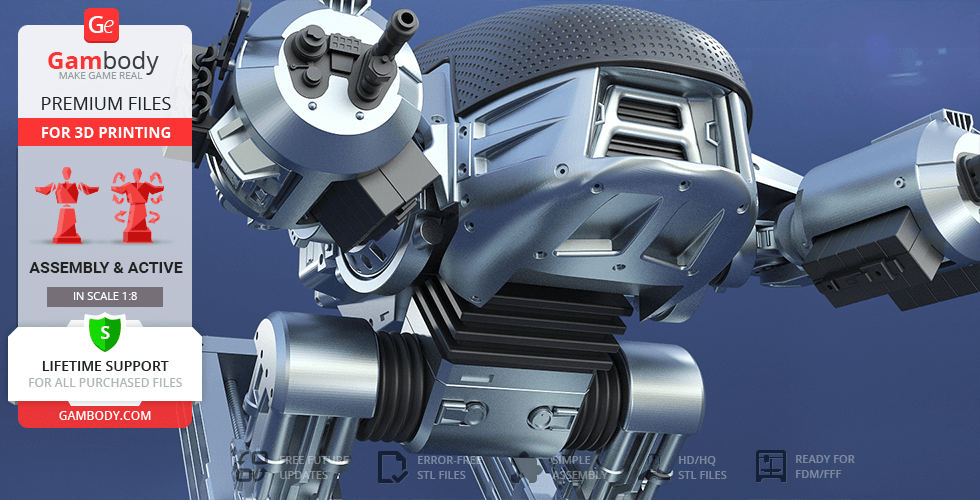

29_Hip (repaired).stl
0.22 MiB 9 h 34 min 6 m 62 x 48 x 52 Download
30_Hip_Details (repaired) .stl
0.21 MiB 12 min <1 m 41 x 9 x 3 Download
31_HipCube_x3 (repaired). stl
0.00 MiB 5 min <1 m 6 x 6 x 6 Download

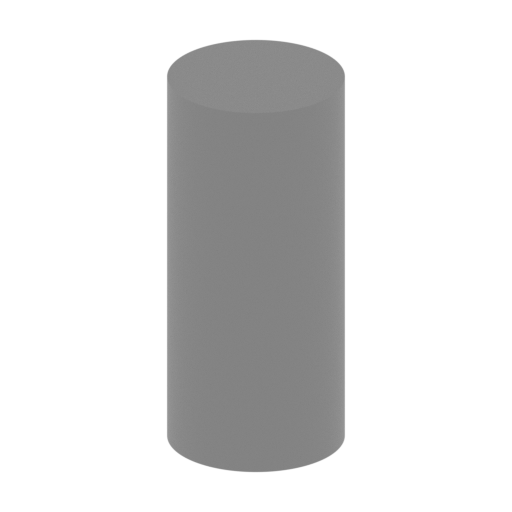

32_hip_pin (repaired).stl
0.07 MiB 16 min <1 m 8 x 8 x 18 Download

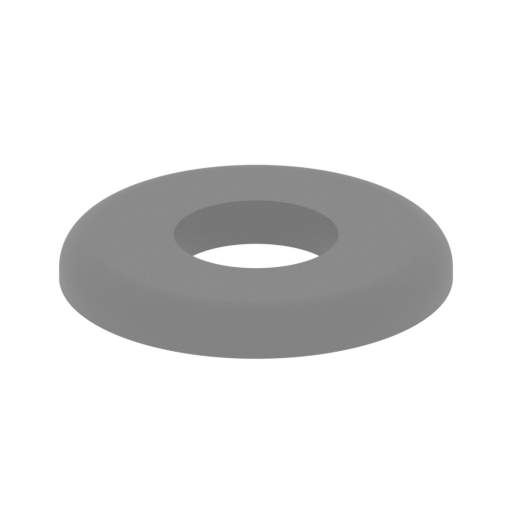

33_BodyDisk_bearing608 (r epaired).stl
0.43 MiB 1 h 15 min 1 m 53 x 53 x 6 Download

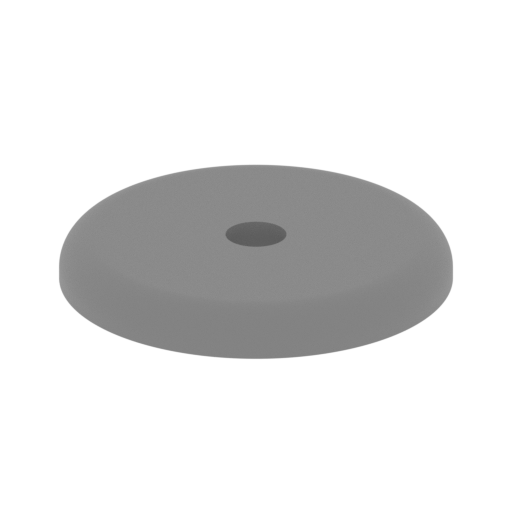

34_BodyDisk_no608 (repair ed).stl
0.46 MiB 1 h 25 min 1 m 53 x 53 x 6 Download

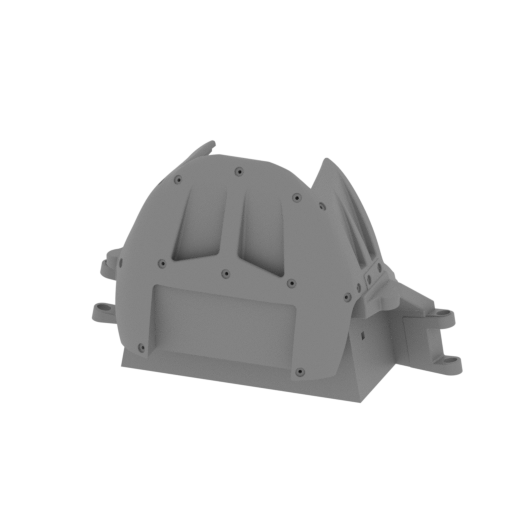

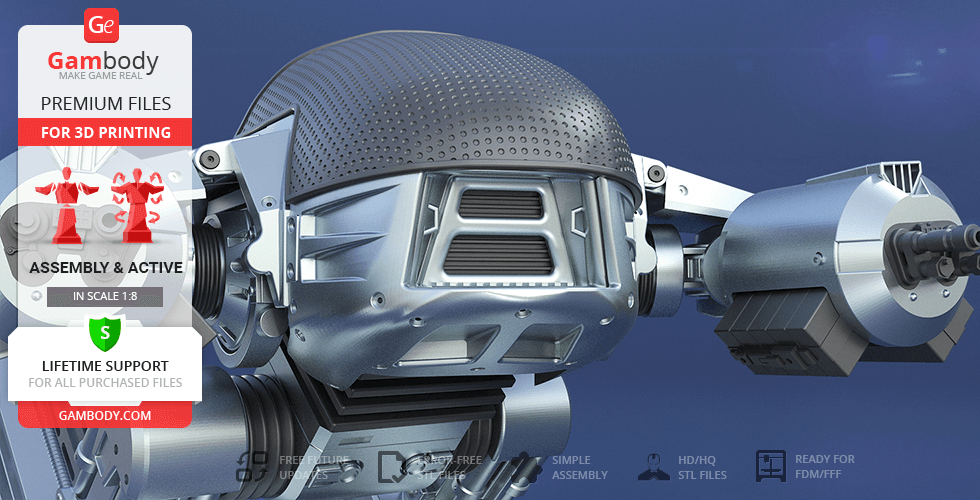

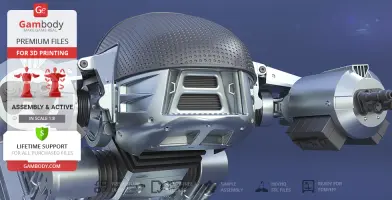

35_Head_Front (repaired). stl
7.08 MiB 30 h 8 min 19 m 158 x 85 x 98 Download

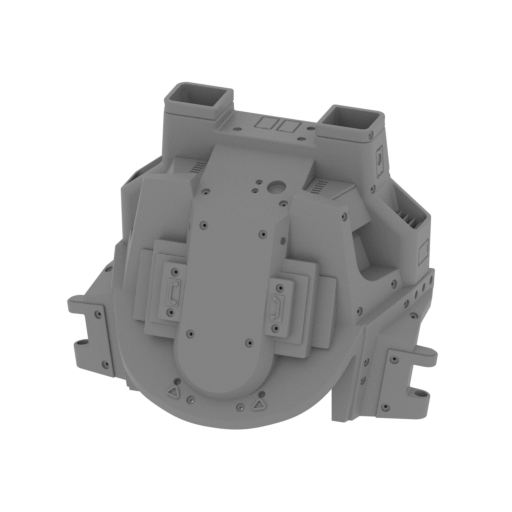

36_Head_Back (repaired).s tl
10.41 MiB 64 h 46 min 43 m 167 x 108 x 120 Download

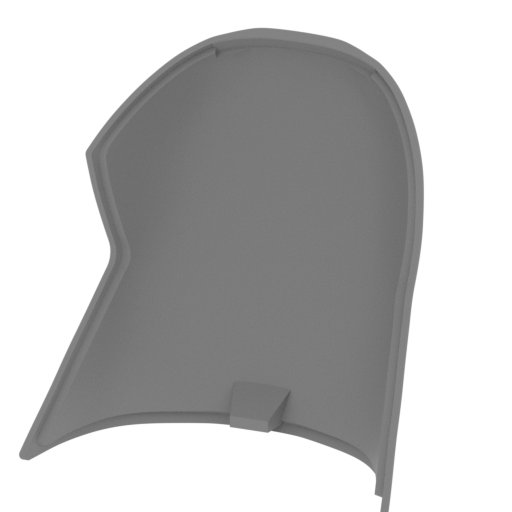

37_Visor (repaired).stl
21.61 MiB 17 h 2 min 12 m 116 x 90 x 112 Download

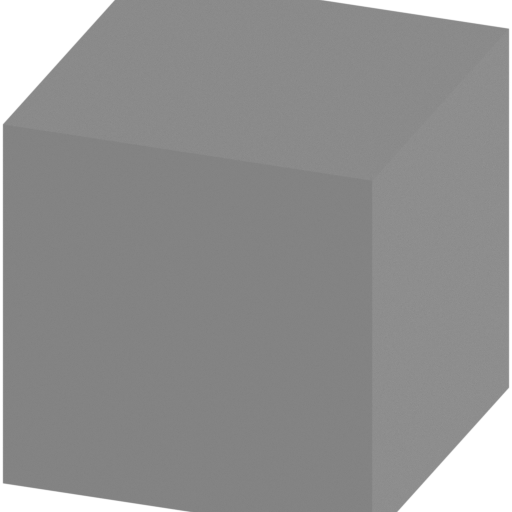

38_HeadCube_x3 (repaired) .stl
0.00 MiB 4 min <1 m 6 x 6 x 6 Download

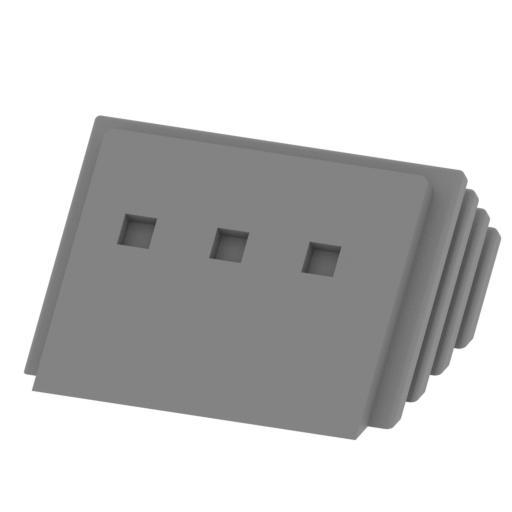

39_HipFlex (repaired).stl
0.47 MiB 6 h 2 min 3 m 65 x 59 x 33 Download

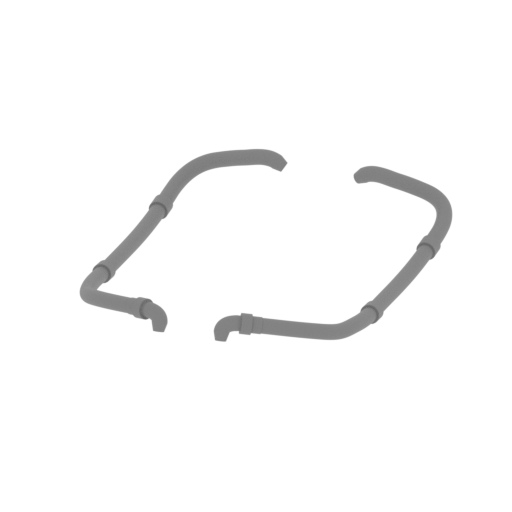

40_Hose_L_R (repaired).st l
2.85 MiB 39 min <1 m 54 x 69 x 10 Download

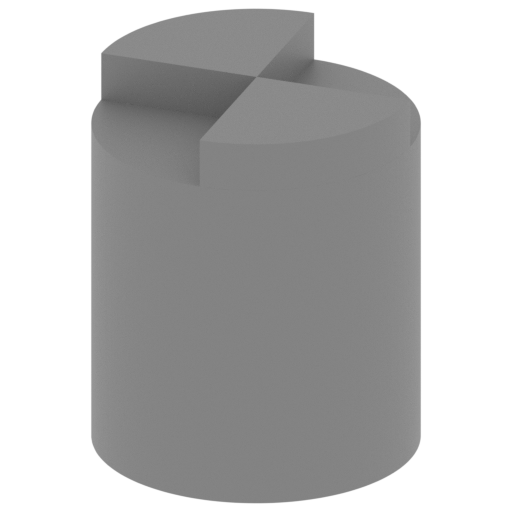

41_GlowCore A_x2 (repaire d).stl
0.14 MiB 9 min <1 m 7 x 7 x 9 Download

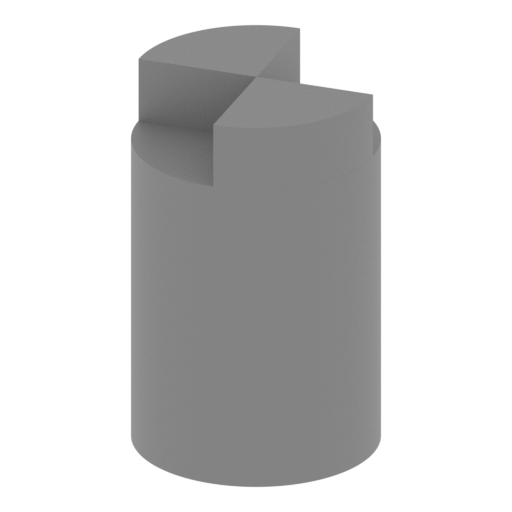

42_GlowCore B_x2 (repaire d).stl
0.12 MiB 11 min <1 m 7 x 7 x 12 Download

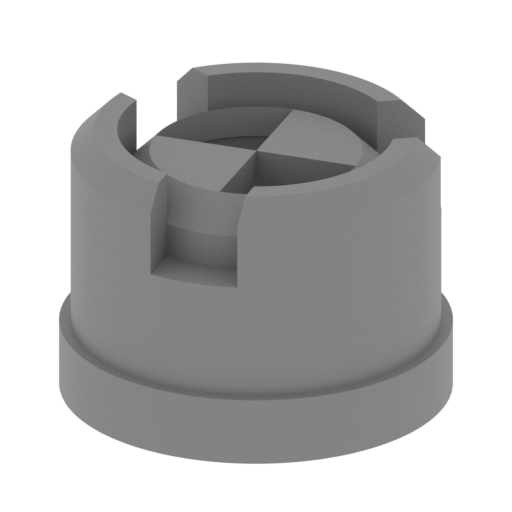

43_OuterCore_A_x2 (repair ed).stl
0.20 MiB 14 min <1 m 14 x 14 x 10 Download

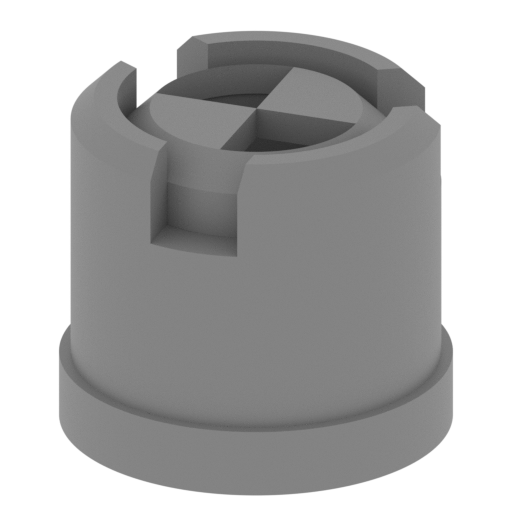

44_OuterCore_B_x2 (repair ed).stl
0.31 MiB 19 min <1 m 14 x 14 x 12 Download

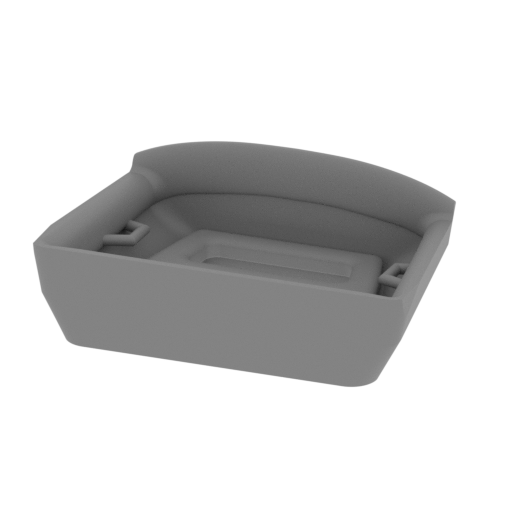

45_Mouth Detail NoWires ( repaired).stl
4.30 MiB 1 h 42 min 1 m 55 x 35 x 19 Download

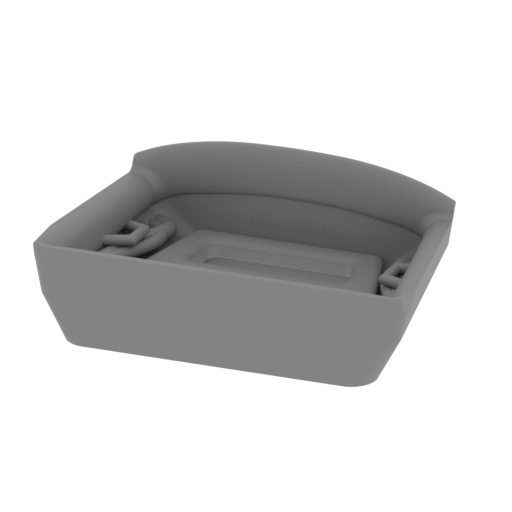

46_Mouth Detail WiresThic k (repaired).stl
5.77 MiB 1 h 50 min 1 m 55 x 35 x 19 Download

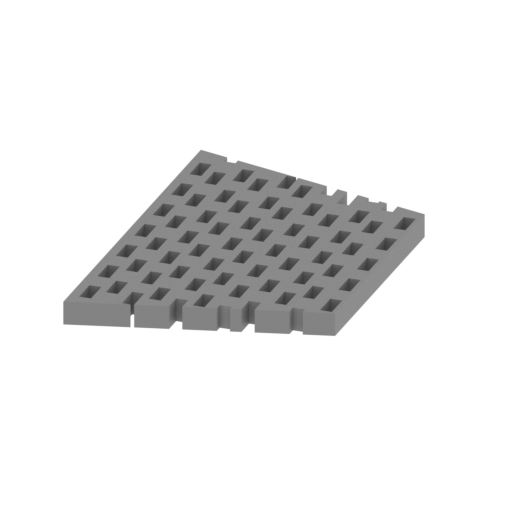

47_Mouth_Grill1 (repaired ).stl
0.07 MiB 44 min <1 m 25 x 37 x 2 Download

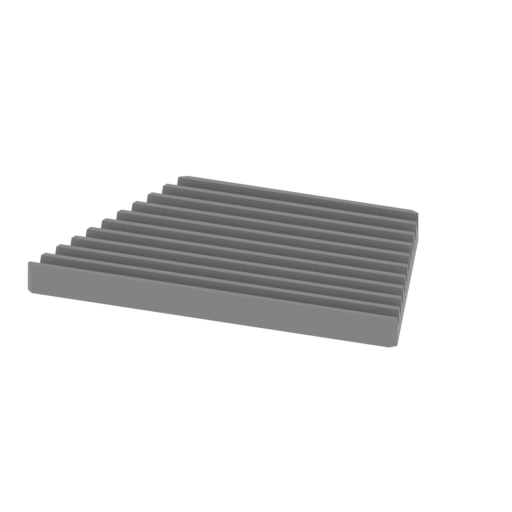

48_Mouth_Grill2 (repaired ).stl
0.04 MiB 27 min <1 m 37 x 25 x 3 Download

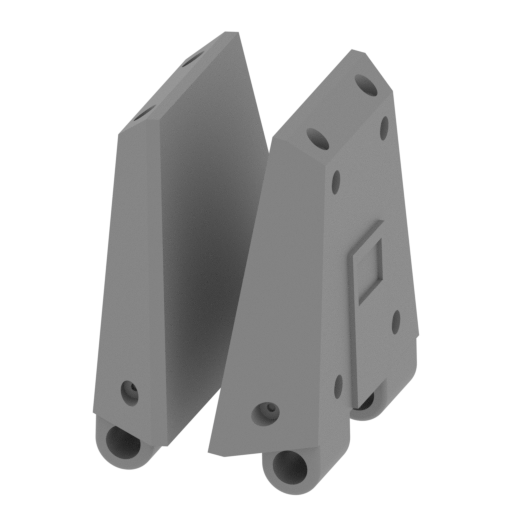

49_ShoulderArmor_L_R (rep aired).stl
0.74 MiB 6 h 42 min 4 m 39 x 61 x 59 Download

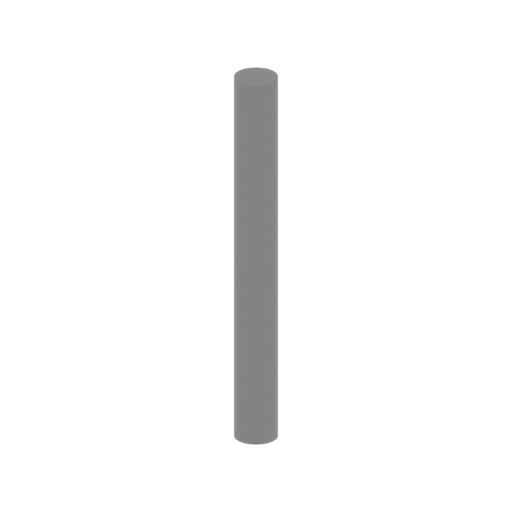

50_WingRod_x2 (repaired). stl
0.08 MiB 27 min <1 m 6 x 6 x 50 Download

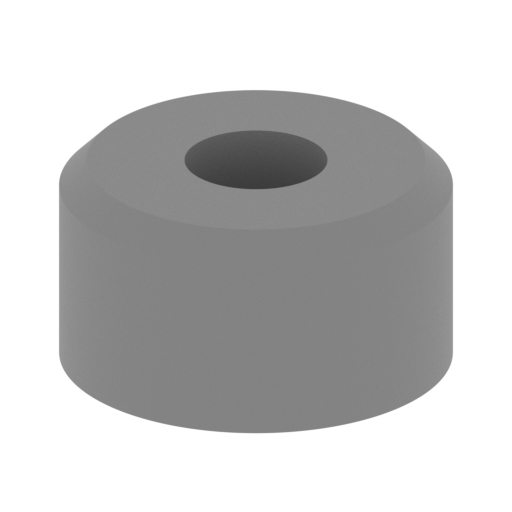

51_WingCover_x2 (repaired ).stl
0.13 MiB 2 min <1 m 6 x 6 x 3 Download

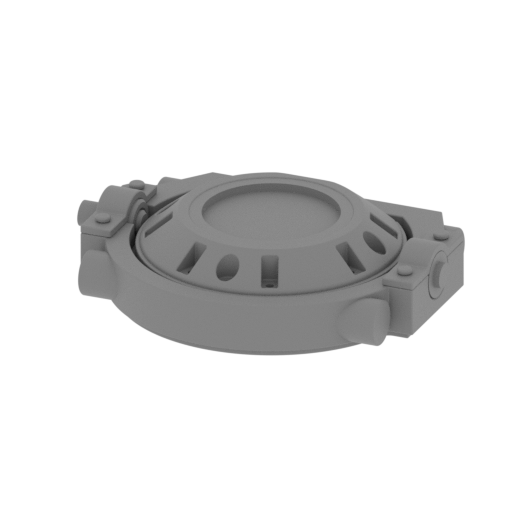

52_shoulder_L (repaired). stl
4.31 MiB 3 h 59 min 2 m 73 x 55 x 16 Download

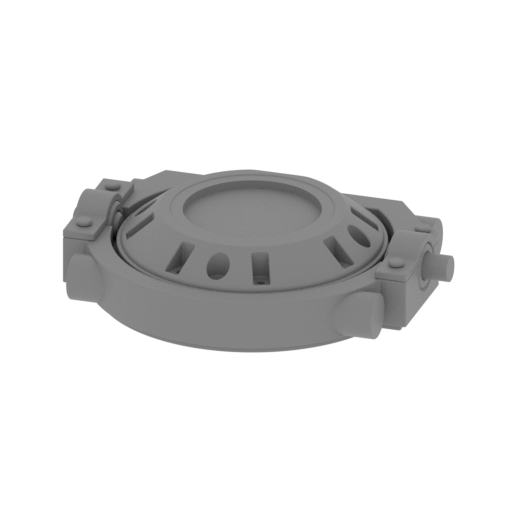

53_shoulder_R (repaired). stl
4.31 MiB 3 h 59 min 2 m 73 x 55 x 16 Download

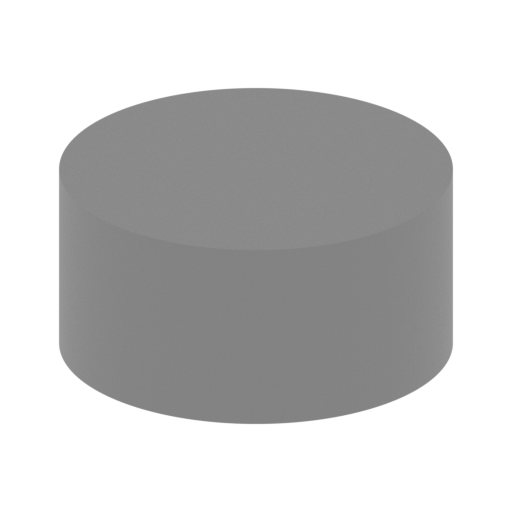

54_shoulder_pin_x2 (repai red).stl
0.10 MiB 35 min <1 m 26 x 26 x 12 Download

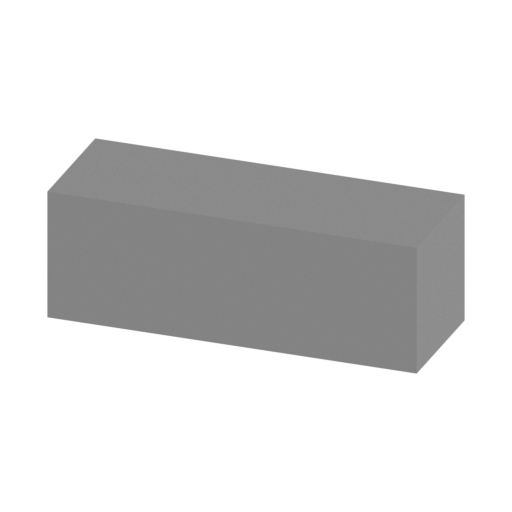

55_Shoulder_body_Pin_x4 ( repaired).stl
0.01 MiB 1 min <1 m 6 x 2 x 2 Download

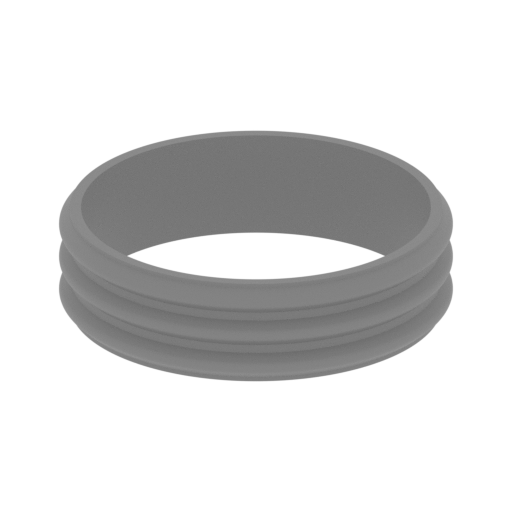

56_shoulder_rubber_x2 (re paired).stl
1.01 MiB 14 min <1 m 30 x 30 x 8 Download

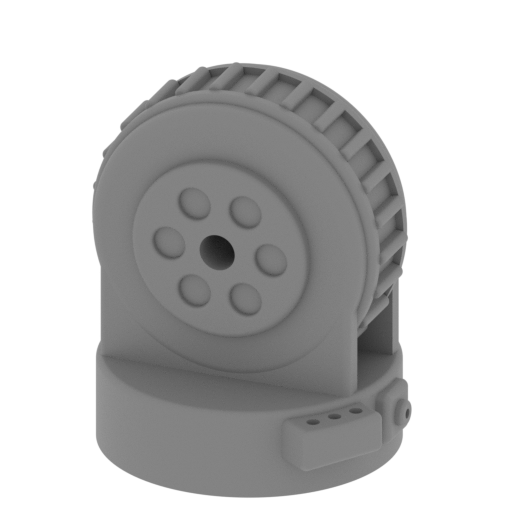

57_arm_a_x2 (repaired).st l
3.15 MiB 2 h 34 min 1 m 35 x 32 x 41 Download

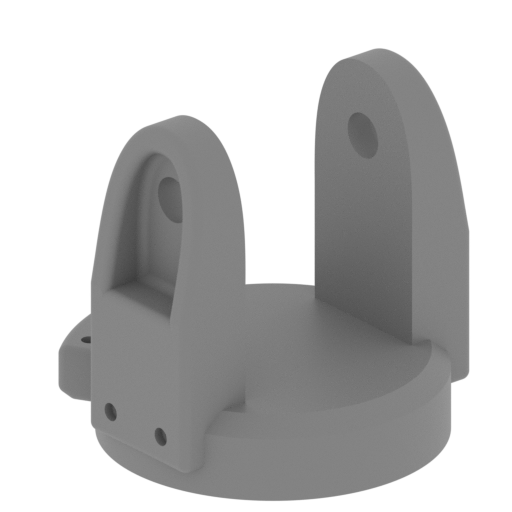

58_arm_b_x2 (repaired).st l
1.34 MiB 1 h 13 min 1 m 33 x 33 x 31 Download

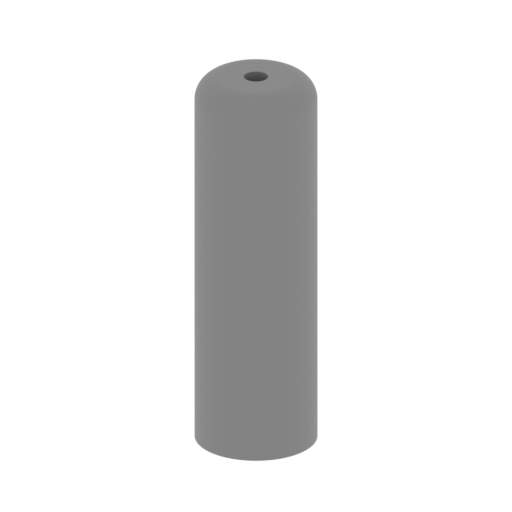

59_arm_connector_a_x4 (re paired).stl
0.18 MiB 5 min <1 m 4 x 4 x 13 Download

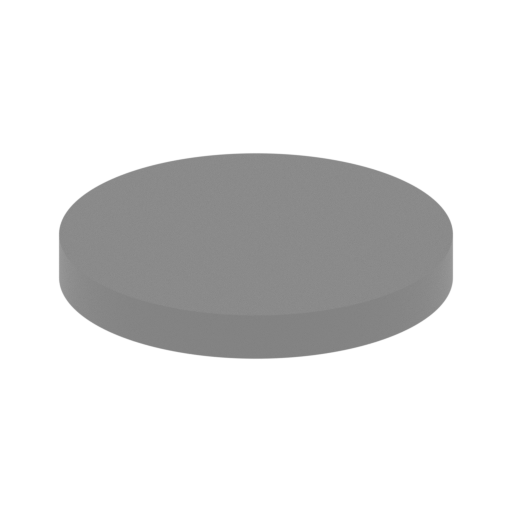

60_arm_connector_b_x2 (re paired).stl
0.10 MiB 15 min <1 m 25 x 25 x 3 Download

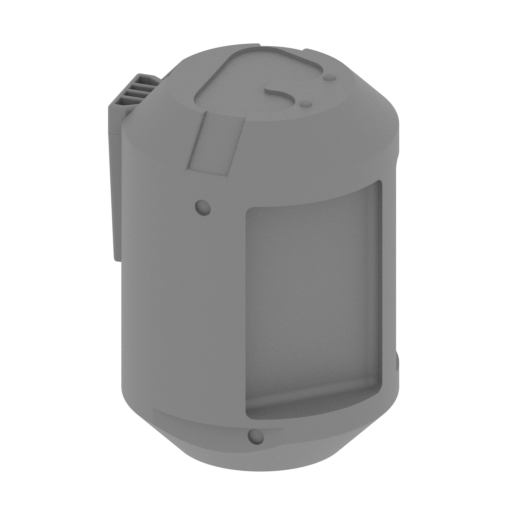

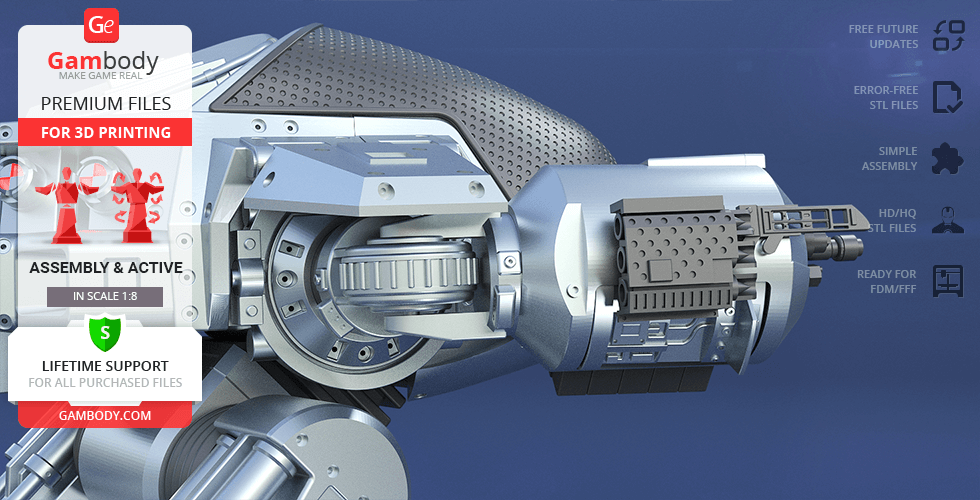

61_GunBody_x2 (repaired). stl
0.72 MiB 9 h 52 min 6 m 52 x 50 x 71 Download

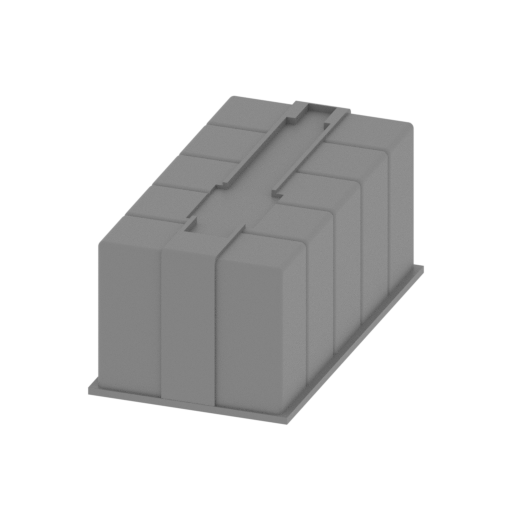

62_Ammo_x3 (repaired).stl
0.33 MiB 1 h 18 min 1 m 22 x 42 x 18 Download

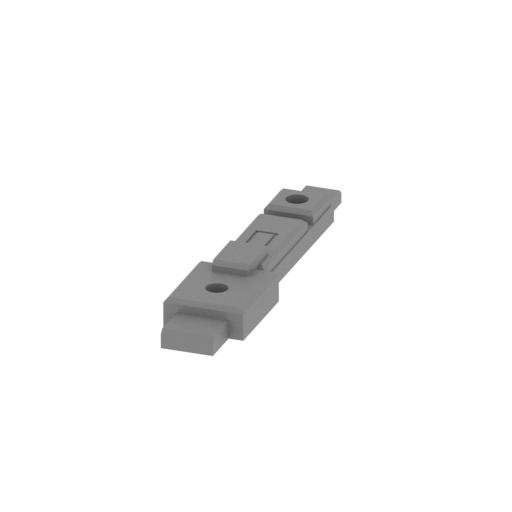

63_AmmoCan Detail_x3 (rep aired).stl
0.03 MiB 8 min <1 m 8 x 35 x 4 Download

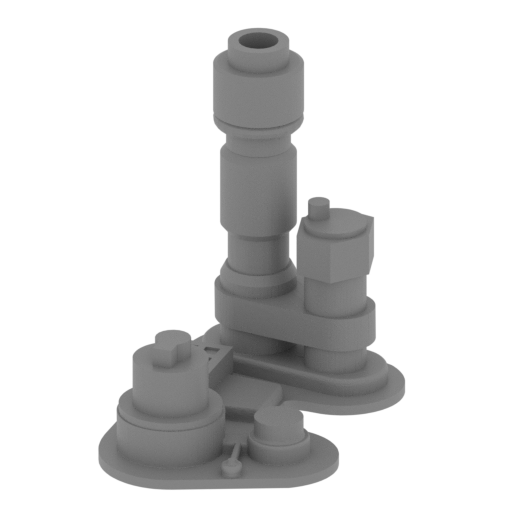

64_Gun_R (repaired).stl
1.78 MiB 40 min <1 m 18 x 30 x 27 Download

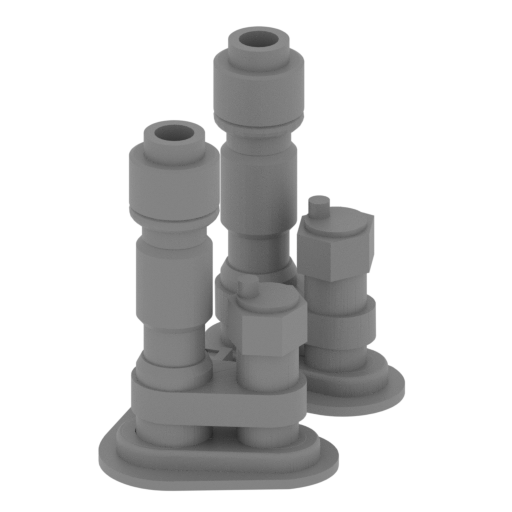

65_Gun_L (repaired).stl
2.01 MiB 57 min <1 m 18 x 30 x 28 Download

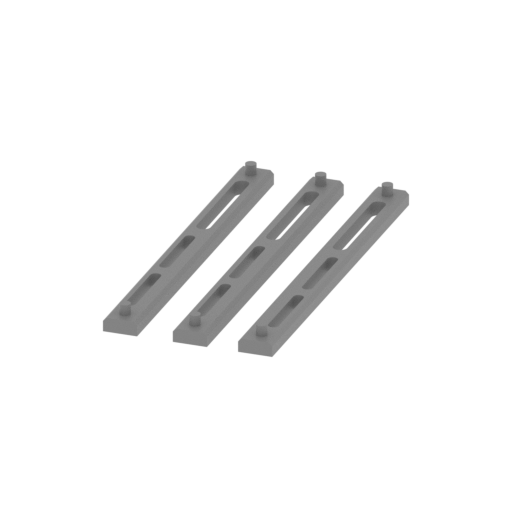

66_GunInnerDetail (repair ed).stl
0.14 MiB 14 min <1 m 19 x 42 x 3 Download

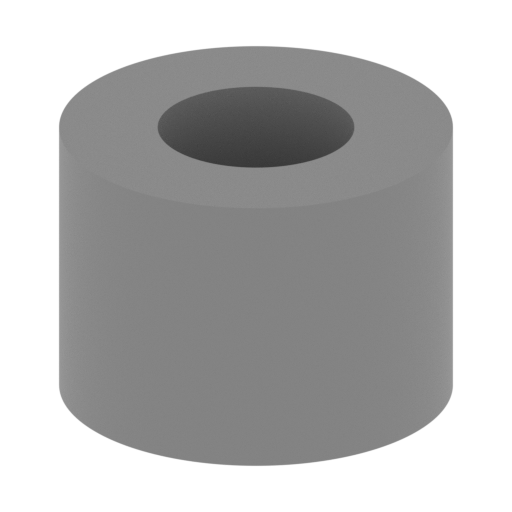

67_GunRivet_x7 (repaired) .stl
0.11 MiB 1 min <1 m 3 x 3 x 2 Download

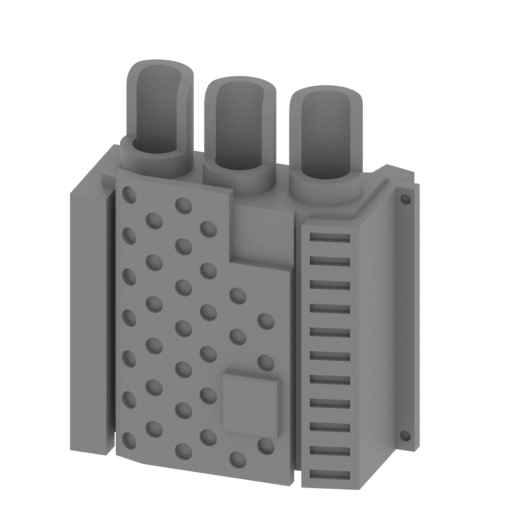

68_Rocket Body (repaired) .stl
0.65 MiB 1 h 10 min 1 m 26 x 19 x 32 Download

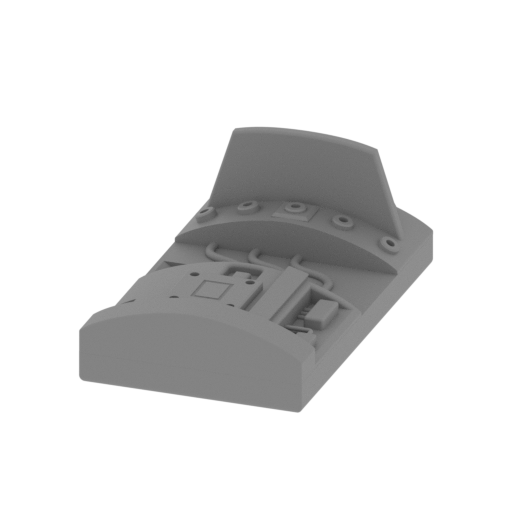

69_Rocket Panel (repaired ).stl
1.99 MiB 59 min 1 m 25 x 42 x 16 Download

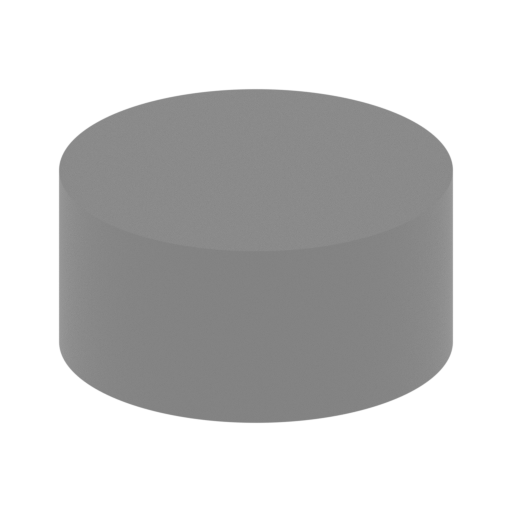

70_Rocket Radar Pin (repa ired).stl
0.10 MiB 1 min <1 m 3 x 3 x 1 Download

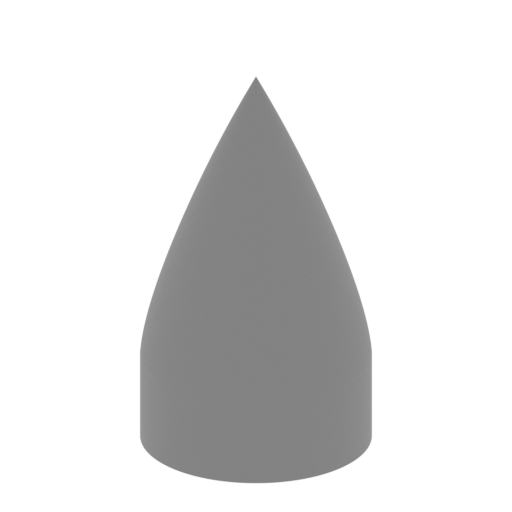

71_Rocket Tip (repaired). stl
0.97 MiB 1 min <1 m 4 x 4 x 6 Download

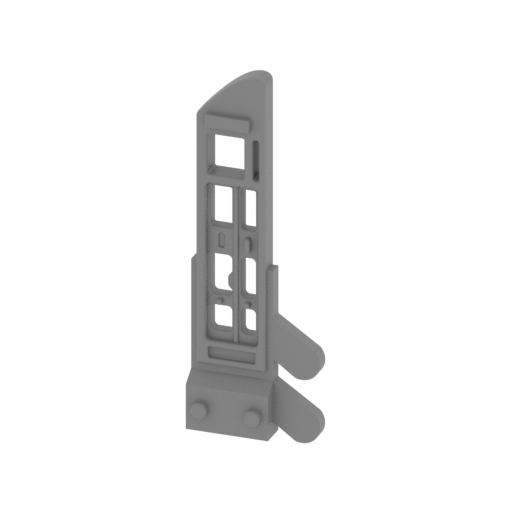

72_RocketRadar - 2 sided (repaired).stl
1.72 MiB 20 min <1 m 11 x 4 x 32 Download

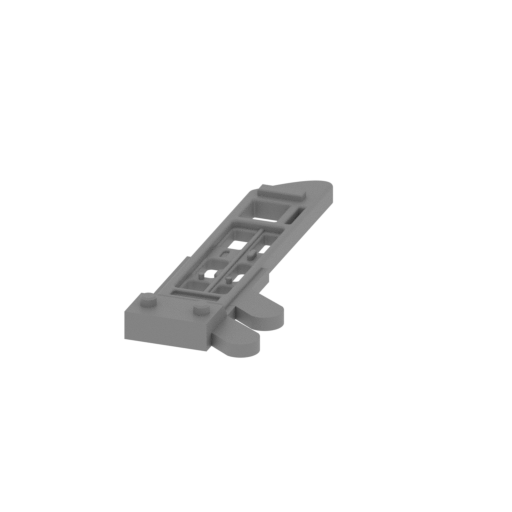

73_RocketRadar (repaired) .stl
1.13 MiB 8 min <1 m 11 x 32 x 3 Download

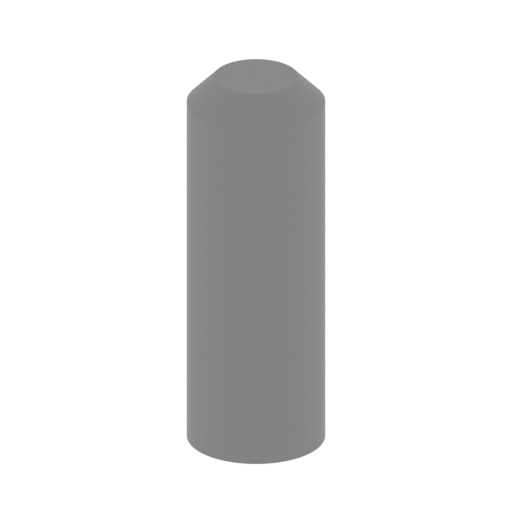

74_Foot_Shock_x2 (repired ).stl
0.08 MiB 28 min <1 m 11 x 11 x 30 Download

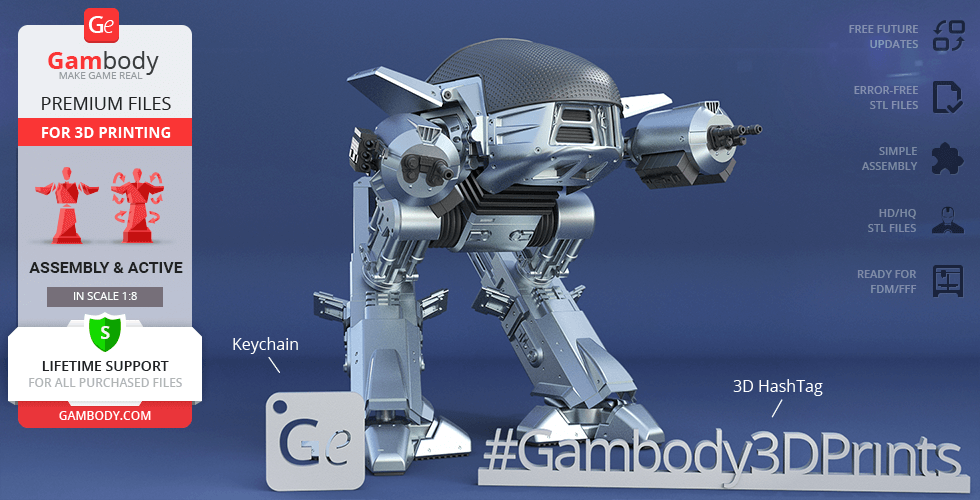

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

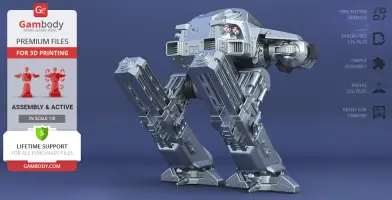

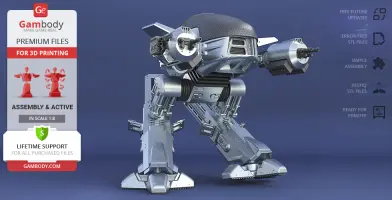

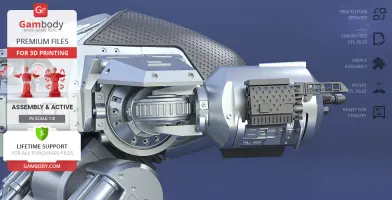

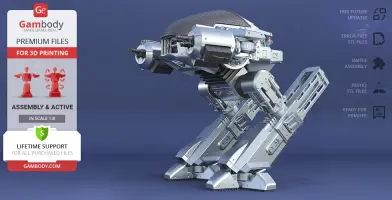

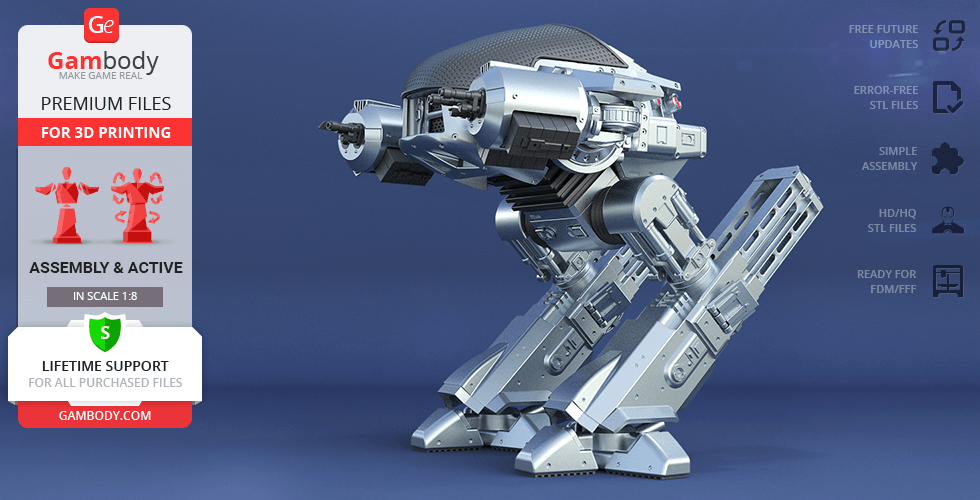

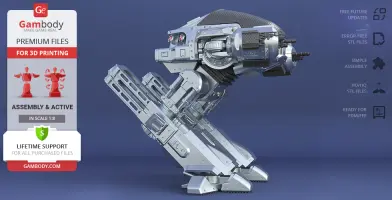

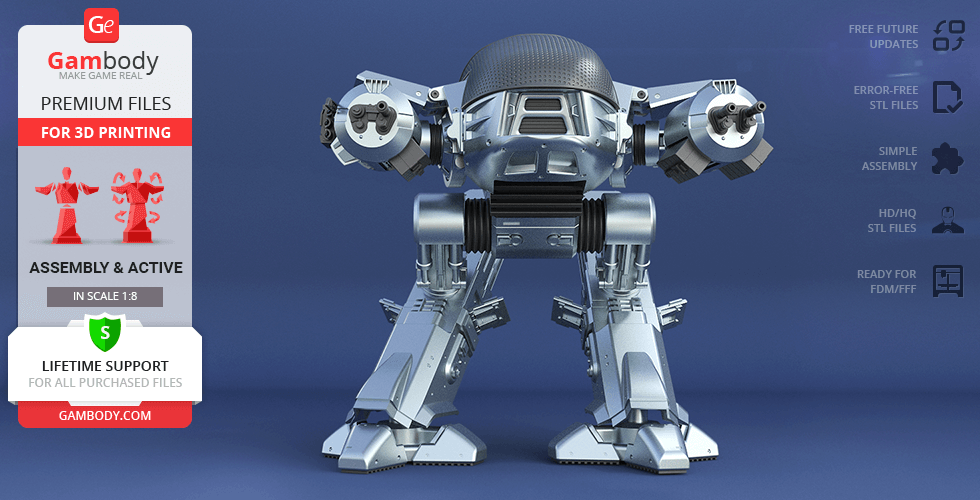

ABOUT THIS 3D MODEL

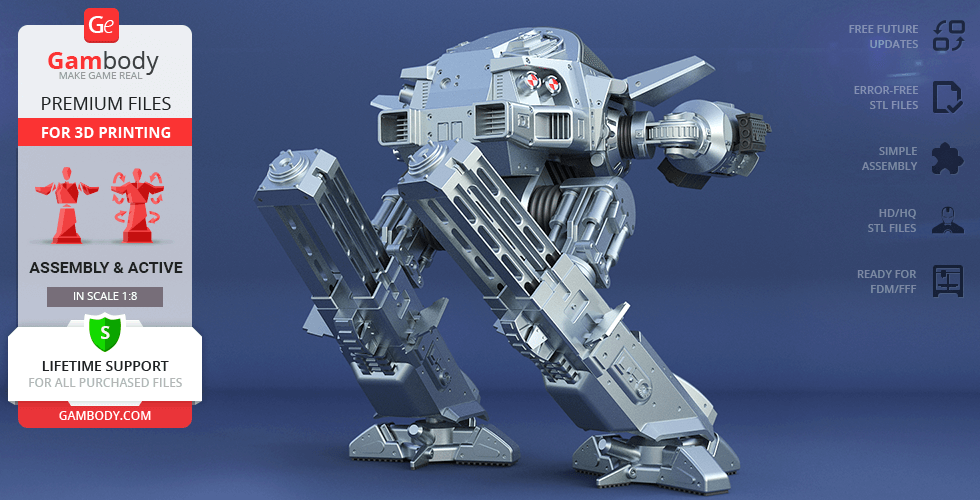

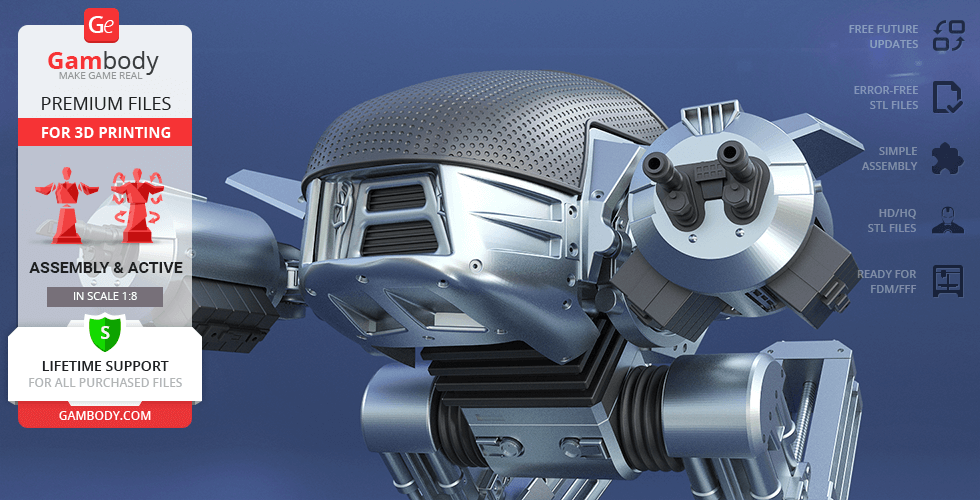

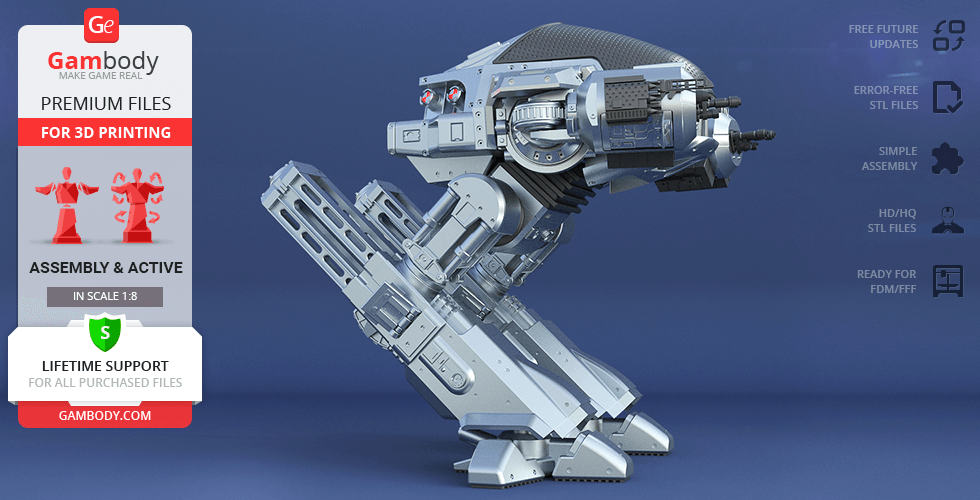

The face of law enforcement in crime-ridden Detroit - Droid, Series 209, commonly referred to as ED-209 - is a robotic peacekeeping unit. The primary goal of the Droid - urban pacification - brings fatal loss, as it fails to function under the default program the first time when we see it. The malfunction scene of the RoboCop 1987 film has defined the bright appearance of the Droid revealing to the audience the merciless and displeasing nature of the robot. Policing the neighbourhood of OCP, the fierce yet awkward robotic machine will leave a criminal seemingly small amount of time to comply. And not only a criminal - it seems that any innocent victim of circumstance is in equal danger so it is highly not recommended to use your gun or any weapon whatsoever in a threatening manner anywhere near ED-209. Thanks to the efforts of our contributing 3D artist who dedicated several months to the development of the project, Gambody’s RoboCop selection enlarges with another incredible OCP ED-209 model inspired by the 1987 installment of the franchise. To underline the Droid’s unwillingness to negotiate, the author of this awesome model for 3D printing made sure to equip the robot with the most screen accurate ammunition possible, equipping the left arm with two cannons and the right arm with a single cannon and a missile launcher. The design of the iconic enforcement droid for 3D printing presupposes all kinds of articulated elements, like the one-axis movement of feet, legs, armed hands and shoulders, enabling all RoboCop fans to recreate their very favorite ED-209 scene. Our fellow 3D printing fans, it gives us great pleasure to introduce you to the future of law enforcement. ED-209 for 3D printing!

ADAPTATION FOR 3D PRINTING

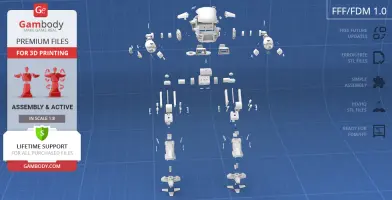

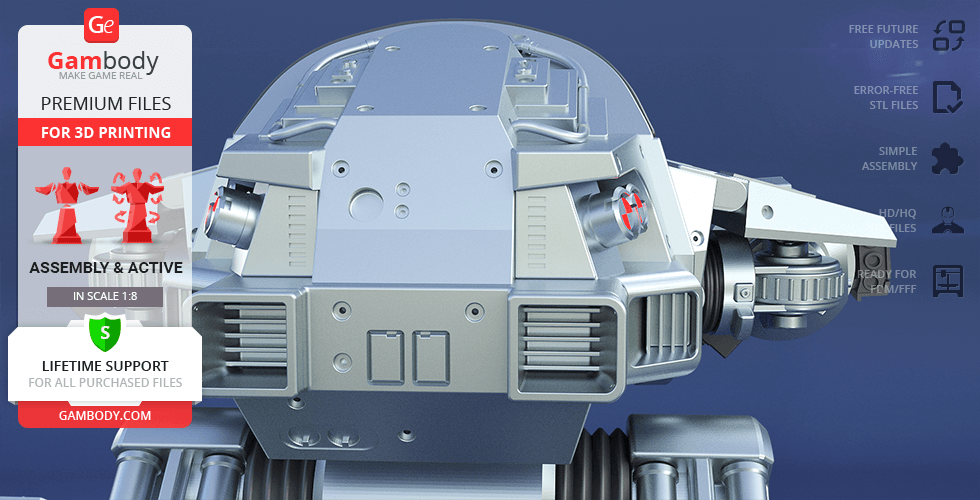

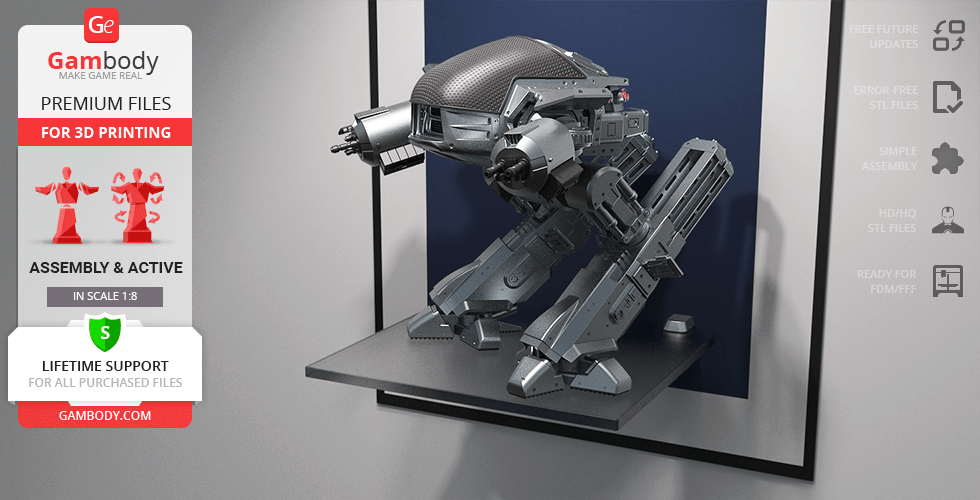

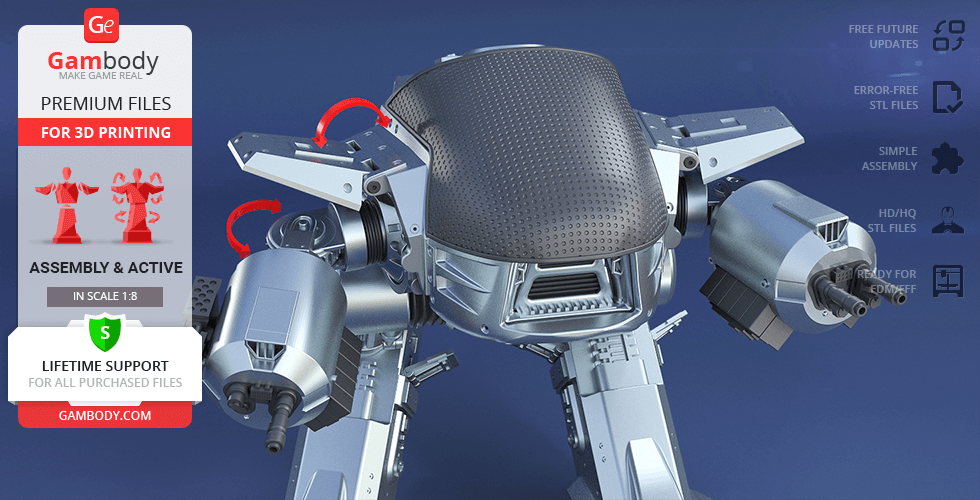

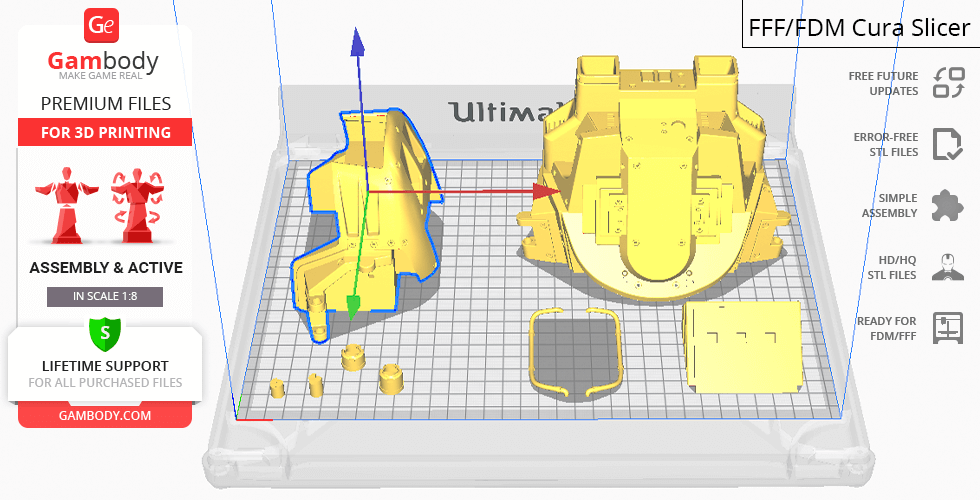

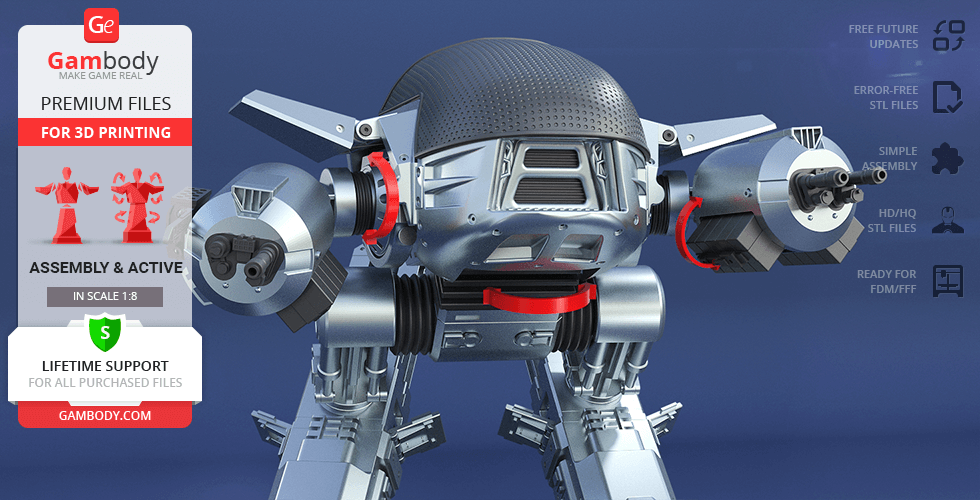

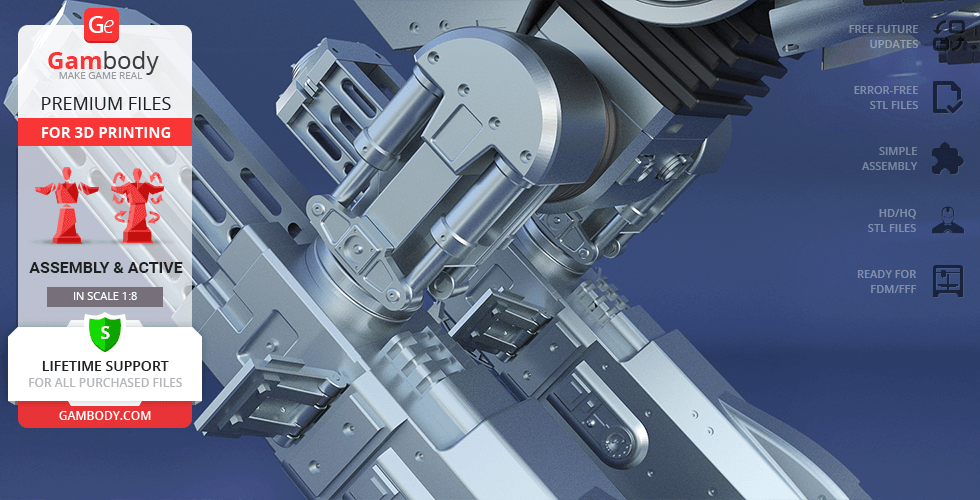

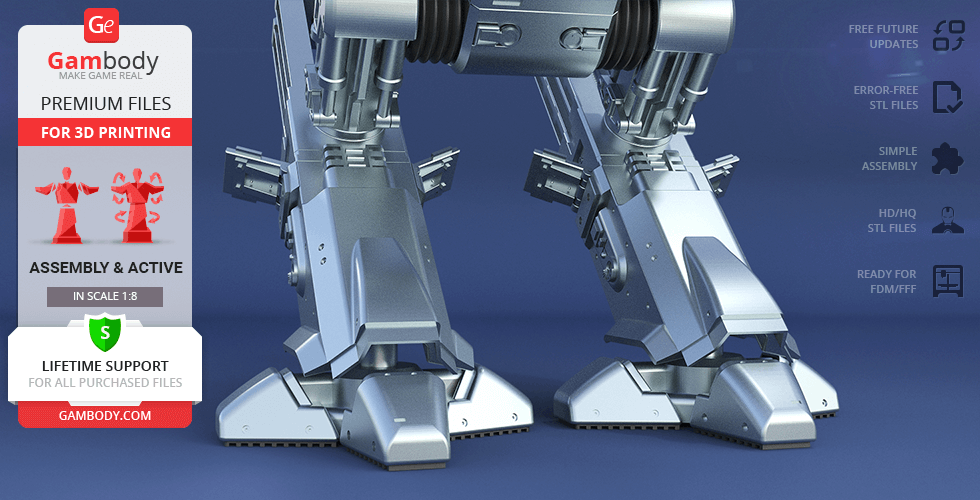

OCP ED-209 (1987) model for 3D printing is an action assembly model and its moderation took Gambody team 35 hours in total. In order to ensure the droid’s multidirectional movement, the model was divided into many assembly parts and special mechanisms were introduced into several model’s joints to give you an opportunity to display ED-209 in a variety of positions, i.e. robot’s feet, leg flappers, hips, shoulders, heavily armoured hands, and shoulder armour are movable. All the assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. The assembly of the robotic peacekeeping unit requires glue and several additional “pins” to secure the parts. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA (watch the "Assembly video" to see the pins coloured red). Make sure to carefully read the specifications below, watch "Assembly video" in the photo preview section before assembling the Droid and test fit everything before gluing. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 version in PDF format.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from ED-209's actual height that is 2400 mm. The 3D printing model's chosen scale is 1/8 for FFF/FDM version.

VERSION'S SPECIFICATIONS and IMPORTANT NOTES BY THE AUTHOR OF THE MODEL:

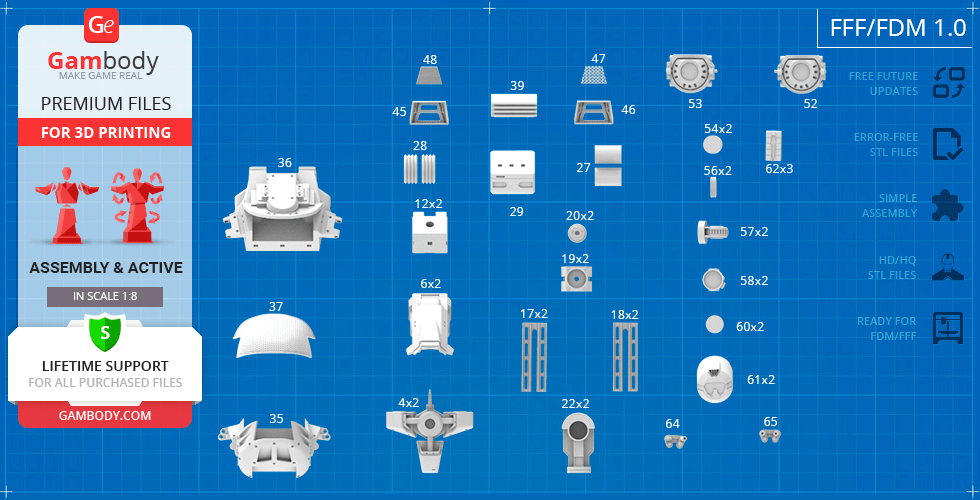

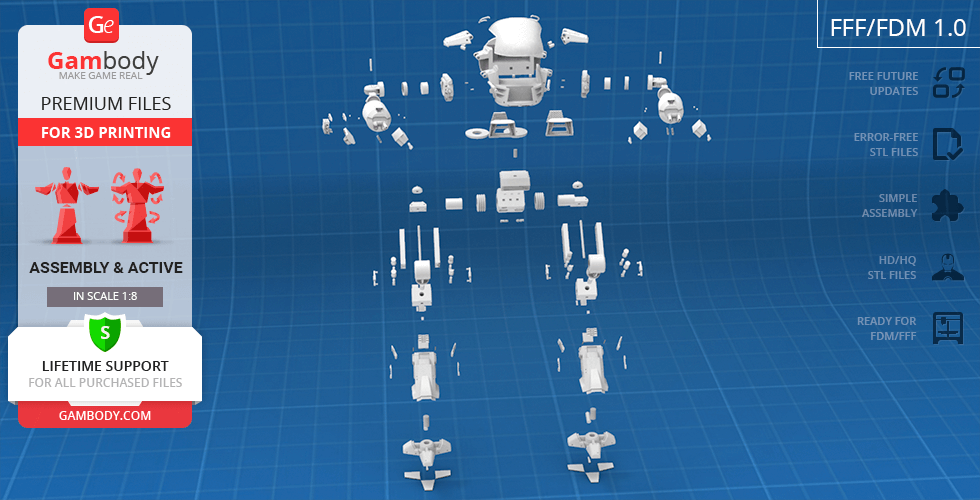

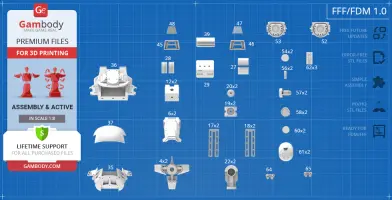

FFF/FDM 1.0 version features:

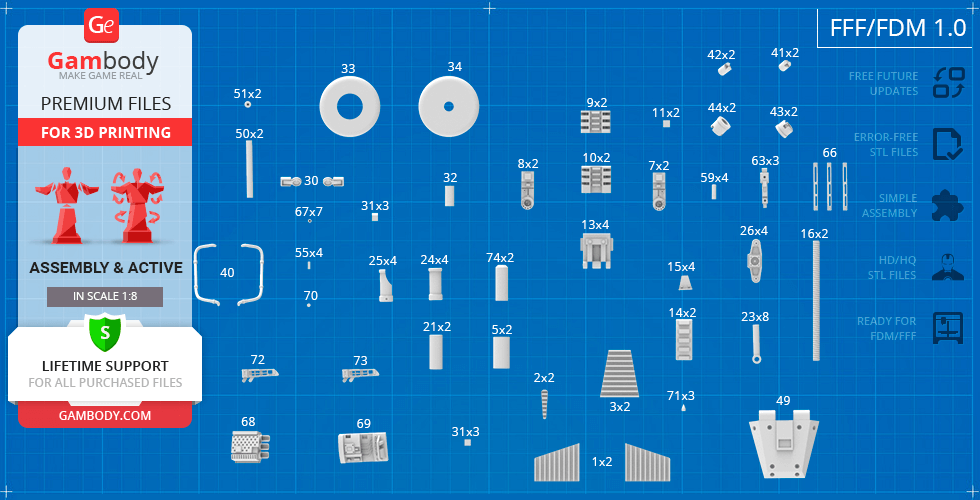

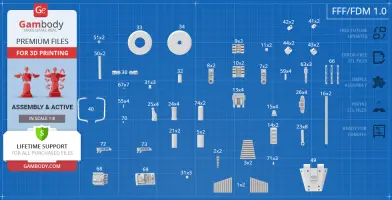

- Contains 74 parts;

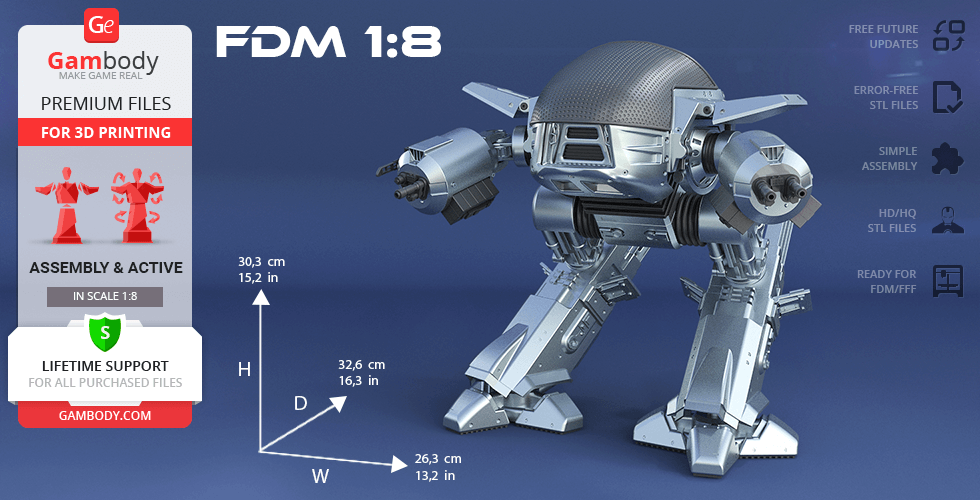

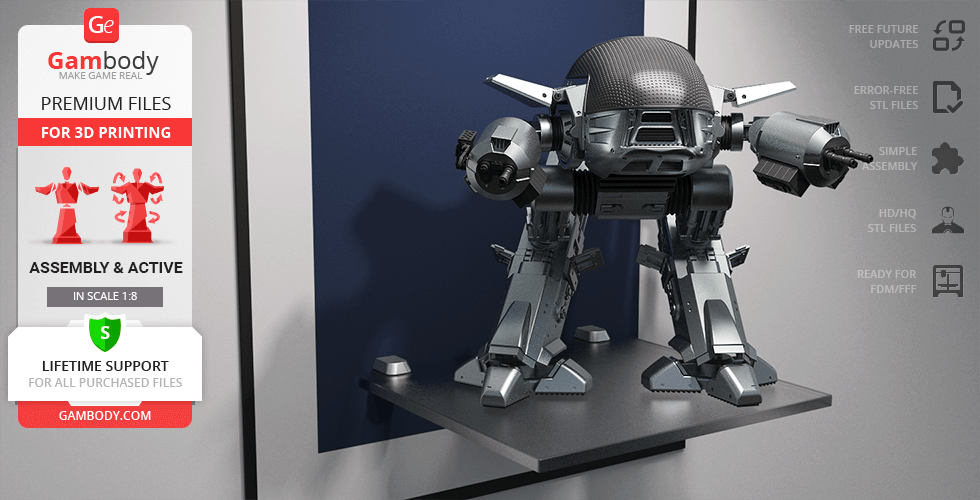

- A printed model is 303 mm tall, 263 mm wide, 326 mm deep;

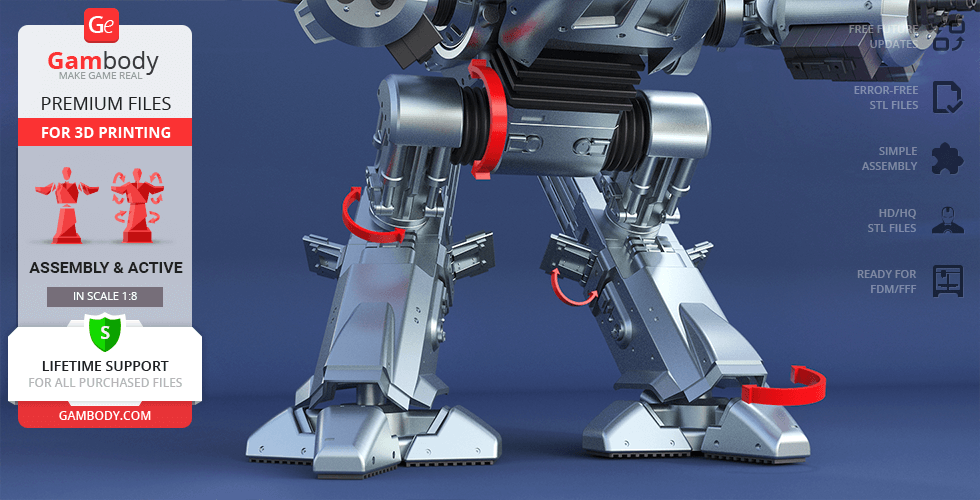

- Made with several sets of special joints to ensure the model's articulation;
- There are many assembly parts that need to be printed multiple times - the number of required copies (x2, x4 etc.) is indicated in the title of the file in "Source files", e.g. file "1_LittleToePad_x2" needs to be printed 2 times;
- The assembly of the Droid's parts will require glue;

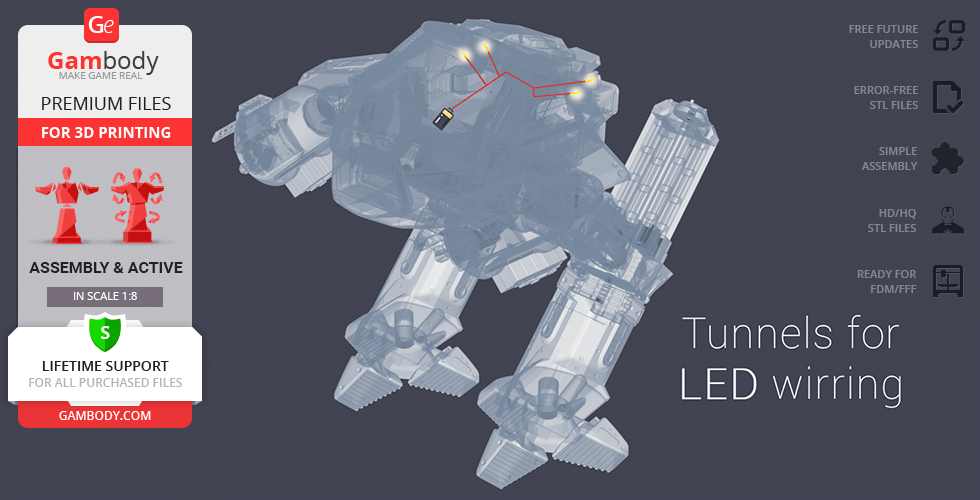

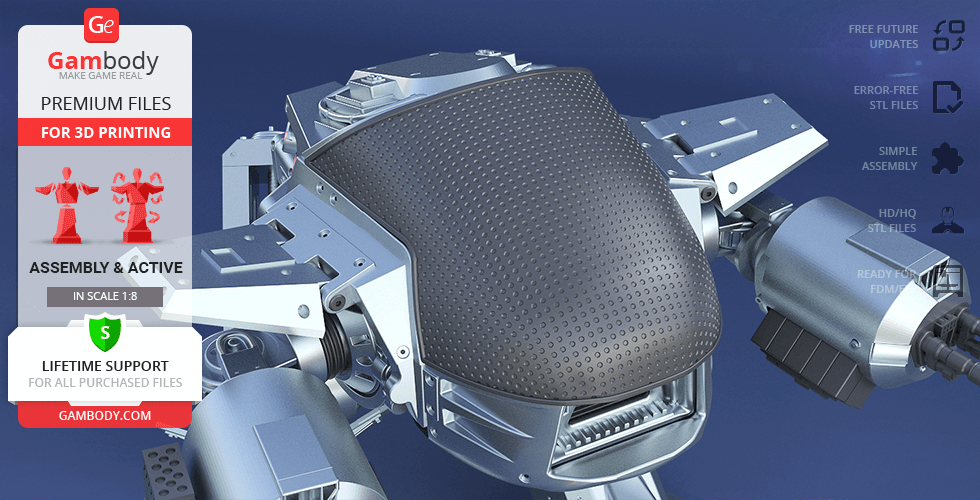

- There are small holes in the back of the Droid's head and in the visor for you to glue in a magnet (denoted as a cylinder in the "Assembly video" and PDF manual). This will allow you to open and or close the head by simply removing the visor;
- You can put a soundboard, Intel NUC, or another device inside the hollow visor if you want;
- "RadioActive Canisters43_OuterCore_A and 44_OuterCore_B can be assembled either with 41_GlowCore A and 42_GlowCore B_x2 inside or can house LEDs instead;
- There are two variants of the droid’s “mouth” (one with wires and one without) and two variants of the mouth grill for you to choose from;
- There are two variants of the right-hand radar - a flat one and an optional dual-sided relief one (preferably for SLA printing);
- There are two variants of the body disk - a static one 34_BodyDisk_no608 and a disk to introduce a 608 bearing 33_BodyDisk_bearing608 to allow ED-209 to turn his head;
Leg Flappers (13_Flapper_x4) are to be assembled with the help of pins that can be made out of short pieces of 1.75 PLA;
- It is highly recommended that you watch "Assembly video" in the photo preview section before assembling the Droid and test fit everything before gluing;
- All parts are divided in such a way that you will print them with the smallest number of support structures and so to ensure the smoothness of the details’ surfaces.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of OCP ED-209​ (1987)​ 3D Printing Model which consist of 74 parts;
- 1 version of files of this model for FFF/FDM printers;
- High-poly detailed model of OCP ED-209​ (1987)​;
Assembly Manual for FFF/FDM 1.0 version in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of OCP ED-209​ (1987)​ for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble OCP ED-209​ (1987) 3D Printing Model at Gambody YouTube channel.

Also, you may like the other ED-209 (1987) 3D Printing ModelED-209 (2014) 3D Printing Model, or other Robot 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

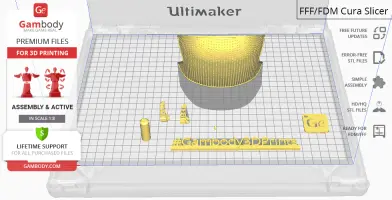

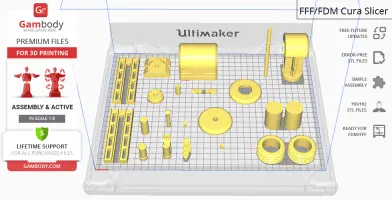

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

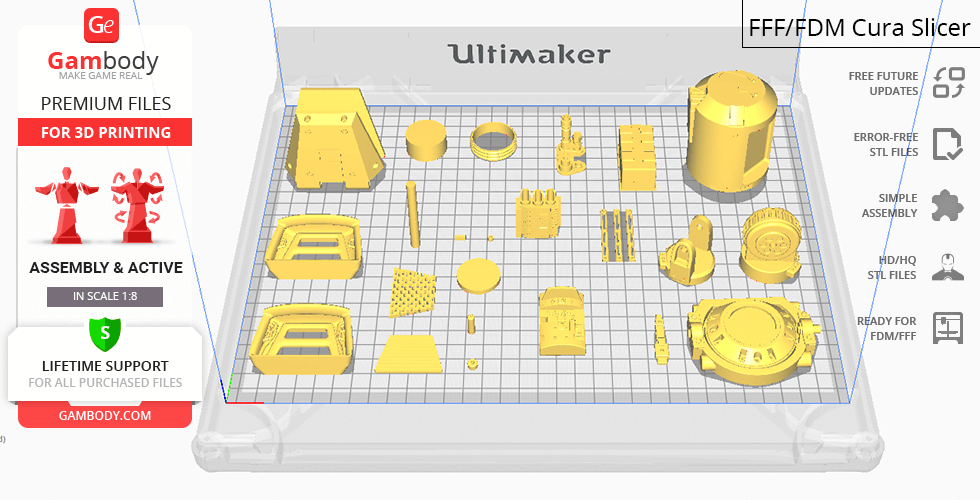

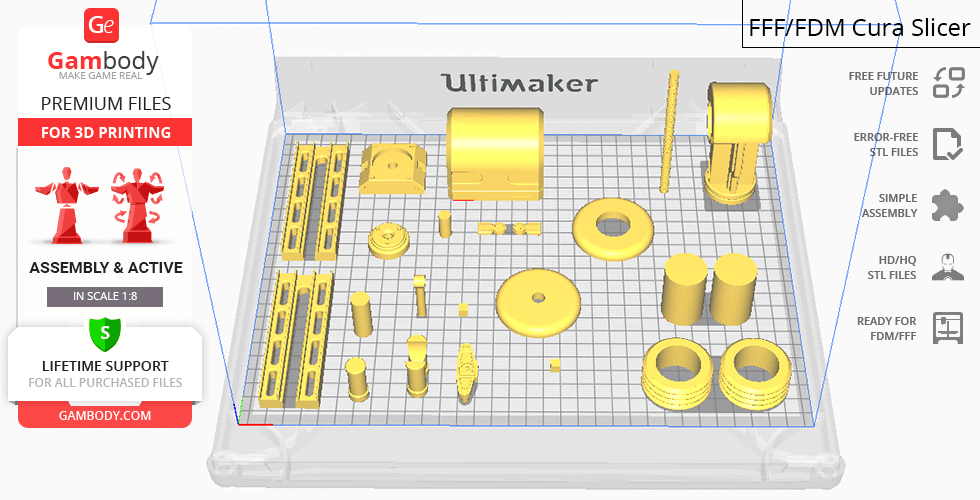

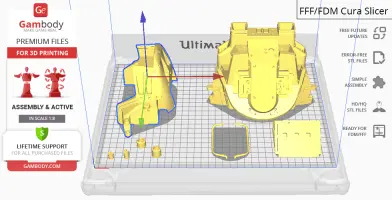

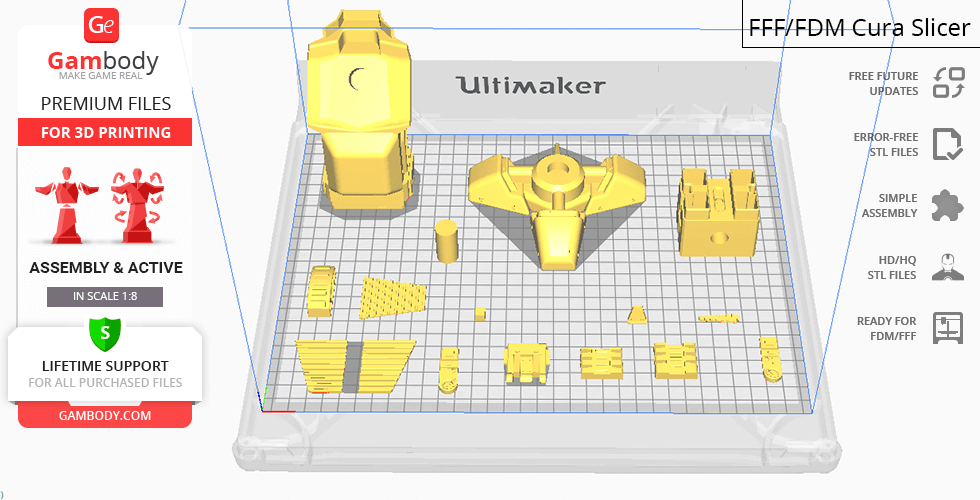

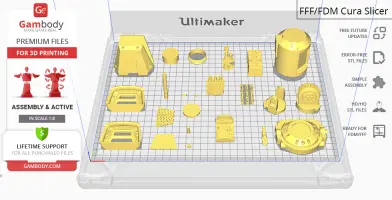

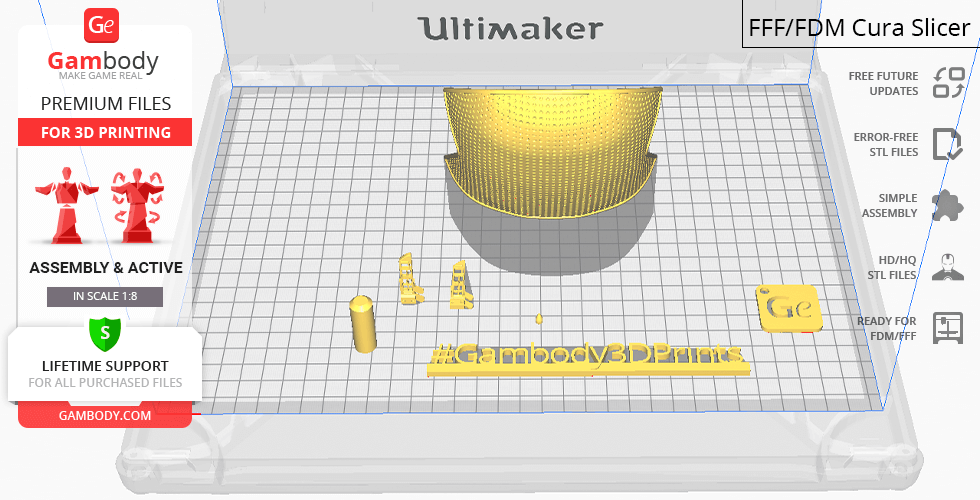

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
