Thor Model for 3D Printing | Static

(3)
cm: 14.3 w x 13.8 d x 14 h
in: 5.63 w x 5.433 d x 5.512 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

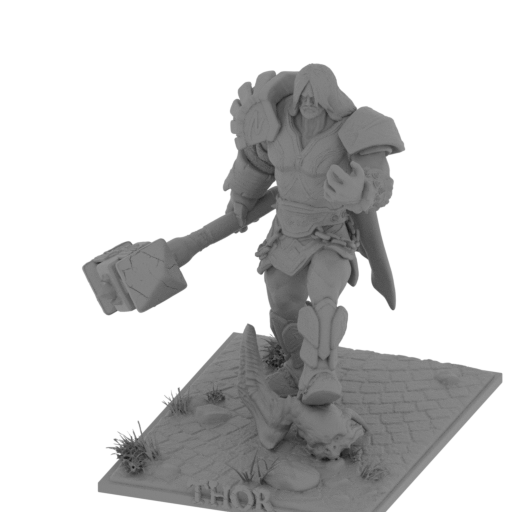

THOR (repaired).stl
33.94 MiB 45 h 15 min 29 m 138 x 143 x 140 Download

Thor 3D model is inspired by and stylized according to the video game character and the Norse mythology God.  Based on the hugely popular movies, the video game depicts the God of Thunder in Norse Mythology environment, taking up missions and saving Asgard.

Although less popular than the film, the video game nevertheless is full of battle scenes, with the player wielding the hammer and controlling the storm, the lightning, and the wind powers to fight enemies.

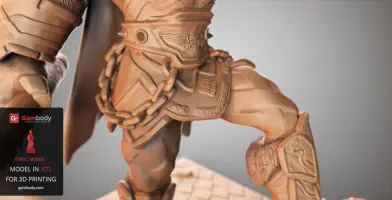

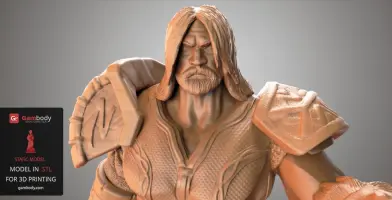

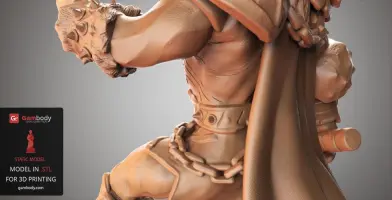

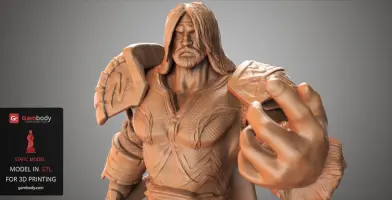

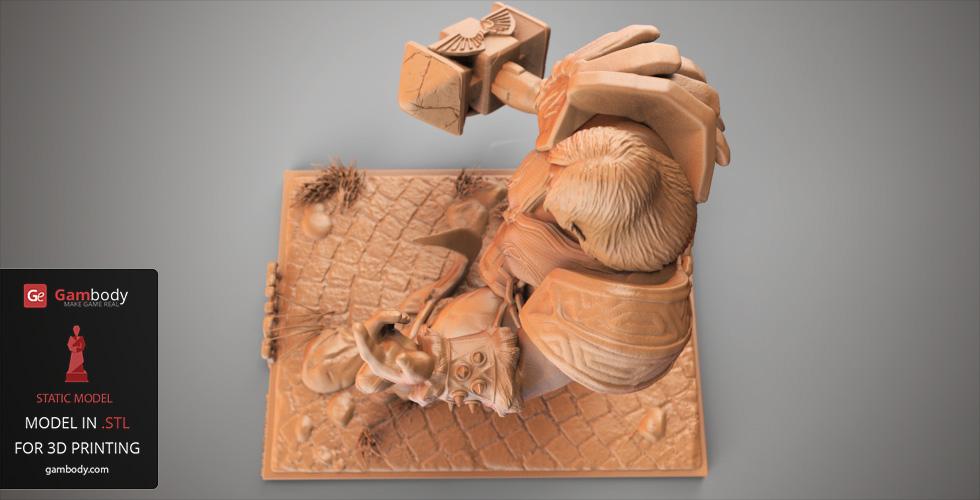

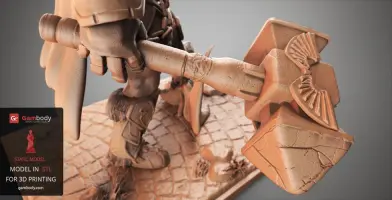

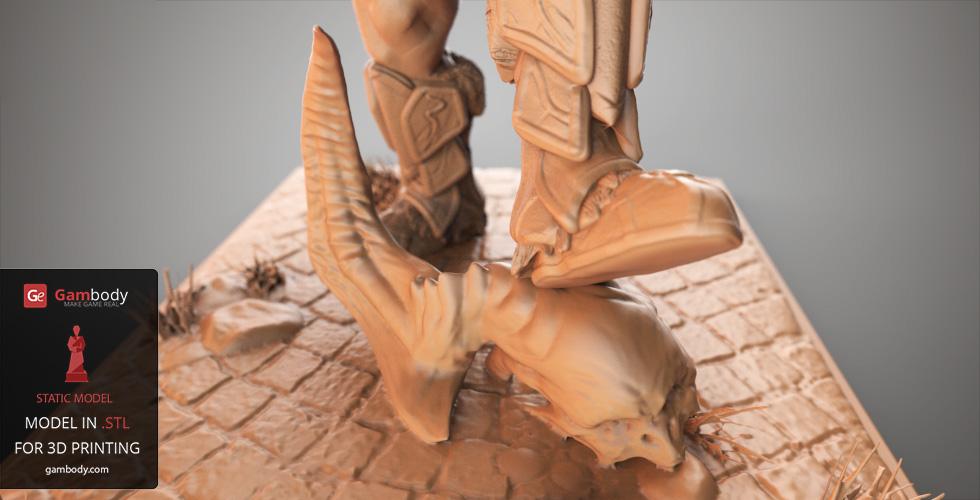

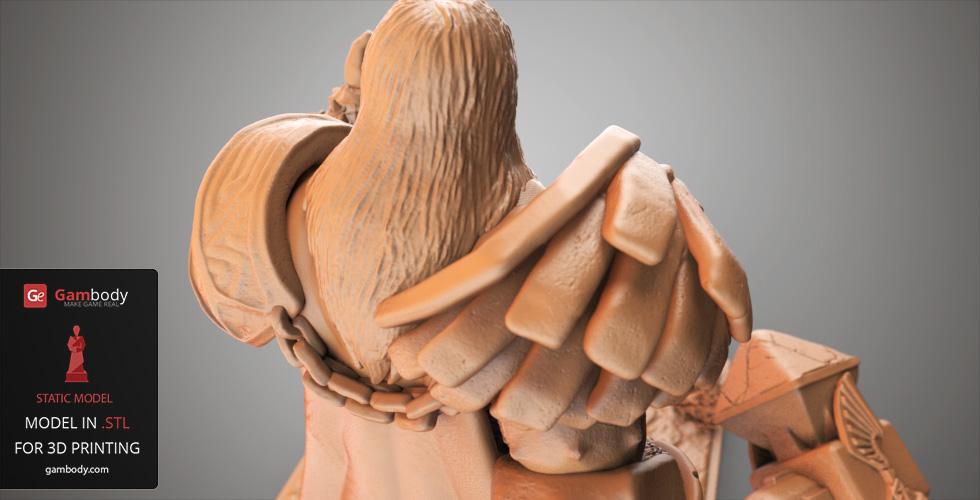

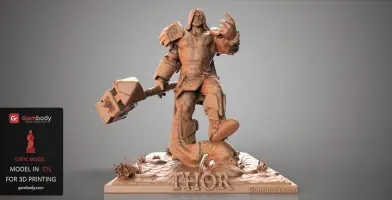

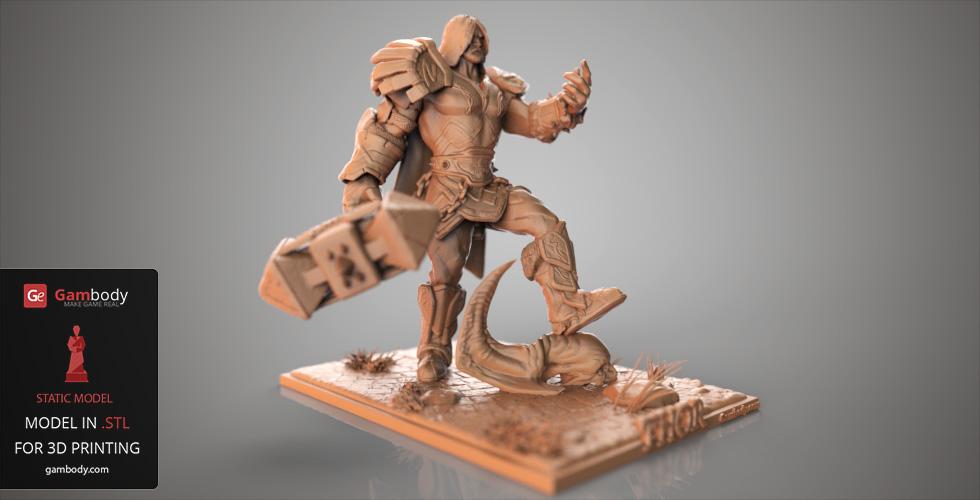

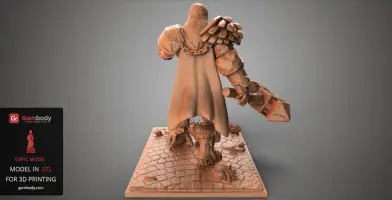

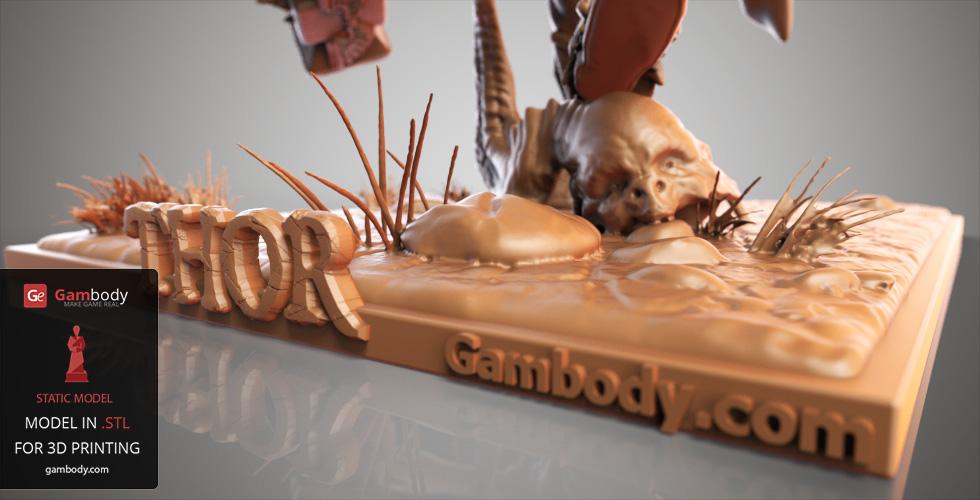

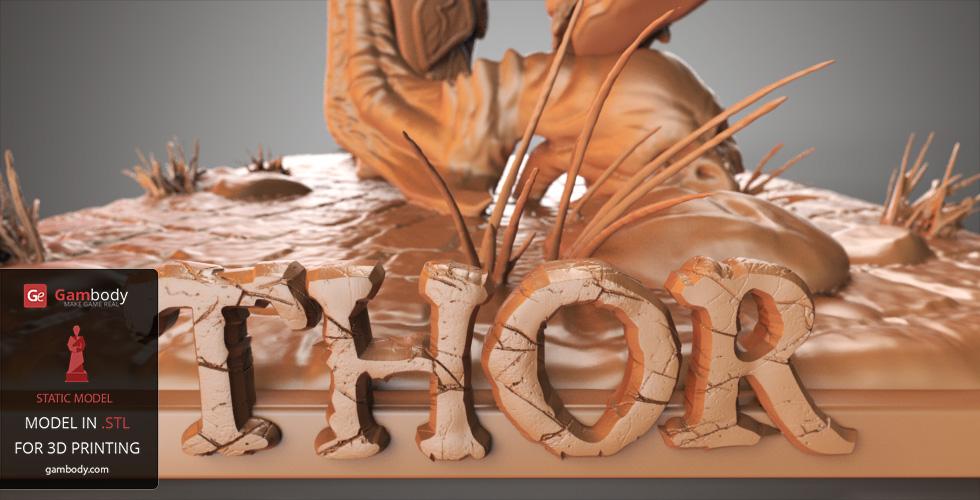

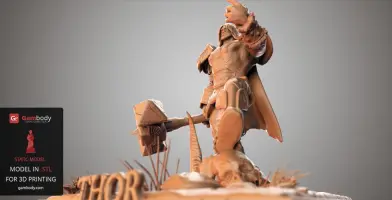

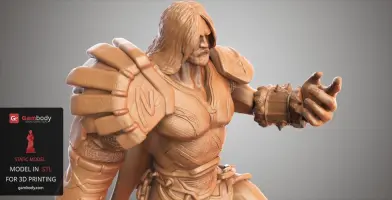

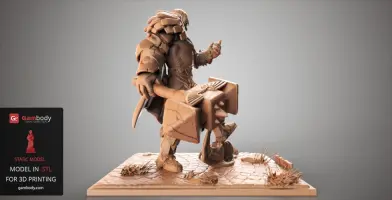

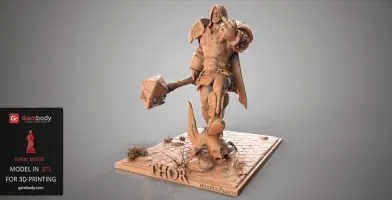

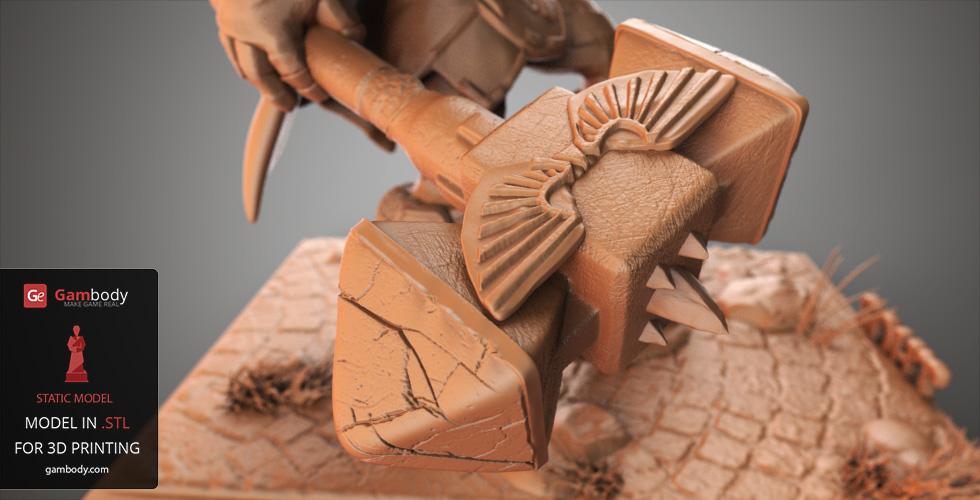

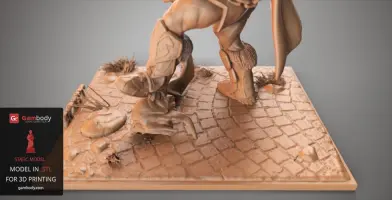

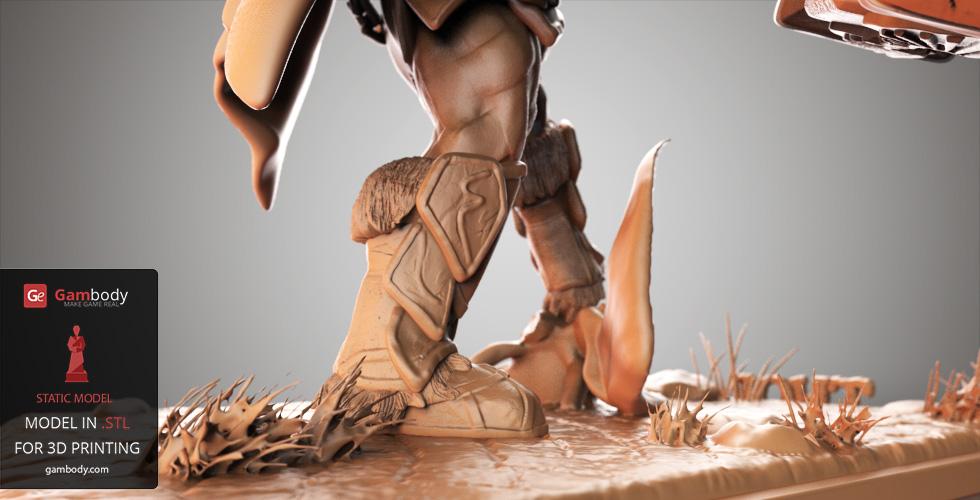

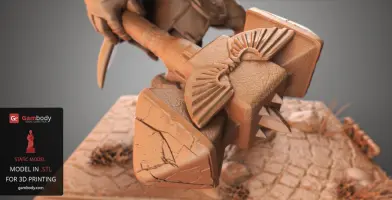

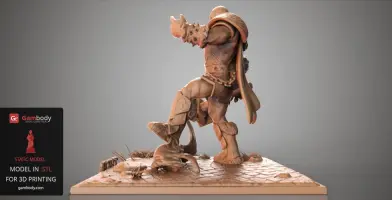

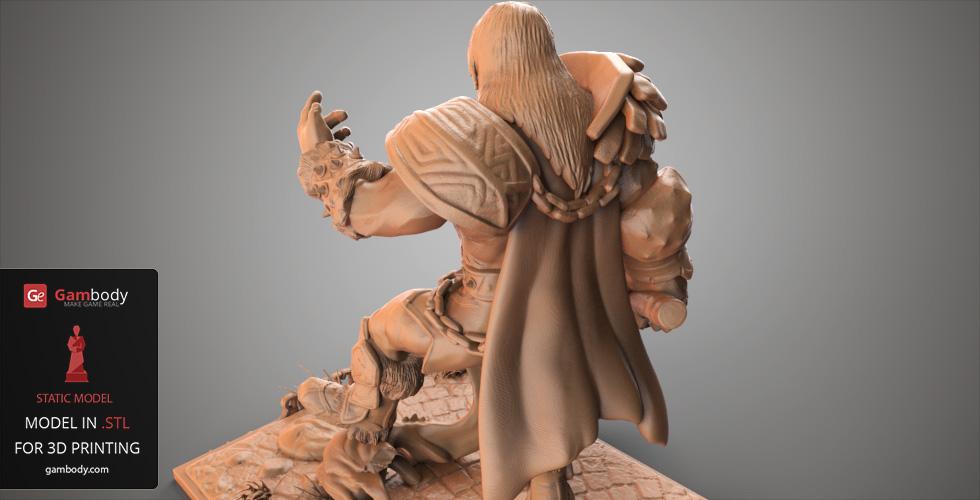

Thor 3D model depicts the legendary God of Thunder in all its glory. Holding his iconic Mjolnir, the 3D model of Thor is available for download in STL file format. The model is mounted on a support base, facilitating its display on the desk or shelf.

The STL file of the model was created in Autodesk Maya modeling program. The file underwent checking and correction in Netfabb and is error-free.

The Thor 3D model STL file can be easily handled in any slicing program, such as CURA 15.06 or Simplify3D. There are detailed printing recommendations for the model. Please see Printing Details tab.

Printing time: 35h

Printing material required: 22m

After being 3D printed the model will stand 143mm wide, 140mm tall, and 138mm deep.

Buy Thor 3D model STL file by clicking the green Buy button in the top-right corner of the model’s page. Go to checkout. Provide your PayPal or credit card details and download the STL file of the incredible God of Thunder.

Note: You can send the STL file to print with 3DHubs directly from our website. Put the checkmark in the box next to the file you want to print and click the Print with 3DHubs button. You will be redirected to 3DHubs website where you can choose from the dozens of 3D printing service providers and the material you want your 3D model printed in.

________________________

On 28.11.2016 the model files have been optimized and made solid. They now are adapted to be 3D printed using any slicing program. 3D model files are already available for purchase and download.

Generic

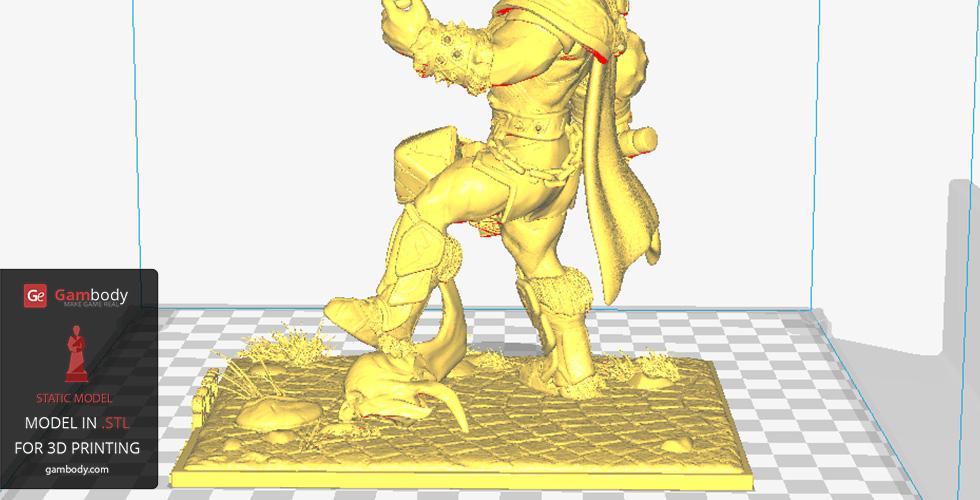

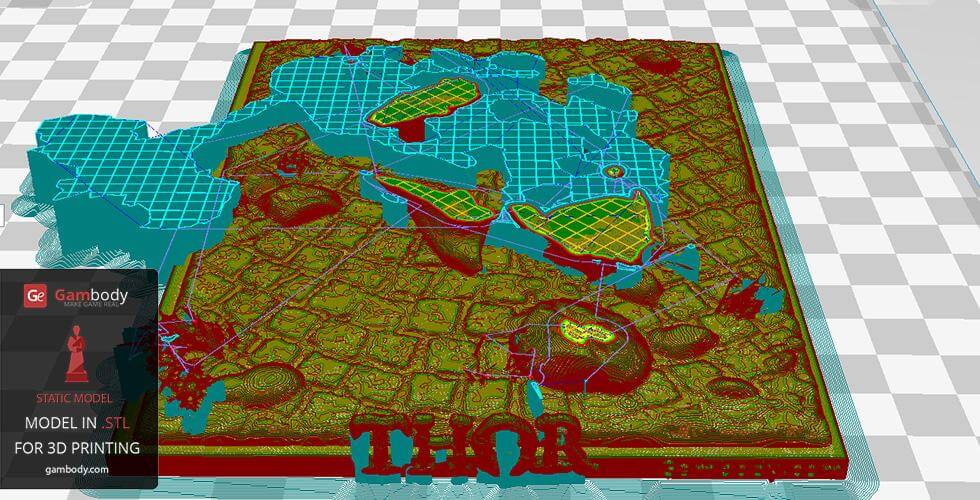

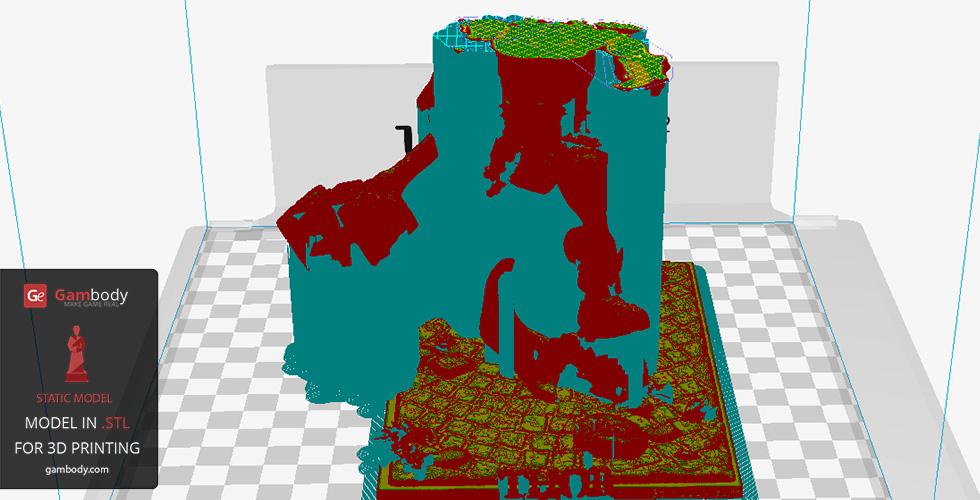

This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality

  • Layer height: 0.1mm*
  • Initial layer thickness: 0.3mm
  • Bottom/top pattern: lines
  • Skin perimeter line count: 0
  • Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

Check this **Simplify3D User Guidelines to avoid any 3D printing problems with this software.
**On 28.11.2016, the 3D model files have been optimized. You can print them without following these Simplify3D guidelines, as the model is solid.

The model has been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups:

  • Infill speed: 50mm/s
  • Outer shell speed : 30mm/s
  • Inner shell speed: 20mm/s
  • Top/bottom speed: 20mm/s
  • Support speed: 50mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 30mm/s
  • Amount of slower layers: 4

Infill:

  • Infill pattern: Grid
  • Line distance: 3mm
  • Infill overlap: 20%
  • Infill layers: 0

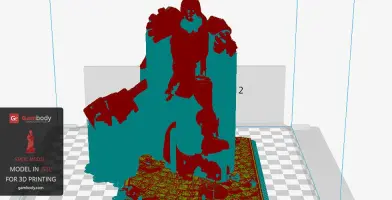

Support:

  • Enable support: Check
  • Placement: Everywhere
  • Overhang angle: 30°
  • X/Y distance: 0.7mm
  • Top distance: 0.2mm
  • Bottom distance: 0.2mm
  • Stair step height: 0.5mm
  • Join distance: 0.7mm
  • Area smoothing: 0.6mm
  • Use towers: check
  • Pattern: Grid
  • Line distance: 1.5mm

Platform adhesion:

  • Type: Brim
  • Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations:

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation.  Apply other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
