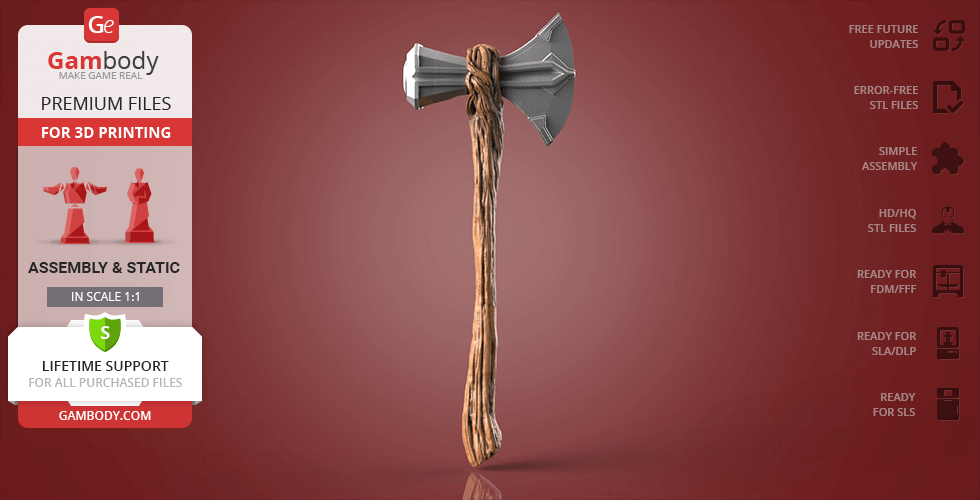

Stormbreaker Thor's Axe 3D Printing Model | Assembly

(12)
cm: 27.7 w x 80 d x 75 h
in: 10.906 w x 31.496 d x 29.528 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

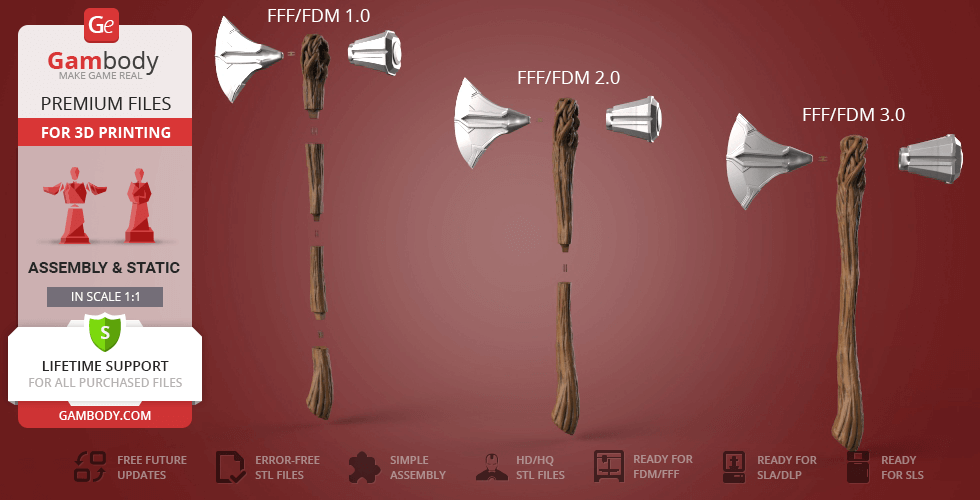

Stormbreaker Thor's Axe 3D Printing Cosplay Stuff comes in 3 versions for FFF/FDM 3D printers. Each version is cut differently. Files are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

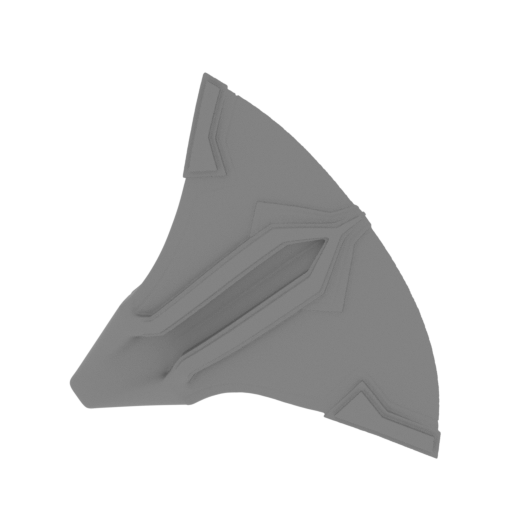

1_Blade_FDM (repaired).st l
37.32 MiB 31 h 28 min 19 m 186 x 33 x 183 Download

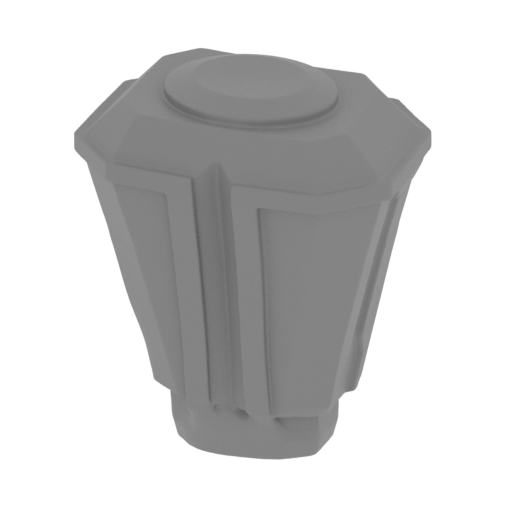

2_Hammer_FDM (repaired).s tl
29.08 MiB 38 h 6 min 25 m 105 x 80 x 122 Download
3_Holder_1_FDM (repaired) .stl
23.36 MiB 35 h 31 min 21 m 62 x 80 x 207 Download
4_Holder_2_FDM (repaired) .stl
22.08 MiB 12 h 54 min 8 m 47 x 43 x 192 Download
5_Holder_3_FDM (repaired) .stl
24.89 MiB 11 h 52 min 7 m 47 x 43 x 185 Download
6_Holder_4_FDM (repaired) .stl
23.88 MiB 19 h 38 min 12 m 67 x 59 x 182 Download
7_Ge_lock_H10_(x7) (repai red).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

HISTORY OF STORMBREAKER

When Thor’s hammer Mjolnir was destroyed by his sister Hela, he thought that he had lost his strength because he relied too much on his trademark weapon. He left for the planet called Sakaar where he managed to show his real power, which was still not enough to defeat Thanos. So he, along with Rocket Raccoon and Teenager Groot, went to Nidavellir where he met Eitri the Dwarf King, all that was left from this kingdom’s people, the last surviving witness of his Realm’s former greatness. He once had helped to forge the Infinity Gauntlet for Thanos, but he had then deceived him. He created a new weapon for Thor - an axe called Stormbreaker, powerful enough to defeat the great Titan.

ABOUT THIS 3D MODEL

The model is saved in STL files, a format supported by most 3D printers

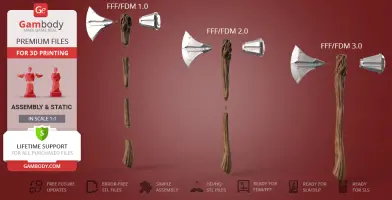

FDM 1.0 version features:
- Contain 7 parts;
- Assembly kit includes locks. One part of  Lock (7_Ge_lock_H10_(x7)) needs to be printed 7 times;
- Model contain small parts for buildplates of any FFF/FDM 3D Printer;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

FFF/FDM 2.0 version features:
- Same as FDM but smaller, also made as 5 parts;
- Assembly kit includes locks. One part of  Lock (5_Ge_lock_H10_(x3)) needs to be printed 3 times;
- Model contain bigger parts;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

FFF/FDM 3.0 version features:
- Same as FDM but smaller, also made as 4 parts;
- Model contain the biggest parts and solid handle;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.4.1Simplify3D or Slic3r Software.

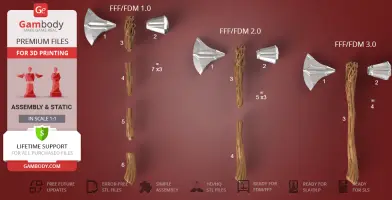

There are 7 parts for FFF/FDM 1.0 version, 5 parts for FFF/FDM 2.0 and 4 parts for FFF/FDM 3.0.

Scale: The model’s made 1/1 scale

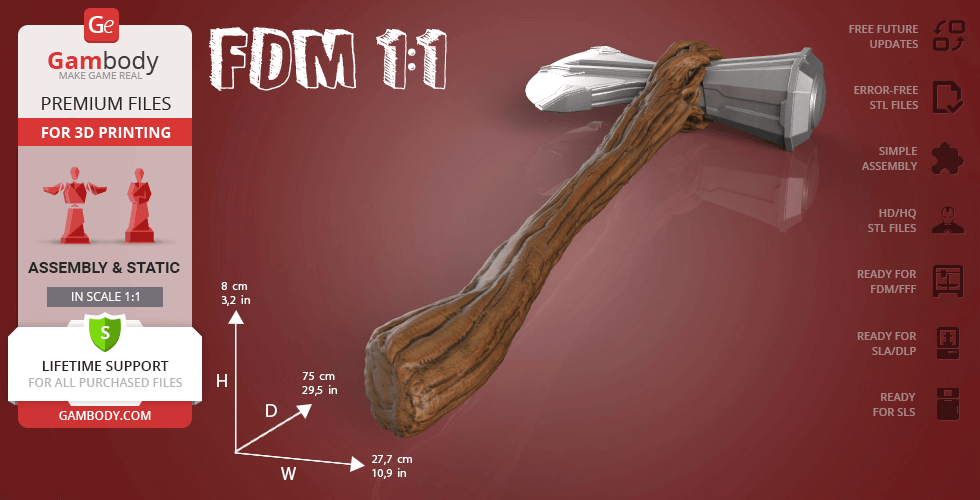

FFF/FDM version dimensions:
A printed model is 750 mm tall, 277 mm wide, 800 mm deep;

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Stormbreaker 3D Printing Cosplay Stuff​ which consist of 16 parts;
- 3 versions of files for this model for diffrent buildplate sizes of FFF/FDM 3D Printers
- High-poly detailed figurine of Stormbreaker;
- Detailed settings that we provide for Cura 3.4.1, Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get Model of Stormbreaker for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Stormbreaker 3D Printing Cosplay Stuff at Gambody YouTube channel.

Also, you may like Thor 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

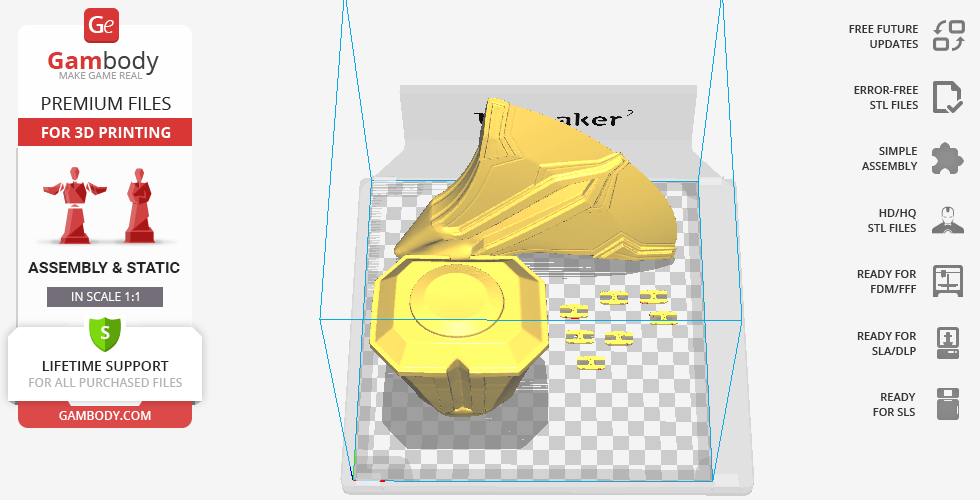

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
     Support Infill Speed: 45 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 45 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 3 mm
Support Z Distance: 0.2 mm
    Support Top Distance: 0.2 mm
    Support Bottom Distance: 0.2 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 15
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
