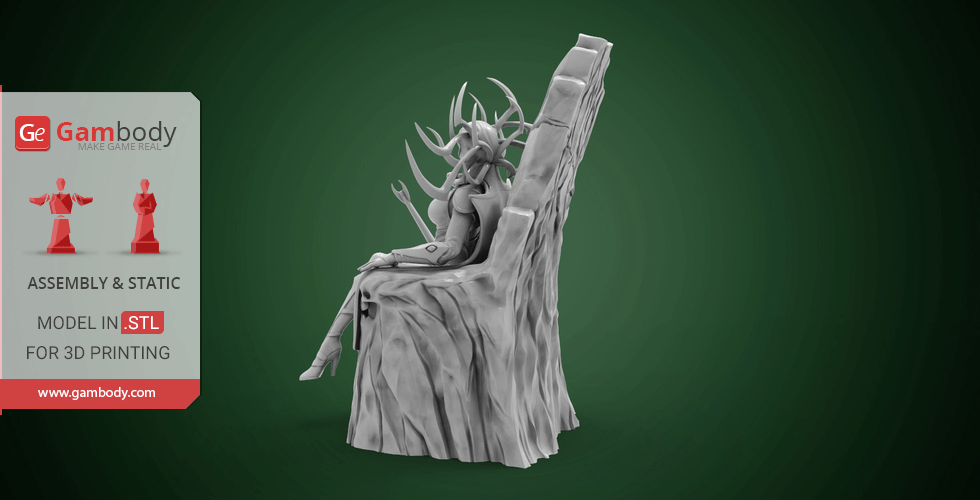

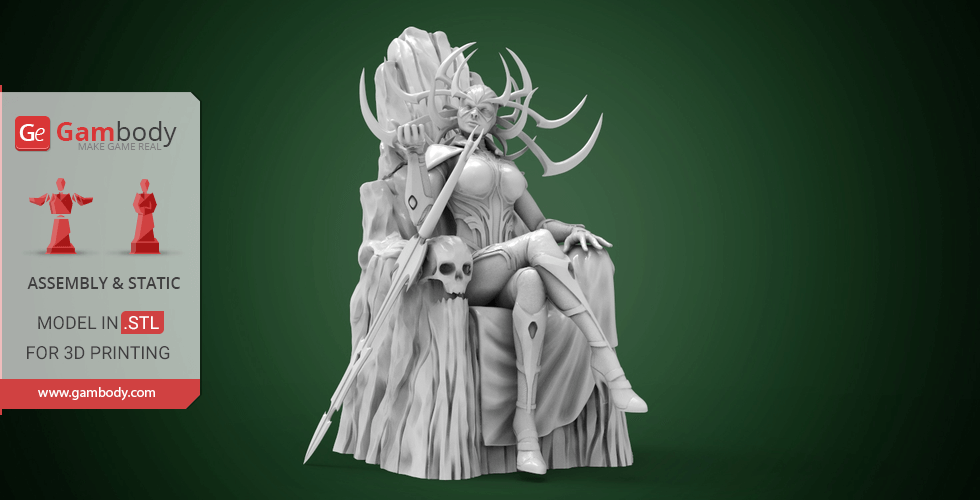

Hela on Throne 3D Printing Miniature | Assembly

(3)
cm: 16.5 w x 20.4 d x 25.5 h
in: 6.496 w x 8.031 d x 10.039 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

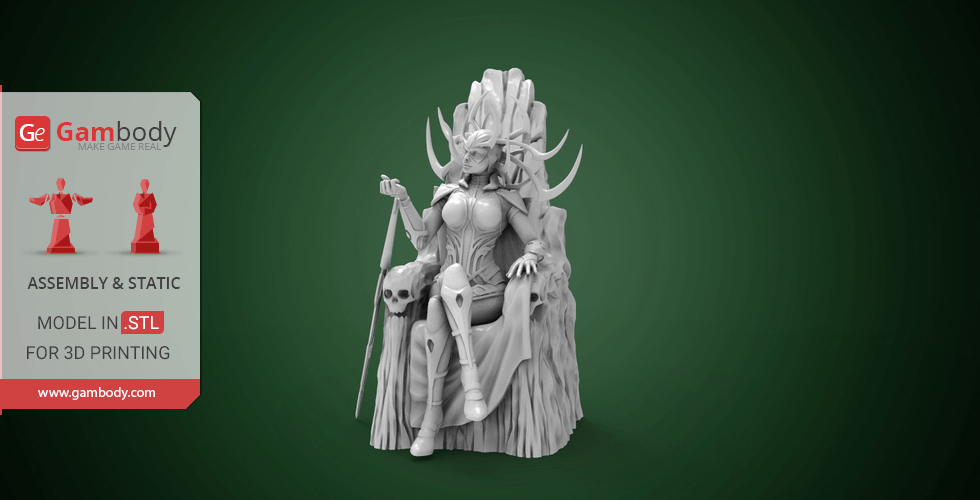

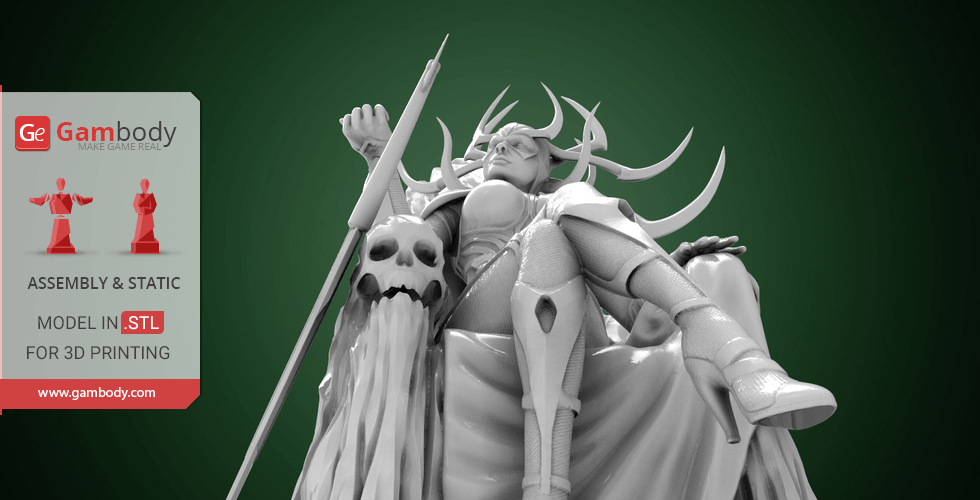

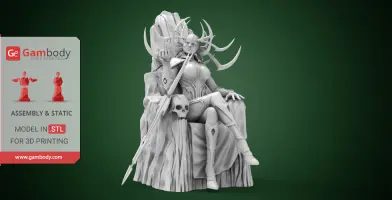

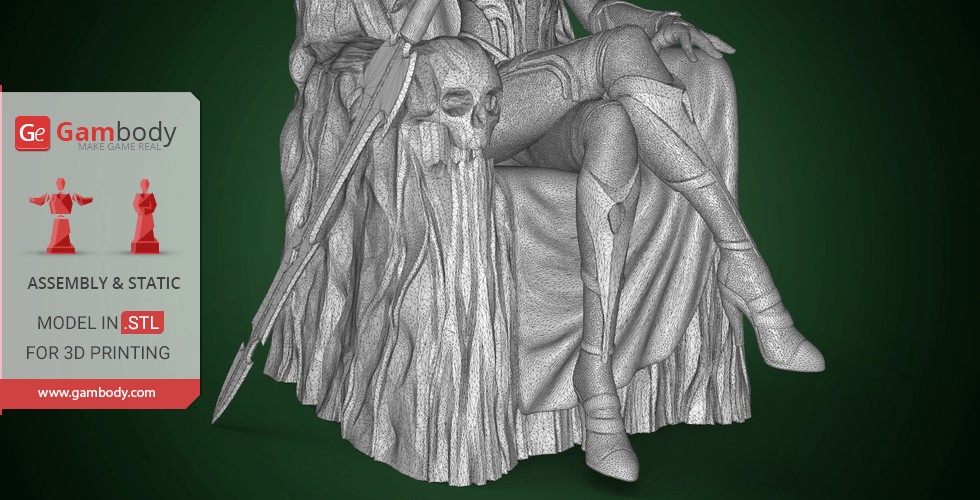

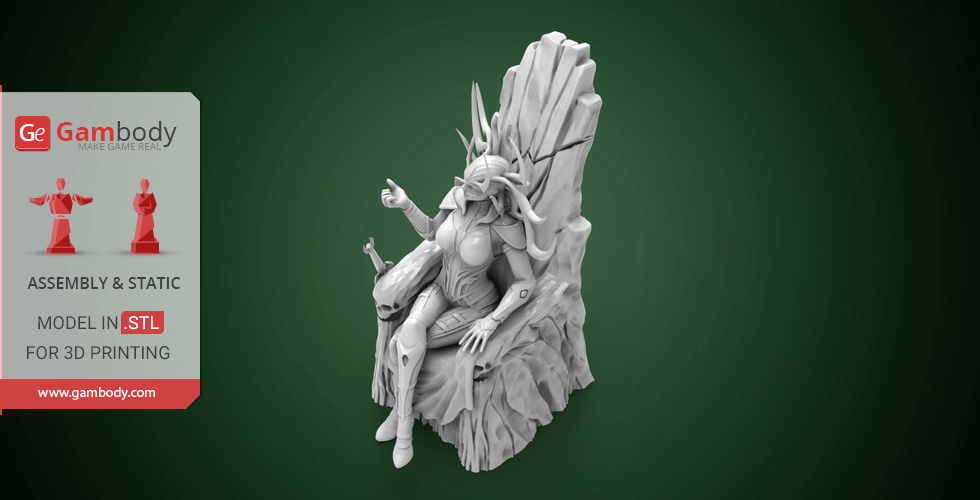

Version 1 and Version 2 are the files for Hela on Throne 3D Model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

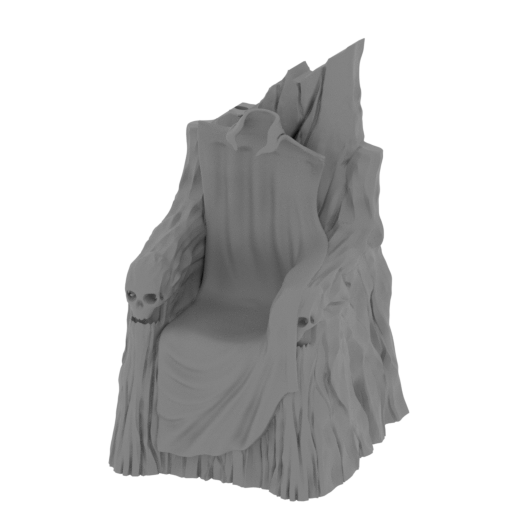

1_throne_1.stl
19.19 MiB 93 h 49 min 55 m 129 x 141 x 201 Download
2_GE_Connector_C_1.stl
0.04 MiB 14 min <1 m 30 x 7 x 7 Download
3_GE_Connector_C_2.stl
0.04 MiB 14 min <1 m 30 x 7 x 7 Download

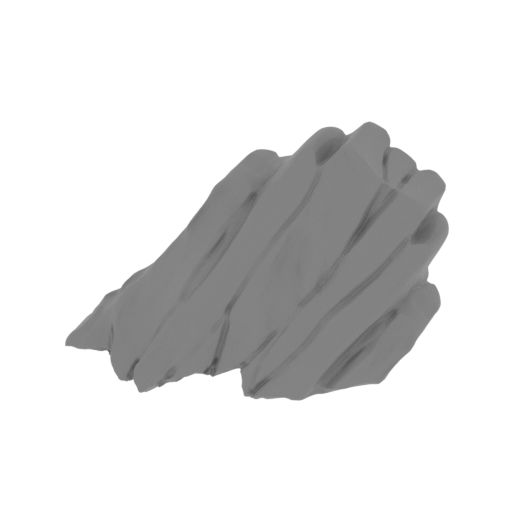

4_throne_2.stl
2.56 MiB 9 h 22 min 6 m 106 x 29 x 82 Download

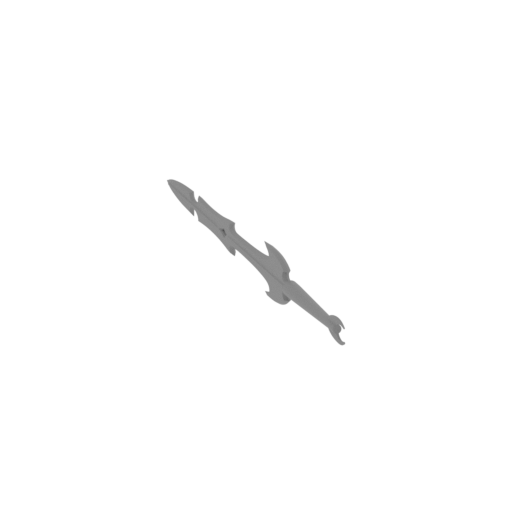

5_sword.stl
0.76 MiB 1 h 31 min 1 m 123 x 145 x 25 Download

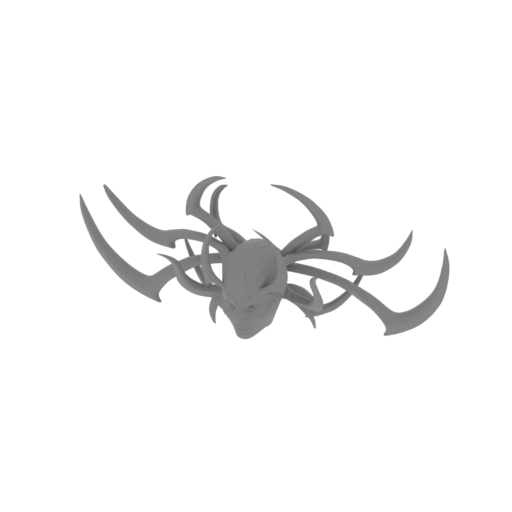

6_head.stl
6.51 MiB 6 h 59 min 4 m 141 x 41 x 65 Download
7_.stl
0.04 MiB 8 min <1 m 20 x 6 x 6 Download

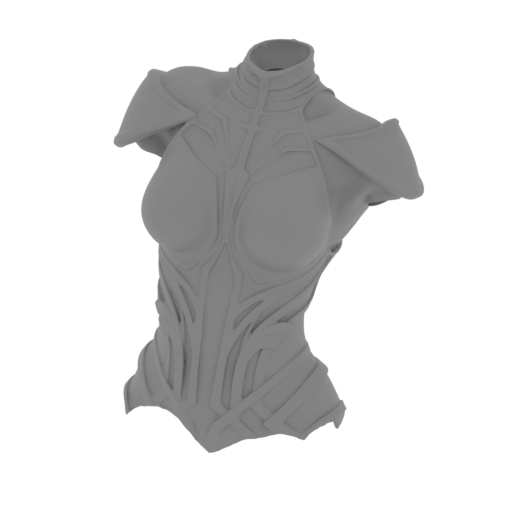

8_body.stl
4.39 MiB 9 h 38 min 6 m 66 x 46 x 82 Download

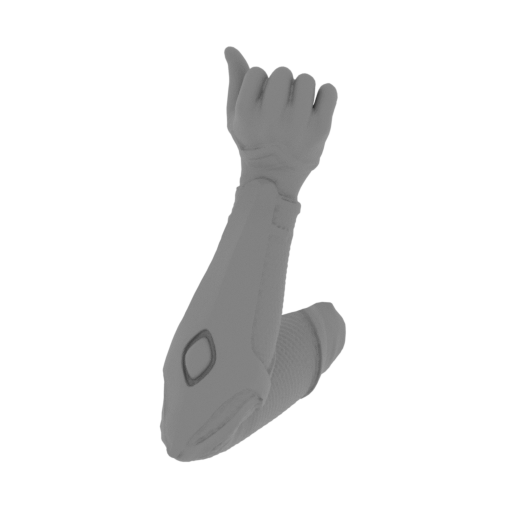

9_arm_R.stl
1.17 MiB 1 h 35 min 1 m 20 x 38 x 54 Download
10_GE_Connector_B_2.stl
0.04 MiB 8 min <1 m 20 x 6 x 6 Download

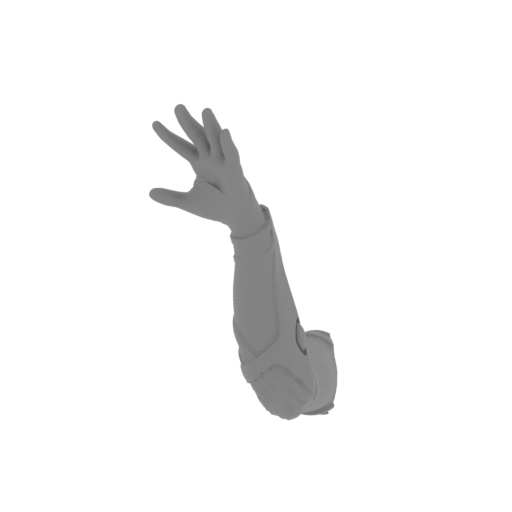

11_arm_L.stl
1.28 MiB 2 h 1 min 1 m 33 x 41 x 77 Download
12_GE_Connector_B_3.stl
0.04 MiB 8 min <1 m 20 x 6 x 6 Download

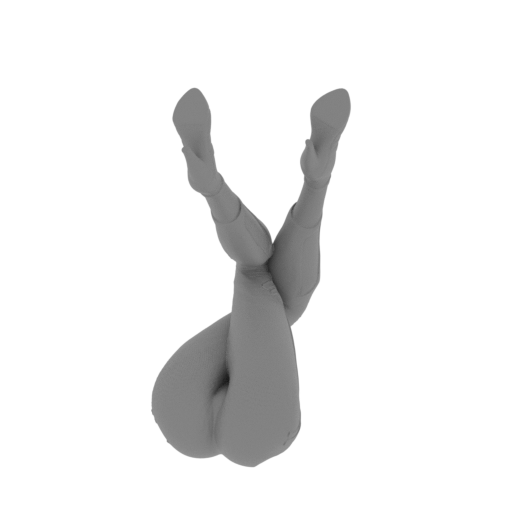

13_legs.stl
6.19 MiB 11 h 54 min 7 m 60 x 75 x 136 Download
14_GE_Connector_B_4.stl
0.04 MiB 8 min <1 m 20 x 6 x 6 Download

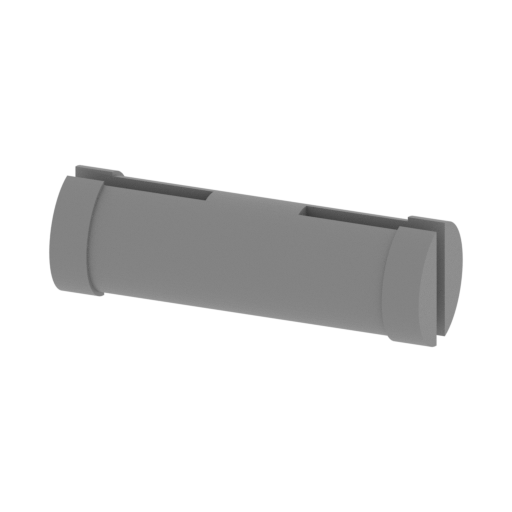

15_GE_Connector_B_5.stl
0.04 MiB 8 min <1 m 20 x 6 x 6 Download
...

HISTORY OF THE HELA

Hela is the daughter of Loki and the giantess Angrboda. When Hela reached the age of majority, she was appointed goddess of the northern realms of the dead and she became the ruler of Hel and Niflheim. Her power extends only to those who have not died as a hero. Nevertheless, Hela often seeks to expand her kingdom, trying to conquer Valhalla, which often leads Hela to a conflict with Odin and his son Thor. One day, Hela tried to convince Thor to enter Valhalla when he was a hair's breadth from death, although he eventually refused. Hela also entered into an alliance with the Gods of Earth's Death. When Odin entered to Odinsleep, his attention and influence on Valhalla weakened and Hela gained a new chance to conquer it. But as soon as he found out about her intentions, a great battle took place. And for your attention, the continuation of the Hela’s model which now has great Throne. The Throne is the author’s work which framed with skulls and sitting on it she shows her power over the dead.

ABOUT THIS 3D MODEL

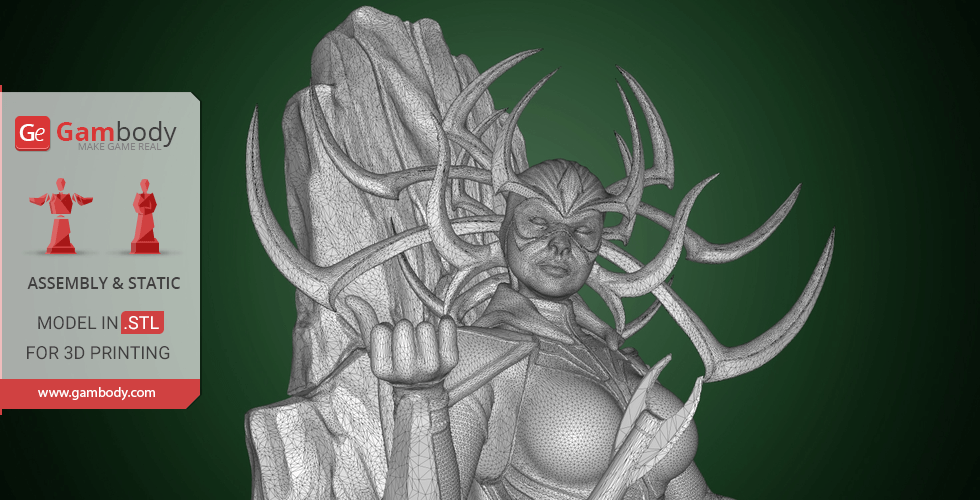

Hela on Throne 3D model for printing was created in ZBrush. The model is saved in STL files, a format supported by most 3D printers

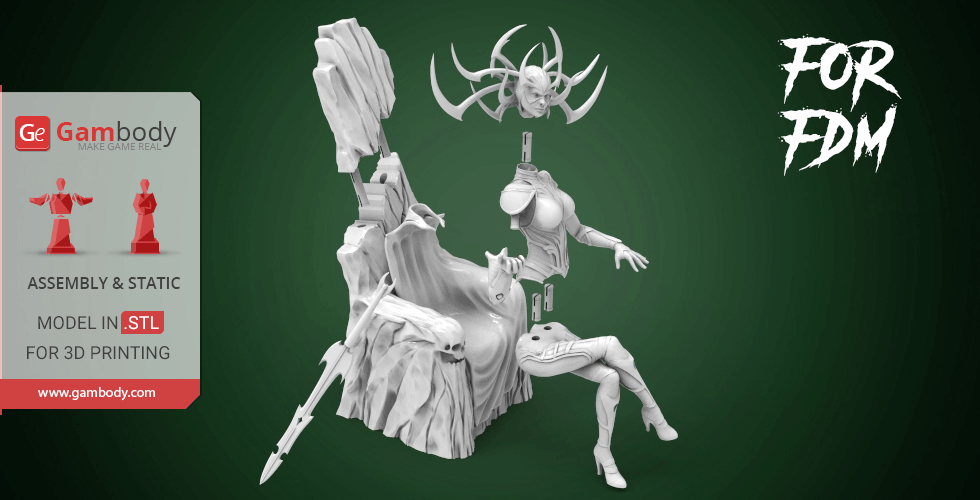

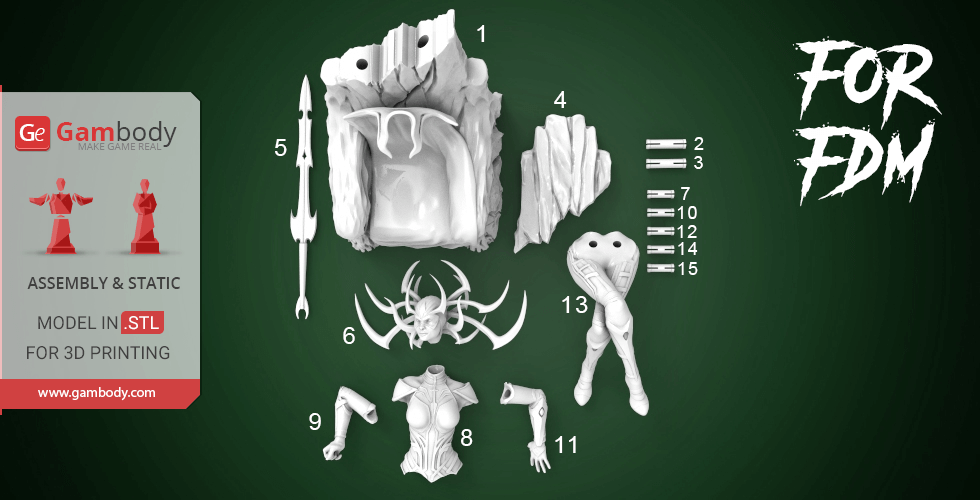

FDM version features:

- Contain 15 parts.

- Made with connectors.

- Removable sword.
- Removable thron. Hela 3D Model is fixed on the throne by the cloak.

- All parts are divided in such way that you will print them with the smallest amount of supports.

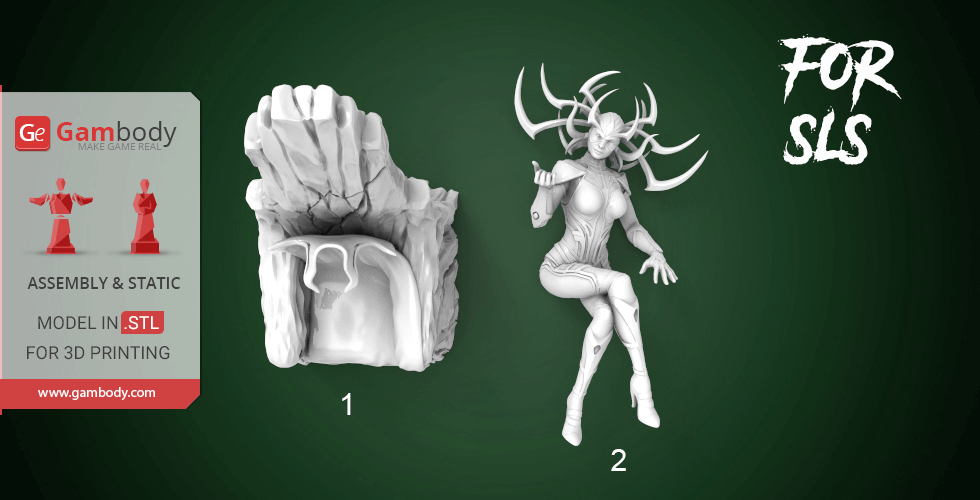

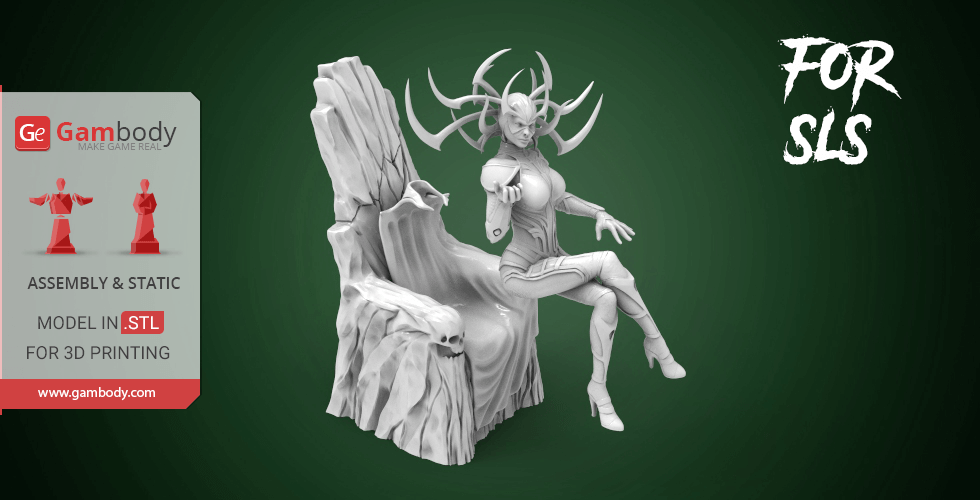

SLS/SLA version features:


-Same as FDM but smaller and made as 2 part. With removable throne.

All .STL files for 3D printing have been checked in Netfabb and no errors were shown.

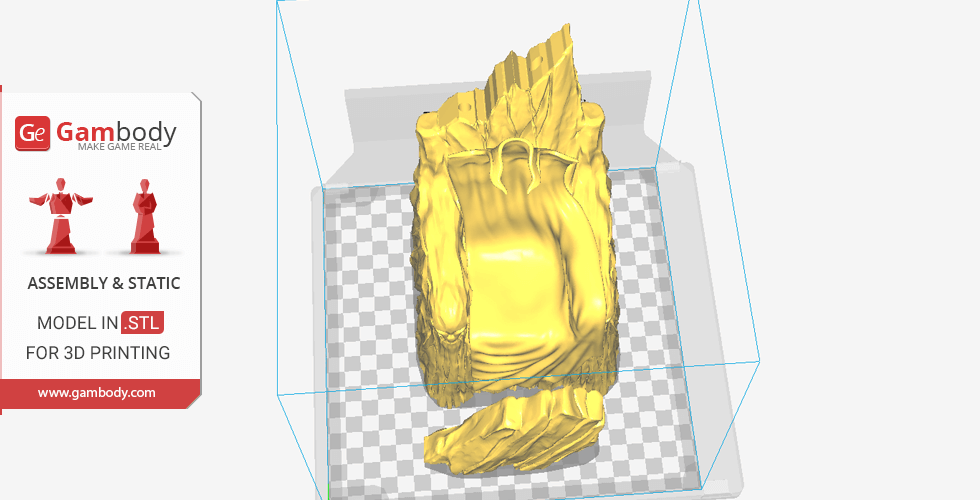

Note: Before starting 3D printing the model, read the Printing Details for CURA 2.7.0. Software.

There are 15 parts for FFF/FDM version and 2 parts for SLS/SLA version.

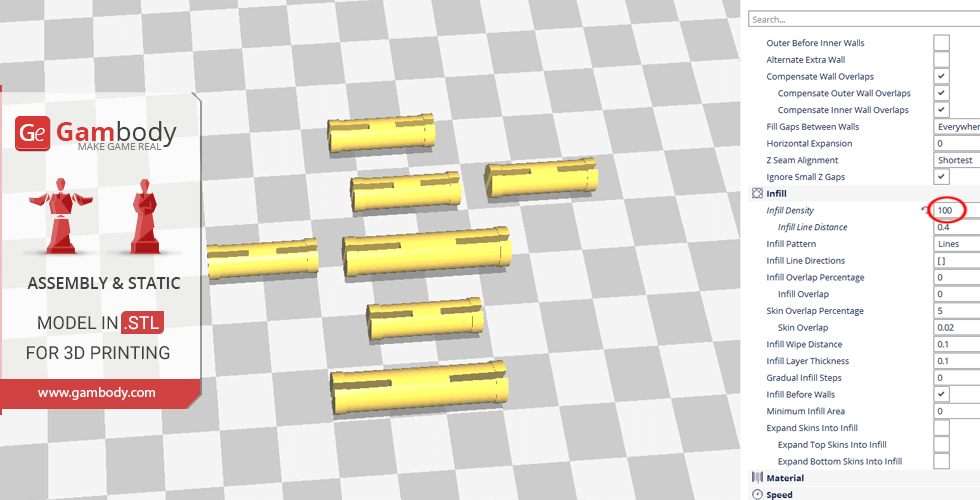

All parts of connectors should be printed at 100% infill.

Scale:
Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

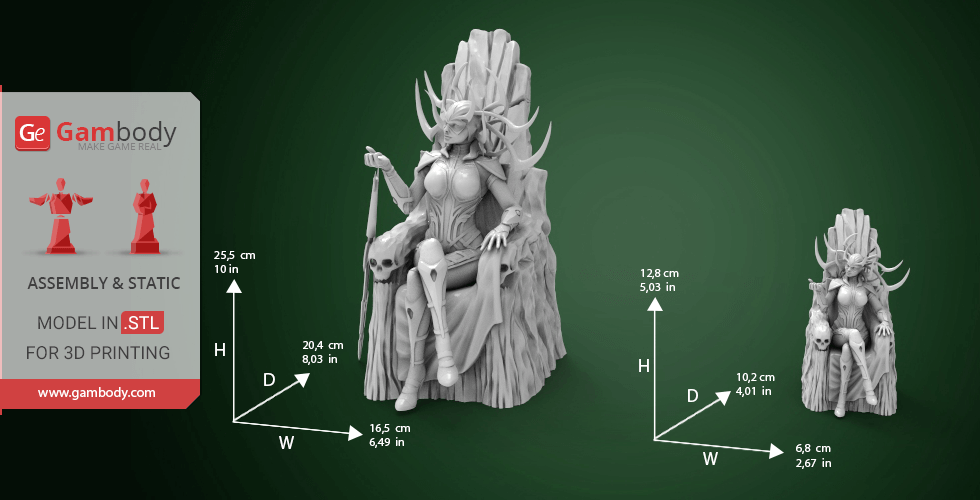

FDM version dimensions:

After being printed will stand: 255 mm tall, 165 mm wide, 204 mm deep;
- Connectors should be printed at 100% infill to make them solid.

SLS/SLA version dimensions:

After being printed will stand: 128 mm tall, 68 mm wide, 102 mm deep;
- Has only 2 details in to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- .STL files of Hela on Throne for 3D printing which consist of 17 parts.

- 2 versions of files for this model for FFF/FDM and SLS/SLA.

- Removable Throne in both versions.
- Removable sword.

- High-poly detailed model of Hela on Throne.

- Made in scale 1/8 for FFF/FDM and 1/16 for SLS/SLA.

- Detailed settings that we provide for Cura 2.7.0. for the best print.

- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Hela on Throne 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Hela on Throne for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other 3D models of heroes from Ragnarok movie as well as 3D Miniatures of Marvel and Villains.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

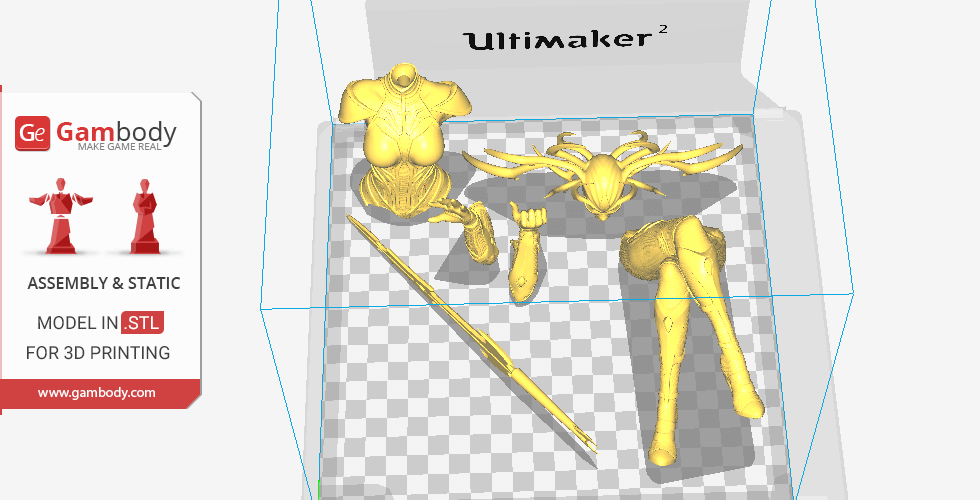

This model was tested in Cura 2.7.0. and printed on an Ultimaker 2 in PLA material.

Note: All parts of connectors should be printed at 100% infill.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.27 mm
Line Width: 0.35 mm
Wall Line Width: 0.35 mm
   Outer Wall Line Width: 0.35 mm
   Inner Wall(s) Line Width: 0.35 mm
   Top/Bottom Line Width: 0.35 mm
   Infill Line Width: 0.35 mm
   Skirt/Brim Line Width: 0.35 mm
   Support Line Width: 0.35 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 1.05 mm
Wall Line Count: 3
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0.025 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check

Infill
Infill Density: 20% (all parts of the connectors should be printed at 100% infill)
Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.035 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.0175 mm
Infill Wipe Distance: 0.0875 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.7 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 36 mm/s
      Outer Wall Speed: 26 mm/s
      Inner Wall Speed: 36 mm/s
    Top/Bottom Speed 20 mm/s
    Support Speed: 26 mm/s
      Support Infill Speed: 26 mm/s
Travel Speed: 90 mm/s
Initial Layer Speed: 27 mm/s

    Initial Layer Print Speed: 27 mm/s
    Initial Layer Travel Speed: 54 mm/s
Skirt/Brim Speed: 27 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2.3333 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 23
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Extra Skin Wall Count: 0

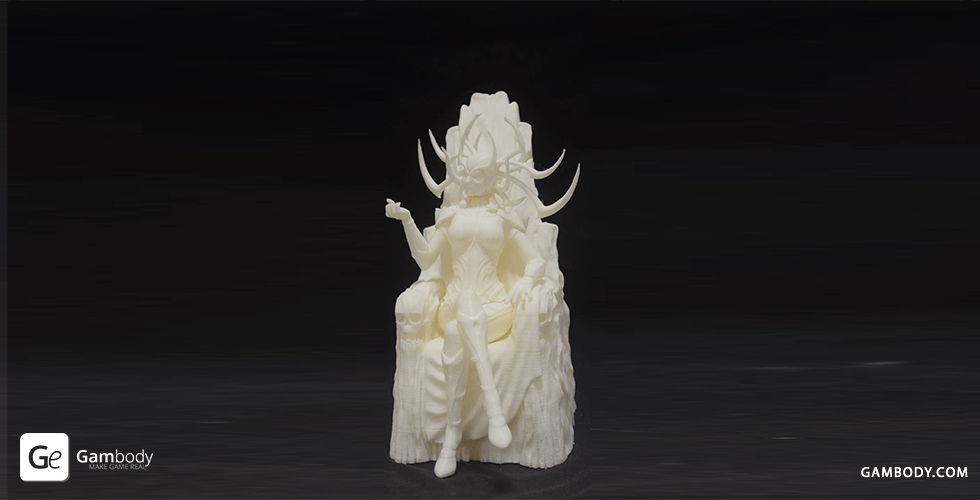

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
