Deadpool 3D Printing Figurine | Assembly

(7)
cm: 30.7 w x 19.8 d x 29 h
in: 12.087 w x 7.795 d x 11.417 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Version 1, Version 2 and Version 3 for Deadpool 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA 3D printers.
  • to print Version 3 STL files on SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

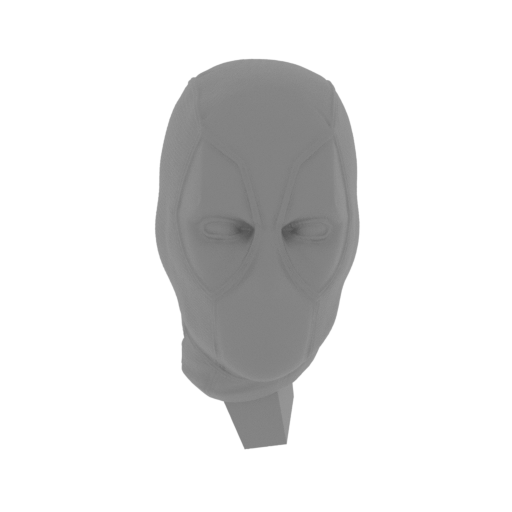

1_Head (repaired).stl
3.32 MiB 1 h 53 min 1 m 25 x 33 x 46 Download

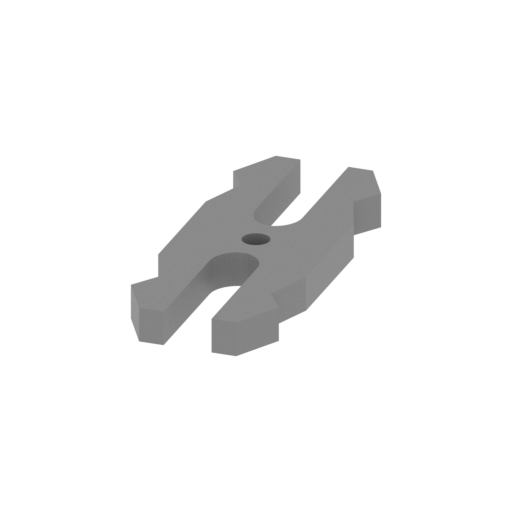

2_Ge_lock_7S_x12 (repaire d).stl
0.02 MiB 3 min <1 m 7 x 18 x 2 Download

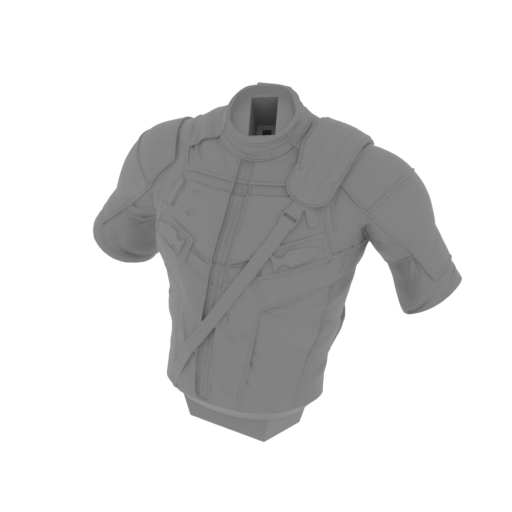

3_Body (repaired).stl
16.45 MiB 13 h 44 min 9 m 98 x 55 x 83 Download

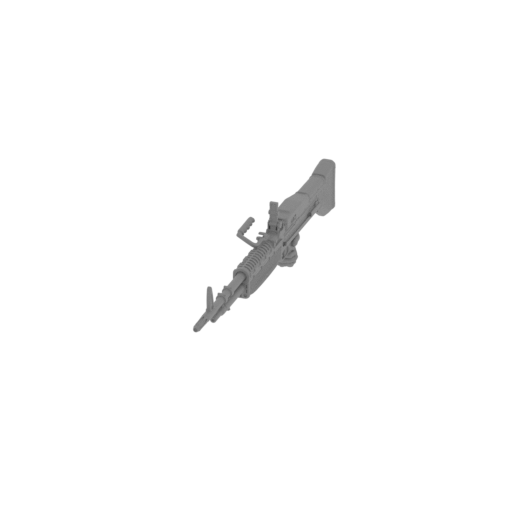

4_M60_R (repaired).stl
6.33 MiB 4 h 15 min 3 m 15 x 172 x 40 Download

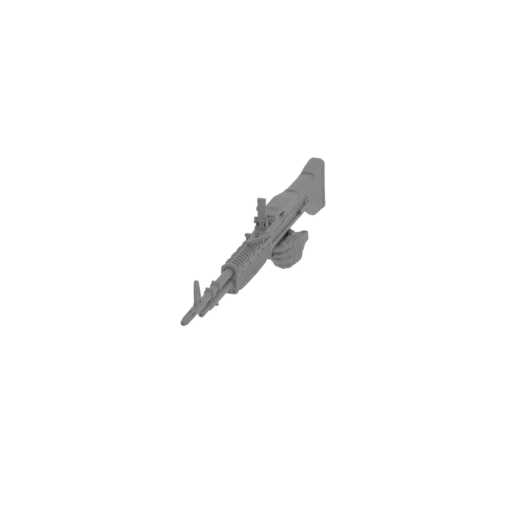

5_M60_L (repaired).stl
7.06 MiB 4 h 18 min 3 m 15 x 171 x 41 Download

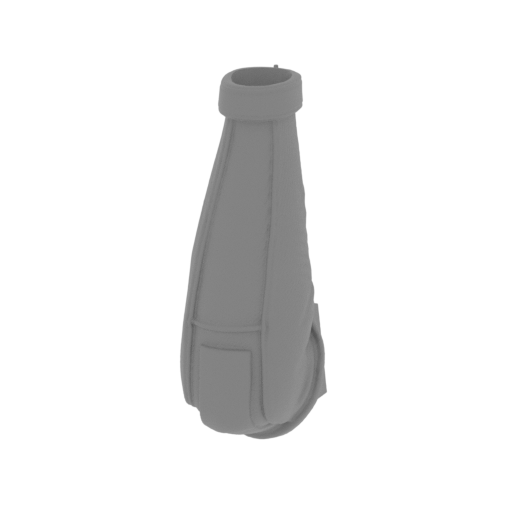

6_Arm_R (repaired).stl
2.18 MiB 1 h 2 min 1 m 16 x 25 x 46 Download

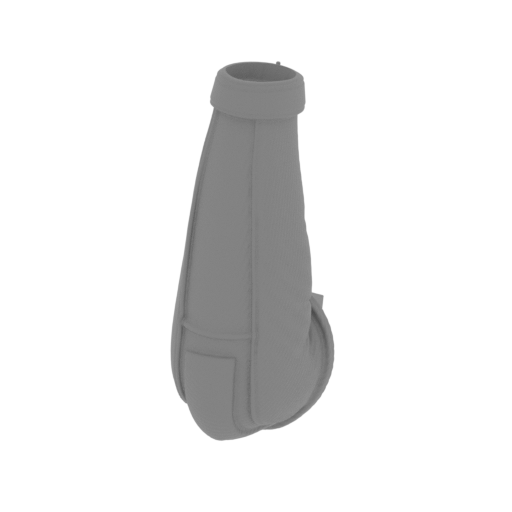

7_Arm_L (repaired).stl
2.14 MiB 58 min 1 m 16 x 23 x 44 Download

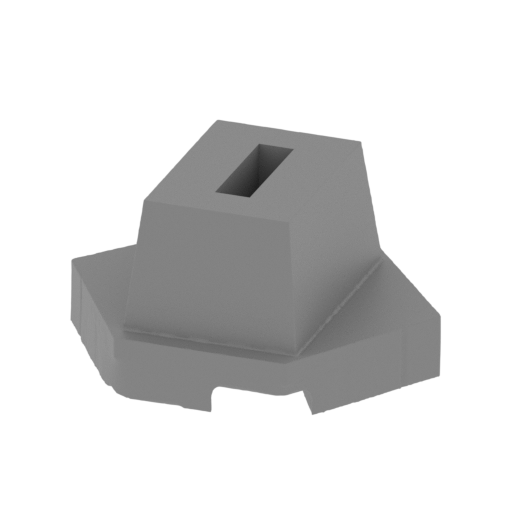

8_Clamp_2 (repaired).stl
1.31 MiB 21 min <1 m 23 x 20 x 12 Download
9_Sword_1 (repaired).stl
1.86 MiB 28 min <1 m 4 x 131 x 9 Download
10_Sword_2 (repaired).stl
1.86 MiB 28 min <1 m 4 x 131 x 9 Download

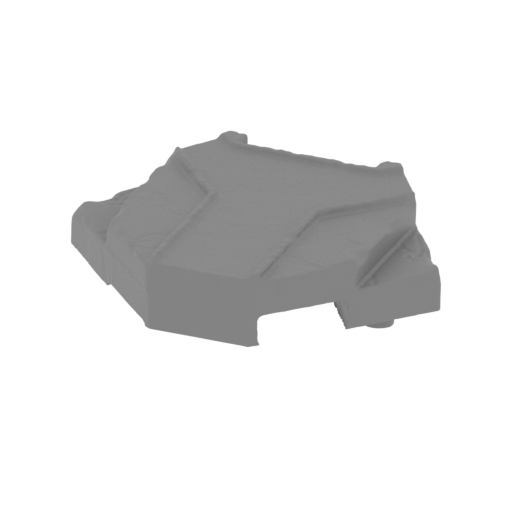

11_Clamp_1 (repaired).stl
0.95 MiB 18 min <1 m 23 x 20 x 7 Download

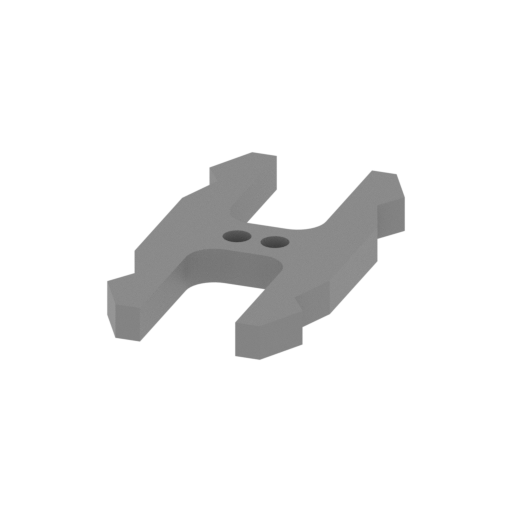

12_Ge_lock_10S_x3 (repair ed).stl
0.02 MiB 4 min <1 m 10 x 18 x 2 Download

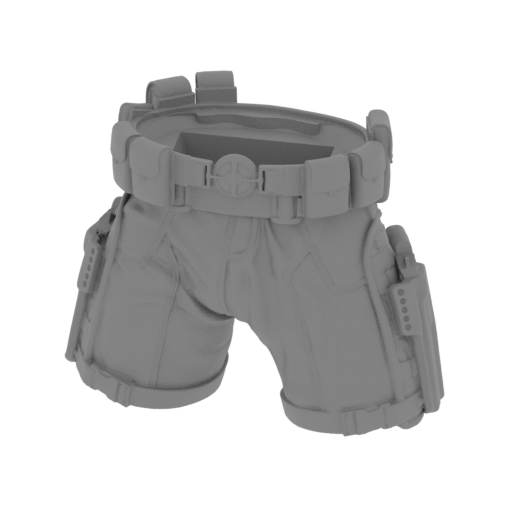

13_Pelvis (repaired).stl
15.26 MiB 8 h 41 min 5 m 73 x 42 x 58 Download

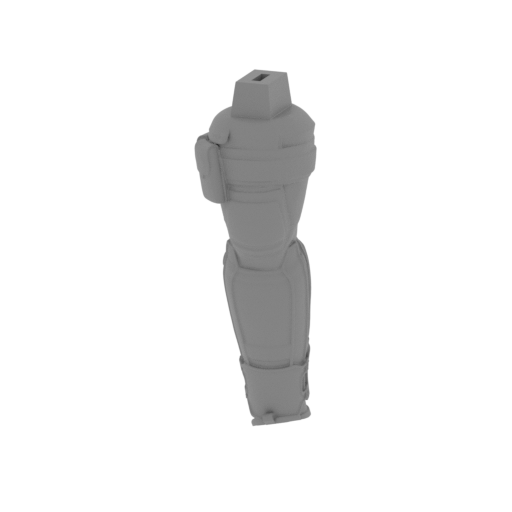

14_Leg_R (repaired).stl
6.53 MiB 4 h 1 min 2 m 27 x 30 x 92 Download

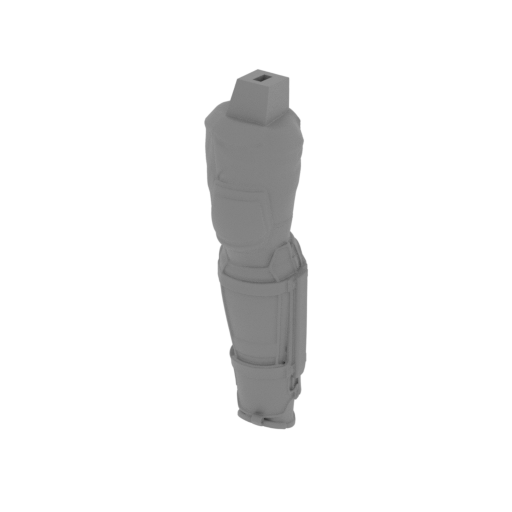

15_Leg_L(repaired).stl
5.87 MiB 3 h 7 min 2 m 25 x 30 x 91 Download

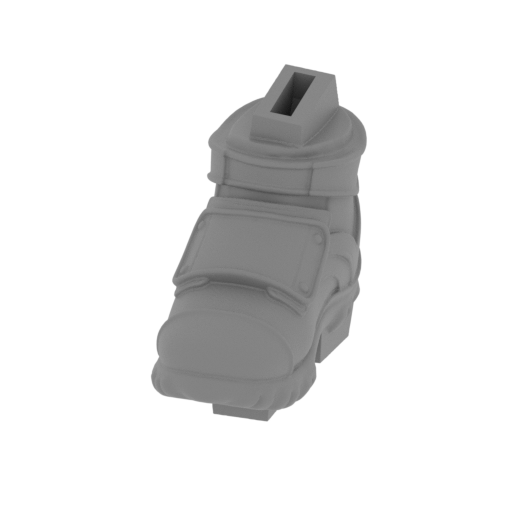

16_Foot_R (repaired).stl
2.47 MiB 1 h 13 min 1 m 16 x 39 x 29 Download

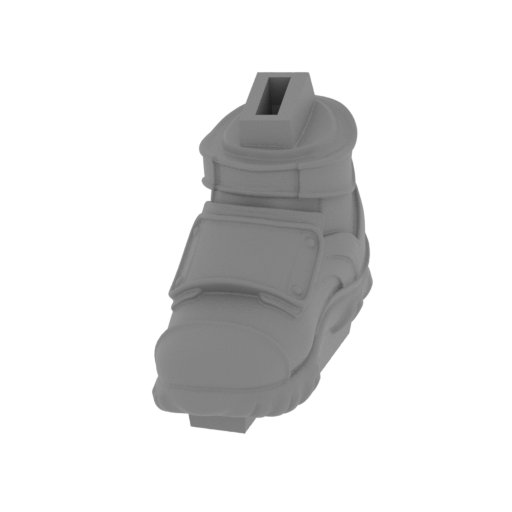

17_Foot_L (repaired).stl
2.51 MiB 1 h 10 min 1 m 17 x 38 x 28 Download

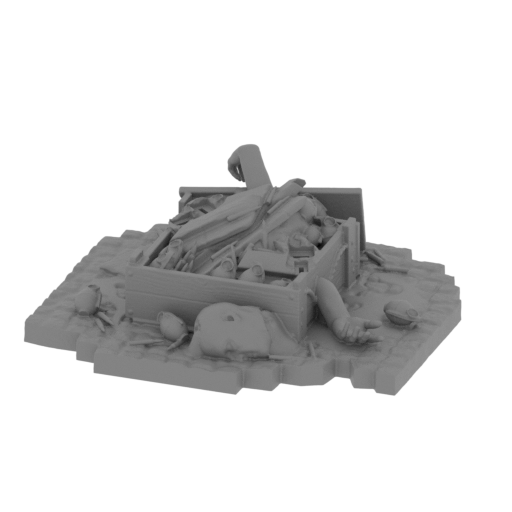

18_Platform (repaired).st l
16.89 MiB 50 h 38 min 27 m 181 x 169 x 62 Download

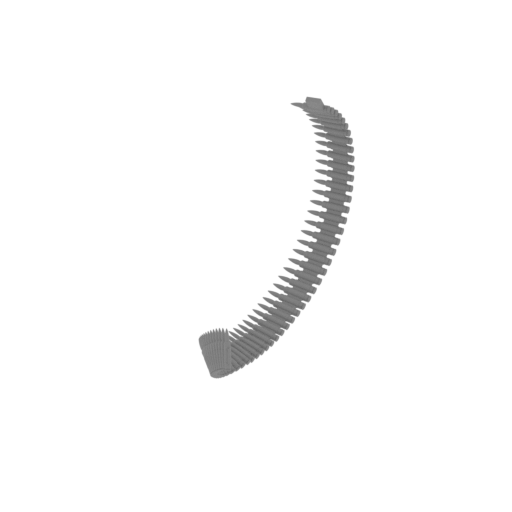

19_Ammo_Belt_R (repaired) .stl
7.17 MiB 4 h 2 min 2 m 29 x 128 x 79 Download

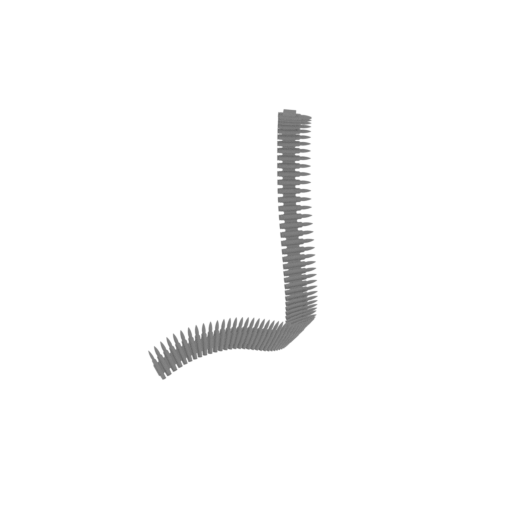

20_Ammo_Belt_L (repaired) .stl
6.35 MiB 5 h 8 min 3 m 39 x 162 x 85 Download

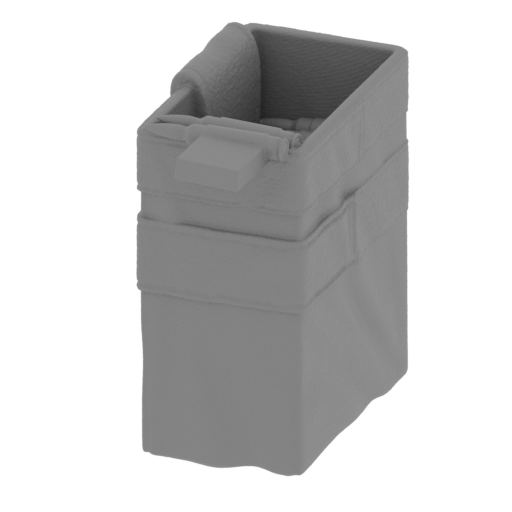

21_Ammo_Box_R (repaired). stl
12.91 MiB 1 h 21 min 1 m 15 x 29 x 29 Download

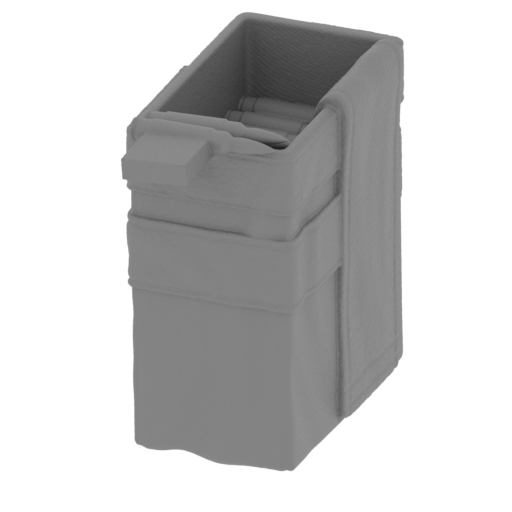

22_Ammo_Box_L (repaired). stl
12.91 MiB 1 h 22 min 1 m 15 x 29 x 28 Download
...

HISTORY OF DEADPOOL

Deadpool is a hired killer but he always commits murders with humor. He is very comical although it is partly caused by his mental illness. He acts quickly without thinking and is very impulsive. Earlier Deadpool was a morally gray person without problems, ignoring other people. After the experiments that were conducted on him and also on the Wolverine, he received an incredible ability to regenerate. This ability is even higher than that of the Wolverine, even though his genes were implanted from him. But it also gave a side effect. His face is completely disfigured with scars and that's why he wears a mask. He masterfully owns all kinds of weapons and martial arts. He can easily outgrow his head. He wears his red suit so that there are not see any traces of blood. But because of his costume, he is often confused with a Spider-man, although he says that this is a Spider-Man look like him.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

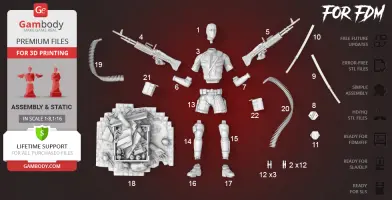

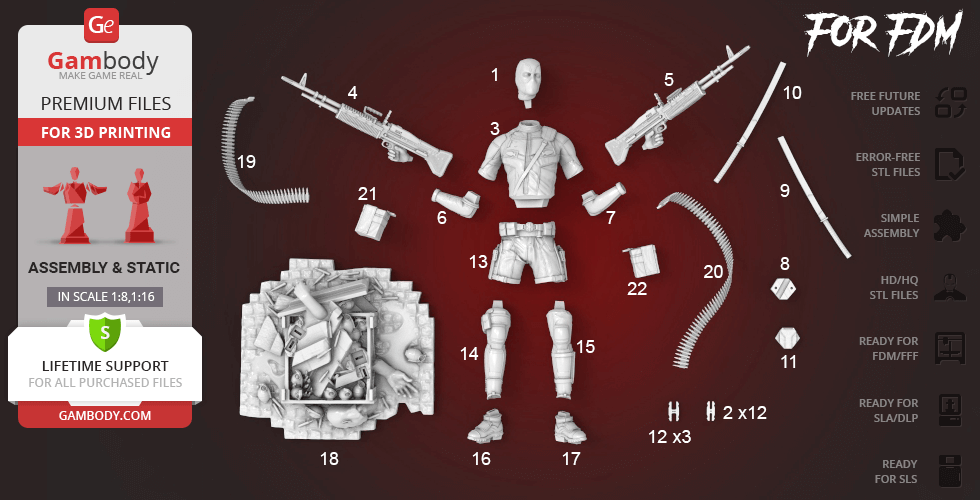

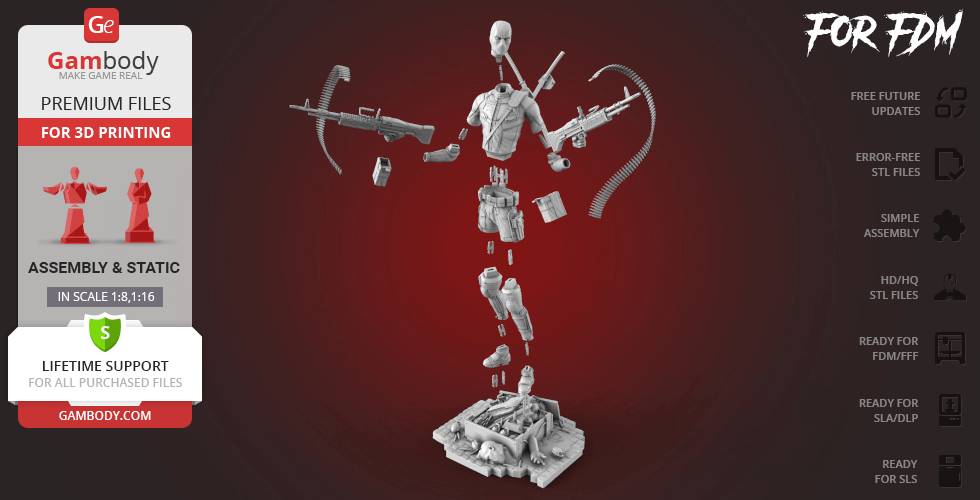

FDM version features:
- Contain 22 parts;
- Made with Locks. One part of Lock (2_Ge_lock_7S_x12) you need to print 12 times. One part of Lock (12_Ge_lock_10S_x3) you need to print 3 times;

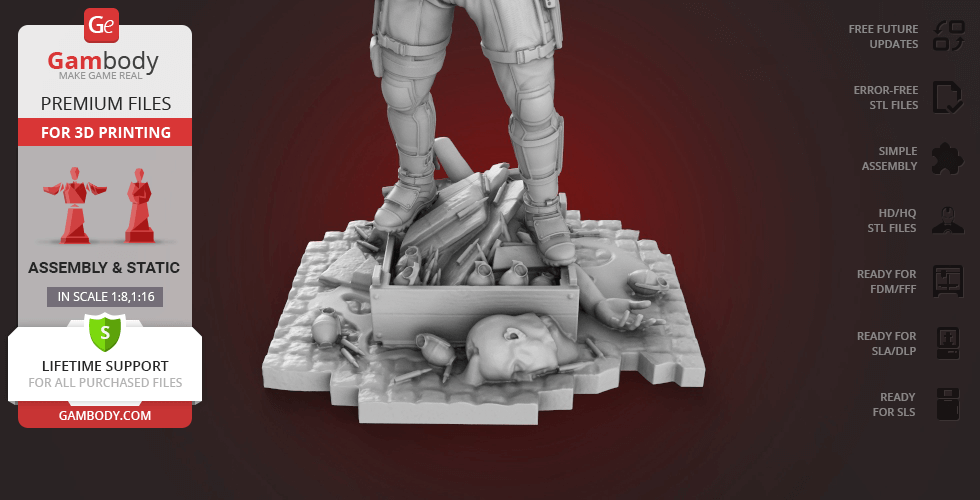

- Made with a special platform in the form of the ammo box;
- Made with removable parts of swords;
- All parts are divided in such way that you will print them with the smallest amount of supports.

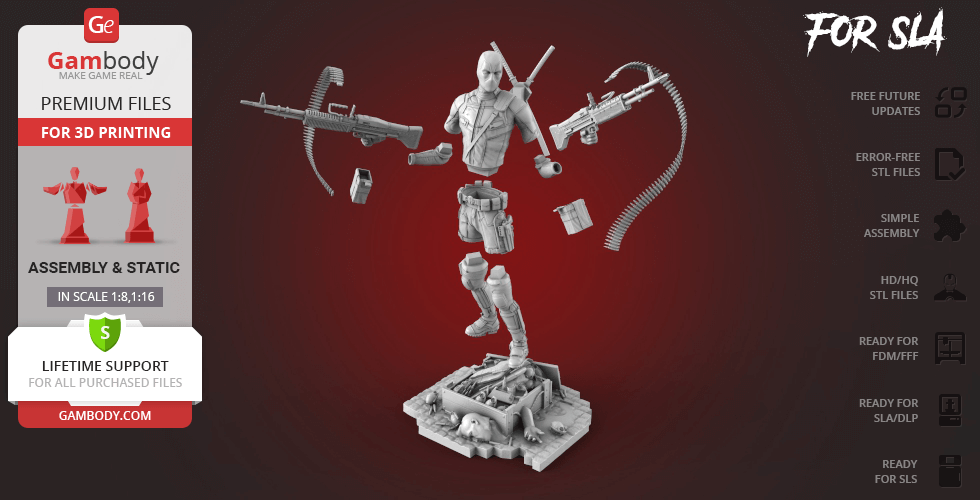

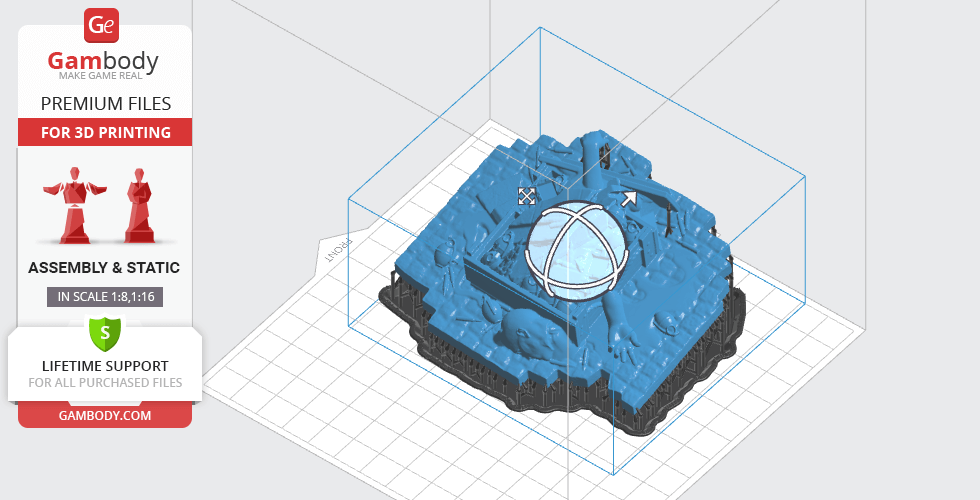

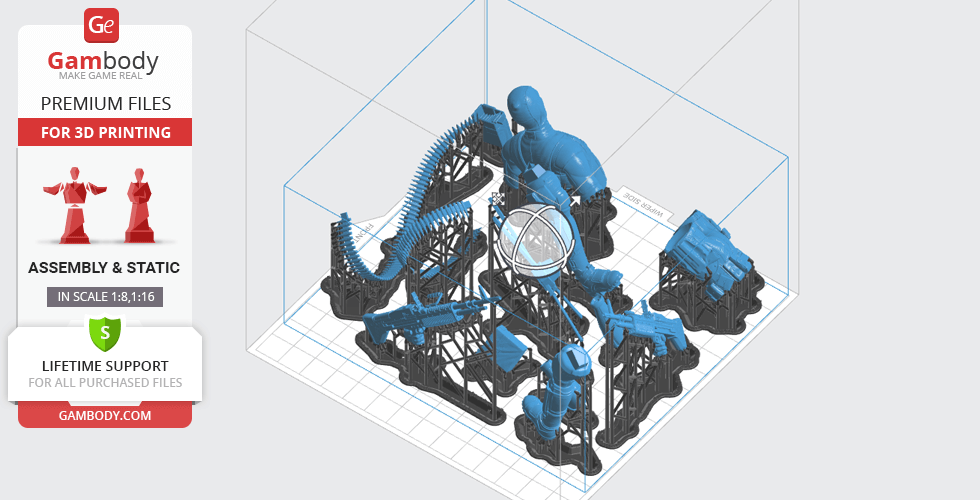

DLP/SLA version features:

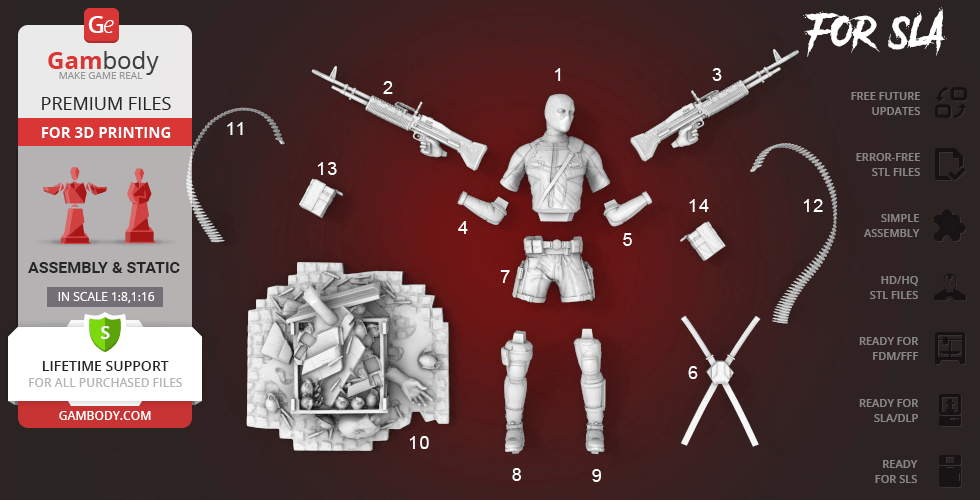

- Same as FDM but smaller, also made as 14 parts;

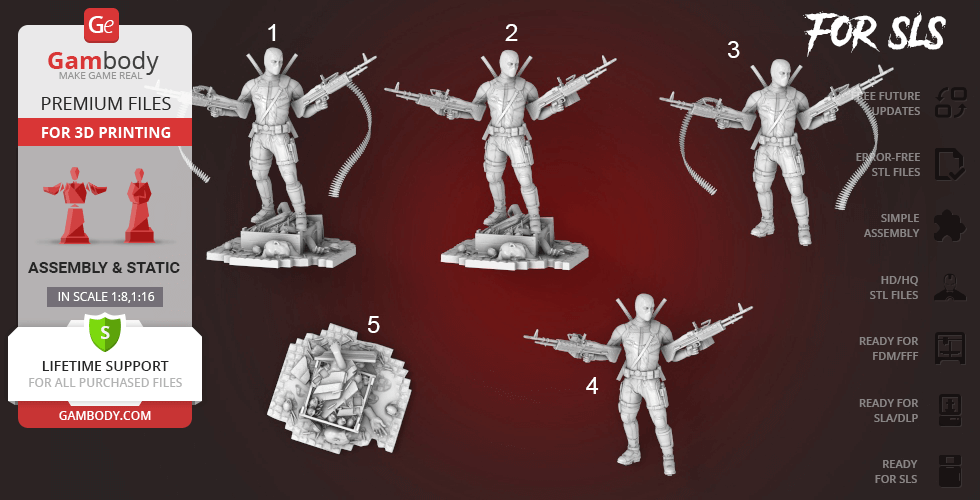

SLS version features:
- Same as SLA but made as 5 parts in 4 different variants for economy your material;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.3.1. or Simplify3D Software.

There are 22 parts for FFF/FDM version, 14 parts for SLA version and 5 parts for SLS.

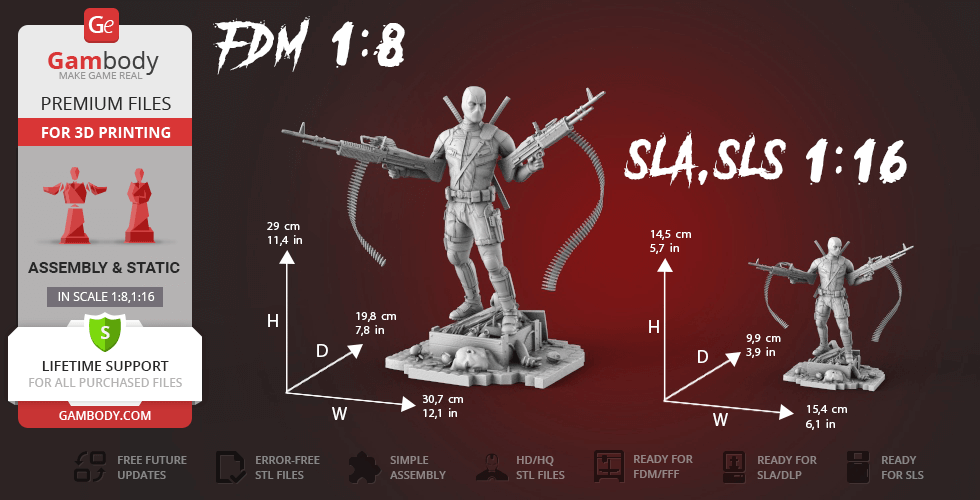

Scale: Deadpool height is 1890 mm. The scale of this model made in proportion to it. 1/8 for FDM version and 1/16 for SLS/SLA version.

FDM version dimensions:
After being printed will stand - 290 mm tall, 307 mm wide, 198 mm deep;

SLS/DLP/​SLA version dimensions:
After being printed will stand - 145 mm tall, 154 mm wide, 99 mm deep;
- Has a few details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Deadpool​​ 3D Miniature for 3D printing which consist of 41 parts;
- 3 versions of files for this model for FFF/FDM, SLS, and SLA;
- High-poly detailed miniature of Deadpool​;
- Detailed settings that we provide for Cura 3.3.1. and Simplify3D for the best print;
- Full technical support from the Gambody Support Team.

You can get Model of Deadpool​​ for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial video on how to assemble Deadpool​ 3D Printing Miniature at Gambody YouTube channel.

Also, you may like other Marvel 3D Printing Figurines as well as 3D Figurines of DC.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

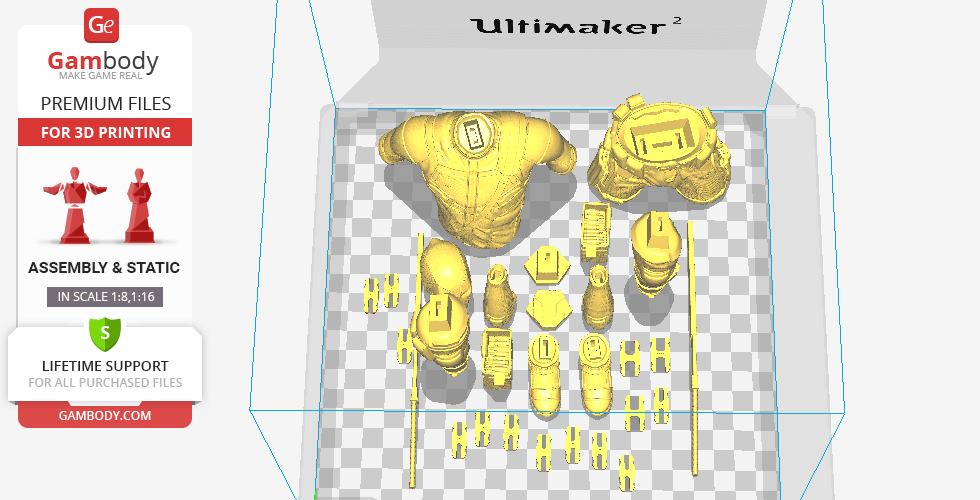

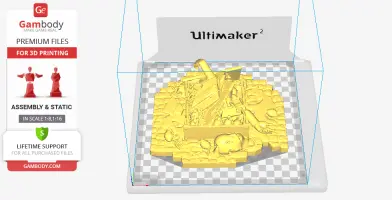

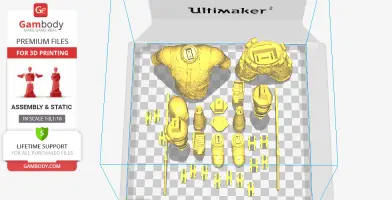

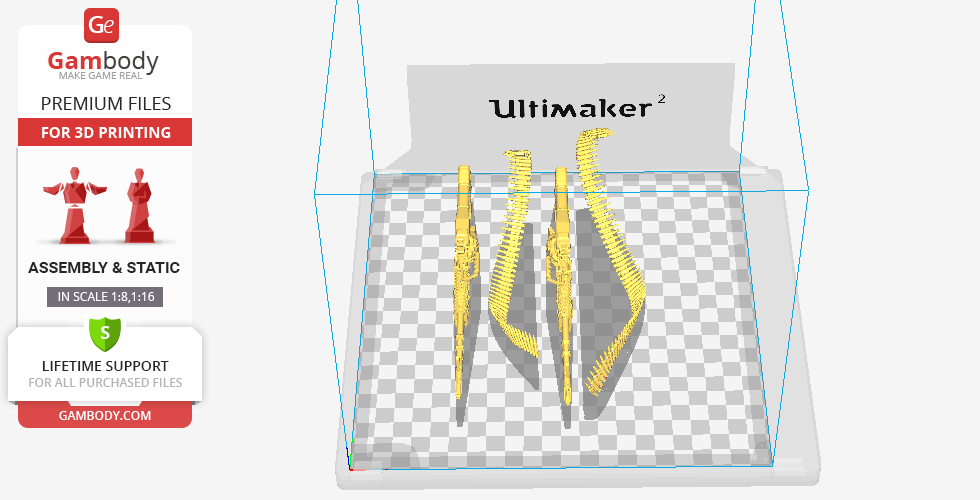

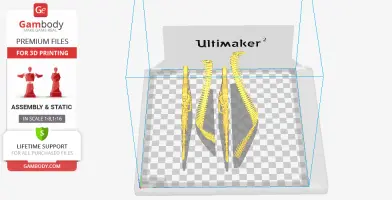

This model was tested in Cura 3.3.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 60 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m
