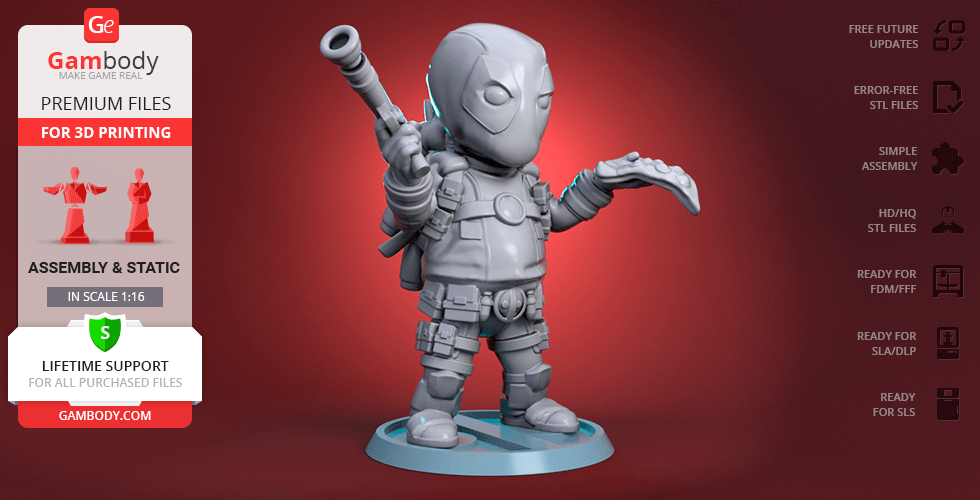

Chubby Deadpool 3D Printing Figurine | Assembly

(4)
cm: 11.1 w x 8.9 d x 12.2 h
in: 4.37 w x 3.504 d x 4.803 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Chubby Deadpool 3D Printing Figurine comes in 3 versions for different 3D printer types (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

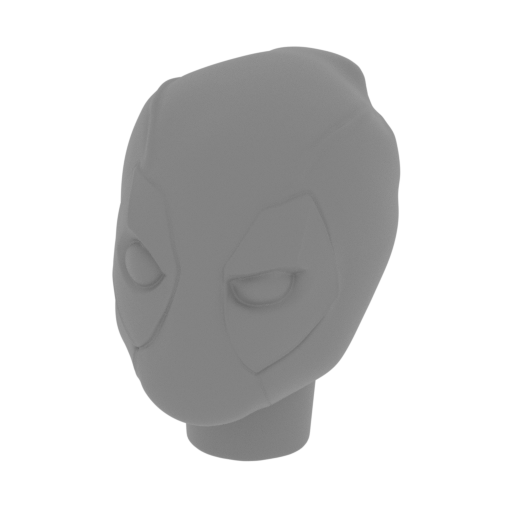

1_head_FDM(repaired).stl
15.65 MiB 3 h 5 min 2 m 33 x 47 x 46 Download

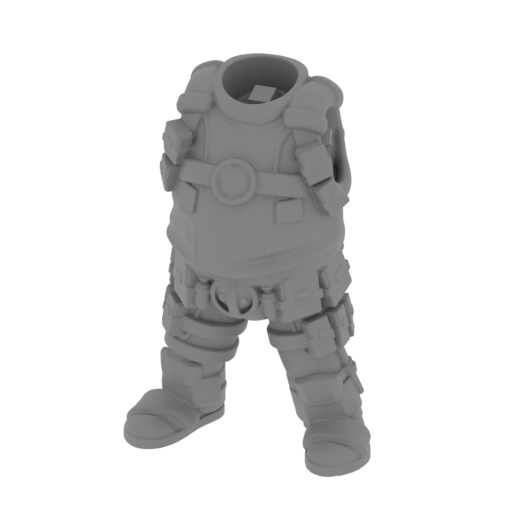

2_body_FDM(repaired).stl
23.39 MiB 7 h 57 min 5 m 54 x 37 x 82 Download

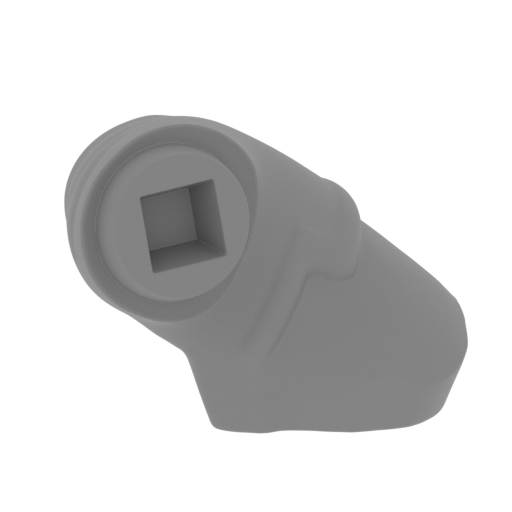

3_arm_R_FDM(repaired).stl
8.88 MiB 21 min <1 m 20 x 20 x 18 Download

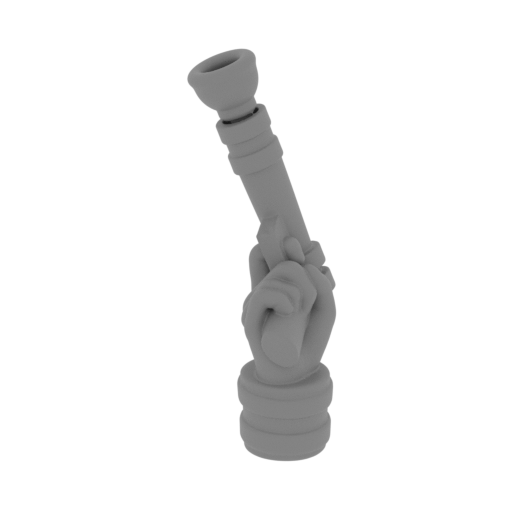

4_hand_R_FDM(repaired).st l
13.82 MiB 1 h 9 min 1 m 23 x 21 x 53 Download

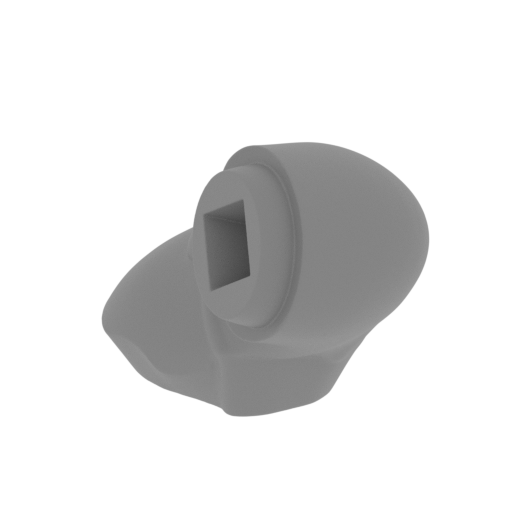

5_arm_L_FDM(repaired).stl
8.22 MiB 20 min <1 m 19 x 21 x 17 Download

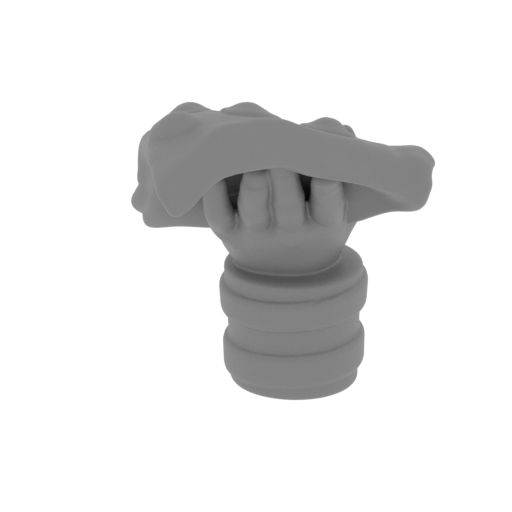

6_hand_L_FDM(repaired).st l
12.02 MiB 1 h 21 min 1 m 28 x 34 x 33 Download

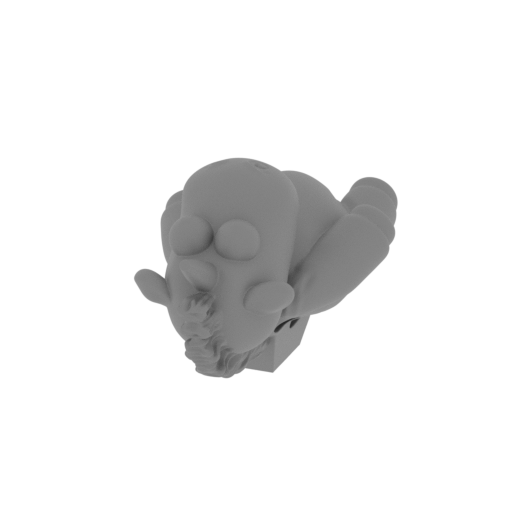

7_unicorn_FDM(repaired).s tl
16.10 MiB 3 h 3 min 2 m 37 x 60 x 36 Download

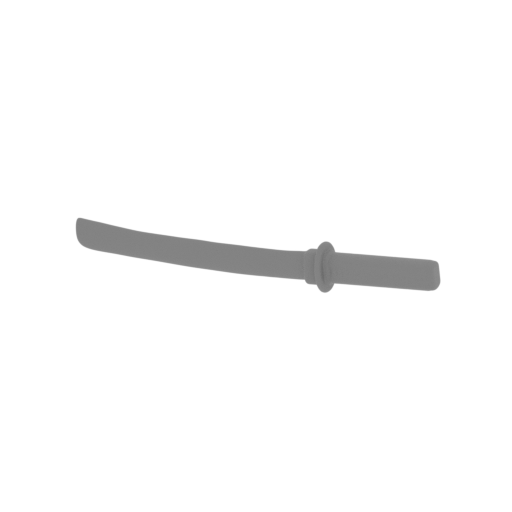

8_sword_1_FDM(repaired).s tl
8.34 MiB 15 min <1 m 65 x 7 x 9 Download

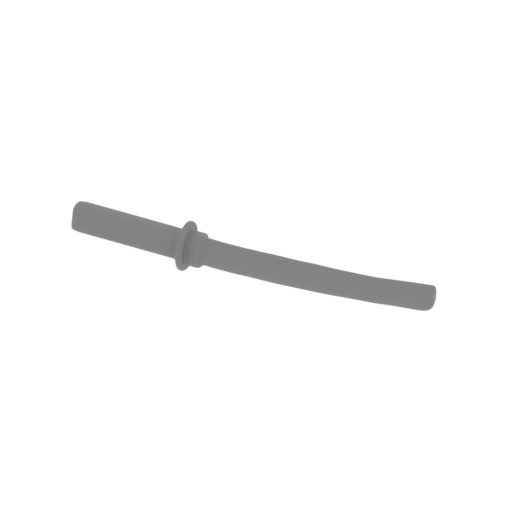

9_sword_2_FDM(repaired).s tl
6.83 MiB 16 min <1 m 65 x 7 x 9 Download

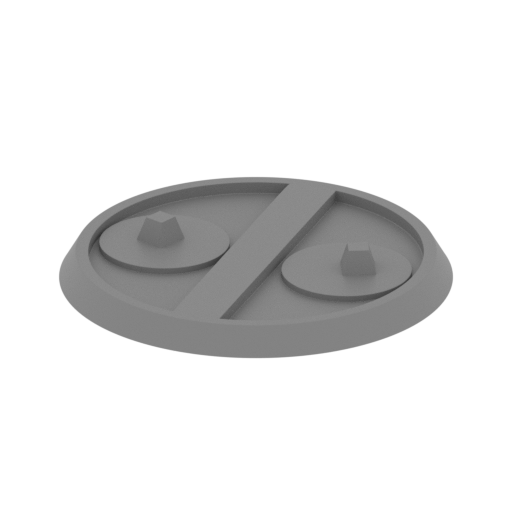

10_platform_FDM(repaired) .stl
11.14 MiB 2 h 15 min 1 m 71 x 71 x 8 Download

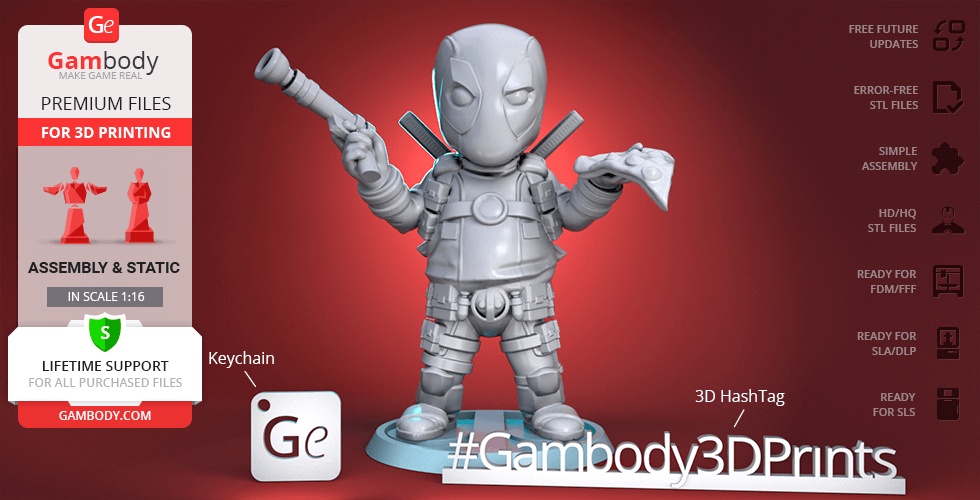

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D FIGURINE

Deadpool or Merc with a Mouth is a highly sarcastic and maybe the most unconventional anti-hero of the Marvel universe. A former special forces operative Wade Wilson now with a face that is the stuff of nightmares had a resounding success once the reboot to the Deadpool character was released on the big screen in 2016. The movie starring an extremely shameless mutant with a seemingly never-ending inability to stop talking resulted in becoming the highest R-rated film to date! No wonder the mercenary with crazy superhuman abilities and a dark, twisted sense of humour won hearts of millions of adult comics fans. And the author of this 3D printing figurine is no exception! The 3D artist decided to take an unusual turn and spent 85 hours to create an amusing chibi (or, rather, a chubby) version of the well-liked character. The tiny Wade Wilson is depicted with a loaded gun in one hand, the pizza slice in the other (well, that’s where chubbiness came from) and the two usual katanas on the back. That cunning smirk that the chubby Deadpool casts totally reminds us of a stunning Ryan Reynolds’ character portrayal that will definitely inspire many 3D printing fans to take up such a cute project!

ADAPTATION FOR 3D PRINTING

Chubby Deadpool for 3D printing is a static assembly figurine and its moderation and adaptation for different types of 3D printers took Gambody team 25 hours in total. The model’s cutting in its assembly version was chosen by our team to minimise the amount of filament needed for generated support and some of the parts were hollowed out for you to save resin in the Deadpool’s Eco version. In order to ensure the smooth result, the figurine’s katanas, both hands holding the gun and a pizza slice and unicorn backpack are provided as separate STL files. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Deadpool's actual height that is 1880 mm. The 3D printing figurine's chosen scale is 1/16 for all the model's versions (FFF/FDM, DLP/SLA/SLS, DLP/SLA/SLS Eco).

VERSIONS' SPECIFICATIONS

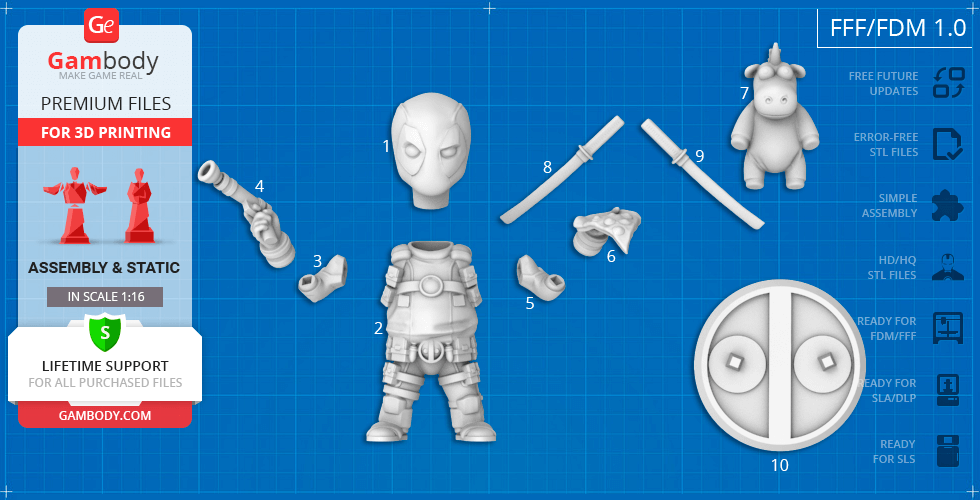

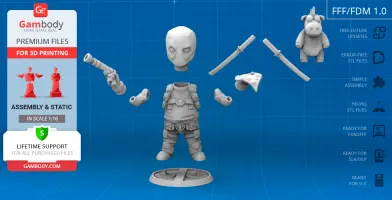

FFF/FDM 1.0 version features:
- Contains 10 parts;

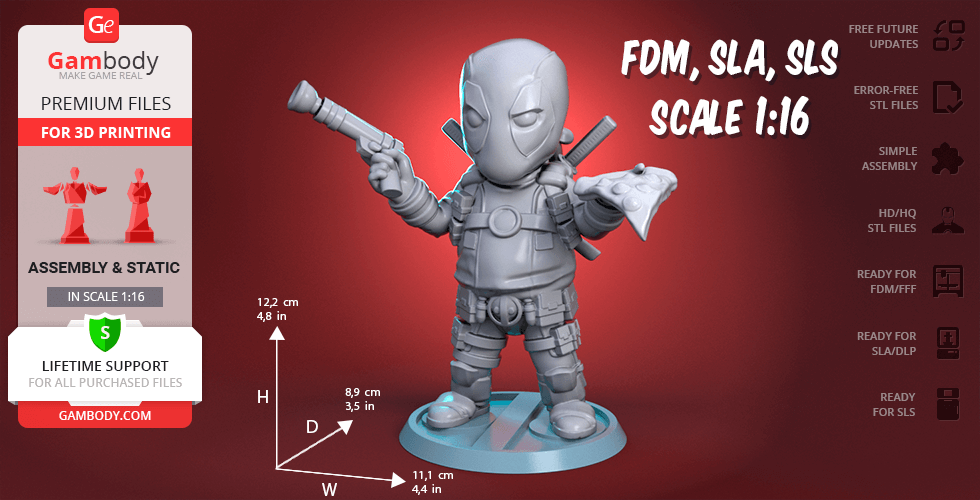

- A printed model is 122 mm tall, 111 mm wide, 89 mm deep;
- Made with a platform to resemble Deadpool's emblem;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

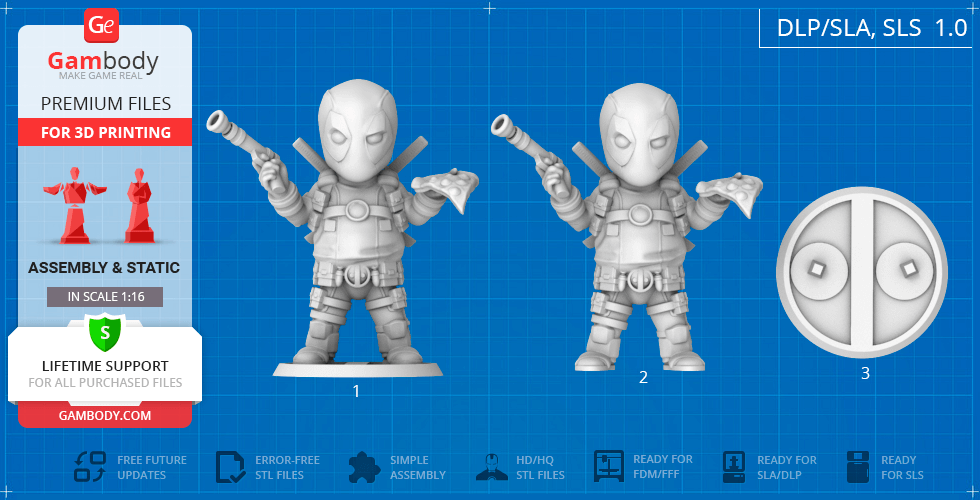

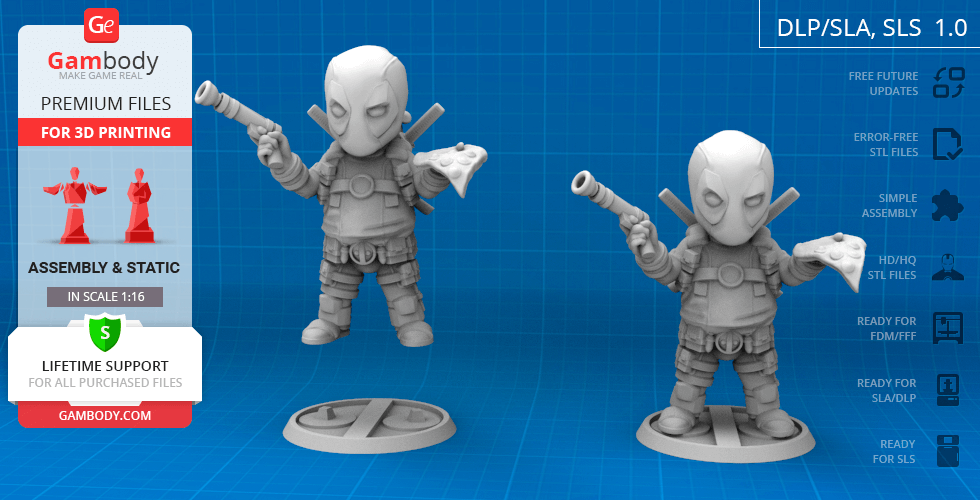

DLP/SLA/SLS 1.0 version features:
- Made as a solid one-piece figurine;
- A printed model is 122 mm tall, 111 mm wide, 89 mm deep;
- Contains 3 parts - a one-piece model and a figurine with the platform separated.

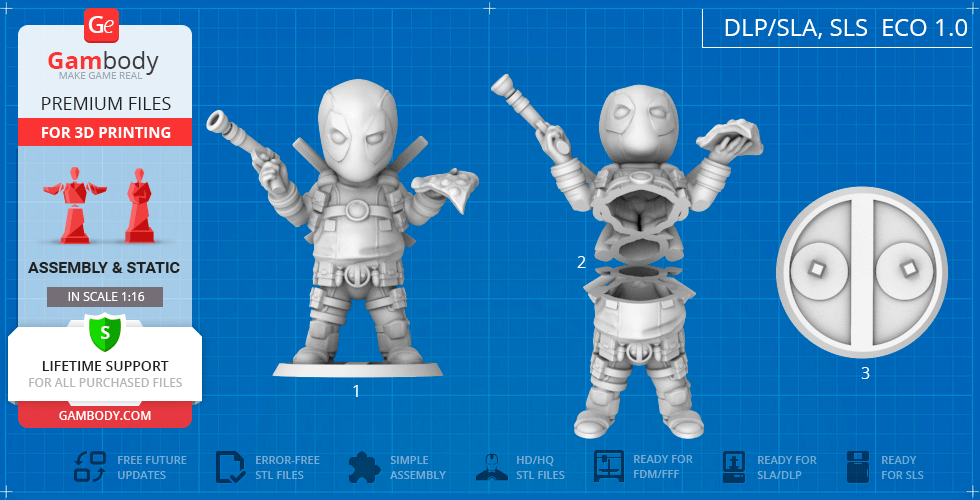

DLP/SLA/SLS Eco 1.0 version features:
- Contains 3 parts - a one-piece model and a figurine with the platform separated;
- A printed model is 122 mm tall, 111 mm wide, 89 mm deep;
- Contains some hollowed out parts to save resin.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Chubby Deadpool 3D Figurine for 3D printing which consist of 16 parts;
- 3 versions of files for this model for FFF/FDM, DLP/SLA/SLS and DLP/SLA/SLS Eco;
- High-poly detailed figurine of Chubby Deadpool;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the figurine of Chubby Deadpool​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Chubby Deadpool​ 3D Printing Figurine at Gambody YouTube channel.

Also, you may like other Marvel 3D Printing Models or other 3D Printing Chibi figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

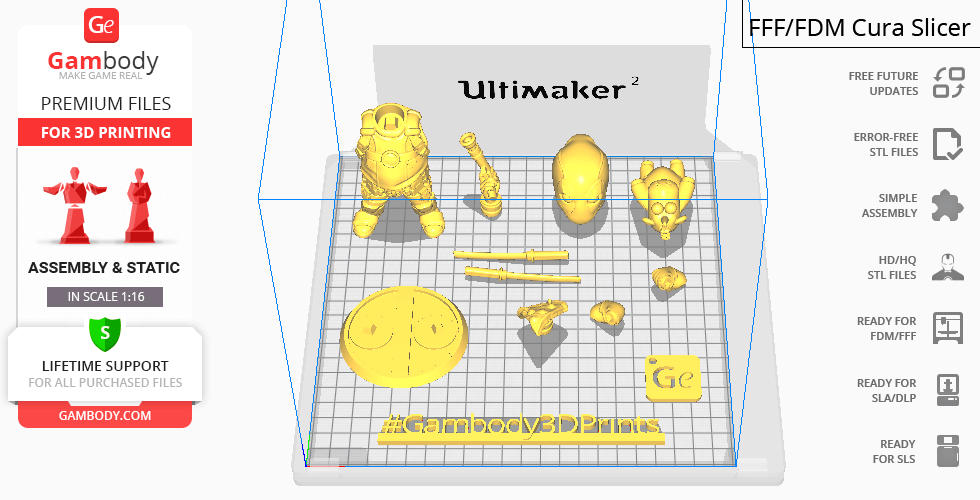

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
