Ravager Groot 3D Printing Figurine | Assembly

(17)
cm: 26.6 w x 21.9 d x 20.4 h
in: 10.472 w x 8.622 d x 8.031 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Version 1 and Version 2 are the files for Groot 3D model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA 3D printers at a lower layer height.
File Name File Size Time / Filament Object Size
(x/y/z mm)

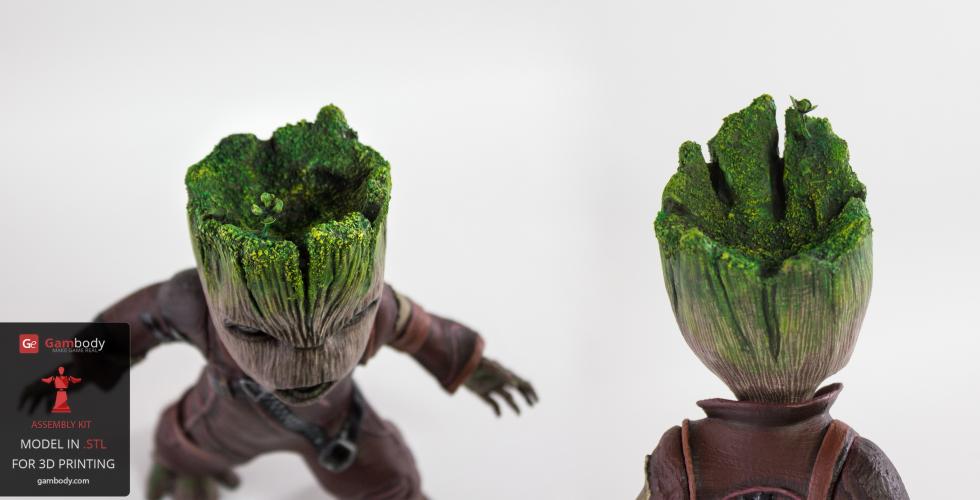

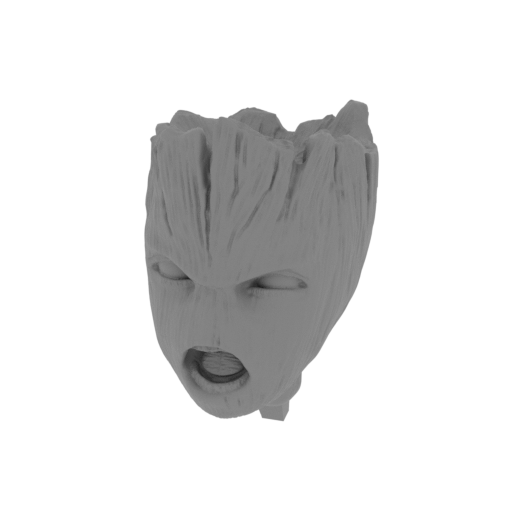

Groot_head (repaired).stl
7.71 MiB 11 h 33 min 7 m 56 x 66 x 96 Download

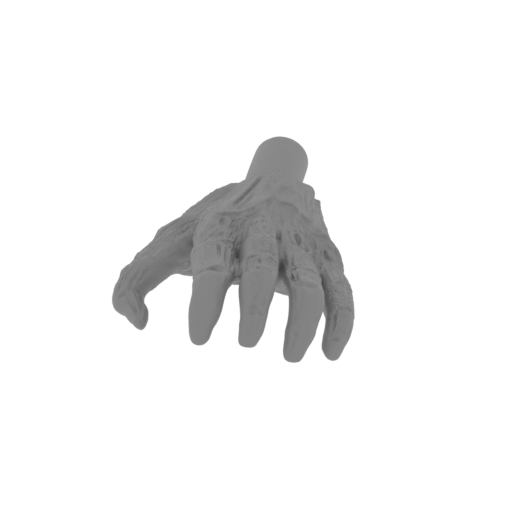

Groot_L_hand (repaired).s tl
4.56 MiB 44 min <1 m 28 x 42 x 11 Download

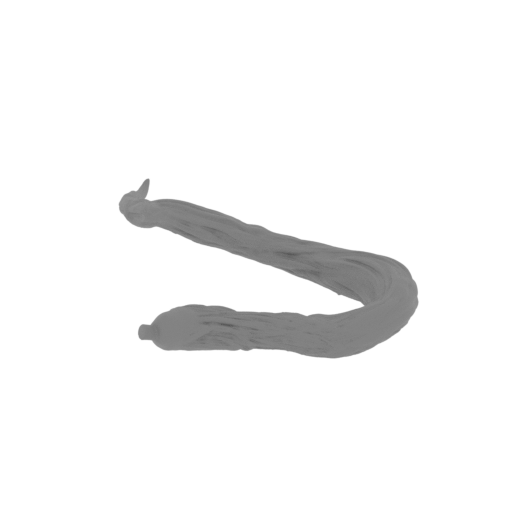

Groot_L_whip (repaired).s tl
14.48 MiB 7 h 59 min 5 m 151 x 155 x 31 Download

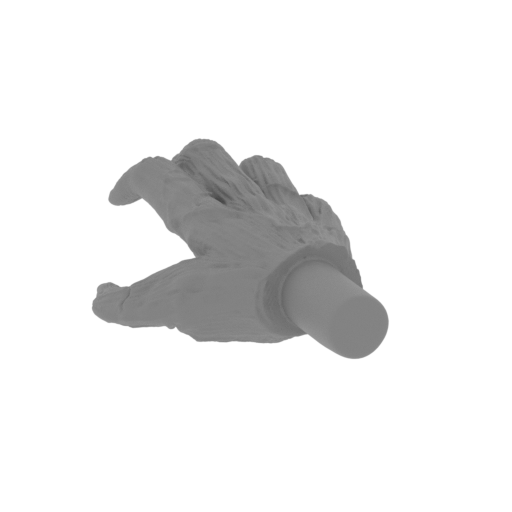

Groot_R_hand (repaired).s tl
4.11 MiB 44 min <1 m 35 x 35 x 11 Download

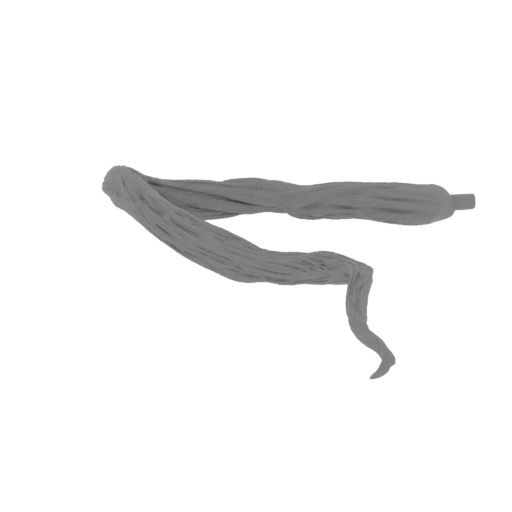

Groot_r_whip (repaired).s tl
2.80 MiB 9 h 47 min 6 m 156 x 135 x 31 Download

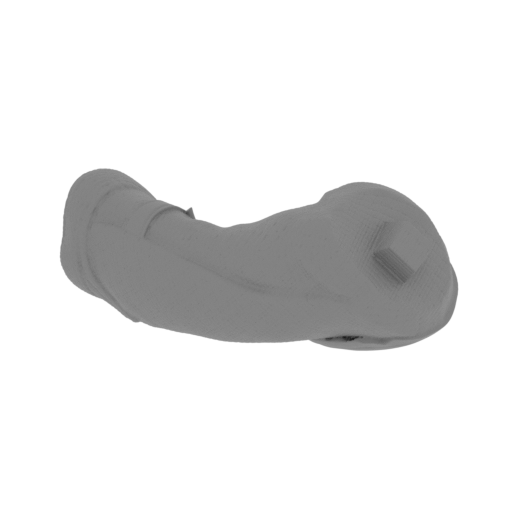

Groot_R_arm (repaired).st l
8.37 MiB 2 h 52 min 2 m 67 x 31 x 26 Download

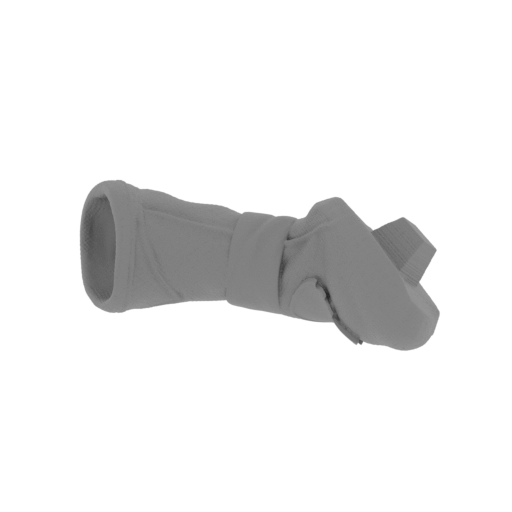

Groot_L_arm (repaired).st l
4.94 MiB 2 h 25 min 1 m 69 x 28 x 25 Download

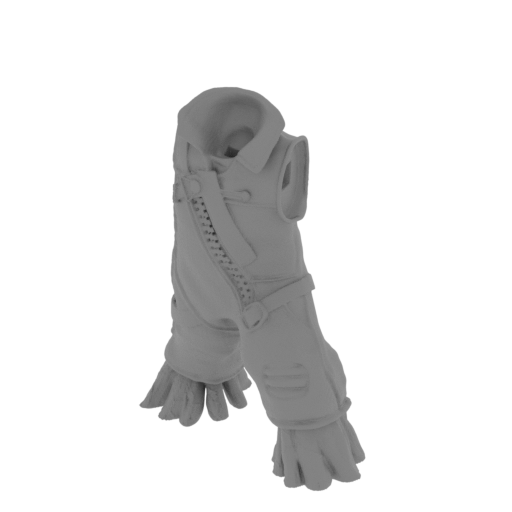

Groot_body (repaired).stl
12.44 MiB 22 h 57 min 14 m 99 x 84 x 145 Download

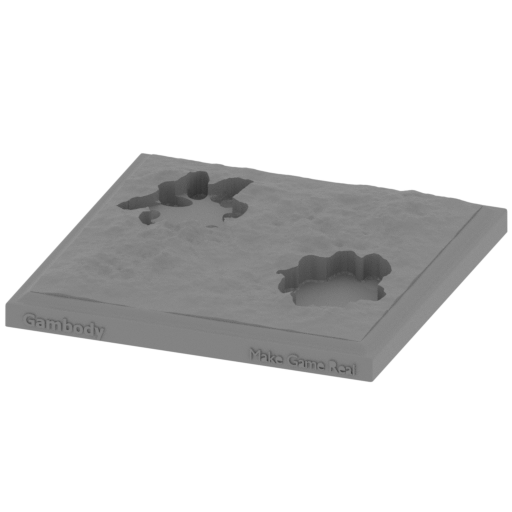

platform (repaired).stl
8.36 MiB 12 h 51 min 7 m 119 x 119 x 15 Download

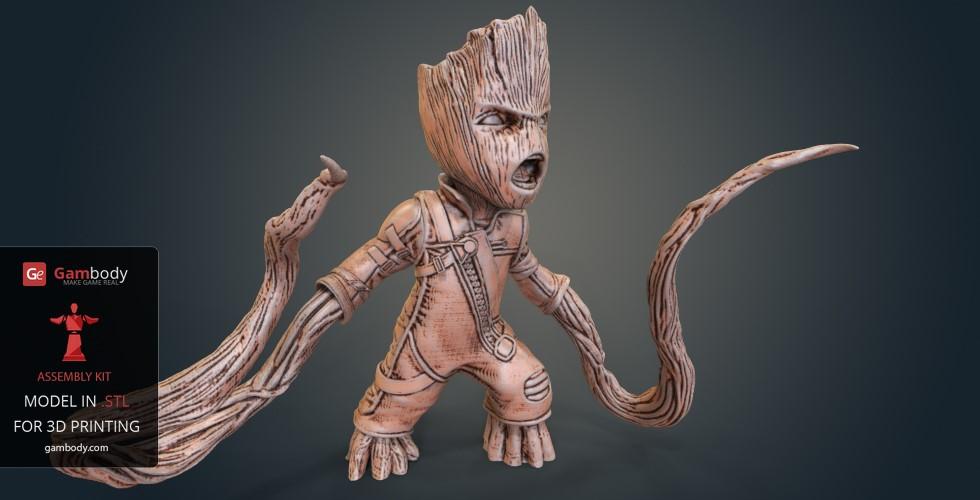

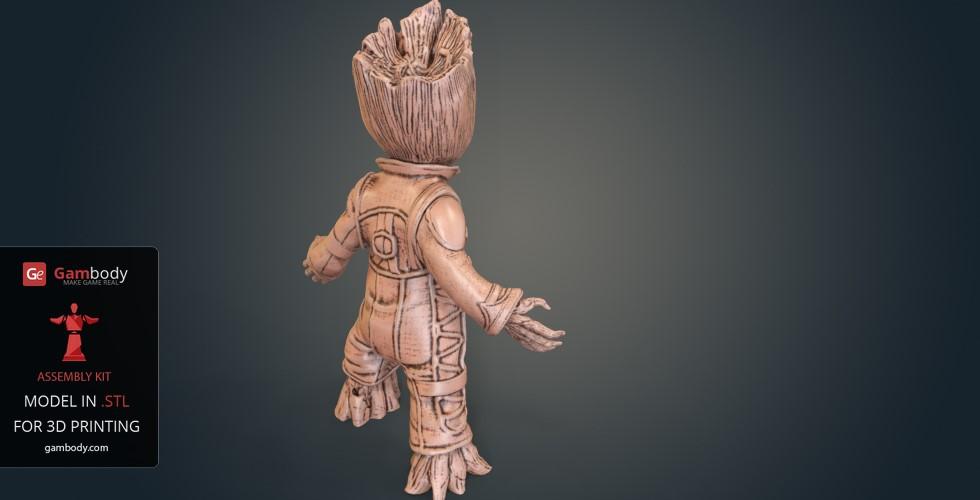

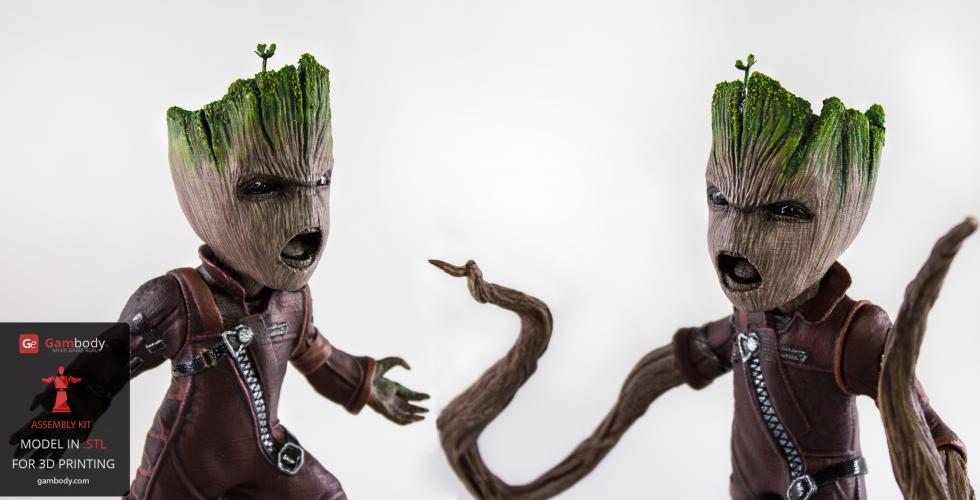

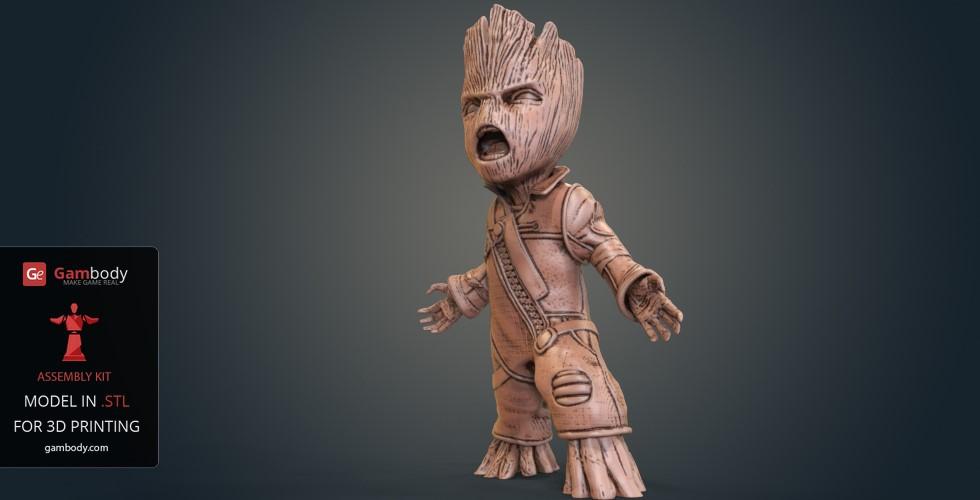

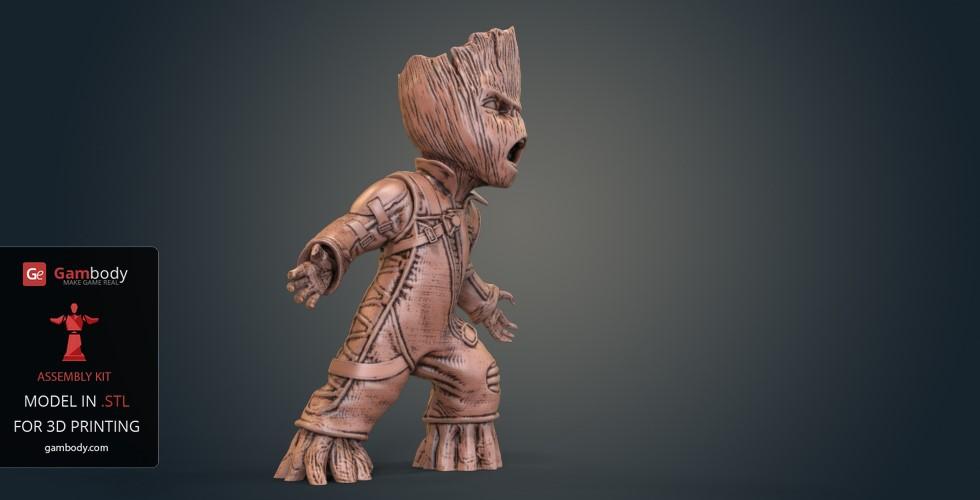

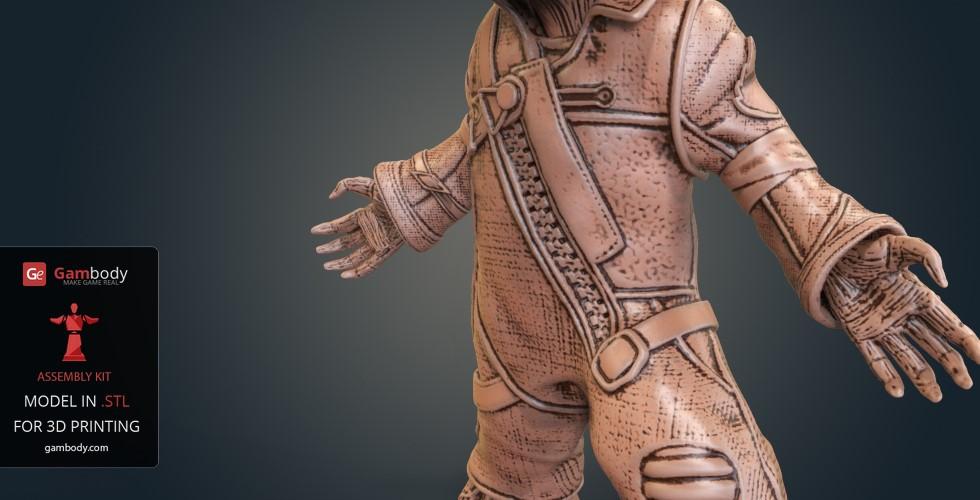

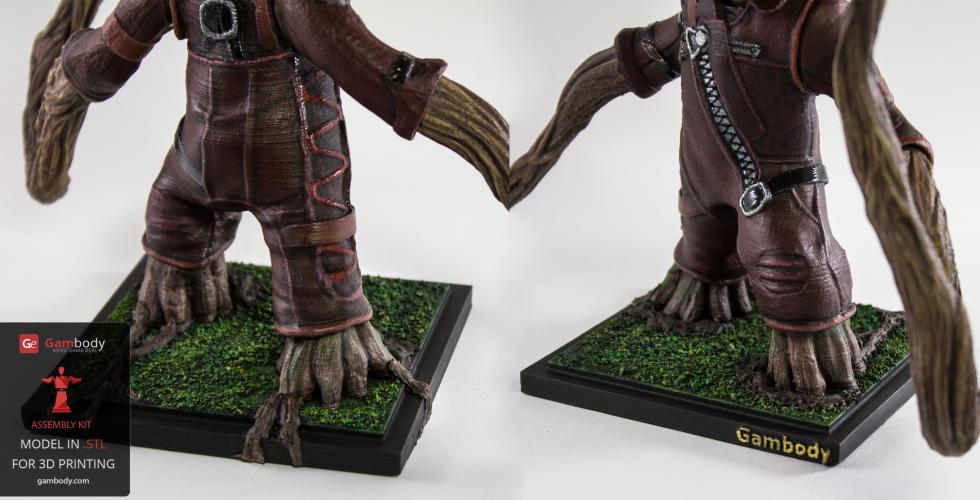

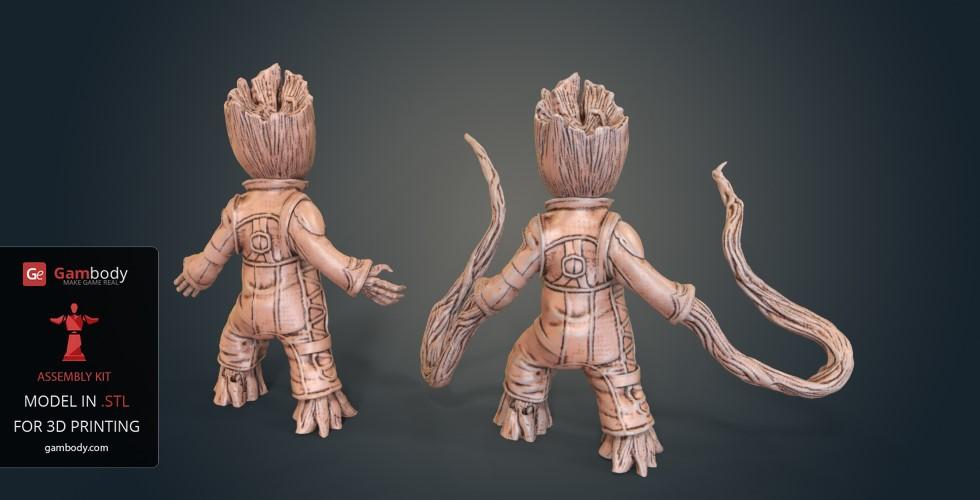

In anticipation of the new release of another installment of this superhero movie comes the Ravager Groot 3D printing model. The figurine is stylized according to the comic book prototype but features changeable hands and twisted branches (whips). This means that you will have two different 3D models in one.

Groot is a tree-like organism who travels across the Galaxy picking up bounties. Although he is intelligent, his stiffness prevents from uttering complex sentences, limiting his speech to simple phrases instead.

Groot's accomplice is Rocket Racoon with whom he plunges into various rescue adventures.

The baby Ravager Groot 3D model is created in Autodesk Maya and ZBrush modeling programs. The figurine features intricate details and outer surface shell. It is converted to STL files that are made solid. You can easily handle them in any slicing program.

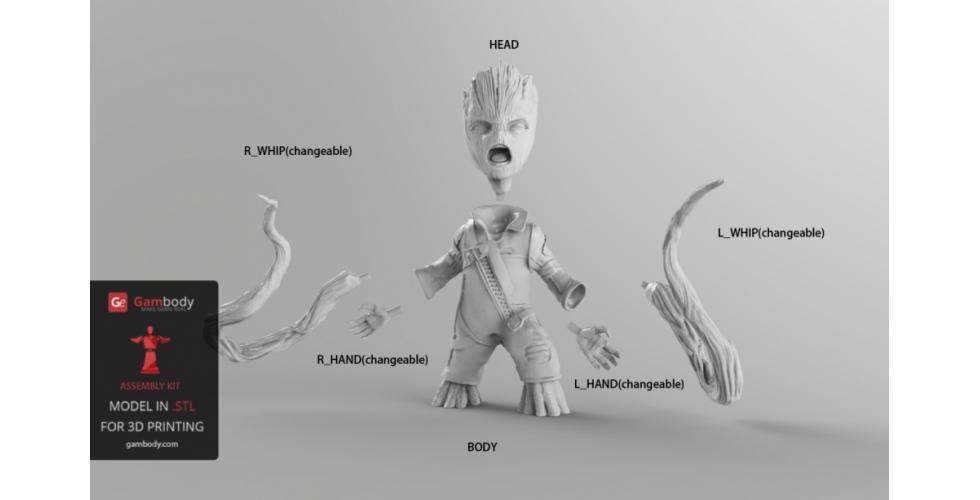

The 3D printing figurine of Ravager Groot consists of 8 separate parts. The model is split in order to limit the use of supports when 3D printing.

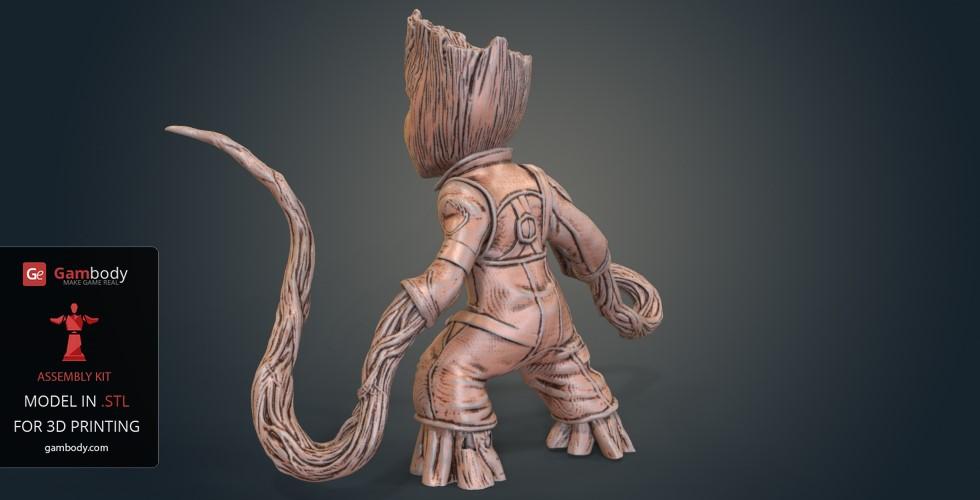

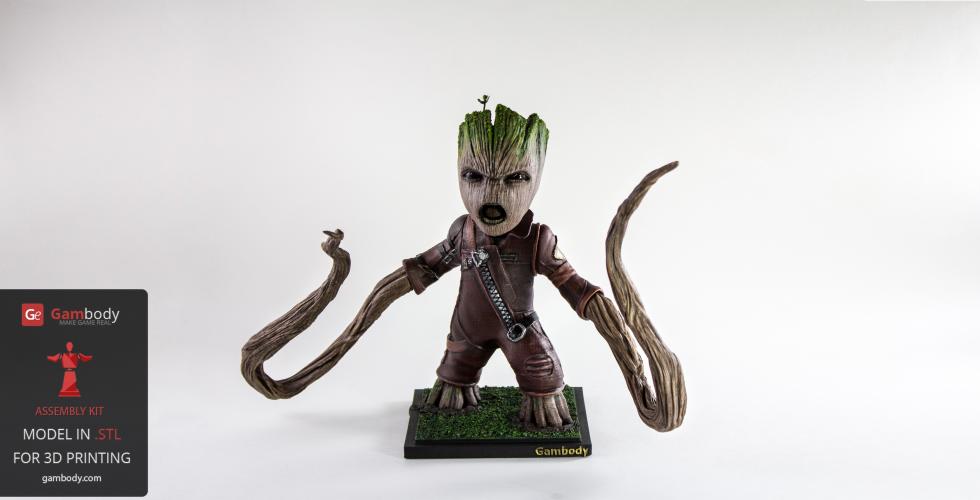

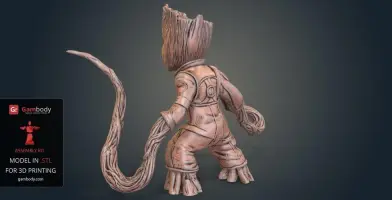

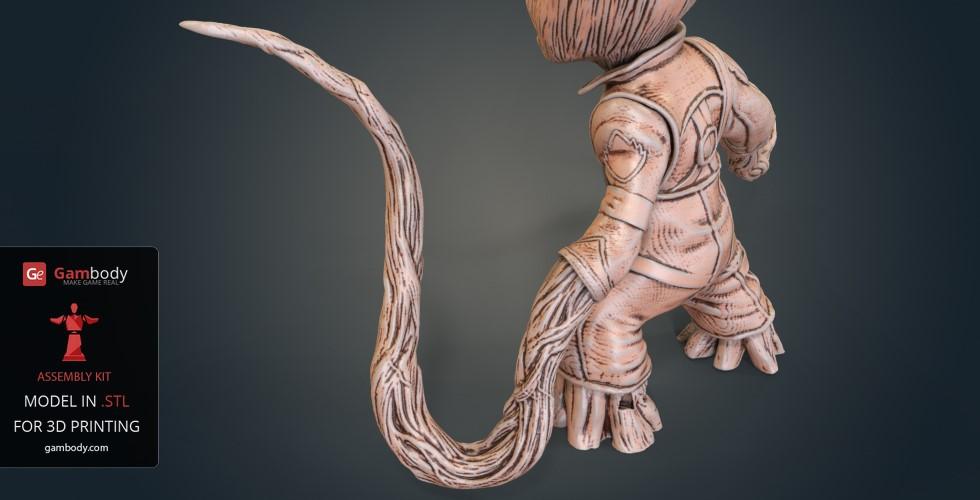

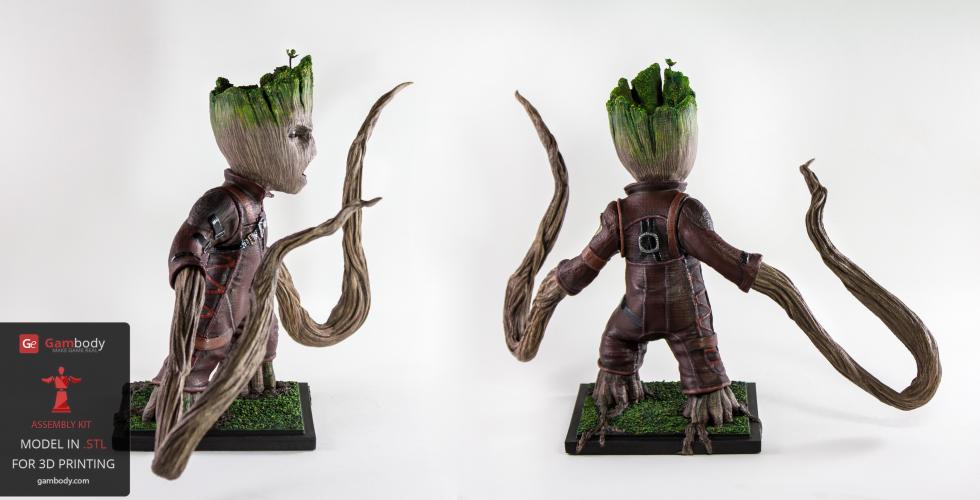

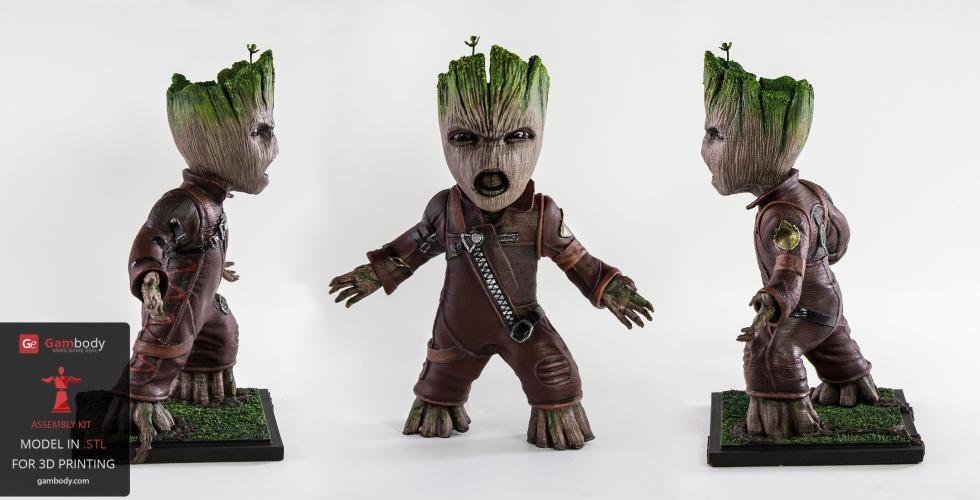

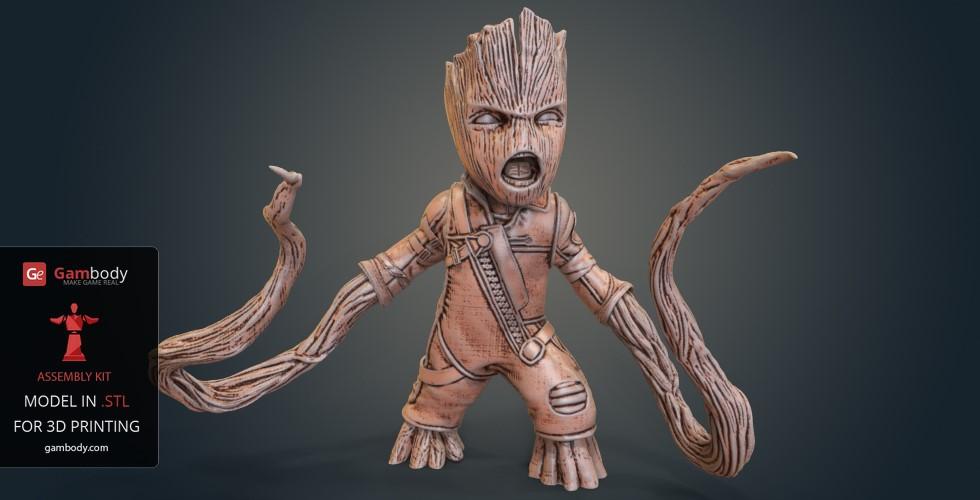

Note: The default 3D model is the one with the twisted branches (whips) which showcase the anger issues the character deals with and help to keep the 3D model’s balance on a level surface.

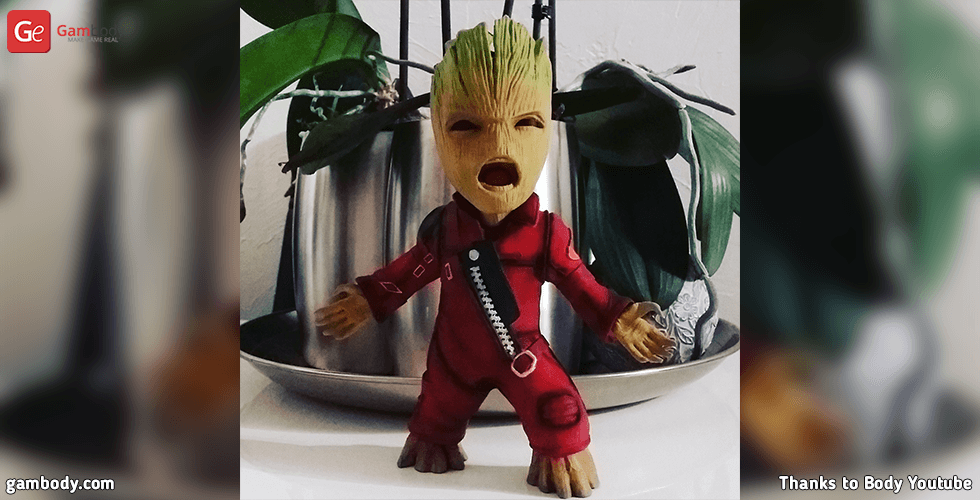

Those of you who want to 3D print Baby Groot featuring hands, you can download them together with the item’s STL files, as an add-on. For additional support of the model when assembled with hands, you can use the stand that will keep your figurine standing.

After being 3D printed, the 3D model will stand 266 mm wide, 204 mm tall, and 219 mm deep.

Buy Ravager Grot 3D Printing model by clicking the green Buy button in the top-right corner of the model's page. Continue to checkout. Pay with PayPal or your credit card. As soon as the payment is successfully processed, you will be able to download the STL files in a .zip folder, together with the printing guidelines.

3D Print the STL files of Ravager Groot 3D model with our partners, 3DHubs or Treatstock directly from our website. See the Source file tab, select the files you want to print and click the Print with 3DHubs or Print with Treatstock button.

Also, you may like other Marvel 3D Printing Figurines as well as 3D Figurines of DC.

--------------------------------------

On 28.04.2017 the model files "Groot_body (repaired).stl", "Groot_L_arm (repaired).stl" and "Groot_R_arm (repaired).stl" have been optimized. They now are already available for purchase and download.

Generic

This model was tested in Cura 2.3.1. To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest

Infill

Infill Density: 25%
Infill Line Distance: 3.2 mm
Infill Pattern: Grid
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Standby Temperature: 175°C
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 60 mm/s
Infill Speed: 80 mm/s
Wall Speed: 30 mm/s
Outer Wall Speed: 30 mm/s
Inner Wall Speed: 60 mm/s
Top/Bottom Speed 15 mm/s
Support Speed: 60 mm/s
Support Infill Speed: 60 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 15 mm/s
Initial Layer Print Speed: 15 mm/s
Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed 15 mm/s
Maximum Z Speed: 0 mm/s

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm

Cooling

Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 30 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.1 mm
Support Top Distance: 0.1 mm
Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 20
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Experimental

Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
