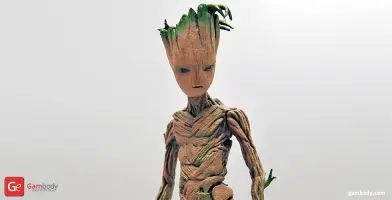

Teenager Groot 3D Printing Figurine | Assembly

(10)
cm: 9.8 w x 9.8 d x 21.6 h
in: 3.858 w x 3.858 d x 8.504 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

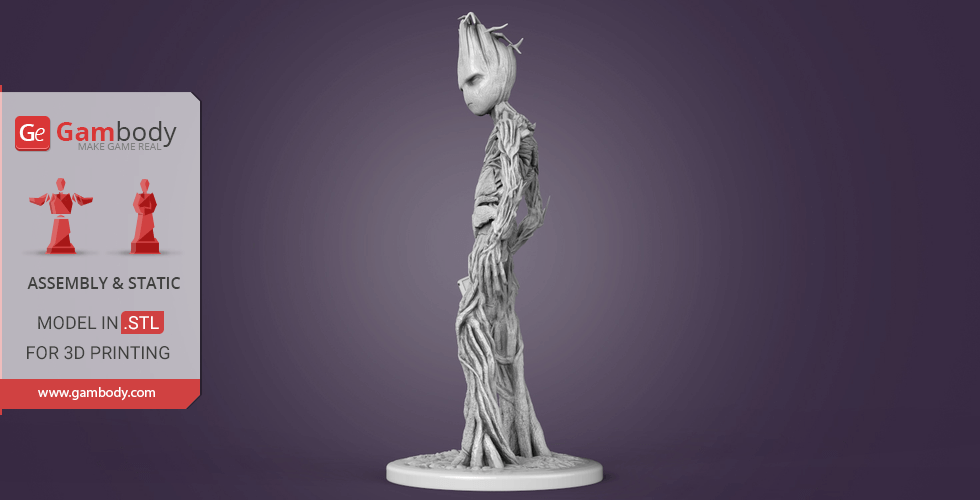

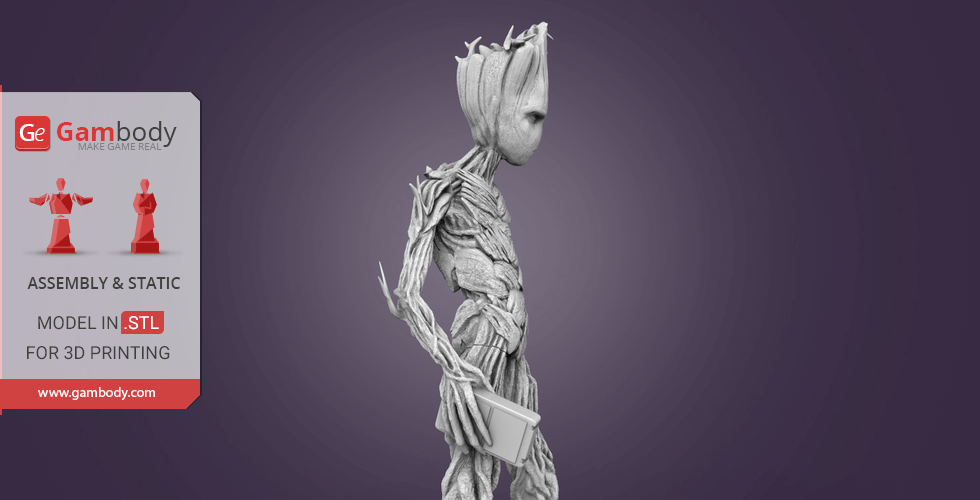

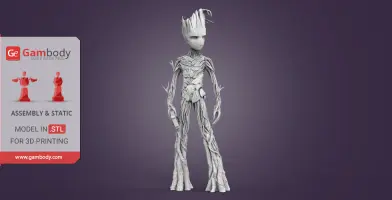

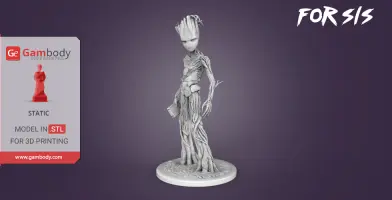

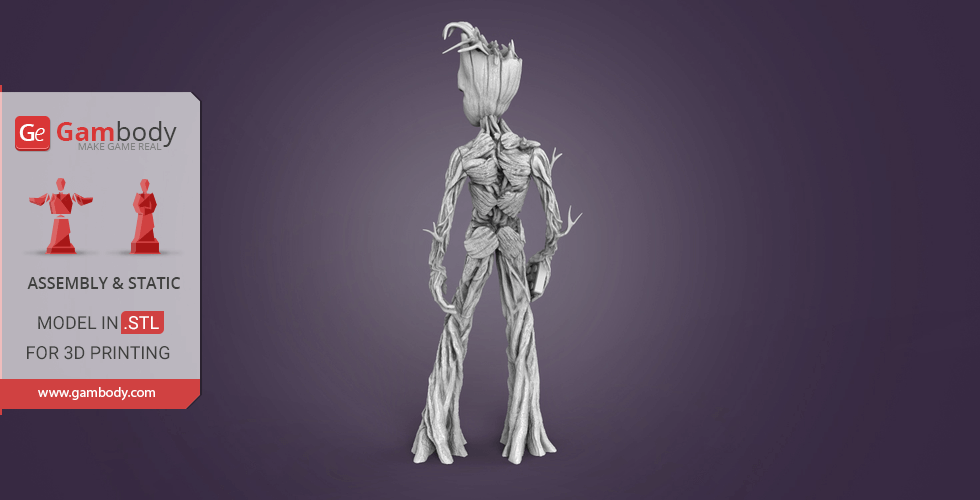

Version 1, Version 2 and Version 3 for Groot Teenager 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA 3D printers.
  • to print Version 3 STL files on SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

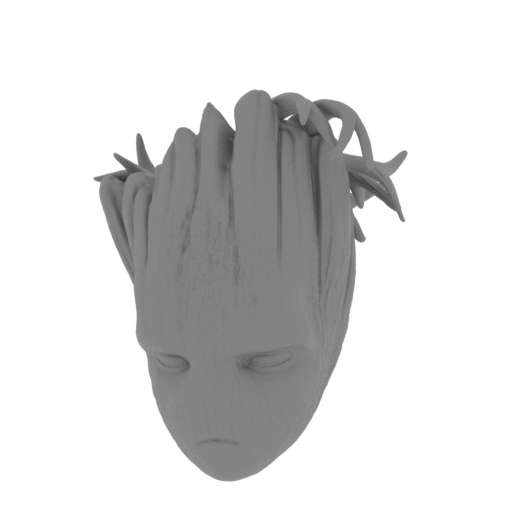

1_head.stl
7.89 MiB 2 h 45 min 1 m 41 x 36 x 47 Download

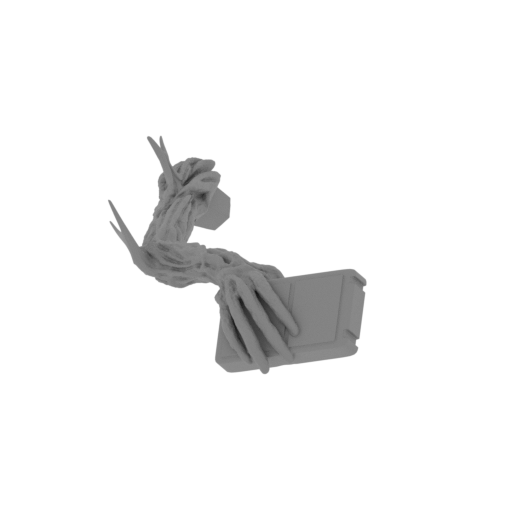

2_arm_R.stl
6.59 MiB 2 h 5 min 1 m 62 x 71 x 22 Download

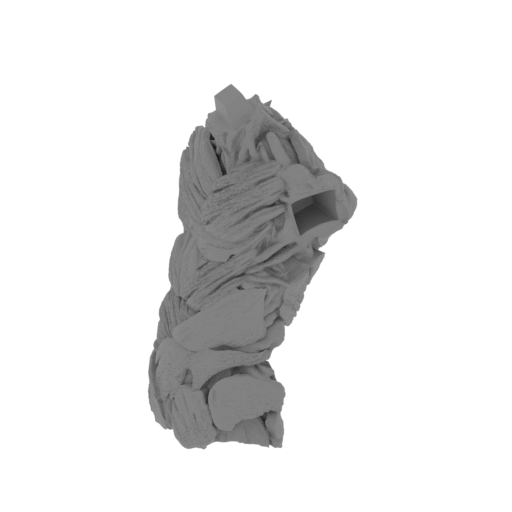

3_body.stl
14.86 MiB 5 h 10 min 3 m 39 x 34 x 73 Download

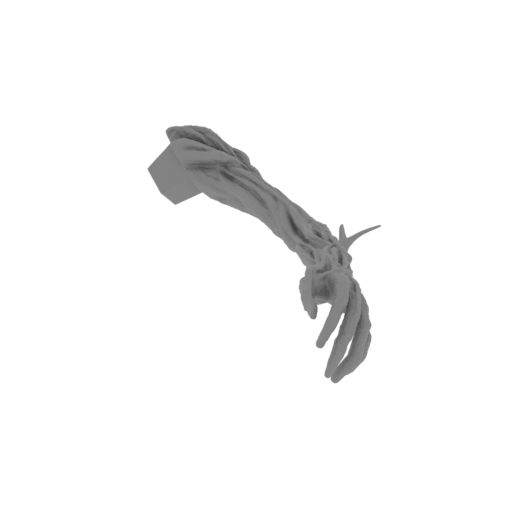

4_arm_L.stl
4.83 MiB 1 h 27 min 1 m 58 x 68 x 17 Download

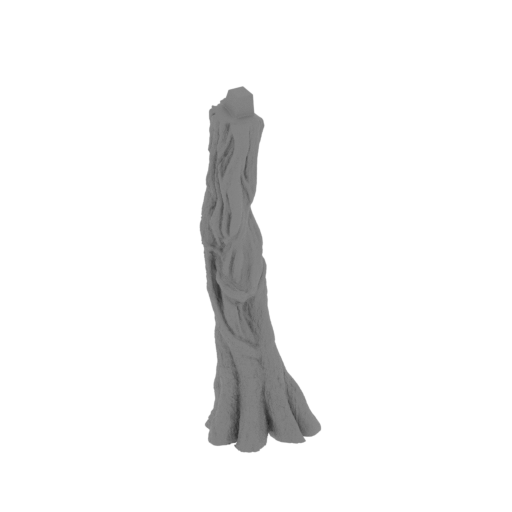

5_leg_R.stl
9.85 MiB 3 h 2 m 31 x 34 x 109 Download

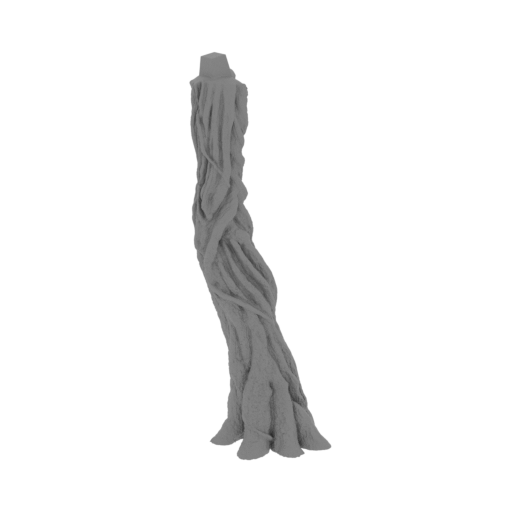

6_leg_L.stl
10.49 MiB 3 h 39 min 2 m 44 x 33 x 109 Download

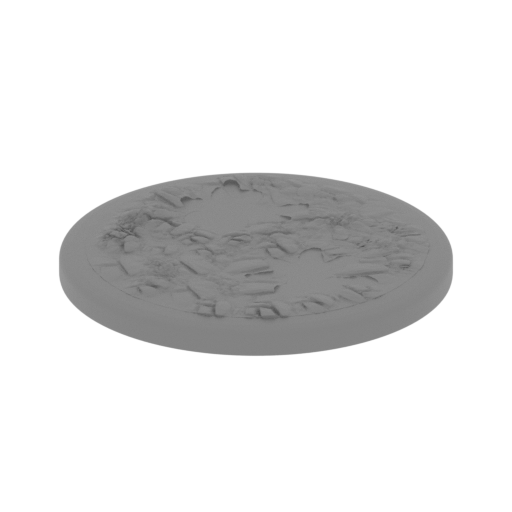

7_platform.stl
23.49 MiB 5 h 60 min 3 m 98 x 98 x 10 Download

HISTORY OF GROOT

Our baby's Groot has grown a bit and now he's a teenager. He has similar features like all normal teenagers and plays in his video games. The only thing that distinguishes him from others is that he can only say one phrase "I am Groot". In the last movie of the guardians of the galaxy, he was still very young. He was again raised by his faithful friend Rocket. He raised it from a small stem that was preserved after Grout saved them all.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

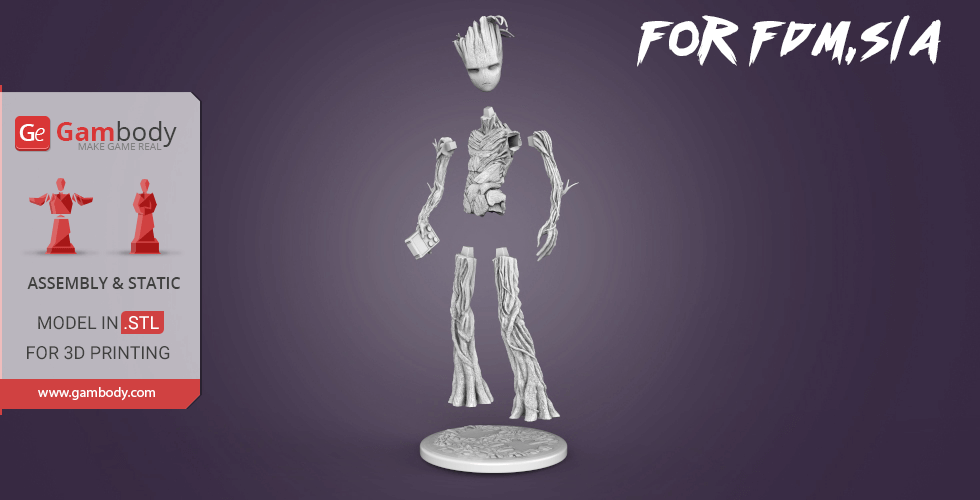

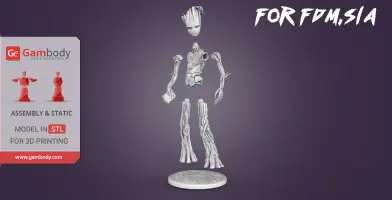

FDM version features:

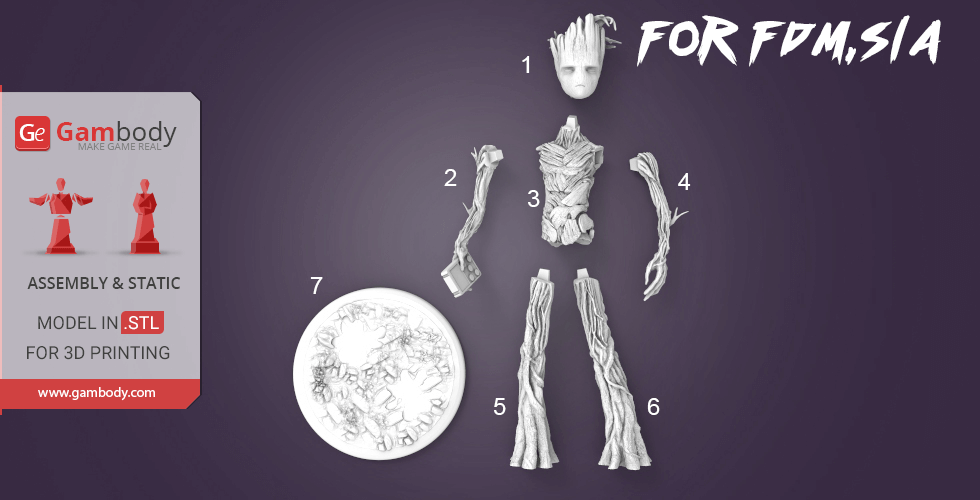

- Contain 7 parts;
- Made with his favourite video game;
- Made with a stylized platform;
- All parts are divided in such way that you will print them with the smallest amount of supports.

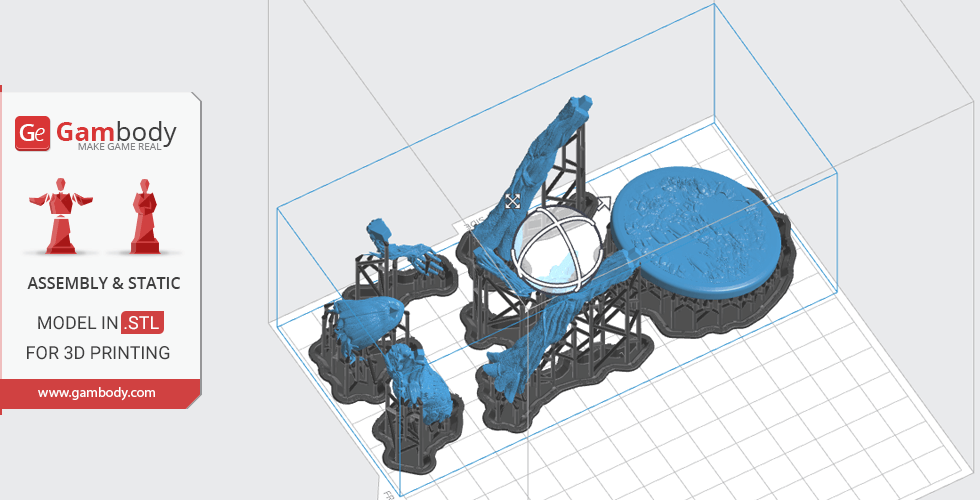

DLP/SLA version features:
- Same as FDM but smaller, also made as 7 parts;

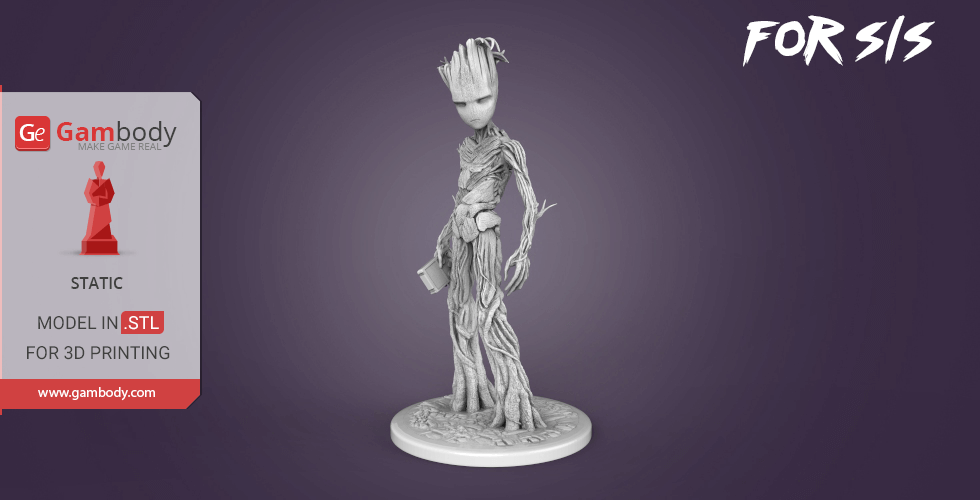

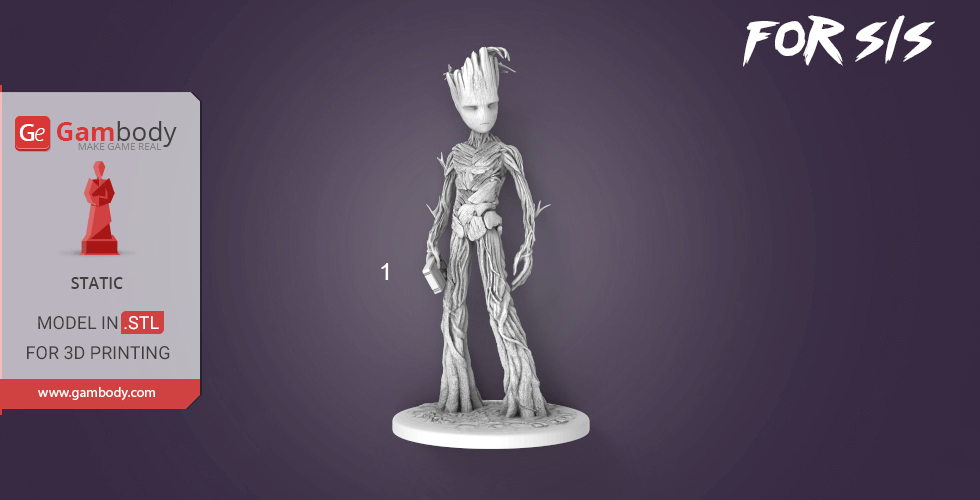

SLS version features:
- Same as SLA but made as 1 part for economy your material;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.2.1. Software.

There are 7 parts for FFF/FDM version, 7 parts for SLA version and 1 part for SLS.

Scale: His tall based on proportion of adult Groot is 1720 mm. Model made as 1/8 for FDM version and 1/16 for SLS/SLA version.

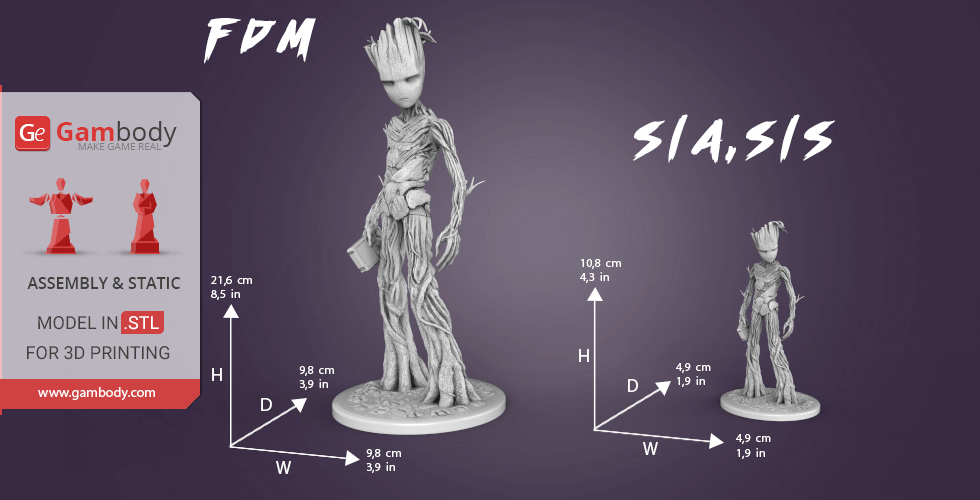

FDM version dimensions:

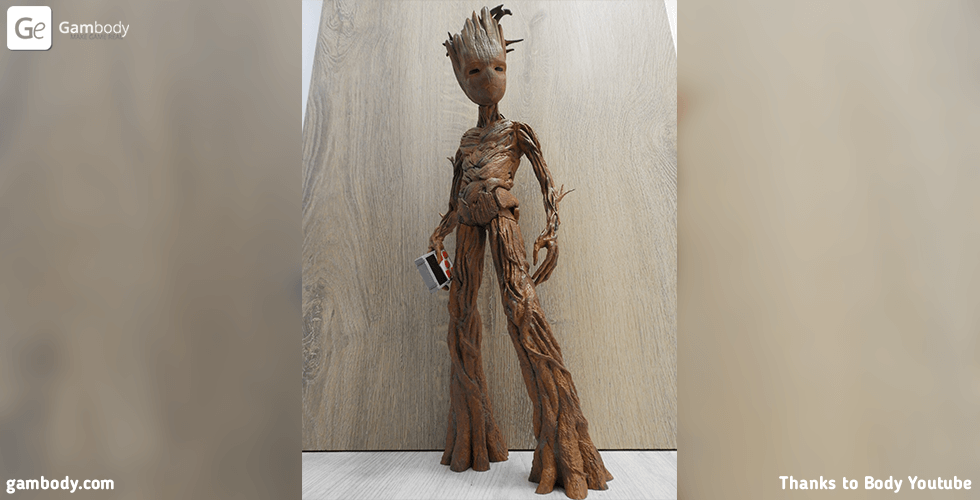

After being printed will stand - 216 mm tall, 98 mm wide, 98 mm deep;

SLS/DLP/​SLA version dimensions:
After being printed will stand - 108 mm tall, 49 mm wide, 49 mm deep;
- Has only one detail, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Groot Teenager​ 3D Miniature for 3D printing which consist of 15 parts;
- 3 versions of files for this model for FFF/FDM, SLS, and SLA;
- Made with platform;
- High-poly detailed miniature of Groot Teenager​;
- Detailed settings that we provide for Cura 3.2.1. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Groot Teenager​ 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Groot Teenager​ for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other Marvel 3D Printing Miniatures, as well as 3D Figurines of other Groots.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

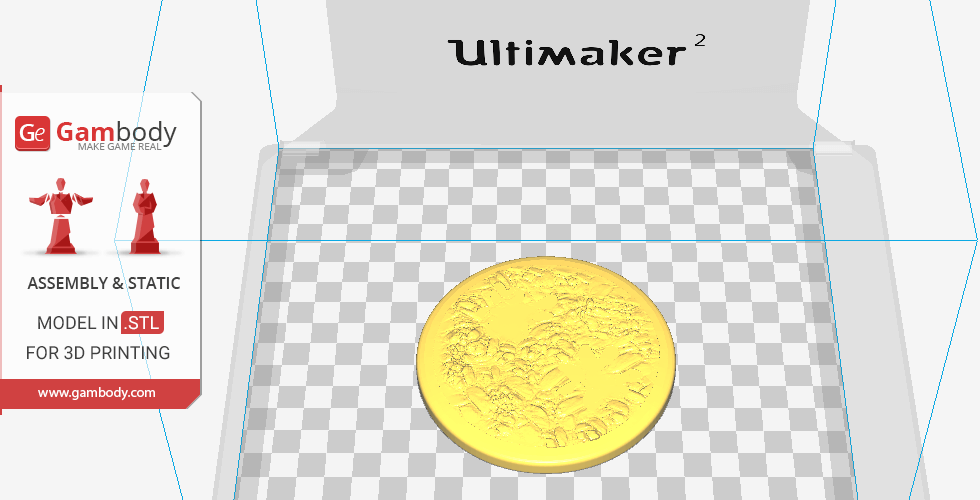

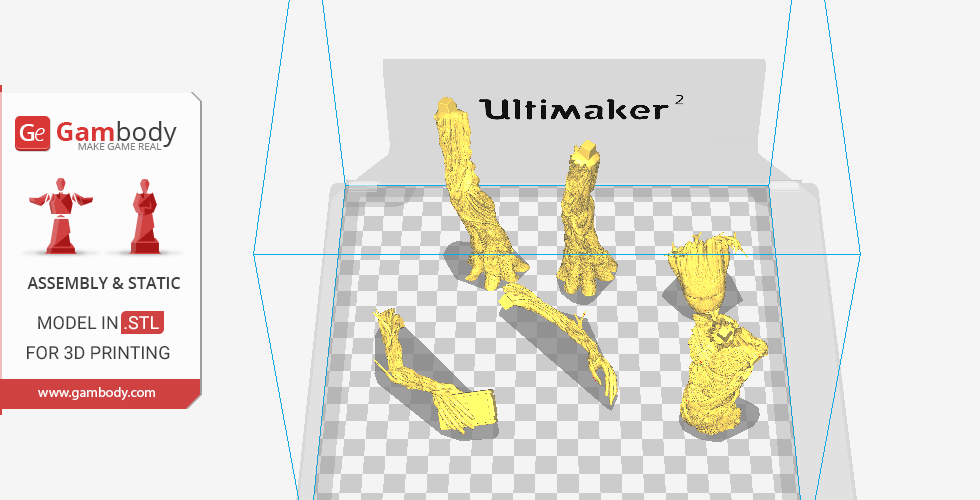

This model was tested in Cura 3.2.1 and printed on an Ultimaker 2 in PLA material.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s
  Initial Layer Print Speed: 30 mm/s
  Initial Layer Travel Speed: 60 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

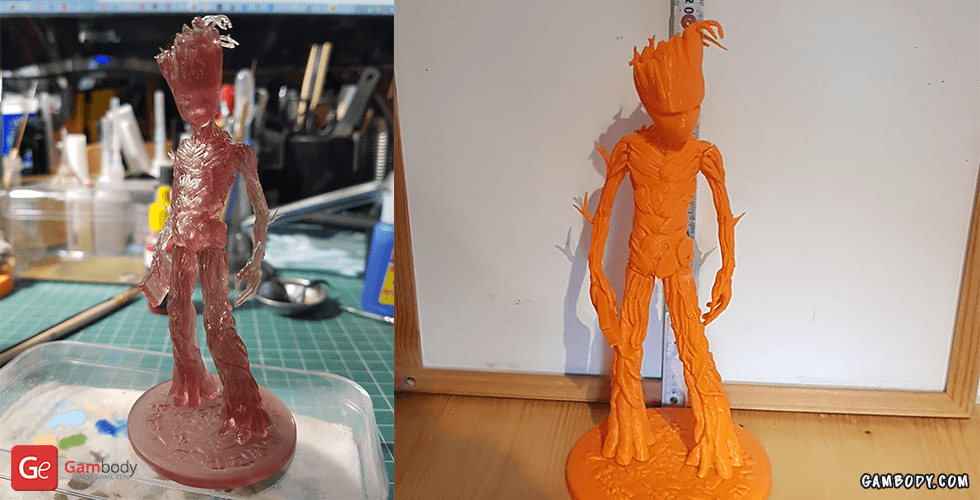

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
