K9 Mark I 3D Printing Figurine | Assembly

(3)
cm: 5.6 w x 15.8 d x 11.3 h
in: 2.205 w x 6.22 d x 4.449 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

K9 Mark I 3D Printing Model comes in 3 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

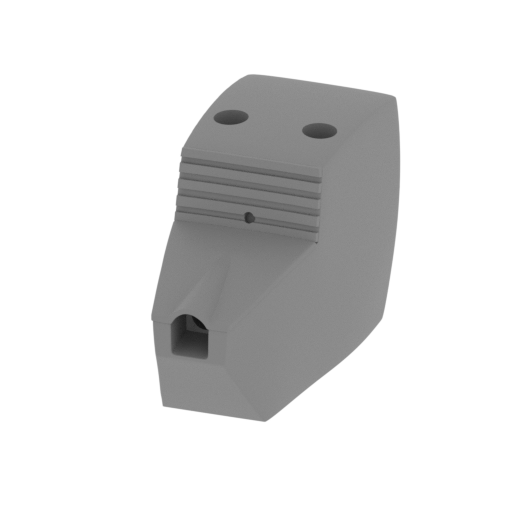

1_head_FDM (repaired).stl
2.04 MiB 2 h 28 min 1 m 23 x 54 x 33 Download

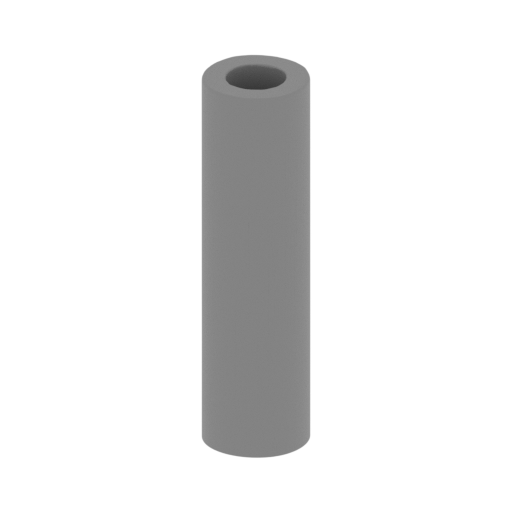

2_nose_FDM (repaired).stl
0.30 MiB 6 min <1 m 4 x 4 x 15 Download

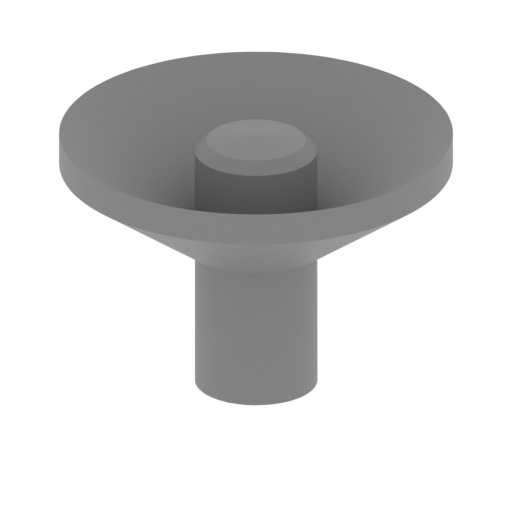

3_radar_FDM (repaired).st l
0.06 MiB 2 min <1 m 5 x 5 x 3 Download

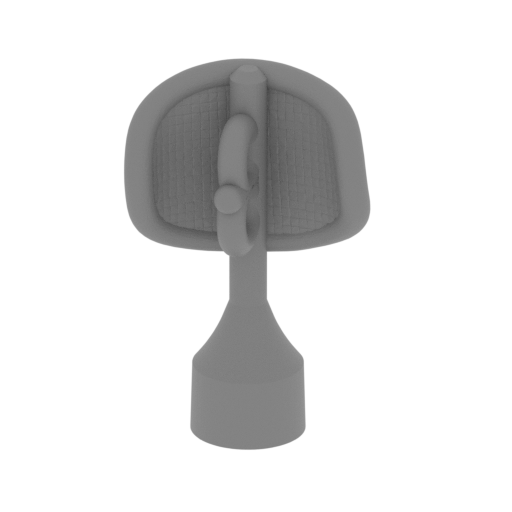

4_ear_R_FDM (repaired).st l
2.54 MiB 12 min <1 m 9 x 6 x 15 Download

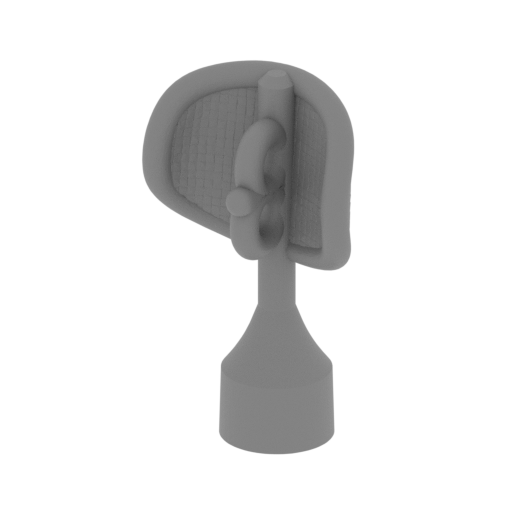

5_ear_L_FDM (repaired).st l
2.55 MiB 11 min <1 m 9 x 6 x 15 Download

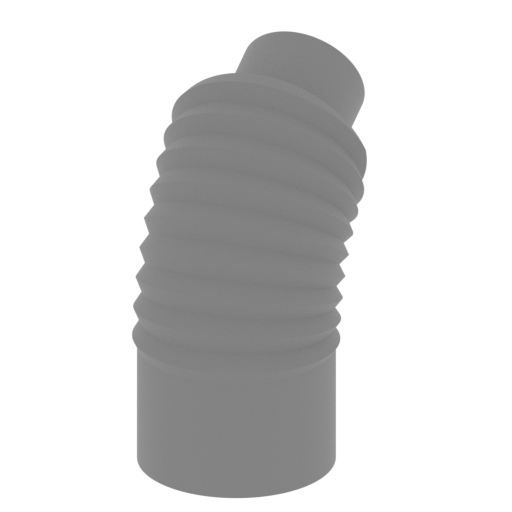

6_neck_FDM (repaired).stl
0.67 MiB 1 h 8 min 1 m 19 x 29 x 35 Download

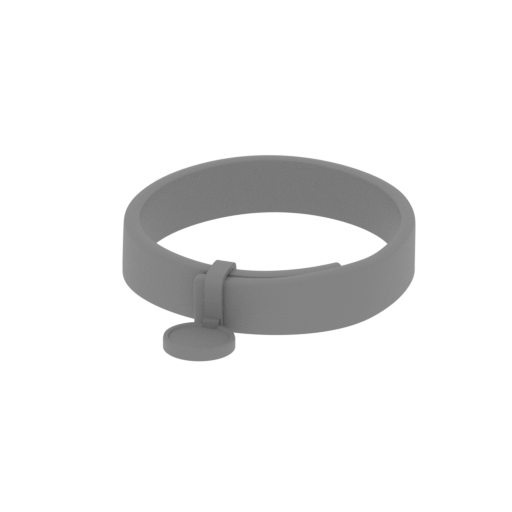

7_collar_FDM (repaired).s tl
1.07 MiB 11 min <1 m 22 x 29 x 5 Download

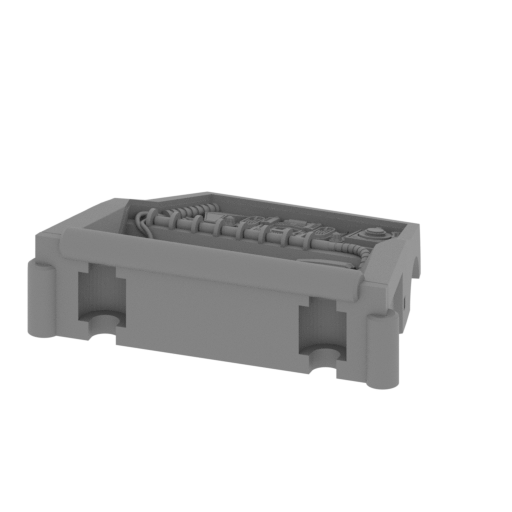

8_body_R_FDM (repaired).s tl
45.53 MiB 8 h 50 min 5 m 92 x 65 x 28 Download

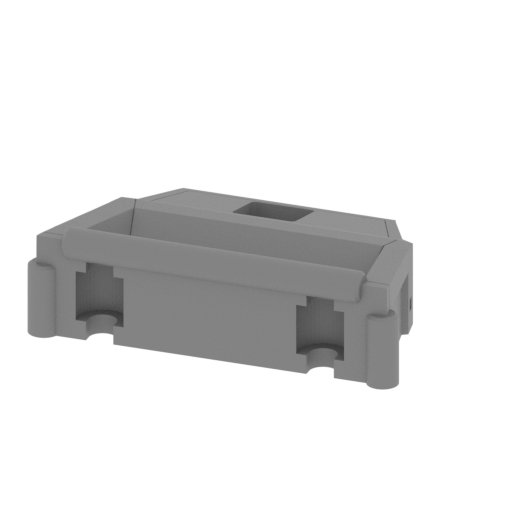

9_body_L_FDM (repaired).s tl
2.68 MiB 8 h 25 min 5 m 92 x 65 x 28 Download

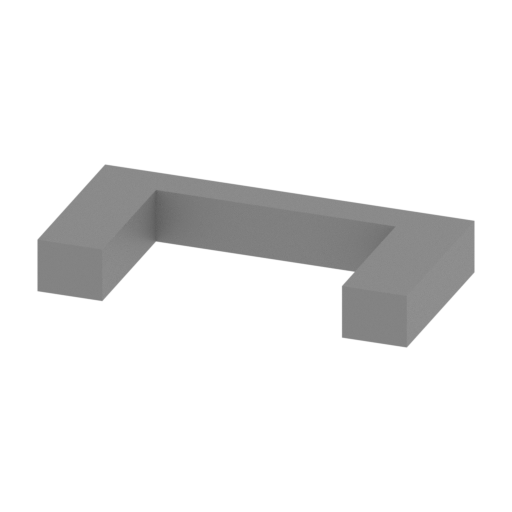

10_grip_1_FDM (repaired). stl
0.00 MiB 3 min <1 m 16 x 8 x 2 Download

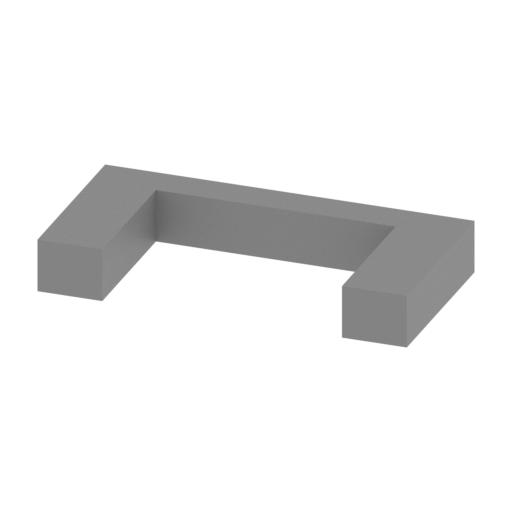

11_grip_2_FDM (repaired). stl
0.00 MiB 3 min <1 m 16 x 8 x 2 Download
12_grip_3_FDM (repaired). stl
0.00 MiB 3 min <1 m 16 x 8 x 2 Download

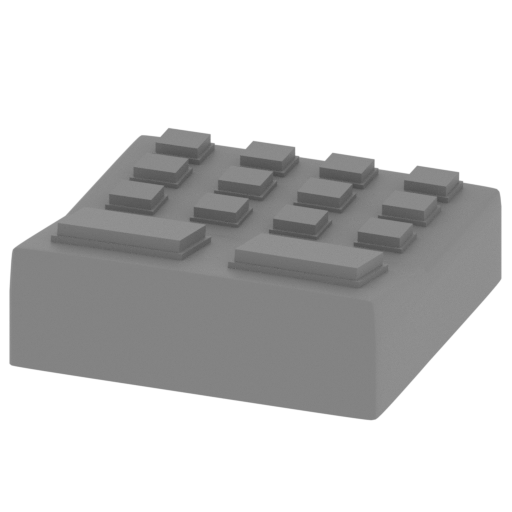

13_cap_top_FDM (repaired) .stl
0.27 MiB 16 min <1 m 18 x 17 x 7 Download

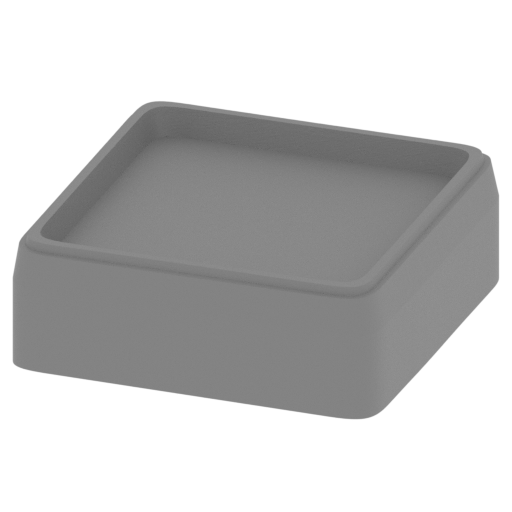

14_cap_side_FDM (repaired ).stl
1.48 MiB 11 min <1 m 16 x 16 x 6 Download
15_tail_FDM (repaired).st l
1.10 MiB 28 min <1 m 7 x 7 x 52 Download

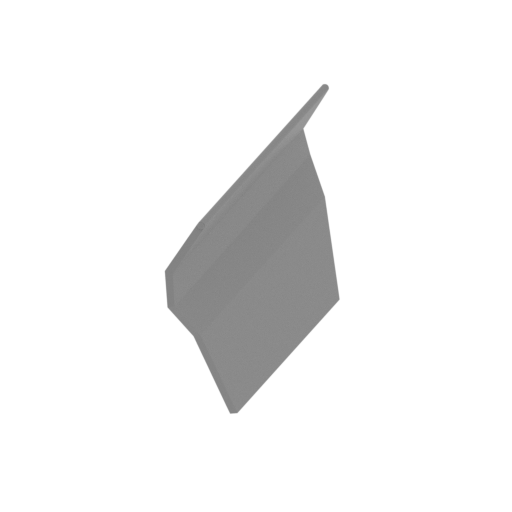

16_door_FDM (repaired).st l
1.82 MiB 47 min 1 m 9 x 66 x 39 Download

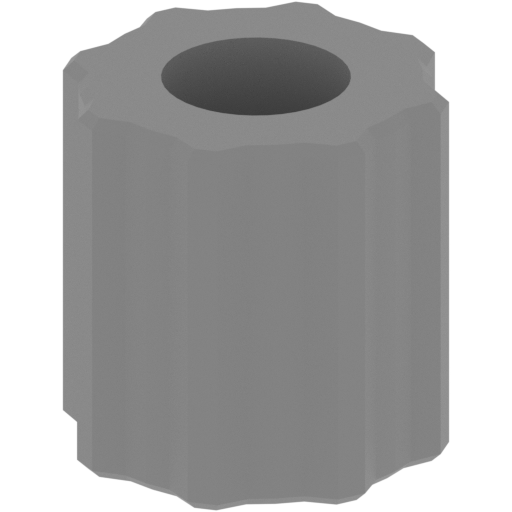

17_wheel_1_FDM (repaired) .stl
0.04 MiB 11 min <1 m 12 x 12 x 12 Download
18_wheel_2_FDM (repaired) .stl
0.04 MiB 11 min <1 m 12 x 12 x 12 Download

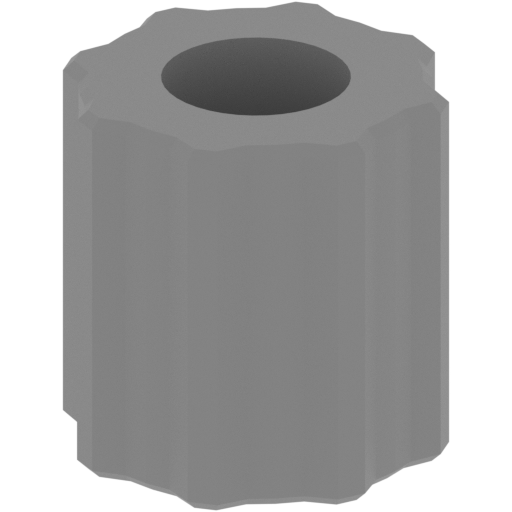

19_wheel_3_FDM (repaired) .stl
0.04 MiB 11 min <1 m 12 x 12 x 12 Download
20_wheel_4_FDM (repaired) .stl
0.04 MiB 11 min <1 m 12 x 12 x 12 Download
21_roll_1_FDM (repaired). stl
0.04 MiB 11 min <1 m 45 x 5 x 5 Download
22_roll_2_FDM (repaired). stl
0.04 MiB 11 min <1 m 45 x 5 x 5 Download

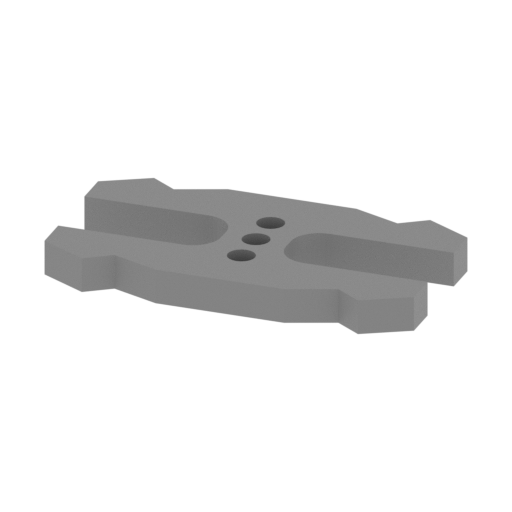

23_Ge_lock_10H_x9_FDM (re paired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

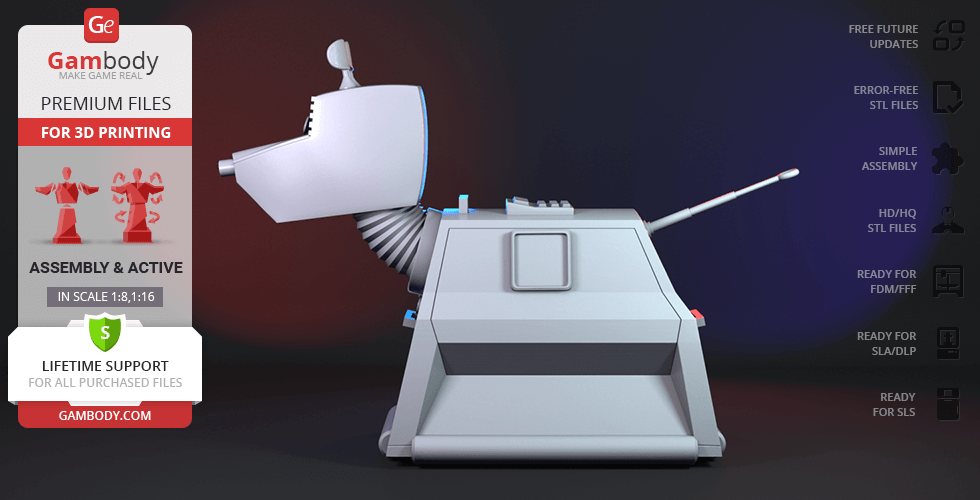

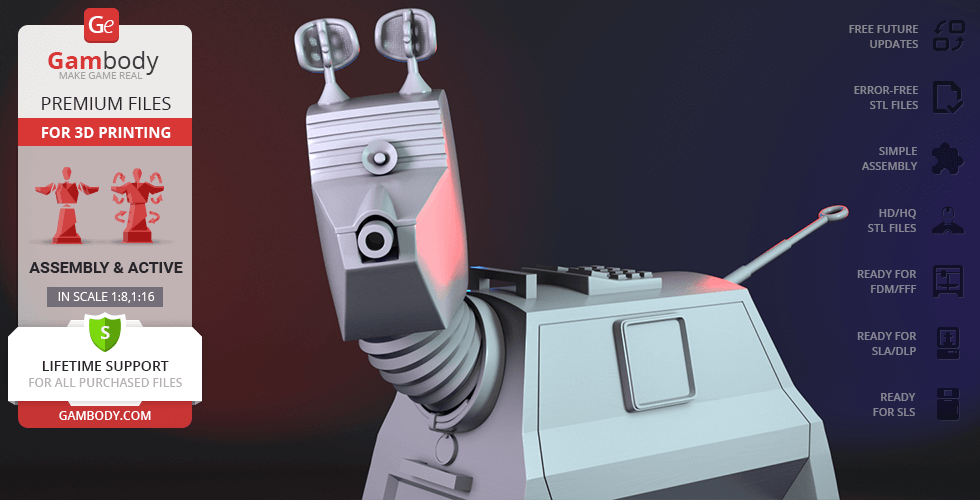

K9 Mark I is a robot dog that was first introduced in 1977 in the story 'The Invisible Enemy' of the legendary British Sci-Fi TV series Doctor Who. While working on the asteroid, Professor Frederick Marius invented the first K9 and equipped the robot with such state-of-the-art technologies as intraresponsive brain app, a vision and voice box and scanning antennas to keep him company far from home. Later on, Professor Marius offered the fourth Doctor and Leela the K9 to accompany the pair in their travel and thus the robot dog was taken aboard the TARDIS. K9 was basically intended as a one-off character but immediately won such immense popularity with the Time Lord adventure’s fans that was made a regular Doctor’s companion. The author of the K9 Mark I for 3D printing also couldn’t resist the robot’s charms given its encyclopaedic knowledge and vast computer intelligence and spent 30 hours in total to design the action model of the well-liked K9 mechanic dog. A lot of K9 design's assembly parts are articulated which doubles the assembly and displaying fun for all the Doctor Who enthusiasts.

ADAPTATION FOR 3D PRINTING

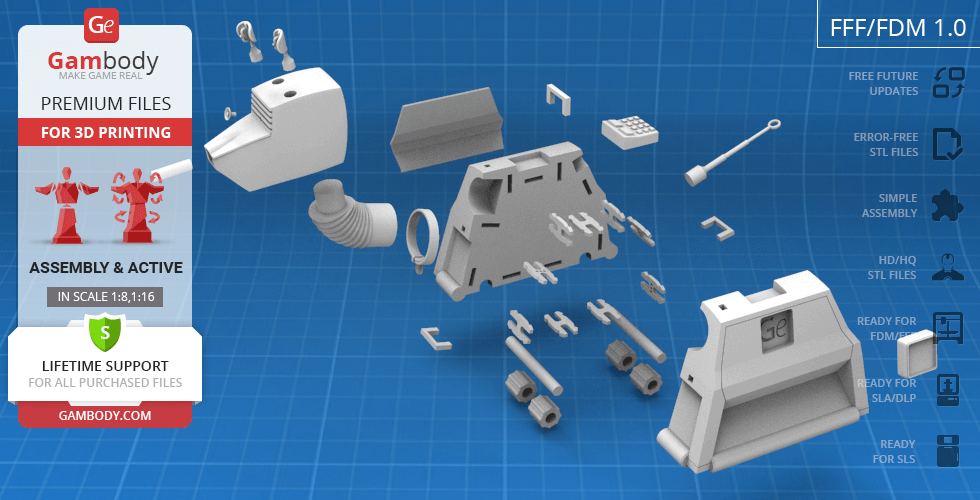

K9 Mark I model for 3D printing is an articulated assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 3 hours in total. The model’s chosen cutting was aimed at minimisation of the amount of filament needed for generated support. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. For you to receive the cleanest printing result possible all the fine details the model is comprised of, namely the robot’s nose, radar, ears, collar, grips and tail are provided as separate STL files. The robot dog’s movable head, opening side access panel and rotating tail allow you to display the Doctor’s companion in different kind of scenarios. Four wheels can be easily assembled with the pair of bars that ensure the K9’s smooth movement.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the K9's actual height that is 900 mm. The 3D printing model's chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

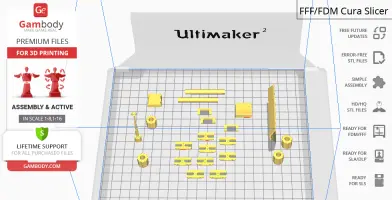

FFF/FDM version features:

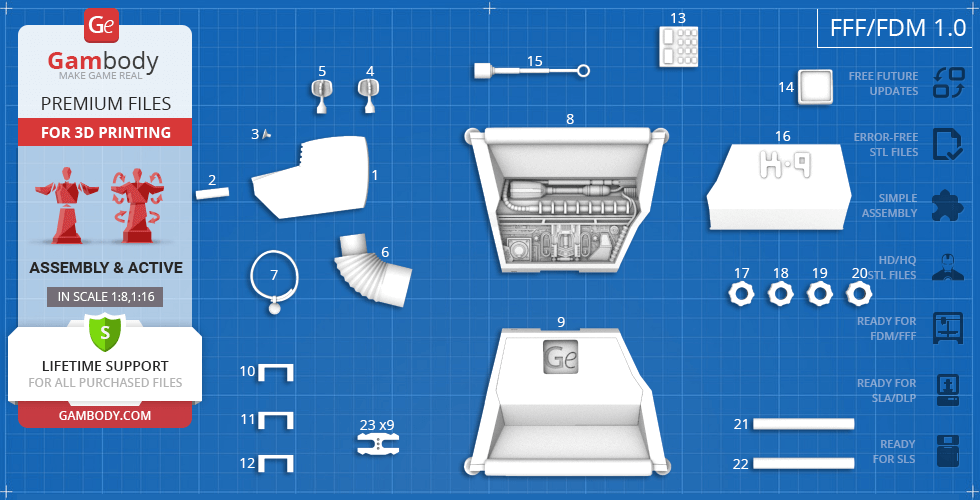

- Contains 23 parts;

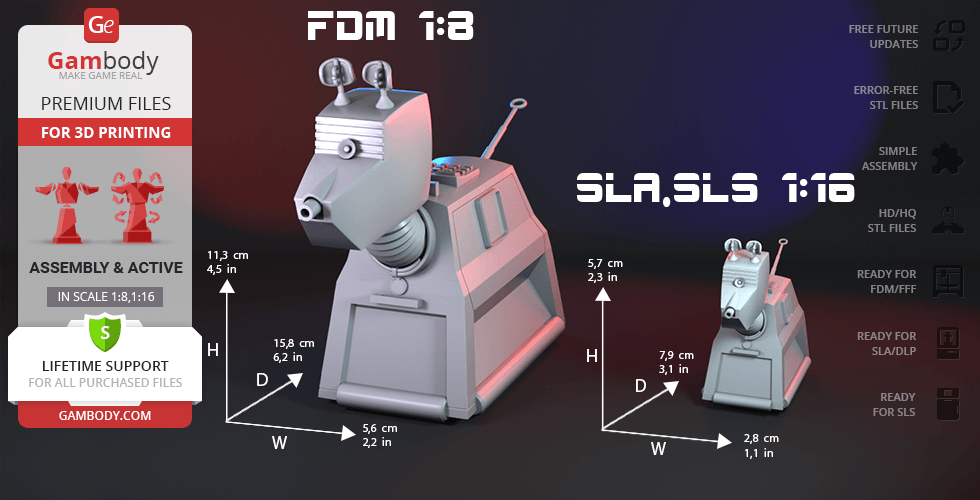

- A printed model is 113 mm tall, 56 mm wide, 158 mm deep;
- Assembly kit includes locks to connect the parts without glue. One lock 23_Ge_lock_10H_x9 needs to be printed 9 times;
- Made with four rotating wheels that ensure the K9's movement;

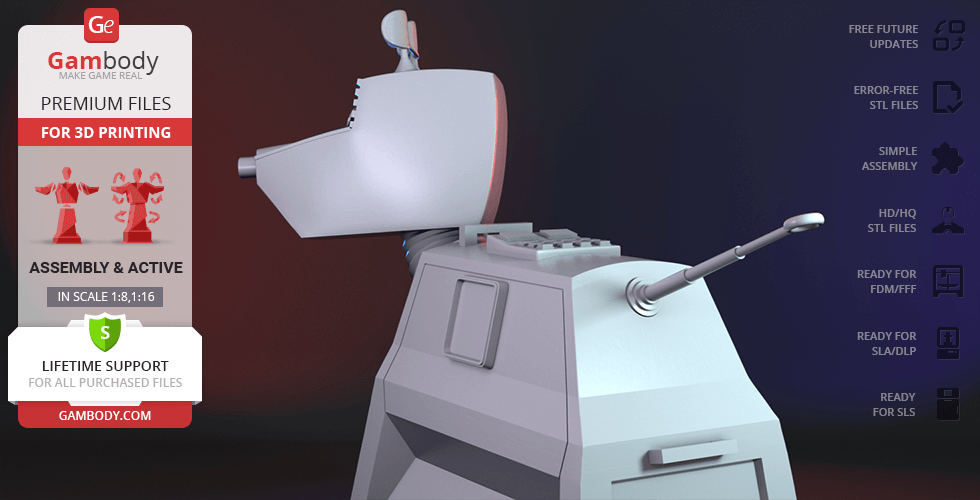

- The K9's head is movable;

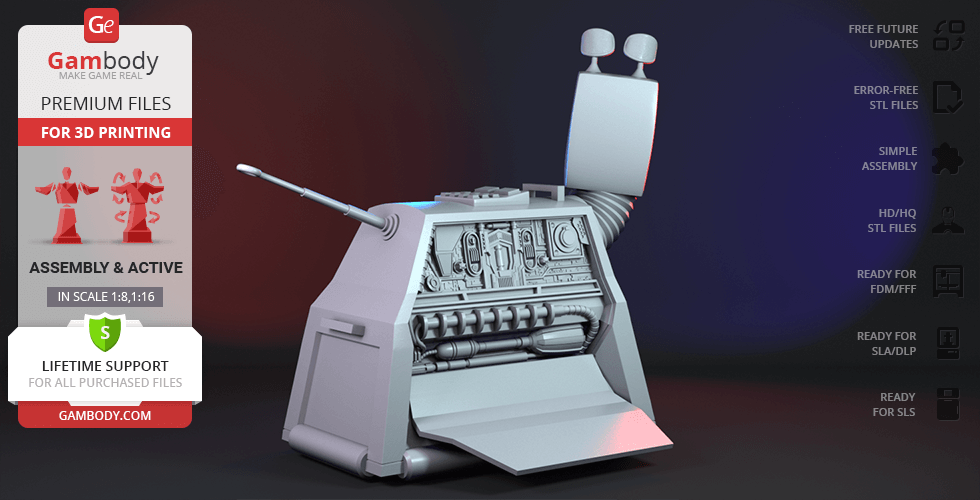

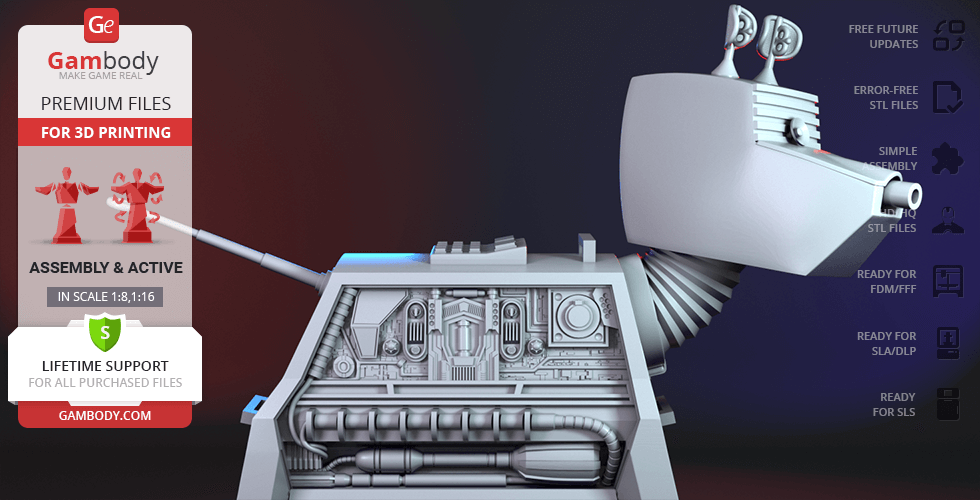

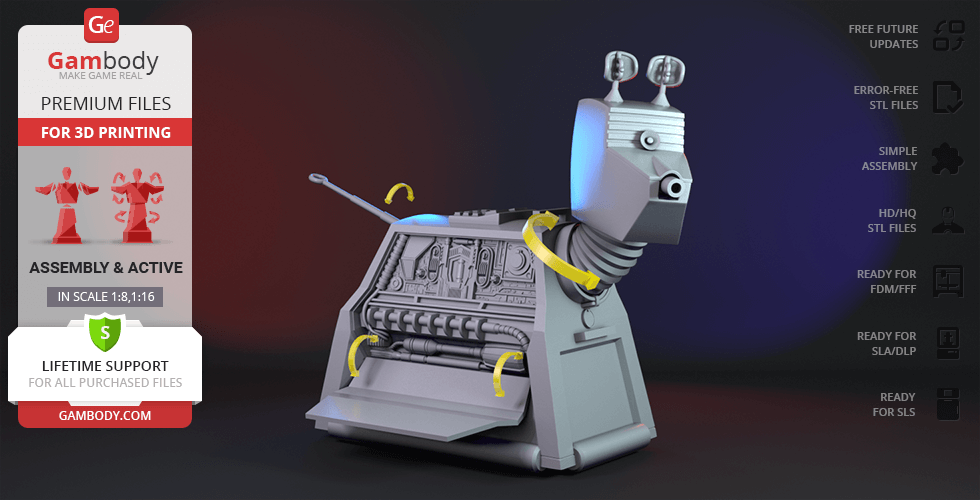

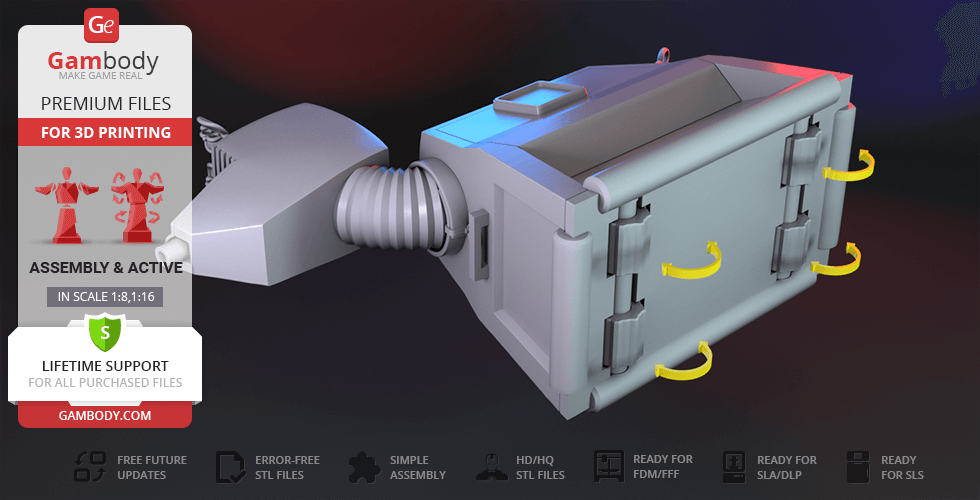

- The side access panel can be opened or removed to reveal the parts of the robot's internal mechanisms;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

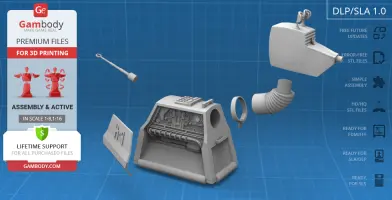

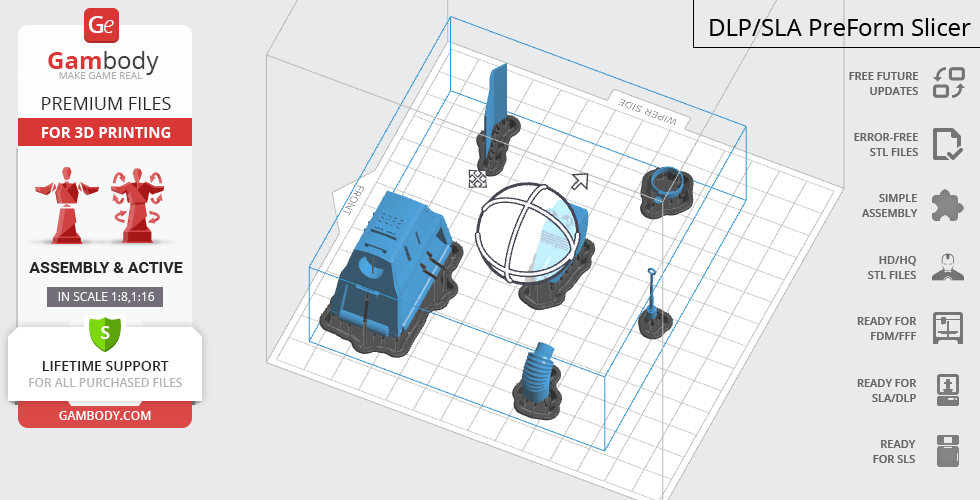

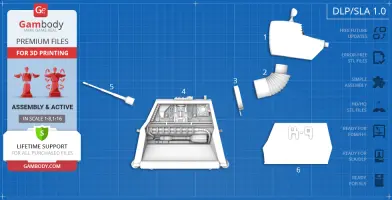

DLP/SLA version features:
- Contains 6 parts;
- A printed model is 57 mm tall, 28 mm wide, 79 mm deep;
- The side access panel can be opened or removed to reveal the parts of the robot's internal mechanisms;
- The K9's head is movable;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

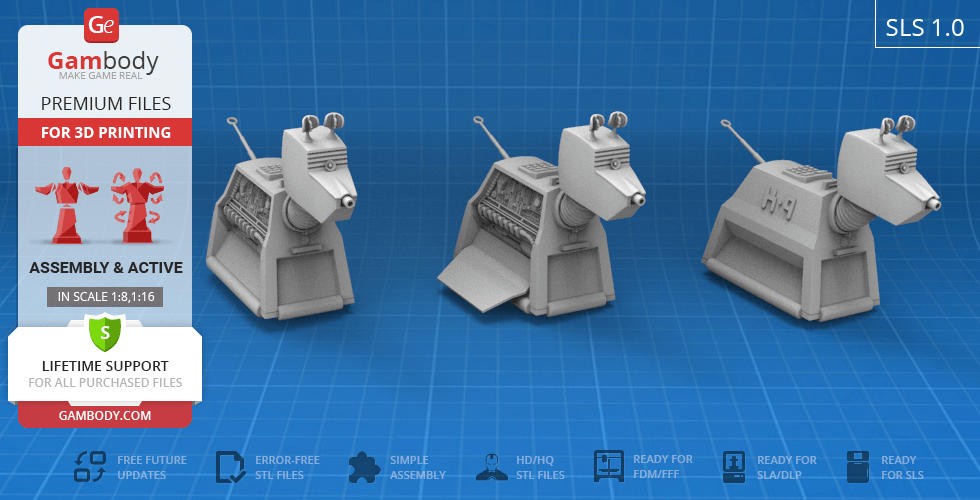

SLS version features:
- Made as a solid one-piece model;
- A printed model is 57 mm tall, 28 mm wide, 79 mm deep;

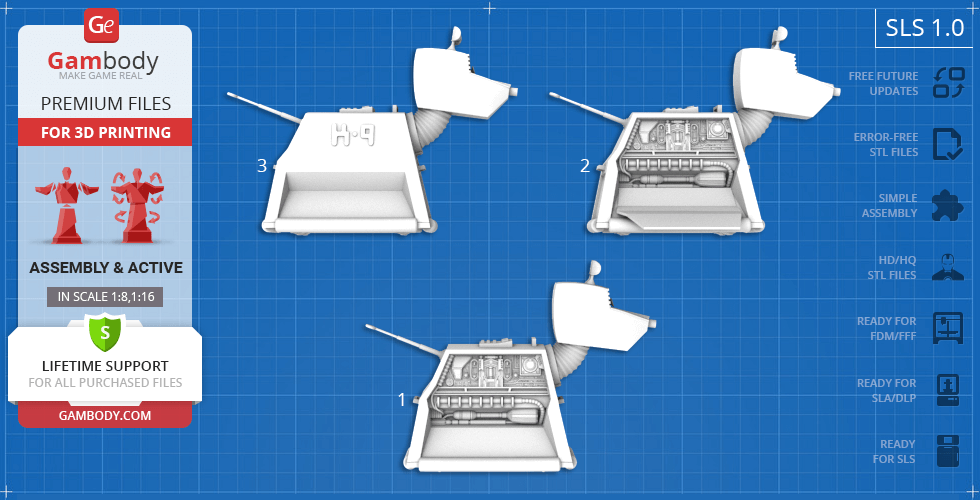

- Contains 3 parts - a one-piece model with a) the side access panel closed, b) opened, c) removed.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of K9 Mark I Model for 3D printing which consist of 32 parts;
- 3 versions of files for this model for FFF/FDM, DLP/SLA and SLS printers;
- High-poly detailed model of K9 Mark I;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of K9 Mark I for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble K9 Mark I 3D Printing Model at Gambody YouTube channel.

Also, you may like other Fiction 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

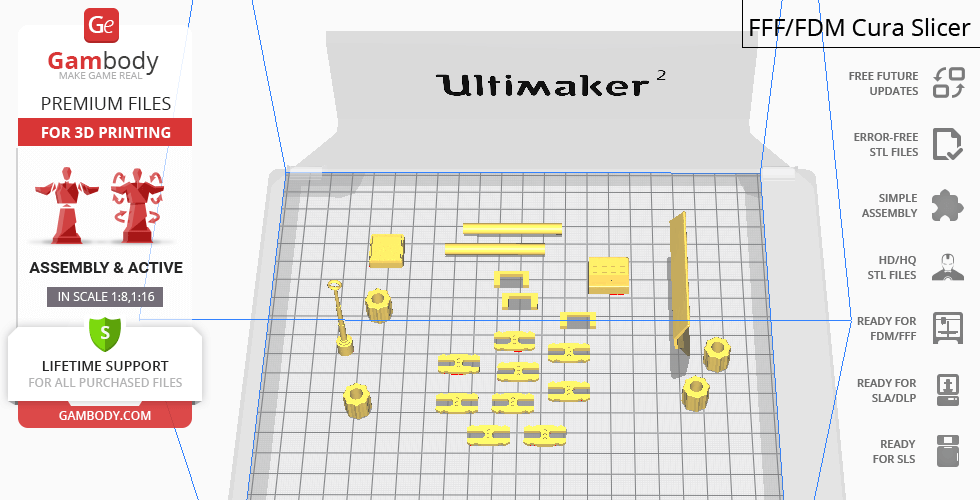

Cura printing recommendations:

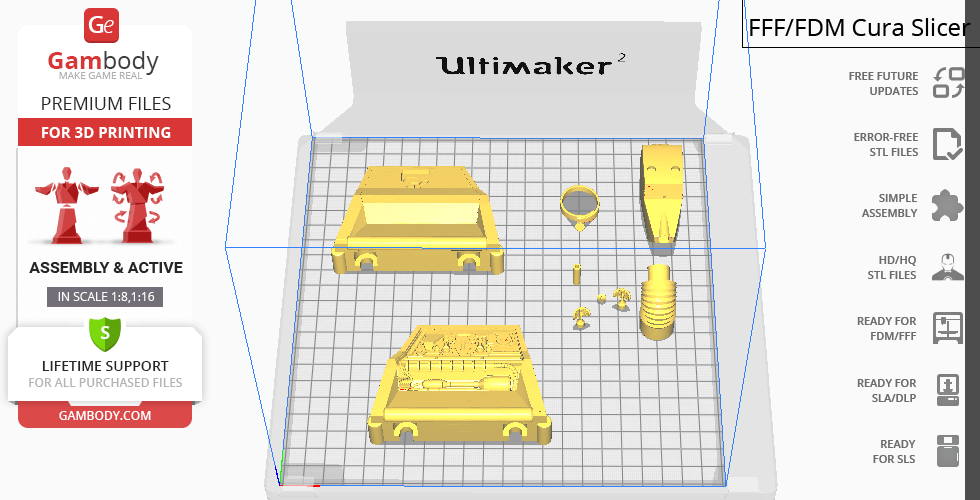

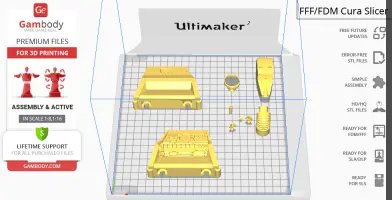

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
