Titanfall Militia Pilot and Weapons for 3D Printing

(3)
cm: 6.6 w x 9.1 d x 15.6 h
in: 2.598 w x 3.583 d x 6.142 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

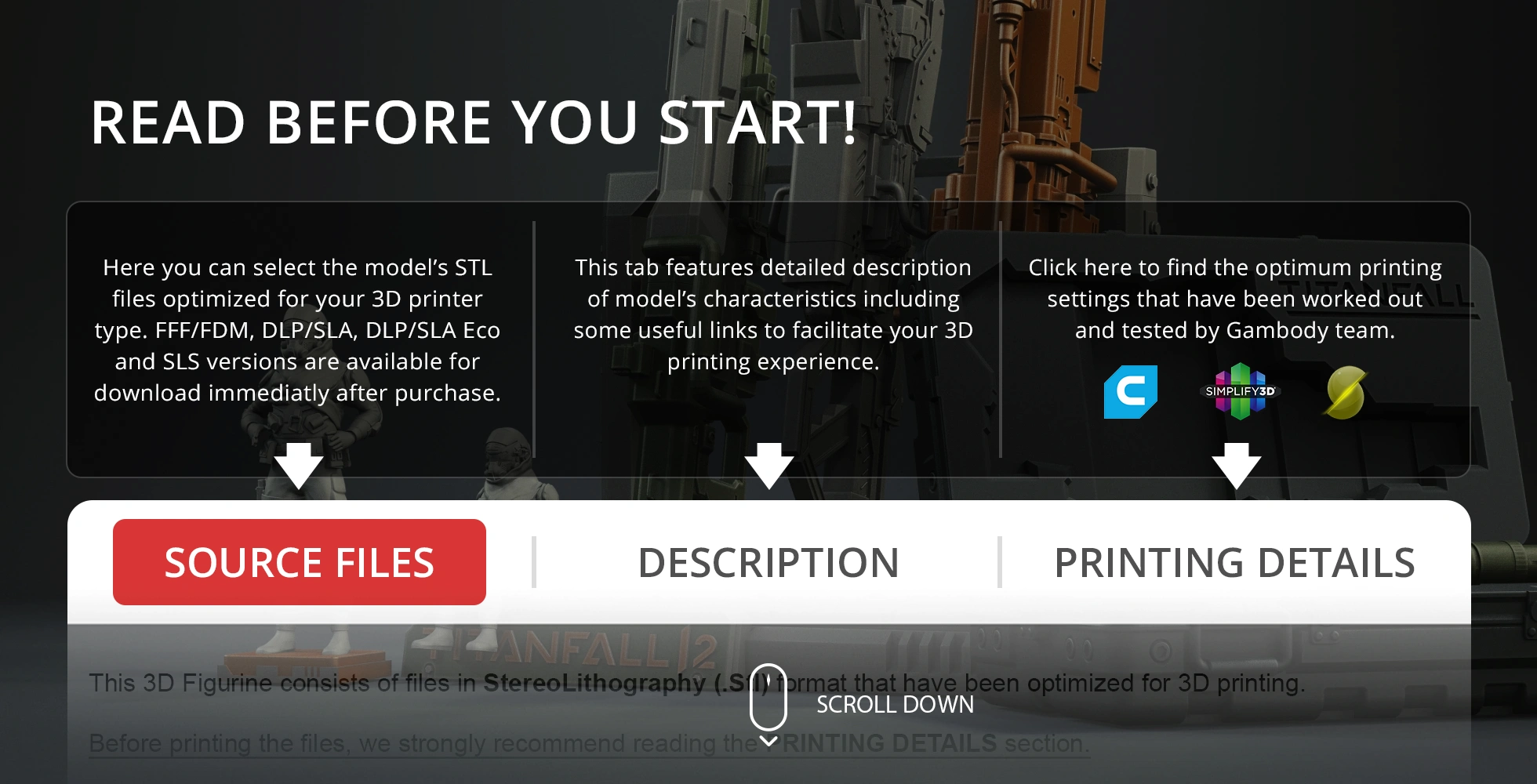

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
3 Parts_Pilot_torso (repa ired).stl
14.37 MiB 2 h 32 min 1 m 46 x 27 x 46 Download
3 Parts_Pilot_legs_sittin g (repaired).stl
7.13 MiB 2 h 53 min 2 m 31 x 47 x 35 Download
3 Parts_Pilot_legs_standi ng (repaired).stl
5.54 MiB 3 h 55 min 2 m 48 x 31 x 72 Download

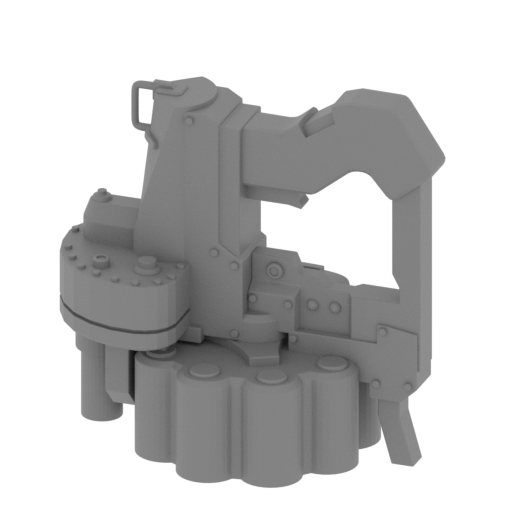

Titanfall_guns_1 (repaire d).stl
3.14 MiB 10 h 36 min 7 m 47 x 68 x 103 Download
Titanfall_guns_2 (repaire d).stl
3.70 MiB 7 h 2 min 4 m 46 x 69 x 69 Download
Titanfall_guns_3 (repaire d).stl
6.62 MiB 13 h 59 min 8 m 51 x 69 x 100 Download

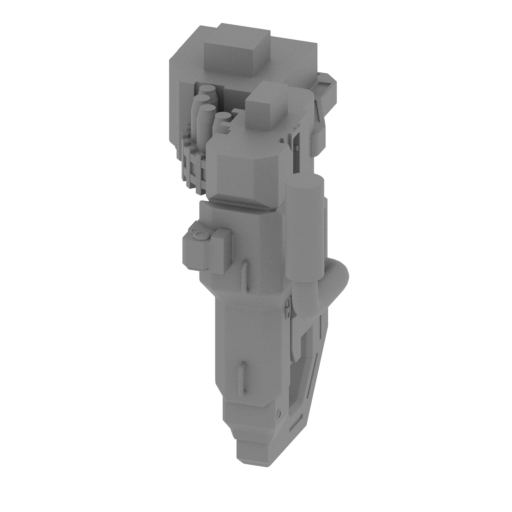

Titanfall_guns_4 (repaire d).stl
2.96 MiB 9 h 53 min 6 m 32 x 114 x 67 Download
Titanfall_guns_5 (repaire d).stl
1.73 MiB 8 h 16 min 5 m 29 x 42 x 110 Download
Titanfall_guns_6 (repaire d).stl
3.39 MiB 16 h 26 min 9 m 55 x 63 x 122 Download
Titanfall_guns_7 (repaire d).stl
3.08 MiB 9 h 58 min 6 m 51 x 108 x 64 Download
Titanfall_guns_8 (repaire d).stl
1.80 MiB 6 h 59 min 4 m 28 x 155 x 30 Download
Titanfall_guns_9 (repaire d).stl
2.49 MiB 10 h 16 min 6 m 67 x 91 x 157 Download
Titanfall_guns_10 (repair ed).stl
3.16 MiB 12 h 14 min 8 m 67 x 91 x 101 Download
solid_Titanfall_gun_1_STL .stl
8.58 MiB 22 h 42 min 15 m 48 x 70 x 158 Download
solid_Titanfall_gun_2_STL .stl
9.96 MiB 34 h 10 min 22 m 51 x 70 x 204 Download
solid_Titanfall_gun_3_STL .stl
8.78 MiB 46 h 16 min 30 m 57 x 65 x 309 Download
solid_Titanfall_gun_4_STL .stl
8.65 MiB 40 h 5 min 27 m 67 x 91 x 257 Download
...

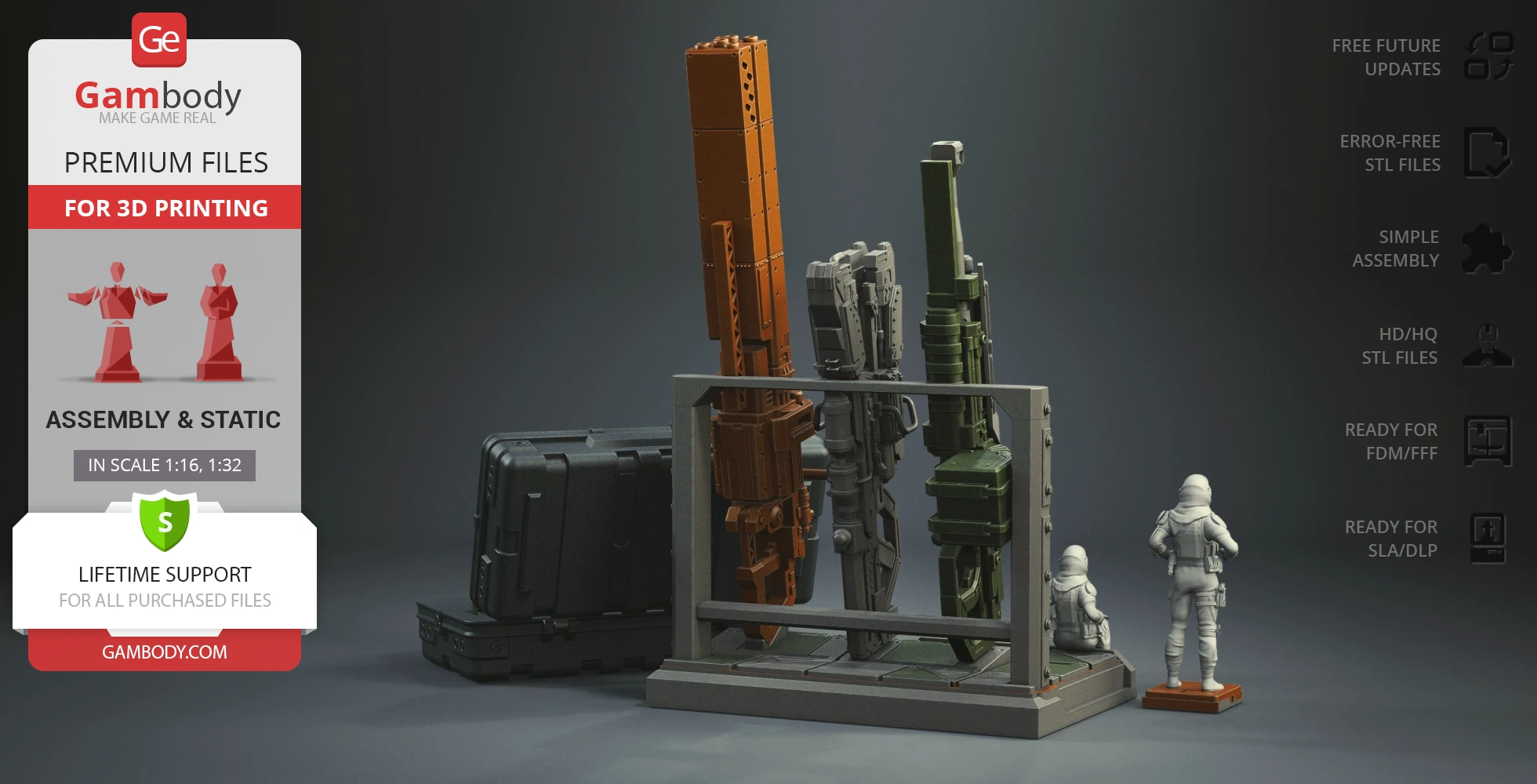

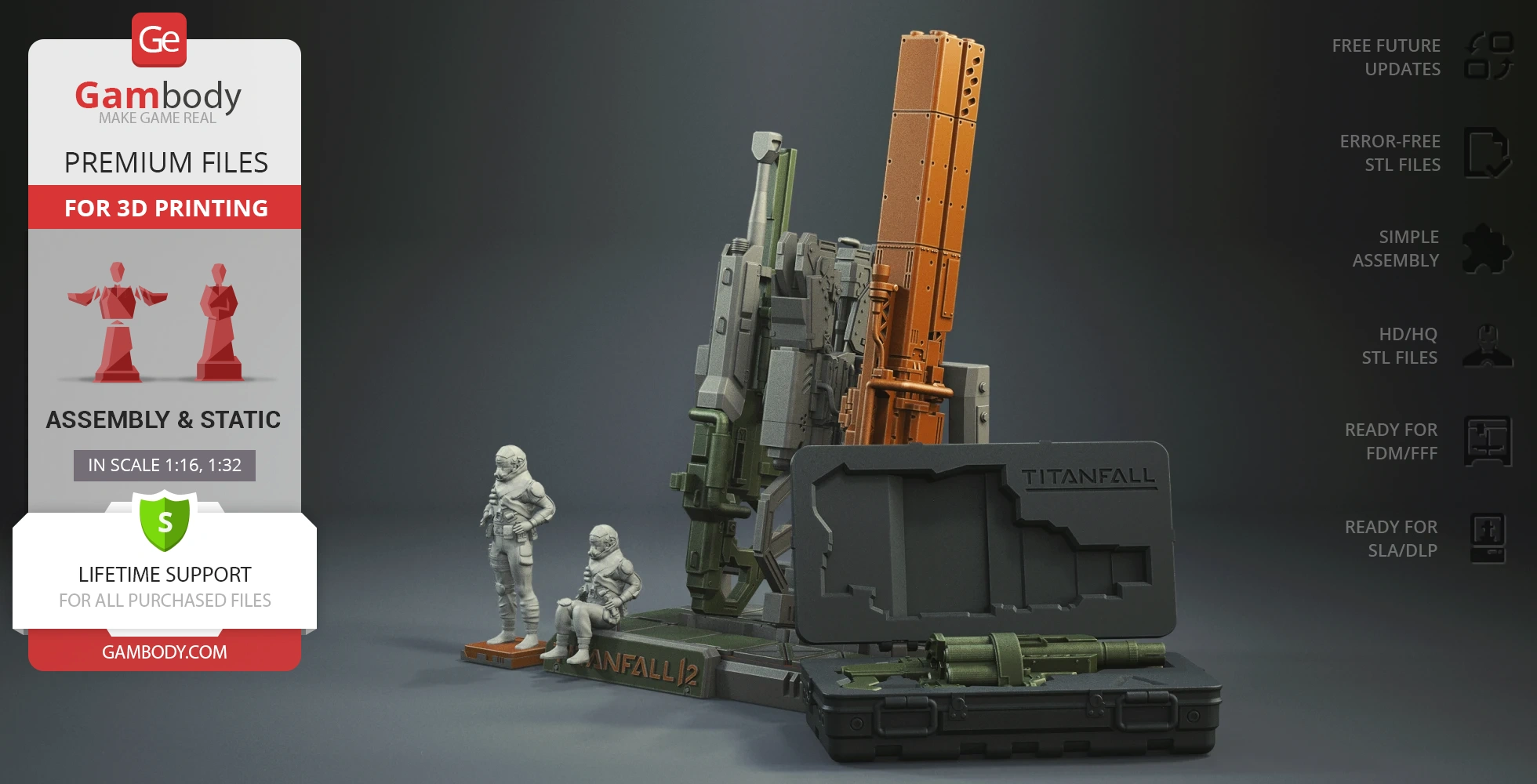

Upgrade your Titanfall Atlas 3D model with this amazing weapons and a Militia Pilot, all made ready for 3D printing.

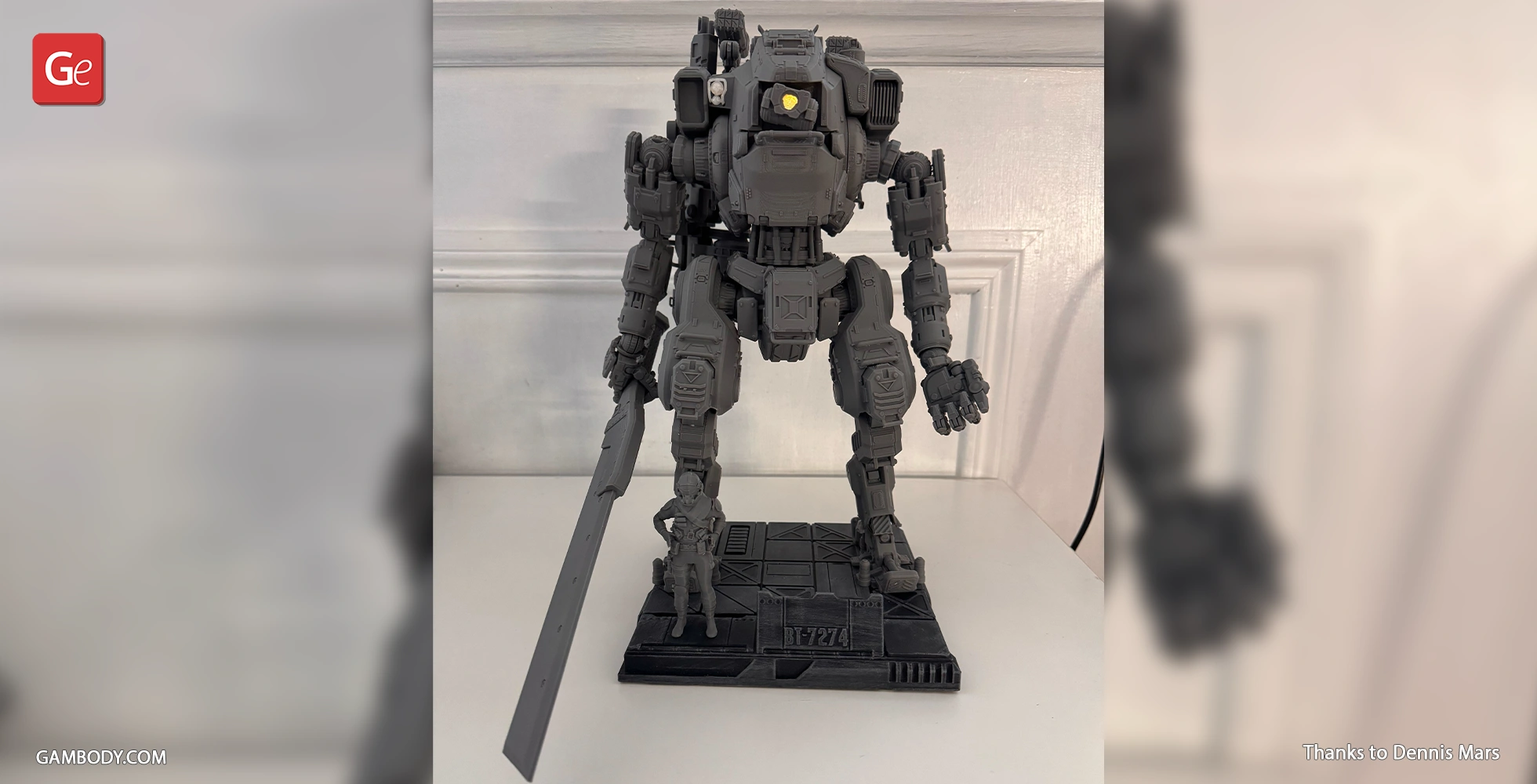

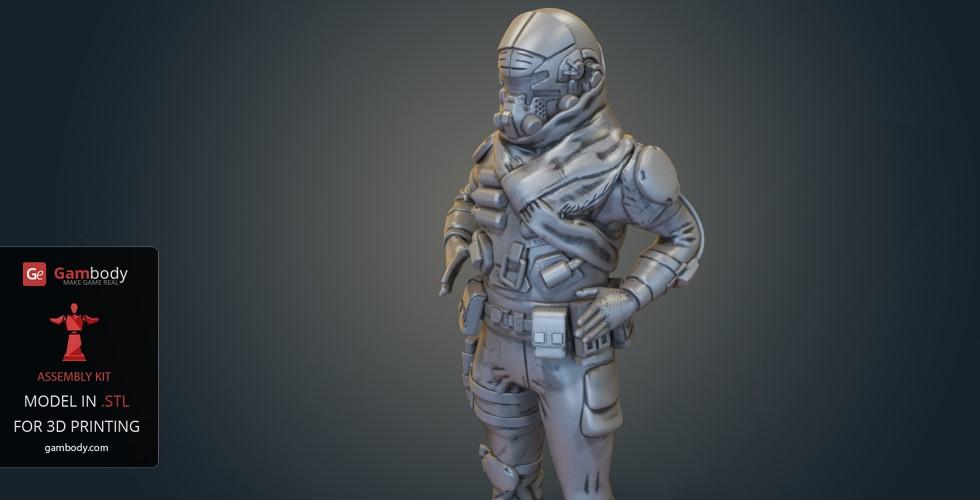

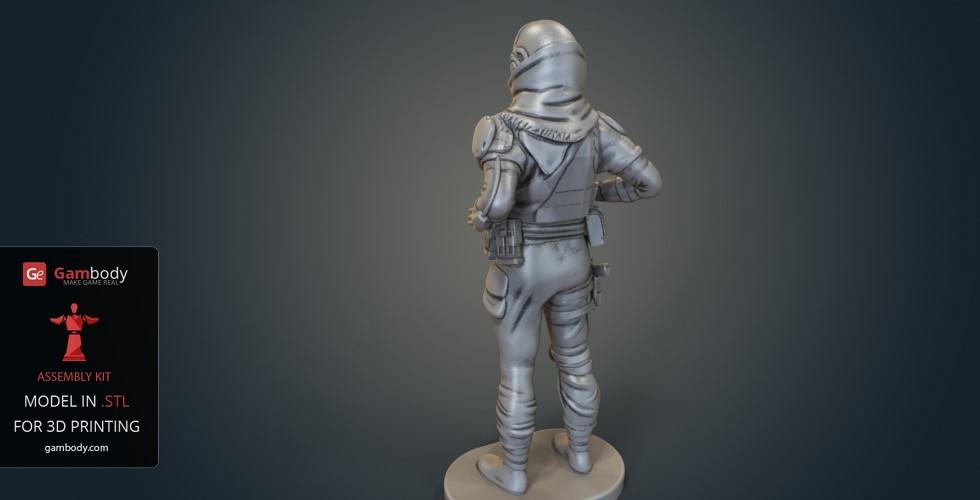

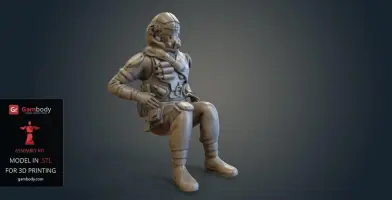

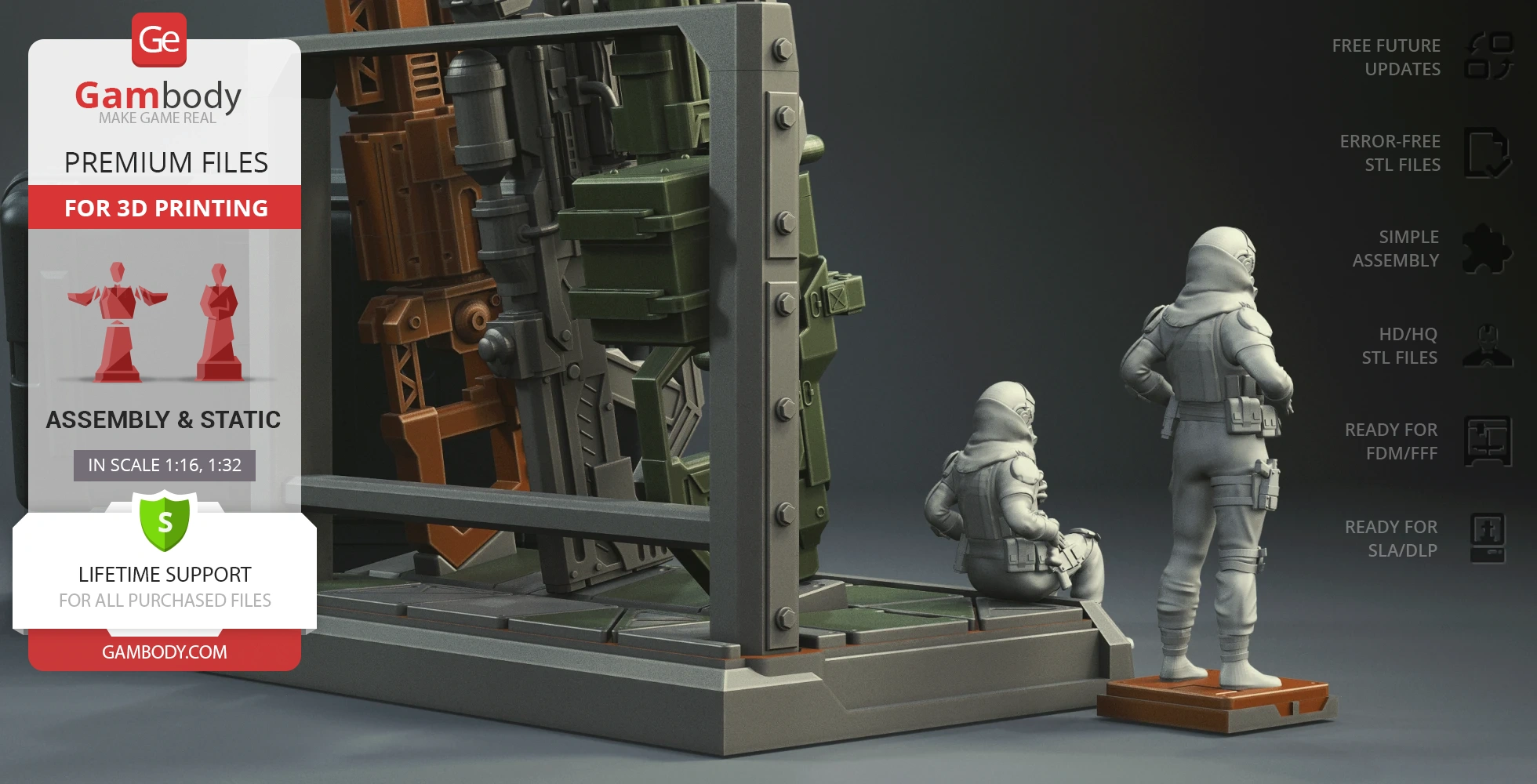

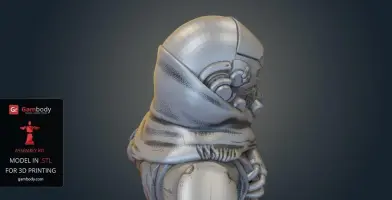

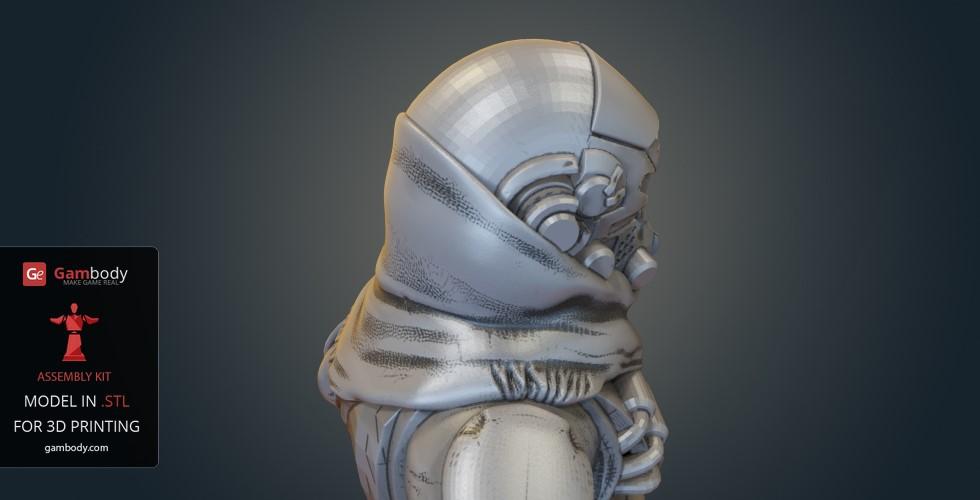

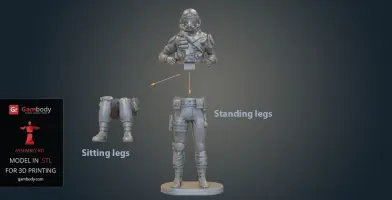

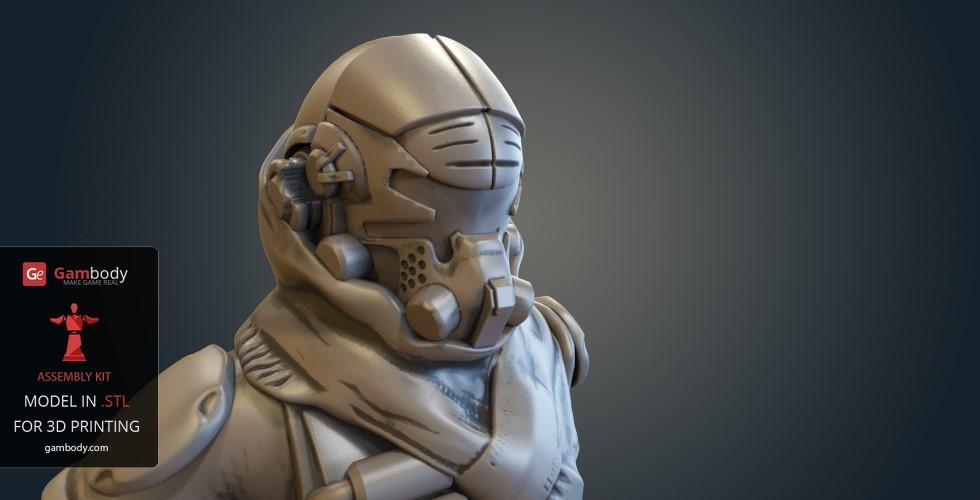

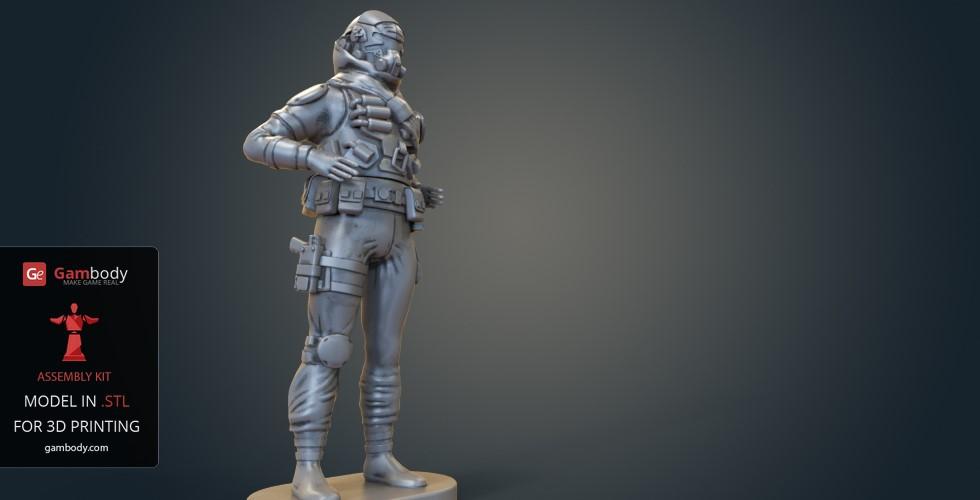

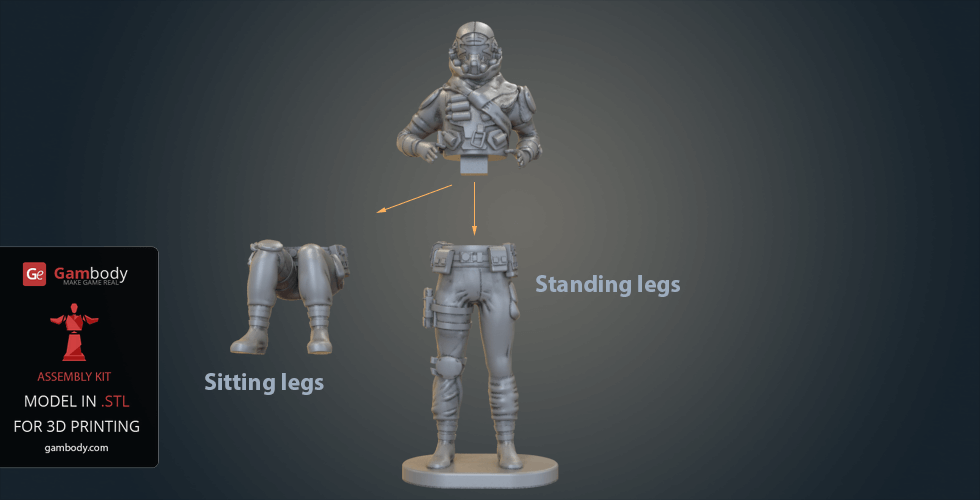

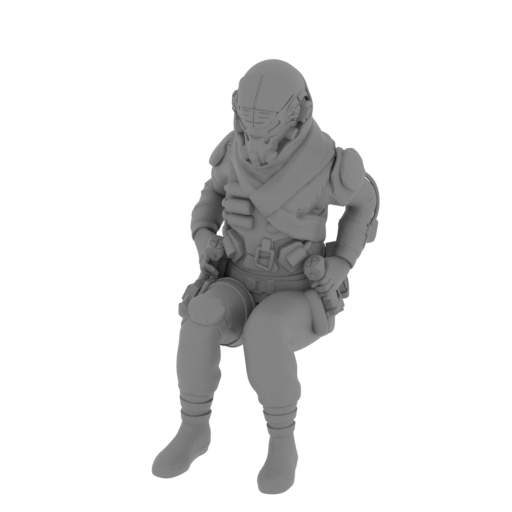

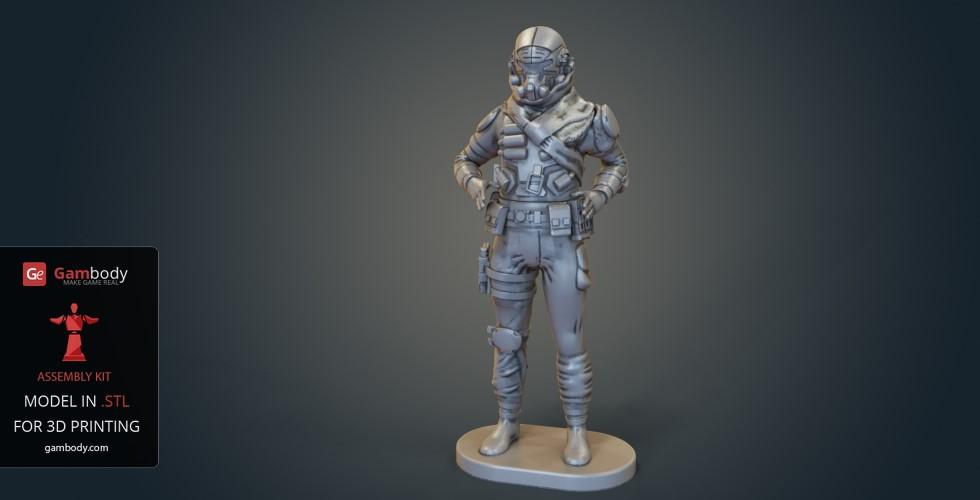

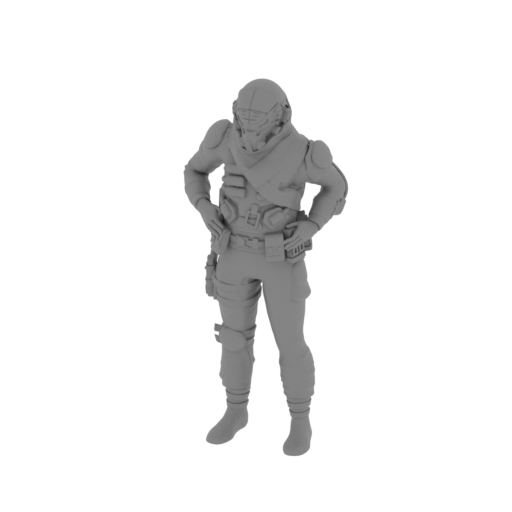

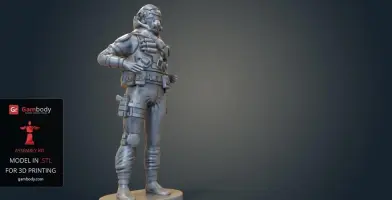

The Militia Pilot is available for 3D printing in two positions: standing and sitting. You can position him in the Atlas Titan cockpit, or you can simply let him stand next to his bipedal vehicle. The pilot figurine is broken down into 3 parts: 2 different lower body parts – for the sitting and standing position, and the upper body.

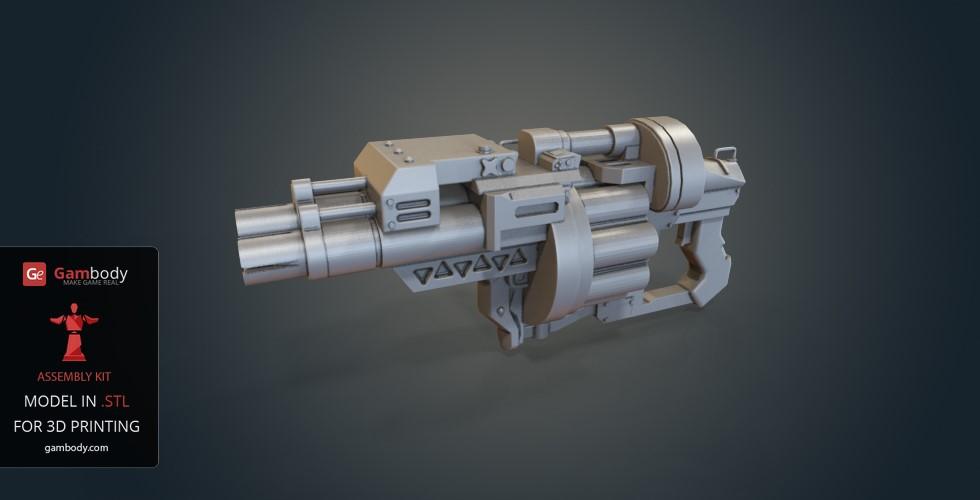

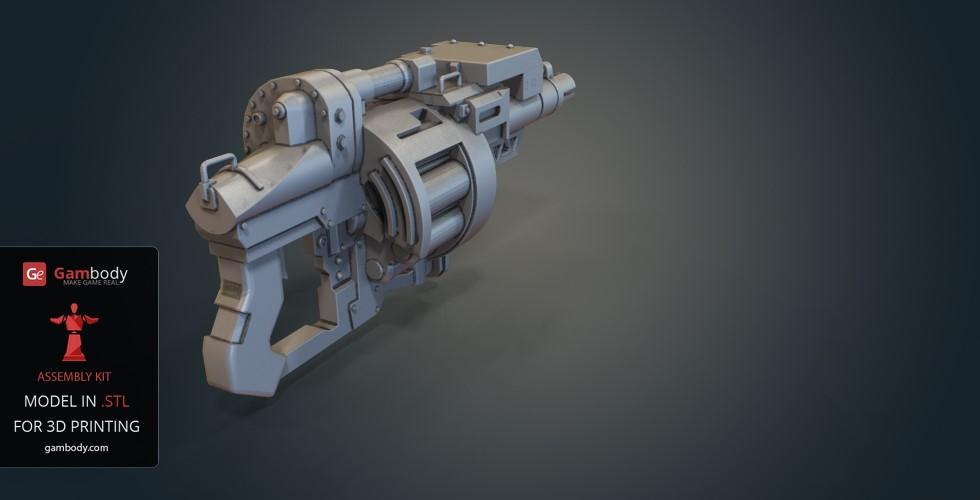

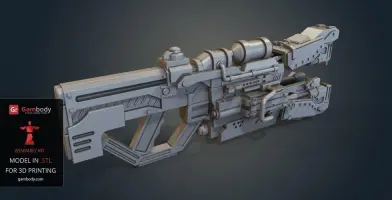

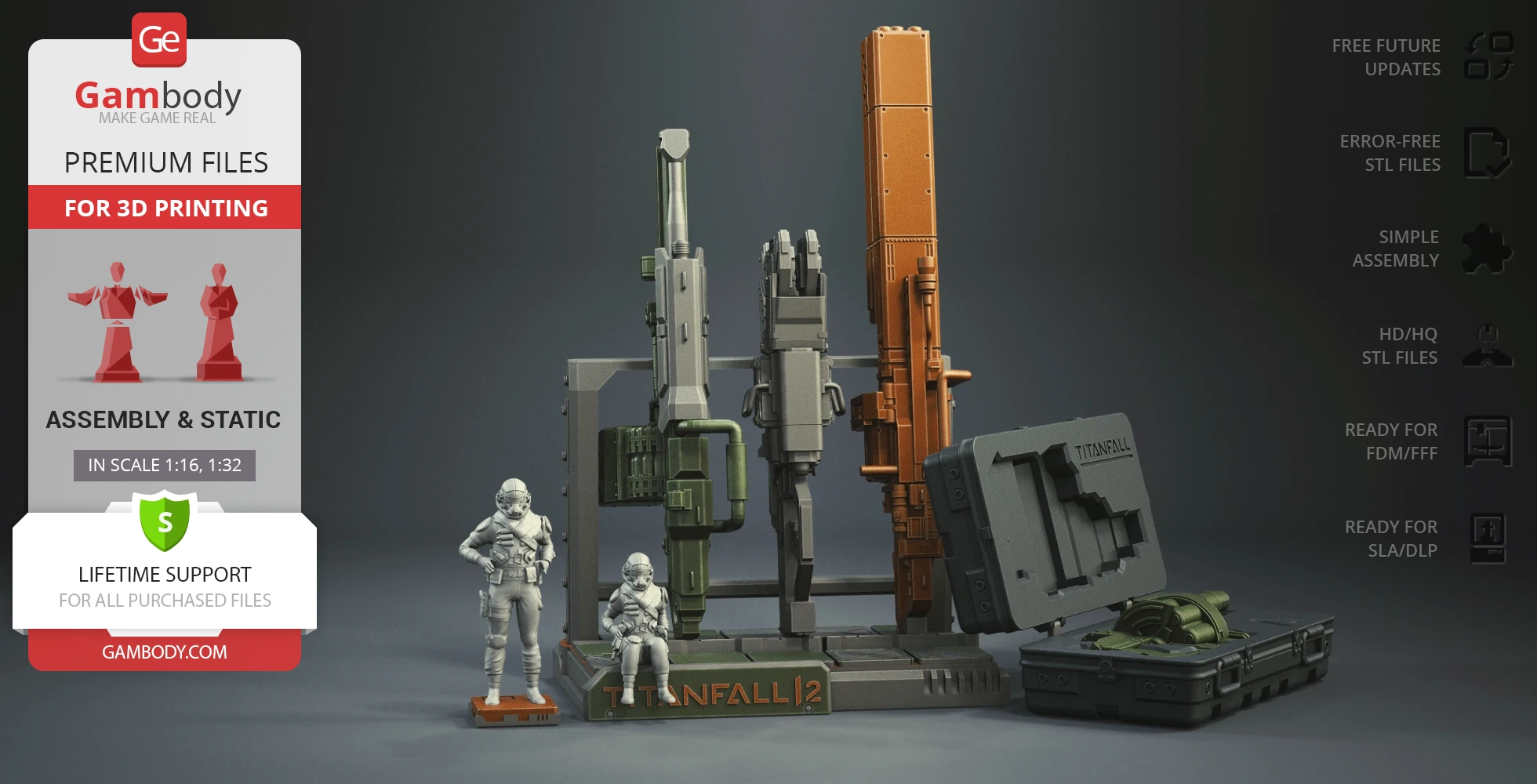

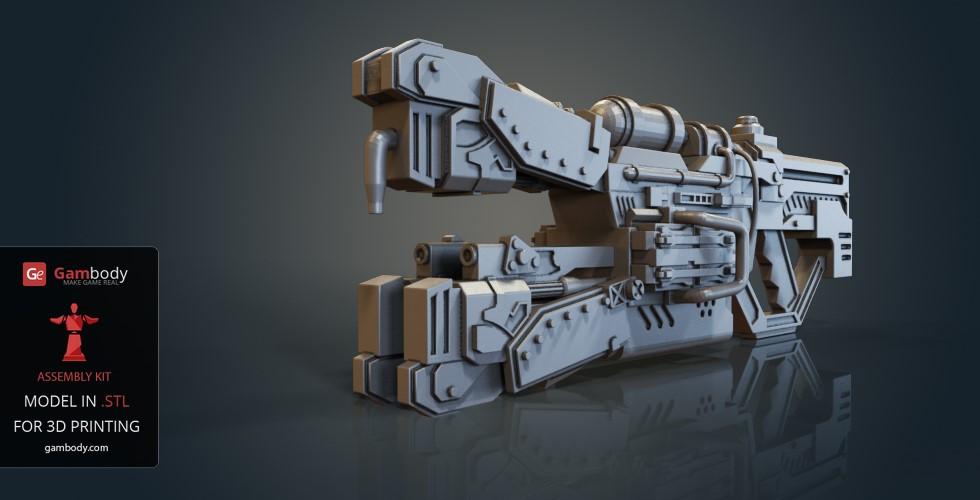

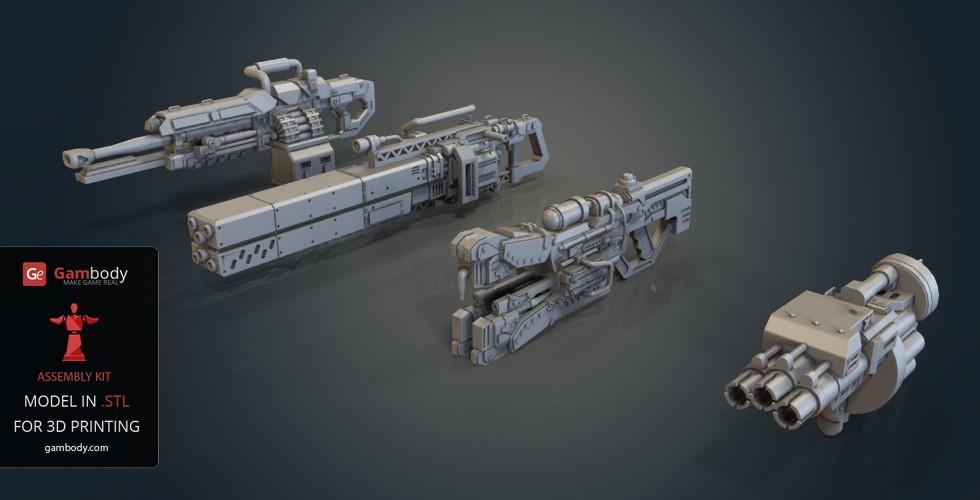

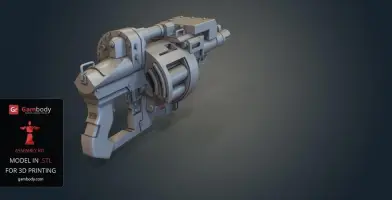

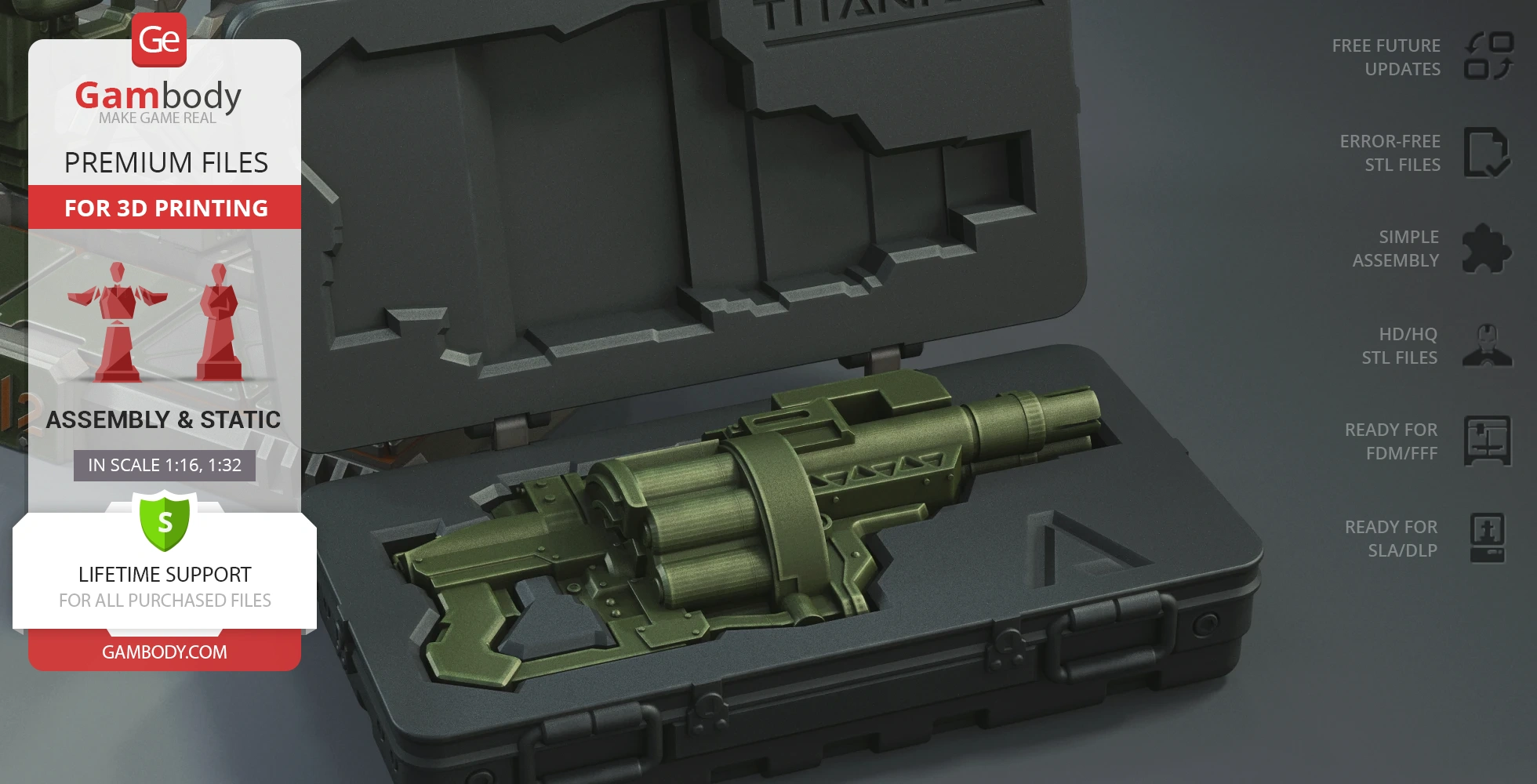

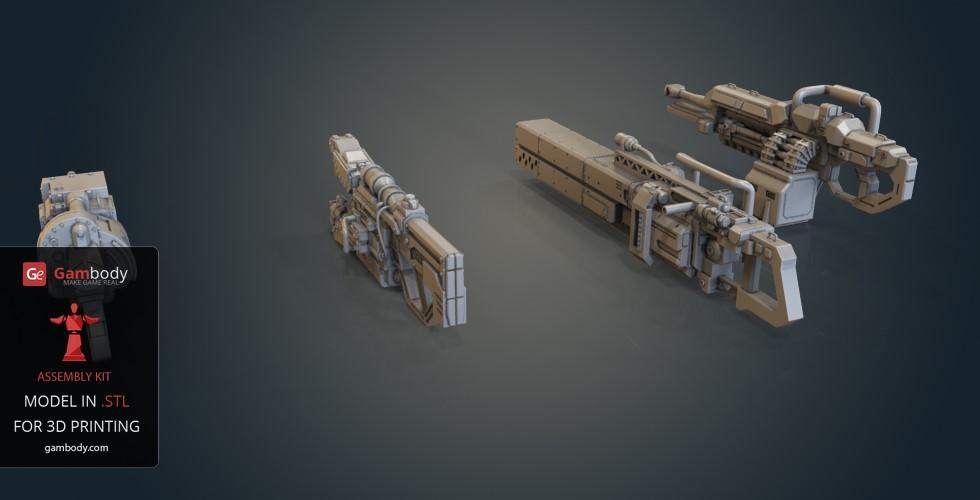

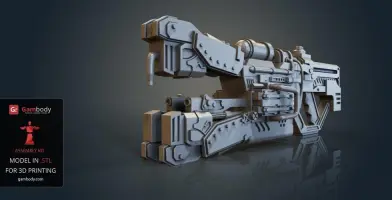

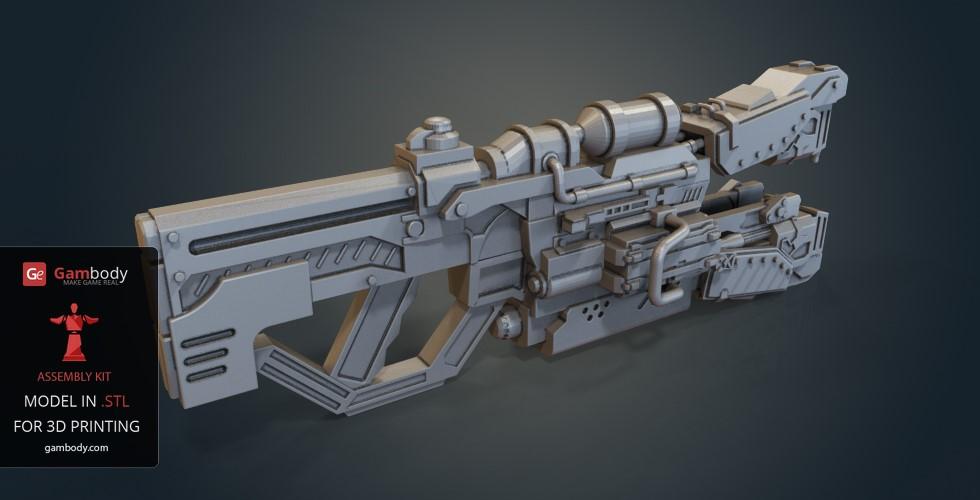

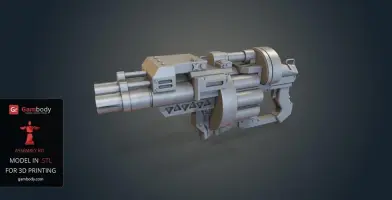

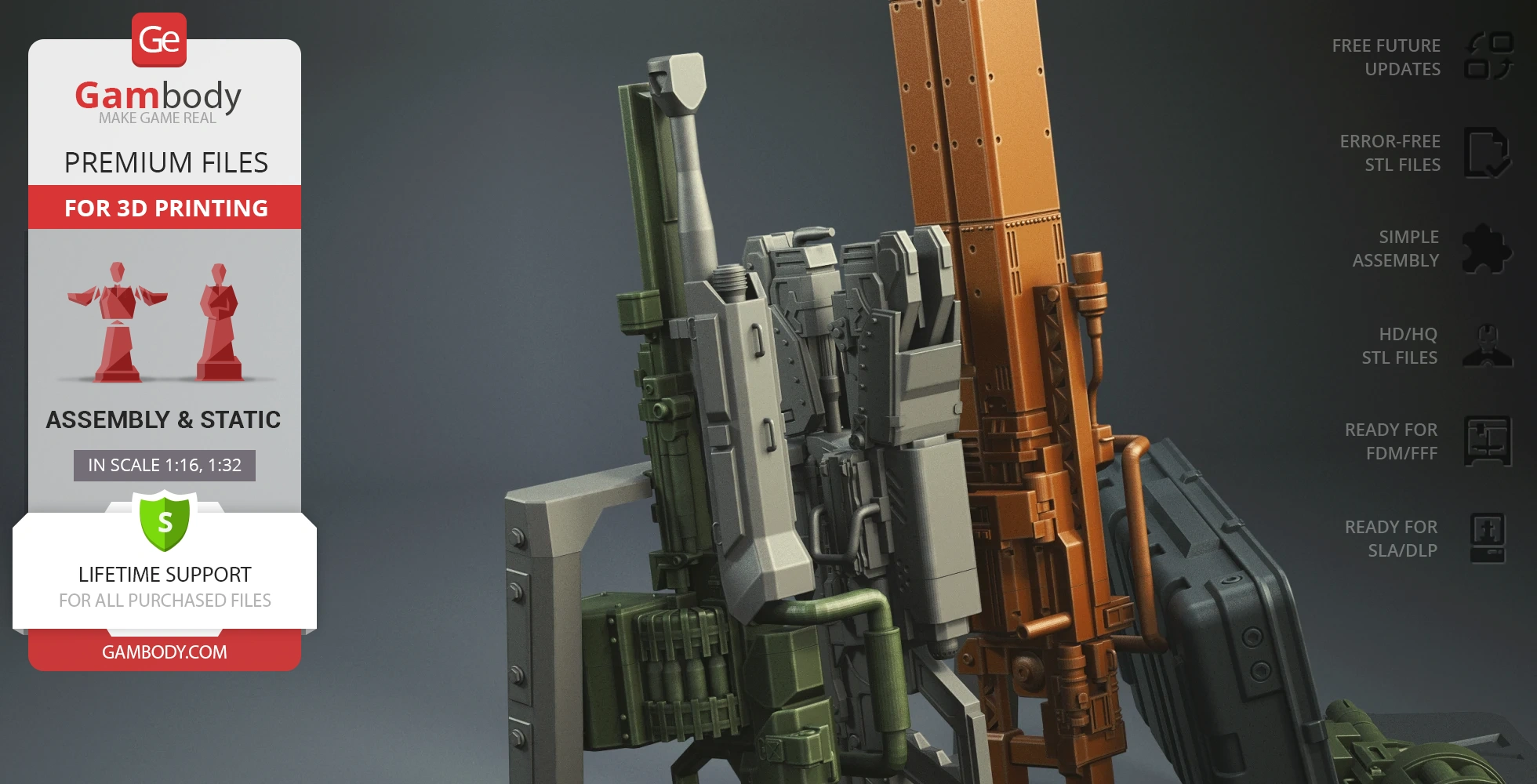

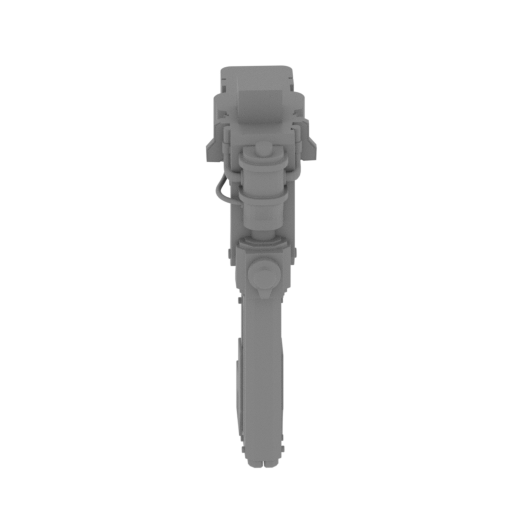

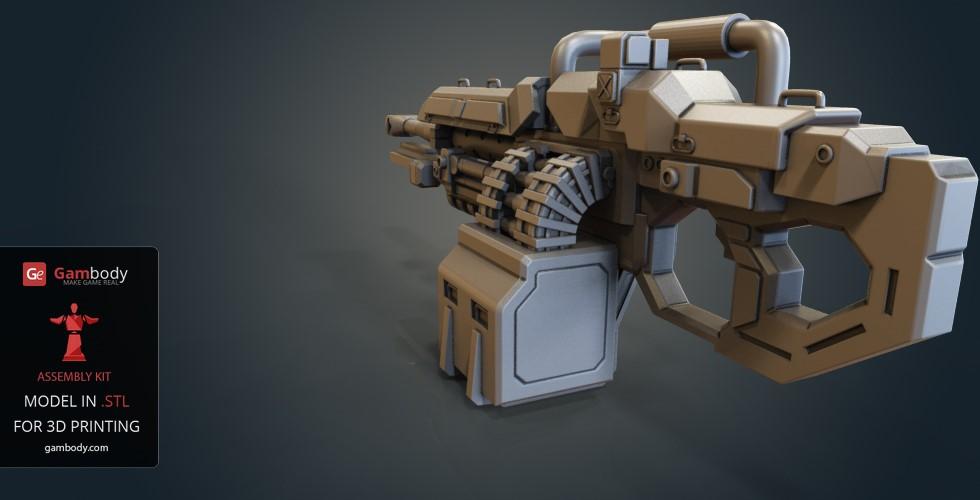

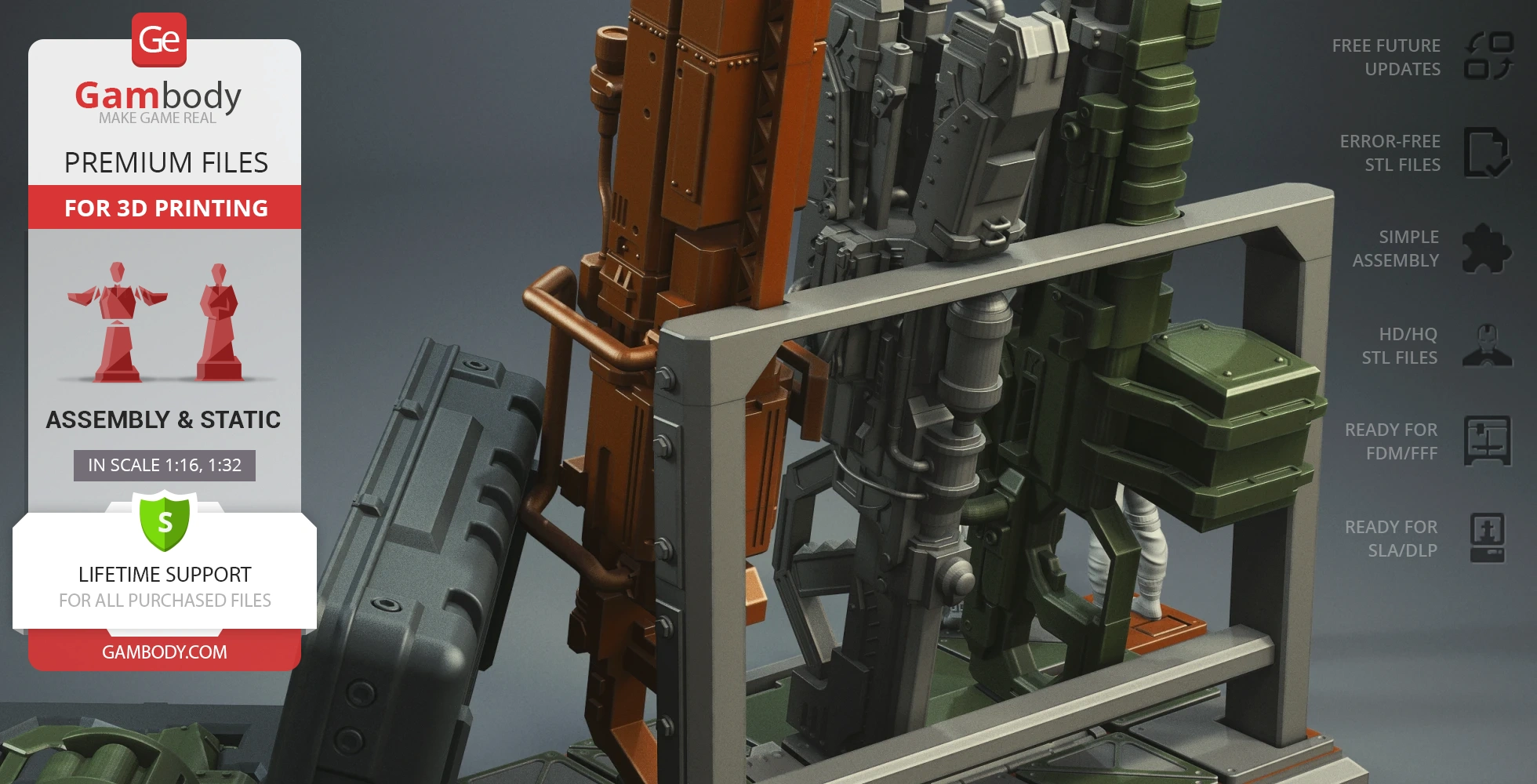

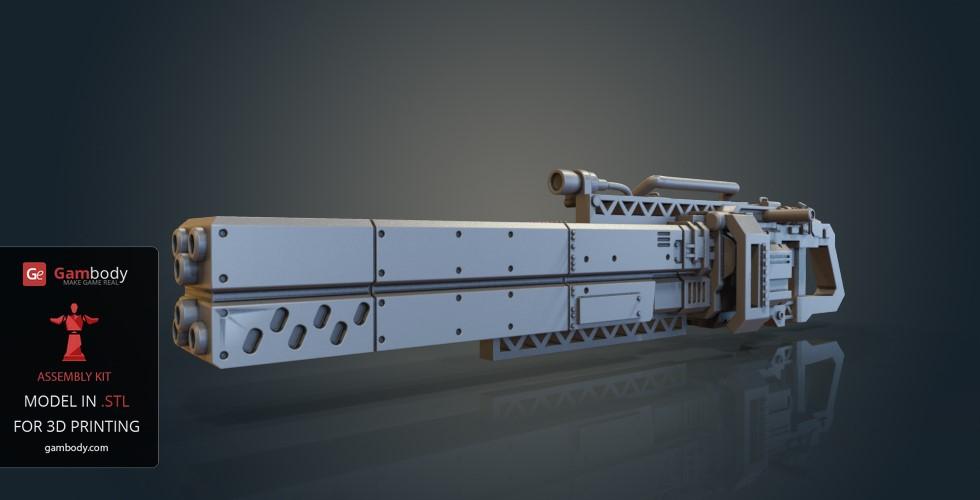

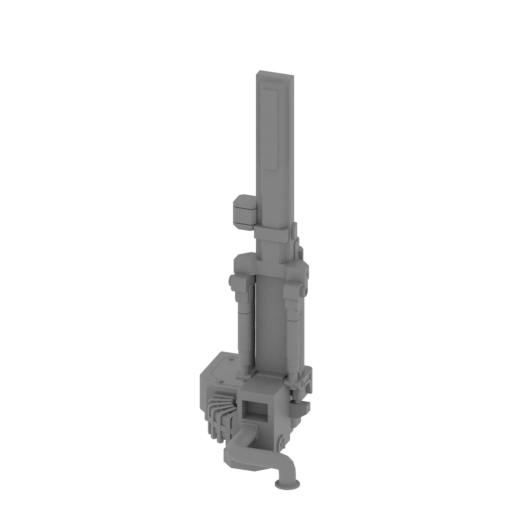

The weapons consist of 4 different rifles. The scale of the weapons is proportional to the scale of the bipedal robot.

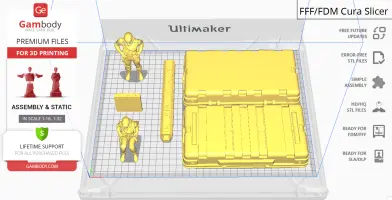

The Militia Pilot for 3D printing and the weapons STL files care created in Autodesk Maya. They are checked and corrected in Netfabb. Also, the STL files are tested in CURA 2.3.1. slicing program. Check the Printing Details tab for more printing settings and recommendations.

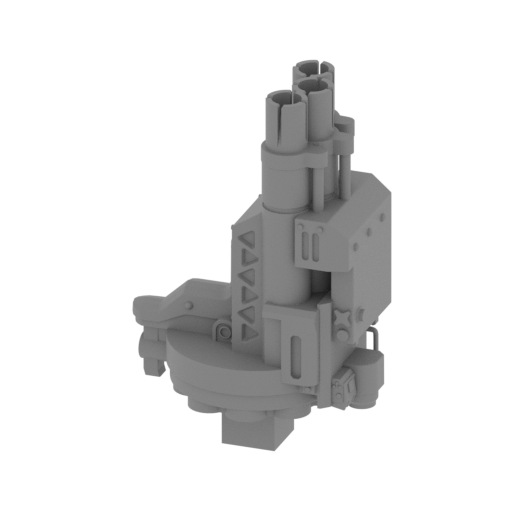

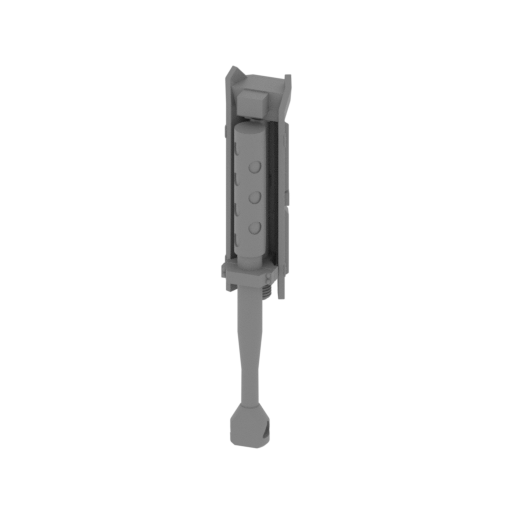

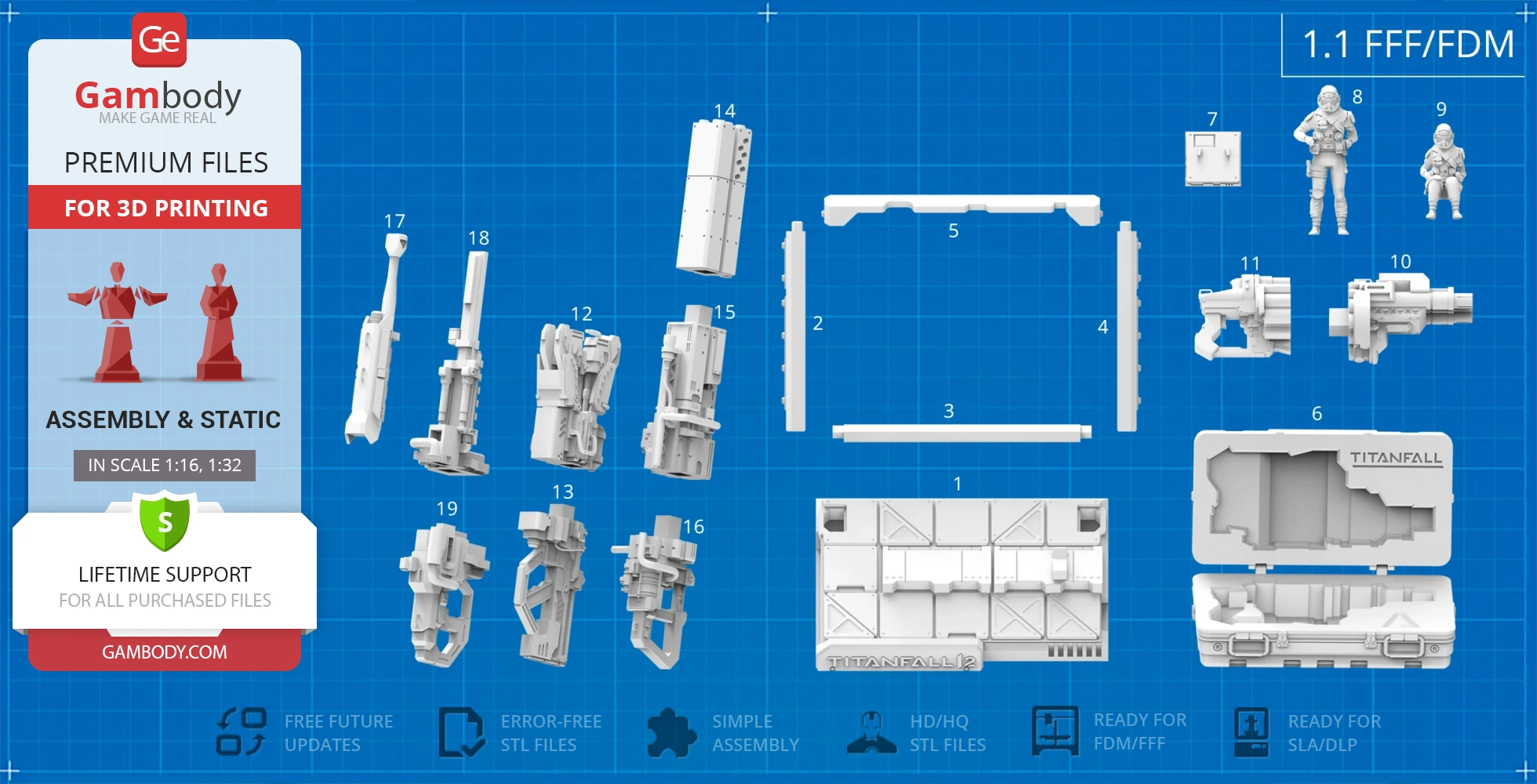

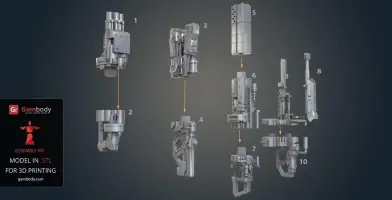

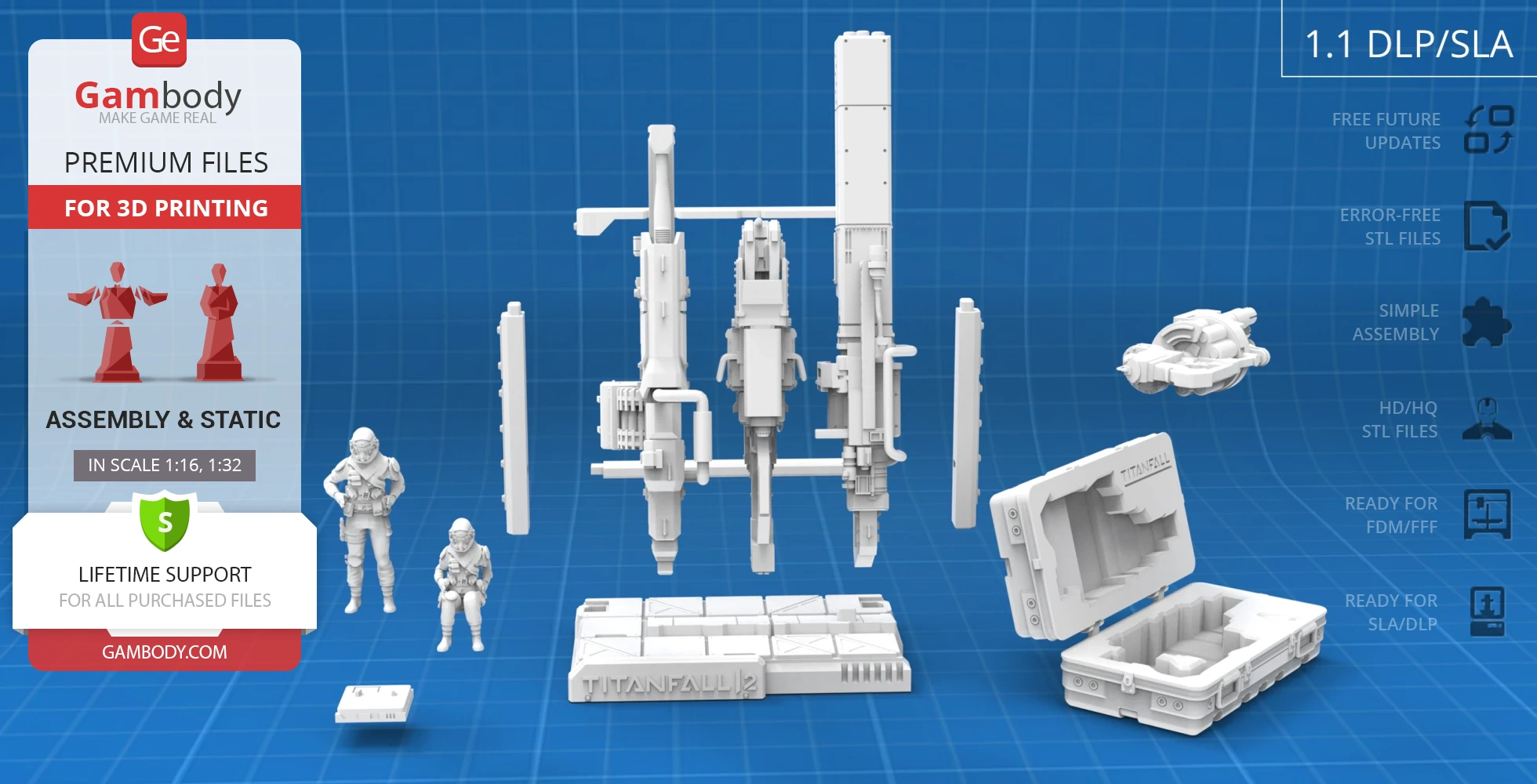

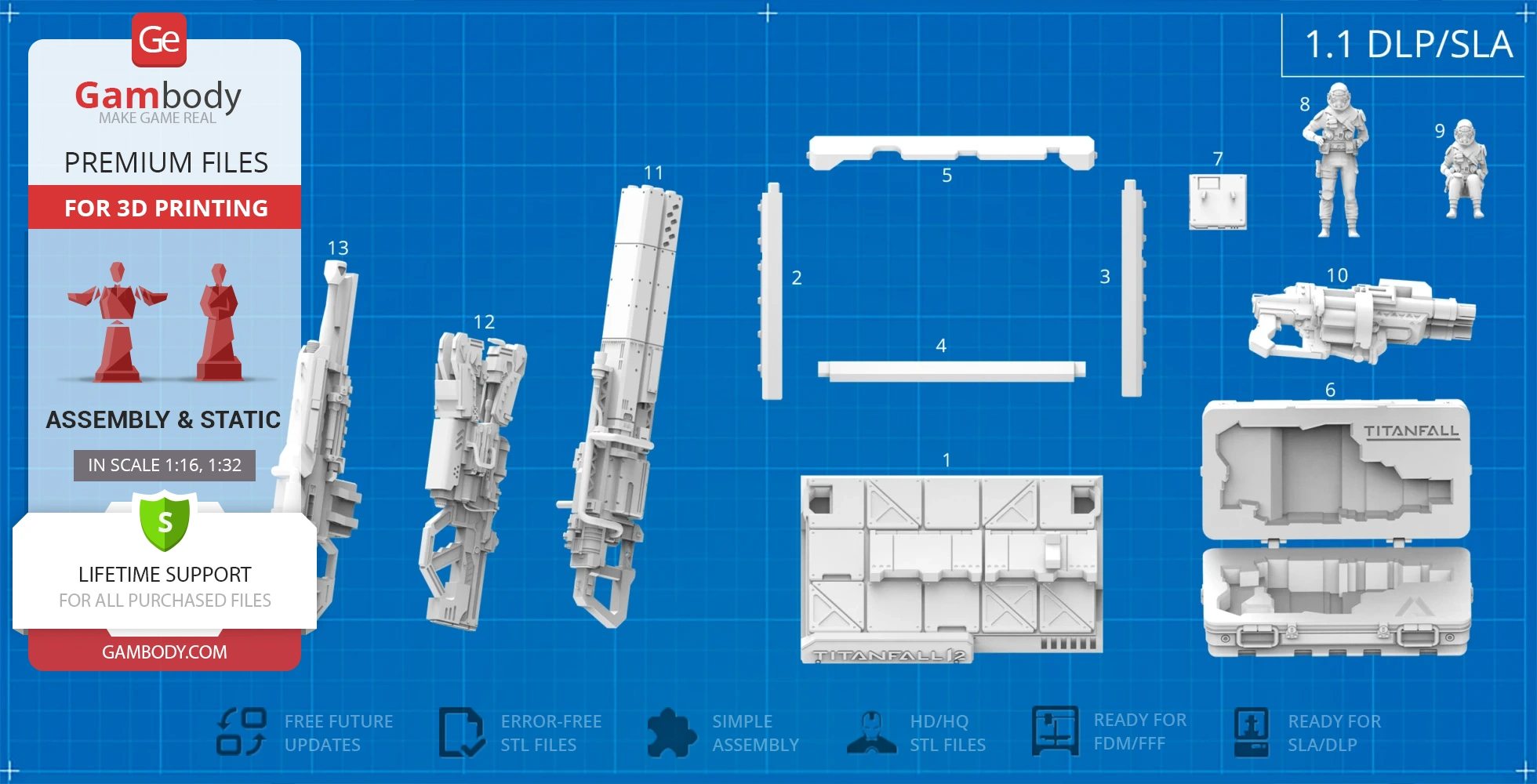

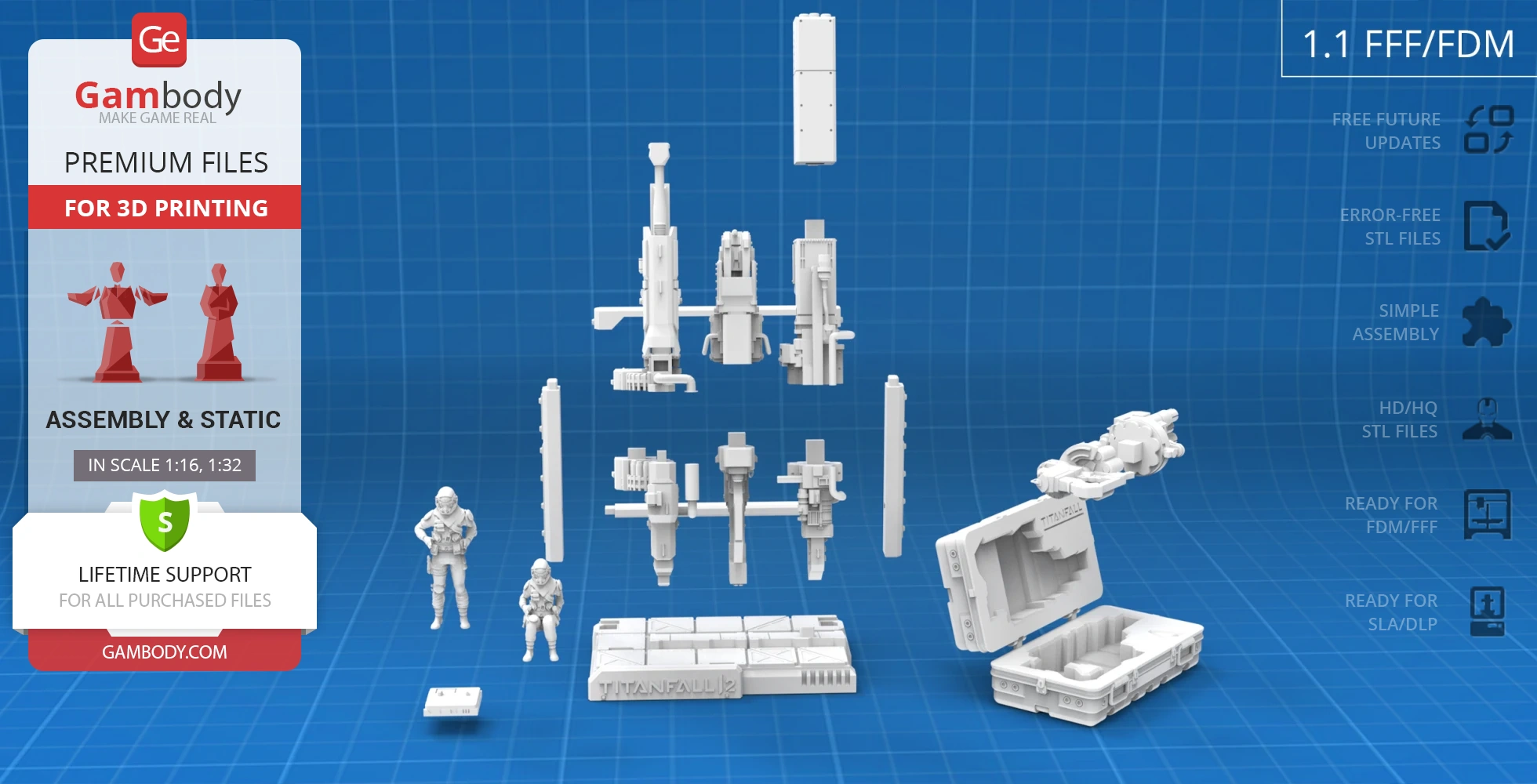

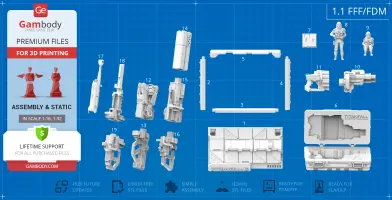

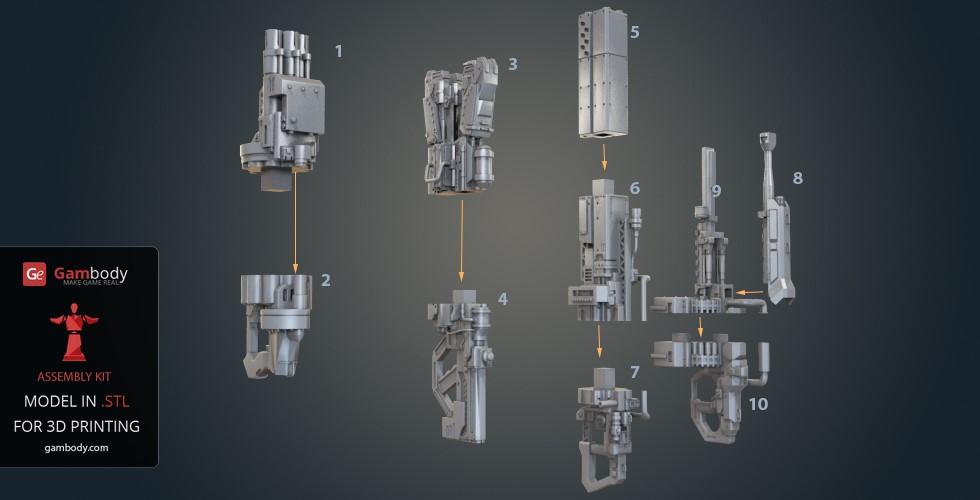

All in all, there are 13 separate parts. You will see that the weapons are also split into 2-3 parts, for easy printing and less use of support material for their 3D printing.

Buy Titanfall Militia Pilot and Weapon Pack STL files for 3D printing by clicking the green Buy button on the model’s page. Continue to checkout. Enter your PayPal or credit card details. Wait for the payment to be processed. And download the STL files in a .zip folder, together with a file with the printing recommendations.

3D print the STL files with the help of our partners, 3DHubs and Treatstock, directly from our website. Select the files you want to 3D print and click the Print with 3DHubs or Print with Treatstock button.

Generic

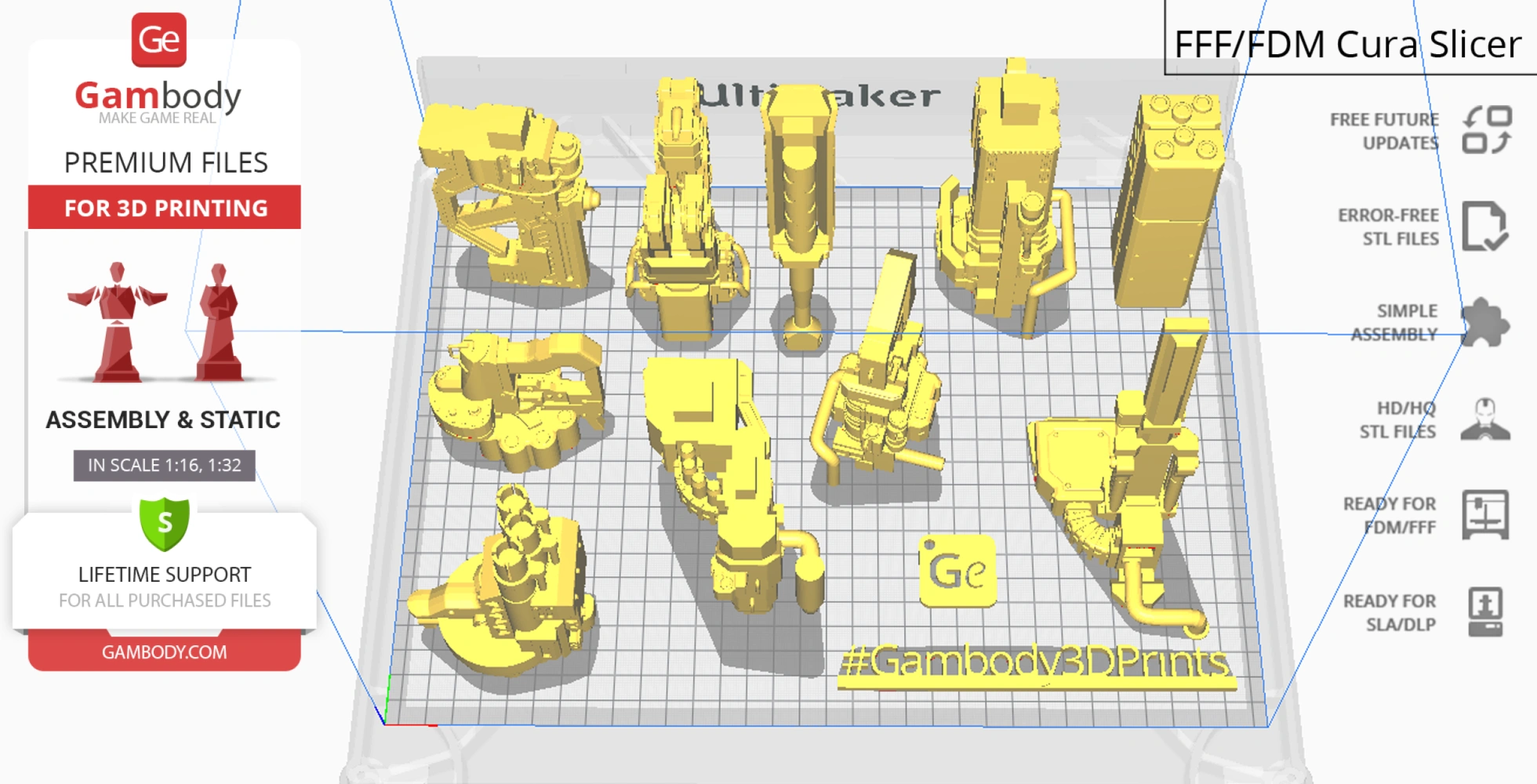

This model was tested in Cura 2.3.1. To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest

Infill

Infill Density: 25%
Infill Line Distance: 3.2 mm
Infill Pattern: Grid
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Standby Temperature: 175°C
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 60 mm/s
Infill Speed: 80 mm/s
Wall Speed: 30 mm/s
Outer Wall Speed: 30 mm/s
Inner Wall Speed: 60 mm/s
Top/Bottom Speed 15 mm/s
Support Speed: 60 mm/s
Support Infill Speed: 60 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 15 mm/s
Initial Layer Print Speed: 15 mm/s
Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed 15 mm/s
Maximum Z Speed: 0 mm/s

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm

Cooling

Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 30°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 30 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.1 mm
Support Top Distance: 0.1 mm
Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 20
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Experimental

Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
