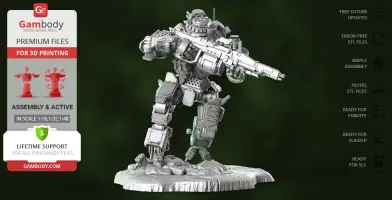

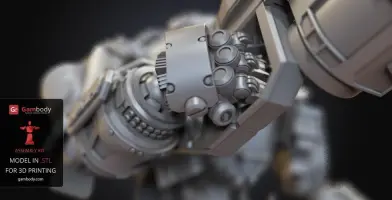

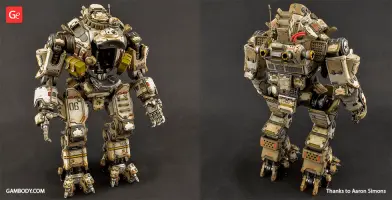

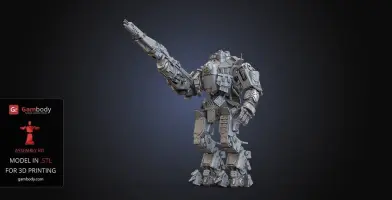

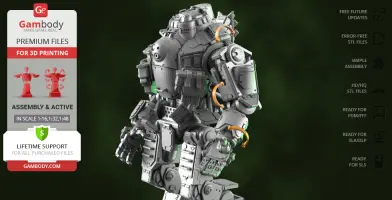

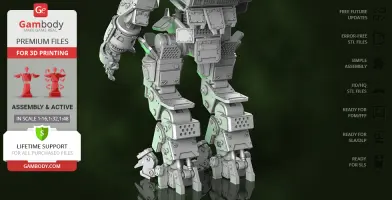

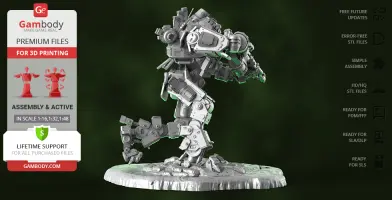

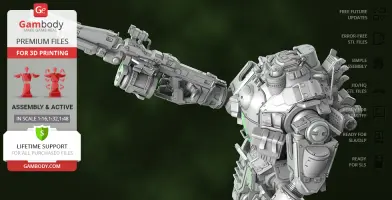

Atlas Titanfall 3D Printing Model | Assembly + Action

(15)
cm: 24.2 w x 20 d x 40.6 h
in: 9.528 w x 7.874 d x 15.984 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Atlas Titanfall 3D Printing Model comes in 6 versions for each 3D printer type (FFF/FDM, DLP/SLA, and SLS). Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

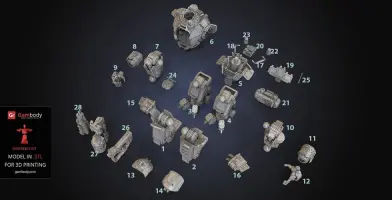

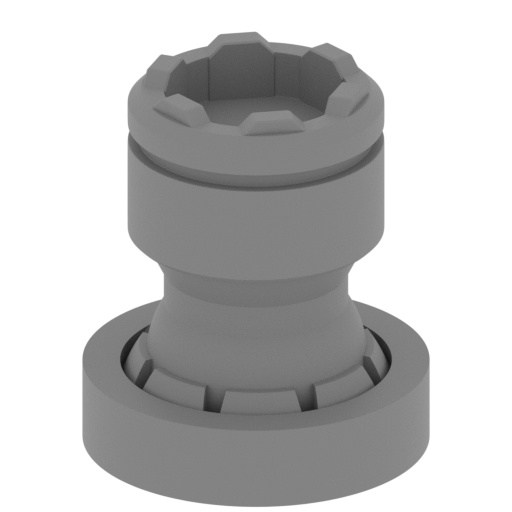

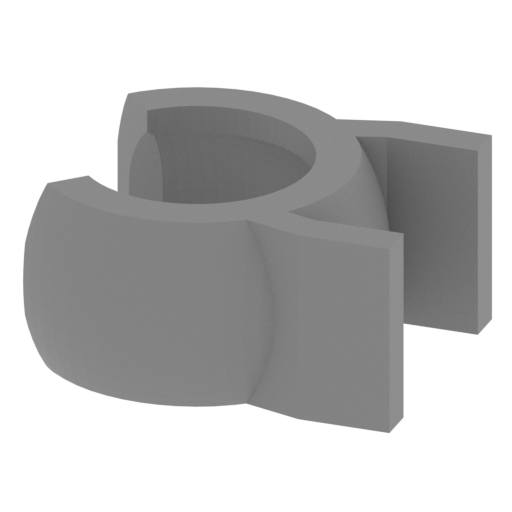

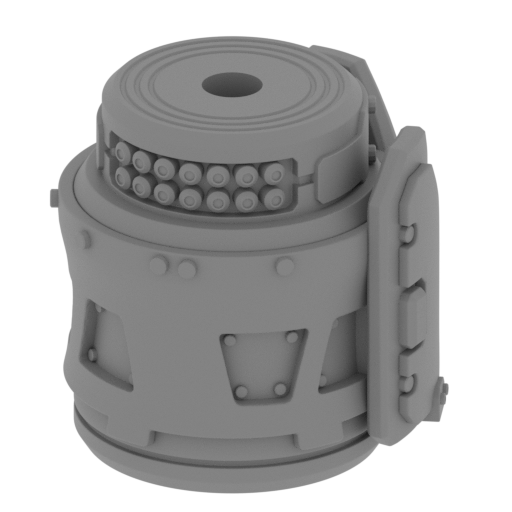

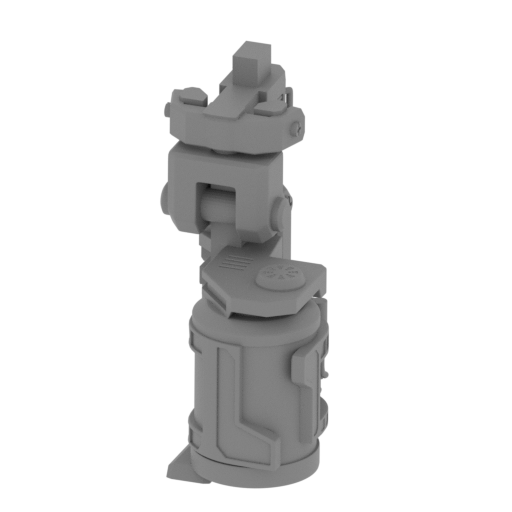

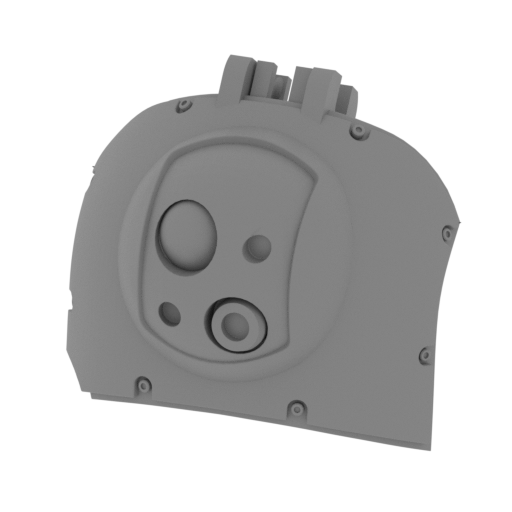

File Name File Size Time / Filament Object Size
(x/y/z mm)

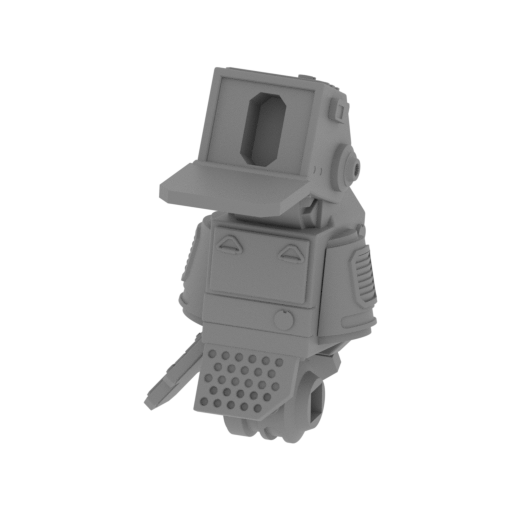

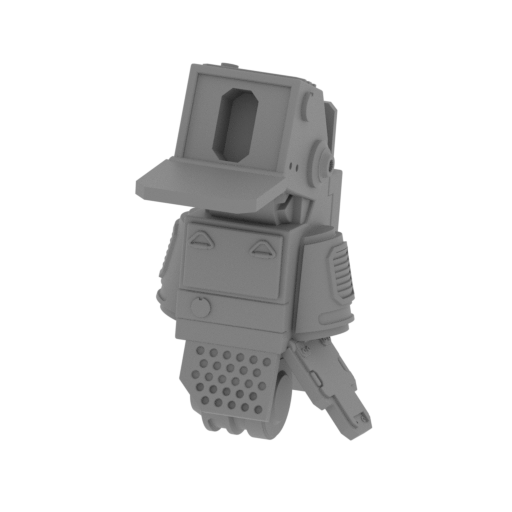

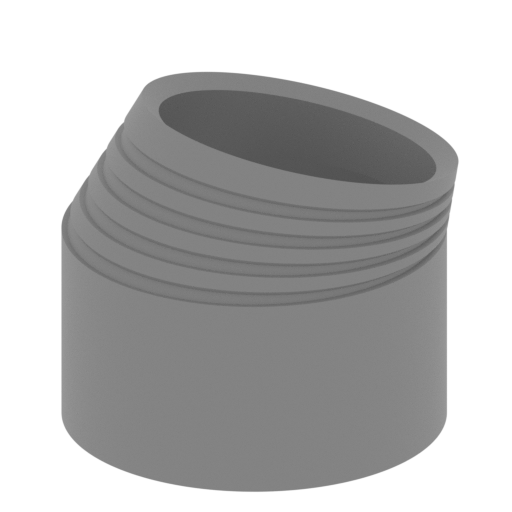

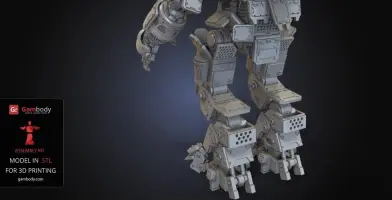

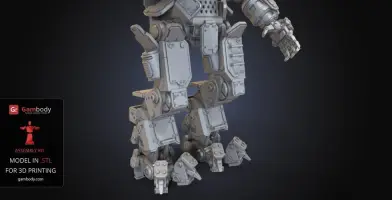

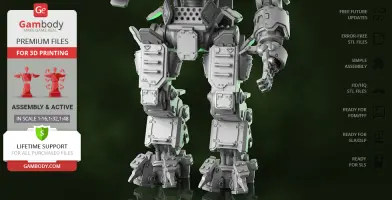

(1)Titanfall_atlas_r_Uppe r_leg (repaired).stl
12.04 MiB 19 h 47 min 13 m 65 x 85 x 111 Download

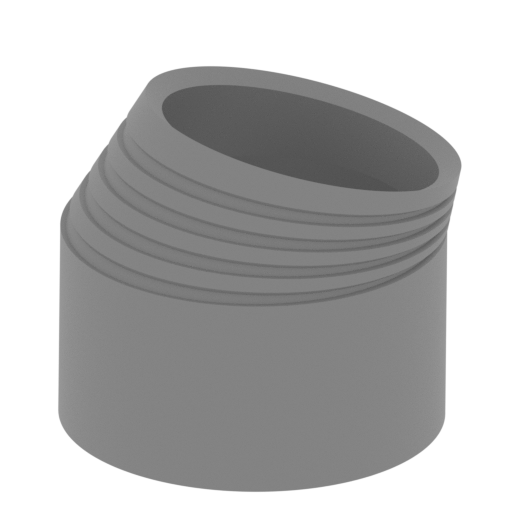

(2)Titanfall_atlas_l_uppe r_leg (repaired).stl
12.13 MiB 20 h 24 min 13 m 65 x 85 x 111 Download

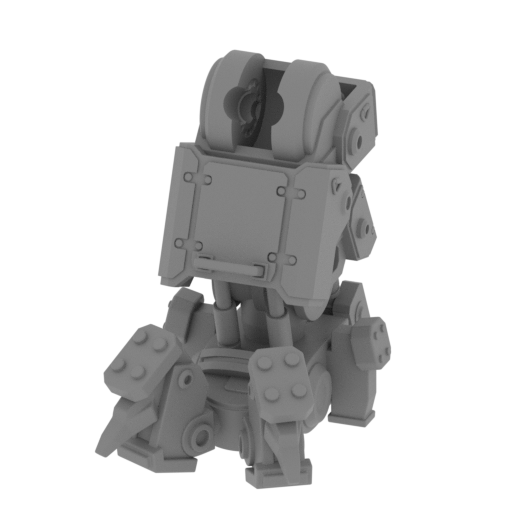

(3)Titanfall_atlas_r_lowe r_leg (repaired).stl
9.28 MiB 22 h 37 min 13 m 62 x 105 x 106 Download
(4)Titanfall_atlas_l_lowe r_leg (repaired).stl
9.28 MiB 22 h 34 min 13 m 62 x 105 x 106 Download

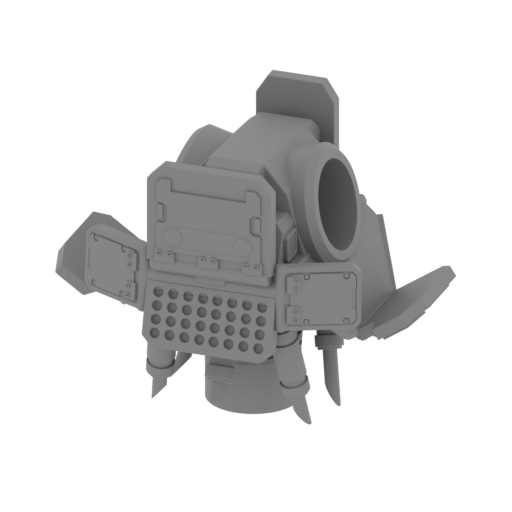

(5)Titanfall_atlas_lower_ body (repaired).stl
14.82 MiB 23 h 55 min 15 m 108 x 81 x 84 Download

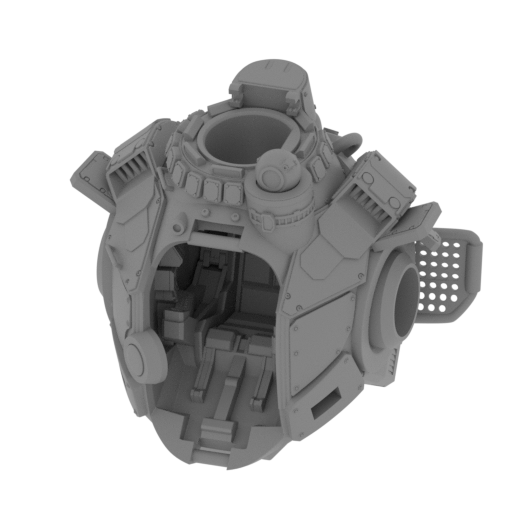

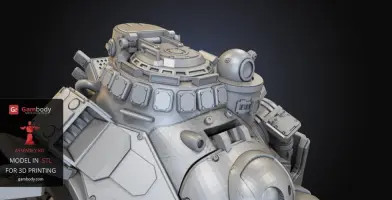

(6)Titanfall_atlas_torso (repaired).stl
37.17 MiB 64 h 17 min 40 m 133 x 107 x 124 Download

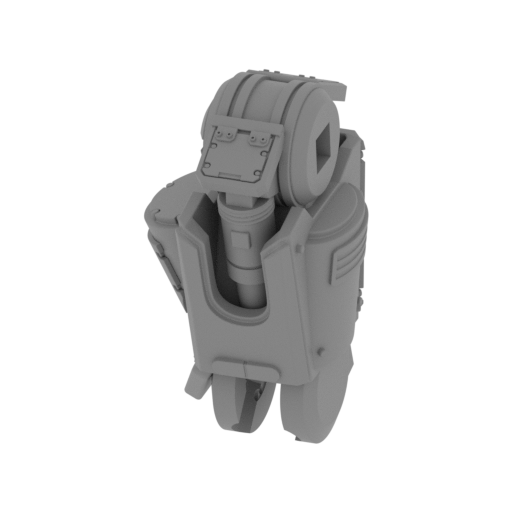

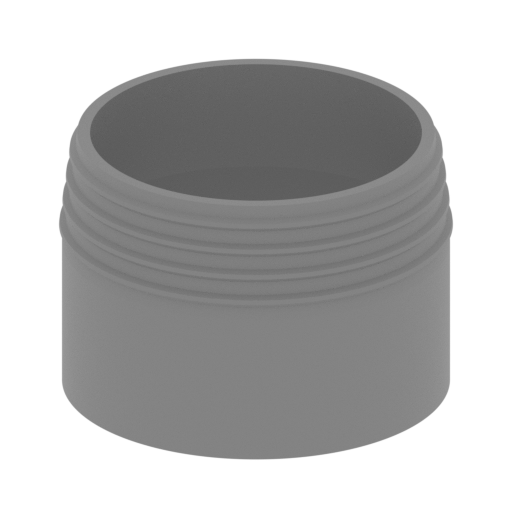

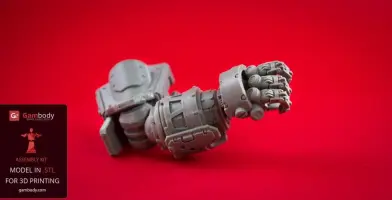

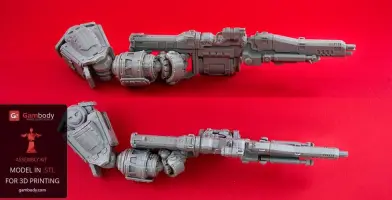

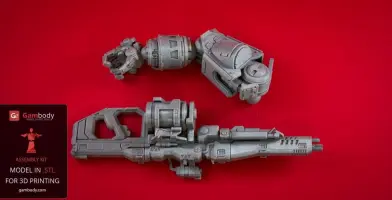

(7)Titanfall_atlas_r_arm (repaired).stl
13.17 MiB 15 h 21 min 9 m 63 x 58 x 102 Download
(8)Titanfall_atlas_r_fore arm (repaired).stl
8.10 MiB 4 h 19 min 2 m 40 x 41 x 45 Download

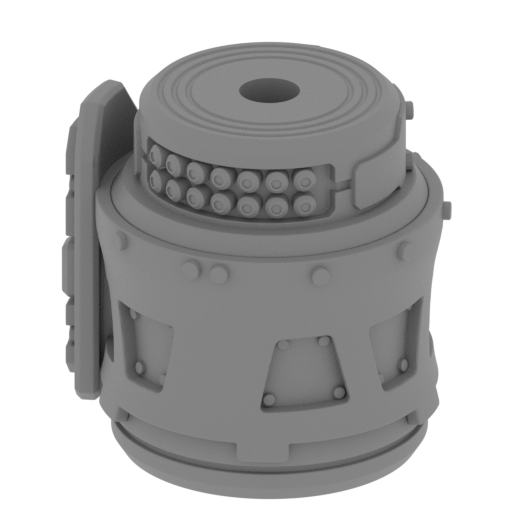

(9)Titanfall_atlas_r_palm (repaired).stl
13.85 MiB 4 h 43 min 3 m 49 x 39 x 51 Download

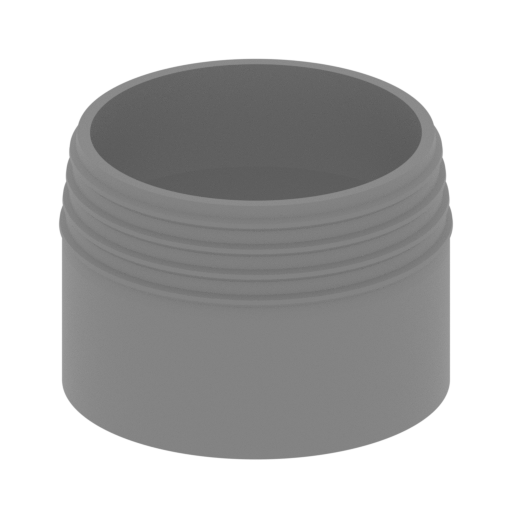

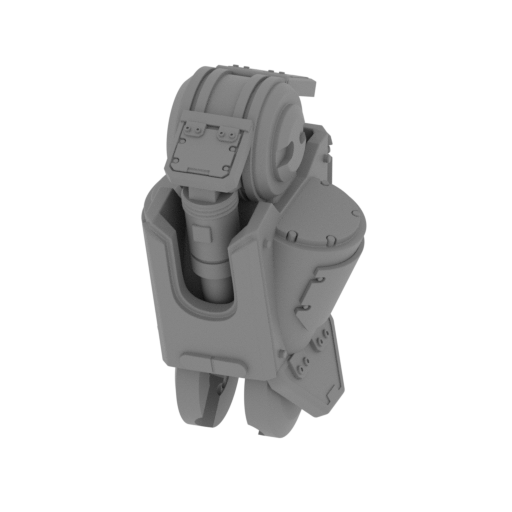

(10)Titanfall_atlas_l_arm (repaired).stl
13.17 MiB 15 h 23 min 9 m 63 x 58 x 102 Download
(11)Titanfall_atlas_l_for earm (repaired).stl
8.10 MiB 4 h 19 min 2 m 40 x 41 x 45 Download

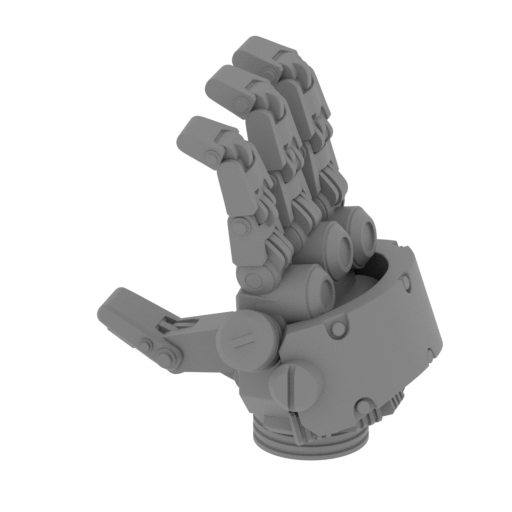

(12)Titanfall_atlas_l_pal m (repaired).stl
13.85 MiB 4 h 36 min 3 m 50 x 39 x 62 Download

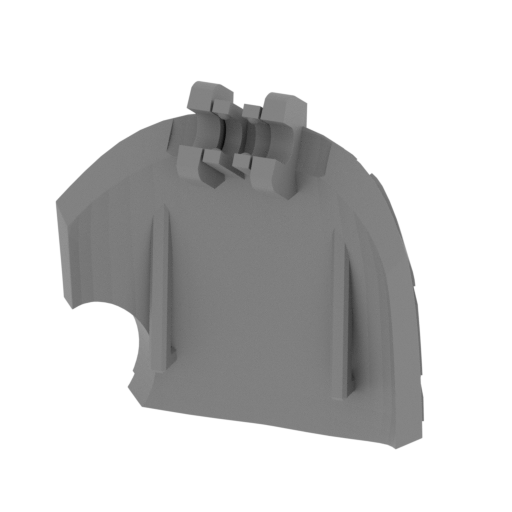

(14)Titanfall_atlas_lower _door (repaired).stl
0.92 MiB 3 h 6 min 2 m 48 x 49 x 23 Download

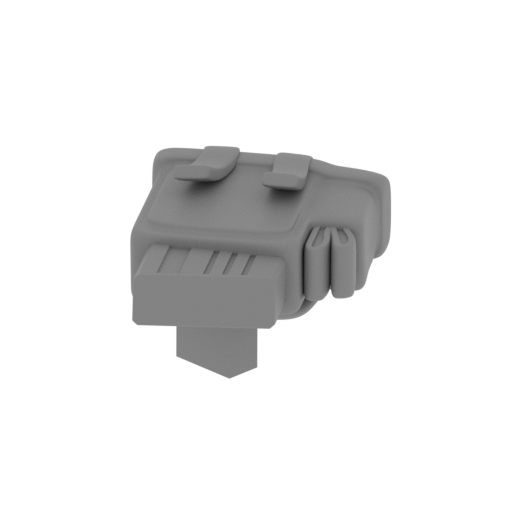

(15)Titanfall_atlas_r_bag (repaired) (repaired).st l
0.81 MiB 3 h 32 min 2 m 61 x 49 x 34 Download

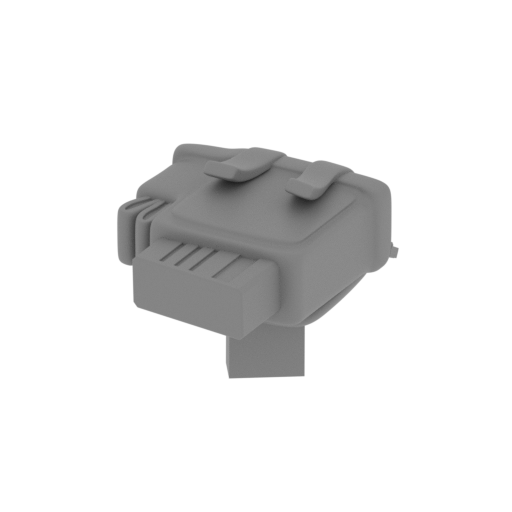

(16)Titanfall_atlas_l_bag (repaired) (repaired).st l
0.81 MiB 3 h 32 min 2 m 61 x 49 x 34 Download
(17)Titanfall_atlas_l_bar (repaired).stl
0.09 MiB 18 min <1 m 18 x 43 x 8 Download
(18)Titanfall_atlas_r_bar (repaired).stl
0.09 MiB 18 min <1 m 18 x 43 x 8 Download

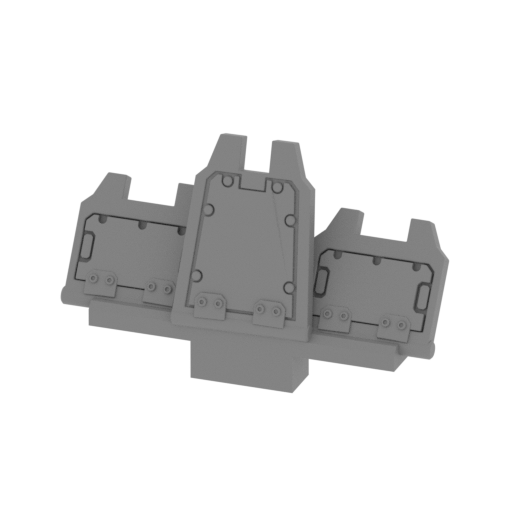

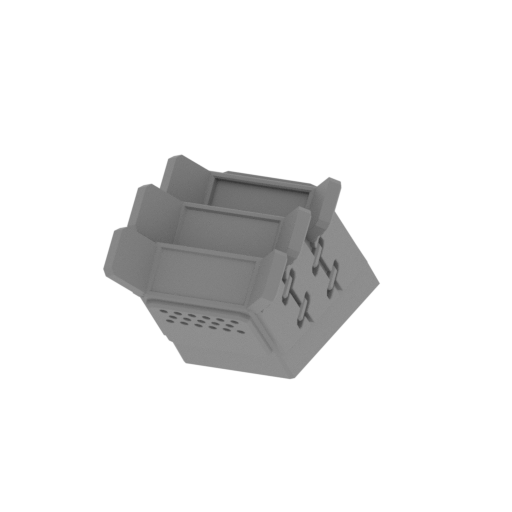

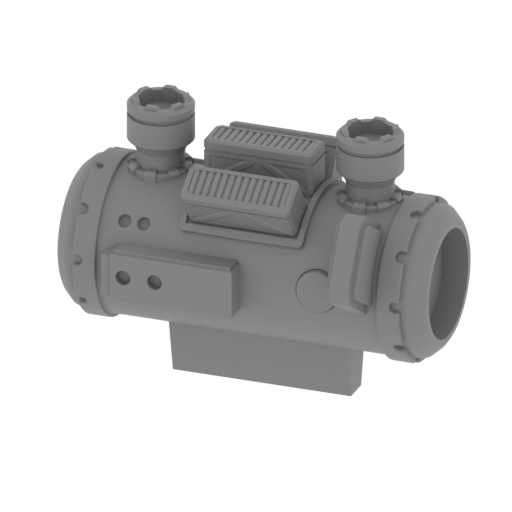

(19)Titanfall_atlas_bck_p lates (repaired) (repaire d).stl
0.75 MiB 2 h 35 min 1 m 71 x 23 x 48 Download
(20)Titanfall_atlas_exhau sts (repaired).stl
1.13 MiB 2 h 44 min 2 m 28 x 55 x 33 Download
(21)Titanfall_atlas_pack (repaired).stl
7.82 MiB 7 h 24 min 4 m 72 x 39 x 53 Download
(22)Titanfall_atlas_nozzl e_l (repaired).stl
4.74 MiB 29 min <1 m 15 x 15 x 24 Download
(23)Titanfall_atlas_nozzl e_r (repaired).stl
4.74 MiB 29 min <1 m 15 x 15 x 24 Download
(24)Titanfall_atlas_hatch (repaired) (repaired).st l
1.13 MiB 38 min <1 m 33 x 35 x 8 Download

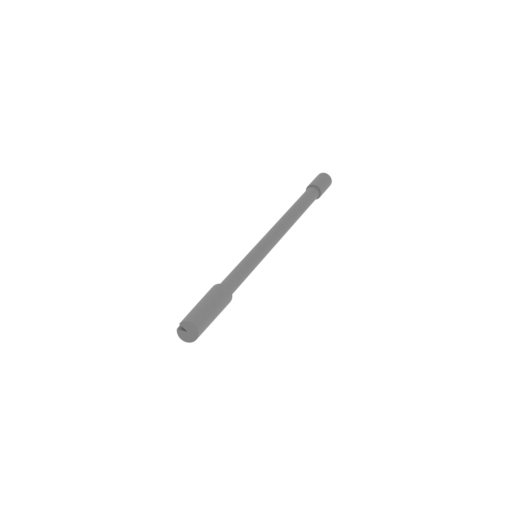

(25)Titanfall_atlas_anten na (repaired) (repaired). stl
0.05 MiB 4 min <1 m 3 x 45 x 3 Download

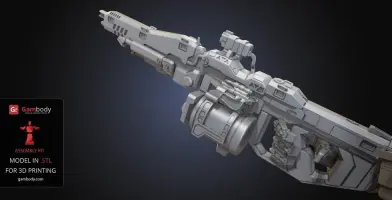

(26)Titanfall_atlas_xo16s tk.stl
2.47 MiB 5 h 53 min 4 m 17 x 81 x 57 Download
(27)Titanfall_atlas_xo16c enter (repaired).stl
37.80 MiB 11 h 31 min 6 m 47 x 73 x 91 Download
(28)Titanfall_atlas_xo16f ront (repaired).stl
2.99 MiB 3 h 34 min 2 m 28 x 35 x 89 Download
(13)Titanfall_atlas_upper _door (repaired).stl
2.95 MiB 3 h 38 min 2 m 49 x 45 x 33 Download
...

HISTORY OF THE ATLAS

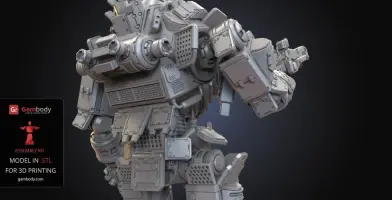

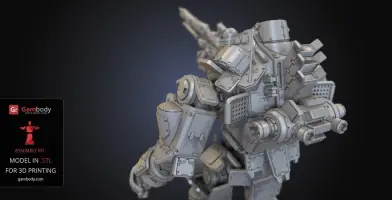

The Atlas is a combat robot piloted by elite soldiers, the first ever Titan to be introduced. It seems to be “the golden mean” between all the other robots represented in the Titanfall video game series. The Atlas’ impressive mobility and imposing armour make it more dexterous than the Ogre and more shockproof than the Stryder. The Atlas is the first and the oldest Titan model and all the following mech-style robots were developed on its basis. The Atlas appears at the very beginning of the game and is highly valued even by the experienced players for its special Damage Core that when activated makes the Atlas Titan one of the most dangerous attacking weapons.

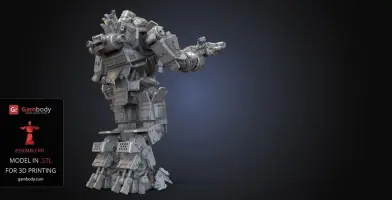

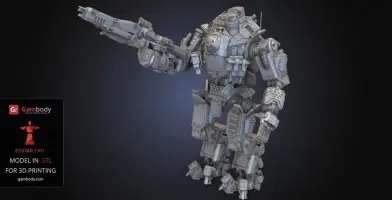

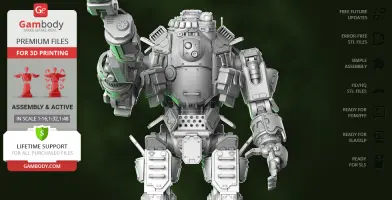

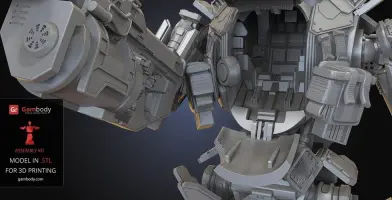

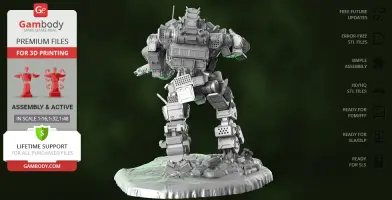

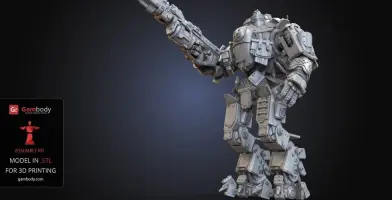

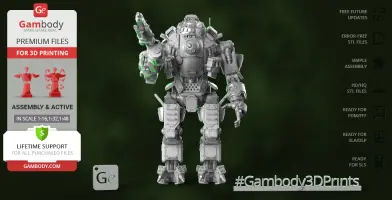

ABOUT THIS 3D MODEL (version 2.0)

This model has an update that includes 4 new versions: FFF/FDM 2.0, DLP/SLA 1.0SLS 1.0 First Pose, and SLS 2.0 Second Pose. Now this model is adapted for all types of 3D printers and has scale 1/16 for FFF/FDM1/32 for DLP/SLA, and 1/48 for SLS. The model is saved in STL files, a format is supported by most 3D printers

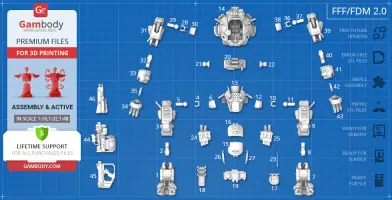

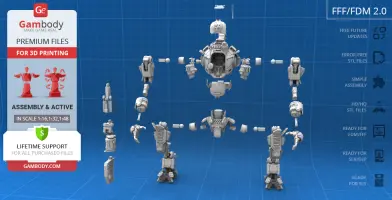

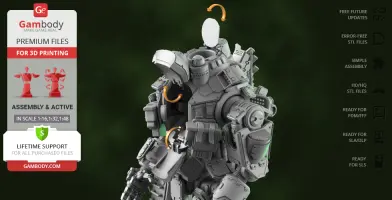

FFF/FDM 2.0 version features:

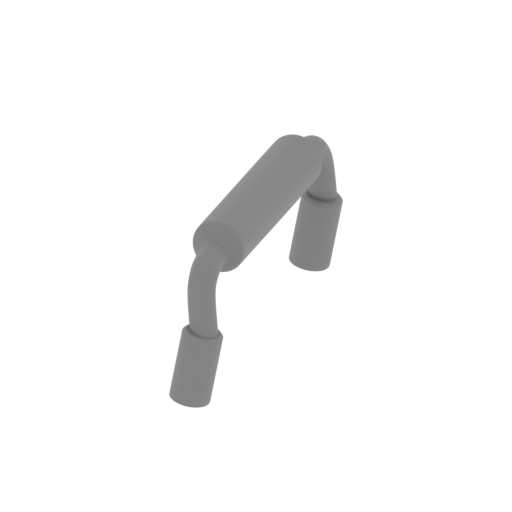

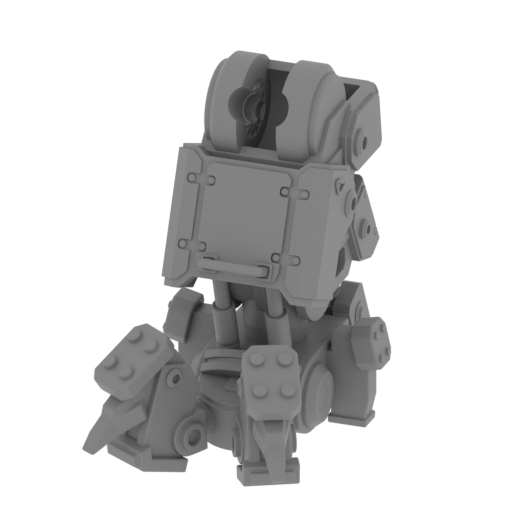

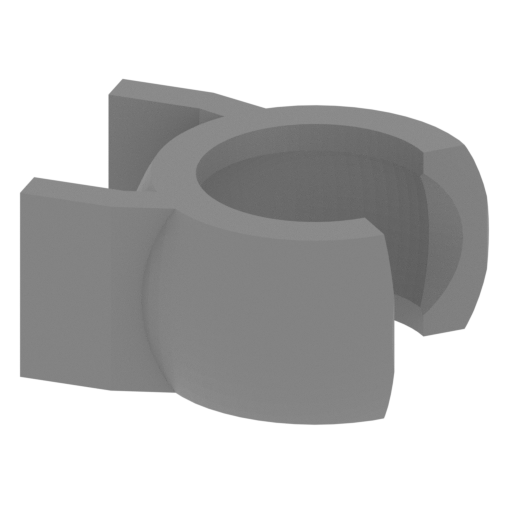

  • Contains 46 parts;

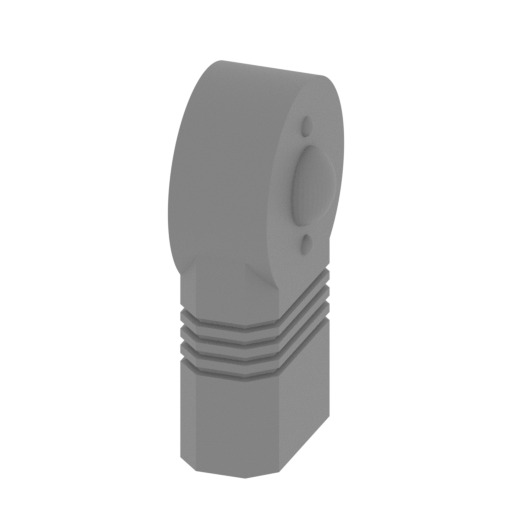

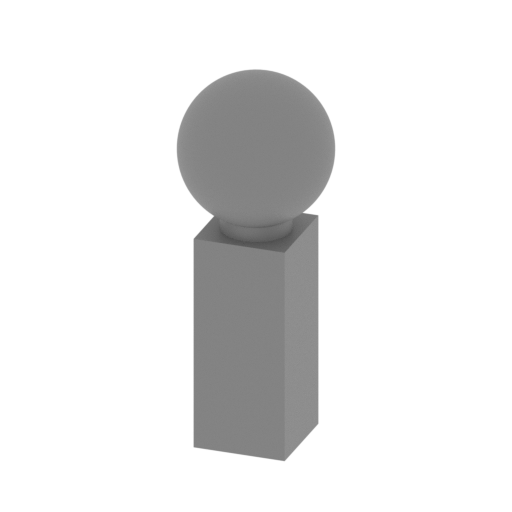

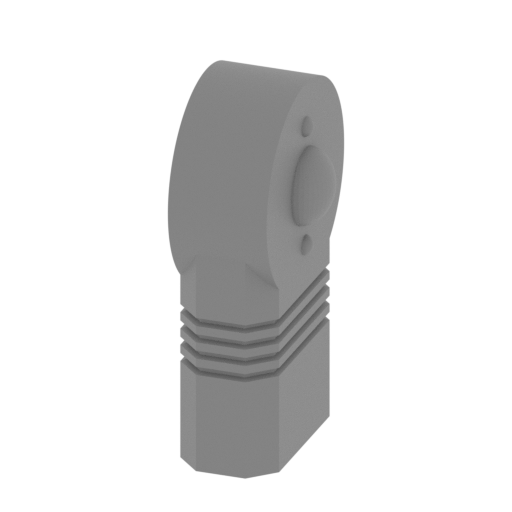

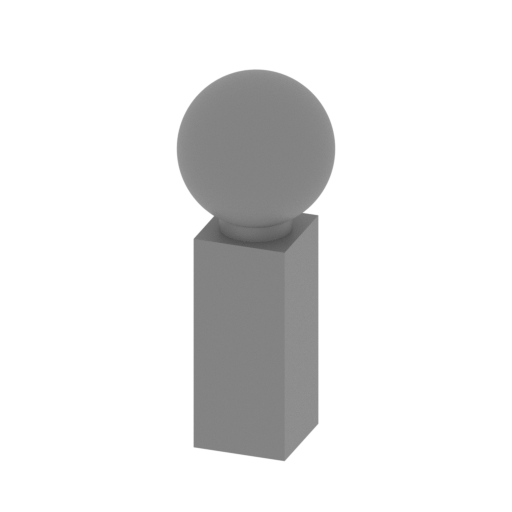

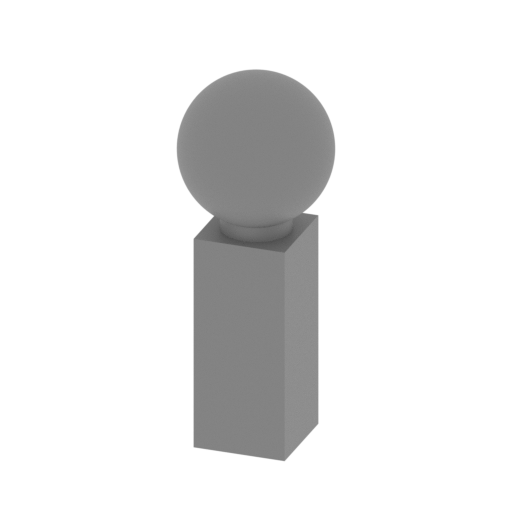

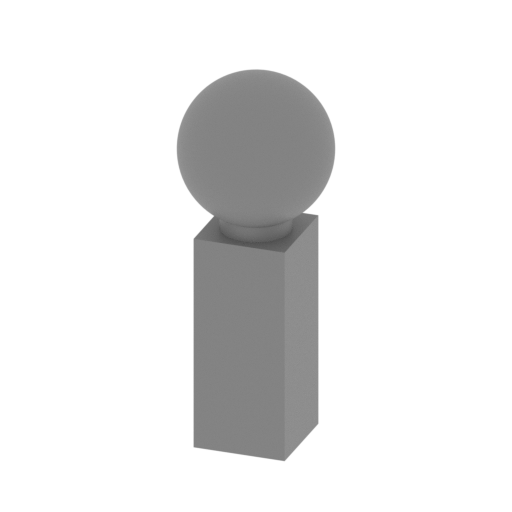

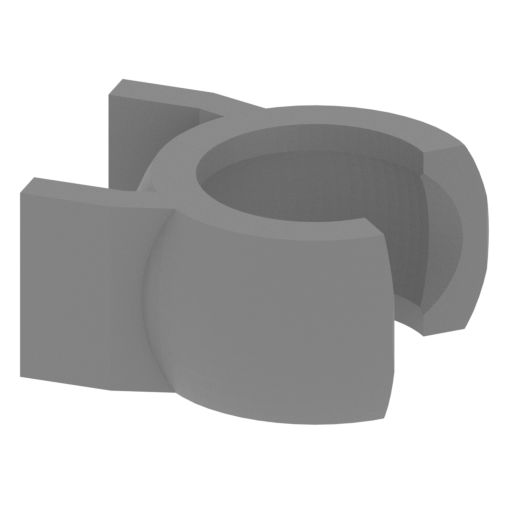

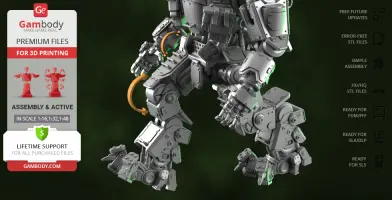

  • New Joints to improve mobility, resistance, and to ease the printing process;
  • Improved level of detail;
  • Made with a platform that divided into 6 pieces for small build plates;

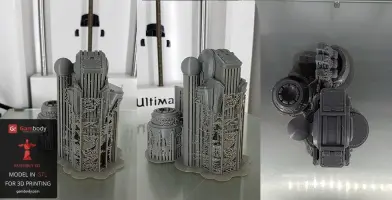

  • All parts are divided in such a way that you will print them with the smallest number of support structures.

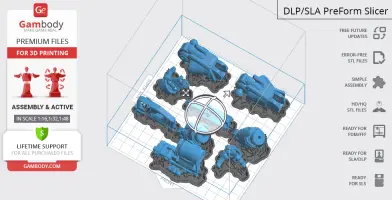

DLP/SLA 1.0 version features:

  • Same as FDM but smaller, also made as 23 parts;

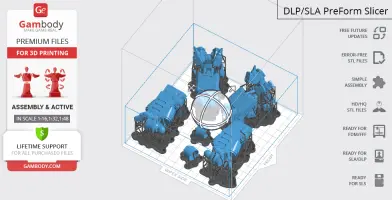

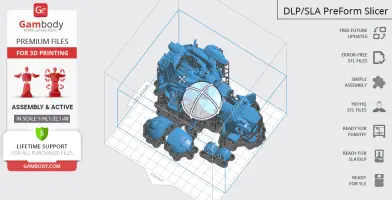

DLP/SLA Pre-supported 1.0 version features:

  • Contains 22 parts;
  • The STL files that this version comprises are pre-supported, hollowed out, and have drain holes where needed;

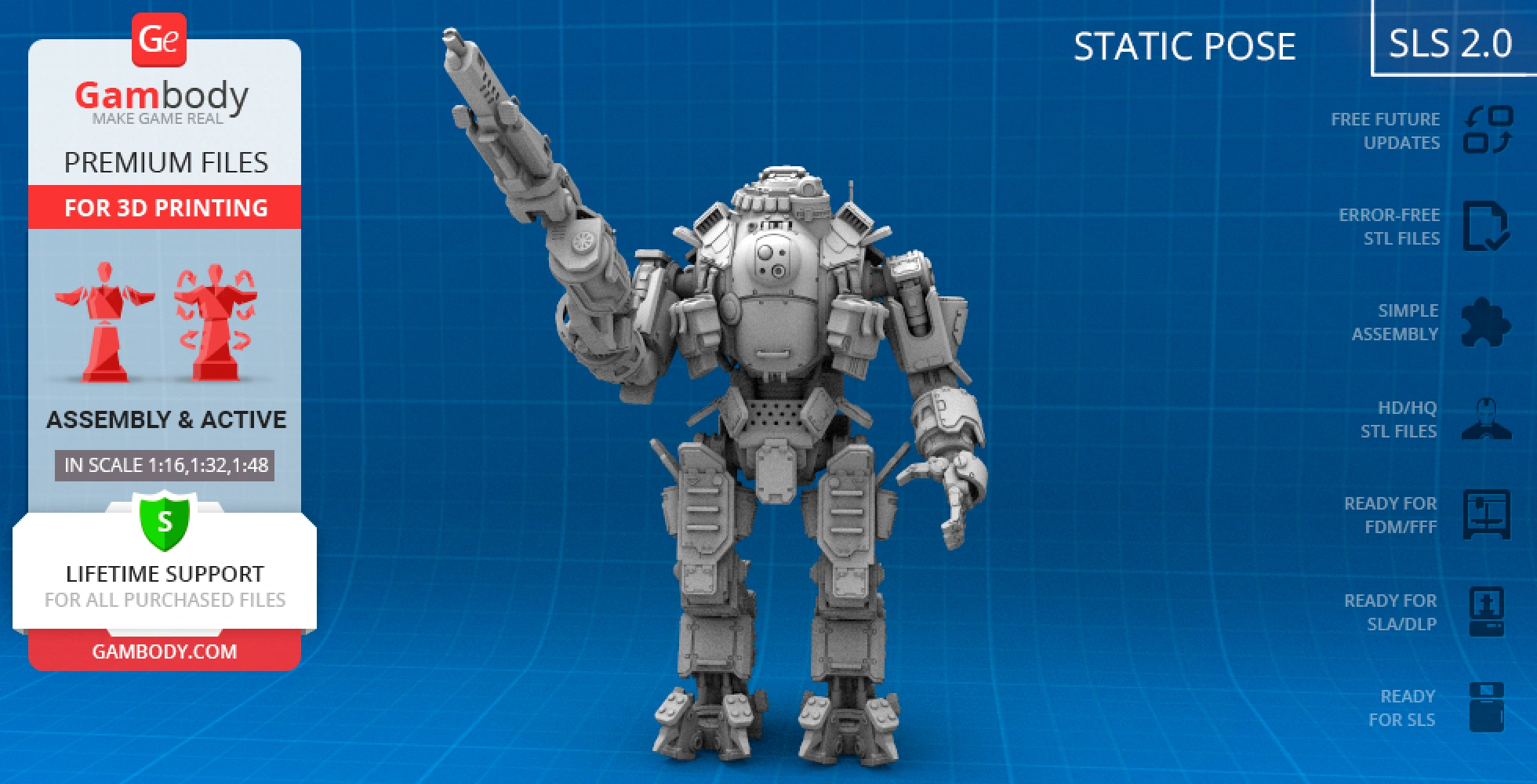

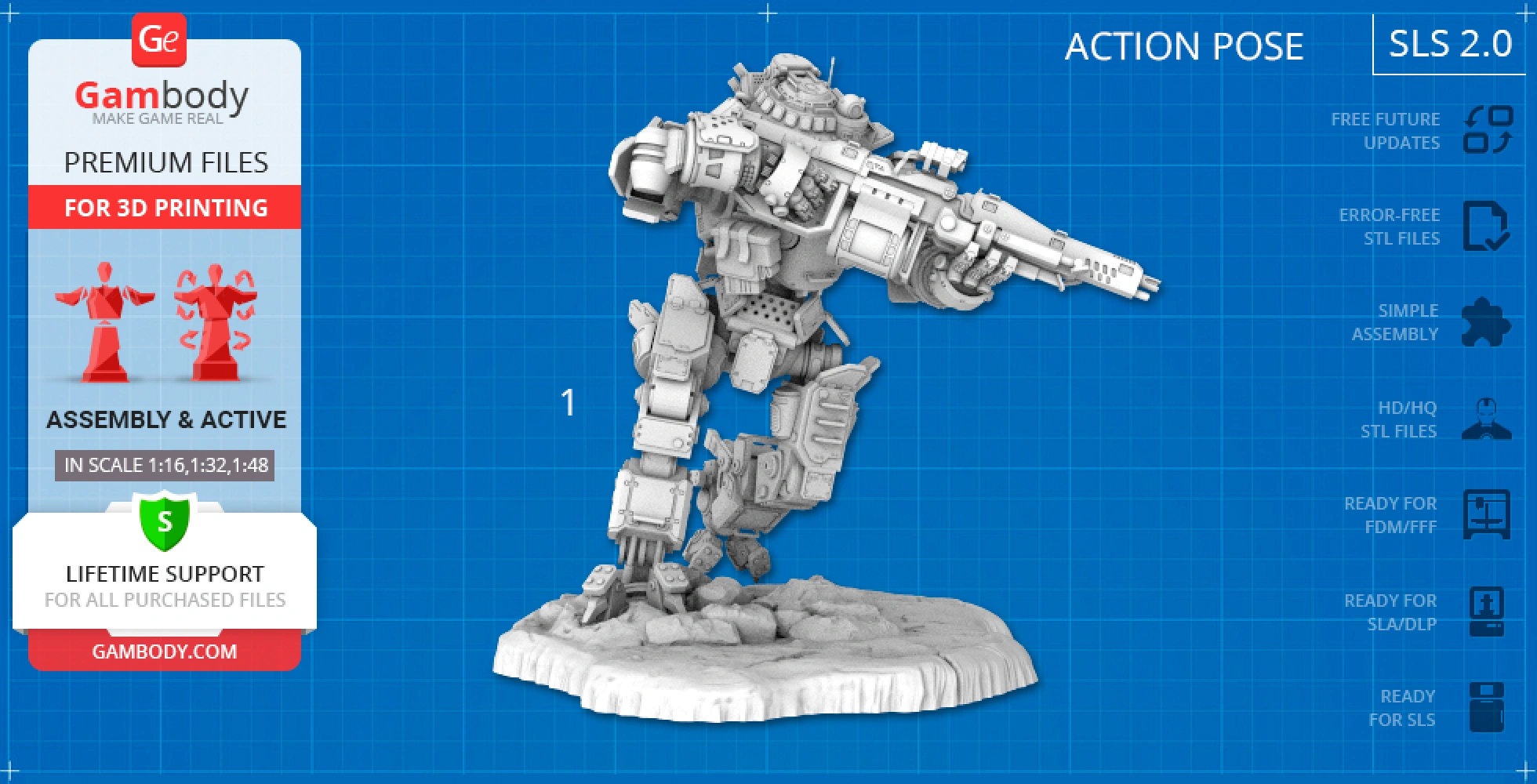

SLS 1.0 and SLS 2.0 versions features:

  • Same as SLA but made as 1 part in 2 variants with 2 different poses;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CuraSimplify3D or Slic3r Software.

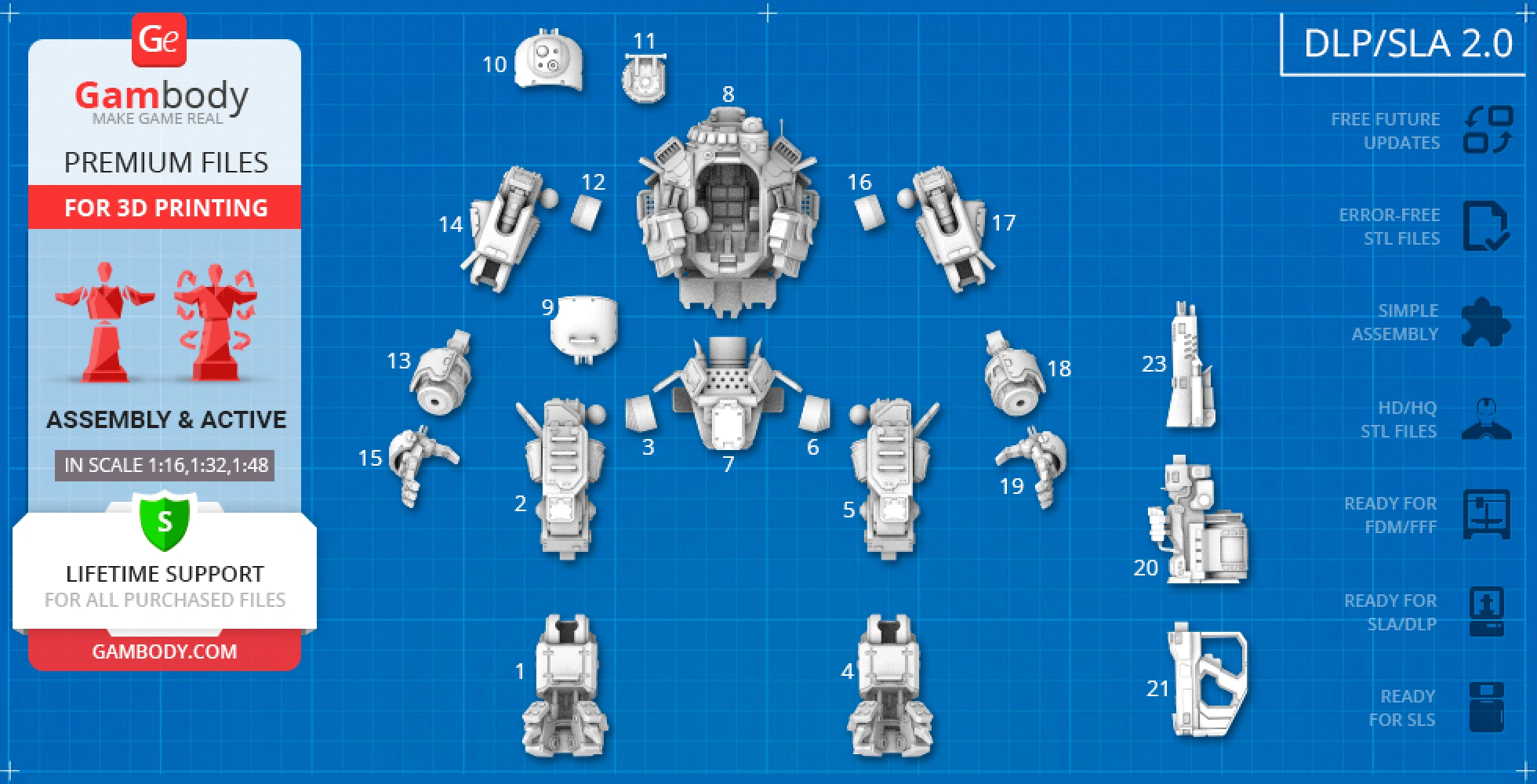

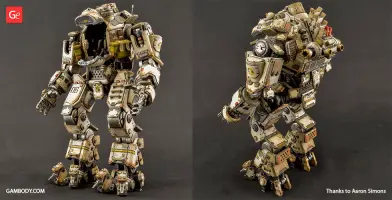

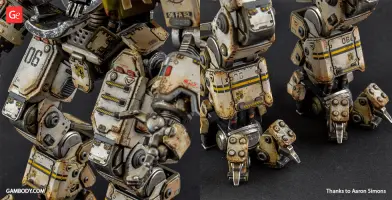

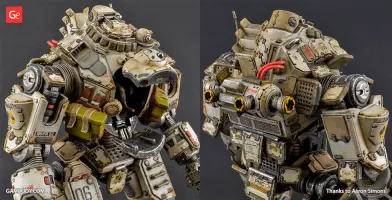

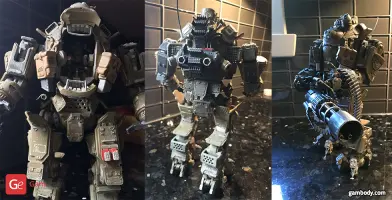

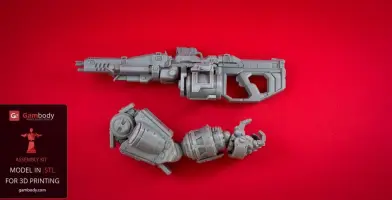

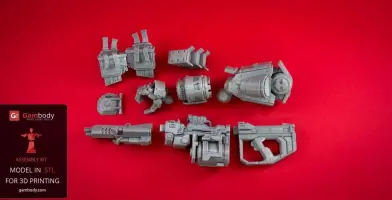

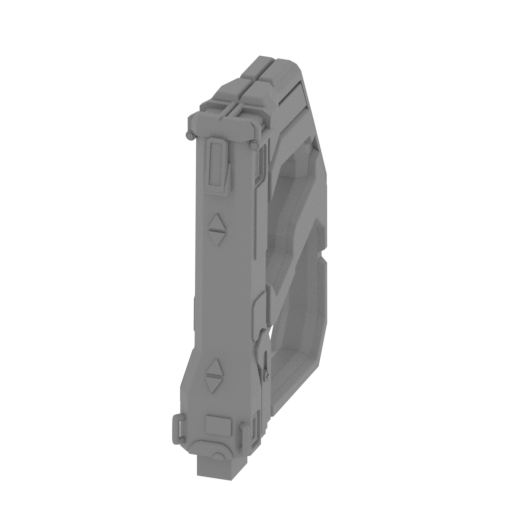

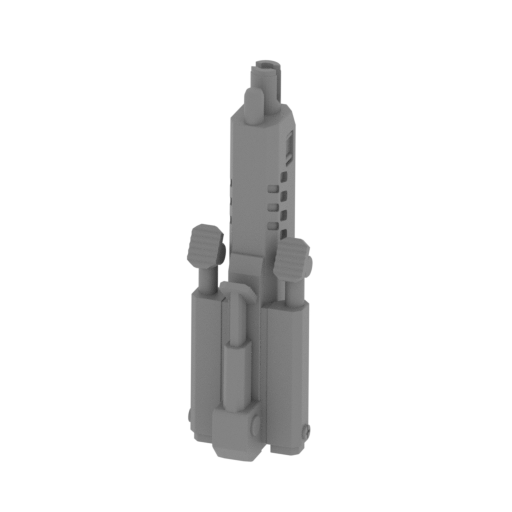

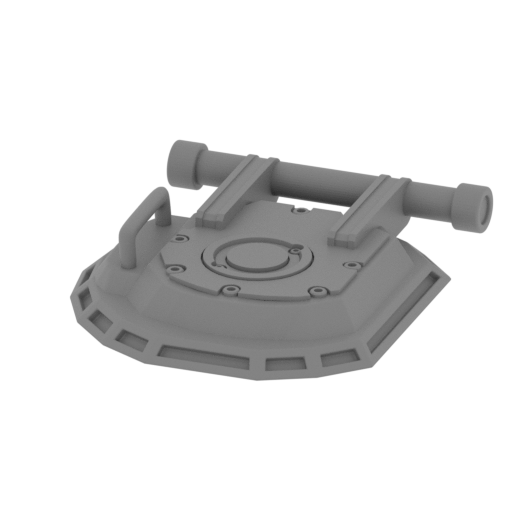

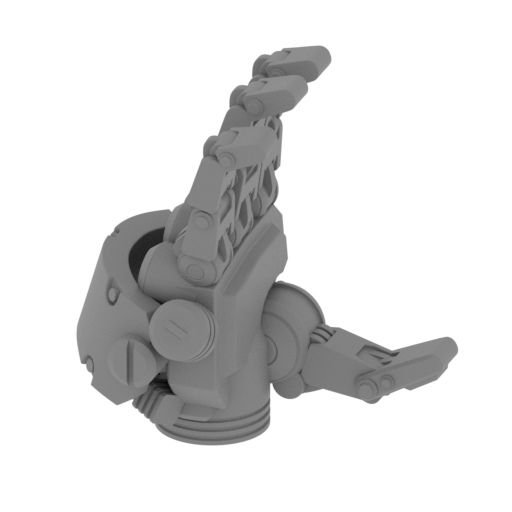

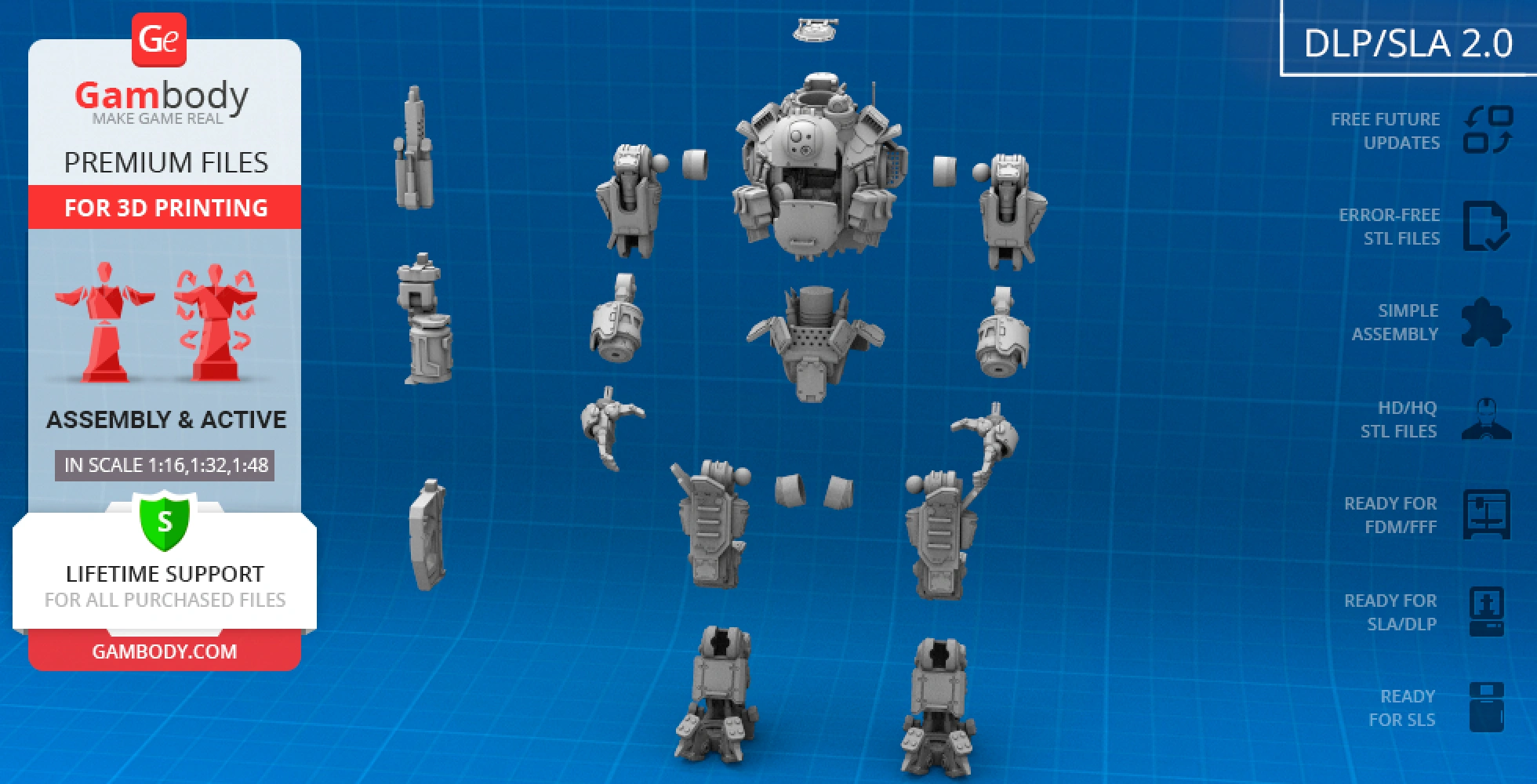

There are 46 parts for FFF/FDM version, 23 parts for DLP/SLA version, 2 parts for SLS version.

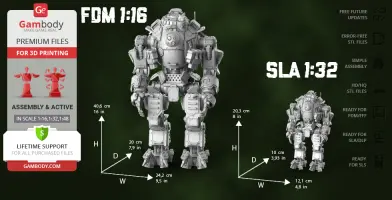

Scale: The Atlas' actual height is 6500 mm. The model’s chosen scale is 1/16 for the FFF/FDM version1/32 for the DLP/SLA version, 1/48 for SLS version.

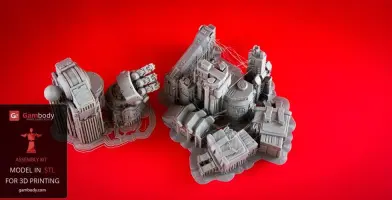

Old FFF/FDM 1.0 version dimensions:A printed model is 350 mm tall, 209 mm wide, 170 mm deep;

FFF/FDM 2.0 version dimensions:A printed model is 406 mm tall, 242 mm wide, 200 mm deep;

DLP/SLA 1.0 version dimensions:A printed model is 203 mm tall, 121 mm wide, 100 mm deep;- Has few details, to keep printing costs down.

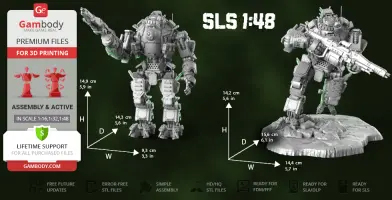

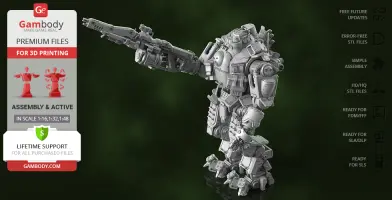

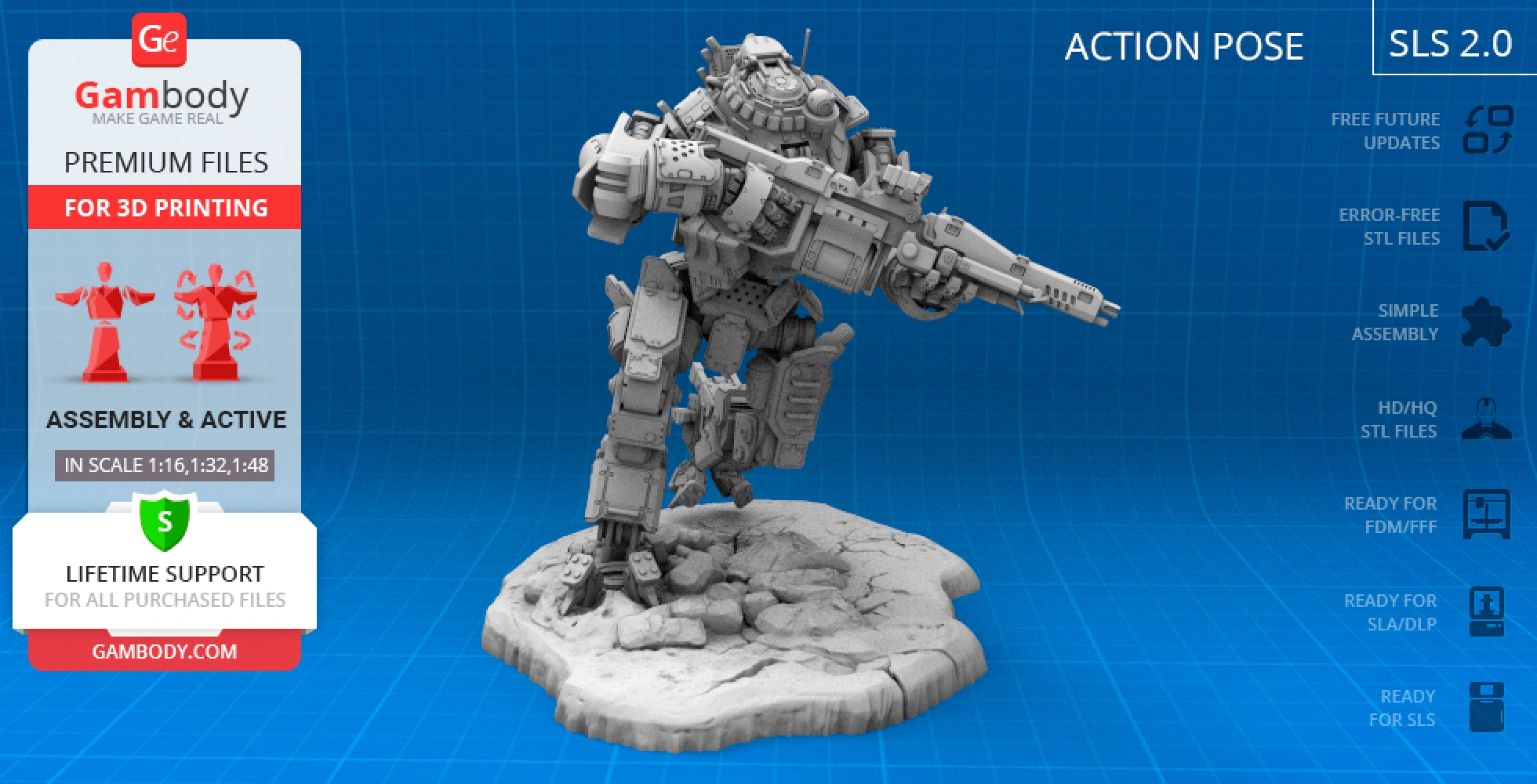

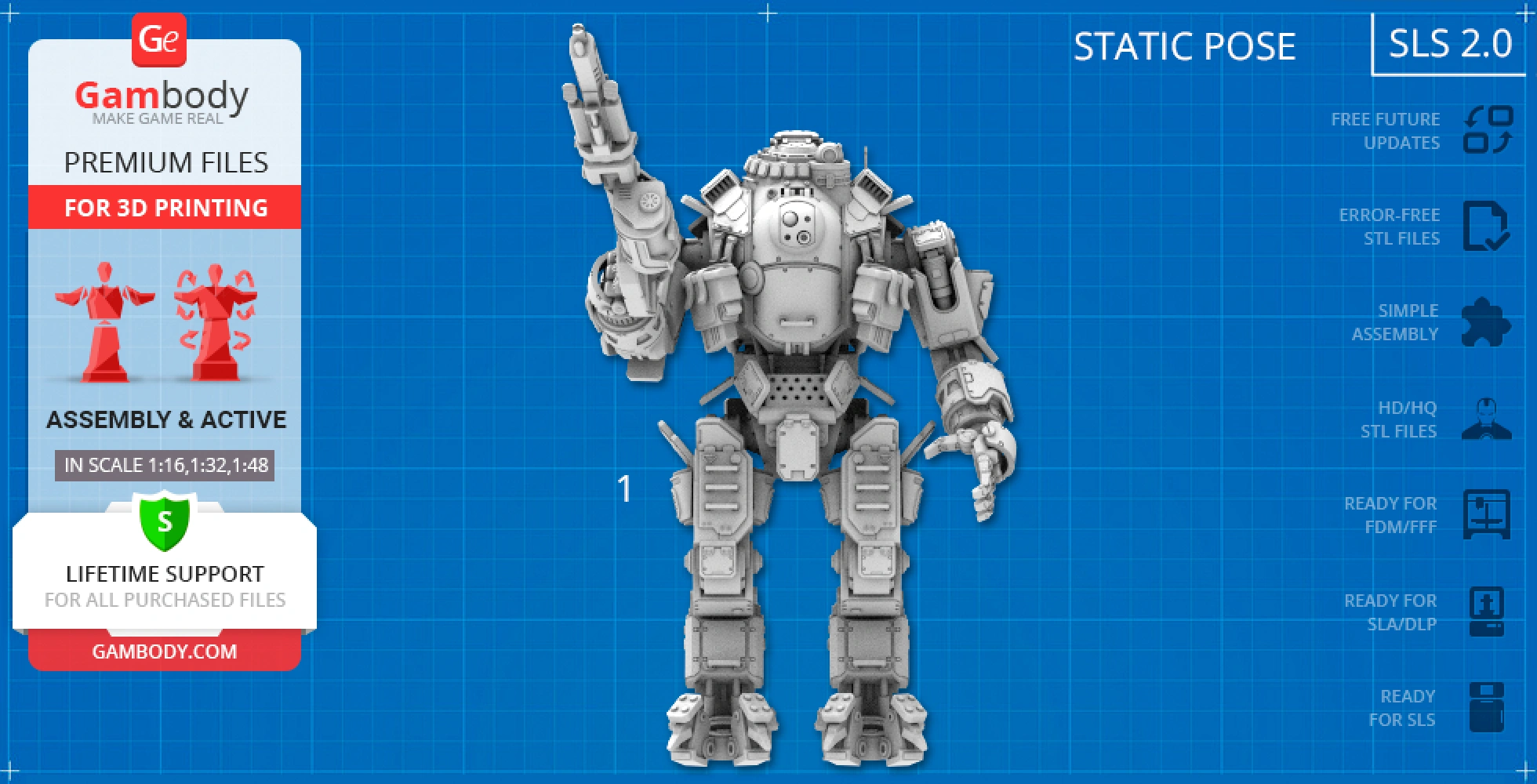

SLS 1.0 and SLS 2.0 version dimensions:A printed model is 149 mm tall, 93 mm wide, 143 mm deep - Static pose;142 mm tall, 144 mm wide, 156 mm deep - Action pose;- Has 1 detail, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

  • STL files of Atlas Titanfall 3D Model for 3D printing which consist of 121 parts;
  • 6 versions of files for this model for FFF/FDM, DLP/SLA, and SLS;
  • High-poly detailed model of Atlas Titanfall;
  • Detailed settings that we provide for Cura , Simplify3D and Slic3r for the best print;
  • Full technical support from the Gambody Support Team.

You can get Model of Atlas Titanfall for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Atlas Titanfall 3D Printing Model at Gambody YouTube channel.

Also, you may like Pilot 3D Printing Figurine.

_______

FAQ:

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

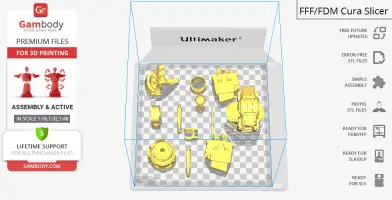

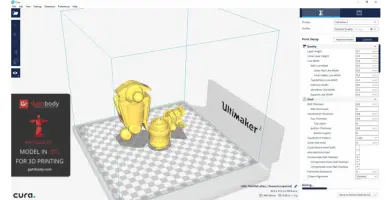

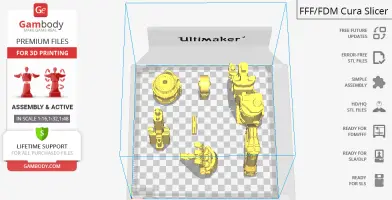

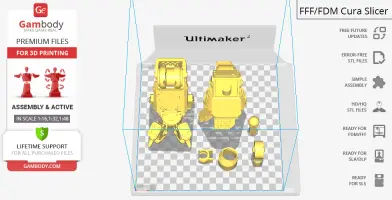

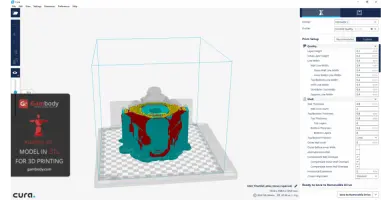

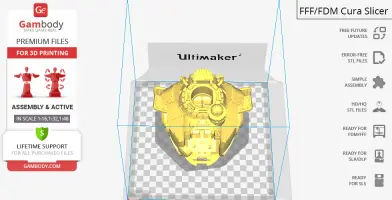

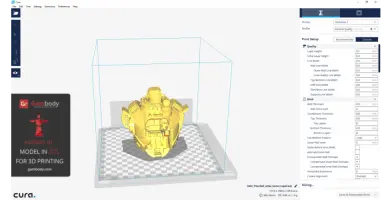

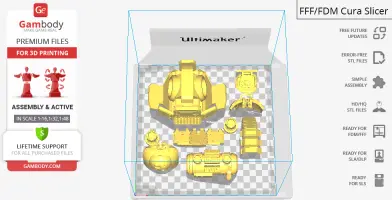

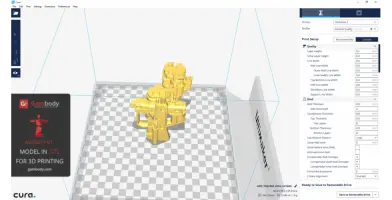

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);

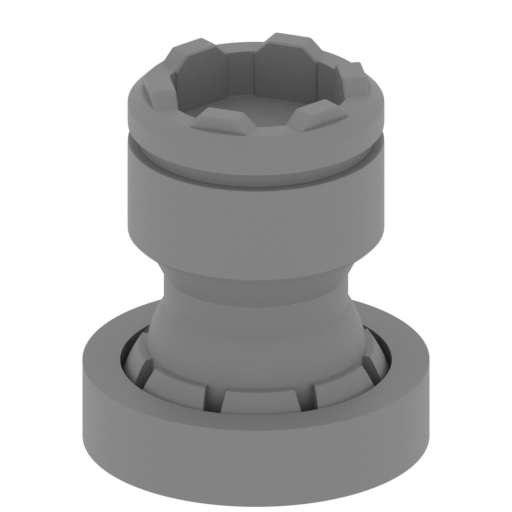

- All connectors should be printed at 100% Infill;

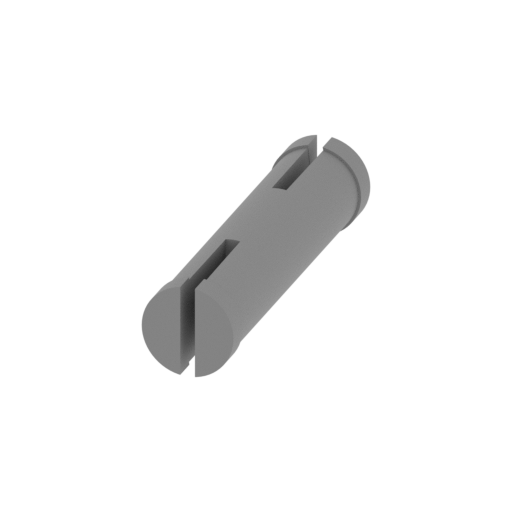

- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
