Wingman Handcannon 3D Print Model

cm: 4.55 w x 32.7 d x 18.34 h
in: 1.791 w x 12.874 d x 7.22 h
Help us decide: Would you like to see this model in the Premium section?
What does this mean?
info
Voting explanation
This voting section lets you decide if this model should join our Premium section, known for its high-quality, exclusive models. Models garnering sufficient votes will receive Gambody’s expert moderation, including Ge-smart cutting and live-time support. Successful models will be placed in the Premium section and then promoted, while the original STLs will stay in the Stock section. Your vote directly influences the model's status, based on community preferences.
0.0%
Voted 0 of 100

Source Files

|

Description

|

Printing Details

STL files and the cutting of this model are preserved as created by the Author. This model was not moderated by Gambody, it is not subject to technical support by Gambody, and we do not offer any guarantees on the 3D printing results.

Stock models can only be purchased in an order separate from the Premium STL files by Gambody. If a Premium model is added to the Cart, the Stock models are deleted automatically, and vice versa.

You can read more about Stock models on Gambody's Blog.

The Author of the Stock model can provide technical support if they wish. All your questions, requests, wishes and remarks can be left in the comment section below.

Gambody Team can consider providing a Premium version of the model if highly requested.

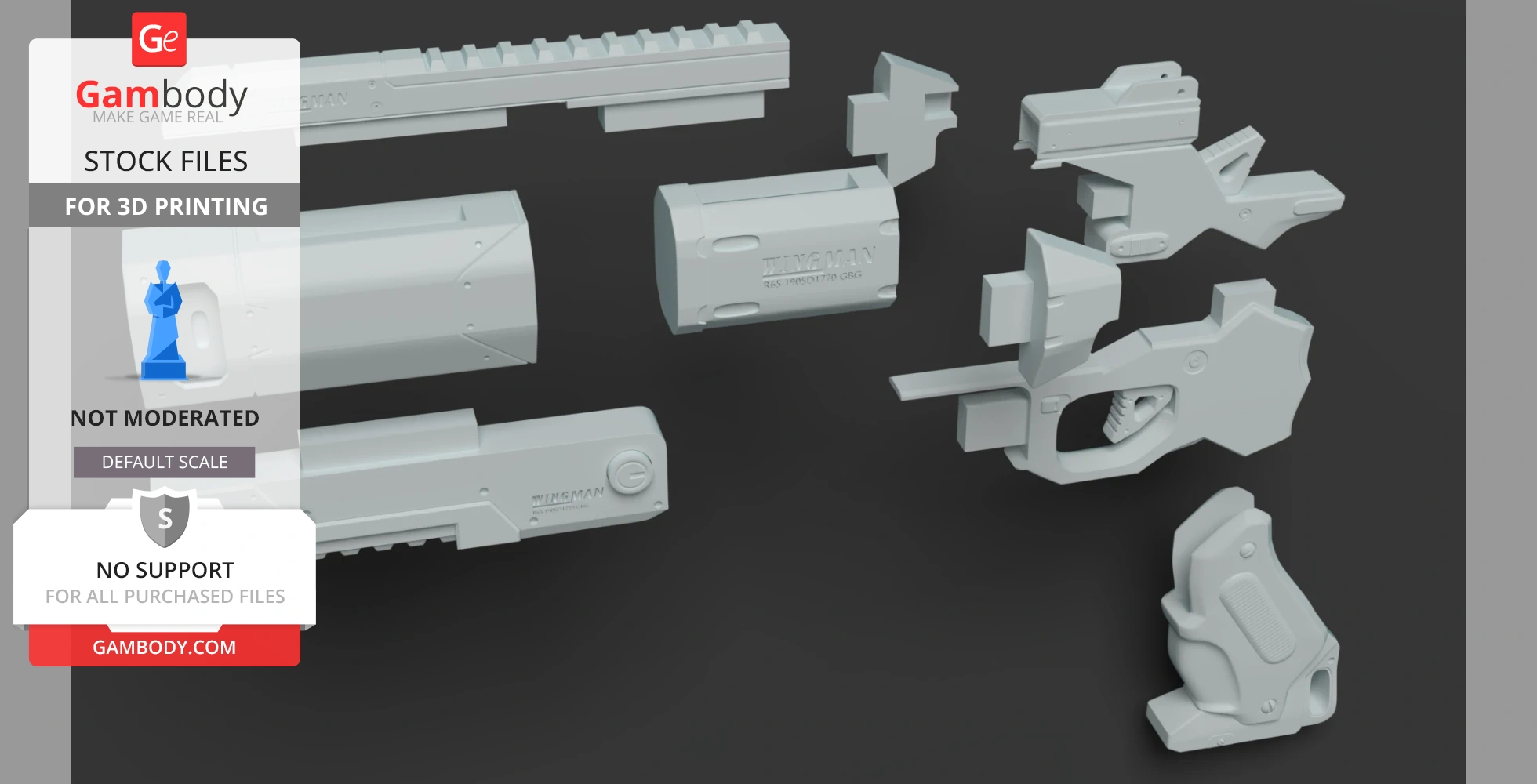

File Name File Size Time / Filament Object Size
(x/y/z mm)

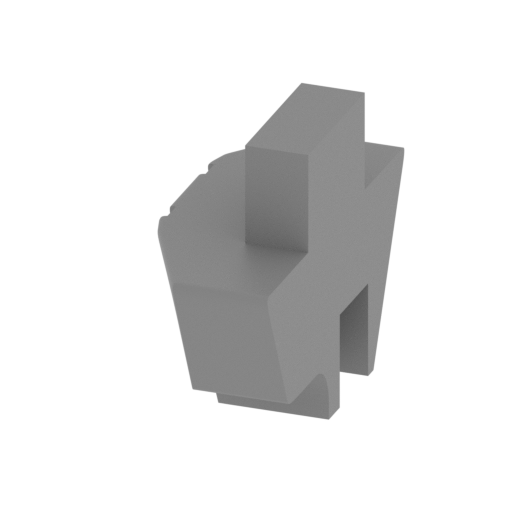

Wingman_Back_Chamber_Left .stl
0.70 MiB 2 h 9 min 1 m 23 x 53 x 43 Download

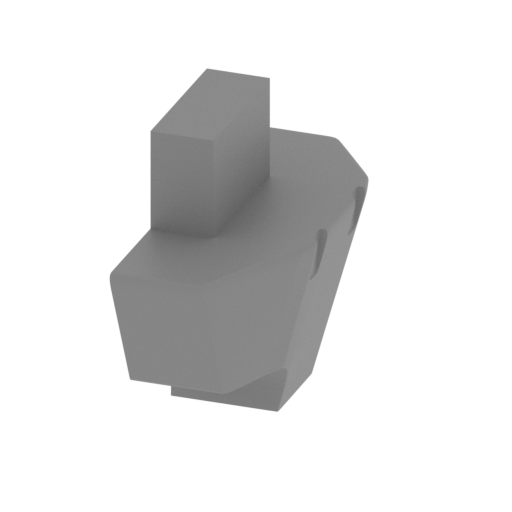

Wingman_Back_Chamber_Righ t.stl
0.68 MiB 2 h 7 min 1 m 22 x 53 x 43 Download

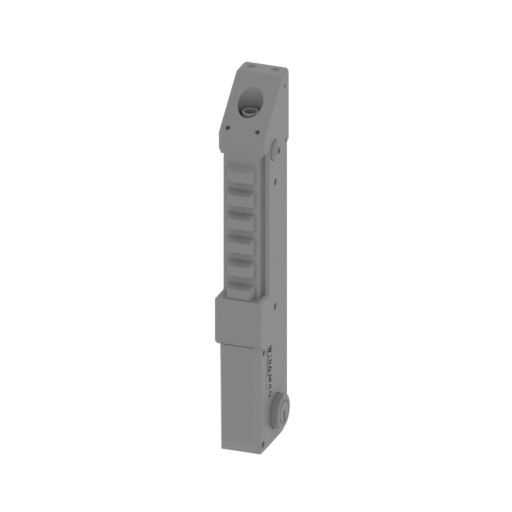

Wingman_Barrel_Bottom.stl
7.35 MiB 15 h 43 min 9 m 27 x 49 x 178 Download

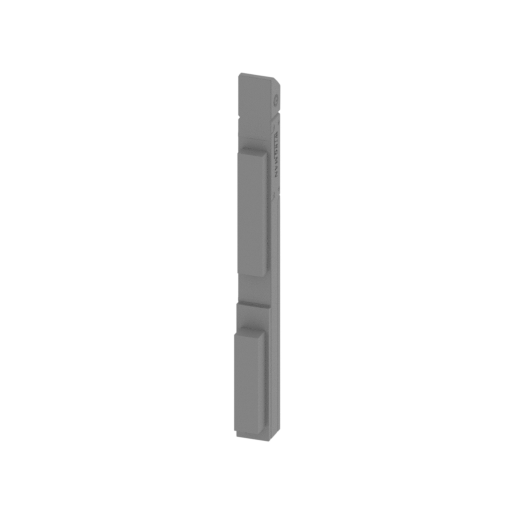

Wingman_Barrel_Top.stl
4.52 MiB 9 h 7 min 5 m 19 x 31 x 201 Download

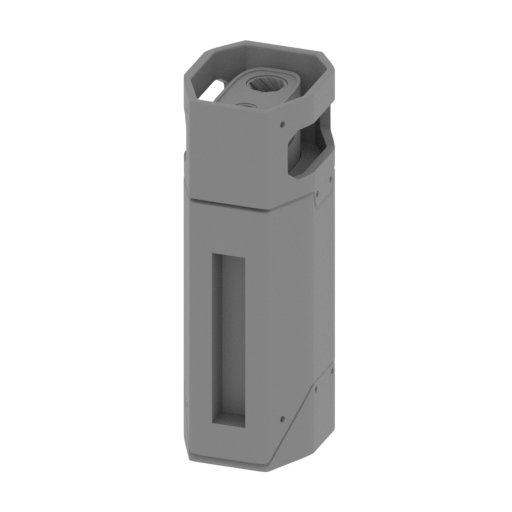

Wingman_Barrel.stl
7.41 MiB 22 h 11 min 12 m 46 x 53 x 129 Download

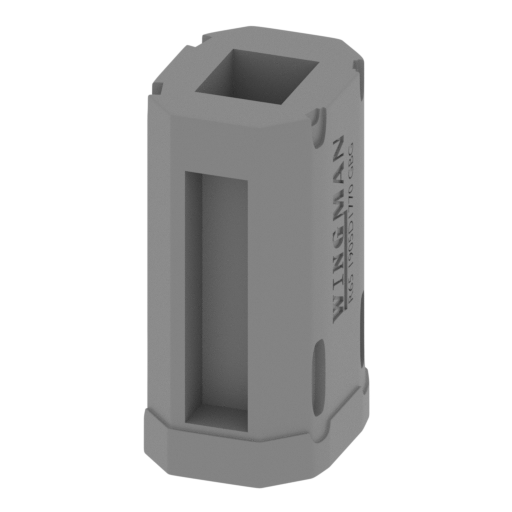

Wingman_Chamber.stl
2.58 MiB 9 h 31 min 5 m 39 x 49 x 79 Download

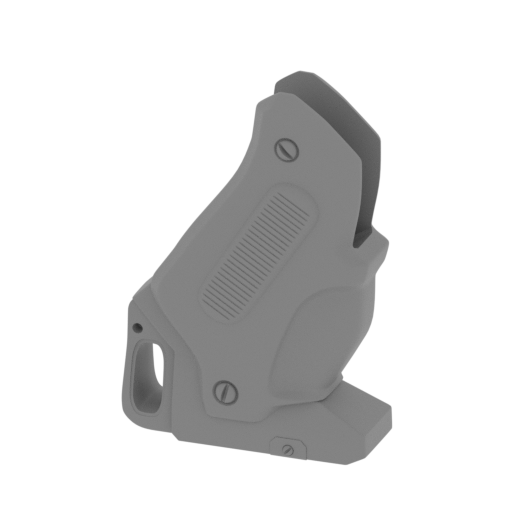

Wingman_Grip.stl
4.40 MiB 11 h 40 min 6 m 77 x 31 x 116 Download

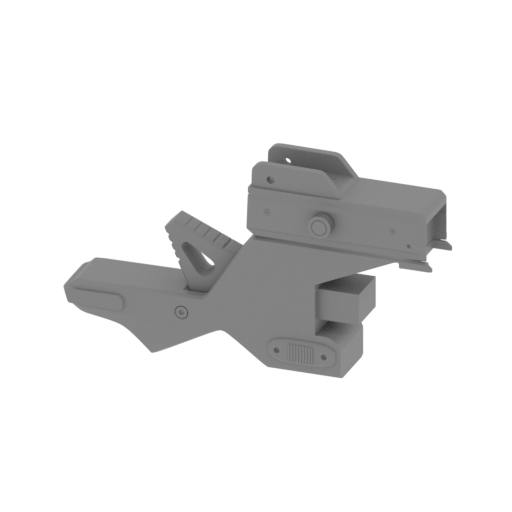

Wingman_Hammer.stl
7.27 MiB 10 h 19 min 7 m 123 x 27 x 71 Download

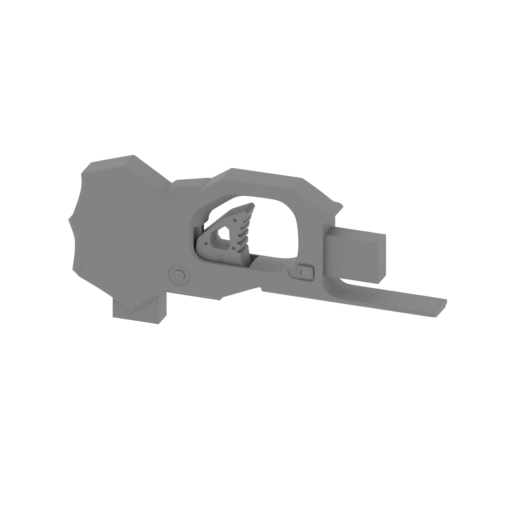

Wingman_Trigger.stl
3.75 MiB 12 h 35 min 8 m 167 x 17 x 73 Download

The Wingman handcannon is the top ranked weapon, and MVP sidekick, of the release version of the videogame Apex Legends. Portable, reliable, and with an enormous amount of firepower, there is no better companion to reach the coveted champion status.

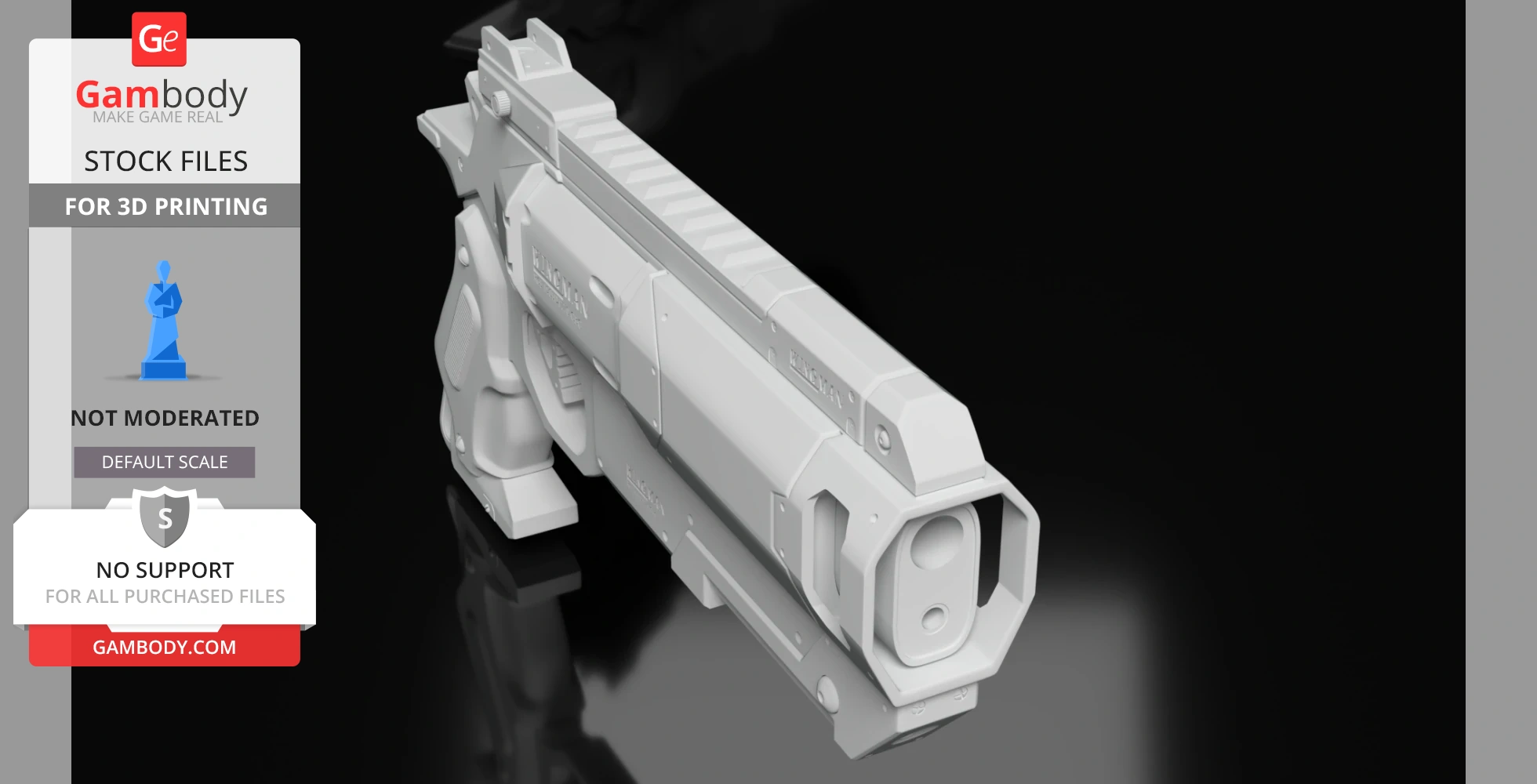

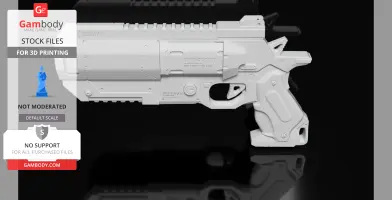

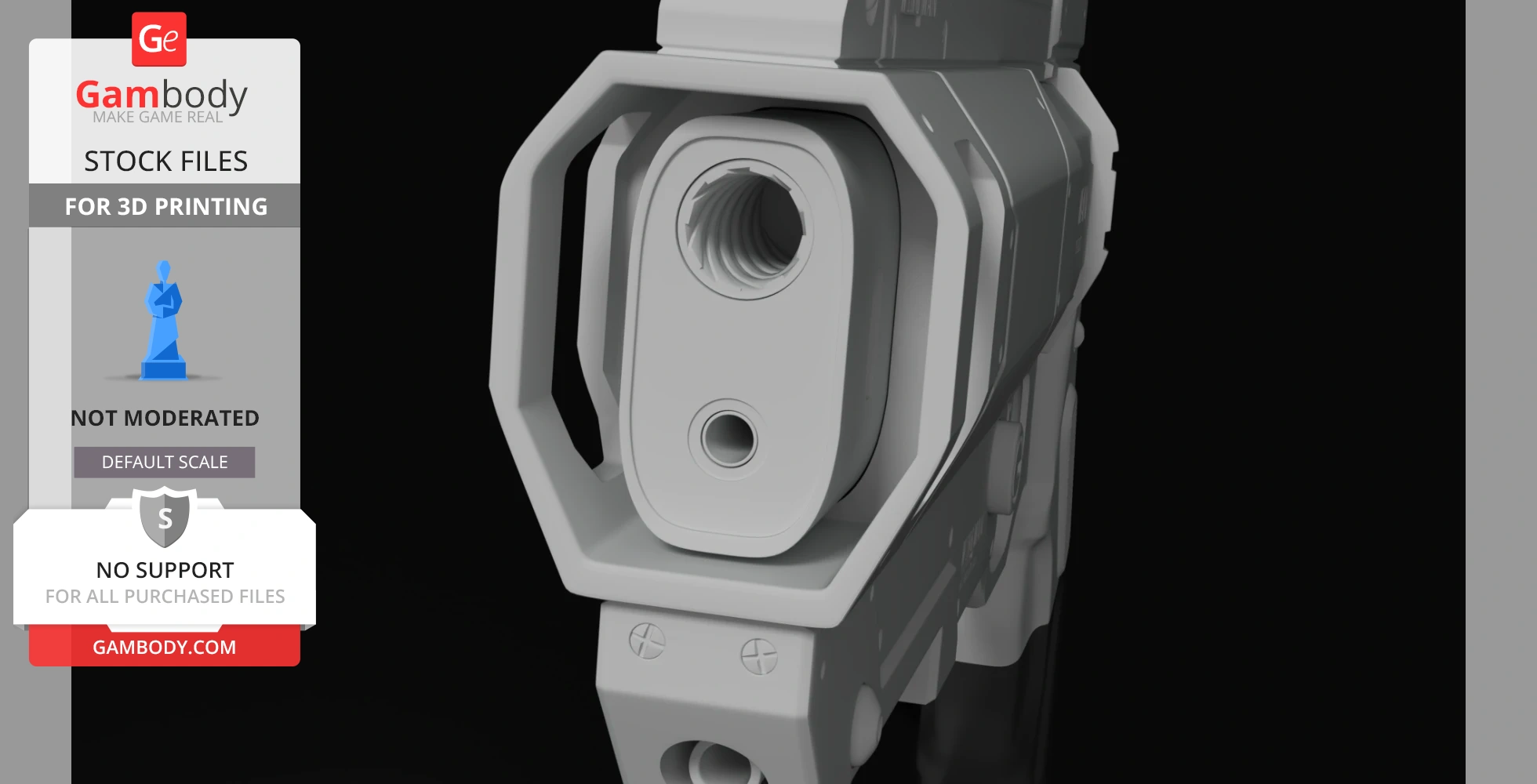

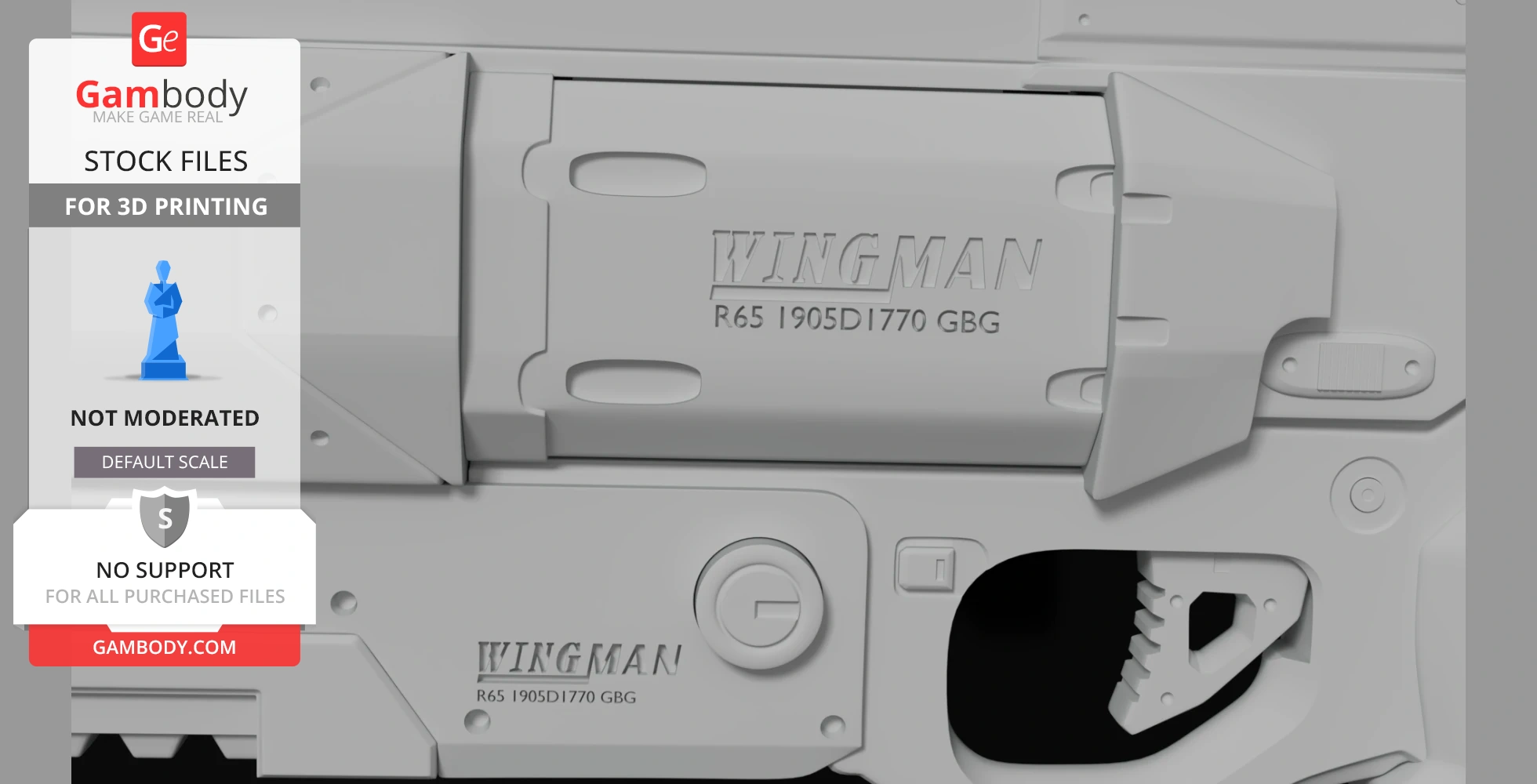

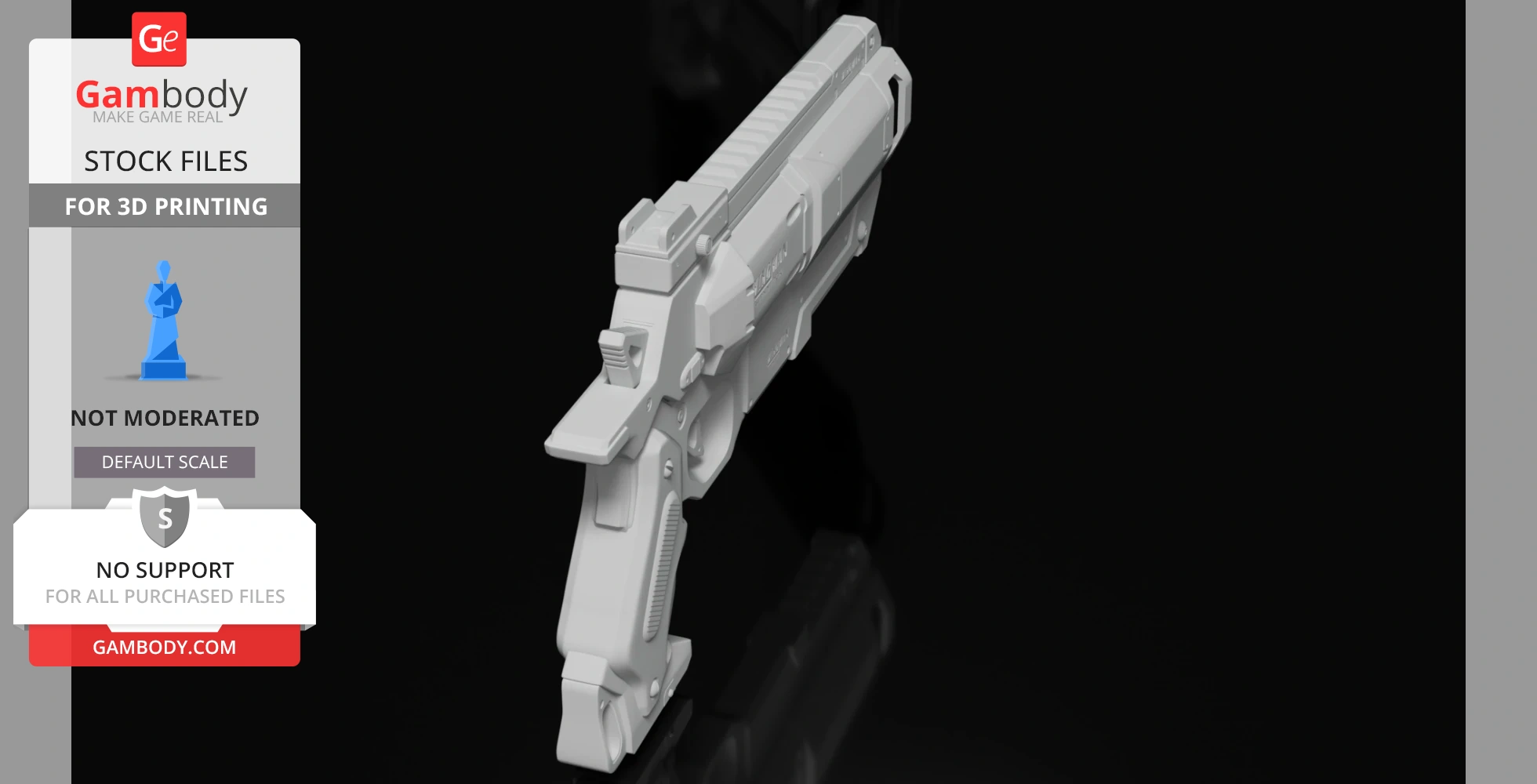

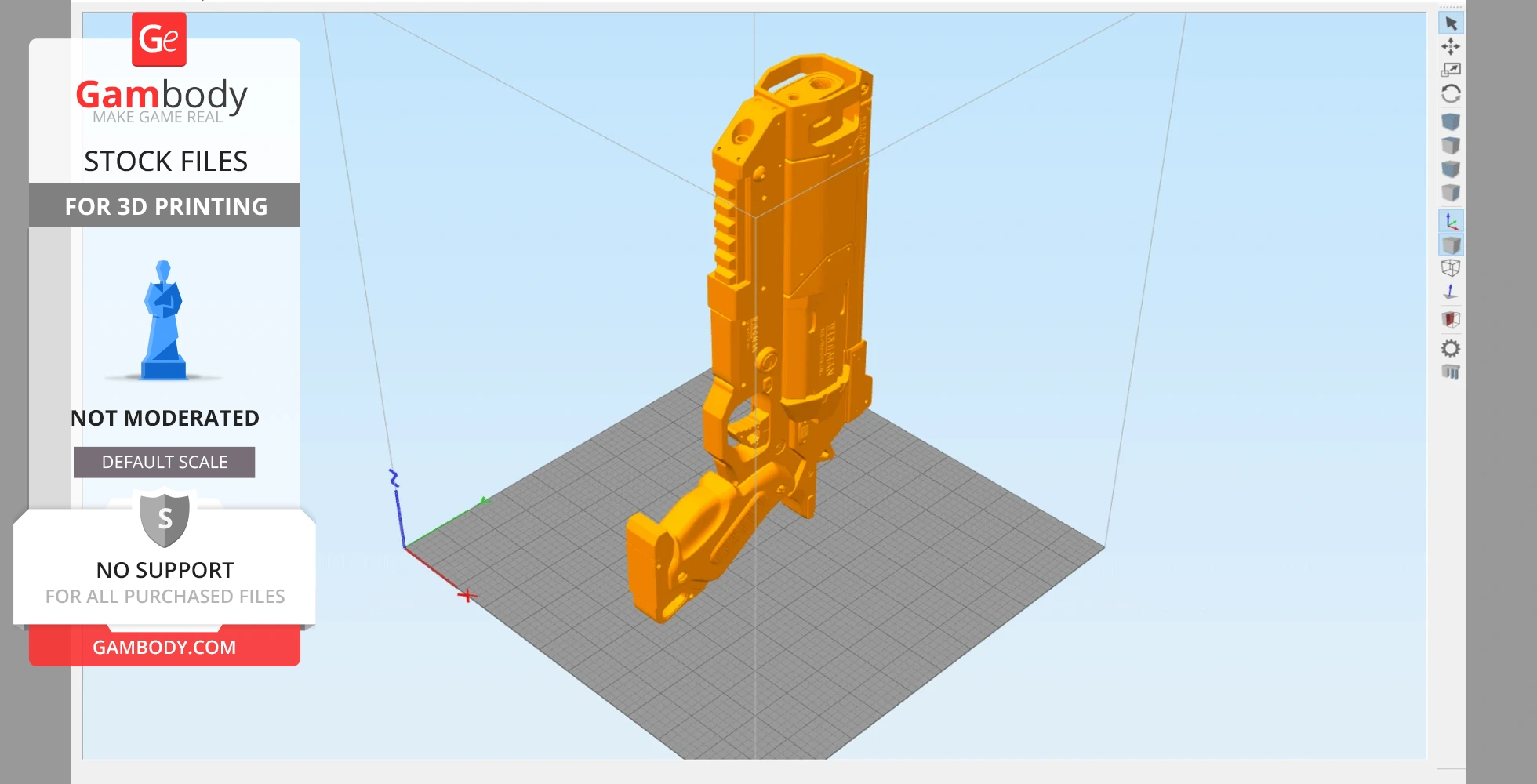

 This model is a life-sized gun prop, as seen in the TitanFall/Apex Legends videogame. The 3D model has a detailed and easy to assemble presentation, sliced in pieces of reasonable printing length. It is also of note that it will comply with the guidelines for prop-firearms in most cosplay events, as it cannot be modified to fire.

The size of the prop is: 45.52mm x 183.4mm x 327.08mm

Generic

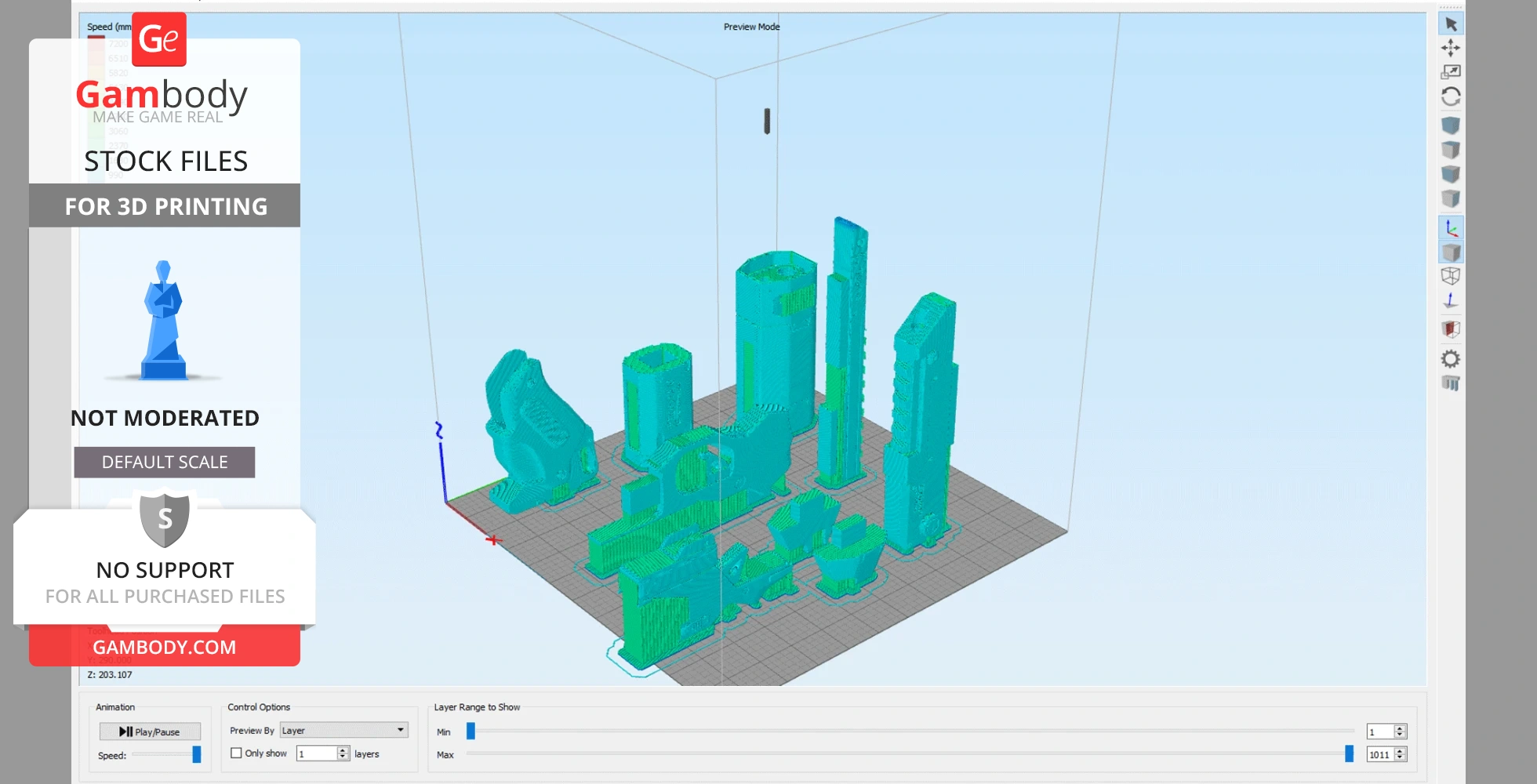

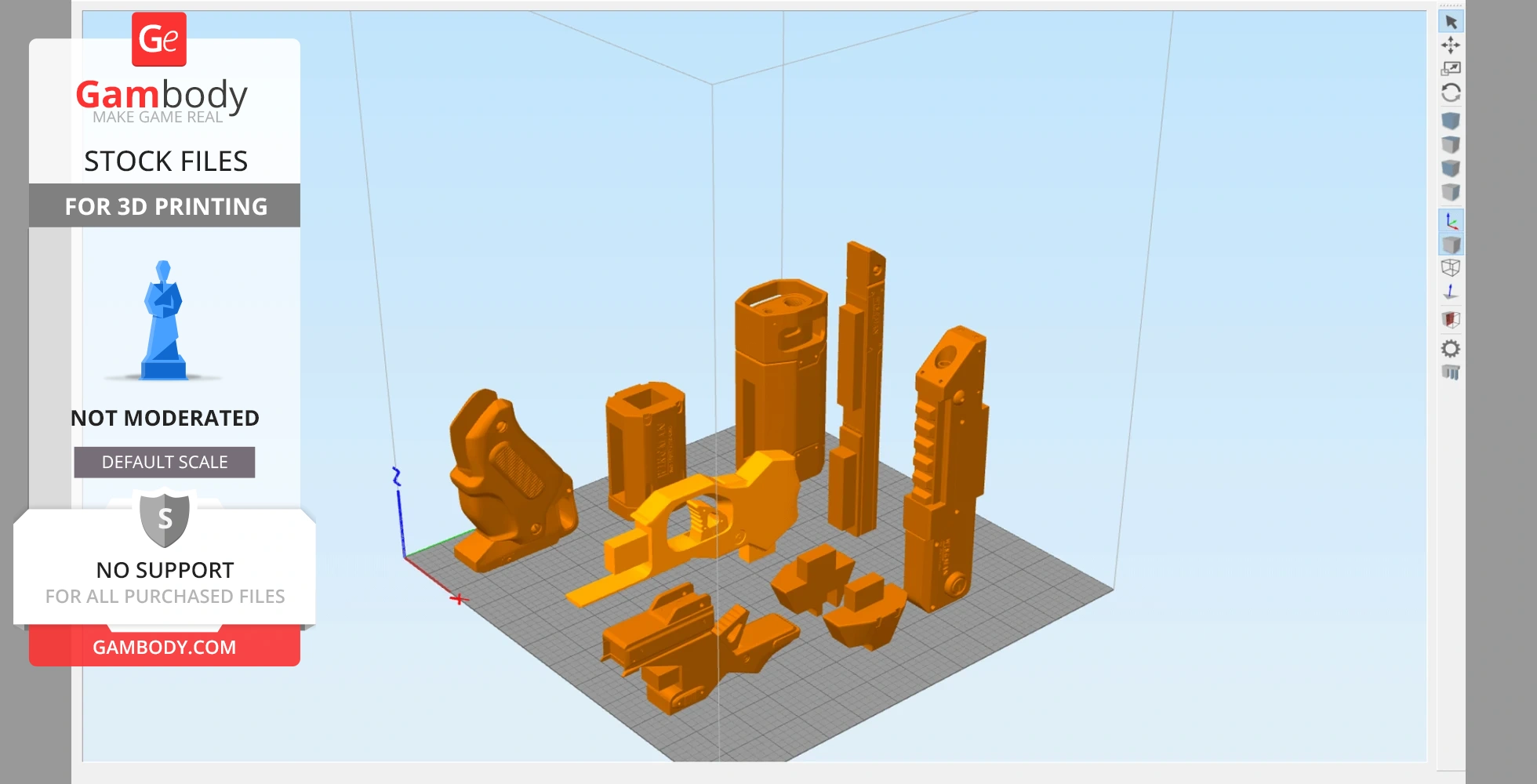

Simplify3D printing recommendations:
This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.98
Extrusion Width: Manual : 0.40 mm

Retraction Distance: 4.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.00 mm
Retraction Speed: 4200.0 mm/min

Wipe Distance: 4.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 2
Bottom Solid Layers: 3
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 100%
First Layer Width: 100%
First Layer Speed: 50%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 2

Use/Raft: Check
Raft Top Layers: 3
Raft Base Layers: 2
Raft Offset from Part: 3.00 mm
Separation Distance: 0.14 mm
Raft Top Infill: 100%
Above Raft Speed: 30%

Infill
Internal Fill Pattern: Rectilinear
External Fill Patern: Rectilinear
Interior Fill Percentage: 15%
Outline Overlap: 20%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

Internal Infill Angle Offsets: 45/-45 deg
External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 30%
Extra Inflation Distance: 0.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 3.50 mm
Max Overhang Angle: 65 deg

Horizontal Offset From Part: 0.30 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 0 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 2400.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 7200.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 50.0 sq m
