Anycubic Mono 4K 3D Printer + Sylvanas + Gul'dan

(1)
cm: 0 w x 0 d x 0 h
in: 0 w x 0 d x 0 h

Source Files

|

Description

|

Printing Details

This bundle consists of Anycubic Mono 4K Resin 3D PrinterSylvanas 3D Printing Figurine, and Gul'dan 3D Printing Figurine. The 3D printing models come in the form of digital files in StereoLithography (.STL) format that is optimized for DLP/SLA 3D printing.

WHAT WILL YOU GET AFTER PURCHASE?

- High-resolution Mono 4K Resin 3D Printer by Anycubic

- 2 versions of Sylvanas STL files - DLP/SLA and DLP/SLA Pre-supported
DLP/SLA version - files are available for download immediately after purchase
DLP/SLA Pre-supported version - files are coming soon as Gambody team tests them on the Anycubic Mono 4K printer

- 2 versions of Gul'dan STL files - DLP/SLA and DLP/SLA Pre-supported
DLP/SLA version - files are available for download immediately after purchase
DLP/SLA Pre-supported version - files are coming soon as Gambody team tests them on the Anycubic Mono 4K printer

- Printing settings that we provide as a recommendation for Anycubic Mono 4K Resin 3D Printer
- Full technical support from the Gambody Support Team

Detailed information about this bundle is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_head_SLA(repaired).stl
35.87 MiB 1 h 21 min 1 m 25 x 24 x 27 Download
2_body_SLA(repaired).stl
57.46 MiB 7 h 29 min 4 m 75 x 54 x 94 Download
3_arm_R_SLA(repaired).stl
51.12 MiB 40 min <1 m 18 x 33 x 27 Download
4_arm_L_SLA(repaired).stl
46.51 MiB 42 min <1 m 20 x 39 x 22 Download
5_legs_SLA(repaired).stl
55.62 MiB 6 h 30 min 4 m 40 x 55 x 89 Download
6_shoulder_strap_R_SLA(re paired).stl
34.54 MiB 36 min <1 m 18 x 19 x 20 Download
7_shoulder_strap_L_SLA(re paired).stl
34.04 MiB 36 min <1 m 19 x 20 x 19 Download
8_hand_L_with_bow_SLA(rep aired).stl
13.52 MiB 3 h 56 min 3 m 89 x 55 x 70 Download
9_arrow_SLA(repaired).stl
1.90 MiB 9 min <1 m 51 x 54 x 5 Download
10_quiver_with_arrow_SLA( repaired).stl
10.38 MiB 1 h 43 min 1 m 51 x 40 x 49 Download
11_quiver_without_arrow_S LA(repaired).stl
10.71 MiB 1 h 41 min 1 m 45 x 35 x 36 Download
12_flag_SLA(repaired).stl
27.22 MiB 4 h 37 min 3 m 68 x 49 x 116 Download
13_flagpole_SLA(repaired) .stl
18.96 MiB 32 min <1 m 110 x 130 x 6 Download
14_platform_SLA(repaired) .stl
56.20 MiB 8 h 37 min 4 m 89 x 96 x 39 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS BUNDLE

Provided by the terms of Gambody & Anycubic Collaboration, this bundle offer allows you to purchase a high-resolution Mono 4K Resin 3D Printer by Anycubic together with several high-quality, highly detailed 3D printing models by Gambody contributing 3D artists.

IMPORTANTAfter the purchase, your shipping information will be delivered to Anycubic 3D printer manufacturer, who will take care of the Mono 4K printer’s shipping and provide the tracking number. All updates will be provided by Gambody Team from support@gambody.com. The delivery of the Mono 4K 3D printer is expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

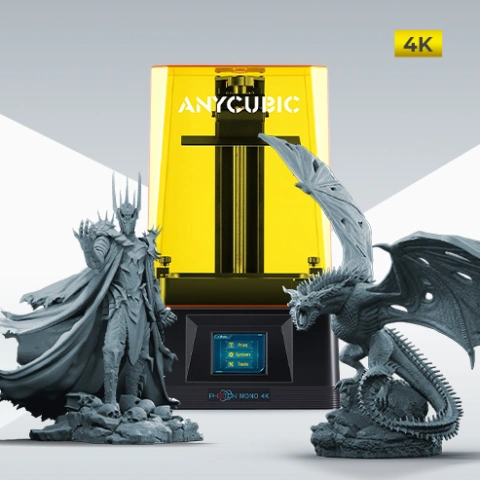

Anycubic Photon Mono 4K 3D printer is a high-resolution resin 3D printer by Anycubic that will bring your 3D printing projects to a new level. The 3D printer is equipped with an industry-leading 4K screen that will provide exceptional printing quality for your highly-detailed Gambody 3D prints! Convenient light power regulation, increased printing speed, world-renowned quality by Anycubic and friendly price will add to your creative freedom and enjoyable hobby pastime.

A detailed description of the 3D printer and main specs are provided on Anycubic's Official Website

ABOUT 3D PRINTING MODELS

Both Sylvanas and Gul'dan models for 3D Printing were carefully designed by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the DLP/SLA and DLP/SLA Pre-supported versions that are specifically adapted to be printed on resin 3D printers such as the Anycubic Photon Mono 4K. The process of adaptation presupposes that practical aspects of printing the model using the DLP/SLA/LCD technology are taken into account, and the model's scale and cutting are chosen to ensure an optimum result of printing.

3D PRINTING MODELS' SPECIFICATIONS

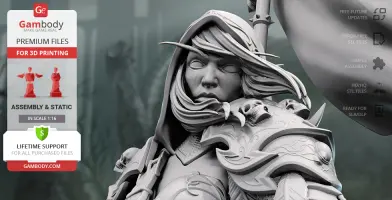

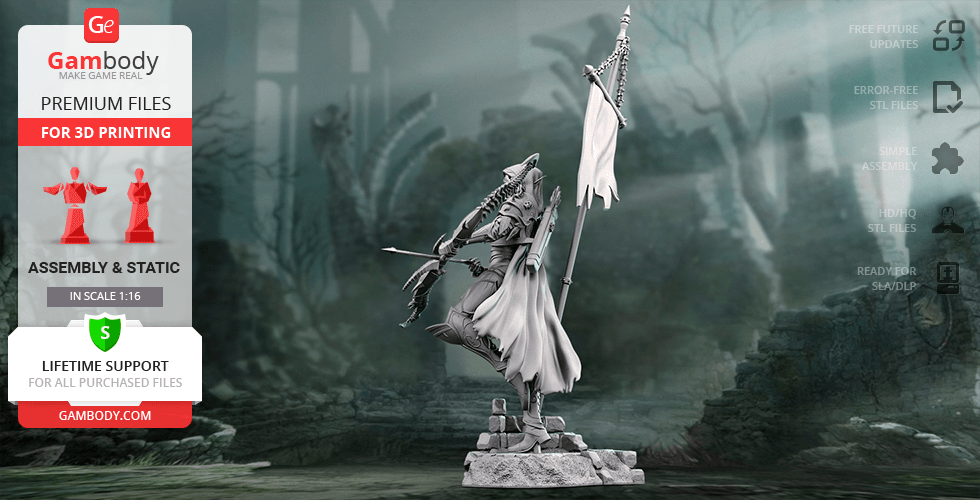

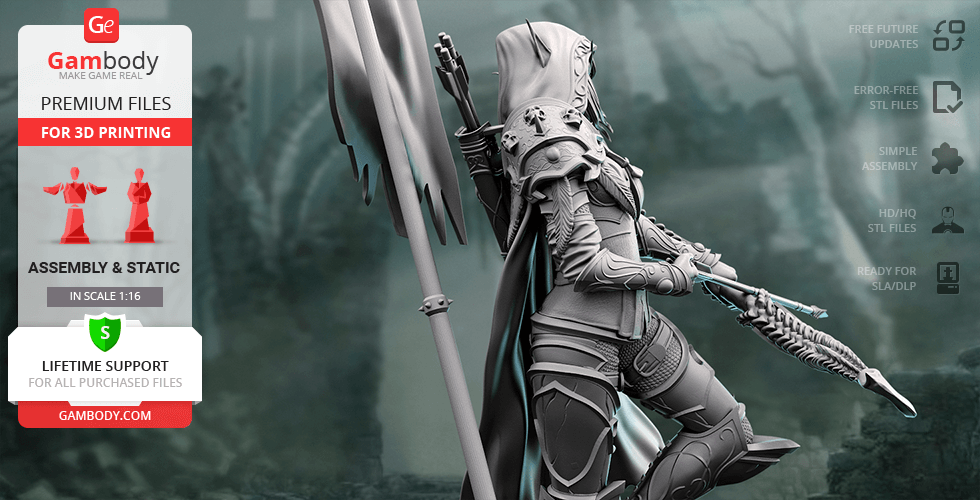

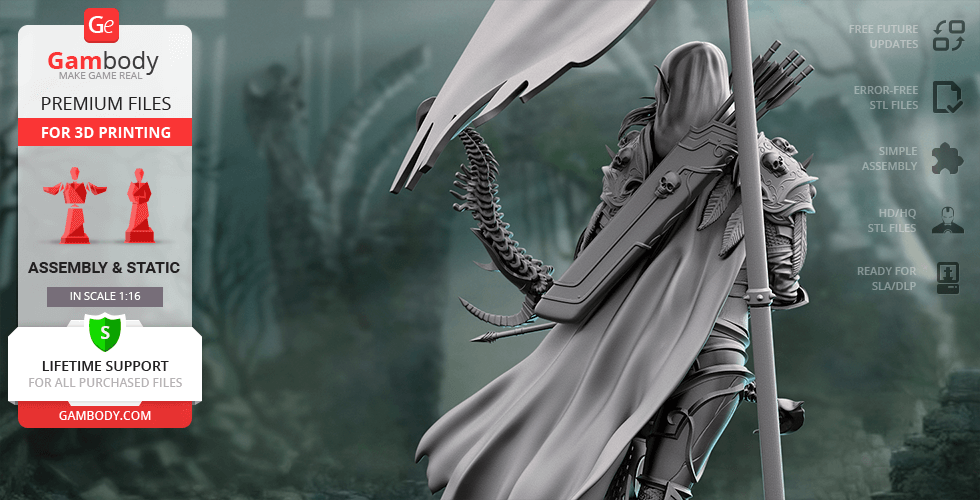

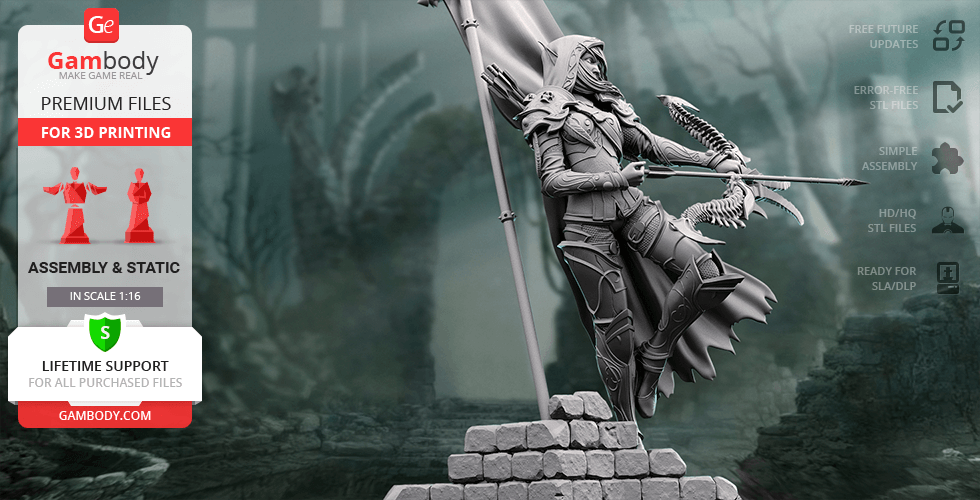

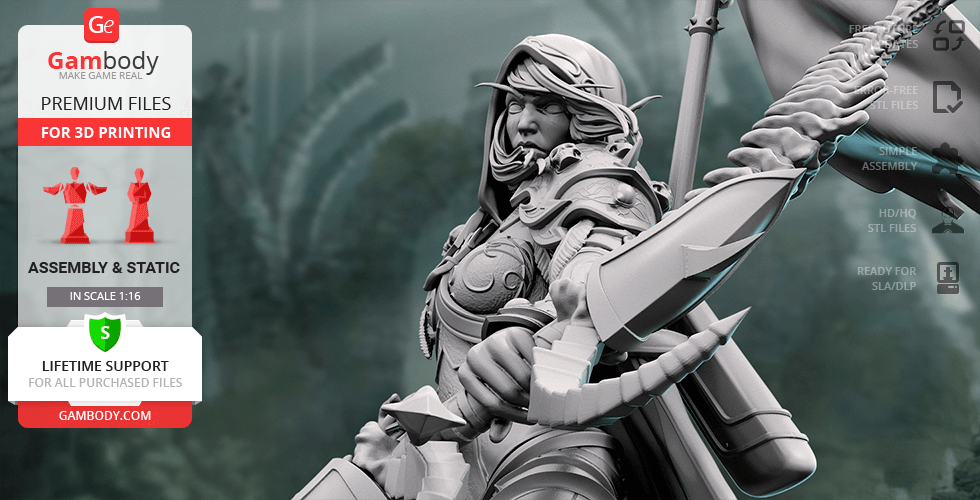

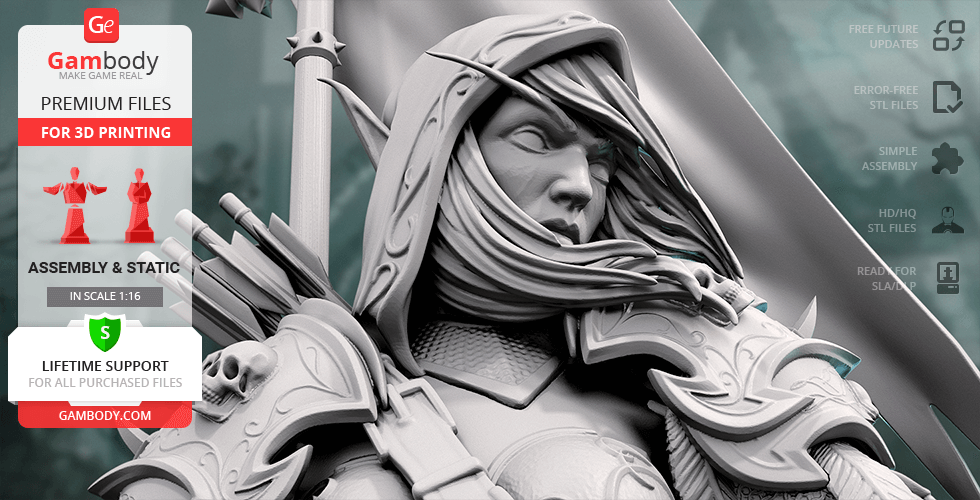

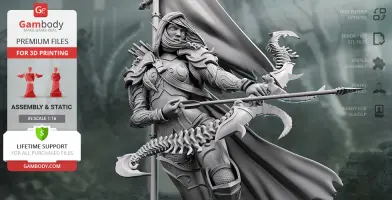

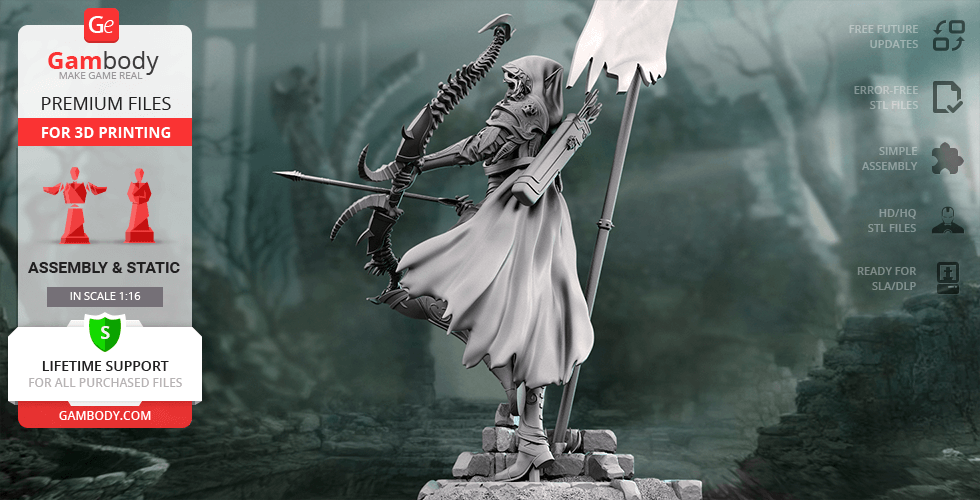

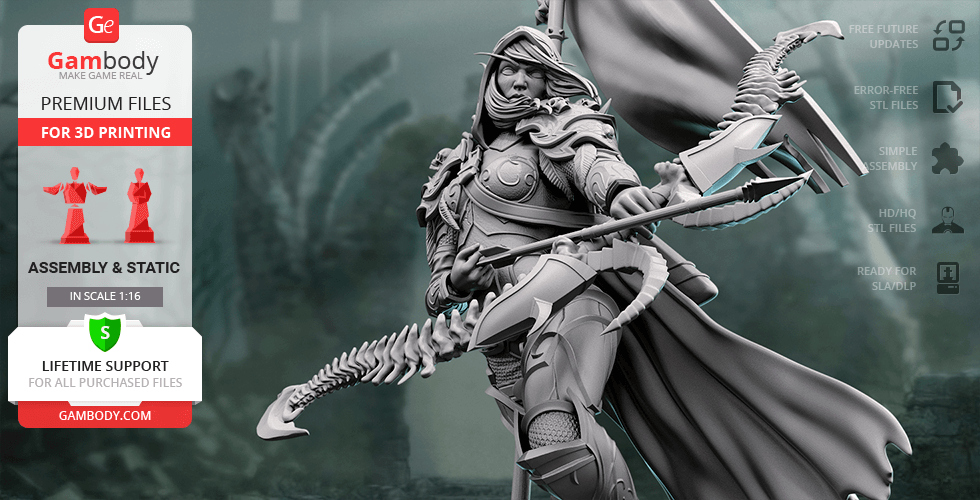

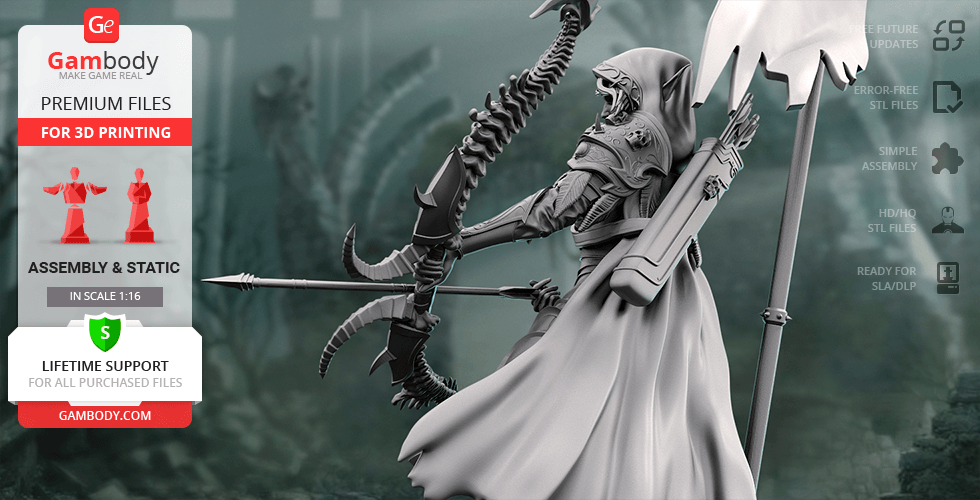

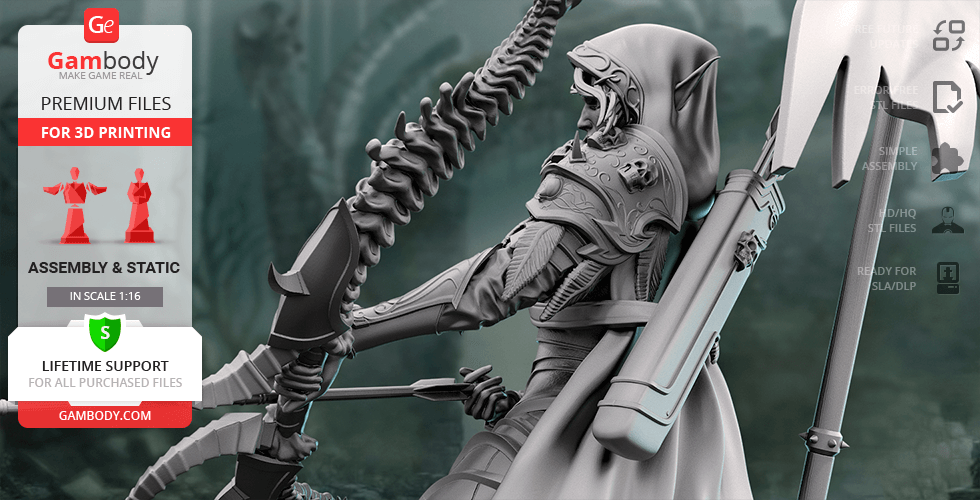

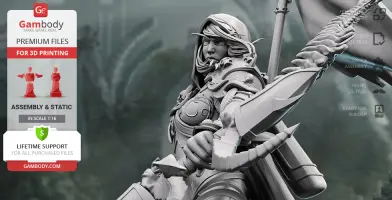

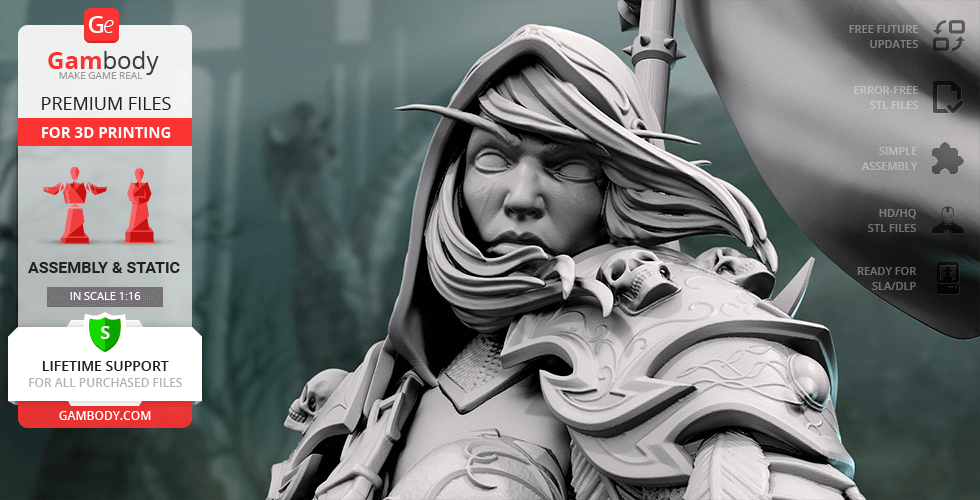

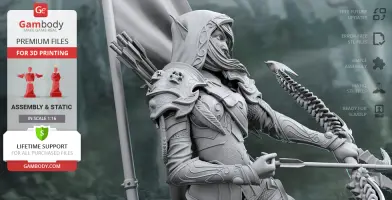

Sylvanas 3D Printing Figurine:
DLP/SLA 1.0 version features:

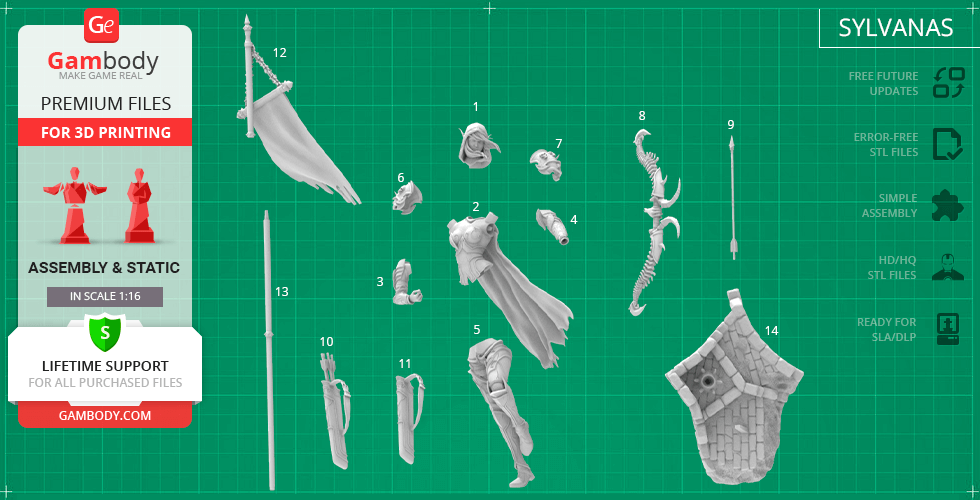

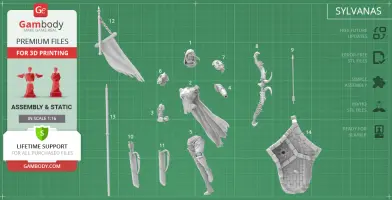

- Contains 14 parts;
- A printed model is 235 mm tall, 98 mm wide, 135 mm deep;

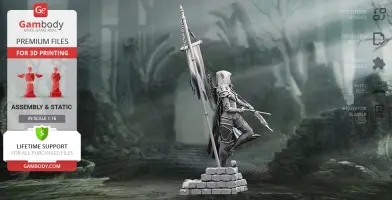

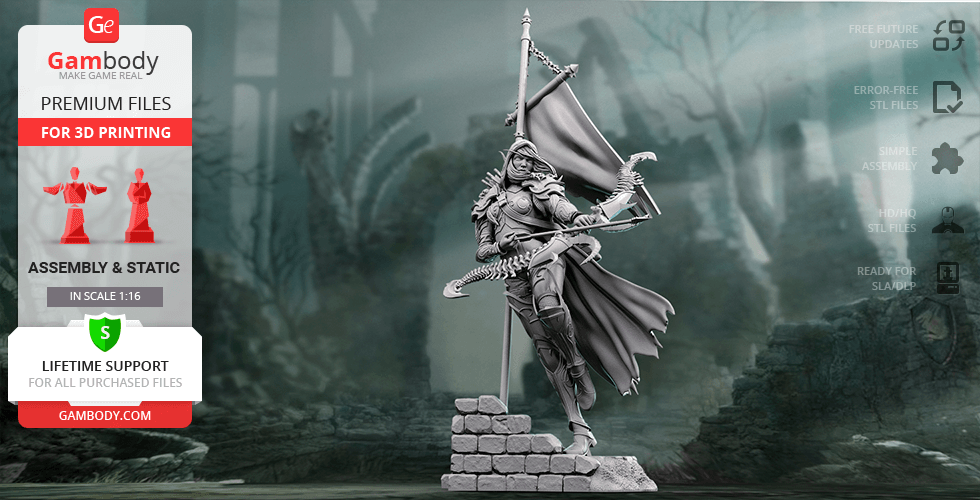

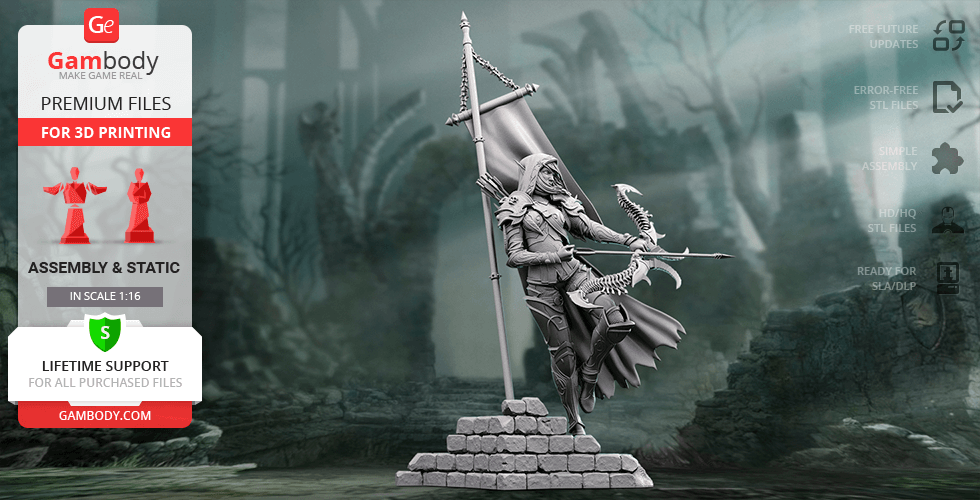

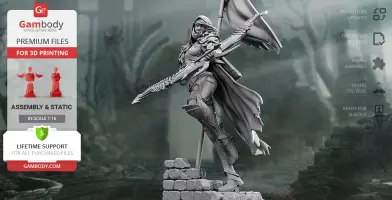

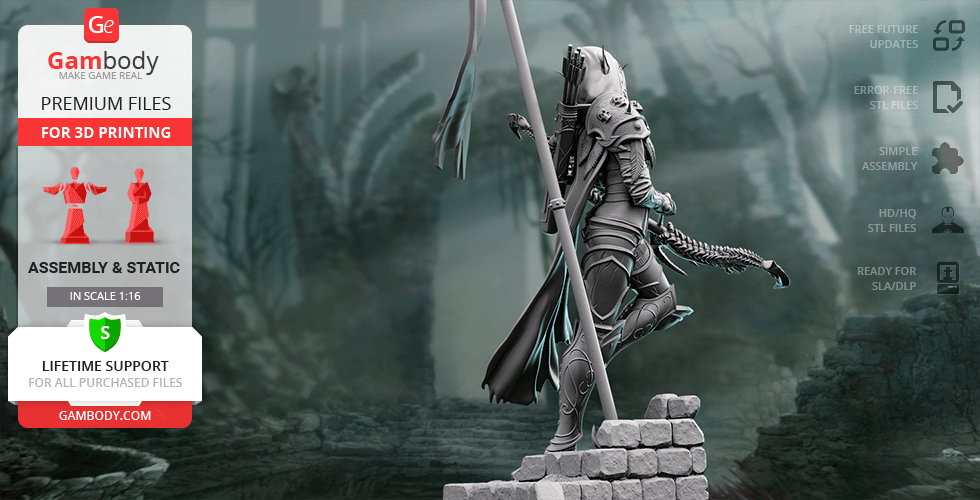

- Made with a platform to resemble a bricky wall with a huge banner mounted on it;
- Made with 2 versions of the quiver - with arrows and empty;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Pre-supported 1.0 version features:
- Files are coming soon as Gambody team tests them on the Anycubic Mono 4K printer;
- The STL files that this version will comprise are pre-supported, hollowed out, and have drain holes where needed.

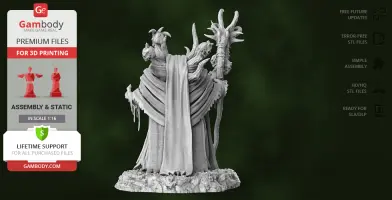

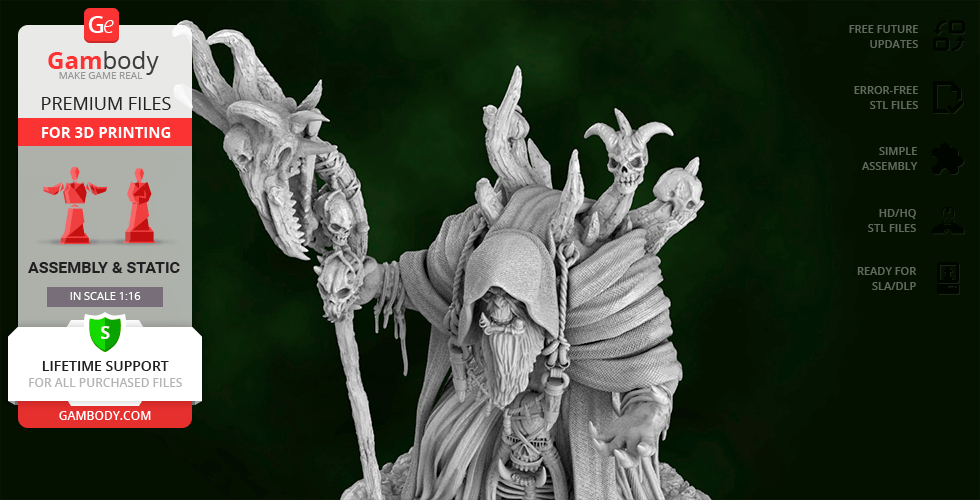

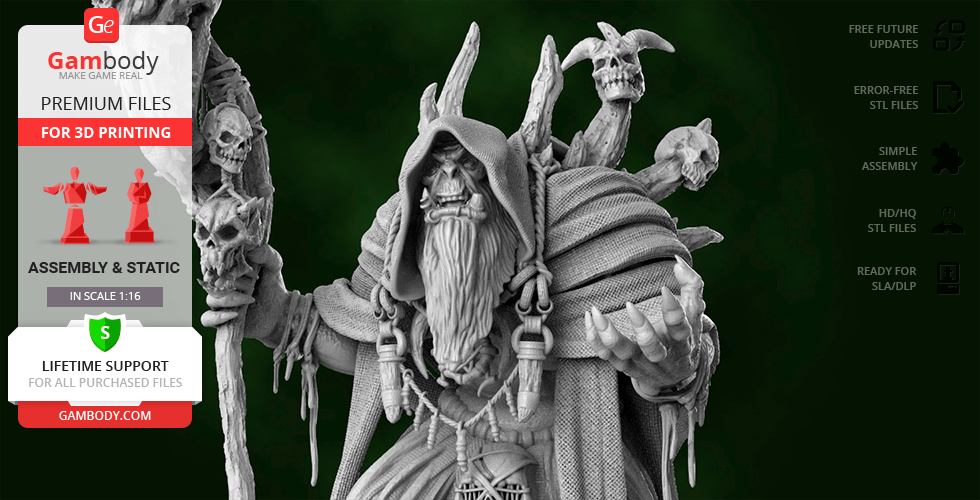

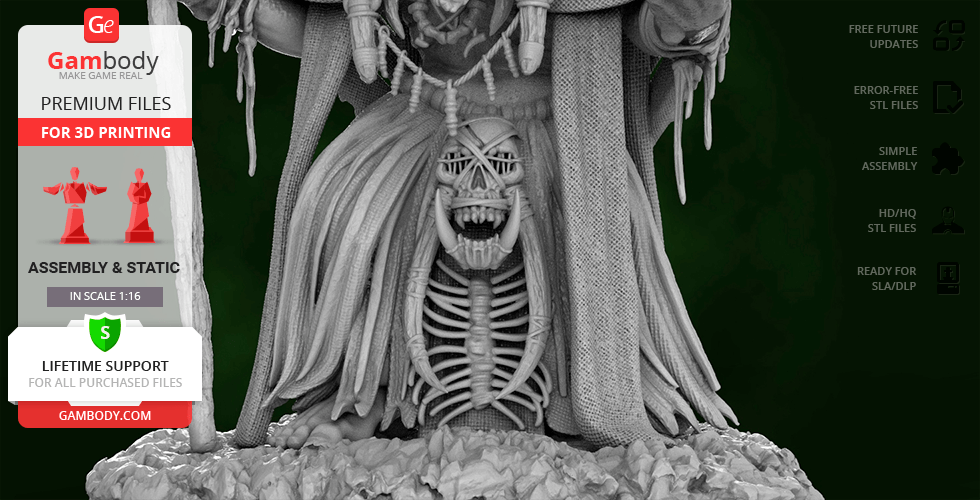

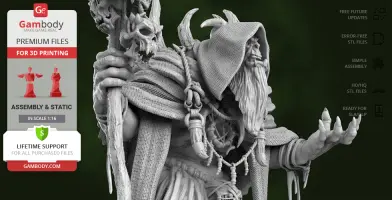

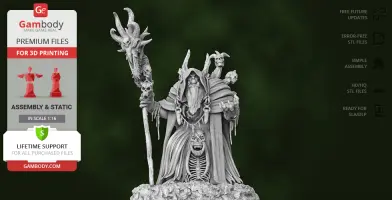

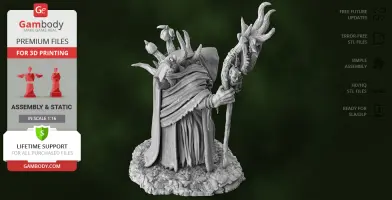

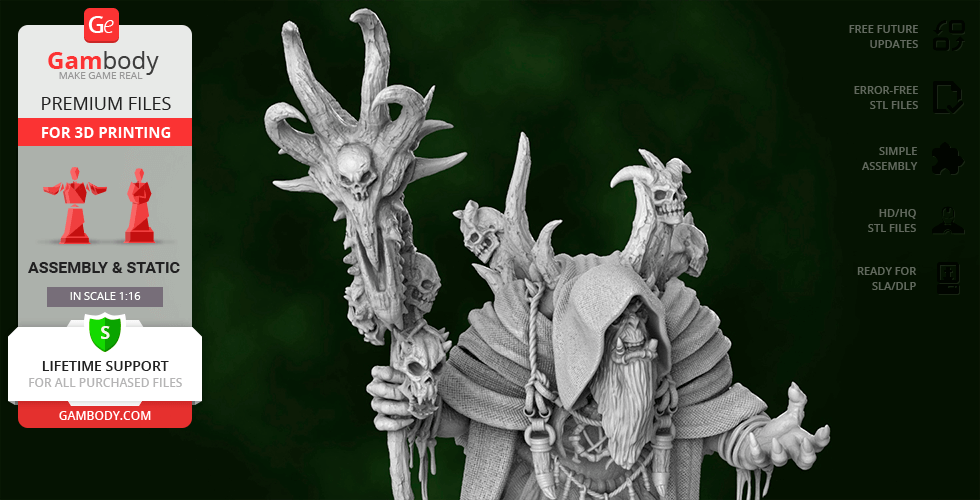

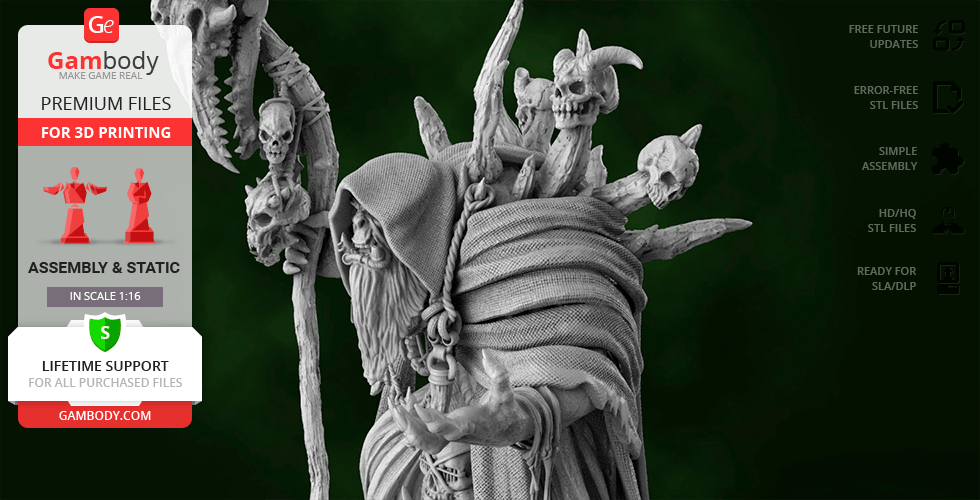

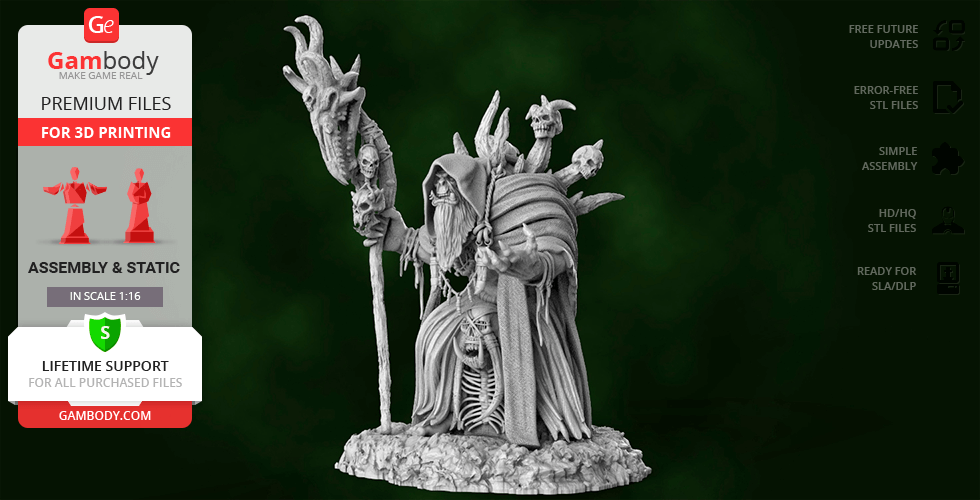

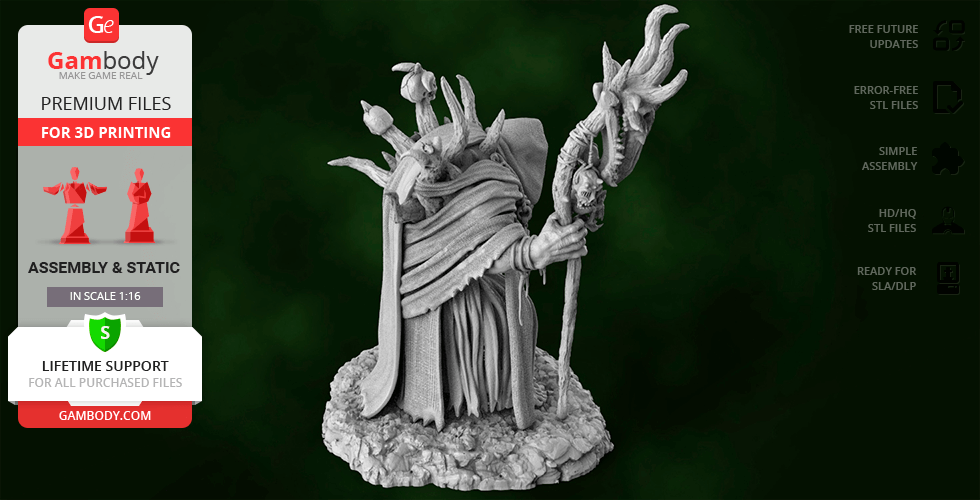

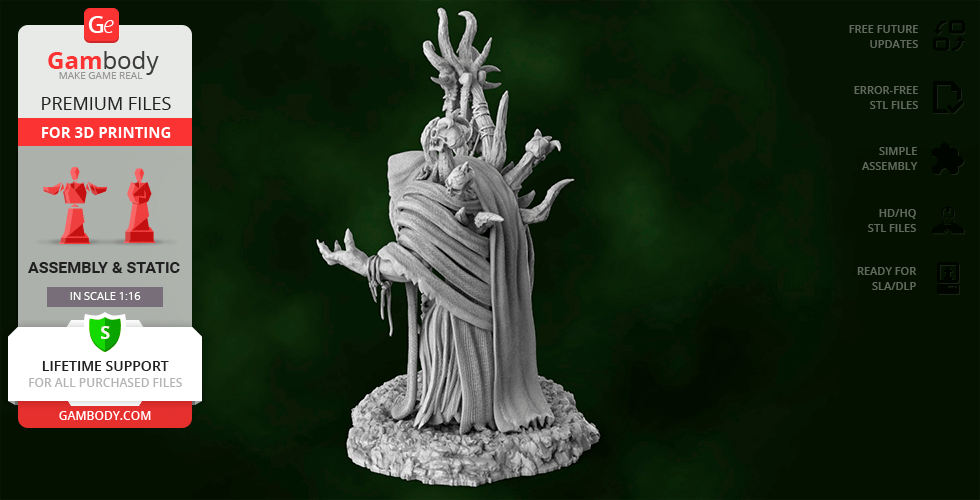

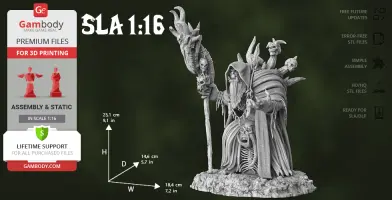

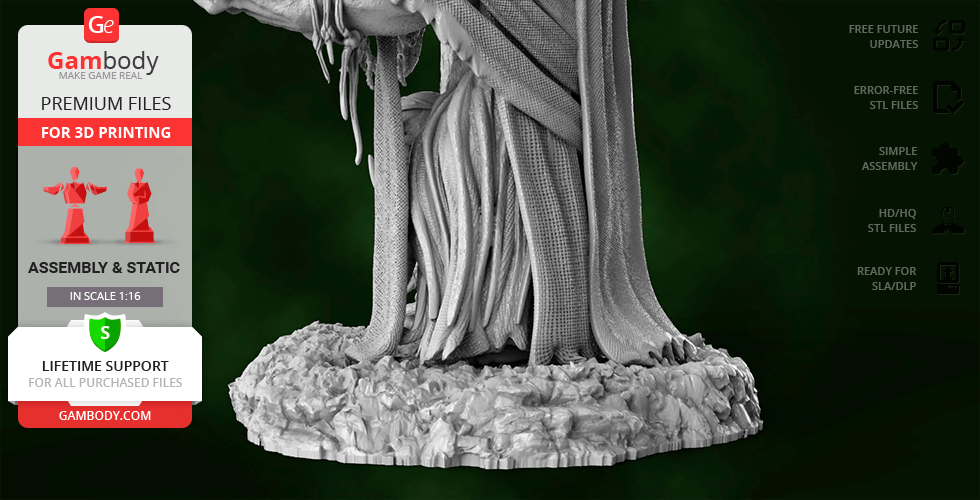

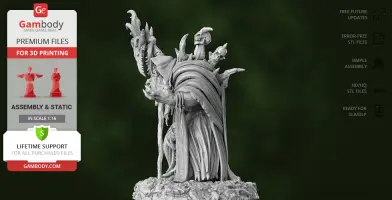

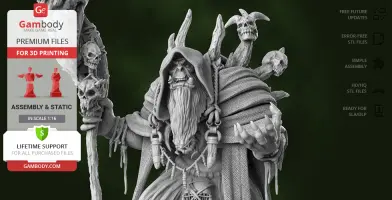

Gul'dan 3D Printing Figurine:
DLP/SLA 1.0 version features:

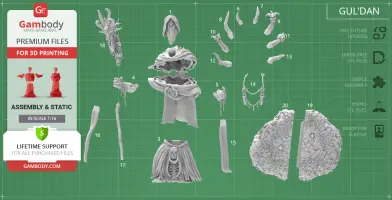

- Contains 11 parts;

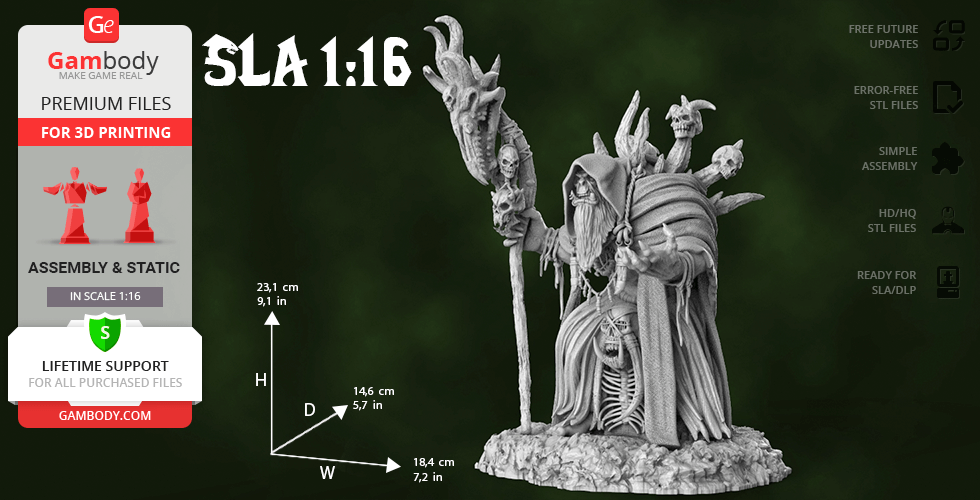

- A printed model is 231 mm tall, 184 mm wide, 146 mm deep​;

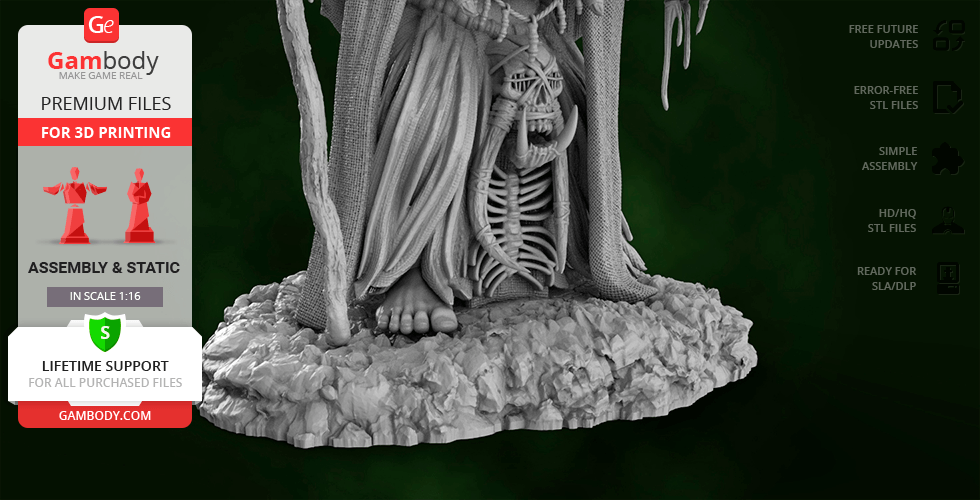

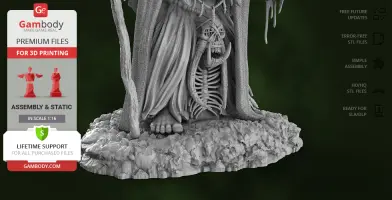

- Comes with a special platform styled as the cursed ground;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Pre-supported version:
- Files are coming soon as Gambody team tests them on the Anycubic Mono 4K printer;
- The STL files that this version will comprise are pre-supported, hollowed out, and have drain holes where needed.

To purchase the bundle comprising Anycubic Mono 4K Resin 3D PrinterSylvanas 3D Printing Figurine, and Gul'dan 3D Printing Figurine, click the green Buy button in the top-right corner of the model’s page.

Go to the pages of Sylvanas 3D Printing Figurine and Gul'dan 3D Printing Figurine to find more details and additional illustrative material!

Generic

Disclaimer: Printing settings for the Anycubic Mono 4K 3D printer should be compiled individually depending on the colour, type and brand of resin you are using.

Before getting down to the 3D printing of the intended project, make sure that your machine is set up in accordance with the manufacturer's instructions and properly levelled. Use test models to configure the perfect parameters for your 3D printer and resin.

When adjusting the printing settings for particular resin, pay close attention to the UV wavelength required for its curing. The higher the required wavelength is - the higher your printing parameters should be.

If you are using the official Photon Workshop slicer, we recommend starting off with the default recommended settings for the Anycubic Mono 4K 3D printer. For that, open the Photon Workshop application > click on the "Settings" button > choose Photon Mono 4K in the list of 3D printers. Try tweaking the printing parameters to improve your 3D printing results - lower and increase the settings by 20% and compare the test prints. Choose the best configuration and proceed to the 3D printing of your chosen model!

If you are using a different slicer, you may use the following list of custom parameters from the Photon Workshop slicer prepared by Gambody engineers as a guide for your printing settings:

Layer Thickness: 0.030 mm
Normal Exposure Time: 1.600 s
Off Time: 1.000 s
Bottom Exposure Time: 20.000 s
Bottom Layers: 3
Anti-alias: 2
Gray Level: 0
Image Blur: 2

Advanced settings
Bottom Layers Control Steps:
Z Lift Height [0]: 0.50 mm
Z Lift Step [0] Speed: 0.50 mm/s
Z Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mm
Z Lift Step [1] Speed: 0.50 mm/s
Z Retract Step [1] Speed: 0.50 mm/s

Transition Layer Count: 0

Normal Layer Control Steps:
Z Lift Height [0]: 0.50 mm
Z Lift Step [0] Speed: 0.50 mm/s
Z Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mm
Z Lift Step [1] Speed: 0.50 mm/s
Z Retract Step [1] Speed: 0.50 mm/s

Note: If you would like to speed up the 3D printing process without losing the printing quality, you can increase the Layer Thickness to 0.05 mm. In that event, the Exposure Time for all layers should be increased accordingly.
