Chieftain Durotan Bust 3D Model | Static

(2)
cm: 18.3 w x 13 d x 19.3 h
in: 7.205 w x 5.118 d x 7.598 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

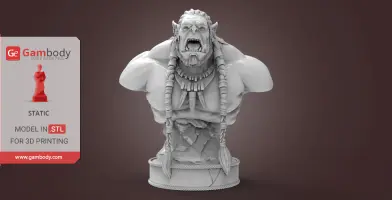

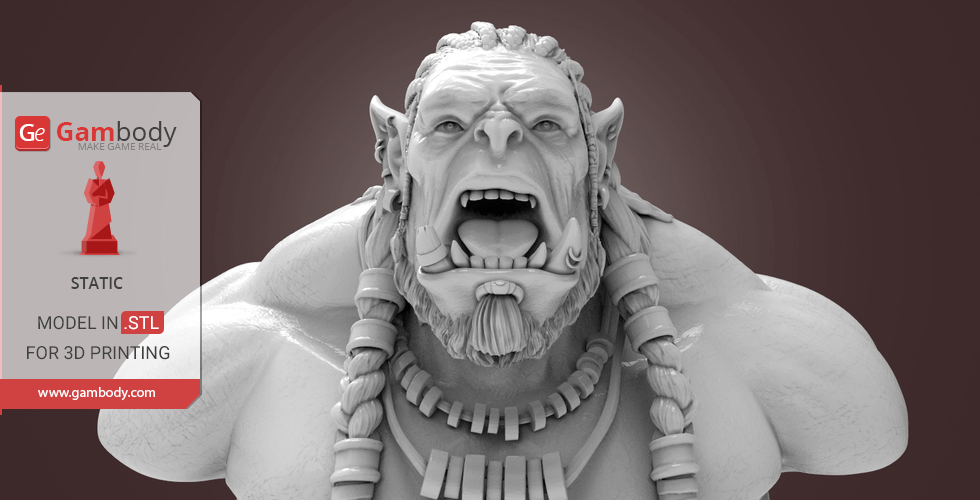

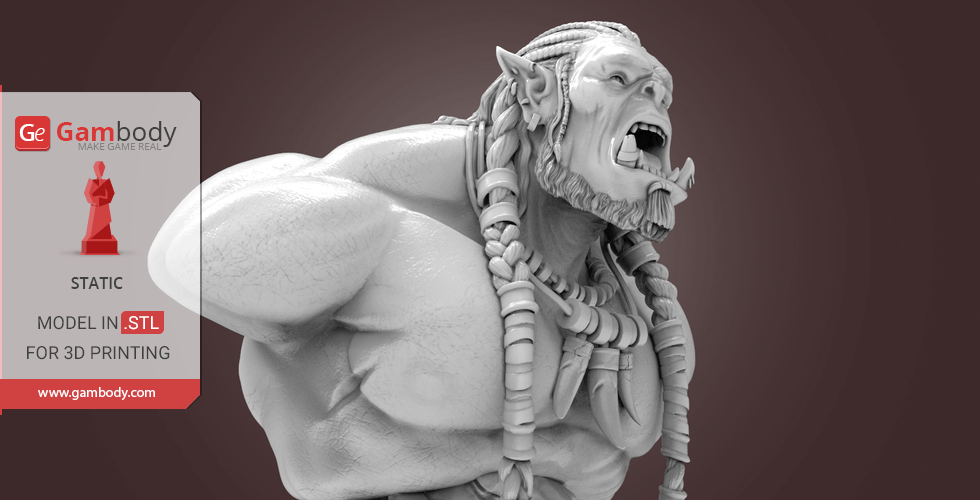

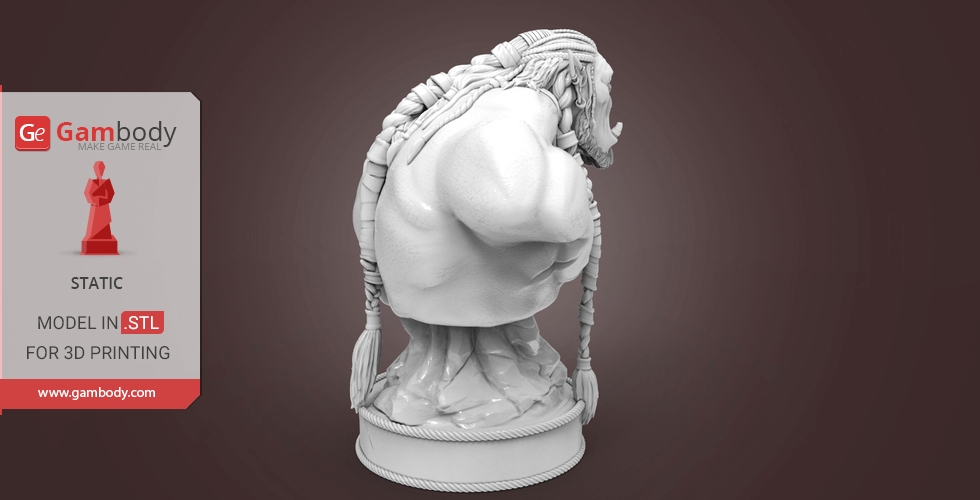

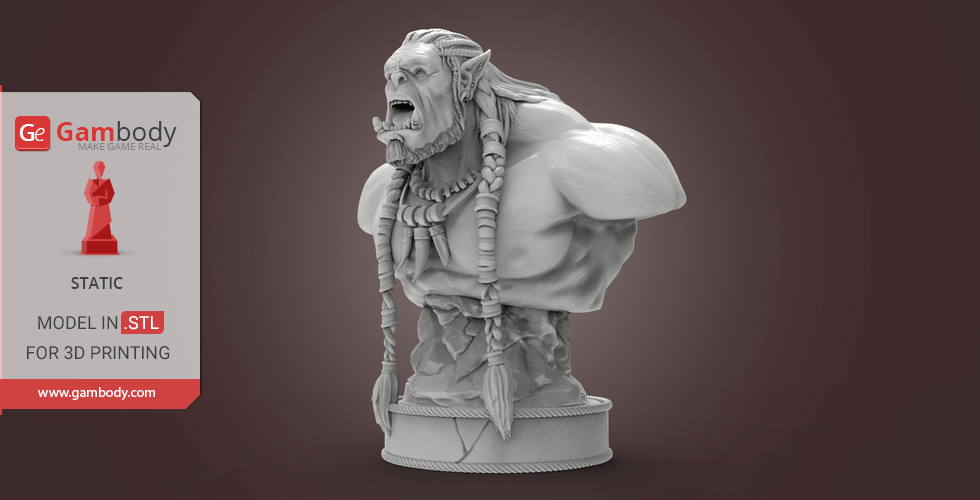

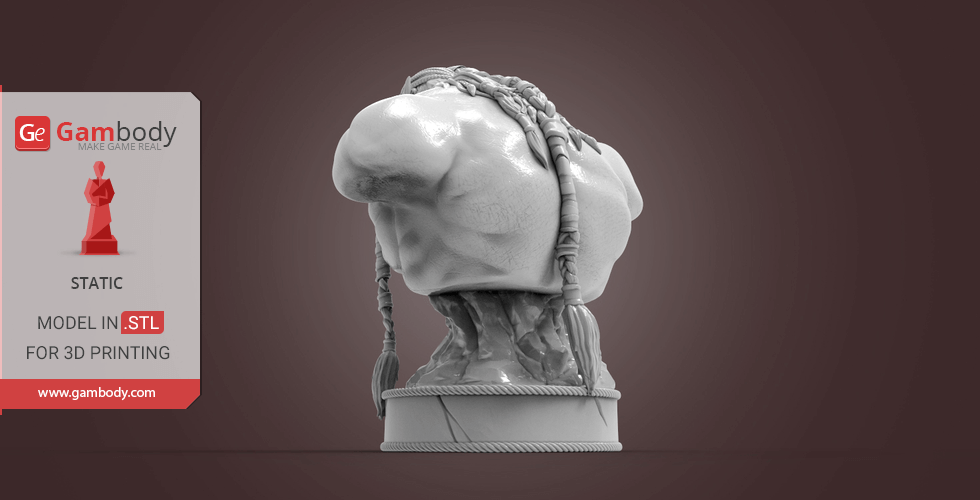

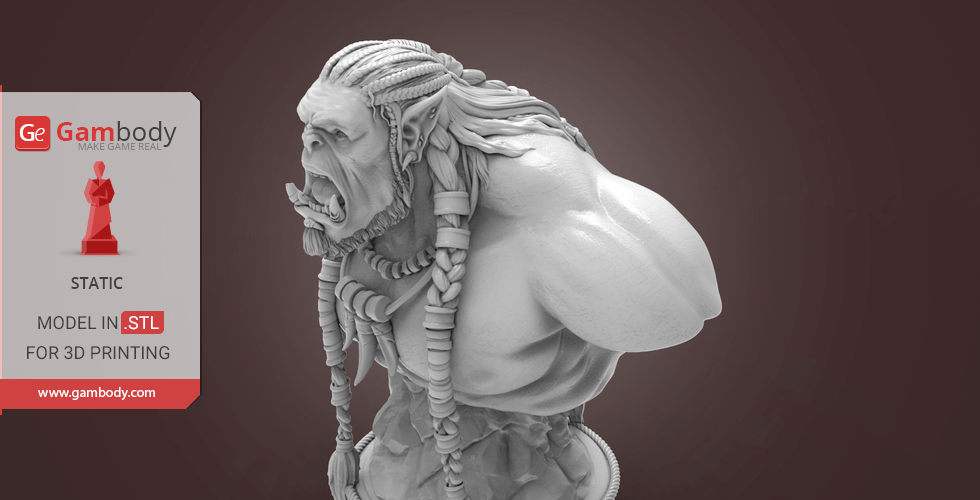

Version 1 and Version 2 are the files for Warcraft Durotan Bust 3D Model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

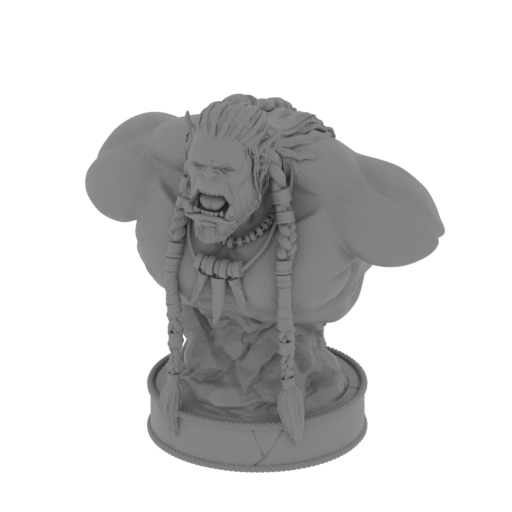

Durotan_bust_fdm_upd_(rep aired).stl
42.01 MiB 129 h 41 min 84 m 184 x 131 x 193 Download

HISTORY OF THE DUROTAN

Durotan is the son of Garad and Geyah, the leader of the Northern Wolf clan. He became great leader who opposed the alliance with the demons, on which Gul'dan insisted. He was exiled to Azeroth along with his clan, where he found a new home in the Alterac Valley. Draka his wife gave birth to his son and gives him a name Go'el, who many years later became the greatest leader of the Horde named Thrall. Unlike his brothers Ga'nar and Fenris, he was the only one who most respected the family and the traditions of his people. After the Fenris disappear, Garad made Durotan the chieftain of the North Wolf clan instead of the quick-tempered Ga'nar. Durotan and his wife were killed by the hands of Gul'dan's spies. He didn’t succumb to the temptation to use Demon’s Blood and was ready to fight for the purity of the orcs' blood. We continue to honor the memory of him and today we present his model in the form of a bust. A gorgeous model made with great detail. His belligerent face expresses the strength and disobedience that is imprinted at moment and standing on a platform that is made in the form of a stone.

ABOUT THIS 3D MODEL

The model is saved in STL files, a format supported by most 3D printers.

This model contain only 1 part and executed in the form of the solid figure therefore, it is available for all types of printers FFF/FDM, SLS/SLA. You can reduce its size and will not lose its quality of print. SLS/SLA version made x3 smaller for economy your material and you can use this figure for table board game.

All .STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 2.7.0. software.

There are 1 part for FDM version and 1 part for SLS/SLA.

Scale:
His tall in life is 2300 mm. Bust made as 1/3 in tall of character. 1/3 size made in scale 1/6 in FDM version and 1/18 in SLS/SLA version.

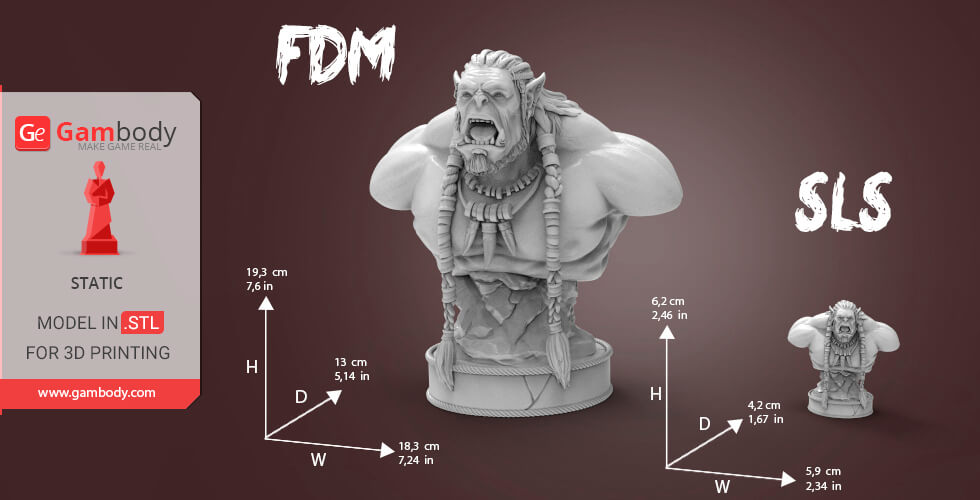

FDM version dimension:

- After being printed will stand 193 mm(7.59 in.) tall, 183 mm(7.2 in.) wide, 130 mm(5.11 in.) deep;
SLS/SLA version dimension:

- After being printed will stand 62 mm(2.44 in) tall, 59 mm(2.32 in.) wide, 42 mm(1.65 in.) deep;

WHAT WILL YOU GET AFTER PURCHASE?

- .STL files of Durotan Bust for printing which consist of 2 parts.

- Made in scale 1/6 and 1/18 of his real size.
- Available for all types of printers FFF/FDM and SLS/SLA.

- Detailed settings that we provide for Cura 2.7.0 for the best print.

- High-poly detailed model of Durotan Bust in two versions.

- Full technical support from the Gambody Support Team.

Watch the video about WoW Durotan Bust for 3D Printing at Gambody YouTube channel

You can get WoW Durotan 3D Printing Bust right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also you may like Warcraft Durotan 3D Model.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

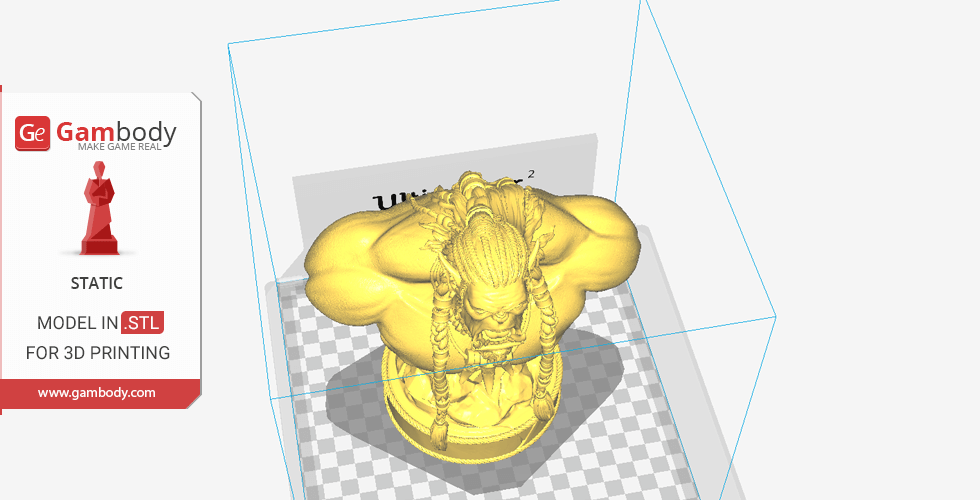

This model was tested in Cura 2.7.0. and printed on an Ultimaker 2 in PLA material.

Note: This model does not contain connectors and can be increased or decreased in your slicing program at will.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.27 mm
Line Width: 0.35 mm
Wall Line Width: 0.35 mm
   Outer Wall Line Width: 0.35 mm
   Inner Wall(s) Line Width: 0.35 mm
   Top/Bottom Line Width: 0.35 mm
   Infill Line Width: 0.35 mm
   Skirt/Brim Line Width: 0.35 mm
   Support Line Width: 0.35 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 1.05 mm
Wall Line Count: 3
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0.025 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check

Infill
Infill Density: 20%
Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.035 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.0175 mm
Infill Wipe Distance: 0.0875 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.7 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 36 mm/s
      Outer Wall Speed: 26 mm/s
      Inner Wall Speed: 36 mm/s
    Top/Bottom Speed 20 mm/s
    Support Speed: 26 mm/s
      Support Infill Speed: 26 mm/s
Travel Speed: 90 mm/s
Initial Layer Speed: 27 mm/s

    Initial Layer Print Speed: 27 mm/s
    Initial Layer Travel Speed: 54 mm/s
Skirt/Brim Speed: 27 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2.3333 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 23
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
